Drawer Box Interactive

Dovetail Drawer Boxes 2023

To Our Valued Customer,

Cal Door & Drawer takes pride in delivering a quality product on time. In order to ensure this, we have automated all of our notifications.

ORDER CONFIRMATIONS: Order confirmations will be emailed to you. Once your order has been placed order confirmations will be emailed the next business day. We have the ability to store as many email addresses as you need.

You have until 12:00PM of that business day to advise us of any errors on our part due to data entry.

Cal Door & Drawer Policy states that it is your responsibility to review ALL INFORMATION on your order confirmations. Cal Door & Drawer will not be held responsible for any incorrect information.

Once order(s) are in production, any cancellation or changes on your part will be subject to charges based on materials already cut.

ANY MISC or rush order shipping in 5 days or less; no changes can be made unless there was an entry error!

SHIPPING NOTIFICATIONS: Shipping notifications will be emailed the day your order ships. Information included on this is your job #, job name, truck route or tracking information along with carrier.

Due to the short lead times, all order(s) placed are processed for manufacturing the same day. The following day all orders processed are in production. There are hundreds of orders which leads to thousands of line items entered daily.

Please be sure to review your order confirmations when you receive them. By doing this, it will save time and cost for any potential errors.

Thank you

Edward J. Rossi

Credit Terms & Delivery Information Ordering Information & Guidelines Dovetail Drawer Box Pricing & Specifications Dovetail Drawer Box Pricing & Specifications Dovetail Drawer Box Options: Scooped, Angled & Lipped Dovetail Drawer Box Options: Corner, U-Shape & L-Shape Dovetail Drawer Box Options: Drawer Dividers Vertical & Lateral Dovetail Drawer Box Options: File Notching Blum Blum Movento Salice GRASS

4 5 6 7 8 9 10 11 12 13 14 15

HETTICH Specialty Drawer Box Options Specialty Drawer Box Options Specialty Drawer Box Options Specialty Drawer Box Options Waste Managemant Drawer Boxes Waste Management Drawer Boxes Waste Management Drawer Boxes Dovetail Drawer Box Order Form Roll Holder Drawer Box Order Form File Notching Drawer Box Order Form Angled & Half-Angled Drawer Box Order Form Scalloped Drawer Box Order Form Corner Drawer Box Order Form U-Shaped Drawer Box Order Form L-Shaped Drawer Box (right) Order Form L-Shaped Drawer Box (left) Order Form Lateral Divider Drawer Box Order Form Vertical Drawer Box Order Form Specialty Divider Drawer Box Order Form Waste Management Drawer Box Order Form Scalloped Waste Management Drawer Box Order Form Dovetail Drawer Box in Box Order Form

16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38

Table of Contetnts

Table of Contents

3

Credit Terms & Delivery Information Text

Credit Terms: A complete and current credit application must be submitted before any terms of payment will be authorized.

Without a current signed credit application, sales terms will be CIA (Cash In Advance).

Account terms and credit limit will be established based on credit history, bank information and sales volume.

Open account terms can take up to two weeks to process. All orders for new customers and inactive accounts will require pre-payment until credit terms have been established. If orders exceed the established credit limit, a deposit may be required. A current, signed resale card must be on file or sales tax will be charged.

Cal Door & Drawer will only accept check payments by fax or email (not regular mail).

CHECKWRITER is a program that allows you to fax or email your check for payment, rather than mailing it.

For more information please contact our credit department.

Credit Card Transactions: We currently accept Visa, Master Card, American Express and Discover.

Credit card transactions require a completed credit card authorization form.

This form requires copies of your drivers license and the front and back of your credit card for verification.

This is required for your protection as well as ours. We do not share credit card information with anyone.

Third Party Credit Card Transactions: All required information for standard credit card transactions apply.

An additional authorization form will be required verifying total cost of job prior to production

CHECKWRITER and Credit Card payments must be received prior to doors being shipped.

Delivery Policy: Handling: Handling charge $1.00 per piece.

This charge applies to all orders, whether it is will-call, delivery by our truck, Common Carrier, Fed Ex, On Trac or UPS.

Will-Call: Will-call orders are to be picked up at our manufacturing facility @ 105 Cochrane Circle, Morgan Hill, CA 95037.

Will-call orders are to be picked up at our manufacturing facility @ 1800 Abbott Street, Salinas, CA 93901.

Will-call orders are to be picked up from 6:30 am – 2:30 pm, Monday thru Friday.

Orders that were originally scheduled for will-call cannot be changed to delivery on our truck without authorization.

Our Truck: All shipments delivered on our truck in California will be charged a $100.00 delivery fee.

Arizona and Nevada shipments delivered on our truck will be charge a $150.00 delivery fee.

Our trucks deliver to major metropolitan areas. Shipments are determined by volume of orders in each area.

Re-Delivery Fee – Our Truck: Re-deliveries will be charged a second delivery fee. This fee will only be charged if the original delivery was unsuccessful between the hours of 7:00 am – 5:00 pm on your delivery date.

Fed Ex, On Trac & UPS: Orders of 12 pieces or less, or $300.00 or less, are subject to shipment via Fed Ex, On Trac or UPS. Customer is responsible for all packaging materials and Fed Ex, On Trac or UPS charges.

Common Carrier: Orders exceeding 12 pieces are subject to being shipped via Common Carrier and assessed a pallet fee.

Customer is responsible for all packaging materials and freight charges.

Fed Ex, On Trac, UPS & Common Carrier Claims:

4

Any damage to outer packaging must be noted on the bill of lading and brought to the attention of the carrier.

Take pictures of all damaged exterior packages and keep all packaging material.

Photos of damaged product and packaging are required to file a claim.

Contact your customer service representative immediately and submit all information in order to file a claim.

Do not throw away packaging until claim has been resolved.

Sending us a photo only of a damaged door is insufficient information.

We cannot file a claim unless you have followed the guidelines listed above.

Orders must be submitted as FINISHED SIZE for standard 15mil thickness.

For Cabinet Software programs utilizing a deduction for 1/2” material, we will adjust your drawer box by adding 1/8” to your width. This will accommodate our 15mil standard thickness. You must check the appropriate box on our order form.

An order confirmation will be emailed to you the next business day.

Orders may be faxed, emailed, or can be placed online 24 hours a day.

We request all orders to be placed on a Cal Door & Drawer Order Form.

We can accept your computer generated cut lists as long as you complete all the details of the order form except for sizes.

When sending in computer cut lists, it is the customers responsibility to highlight and separate all different materials, drawer styles, and details.

Special instructions should be clearly communicated in writing at the time the order is placed.

Standard lead time is 5-12 working days.

No changes can be made once an order has been placed and confirmed.

You will always receive an order confirmation and delivery date.

If you do not receive an order confirmation within 24 hours, please notify your Customer Service Representative.

Do not resend your order without speaking to your Customer Service Representative first, as this can and will lead to duplicate orders.

If you are requested by your Customer Service Representative to resend an order, please indicate on the top of the order or in special instructions that this is a RESENT ORDER – DO NOT DUPLICATE.

Ordering Information & Guidelines Text

Ordering Procedures:

Faxed in Orders: Please fax orders in only once to avoid duplicate orders.

If you receive a fax transmission error, contact your Customer Service Representative to verify if order was received.

If you are requested by your Customer Service Representative to resent an order, please indicate on the top of the order or in special instructions that this is a RESENT ORDER – DO NOT DUPLICATE. Phone in Orders: We take and read back all sizes “width x depth x height” (WxDxH).

When your order is read back, you are responsible for verifying that the sizes and specifications are correct.

Any mistake will be the customers responsibility.

We strongly suggest orders be placed by Fax, Email or Online to avoid read back mistakes.

Quotes: Please indicate on top of order form or in special instructions “QUOTE ONLY”.

Generally, most quotes are done the same day as received.

If it is a special or large request it may take longer.

Quotes are valid for 30 days from receipt.

General Pricing: All prices are per square foot, figured to the nearest 1/100th of an inch.

Minimum invoice charge is $25.00.

Prices are subject to change without notice.

55

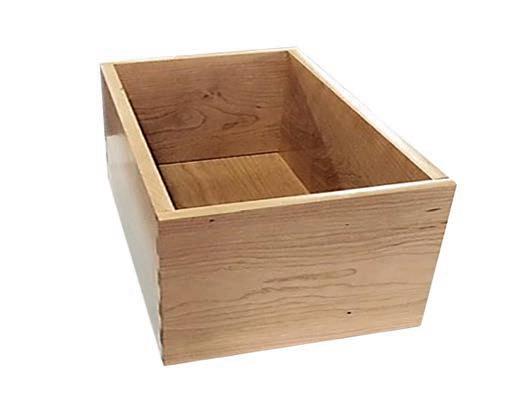

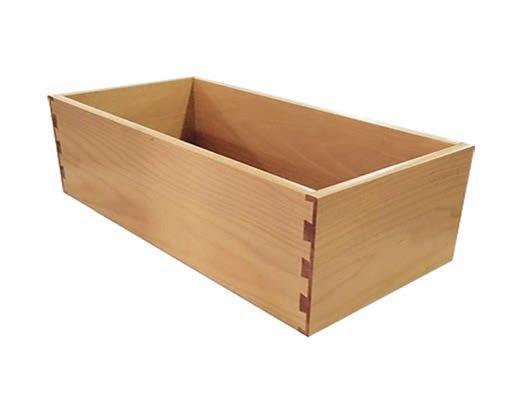

Text Text Dovetail Drawer Box Pricing & Specifications

Calculating Box Price Perimeter x Linear Inch Price + Per Box Price

Example:

Perimeter = Width + Width + Depth + Depth

Maple Dovetail Box 15 1/4 x 21 x 4 1/4 (finished)

50 Linear Inch Minimum Per Box

1.) Calculator Perimeter 15 1/4 + 15 1/4 + 21 + 21 = 72 1/2

Add $12.00 per Solid Box for Finishing

2.) Multiply by Linear Inch Cost 72 1/2 x $0.48 = $34.80 3.) Add Per Box Charge $34.80 + $13.75 = $48.55 4.) For Solid Box add Finishing Charge $48.55 + $12.00= $60.55 Solid Box Total: $60.55 (finished)

Calculating Box Price • Standard Dovetail Boxes come assembled at 2 1/4", 3 1/4", 4 1/4", 5 1/4", 6 1/4", 7 1/4", 8 1/4", 9 1/4", 10 1/4" or 11 1/4" heights.

• Taller and custom heights are available in 1/4”, 1/2", 3/4" and 1" increments, allow two additional manufacturing days.

• Please note on custom heights we cut down from existing stock, bottom edge will not be finished.

• If drawer box height is not listed refer to next larger size (Example: 3 3/4" height will be priced at 4 1/4" height).

• 9-Ply and 11-Ply Birch drawer boxes come standard prefinished, no additional finishing charges will apply.

• All solid boxes come standard 15mil (0.590") thick and prefinished: add $12.00 per solid drawer box for finishing.

• For Cabinet Software programs utilizing a deduction for 1/2" material, we will adjust your drawer box by adding 1/8" to your width. This will accommodate our 15mil standard thickness. Your must check the appropriate box on our order form.

• Recommended 3/8" thick bottom on all boxes over 30" in width: add $10.00 per drawer box.

• Bottoms are placed 1/2" up from bottom of sides to allow for undermount guides.

• Drawer boxes come standard with eased top edges.

Eased Top Edges

Drawer Front

Drawer Front

Drawer Side

Solid Wood

Drawer Side

9-Ply & 11-Ply

Eased Top Edges Finishing: All material used in our drawer boxes come with a water-based UV finish.

•All solid boxes: add $12.00 per solid drawer box for finishing.

•9-Ply and 11-Ply Birch drawer boxes come standard prefinished, no additional finishing charges will apply.

Logo Engraving

2"

Add $3.00 option charge per drawer box.

2" from the front and 1/2" from the top on the inside left corner of drawer box.

1/2"

Approximate logo size 3 1/4" x 2".

Logo must be submitted by one of the following formats:

Laser-Engraved Company Logo

F

r

on Adobe Illustrator t

6

PDF (High Resolution) Drawer Side JPG or TIF File DWG or DXF

Text Dovetail Text

Drawer Sides Thickness 15mil (0.590")

Solid Drawer Box Side Thickness: 15mil (0.590”) Solid & Ply Drawer Boxes

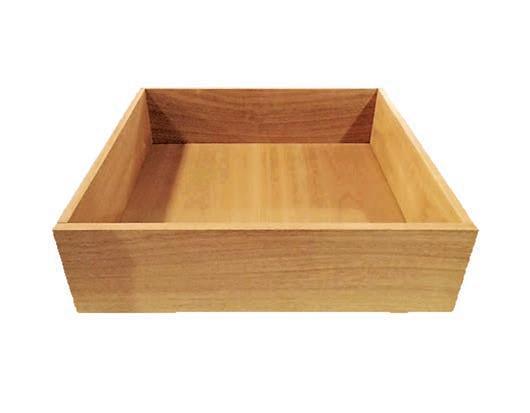

Solid Drawer Boxes

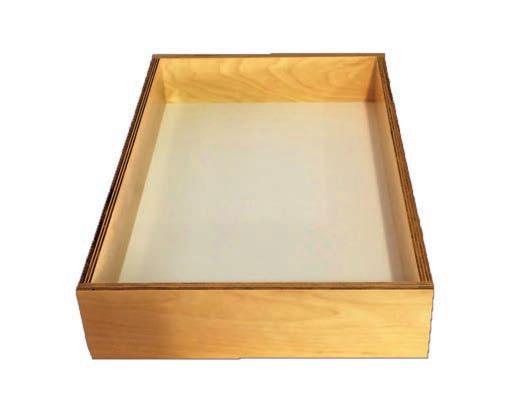

9 & 11 Ply Boxes

Minimum Size WxDxH

Maximum Size WxDxH

Maximum Size WxDxH

4 5/8” x 6” x 1 1/2”

72” x 40” x 28”

56” x 40” x 28”

Drawer Box Height

2 1/4” & 3 1/4”

4 1/4” & 5 1/4”

6 1/4” & 7 1/4”

8 1/4” & 9 1/4”

10 1/4” & 11 1/4”

Linear Price

Per Box Price

Linear Price

Per Box Price

Linear Price

Per Box Price

Linear Price

Per Box Price

Linear Price

Per Box Price

Select Maple

0.41

13.50

0.48

13.75

0.54

15.95

0.65

17.90

0.75

23.40

Soft Maple

0.34

11.85

0.41

12.10

0.47

13.50

0.55

16.25

0.65

20.10

0.29

11.30

0.34

11.85

0.40

12.10

0.47

12.65

0.54

13.20

0.32

12.65

0.39

12.95

0.43

13.20

0.53

13.50

0.63

14.05

15mil (0.590”) Thick

15mil (0.590”) Thick

9-Ply Birch

(prefinished) 12mil (0.470”) Thick

11-Ply Birch

(prefinished) 15mil (0.590”) Thick

Drawer Box Pricing & Specifications

Drawer Side

All solid drawer boxes come standard finished: add $12.00 per solid box for finishing.

• MAXIUM HEIGHT FOR ALL DRAWER BOXES IS 28”.

• Standard Dovetail Boxes come assembled at 2 1/4", 3 1/4", 4 1/4", 5 1/4", 6 1/4", 7 1/4", 8 1/4", 9 1/4", 10 1/4" or 11 1/4" heights.

• Taller and custom heights are available in 1/4”, 1/2", 3/4" and 1" increments, allow two additional manufacturing days.

• Please note on custom heights we cut down from existing stock, bottom edge will not be finished.

• If drawer box height is not listed refer to next larger size (Example: 3 3/4" height will be priced at 4 1/4" height).

Recommended 3/8" thick bottom on all boxes over 30" in width.

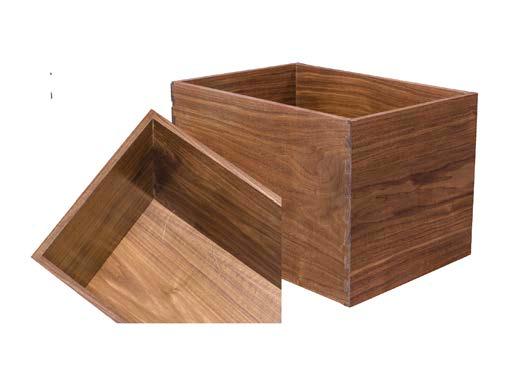

• Special materials available: (Example Walnut, African Mahogany, Rift White Oak, Beech, Alder etc.) call for pricing.

1" 2

1" 4

1" 2

3" 8

Drawer Boxes with 1/4” bottom:

Drawer Boxes with 3/8” bottom:

standard no extra charge

add $10.00 per drawer box

77

Dovetail Drawer Box Options: Scooped, Angled & Lipped Text

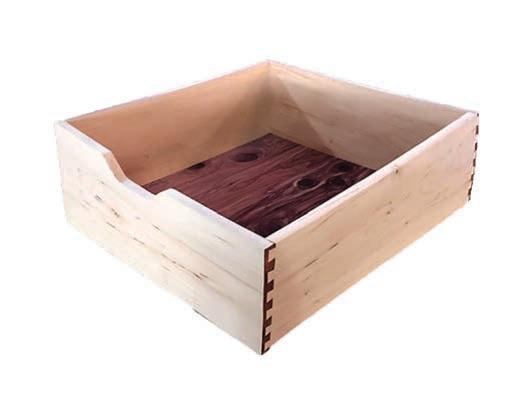

Scoop Minimum Width

Scoop Option: 6 1/2” x 1 1/2”

9” Minimum Width

7” Square Scoop Option: 4” x 1”

● Scoop is centered on front of drawer box

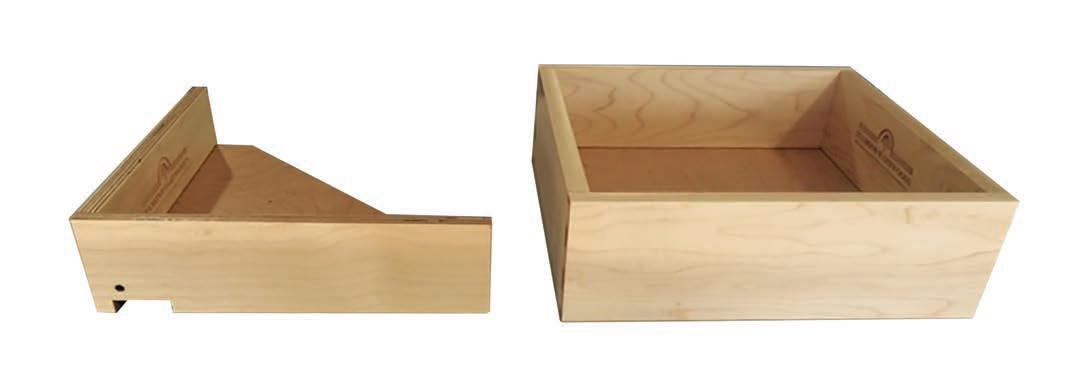

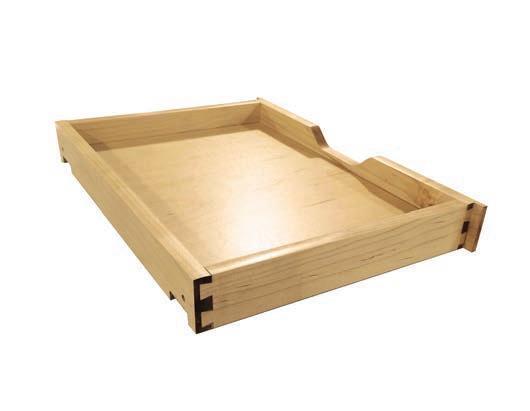

Add $8.50 per drawer box Angled Add $30.00 per drawer box Minimum Size WxDxH

Maximum Size WxDxH

7” x 10” x 3”

56” x 40” x 28”

● Minimum height applies to back ● Front height is standard at 2 1/4" ● Available with scoop: add $7.50 per drawer box

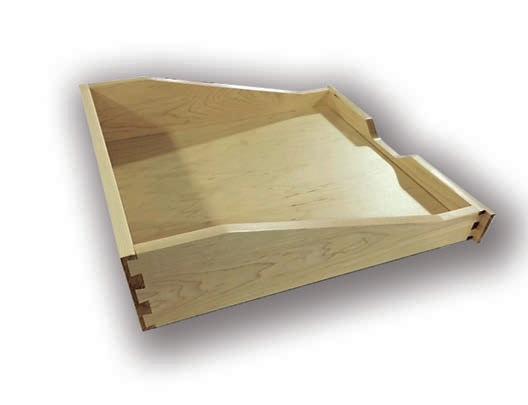

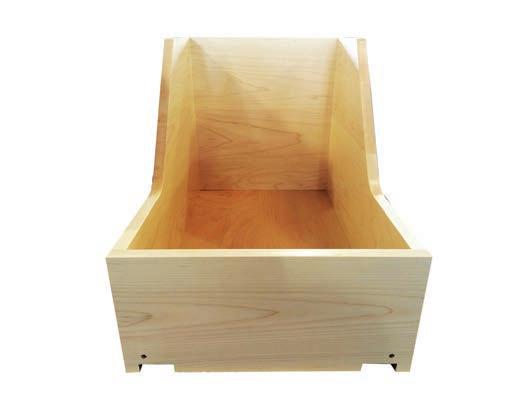

Half Angled Add $30.00 per drawer box Minimum Size WxDxH

Maximum Size WxDxH

7” x 10” x 3”

56” x 40” x 28”

● Minimum height applies to back ● Front height is standard at 2 1/4" ● Drop will start approximately center of drawer box ● Available with scoop: add $7.50 per drawer box

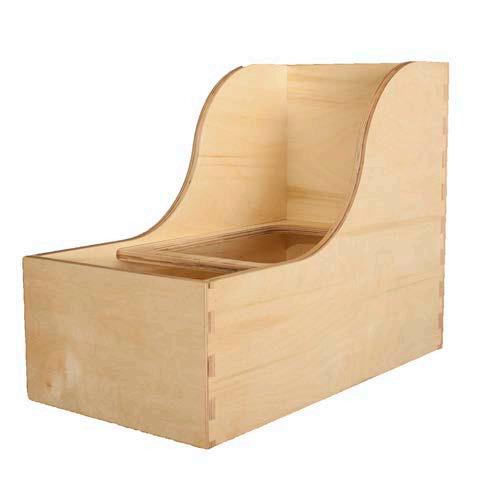

Scalloped Angled Add $30.00 per drawer box Minimum Size WxDxH

Maximum Size WxDxH

7” x 10” x 3”

56” x 40” x 28”

● Minimum height applies to back ● Front height is standard at 2 1/4" ● Radius will start and drop 1/3rd from back of drawer box ● Available with scoop: add $7.50 per drawer box

Lipped front Add $30.00 per drawer box ● Available with 0.590" thick face only ● Available with scoop: add $7.50 per drawer box ● Available on solid wood boxes only

8

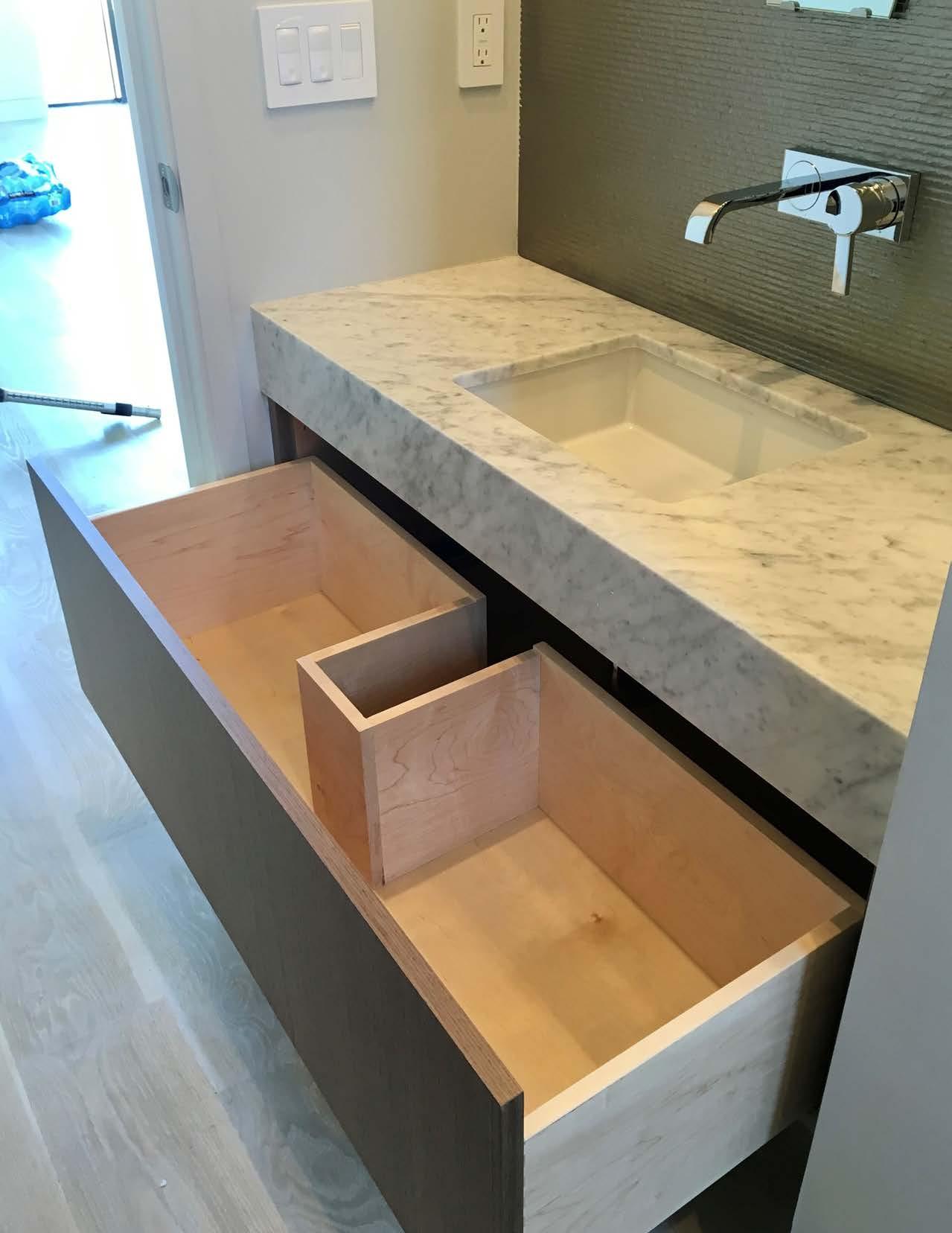

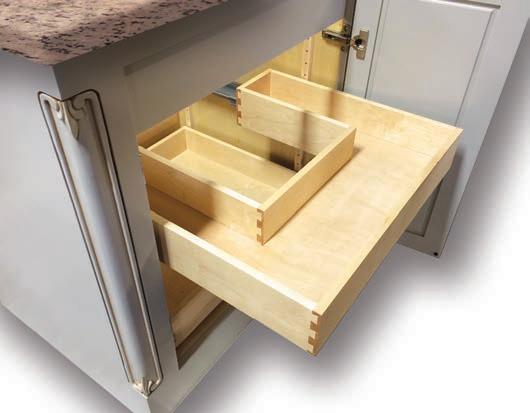

U-Shape

Add $125.00 per drawer box

Add $125.00 per drawer box

● Recommended in place of Lazy Susan

● Recommended for under sink plumbing

Minimum Size WxDxH

Maximum Size WxDxH

Minimum Size WxDxH

Maximum Size WxDxH

10” x 15” x 2 1/4”

56” x 40” x 28”

16” x 15” x 2 1/4”

56” x 40” x 28”

Not available in 9-Ply

3 1/8”x3 1/8”x1/2” ply fillers added for installing clips

L-Shape (left)

L-Shape (right)

Add $75.00 per drawer box

Add $75.00 per drawer box

● Recommended for under sink plumbing

● Recommended for under sink plumbing

Minimum Size WxDxH

Maximum Size WxDxH

Minimum Size WxDxH

Maximum Size WxDxH

12” x 15” x 2 1/4”

56” x 40” x 28”

12” x 15” x 2 1/4”

56” x 40” x 28”

Dovetail Drawer Box Options: Corner, U-Shape & L-Shape

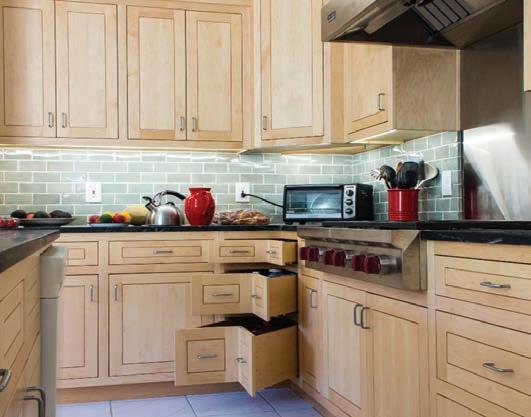

Corner

9

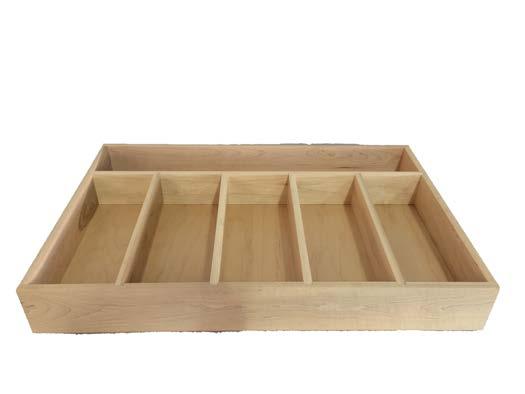

Dovetail Drawer Box Options: Drawer Dividers Vertical & Lateral Text

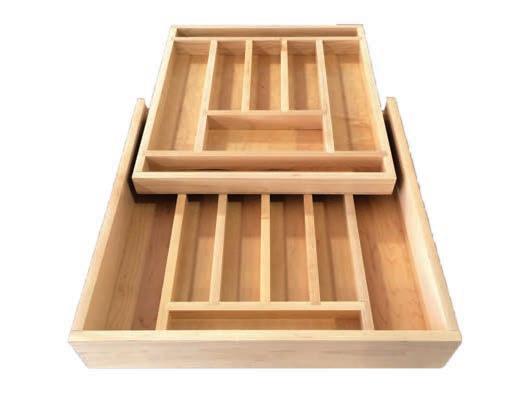

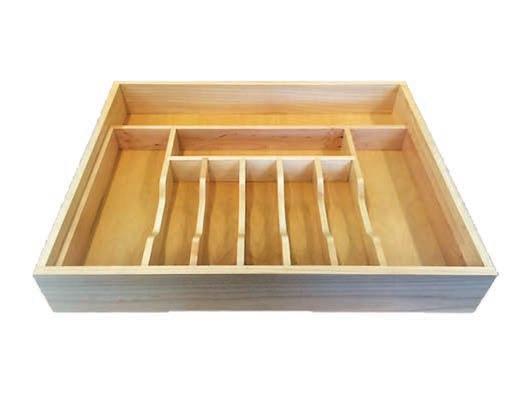

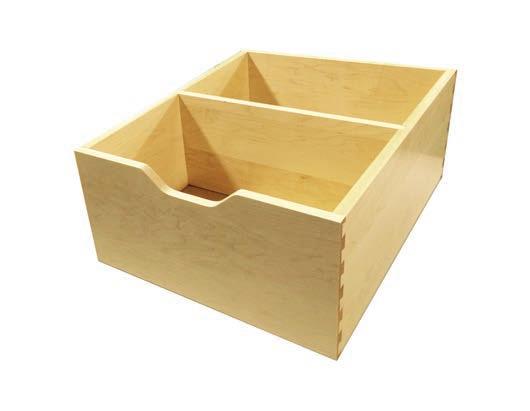

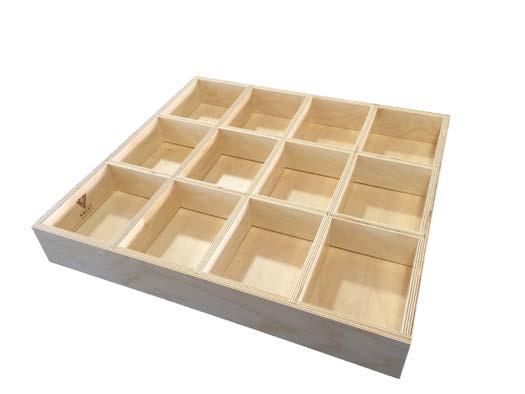

Drawer Dividers Vertical & Lateral Options

For additional opening: add $15.00 each

Minimum Size WxDxH

Maximum Size WxDxH

6” x 6” x 2 1/4”

56” x 40” x 28”

● Single divider is centered ● Double dividers are equally spaced within inside drawer dimension ● Dividers are same thickness as the sides of drawer box ● Dividers are available both removable or fixed (must specify)

Fro

nt

Fro

nt

Single Vertical Divider

Double Vertical Divider

Fro

nt

Fro

nt

10

Single Lateral Divider

Double Lateral Divider

Single Letter: add $20.00 per drawer box

Single Letter & Legal: add $30.00 per drawer box Double Letter & Legal: add $50.00 per drawer box ● 1" wide anodized file bars included ● Extra 1” wide anodized file bars available: $15.00 each ● Notching location starts 1/2" from front or side ● Special notching available, drawing required

Notch Placement

Minimum Height

Minimum Width/Depth

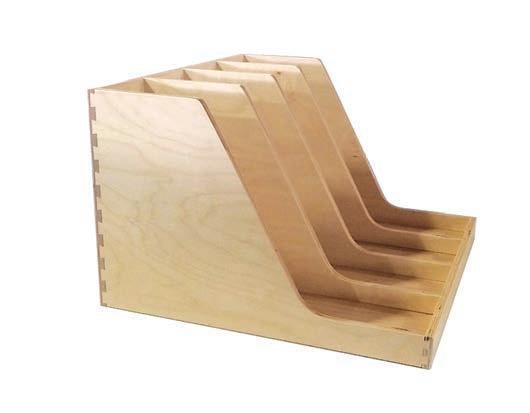

File Bars

Single Letter available front to back or side to side

10 1/2”

14”

2

Single Letter & Legal available front to back or side to side

10 1/2”

17”

2

Double Letter & Legal available front to back only

10 1/2”

34”

4

Dovetail Drawer Box Options: File Notching

File Notching Options

Fron

t

Fron Single Letter & Legal Notching front to back (2 bars)

t

Letter & Legal Notching side to side (2 bars)

Fron

t

Double Letter or Legal Notching front to back only (4 bars)

11

Text Blum Text

Locking devices

Clips Installed

T51.1801 L for Blum Tandem 563 T51.1801 R for Blum Tandem 563

● for use with standard application ● self adjusting drawer length tolerance ● minimum inside drawer width 4 7/8”

Price per Set

Standard Notch

$5.00

1 1/2”

$6.00

1 1/2”

$5.00

1 1/2”

$10.00

1 1/2”

Blum Standard Clip

T51.1901 L for Blum Tandem 563 T51.1901 R for Blum Tandem 563 ● side adjustment +/- 1/16” ● height adjustment + 1/8” ● minimum inside drawer width 6 11/16” Blum 2D Clip

T51.0801.20 L for Blum Tandem 563 T51.0801.20 R for Blum Tandem 563 ● narrow drawer without side adjustment ● maximum dynamic load capacity 25lb ● minimum inside drawer width 3 3/4” ● designed for 1/2” drawer bottom recess ● not available for 9-Ply, 12mil (0.470”)

Blum Narrow Box Clip

BT51.1901.PS ● self-adjusting drawer length tolerance ● minimum inside drawer width 6-11/16” ● height adjustment +1/8” (3mm) ● side adjustment +/-1/16” (1.5mm) ● depth adjustment +3/32” preset at 0 ● minimum sub front thickness 1/2” ● integrated 1/8” distance bumper for SERVO-DRIVE applications

Blum Inset Clip

Tandem Notching Options

Price per Drawer

1 1/2” Standard Notching (back only)

$3.50

3 3/8” Blum Tip-On Notching (back only)

$7.00

Standard Notch for Blum Tandem when using Blum Tip-On Series Tandem drawer slides not provided Ø

12

9" 32

1" 4

7" 16 1" 2 3" 38

● self-adjusting drawer length tolerance ● Minimum inside drawer width 6-11/16” ● side adjustment +/- 1/16” ● designed for 1/2” drawer bottom recess

$6.00

2 3/8”

BT51.7601.20 ● self-adjusting drawer length tolerance ● minimum inside drawer width 6-11/16” ● side adjustment +/- 1/16” ● minimum sub-front thickness 5/8” ● designed for 1/2” drawer bottom recess ● not available for 9-Ply, 12mil (0.470”)

$7.00

2 3/8”

$7.00

2 3/8”

BT51.7601

Blum Movento Standard Clip

Blum Movento Vertical Clip

Movento

Standard Notch

Text Blum

Price per Set

Locking devices

Clips Installed

BT51.0501.20 ● maximum dynamic load capacity 25 lb ● self-adjusting drawer length tolerance ● minimum inside drawer width 3-3/4” without TIP-ON BLUMOTION ● Minimum sub-front thickness 5/8”

Blum Movento Narrow Clip

Movento Notching Options

Price per Drawer

2 3/8” Standard Notching (back only)

$3.50

4 15/16 Blum Tip-On Notching (back only)

$7.00

Standard Notch for Blum Movento Series Movento drawer slides not provided Ø

9" 32

1" 4

7" 16 1" 2

2383

"

Standard Notch for Blum Movento Series when using Blum Tip-On Movento drawer slides not provided

13 13

Salice Text

Locking devices

Clips Installed

Salice Standard Clip

A 710.011 R for Salice Futura 7555 A 710.013 L for Salice Futura 7555

● for use with standard application ● minimum inside drawer width 7 3/16” ● height adjustment + 3/32” A 750.011 R for Salice Futura 7555 A 750.013 L for Salice Futura 7555

● minimum inside drawer width 6 7/8” ● height adjustment + 3/32” ● side-to-side adjustment +/- 1/16” ● depth adjustment +/- 3/32”

Salice 3D Clip

A 720.611 R for Salice Futura 7555 A 720.613 L for Salice Futura 7555

● narrow drawer without side adjustment ● minimum inside drawer width 3 5/8” Salice Narrow Box Clip

Notching Options

Price per Drawer

1 1/2” Standard Notching (back only)

$3.50

Standard Notch fits: Blum, Grass and Salice Hardware provided Ø

9" 32

14

1" 4

1" 2

1

7" 16 1" 2

Price per Set

Standard Notch

$5.00

1 1/2”

$6.00

1 1/2”

$5.00

1 1/2”

Grass Standard 2D Clip

F 134 125 000 633 L for Grass Dynapro F 134 125 001 633 R for Grass Dynapro

● for use with standard application ● minimum inside drawer width 7 3/32” ● height adjustment + 1/8” ● side adjustment +/- 1/16” F 134 100 699 233 L for Grass Dynapro F 134 100 700 233 R for Grass Dynapro

● narrow drawer without side adjustment ● minimum inside drawer width 3 3/4” ● height adjustment + 1/8”

Price per Set

Standard Notch

$8.00

1 1/2”

$8.00

1 1/2”

Text GRASS

Locking devices

Clips Installed

Grass Narrow Box Clip

Notching Options

Price per Drawer

1 1/2” Standard Notching (back only)

$3.50

Standard Notch fits: Blum, Grass and Salice Hardware provided Ø

9" 32

1" 4

7" 16 1" 2

1" 2

1

15 15

HETTICH Text

Locking devices

Clips Installed

Price per Set

Standard Notch

$5.00

1 1/2”

$5.00

1 1/2”

Hettich Quadro IW21-LOCK12

● for use with 1/2” Drawer Box Sides ● minimum inside drawer width 5 1/8” ● height adjustment + 3/32” ● side adjustment +/- 1/16” Hettich Quadro IW21-LOCK58 ● for use with 5/8” Drawer Box Sides ● minimum inside drawer width 5 1/8” ● height adjustment + 3/32” ● side adjustment +/- 1/16”

Notching Options

Price per Drawer

1 1/2” Standard Notching (back only)

$3.50

Standard Notch fits: Hettich Quadro IW21 Hardware provided Ø

9" 32

16

1" 4

1" 2

1

7" 16 1" 2

Text Specialty

Sapele

Cherry

Beech

White or Black Melamine Bottom

Cedar Bottom

Add $5.00 per drawer box.

Add $8.00 per drawer box for 1/4” bottom only.

Additional materials available. For specialty materials, call for pricing.

Drawer Box Options

Walnut with matching bottom

17 17

Specialty Drawer Box Options Text

Custom Scalloped Angle with Divider Drawing required for price quote.

Divider with Scoop

18

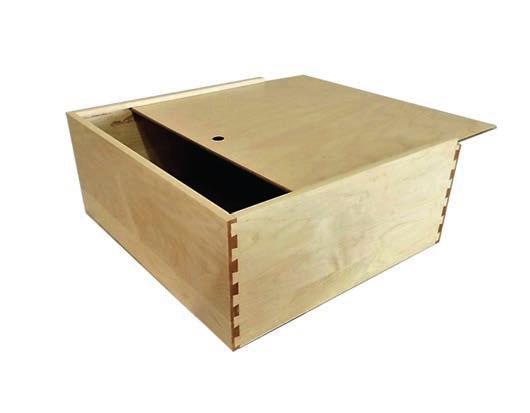

Bread Box Add $35.00 per drawer box.

Lipped Front & Scoop

Add $15.00 per opening.

Add $8.50 per drawer box per scoop.

Add $25.00 per drawer box for Lipped Front.

Add $8.50 per drawer box per scoop.

File Drawer

Scalloped Angle with Lipped Front & Scoop

1” wide anodized file bars included.

Single Vertical & Lateral: Add $30.00 per drawer box.

Double Vertical & Lateral: Add $50.00 per drawer box.

Add $15.00 per additional bar.

Add $25.00 per drawer box for Angle.

Add $25.00 per drawer box for Lipped Front.

Add $8.50 per drawer per scoop.

Specialty Divider-Box in a Box Add $15.00 per opening.

Cutlery Tray Add $15.00 per opening.

Drawer Box Options

Jewelry Tray Add $15.00 per opening.

Text Specialty

Specialty Divider with Options

Specialty dividers are build to your specifications. Please provide a detailed drawing.

Cost are per box price + $12.00 per divider. If scoops are requested: add an additional $7.50 per scoop.

Specialty Divider with Scoops

Add $15.00 per opening. Add $8.50 per scoop.

Sample Drawer Box Kit

Kit includes one solid Maple 15mil full size drawer box. One 9-Ply Birch cut out as shown in photo. $35.00 charge for kit, Logo Engraving included.

Logo must be submitted in the following formats: Adobe Illustrator, PDF (High Resolution), JPG, TIF, DWG or DXF.

19 19

Specialty Drawer Box Options Text 20

U-Shape

Waste Management Drawer Box Options

Add $125.00 per drawer box.

see page 22 & 23

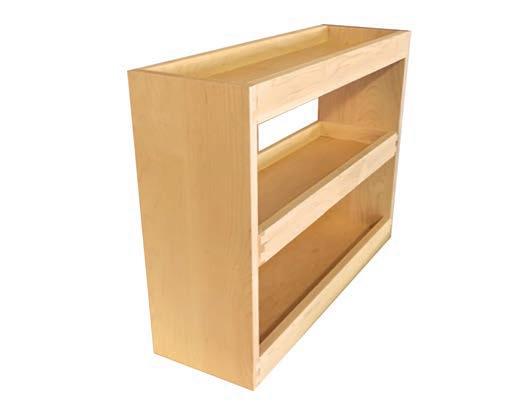

Spice Rack

Under Sink Pull-Out

Add $125.00 per drawer box.

Add $125.00 per drawer box.

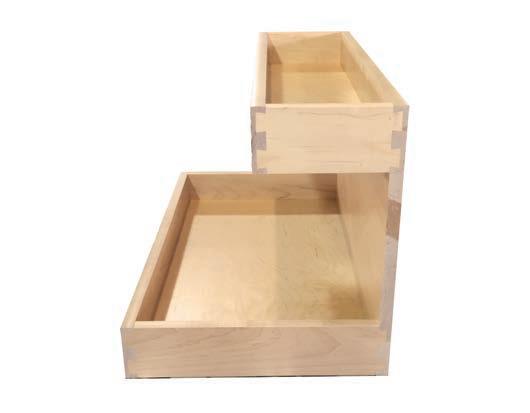

Kitchen with Corner Drawers.

Corner Add $125.00 per drawer box.

Text Waste

Waste Management Drawer Boxes

Managemant Drawer Boxes

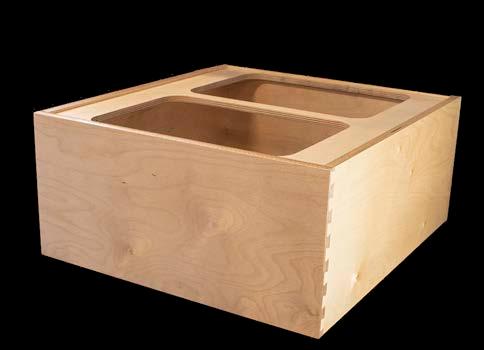

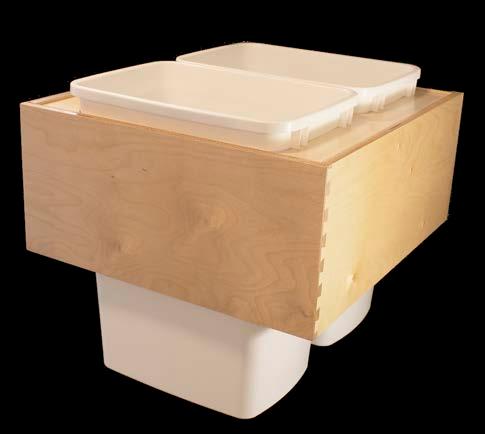

Double Lateral Square Suspended Bins 9 or 11 Ply: $150.00 Solid Maple: add $75.00 Two 35 quart Waste Bins Included

Waste Management Drawer Boxes also available as shown below:

21 21

Waste Management Drawer Boxes Text

Waste Management Drawer Boxes

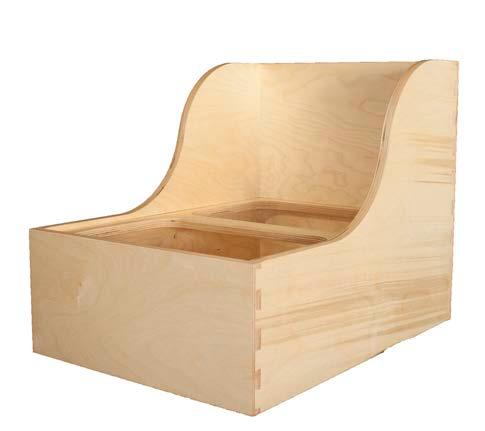

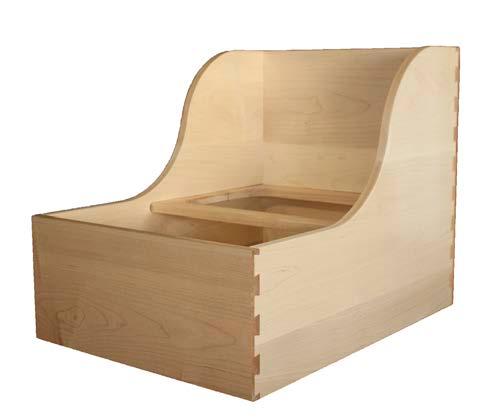

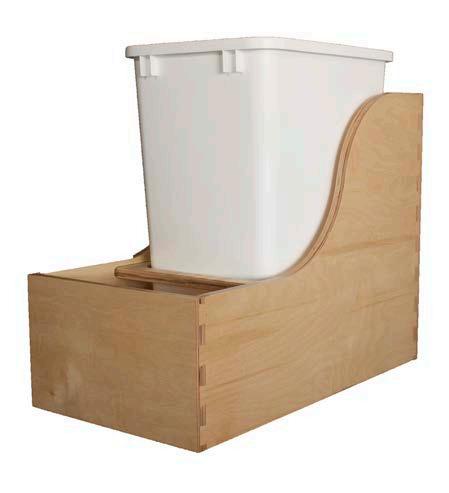

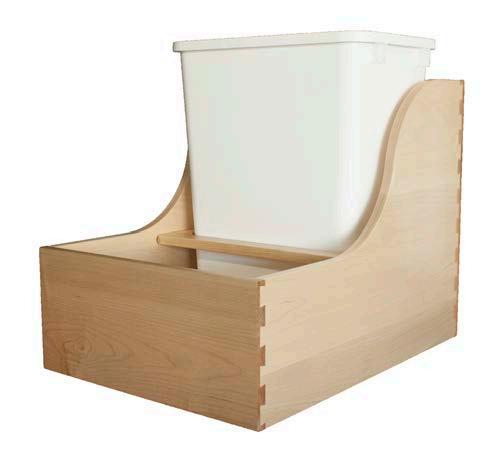

Scalloped with Single Vertical Bin 9 or 11 Ply: $200.00 Solid Maple: add $75.00 35 quart Waste Bin Included

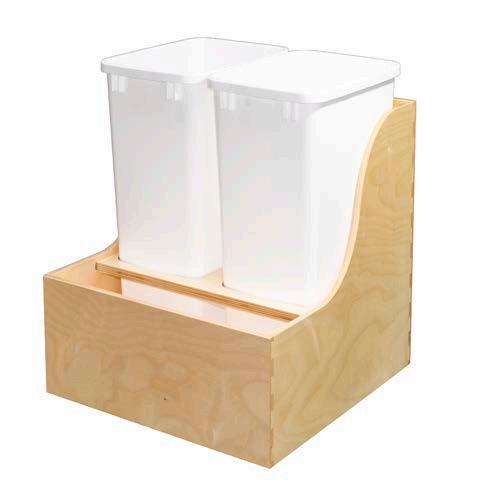

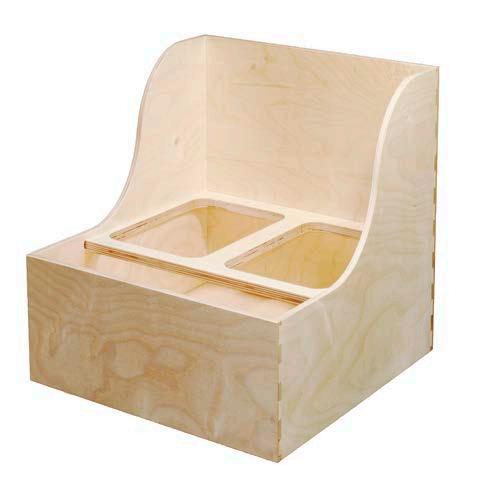

Scalloped with Double Vertical Bins 9 or 11 Ply: $250.00 Solid Maple: add $75.00 Two 35 quart Waste Bins Included

22

Text Waste

Waste Management Drawer Boxes

Management Drawer Boxes

Scalloped with Single Lateral Bin 9 or 11 Ply: $200.00 Solid Maple: add $75.00 35 quart Waste Bin Included

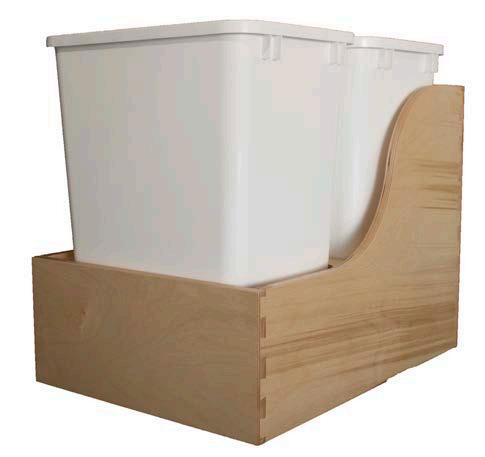

Scalloped with Double Lateral Bins 9 or 11 Ply: $250.00 Solid Maple: add $75.00 Two 35 quart Waste Bins Included

23 23

Dovetail Drawer Box Order Form Customer #

Quote

Order

Company

QTY

WIDTH

DEPTH

HEIGHT

LASER LOGO

NOTES

1

Name

2

Telephone

3

Job Name / P.O.

4

Order Date

Ship Date

5

(Office use only)

Ship Via Our Truck

Fed Ex

Freight

CPU

6 On Trac

7 Transfer Date (Office use only)

Ply Drawer Options: comes standard prefinished 9-Ply Birch

12mil Thick

11-Ply Birch

15mil Thick

8 9 10 11

Solid Drawer Options: comes standard prefinished Standard Thickness: 15mil (0.590")

12

If using calculation for 21" side thickness, check here

13

(by checking this box we will add 18" to your width to accommodate our standard 15mil thickness)

Material Options:

14

Soft Maple

Select Maple

Other

16

Drawer Bottom:

Ply

Other

1/4"

3/8"

1/4"

3/8"

Special Options: indicate in "Notes" field Scoop Option

15

Square Scoop

Lipped Front

17 18 19 20

Notching Only (no clips installed):

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

1 1/2" Notch

2 3/8 Notch

3 3/8" Notch

4 15/16" Notch

No Notch

21

· For Laser Logo Engraving specifications refer to page 4.

(indicate boxes to be engraved above in "Laser Logo" field)

(for details see pages 12-16)

Notching and Clips Installed: check one

Blum Movento Narrow

Grass Narrow Box Clip Grass 2D Clip Hettich Quadro IW21-LOCK58

Blum Standard Clip

Blum Inset

Salice Standard Clip

Blum 2D Clip

Blum Movento Standard

Salice 3D Clip

Blum Narrow Box Clip

Blum Movento Vertical

Salice Narrow Box Clip

Special Instructions:

Order taken by:

Hettich Quadro IW21-LOCK12

(Office use only)

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

Roll Holder Drawer Box Order Form Customer #

Quote

Order

WL

Front

minimum 6"

Company Name

U-depth

minimum 6"

1" Rod

minimum 6"

Telephone

WR

Roll Width add 14"

Standard 3"

D

Job Name / P.O. Order Date

minimum 4"

Ship Date

(Office use only)

Ship Via Our Truck

Fed Ex

Freight

CPU

Back On Trac

W

Transfer Date

minimum 16" wide

(Office use only)

· · · ·

Ply Drawer Options: comes standard prefinished 9-Ply Birch

12mil Thick

11-Ply Birch

15mil Thick

Notching Only (no clips installed):

Solid Drawer Options: comes standard prefinished

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Standard Thickness: 15mil (0.590") If using calculation for 21" side thickness, check here (by checking this box we will add 18" to your width to accommodate our standard 15mil thickness)

Material Options: Drawer Bottom:

Select Maple

Ply

1/4"

Other

QTY

WIDTH

Square Scoop

DEPTH

3 3/8" Notch

4 15/16" Notch

(for details see pages 12-16)

Blum Standard Clip

Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

3/8"

Blum Narrow Box Clip

Salice Narrow Box Clip

3/8"

Blum Inset

Grass 2D Clip

Blum Movento Standard

Grass Narrow Box Clip

Blum Movento Vertical

Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

Blum Movento Narrow

Lipped Front

HEIGHT

2 3/8 Notch

Notching and Clips Installed: check one

Special Options: indicate in "Notes" field Scoop Option

1 1/2" Notch No Notch

Soft Maple

1/4"

Standard Roll width is 11 1/4" Standard allowance for Roll diameter is 6" Standard inside Roll Diameter 1" For custom sizes and prizing state dimensions below

U-DEPTH

WL

WR

(MINIMUM 6") (MINIMUM 6") (MINIMUM 6")

Roll Width LASER (MINIMUM 6") LOGO

NOTES

1 2 3 4 5

Special Instructions:

Order taken by:

(Office use only)

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

File Notching Drawer Box Order Form Customer #

Quote

Order

Company

Single Letter & Legal front to back

Name Telephone Job Name / P.O. Order Date

Ship Date

Fed Ex

Freight

CPU

Front

Front

W

W

(Office use only)

Ship Via Our Truck

Double Letter or Double Legal front to back only

On Trac

Transfer Date

Ply Drawer Options: comes standard prefinished 12mil Thick

11-Ply Birch

15mil Thick

D

Front

(Office use only)

9-Ply Birch

Single Letter & Legal side to side

D

W Notching Only (no clips installed):

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Solid Drawer Options: comes standard prefinished Standard Thickness: 15mil (0.590")

1 1/2" Notch

2 3/8 Notch

3 3/8" Notch

4 15/16" Notch

No Notch

(for details see pages 12-16)

Notching and Clips Installed: check one

If using calculation for 21" side thickness, check here (by checking this box we will add 18" to your width to accommodate our standard 15mil thickness)

Blum Standard Clip

Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

Material Options:

Blum Narrow Box Clip

Salice Narrow Box Clip

Blum Inset

Grass 2D Clip

Ply

Other

1/4"

3/8"

1/4"

3/8"

Special Options: indicate in "Notes" field Scoop Option

QTY

WIDTH

Square Scoop

DEPTH

Lipped Front

HEIGHT

Grass Narrow Box Clip

Blum Movento Vertical

Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

Blum Movento Narrow

Extra Bars available $15.00 each

LASER EXTRA LOGO BARS

4b ars )

Drawer Bottom:

Blum Movento Standard

t to Le tte b Sin ack (2 r ba sid gle rs) et o s Lett e i Sin de (2 r ba fro gle rs) nt L e to ba tter ck Sin (2 & L ba eg sid gle rs) al et o s Lett ide er Do (2 & L ba u rs) ega fro ble l nt L e to ba tter c Do k( 4b fro uble ars nt ) to Leg ba ck al Do (4 ba fro uble rs) nt to Leg ba ck al (

Other

Sin gl n e

Soft Maple

fro

Select Maple

1 2 3 4

Special Instructions:

Order taken by:

(Office use only)

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

Angled & Half-Angled Drawer Box Order Form Customer #

Quote

Order

Company H

FH

Name Telephone

W

Job Name / P.O. Order Date

D

Angled

Ship Date

(Office use only)

Ship Via Fed Ex

Our Truck Freight

CPU

On Trac

H

FH

Transfer Date (Office use only)

Ply Drawer Options: comes standard prefinished 9-Ply Birch

12mil Thick

11-Ply Birch

15mil Thick

W

Half-Angled Notching Only (no clips installed):

Solid Drawer Options: comes standard prefinished Standard Thickness: 15mil (0.590")

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

If using calculation for 21" side thickness, check here (by checking this box we will add 18" to your width to accommodate our standard 15mil thickness)

Material Options:

Select Maple

Ply

Other

Soft Maple

QTY

WIDTH

Square Scoop

DEPTH

2 3/8 Notch

3 3/8" Notch

4 15/16" Notch

1/4"

3/8"

1/4"

3/8"

Blum Standard Clip

Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

Blum Narrow Box Clip

Salice Narrow Box Clip

Blum Inset

Grass 2D Clip

Blum Movento Standard

Grass Narrow Box Clip

Blum Movento Vertical

Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

Blum Movento Narrow

Lipped Front

HEIGHT

(for details see pages 12-16)

Notching and Clips Installed: check one

Special Options: indicate in "Notes" field Scoop Option

1 1/2" Notch No Notch

Other

Drawer Bottom:

D

FH

(MINIMUM 2 1/4")

ANGLED

HALF ANGLED

LASER LOGO

NOTES

1 2 3 4 5

Special Instructions:

Order taken by:

(Office use only)

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

Scalloped Drawer Box Order Form Customer #

Quote

Order

Company Name Telephone Job Name / P.O.

H

FH

Order Date

Ship Date

(Office use only)

Ship Via Our Truck

Fed Ex

Freight

CPU

W On Trac

D

Transfer Date (Office use only)

Ply Drawer Options: comes standard prefinished 9-Ply Birch

12mil Thick

11-Ply Birch

15mil Thick

Notching Only (no clips installed):

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Solid Drawer Options: comes standard prefinished Standard Thickness: 15mil (0.590") If using calculation for

1 2"

Select Maple

Ply

Other

QTY

WIDTH

4 15/16" Notch

(for details see pages 12-16)

Notching and Clips Installed: check one

Soft Maple

1/4"

3/8"

1/4"

3/8"

Square Scoop

DEPTH

Blum Standard Clip

Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

Blum Narrow Box Clip

Salice Narrow Box Clip

Blum Inset

Grass 2D Clip

Blum Movento Standard

Grass Narrow Box Clip

Blum Movento Vertical

Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

Blum Movento Narrow

Special Options: indicate in "Notes" field Scoop Option

3 3/8" Notch

side thickness, check here

Other

Drawer Bottom:

2 3/8 Notch

No Notch

(by checking this box we will add 18" to your width to accommodate our standard 15mil thickness)

Material Options:

1 1/2" Notch

Lipped Front

HEIGHT

FH

(MINIMUM 2 1/4")

LASER LOGO

NOTES

1 2 3 4 5

Special Instructions:

Order taken by:

(Office use only)

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

Corner Drawer Box Order Form Customer #

Quote

Order

Company

3 81" x 3 81" x 21" PLY fillers added for installing clips

Name Telephone Job Name / P.O.

D

Order Date

Ship Date

(Office use only)

Ship Via Our Truck

Fed Ex

Freight

CPU

Front On Trac

Transfer Date (Office use only)

Ply Drawer Options: comes standard prefinished 11-Ply Birch

90°

15mil Thick

W

· Not available in 9-Ply

Notching Only (no clips installed):

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Solid Drawer Options: comes standard prefinished Standard Thickness: 15mil (0.590")

Select Maple

Soft Maple

1/4"

Ply

1/4"

Other

QTY

WIDTH

Square Scoop

DEPTH

4 15/16" Notch

(for details see pages 12-16)

Blum Standard Clip

Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

Blum Narrow Box Clip

Salice Narrow Box Clip

3/8"

Blum Inset

Grass 2D Clip

3/8"

Blum Movento Standard

Grass Narrow Box Clip

Blum Movento Vertical

Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

Special Options: indicate in "Notes" field Scoop Option

3 3/8" Notch

Notching and Clips Installed: check one

Other

Drawer Bottom:

2 3/8 Notch

No Notch

Standard inside angle: 90 degree Material Options:

1 1/2" Notch

Blum Movento Narrow

Lipped Front

HEIGHT

LASER LOGO

NOTES

1 2 3 4 5

Special Instructions:

Order taken by:

(Office use only)

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

U-Shaped Drawer Box Order Form Customer #

Quote

Order

WL

WR

minimum 6"

minimum 6"

Company Name

U-depth

minimum 6"

Telephone

D

Job Name / P.O. Order Date

minimum 4"

Ship Date

(Office use only)

Ship Via Our Truck

Fed Ex

Freight

CPU

Front On Trac

W

Transfer Date

minimum 16" wide

(Office use only)

Ply Drawer Options: comes standard prefinished 9-Ply Birch

12mil Thick

11-Ply Birch

15mil Thick

Notching Only (no clips installed):

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Solid Drawer Options: comes standard prefinished Standard Thickness: 15mil (0.590") (by checking this box we will to your width to accommodate our standard 15mil thickness)

Drawer Bottom:

Ply

Other

3 3/8" Notch

4 15/16" Notch

(for details see pages 12-16)

Notching and Clips Installed: check one

add 18"

Select Maple

2 3/8 Notch

No Notch

If using calculation for 21" side thickness, check here

Material Options:

1 1/2" Notch

Soft Maple

1/4"

3/8"

1/4"

3/8"

Blum Standard Clip

Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

Blum Narrow Box Clip

Salice Narrow Box Clip

Blum Inset

Grass 2D Clip

Blum Movento Standard

Grass Narrow Box Clip

Blum Movento Vertical

Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

Blum Movento Narrow

Special Options: indicate in "Notes" field Scoop Option

QTY

WIDTH

Square Scoop

DEPTH

Lipped Front

HEIGHT

U-DEPTH

WL

WR

(MINIMUM 6")

(MINIMUM 6")

(MINIMUM 6")

LASER LOGO

NOTES

1 2 3 4 5

Special Instructions:

Order taken by:

(Office use only)

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

L-Shaped Drawer Box (right) Order Form Customer #

Quote

Order

L-width

minimum 6"

minimum 6"

Company

L-depth

Name

minimum 6"

Telephone Job Name / P.O. Order Date

D Ship Date

L-Shaped Drawer Box (right)

(Office use only)

Ship Via Our Truck

Fed Ex

Freight

CPU

On Trac

Front W

Transfer Date

minimum 12" wide

(Office use only)

Ply Drawer Options: comes standard prefinished 9-Ply Birch

12mil Thick

11-Ply Birch

15mil Thick

Notching Only (no clips installed):

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

1 1/2" Notch

Solid Drawer Options: comes standard prefinished Standard Thickness: 15mil (0.590")

Soft Maple

Other

Drawer Bottom:

Ply

Other

(for details see pages 12-16)

Notching and Clips Installed: check one

(by checking this box we will add 18" to your width to accommodate our standard 15mil thickness) Select Maple

4 15/16" Notch

3 3/8" Notch No Notch

If using calculation for 21" side thickness, check here

Material Options:

2 3/8 Notch

1/4"

3/8"

1/4"

3/8"

Blum Standard Clip

Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

Blum Narrow Box Clip

Salice Narrow Box Clip

Blum Inset

Grass 2D Clip

Blum Movento Standard

Grass Narrow Box Clip

Blum Movento Vertical

Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

Blum Movento Narrow

Special Options: indicate in "Notes" field Scoop Option

QTY

WIDTH

Square Scoop

DEPTH

Lipped Front

HEIGHT

L-DEPTH

L-WIDTH

(MINIMUM 6")

(MINIMUM 6")

LASER LOGO

NOTES

1 2 3 4 5

Special Instructions:

Order taken by:

(Office use only)

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

L-Shaped Drawer Box (left) Order Form Customer #

Quote

Order

L-width

minimum 6"

minimum 6"

Company

L-depth

Name

minimum 6"

Telephone Job Name / P.O. Order Date

D Ship Date

L-Shaped Drawer Box (left)

(Office use only)

Ship Via Our Truck

Fed Ex

Freight

CPU

On Trac

Front W

Transfer Date

minimum 12" wide

(Office use only)

Ply Drawer Options: comes standard prefinished 9-Ply Birch

12mil Thick

11-Ply Birch

15mil Thick

Notching Only (no clips installed):

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Solid Drawer Options: comes standard prefinished Standard Thickness: 15mil (0.590")

Soft Maple

Other

Drawer Bottom:

Ply

Other

1/4"

3/8"

1/4"

3/8"

QTY

WIDTH

Square Scoop

DEPTH

(for details see pages 12-16)

Blum Standard Clip

Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

Blum Narrow Box Clip

Salice Narrow Box Clip

Blum Inset

Grass 2D Clip

Blum Movento Standard

Grass Narrow Box Clip

Blum Movento Vertical

Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

Blum Movento Narrow

Special Options: indicate in "Notes" field Scoop Option

4 15/16" Notch

Notching and Clips Installed: check one

(by checking this box we will add 18" to your width to accommodate our standard 15mil thickness) Select Maple

2 3/8 Notch

3 3/8" Notch No Notch

If using calculation for 21" side thickness, check here

Material Options:

1 1/2" Notch

Lipped Front

HEIGHT

L-DEPTH

L-WIDTH

(MINIMUM 6")

(MINIMUM 6")

LASER LOGO

NOTES

1 2 3 4 5

Special Instructions:

Order taken by:

(Office use only)

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

Lateral Divider Drawer Box Order Form Customer #

Quote

Order

S3

Company

S2

Name

D

Telephone Job Name / P.O. Order Date

S1

Ship Date

Fed Ex

Freight

CPU

On Trac

Transfer Date (Office use only)

Ply Drawer Options: comes standard prefinished 9-Ply Birch

12mil Thick

11-Ply Birch

15mil Thick

side thickness, check here 1 8"

(by checking this box we will add to your width to accommodate our standard 15mil thickness)

Material Options:

Select Maple

Ply

Other

Soft Maple

QTY

WIDTH

Square Scoop

DEPTH

W Double Divider Option

Divider Options: Fixed Divider(s)

Removable Divider(s)

Single Divider

Double Divider

1 1/2" Notch

2 3/8 Notch

3 3/8" Notch

4 15/16" Notch

(for details see pages 12-16)

Notching and Clips Installed: check one Blum Standard Clip

Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

1/4"

3/8"

Blum Narrow Box Clip

Salice Narrow Box Clip

1/4"

3/8"

Blum Inset

Grass 2D Clip

Special Options: indicate in "Notes" field Scoop Option

W Single Divider Option

No Notch

Other

Drawer Bottom:

Front

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Standard Thickness: 15mil (0.590") If using calculation for

Front

Notching Only (no clips installed):

Solid Drawer Options: comes standard prefinished 1 2"

S1

(Office use only)

Ship Via Our Truck

S2

Lipped Front

HEIGHT

EQUAL SIZE

Blum Movento Standard

Grass Narrow Box Clip

Blum Movento Vertical

Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

Blum Movento Narrow

S1

CUSTOM SIZE

S2

CUSTOM SIZE

S3

CUSTOM SIZE

LASER LOGO

NOTES

1 2 3 4 Check "Equal Size" field above for equal spacing, no measurements required Indicate lateral custom spacing "S1, S2 etc..." in field above from front to back Spacing of dividers does not have to be equal: no additional charge for special placement

Special Instructions:

Order taken by:

(Office use only)

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

Vertical Drawer Box Order Form Customer #

Quote

Order

Company Name

S1

Telephone

D

S2

S1

S2

S3

Job Name / P.O. Order Date

Ship Date

(Office use only)

Ship Via Our Truck

Fed Ex

Freight

CPU

On Trac

Transfer Date (Office use only)

Front

Front

W

W

Single Divider Option

Double Divider Option

Divider Options:

Ply Drawer Options: comes standard prefinished 9-Ply Birch

12mil Thick

11-Ply Birch

15mil Thick

No Notch

Soft Maple

QTY

WIDTH

Square Scoop

DEPTH

Blum Standard Clip

Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

1/4"

3/8"

Blum Narrow Box Clip

Salice Narrow Box Clip

1/4"

3/8"

Blum Inset

Grass 2D Clip

Special Options: indicate in "Notes" field Scoop Option

4 15/16" Notch

(for details see pages 12-16)

Notching and Clips Installed: check one

Other

Other

2 3/8 Notch

3 3/8" Notch

(by checking this box we will add 18" to your width to accommodate our standard 15mil thickness)

Ply

Double Divider

1 1/2" Notch

If using calculation for 21" side thickness, check here

Drawer Bottom:

Single Divider

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Standard Thickness: 15mil (0.590")

Select Maple

Removable Divider(s)

Notching Only (no clips installed):

Solid Drawer Options: comes standard prefinished

Material Options:

Fixed Divider(s)

EQUAL SIZE

Grass Narrow Box Clip

Blum Movento Vertical

Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

Blum Movento Narrow

Lipped Front

HEIGHT

Blum Movento Standard

S1

CUSTOM SIZE

S2

CUSTOM SIZE

S3

CUSTOM SIZE

LASER LOGO

NOTES

1 2 3 4 Check "Equal Size" field above for equal spacing, no measurements required Indicate lateral custom spacing "S1, S2 etc..." in field above from left to right Spacing of dividers does not have to be equal: no additional charge for special placement

Special Instructions:

Order taken by:

(Office use only)

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

Specialty Divider Drawer Box Order Form Customer #

Quote

Order

Company

$15.00 PER OPENING

Name

Detailed drawing required for Specialty Dividers

Telephone Job Name / P.O. Order Date

Ship Date

(Office use only)

Ship Via Our Truck

Fed Ex

Freight

CPU

Front On Trac

W Transfer Date

Ply Drawer Options: comes standard prefinished 9-Ply Birch

12mil Thick

11-Ply Birch

15mil Thick

(Office use only)

Divider Options: Fixed Divider(s)

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

1 1/2" Notch

Standard Thickness: 15mil (0.590")

3 3/8" Notch

If using calculation for

No Notch

side thickness, check here add 18"

(by checking this box we will to your width to accommodate our standard 15mil thickness)

Material Options:

Soft Maple

Select Maple

Ply

Other

1/4"

3/8"

1/4"

3/8"

Special Options: indicate in "Notes" field Scoop Option

QTY

WIDTH

Square Scoop

DEPTH

2 3/8 Notch 4 15/16" Notch

(for details see pages 12-16)

Notching and Clips Installed: check one

Other

Drawer Bottom:

Removable Divider(s)

Notching Only (no clips installed):

Solid Drawer Options: comes standard prefinished 1 2"

Blum Standard Clip

Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

Blum Narrow Box Clip

Salice Narrow Box Clip

Blum Inset

Grass 2D Clip

Blum Movento Standard

Grass Narrow Box Clip

Blum Movento Vertical

Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

Blum Movento Narrow

Lipped Front

HEIGHT

NUMBER OF OPENINGS

LASER LOGO

NOTES

1 2 3 4 5 Indicate the lateral and/or vertical spacing dimensions

Special Instructions:

D

Order taken by:

(Office use only)

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

Waste Management Drawer Box Order Form Customer #

Quote

Order

Company Name

H=9"

Telephone Job Name / P.O. Order Date

Ship Date

(Office use only)

W

Ship Via Our Truck

Fed Ex

Freight

CPU

On Trac

Transfer Date (Office use only)

Ply Drawer Options: comes standard prefinished 9-Ply Birch

12mil Thick

11-Ply Birch

15mil Thick

D

Double: Two 35 quart Waste Bins Included - fits 20 1/2" high cabinet openings or 50 quart Waste bins available add $50 per bin - fits 24 1/2" high cabinet openings Single: one 35 quart Waste Bin Included - fits 20 1/2" high cabinet openings or 50 quart Waste bin available add $50 per bin - fits 24 1/2" high cabinet openings

Standard Dimensions for Waste Management Drawer Boxes

Solid Drawer Options: comes standard prefinished

W 15 1/4" D 21"

Standard Thickness: 15mil (0.590") If using calculation for 21" side thickness, check here

Select Maple

Soft Maple

Other

Notching and Clips Installed: check one Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

Blum Narrow Box Clip

Salice Narrow Box Clip

Blum Inset

Grass 2D Clip

Blum Movento Standard

Grass Narrow Box Clip Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

Blum Movento Narrow

QTY

WIDTH

DEPTH

BIN

Single Lateral

Double Lateral

Standard 35 quart

BIN

BIN

Single Vertical

BIN

Double Vertical

50 quart (add $50 per bin)

Notching Only (no clips installed):

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

HEIGHT

1

9" standard

2

9" standard

3

9" standard

Special Instructions:

BIN

Waste Bin Options: check one

Blum Standard Clip

Blum Movento Vertical

W 21" D 21"

BIN

(by checking this box we will add 18" to your width to accommodate our standard 15mil thickness)

Material Options:

W 11 1/4" D 21"

W 15 1/4" D 21"

1 1/2" Notch

2 3/8 Notch

3 3/8" Notch

4 15/16" Notch

No Notch

(for details see pages 12-16)

LASER LOGO

Order taken by:

NOTES

(Office use only)

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

Scalloped Waste Management Drawer Box Order Form Customer #

Quote

Order

Company Front

Name

H

Telephone

Back H

Job Name / P.O. Order Date

Ship Date

(Office use only)

Our Truck

Fed Ex

Freight

CPU

On Trac

Double: Two 35 quart Waste Bins Included - fits 20 1/2" high cabinet openings or 50 quart Waste bins available add $50 per bin - fits 24 1/2" high cabinet openings

Transfer Date

Ply Drawer Options: comes standard prefinished 9-Ply Birch 11-Ply Birch

D

W

Ship Via

(Office use only)

12mil Thick 15mil Thick

Single: one 35 quart Waste Bin Included - fits 20 1/2" high cabinet openings or 50 quart Waste bin available add $50 per bin - fits 24 1/2" high cabinet openings

Standard Dimensions for Waste Management Drawer Boxes W 15 1/4" D 21"

Solid Drawer Options: comes standard prefinished

W 15 1/4" D 21"

Standard Thickness: 15mil (0.590") (by checking this box we will add 18" to your width to accommodate our standard 15mil thickness) Select Maple

Ply

Other

1/4"

3/8"

1/4"

3/8"

Special Options: indicate in "Notes" field Scoop Option

Square Scoop

BIN

BIN

BIN

Single Lateral

Double Lateral

BIN

BIN

Soft Maple

Other

Drawer Bottom:

W 21" D 21"

BIN

If using calculation for 21" side thickness, check here

Material Options:

W 11 1/4" D 21"

Lipped Front

Notching Only (no clips installed):

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

Single Vertical

Double Vertical

Waste Bin Options: check one Standard 35 quart

50 quart (add $50 per bin)

Notching and Clips Installed: check one Blum Standard Clip

Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

Blum Narrow Box Clip

Salice Narrow Box Clip

1 1/2" Notch

2 3/8 Notch

Blum Inset

Grass 2D Clip

3 3/8" Notch

4 15/16" Notch

Blum Movento Standard

Grass Narrow Box Clip

Blum Movento Vertical

Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

No Notch

(for details see pages 12-16)

Blum Movento Narrow

QTY

WIDTH

DEPTH

FRONT HEIGHT

BACK HEIGHT SCALLOPED (MINIMUM 7")

1

standard

2

standard

3

standard

Special Instructions:

Order taken by:

LASER LOGO

(Office use only)

NOTES

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

Dovetail Drawer Box in Box Order Form Customer #

Quote

D2

Order

D1

Company Name

W2

TOP VIEW

Telephone

W1

Job Name / P.O. Order Date

Ship Date

H1

Ship Via Our Truck

Fed Ex

Freight

CPU

On Trac

Transfer Date

Ply Drawer Options: comes standard prefinished 12mil Thick

11-Ply Birch

15mil Thick

(standard notching fits Blum, Grass, Salice and Accuride undermount runners)

(by checking this box we will to your width to accommodate our standard 15mil thickness) Select Maple

Soft Maple

Other

Drawer Bottom 2: Scoop Option

Flush

1/4"

3/8"

1/4"

3/8"

Square Scoop

ITEM

4 15/16" Notch

(for details see pages 12-16)

LASER LOGO

Blum Standard Clip

Salice Standard Clip

Blum 2D Clip

Salice 3D Clip

Blum Narrow Box Clip

Salice Narrow Box Clip

Blum Inset

Grass 2D Clip

Blum Movento Standard

Grass Narrow Box Clip

Blum Movento Vertical

Hettich Quadro IW21-LOCK12 Hettich Quadro IW21-LOCK58

Inside Sales: use line 1-3 for data entry.

Box in Box Set

Lipped Front

NOTES

Box in Box Set Please use a seperate order form for each Box in Box size.

For multilple Box in Box sets of the same size use only one form.

Special Instructions:

3 3/8" Notch

Blum Movento Narrow

Standard

Special Options: indicate in "Notes" field QTY

2 3/8 Notch

Notching and Clips Installed (check one): for Drawer Box 1

add 18"

Other

1 1/2" Notch No Notch

If using calculation for 21" side thickness, check here

Ply

Removable Divider

Notching Only (no clips installed): for Drawer Box 1

Standard Thickness: 15mil (0.590")

Drawer Bottom 1&2:

BH

Fixed Divider

Solid Drawer Options: comes standard prefinished

Material Options:

Drawer Box 1 SIDE VIEW

(Office use only)

9-Ply Birch

H2

Drawer Box 2

(Office use only)

1

W1

2

D1

3

H1

4

BH (MIN 1 1/2")

5

W2

6

D2

7

H2 Order taken by:

Dimension

(Office use only)

Notes

Time:

1-408-782-5700 • Fax: 1-408-782-9000 • E-mail: CalDoor@CalDoor.com • Order Online: www.CalDoor.com

39

Orders, Quotes and Inqueries: (408) 782-5700 & (888) Cladoor • Orders & Quotes Fax: (408) 782-9000 & (888) 223-6677 Orders & Quotes E-mail: CalDoor.com • Visit our website & tour our facility on-line @ www.caldoor.com
