Australian Made Cabinets
Pneumatic & Control
We make ideas flow.
What’s in the standard box?
The industry demands reliable pneumatic pilot valve panels and we deliver these with our Burkert Air cabinet solutions.
Pneumatics are central to process control systems, and Burkert, as a local manufacturer of process pneumatics and field instruments, understands both the automation and instrumentation needs of your operation. Burkert Air offers a comprehensive, ready-to-install solution for integrating
pneumatic valves and I/O. Each cabinet is manufactured from stainless steel for maximum durability, and is equipped with all necessary fittings and bulkheads.
Our electro-pneumatic valve islands are designed to help you streamline your process and operations. By providing a fully assembled system, Burkert Air can be delivered to site faster, significantly reducing on-site labour requirements, and improving product cost.
Features + Benefits
Four manifold sizes in hardwired or networked variants:
• 8, 12, 16, and 24 station with Type 8652 for Industrial Ethernet
• 8, 12, 16, and 24 station with Type 8640 for 24VDC traditional hardwired
All panels are 316 stainless steel with wall mounting brackets for easy installation.
All panels are supplied with general arrangement (GA), electrical and pneumatic drawings as standard
All panels are built in-house at Burkert Australia’s HQ in Sydney
All panels are fully tested QA / FAT certificate supplied as standard
Quick delivery (typically 3-4 weeks)
Customised versions available on request
Ready-to-Assemble Cabinets
Capacity
Dimensions

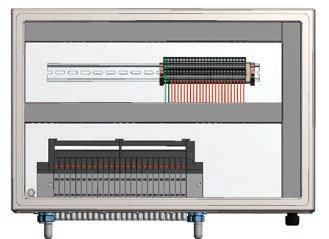

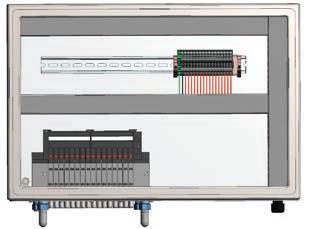

24V DC HARDWIRED VERSIONS - TYPE 8640
Capacity 8 Station
Dimensions

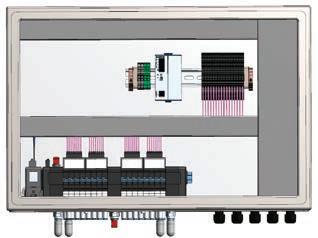

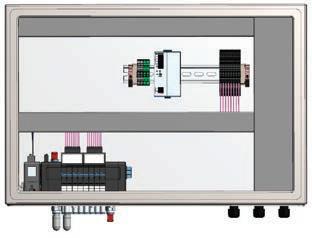

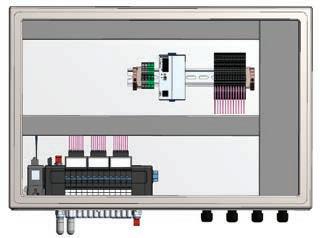

INDUSTRIAL ETHERNET VESIONS - TYPE 8652
X 600W X 250D Dimensions
X 250D
Capacity 16 Station Capacity 24 Station
Dimensions 400H X 600W X 250D
Dimensions 600H X 600W X 250D

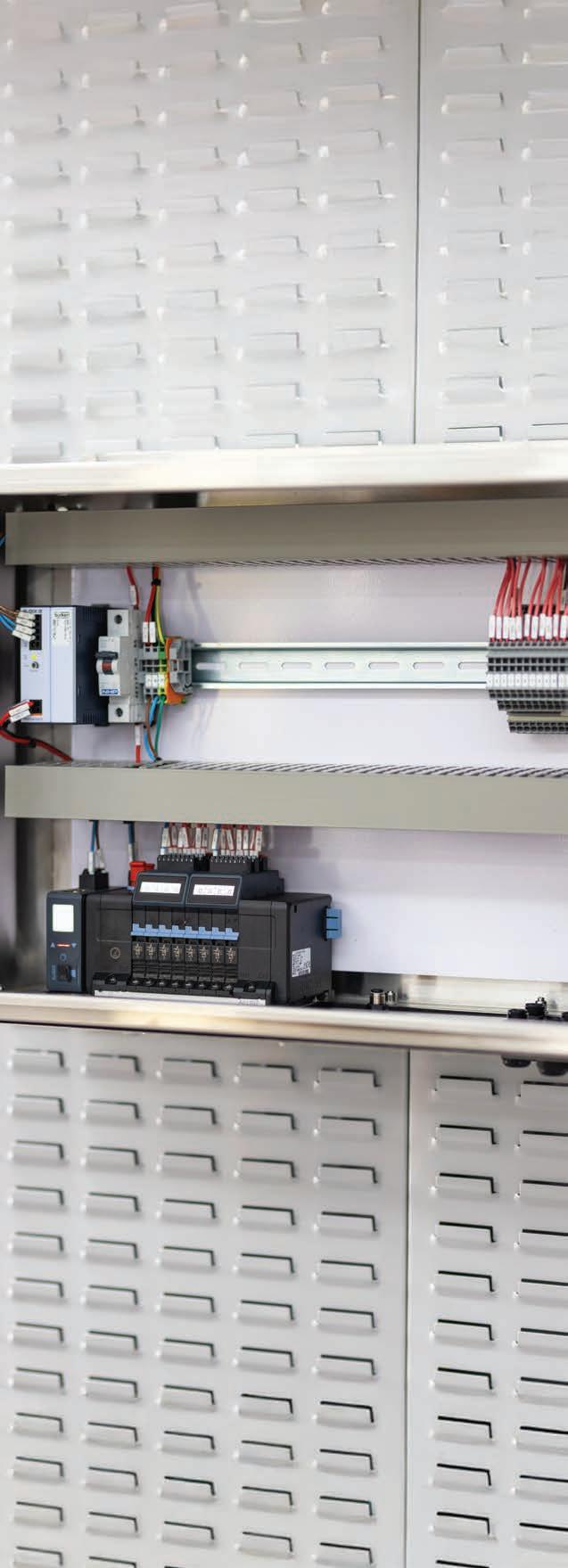

Bespoke Cabinets
While Ready-to-Assemble cabinets offer the most standard features, we understand that every process is different. Our extensive range of valves, pneumatic manifolds, sensors, and IO modules, can all be adapted to suit your needs. AIR
Type 8640
Hardwired valves & high flow applications
Type 8652
Modern, modular valve island with all the features
VALVE ISLAND
Type 8644
Flexible integration via the WAGO I/O System 750
Type 8647
Native Siemens SIMATIC ET200SP & PCS7 support
Type 8650
Native Siemens SIMATIC ET200iSP platform for explosive areas
The AirLINE Quick adaption plate allows valve islands to mount directly to the floor or wall of the control cabinet, eliminating the need for internal pneumatic tubing and reducing labour
PREPARATION, PRESSURE SENSING, PRESSURE SWITCHING
Type TPM001
Air preparation kit for filtration, regulation & isolation, with several accessories
Type 8312, 8318, 8325, 8316, TSD001, TCD001 Burkert offers several Type numbers to suit your pressure application. Supply and integration within the pneumatic panel is possible

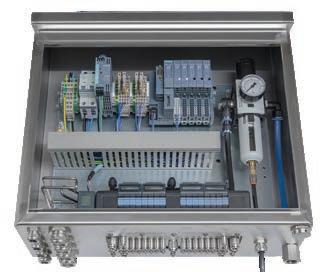

PNEUMATIC CONTROL CABINET SOLUTION
Type 8614
The Burkert Type 8614 pneumatic control cabinet combines the best products into a single, easy to install panel. The versatility of our bespoke pneumatic cabinets lets us cater to your application
Accessories
Pneumatic Fittings
FITTINGS
Adaptor G 1/8
Adaptor G 1/4
Adaptor G 3/8
Swivel Elbow G 1/8
Elbow G 1/4
Elbow G 3/8
Adaptor G 1/8
Adaptor G 1/4
Adaptor G 3/8
Accessories Air Preparation Units

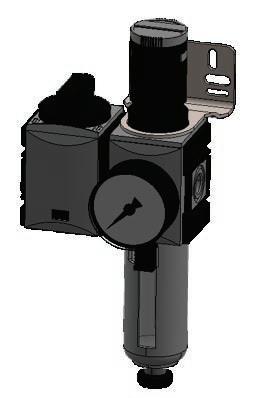

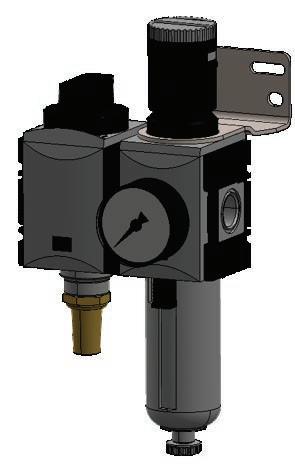

FILTER REGULATOR KITS
Filter-regulator assemblies to suit Burkert valve panels condition air, removing moisture and odours from air supply, reducing the chance of premature failure of the valve manifold.
Burkert Type TPM001 filter regulator kits can be offered to accompany each panel.
Available in G1/4” and G½” versions:
• 92182624 = G¼” ~2200 LPM flow (size 1)
• 92182625 = G½” ~5200 LPM flow (size 2)
Body material: plastic Grivory
GV-6H with 60% glass fibre
TECHNICAL
Fluid temperature 0 to +50 °C at 10 barg Max. supply pressure 0 to 16 barg
Control rage 0.5 to 10 barg
3/2-way manual ball valve with NBR seals
5 micron filter with semi-automatic drain
Push to lock and padlockable regulator adjustment knob
Galvanised steel wall mounting bracket
0-12 barg/0-160 psi pressure gauge with plastic housing
92182624 = G¼”
92182625 = G½"

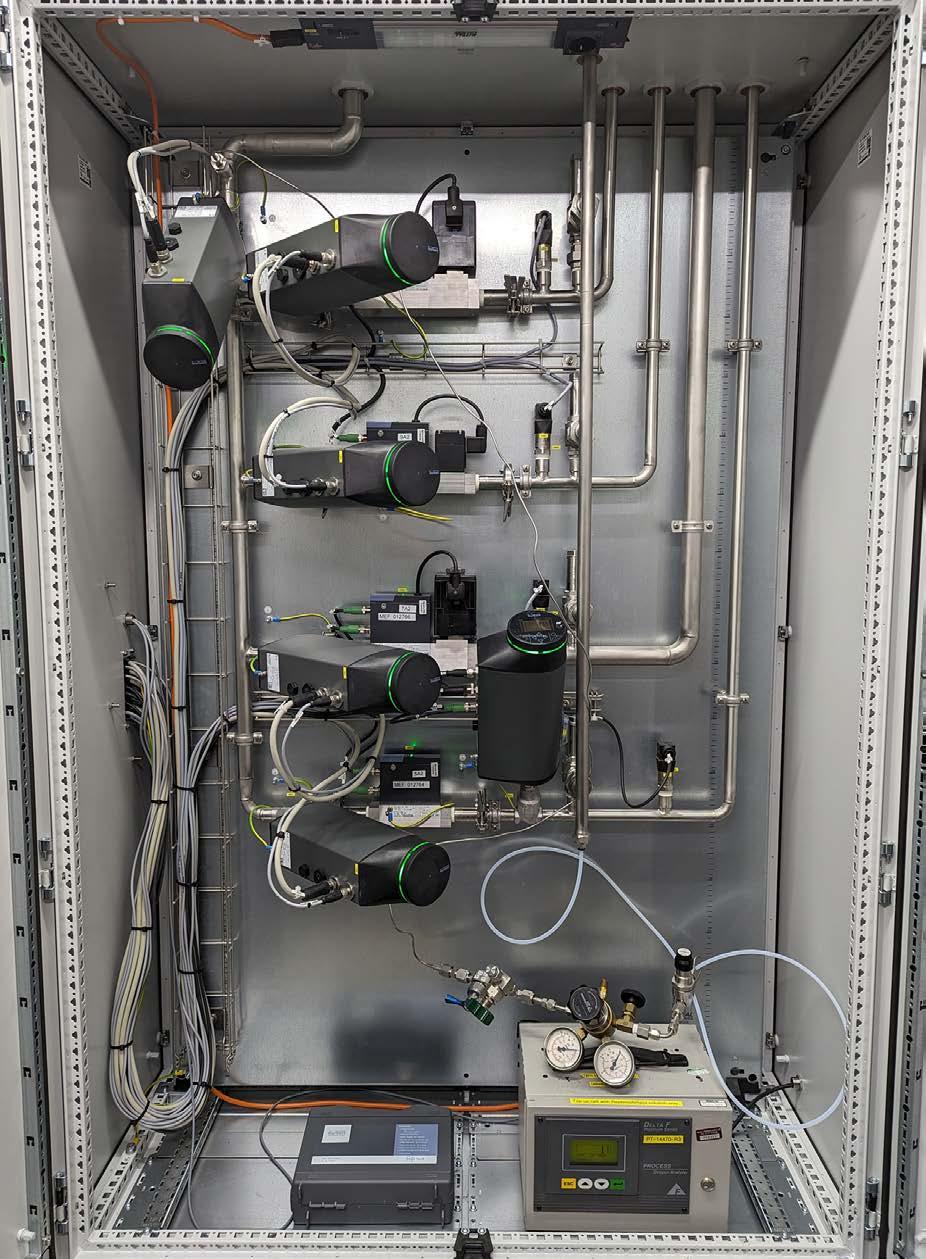

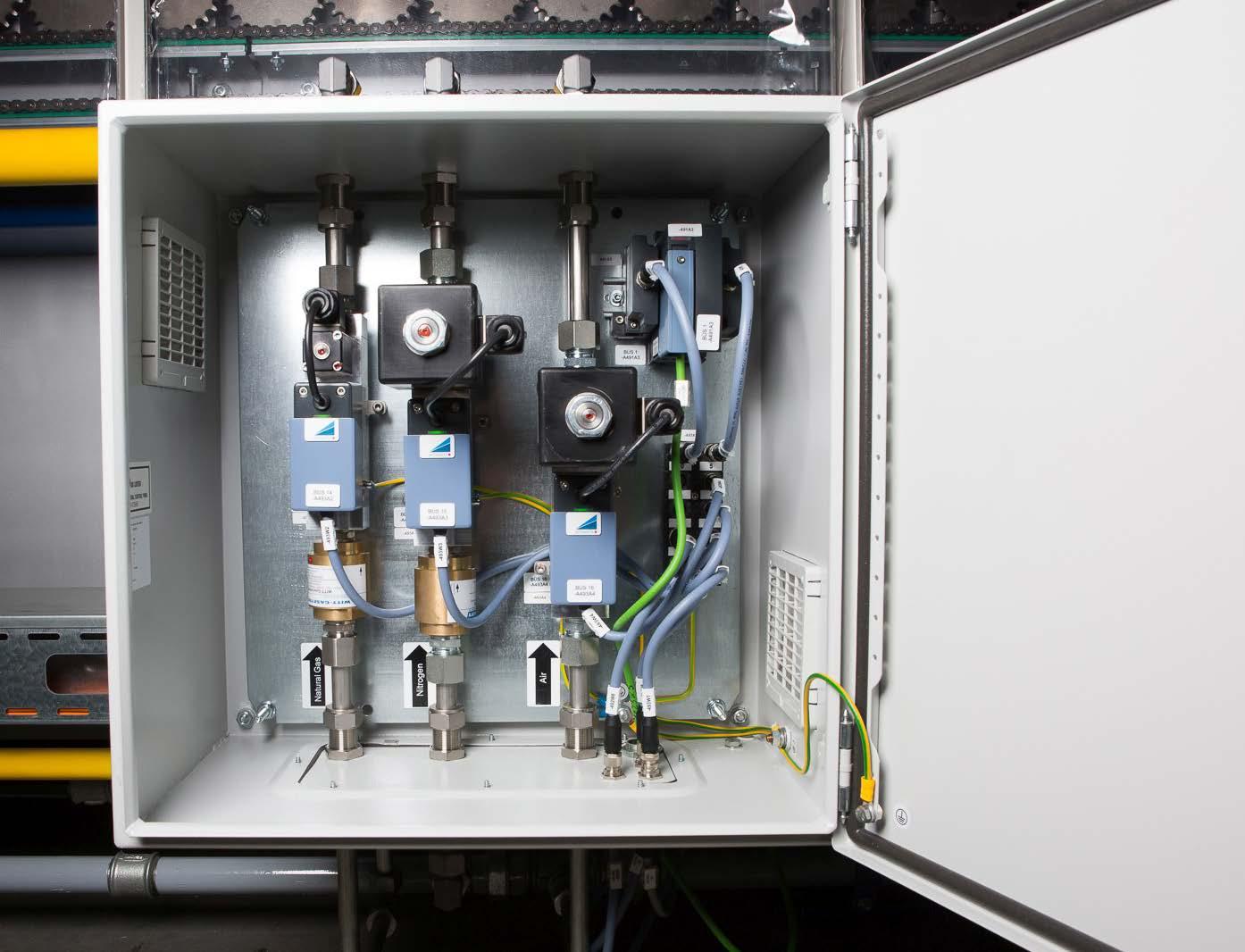

Bespoke Cabinet Solutions
Built around your process
Why Bespoke?
Every process is unique. Burkert’s Australian team designs and builds tailored cabinet solutions to match your exact specifications, whether you need network interfaces, I/O, field instrumentation integration, or full smart-system architecture.
Engineered for Demanding Environments

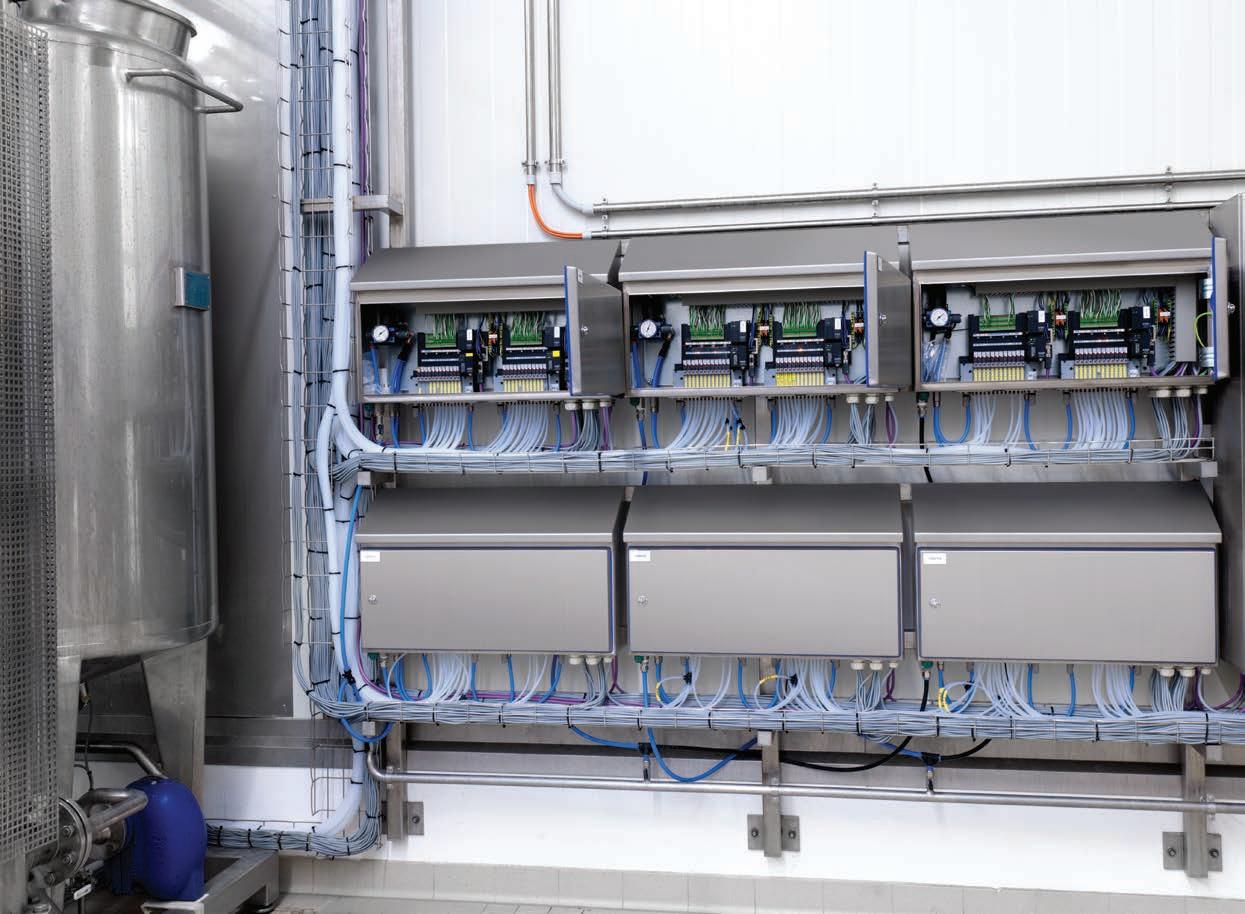

Built and designed for harsh industrial conditions, including food & beverage wash-down, mineral processing, water treatment, pharma, and chemical plants, our bespoke cabinets ensure long-term durability, safety, and ease of maintenance.
Quality you can trust
A solution for every application
Fully Customisable
Designed to your P&ID, network topology, field devices, and user requirements
Simplified Integration: all wiring, terminations, interfaces, and documentation delivered ready for connection on-site
Built in an ISO9001 certified facility, with full FAT testing, documentation, and lifetime service support.
End-to-End Support
• Concept design
• CAD modelling
• Assembly
• Installation
• Training
• After‑sales service
At Burkert we provide a number of solutions for our customers so they can get what they need, when they need it. Fast and efficient 24/7 ordering through our eShop, strong collaboration with our technical sales staff and working personally with our team of Burkert experts for customised projects.
Service. On-site + off-site support for faults, analysis, plus system implementation and optimisation.
Installation. Assistance to get you up and running. Upgrades or new installs, our team can support with on-site installation.
Calibration. On-site inspection + re-calibration of sensors and transmitters to ensure your system is running optimally.
Training. Online Academy with certified trainers or hands on training for engineers + maintenance teams.
Maintenance. On-site health checks and review of application performance can increase efficiencies + reduce downtime. Quick turnaround on parts and repairs.
