Common Connectors used in Process Automation
A-Coded
General sensor and actuator connection

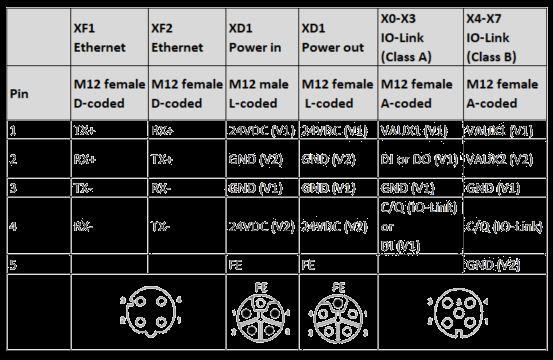

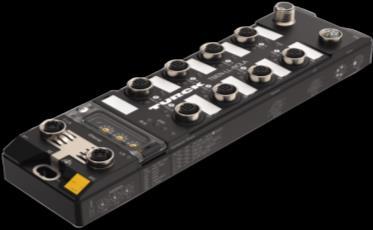

IO-Link, ASi, EDIP
B-Coded
Industrial RS485 Networks
Profibus
D-Coded
Industrial Ethernet Networks
Profinet, Ethernet/IP, Modbus/TCP, etc.
X-Coded
Gigabit Industrial Ethernet
Profinet, Ethernet/IP, Modbus/TCP, etc.
L-Coded
Power Cable, normally 24VDC
Capable of 16A
S-Coded
Power Cable, normally AC voltages
Standard M8 Cables / Connectors
Standard M12 Cables / Connectors

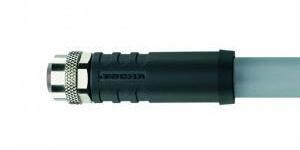

Sensor / Actuator Cordsets

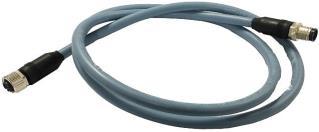

M12 female straight to M12 male straight, A-coded, 5 pole, sensor actuator cordset
Cable end A (female) Cable end B (male)
M12 female angled to M12 male angled A-coded, 5 pole, sensor actuator cordset
Cable end A (female)
Cable end B (male)
M12 female straight to M12 male angled A-coded, 5 pole, sensor actuator cordset
Cable end A (female)
Cable end B (male)
M12 female angled to M12 male straight A-coded, 5 pole, sensor actuator cordset
Cable end A (female)
Cable sheath material: PUR (colour RAL7040 grey) Cross sectional area per core: 0.37mm2
Current capacity: 4A
Cable diameter: 5.2mm
Locknut material: Nickel plated brass (CuZn) Unshielded Cable end B (male)
M12 A-coded field wireable connectors Type
Housing material: Plastic PA
Locknut material: Nickel plated brass (CuZn)

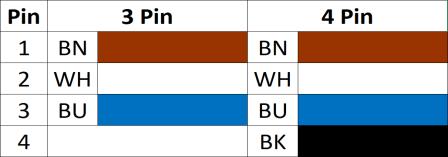

Pinouts Photo
Gender Notes

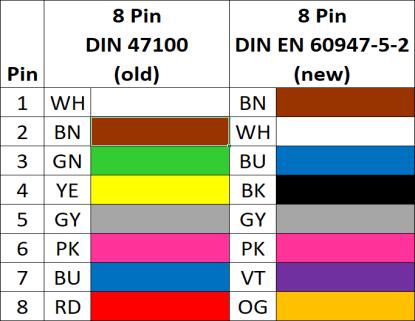

Ethernet Cordsets
Ethernet Cordsets
Push-lock spring connection
Body material: Nickel plated brass (CuZn) Protection: IP65 / IP67
Cable entry: 4 - 8mm dia
M12 straight D-coded field wireable connector Properties
Type: Cat5e shielded Sheath material: PVC Cores: AWG22 solid
Photo Gender

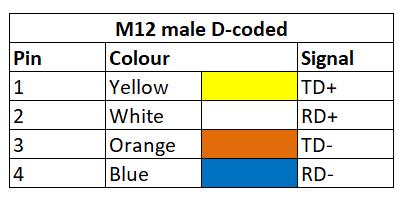

Pinouts

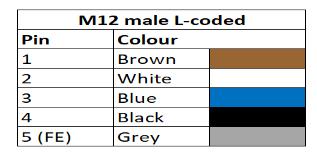

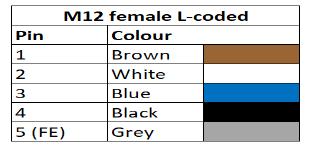

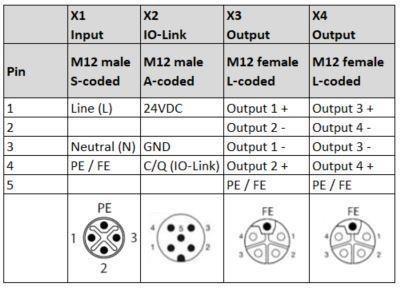

Power Cordsets
M12 Accessories
Housing material: Plastic PA
Locknut material: Nickel plated brass (CuZn)
Cable entry: 4 - 6mm dia
Current capacity: 4A Protection: IP67
Cable sheath material: PUR (colour RAL7040 grey)
Cable length: 2 x 0.3m
Cross sectional area per core: 0.37mm2
Current capacity: 4A
Cable diameter: 4.2mm
Each female port includes integrated LED
Circuit logic: PNP Protection: IP65 / IP67 / IP68
Torque wrench kit
M12 Accessories
Cable sheath material: PUR (yellow)
Moulded body material: PUR (black)
Cable length: 2m
Cable diameter: 6mm
Protection: IP65 / IP67
Note: This cable is used to provide
Cable sheath material: TPU (grey)
Moulded body material: TPU (translucent black)
Cable length: 1m
Cross sectional area per core: 0.75mm2
Cable diameter: 6.4mm
Protection: IP67
Note: This cable is used to

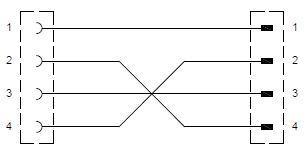

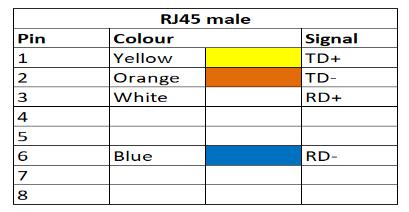

M12 crossover cable

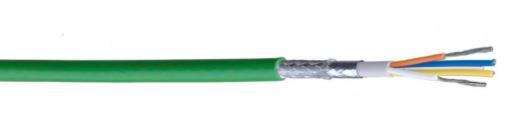

büS Cables
Locknut Material:
Locknut
Locknut
M12 5 pin büS Cordsets
büS Connectors

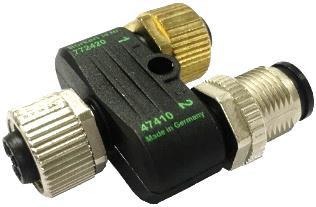

büS Y-Connectors
Locknut
Locknut material: Nickel Plated Brass &
Locknut material: Nickel plated brass
Locknut material: Nickel plated brass (CuZn)

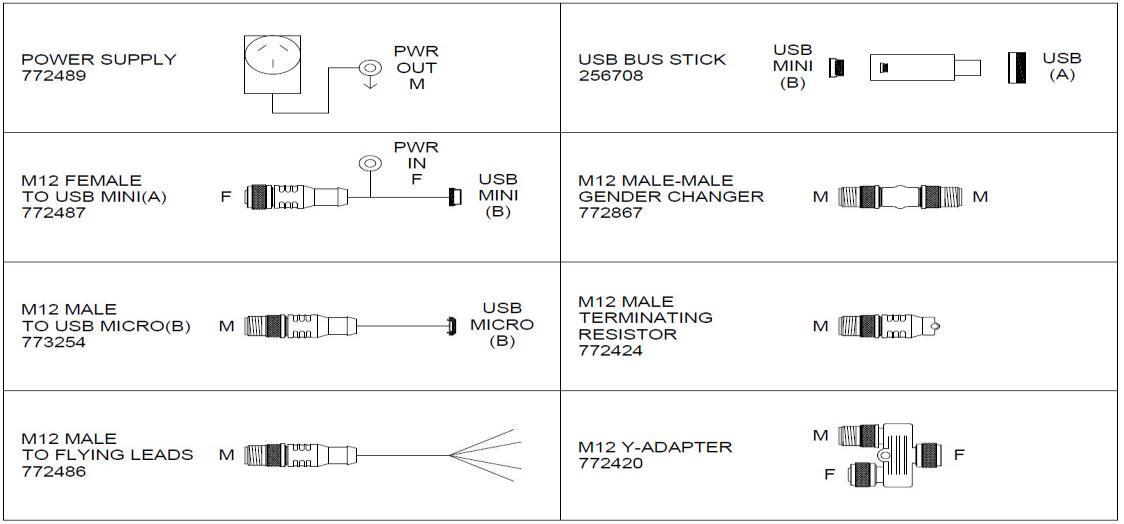

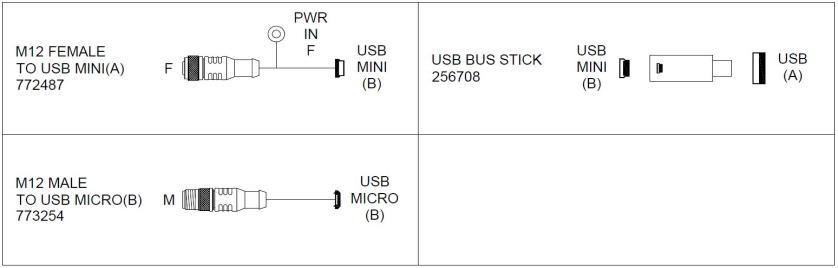

büS Accessories
ME43 Gateway

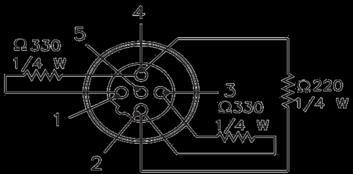

Includes Termination Resistor (303833) 1 x 5 Pin Terminal Block (büS) 1 x DB9 (Profibus) Includes Termination Resistor (303833)
x 5 Pin Terminal Block (büS) Includes Termination Resistor (303833)
(303833) 1 x 5 Pin Terminal Block (büS) 1 x DB9 (Profibus) Includes Termination Resistor (303833)
1 x 5 Pin Terminal Block (büS) 2 x RJ45 (Ethernet) Includes Termination Resistor (303833) 1 x 5 Pin Terminal Block (büS) Includes Termination Resistor (303833)
ME44 IO Modules
20081128

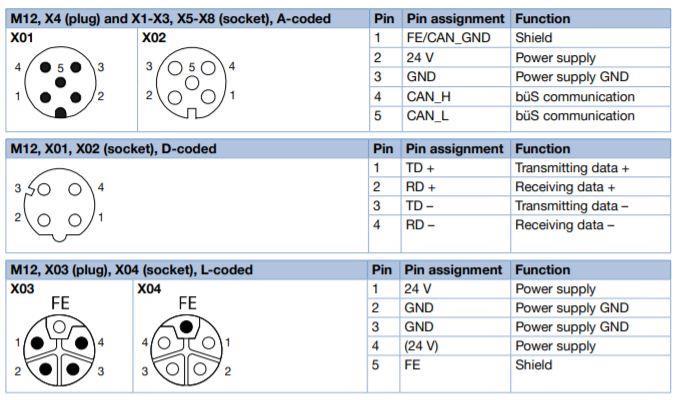

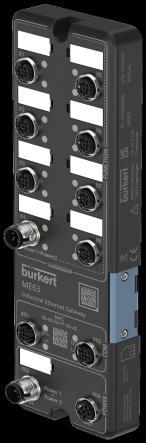

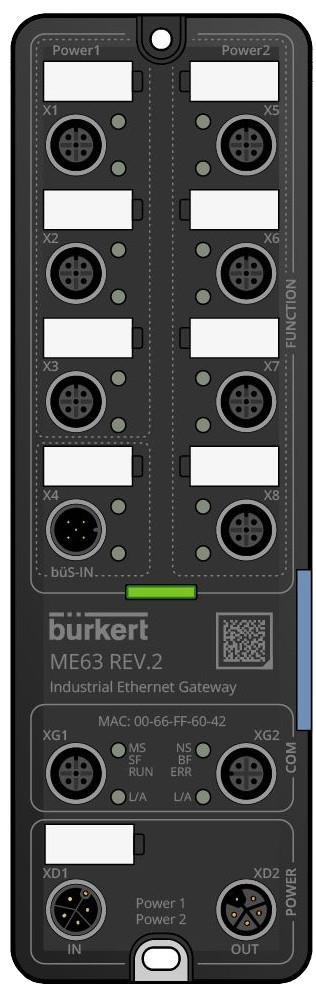

ME63 Gateway Rev2 PLACEHOLDER Pinouts
ME63 Gateway Rev1 Pinouts
16 x Digital Inputs
Up to four inputs can be used as frequency inputs (max 2.5kHz) for flow rate and totalisation IP65 / IP67 / IP69K

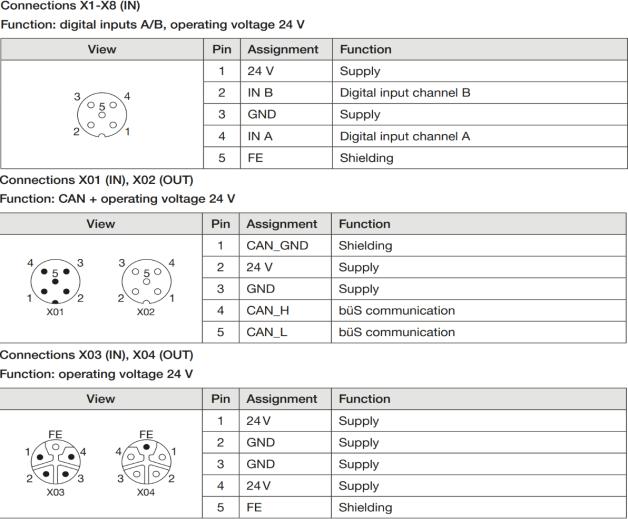

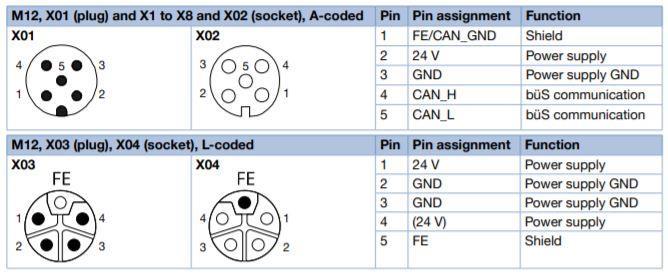

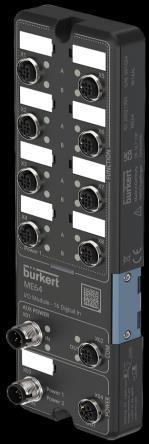

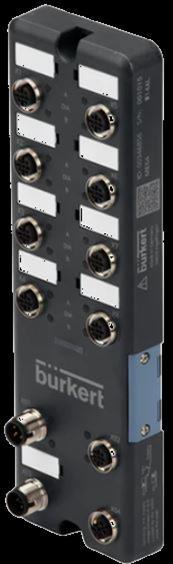

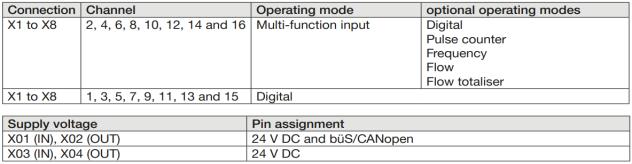

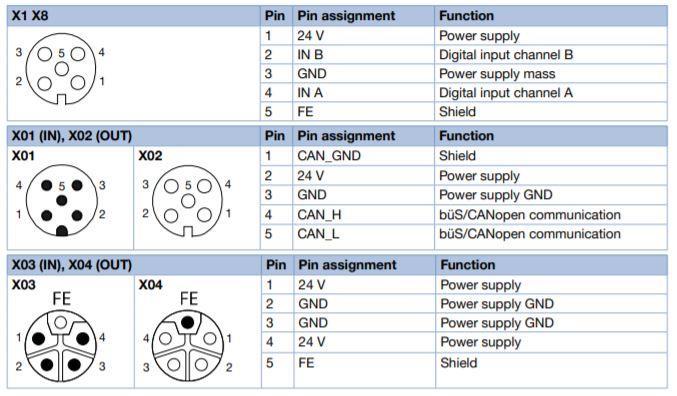

ME64 16DI Rev1 Pinouts Ports

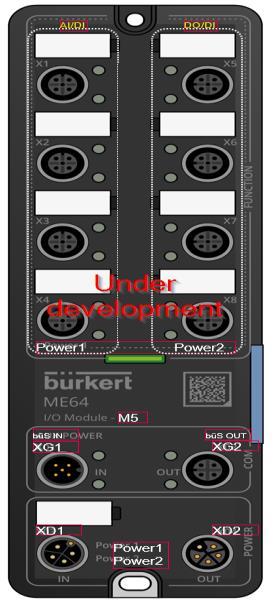

ME64 16DI Rev2
16 x Digital Inputs
Up to eight inputs can be used as frequency inputs (max 2.5kHz) for flow rate and totalisation
IP65 / IP67 / IP69K
ME64
Junction connection for büS devices
Can provide power to devices via the M12 A-coded ports or higher current via the M12 Lcoded ports
IP65 / IP67 / IP69K

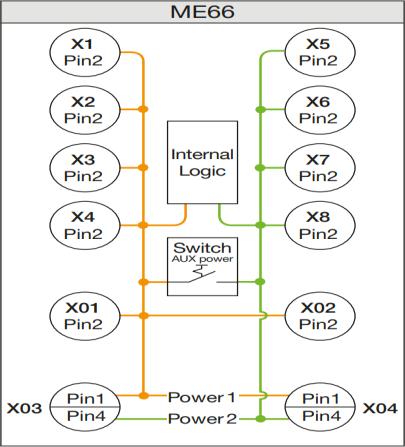

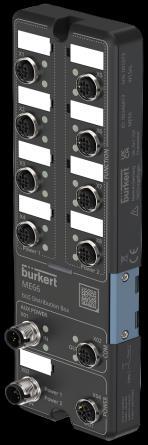

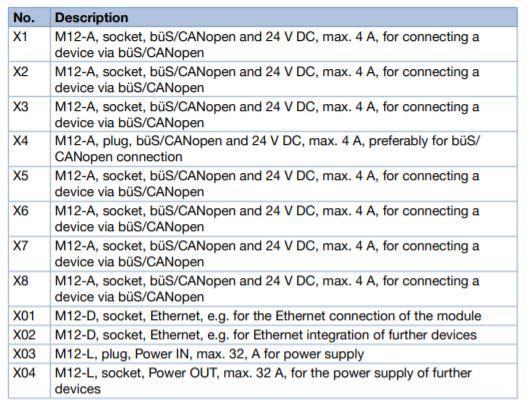

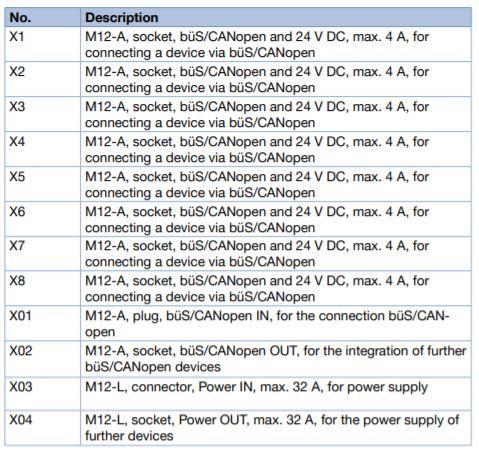

ME66 Passive Distributor Rev1 Pinouts Ports
ME66 Passive Distributor Rev2
Junction connection for büS devices
Can provide power to devices via the M12 A-coded ports or higher current via the M12 Lcoded ports
IP65 / IP67 / IP69K
With separate power supply via X03
20028654
AS-interface

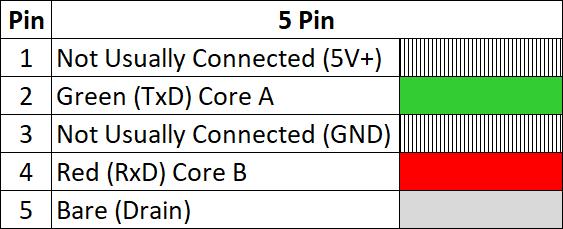

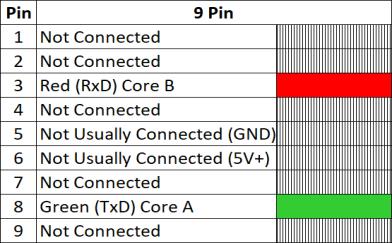

Profibus D-sub 9 pin Connectors (Field Wireable)
