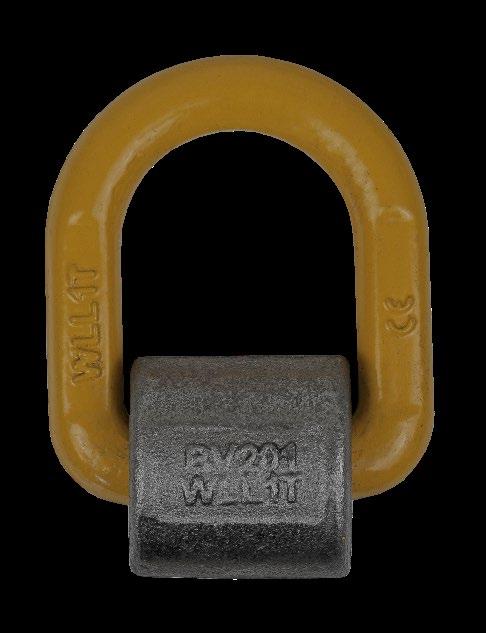

G80 Weld On Load Rings

1 - 10 Tonne

Bullivants Grade 80 Weld on Lifting Points are manufactured using forged alloy steel. The Working Load Limit and Batch identification is clearly marked on both the Ring and Lug.

Main Features:

• Grade 80 Alloy Forged D Ring

• Fatigue tested to >20,000 cycles at 1.5x WLL

• Ideal for lifting and lashing applications

Specifications:

• Each unit is packaged with welding instructions

• Welding must always be carried out by a qualified welder under AS/NZS 1554.1

RUD – the first chain manufacturer with approval of grade 100

In 1994, RUD received approval as the first chain manufacturer to produce an approved grade 8S (grade 100) chain system.

VIP-100 – an eye catching pink power coated round steel link chain revolutionised the chain market at that time, as it could be loaded by up to 30% more using the same nominal size than grade 80.

This resulted in a considerable weight saving and improvement of ergonomics compared to the grade 80 still commonly used in todays market.

ICE-120 advantages – always one diameter smaller than grade 80

13 years on from grade VIP-100, RUD advanced into the next innovative step in chain technology and became the world‘s first to receive approval for round steel link chains in grade 120 by the German BG to stamp “D”. Special quality class ICE-120 delivers improved safety features, wear indicators and higher working load.

• 60% increase in WLL (means the same load can be lifted by a chain one full diameter size smaller than grade 80.

• Double the impact toughness of AS 2321 grade 80.

• Duplex surface protection provides greater protection against corrosion

• Increase life due to the superior CrNiMo alloy.

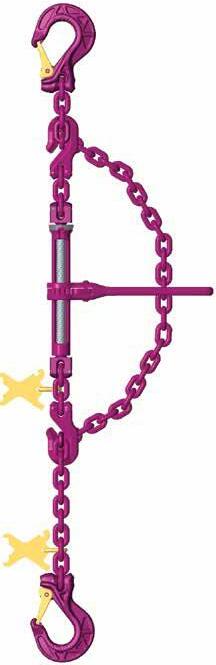

ICE-Lashing for superior load securing

The proven technical advantages of the VIP-100 program were maintained and further developed with the ICE120 lashing chain. Tensioning, connecting and shortening elements were considerably improved in terms to weight and functionality. The ergonomic design provides quick and easy handling, faster fitting and a substantial increase in safety.

ICE-120 – in ICE-Pink (traffic purple) powder coated – offers significant weight saving for the user.

The standard equivalent grade 80 commercial lashing chains are on average 60% heavier.

RUD ICE-120 up to 78% higher lashing capacity than grade 70 RUD ICE-120 up to 60% higher lashing capacity than grade 80

RUD Lashing chain ICE-CURT with highest LC (lashing capacity)

Due to the strength of the patented ICE-120 material, a continuous leap in the nominal size could be realised when compared to grade 80, even with smaller dimensions than a diameter of 16 mm.

This means for direct lashing, an ICElashing chain is able to replace a lashing chain of grade 80 of the next larger nominal size.

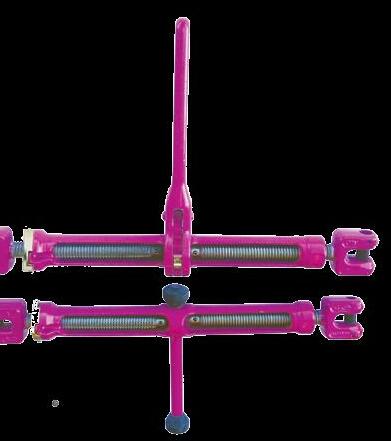

As a special highlight to the ICE-120 system, the ICE-CURT tensioner offers even more advantages:

• excedees the requirements of EN 12195-3

• magnetically clinging locking device –also suitable as anti-theft system (lockable) supplied with a RUD-ID-POINT®

ICE-STAR-HOOK:

•Wear marks

• Control mark for widening the mouth width

•Robust, forged safety latch

ICE-Chain:

•Grade 120

• 35 % tougher

• 30 % harder

•Up to 60 % more LC

•Up to 45 % lighter

Shortening

•Quick, easy handling

•Locking device by shape

ICE Identification Tag: integrated testing gauge Convenient anti-loosening

•Theft protection possible RUD-ID-POINT®

•Movable on the chain Easy, quick handling / maintenance
