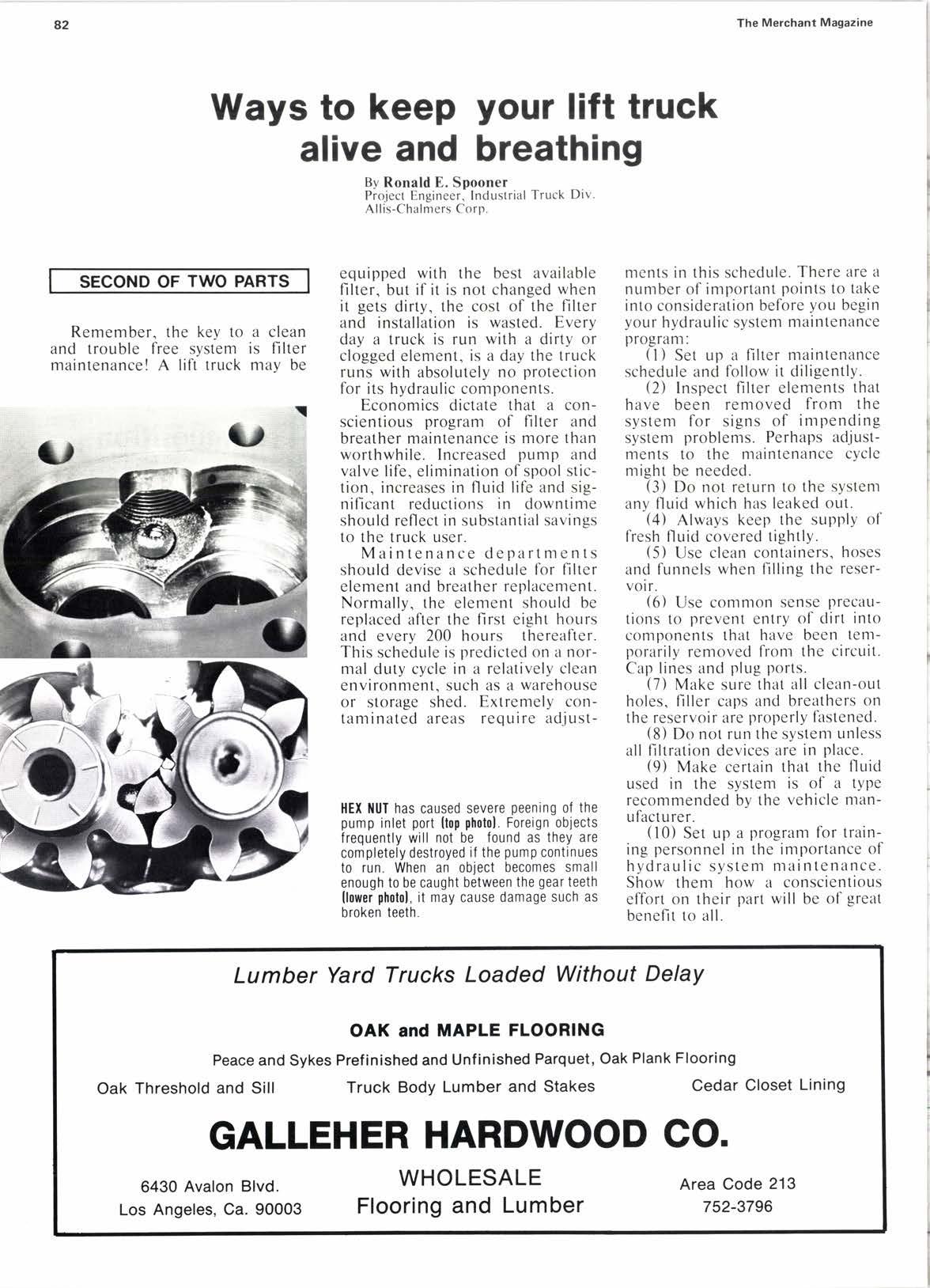

Ways to keep your lift truck alive and breathing

By Ronald E. Spooner Project Engineer, Industrial Truck Div. Allis-Chalmers Corp.

Second Of Two Parts

equipped with the best available filter, but if it is not changed when it gets dirty, the cost of the filter and installation is wasted. Every day a truck is run with a dirty or clogged element, is a day the truck runs with absolutely no protection for its hydraulic components.

Economics dictate that a conscientious program of filter and breather maintenance is more than worthwhile. Increased pump and valve life, elimination of spool stiction, increases in fluid life and significant reductions in downtime should reflect in substantial savings to the truck user.

Maintenance departments should devise a schedule for filter element and breather replacement. Normally, the element should be replaced after the first eight hours and every 200 hours thereafter. This schedule is predicted on a normal duty cycle in a relatively clean environment, such as a warehouse or storage shed. Extremely contaminated areas require adjust- ments in this schedule. There are a number of important points to take into consideration before you begin your hydraulic system maintenance program:

(l) Set up a filter maintenance schedule and follow it diligently.

(2) Inspect filter elements that have been removed from the system for signs of impending system problems. Perhaps adjustments to the maintenance cycle nrisht be needed.

I:) po not return to the system any fluid which has leaked out.

(4) Always keep the supply of fresh fluid covered tightly.

(5) Use clean containers. hoses and funnels when filling the reservol r.

(6) Use common sense precautions to prevent entry of clirt into components that have been temporarily removed fronr the circuit. Cap lines and plug ports.

(7) Make sure that all clean-out holes, filler caps and breathers on the reservoir are properly fastened.

(8) Do not run the systenl unless all filtration devices are in place.

HEX l{UT has caused severe peening of the pump inlet port (top photol. Foreign objects frequently will not be found as they are completely destroyed if the pump continues to run. When an object becomes small enough to be caught between the gear teeth llower photol, it may cause damage such as broken teeth.

(9) Make certain that the fluid used in the system is of a type recommended by the vehicle manufacturer.

(10) Set up a program for training personnel in the importance of hydraulic system nraintenance. Show thenr how a conscienlious effort on their part will be of great benefit to all.

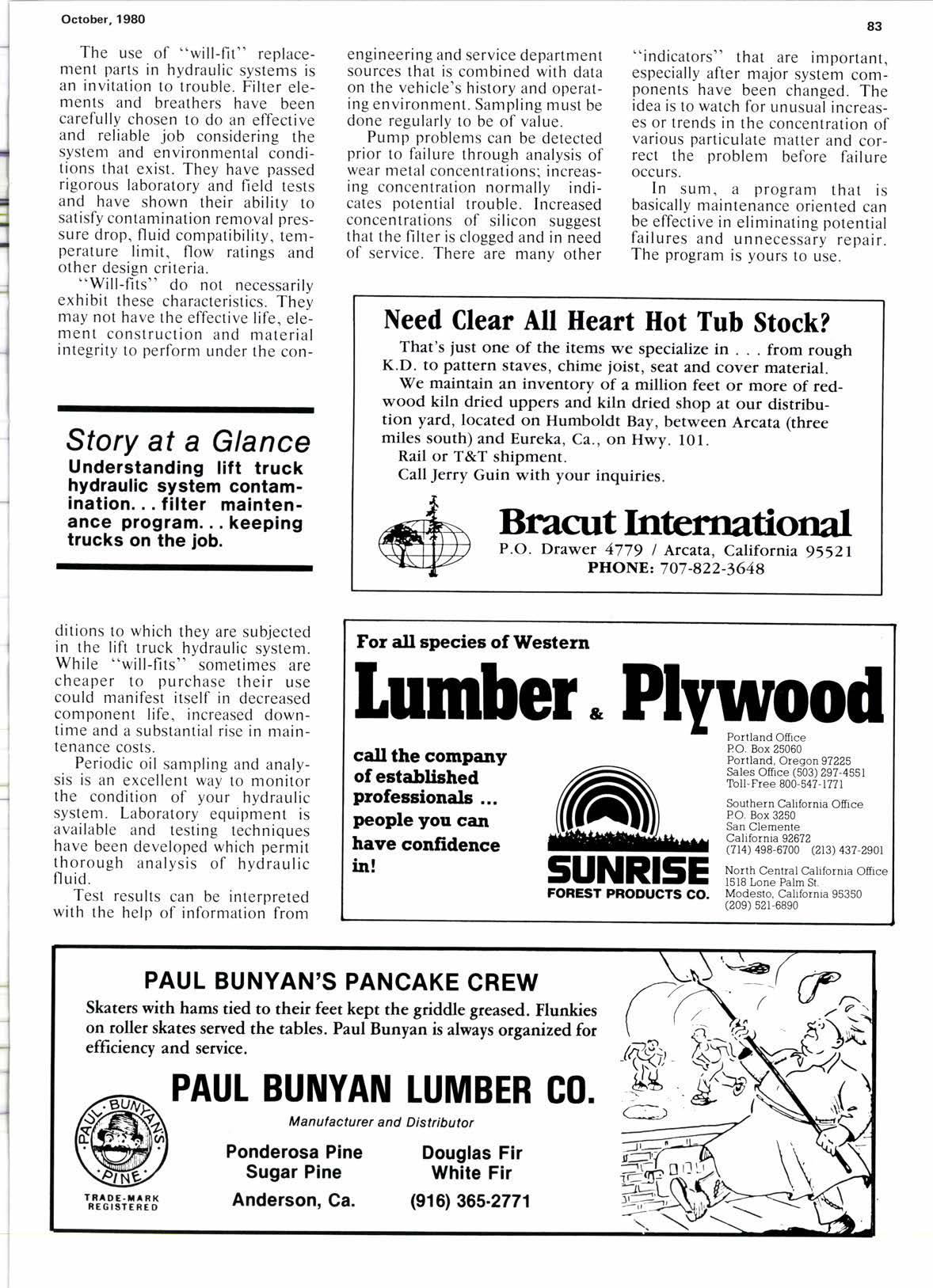

The use of "will-fit" replacement parts in hydraulic systems is an invitation to trouble. Filter elements and breathers have been carefully chosen to do an effective and reliable job considering the system and environmental conditions that exist. They have passed rigorous laboratory and field tests and have shown their ability to satisfy contamination removal pressure drop, fluid compatibility, temperature limit, flow ratings and other design criteria.

"Will-fits" do not necessarilv exhibit these characterisrics. They may not have the effective life, element construction and material integrity to perform under the con-

Sfory at a Glance

Understanding lift truck hydraullc system contamination... filter maintenance program.. . keeping trucks on the job.

ditions to which they are subjected in the lift truck hydraulic system. While "will-fits" sometimes are cheaper to purchase their use could manifest itself in decreased component life, increased downtime and a substantial rise in maintenance costs.

Periodic oil sampling and analysis is an excellent way to monitor the condition of your hydraulic system. Laboratory equipment is available and testing techniques have been developed which permit thorough analysis of hydraulic fluid.

Test results can be interpreted with the help of information from engineering and service department sources that is combined with data on the vehicle's history and operating environment. Sampling must be done regularly to be of value.

Pump problems can be detected prior to failure through analysis of wear metal concentrations: increasing concentration normally indicates potential trouble. Increased concentrations of silicon suggest that the filter is clogged and in need of service. There are many other

"indicators" that are important, especially after major system components have been changed. The idea is to watch for unusual increases or trends in the concentration of various particulate matter and correct the problem before failure occurs.

In sum, a program that is basically maintenance oriented can be effective in eliminating potential failures and unnecessaiy repair. The program is yours to use.

Need Clear All Heart Hot Tub Stock?

That's iust one of the items we specialize in . . . from rough K.D. to pattern staves, chime joist, seat and cover material. We maintain an inventory of a million feet or more of redwood kiln dried uppers and kiln dried shop at our distribution yard, located on Humboldt Bay, between Arcata (three miles south) and Eureke, Ca., on Hwy. l0l. Rail or T&T shipment. Call Jerry Guin with your inquiries.

For dl species of Western call the company of established professionals people you can have contidence in!

PAUL BUNYAN'S PANCAKE CREW

Skaters with hams tied to their feet kept the griddle greased. Flunkies on roller skates served the tables. Paul Bunyan is always organized for efficiency and service.

CONGRATUATIONS!

"The Merchant Magazine wins award. .Maggie Award. . ." (See Merchont, p. 3, Sept. 1980)

Winning over such magazines as Road & Track, Playgirl (?). Billboard, etc. - quite a feat and well deserved.

None of us PGL'ers can think of any magazine we enjoy more.

Thanks. . for the very nice story and photos of our 40th anniversary. "Ideas x years : Success." This excellent feature plus our two ads will make this a memorable issue.

Sincerely,

Charles D. Lauber

Palmer

G. Lewis Co., Inc.

525 C Street, Northwest Auburn. Wa. 98002

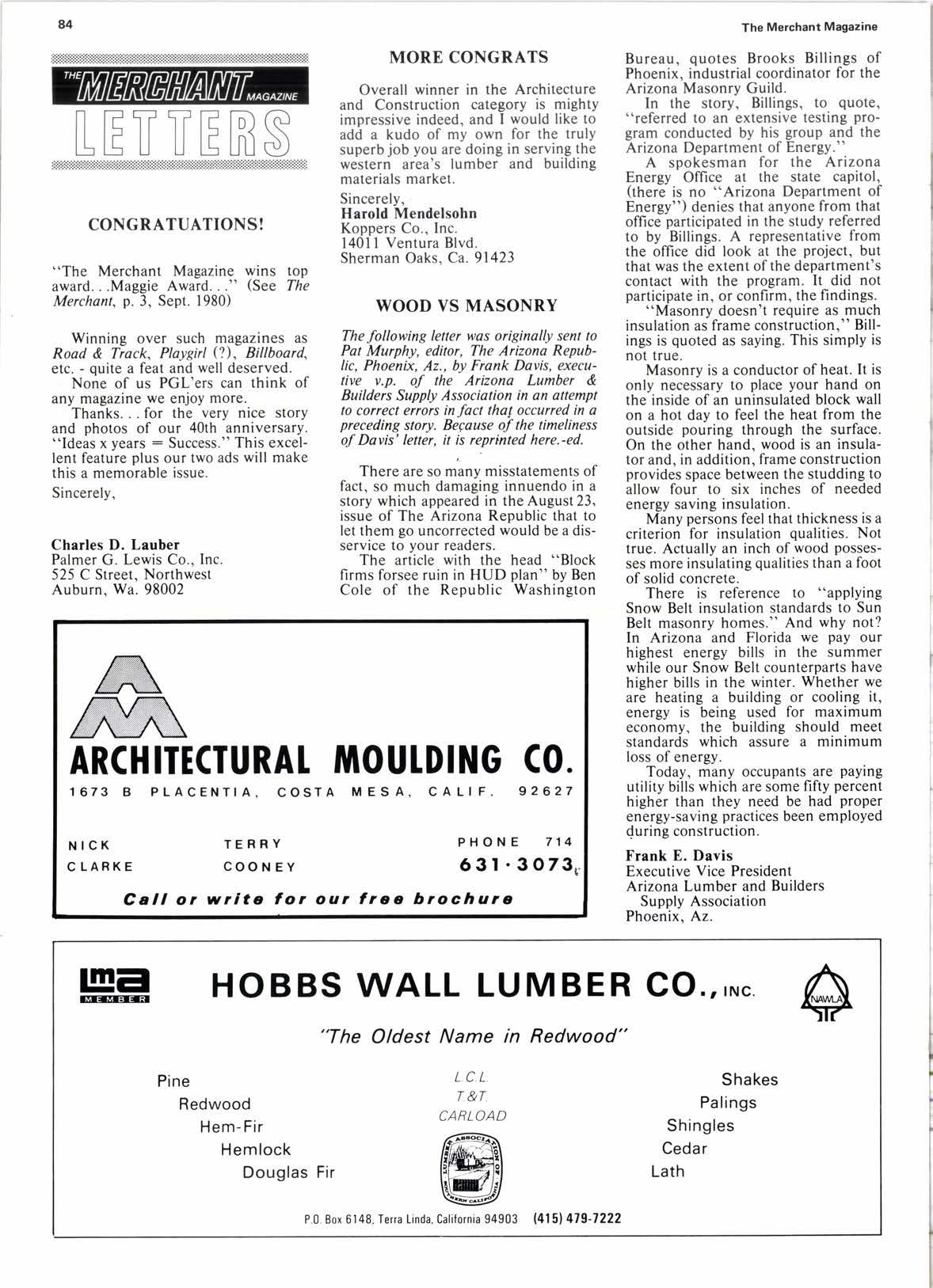

More Congrats
