Maya Saadeh

CREATING COMMUNITY Interior Urbanism in Downtown Cincinnati

Maya Saadeh

Design Drivers:

Publicness

Placemaking

Adaptive reuse of a specific space that is currently underutilized or not in use at all. Finding a way to rehab and transform a building to see how it can be best used for the current needs of the area. Bringing everyone in the community together and providing a space for various user groups to socialize and take part in their surrounding environment.

How Placemaking can be used to bridge the boundary between interior and exterior spaces. Creating a hybrid interior and exterior space that provides opportunities for passive and active interaction. Forming a strong relationship between the building and street.

Site: Garfield Garage

Exterior

Level 3

Entrance

Exterior

- Located in downtown Cincinnati along West 9th Street - Connected to the former Garfield Hotel which is no longer in use - Covers eight stories and approximately 160,000 square feet

Ramps

Level 2

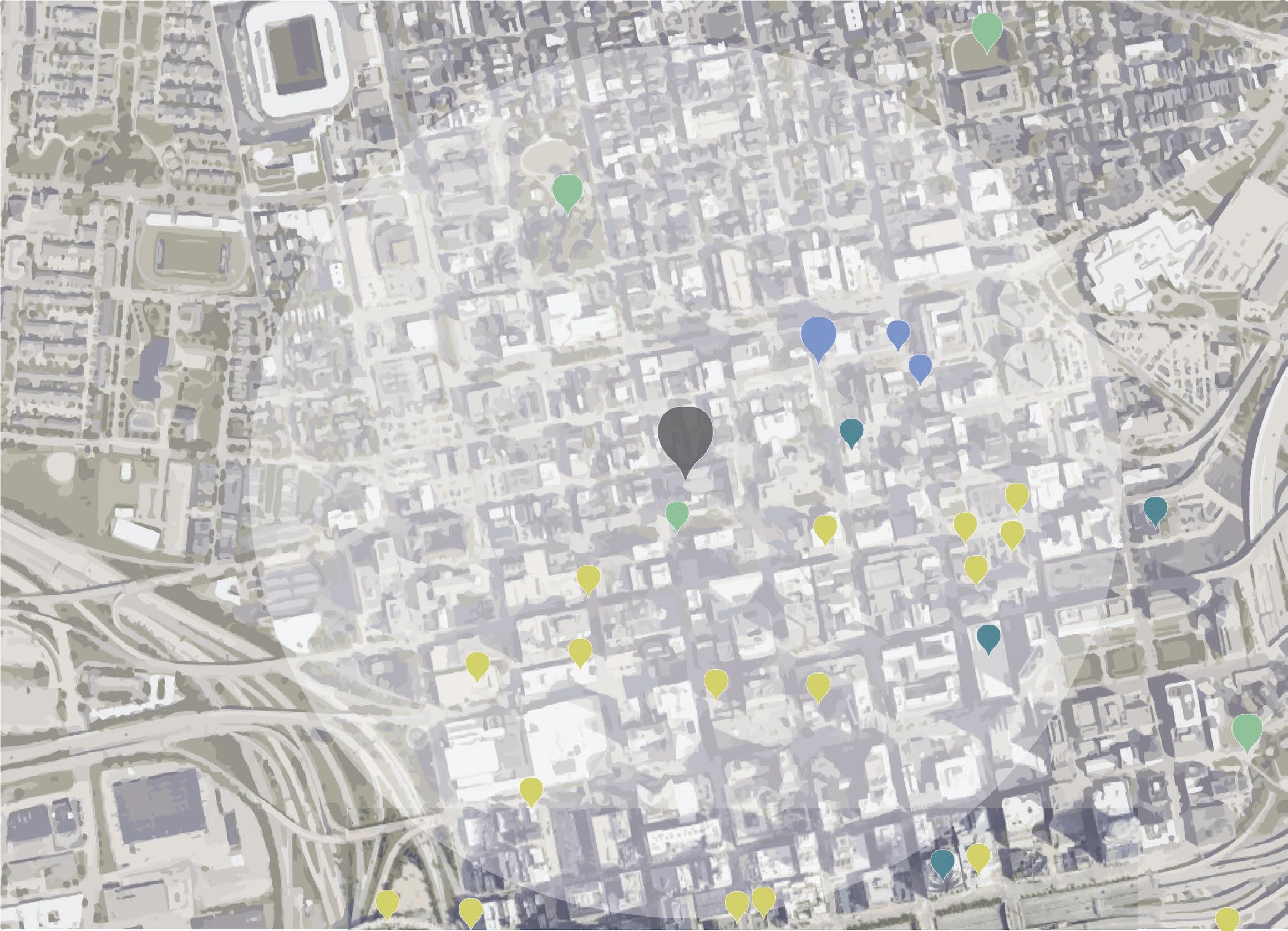

Surrounding Site

Parking

Grocery Stores

Greenspace

Early Education/ Daycare

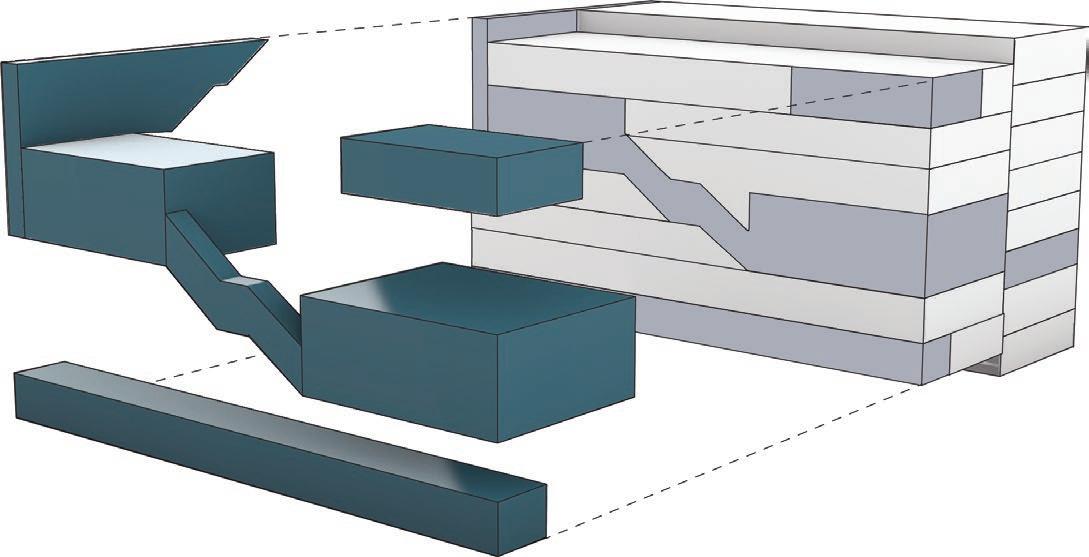

Concepting Diagram

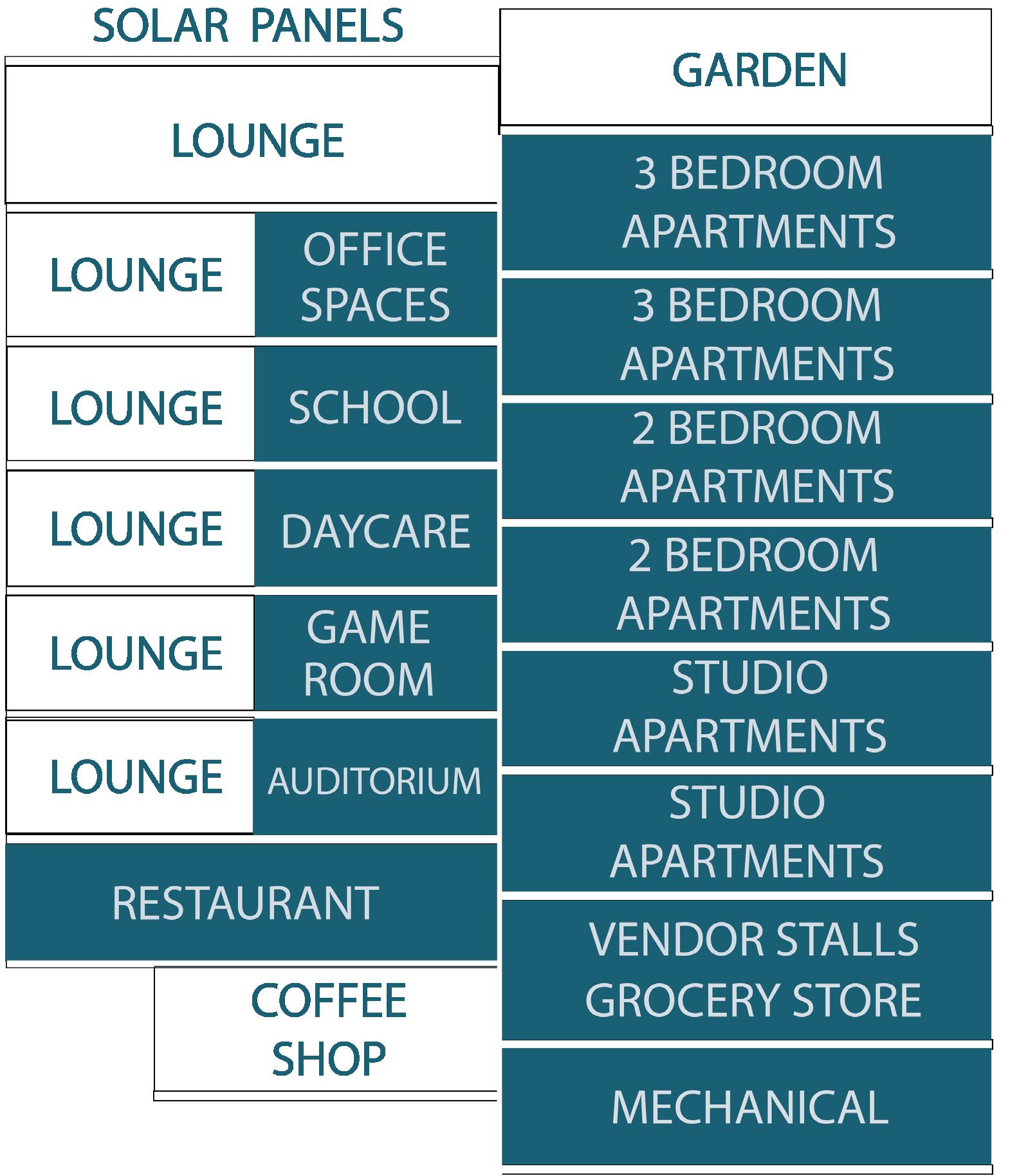

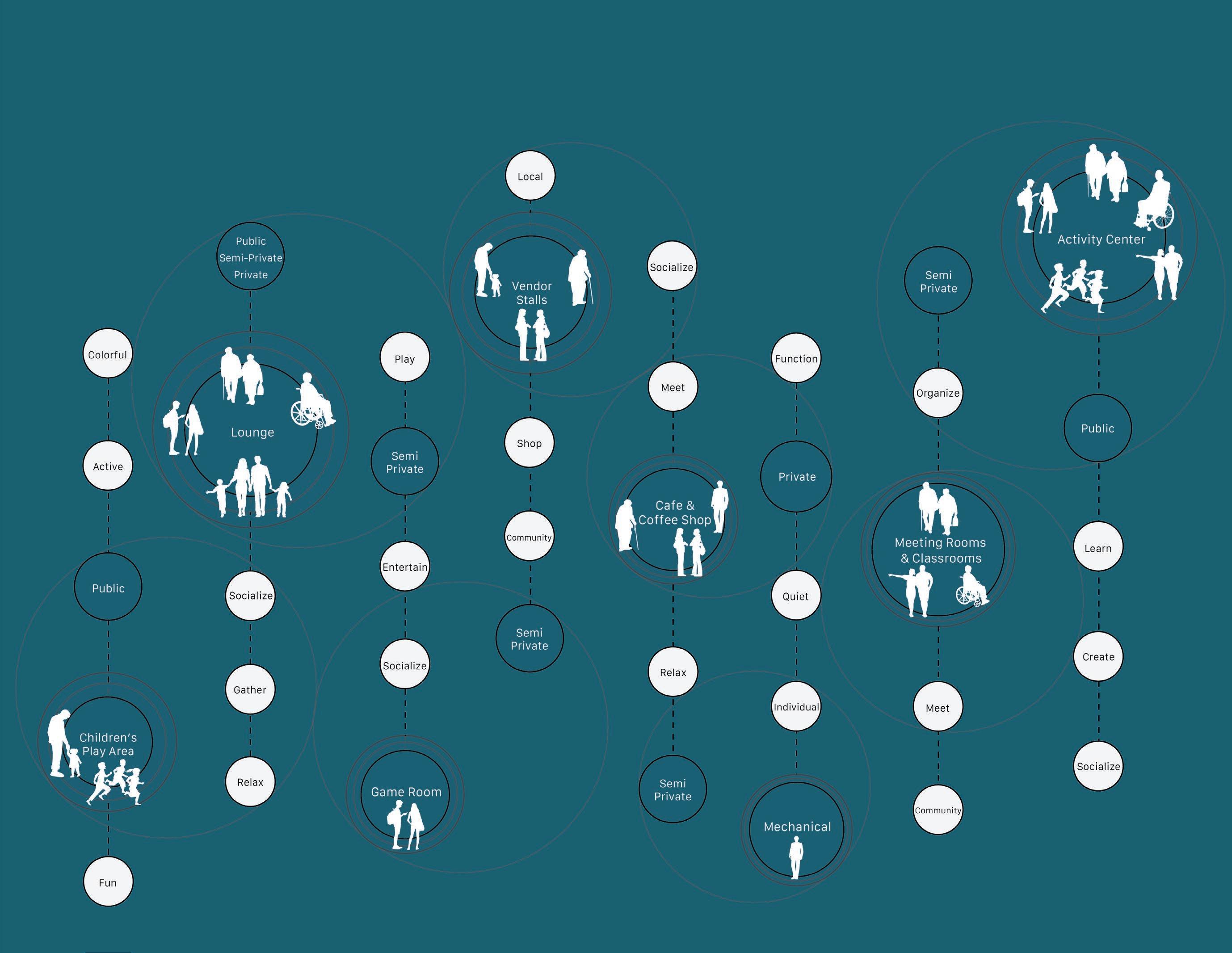

Program Diagram

Diagrams

Elevators

Interior/Exterior Diagram

Ramps

Exterior Stairs

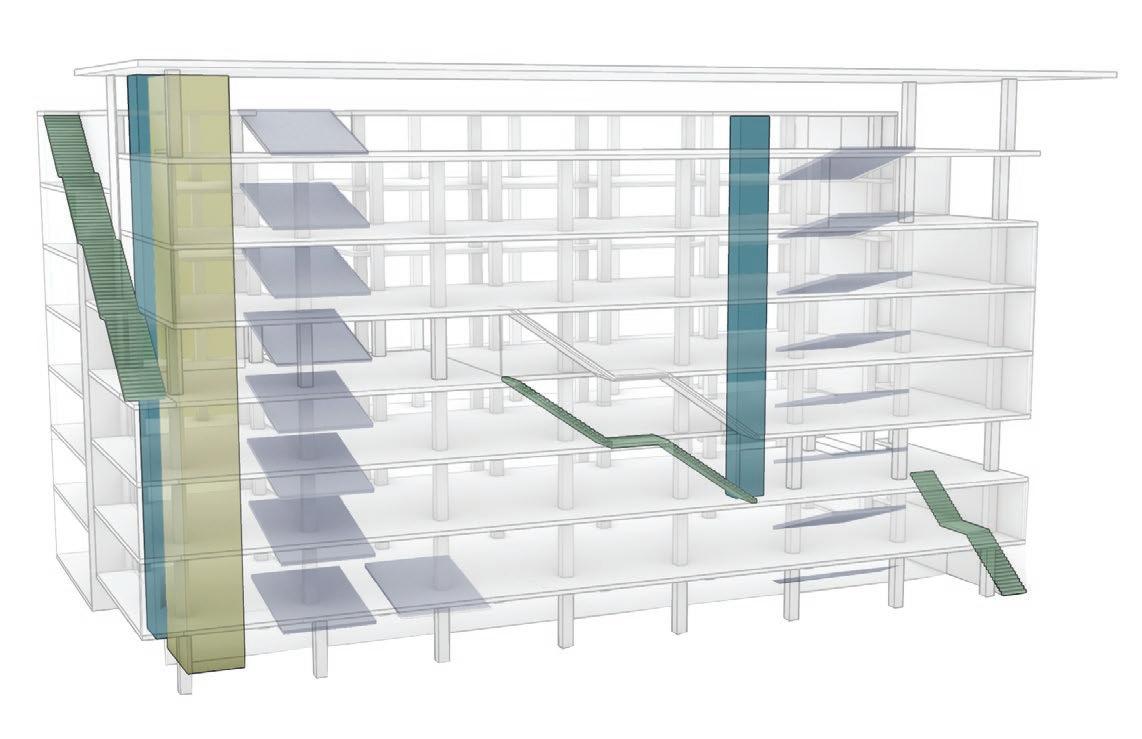

Circulation Diagram

Public

Solid/Void Diagram

Fire Stair

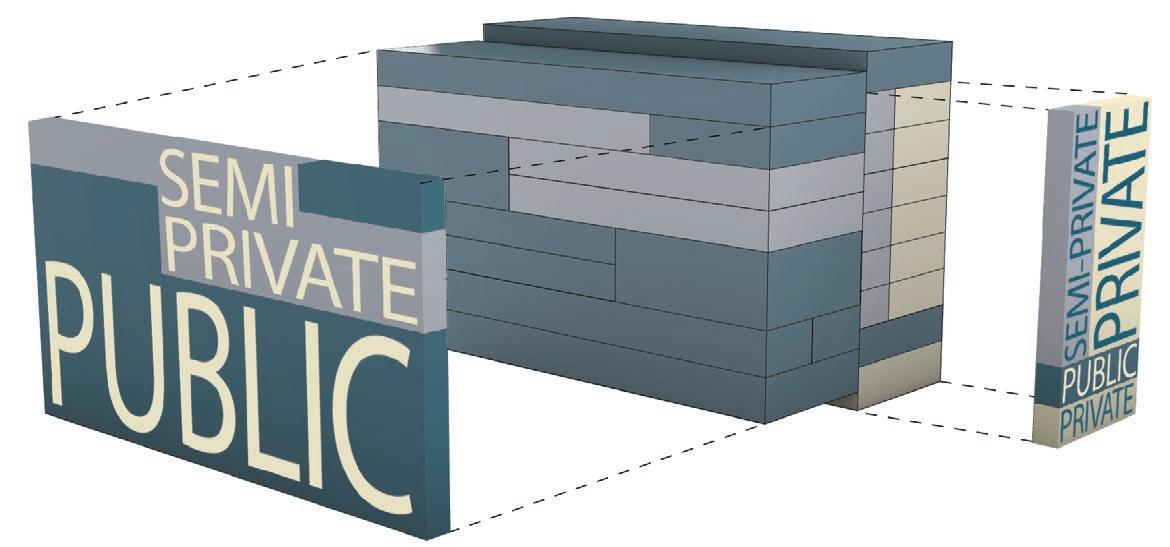

Public/Private Diagram

Semi-Private

Private

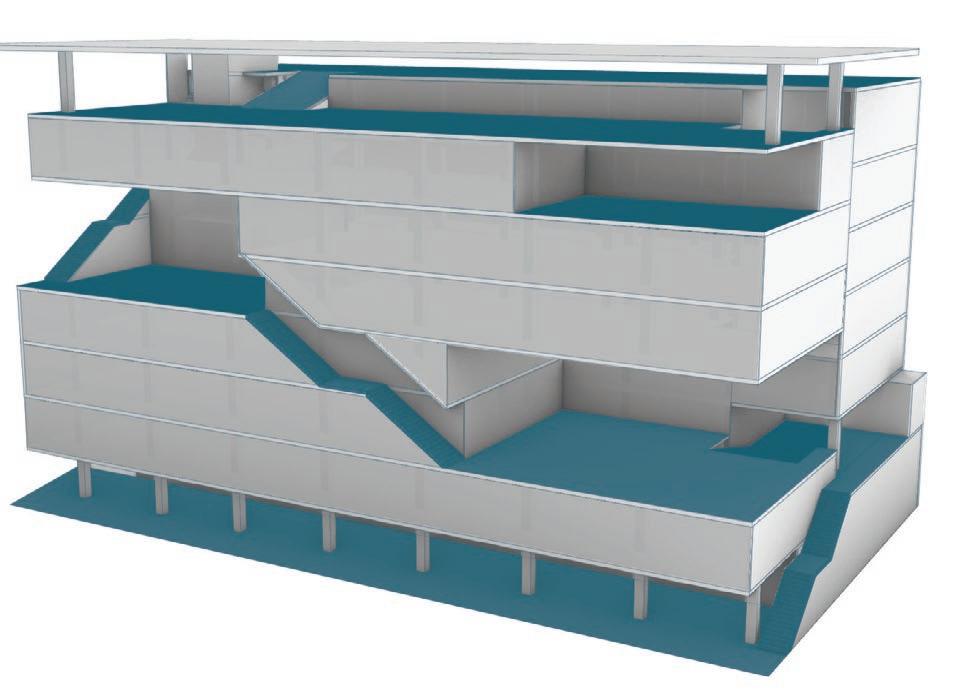

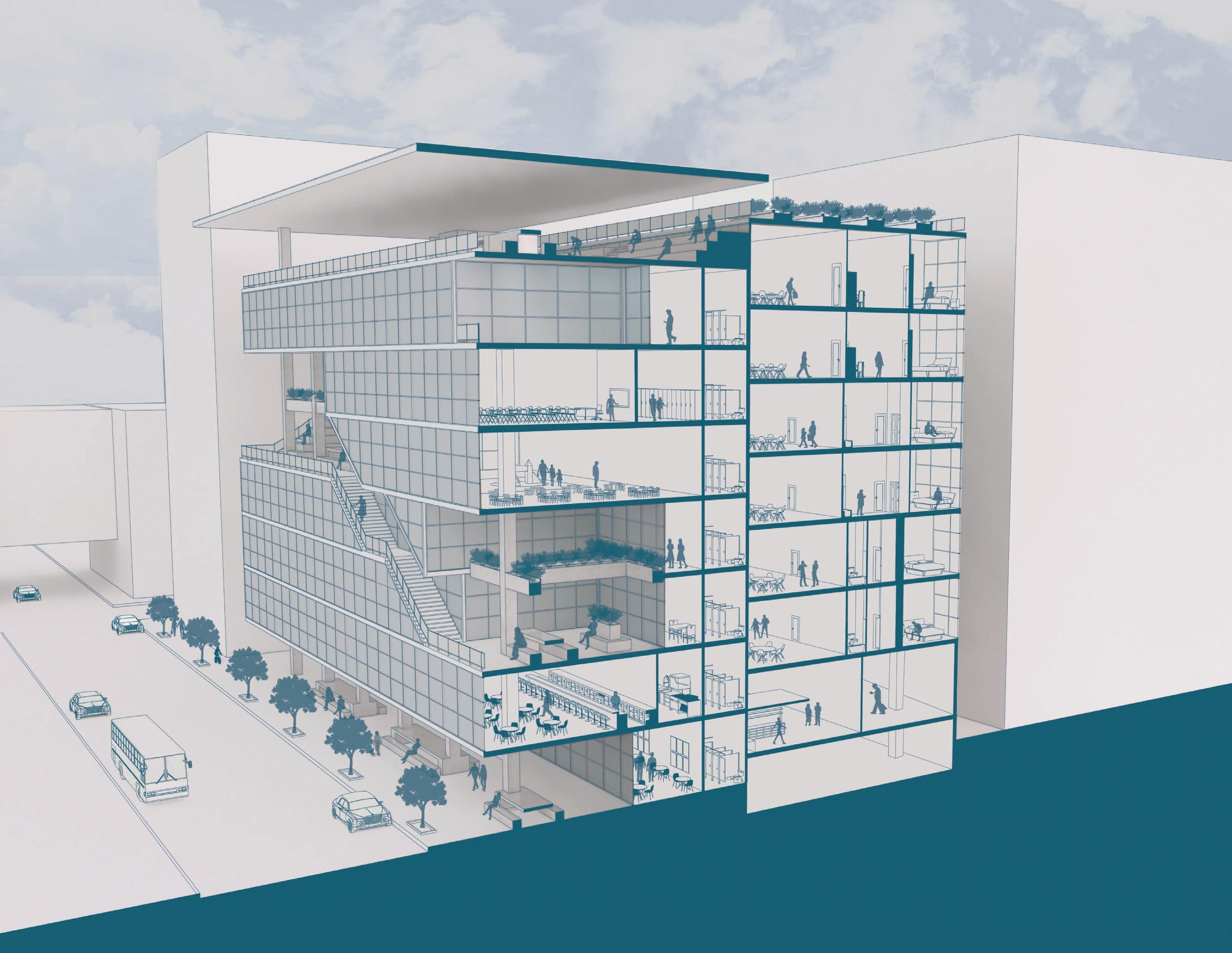

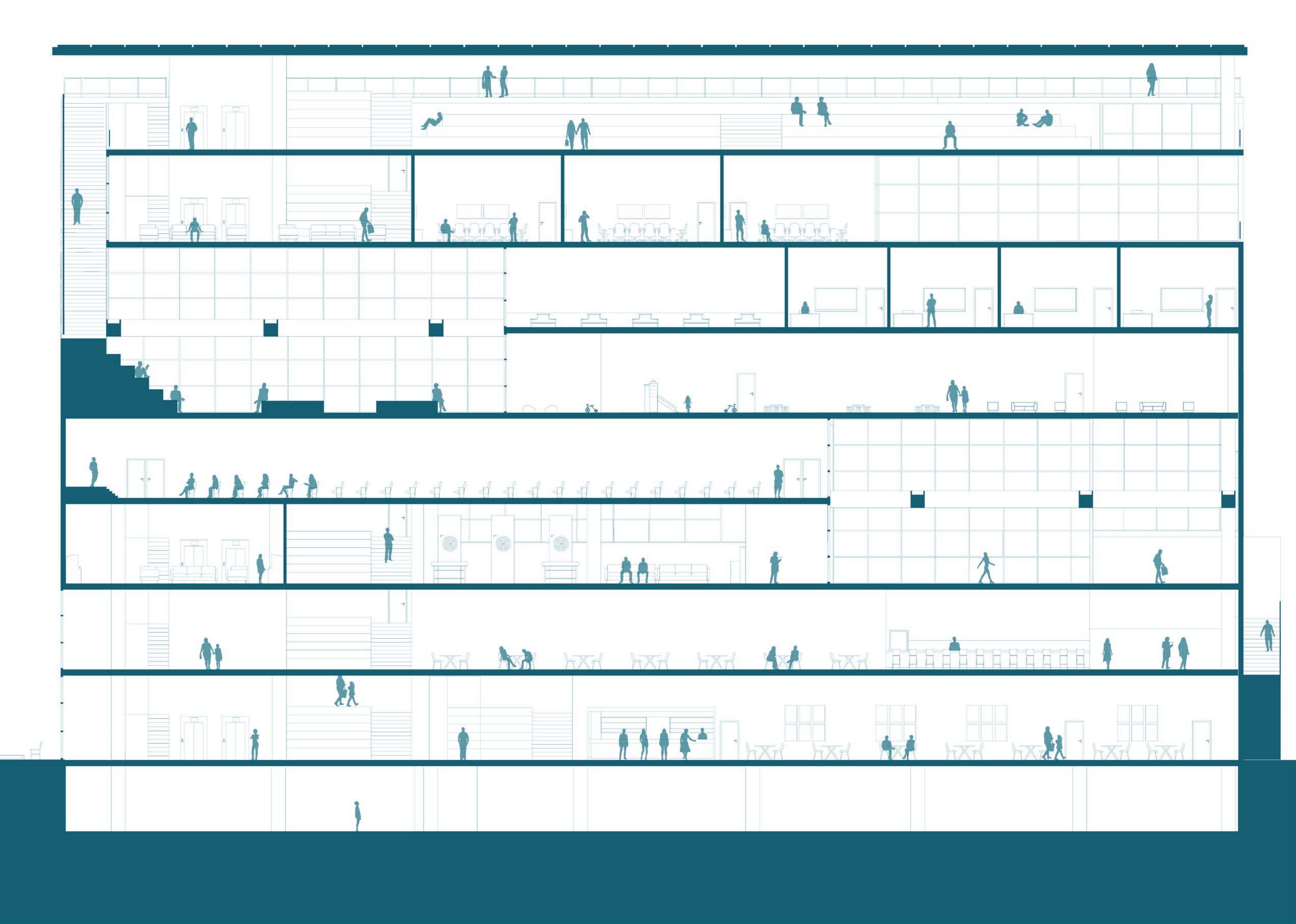

Section Perspective

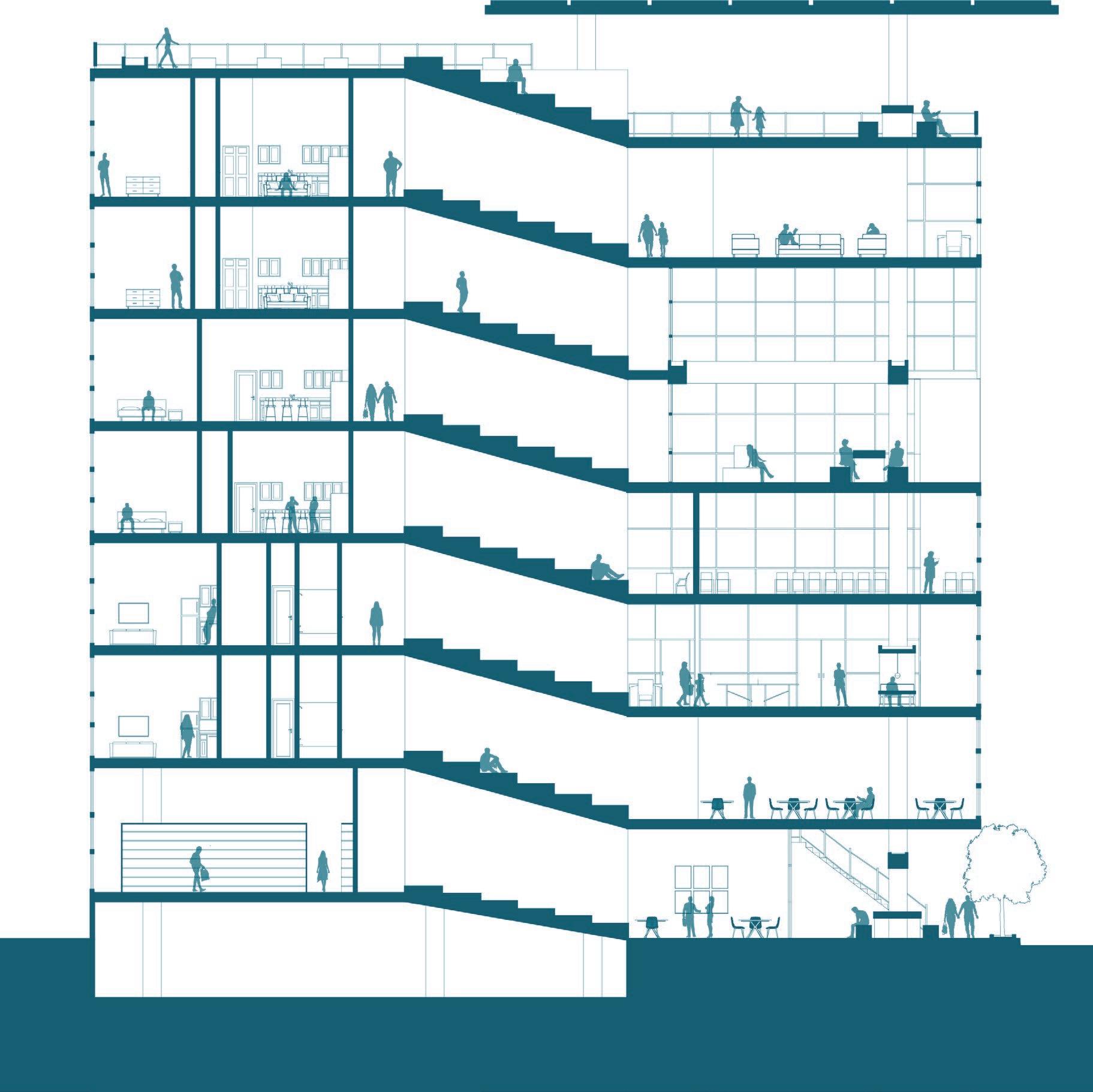

Section 1

Section 2

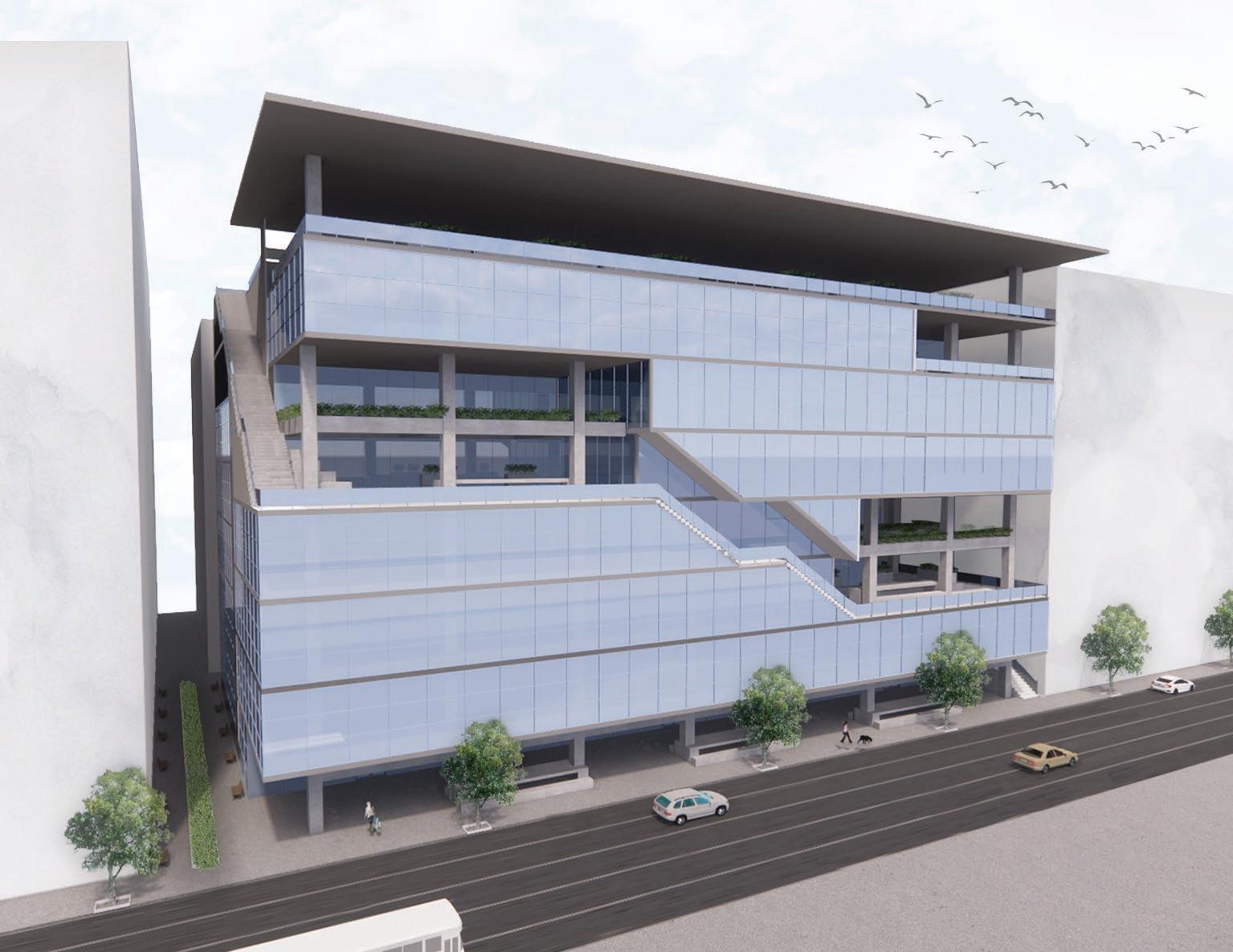

Exterior Render

ExteriorArchit ulparis dus accat rem con cus aut audit landic te pro te vit, quam quibuscidus si offic torestium aut volupta tatiam, non eum, commolesed magni bea vollatq uassitas a dolor adist verovid ex et qui cuptatquia comniam quis etur?

Turio. Otatur accaestorro consendia nos que por aligenempor accus eossitat.

Accus, sit vel im di debissit imollor modit odis derio erempor maion necaeped maioreic tet harchil eicitaquis ducillita atium cuptinvel illaccus

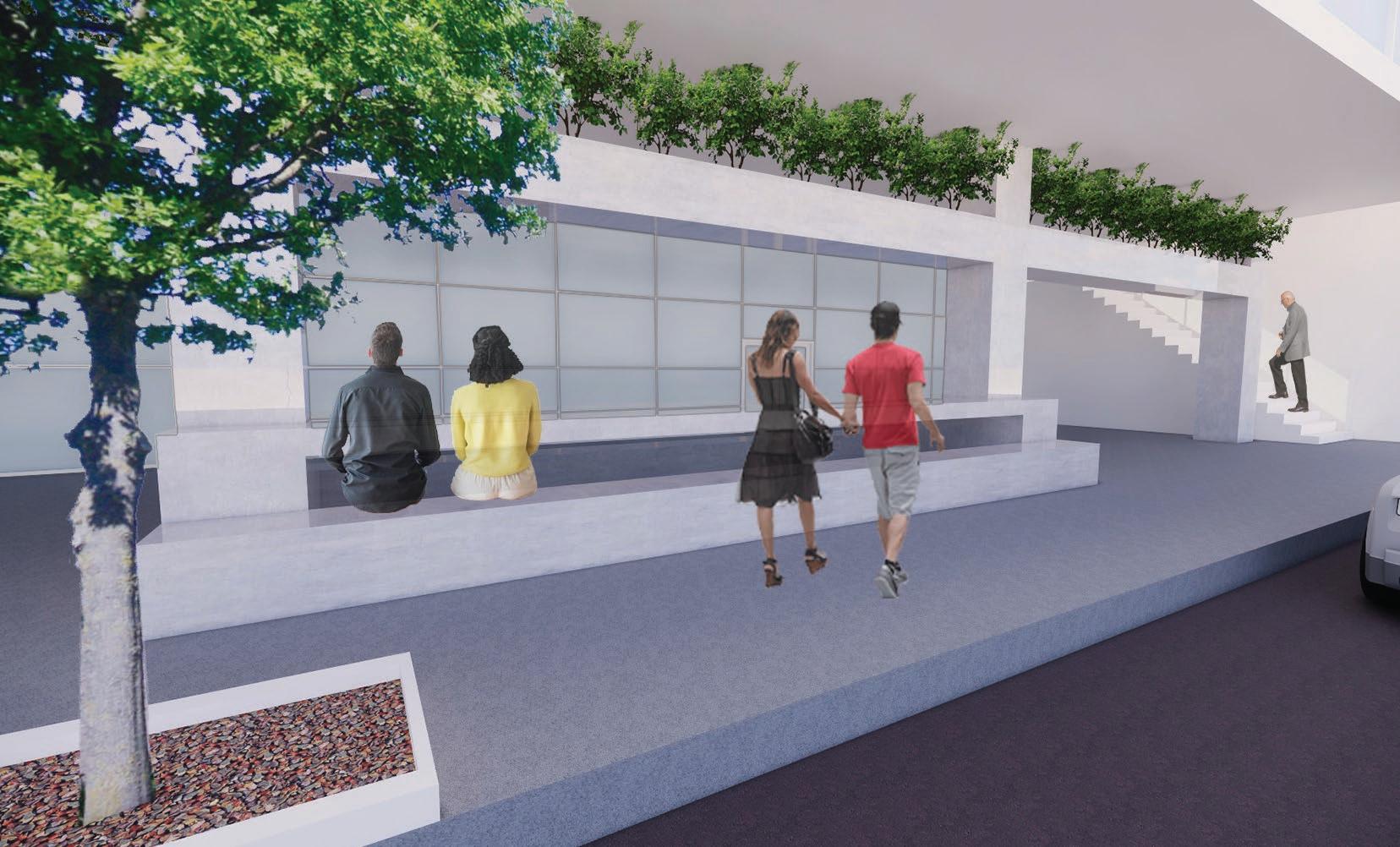

Sidewalk Walk Perspective

Coffee Shop Perspective

Vendor Stalls Perspective

Game Room

Daycare Perspective

Apartment Hallway Perspective

2 Bedroom Apartment Perspective

Apartment Floor Plans

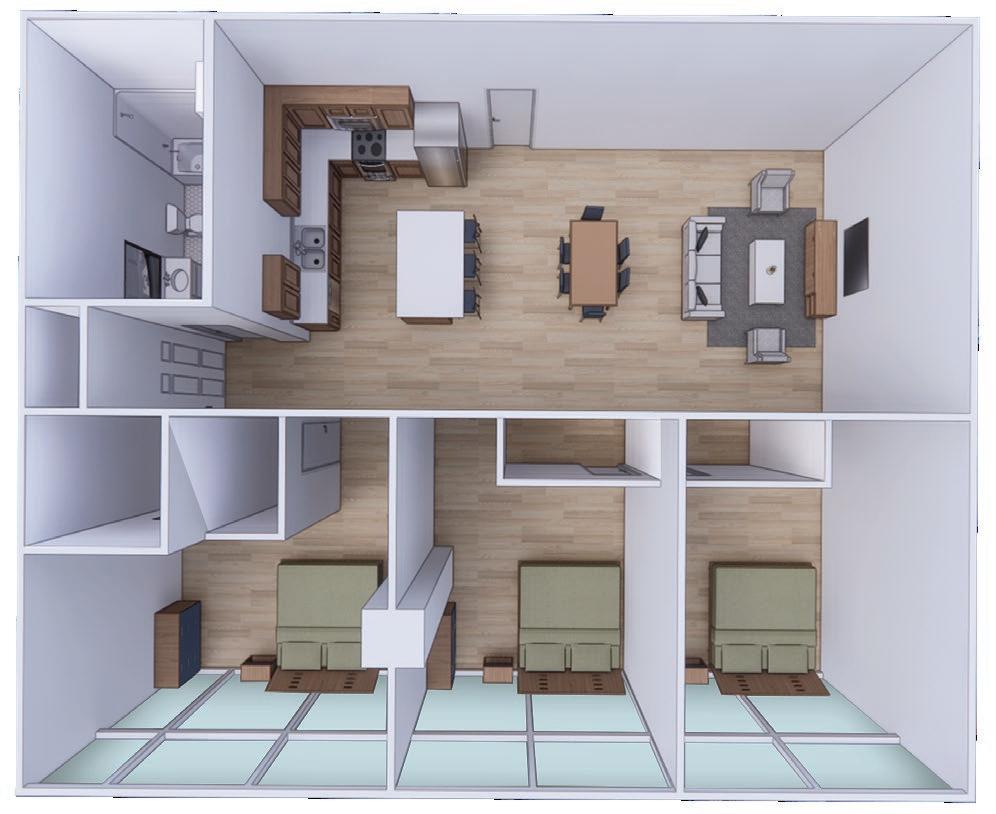

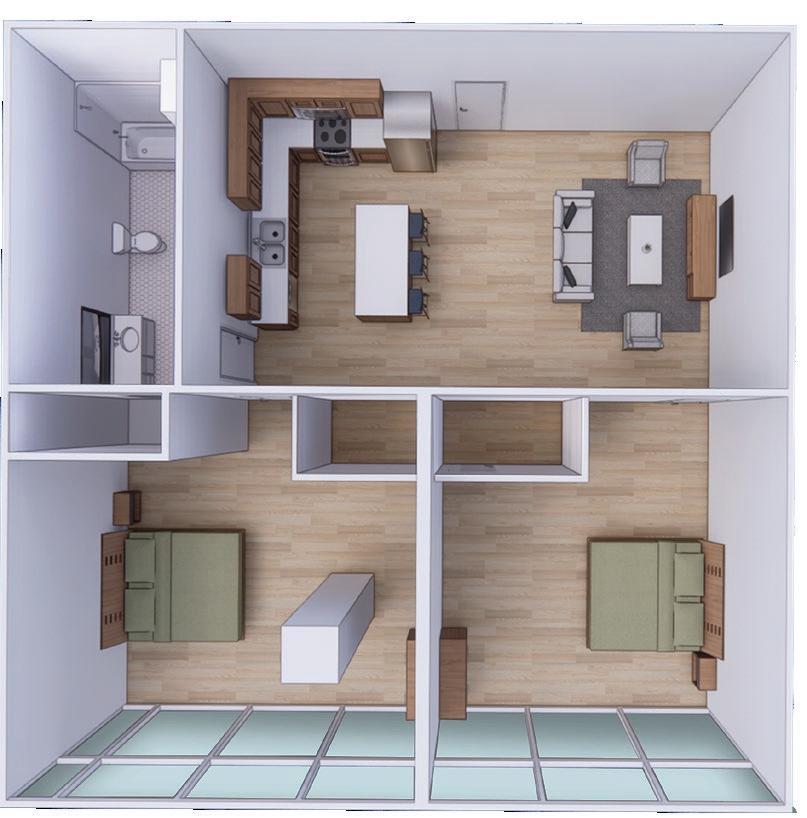

Floor Plan 2 Bedroom Unit

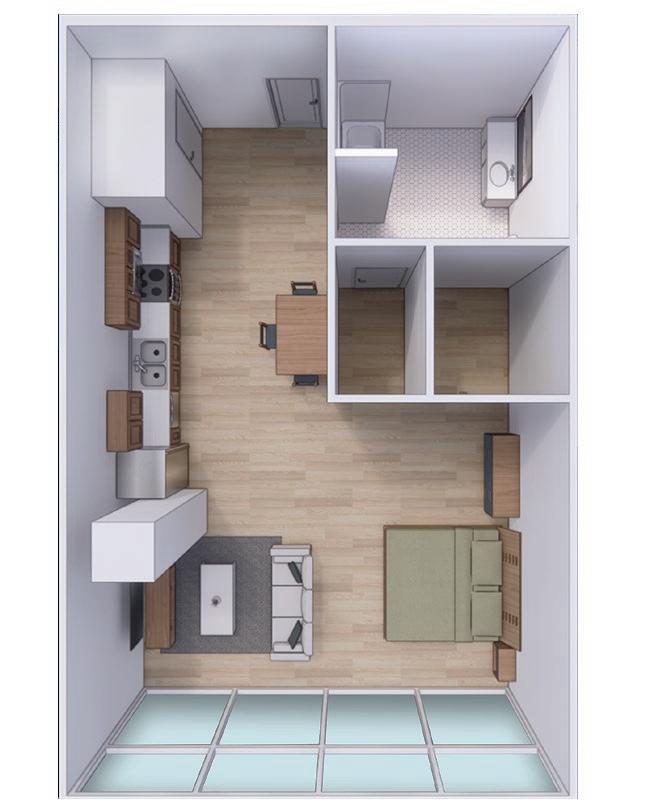

Floor Plan Studio Unit

Floor Plan 3 Bedroom Unit

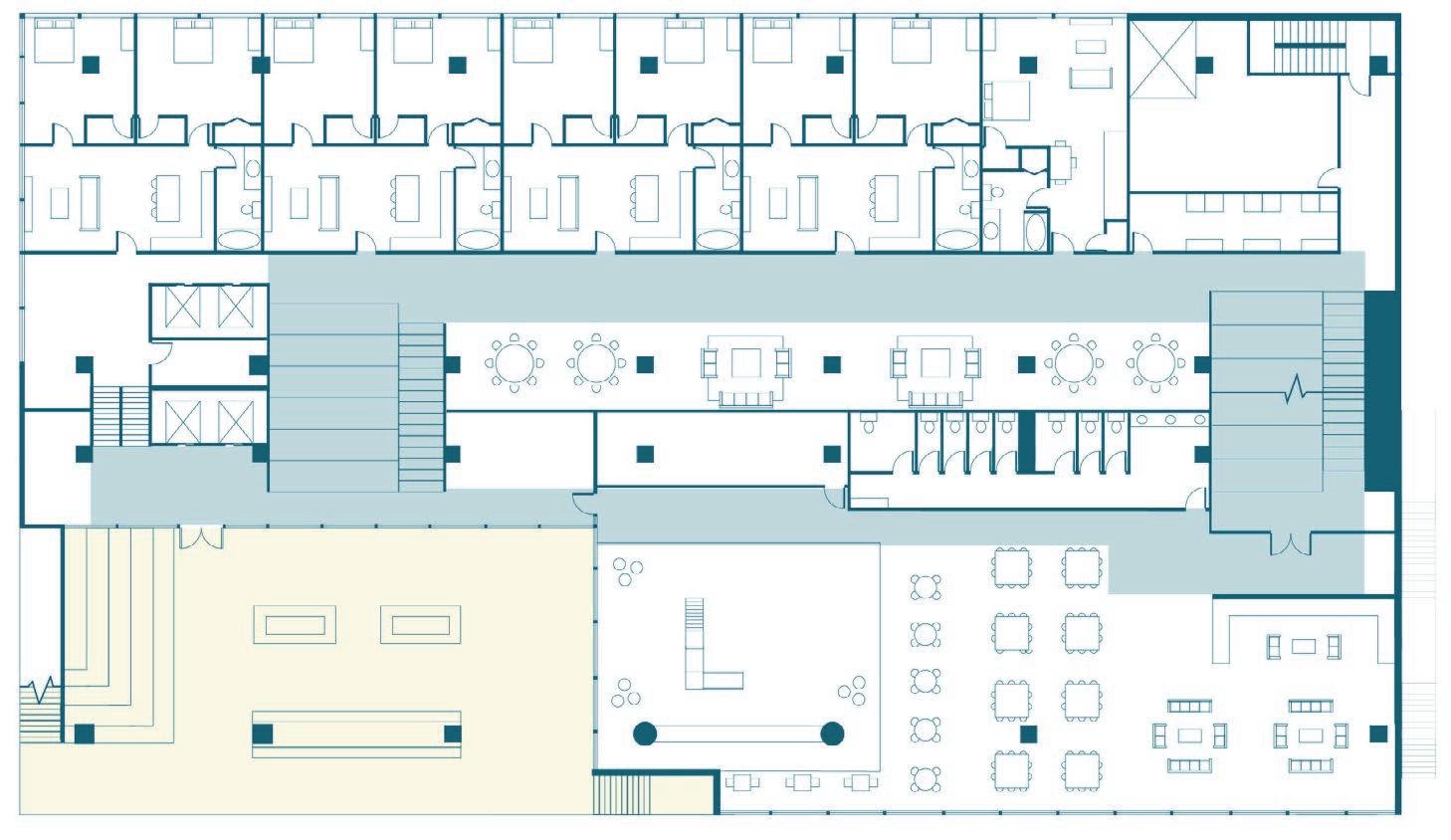

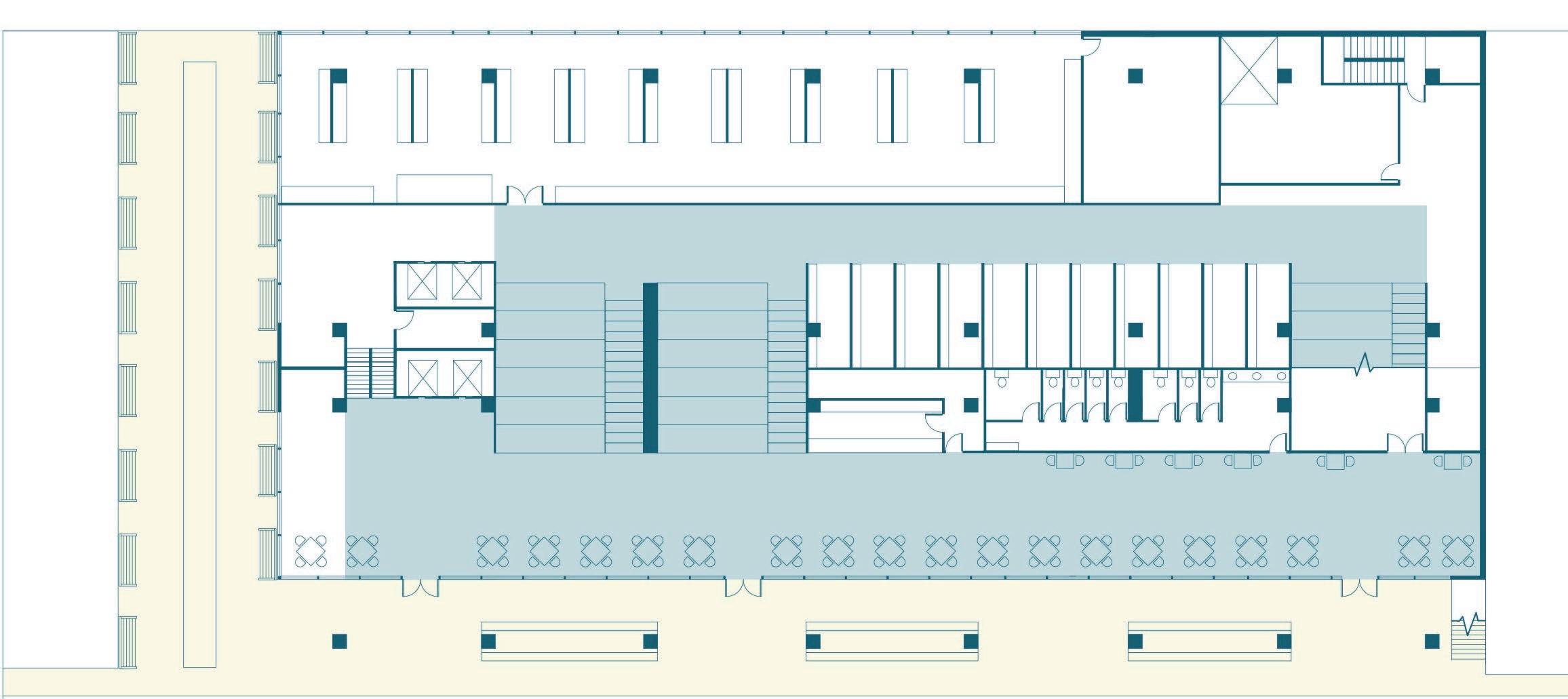

Floor Plan Level 1 - 1.5

Storage

Grocery Store

Mechanical

Vendor Stalls

Coffee Shop Section 1

Section 2

Exterior

Circulation

Section Perspective

Floor Plans Level 2 - 3 Mechanical

Studio Apartments

Game Room

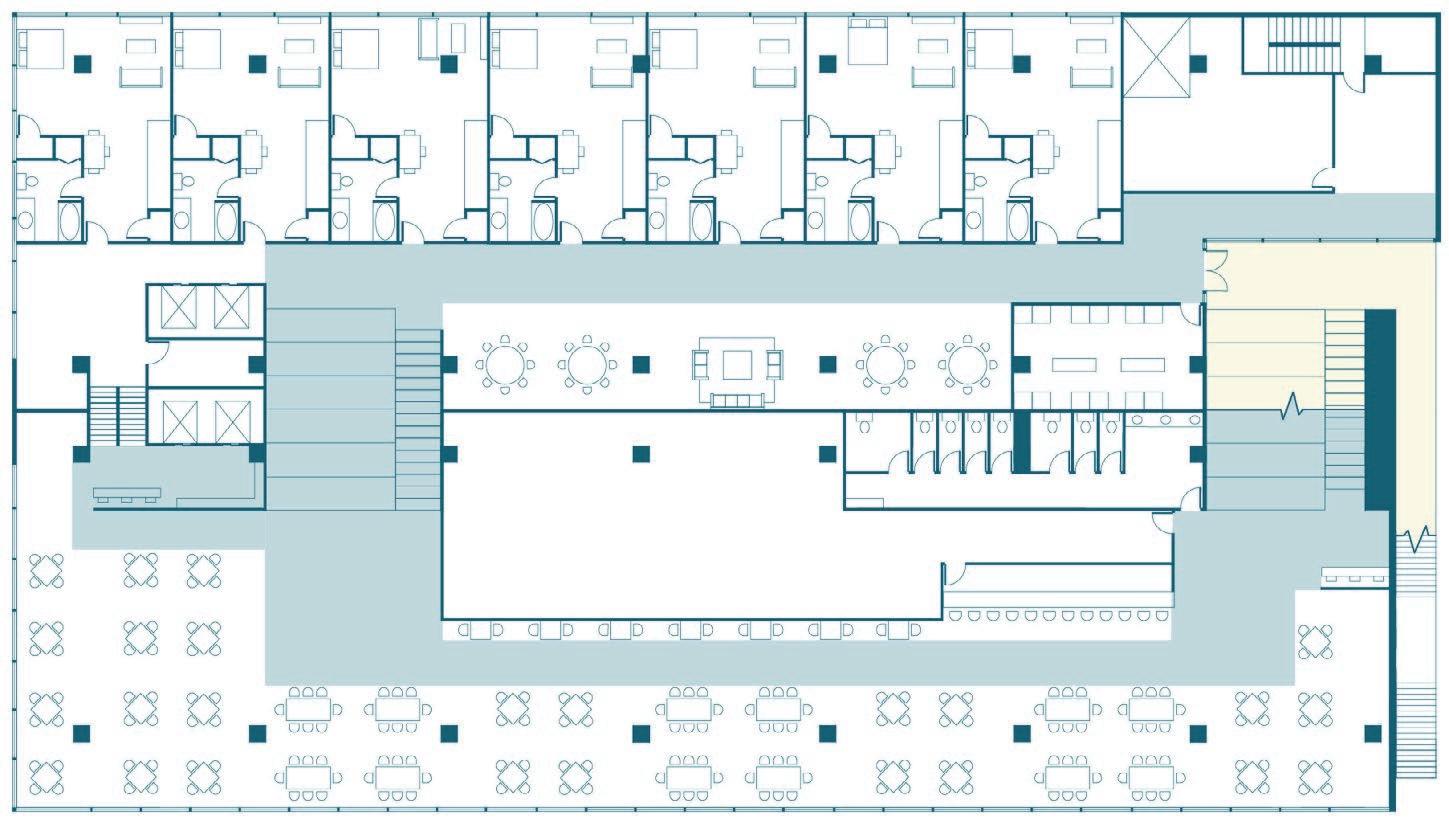

Floor Plan Level 3 - 3.5

Mechanical Studio Apartments

Kitchen Restaurant

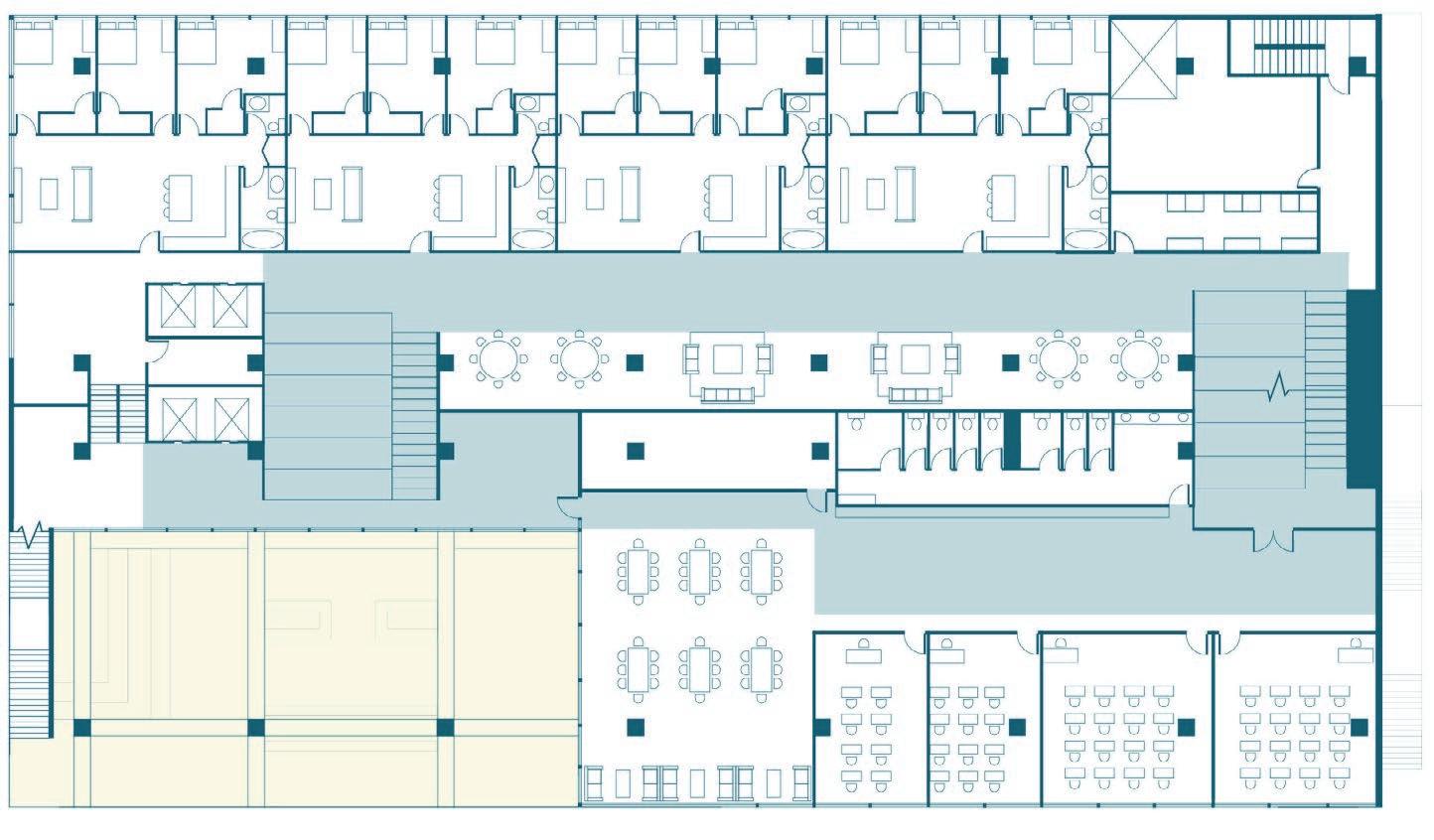

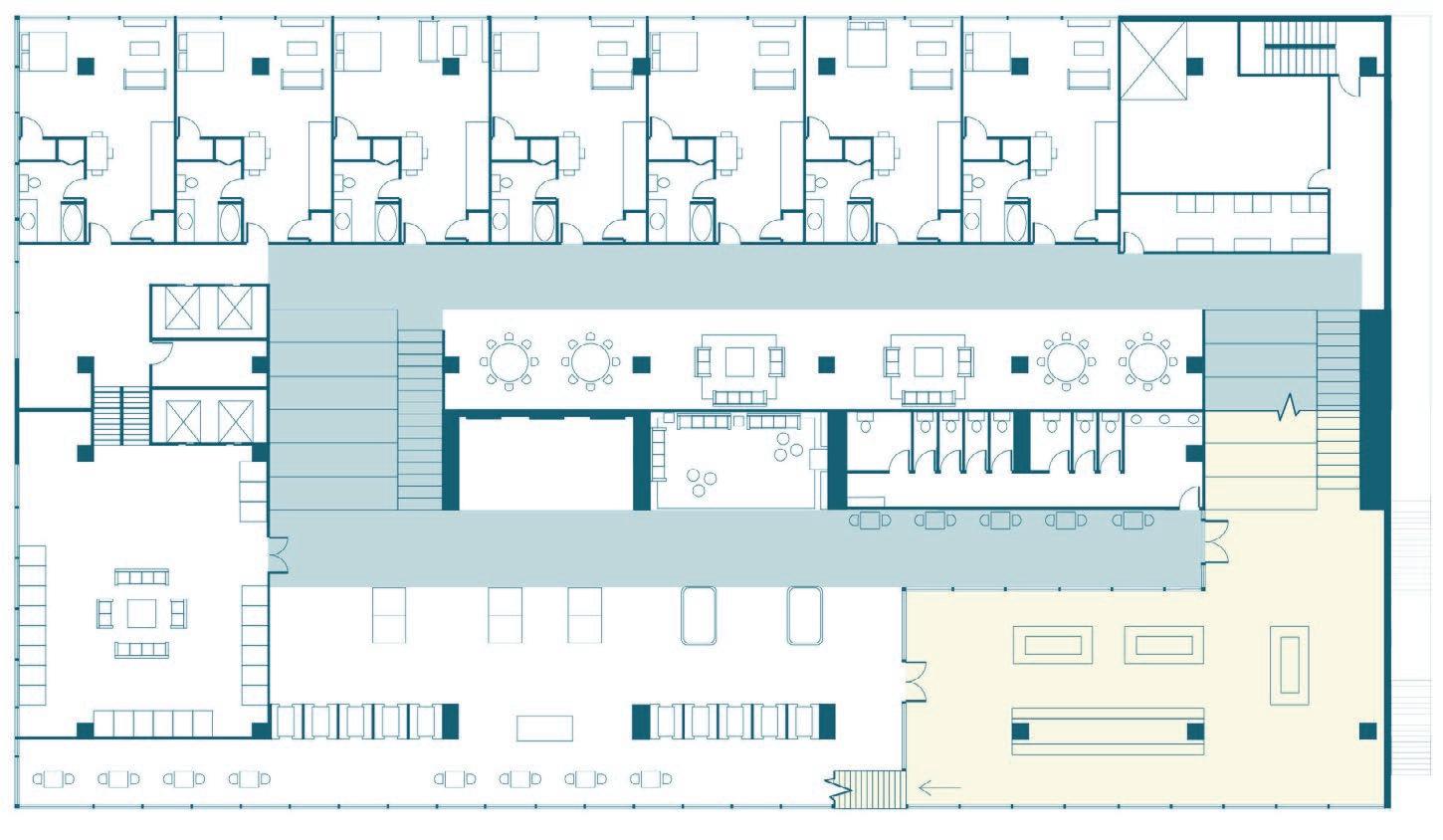

Floor Plan Level 2 - 2.5

Floor Plans level 4 - 5 Mechanical

2 Bedroom Apartments

Daycare

Floor Plan Level 5 - 5.5

Mechanical

2 Bedroom Apartments

Auditorium

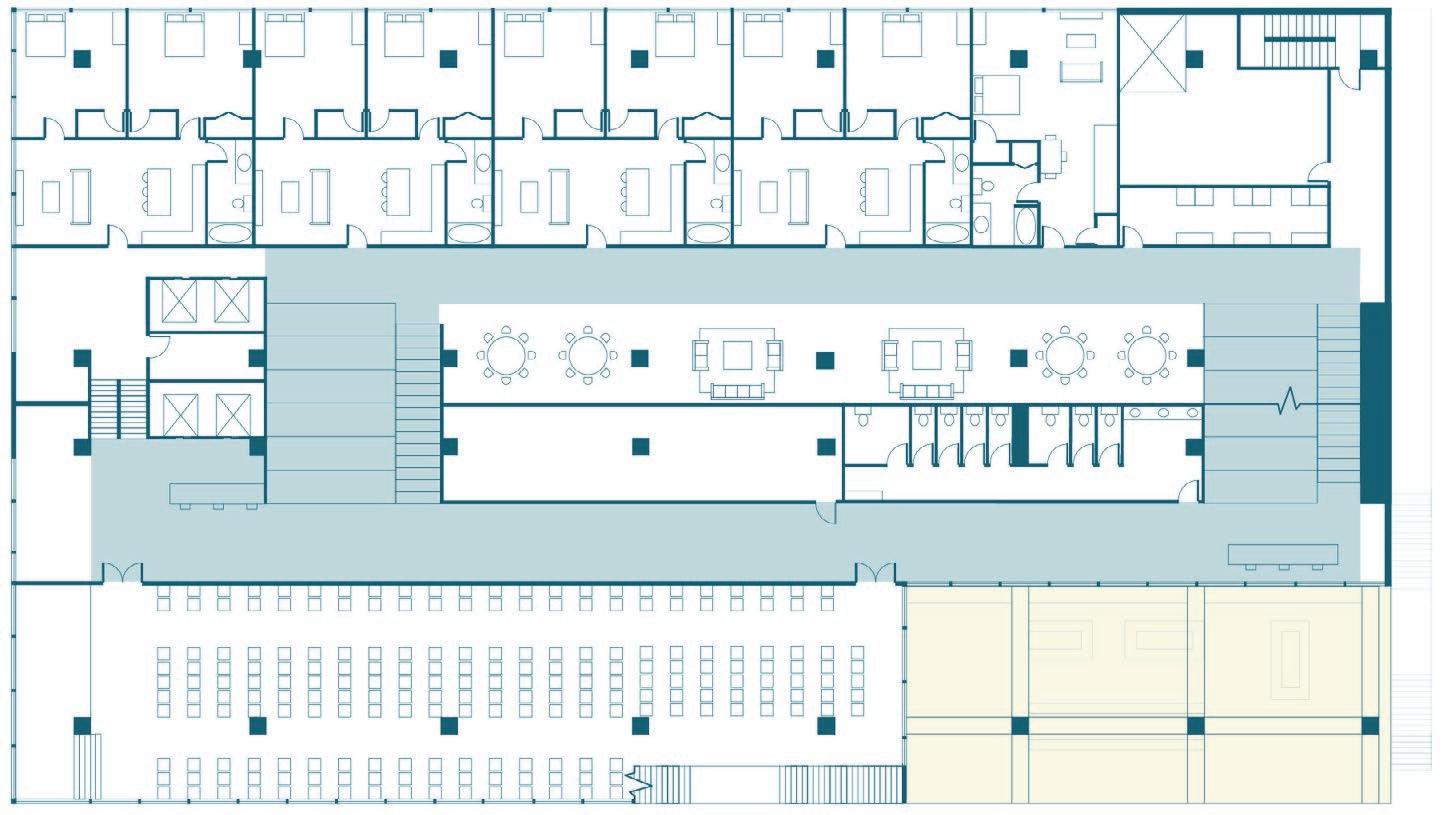

Floor Plan Level 4 - 4.5

Floor Plan Level 6 -7 Mechanical Three Bedroom Apartments

Office Spaces

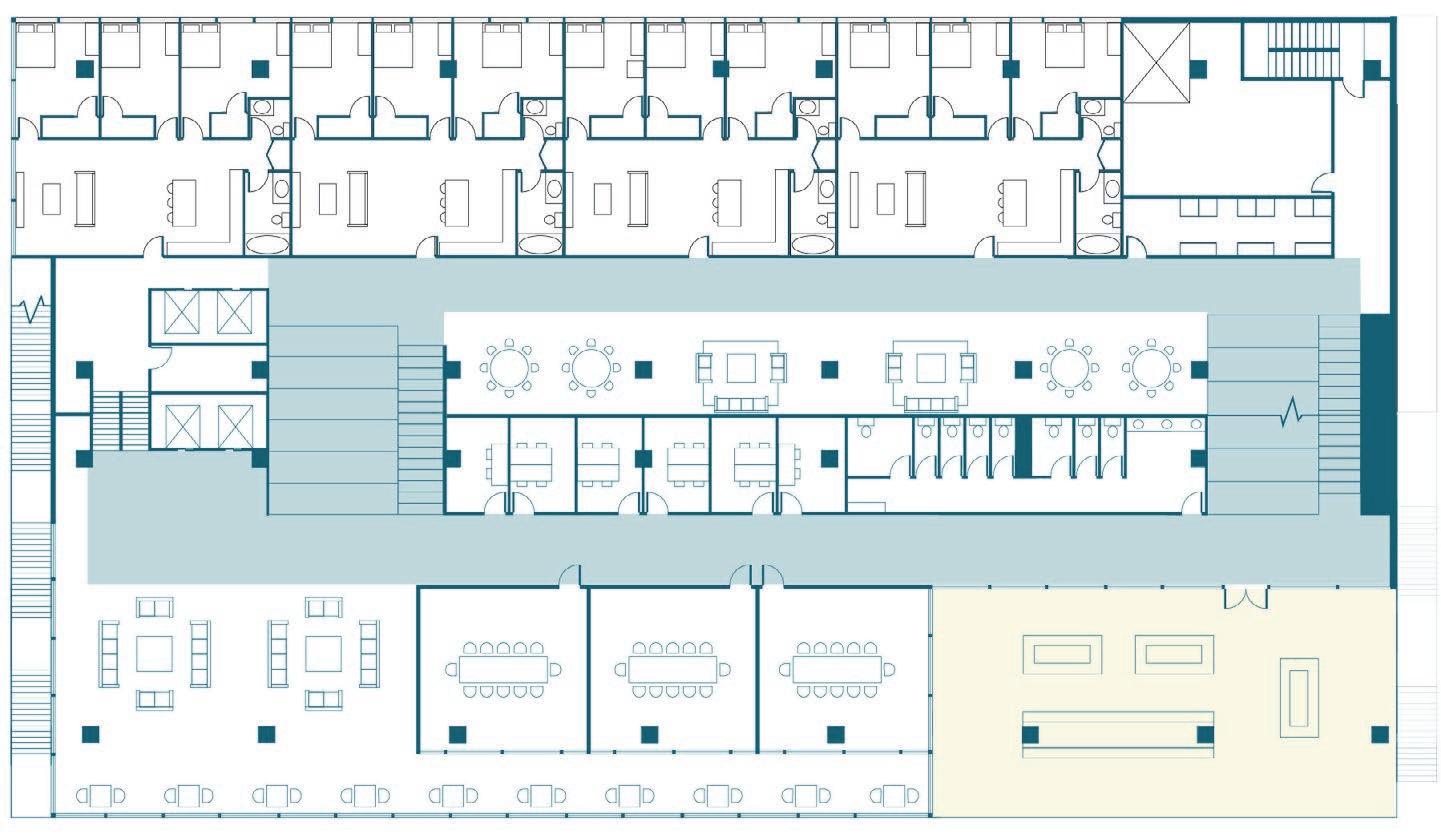

Floor Plan Level 7 - 7.5

Mechanical

Three Bedroom Apartments

School

Floor Plan Level 6 - 6.5

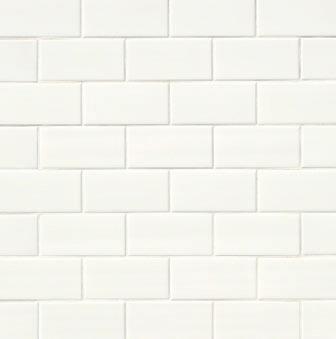

Materials

Materials

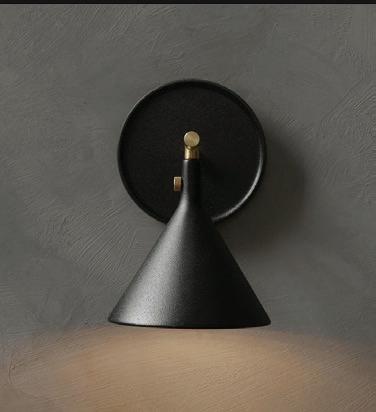

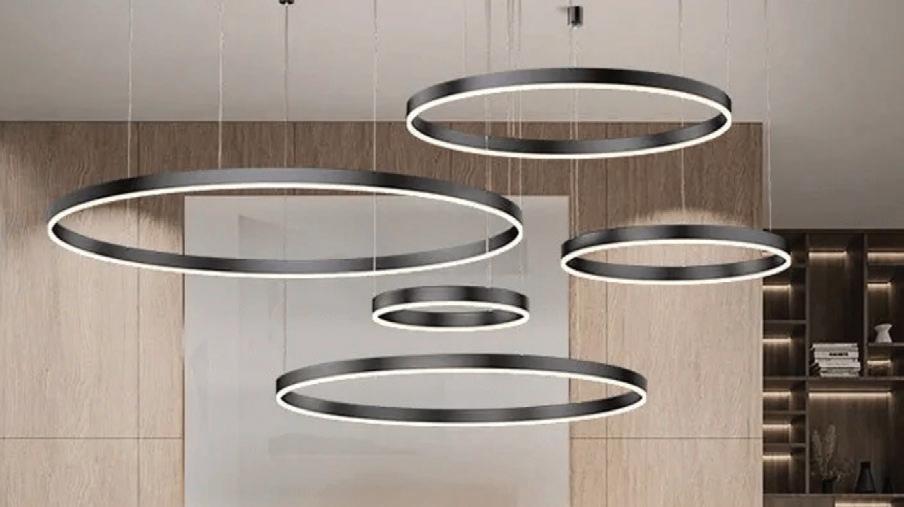

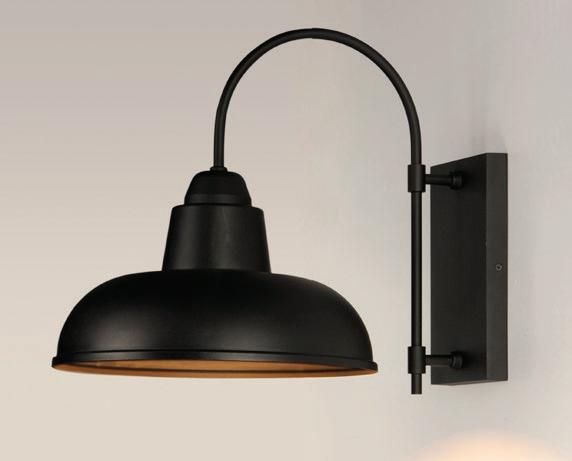

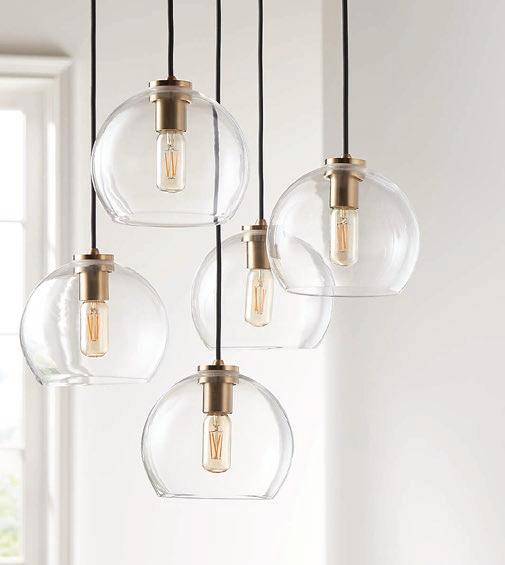

Lighting
