Sonoran Birds & Climate Change Studio by Mackenzie

PROJECT TEAM

Students

Zach Andre

Cactus Wren

Campylorhynchus brunneicapillus

Waverly Brown

Curved Billed Thrasher Toxostoma curvirostre

Blake Caldarera

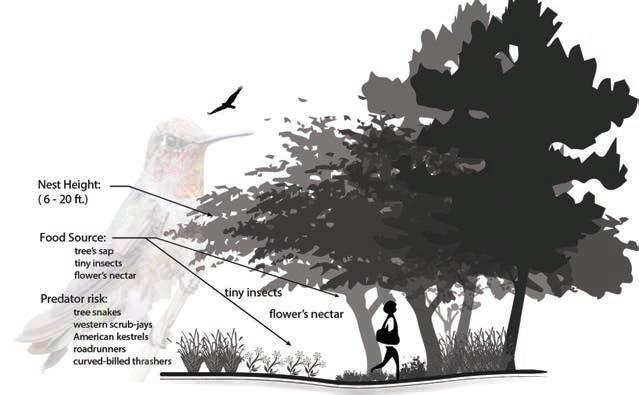

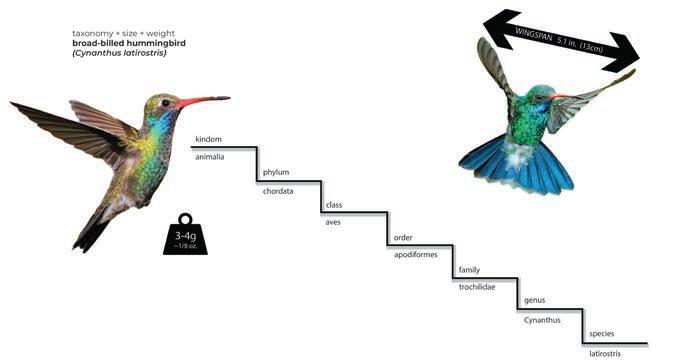

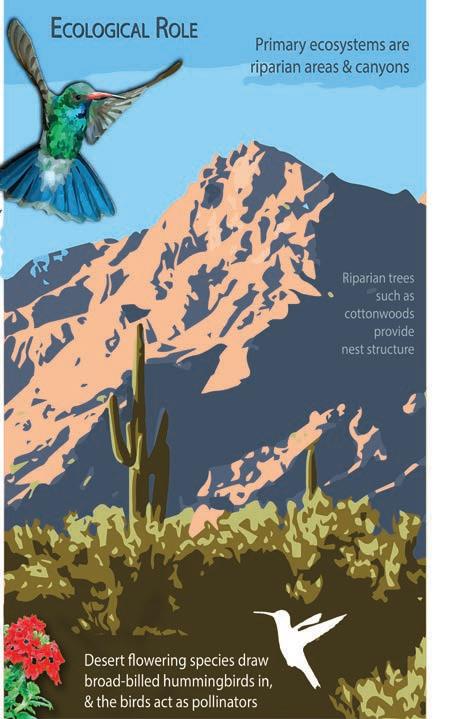

Broad-billed Hummingbird

Cynanthus latirostris

Jessica Eppard

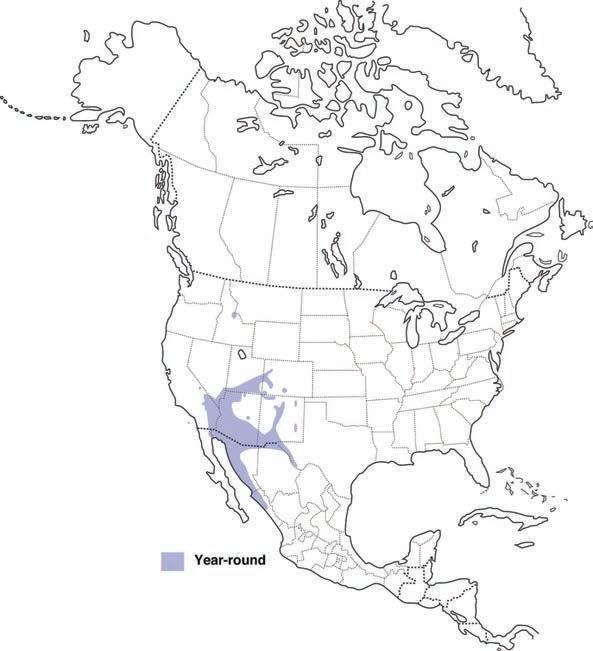

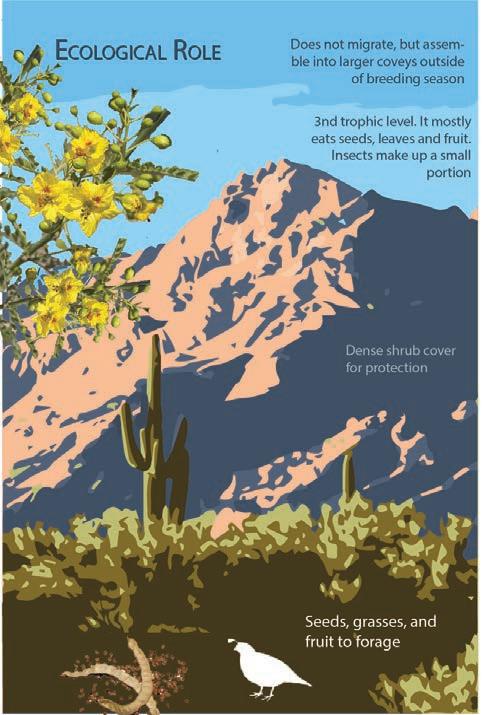

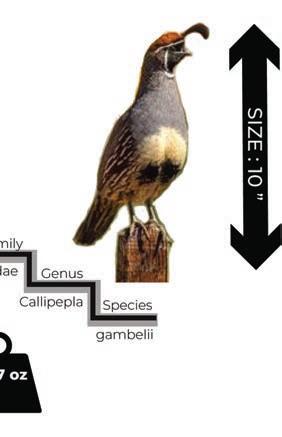

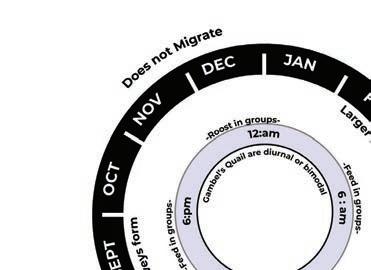

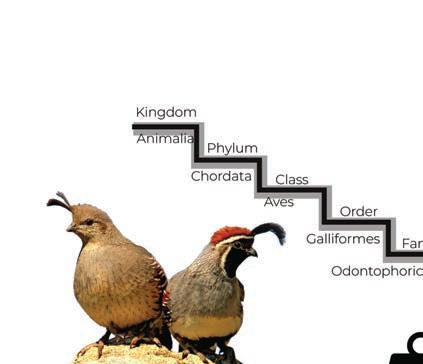

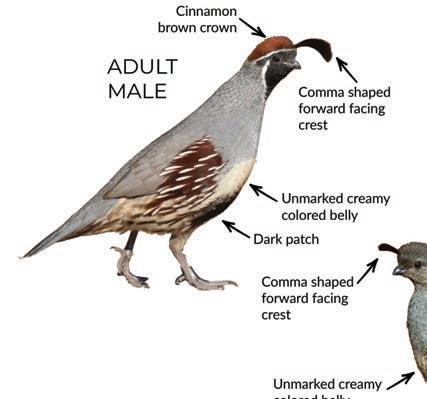

Gambel’s Quail

Callipepla gambelii

William Glockner

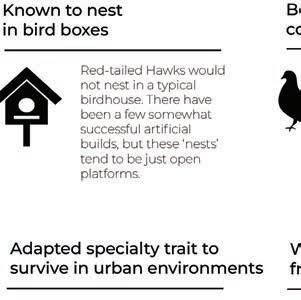

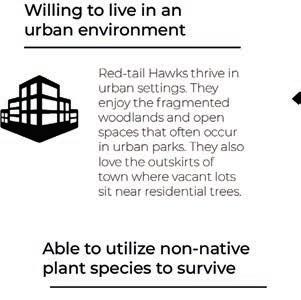

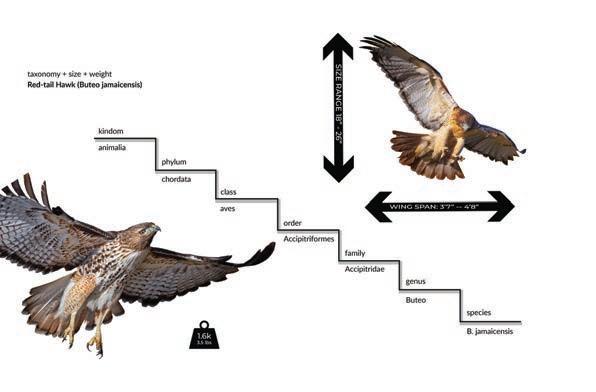

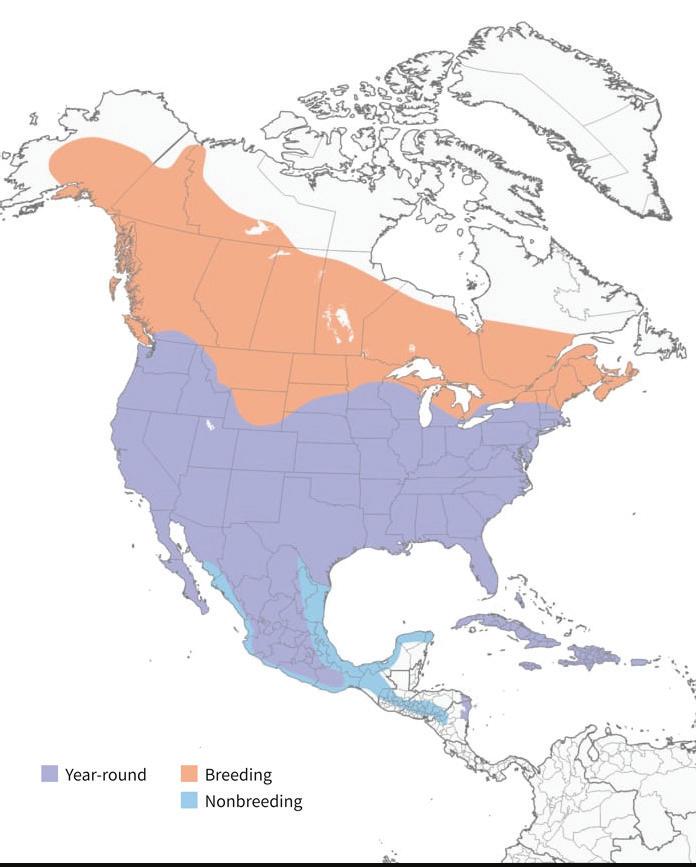

Red-tailed Hawk

Buteo jamaicensis

Lee

Will Leipold

Cooper’s Hawk

Accipiter cooperii

Krista Planinac

Lesser Goldfinch Spinus psaltria

Anna’s Hummingbird Calypte anna

Yescas

Nadia Sarneyzehdoost

Cordell

Western Screech Owl Megascops kennicottii

Oscar Rodriguez Ponce Black-chinned Hummingbird Archilochus alexandri

Selenne

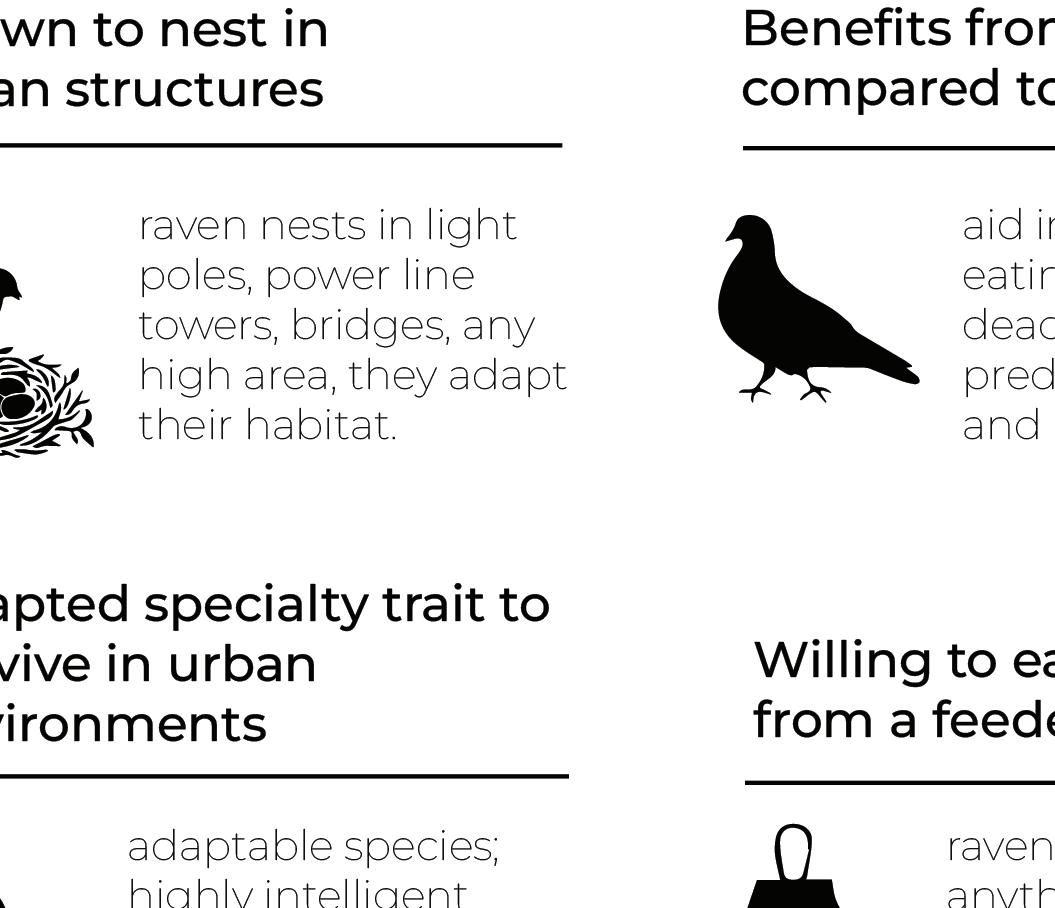

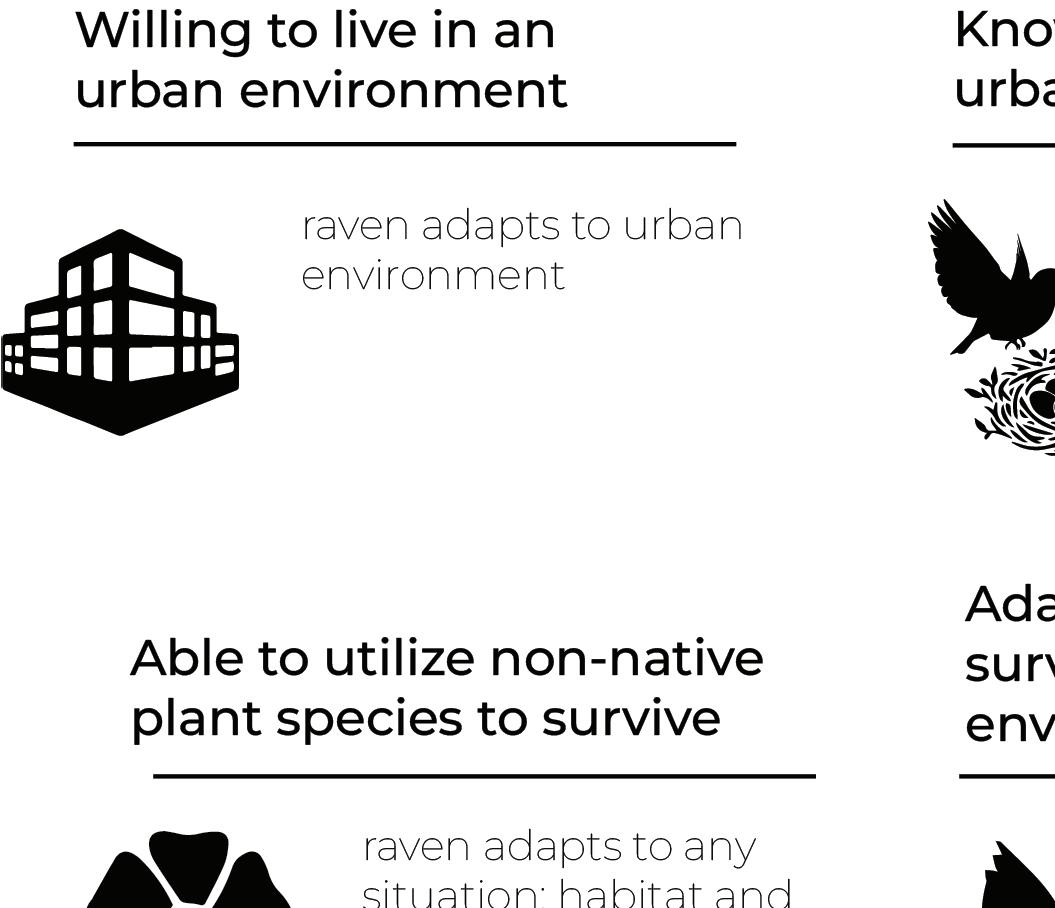

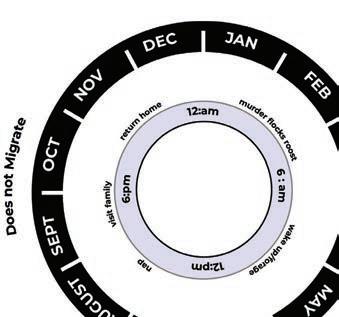

Common Raven Corvus corax

PROJECT TEAM

Community Partners

SIERRA ESTATES COMMUNITY MEMBERS

First and Last

TUCSON AUDUBON SOCIETY

Kari Hackney, Urban Habitat Restoration Manager

Olya Weekley, Community Science Coordinator

CITY OF TUCSON

Steve Kozachik, City Council Member, Ward 6

Nadia Ispiani, Council Aide

TUCSON CLEAN & BEAUTIFUL

Nichole Casebeer, Green Infrastructure Program Manager

Faculty, Guest Instructors & Reviewers

Mackenzie Waller, Studio Lead Assistant Professor, M.Arch + PLA

Kenneth Kokroko, Assistant Professor, PLA

Dr. Shujuan Li, Associate Professor

Erik Schmahl, Lecturer + Designer

Bret Smith, Materials Lab Manager

Kenny Wong, Lecturer, MUP

Jacqueline Jean Barrios, Assistant Professor Public & Applied Humanities

Kathleen Prudic, Assistant Professor Citizen and Data Science

Greg Corman, Artist, Designer, Botanist

Catherine De Almeida, Assistant Professor, Department of Landscape Architecture, College of Built Environments

Harley Pan, Marketing Videographer and Multimedia Designer, College of Education

“Birds are early responders to climate change and can be important indicators of large-scale ongoing and future ecological change. [The Audubon Society] found that 41% of Arizona’s 302 bird species are vulnerable to climate change across seasons.

A rapidly changing climate could lead to population declines and local extinctions if species are not able to adapt”

-

As part of their mission to protect birds and their habitat, the Audubon Society recommends policies and conservation practices that protect, enhance, and expand the places birds need. The field of landscape architecture has the potential skills and knowledge to both participate in and lead these efforts.

During this studio, students engaged in designing for urban bird habitat to create designs that are functional while also prompting curiosity and wonder from their human neighbors (see II. Speculative Site Designs). Their designs offer site based solutions that connect to larger regional challenges driven by climate change and urbanization. The students worked in teams to provide near term, lower cost designs that will be passed to Tucson Clean & Beatiful to be vetted through community feedback, budget, and time constraints in their design efforts (see IV. Preliminary phase designs).

Students used research based design strategies in their work, and used mapping as a tool at many scales (see I. Site Inventory & Analysis) Additionally, they designed and fabricated ‘bird - sized’ prototypes for installation and possible residential use to expand bird habitat beyond the public realm (see III. Designing for native birds).

The studio focused their work in the Sierra Estates neighborhood of Tucson, actively engaging in design proposals for the new Burns Park that is slated to be opened to the public. Sierra Estates neighbors, the Tucson Audubon Society, Greg Corman, and Tucson Clean & Beautiful supported their efforts with their expertise and feedback throughout.

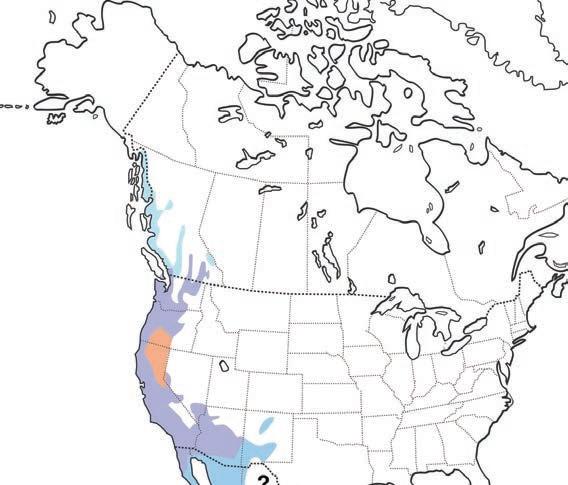

National Audubon Society, Survival By Degrees

National Audubon Society. 2014. Survival by Degrees: 389 Species on the Brink. Arizona State Report. Eds. Brooke Bateman.

PROJECT OVERVIEW

PROJECT PARTNERS 6

PROJECT TIMELINE 8

I. SITE INVENTORY & ANALYSIS 10

REGIONAL 13

URBAN SCALE 29

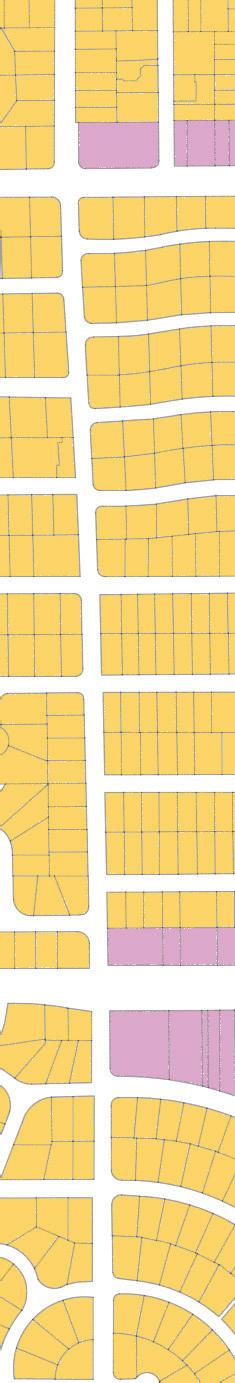

NEIGHBORHOOD SITE 39

II. SPECULATIVE SITE DESIGNS 65

III. DESIGNING FOR NATIVE BIRDS 135

IV. PRELIMINARY PHASE DESIGNS 175

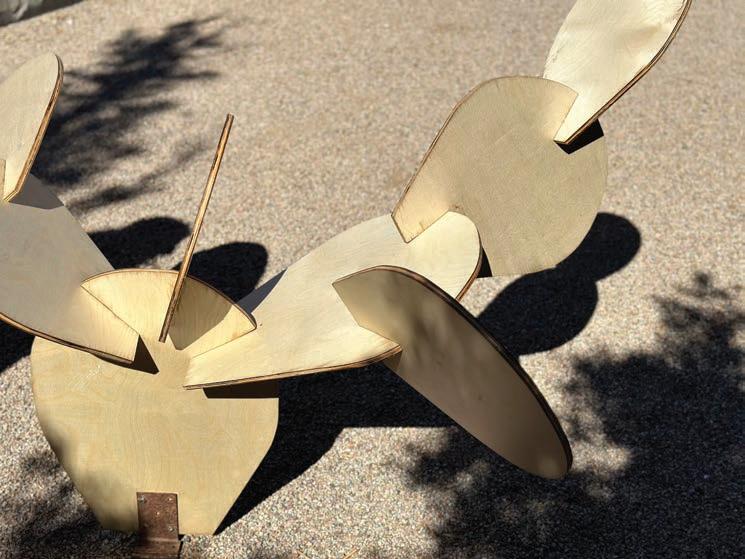

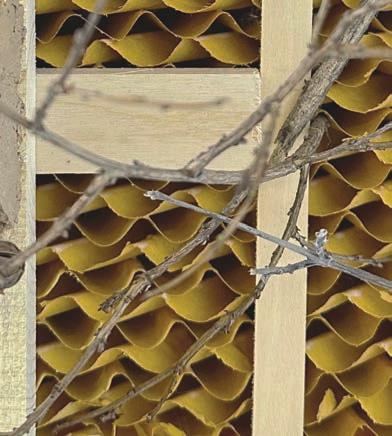

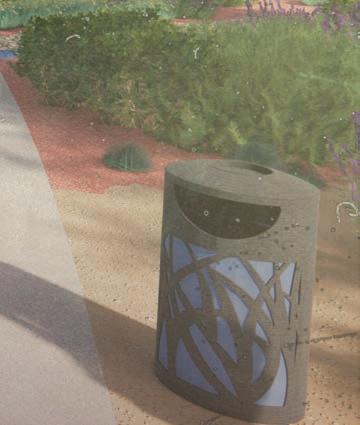

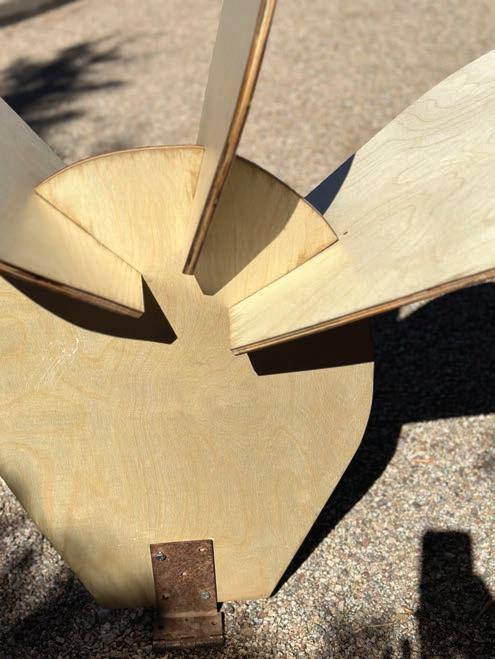

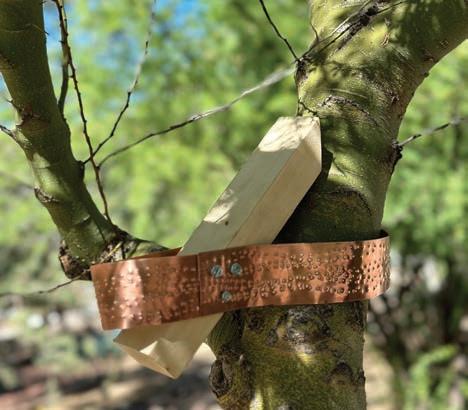

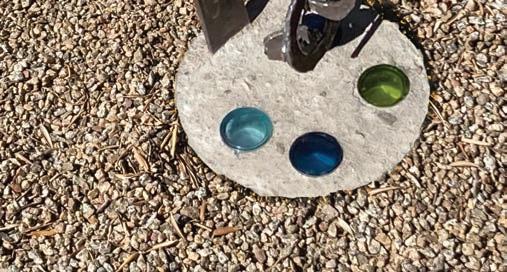

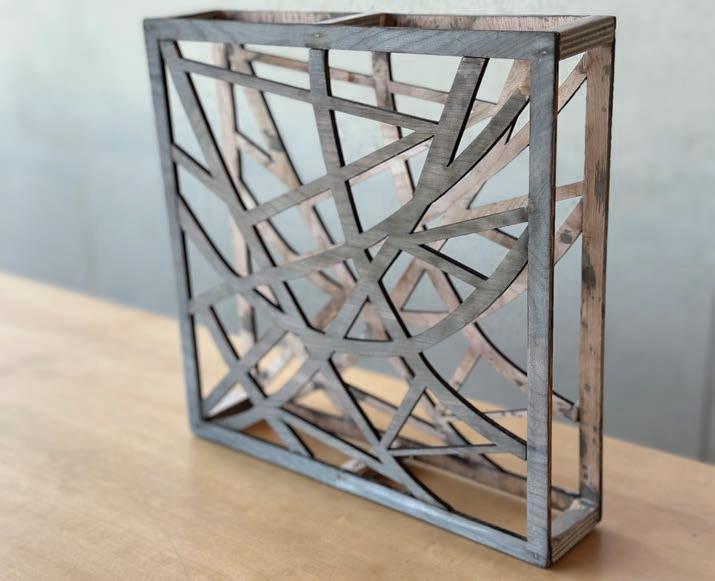

MATERIALS PALETTE 176

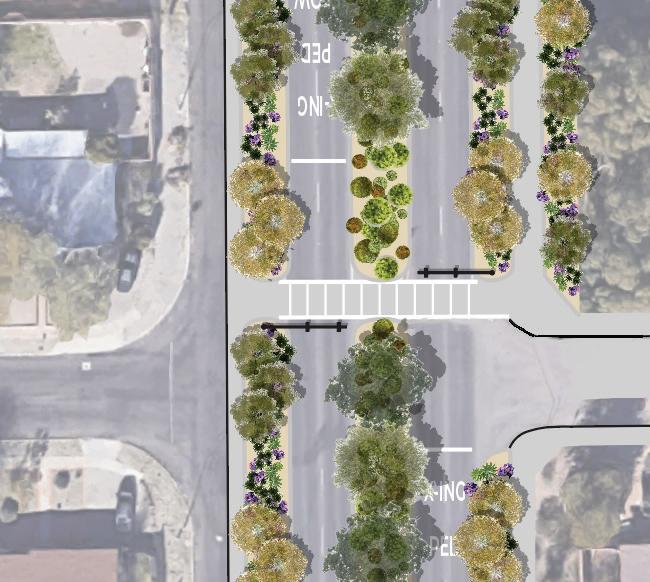

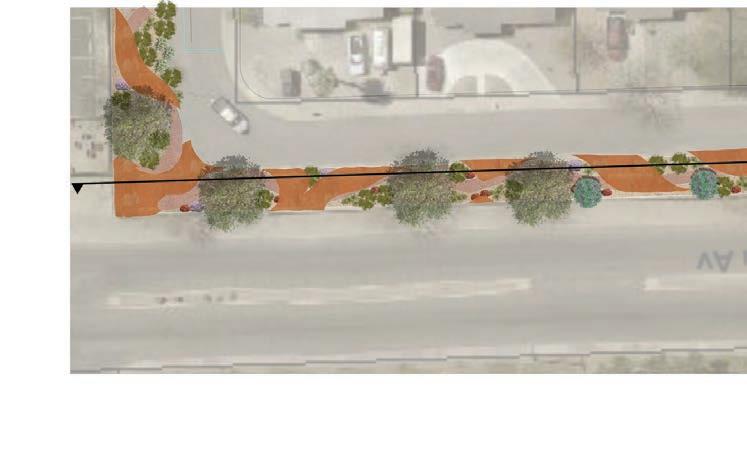

TYPOLOGIES: TRAFFIC CALMING 178

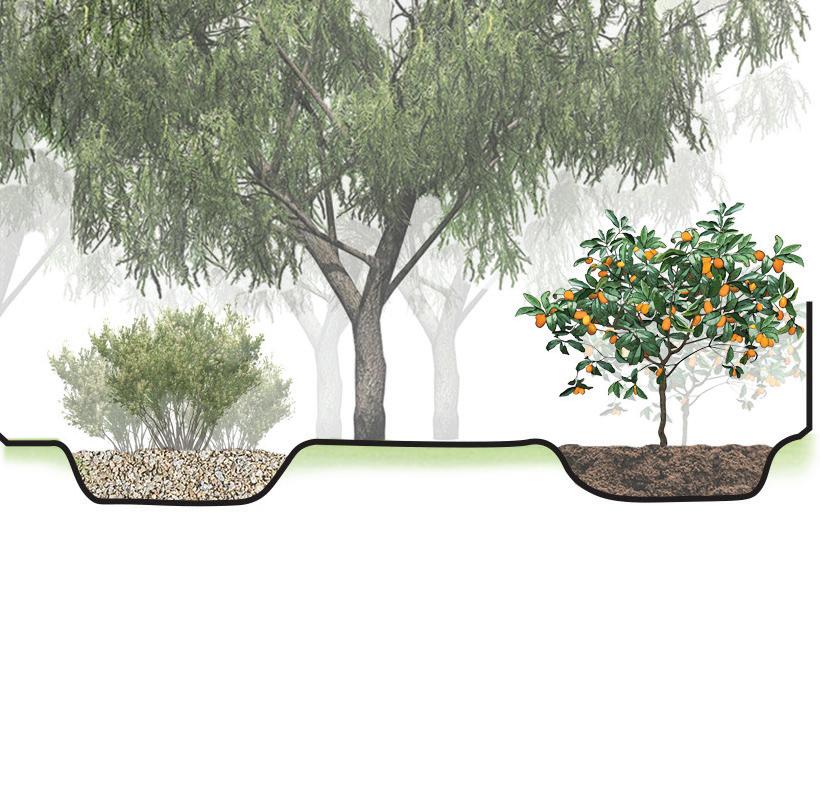

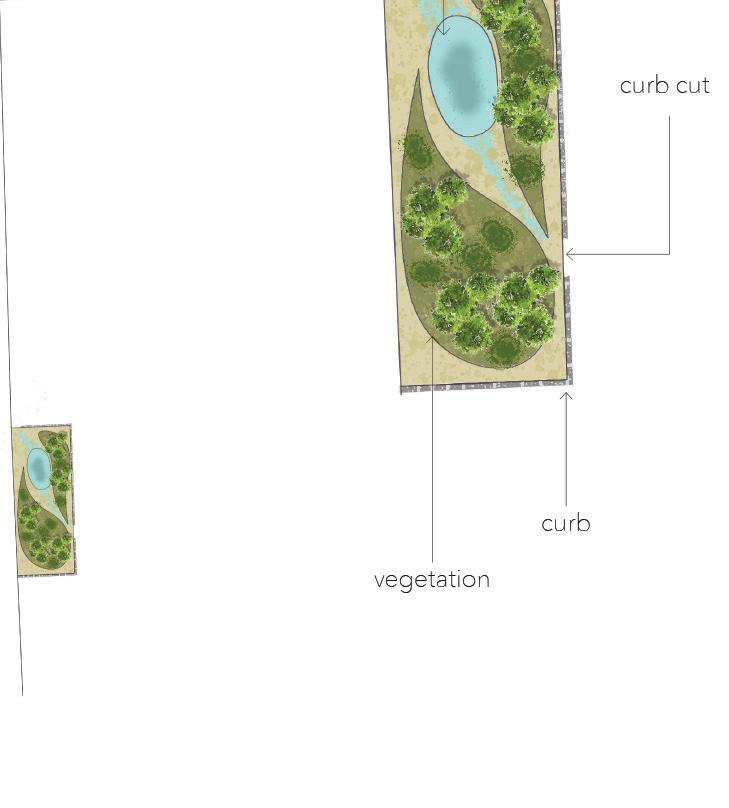

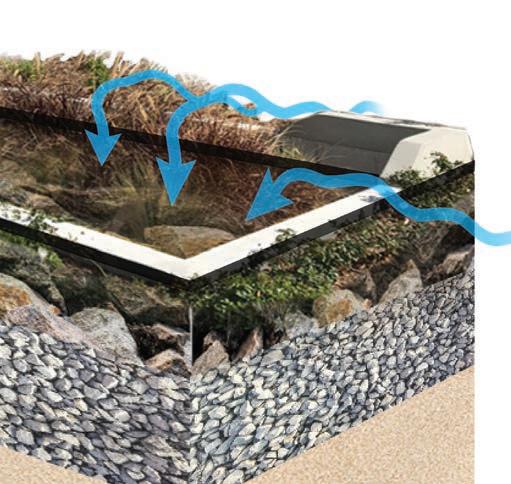

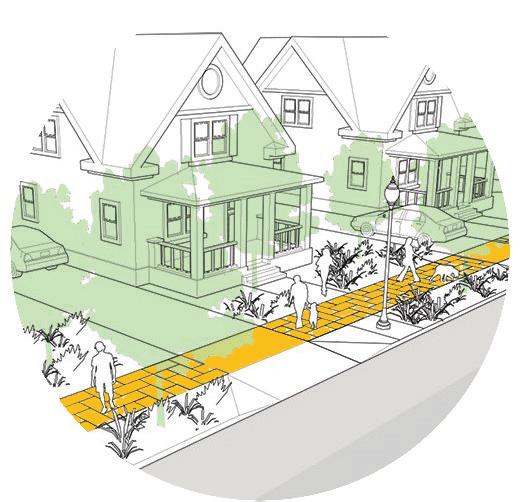

TYPOLOGIES: GREEN STORMWATER INFRASTRUCTURE 180

DESIGN 1: SIERRA CIRCUIT 182

DESIGN 2: A PATH TO WONDER 188

DESIGN 3: METAMORPHOSIS 204

PROJECT PARTNERS

Our research has been possible thanks to several foundations. The collaboration among these organizations has allowed the University of Arizona to brainstorm based on these collaborations. Tucson Ward 6 is in charge of park access and Burns Park can be reopened for use. Tucson Water, allowed Green Stormwater Infrastructure Fund to redistribute funds throught Tucson Clean and Beautiful (TCB). TCB have the stormwater infrastructure research backing to apply concept plans. The University of Arizona acts as a research team to compare and contrast different stormwater management and traffic calming methods in the area.

The College of Architecture Planning and Landscape Architecture (CAPLA) research was catered to four audience groups. There are long-time residents, young families, wildlife, and high school students. It was important to use the neighborhood meetings and walks around the site as an anecdotal foundation for project goals. Young families are the most recent inhabitants of the area. It is important to cater to the young children that these families have, a recent shift in the user groups of the site. The wildlife population greatly addresses preserving existing hawk populations. The High Schools both house Rincon High students and University High School students. A particular traffic calming aspect that needed to be addressed was when schools are opening and closing for the day, increasing traffic flow at two specific hours of the day. Tucson Ward 6 released a mini grant to TCB for storm water management and traffic calming. CAPLA created an inventory and analysis study based on the grant constraints, utilizing green infrastructure oppurtunities which is the focus of section IV of this document.

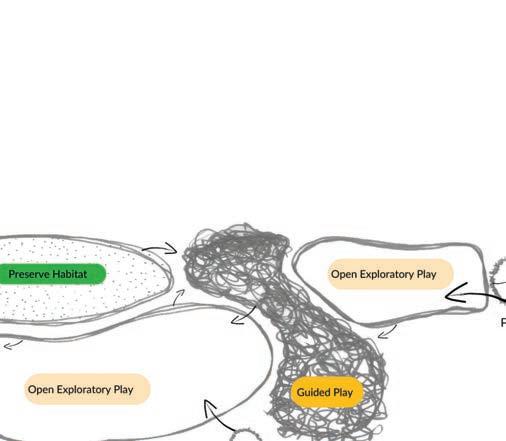

LONG TIME RESIDENTS

YOUNG FAMILIES

IMAGE ABOVE: Organizations involved within Sierra Estates 2022 project. The collages reflect user groups of the space that will be within the site, their desires and transporation habits were involved within design process.

PRESERVE HABITAT

HIGH SCHOOL STUDENTS

REFERENCES, SOURCES & RECOMMENDED RESOURCES: https://capla.arizona.edu/research-practice, https://tucsoncleanandbeautiful.org/, https://www.tucsonaz.gov/gsi Dutton, S., Davison, C. M., Malla, M., Bartels, S., Collier, K., Plamondon, K., & Purkey, E. (2019). Biographical Collage as a Tool in Inuit Community-Based Participatory Research and Capacity Development. International Journal of Qualitative Methods, 18. https://doi.org/10.1177/1609406919877307 https://www.tucsonaz.gov/gsi https://www.tucsonaz.gov/gsi

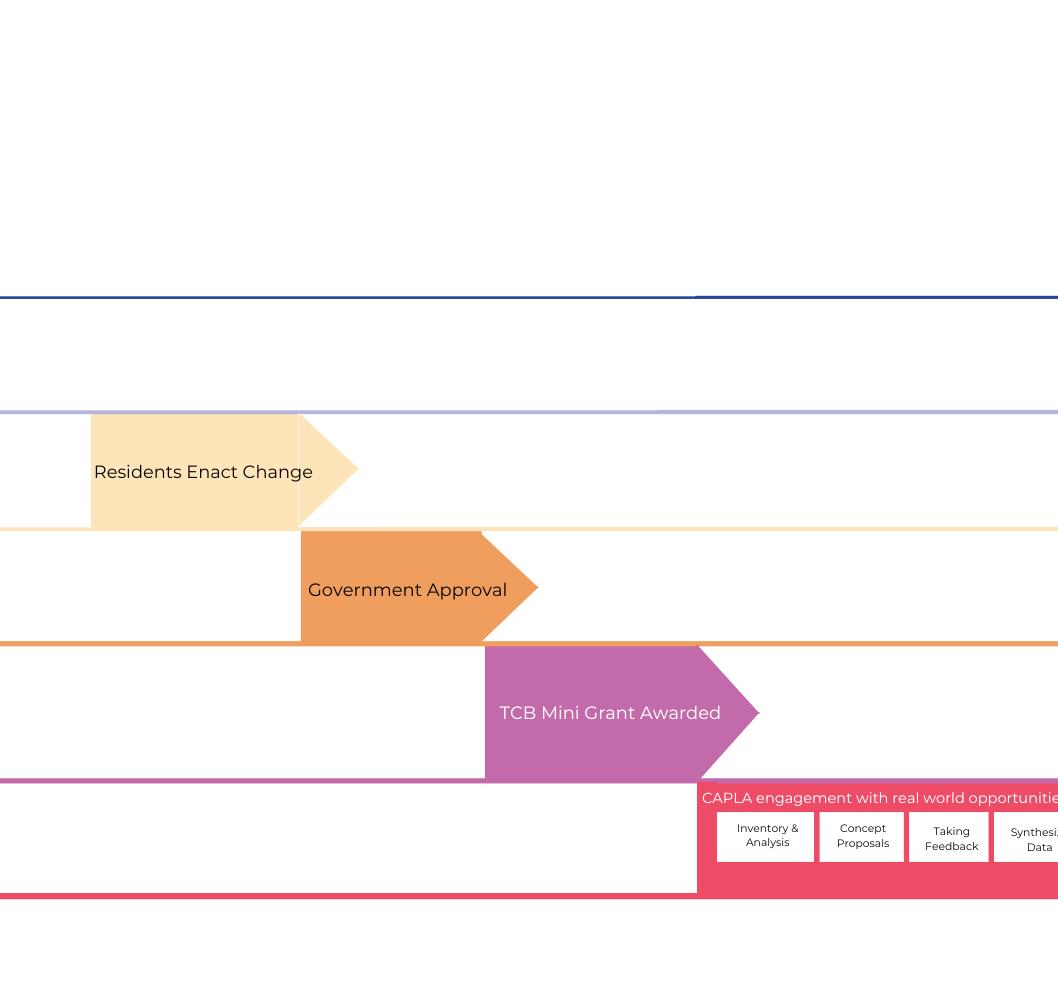

PROJECT TIMELINE

Below is a brief overview of project partners and engagment on exploring green stormwater infrastructure, Burns Park designs, and the leadership of an active and involved neighborhood.

PROJECT TIMELINE

» City owned Burns Park until mid-70’s. Gangs and homelessness were stated as disruptive measures to the nearby schools. The City of Tucson and Ward 6 ceded ownership to Tucson Unified School District (TUSD) with the stipulation of remaining open and accessible to the public. Years later the schools fenced in the park without public access.

» The neighborhood residents’ efforts and Ward 6 Representative Steve Kozachik’s requested that the park be opened again for public access to meet the agreement stipulations.

» Ward 6 approved traffic calming and flood mitigation methods to be implemented in the neighborhood. Tucson Clean and Beautiful invited to explore opportunities to install Green Stormwater Infrastructure (GSI) projects with support of active neighbors through TCB’s GSI Mini Grant Program to help neighbors envision and fund residential GSI solutions. Grants can help create multi-functional, green neighborhood assets.

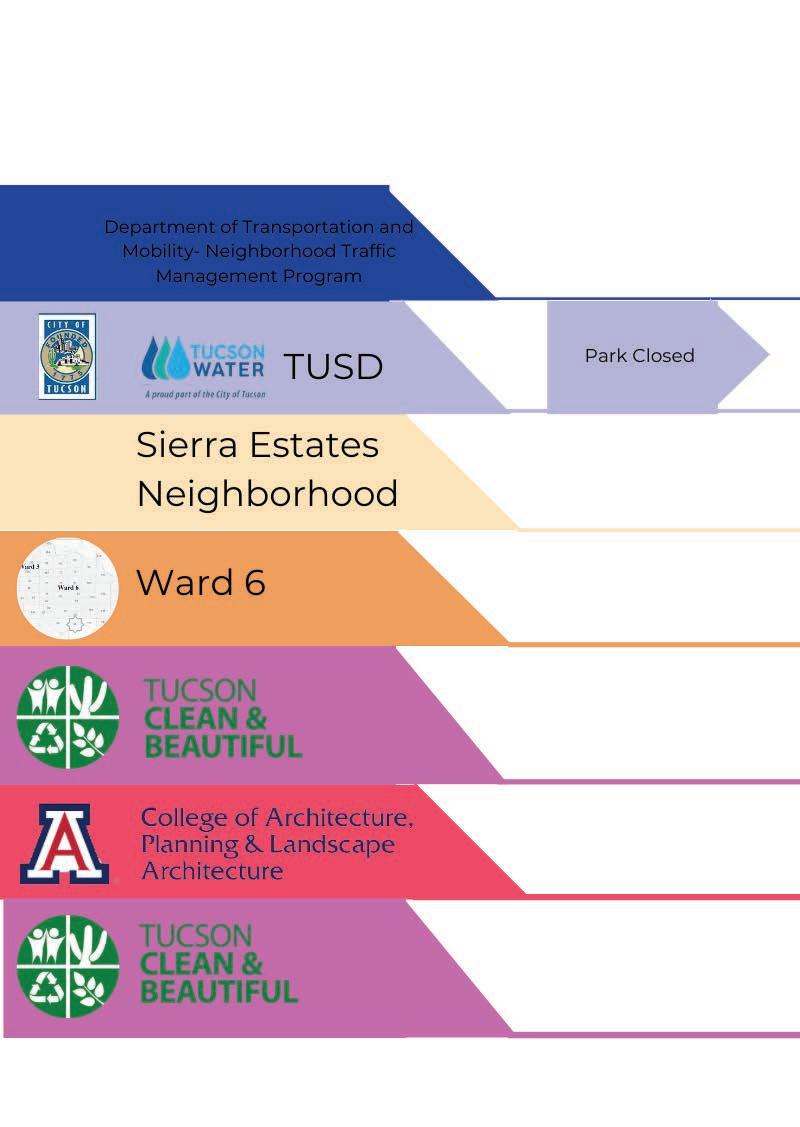

IMAGE ABOVE: Displaying which organizations were interacting with the site and overall sequence.

SITE INVENTORY & ANALYSIS

REGIONAL ANALYSIS

WATER (STORM, SUPPLY & USE) CLIMATE CHANGE IMPACTS OVER TIME

Precipitation 1981 vs 2021

Temperature mean 1981 vs 2021

Changes in climate will also affect where precipitation falls due to changes in air temperatures and circulation patterns. In some regions, such as the American West, Southwest, and Southeast, it is predicted that it will become drier. Similarly, the northern U.S. and Midwest regions will see more rain

When the temperature rises, what happens? As the Earth warms, the global water cycle speeds up, involving water exchange between the oceans, the atmosphere, and land. As temperatures rise, evaporation increases, and the soil gets drier faster. In general, more rain or snow will fall as the amount of water in the atmosphere increases. There are signs that the water cycle is changing. It has increased by about 6% since the beginning of the century that the United States experiences an average of six inches of precipitation a year. Meanwhile, there have been an average of twenty percent more intense precipitation events (heavy downpours of more than two inches per day) during the same time period. During such an event, flooding can occur, soil can be eroded, and even people may lose their lives. Due to increased evaporation in some midcontinental areas, drought has resulted because heavy rains fell elsewhere.

REFERENCES, SOURCES & RECOMMENDED RESOURCES: https://prism.oregonstate.edu/recent/ | https://www.mapsofthepast.com/mm5/graphics/00000001/magic/AZZZ0015A_800x669.jpg | https://i.etsystatic.com/6006374/r/il/bea0f7/401896423/ il_1588xN.401896423_i02p.jpg | https://news.climate.columbia.edu/2019/09/23/climate-change-impacts-water/

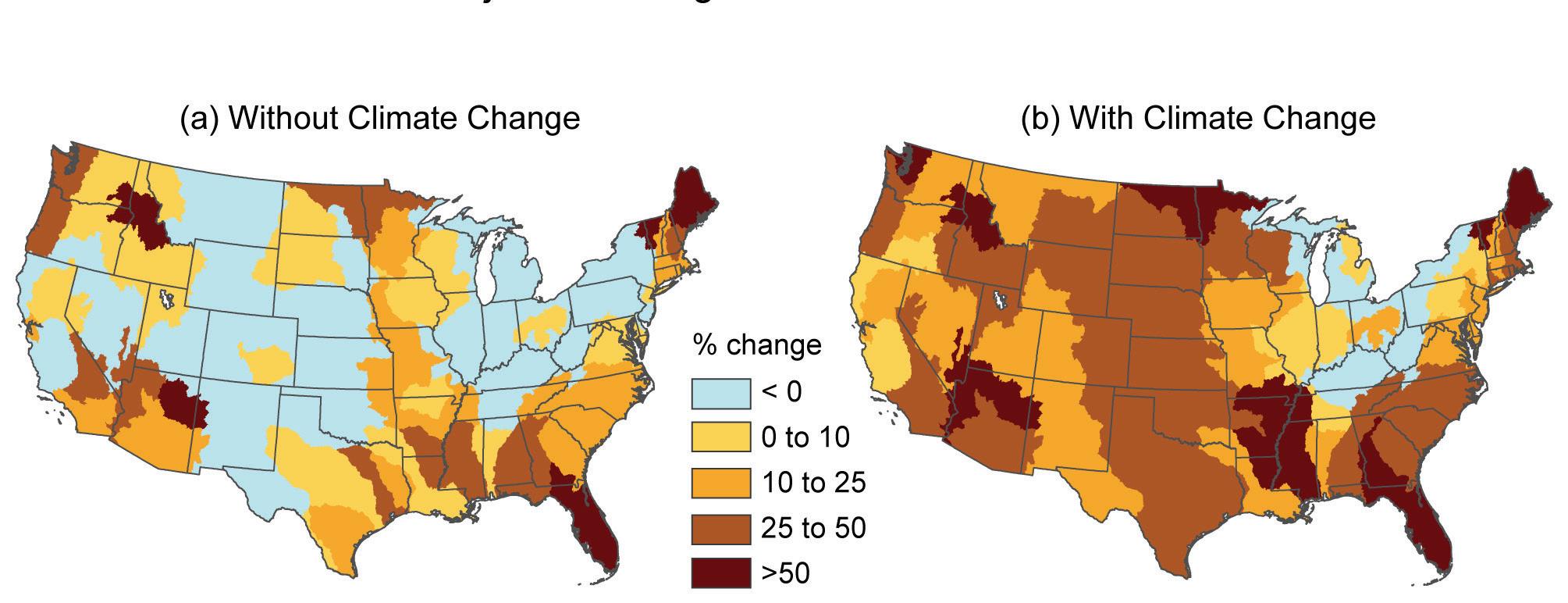

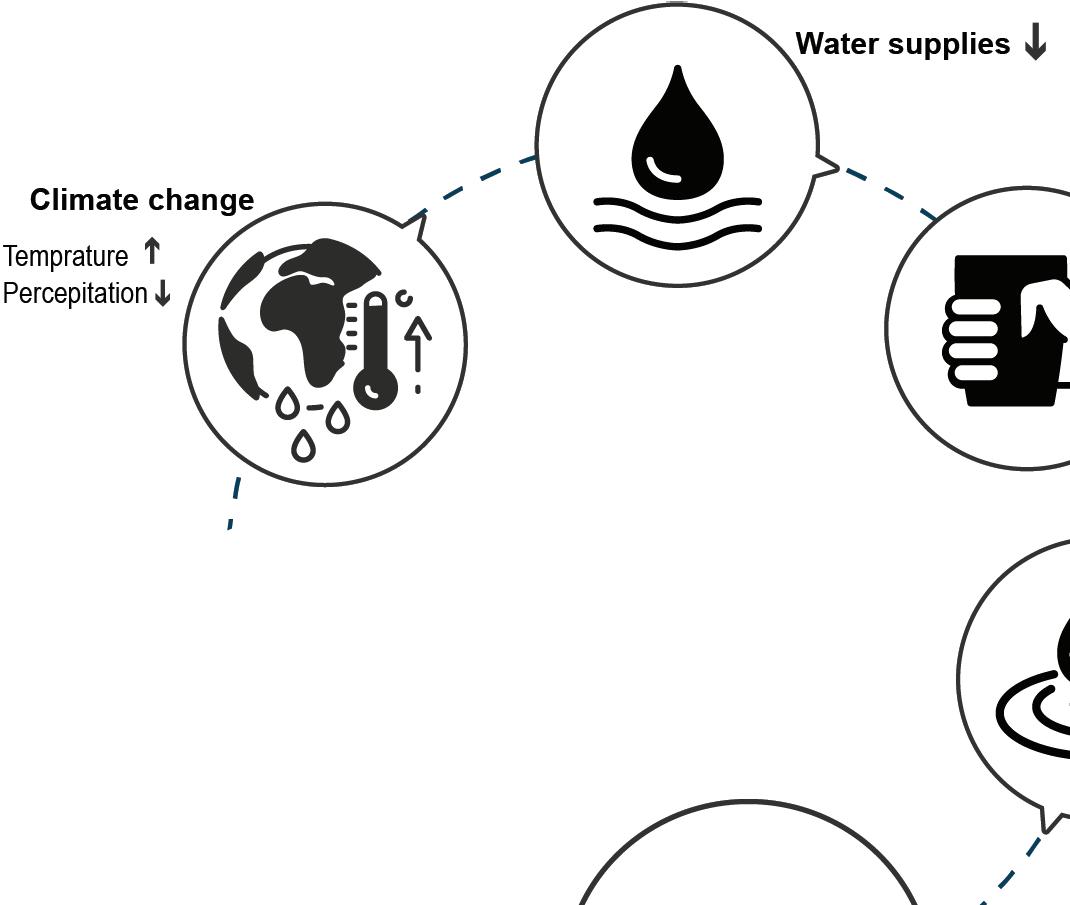

Projected Changes in Water withdrawals

Dry weather is predicted to intensify and persist in the Southwest, the southern Great Plains, and the Southeast, according to the National Climate Assessment

Water demand is anticipated to increase significantly throughout much of the United States due to climate change, primarily as a result of increasing temperatures and evapotranspiration. According to the maps, the projected water demand from 2005 to 2060 will vary by assuming (a) changes in population and socioeconomic conditions, but no changes in climate, or (b) assuming population, socioeconomic conditions, and climate change (gradual reductions in emissions beginning around mid-century).

REFERENCES, SOURCES & RECOMMENDED RESOURCES: https://clintonwhitehouse4.archives.gov/Initiatives/Climate/last100.html

Nadia Sarneyzehdoost

WATER (STORM, SUPPLY & USE) ANALYSIS

REFERENCES, SOURCES & RECOMMENDED RESOURCES: https://www.arizonawaterfacts.com/water-your-facts

https://coloradoriverbasin-lincolninstitute.hub.arcgis.com/datasets/lincolninstitute::major-cities-that-use-colorado-river-water/explore?location=29.179094%2C-42.092487% https://www.arcgis.com/home/item.html?id=8500221922864c16972f0aa2ea462fec 2C3.22 https://uagis.maps.arcgis.com/home/item.html?id=3a8e2012227c4a64832e6365507035a6

https://gisdata2016-11-18t150447874z-azwater.opendata.arcgis.com/datasets/azwater::well-registry/explore?location=34.243382%2C-114.839771%2C7.00

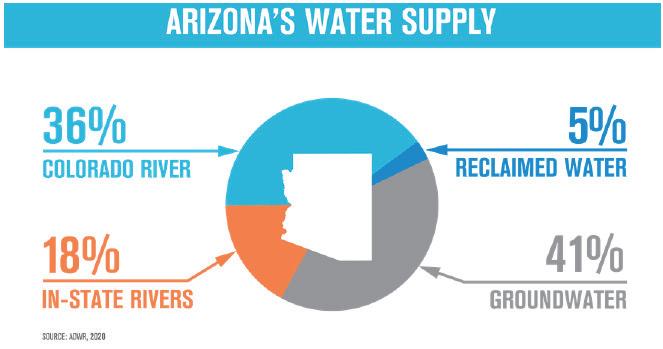

Water demand in 2019

Colorado River :

A major source of renewable water for Arizona is the Colorado River. Colorado River water can be used by Arizona in the amount of 2.8 million acres. There are data points included here for major cities that consume Colorado River water, both within and outside the Colorado River Basin.

(left top map)

In-State Rivers:

Arizona’s most signiﬁcant renewable resource is water from rivers. We have a desert climate, so surface water availability varies by season, by year, and even by location. Surface water can be efﬁciently used throughout the state by building storage reservoirs and delivery systems. (right top map)

Groundwater:

Reclaimed Water:

Agricultural irrigation, golf courses, parks, industrial cooling, or wildlife conservation areas can beneﬁt from reclaimed water. A growing population will result in more wastewater being treated in Arizona.

(left bottom map)

Aquifers are underground reservoirs of groundwater. These reservoirs have held water for millions of years. Groundwater Management Acts were signed into law in 1980 to protect water users and reduce the State’s reliance on unsustainable groundwater supplies.Aquifers are underground reservoirs of groundwater. These reservoirs have held water for millions of years. Groundwater Management Acts were signed into law in 1980 to protect water users and reduce the State’s reliance on unsustainable groundwater supplies. The depth of wells in Arizona is determined by this layer of data. The data is provided by spatial interpolation in Arc GIS Pro, which estimates a continuous surface

REFERENCES, SOURCES & RECOMMENDED RESOURCES: https://prism.oregonstate.edu/recent/ https://www.mapsofthepast.com/mm5/graphics/00000001/magic/AZZZ0015A_800x669.jpg

https://i.etsystatic.com/6006374/r/il/bea0f7/401896423/il_1588xN.401896423_i02p.jpg https://news.climate.columbia.edu/2019/09/23/climate-change-impacts-water/

Nadia Sarneyzehdoost

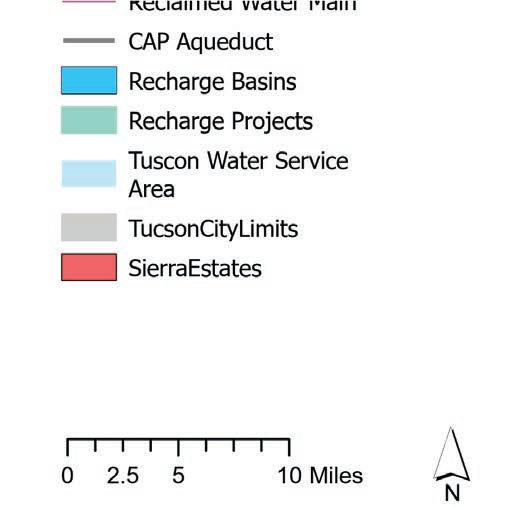

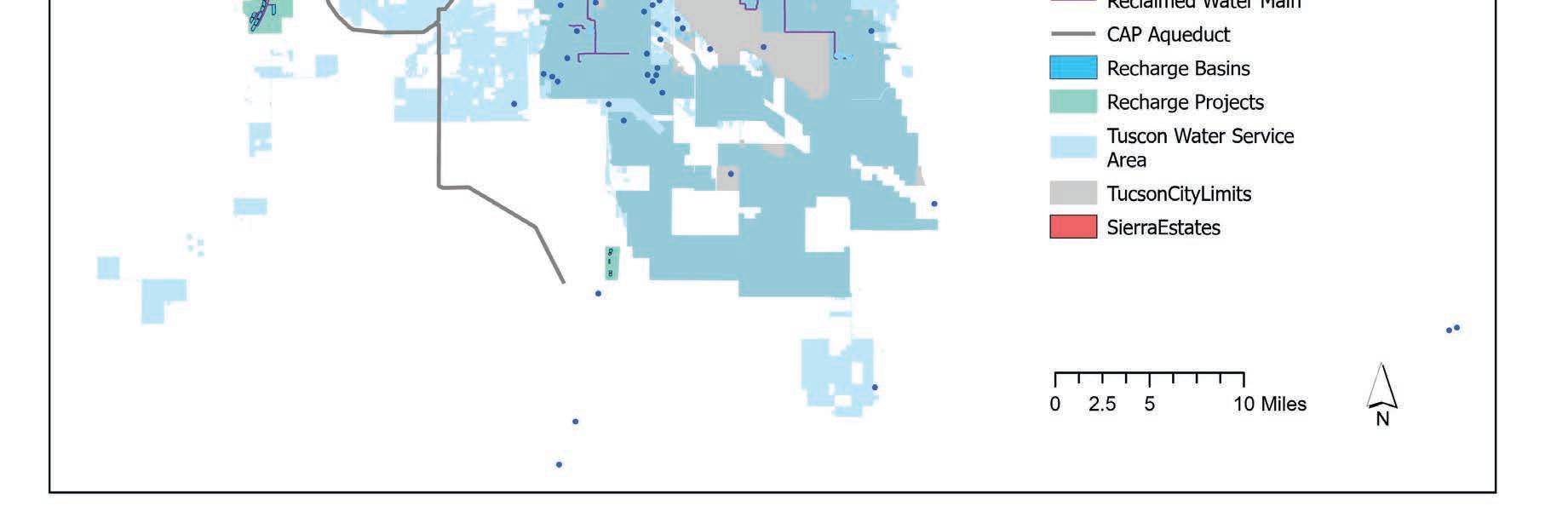

TUCSON WATER & RECHARGE EFFORTS

References: Pima County water information; https://www.tucsonaz.gov/files/water/docs/rclmnews08.pdf; https://new. azwater.gov/news/articles/2016-02-11; https://wrrc.arizona.edu/sites/wrrc.arizona.edu/files/BB-avoided-costs-presentation-4-19-17.pdf; https://storymaps.arcgis.com/stories/99ebdfb058554b5b9c4cdac4059988f8

Legend

Sierra Estates

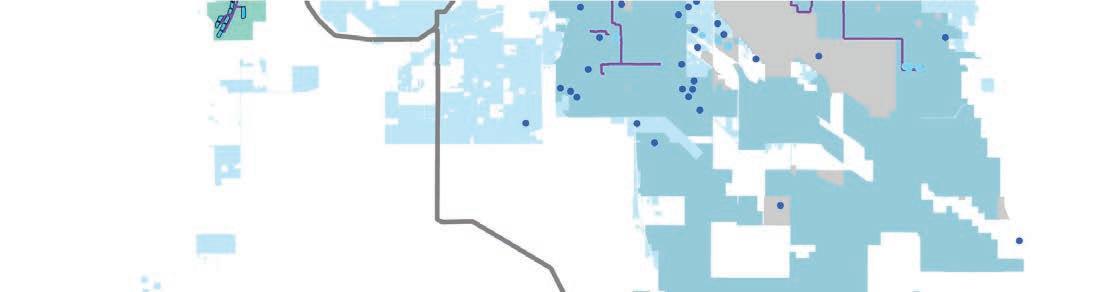

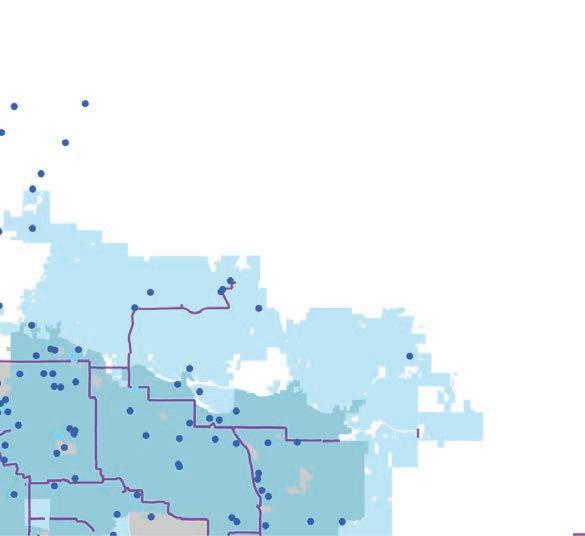

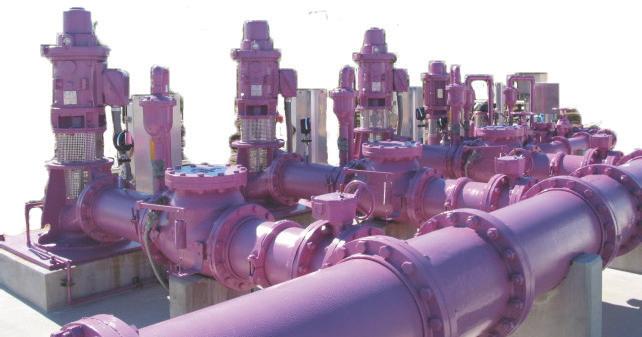

TUCSON’S RECLAIMED WATER NETWORK

Tucson is a national leader in use of reclaimed water, having one of the oldest and largest recycled water systems in the country. There are nearly 200 miles of pipe in the reclaimed water system and 15 million gallons of surface storage in enclosed reservoirs. Tucson’s Grade A reclaimed water irrigates golf courses, parks and schools. Using reclaimed water instead of drinking water for irrigation saves enough water every year for more than 60,000 families.

https://www.tucsonaz.gov/files/water/docs/rclmnews08.pdf; https://new. https://wrrc.arizona.edu/sites/wrrc.arizona.edu/files/BB-avoided-costs-presentahttps://storymaps.arcgis.com/stories/99ebdfb058554b5b9c4cdac4059988f8

Tucson’s Water Supply

HISTORICAL IRRIGATION PRACTICES AS PRECEDENT FOR MODERN WATER USE

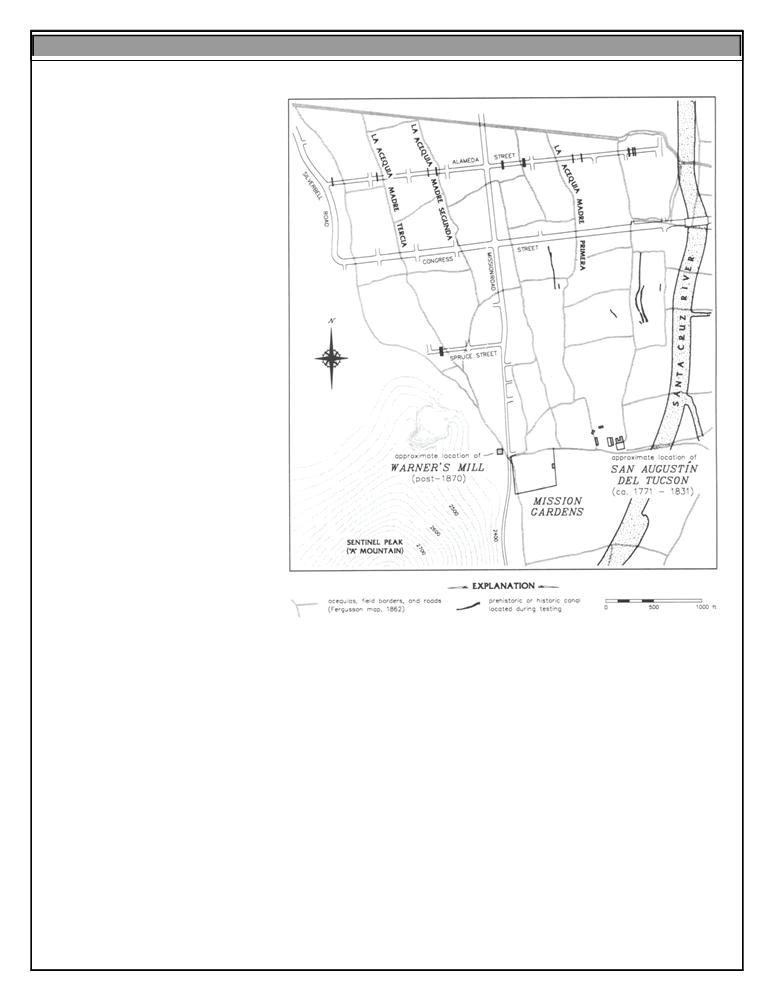

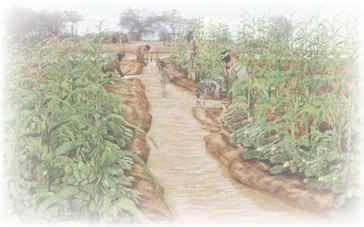

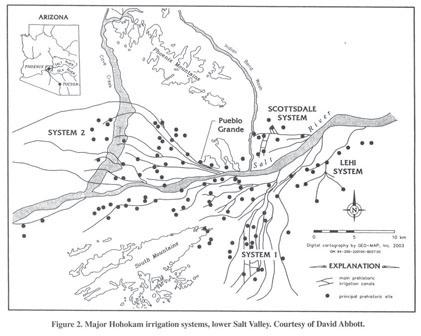

Ancient Irrigation Canal Network

Used in present-day Arizona

Acequias first used by the Spanish in Tucson

Present-day Implications in Local Water Use

Traditional vs. modern water Principles

The network of reclaimed water is the modern day equivalent of intelligent water infrastructure. The sustainable use of water has been paramount since humans began cultivating land in the Santa Cruz River Valley at least 4000 years ago. Rewatered areas restore habitat for bird species, and bird species richness in correlated with riparian areas in Arizona.

A reclaimed water success story. The Santa Cruz River Heritage Project and the Sweetwater Wetlands are two examples of reclaimed water being returned to nature to invigorate the local ecosystem. These projects set a precedent for what people can continue to do to restablish bird habitats affected by the loss of water. The city of Tucson treats wastewater (graywater and some blackwater) to become reclaimed water. Once this water has been filtered to a grade deemed safe for human contact and livestock consumption, it is returned to the Santa Cruz to supplement natural river flow.

References: David Abbott; Archaeology in Tucson Letter (1995); https://www.tucsonaz.gov/water/SCRHP

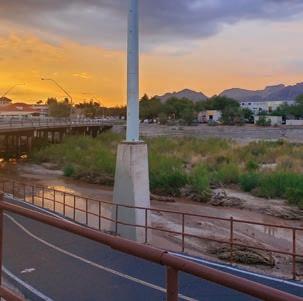

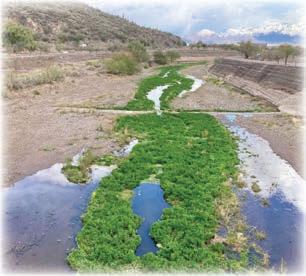

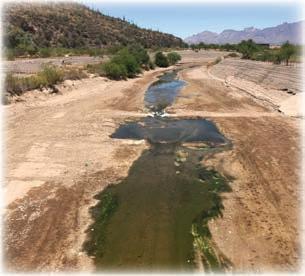

The Santa Cruz River following the introduction of reclaimed water

The Santa Cruz River Heritage Project

CONNECTING WATER & HABITAT

The Habit-Water Connection

Considering the success of bird species in restored habitats such as the Santa Cruz, these maps were developed to explore correlations between urban greenspaces and popular bird viewing areas within the North-Central area of Tucson.

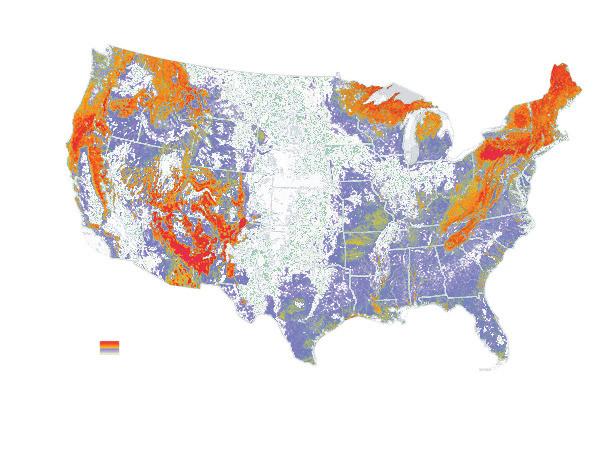

Audubon Climate - Threatened Bird Species Richness

According to the 2022 State of the Birds Report for the U.S., birds are declining in almost every habitat. The above map visually presents a the EPA’s Biodiversity Metric based upon bird species richness threated by climate change. As you can see, many areas in arizona and the Southwest are at a particularly high threat

Reclaimed Water And Urban Bird spots

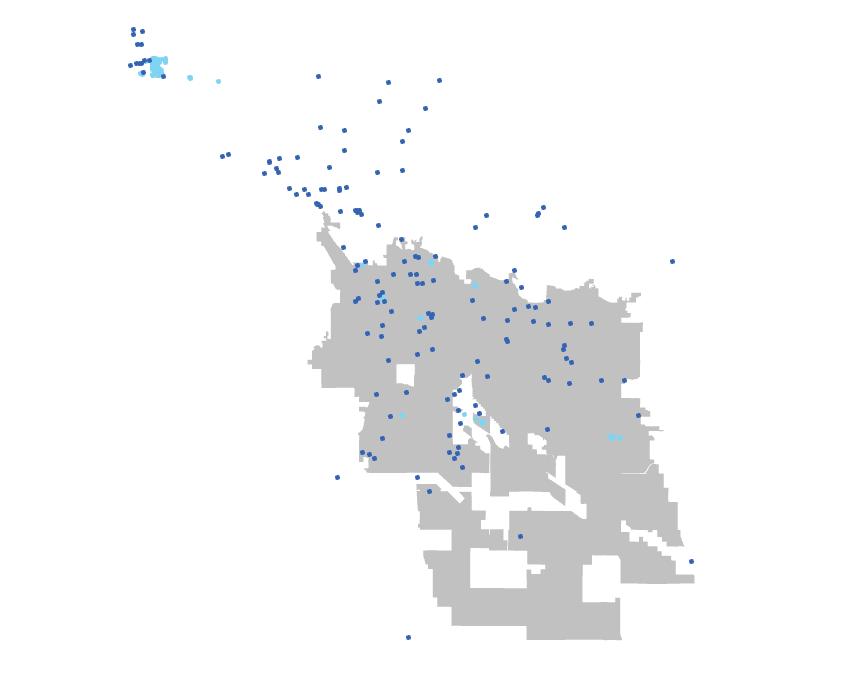

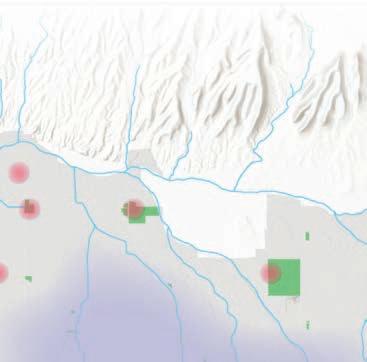

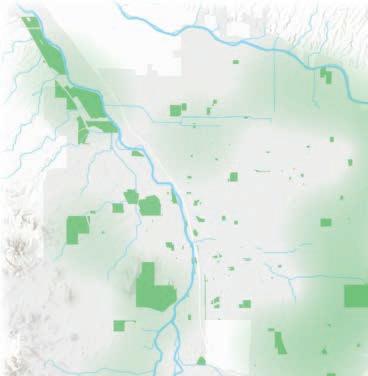

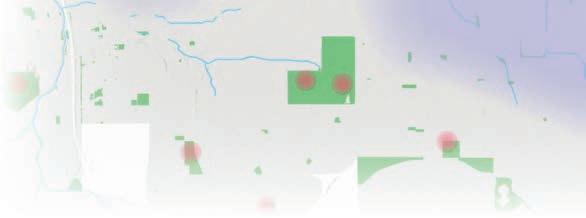

Proximity of Urban Bird Spots to Parks and Washes

Location of Urban Bird Spots

These two maps highlight spots on the Tucson Birding Trail identified by Tucson Audobon Society and the City of Tucson. The majority of these urban birding spots are located on or in closeproximity to either park spaces or washes. From the maps, we can see a correlation between urban bird spot frequency, the reclaimed water main line, and park spaces. The location of the Sierra Estates neighborhood lies within an area which has a lower density of bird spots.

Legend

Urban Bird Spots

Urban Bird Corridor

Tucson City Limits

Area of Potential

Reclaimed Water

Washes & Streams

Sierra Estates Park Spaces

References: Tucson Water Reclaimed Water Annual Report, Tucson Birding Trail Map, https://www.usgs.gov/media/images/epa-s-enviroatlas-biodiversity-metric; https://news.cornell.edu/stories/2022/10/ birds-report-finds-losses-all-habitats-except-wetlands#:~:text=Key%20findings%20include%3A,a%2034%25%20loss%20since%201970.; https://www.stateofthebirds.org/2022/

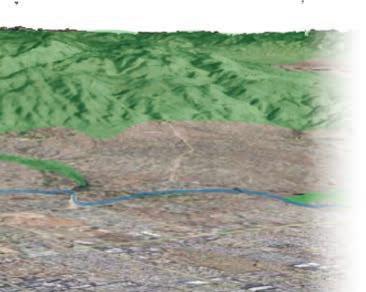

URBAN BIRD CORRIDORS

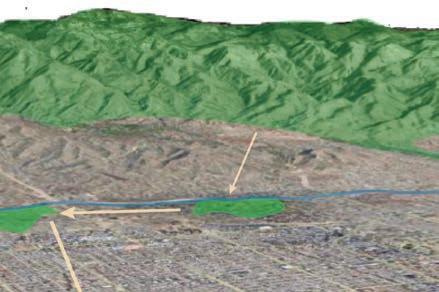

Urban Corridors Have the Potential to Support Important Bird Areas

Tucson Holds Great Potential for Bird Habitat Wildnerness in the Santa Catalinas and Sauguaro National Park have been identified as Important Bird Areas (IBAs) by the Adobon Society. The city of Tucson lies in between these two IBA wilderness areas. Tucson’s various parks and washes can be seen as a dotted corridor of connectivity which has been fragmented by urbanization. In order to increase connectivity between these areas and mitigate the effects of habitat fragmentation, Tucson can invest in its urban greenspaces to create rich park spaces, much in the same way it has returned water to the Santa Cruz River.

Saguaro National Park

Important Bird Area

Sierra Estates Neighborhood

References: Google Earth; Adobon Society: https://www.audubon.org/important-bird-areas/state/arizona

Reid Park

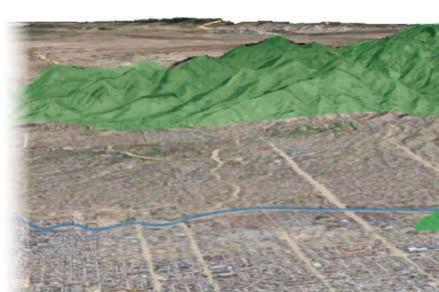

The Santa Catalinas

Saguaro National Park is considered to be an Important Bird Area by the Audobon Society

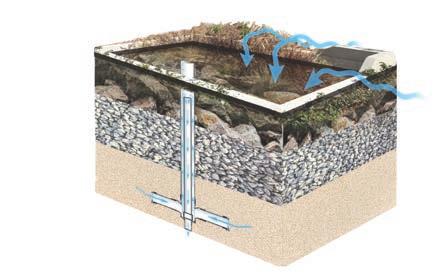

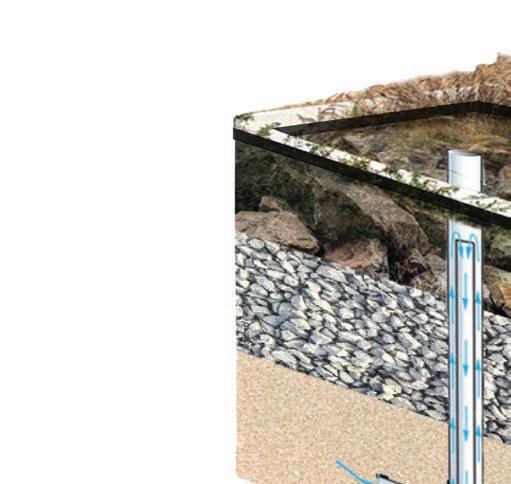

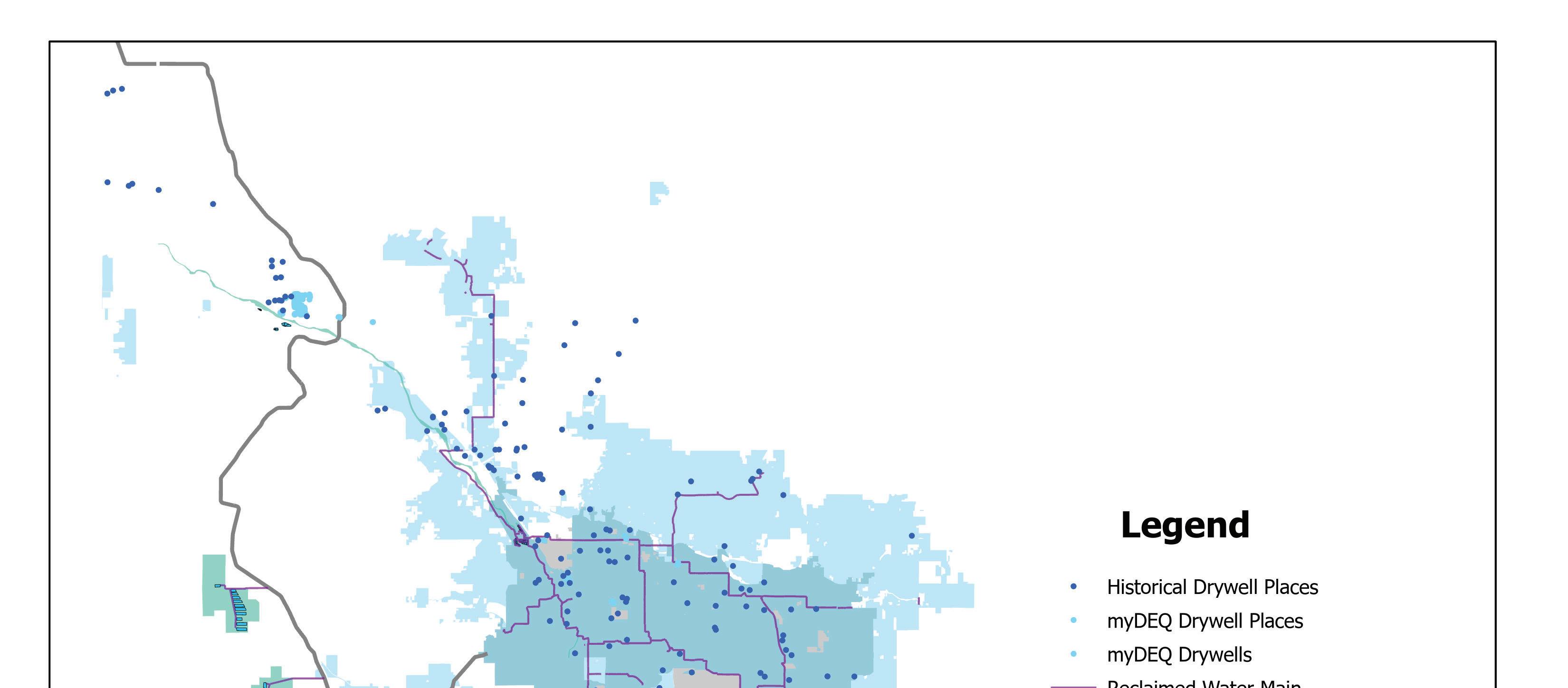

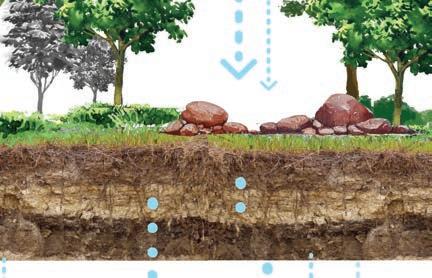

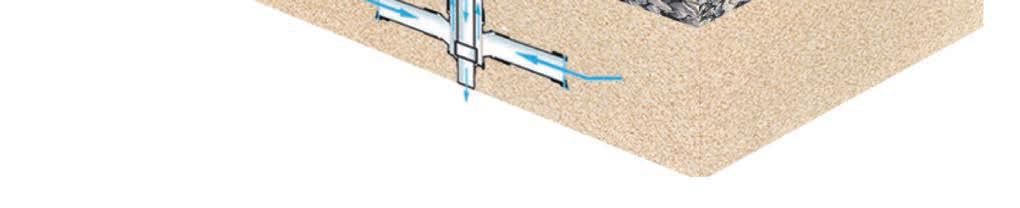

DRYWELLS & RECLAIMED WATER USE IN PARKS

Drywells & Reclaimed Water Can Turn Parks into a Thriving Bird Corridor

Locations in Tucson

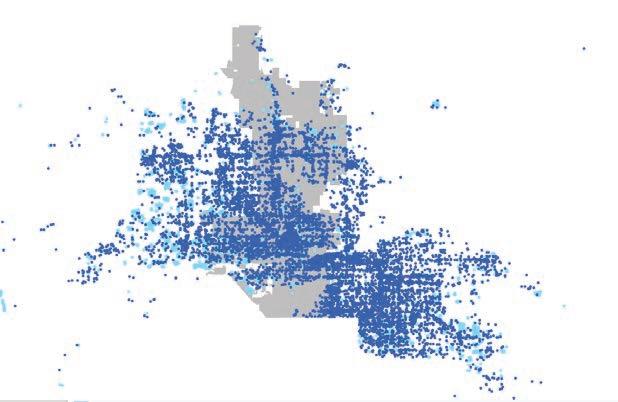

Locations in Phoenix

Bird Habitat & Urban Greenspaces Both begin with one thing: Water Arizona Department of Environmental Quality (ADEQ) regulates the number use of drywells in Arizona. Drywells are structured boreholes which return rainwater back to the groundwater supply. As you can see in the two maps to the left, Phoenix has a significantly higher density of drywells than Tucson. Tucson can follow in the footsteps of Phoenix and add more drywells in parks and urban greenspaces, not only to manage stormwater, but also to recharge groundwater stores. In conjunction with Tucson’s large and ever-expanding reclaimed water network, intelligent water use can be used to support bird habitats in urban parks. The areas in purple above are areas in the city lacking in frequent urban birding spots. As such, they can be considered high priority areas to implement water conscious design to support vegetation growth for birds.

References: https://www.epa.gov/uic/stormwater-drainage-wells; ADEQ geodata

Legend

Bird Trail Spots

Tucson City Limits

Area of Potential

Park Spaces

Reclaimed Water

Washes & Streams

Sierra Estates

Drywell

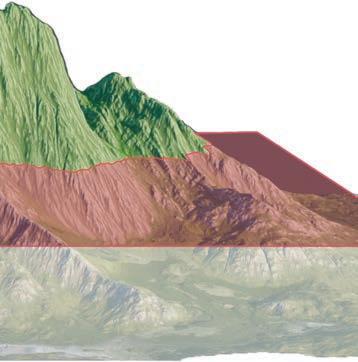

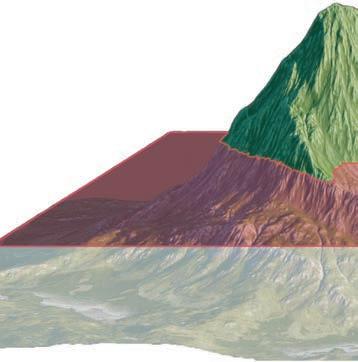

RISING TEMPERATURES CONSTRICT WILDLIFE HABITAT TO HIGHER ELEVATIONS

The Santa Catalina Mountain Range began forming due to faulting in the Earth’s crust 1.65 billion years ago. Magma deposits of Oracle Granite and other minerals over millions of years have contributed to a diverse geological arrangement. As the continent has shifted, the crust along the Catalina Fault has gradually separated, allowing the newly formed granite to slowly push beyond the surface in the shape of a dome. For this reason, the summit of Mt. Lemmon is rounded and moderate in slope. A combination of other geologic processes, most notably flash flood events, have carved deep canyons and sculpted dramatic slopes along the Catalina mountain range. Seasonal streams flow through these canyons and provide a valuable resource for riparian species and wildlife.

As global temperatures continue to rise, wildlife habitat is forced up in elevation to cooler climates. The result is less land and fewer resources for birds and other wildlife species.

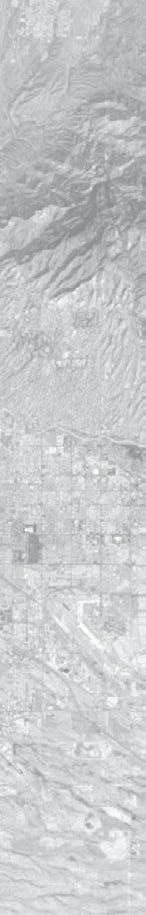

Six of Merriam’s Biotic Life Zones are represented from Tucson to the summit of Mt. Lemmon, each providing a distinct habitat for the residing wildlife. Up to about 4,000 feet in elevation, the Sonoran Desert zone is easily recognized by saguaro cactus and desert shrub. By 5,000 feet, the Chaparral zone brings evergreen oak trees and more leafy vegetation which brings of sense of lushness to the landscape. Higher up, The Pine-Oak Woodland has noticably cooler temperatures and higher annual precipitation than the valley. These conditions are suitable for ponderosa pine trees, which establish a much denser shade canopy. At over 9,000 feet, Mount Lemmon’s summit occupies the Mixed Conifer Forest Zone, which consists of more coniferous plus aspen trees. This habitat is most similar to that found in the Rocky Mountains and even as far north as Canada.

REFERENCES, SOURCES & RECOMMENDED RESOURCES: Bezy, J. V. (2016). A Guide to the Geology of the Santa CatalinaMountains, Arizona: The Geology and Life Zones of a MadreanSky Island. Down to Earth - Arizona Geological Survey, 22. Explore Mt. Lemmon’s life zones near Tucson. Tucson HiddenGems. (n.d.). Retrieved November 13, 2022, from https://tucsonshiddengem.com/mt-lemmons-life-zones/ Brusca, R. C., Wiens, J. F., Meyer, W. M., Eble, J., Franklin, K.,Overpeck, J. T., & Moore, W. (2013). Dramatic response to climate change in the southwest: Robert Whittaker’s 1963 Arizona Mountain Plant Transect revisited. Ecology and Evolution.ttps://-doi.org/10.1002/ece3.720DSMile_, & DSMile_. (2021, December 12). 8K detailed mountain landscape 5 3D model. Turbo Squid. Retrieved November 14, 2022, from https://www.turbosquid. com/3d-models/8k-detailed-mountain-landscape-5-3d-model-1826887

Cenozoic (Catalina Granite)

Mesozoic (Mural Limestone)

Paleozoic (Bolsa Quartzite)

Proterozoic (Oracle Granite)

Catalina Detachment Fault Line

Rocks pushed above Fault Line

Alluvial Fill

Upper Sonoran Desert

Semi-Desert Grasslands

Oak Woodland & Chaparral

Pine-Oak Woodland

Ponderosa Pine Forest

Mixed Conifer Forest

Merriam’s Biotic Life Zones

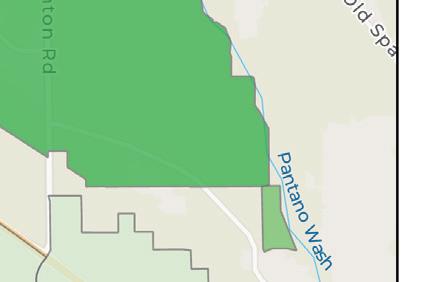

Habitat Restoration Projects in Tucson

To reverse some of the habitat loss caused by urbanization and climate change, Tucson must provide artificial wetlands and restoration projects in a way that methodically establishes a network of natural resources and repairs some of the lost wildlife connections. Urban stepping stones like Burns Park are crucial to restore wildlife connections through the city. Some of these projects have already been completed, however, more must be done to repair the broken network.

The majority of restoration projects use treated wastewater effluent in washes or rivers, which is beneficial for many of the wildlife species that need the water as a supplemental resource. The washes can sustain riparian species and allow for a diverse biotic environment. The Santa Cruz and Rillito River projects have provided valuable connections for wildlife species around the city of Tucson. This map map illustrates where more restoration projects must be done in order to strengthen the wildlife connections to the sky islands and other surrounding natural resources.

North Simpson Restoration Project

Rillito River Park

Key

Completed

Restoration Project

Pending

Restoration Project

Future

Restoration Project

Urban

Stepping Stone

Recommended

Wildlife Corridor

Sky Island Wildlife Habitat

REFERENCES, SOURCES & RECOMMENDED RESOURCES: Pima County Board of Supervisors. (n.d.). SonoranDesert Conservation Plan - Pima County, AZ.Riparian Projects. Retrieved November 18, 2022,from https://webcms.pima.gov/UserFiles/Servers/Server_6/File/Government/ Flood%20Control/Public%20Outreach/brochure-riparian-proj.pdf

West Branch

Santa Cruz River Park

South Houghton Restoration Project Burns Park

Tucson Botanical Gardens

Sabino Creek

Reid Park

Lincoln Park

Evergreen

Tohono Chul Kino Wetlands

Black Wash

Cienega Creek Natural Preserve

Cienega Creek Streamﬂow Restoration

Sweetwater Wetlands

El Rio Medio Project

Big Wash Restoration Project

Cortaro Mesquite Bosque

Mount Lemmon

Rincon Mountains

Rillito River Restoration Project

Case Natural Resource Park

TRANSPORTATION AND BIRD HABITAT

REFERENCES, SOURCES & RECOMMENDED RESOURCES: dipitem delesseditam ut mo con cullentur? Lestrup tatiame volorepmpor re ipsam nonsed et laccatiis sit ea dipsam, quodis expliquas utecaborum Hillesciatur modicia nimaionseque nos es ulluptas sed ut et erio tem eat quati aut alit endiorit que odigni tescias sunto dolore ipsus sin rere as aborentium faccaes edicit, sitiur aniate nis adis doluptae precesendis a vid et et optatiis di dolores equamus veliqua spidita simendebis rerum aut quiam, et ande restis asi resequid estius.

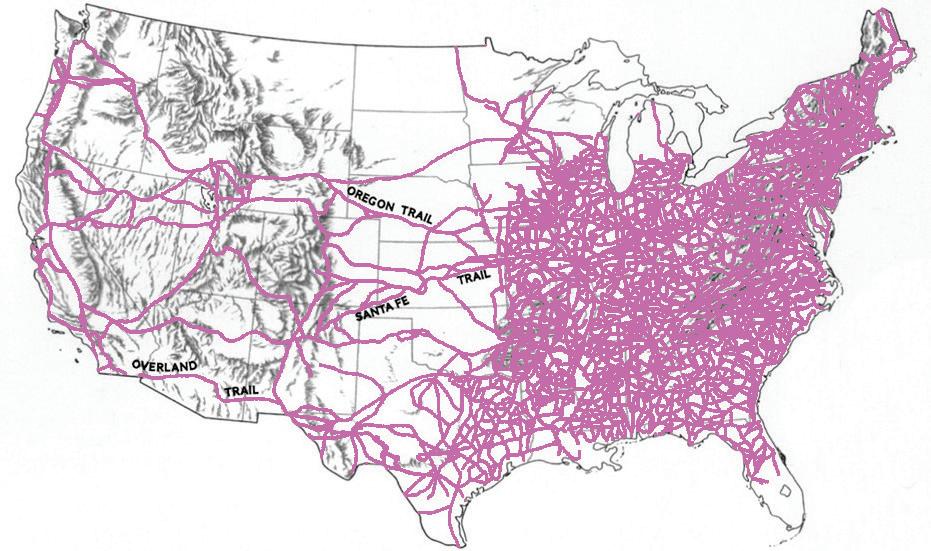

OVERLAND ROUTES, 1860

As the density of American habitation reached a critical level in 1860, wildlife on the eastern half of the United States began to experience the affects of a new form of human settlement characterized by heavy resource extraction and mechanical, powered transportation. As the avenues of ‘progress’ spread across the country, the nation’s wildlife was thrown into a new paradigm characterized by mass extinctions and a changing world. As the metaphorical ground zero for collision with modern society, the eastern United States is home to one of the earliest major bird extinctions in 1878, the Labrador duck. By 1901 humanity will have dropped the numbers of the passenger pigeon from around 3 billion individuals to 0 in a just over a hundred years. Welcome to the Anthropocene Era.

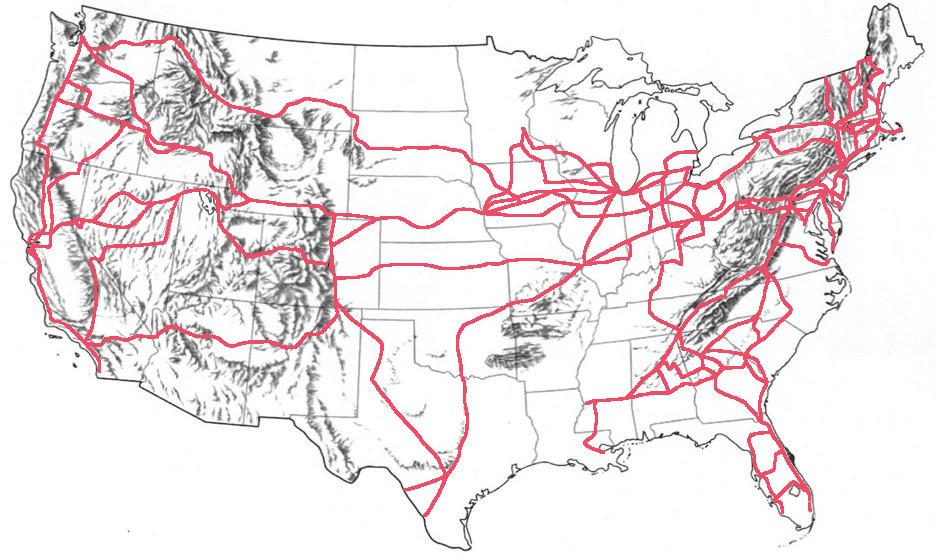

AUTOMOBILE ROUTES, 1907

Since then, remarkably little innovation has taken place in the American street--until recently. Complete streets offer a unique benefit over conventional street design: environmental restoration. Complete streets can offer continuous green space that forms key natural corridors allowing the city landscapes to better share this world with other natural creatures. Continuous habitat and natural corridors are essential in allowing animals to co-exist with humans in cities. Research has suggested that wild bird populations must be able to access patches with roughly 67% of their original, pre-disturbance foliage to experience population gains in an urban region. Complete streets offer a new, continuous planting corridor that can be easily managed with restoration goals in mind. 234birds.org, gao.gov/managing-federal-lands-and-waters, nenature.com/Nesting/red-tailed-hawk-nesting.htm, birdfact.com/articles/what-do-red-tailed-hawks-eat, birdweb.org/birdweb/bird/red-tailed_hawk, sacramentoaudubon.org/kids-corner/meet-the-red-tailed-hawk, knockoutpestcontrolandtermite.com/676/ground-squirrel-control-temecula/, onlyzoology.com/do-hawks-eat-snakes-how-do-hawks-eat-snakes/, birdsphere.com/what-do-hawks-eat/, birdfact.com/articles/red-tailed-hawk-nesting,birdfact.com/articles/how-long-do-red-tailed-hawks-live, sciencing.com/adaptations-redtailed-hawk-8651668.html, allaboutbirds.org/guide/Red-tailed_Hawk/sounds, birdfact.com/articles/juvenile-red-tailed-hawks#howLongDoJuvenileRedTailedHawksStayWithTheirParents, birdfact.com/search/results?q=red+tail+juevinile, Esri, FAO, NOAA, USGS, CONANP, Esri, HERE, Garmin, Foursquare, SafeGraph, FAO, METI/NASA, USGS, Bureau of Land Management, EPA, NPS, City of Glendale, City of Phoenix, Esri, HERE, Garmin, FAO, NOAA, USGS, Bureau of Land Management, EPA, NPS

URBAN SCALE ANALYSIS

WATER (STORM, SUPPLY & USE)

REFERENCES, SOURCES & RECOMMENDED RESOURCES: https://www.arizonawaterfacts.com/water-your-facts https://coloradoriverbasin-lincolninstitute.hub.arcgis.com/datasets/lincolninstitute::major-cities-that-use-colorado-river-water/explore?location=29.179094%2C-42.092487% https://www.arcgis.com/home/item.html?id=8500221922864c16972f0aa2ea462fec 2C3.22 https://uagis.maps.arcgis.com/home/item.html?id=3a8e2012227c4a64832e6365507035a6

& ANALYSIS

Tucson

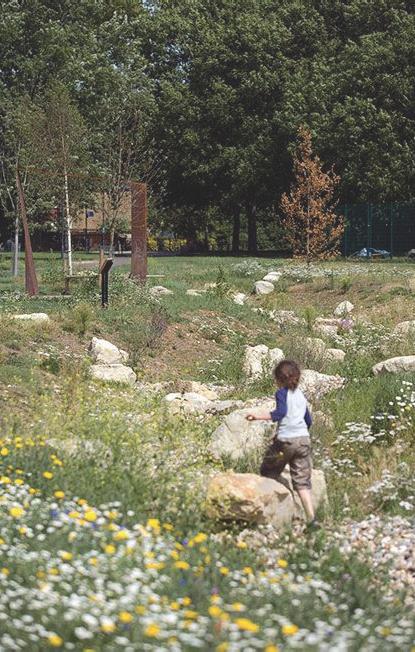

PRECEDENTS

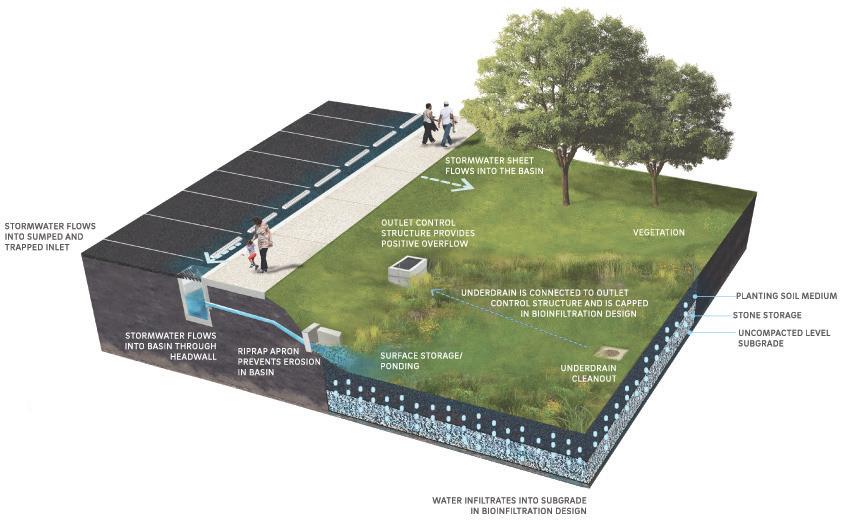

CREATIVELY DESIGNED NATURAL FILTRATION SYSTEM PROTECT A TREASURED NATURAL RESOURCE

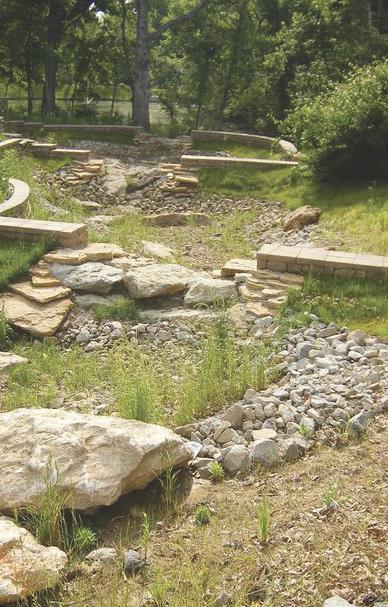

Sylvan Shores Stormwater Management System

REFERENCES, SOURCES & RECOMMENDED RESOURCES: https://data.globalchange.gov/figure/projected-changes-in-water-withdrawals

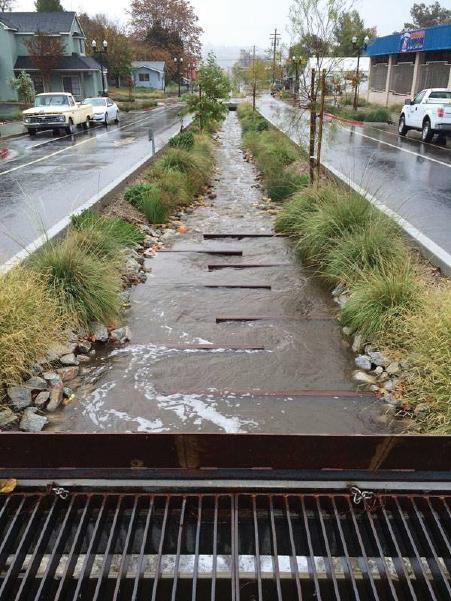

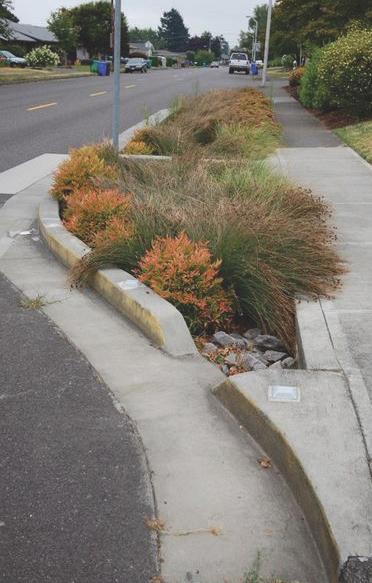

21st Street, by SvR Design Company and Cannon, in the City of Paso Robles, California.

Nadia Sarneyzehdoost

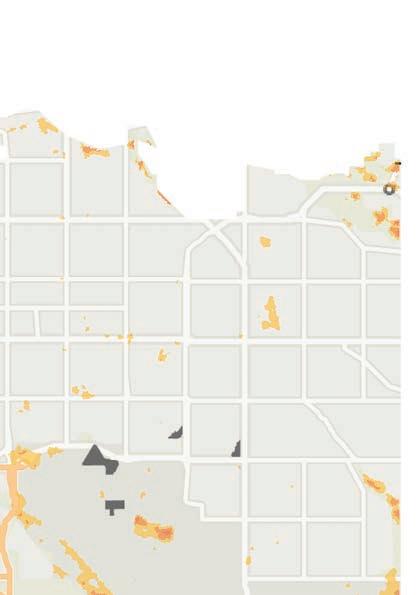

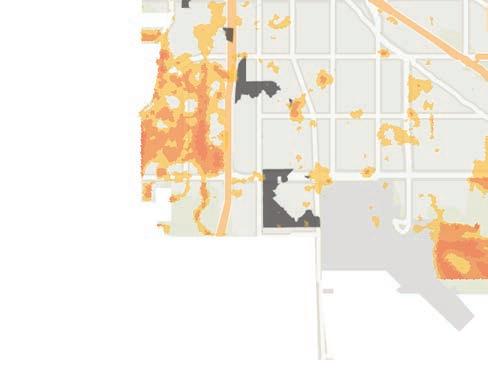

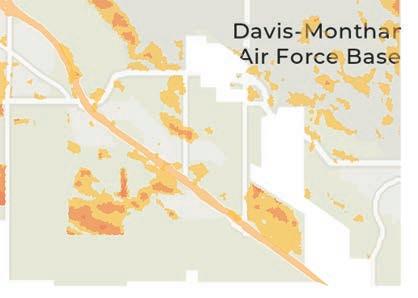

ANALYZING URBAN

HEAT

EXPERIENCING HEAT

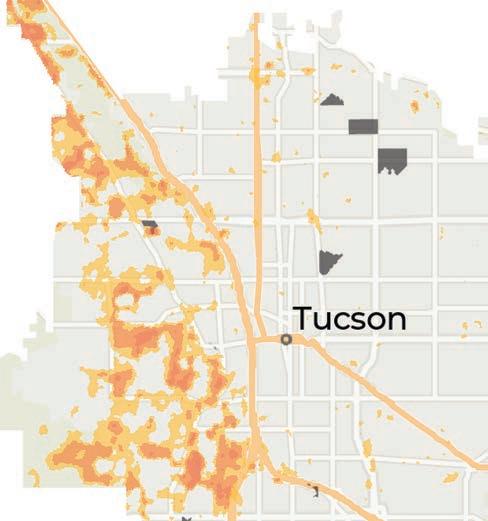

HIGH HEAT LOW HEAT

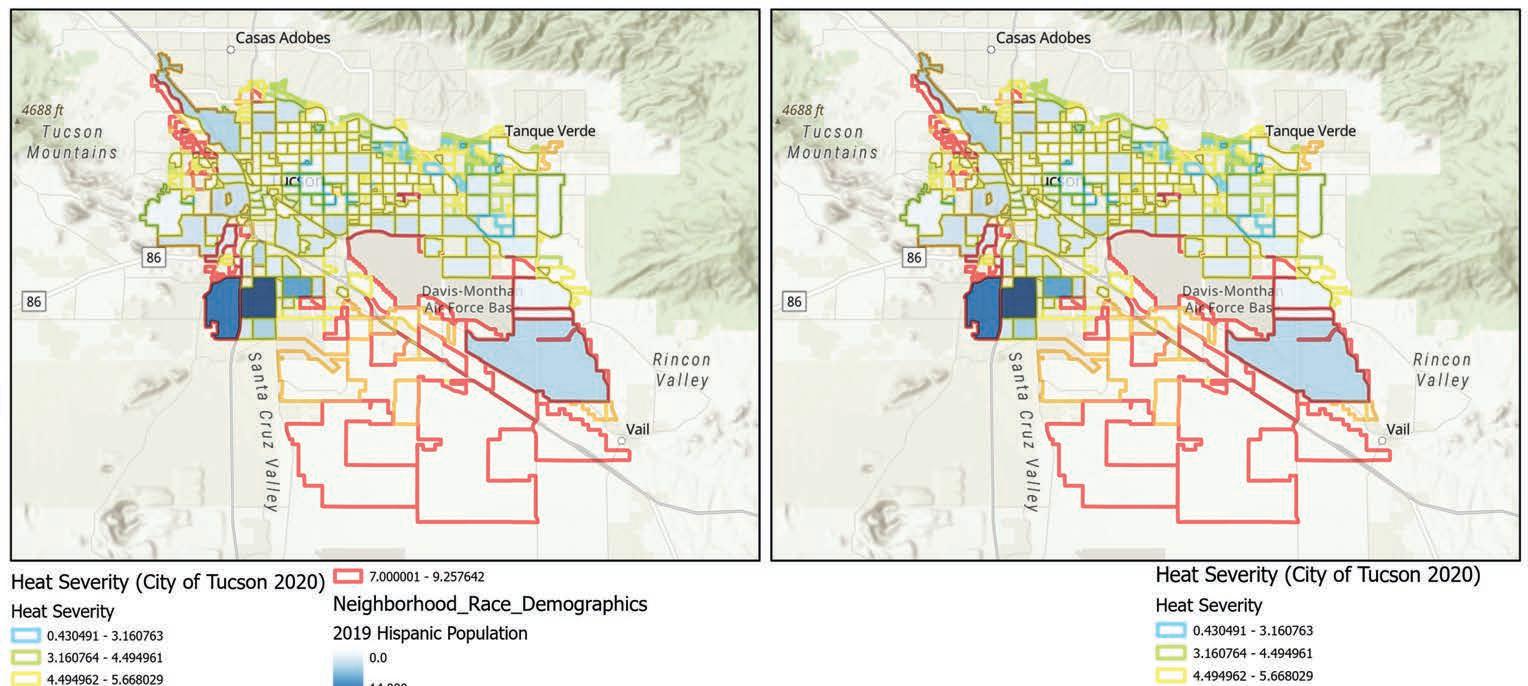

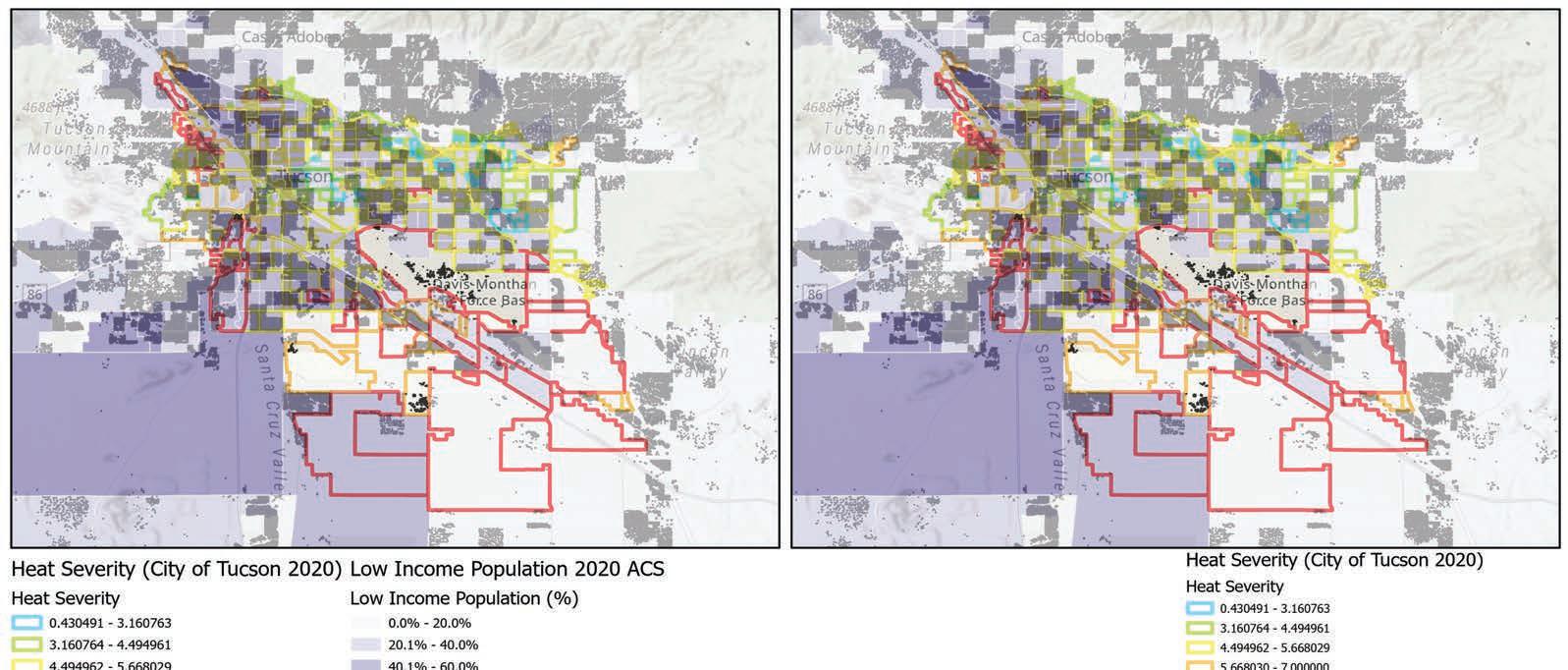

Right map illustrates how heat severity correlates to race. Hispanic population was used here because it represents a large portion of the

These maps together demonstrate that factors of heat severity and where is felt most is linked to social factors rather than density

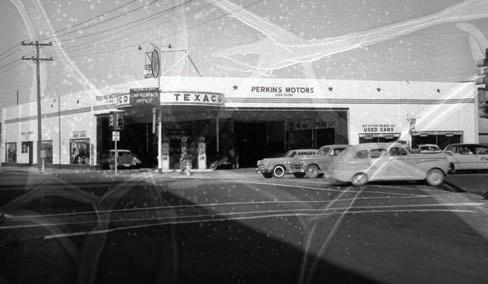

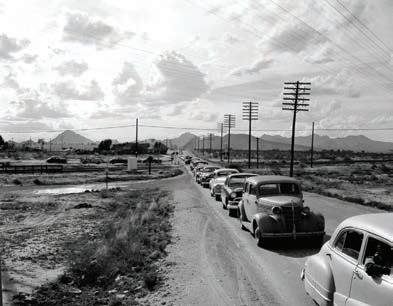

THEN NOW

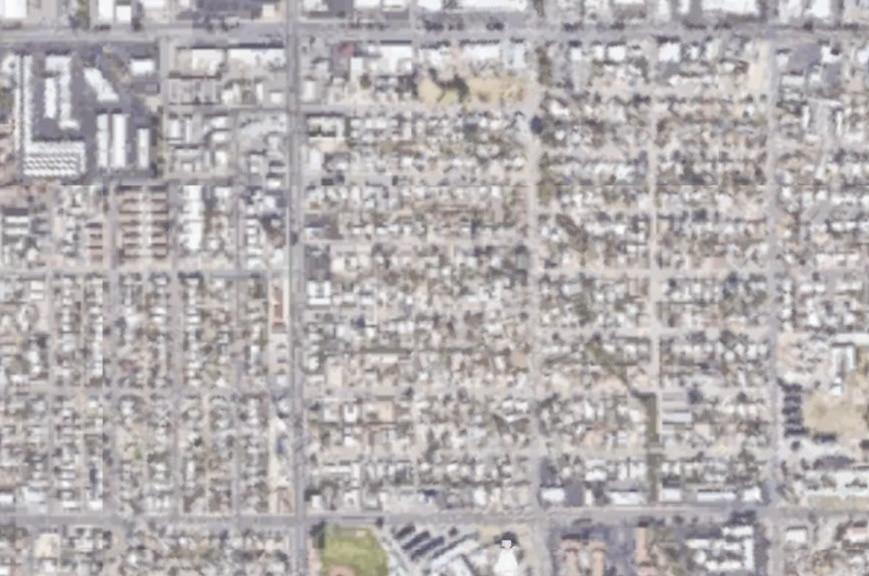

HISTORY AND GROWTH

With these photos we can see glimpses of historic Tucson and compare to today.

We can see the increase in pavement and impervious materials that hold heat.

We can also see the sprawl of the city over time, with the map showing the historic city districts compared to the current city limits.

Image Refrence: “Then and Now Photos of Tucson (2020).” Arizona Daily Star, 23 Oct. 2022

“54 historical then and now photos of Tucson.” Arizona Daily Star, 4 July. 2019

All statistical results are aggregated for the listed project areas and their service areas. Service areas are based on 10-minute (1/2 mile) walk times from project access points defined for each project area and based upon the walkable network.

ECONOMICS, CAPITAL, AND LABOR: PARK ACCESS IN TUCSON IN RELATION TO DEMOGRAPHICS, INCOME, AND UNEMPLOYMENT

Oscar A. Rodriguez

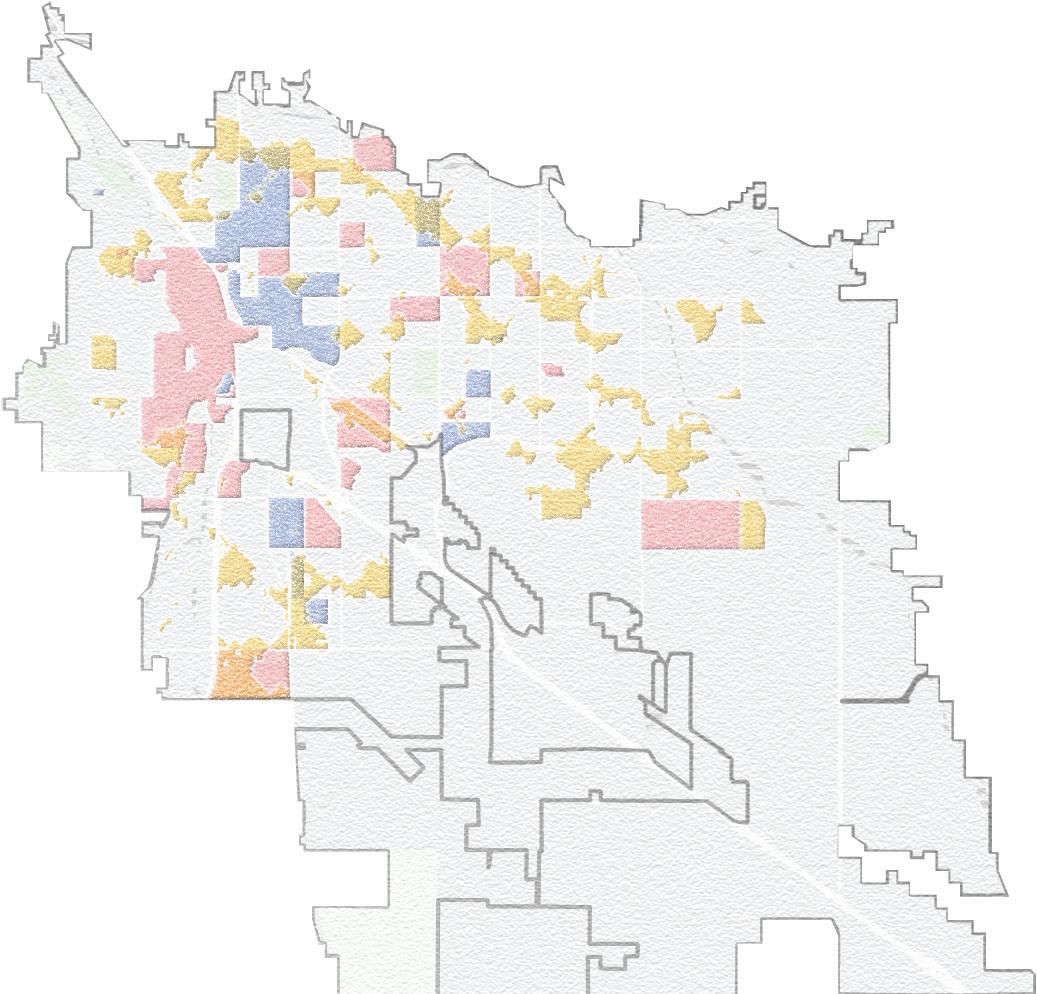

According to the research conducted by the Trust for Public Land, 64.3% of the Tucson population has access to a public park a 10-minute walk away.

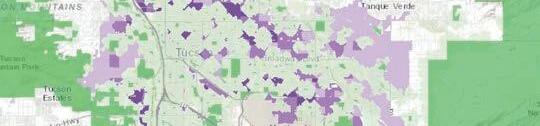

Graphic credit: Trust for

Although this percentage is better than the national average, much of the Tucson community does not have easy access to public parks.

Many of the priority areas for new parks they identified are located in minority-majority neighborhoods, with lower incomes and higher unemployment rates.

In few circumstances, priority areas overlap with areas that are economically well-off, such as in the far east and far west of the city. Considering the severity of extreme heat in Tucson and the ever-increasing effects of climate change, the interplay between these factors make these communities particularly vulnerable

Neighborhood Demographics and Economics

Most minority-majority neighborhoods are concentrated around central, south, and west Tucson, coinciding with some of the

Coincidently, many of these areas have low

Similarly, the unemployment rate, is higher in more impoverished areas, with some

REFERENCES, SOURCES & RECOMMENDED RESOURCES: City of Tucson GIS Open Data Trust for Public Land. (2022). Tucson, AZ - City Level Report (TPL ParkServe, p. 2). Trust for Public Land. https://parkserve.tpl.org/mapping/index.html

City: Tucson, AZ

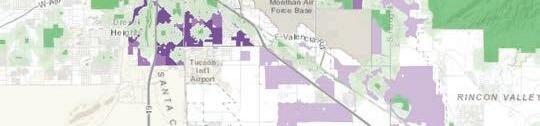

ECONOMICS, CAPITAL, AND LABOR: TUCSON’S INEQUITABLE ACCESS TO GREENERY

The Tree Equity Score considers multiple factors to determine how equitable the access to tree canopy cover is in a given neighborhood, allowing us to draw conclusions whose answers can be found in the local history of a region.

In Tucson, mostneighborhoods with low scores are found in the southern, western, and central areas of the city, whereas those with the highest scores are concentrated on the north and east of Tucson These patterns reflect a long history of discriminatory planning, housing, and real estate practices and policies that facilitated the segregation and neglect of minority communities.

This paved the way for the forceful displacement of thousands of people and left a legacy of inequitable access to public amenities for much of the Tucson community.

1880

Railroads arrive to Tucson, bringing other minorities that join the established Mexican-American population due to the exclusion of non-whites from white residential districts

For decades, the Southern Paciﬁc railroad deﬁned a threshold between the older parts of the city (mostly inhabited by minorities) and the suburbs, where most investment and population growth were taking place

Oscar A. Rodriguez

area after the construction of the Convention Center in 1971

1942

Tucson Regional Plan identiﬁes “blighted areas” in the city’s core and south for redevelopment, citing “evidence of inability to attract profitable investment”. These areas were characterized by their older buildings, large minority populations, and mixed-use, dense development

Pueblo in 1946

of Tucson GIS Open Data Gourley, J. (1992). The Pueblo and the public: Urban realities in counterpoint. https://repository.arizona.edu/handle/10150/186054

1945-50’s

After WWII, thousands of Black veterans move to central Tucson Federal housing policy and real estate lobbying continue to push development away from the city center, reinforcing segregation

1961-1971

Urban Renewal begins with the demarcation of areas that are deemed unattractive for investment, such as Old Pueblo. Despite the opposition of the locals, the city cleared 80 acres, forcibly displacing ~1,200 residents

1971-Present

Old Pueblo is replaced with government buildings, ofﬁce complexes, hotels, and the Tucson Convention Center. Over time, increased demand for housing near downtown brought substantial investment and new afﬂuent residents, causing more residents to gradually move out due to the increase in property prices

J. (2012, February 4). The 1960s: Urban Renewal and Barrio Destruction. Zocalo Magazine - Tucson Arts and Culture. http://www.zocalomagazine.com/the-1960s-urban-renewal-and-barrio-destruction/

ECONOMICS, CAPITAL, AND LABOR: UNDERSERVED BY PARKS

CRITICAL STANCE

In Tucson, extreme heat and habitat loss are the climate change effects that have the greatest adverse impacts on human and animal populations.

Public parks are one of the tools that landscape architects can provide to alleviate climate change impacts in the built environment, creating wildlife habitat and open space for our communities.

The need for parks in Tucson is most evident in areas where

REFERENCES, SOURCES & RECOMMENDED RESOURCES: Bureau, U. C. (2021, September 14). Income, Poverty and Health Insurance

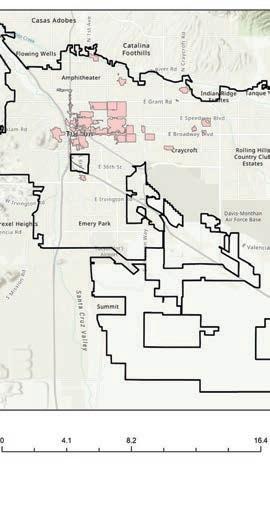

BRINGING PARKS TO THOSE WHO NEED THEM MOST

Advancing previous research, 18 of the 197 high priority areas for new parks in Tucson are highlighted as the areas in most immediate need of parks for their communities based on their adverse economic conditions and exposure to extreme heat, as well as their availability of land for new construction.

As illustrated in the mapping to the right, these areas either overlap or are surrounded by areas where Urban Heat Islands are the most

Why are UHIs dangerous?

• Lower water quality due to higher stormwater runoff temperatures, threatening aquatic ecosystems and the wildlife that depend on these habitats

• Strained and unreliable energy infrastructures due to higher energy demands

• Increased air pollution, leading to a higher risk of respiratory disease

• Increased risk of heat-related deaths

For low-income communities, these risks signify an even lower quality of life and greater vulnerability to the adverse effects of climate change, not to mention the impossibility of experiencing nature in a

For wildlife, Urban Heat Islands threaten the already limited supply of habitat in urban areas, worsening conditions for animals and plants on which species like birds depend on and further limiting water

REFERENCES, SOURCES & RECOMMENDED RESOURCES: City of Tucson GIS Open Data Leichenko, R., & Silva, J. A. (2014). Climate change and poverty: Vulnerability, impacts, and alleviation strategies. WIREs Climate Change, 5(4), 539–556. https://doi.org/10.1002/wcc.287 Trust for Public Land. (2022). Tucson, AZ - City Level Report (TPL ParkServe, p. 2). Trust for Public Land. https://parkserve.tpl.org/mapping/index.html The Trust for Public Land ParkServe Database US EPA. (2014, June 17). Heat Island Impacts [Overviews and Factsheets]. Heat Islands. https://www.epa.gov/heatislands/heat-island-impacts Yu, C., & Hien, W. N. (2006). Thermal beneﬁts of city parks. Energy and Buildings, 38(2), 105–120. https://doi.org/10.1016/j.enbuild.2005.04.003

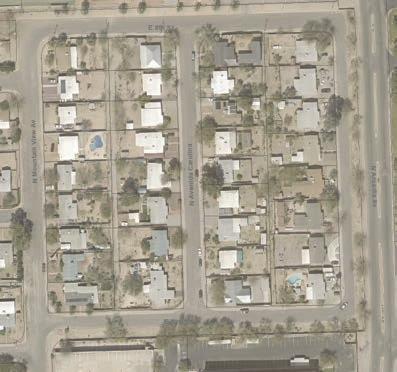

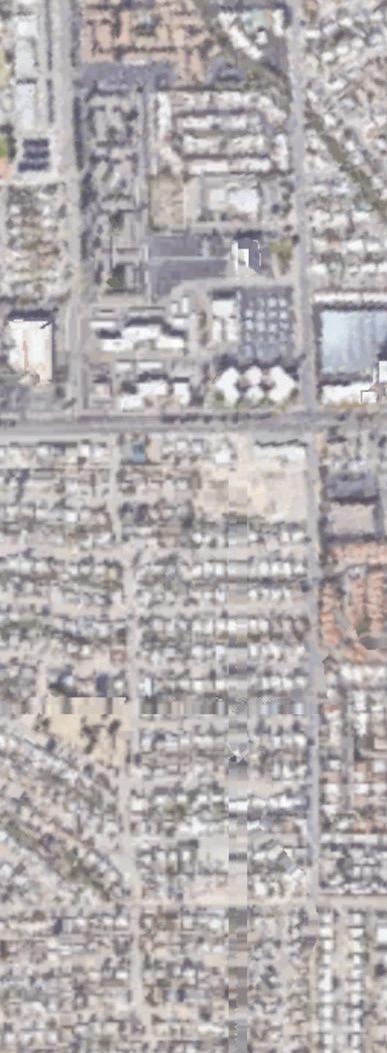

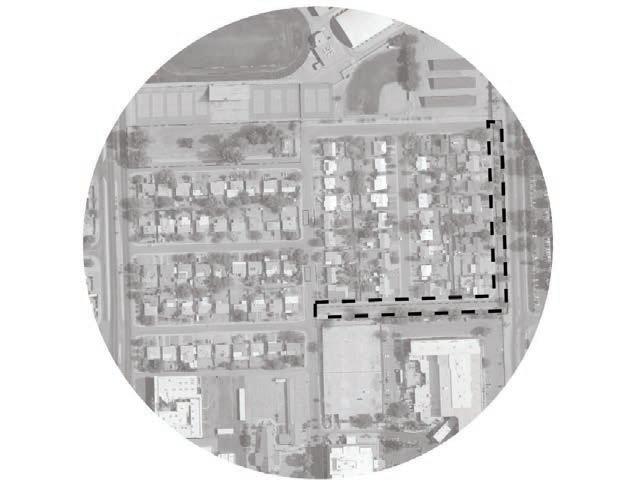

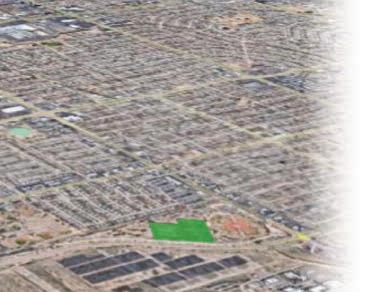

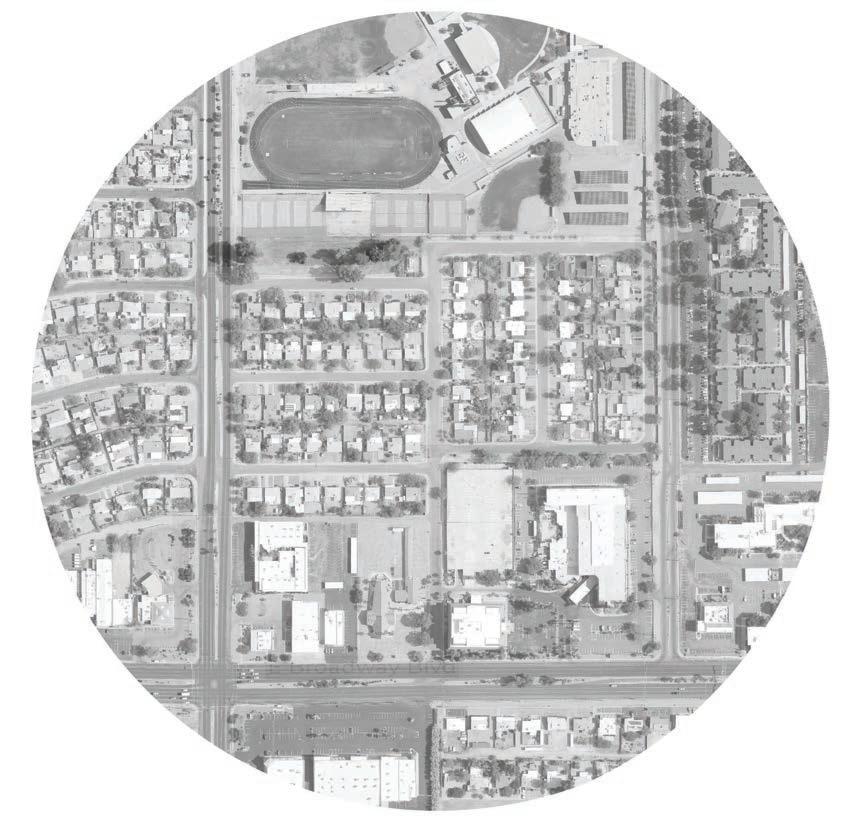

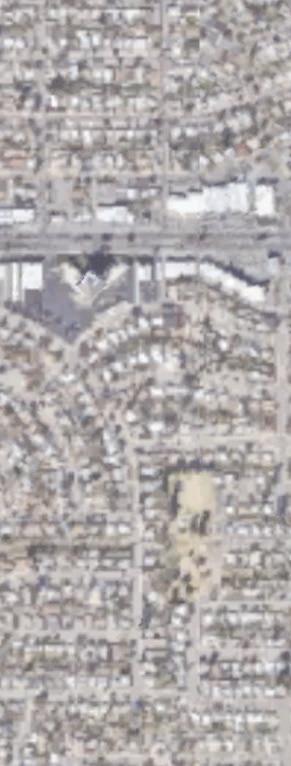

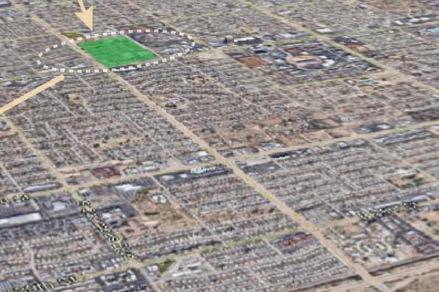

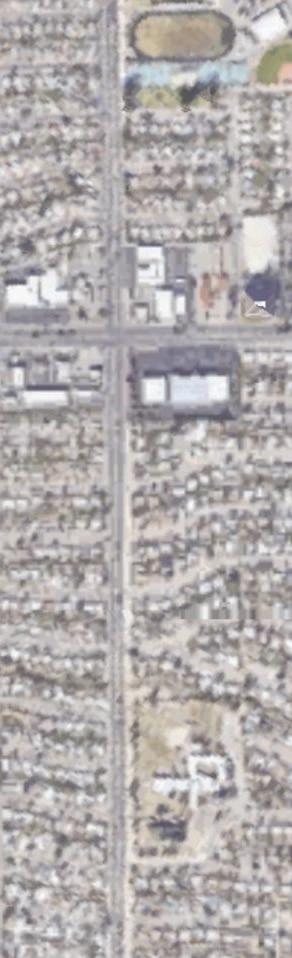

SITE SCALE ANALYSIS

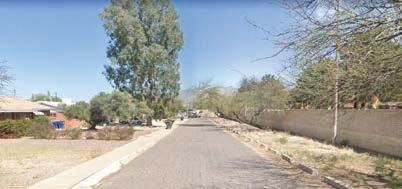

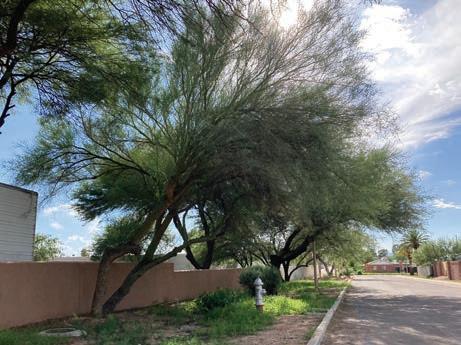

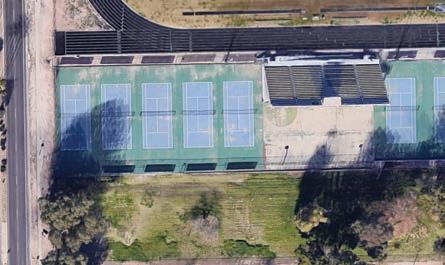

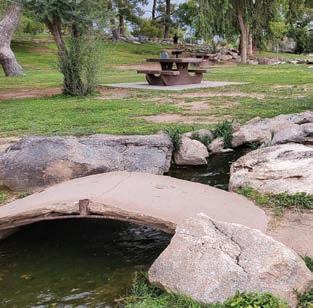

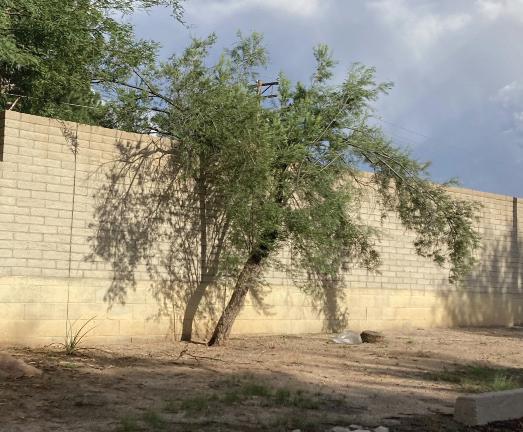

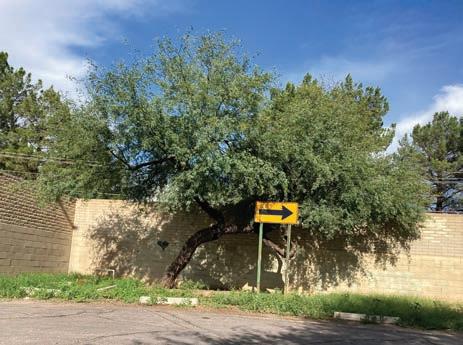

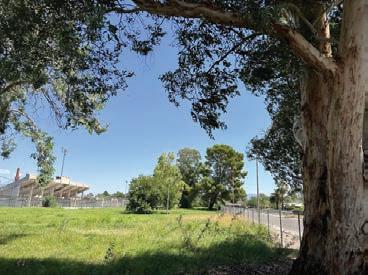

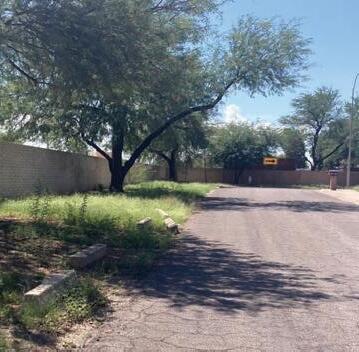

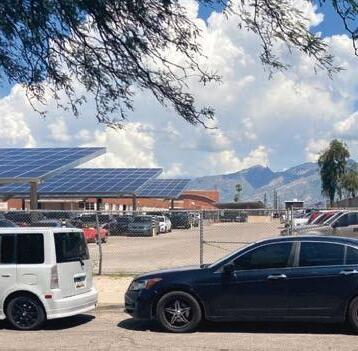

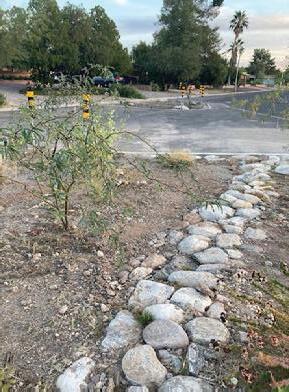

SITE PHOTOS

Burns Park

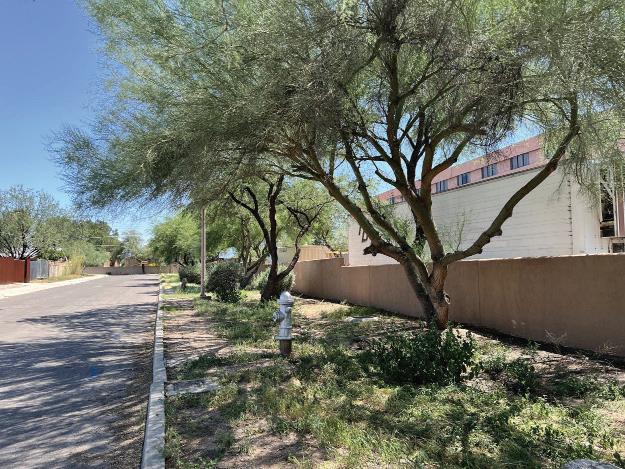

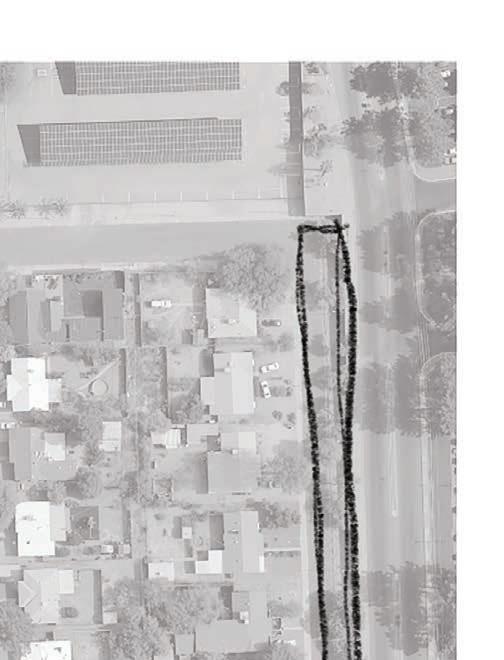

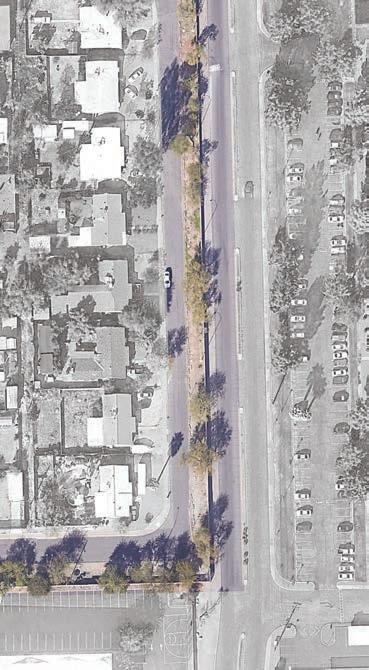

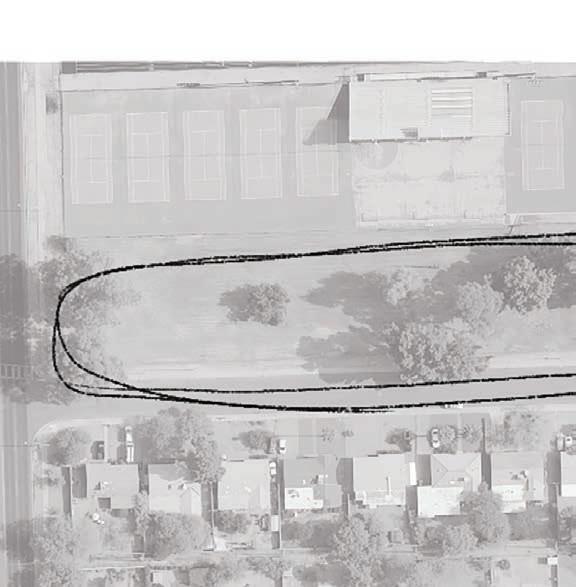

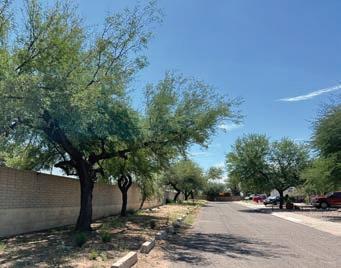

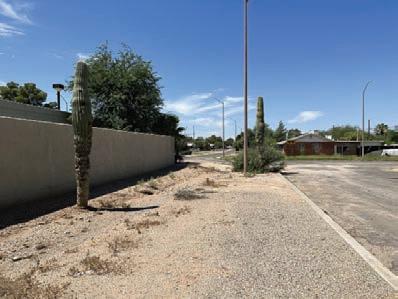

Linear Walking Path

IMAGES ABOVE:

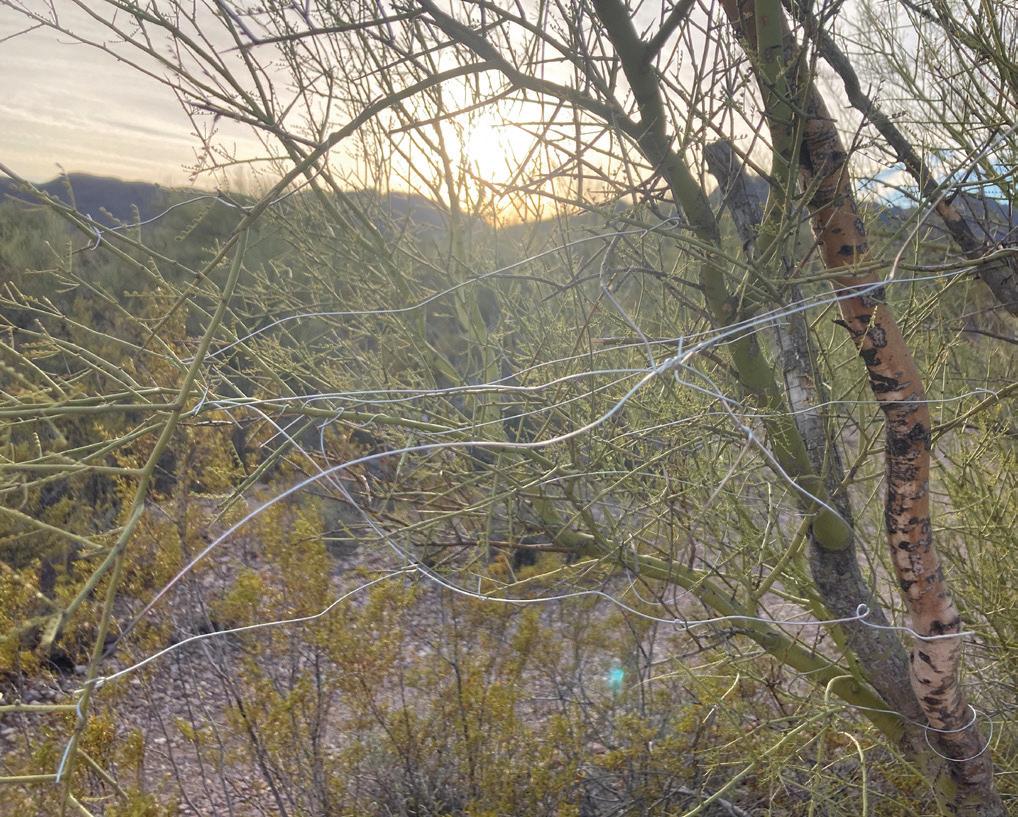

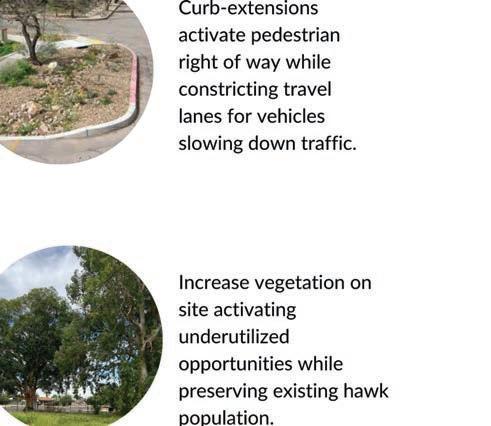

Various images shown to display current conditions and the opportunities that exist.

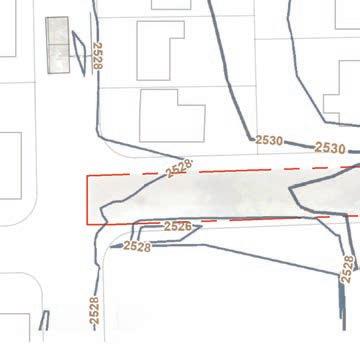

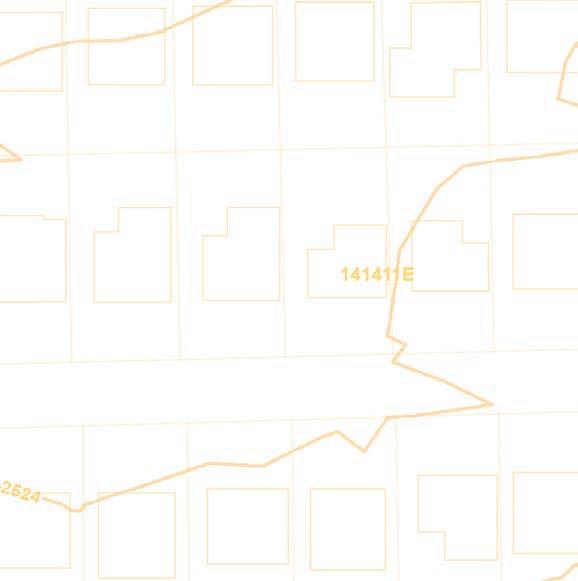

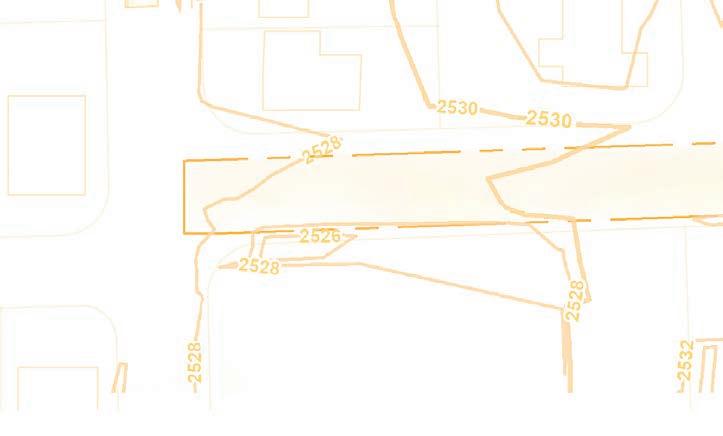

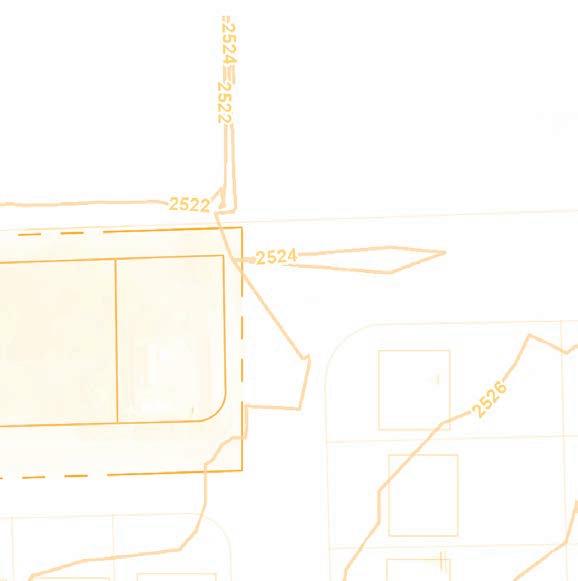

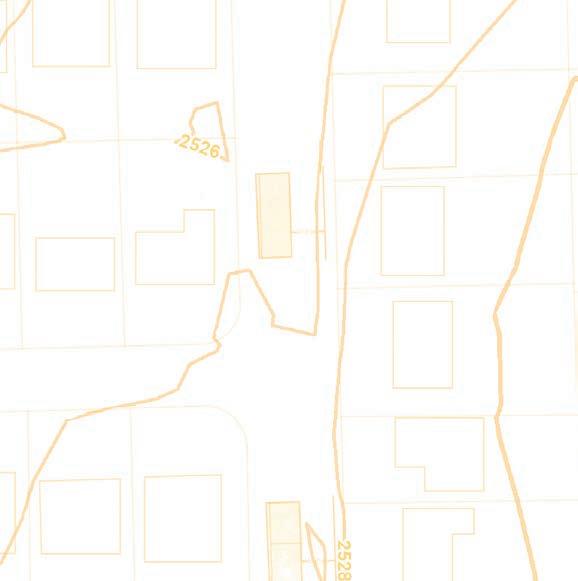

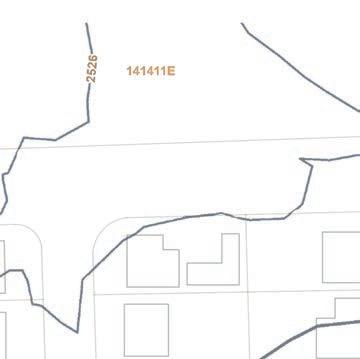

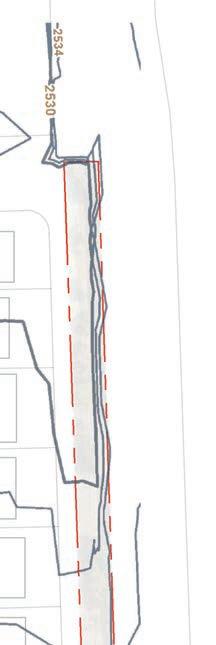

SITE TOPOGRAPHY

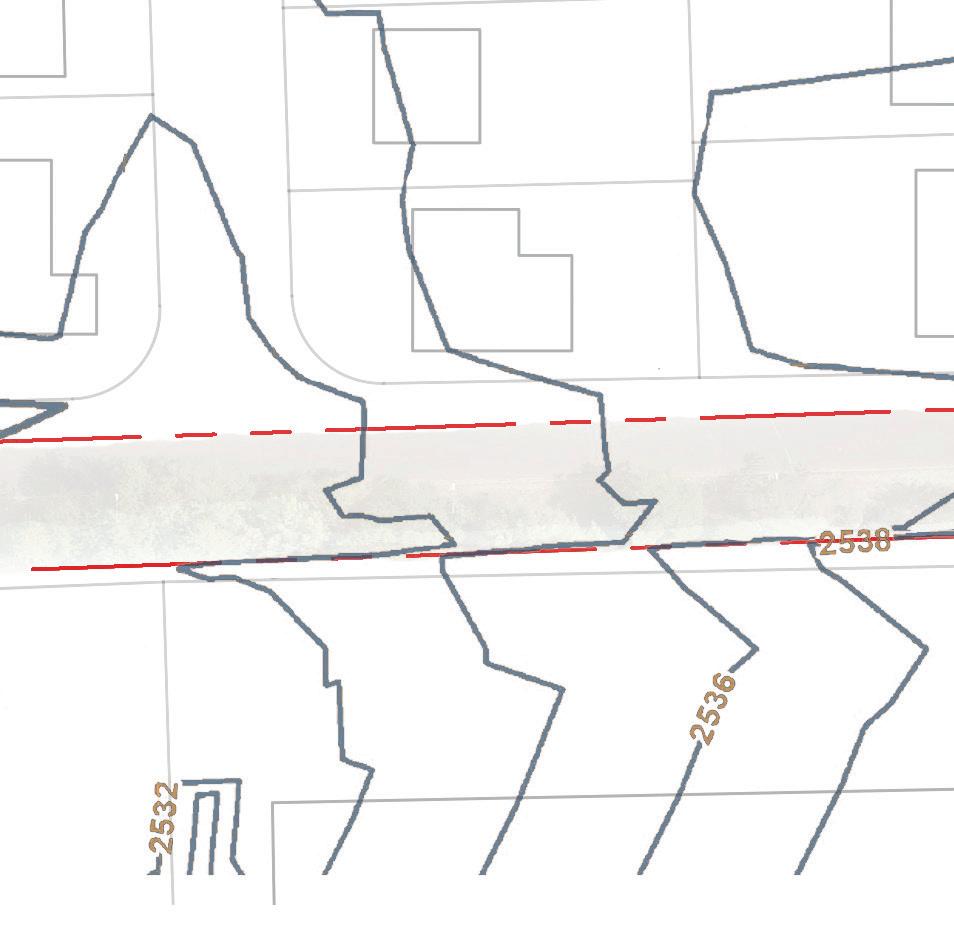

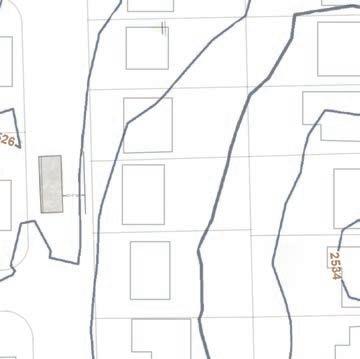

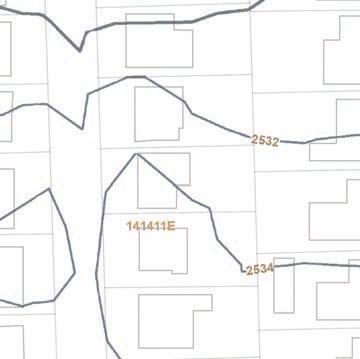

IMAGE ABOVE: Topographic map of the Sierra Estates neighborhood. High point is 2536’ in the Southeast corner to 2520’ in the northwest corner of the map. 2’ contours

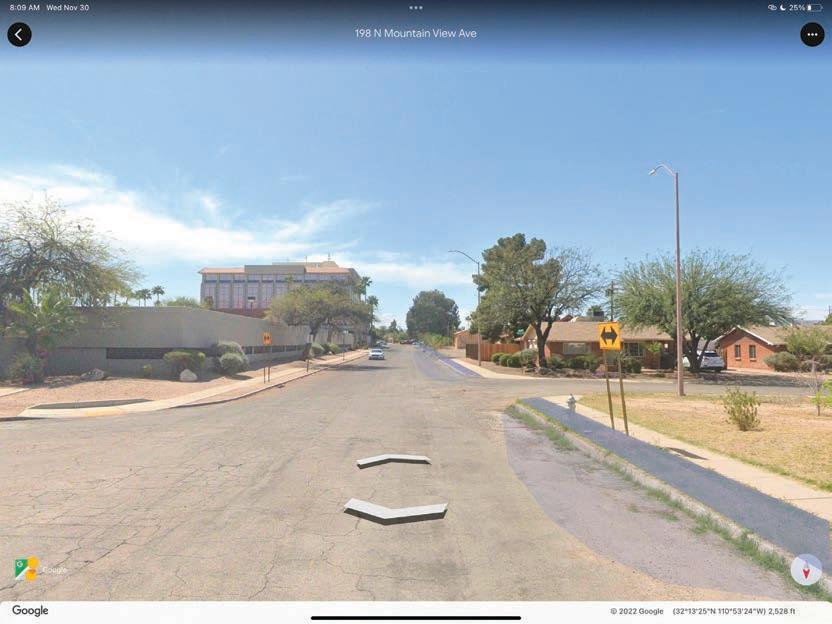

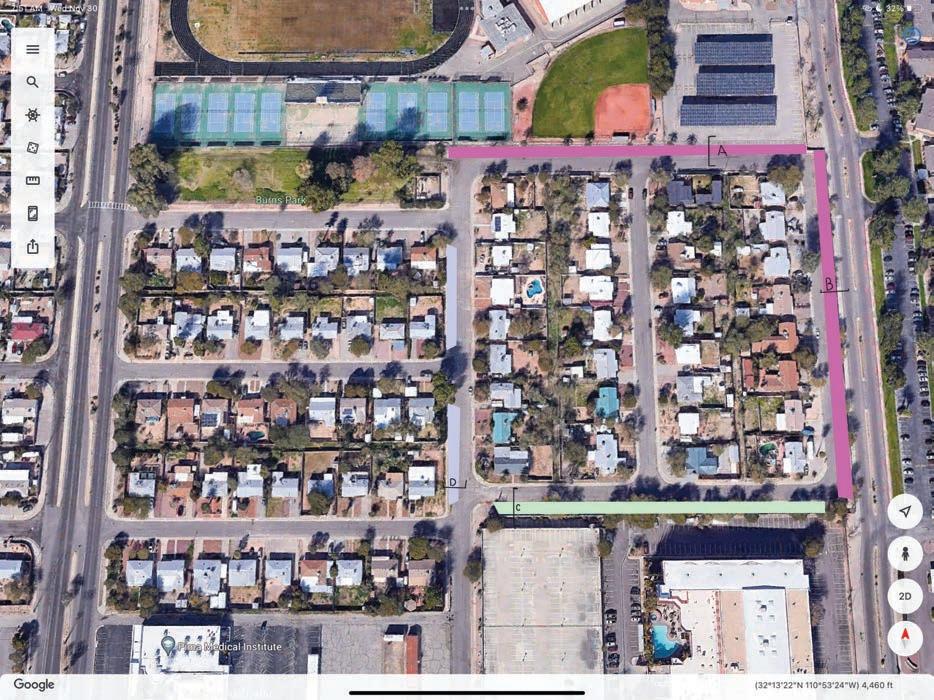

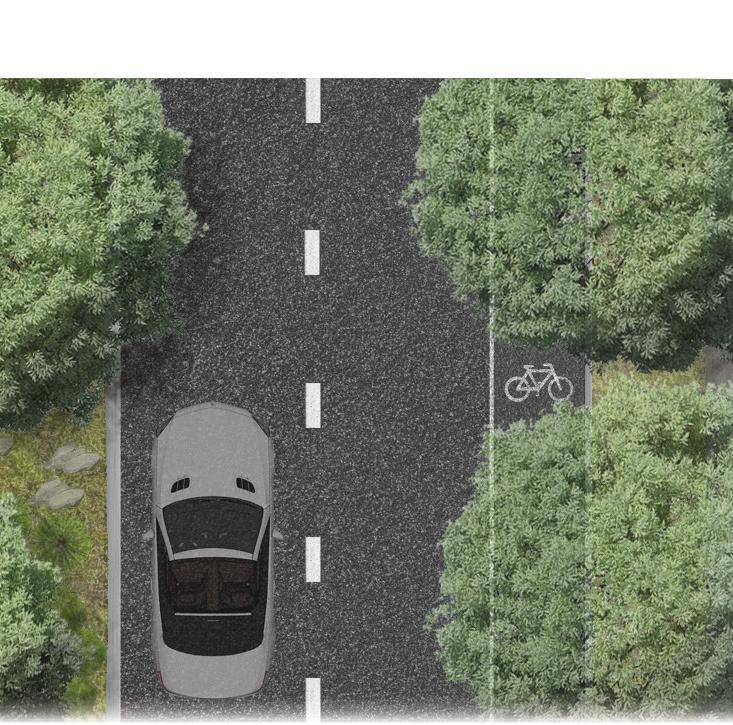

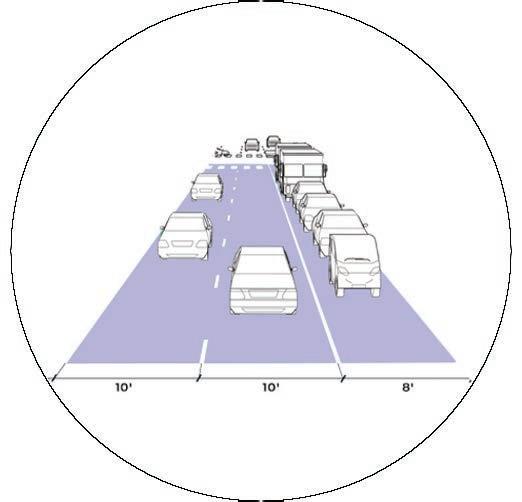

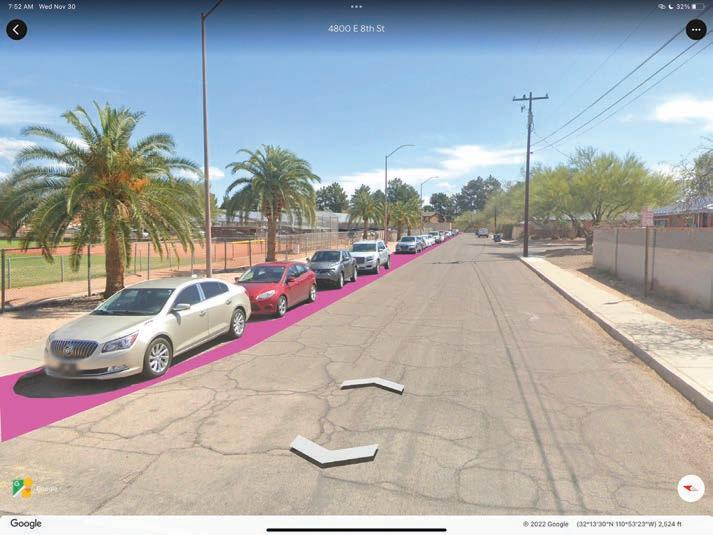

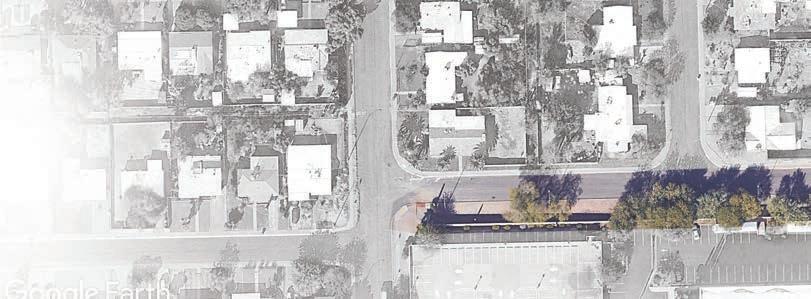

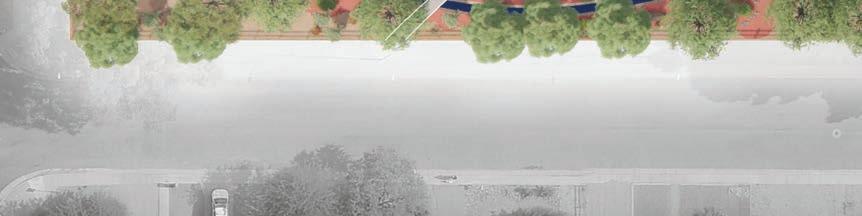

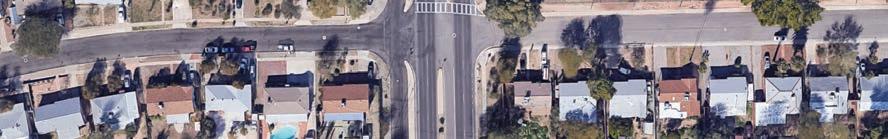

STREETS: EXISTING CONDITIONS

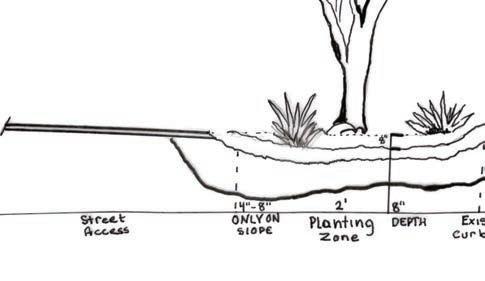

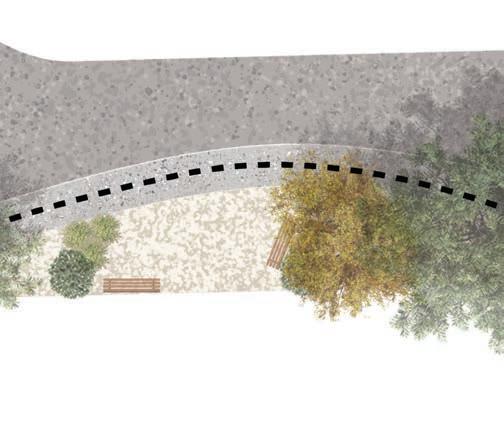

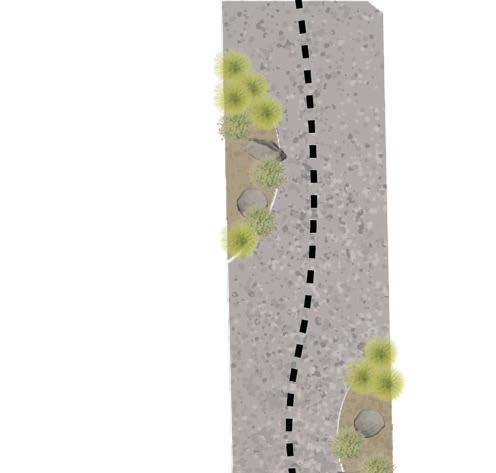

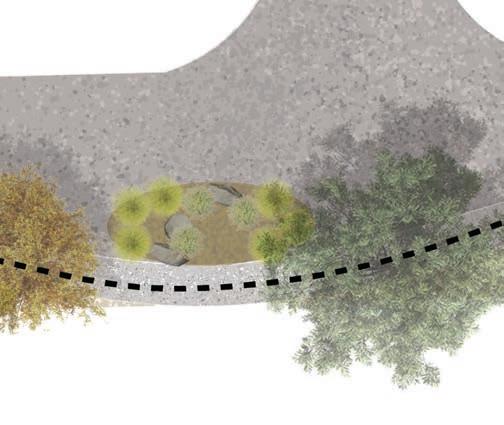

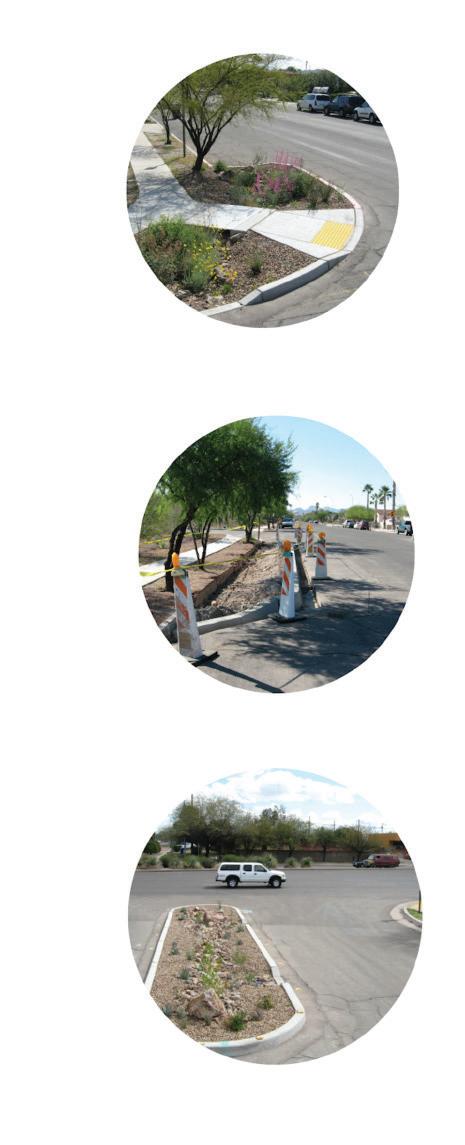

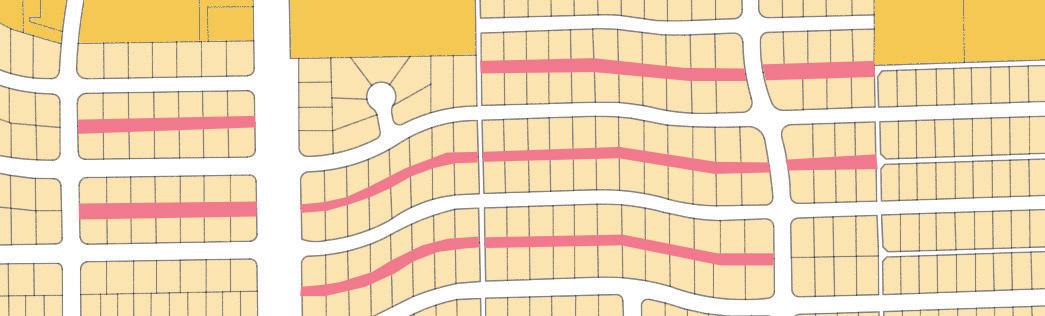

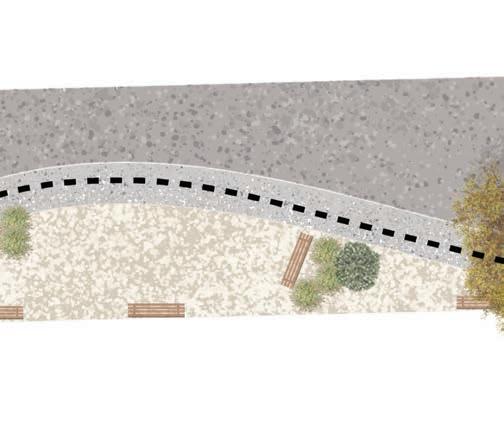

Room to Chicane

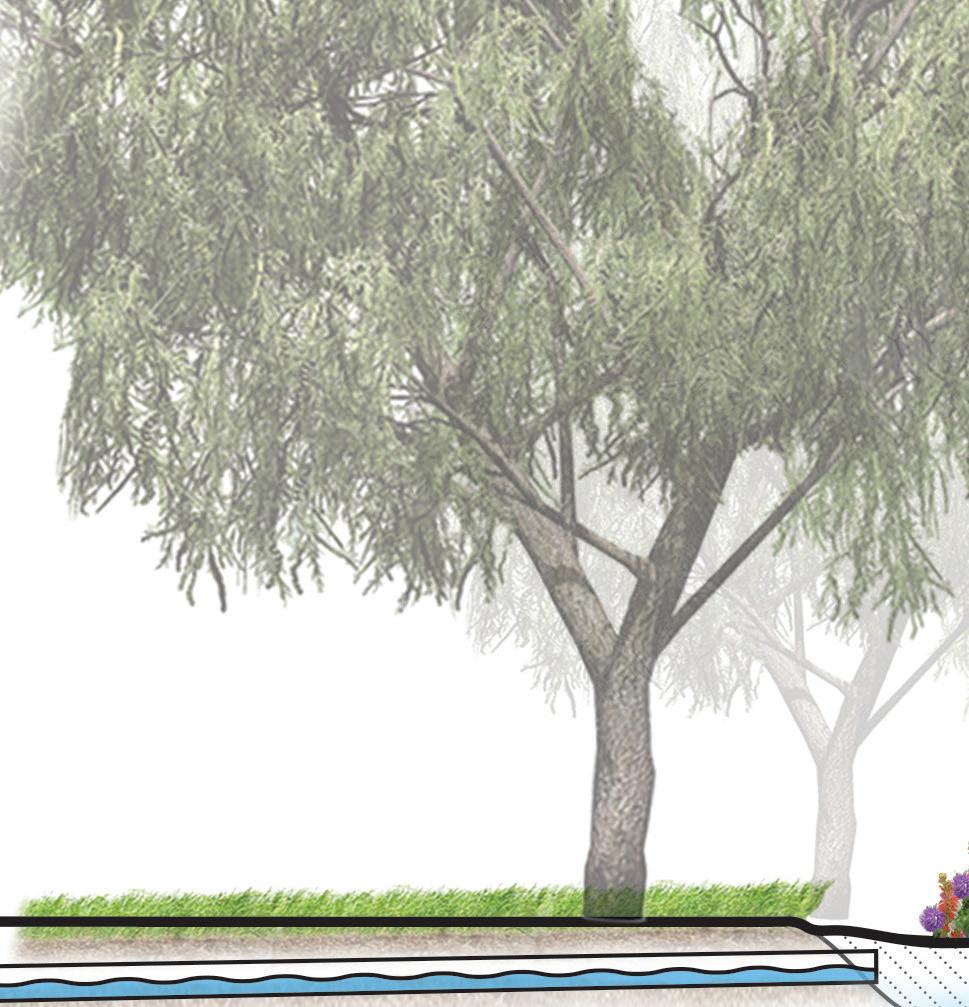

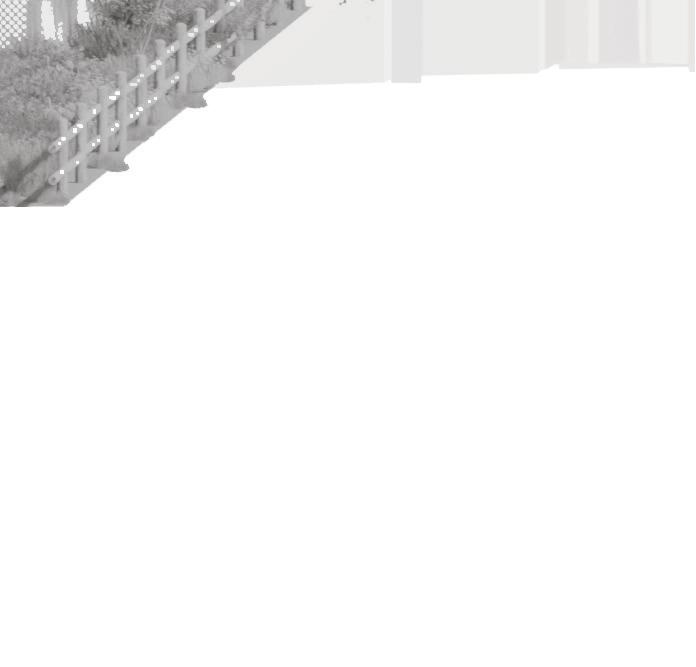

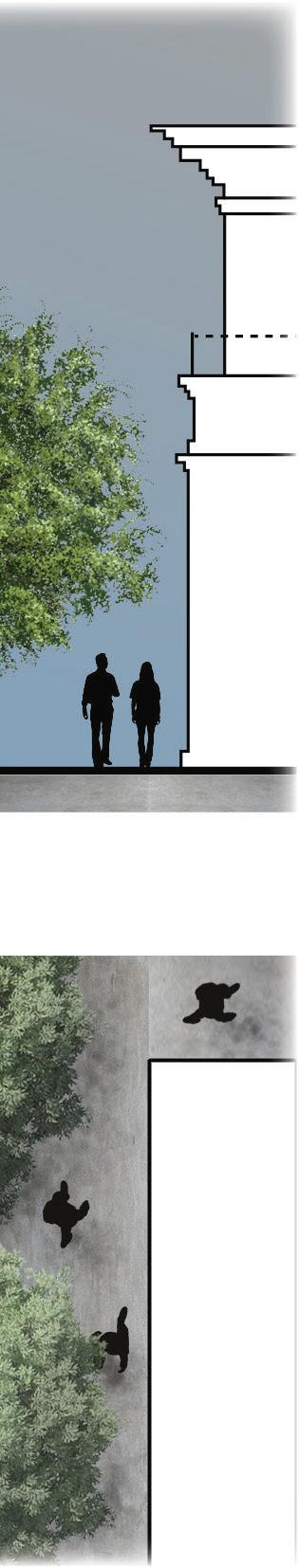

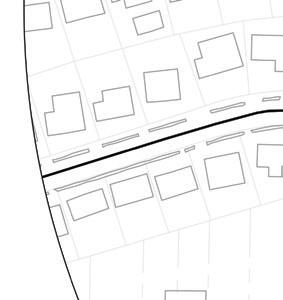

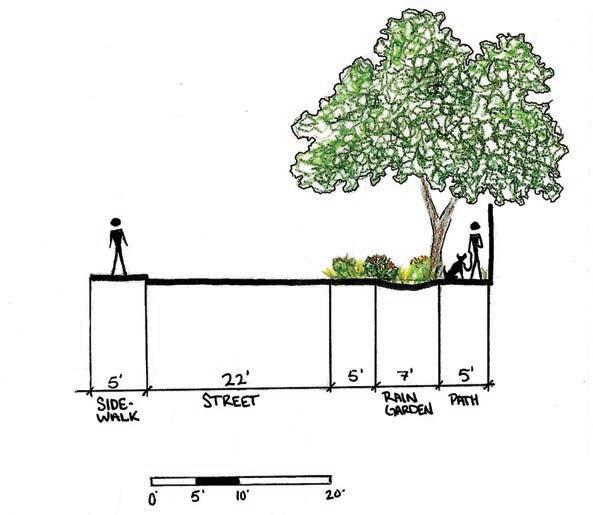

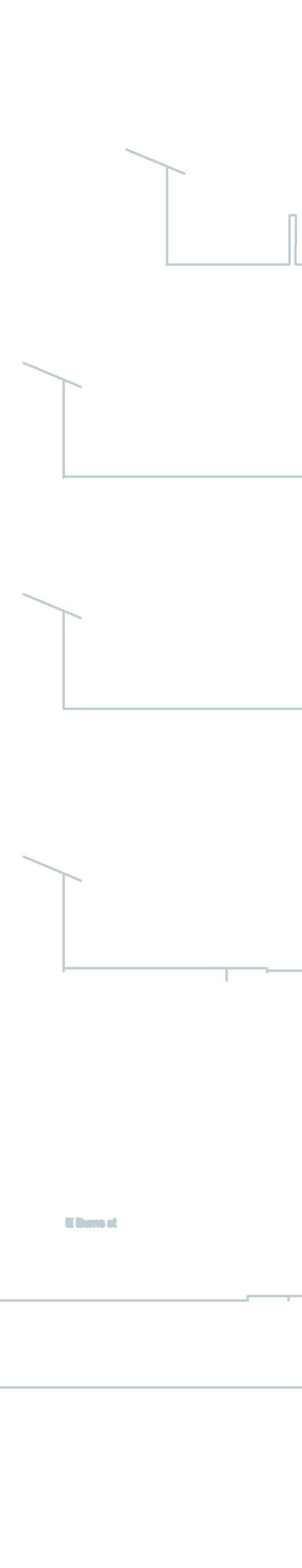

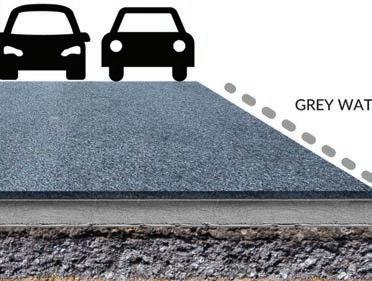

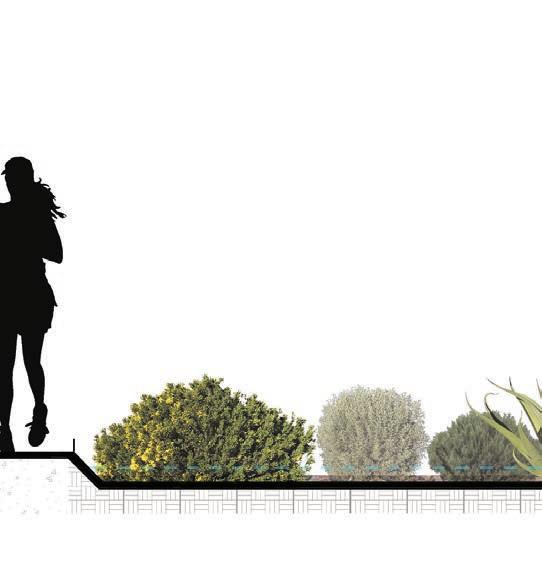

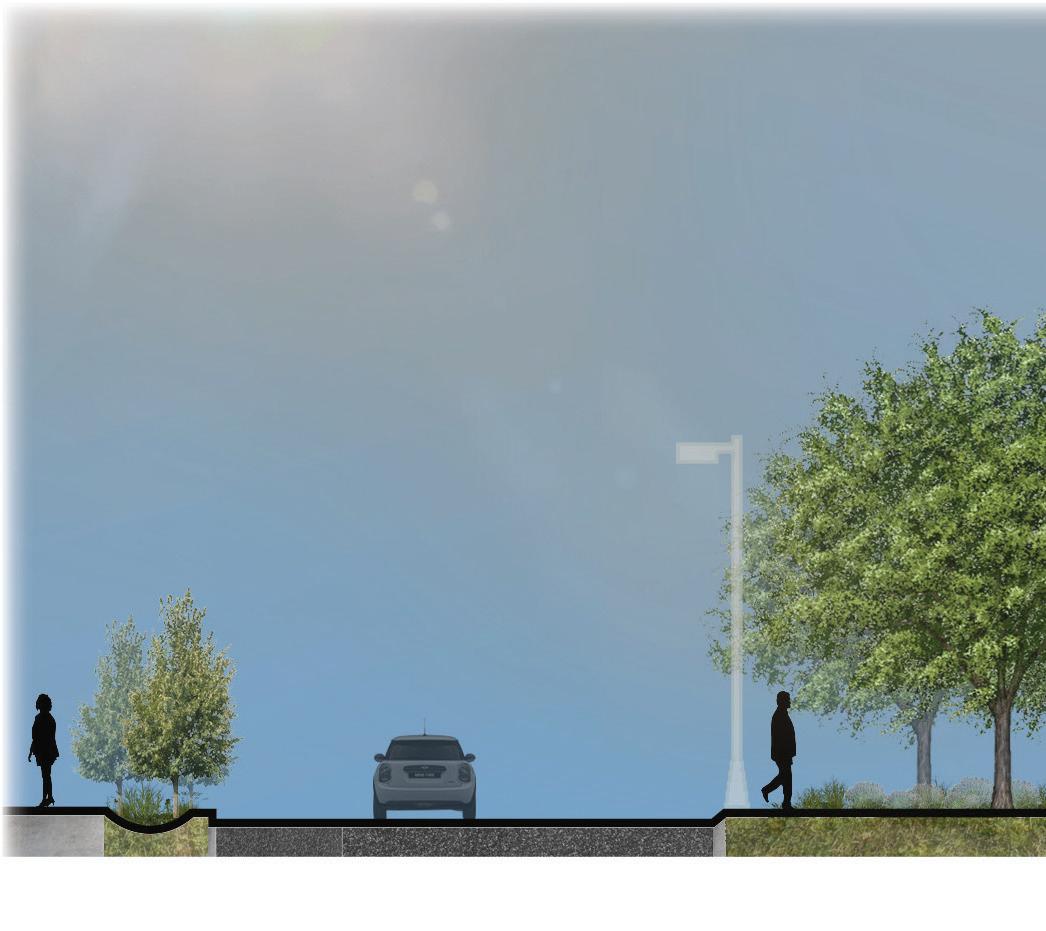

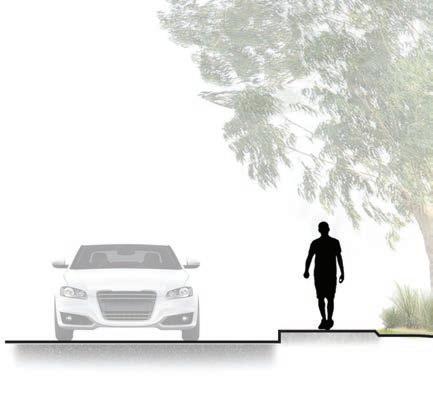

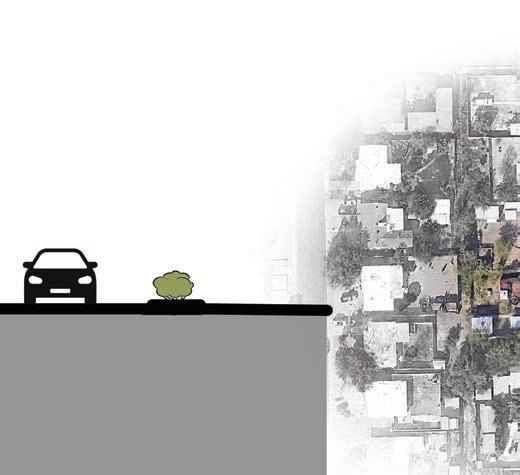

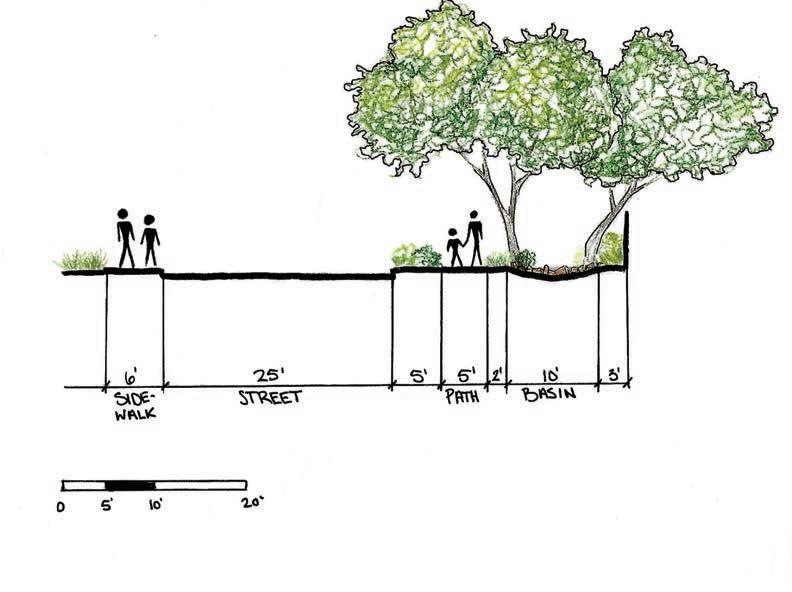

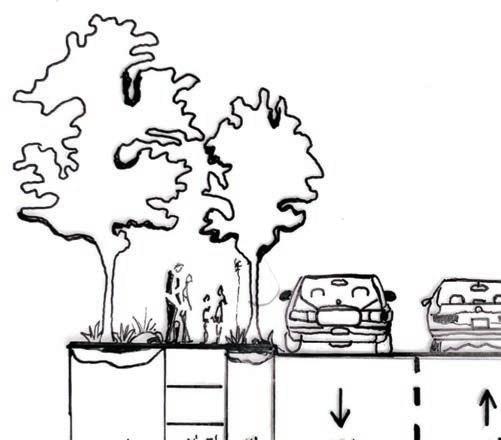

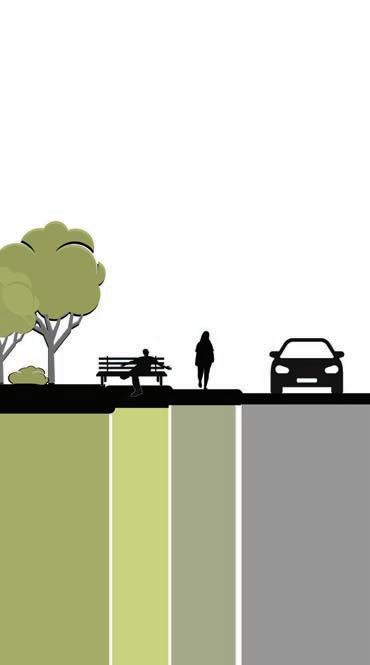

The section drawings to the right illustrate the vertical and horizontal dimensions of streets running through and adjacent to the Sierra Estates neighborhood.

As per the typical Tucson neighborhood, most of the streets in Sierra Estates are wider than necessary. This excess of asphalt contributes to the urban heat island, reduces stormwater permiation, and encourages vehicular speeding.

PROBLEM

The expanse of land dedicated to the automobile not only caters to driver’s needs above all others, but wide streets significantly reduce the safety of the pedestrian. With more room dedicated to the vehicle, drivers receive the illusion of an open road with few hinderances or reason to slow down.

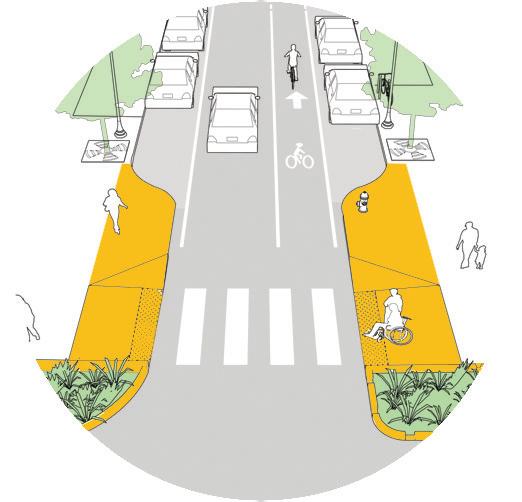

SOLUTION

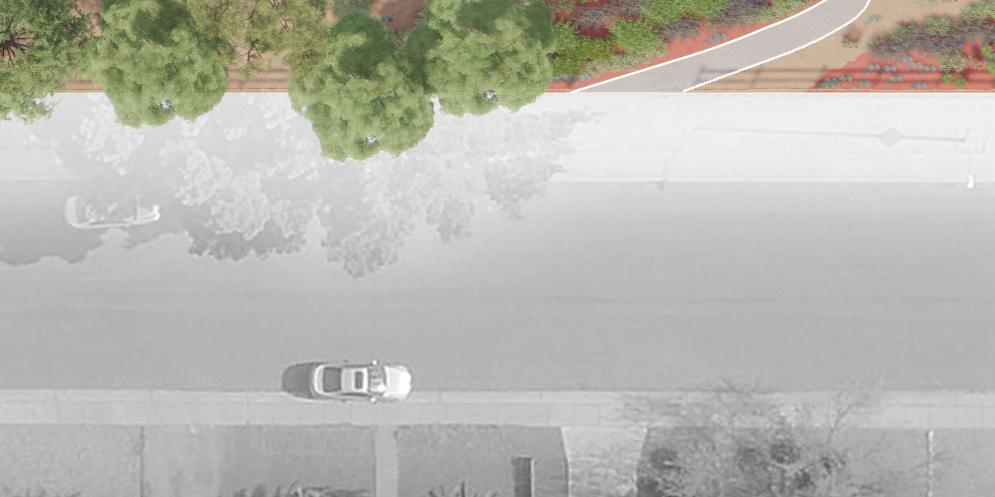

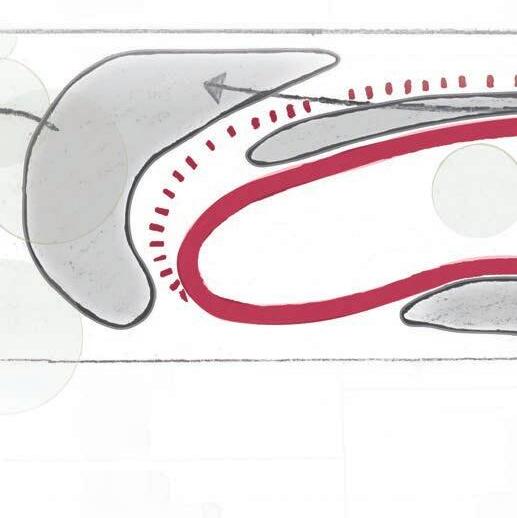

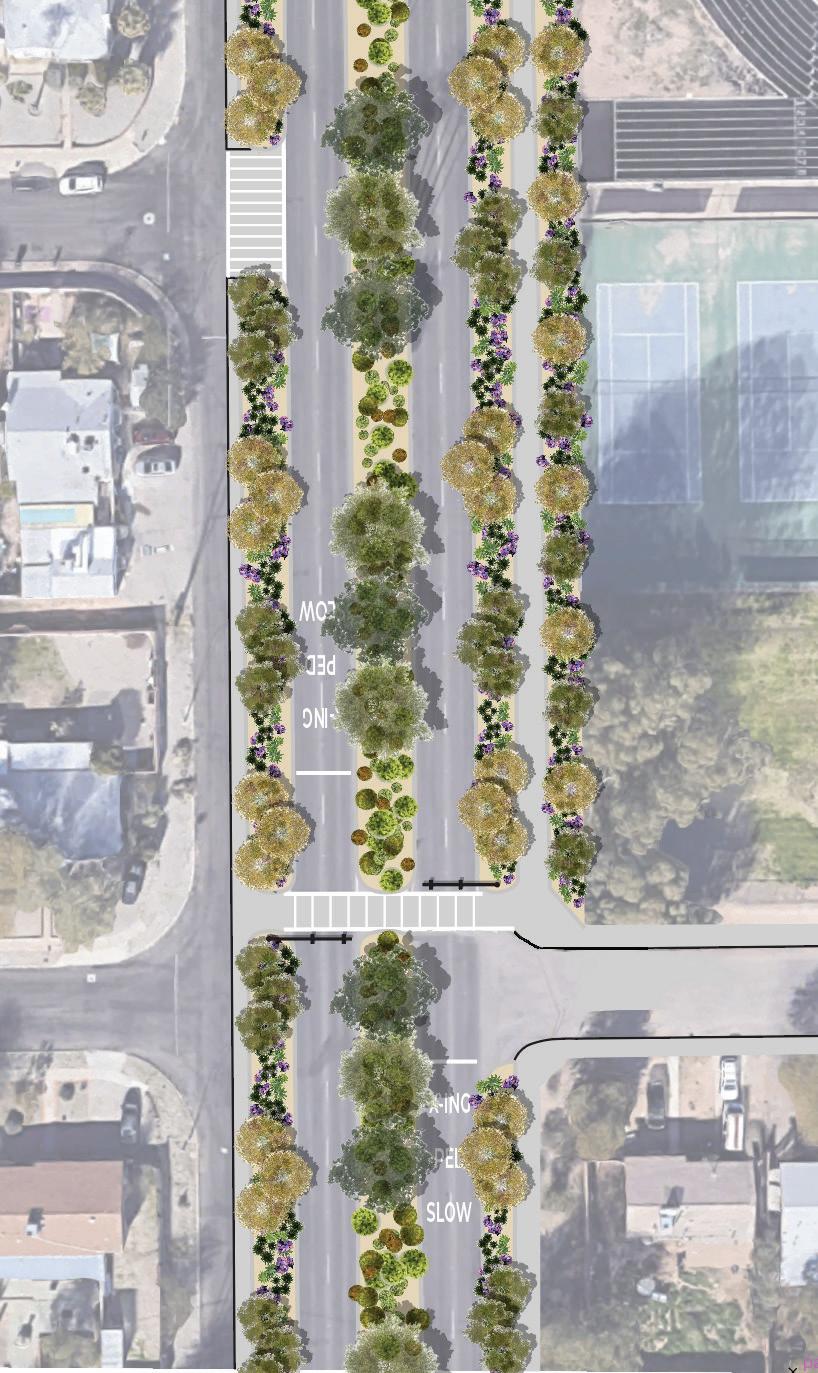

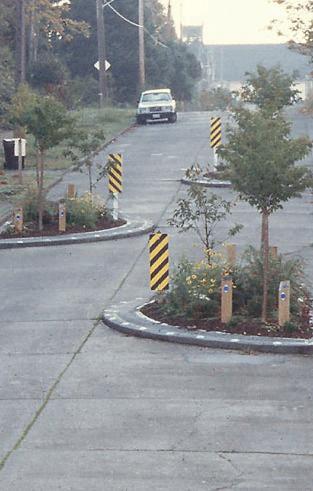

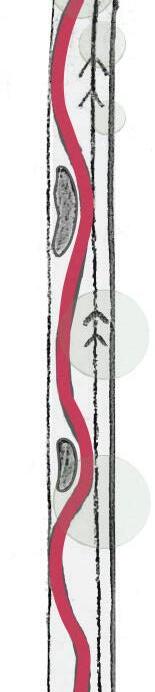

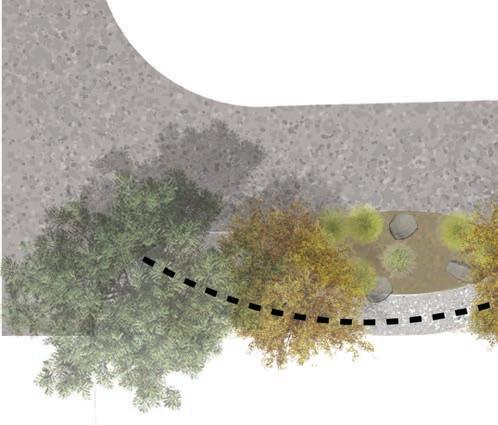

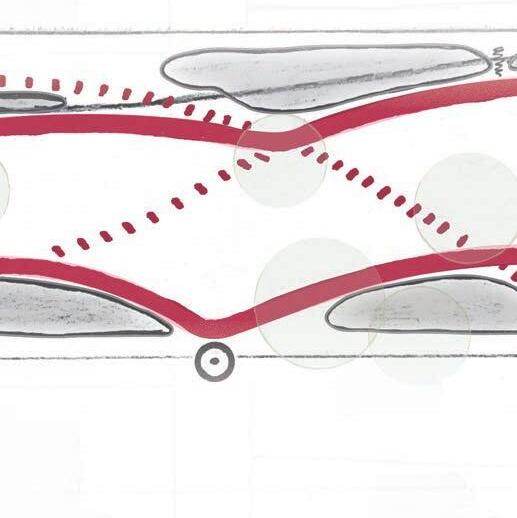

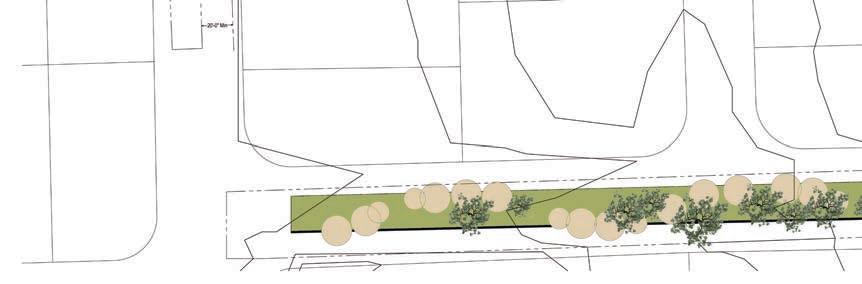

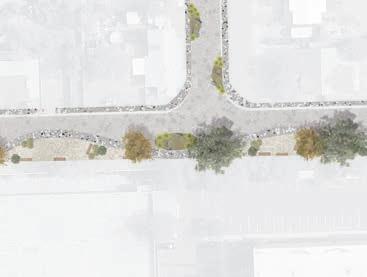

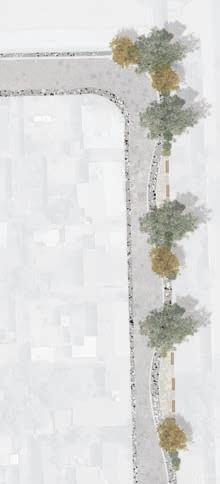

Traffic chicanes encourage drivers to use more caution by alternating the roadway in a less predictable manor so drivers are more altert when passing through. Two proposed chicanes along N Mountain View Ave will extend the curbs into the roadway to slightly alter traffic patterns and discourage speeding. The chicanes will also provide designated planting space and absorb some of the stormwater from N Mountain View Ave.

E Burns St (A-A’)

N Mountain View Ave (B-B’) E

BROADWAY CRAYCROFT AREA PLAN SUMMARY

CITY OF TUCSON PLANNING

THE BROADWAY CRAYCROFT PLAN (BCP) (1988)

was developed over the course of 15 months by the Broadway-Craycroft steering committee, after a plan was drafted, community meetings were held in order to incorporate input from stakeholders not present in the drafting processes.

The plan was largely based on rezoning.

This dated planning document covers a much larger area than Sierra Estates, but some information is relevant if only to understand the past neighborhood development.

Generally in the plan low density residential is encouraged in the interior of neighborhoods, medium to high density residential is encouraged on arterial and certain streets.

“The residential policies are intended to ensure that new residential development is designed in harmony with existing neighborhoods” (BCP)

“Broadway Boulevard is recognized as a major east-west transportation corridor with potential for intense nonresidential development.” (BCP)

REFERENCE:

Tucson Planning Department. “Broadway-Craycroft Area Plan.” (1988).

“Locate new commercial and low rise office development on the parcel at the southwest corner of Broadway and Rosemont” (BCP)

“Design and buffering subgoal” Selected goals

“Policy 4: encourage the use of perimeter WALLS in new development that is adjacent to existing lower intensity uses.”

“Design walls to enhance new development and complement existing, adjacent uses.” (BCP)

Definition - Buffer, provides a barrier between areas with different land use.

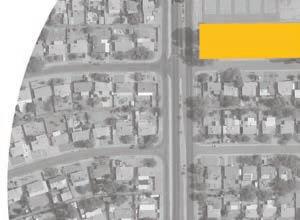

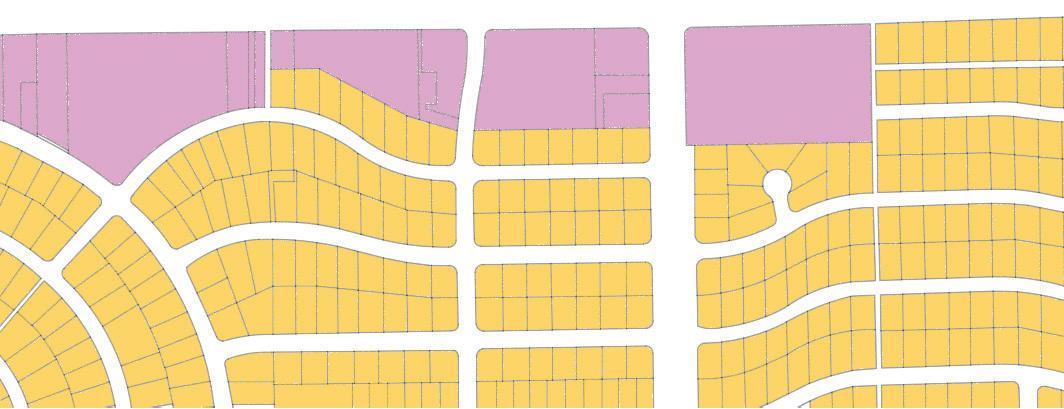

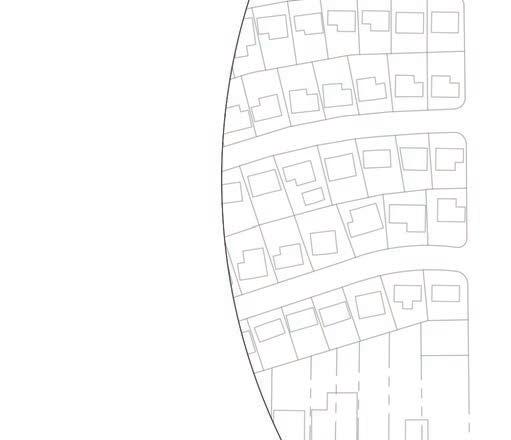

PUBLIC / PRIVATE

CITY OF TUCSON

PLANNING

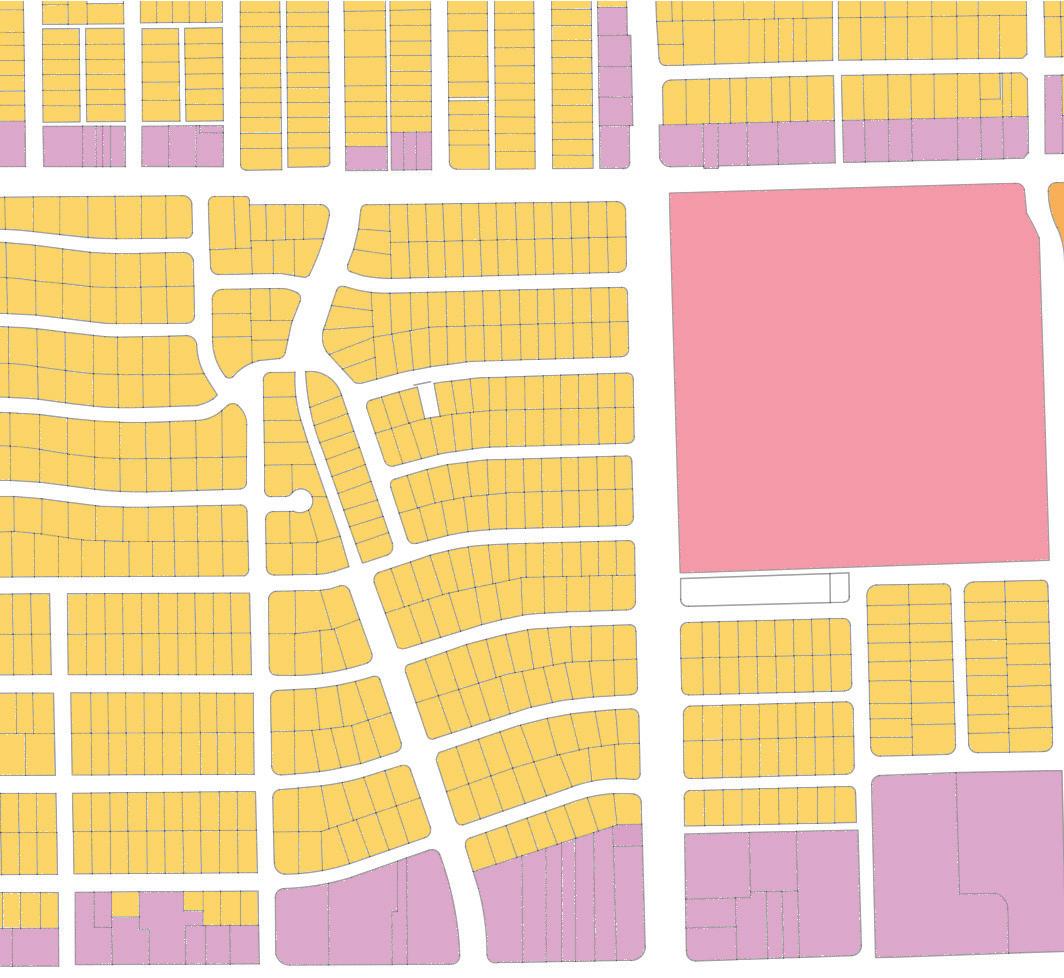

Parcel ownership in the city of Tucson revolves around public easements, public, semi-public, private, and semi-private spaces. The surrounding land use of the Sierra Estates neighborhood is composed of a central mixture of establishments such as the USPS, Rincon and University high schools, restaurants, hotels, and apartment complex.

PUBLIC SPACE KEY

zoning ownership depicted in color blocks

semi-public

public

semi-private

private

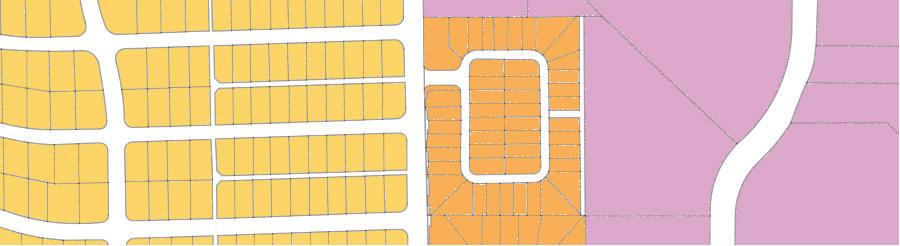

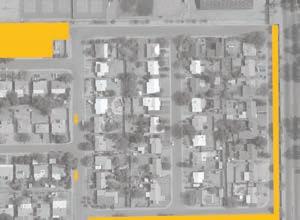

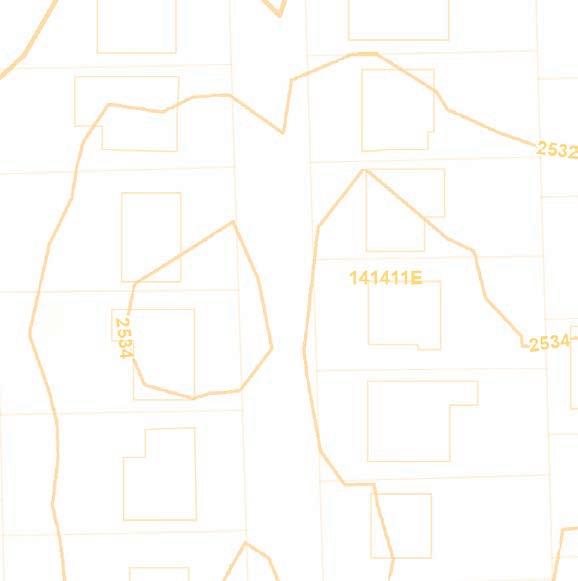

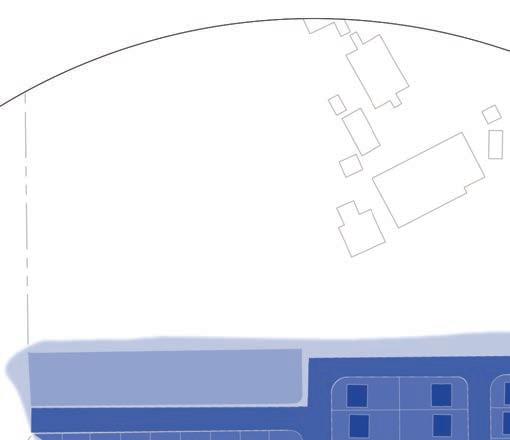

DIAGRAM ABOVE: land ownership MAP ON RIGHT: land use

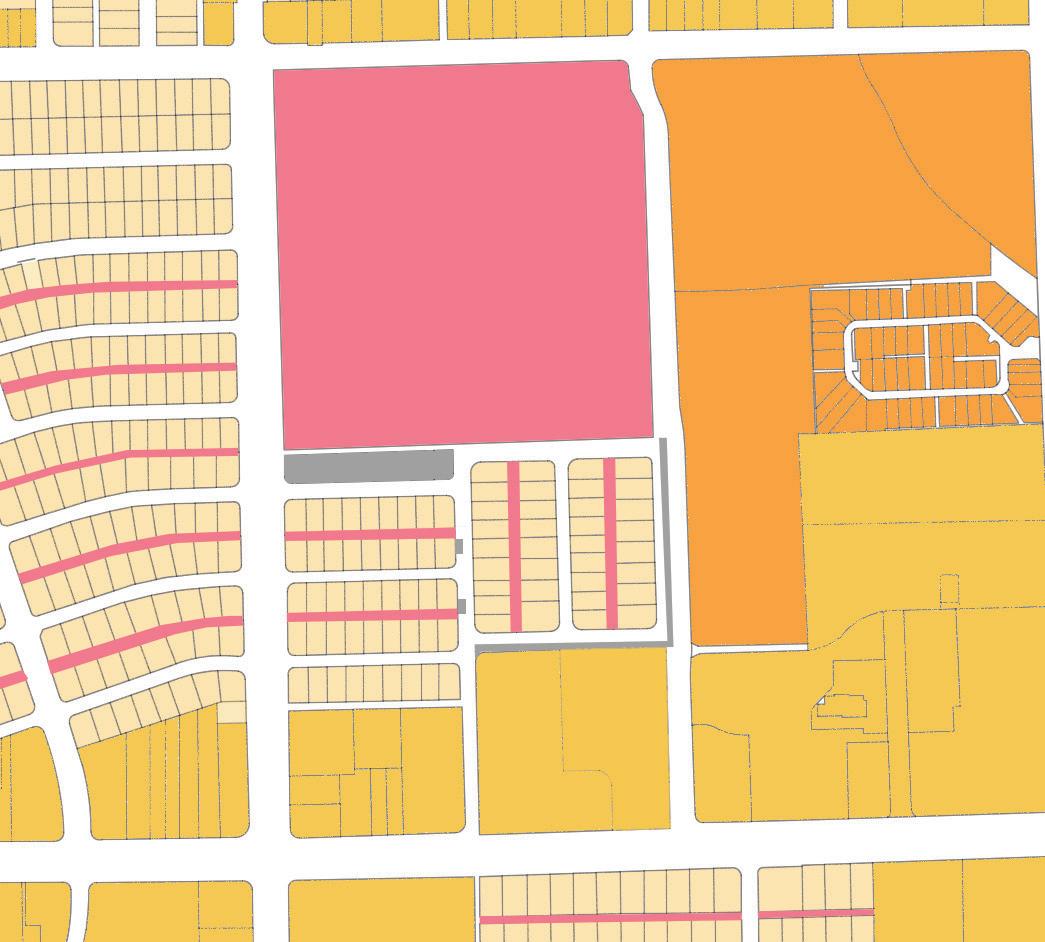

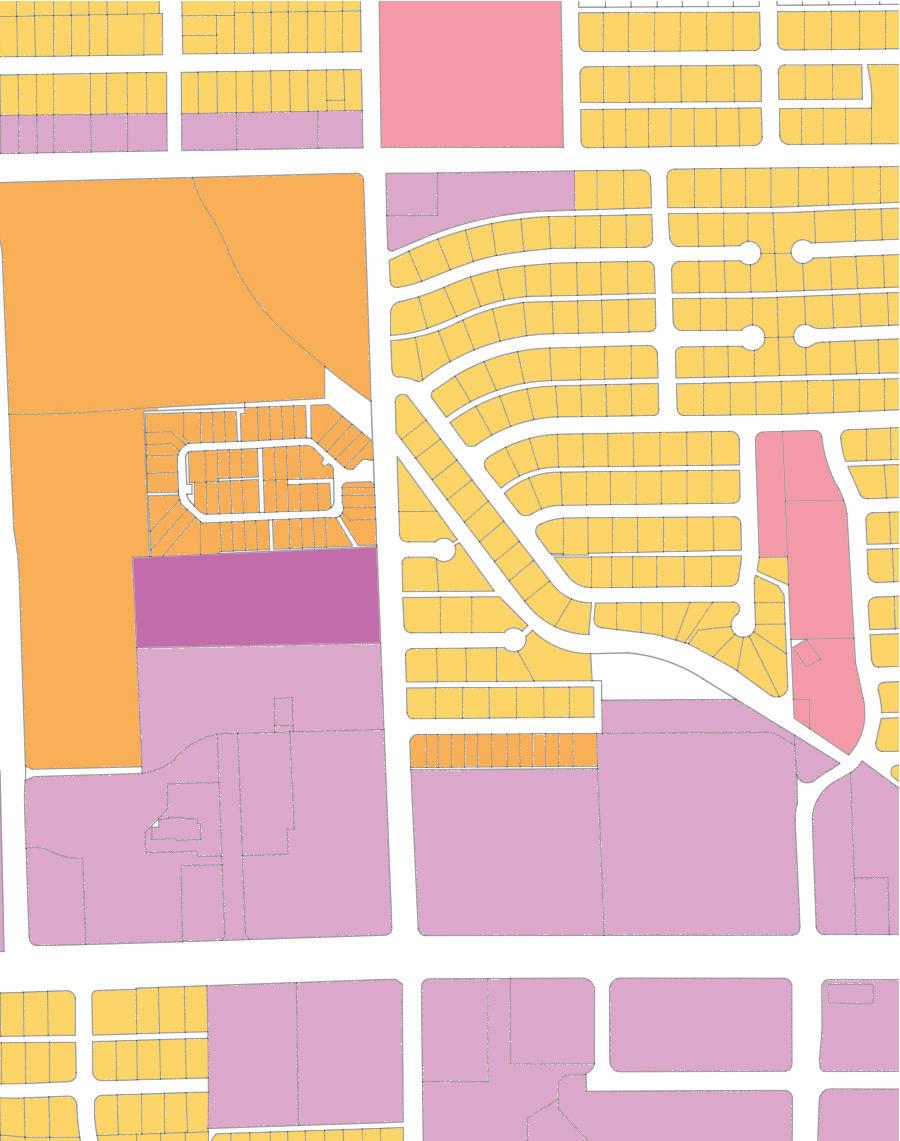

LAND USE

CITY OF TUCSON PLANNING

Understanding the surrounding land usability is key to a final site design. Land use can determine the designs purpose and impact the efficacy and usage of the site. Here, ownership and land use were assesed to synthesize key aspects of the land that would determine the design of the Sierra Estates Burns park, chicanes, and linear path.

residential education

government commercial

REFERENCES, SOURCES & RECOMMENDED RESOURCES: Tucson maps (2022). Pima maps ownership and land use. Maps. retrieved from: https://pimamaps.pima.gov/ Yescas, S. & Rodriguez O. (2022). Land ownership. Ownership zoning spaces. Tucson, Az Yescas, S. (2022). Land use. Zoning land use. Tucson, Az

E BROADWAY BLVD

E 5TH STREET

N SWAN ROAD

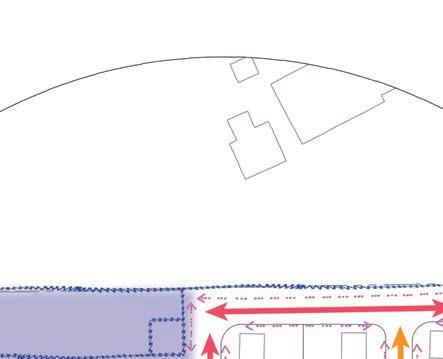

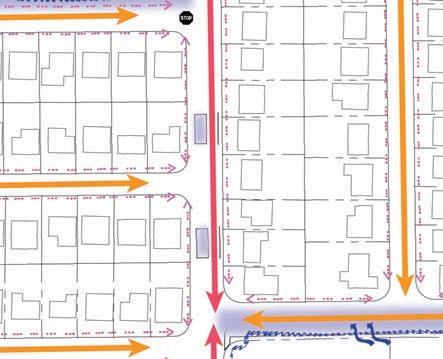

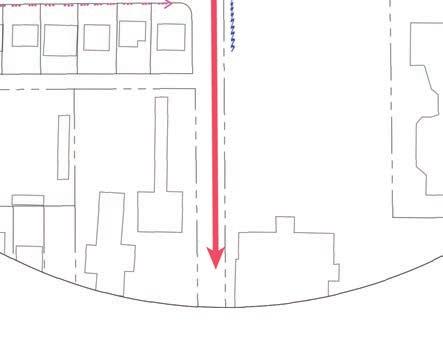

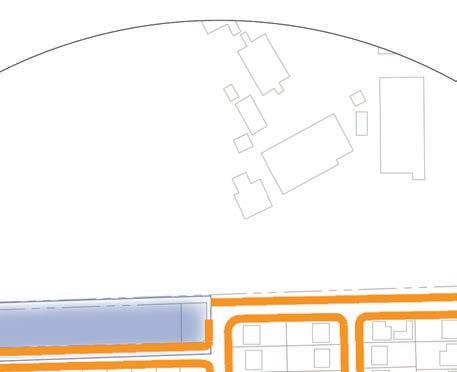

SITE CIRCULATION

Public Transit

The Sierra Estates Project site is situated in East Tucson at the intersection of two key streets, North Swan St and East Broadway Blvd. The site is composed of three different pieces: the northwest Burns Park, the central Chicanes, and the southeastern Linear Walking Park. The total site stretches across two suburban blocks and each of the three sub-components is bordered by neighborhood roads. Many Residents Have reported intense speeding on Mountain View. In addition to the close proximity to street and private automotive circulation, the site is located nearby essential public infrastructure such as bike boulevards and public bus stops.

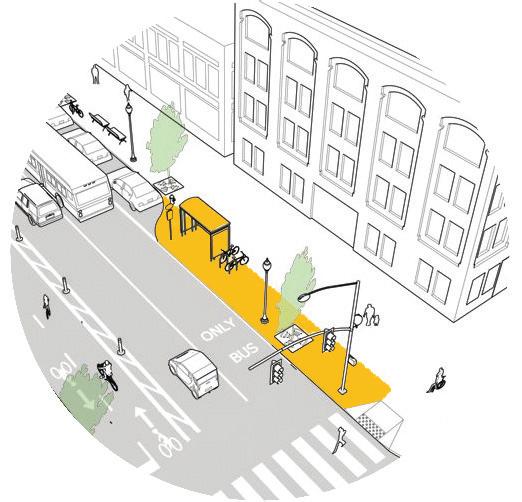

BUS OPPORTUNITY

The site has a bus stop located on the Southwest corner of Burns Park suggesting that the site could easily cater to mass transit users and become a hub of activity for community engagement.

SIDEWALK OPPORTUNITY

Many of the sidewalks are in a poor condition with incomplete curb lines and, in some instances, stop entirely with no destination. The Linear Walking Park sub-component has no sidewalk in its current state representing both a hazard and a lack of accessibility oriented design.

BIKE BOULEVARD OPPORTUNITY

Although many residents cited anecdotal evidence that their is not a large biking group of students, there is a dedicated Bike Boulevard directly adjacent to the sites’ neighboring schools. Therefore, it may be prudent to explore bike oriented site infrastructure to further encourage and cater to existing bike users.

POTENTIAL DIRECTIONS

» Buss stop integration with site

» Bike parking // bike racks // bike lanes

» Ramp connectivity improvements

» Complete street design

» Curb restoration

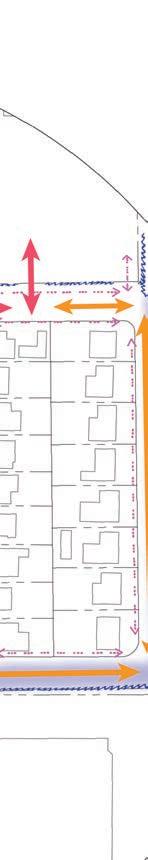

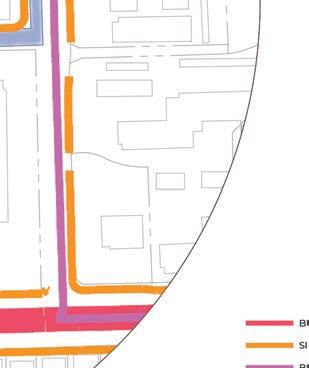

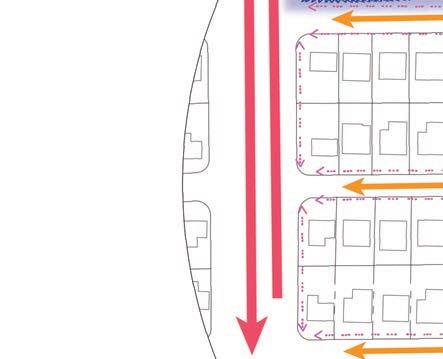

IMAGE ABOVE:

A series of pastel colors to help illuminate how different traffic patterns flow through and around the Sierra Estates Project highlighting existing public circulation patterns.

Two key BUS ROUTES with a bus stop at the site

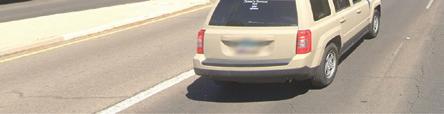

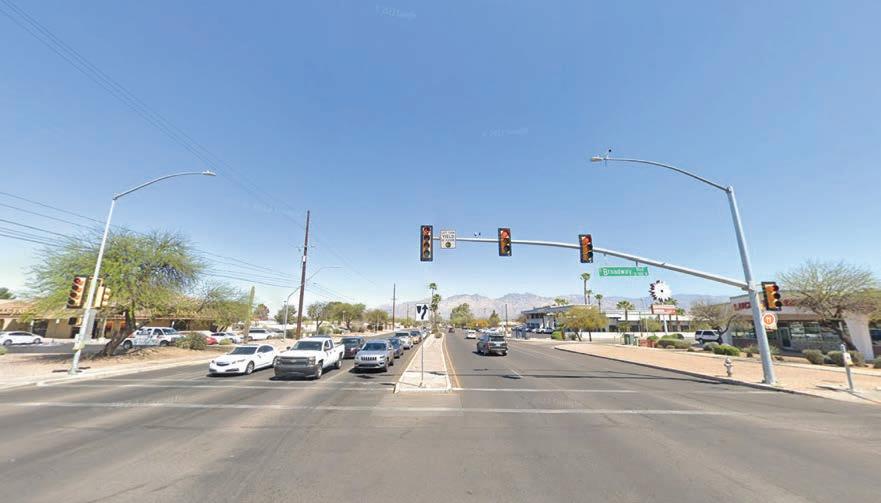

Intersection of MAJOR STREETS causes high speed traffic

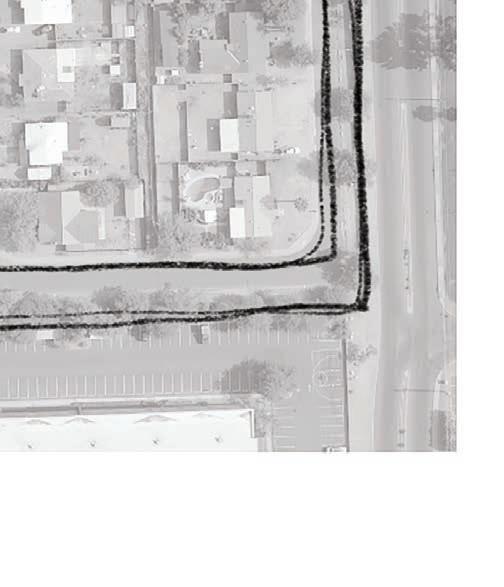

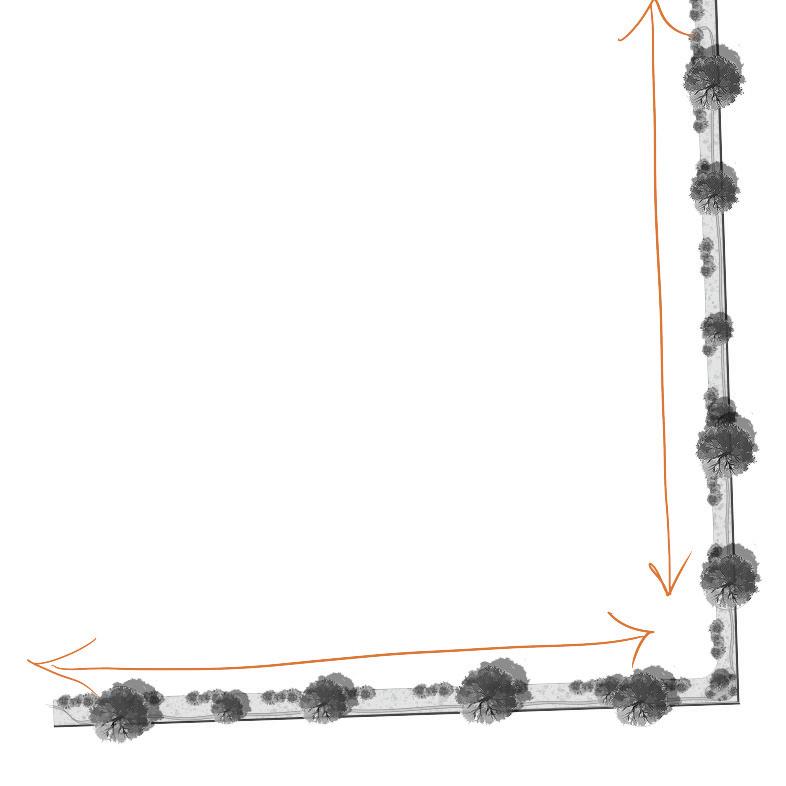

Linear Walking Path has no SIDEWALK for residents

BIKE BOULEVARD offers opportunity for bike storage

REFERENCES, SOURCES & RECOMMENDED RESOURCES: Esri, Airbus DS, USGS, NGA, NASA, CGIAR, N Robinson, NCEAS, NLS, OS, NMA, Geodatastyrelsen, Rijkswaterstaat, GSA, Geoland, FEMA, Intermap and the GIS user community

SITE CIRCULATION

Pedestrian Experience

This walk shed analysis is a graphic that is developed from data from the arcgis online website.

It takes into account obstructions in the walking path, such as Rincon High School and a wall that runs along 10th st and Arcadia street.

The walking times are delineated using an opacity gradient, with the darkest area being most accessible and being within a ten minute walk of Burns park, the intermediate area being a 15 minute walk and the lightest shading, the maximum “walk-able” distance at an estimated twenty minutes.

Also relevant to the walk ability of Burns Park is the fact that a major arterial Swan Way is directly to the west of the park.

SWAN WAY IS A MAJOR ARTERIAL RUNNING ADJACENT TO THE SITE

RINCON HIGH BLOCKS PEDESTRIAN

TRAFFIC TO THE NORTH OF PARK

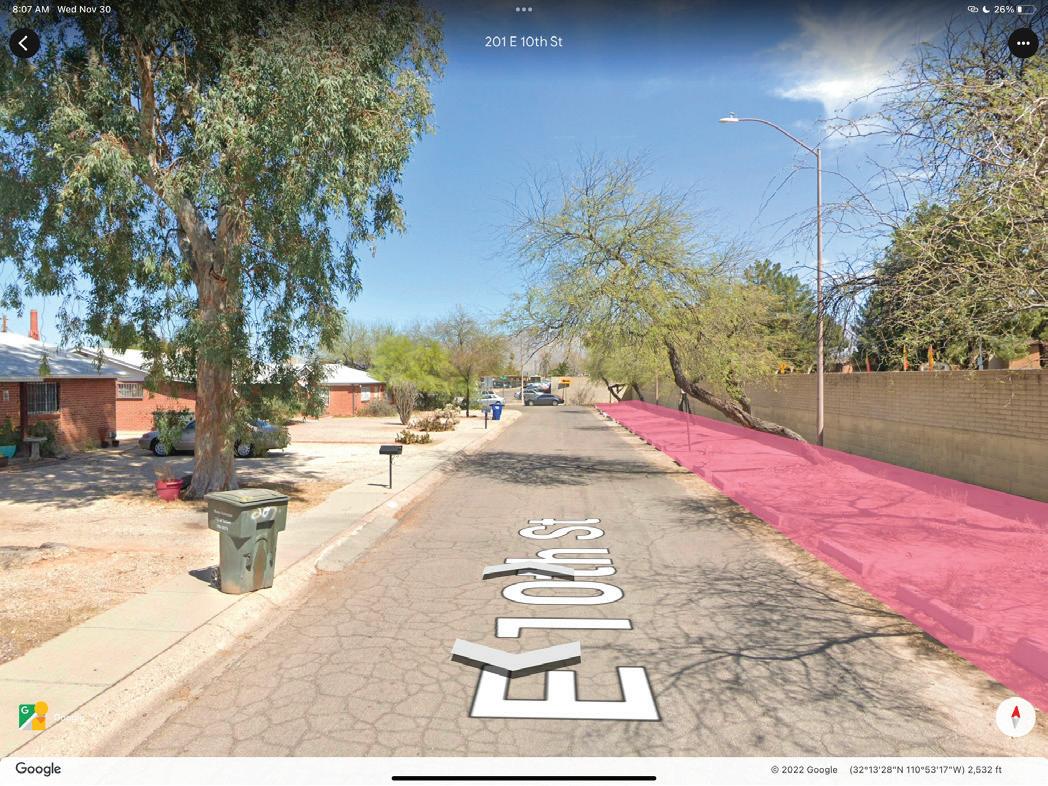

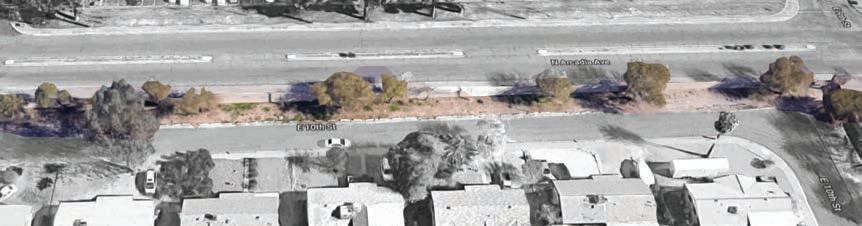

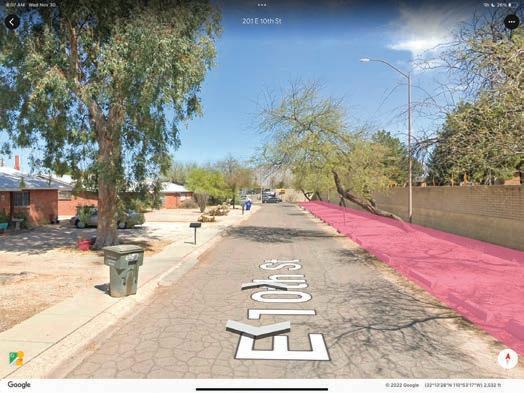

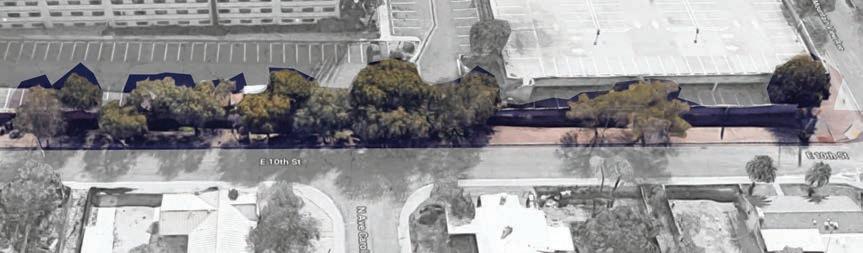

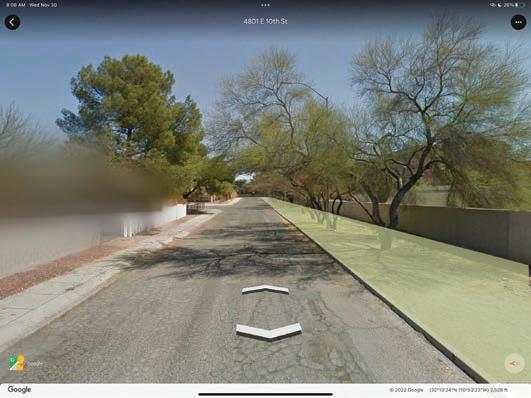

A WALL ALONG 10TH AND ARCADIA CREATES AN UNTRAVERSABLE LINE

IMAGES ABOVE: Obstructions and concerns for area walkability.

DATA SOURCE: arcgis.com

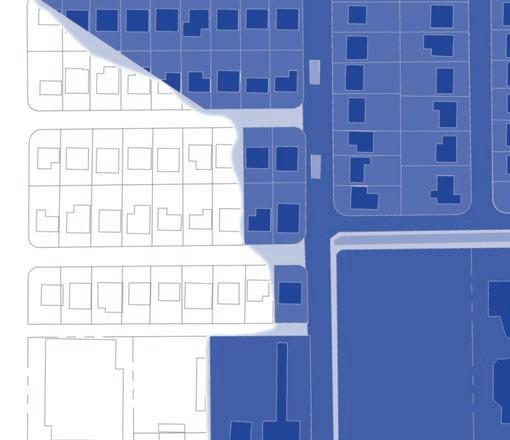

This graphic displays estimated commute times from Burns Park. The darkest area in the center represents a ten minute walk time, the next lightest area a fifteen minute, and the outer lightest area is an estimated twenty minute walk.

20 Mintutes From Burns Park

Burns Park

15 Mintutes From Burns Park 10 Mintutes From Burns Park

Rincon/

SITE ECOLOGY

Ecological Overview

Tucson, Arizona is located in the Upper Sonoran Desert biotic community where hot summers and sparse rainy seasons make a hostile climate for most species. With that said, Sierra Estates already has some substantial greenspace established in Burns Park thanks to the supplemental stormwater that gets directed there. Tall, riparian tree species such as Aleppo pine and Arizona sycamore currently thrive in the park and are essential to maintaining the beloved hawk habitat. However, Burns Park mostly stands alone as a green oasis within the urban sprawl. The nearest neighboring greenspace functions as a wildlife corridor through one of Tucson’s stormwater washes, located over a quarter-mile to the east of Burns Park. There are a few other city parks and minor greenspaces in the area, but otherwise, the strongest connection Burns Park has to other significant greenspace would be the Reid Park golf course, which is about a mile southwest of Sierra Estates.

Burns Park provides relatively substantial Green Space in a heavily urbanized landscape

HUMAN DISTURBANCE

Busy streets pose as a barrier to wildlife movement

Sierra Estates is a quiet neighborhood, but human activity must still be taken into account for the function of the site’s greater ecological context.

Proximity to Reid Park allows for movement of bird species

5th St

Rincon/ University High School

Aleppo Pine Pinus halepensis

Wildlife Corridor enables mobility for a wider variety of animal species and acts as a stormwater conduit

Aleppo Pine Pinus halepensis

The Sierra Estates neighborhood is bordered on the north, south, and west sides by three major roadways: 5th St., Broadway Blvd., and Swan Rd. These busy streets are not only a safety concern to human pedestrians, but they pose as a dangerous boundary for animal species to cross as well.

SWAN RD

Wildlife Corridor enables mobility for a wider variety of animal species and acts as a stormwater conduit School activities and trafﬁc cause recurrent disturbance

Vehicular traffic on the neighborhood streets usually stays fairly minimal, except during morning and afternoon hours while school is in session. During these times, students and parents cut through Sierra Estates to get to the high schools just north of the neighborhood. This has caused safety concerns from the residents, and chicanes have been proposed as traffic calming measures.

Neighborhood parks and open space support minimal nearby wildlife

School activities and trafﬁc cause recurrent disturbance

BROADWAY BLVD

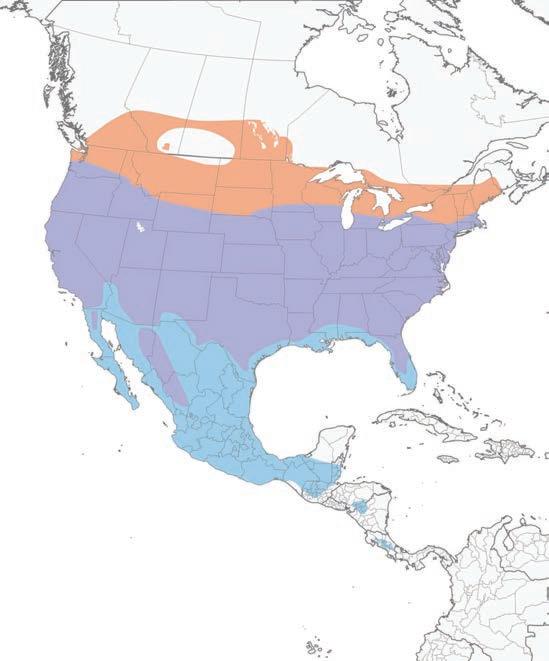

Cooper’s Hawk Accipiter cooperii

KEY:

Cooper’s Hawk Accipiter cooperii

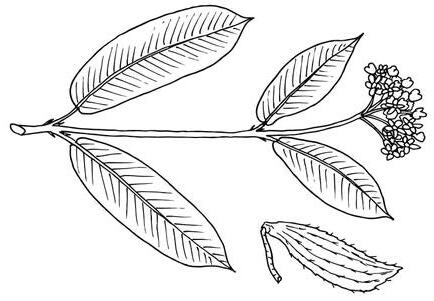

Fringed Trinevine Sarcostemma cynanchoides

KEY:

Green/Open Space

Wildlife Corridor

Heavy Trafﬁc/Wildlife Barrier

Recurrent School Trafﬁc

Fringed Trinevine Sarcostemma cynanchoides

Twinevine Funastrum cynanchoides

Space

Corridor

Site Boundary

Opportunity Constraint

Rincon/ University High School

Burns Park provides relatively substantial Green Space in a heavily urbanized landscape

Wildlife Corridor enables mobility for a wider variety of animal species and acts as a stormwater conduit

Busy streets pose as a barrier to wildlife movement

Proximity to Reid Park allows for movement of bird species

Neighborhood parks and open space support minimal nearby wildlife

School activities and trafﬁc cause recurrent disturbance

Green/Open Space

Wildlife Corridor

Heavy Trafﬁc/Wildlife

Recurrent School

Site Boundary

BROADWAY BLVD

5th St

SWAN RD

Cooper’s Hawk Accipiter cooperii

Aleppo Pine Pinus halepensis

Fringed Trinevine Sarcostemma cynanchoides

SITE ECOLOGY

Ecological Inventory

In terms of ecology, Sierra Estates is rich in opportunity, giving us many options to further enhance the rich habitats that exist on the site. Going back to the importance of water, the numerous rainwater harvesting opportunities within our focus areas allow us to increase canopy cover in the Linear Walking Park and Burns Park, besides of supporting vegetation in the chicanes (Lancaster, n.d.). In turn, this brings other benefits, such as the expansion of habitat for songbirds and smaller animals, not to mention a plethora of pollinators, such as hummingbirds and bees, who could feed on plants that replace problematic species such as the Oleander shrubs and invasive grasses such as Buffelgrass.

Refocusing our attention on Burns Park, we realize that it has its own idiosyncrasies and with them, potential for improving its conditions for wildlife and human users. The existing chainlink fence could serve as a massive trellis for vines to grow, serving as a food source for pollinators and birds. Healthy large trees, such as Eucalyptus, Pines, and Arizona Sycamores, serve as critical habitat for hawks and larger birds (15 Hawks In Arizona– Picture And ID Guide, 2021; Morgan, 2021, p. 1), aside from providing significant shade and a mild microclimate for understory vegetation and park users. Circling back to the importance and potential of water, enhancing the swale in the park, and utilizing the water that otherwise pools outside of the park could allow for more of these trees to prosper, creating a better environment for the hawk population and the Sierra Estates community.

» Rainwater harvesting opportunities

» Hawk habitat: Pine, Eucalyptus, and Sycamore trees

» Songbird habitat: Mesquite, Palo Verde, and Desert Willow trees

» Habitat and cover for smaller species provided by shrubs

» Pollinator food source: Fringed Twinevine

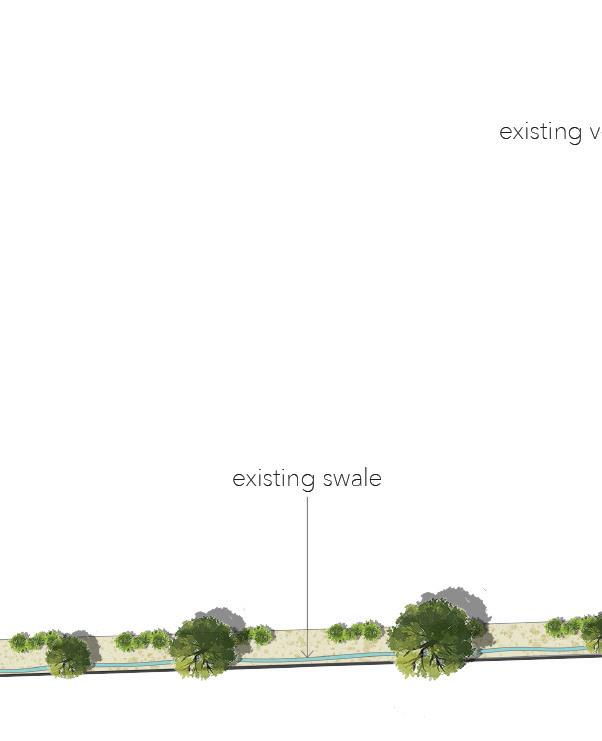

Existing swale

Overgrown grasses

Chicanes Chainlink fencesupport for vines

Riparian sycamore trees

Ponding water

Poisonous oleander shrubs

Bermuda grass

Sparse canopy cover

Cut in wall

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

Diagram elaborated by Oscar Rodriguez with supporting data from Jessica Eppard. 15 Hawks In Arizona– Picture And ID Guide. (2021, December 31). https://www.birdadvisors.com/hawks-arizona/ Lancaster, B. (n.d.). Stormwater & Street Runoff Harvesting. Rainwater Harvesting for Drylands and Beyond. Retrieved September 21, 2022, from https://www.harvestingrainwater.com/water-harvesting/harvests-of-different-waters/stormwater-street-runoff-harvesting/ Morgan, J. (2021, December 14). How Long Do Hawks Stay In One Area? Birdwatching Buzz. https://birdwatchingbuzz.com/how-long-do-hawks-stay-in-one-area/

SITE ECOLOGY

Tree Species Inventory

The existing trees in the neighborhood are healthy and well established, the largest trees can be found in Burns Park, with species like Aleppo Pine, Ghost Gum Eucalyptus, and Arizona Sycamore. These trees are higher water use, especially the Arizona Sycamore which is a riparian species. From this we can confirm that Burns Park receives a lot of water, as these trees are not on irrigation. Burns Park is where the majority of the understory vegetation can be found. Currently, a large percentage of this understory is composed of invasive species such as Buffelgrass (Cenchrus ciliaris) and Bermuda grass (Cynodon dactylon). This has been addressed in part since the start of the project through the mowing of the site. These are not as prolyfic in the Linear Walking Path, but still present. There are prodominately Mesquite species in the Linear Walking Path, with a few Blue Palo Verde and Desert Willow. This is true throughout the neighborhood as well that provide some shade.

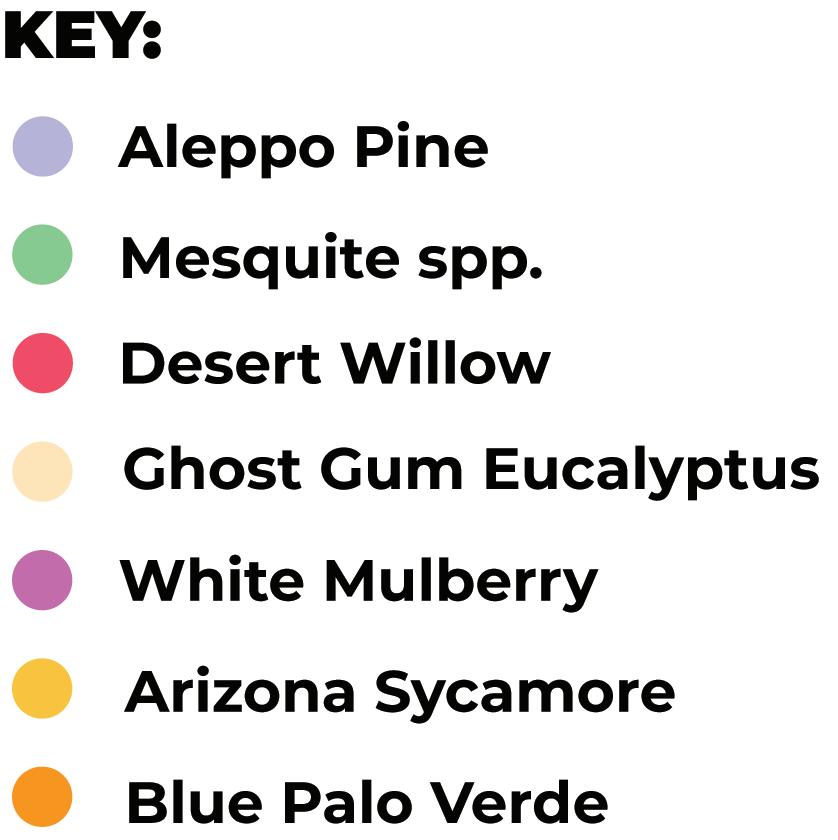

Species LIST and quantity

» Aleppo Pine (4)

» Arizona Sycamore (2)

» Ghost Gum Eucalyptus (5)

» Blue Palo Verde (2)

» Mesquite spp. (28)

» White Mulberry (1)

» Desert Willow (2)

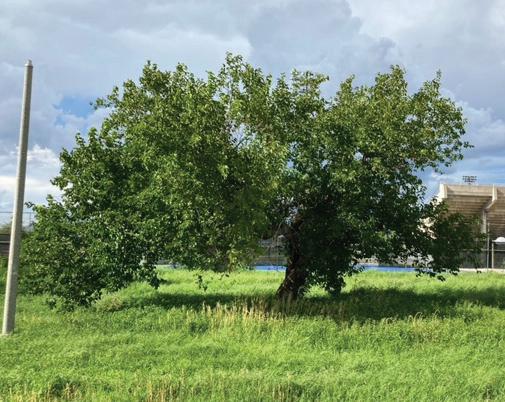

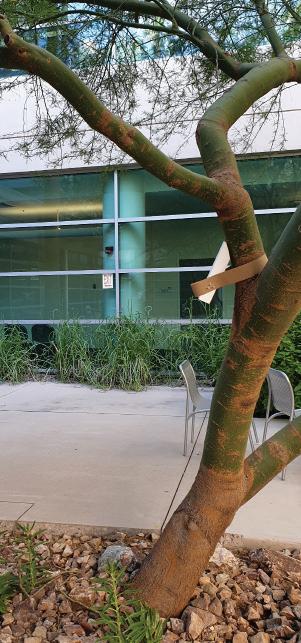

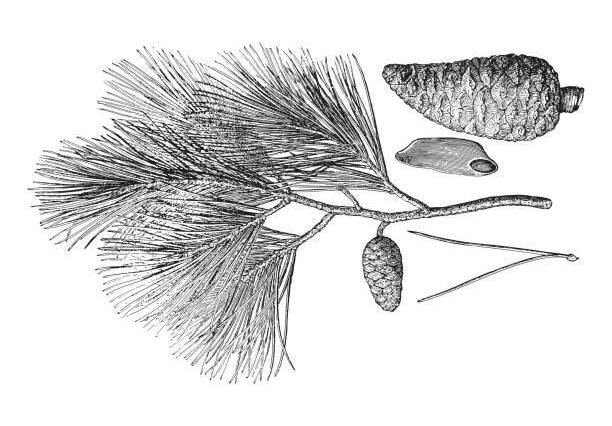

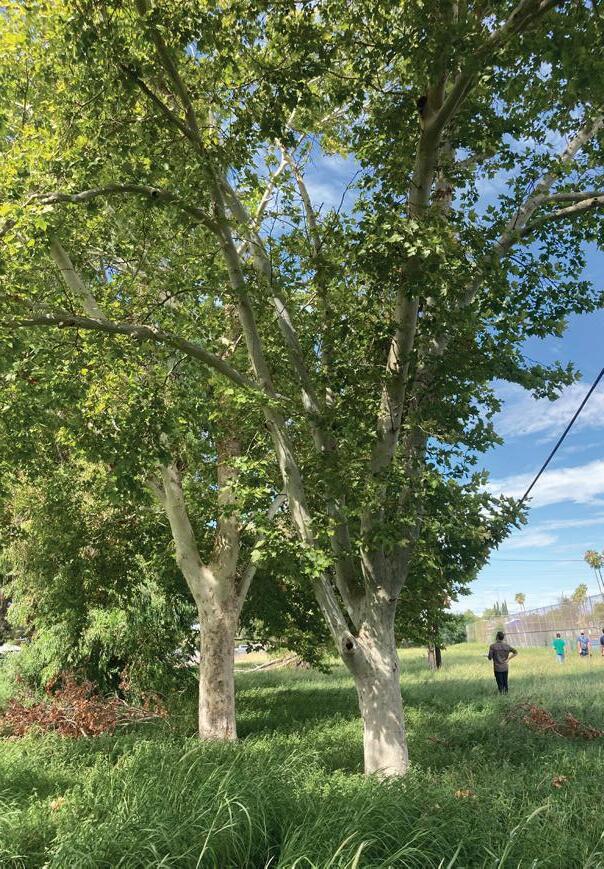

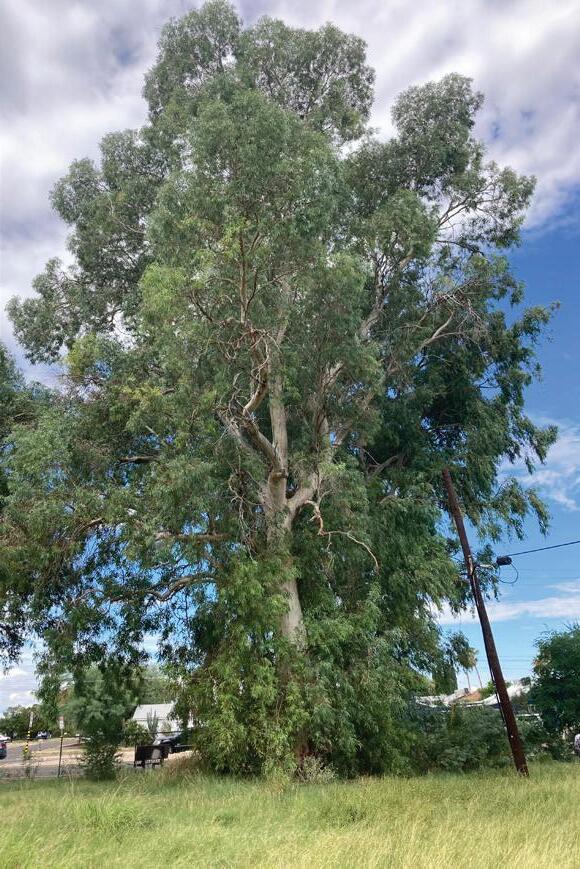

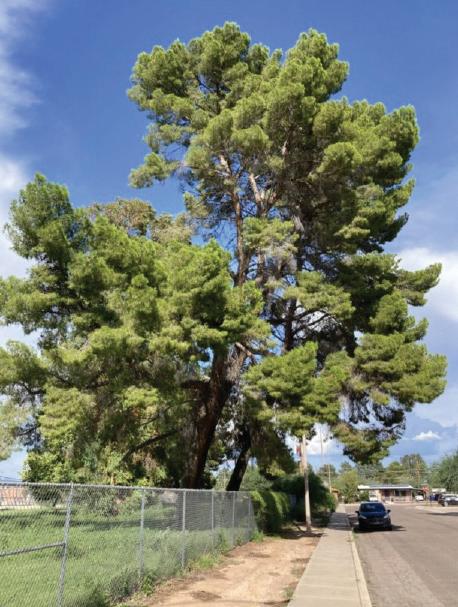

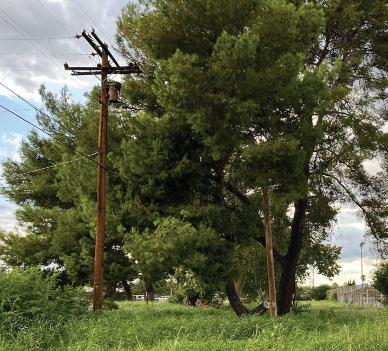

IMAGES ABOVE: (From left to right) Aleppo pine (Pinus halepensis), Arizona Sycamore (Platanus wrightii), Ghost Gum Eucalyptus (Corymbia aparrerinja), Blue Palo Verde (Parkinsonia florida), Mesqite spp. (Prosopis spp.), Desert Willow (Chilopsis linearis) and White Mulberry (Morus alba). All photos taken on site by Jessica Eppard

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

Inventory diagram of the tree species around the existing site.

75’ 150’ 300’

SITE ECOLOGY

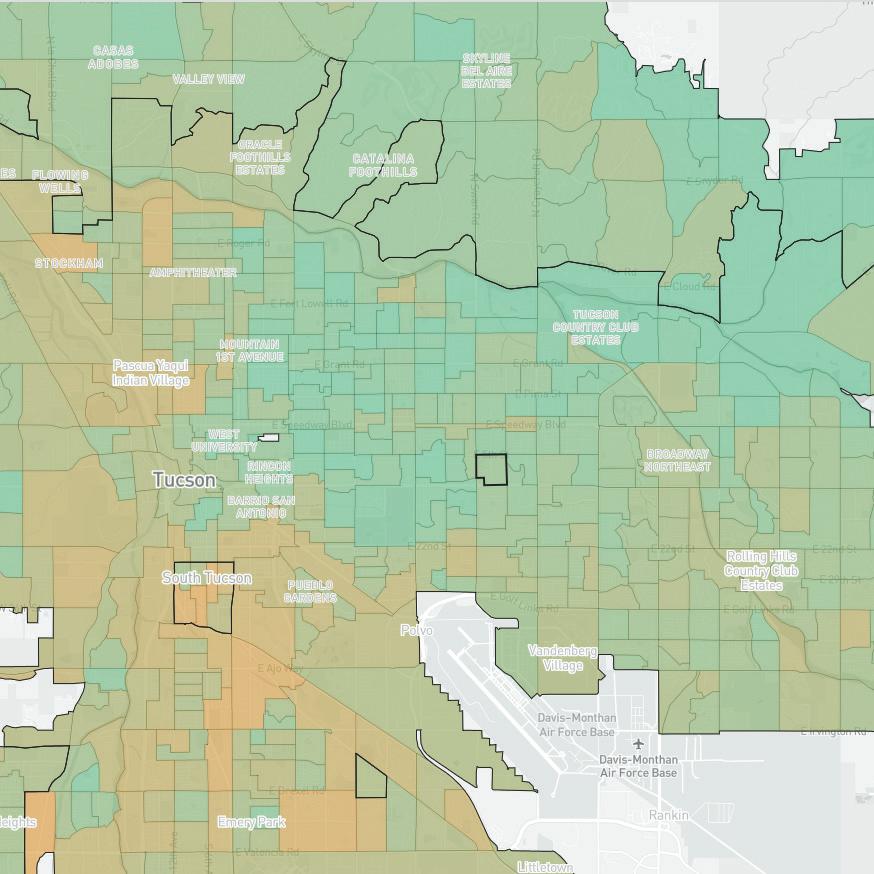

City of Tucson Tree Equity Score

The tree equity score of the Sierra Estates neighborhood is 84, and ranks 134th out of 405 block groups in Tucson (within the top 35%). This neighborhood currently has conflicting information about canopy cover, with Tree Equity Score stating it as 8% tree canopy cover, with a goal of 15% tree canopy cover, and the Storm to Shade website listing it as 14% existing canopy and 18% as the goal. They data agrees however that the canopy cover is below what it should be. The immediately surrounding census blocks are all 84 or higher, but the larger area has a range from 68 to 100. While these lower scores are more frequent in the Southern side of Tucson, low scores can be found throughout the city.

METHODOLOGY

Tree equity is determined by looking at several metrics. A canopy coverage goal is determined in relation to population density and the vegetation type. The canopy gap is the existing canopy subracted from the goal determined above. The priority index is determined from 6 equally weighted factors: Income, Employment, Race and Ethnicity, Age, Climate and Health. This weighted score from 0-100 determines the priority to close the tree canopy gap.

CITYWIDE CONTEXT

It is important to acknowledge that within Tucson and South Tucson the tree equity scores range from 39-100. The lower scores are more frequent in the Southern portion of the city, and should be addressed.

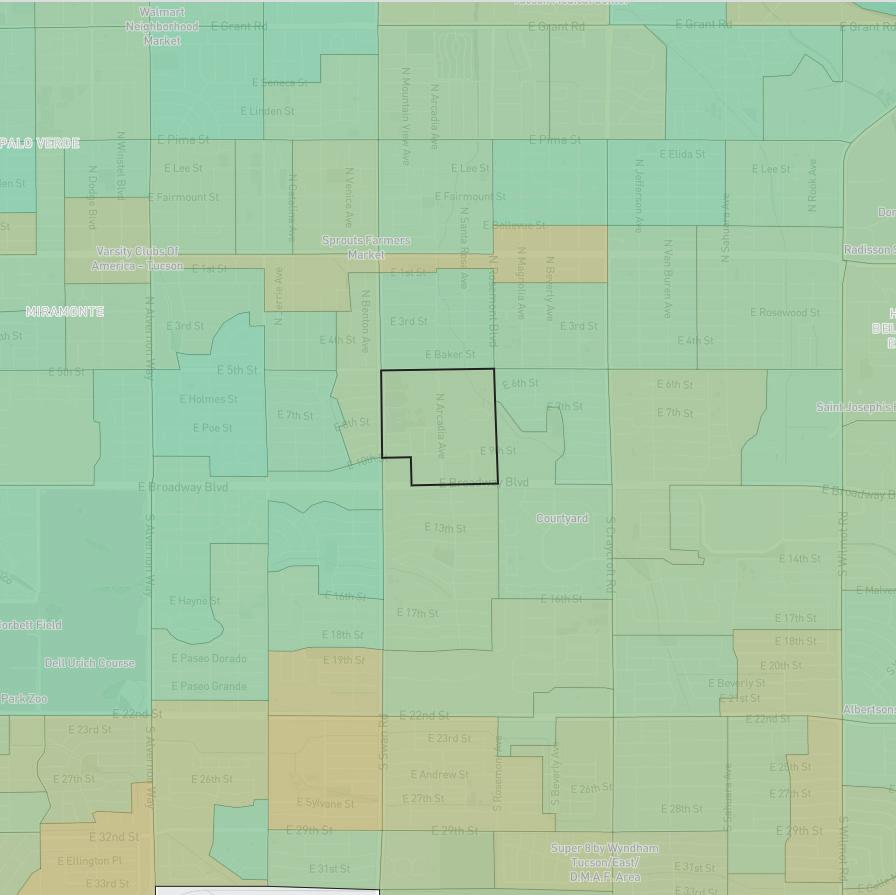

IMAGE ABOVE: Tree equity scores and indicatorts from treeequityscore.org of Tucson, AZ

SITE HYDROLOGY

Stormwater

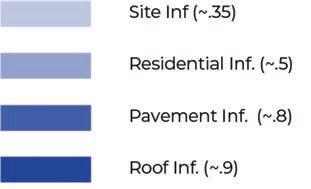

HOW MUCH WATER IS THERE?

The Sierra Estates Project site is relatively rare for the amount of vegetation and greenery on site. The site has some of the most healthy looking Aleppo Pines and some incredibly dense grass. A common expression is, “Where there is smoke, there is fire” and, in our work, the expression could be, “Where there is greenery, there is water.”

Residents anecdotally reported up to 3’ foot flooding and a comprehensive stormwater analysis found that the site is part of a substantially large watershed that equals roughly 1,042,000 sq. ft in total. The watershed includes roughly 2/3 of the Sierra Estates neighborhood, the entire commercial center for Viscount Suites, water from East Broadway Blvd, and more. After breaking down the numbers and accounting for various surface permeability coefficients, researchers found that a 95% storm event (0.08 ft/day) results in a water runoff volume of 57,095 cu. ft or, in other words, roughly 65% of an Olympic Swimming Pool.

KEY NOTE

Although the total water that reaches our site is 57,095 cu.ft, that does not mean that our site must handle all 57,095 cu. ft. Water from rain that lands directly on our site only accounts for 2,424 cu.ft of the total water that reaches our site. The reason the watershed number is so high is because our site is at a relative low-point for the surrounding area.

WALL CUTOUT EXPLAINED

Although their appears to be a wall between the commercial Viscount Suite and our site, their is a stormwater cutout that allows all stormwater from the Viscount Suite’s parking lot and building to drain to our site.

POTENTIAL DIRECTIONS

» Storm water management

» Rain gardens // detention basins

» Creative usage of swales

REFERENCES, SOURCES & RECOMMENDED RESOURCES: Esri, NOAA, FEMA, and the GIS user community

IMAGE ABOVE:

A map that highlights what geographic regions contribute to the total watershed and their respective permeability. The more blue, the more water runs off in a storm event!

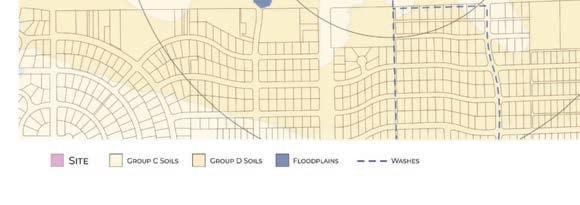

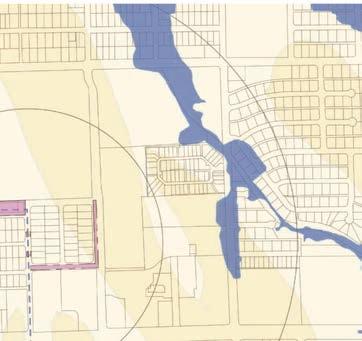

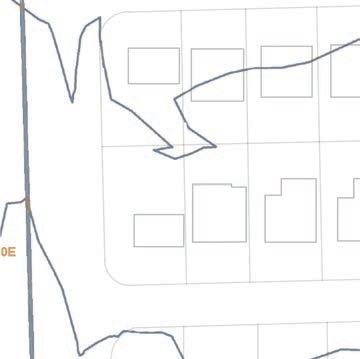

SITE HYDROLOGY Water Analysis

Water is an essentail consideration within the Sierra Estates neighborhood. Neighbors have voiced concerns of flooding issues in the street towards the East end of Burns park. Due to the volume of water moving through the park during the monsoon season, this presents an opportunity to incorporate design strategies which will capitalize on water use. The following outlines general hydrological considerations.

ALVERNON WASH

The above map displays hydrologic GIS data related to the Sierra Estates neighborhood. The area showed is part of the greater Alvernon Wash. To the East and the West of the site are floodplains. A minor wash less than 500 fps runs South to North, down Mountain View Ave. and directly through Burns Park. The water infiltration capacity of the soil is described as moderately permeable (Group C) and poorly permeable (Group D) as showcased with the tan backdrop. From the graphic, we can see abundant water infiltration already present on our site.

WELL REGISTRIES

As our Watershed map suggested, Burns Park holds a decent amount of groundwater. Since 1950, two wells have been dug in the Southeast corner of the site. The first well was in commission from 1950 to 1982 and had a depth of 303’. The second well was used from 1979 to 2012. It is unlear if the well has been in use since 2012, as Tucson Water is no longer responsible for taking DTW (depth to water) measurements.

KEY POINTS

» A wash runs directly through the Sierra Estates neighborhood

» Burns Park offers an opportunity to infiltrate large amounts of rainwater during the monsoon season

» the depth to water (DTW) has been generally increasing since the wells were dug, suggesting less groundwater availability

» since 1998, there has been a slight increase in DTW

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

Pima Maps: Survey, PC-Hydro, RFCD Floodplains, DFIRMs-FEMA Floodplains

Washes & Floodplains

Well Hydrographs

Arizona Department of Water Resources: Groundwater Inventory Site Inventory, Well Registry

USDA NRCS: National Engineering Handbook Part 630: Hydrology, Chapter 7 - Hydrologic Soil Groups

IMAGE TOP: This graph represents a compilation of hyrdologic, watershed, and floodplain data privided by Pima Maps GIS

IMAGE BOTTOM: This hydrograph is taken from Arizona Department of Water Resources

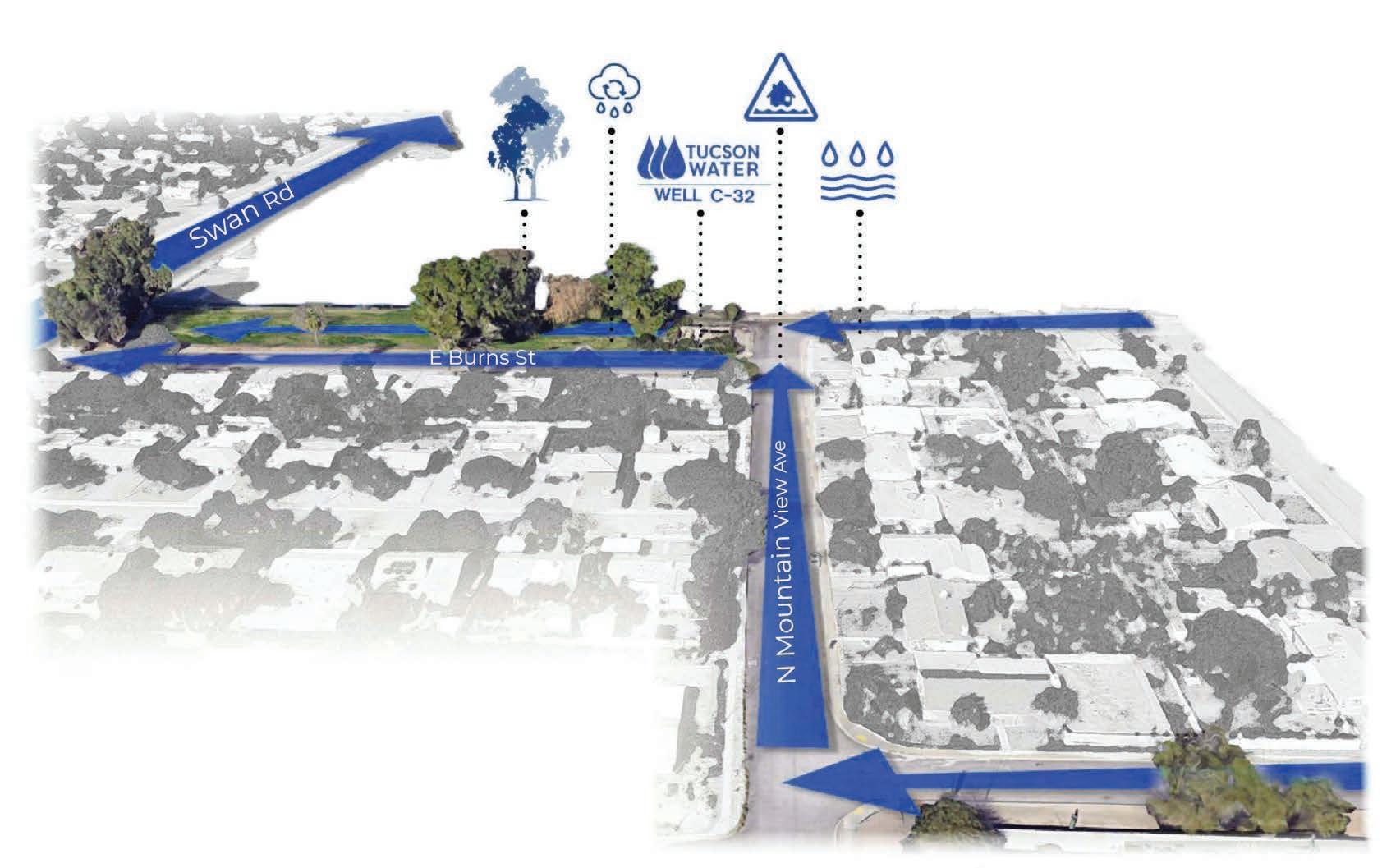

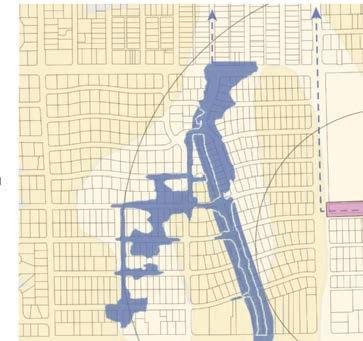

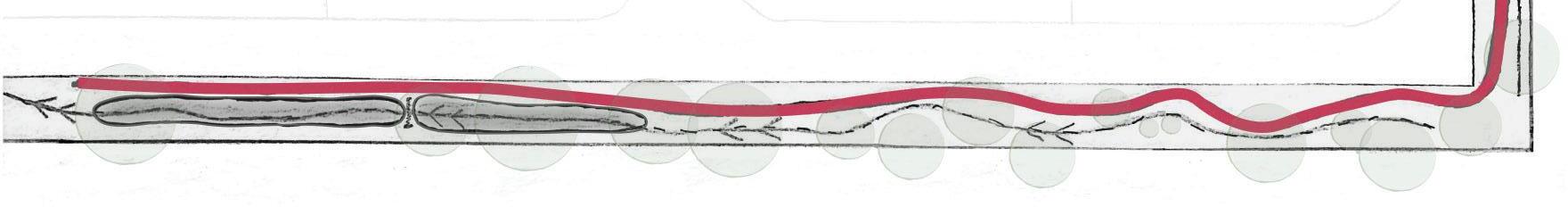

Water Movement

KEY WATER FACTORS

» large healthy trees supported by groundwater reserves

» rainwater infiltration opportunities

» 2 wells are present on site

» flooding issues present

MINOR FLOOD ZONE

The junction of N Mountain Avenue and 8th street experiences large pools of water (reportedly up to 3’) during heavy rain events

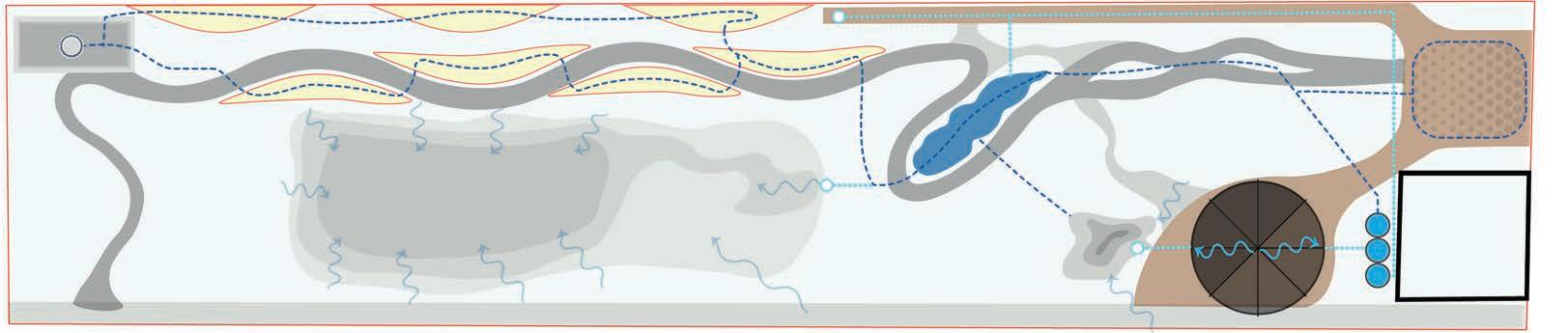

IMAGE ABOVE: Water moves throught the Sierra Estates Neighborhood primarily down Mountain View Ave. and through Burns Park from East to West until it joins Swan Rd. This water reaches a drain in the Northwest corner of the site, where it joins the municipal water drainage under Swan.

SPECULATIVE SITE DESIGNS

HUMANING

BIRDS EYE VIEW

People exist on a spectrum of introverted to extroverted. Bird habitat exists on a continuum from wilderness to urban. Depending on species, birds may display different preference or tolerance for urban environments and people.

However, human and bird behavior are not fixed, both exist in a dynamic with each other and other influences. In addition to species and individual personality patterns each will develop behavior patterns based on experience and expectations, and these elements can be passed on culturally. This design is developed to foster a novel environment, where birds and humans can interact in a safe and supportive environment. APATHY AWARENESS INTEREST

Design Goals

-Allow birds to observe humans in a place where they will not feel threatened.

-Increase human understanding of bird behavior.

-Develop openness to new interspecies dynamics.

INTROSPECTION

Birds see ultraviolet light, what else might they percieve that people do not?

Twain

It is just like man’s vanity and impertinence to call an animal dumb because it is dumb to his dull perceptions.

Mark

OPENNESS

45’

112’

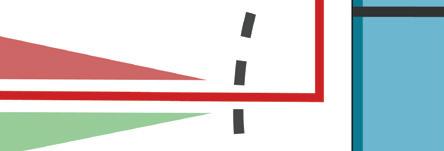

HUMAN SIGHT LINES

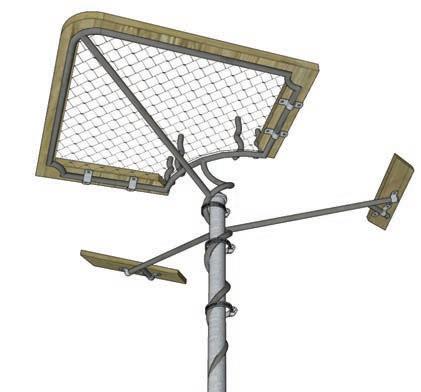

RAVEN OBSERVATION TOWER EXISTING TREES

BIRD SIGHT LINES MESQUITE SECLUSTION HUMAN SHELTER NEW NATIVE CACTUS PLANTINGS

OPEN HUMAN

OPENNESSINTERACTIONURBAN

SECLUSTIONINTROVERSIONWILDERNESS

1” = 60’

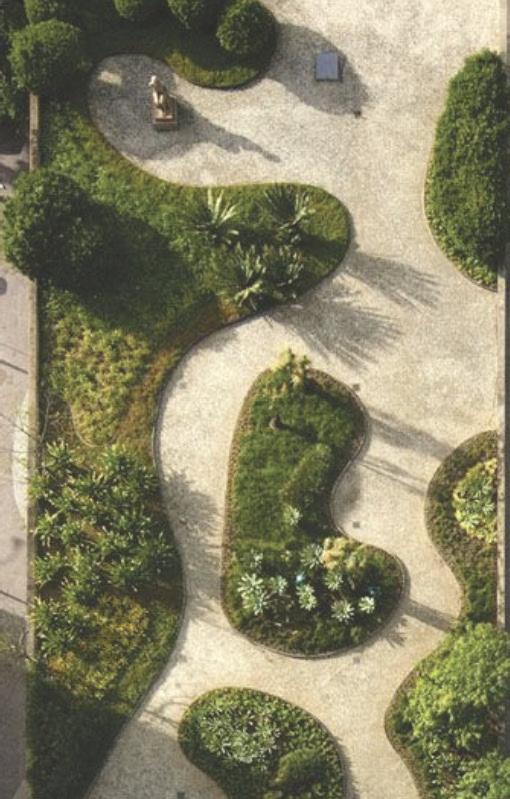

TucsRouken: The Oak Woodlands Stroll Park

Tucsrouken seeks to distract people from the day to day stresses and myriad challenges they face by offering a tranquil respite full of natural folliage with ample sitting spaces, pocket gardens, and places for private contemplation. The gardens form was inspired by Kenrokuen, an iconic Japanese stroll park from the Edo Period (1603-1868) and draws heaviliy from the 6 principles of garden design from this era. The six core principles are spaciousness, seclusion, artifice, antiquity, elaborate use of water, and panorama. These six principles became the 6 goals for the TucsRouken stroll park.

Water:

Artfully manage storm-water with swales

Antiquity:

Preserve the existing pine tree species

Panorama:

Keep tree trunks out of key sight lines

Artiﬁce

Avoid straight paths to limit wayﬁnding

1 2 3 5

Seclusion:

Ensure 6 private sitting spaces on site

Spaciousness:

Use canopy trees to create sense of scale

Sources: https://www.gao.gov/managing-federal-lands-and-waters, http://www. nenature.com/Nesting/red-tailed-hawk-nesting.htm, https://birdfact. com/articles/what-do-red-tailed-hawks-eat, https://www.birdweb. org/birdweb/bird/red-tailed_hawk, https://www.sacramentoaudubon. org/kids-corner/meet-the-red-tailed-hawk, https://www.knockoutpestcontrolandtermite.com/676/ground-squirrel-control-temecula/, https://onlyzoology.com/do-hawks-eat-snakes-how-do-hawks-eatsnakes/, https://birdsphere.com/what-do-hawks-eat/, https://birdfact. com/articles/red-tailed-hawk-nesting, https://birdfact.com/articles/ how-long-do-red-tailed-hawks-live, https://sciencing.com/adaptations-redtailed-hawk-8651668.html, https://www.allaboutbirds.org/ guide/Red-tailed_Hawk/sounds, https://birdfact.com/articles/juvenile-red-tailed-hawks#howLongDoJuvenileRedTailedHawksStayWithTheirParents, https://birdfact.com/search/results?q=red+tail+juevinile

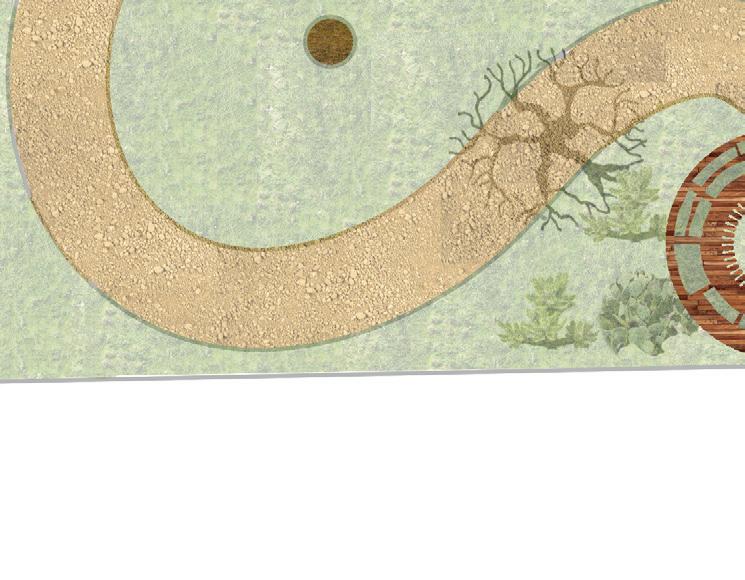

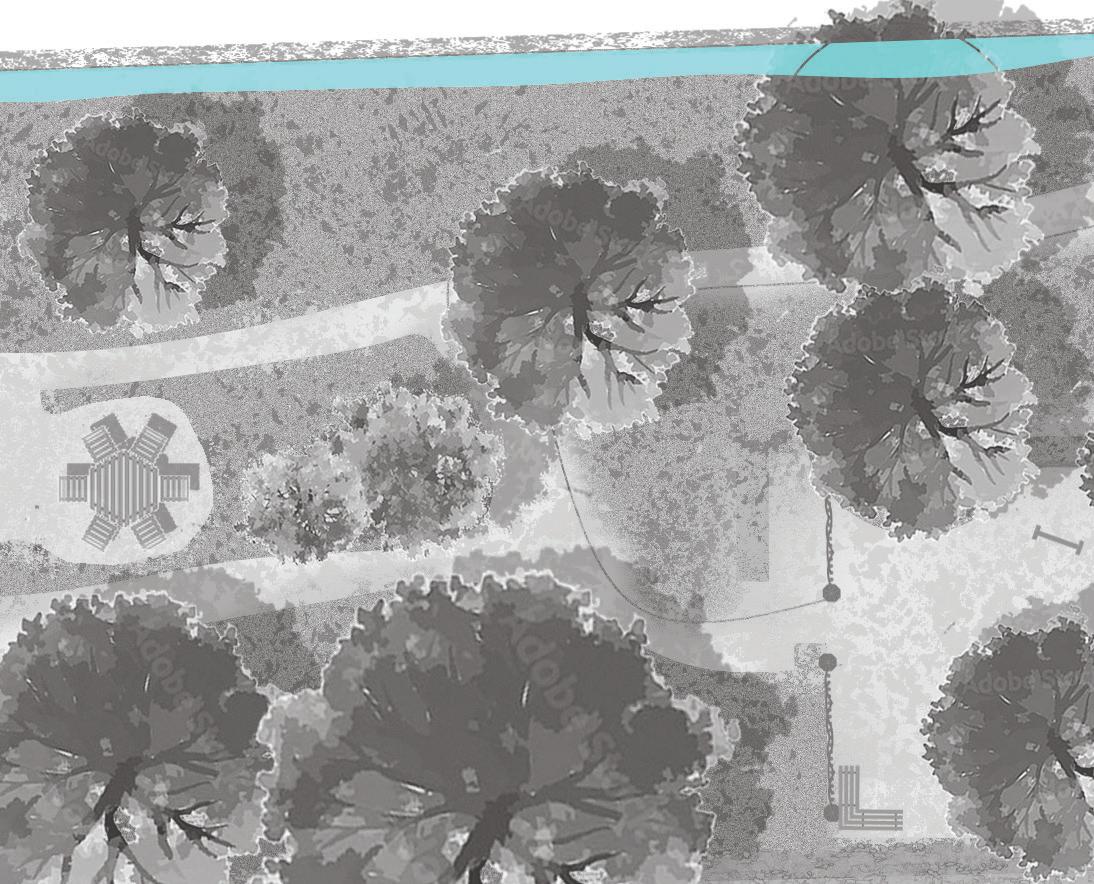

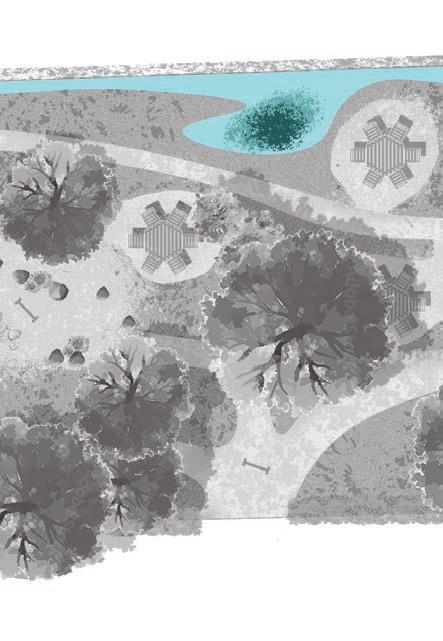

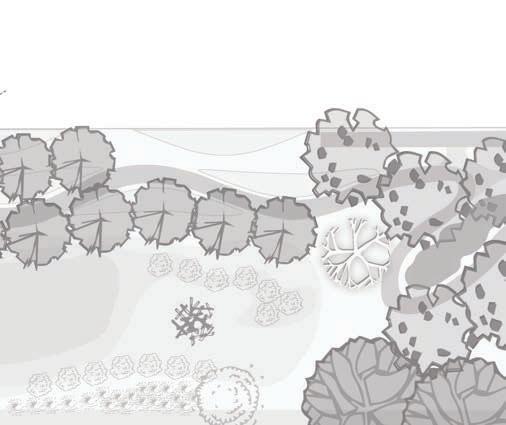

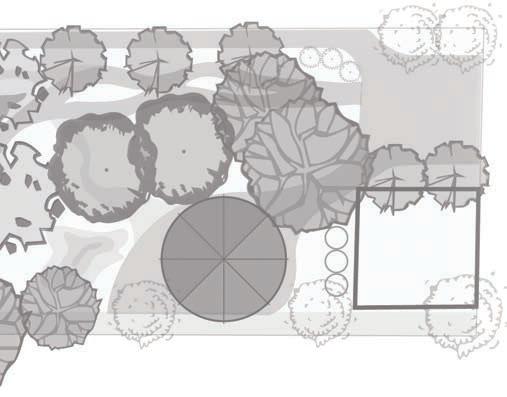

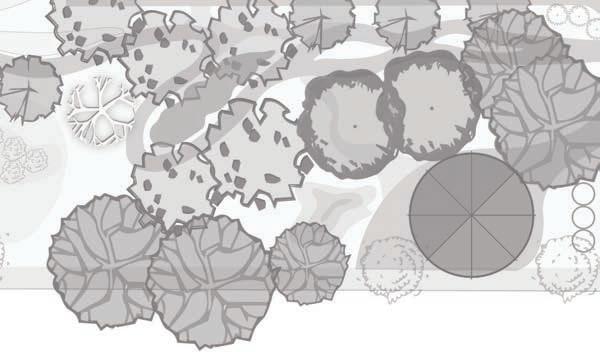

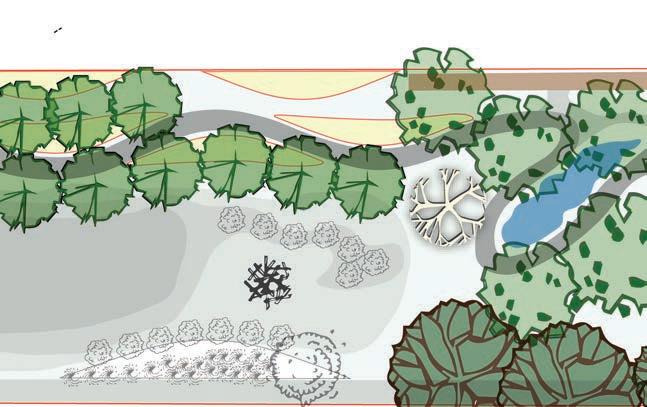

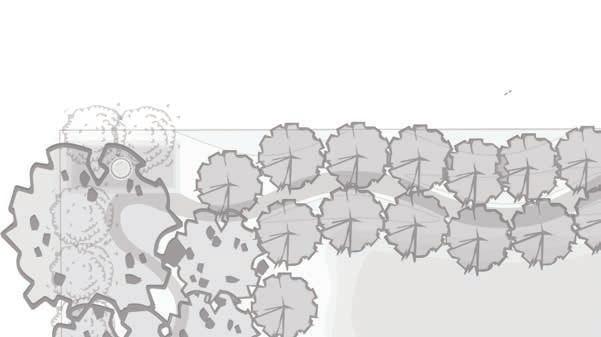

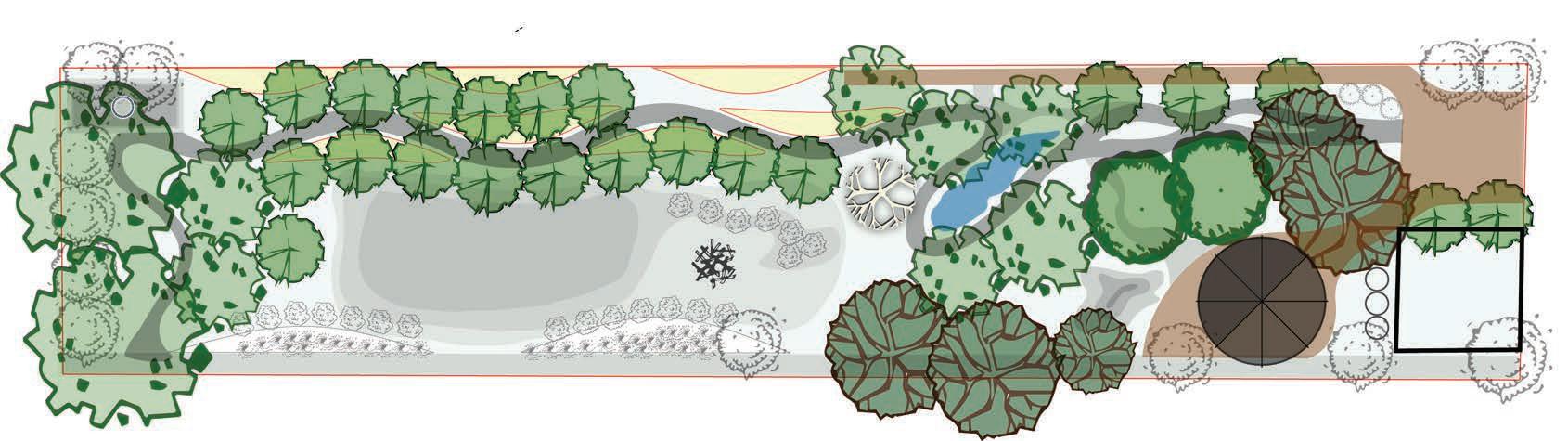

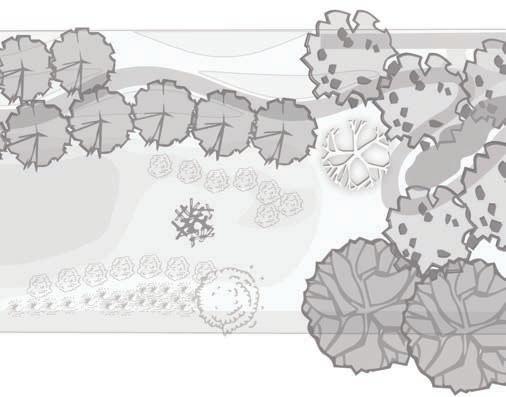

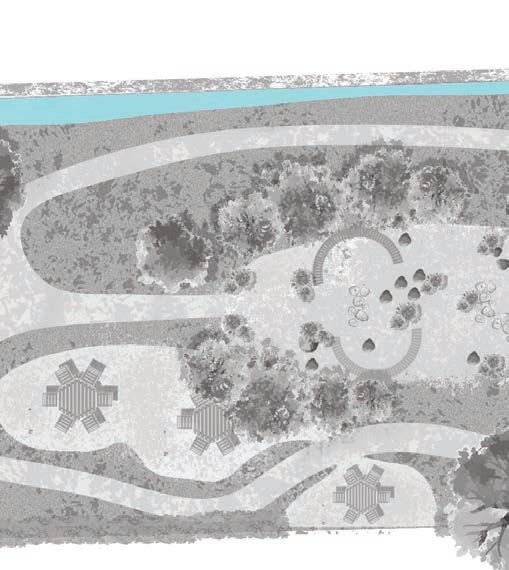

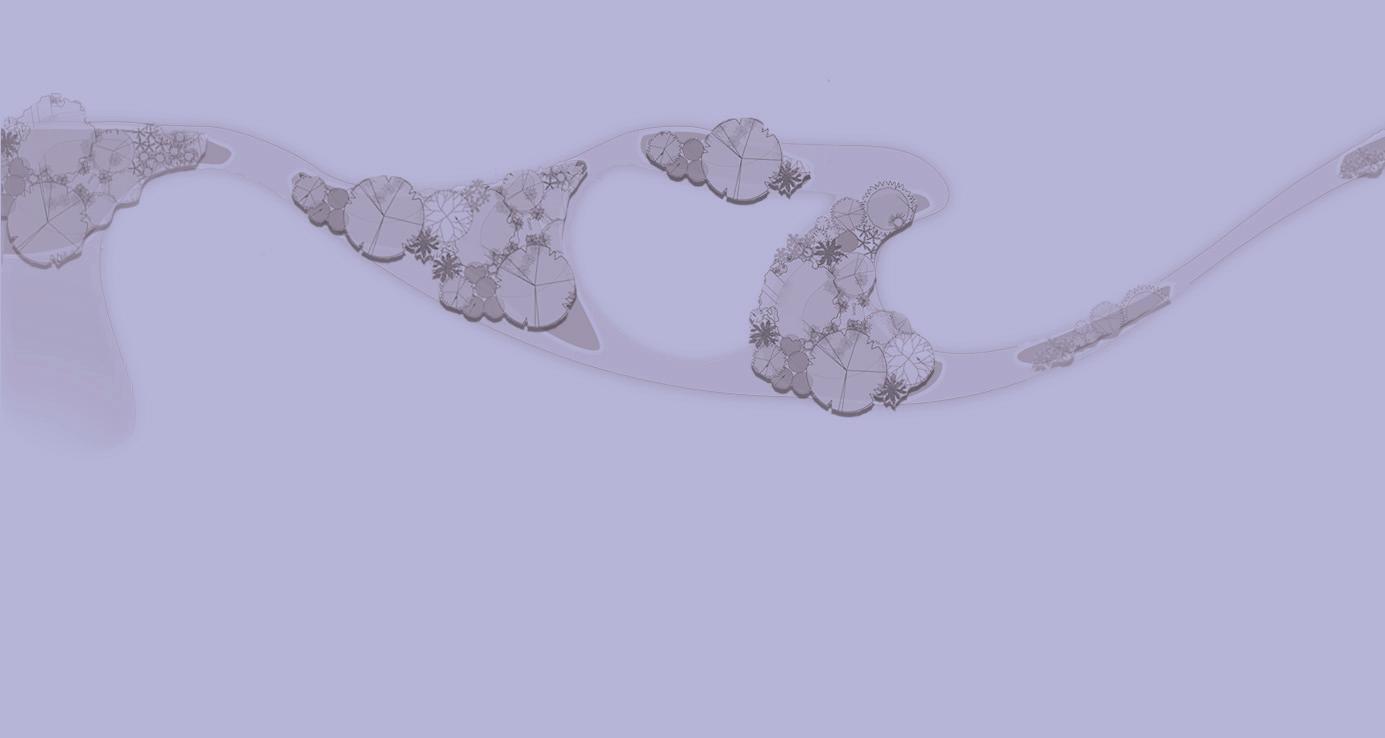

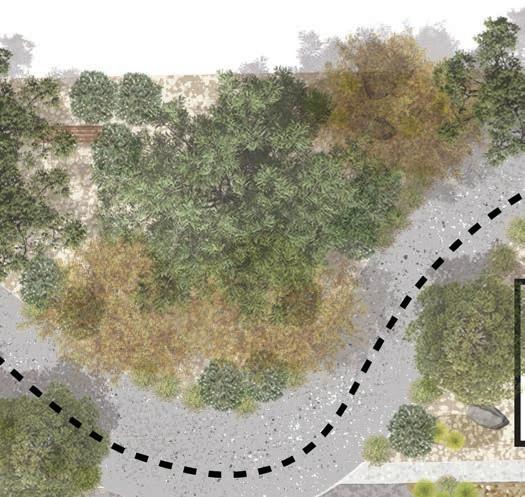

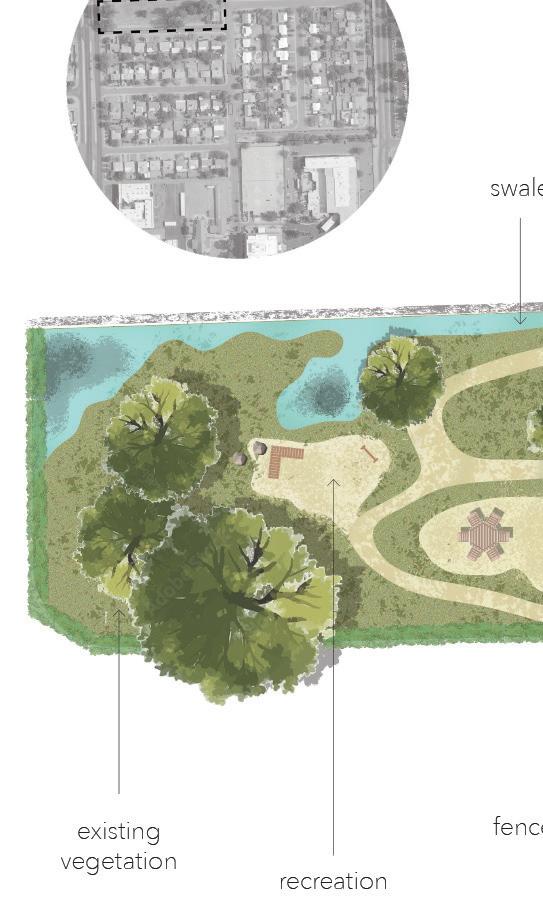

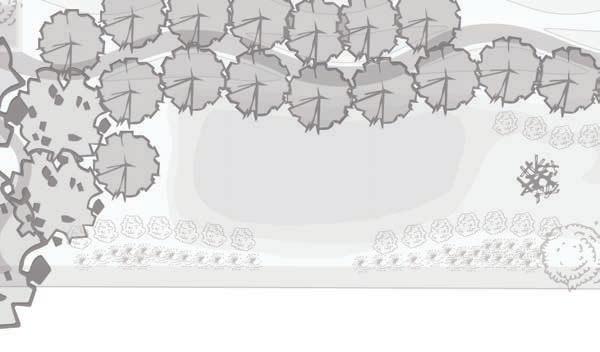

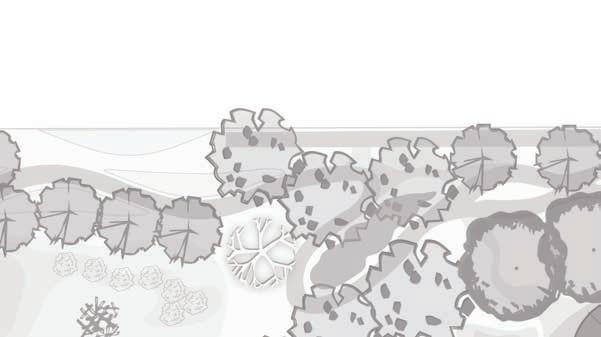

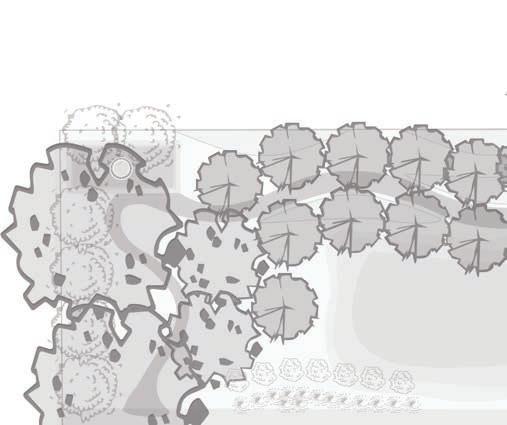

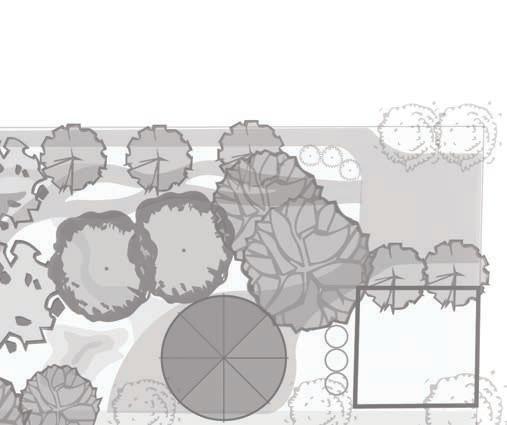

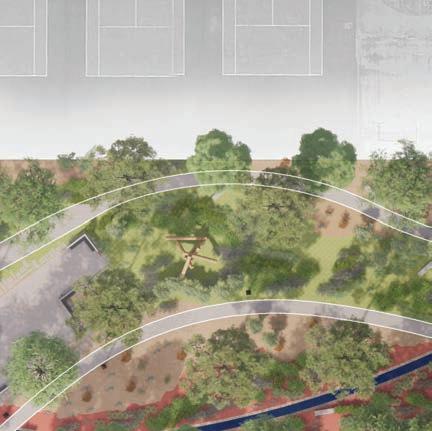

TucsRouken: Plan

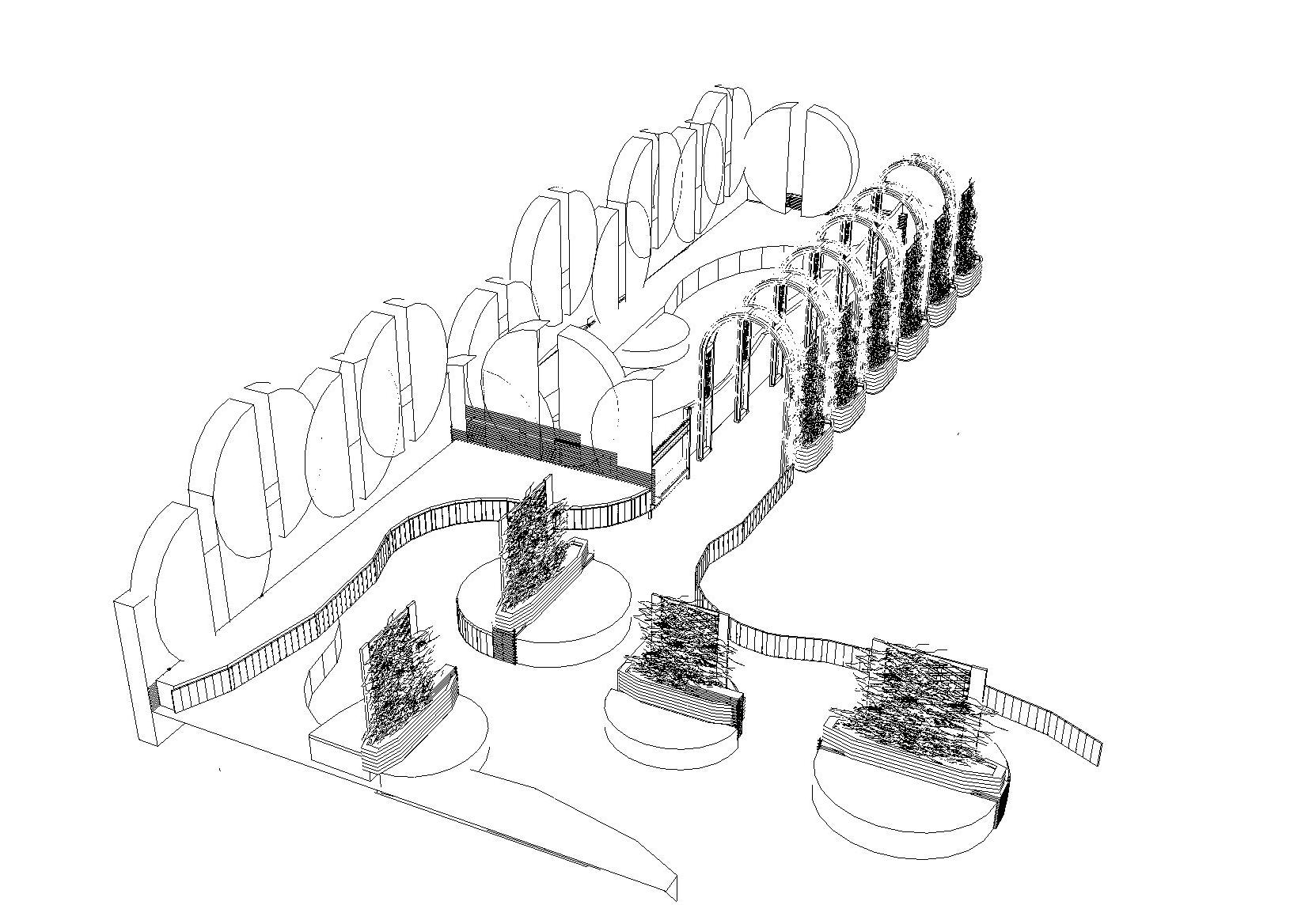

TucsRouken: Isometric Section View

The park is meant for all beings to witness and enjoy eachothers company. By offering passerines, people, and plants the chance to comingle the designers hope to provide users a unique stroll park that encourages self reflection, internal healing, and the chance to perceive harmony within the world

Passerines

People

Plants

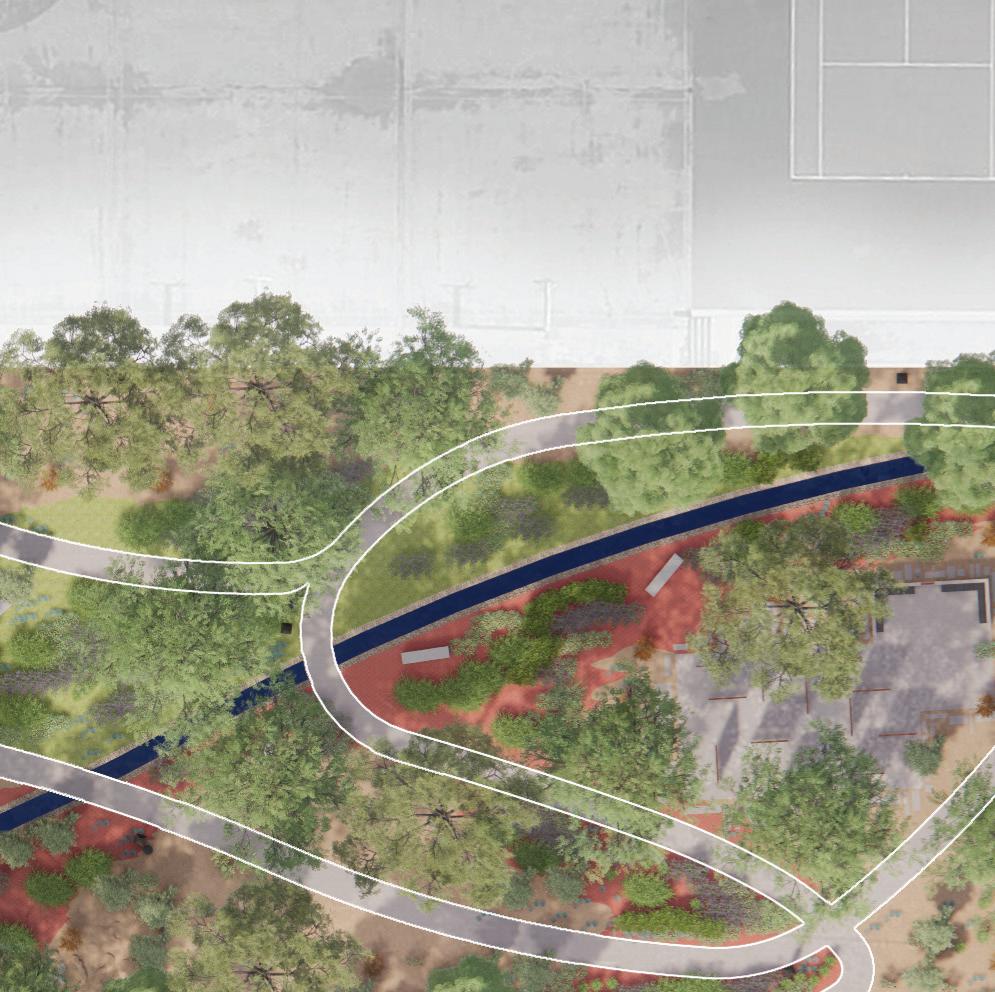

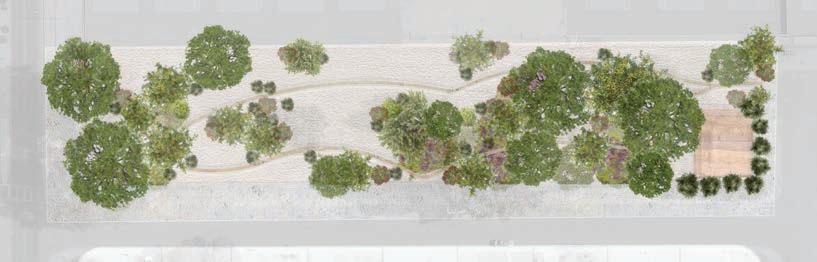

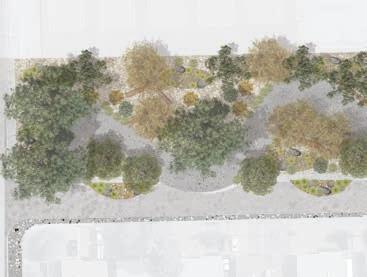

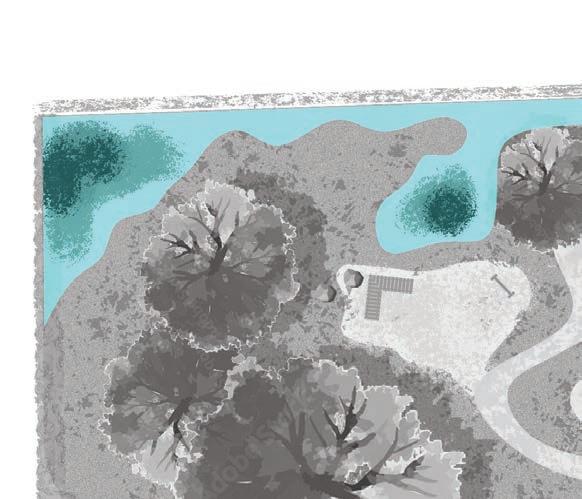

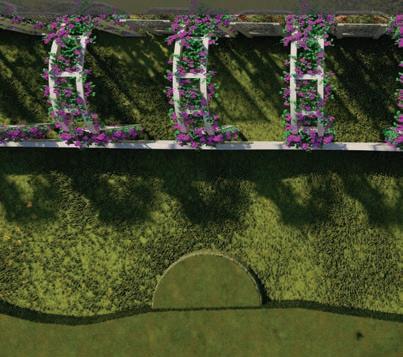

TucsRouken: Plan

0'7.5'15'

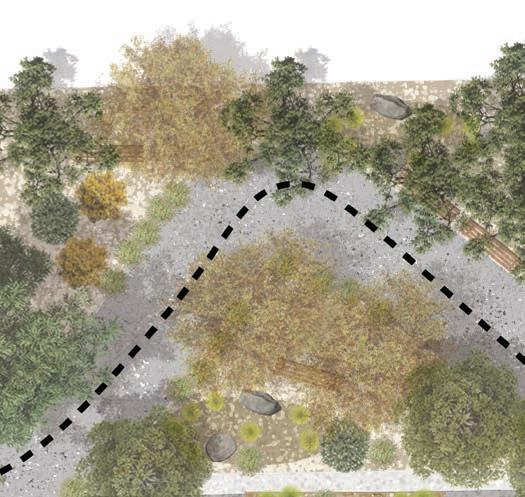

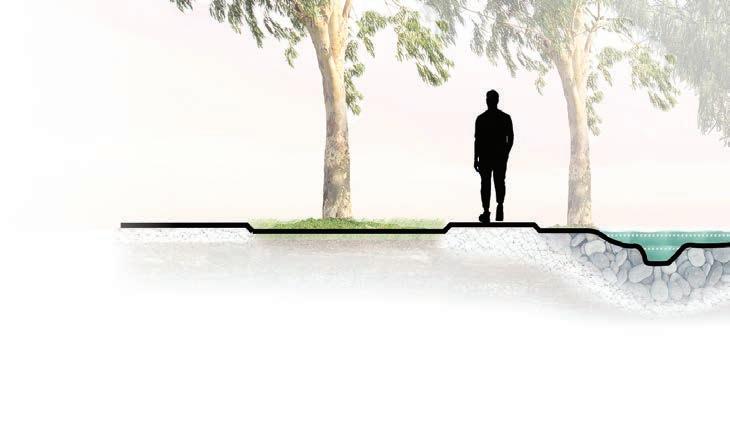

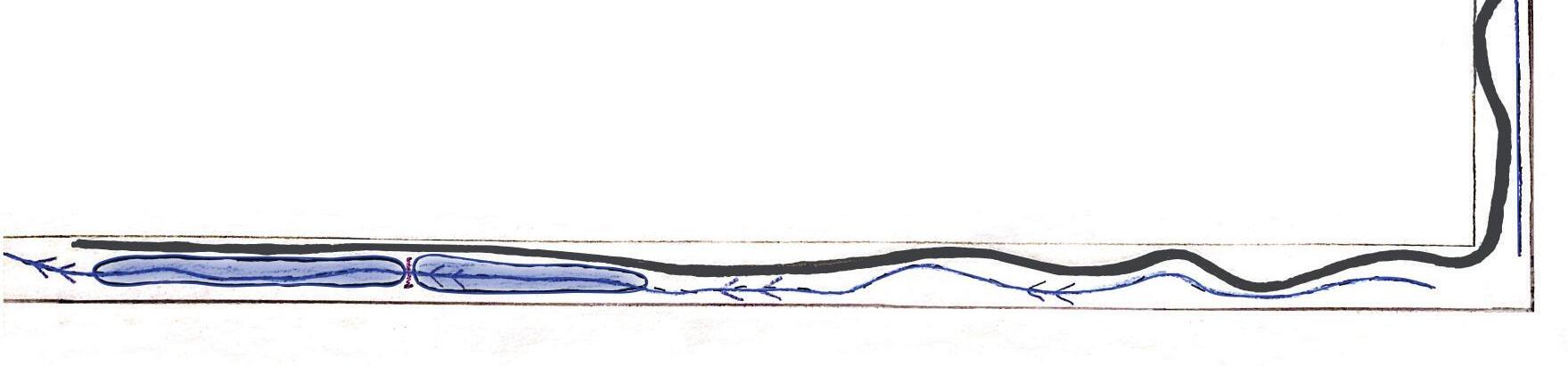

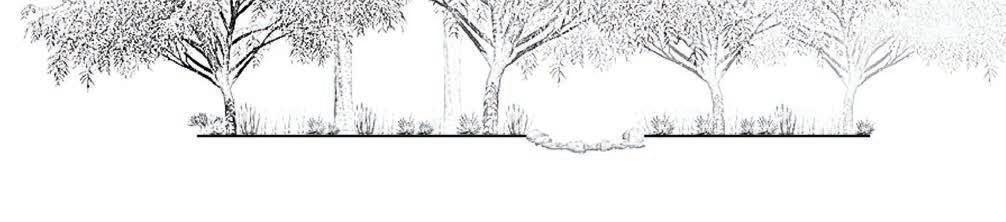

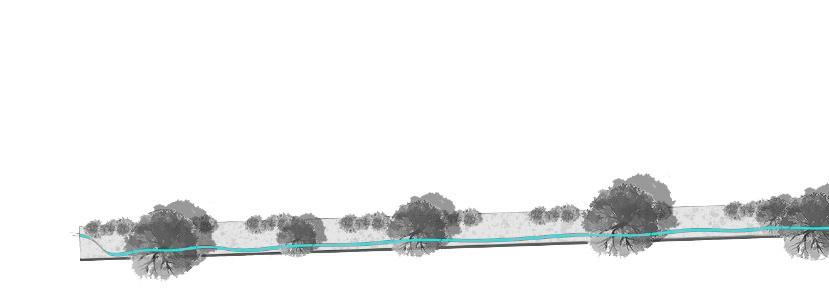

TucsRouken: Water

The parks center swale line has a slope of ~2% and winds throughout the site. Although the swale will usually not have water in it, monsoon runoff will be slowed down and directed across the park in an artistic fashion.

TucsRouken: Spaciousness

To help keep the site feeling spacious, the designers included numerous canopy level pine tree species. Although these types of trees usually do not thrive in Tucson, the amount of water at this site has allowed several existing pines to thrive.

TucsRouken: Panorama

The park should avoid placing tree trunks along key panoramic sight lines to keep the park feeling vast. The site uses contrasting, interwoven patches of soil, red gravel, and grass to provide a pleasant blend of textures and colors across sightlines.

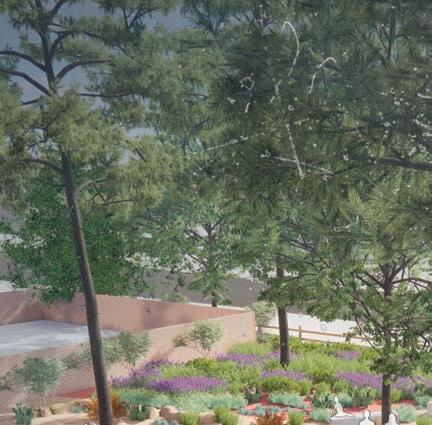

TucsRouken: Antiquity

The established pines are able to remain with the parks new design and lend an air of history to the site. These dramatic pines are both massive and healthy thus instantly setting the park as a dramatic forested escape from everyday life.

THE

EPHEMERAL

ESSENCE OF PLANT + PLACE

Krista Planinac

THE EPHEMERAL

ESSENCE OF PLANT + PLACE

Design Statement + Goals

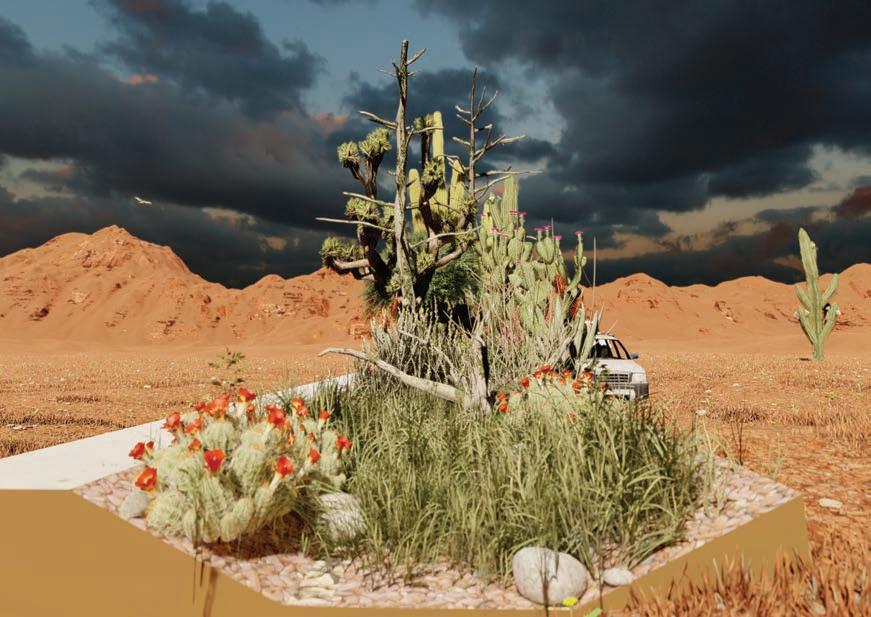

Plant and Place is a habitat garden in Tucson, Arizona, that transforms an obsolete park into a restorative and resilient landscapethat serves all forms of life. Using hyper-local plants that are climate adaptive, the design is intended to mimic the wild landscape of the desert. This is about flora, fauna and humans and how we connect to one another.

Provide an artistic representation of the regional landscape to an urban population

Create associations between locally found bird species to provide ecological benefits, including habitat structure and food provisioning throughout the year

Respect the plants by allowing them to make certain design decision and resist the determination to control them, regardless of the season

Krista Planinac

THE EPHEMERAL ESSENCE OF PLANT + PLACE

Materiality Study

Exploration of organic plant material and how colors, textures and forms move through time as it relates to the five seasons experienced in Tucson, Arizona.

late February - mid May May - early July mid July - early September September - November December - February

Krista Planinac

SPRING

SUMMER MONSOON

THE EPHEMERAL ESSENCE OF PLANT + PLACE

Seasonality Study

Exploration of plant palette that will exist within the designed site and how they move through time as it relates to the five seasons experienced in Tucson, Arizona.

Krista Planinac

THE EPHEMERAL ESSENCE OF PLANT + PLACE

Habitat Study

Exploration of the three habitats that will be found within the site. These habitats are specific to the region, with the plant palette for each taking inspiration from the Sonoran Desert.

Local bird species that find food, water, shelter and safe passage within each habitat were researched in an effort to accurately depict the relationships the flora and fauna have with one another.

BOSQUE

Krista Planinac

Canopy

mesquite, desert willow, catclaw acacia, Cooper’s Hawks, Red-tailed Hawks

Understory

shrubs, grasses, desert hackberry, microphyllous lowland plants, Broadbilled Hummingbirds, Vermilion Flycatchers

Shrub

beargrass, mountain yucca, sotol, fairy duster, bee bush, soaptree yucca, creosote bush, Lesser Goldfinches, Verdins, Lucy’s Warblers

Shrub

ocotillo, brittlebush, catclaw acacia, annuals, perennials, staghorn and jumping cholla, prickly pear, milkweed, desert globemallow, Gambel’s Quails, Hooded Orioles, Anna’s Hummingbirds, Cactus Wrens

THE EPHEMERAL ESSENCE OF PLANT + PLACE

DESERT GRASSLAND

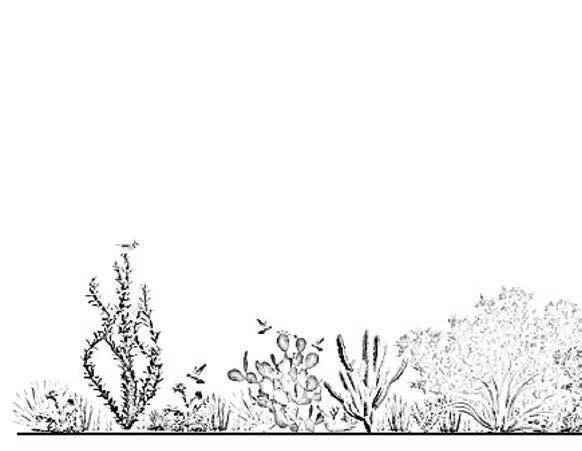

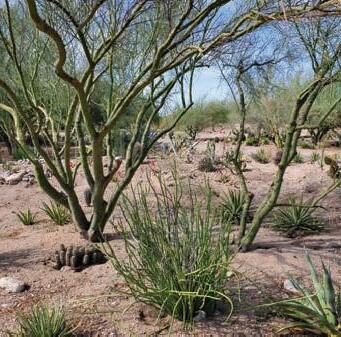

SONORAN DESERTSCRUB

Krista Planinac

THE EPHEMERAL ESSENCE OF PLANT + PLACE

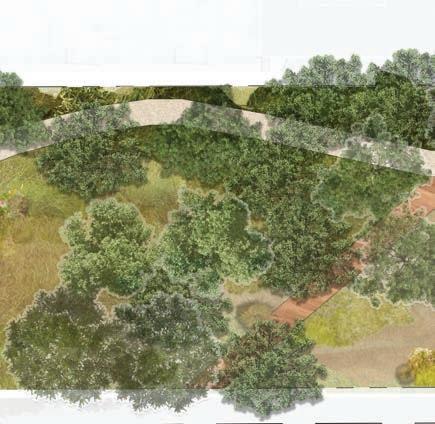

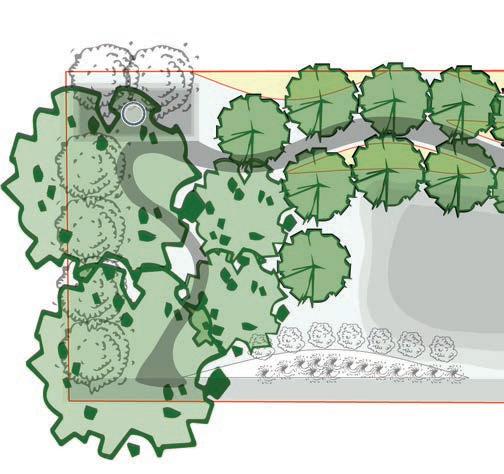

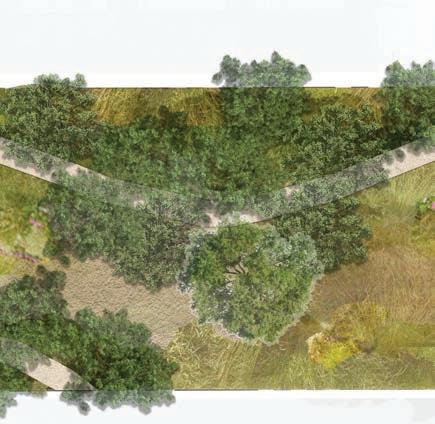

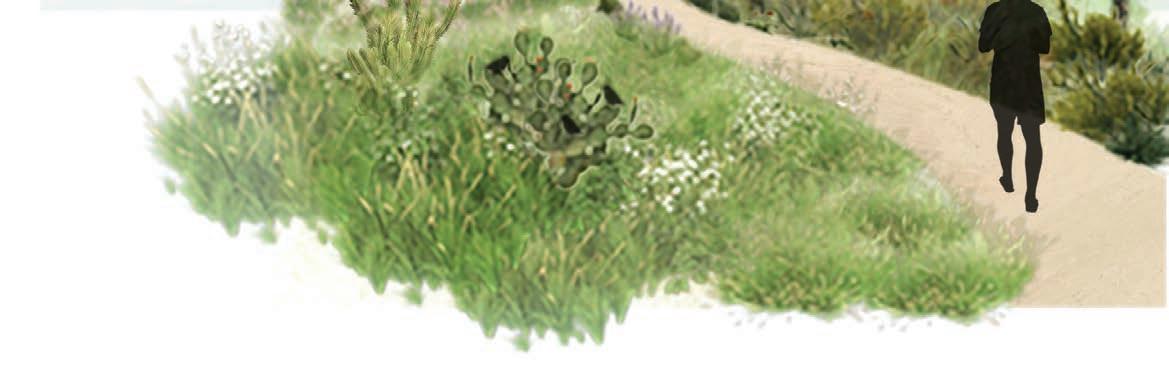

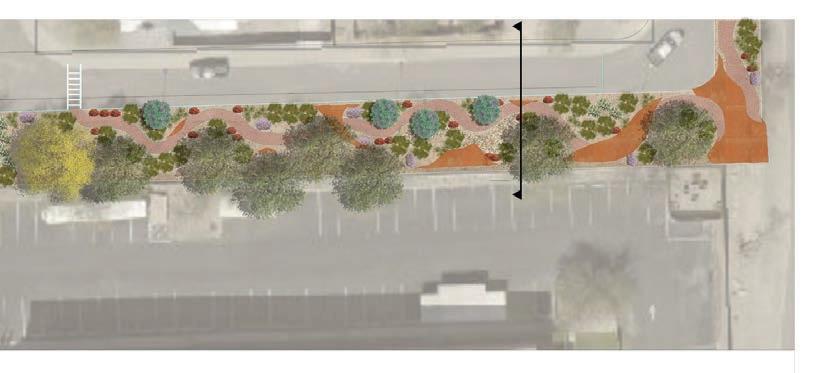

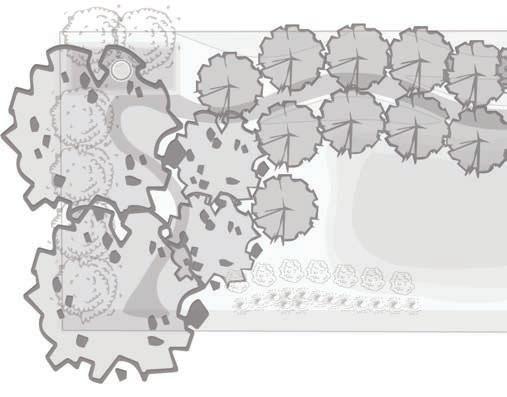

Plan

The designed plan for the site. The habitat plan is included to show where they take place within the park. These habitats are fluid, with edges naturally occurring throughout.

Krista Planinac

DESERT GRASSLAND

DESERT GRASSLAND BOSQUE

BOSQUE

SONORAN DESERTSCRUB

THE EPHEMERAL ESSENCE OF PLANT + PLACE

Krista Planinac

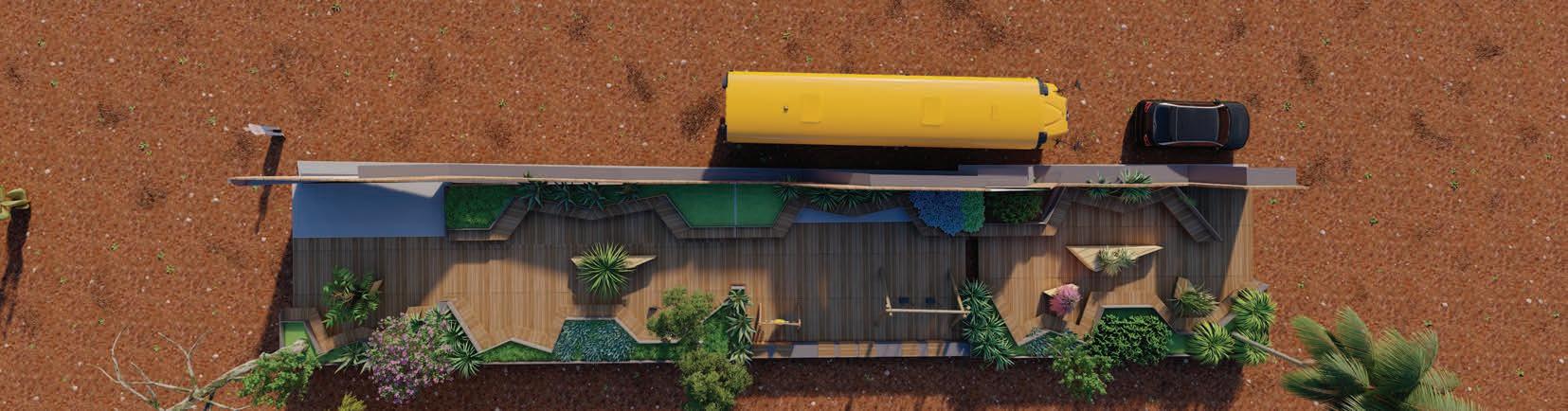

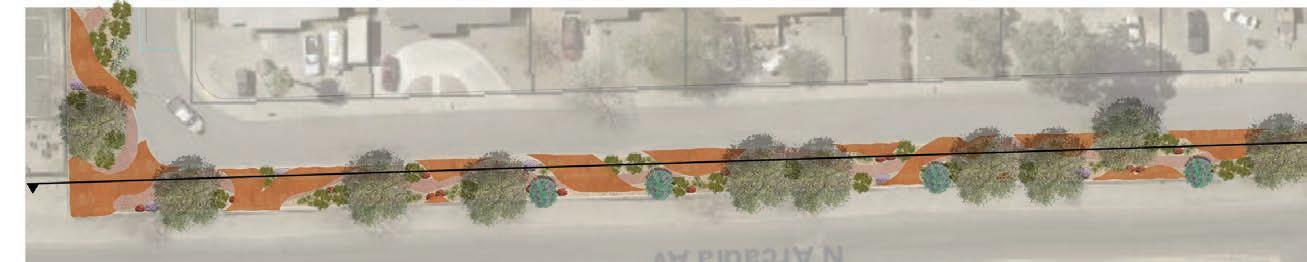

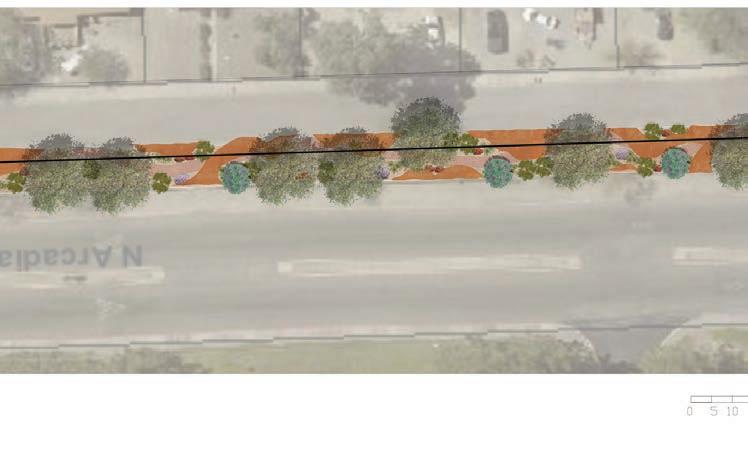

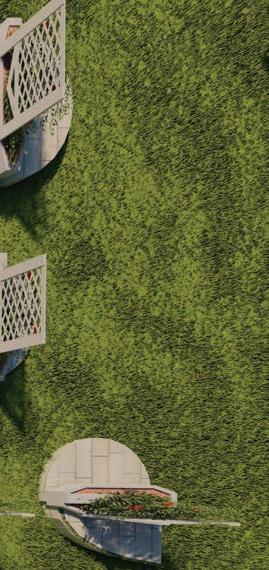

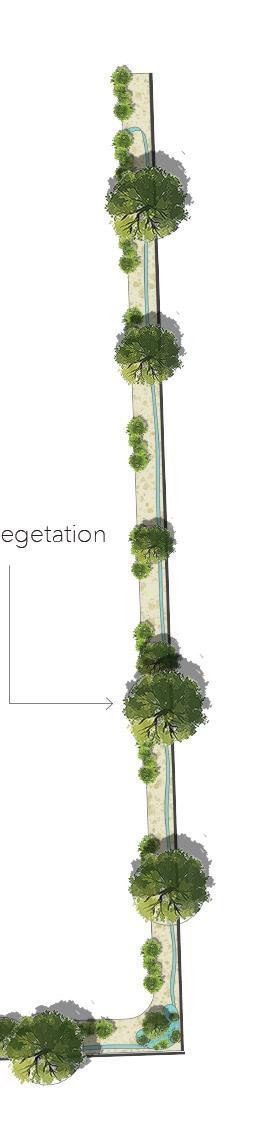

PARKLET PALETTE

DESIGNCONCEPT

Shiftingtheuseonsitethatiscurrentlyparallelparking,into alinearparkthatconnectsthespacetotheresidents,birds, stormwaterrunoffandhighschoolstudentsonsite.

FourParkletdesignsforfourdifferentusertypes.Whichforofadaptivestreetreusewillbeengagedwiththe most?Theseareshorttermproposalsforaudienceorientedparklets.Longtermadaptaptionsofthisproject wouldmakeuseofallstreetparkingonsitewiththemostdesireableparkletprogramming.

GOALS

DURABLELANDSCAPES

BIRDHABITAT

ADAPTIVEREUSE

FOSTERCOMMUNITYIDENTITY

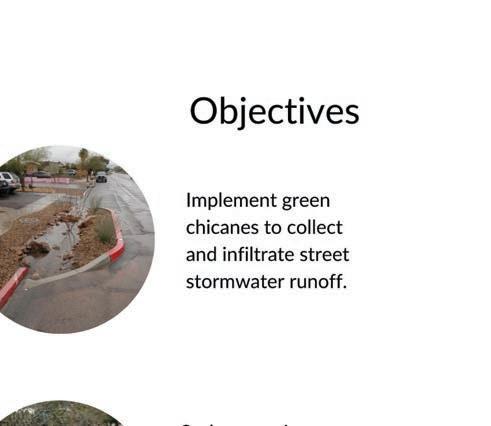

OBJECTIVES

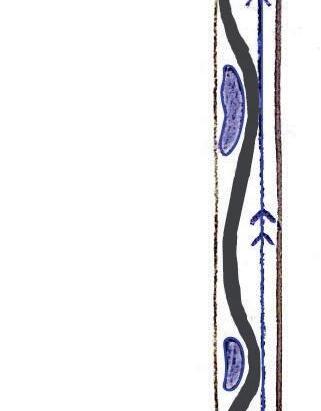

STORMWATERMANAGEMENT THROUGHCHICANES

READAPTUNUSEDSIDESTREEETINTONARROW PATHWAYHUGGEDWITHDENSEFOLIAGE

STREETADAPTATIONFORVARIEDUSES

SHIFTPEDESTRIANEXPERIENCEFROM SIDEWALKTOSHADEDLINEARPARK.

PHASE2WOULDEXPANDTHEMOSTENGAGEDWITH PARKLETACROSSTHESITE.

These areas were seleted on their oppurtunities that are within the expanded street widths. Readapting this impervious surface into engaging space, allows for more users of the space.

urbanism methods

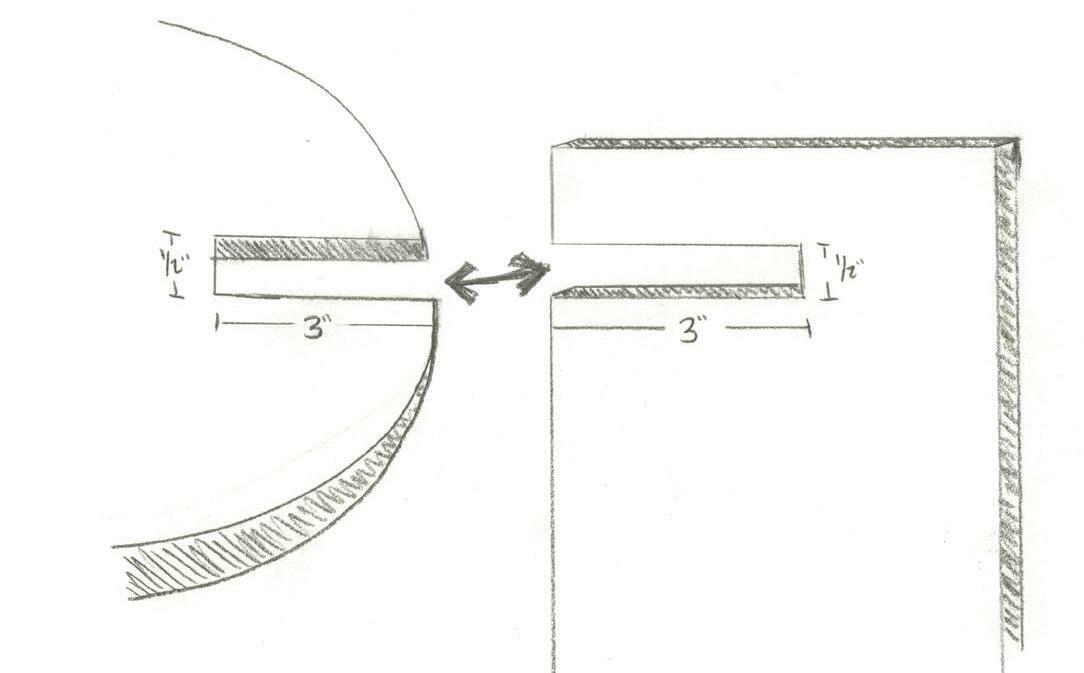

PARTI

THEPARTIISANABSTRACTEXPLORATION WITHFOURMATERIALSASA REPRESENTATIONOFMYGOALS.

OLIVELEAVES FABRIC

Likethemanythreads woventogethertoformt hisfabric,aneighborhood intertwinessocialand environmentalhistoryinto thefoundationofthesite.

Adurablelandscape canbereflectedina SonorandesertOlive Tree.Thesemature treesusealotofwaterto gaintheirlastingroots.

THREAD GLUE

Acommunityidentitycannot becheckedoffalist,the valuesandemotionsofthe residentsisunpredicable.Just asgluewaswhenitwas pouredoverthepiece.

Adaptivereusecompiles whatisexistinginto somethingnew,,justas threadsinchesadesired result.

USERGROUPS

BIRDS

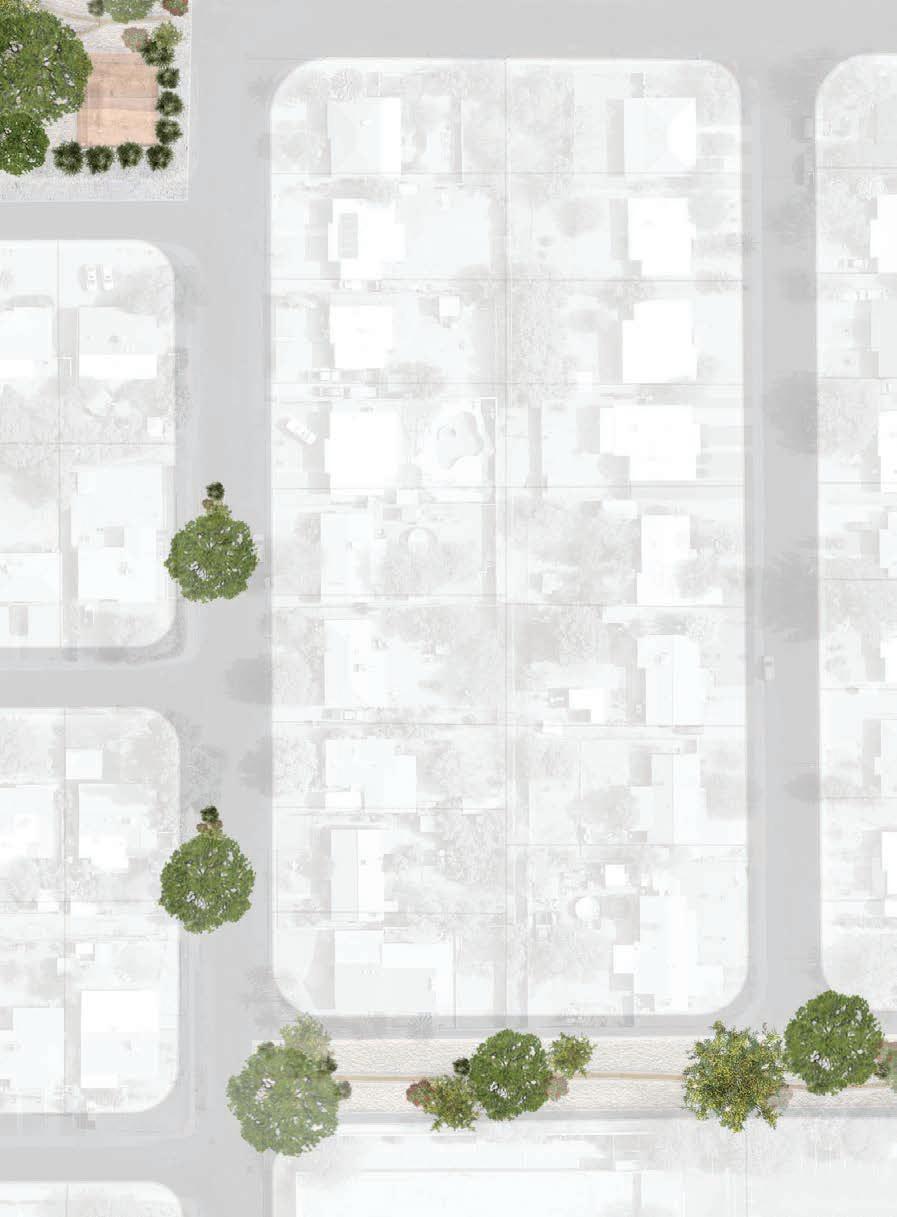

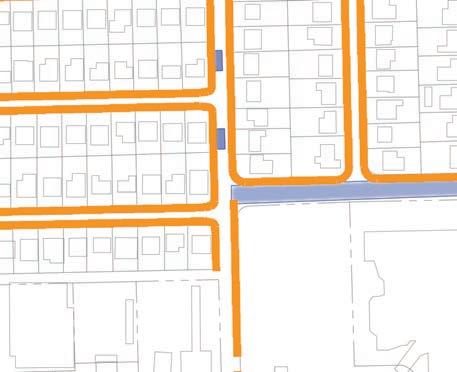

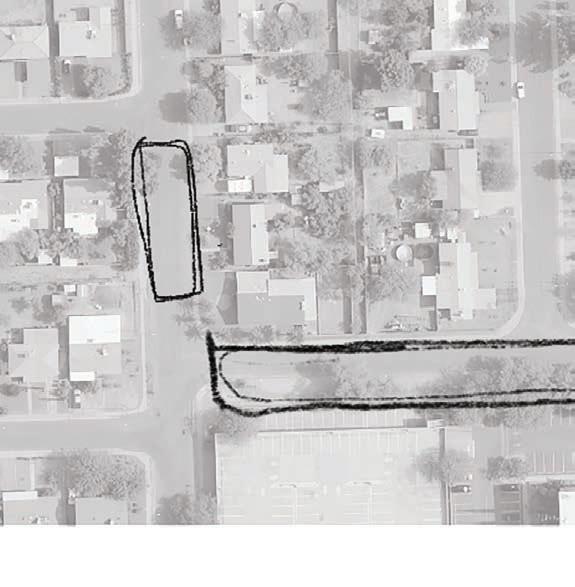

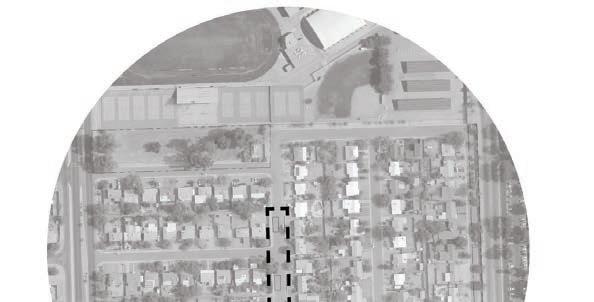

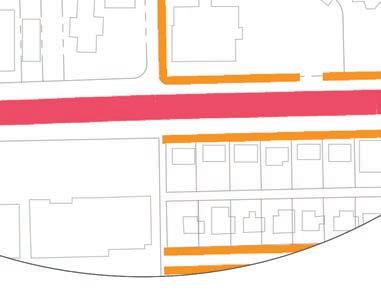

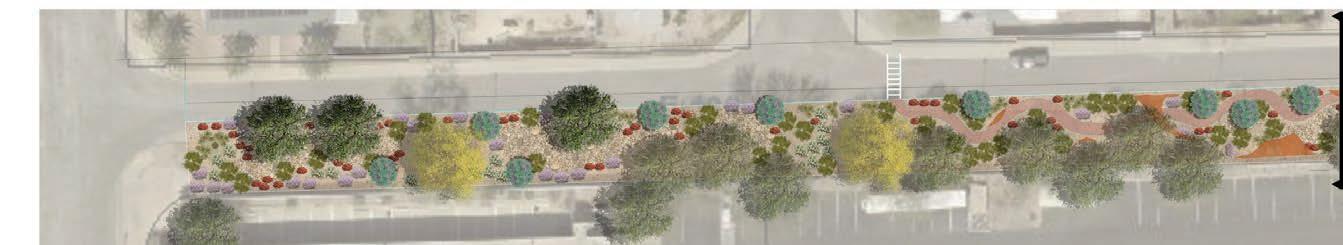

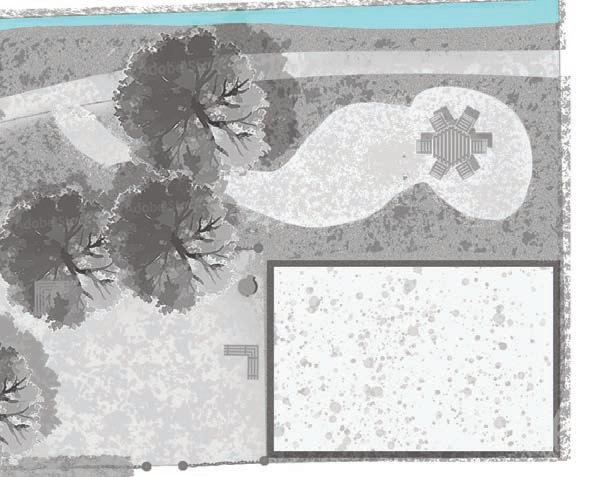

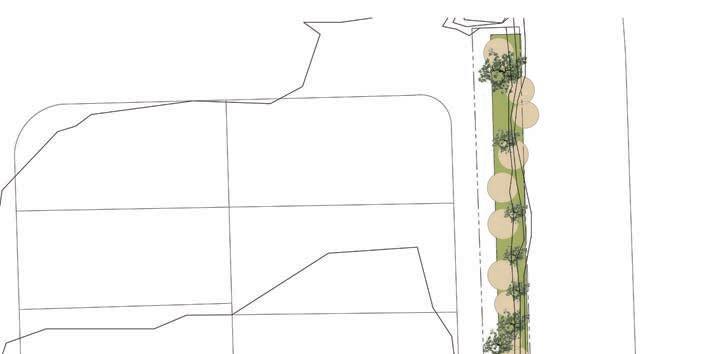

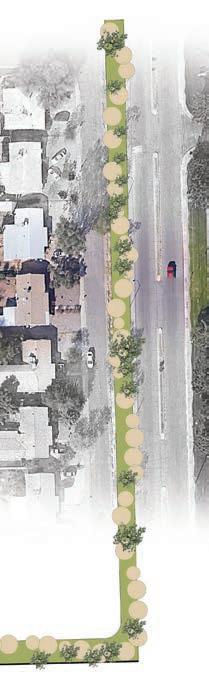

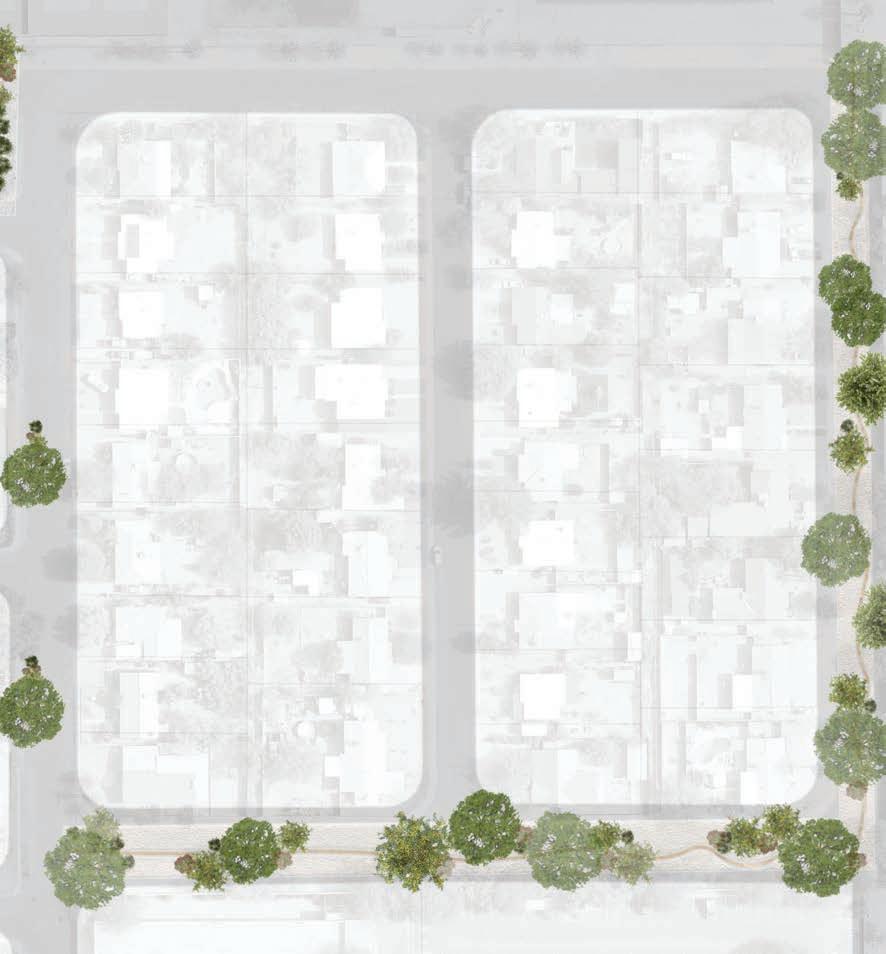

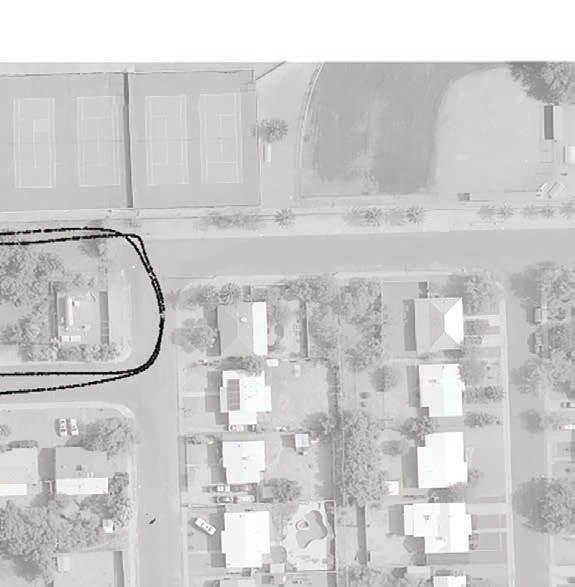

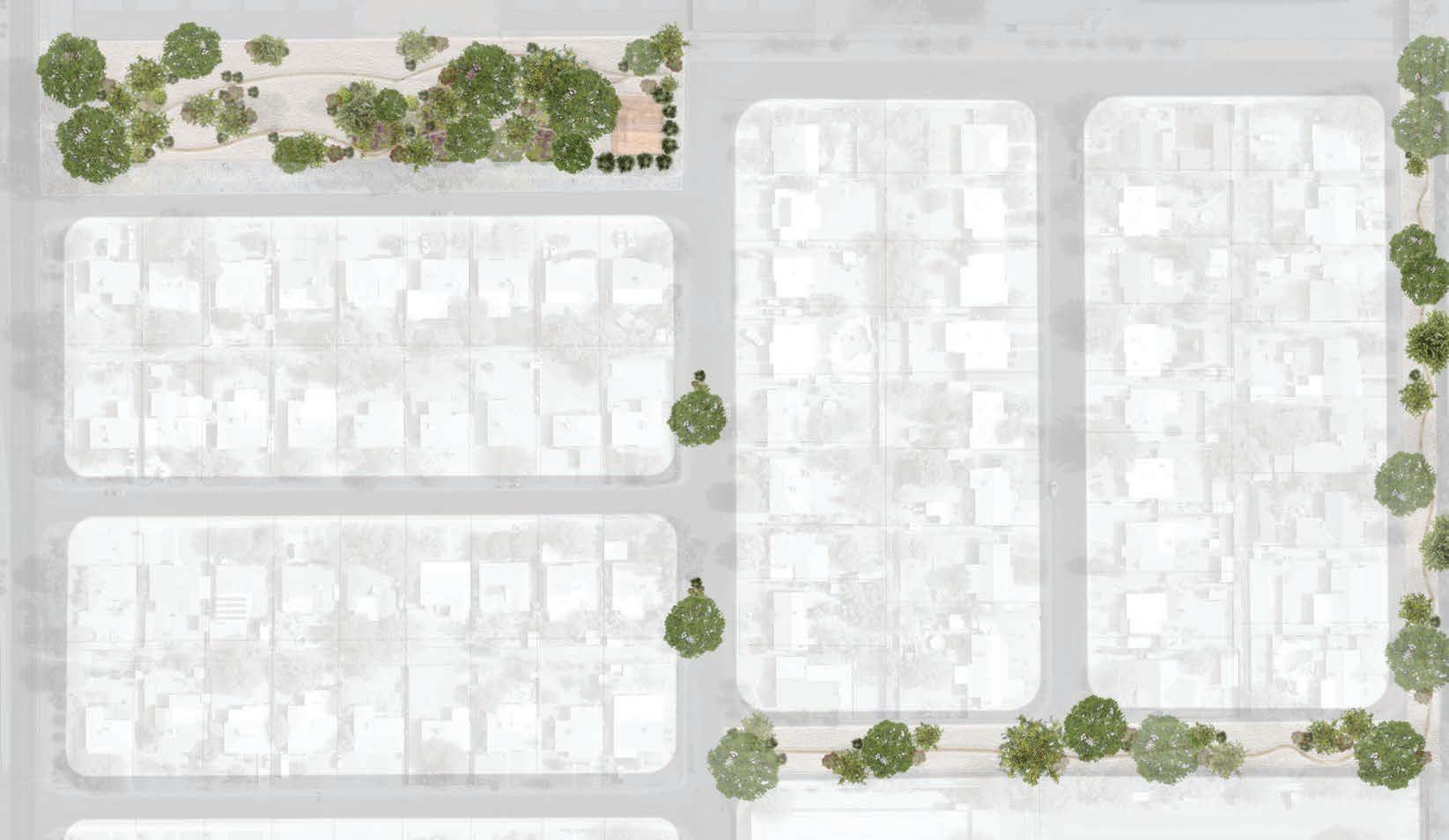

SIERRA ESTATES PARKLET PROPOSED LOCATIONS

D) BIRDS A) HIGH SCHOOL

HIGHSCHOOL STUDENTS

RESIDENTS, DOGS

RESIDENTS, YOUNG FAMILIES

Sierra Estate Neighborhood in Tucson, Arizona is conducting stormwater management, green infrastructure & environmental restoration within Burns Park. This Design focuses on the surrounding

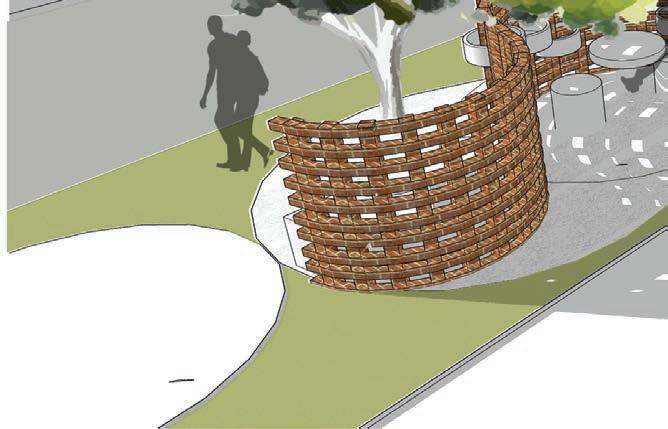

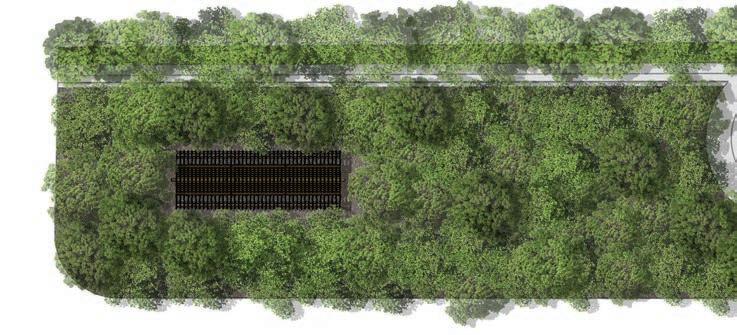

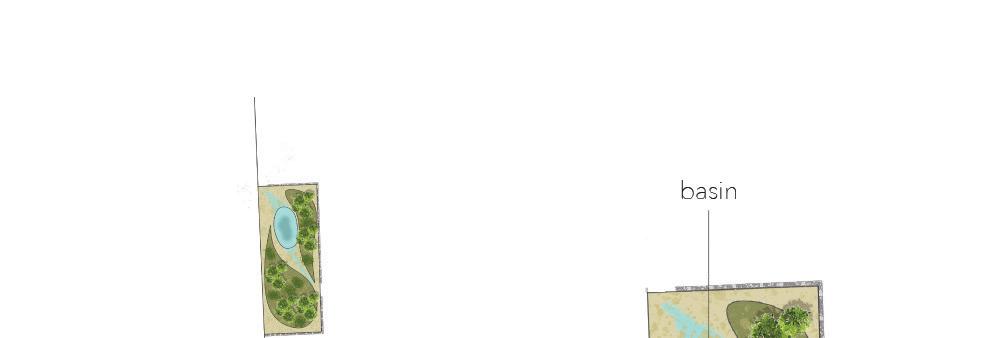

H20 & NESTING STYLE

The most simple parklet that is designed for the least amount of human engagement. Ornamental shurbs are within the planters in the surrounding parklets whereas cholla and wolfberry are within the water basins. This is to encourage bird nesting within a landscape that is clearly not for human interaction.

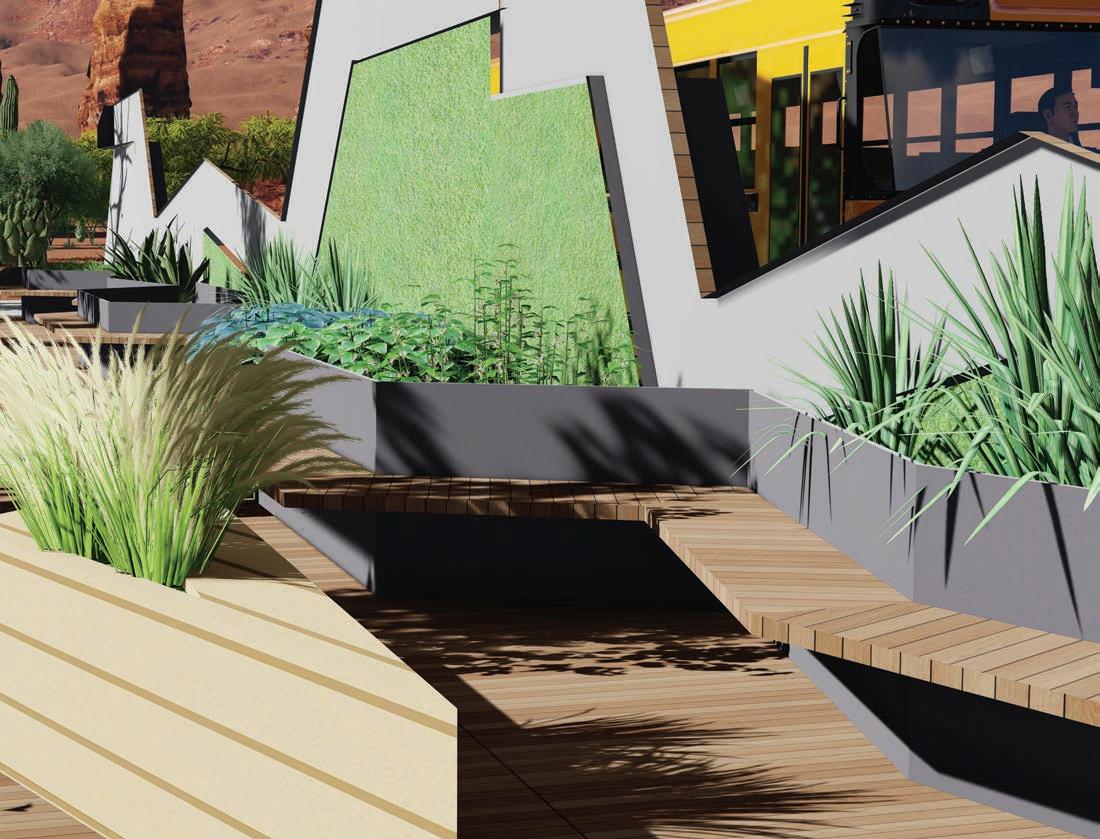

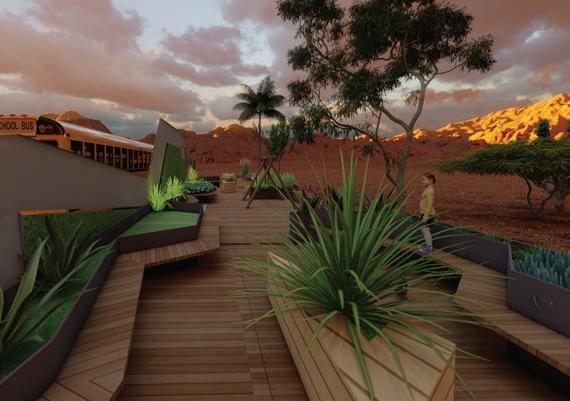

HIGH SCHOOL STYLE

SEATING OPTIONS

CHALKBOARD SHADING

University High and Rincon High exit from this South gate. Creating an area that has a choice of seating, ample shade as well as the oppurtunity to gather and see others is impotant.

REFERENCES, SOURCES & RECOMMENDED RESOURCES: dipitem delesseditam ut mo con cullentur? Lestrup tatiame

NATIVE PLANTINGS

Nativepollinator landscapingto increasechildren's exposuretoinsects.

Widewalkways forstrollers

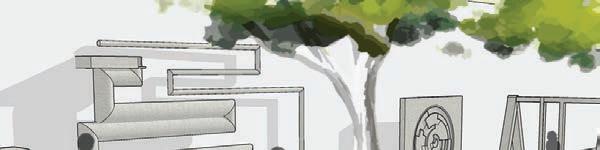

Playsetforyoungchildren. Therearebenchesforadults tositbehindswingand pushtheirchildren.

Young families are a priority within Sierra Estates, a small playset is included on the East side. The other half of the parklet is a planter lined walking path with dense foliage for bird nesting oppurtunities.

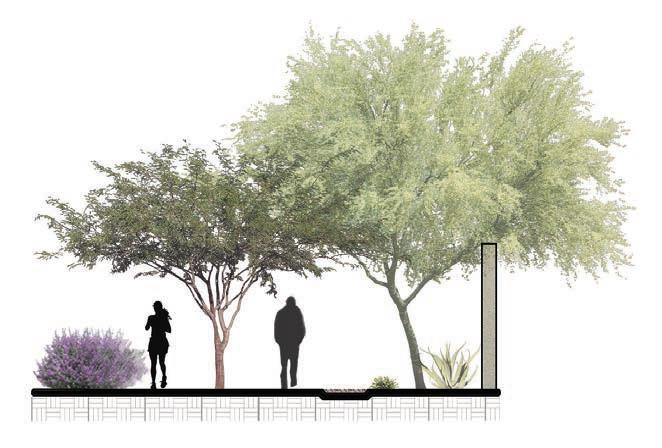

SITE SECTION

Widewalkways forstrollers

Allplantershave builtinbenches toincrease community assembly

Playsetforyoungchildren. Therearebenchesforadults tositbehindswingand pushtheirchildren.

Nativepollinator landscapingto increasechildren's exposuretoinsects.

Walltoseparate childrenfrom cars.

15’-4”

PLAYSET

WOODEN BENCHES

DOG GATHERING STYLE

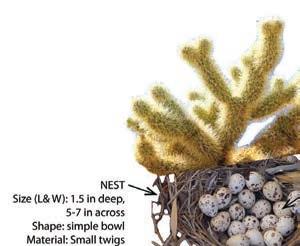

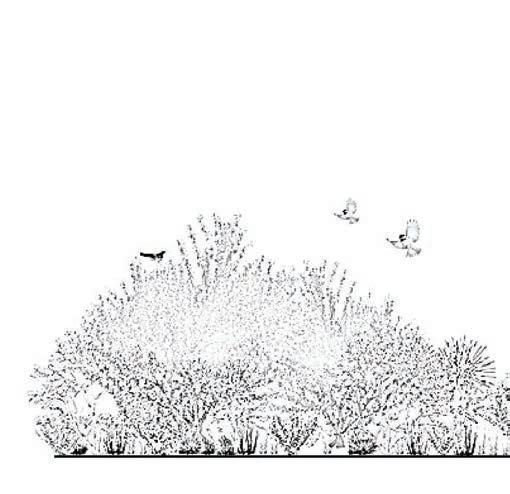

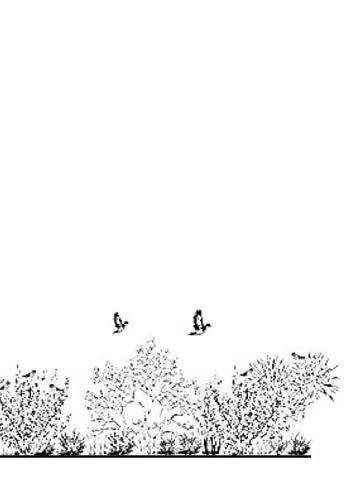

Many Sonoran birds nest 2’-5’ off the ground in dense foliage. It is important to dedicate the main nesting zones away from the dogs. A gated unleashing zone is oriented on the South side of Sierra Estates.

SITE SECTION

Benches

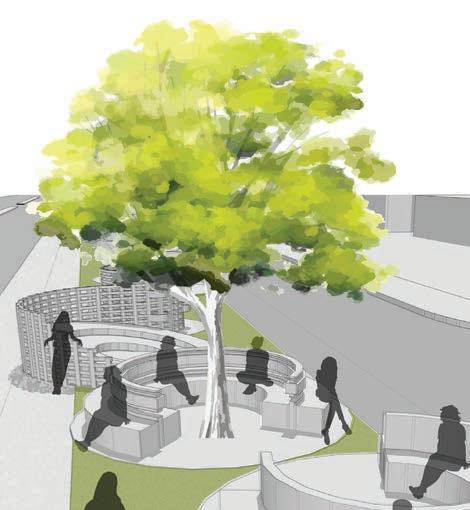

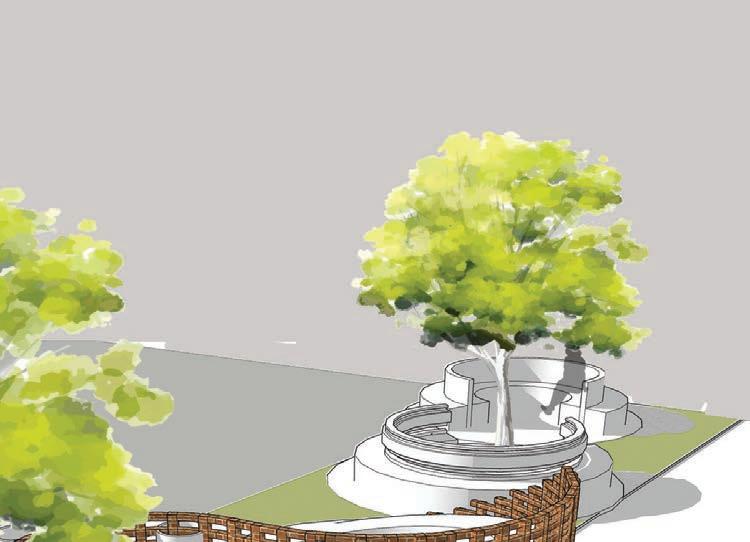

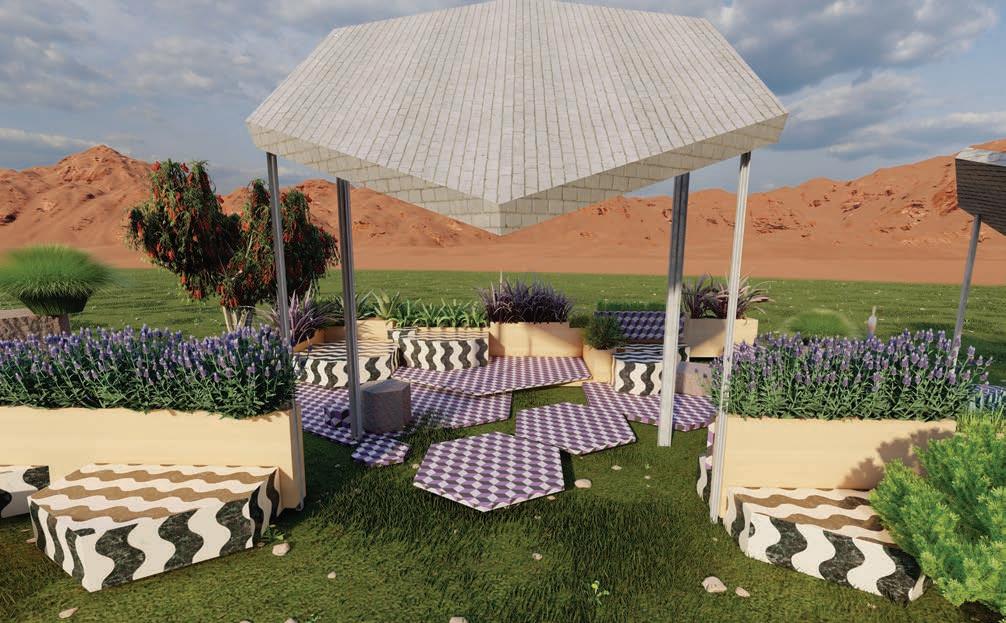

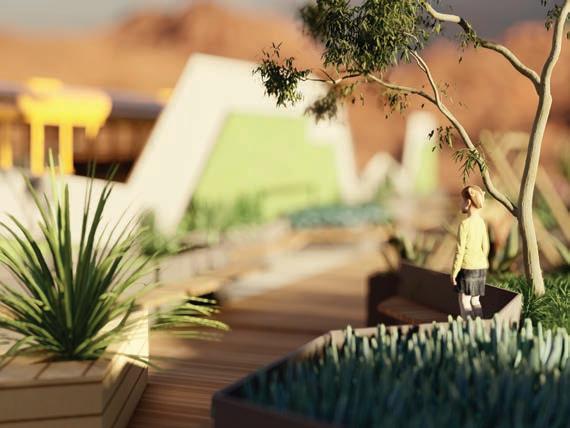

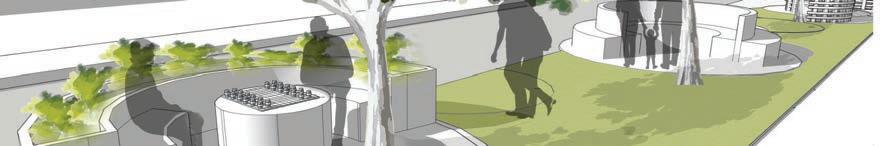

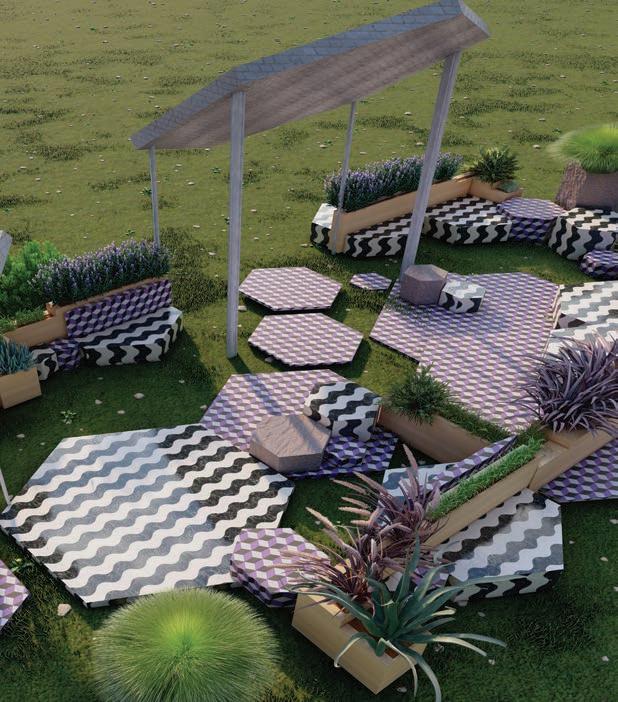

PERSPECTIVE VIEWS

DOG GATHERING STYLE

HIGH SCHOOL STYLE

PERSPECTIVE

BIRD STYLE

RESIDENT STYLE

AN ABRUPT PAUSE

BY CORDELL LEE

Design Statement and Parti

The philosophical consequences of ones reaction to what is natural and what is artificial depending on the organism, invoked a need to conceptualize the history of humans effects on nature through lifetimes by creating a sustainable site with two distinct areas where two organisms can further observe each others homes and their effects on them, which in this instance, are birds and people.

As a reader, the inspiration for this park concept came from the book “A Psalm for the Wild Built” (by Becky Chambers), where in this dystopian future, humans owns creations revolt against them and a peace is made between the species with the agreement that they would live in the wilderness beyond the bounds of human design. The idea of even our own creations longing to return to that of which is natural, inspired a vision for this park that would allow for birds and people to respect and enjoy each others company in distinct areas of the park. Stormwater management, as well as natural flourishing habitats for birds will be focal points in this poetic take on humans nature to leave with more than what we need.

Goals

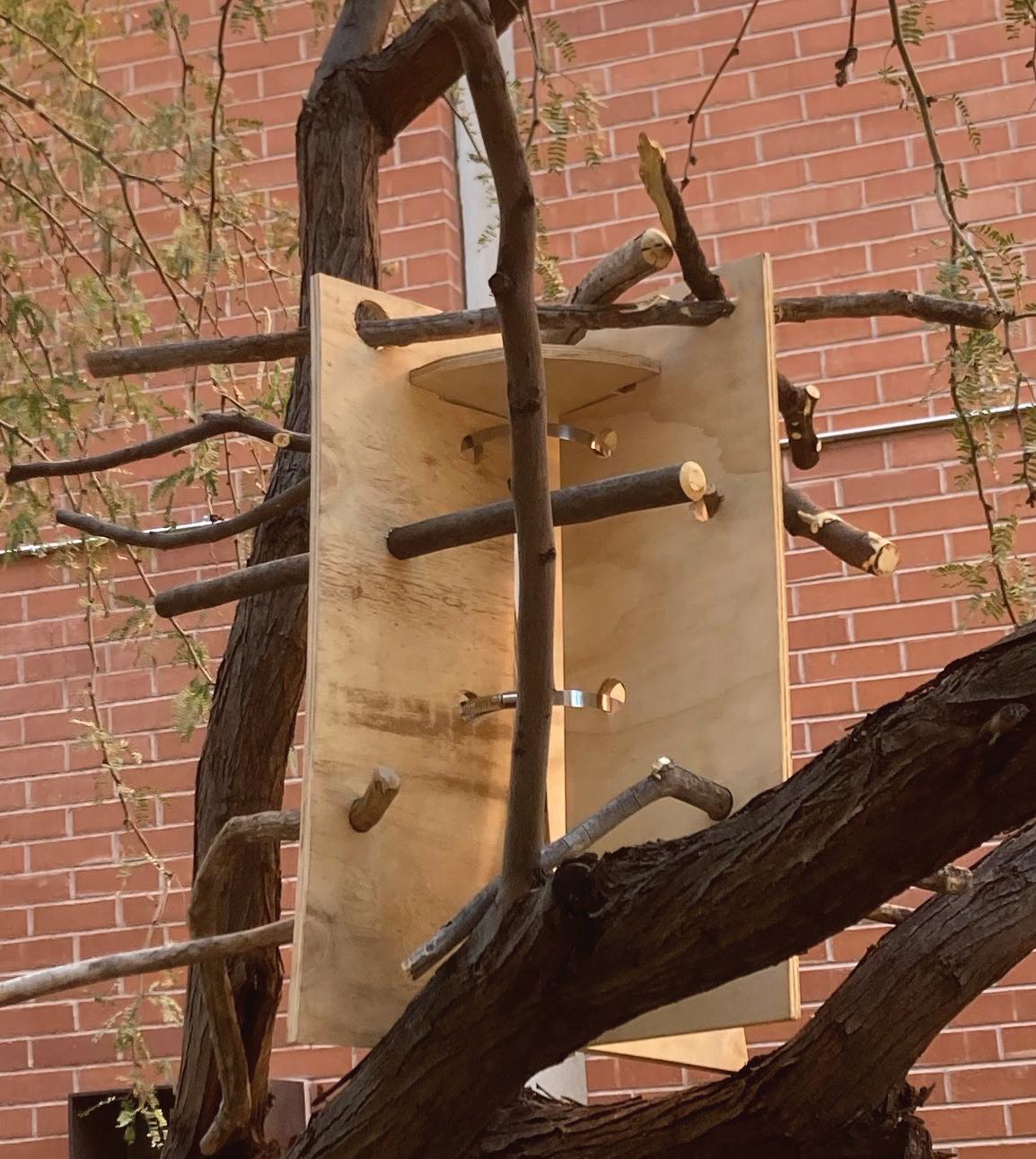

1. Create an abundance of available homes for birds through the use of dense vegetation for wildlife, and in turn, create a unique experience where both humans and wildlife can co-exist in peace and abundance.

2. Create a moderate-strong transition between hardscape and softscape to give the users either the opportunity to surround themselves with a more urban environment, or a more earth rooted environment.

3. Manage flooding on site through the use of different ground materials as well as implementing stormwater management strategies that would benefit both the people and the birds within the park.

4. Despite both areas being clear with their intentional use (one for activities, one for serenity), a subtle need for peace and relaxation will be naturally implemented through various activity spaces.

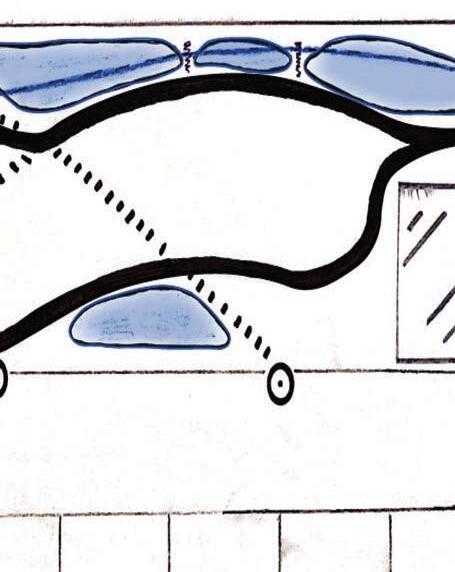

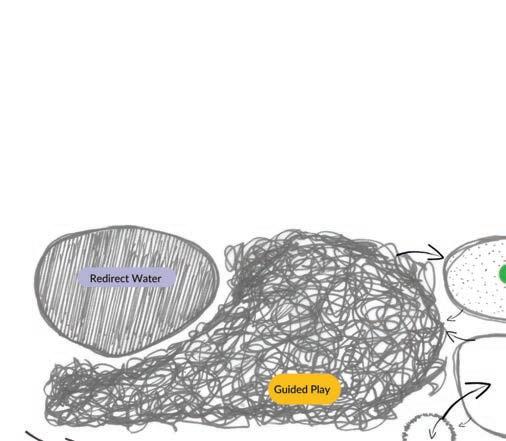

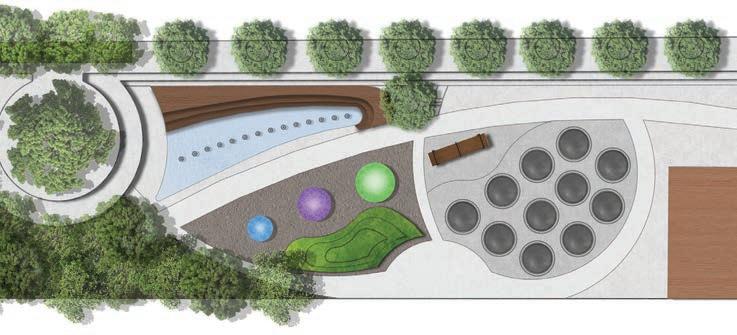

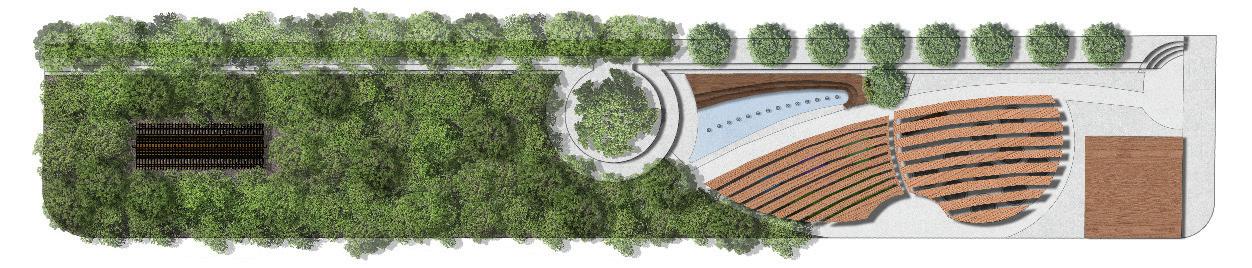

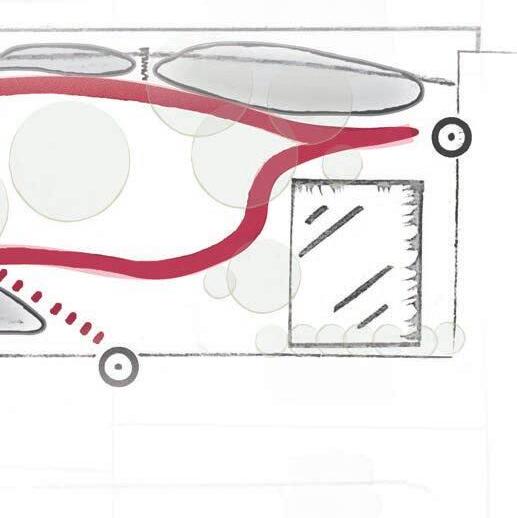

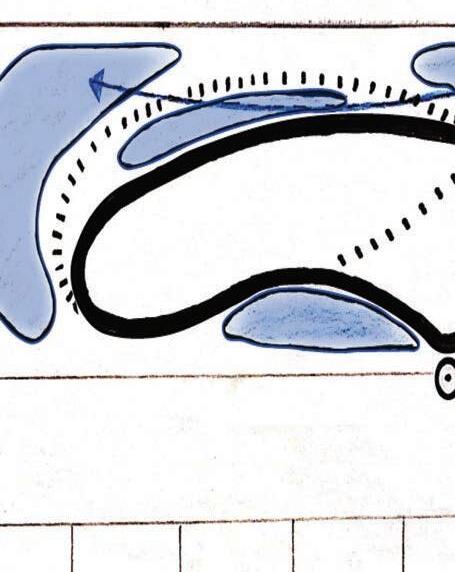

Site Plan Concept

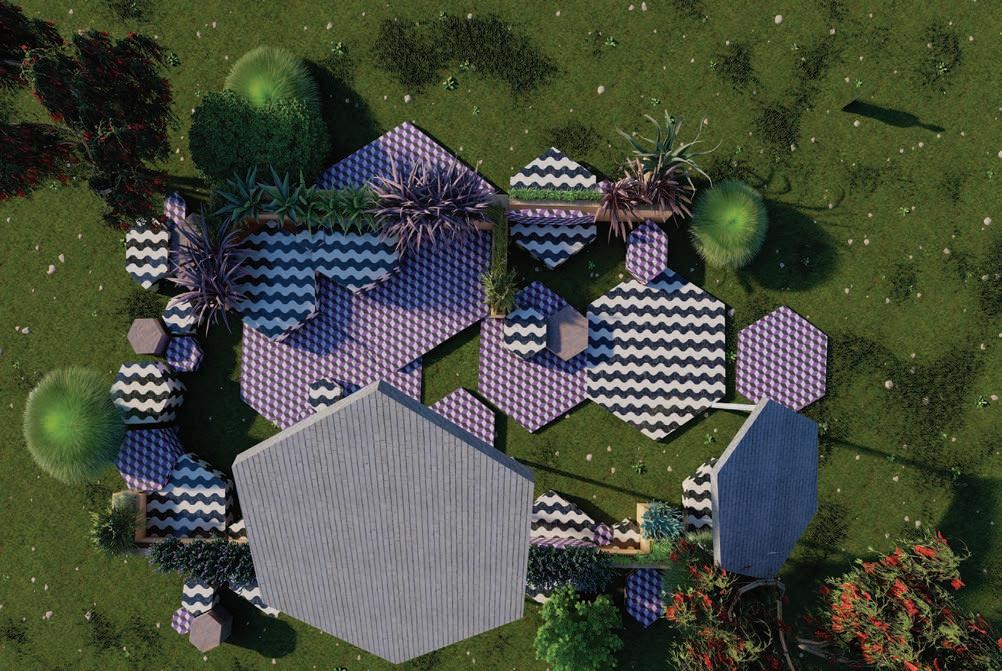

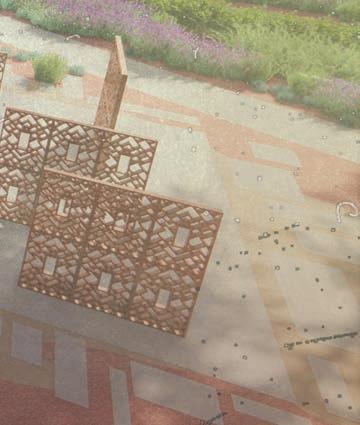

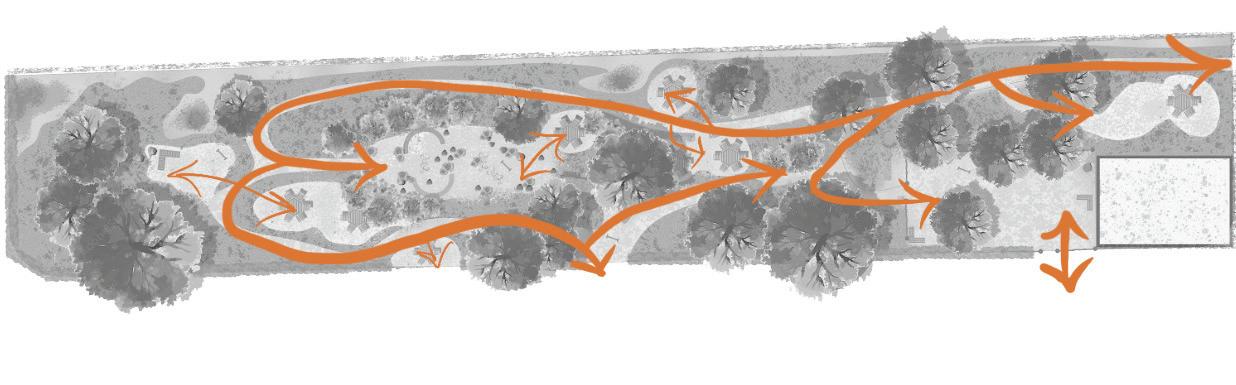

The plans below shows the programs underneath the shaded areas, and what it would look like with the shade overhead:

walking

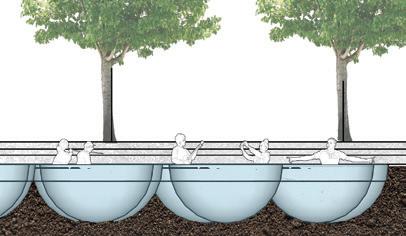

Seating steps and splash pad area

Seating/library reading area

An abundance of vegetation as well as hardscapes allow both organisms to thrive in their respective or others habitats with ease and minimal discomfort due to placement of each others species in subtle places.

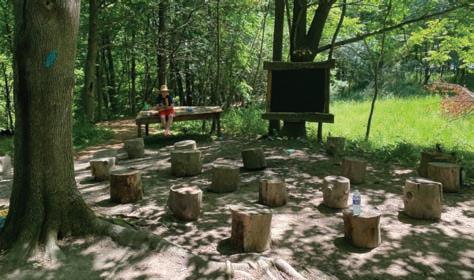

Shaded gathering space Passive “forest” trail

Steps and

trail Main plaza

Playground

Smaller plaza

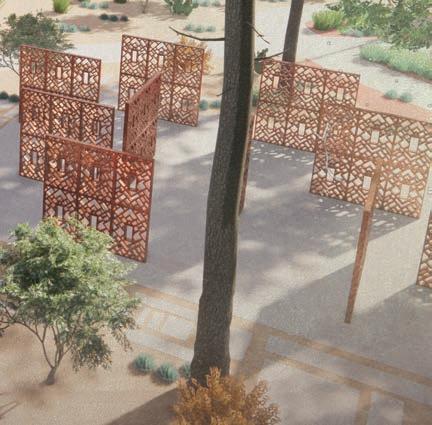

Hardscape shades

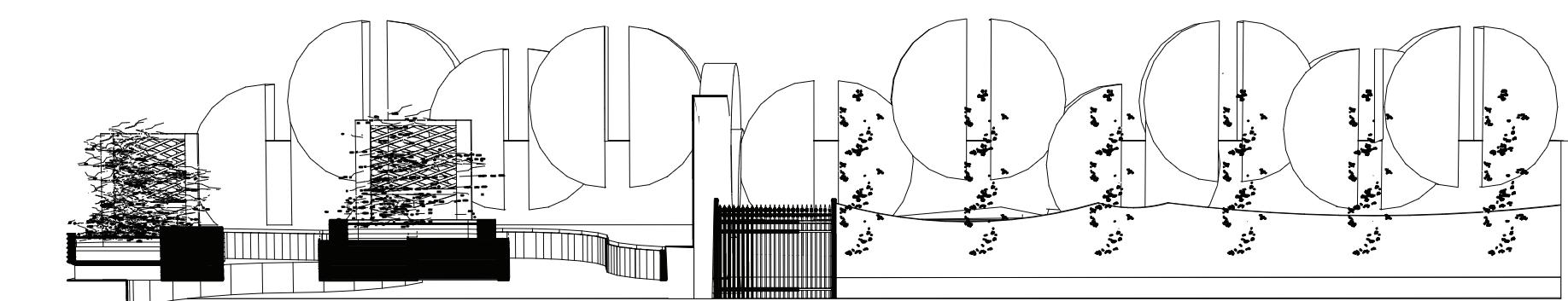

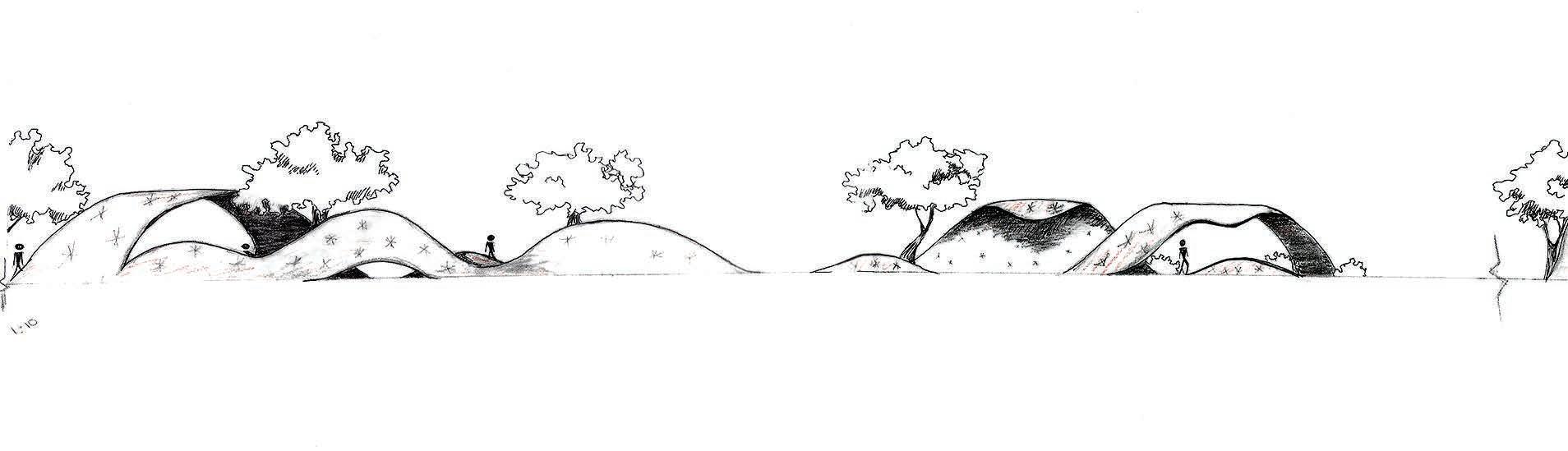

A A Section A Description:

This section shows that the back of the park looks like towards the left area. Here people are able to walk along the stair path that is elevated from the ground, and can also witness the wildlife that is occuring throughout the site at ease and at their own pace.

Section B Description:

This section is within the same path however now includes a look at the plaza. The placement of the plaza here was purposefully done so people using the park could meet and commune with each other in a densely vegetated area whilst also being able to witness their children play in the splash pad or playground.

C C Section C Description:

This section now shows the end place of this path where the smaller plaza is located. Here, people can talk and play whilst enjoying the scenery.

Section D Description:

In this section, we are in the heart of the “forest” area where all paths are passive and completely free to choose from. Here, people make their won paths, and they can enjoy the daily life and habits of birds occupying this space.

Section E Description:

In this section, I wanted to show why the name of this park is given its name. The transition from forestry to man made is not smooth, but instead ‘abrupt’ and clean.

Section E Description:

And lastly, in this section, we can see the use of the shade structure as well as the library it supports below. These seating areas are dips that can also be used to evenly spread rainwater out in the soil if it were to rain on site.

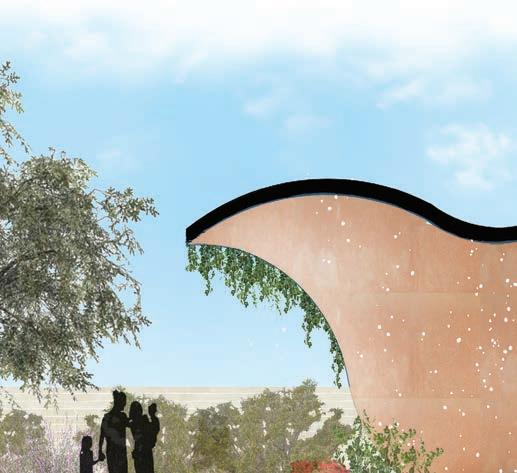

And lastly, with this perspective, we can see how abundant the vegetation would be within the “forestry” area. Here, people will be able to be in the heart of the wildlife space where they can be surrounded by the sound and visual cues of the wildlife present.

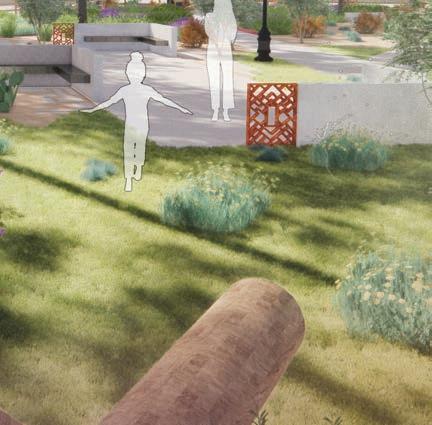

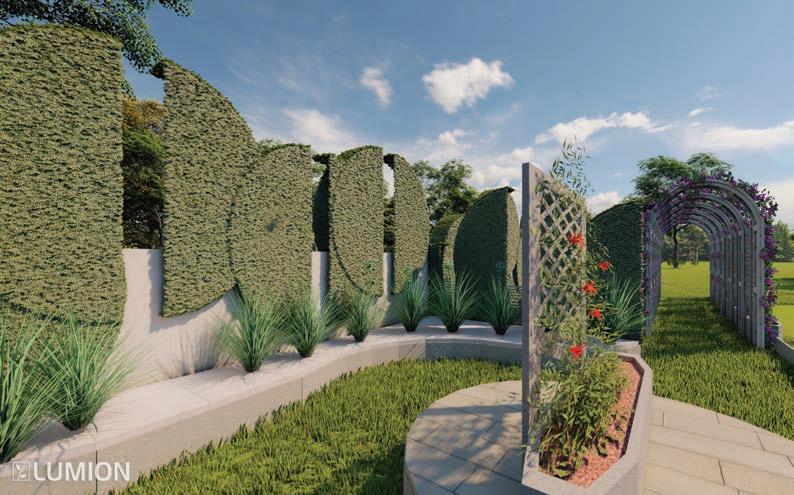

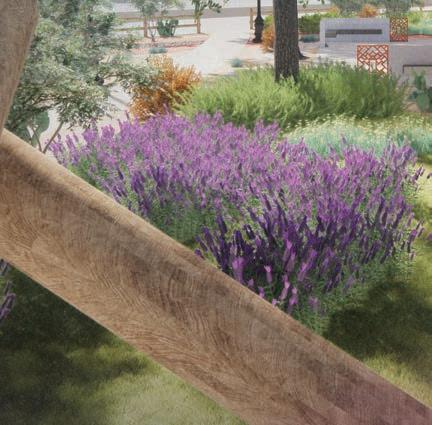

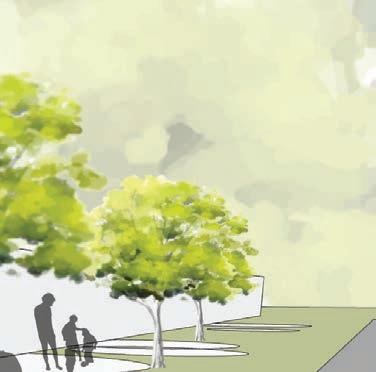

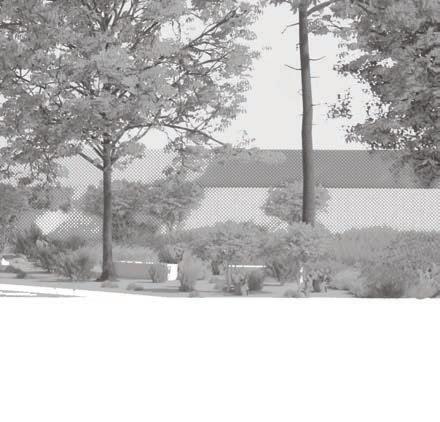

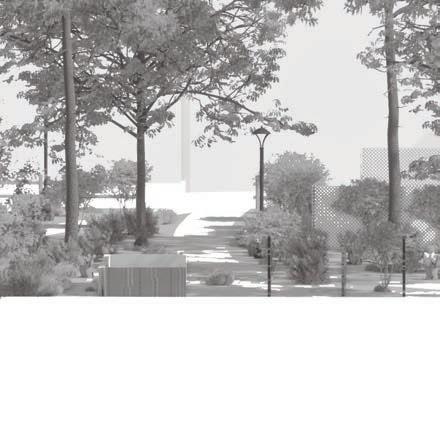

Perspective 1

The

THE PASSAGE OF FLIGHT

By Oscar Rodriguez Ponce

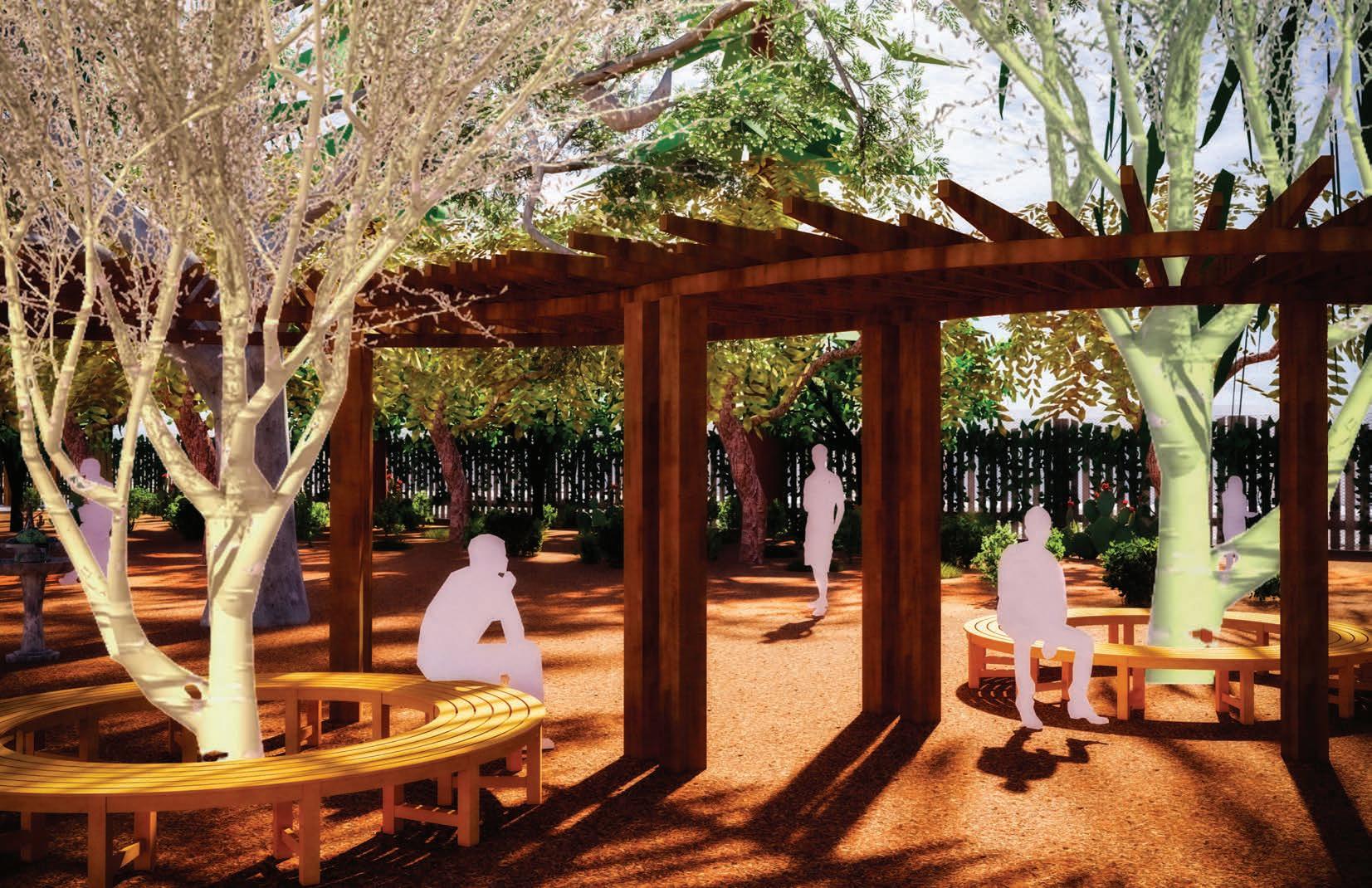

View of Songbird Habitat and rest area in a peaceful morning

THE PASSAGE OF FLIGHT

By Oscar Rodriguez Ponce

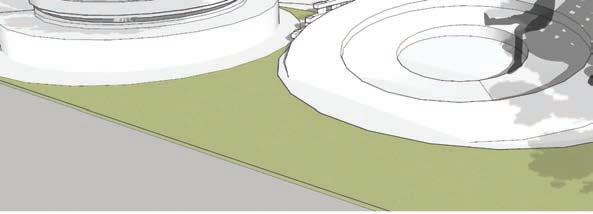

Design Statement & Concept

Inspired by the symbolism of circles and bird’s overlapping habitats and interactions, this research-driven design reactivates Burns Park as a haven for our native birds and a treasure for all wildlife lovers. The redesigned park and streetscape provide functional and captivating spaces for people to enjoy while allowing birds to thrive and coexist with visitors, establishing new standards for nature-based community spaces that utilize sustainable design principles and elements.

BIRDS OF PREY

GROUND DWELLERS

MIGRATORY BIRDS

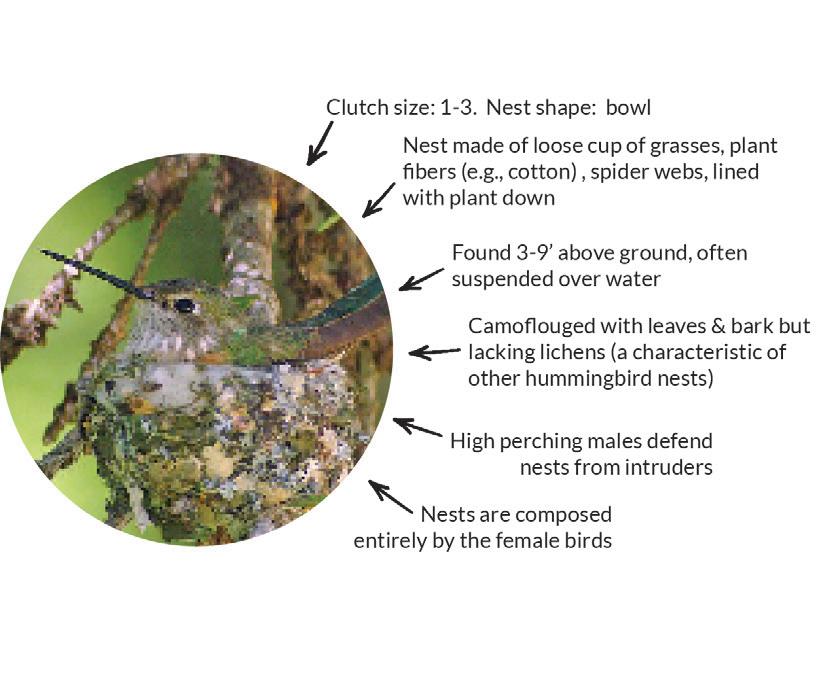

HUMMINGBIRDS

CACTUS DWELLERS

SONGBIRDS

GOALS

1. Create and preserve habitat for a variety of native bird species and allow for nourishing human-wildlife interactions

2. Utilize Green Stormwater Infrastructure to address flooding issues, beautify the streetscape, and support native vegetation for bird habitat and human comfort in the park

3. Creatively utilize Sonoran & Chihuahuan Desert plants to make distinctive habitat zones that are both aesthetically pleasing and ecologically valuable

THE PASSAGE OF FLIGHT

By Oscar Rodriguez Ponce

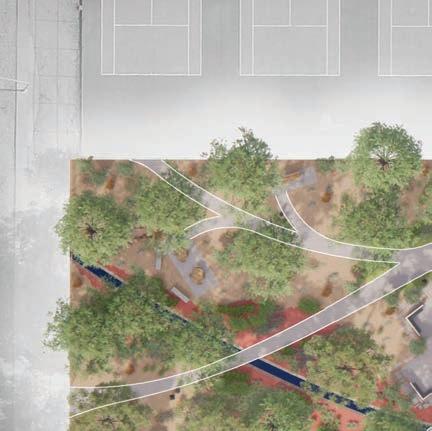

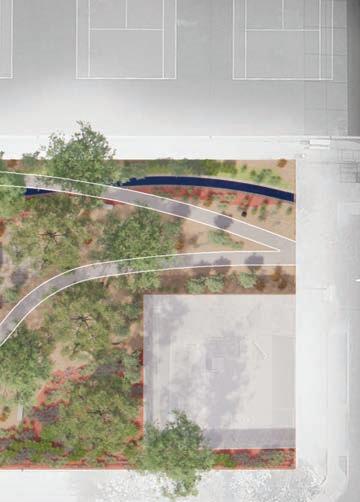

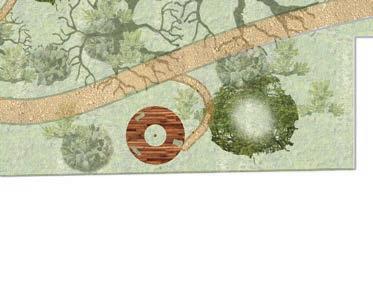

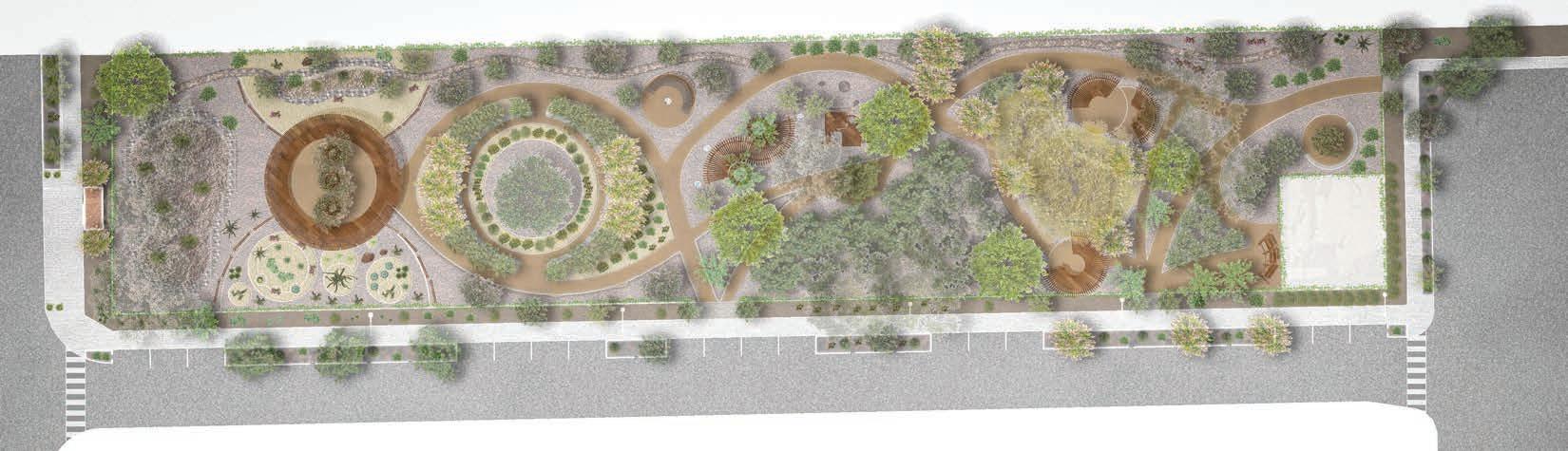

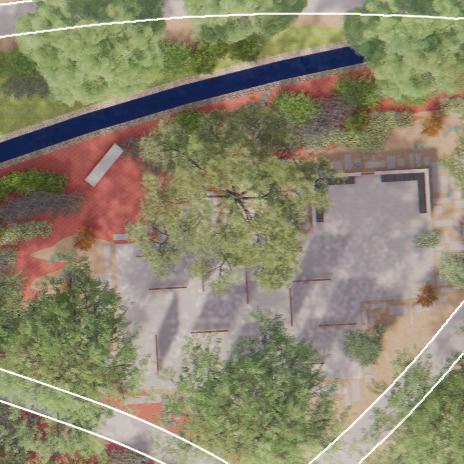

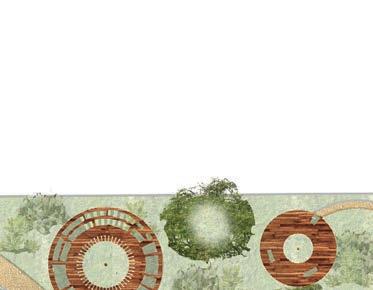

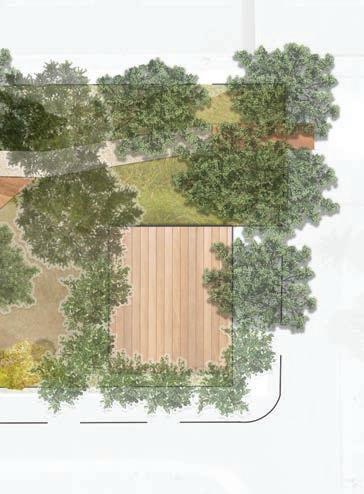

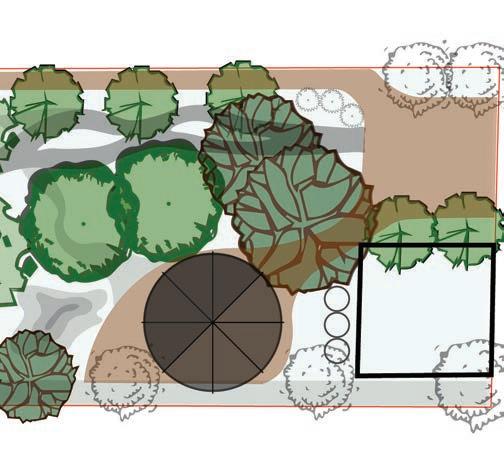

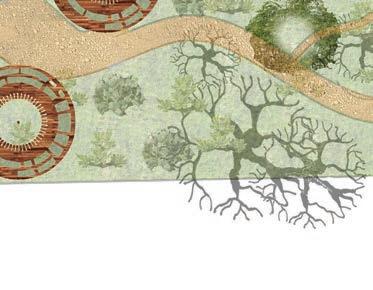

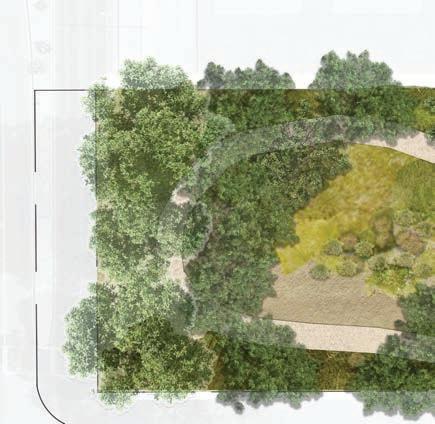

Illustrated Plan & Diagrams

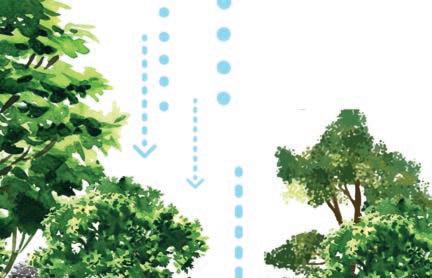

Stormwater Management Diagram

As an integral part of the design, stormwater runoff is collected along the sidewalk and inside the park to support native vegetation and work as a resource to birds.

Bird

Habitats are placed and designed based on vegetation type, presence of water, and bird behavior. One example being the hummingbird habitat, the only one that is fully open to people due to their social nature.

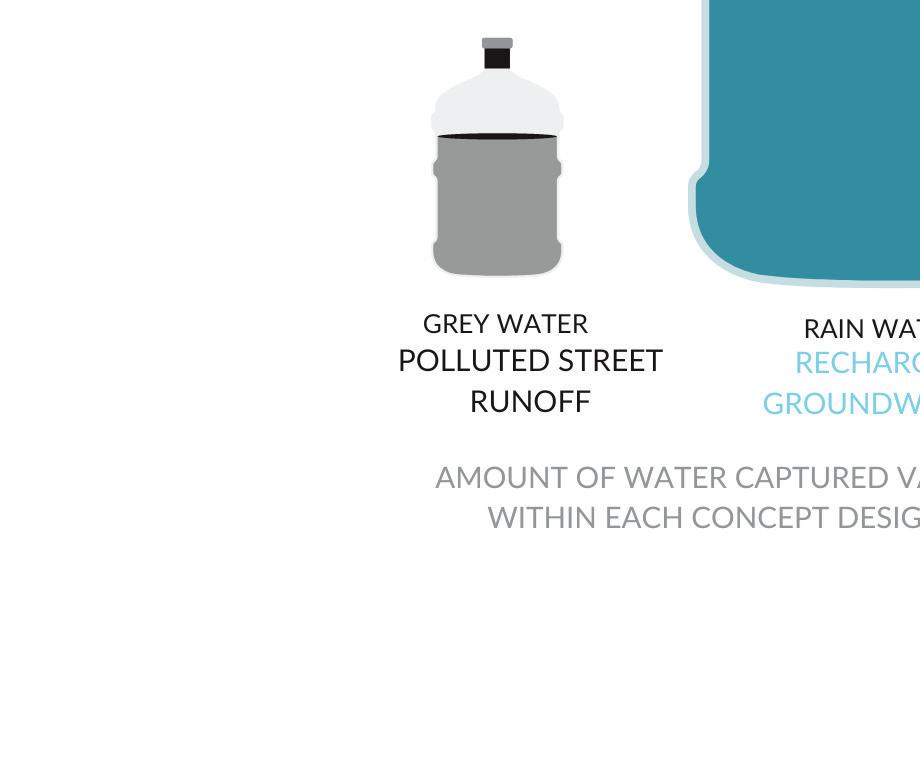

Proposed total capture of 28,800 gallons of stormwater runoff, up to 576,000 gallons in a year with average rainfall.

Most species jump between habitats as needed. Edge plantings were chosen to visually depict this overlap.

Habitat Diagram

Birds of PreyTall trees Sparse understory

Ground Dwellers - Open space Dense plants

Cactus DwellersDense & spiny plants

HummingbirdsMid-size trees Flowering plants SongbirdsDense trees & shrubs

Migratory BirdsTall riparian trees

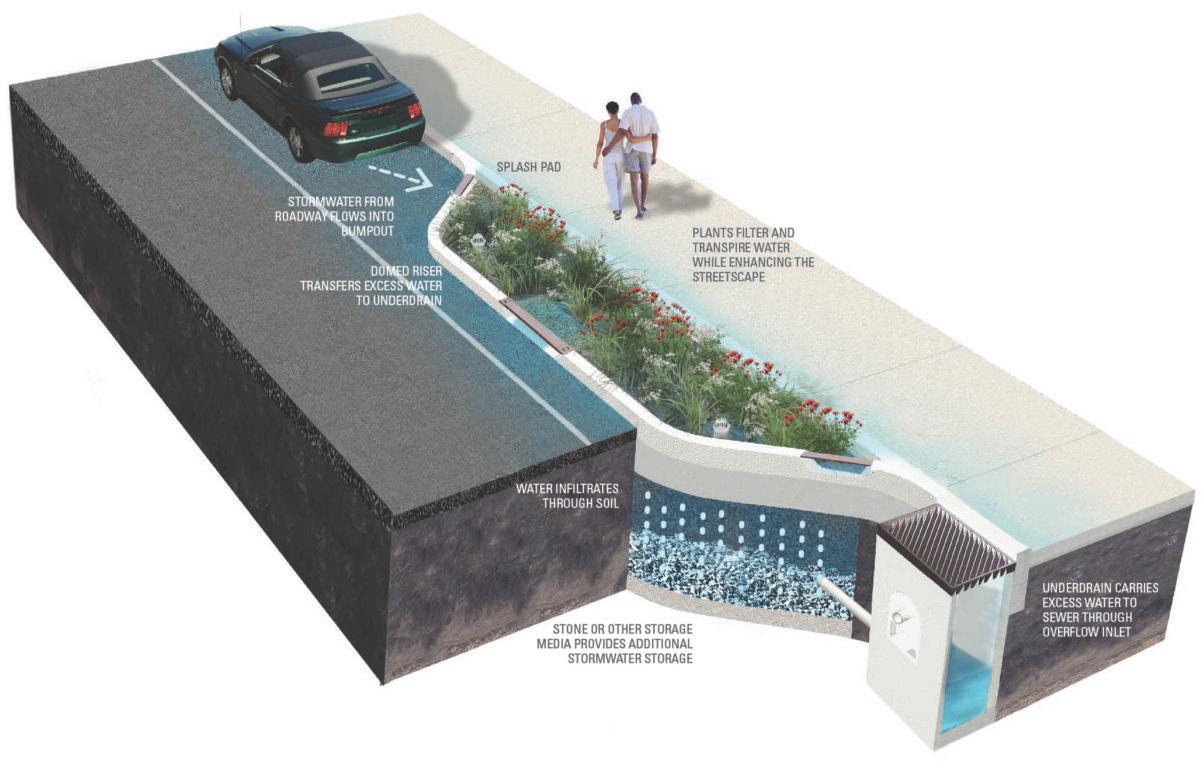

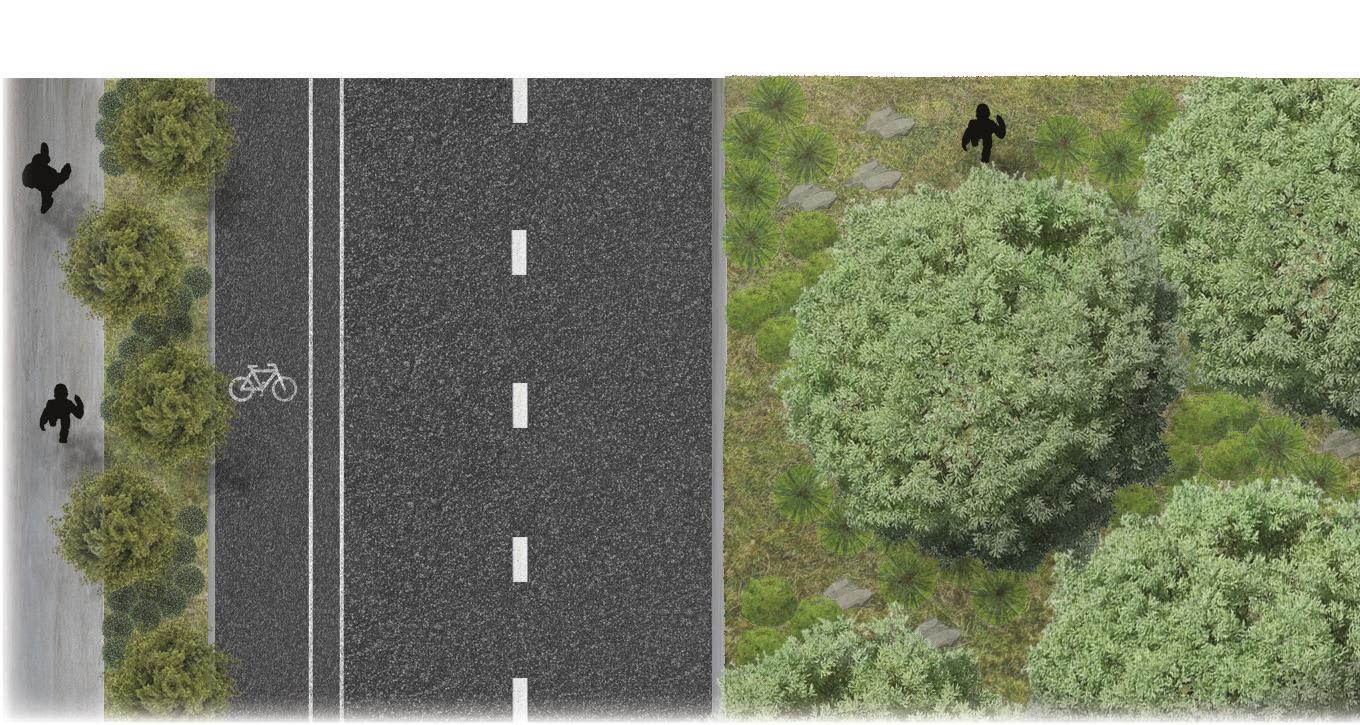

Streetside Green Infrastructure

Proposed Crosswalks

Wooden Pergolas

Sheltered Bus Stop

Rest Area & Art Ex-

Main En-

Secondary En-

SWAN RD

BURNS ST

THE PASSAGE OF FLIGHT

By Oscar Rodriguez Ponce

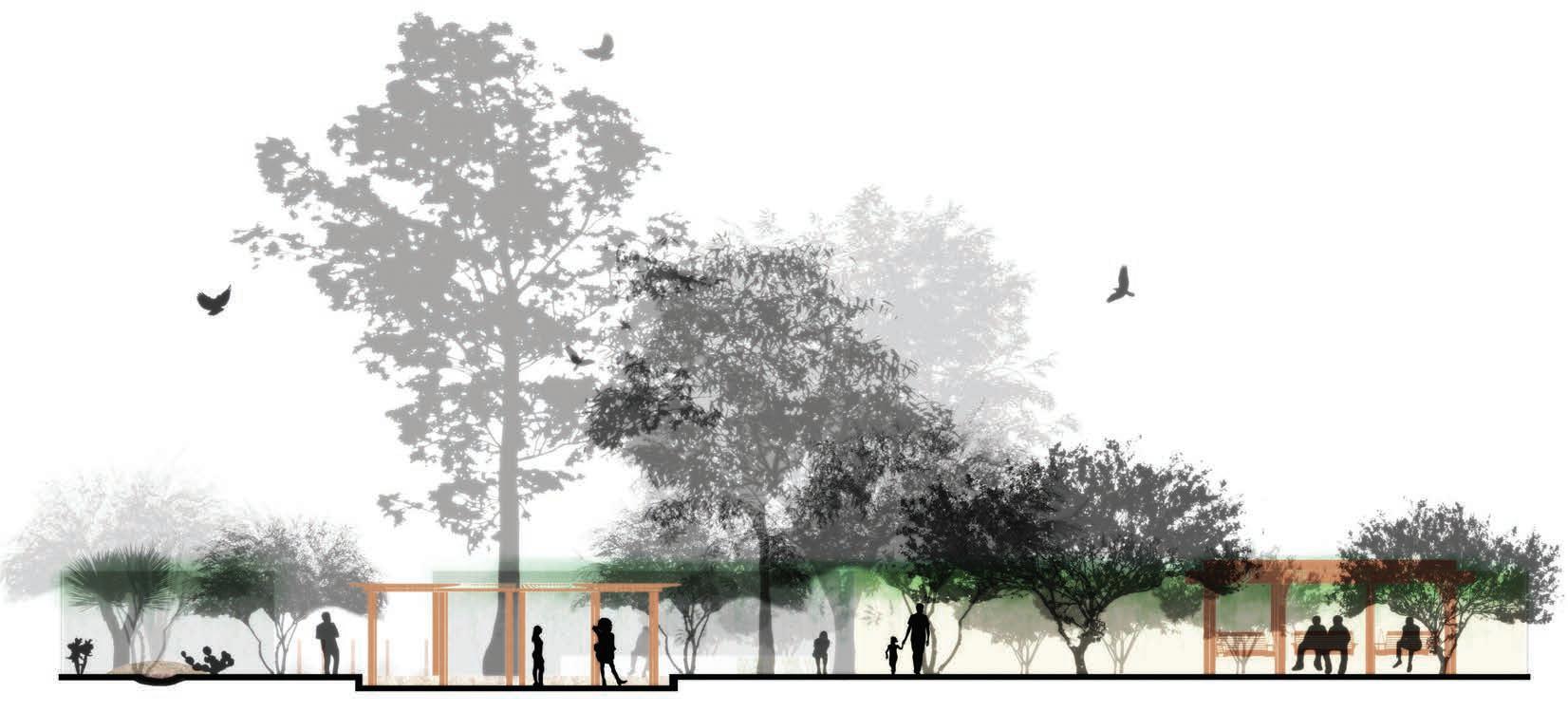

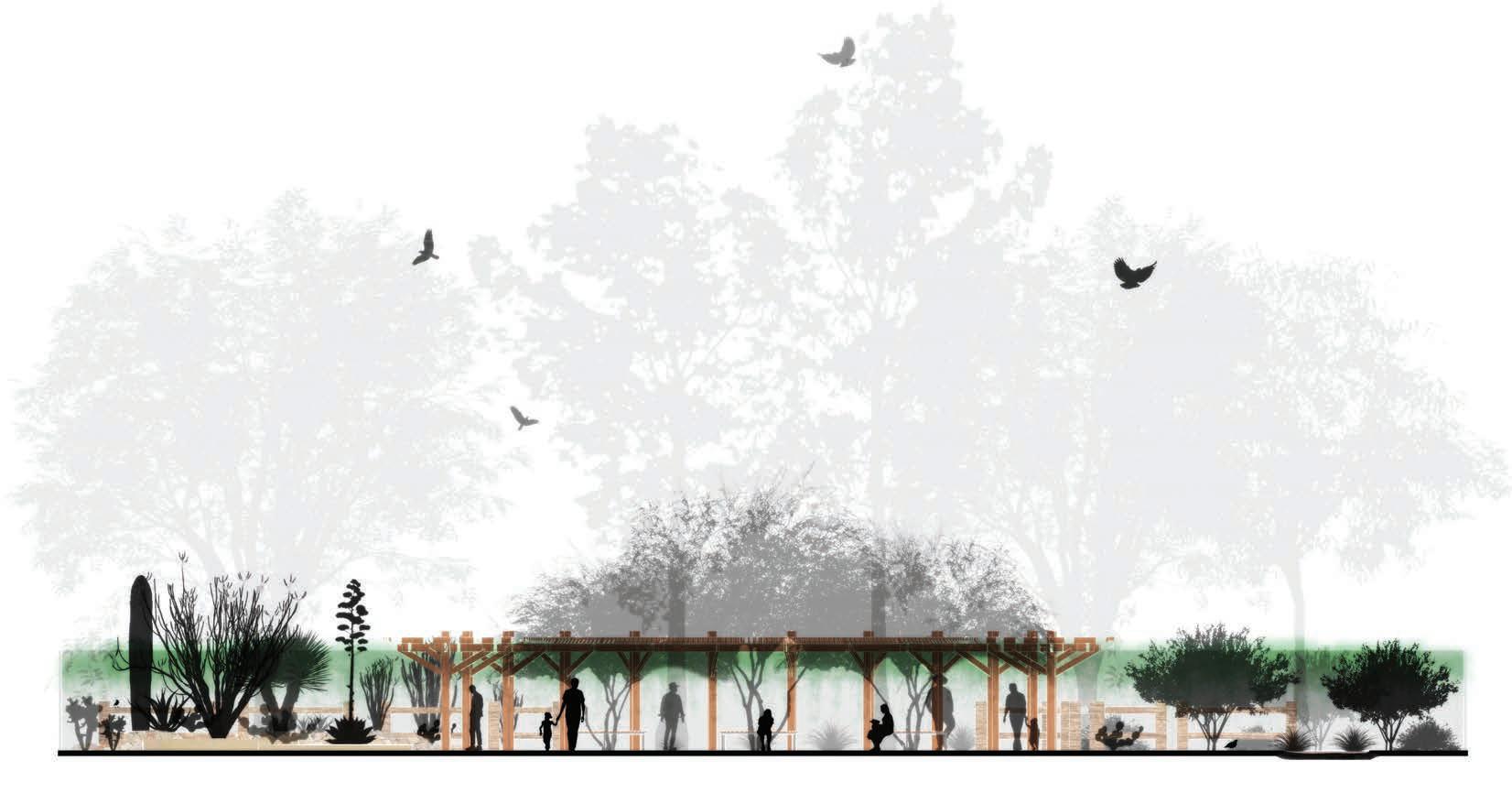

Section View - Western Habitats

Section A-A’ shows the diversity of plantings in three distinct habitats, reflecting the different needs of different birds.

Visitors can enjoy the birds under comfortable shade in environments reflective of their spaces in nature, connecting people to the desert through these interactions.

Birds of Prey - > 40 feet

Cactus Dwellers - < 20 feet

Layered succulent gardens

Desert Scrub garden & basin

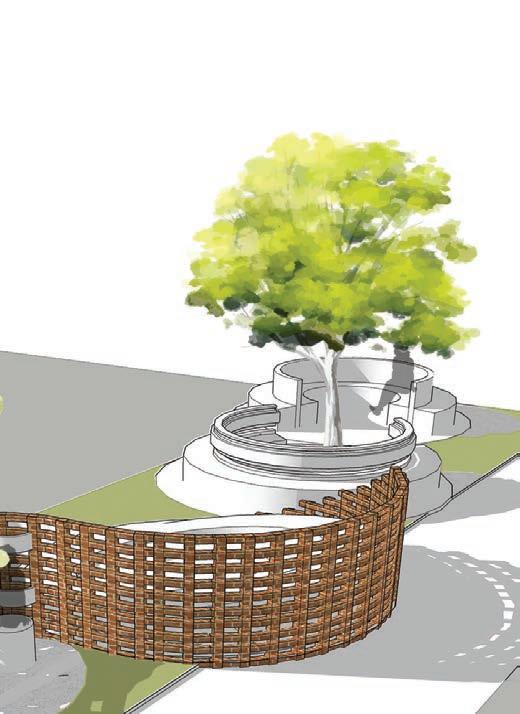

Circular pergola with seating and trees

Ground Dwellers - < 10 feet

THE PASSAGE OF FLIGHT

By Oscar Rodriguez Ponce

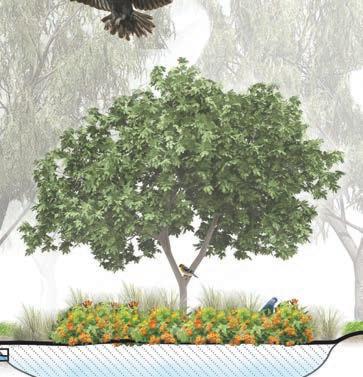

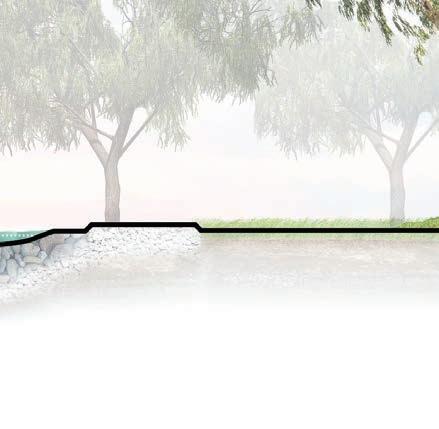

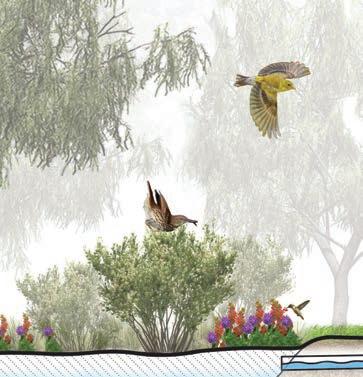

Section View - Eastern Habitats

Section B-B’ shows a different facet of the park, one with more private seating spaces, multiple pathways to navigate the site, and taller vegetation due to the close proximity of the woodland and riparian areas, where birds like Finches, Warblers, Hawks, and certain species of Hummingbirds are likely to be around.

Migratory

Swale and planting area

Birding platform

Seating and forest area

THE PASSAGE OF FLIGHT

By Oscar Rodriguez Ponce

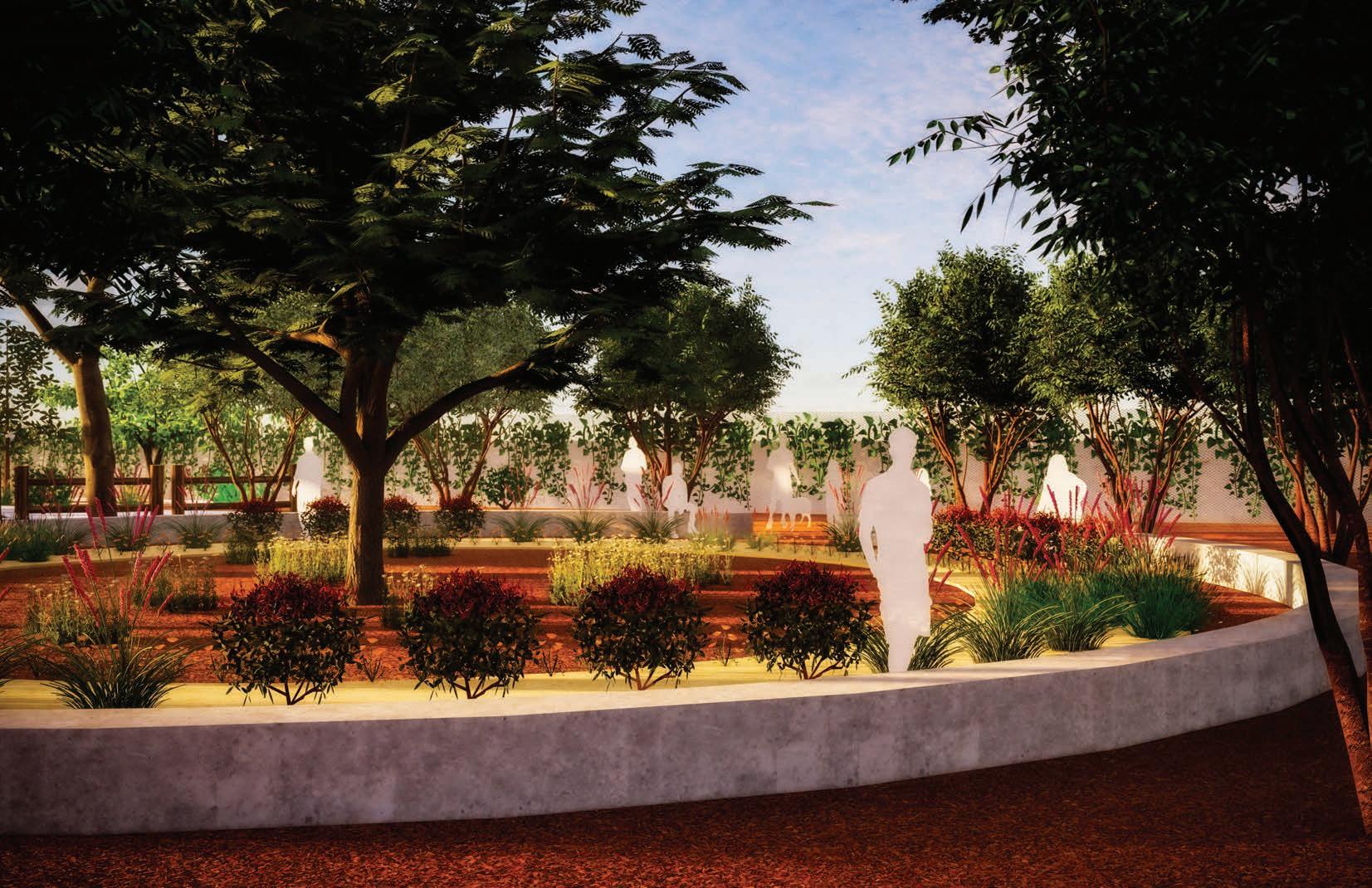

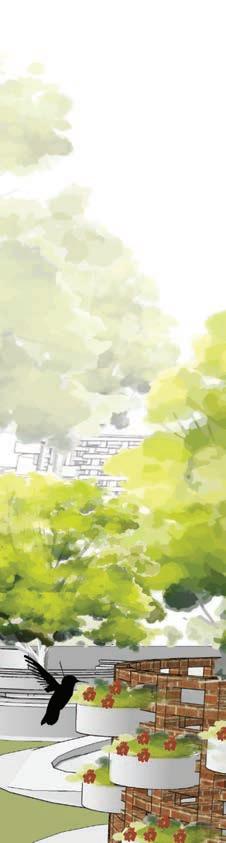

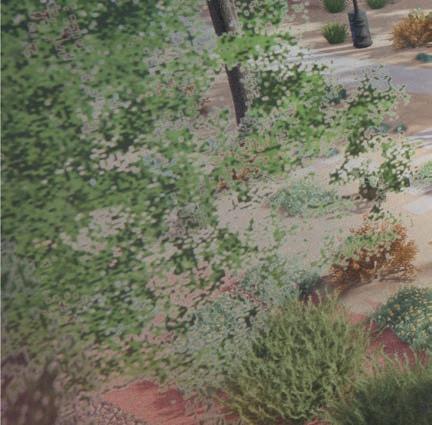

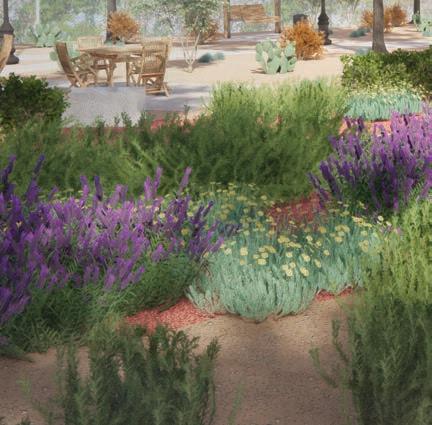

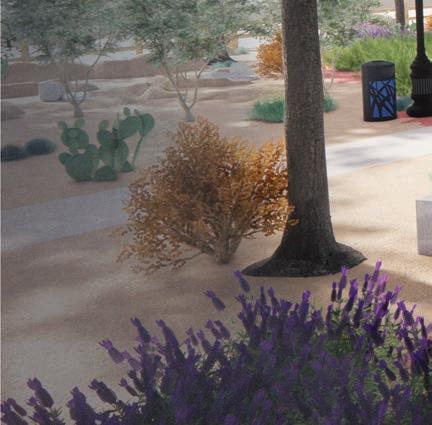

View of the Hummingbird Garden in a sunny afternoon

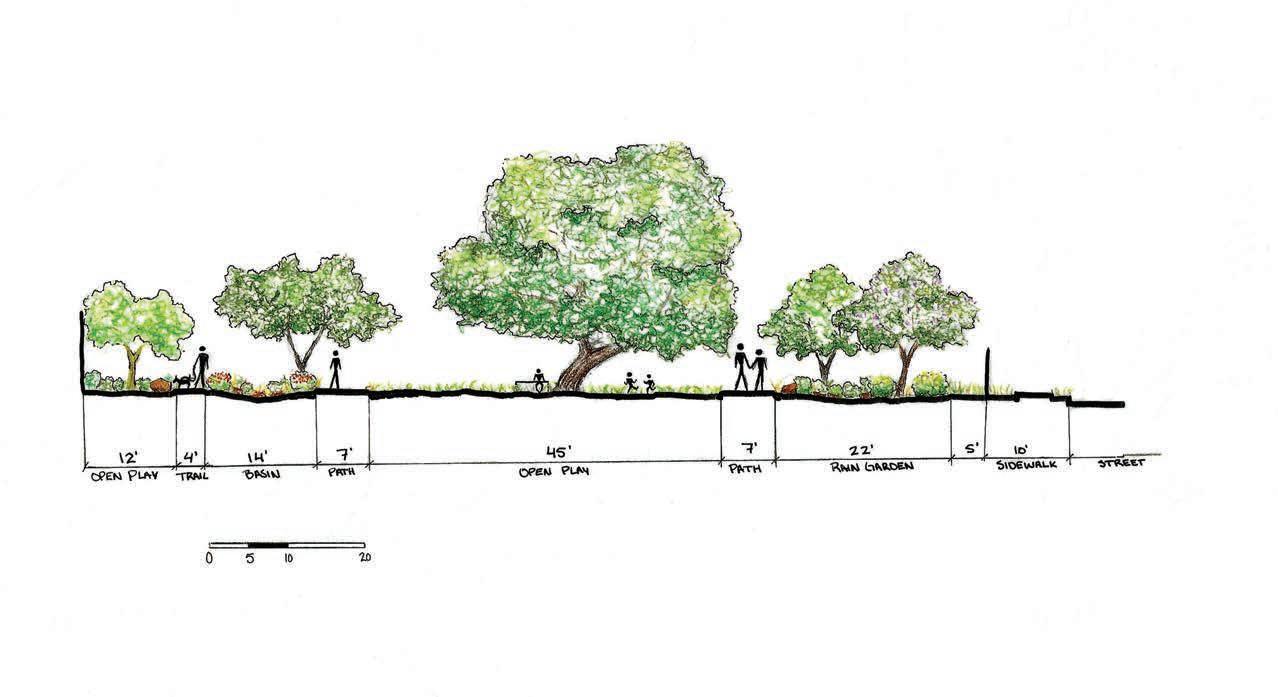

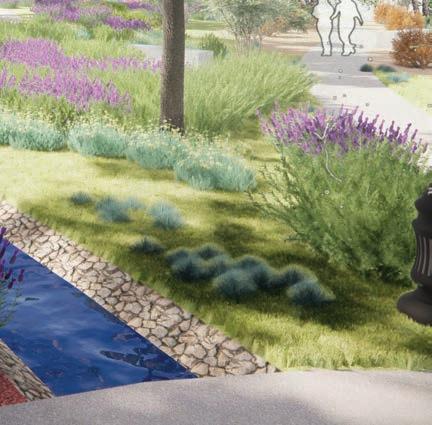

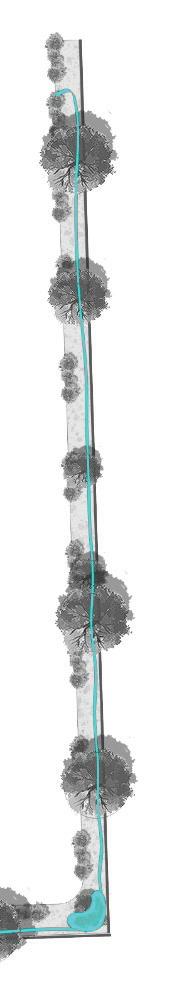

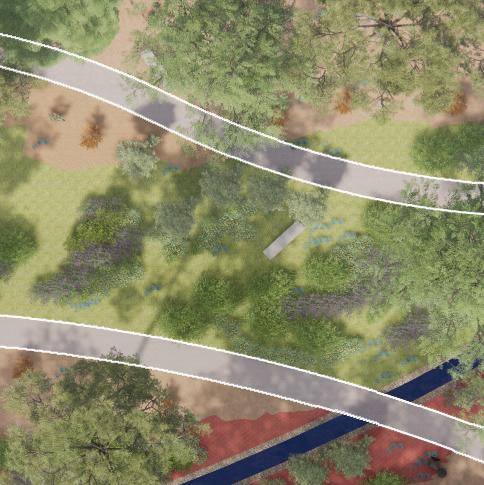

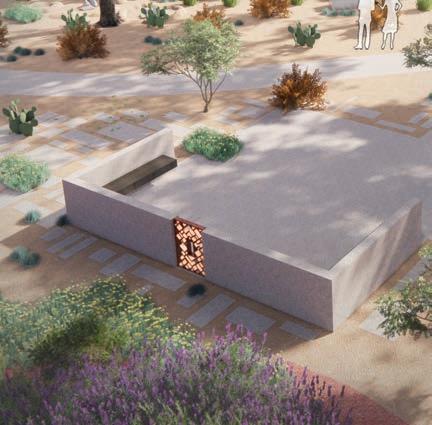

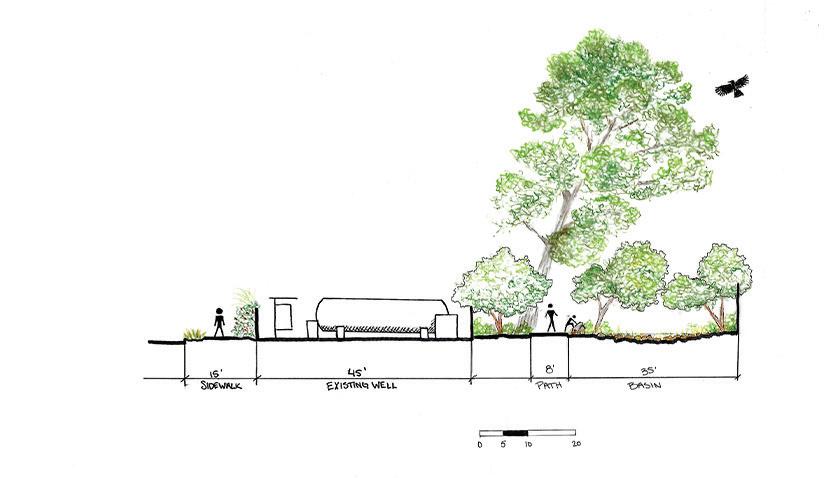

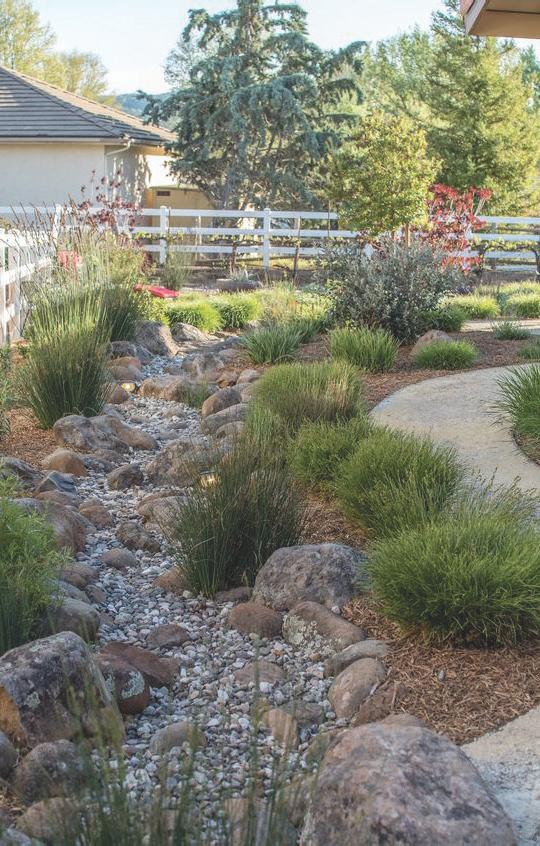

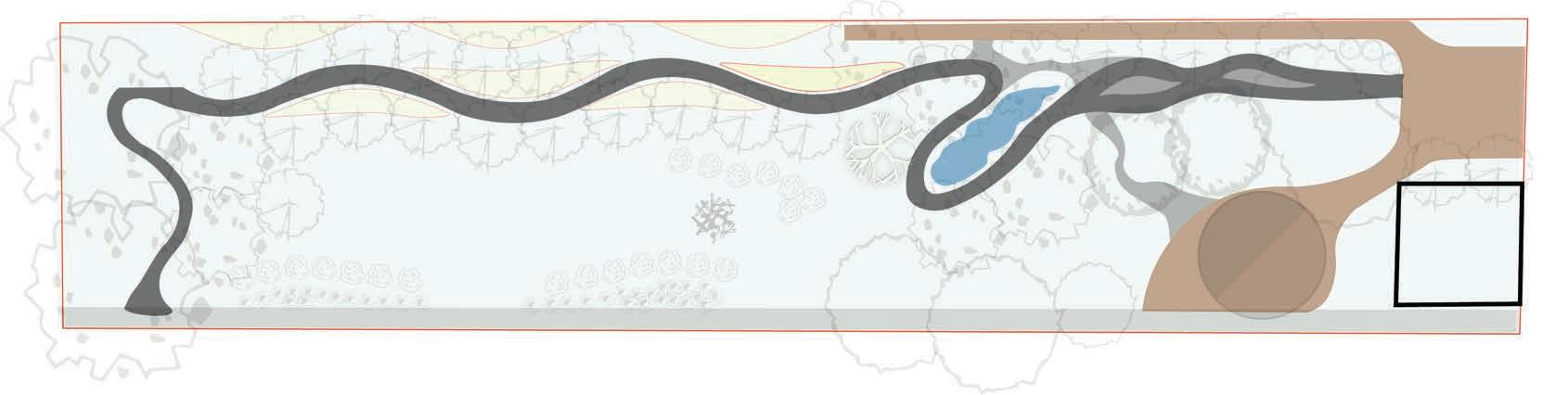

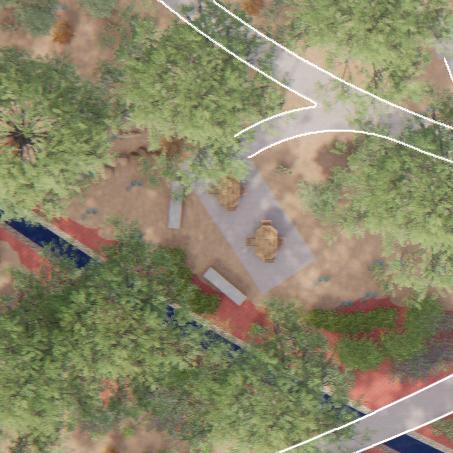

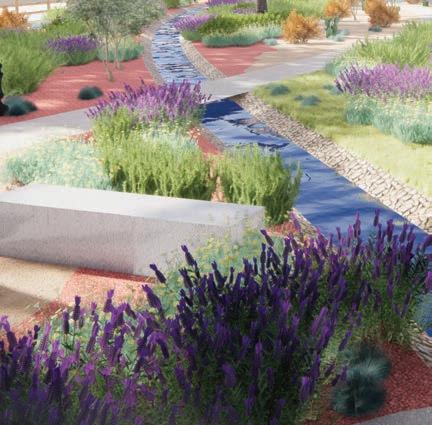

A River Runs Through It

Goals & Objectives

Design Statement:

To connect humans & birds through the management of one of our most precious resources: water. By irrigating in ways appropriate for Tucson’s climate, we can support greener parks & thriving bird communities together.

I. Move & conserve water on site to create bird habitat.

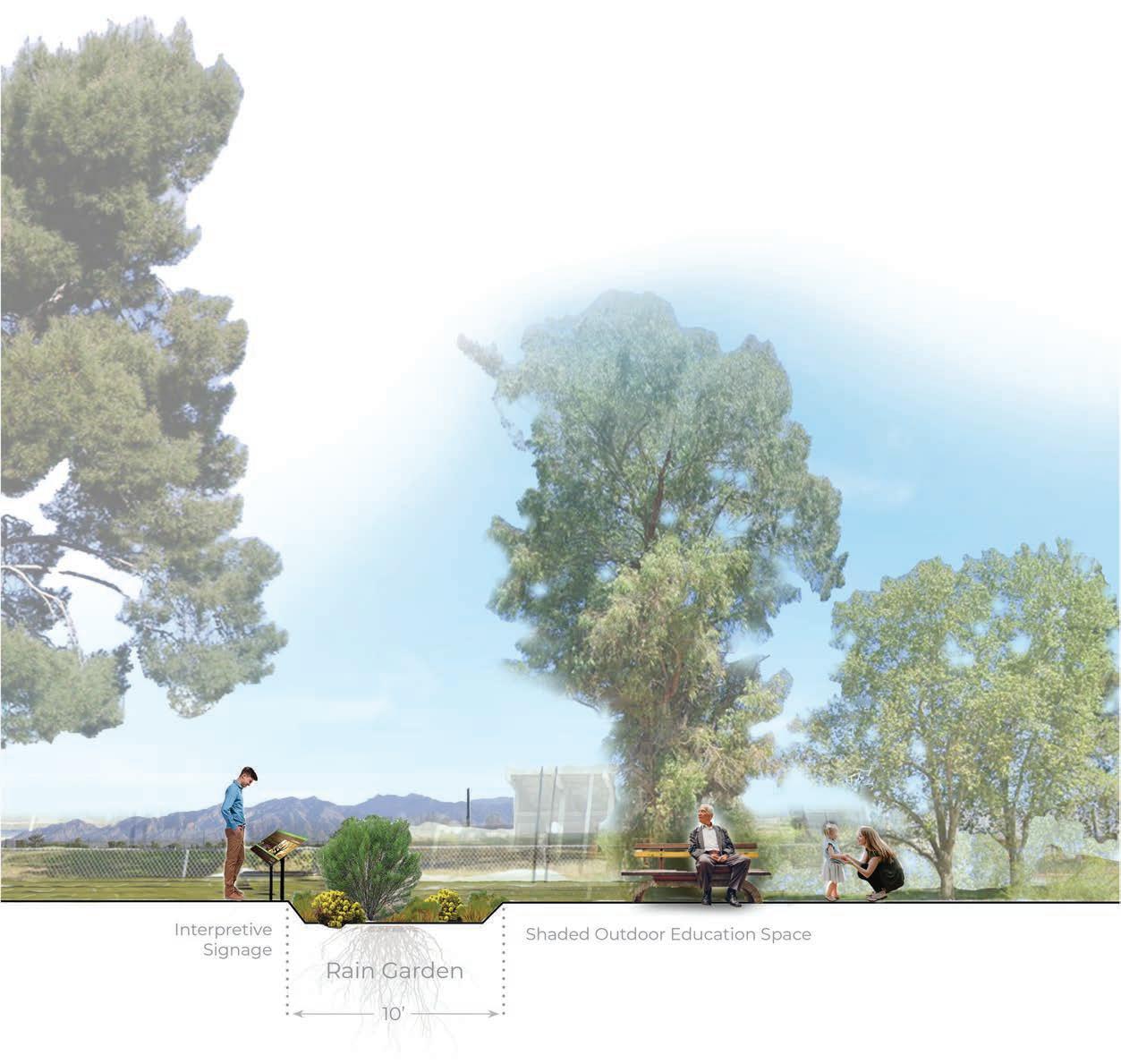

+ Set up a network of rain gardens which support plants with moderate moisture needs

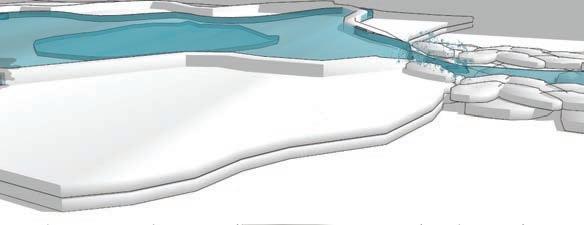

+ Construct a modest, flowing water feature to attract birds & a sense of calm for people

+ Triple the number of trees & plant flowers to be irrigated with reclaimed water

II. Incorporate low-maintenence, locally-appropriate water conduits in the landscape using a hybrid approach of modern technology & traditional water practices

+ Install culverts to direct water under walking paths to rain gardens

+ Install a drywell to return excess water to the underground well below the site

+ Depress areas of the open landscape to manage stormwater runoff from the street

+ Set a precedent for neighborhood water use

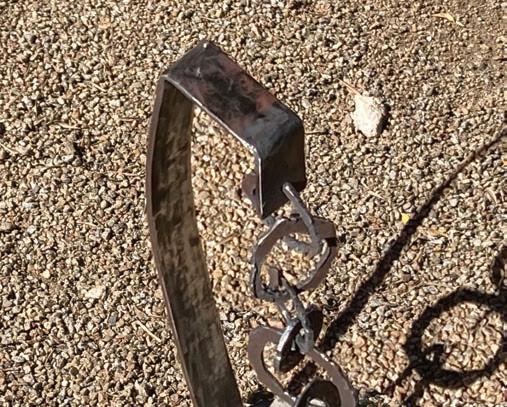

+ Harvest monsoon season rainwater from the roof of a gathering shelter on site

III. Create educational opportunities for the community, prioritizing the topics of water conservation, water technology, and irrigation history in the Southwest

+ Manage traditionally irrigated vegetable planters with students from the nearby school

+ Hold water technology education classes in the sheltered gathering space

+ Build wood structures for humans to play on & birds to use as habitat

Burns Park

Reimagined

Water utility

Rain gardens

Water feature

Gathering space

Depressed basin

Water catchments

Well C-32

Eucalyptus snag

Biofilter drywell

Depressed lawn

Vegetation

Circulation

Water Movement

Rock Garden

Trickling Stream

Shallow

Pool

2’ max depth

Rain Gardens

Culverts under paths

Depressed planter beds

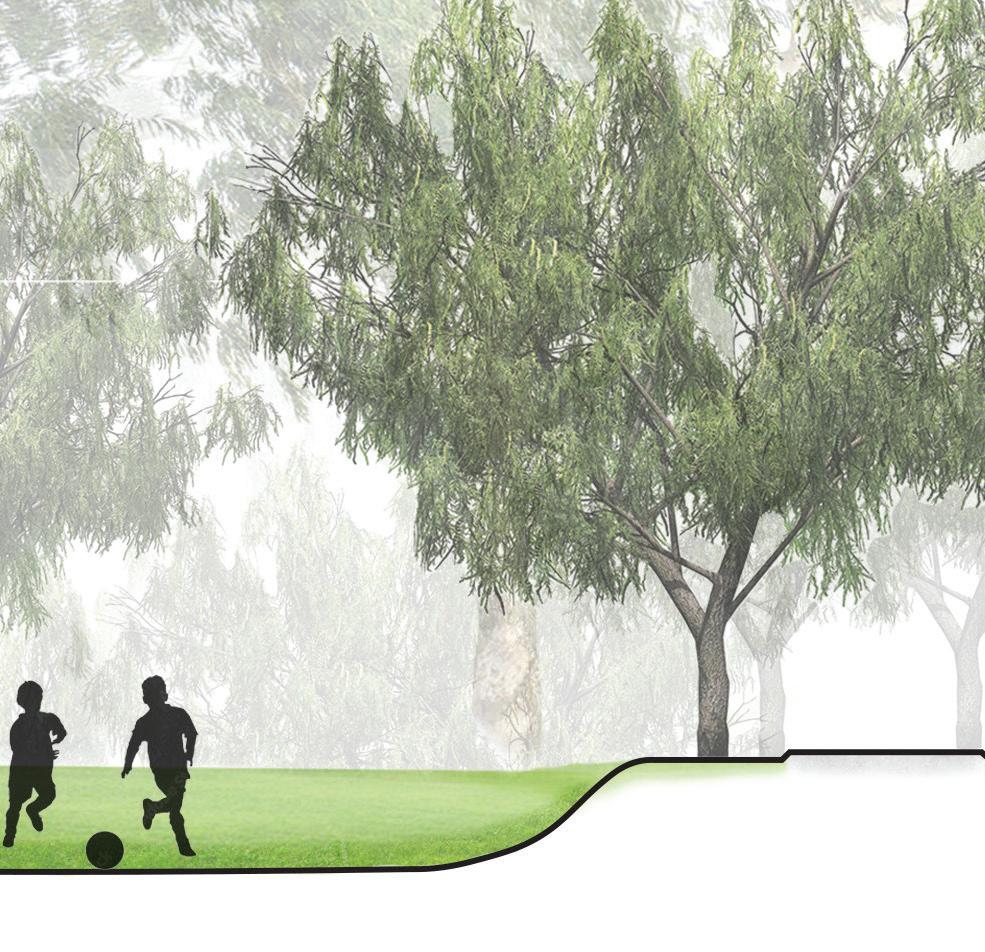

Lawn Section

Flood control basin & open play space

Rain garden

Edible garden

Water Technology: Drywell

Drywells present an opportunity to (1) manage excess stormwater and (2) recharge groundwater over time.

A stand pipe allows all of the water to seep to the bottom after trickling through layers of biofiltration. Filtered water may be recirculated back to the water feature or discharged into the drywell. Any excess water that this basin cannot handle will overflow into the municipal drain.

Water enters a basin in the corner terminus of the water conduit. Here, vegetation and earthen filters mechanically filter the water.

Swan Boulevard Habitat Restoration

The Swan

Boulevard Habitat Restoration

Project will be the first link in what is eventually to become a city-wide conduit network for human and wildlife travel.

Goals

Dedicate a linear greenway and median to the movement of wildlife species using a portion of the existing boulevard

Redirect stormwater to supplement the newly restored habitat and reduce street flooding

Prioritize pedestrians over vehicular traffic by improving safety accommodations and slowing drivers with constricted lanes, visual cues, and vertical speed control elements

SwanBlvd

Sidewalk

PrivateYard

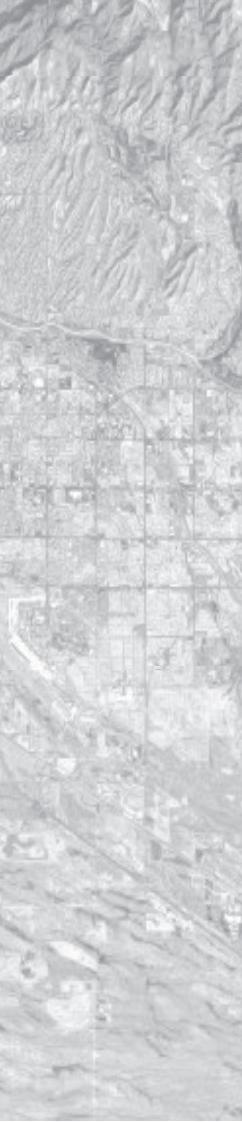

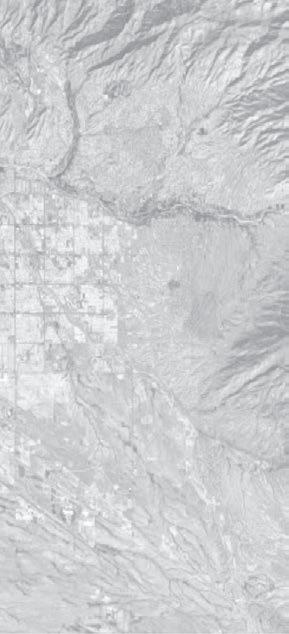

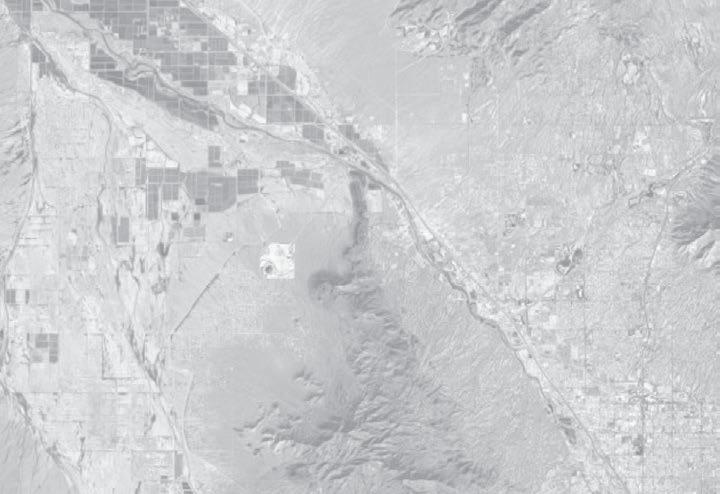

North Simpson Restoration Project

Key

Completed Restoration Project

Pending Restoration Project

Future Restoration Project

Urban Stepping Stone

Recommended Wildlife Corridor

Sky Island Wildlife Habitat

Cortaro Mesquite Bosque

Mount Lemmon

Sweetwater Wetlands

El Rio Medio Project

Big Wash Restoration Project

Santa Cruz River Park

West Branch

Park

Kino Wetlands

Tucson Botanical Gardens

Rillito River Restoration Project

Creek

Burns Park

Reid Park

Lincoln Park

Black Wash

Case Natural Resource Park

South Houghton Restoration Project

Rincon Mountains

Cienega Creek Natural Preserve

Cienega Creek Streamﬂow Restoration

Sabino

Evergreen

Tohono Chul

Rillito River

Riparian Habitat

Aleppo Pine

Arizona Sycamore

Desert Broom

Mexican Elderberry

Net-Leaf Hackberry

Wolfberry

Desert Habitat

Blue Palo Verde

Creosote Bush

Desert Willow

Ironwood

Purple Prickly Pear

Velvet Mesquite

Plan Key .

Raised Crosswalk 1

Sidewalk 2

“HAWK” Beacon Pedestrian Signal 3

New Bicycle Boulevard 4

Riparian Habitat Zone A

Sonoran Desert Habitat Zone B

Narrowed sight lines and amplified pedestrian accommodations force drivers to slow down

New sidewalks improve pedestrian circulation and Frontage Road redesign allows for the establishment of new Bicycle Boulevards

Stormwater is redirected to the median to supplement Riparian species

Sierra Estates Community

Burns St.

Revive Connections

It is a potential place that could create a nice visual sense for the neighborhood by creating a linear park. This is a spot that can be revitalized and can bring happiness, enjoyment, and comfort with the right design. Besides offering comfortable seating for friends and family, the design also incorporates interactive activities for your children to keep them occupied. Another consideration in this design is solving problems such as fast drivers or parking spots.

Current Situation

almost abandund and useless site

used as a parking lots mostly by students ( not preferable for neighbors)

Driving fast on side streets

Loss of connections with neighborhood

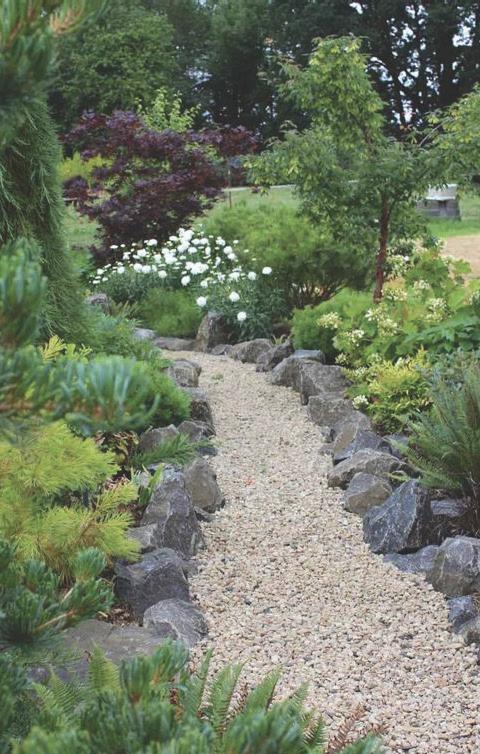

A series of colour palettes and materials inspired by an artistic model. This model is a collection of colors and materials that can be found on the site or in the city of Tucson.

Revive Connections

Features

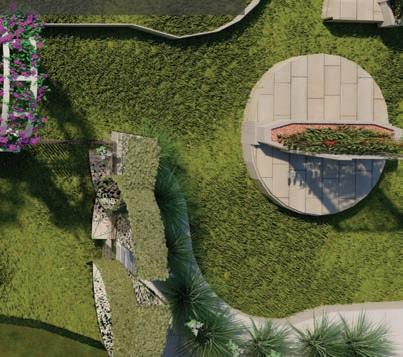

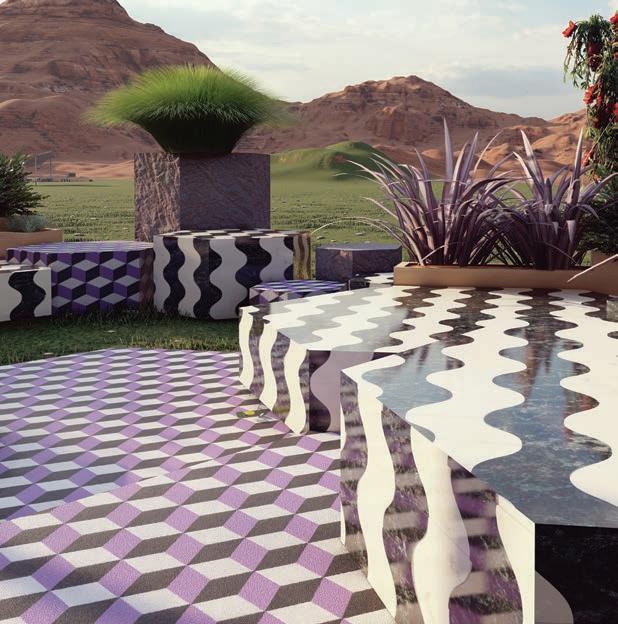

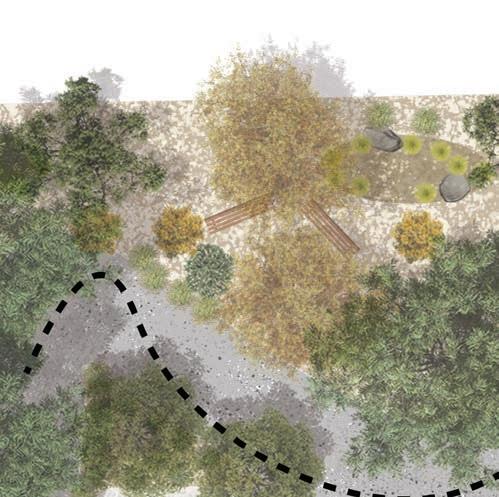

Different types of gathering areas that can be used by a variety of groups

This material can be used for other elements of design, A beautiful shadow and light concept is brought by the brick’s pattern in the design such as benches

Nadia Sarneyzehdoost

Revive Connections

Features

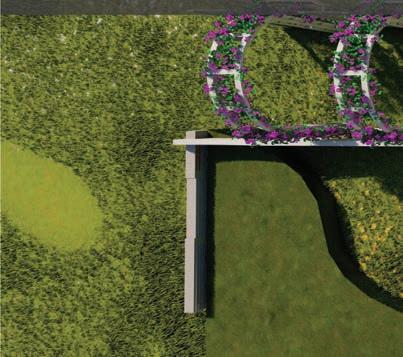

On both the designed and existing walls, flower pods were placed to provide visual appeal and food for hamingbirds

Water runoff in the site base on the slope

In this design, there are steps on the waterway so you can hear the sounds of water for a few months of the year. In addition to humans, hummingbirds are attracted to this feature as well.

Nadia Sarneyzehdoost

Slop direction

High

Slop direction

Revive Connections

Features

Bring children’s attention to the playground by designing interactive games

Nadia Sarneyzehdoost

The linear park is designed to extend 6 feet along both sides of E 10th Street and along N Arcedia Avenue. Chicanes have been added to the west area in order to enhance the traffic calming effects. By breaking the wall along E 10th Street, 6 feet of pedestrian path was added to the linear park to provide more area and connect both sides.

Removing North_SouthWall

Nadia Sarneyzehdoost

RIBBON ROAD

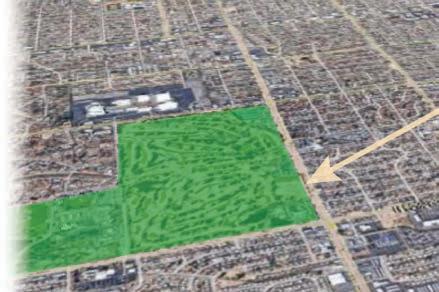

This project focuses on the linear walking path within the Sierra Estates neighborhood. This space should create a fun and playful space for people to enjoy while functioning to bring vegetated space back to inner Tucson. It will manage storm water from the neighboring hotel. It will give people a place to walk and gather together as a community.

GOALS

- Provide places to gather

- Manage storm water

- Reduce effects of urban heat island

- Increase habitat

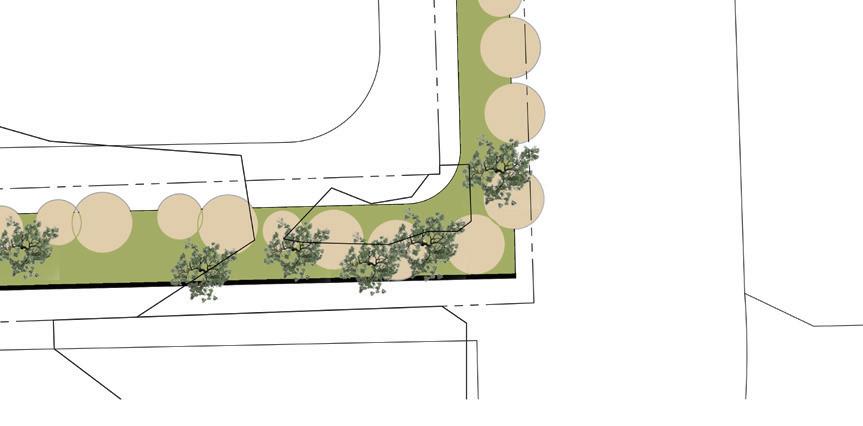

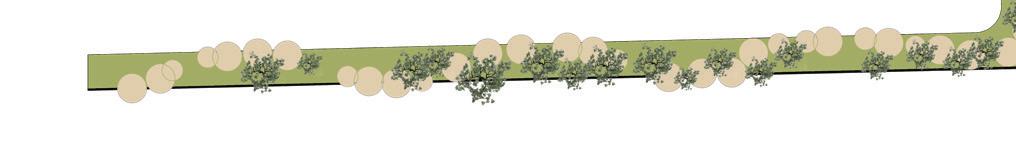

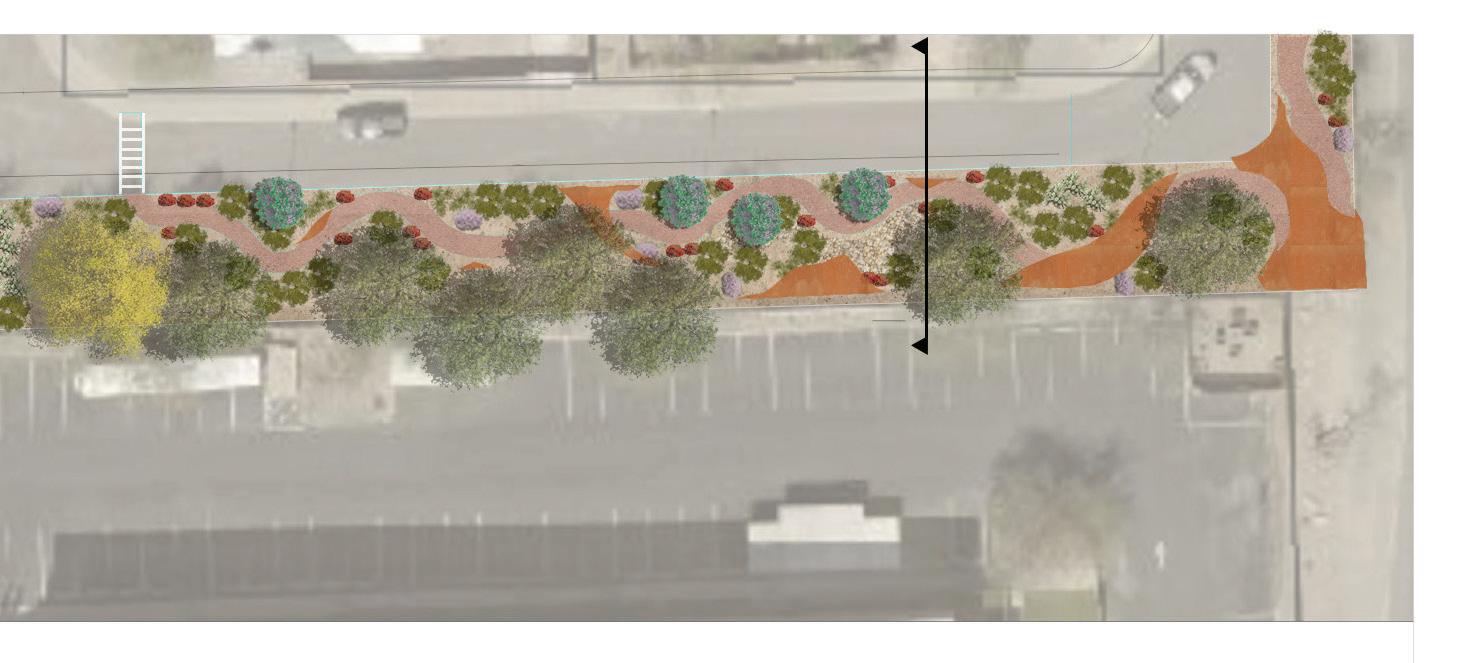

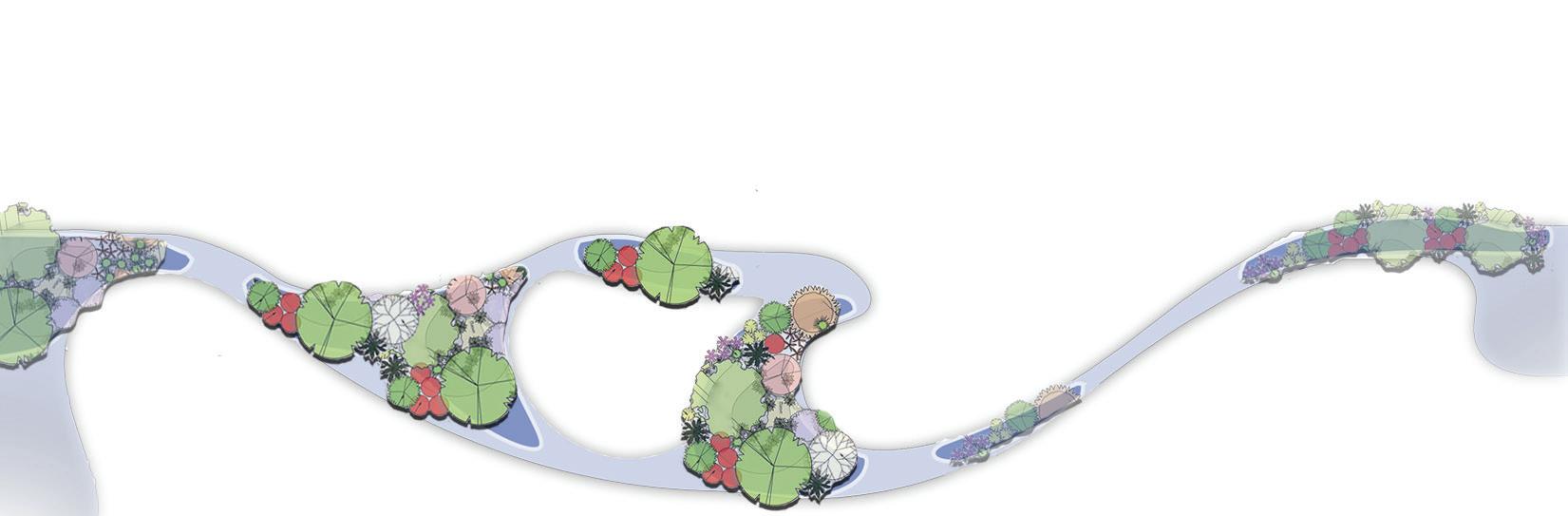

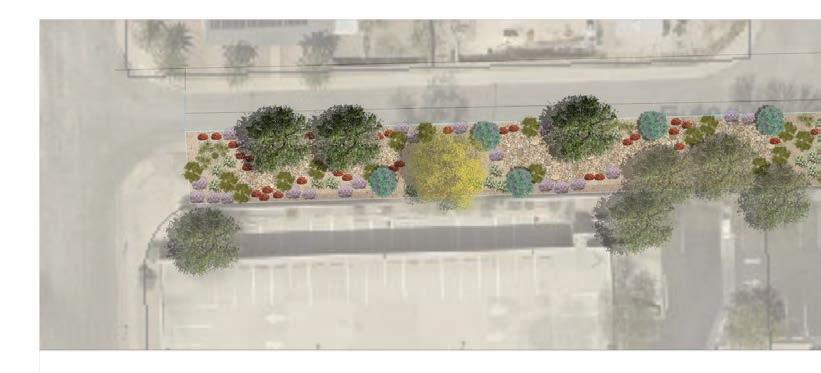

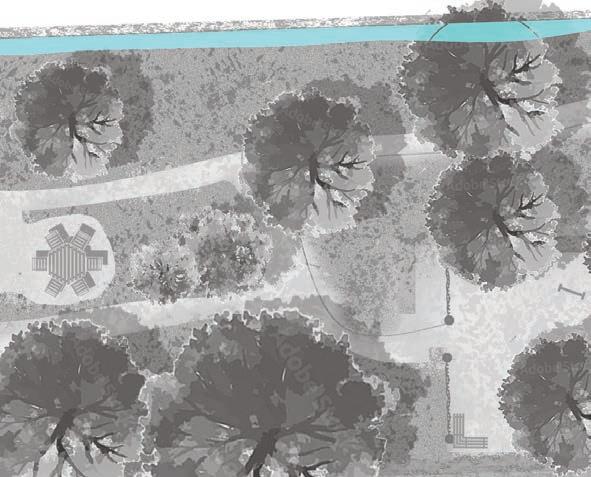

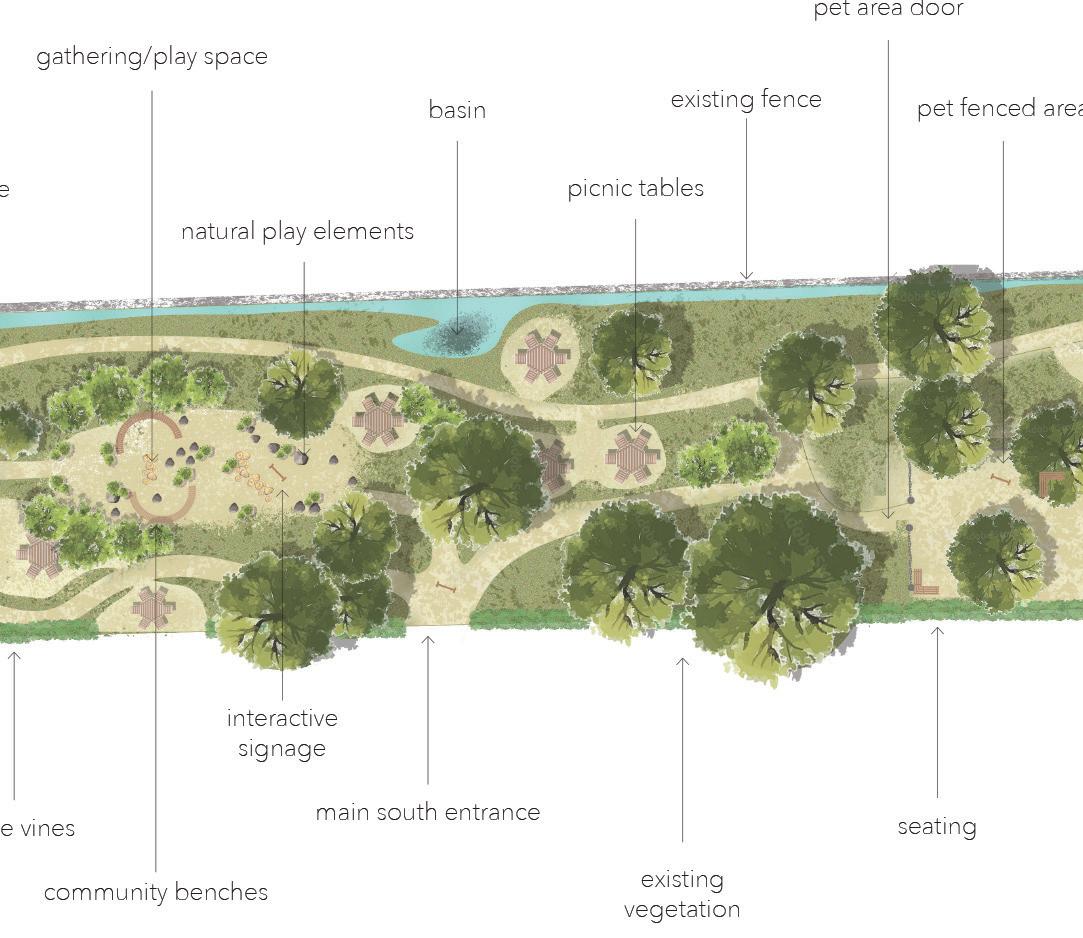

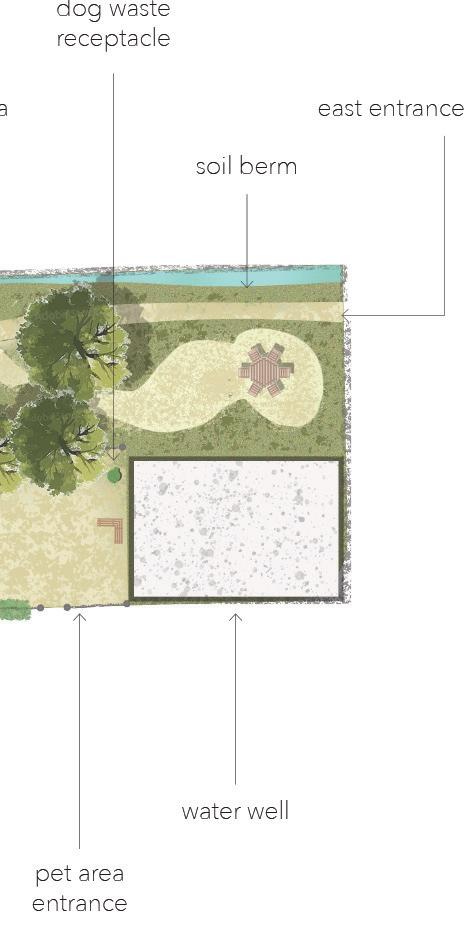

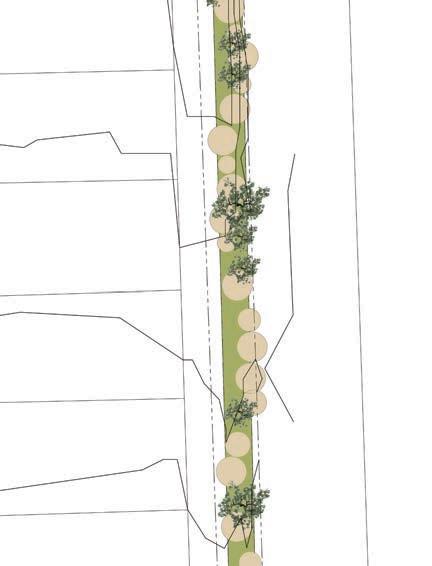

ILLUSTRATED PLAN

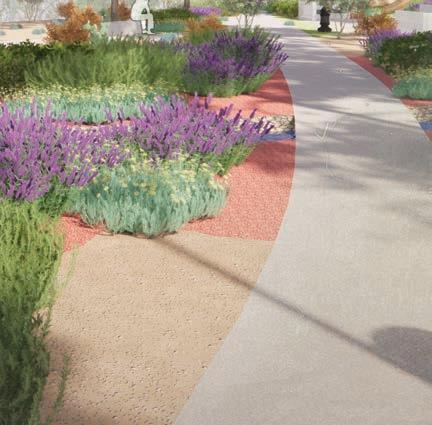

The redesigned linear walking path would preserve the existing trees while adding in an under story to provide habitat for wildlife Vines* would cover corten steel ribbons so that they would not hold heat. Basins would dominate the western side of the park to manage the water runoff from the Viscount hotel. The street width was decreased on the west side of 10th street to maximize planed area while discouraging speeding in the area.

*Vines omitted for clarity

Jessica Eppard

ILLUSTRATED SECTION A-A’

The full section shows how the vegetation would interact with the corten ribbons.

The blown up section-elevation shows the small gathering area at the southern corner, with the vines shown spilling over the edge.

SECTION A-A’

Jessica Eppard

ILLUSTRATED SECTION B-B’

This section shows the interaction between the basins, the path, and the street. Here the street is 20’ rather than the 28’ it is currently.

IMAGES TAKEN FROM GOOGLE

Streets

Reinterpreting Neighborhood Streets, shifting traditional street design for living spaces

With the increasing temperatures from climate change and urbanism, spaces for people and living organisms in neighborhoods have declined. As a result, this design aims to reconcile the issues reﬂected on neighborhood design by reinterpreting the connection between people, place, and streets.

Implement rainwater management techniques for year round use

+ by merging bioswales and raingardens with streets and sidewalks

+ with plants that thrive under ﬂooding and drought circumstances

+ for trafﬁc calming

Connect people with place

+ by implementing street pocket gathering areas and expanded living streets

+ through shared spaces open for neighbordhood block parties, reﬂection areas, and interpretive experiences.

+ for community rapport and support

Provide shared spaces at a neighborhood scale,

+ by rethinking street and sidewalk traditional use

+ to share with neighbors and other living organisms

+ for outdoor living experiences

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

Yescas.S (2022). Reinterpreting Neighborhood Streets, shifting traditional street design for living spaces.

1 materials & textures / exploring landscape design at neighborhood scale

2 model expoloration of landscape connection between people, bird habitat, and climate change

3 conceptual model reﬂects the relationship between colors, textures, and materials for the land

4 spatially merging forms

MODEL CONCEPT //

Design

RESPECTING STREETS //

1 slowing down for lived human experiences

2 addressing stormwater runoff with bioswales or raingardens that are preserved year round for street aesthetics

3 street reduction for increasing

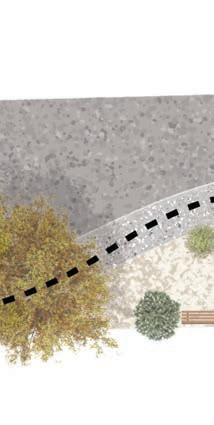

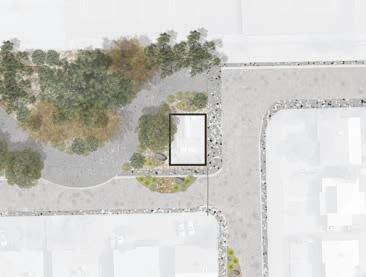

BURNS PARK PLAN //

1 intentionally expanding spaces to share with the essence of the place and with oneself

2 non linear paths to connect with, reﬂect, and explore

3 detaining water through basins, bioswales, and permeable surfaces SHARING E 10TH ST //

1 merging the neighborhood with living streets

2 identity spaces that come together for respect, experience, and protection

3 invitation extended for anyone and everyone to diversify streets

Design

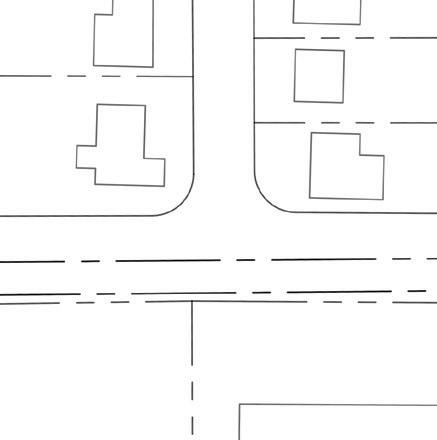

Existing road dimensions

Proposed road dimensions

Existing linear park dimensions

Existing E Burns road dimensions

Proposed linear park dimensions

Proposed E Burns road dimensions

DESIGNING FOR NATIVE BIRDS

ANNA’S HUMMINGBIRD

CORVUS CORAX

INDIVIDUAL HABITAT

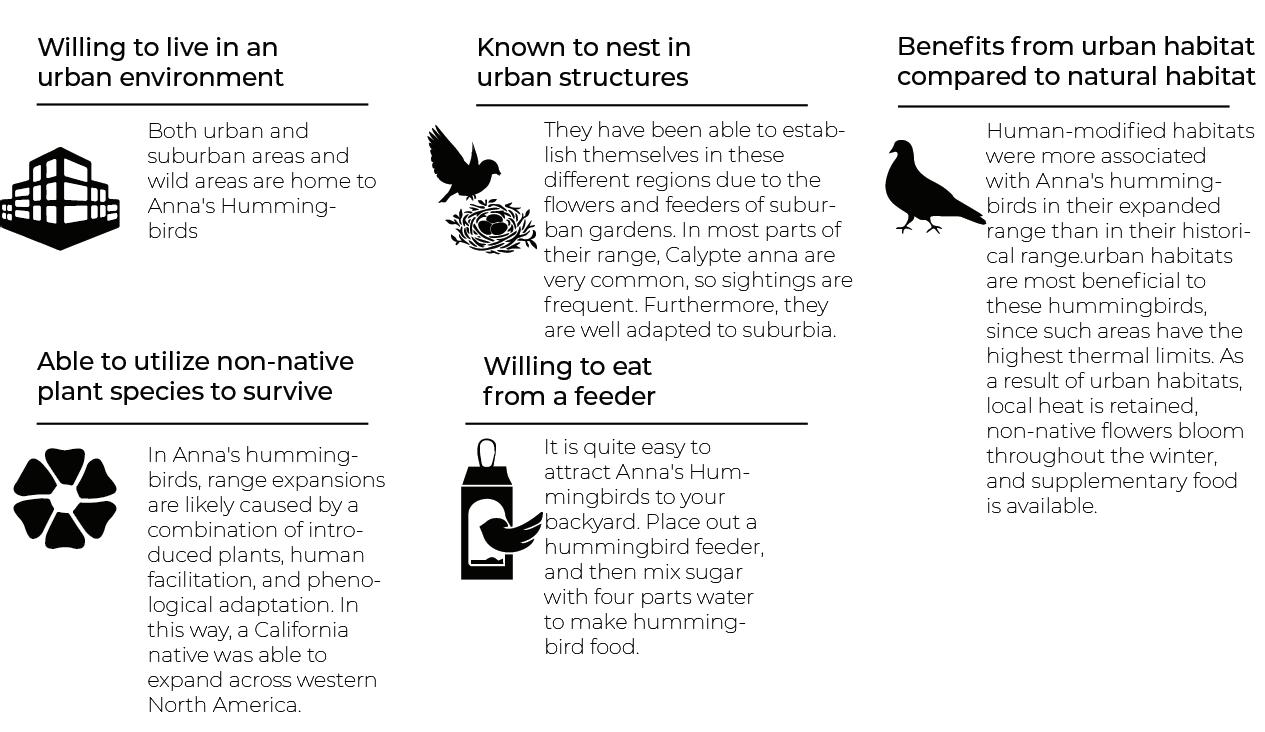

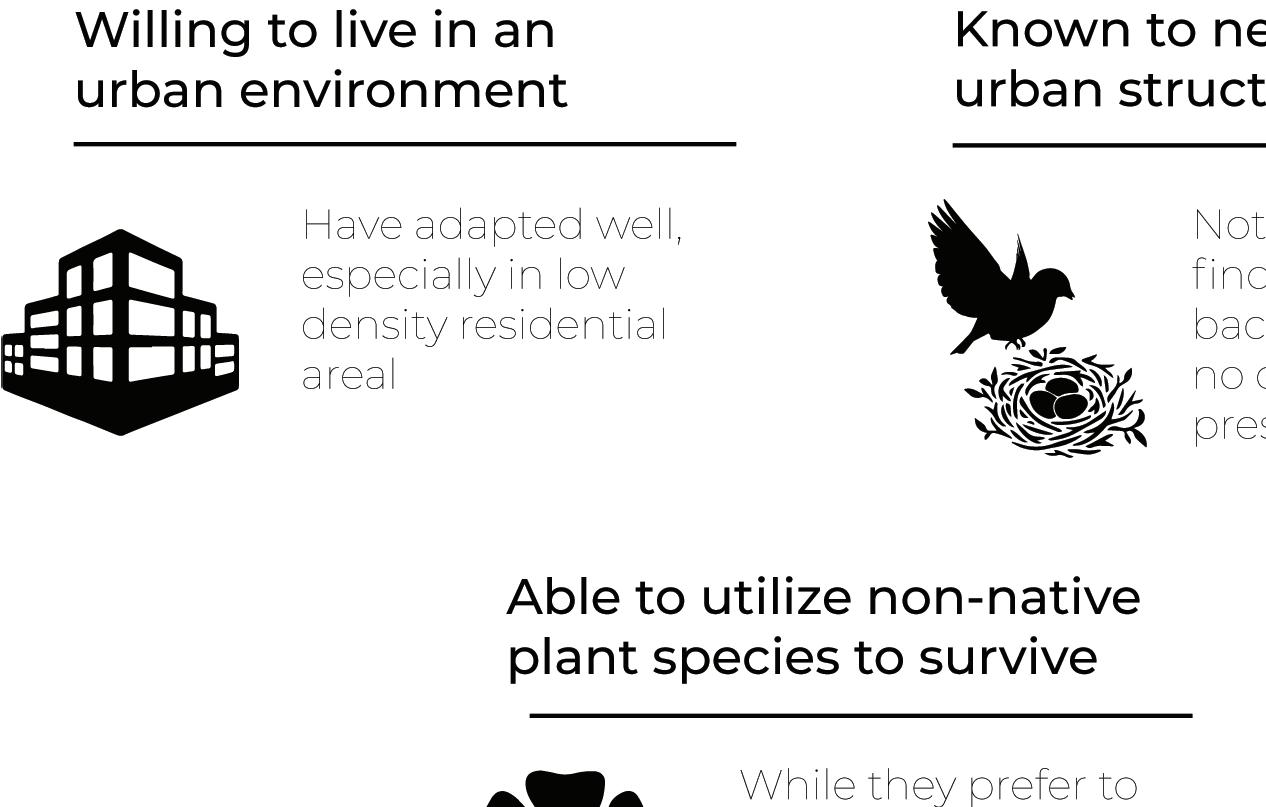

URBAN ADAPTATION

REFERENCES, SOURCES & RECOMMENDED RESOURCES: https://www.itis.gov/servlet/SingleRpt/SingleRpt?search_topic=TSN&search_value=178036#null https://www.birdnote.org/listen/shows/annas-hummingbirds-winter-north https://www.allaboutbirds.org/guide/Annas_Hummingbird/overview https://www.audubon.org/field-guide/bird/annas-hummingbird

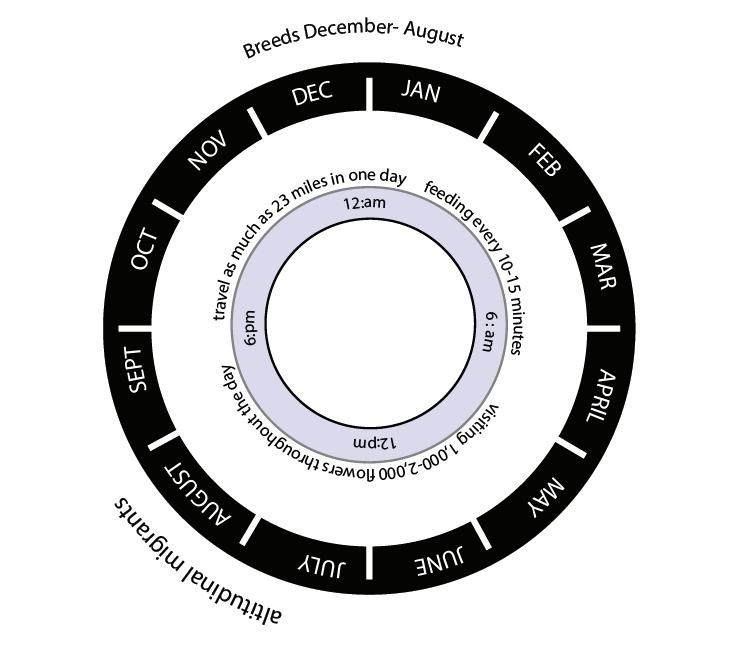

| DESIGNING FOR NATIVE BIRDS

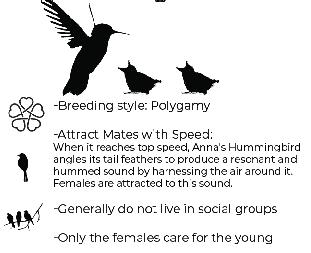

VOCALS

CONSERVATION

ECOSYSTEM ROLE ECOLOGICAL ROLE

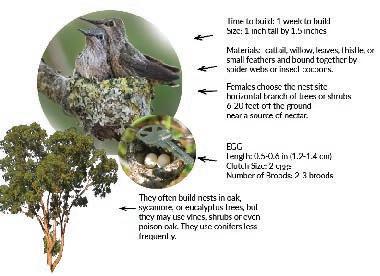

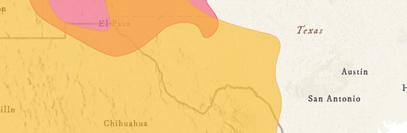

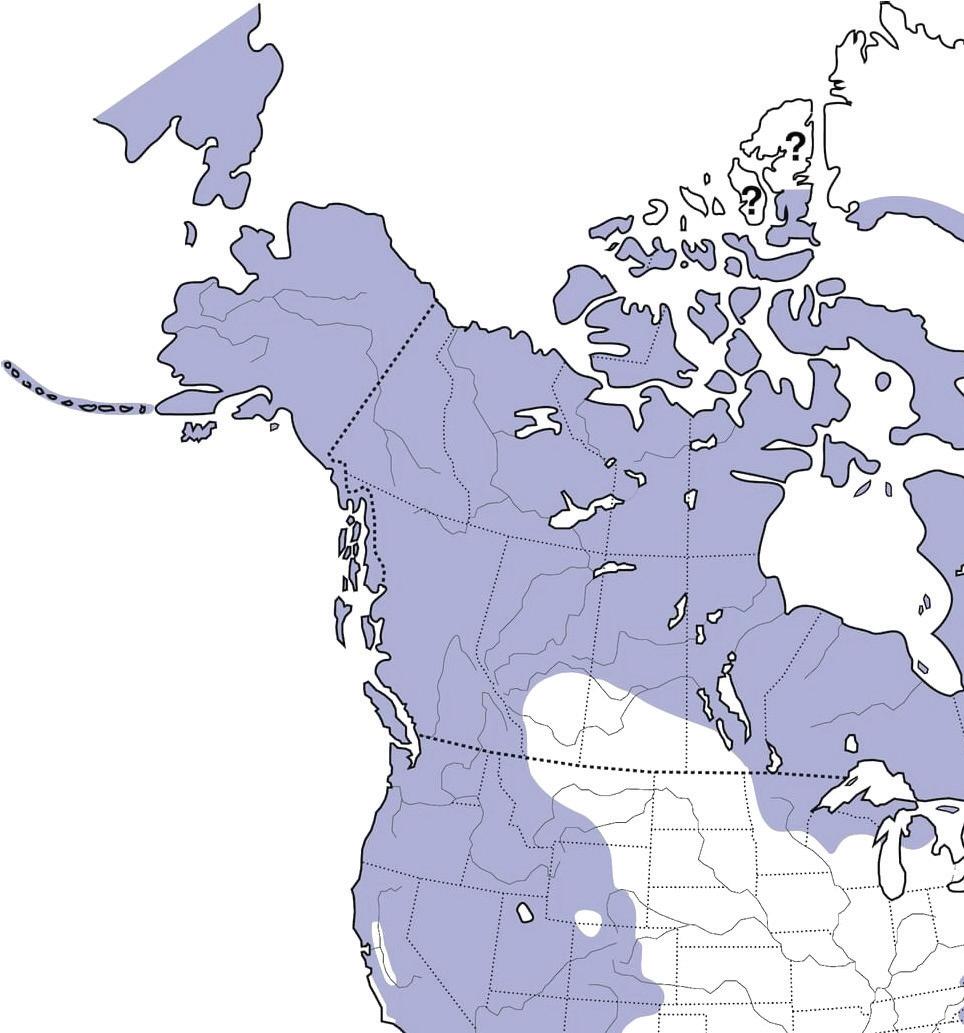

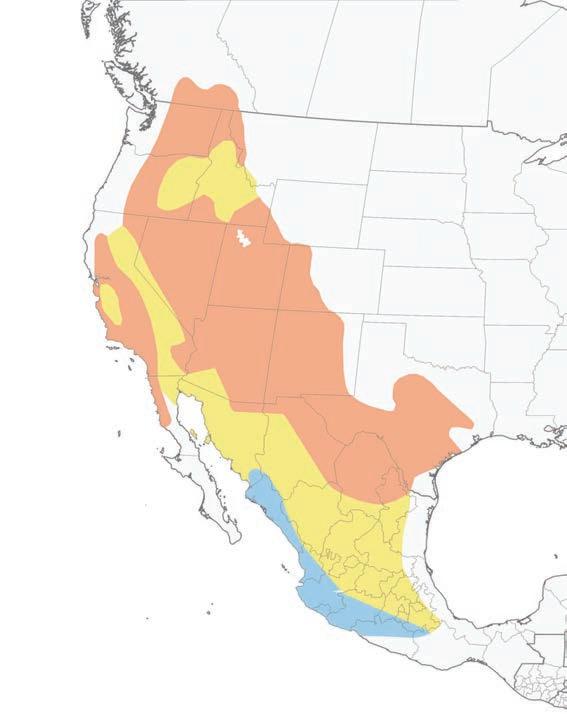

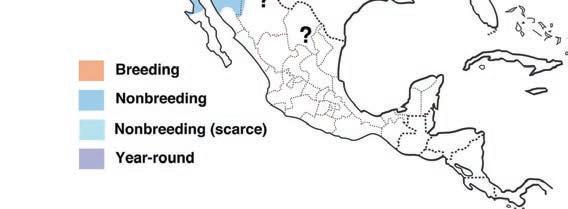

Range map provided by www.allaboutbirds.org

KEY MARKS

REFERENCES, SOURCES & RECOMMENDED RESOURCES: https://www.thespruce.com/annas-hummingbird-387220 https://www.adirondackcouncil.org/page/blog-139/news/10-facts-about-hummingbirds--and-other-interesting-tidbits-1101.html https://www.desertmuseum.org/kids/oz/long-fact-sheets/Anna%27s%20Hummer.php http://bryanmharris.com/hummingbird/index.html#natural

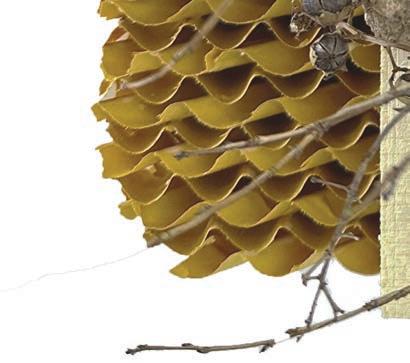

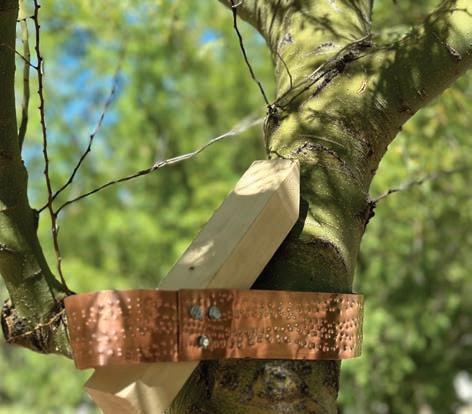

HABITAT PROTOTYPE : ANNA’S HUMMINGBIRD

It is common for females to nest on horizontal branches of trees or shrubs that are between 6 and 20 feet high (sometimes higher), preferably near a nectar source. By understanding birds’ preferences and providing a suitable angle of a sentetic branch and a cup that provides a suitable nesting area, we can ensure more birds will visit our landscape.

REFERENCES, SOURCES & RECOMMENDED RESOURCES: https://audubonportland.org/wp-content/uploads/2020/05/Photo-2-1024x652.jpg

Less harm to tree trunk

Easily to assemble

Inspired by Anna’s hummingbird movement

Can be installed around landscape lighting

https://media.istockphoto.com/photos/female-hummingbird-with-two-baby-in-the-nest-picture-id1219649975?k=20&m=1219649975&s=612x612&w=0&h=5w_BrRZYSmlRaHCDo_LPsqAqku-5opvBiFLstem25lk= https://www.allaboutbirds.org/guide/Annas_Hummingbird/lifehistory

Initial models

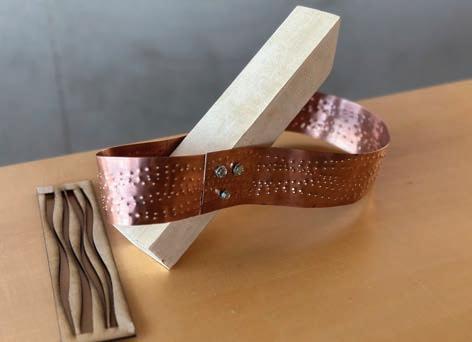

Selected model

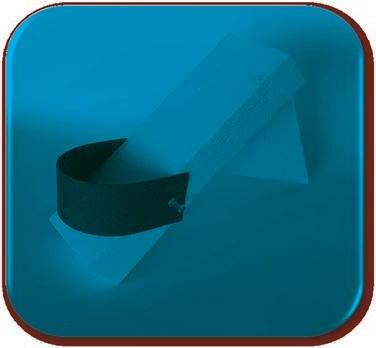

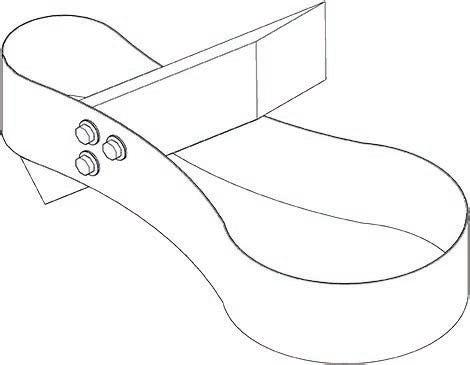

AXONOMETRIC

Hammering the pattern on surface of copper

Inspired by smooth movment of anna’s hummingbird

Copper sheet

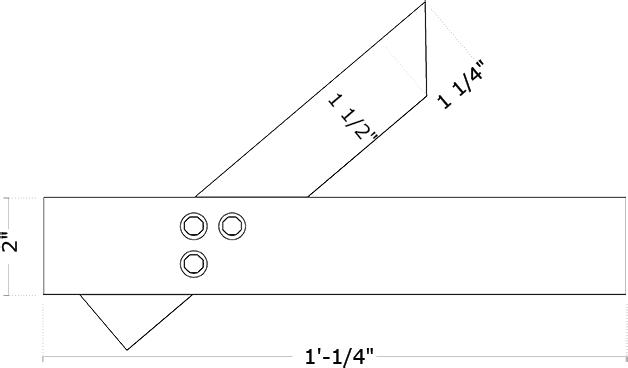

14 X 1-1/2” ZXL

Tapping Woodbinder Metal

Roofing Screw

3 Screw each side - 6 in totall

Representational symbol of tree trunk

Fir wood

Copper sheet 2” x 2’-8”

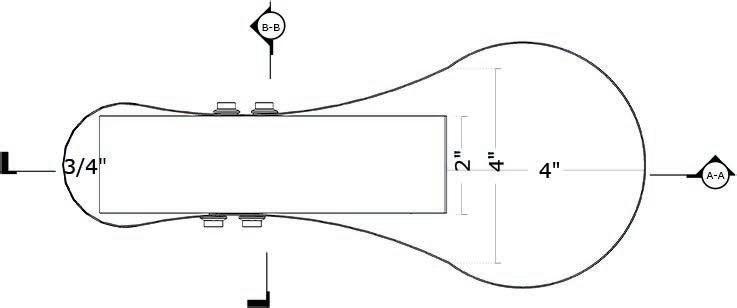

FRONT ELEVATION

SECTION A-A

SECTION B-B Fir wood

x 2” x 1.5”

BLACK-CHINNED HUMMINGBIRD

Archilochus alexandri

BIOLOGY

INDIVIDUAL HABITAT

URBAN ADAPTATION

URBAN ADAPTATIONS

Willing to live in an urban environment

Able to survive comfortably in urban environments.

Common in its range

Able to utilize non-native plant species to survive

Gets nectar from exotic plants and has been seen nesting on non-native trees

CONSERVATION

Known to nest in urban structures Beneﬁts from urban habitat compared to natural habitat

Prefers to nest in trees, but is known to use nesting platforms attached to walls

Willing to eat from a feeder

Able to use hummingbird feeders

Urban environments offer more food choices and nesting resources at times when they are scarce in nature

COURTSHIP

Breeding call (chip-chip)

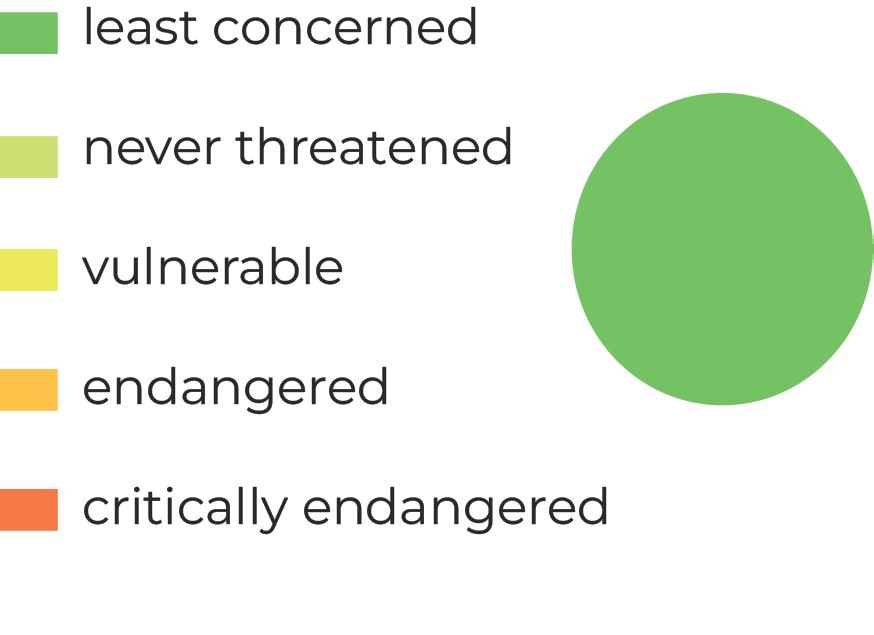

least concerned never threatened vulnerable endangered critically endangered

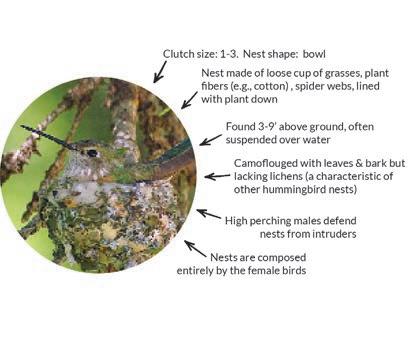

NESTING

Black-chinned hummingbirds are omnivorous birds. They prefer nectar as their primary food source, but they will also rely on sugar water from feeders

Nectar Insects

DIET

Breeding call (chip-chip) Chase call (pri-pri-prii)

Chase call (pri-pri-prii) Males ﬂy back and forth in a

U-shaped arc and buzz back and forth in short ﬂights in front of perched female (shown above)

-Breeding style: Polygamy

-Solitary; females live with offspring -Young leave nest once ﬂedge

REFERENCES, SOURCES & RECOMMENDED RESOURCES: CONABIO. (2022, July 7). *Áreas protegidas*. Biodiversidad Mexicana. [https://www.biodiversidad.gob.mx/region/areasprot](https://www.biodiversidad.gob.mx/region/areasprot) Cornell University Lab of Ornithology. (n.d.). *Black-chinned Hummingbird Overview, All About Birds, Cornell Lab of Ornithology*. Retrieved October 4, 2022, from [https://www.allaboutbirds.org/guide/Black-chinned_Hummingbird/ overview](https://www.allaboutbirds.org/guide/Black-chinned_Hummingbird/overview)

DESIGNING FOR NATIVE BIRDS

Black-chinned hummingbirds are omnivorous birds. They prefer nectar as their primary food source, but they will also rely on sugar water from feeders as well as insects and spiders to feed themselves and their chicks.

- Flowers - Spiders

Oscar A. Rodriguez

FOOD

Insects & Spiders

Nectar from ﬂowers

RESOURCES

Competes for territory and food

Uses plant down for nests

Uses spiderwebs for nests

Uses grasses for nests

REPRODUCTION

Hybridizes with Anna’s Hummingbird

Hybridizes with Costa’s Hummingbird

Hybridizes with Lucifer Hummingbird

Hybridizes with Broad-tailed Hummingbird

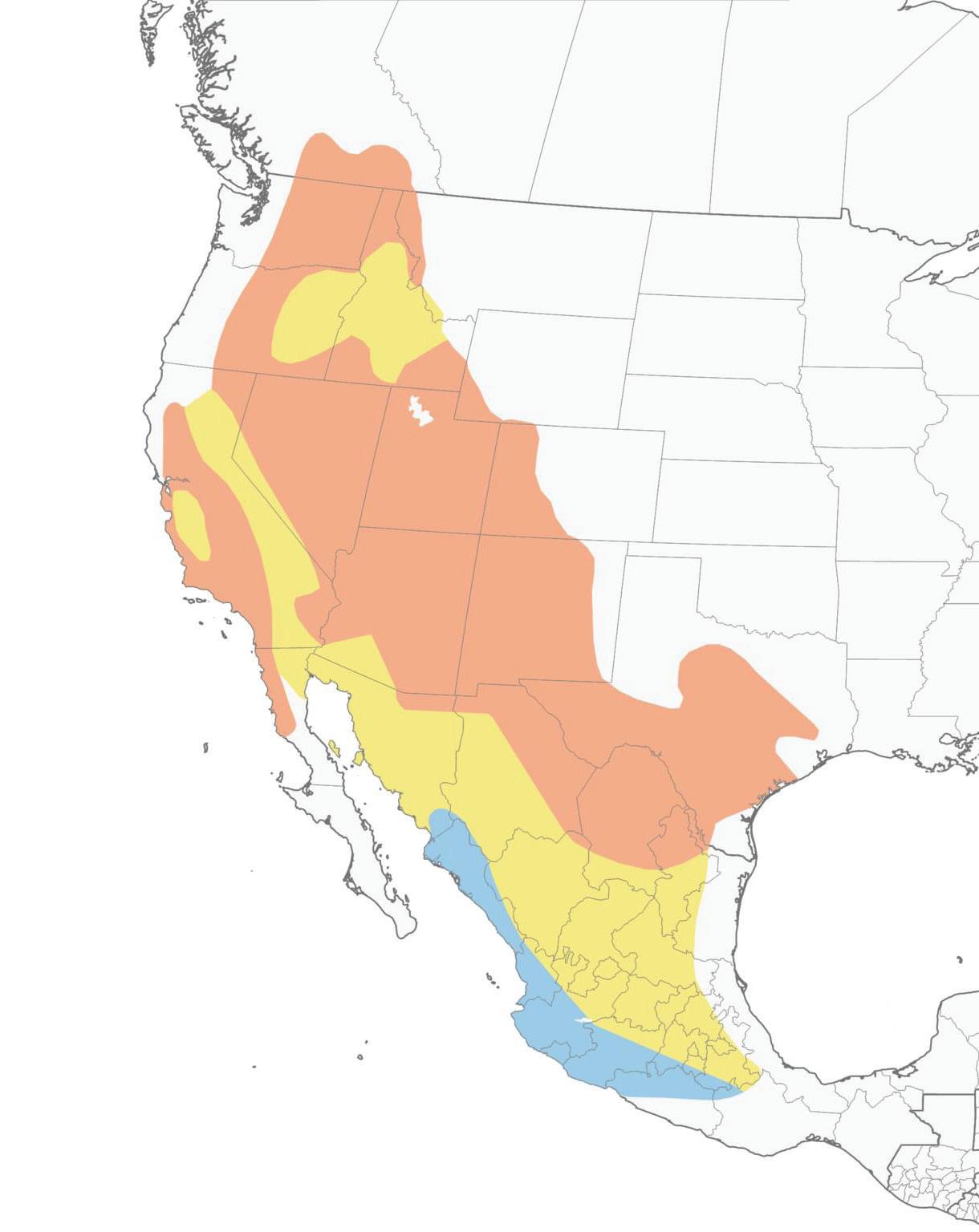

Graphic credit: All About Birds

Males migrate earlier than females to procure territory, competing with others in early spring

1st level carnivorous consumer, consuming insects and spiders to supplement its nectar diet Hunted by larger birds, reptiles, and cats

Uses Desert Willow as a nectar source and for nesting

Greeney, H. F., & Wethington, S. M. (2009). Proximity to Active Accipiter Nests Reduces Nest Predation of Black-Chinned Hummingbirds. *The Wilson Journal of Ornithology*, *121*(4), 809–812. [https://doi.org/10.1676/08-174.1](https://doi.org/10.1676/08-174.1) Mayntz, M. (2022, March 29). *Black-Chinned Hummingbird—Black Chin and a Purple Necklace*. The Spruce. [https://www.thespruce.com/black-chinned-hummingbird-387227](https://www.thespruce.com/black-chinned-hummingbird-387227)

National Audubon Society. (2014, November 13). *Black-chinned Hummingbird—Audubon Field Guide*. Audubon. [https://www.audubon.org/ﬁeld-guide/bird/black-chinned-hummingbird](https://www.audubon.org/ﬁeld-guide/bird/black-chinned-hummingbird) US Geological Survey. (n.d.). *Protected Areas | U.S. Geological Survey*. Protected Areas. Retrieved October 11, 2022, from [https://www.usgs.gov/programs/gap-analysis-project/science/protected-areas](https://www.usgs.gov/programs/gap-analysis-project/science/

Uses Fremont Cottonwood seed ﬂuﬀ to build nests and the branches for nesting

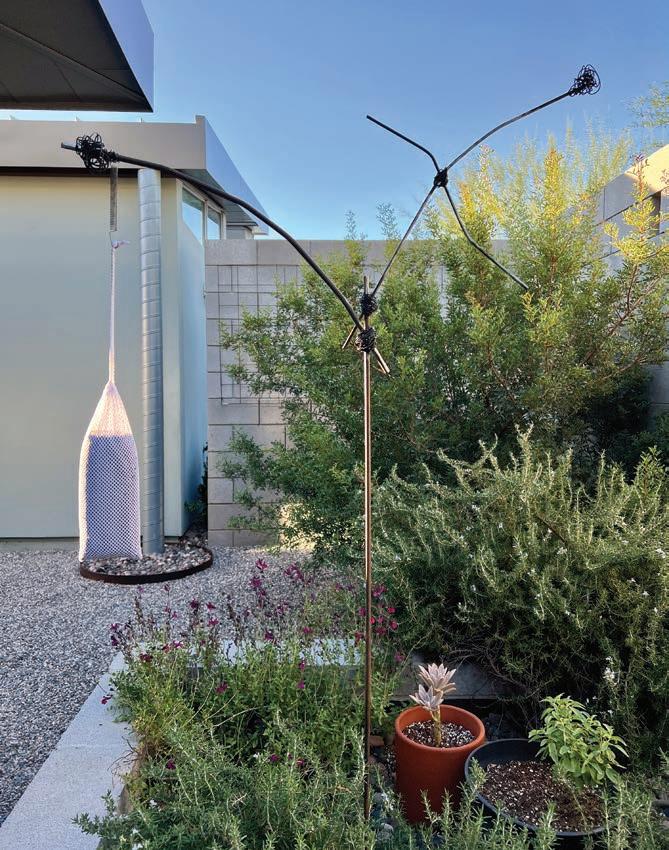

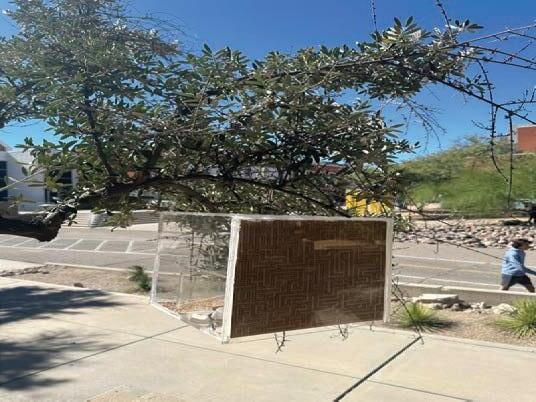

HABITAT PROTOTYPE : BLACK-CHINNED HUMMINGBIRD

Inspired by the bird’s courtship dances, whose trajectories resemble a parabola and partial triangle. this feeder prototype is formed by a shell consisting of two laser cut patterns attached to a frame, forming a lattice reflective of the bird’s dramatic movement.

The gaps resulting from these lines create opportunities for spider habitat, which the bird can utilize as a food and nesting resource.

Oscar A. Rodriguez

ATTACHMENT

4 FL OZ PLASTIC FEED RESERVOIR

The prototype is designed to fit in urban landscapes and backyards, being built of treated plywood (after being laser cut), hard plastics, and steel to withstand outdoor conditions.

CONNECTOR

TO FIT AND

FEED

The steel feeding ports are designed drawing inspiration from the Claret Cup Cactus flower, a known food source for this species in its Southwestern range.

1/4" PLASTIC TUBING AND STRAW CONNECTORS 1/4" PLYWOOD FRAME AND PATTERN (LASER CUT) 1/8" ALUMINUM FLOWER FEEDING PORTS

PLASTIC FEED RESERVOIR ATTACHED WITH STRAPS SECTION CUT 2 SCALE:

STEEL NAIL TO CONNECT FRAMES (COVER WITH WOOD FILL)

RESERVOIR AND FRAME DETAIL

PLASTIC STRAW ATTACHED TO FEED RESERVOIR (INSERTED INTO HOLE; SEALED WITH RESIN)

1/4" PLASTIC TUBING AND STRAW CONNECTORS 1/4" PLYWOOD FRAME AND PATTERN (LASER CUT)

el cuervo común

BROAD-BILLED HUMMINGBIRD

Cynanthus latirostris

BIOLOGY

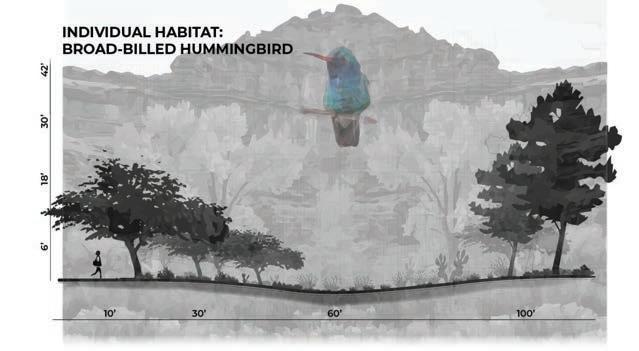

INDIVIDUAL HABITAT

DIET

Broad-billed hummingbirds are omnivorous. The bulk of their diet consists of flower nectar, but they can also be observed eating small insects,

REFERENCES, SOURCES, & RECOMMENDED SOURCES: https://www. audubon.org/field-guide/bird/broad-billed-hummingbird; https://animaldiversity.org/ accounts/Cynanthus_latirostris/; https://www.fs.usda.gov/detail/r3/plants-animals/ wildlife/?cid=FSEPRD571060; https://www.sdakotabirds.com/species/broad_billed_ hummingbird_info.htm; https://birdfeederhub.com/hummingbird-nests/; https://arizona-birds.com/index.php/broad-billed-hummingbird

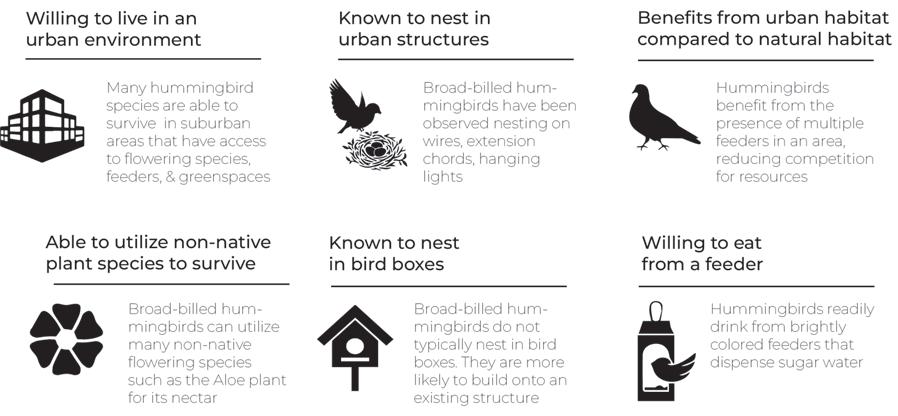

URBAN ADAPTATION

CONSERVATION

NESTING

COURTSHIP

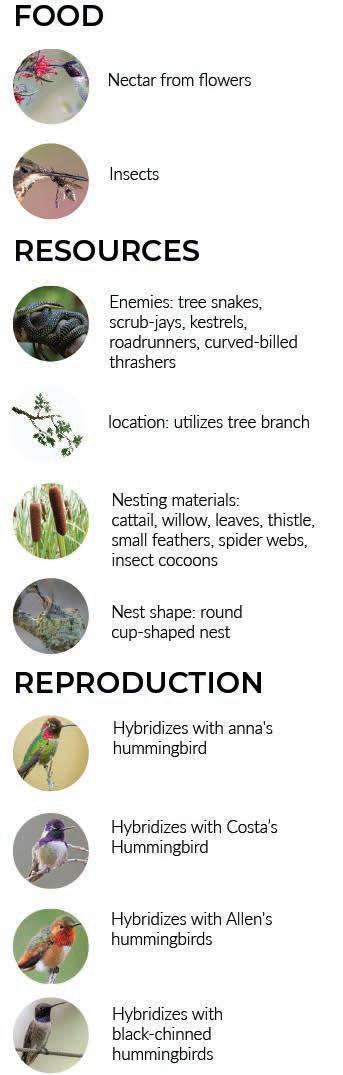

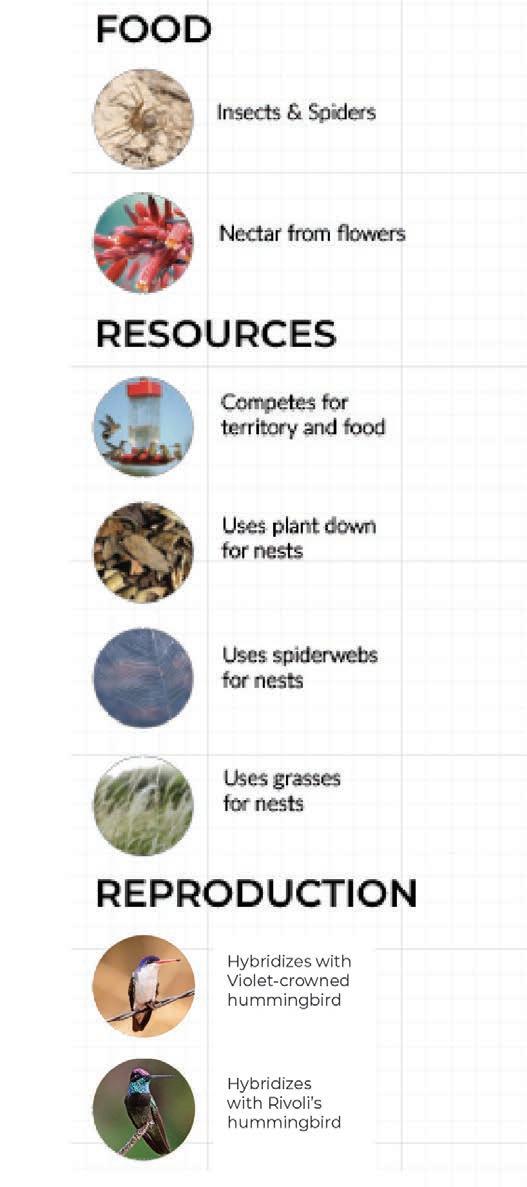

ECOSYSTEM ROLE

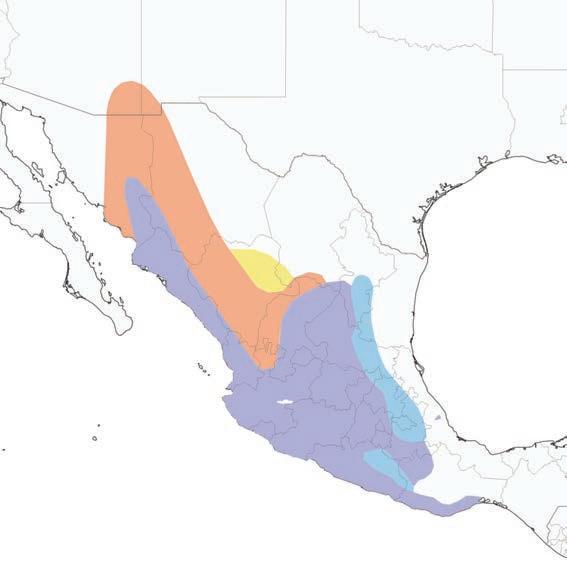

MIGRATION

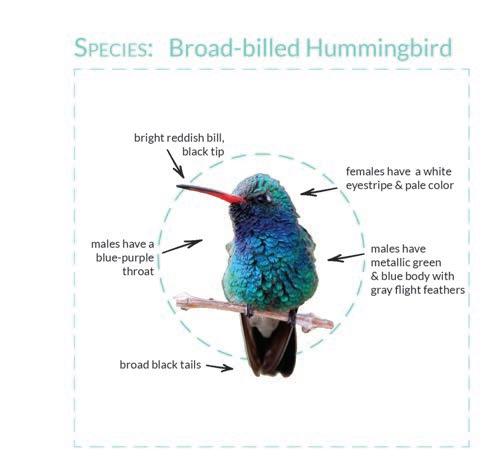

KEY MARKS

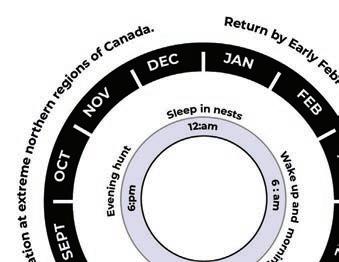

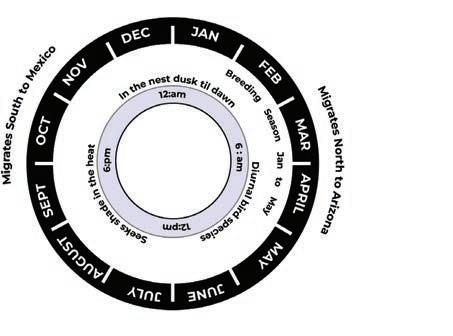

CALENDAR

ECOLOGICAL ROLE

SOURCES, & RECOMMENDED SOURCES: https://birdsoftheworld.org/bow/species/brbhum/cur/introduction; https://charismaticplanet.com/broad-billed-hummingbird; https://birdsoftheworld. org/bow/species/brbhum/1.0/introduction; https://www.hummingbirdsplus.org/species/broad-billed/

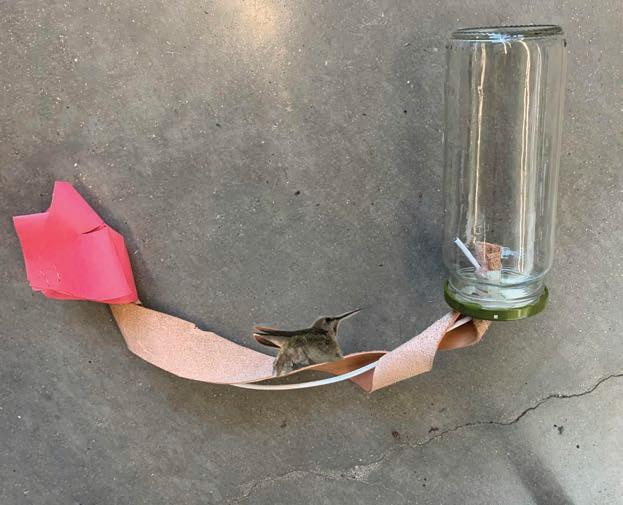

Sketch Model 10/19

Jar will hold the sugar water Feeding attractor

Leather represents nest surface area Wire represents tubing

Materials Tests

A common glass jar with a screw-on lid will be ideal for the sugar water containtainer. This part will need to be secured to a tree with a wire hanger and a nail.

Leather is too flimsy to serve as the helical structure for the bird’s nest. This will be replaced with a thin metal such as aluminum which can be bent easily but will remain rigid. The metal will be sealed to reduce glare and buffer heat conductivity.

The white metal wire represents some type of narrow plastic tubing which runs the length of the helical metal structure. The model will be 5’ long.

The red terminus of the line serves as a flower attractant made of recycled plastic.

CACTUS WREN

Campylorhynchus brunneicapillus

BIOLOGY

INDIVIDUAL HABITAT

URBAN ADAPTATION

Species is willing to live in an urban environment

Yes the Cactus Wren will live in cities provided that there is native vegetation.

Species is known to nest in urban structures

No, Cactus Wrens make nests among cactus, mesquites and yucca.

Species is willing to eat from a feeder

Species is able to utilize non-native plant species to survive

This bird prefers native vegetation.

Species beneﬁts from urban habitat compared to natural habitat

No, Cactus Wren populations are declining and this in largley due to habitat loss.

VOCALIZATION/COURTSHIP

Species has adapted specialty trait to survive in urban environments

-Call are raspy and compared to a car trying to start.

-Breeding style: Monogamy , may mate for life.

-Pairs greet each other with open display spreading their wings and tail.

Eggs are .5x1”, pink

-Live in pairs, may forage in family groups

-Young leave the nest at around three weeks.

Nest are made with a narrow opening to prevent predation.

Nest are typically made among jumping cholla

Nest are built by both parents. 2-7 eggs

Source: https://www.audubon.org/ﬁeld-guide/bird/cactus-wren

Possibly Cactus Wrens will eat fruit, howver their main diet is insects.

Cactus Wrens will make use of synthetic materials for nest building and will also scavenge bugs from car radiators.

ECOSYSTEM ROLE

FOOD

Insects Some Plant Matter

RESOURCES

Nest among cactus particularly jumping cholla

Also utilizes mesquite and yucca

Lines nest with feathers.

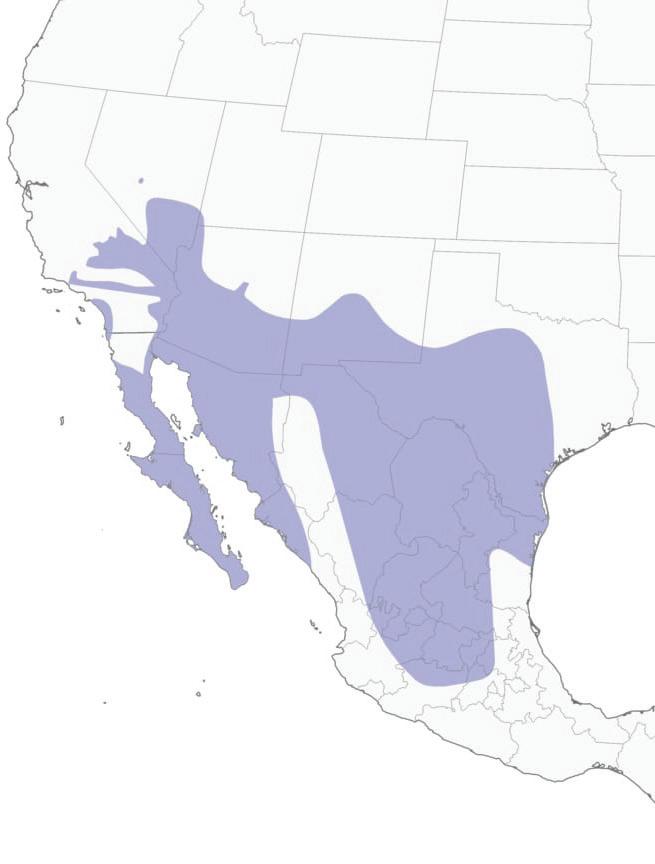

RANGE

Appreciates sagebrush and buckwheat habitat.

Yellow eye color in young adults then red for older adults

CONSERVATION

KEY MARKS

Top side is a bit blue on males, greyer on females

CALENDAR

REFERENCES, SOURCES & RECOMMENDED RESOURCES: www.allaboutbirds.org/guide/Cactus_Wren/id, www.audubon.org/field-guide/bird/cactus-wren, www.desertmuseum.org/kids/oz/long-fact-sheets/Cactus Wren.php

Long tail rounded at tip

HABITAT PROTOTYPE : CURVED BILLED THRASHER

Cholla Nest Design

The objective of the design was to create a protected nest that was easy for a human to drop into a cactus. The nest was inspired by weaving sticks with one another to mimic a bird best. Within a cactus, the nest has an extra p[rotection layer from the spines. This nest was created to sink 2’-5’ feet off the ground within a cholla, with room for the birds to add sticks and twigs. Curved billed thrashers often find cactus wren nests and will build ontop of them. Allowing the bird to add onto the foundation of the nest, while creating the oppurtunity for humans to interact with nesting.

Design considerations;

» Females shade their young, create nest with one taller edge, propped on west side for shaind young.

» Thrashers like to add onto existing nests, mimic woven shape to allow bird interaction with human adaptation of their habitat.

» 3-5 baby birds in nest at a time, create wide depressed area ready to be lined with feathers.

» To be left within cholla, have a triangle like bottom to restrict sinking into cactus.

IMAGE ABOVE: Shape exploration, abstraction or nest. IMAGE ABOVE: Woven nest addition for shade perch.

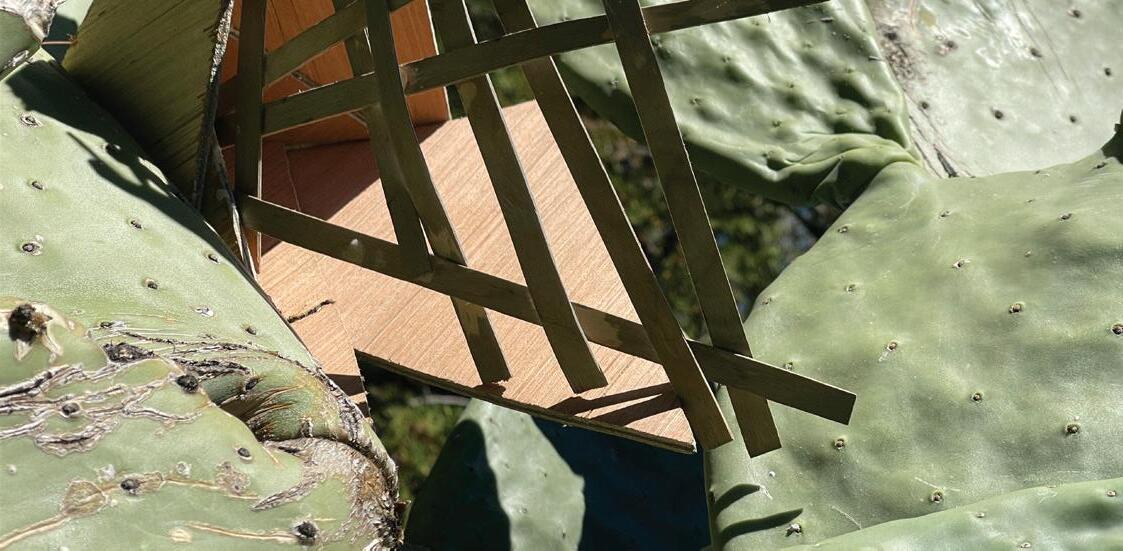

IMAGE ABOVE: Beta model with weatherized wood in cactus.

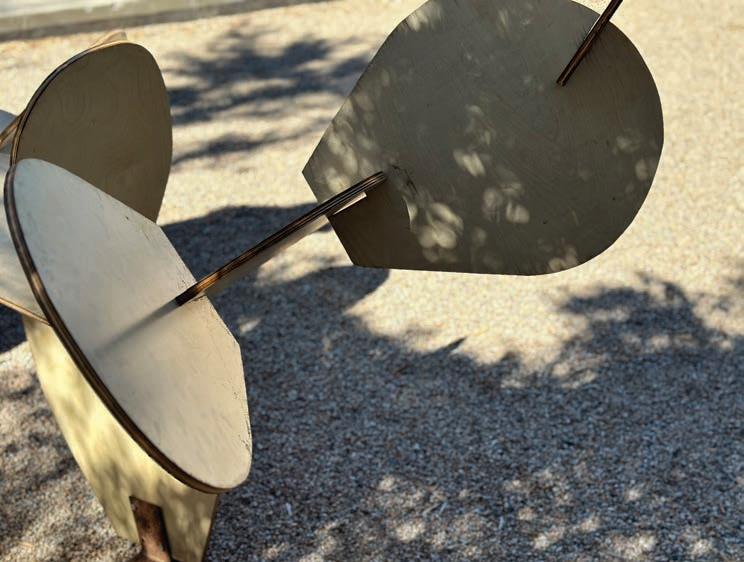

HABITAT

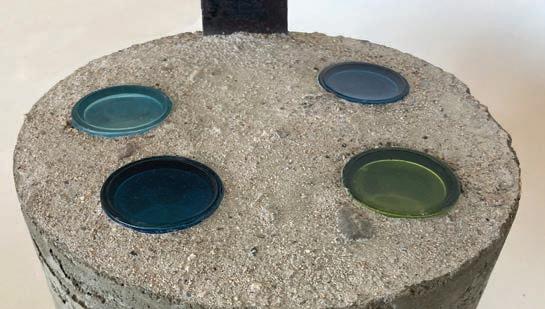

: CACTUS WREN PLAY SCULPTURE

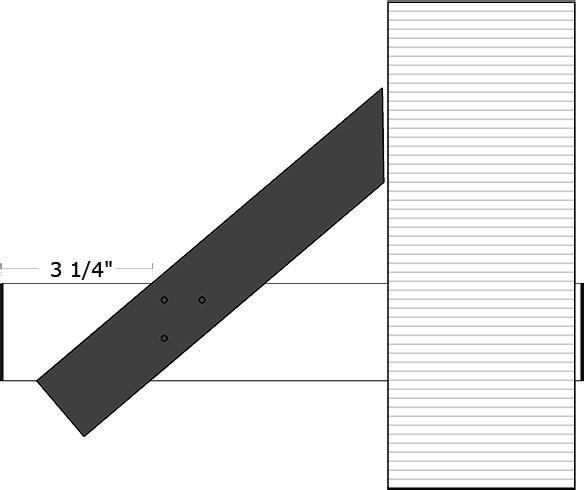

METAL HANGER AND BASE DETAIL

3/8" HOLE TO ACCEPT STEEL RINGS 1'-6 1/2" 1/4"

AXONOMETRIC VIEW

RINGS CUT FROM 1/4" STEEL SHEET STEEL 5"

WELDED CONECTION

MATERIAL IS 1/4" THICK X2" WIDE SHEET STEEL

Plan View

This sculpture is designed with the cactus wren in mind. Cactus wren are playful and curious, they will interact playfully with objects in their environment. Cactus wren nest close to the ground and spend most of their days kicking about on the ground and searching for food. The primary inspiration for this sculpture was informed by the fact that cactus wren can sometimes be observed gleening dead insects from the grills of cars.

The opportunism, the resourcefulness and curious playfullness of these wrens was a such a lucky inspiration for this project. After cycling through a few forms and materials, the final design was determined. This is designed to be set into the ground, all five inches of the concrete base.

The glass tops would be just at grade, allowing lights installed from underneath to shine during the night, attracting insects, some of which would no doubt still be around in the morning for the wrens to enjoy. The metal rings provide movement and interest for the playfull birds and the entire installation is attractive, particularly when lit at night, for human observers.

COMMON RAVEN

Corvus corax

URBAN ADAPTATION BIOLOGY

INDIVIDUAL HABITAT

CONSERVATION

NESTING

The raven is omnivorous. Can also be seen eating from human landfills, to small mammals, berries, and are also considered scavangers.

REFERENCES, SOURCES & RECOMMENDED RESOURCES: Berg, R. 1999. Corvus corax. Animal Diversity Web. Retrieved from: https://animaldiversity. org/accounts/Corvus_corax/ Breeding. (2017). Listen to the Sweet, Soft Warble Common Ravens sing to their Partners. Audobon. Retreieved from: https://www.audubon.org/news/listen-sweet-soft-warble-common-ravens-sing-their-partners Songs and Calls. (ny). Retrieved from: https://www.audubon.org/field-guide/bird/common-raven

DESIGNING FOR NATIVE BIRDS

COURTSHIP

ECOSYSTEM ROLE

FOOD

insects rodents lizards garbage

RESOURCES

enemies: owls, hawks and eagles

nesting materials: branches, natural elements (mud, bones, wires) trash

location: utilizes tree branch, cliffs, power line towers, bridges, high areas

nest shape: creates a basket for nesting

REPRODUCTION

monagamous lovers

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

MIGRATION

CALENDAR

ECOLOGICAL ROLE

https://www.audubon.org/field-guide/bird/common-raven?adm1=AZ&country=US#bird-cli-

KEY MARKS

Ecosystem role source: https://www.audubon.org/field-guide/bird/common-raven?adm1=AZ&country=US#bird-climate-vulnerability

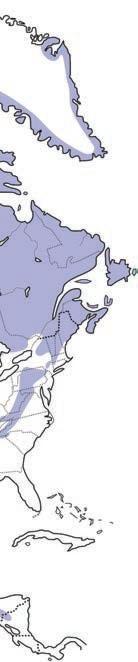

Migration map: https://www.audubon.org/field-guide/bird/common-raven?adm1=AZ&country=US#bird-climate-vulnerability

Calendar: https://www.audubon.org/field-guide/bird/common-raven?adm1=AZ&country=US#bird-climate-vulnerability

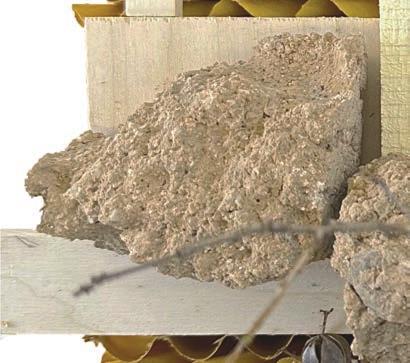

HABITAT PROTOTYPE : COMMON RAVEN

The habitat prototype was inspired by the complexity that the common raven has in their everyday life. These birds are complex species that enjoy playing, stealing, and most of all scavanging. What better way to put their characteristics in play than to have them contribute to their ecosystem and society while being rewarded. When the raven finds a trinquet or a piece of garbage, the box will dispense a few pebbles of food as a reward. The maze in the box represents the complexity that these birds attain while also encouraging the human component in urban areas

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

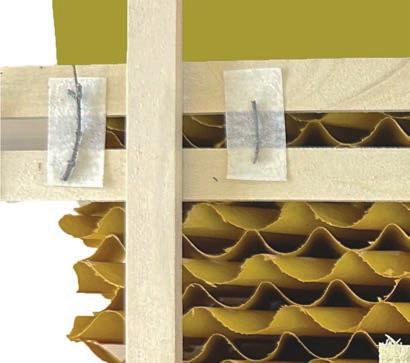

Model Details. Fall 2022. Habitat Prototype Details for the Common Raven, produced by Selenne Yescas.

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

Model Prototype. Fall 2022. Habitat Prototype Model for the Common Raven, built by Selenne Yescas.

COOPER’S HAWK

Accipiter cooperii

URBAN ADAPTATIONS

URBAN ADAPTATIONS BIOLOGY

INDIVIDUAL HABITAT

Willing to live in an urban environment

Cooper’s Hawk can survive comfortably in suburban areas and some cities have reported growing populations

Able to utilize non-native plant species to survive

Cooper’s Hawk prefers to nest in tall canopies of non-native trees

Beneﬁts from urban habitat compared to natural habitat

Cooper’s Hawk can thrive in both urban and natural habitat. However, prey can be more abundant in urban locations.

COURTSHIP CONSERVATION

least concerned never threatened vulnerable endangered critically endangered

NESTING

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

Diet: https://birdfact.com/articles/what-do-coopers-hawks-eat

Breeding Call: cak cak cak

Breeding style: Monogamy

Nest are built by both sexes, usually made of sticks and lined with bark

Located 25’-50’ above the ground, towards the top of tall deciduous or evergreen trees

Abandoned nests of other large birds or clumps of mistletoe can be used as a foundation

Cooper’s Hawk attracts mates using ﬂight displays and vocal calls

Cooper’s Hawks are solitary birds until they mate

Chicks leave the nest and become independent around 2 months of age

(cak cak cak) is also used for defending the nest

Breeding Call: (cak cak cak) (cak cak cak) is also used for defending the nest

Biology: https://www.itis.gov/servlet/SingleRpt/SingleRpt?search_topic=TSN&search_value=175309#null

Abandoned nests of other large birds or clumps of mistletoe can be used as a foundation

Rodents and Small Reptiles

Small Birds

Large Spiders and Scorpions

Cooper’s Hawk feeds mainly on medium-sized birds. They will also consume small rodents and reptiles on occasion. Typically, Cooper’s Hawk kills its prey by squeezing it to death with their sharp talons.

ECOSYSTEM ROLE

Medium Sized Birds

Small Rodents & Reptiles

RESOURCES

Sticks and tree bark for nests

REPRODUCTION

Competes with other hawks for territory Monogamous

KEY MARKS

Yellow eye color in young adults then red for older adults

https://www.allaboutbirds.org/guide/Coopers_Hawk/maps-range rounded at tip

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

Calendar: https://www.wild-bird-watching.com/coopers-hawk-habits.html

Migrates over Winter Season

Top side is a bit blue on males, greyer on females

Generally considered a quaternary consumer, Cooper’s Hawk has few natural predators in the ecosystem and they help maintain the population levels of smaller animal species

Nesting: https://www.audubon.org/field-guide/bird/coopers-hawk#:~:tet=Feeds%20mainly%20on%20medium%2Dsized,Sometimes%20eats%20reptiles%2C%20insects.

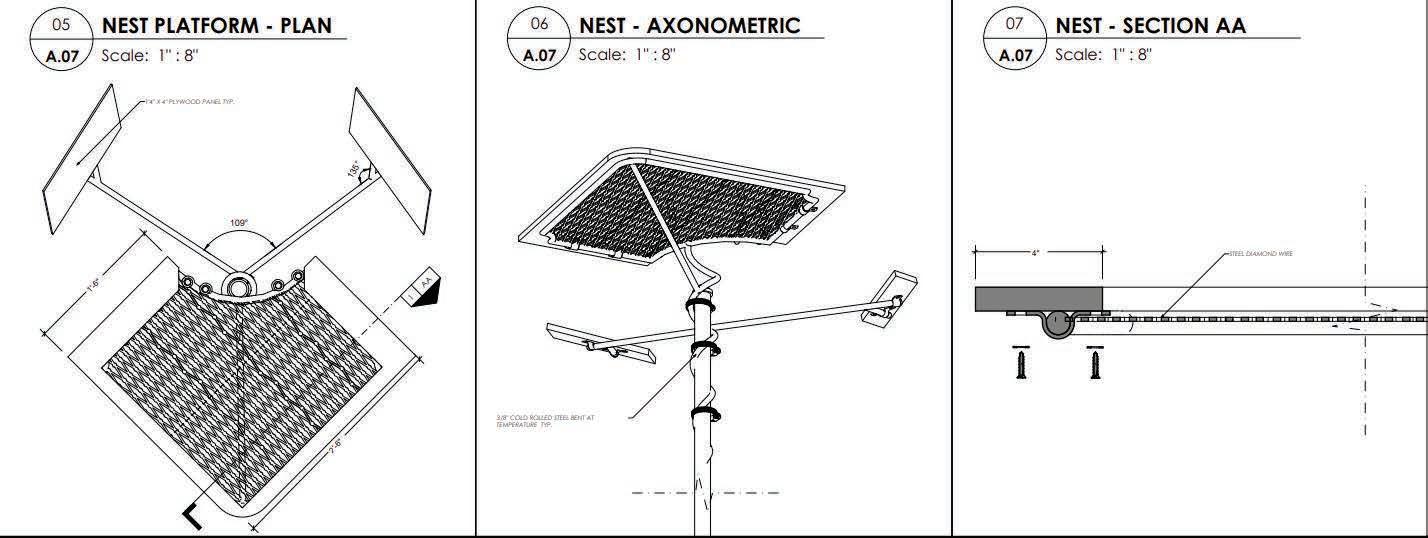

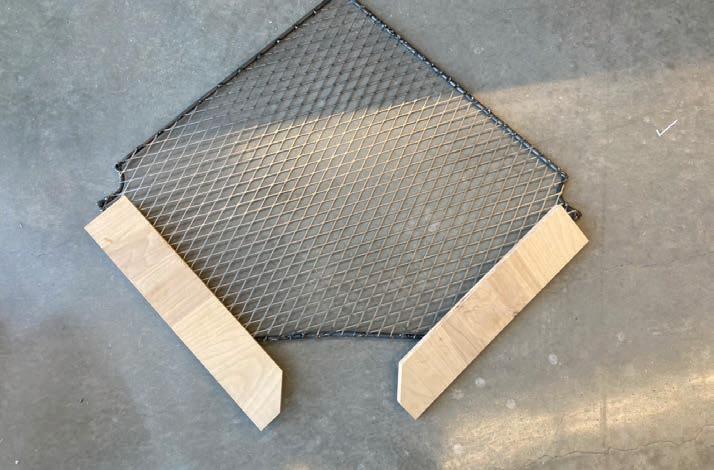

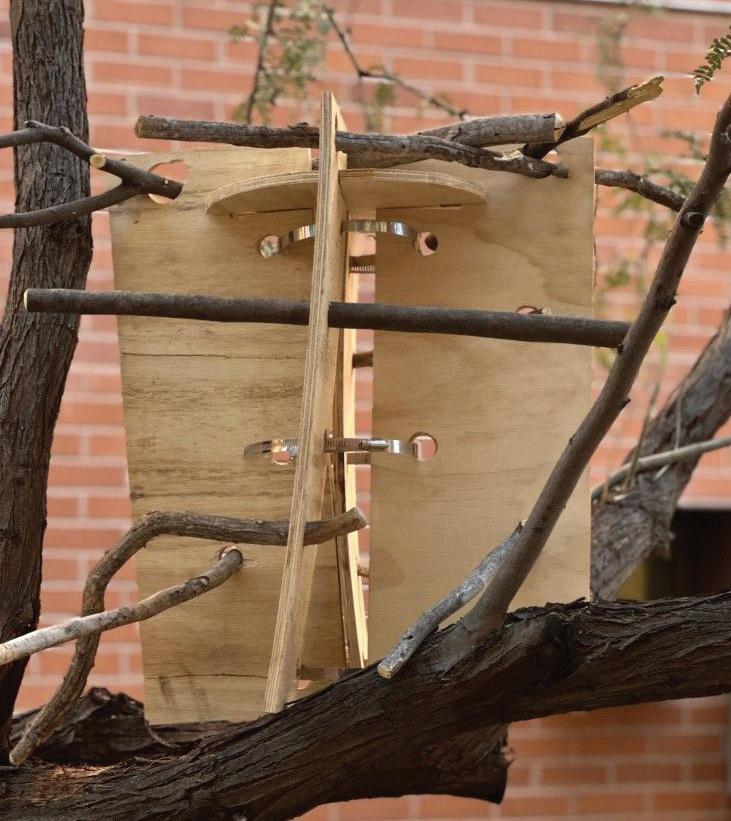

HABITAT PROTOTYPE :

COOPER’S HAWK

Cooper’s Haven was designed to provide an inclusive perch and nesting platform for Cooper’s Hawk in urban and suburban habitats. Hawks look for the highest vertical point in the landscape to make their nest, they do not want any enclosed or overhead shelter. This design uses adjustable hose clamps to fit on top of a typical utility pole from three to six inches in diameter. Once the platform is secured around a utility pole, real desert willow branches in combination with the wood fins provide a secure foundation for hawks to build their nest. More branches woven across the lower part of the design act as perching points where a hawk can seek refuge from the sun or high winds, and is still free to scan the world beneath them.

Elevation View Axonometric View

Nesting Platform

Branches through Wood Fin

Hose Clamp

Perching Branch

Nesting Branch

Nesting Platform

Nesting Platform Wood Fin Wood Fin

Perching Branch

Hose Clamp TYP. Utility Pole 3-6” Dia.

GAMBEL’S QUAIL

BIOLOGY

INDIVIDUAL HABITAT

Primarily ground foraging species. Eat Seeds from trees, shrubs and grasses as well as grass leaves and stems, and cactus fruits and berries when available. Insects mostly consumed in mating season and by chicks, as they only eat animal matter the first few days after they hatch

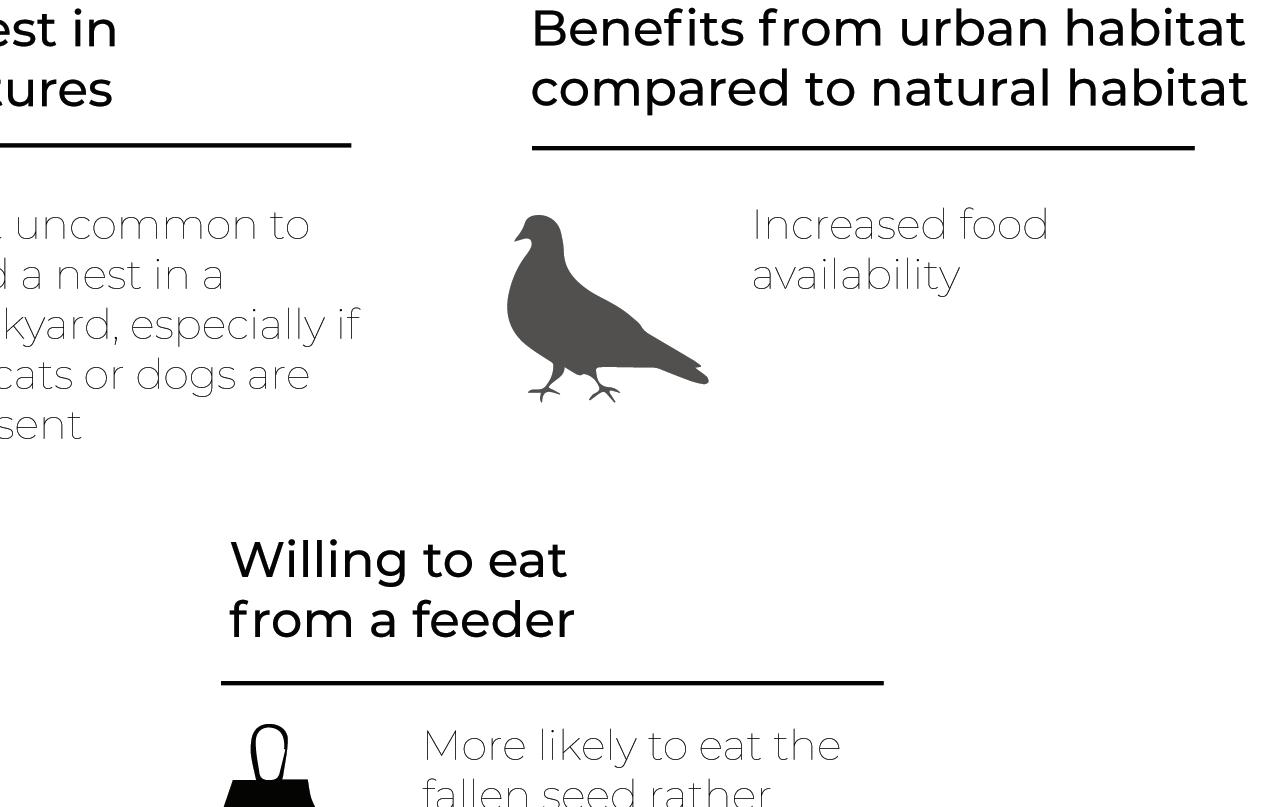

URBAN ADAPTATION

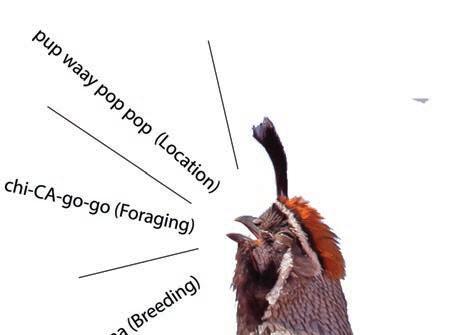

COURTSHIP

As breeding season nears, males will call from an elevated perch. Once courting, males perform a ritualized foraging display called “tidbitting” to attract a mate, including extending his legs, fanning his tail, and stands with his head near the ground and tail in the air

-Breeding style: Monogamous, with both sexes raising chicks -Live in Coveys, usually a breeding pair and their young that stay together through the winter in their home range then will leave to find new coveys. -Only time they are aggressive to others is breeding season when they pair up.

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

https://www.allaboutbirds.org/guide/Gambels_Quail/lifehistory

https://www.audubon.org/field-guide/bird/gambels-quail

https://wildbirdsonline.com/blogs/news/gambels-quail

https://nri.tamu.edu/blog/2018/march/meet-the-gambels-quail/

Image: Feederwatch.org

Callipepla gambelii

Right Image: City Sun Times

ECOSYSTEM ROLE

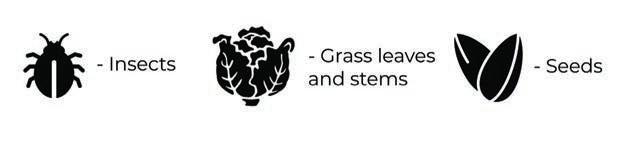

FOOD

Primary foods are seeds and leaves from grasses

Chicks feed only on insects for the first days after hatching

RESOURCES

Uses dense shrubs or cactus to protect nest

Grasses to line nest

Feathers to line nest

REPRODUCTION

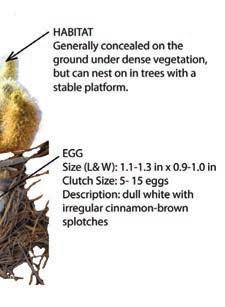

NESTING

Adults mate for life

Chicks leave the nest with parents within a day of hatching

Has hybridized where range overlaps with California Quail, not common

MIGRATION

Map Source: All About Birds

KEY MARKS

https://commons.wikimedia.org

REFERENCES, SOURCES & RECOMMENDED RESOURCES: https://www.iucnredlist.org/species/22679609/138721794#habitat-ecology

CALENDAR

ECOLOGICAL ROLE

https://www.desertmuseum.org/kids/oz/long-fact-sheets/gambel%27s%20quail.php#:~:text=Average%20life%20expectancy%20for%20 a,for%20up%20to%20four%20years.&text=Mature%20birds%20average%20eleven%20inches,(160%20to%20200%20grams.)

ebird.org

Images: allaboutbirds.org

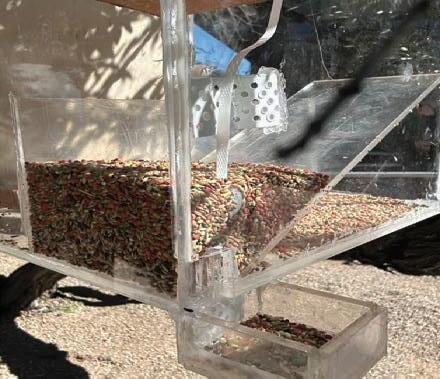

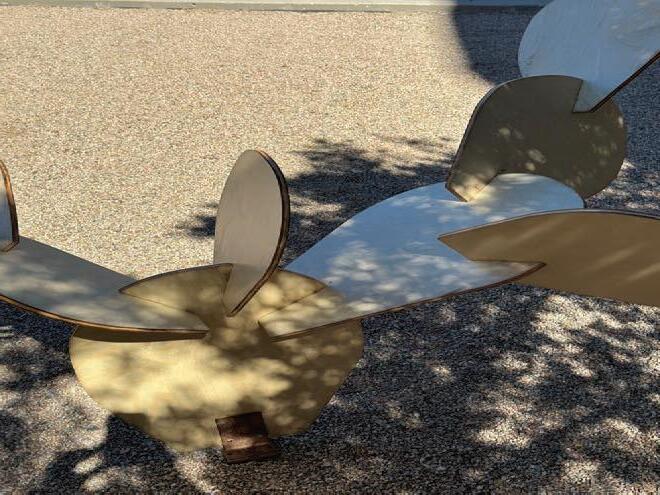

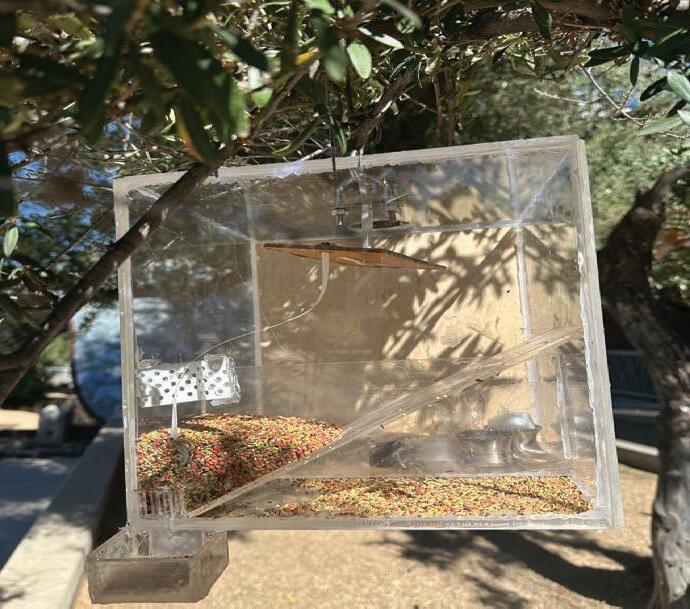

HABITAT PROTOTYPE : GAMBEL’S QUAIL

These construction documents detail how I would build my idea for a quail habitat in a public space. The structure, modeled after a prickly pear cactus, which they already use in the wild, would provide cover for the quail to take refuge under. These would be wood, fitted together with at least 1” notches. The bottom would be set in concrete to counterbalance it so it would stay standing. There would be several pads that would be bowls to provide water for the birds, and it would be at least 6’ tall so the males could call from the top during bread

ing season.

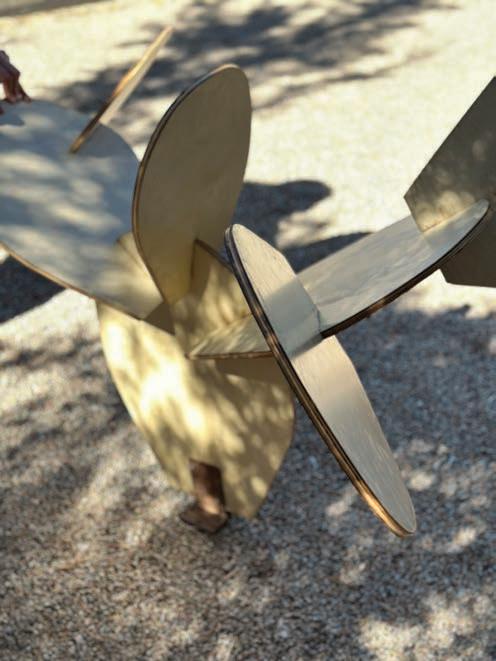

Image credits: Mackenzie Waller Images of a portion of the habitat, built to scale.

LESSER GOLDFINCH

Spinus psaltria

KEY MARKS

stub-billed

bright yellow underparts (m), dull yellow underparts (f)

VOCALS

NESTING

-1-3 broods per year

-3-6 eggs per brood

- 1.5-1.6 cm x 1.1-1.3 cm

- incubation: 12-13 days

- nestling: 12-14 days

1-3 broods per year

3-6 eggs per brood

1.5-1.6 cm x 1.1-1.3 cm

incubation: 12-13 days

nestling: 12-14 days

black tails with white patches

plaintive, kittenlike (tee-yee) song is similar to American Goldﬁnch frequently imitates other species’ call

CONSERVATION

found in fork of branches, concealed by leaves

cup form, constructed of leaves, bark, yucca ﬁbers, spiderwebs found 4’-8’ oﬀ ground on slender twigs

*built by female

DIET

INDIVIDUAL HABITAT

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

- https://www.allaboutbirds.org/guide/Lesser_Goldfinch/overview

- https://www.audubon.org/field-guide/bird/lesser-goldfinch

low concern

gregarious in nature, forming large ﬂocks at feeding sites and watering holes

BIOLOGY

Centaurea melitensis, is a primary food source

majority of diet at all seasons consists of seeds; especially favors those of the daisy family, such as thistle and wild sunflower

Lesser Goldfinches cling to the seed heads of tall plants, bending the stem down so that it can end up hanging upside down while

ECOSYSTEM ROLE

PREFERRED

= months in which bird is most likely to be viewed

Willing to eat from a feeder

will utilize feeders as they eat many kinds of seeds from the sunﬂower family

MIGRATION

all seasons - common breeding - common

a permanent resident in much of range, summer resident only in some inland parts of the West north of the desert regions; very rare stray east of normal range

REFERENCES, SOURCES & RECOMMENDED RESOURCES: - https://www.allaboutbirds.org/guide/Lesser_Goldfinch/overview - https://www.audubon.org/field-guide/bird/lesser-goldfinch

Napa Thistle seeds FOOD

Beebrush (Aloysia)

Amaranth flowers

almost never nest in human structures urban structures such as parks and gardens plant species to survive

HABITAT PROTOTYPE : LESSER GOLDFINCH

Spinus psaltria

A very lightweight bird, the lesser goldfinch often hangs on the tips of soft branches of plants such as Aloysia and Amaranth. Known to sway and bounce as they feed, the focus for the habitat was a feeder that enabled movement and inspire kinetic activity on another part of the structure.

Shrub structure was explored here, with delicate branches and foliage to offer protection being

CONCEPT SKETCHES

MODEL SKETCHES

KRISTA PLANINAC

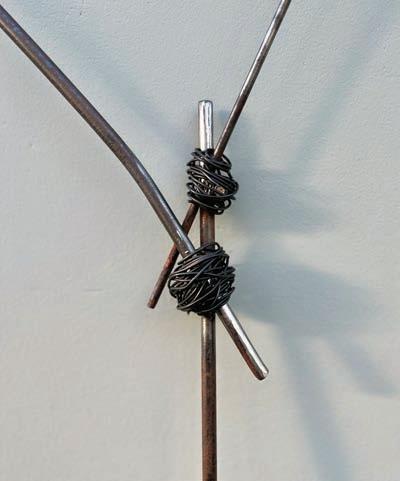

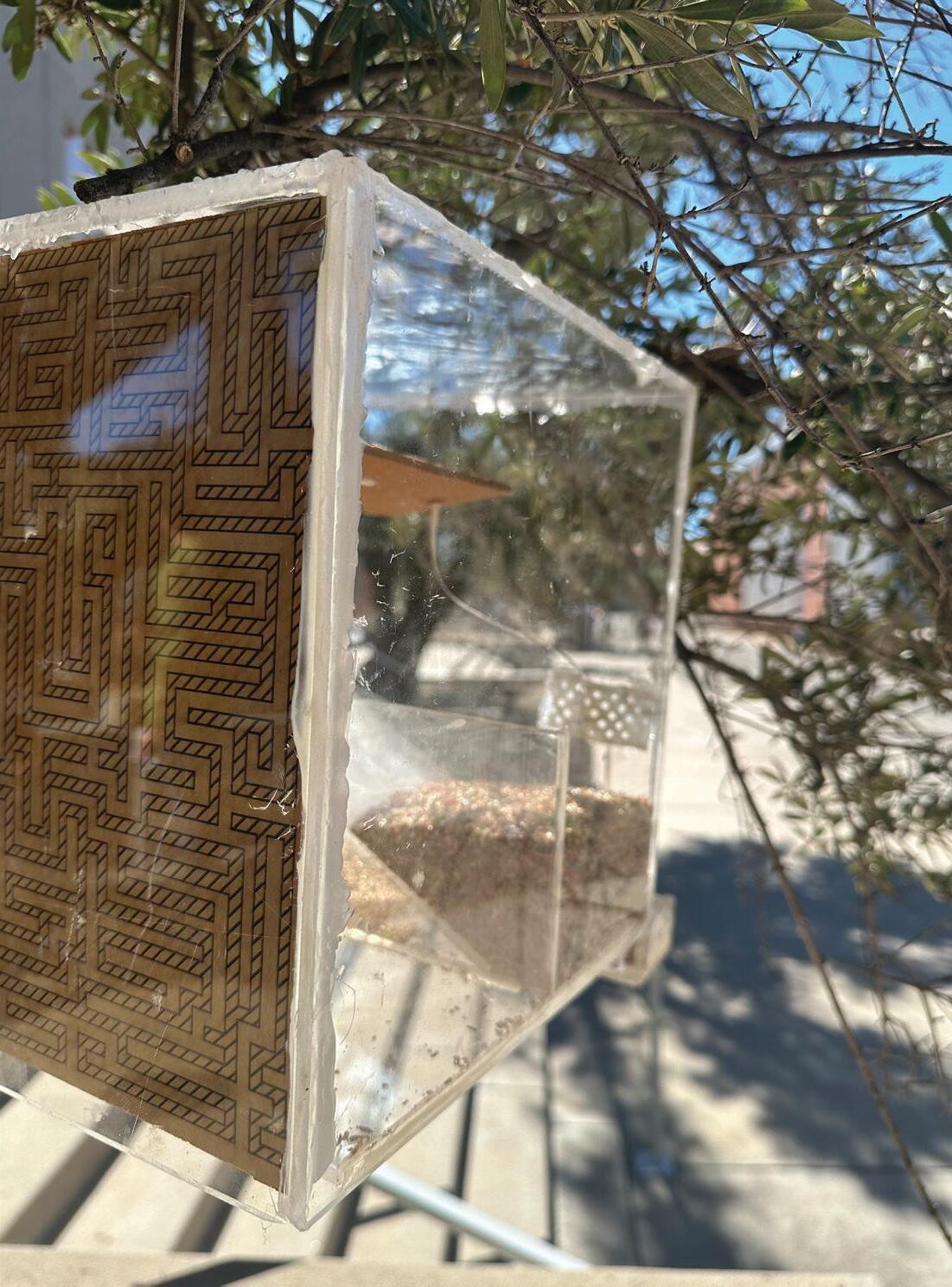

BUILT MODEL IMAGES

RED-TAILED HAWK

Buteo jamaicensis

BIOLOGY

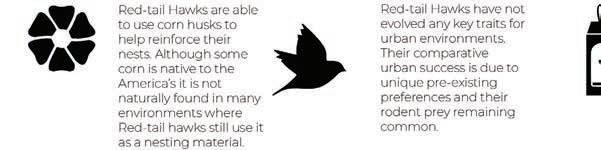

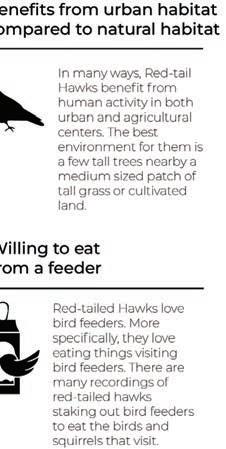

URBAN ADAPTATION

INDIVIDUAL HABITAT

DIET

The red-tailed hawk is carnivorous, and not a picky eater. Red-tail hawks most common prey are small mammals and ground fowl; however, they

CONSERVATION

NESTING

VOCALS

ECOSYSTEM ROLE

FOOD

Misc. Mammals

Misc. Birds

Misc. Reptiles

Misc. Amphibians

RESOURCES

Stalks Bird Feeders Searching For Prey Uses Sticks & Twigs As Nest Materials

Renovates Same Nest Yearly With Bark

Prefer Tall Trees With Commanding Views

REPRODUCTION

Red-tail Hawks Mate For Life

MIGRATION

KEY MARKS

CALENDAR

ECOLOGICAL ROLE

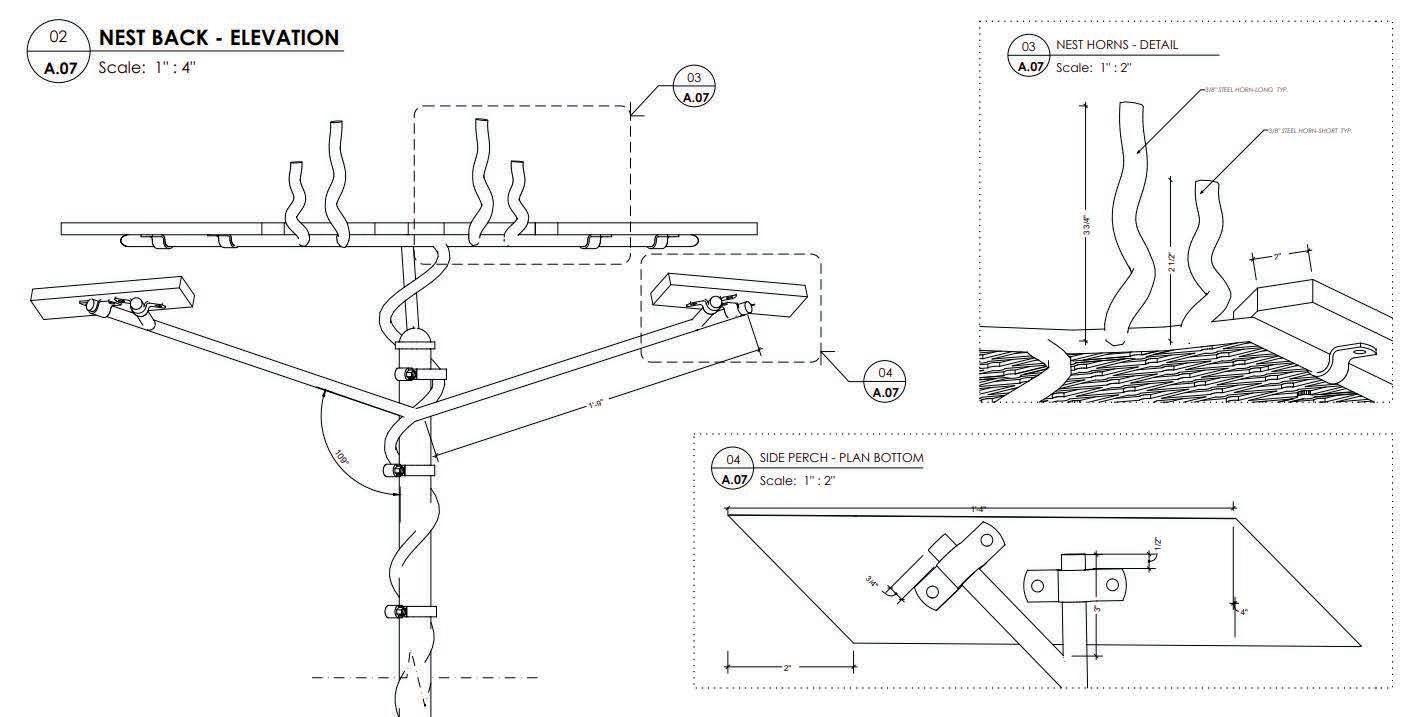

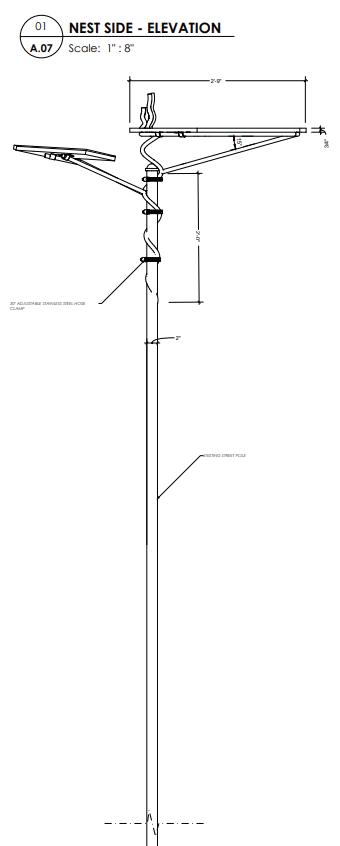

HABITAT PROTOTYPE : RED-TAIL HAWK

The objective of the design was to create a sky platform fitting for the king and the queen of the sky: The Red-tail Hawk. The platform was inspired by the angular forms of a bird in flight merged with the coiling snake forms inspired by one of the birds key prey. The overall design should be foreboding and intimidating and inspire a sense of majesty.

PRELIMINARY PHASE DESIGNS

MATERIALS PALETTE

Approved for Phase 1

TCB FUNDING

Examples of materials and elements that are approved for the initial phase of the project. The City’s GSI Program and TCB’s Program can only directly fund stormwater management features including the following things:

earthworks, scuppers / culverts permeable surface coverings

rockwork / boulders

plants, plants, and more plants irrigation bollards, vatical markers, solar blinkers compacted / stabilized dg pathways

boulder seating areas

recycled materials from on site

RECOMMENDED VENDORS

Use of local vendors and contractors are recommended:

Acme Sand & Gravel

Civano Growers

Potential Future Phases

ADDITIONAL FUNDING

A few examples of the types of elements and materials that would require additional funding in the future:

Prosopis glandulosa honey mesquite

Acacia greggii catclaw acacia

Tecoma capensis cape honeysuckle

Sphaeralcea ambigua desert globemallow

Euphorbia rigida gopher plant

Calliandra californica

Salvia clevelandii chaparral sage

PRELIMINARY DESIGN EXPLORATIONS

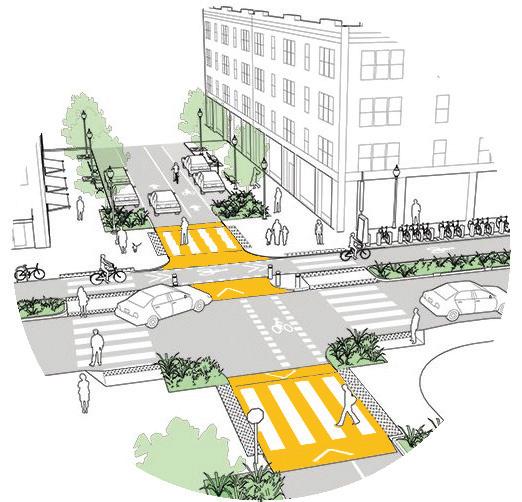

Typologies: Trafﬁc Calming

The following traffic calming typologies are potential design solutions for the Sierra Estates community to pursue in the future. Only the chicanes were part of the preliminary designs that the student groups developed.

The first typology is the reduction of lane widths to discourage speeding (National Association of City Transportation Officials, 2013). As shown on the map, this is primarily recommended on Burns Street, although this is applicable to the other roads in the community.

The following typologies are more specific ways of achieving lane width reductions while expanding the pedestrian space of the street. Chicanes are curb extensions designed to make drivers slow down by following a curved path, and thus can provide additional walking space for pedestrians, vegetative buffers, or both (City and County of San Francisco, 2011). Another option is to widen sidewalks and add vegetative buffers to them. Due to the amount of higher speed traffic along Swan, this typology would be the most impactful there, but would be beneficial in the rest of the neighborhood as well. Curb extensions are recommended on Burns Street to shorten the crossing distance for kids to get to the park more safely.

The last two typologies focus on increasing pedestrian safety on Swan. One improvement that could benefit SunTran users is the addition of shelter at the Burns Park bus stop, as the current one is exposed to the elements for much of the day. Finally, a series of improvements to make the intersection between Swan and Burns safer and more accessible include the addition of street trees, prominent crosswalks, and ADA ramps.

Reduced lane widths discourage speeding

Curb extensions shorten crossing distances

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

Chicanes slow drivers down and manage stormwater runoff

Sheltered bus stop on Swan for added thermal comfort and safety

Wider, buffered sidewalks improve walkability

Street trees, prominent crosswalks, and ADA access ramps to make Swan-Burns intersection safer and accessible

Diagrams edited by Oscar Rodriguez. Reference map elaborated by Oscar Rodriguez. City and County of San Francisco. (2011, December 25). Chicanes. SF Better Streets. https://www.sfbetterstreets.org/find-project-types/pedestrian-safety-and-traffic-calming/traffic-calming-overview/chicanes/ National Association of City Transportation Officials. (2013). *Urban Street Design Guide*. Island Press.

PRELIMINARY DESIGN EXPLORATIONS

Typologies: Green

Stormwater Infrastructure

The following green stormwater infrastructure typologies are potential design solutions for the Sierra Estates community to pursue in the future. Tucson Clean & Beautiful and the City of Tucson Storm to Shade program will take lead on assessing which solutions are appropriate for Burns Park and the Sierra Estates neighborhood.

BIORETENTION BUMPOUT

“A bumpout is a vegetated curb extension that protrudes into the street at mid-block or at an intersection. The system is composed of a layer of stone topped with soil and plants. An inlet or curb-cut directs runoff into the bumpout structure where it can be stored, infiltrated, and absorbed by the plants. Excess runoff is permitted to leave the system and flow to an existing inlet. The vegetation of the bumpout will be short enough to allow for open sight lines of traffic. Aside from managing stormwater, bumpouts also help with traffic calming. When located at crosswalks, they provide a safety benefit by reducing the pedestrian crossing distance” (Philadelphia Water Department 2022).

BIORETENTION PLANTED AREA WITH SWALE

Bioretention parks allow for stormwater infiltration through a large surface capacity to capture, treat, and manage stormwater runoff from the street (NACTO 2017).

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

National Association of City Transportation Officials. (2017). Urban street stormwater guide. Island Press. Philadelphia Water Department https://water.phila.gov/

Team 1

Zach Andre Cactus Wren Campylorhynchus brunneicapillus

Blake Caldarera Broad-billed Hummingbird Cynanthus latirostris

Will Leipold Cooper’s Hawk Accipiter cooperii

SIERRA CIRCUIT

Provide various options for users to gather and play

Integrate an open trial network for greater greenspace immersion

Goal 1

Restoreresident access and accommodate opportunity for outdoor recreation with low impact development

Feature educational opportunities with interprative signage

INTENTIONAL WITH THE FLOW

Integrating stormwater management strategies to foster community education and appreciation

Goal 3

Revitalize existing greenspace and ecological functions

Protect existing habitat and increase planting

Harvest water from N Mountain View Ave. into landscaped area

Goal 2

Artistically integrate storm-water management features

Resolvestreetﬂooding issues by redirecting stormwater and increasing absorbtion on site

Route stormwater to supplement vegetation

IMAGE ABOVE: graphic by Will Leipold

IMAGE BELOW: artwork by Blake Caldarera

SIERRA CIRCUIT

PROGRAM

This program slide presents the human use areas and also shows the rain garden areas, one of the important reasons for displaying them on this graphic is because the raingardens areas are not accessible for pedestrian traffic, these depressed areas are the topography around which the human use programming was initially developed.

CIRCULATION

The Sierra Circuit was designed to improve the walkability of the Sierra Estates neighborhood with the addition of several new walking paths through Burns Park and the linear walking path. The curvilinear pathways provide an immersive experience within the bountiful green space and rain gardens, while allowing the user a variety of options to casually explore the park or just pass through.

WATER UTILITY

As stormwater moves through Burns Park from East to West, a water conduit system intelligently infiltrates stormwater runoff into planter spaces. Six rain gardens, connected by a series of subgrade culverts, transport the water, allowing percolation into the wide depressed earthen basins. At a depth of six inches, the rain gardens are capable of storing 440,422 cubic feet of stormwater, which amounts to 7.71% of the total neighborhood watershed. The path meanders through the site, enhancing water integration, and adding an organic visual flow to the park’s planter space.

SIERRA CIRCUIT

Section View of Burns Park

RAIN GARDENS

Burns Park

The existing Burns Park space offers some great advantages for residents in the Sierra Estates neighborhood: it is a green space with ample water integration during monsoon season; it has a nice balance of open lawn space and areas shaded by large trees; and it is in close proximity to a school. As such, activating this space will be as simple as opening the gates and maintaining the property’s vegetation. Where this design will enhance the existing conditions is three-fold. The primary design element, a meandering rain garden will (1) increase the park’s beauty (2) utilize an excess of stormwater runoff, and (3) provide a point of ecological education for people of all ages.

CROSS-GENERATIONAL EDUCATION

The shaded tree space in the Eastern section of the site will be ideal for holding oudoor classes and nature-based programs for school kids. Additionally, interpretive signage can be dotted throughout the part to foster curiosity and engagement with visitors.

KEY ELEMENTS

» interpretive signage on wildlife

» meandering rain gardens

» open field for sports, play, & pets

A rain garden is a depressed area of land which functions to slow stormwater during a monsoon event and facilitate its percolation into the soil. These areas are not traverable and are typically filled with plants that thrive with a higher water intake. The rain gardens can be noted in the plan view above as the dark purple shpes on the graphic. As water enters the site from the north, a series of culverts (underground water pipes) directs water from one rain garden basin to

» shaded outdoor classroom area

IMAGE ABOVE: OUTDOOR CLASSROOM

Section graphic by Blake Caldarera

SIERRA CIRCUIT

Section View of the Linear Walking Path

The linear walking path has two distinct sections, the east-west portion has a swale and is planted beautifully, the north-south is sparsely planted, and sometimes used for parking.

On the north-south portion , the new design for this area is minimalistic yet gives the space a more expansive feel. As the space currently stands, the space is hardly noticeable, as the eye is drawn instantly toward the wall over the sparse ground. Inviting native and desert adapted plantings activate and draw people into the space. Plantings replace the concrete parking blocks as a way to secure the area from cars.

In the east-west portion of this area, a new meandering path crisscrosses the swale, highlighting the beauty of the existing plantings. These improvements to the space create a true waking path and give the neighborhood a qualitatively different area to walk through, a shaded natural path.

Team 2

Krista Planinac

Lesser Goldfinch Spinus psaltria

Jessica Eppard

Gambel’s Quail

Callipepla gambelii

Waverly Brown

Curved Billed Thrasher Toxostoma curvirostre

William Glockner

Red-tailed Hawk

Buteo jamaicensis

A PATH TO WONDER

Parti

The idea behind the design

The foundation of the design is a nonlinear line with various points of interest.

To wonder is to explore the unknown, the unfamiliar.

A path that curves and hugs the landscape in its organic form, with unexpected focal points along the way allows us to do just that.

Goals

The why behind the design

Provide a space for all who visit to wander through, experiencing a path filled with moments of wonder.

1. Encourage exploration of park through open space and guided play.

2. Redirect water through existing stormwater infrastructure.

3. Introduce traffic calming strategies to ensure neighborhood safety.

4. Preserve existing habitat and vegetation.

IMAGE ABOVE: Charcoal on trace paper, 14” x 17” Krista Planinac

A PATH TO WONDER

Illustrated Plan

IMAGE ABOVE:

A graphic rendering depicting the A Path to Wonder design concept.

A PATH TO WONDER

Sections

IMAGES ABOVE: Section A-A’ looking East across Burns Park

Section B-B’ looking West across Burns Park

Section A-A’

Section B-B’

Sections

These hand drawn sections are meant to help the viewer experience the moments our group was trying to create within the site.

LINEAR WALKING PATH

Sections of the full Linear Walking Path with the proposed basins and paths. They were taken to give an understanding of how the space interacts with the greater context of the street and the opposite sidewalk. They also help to understand how big the space for the Linear Walking Path is, highlighting the opportuities present in the space.

BURNS PARK

Section A-A’ shows a section through the middle of the park. It was taken to show the interactions between the open play space and the adventure play. It depicts the difference between a ‘path’ and a ‘trail’. In this design, a path would be well marked with decomposed granite, where a trail would be less obvious, and would feel like you were creating your own way. It also shows the difference in depth between the rain gardens and the basins, and illustrates the grouping of the vegetation where the water would accumulate.

Section B-B’ shows a section through one of the entrances to the site. It also shows the existing well, which was outside of the parameters of the site. The section highlights one of the tall aleppo pines, that are important habitat to the local hawk population that the residents wanted to protect. It also shows a person playing on one of the bolders that were invisioned around the site to encourage adventure play.

IMAGES ABOVE: Section C-C’ looking North along the proposed Linear Walking Path

Section D-D’ looking East along the proposed Linear Walking Path

Section D-D’

Section C-C’

A PATH TO WONDER

Proactively Managing Water

Since Sierra Park Estates is part of such an extensive community watershed, water management is essential. Designers prioritized harnessing rain fall to mitigate flooding and create a sense of site character. The design calls for a series of connected detention basins on the north side of Burns Park, the middle of the chicanes, and the far south west side of the Linear Walking Path. In these regions, the detention basins are roughly 8 inches deep and are separated by a series of check dams to help slow the water down and give water time to percolate into the ground. Each of the detention basins is densely vegetated and reinforced with rock lining to help prevent erosion from quickly damaging the basins. The site also has several 6 inch rain gardens located at strategic points to help capture runoff that lands on site and nearby street overflow runoff.

WHY MANAGEMENT MATTERS

The total watershed generates over 57k cu.ft of water runoff after the neighborhoods infiltration has been accounted for 95% storm events. The runoff is equivalent to 65% of an Olympic Swimming Pool. Therefore, water management is an essential piece for the site’s design. Although 57k cu.ft is a large amount of water, it does represent the cumulative runoff for the entire neighborhood. The stormwater runoff that occurs at just the Burns Park, Chicanes, and Linear Walking Park sites is a much more modest 2,424 cu.ft.

WATER OPPORTUNITIES // TOOLS

» Detention basins

» Rain gardens

» Permeable path material

» Dense vegetation

» Check dams

» Culverts

» Swales

WATERSHED:

Total Runoff:

57,095 cu.ft.

JUST SITE: Total Runoff:

Amount Managed: 15 %

Proposed Capture: 8,602 cu.ft.

2,424 cu.ft. Proposed Capture: 8,602 cu.ft.

IMAGE ABOVE:

Graphic shows an outline of some of the proposed sites detention basins, rain gardens, and swales. The diagram also includes the percent of water capture for proposed site.

BURNS PARK

LINEAR WALKING PATH

REFERENCES, SOURCES & RECOMMENDED RESOURCES: NOAA, Google Maps, AUTOCAD, Esri, University of Arizona MLA Program, and the GIS user community

A PATH TO WONDER

Circulation:

Main Site

A core objective of the design was to use the circulation to draw users around the full Sierra Estates Project site and towards the sub-component of Burns Park. The designers hoped to connect all three sub-components so that the entire site felt like one cohesive story as opposed to three separate sites. The other core objective was to create a series of curated moments where a user’s sight-line would be guided towards a particularly nice vista or a wonderfully placed tree. By establishing a default route, designers were able to convey a sense currated wonder that draws inspiration from historical Japanese stroll garden. In addition to the main path through the site, the site features many optional side trails that are less defined and programmed. The less programmed spaces enable users to create thier own adventures and foster their own sense of wonder.

MEANT TO MEANDER

Designers prioritized a natural feel to the path where it would continuously curve just out of a user’s sight to ensure the path always felt engaging and a touch mysterious. Moreover, the path was meant to wind around existing foliage to preserve the large tree species already present on site. The site has a uniuqely high density of healthy, large tree species that is uncommon to Tucson and worthy of preservation.

OTHER PRIORITIES

» Enhance safety

» Dog Friendly

» Include painted cross walks

» Engage across multiple visits

Burns Park

Linear Walking Park

BURNS PARK

LINEAR WALKING PATH

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

Google Maps, Esri, University of Arizona MLA Program, and the GIS user community

A PATH TO WONDER

Water Run Off

Once water hits the pavement, it is mixed with pollutants. The oil and other vehicular runoff attach to the road, only to be ushered down the street to collect more unless it is stopped. The water must be redirected off the street into a permeable setting. Allowing the water to recharge the groundwater and reduce street flooding events. The amount of water captured on sight will differ with each concept design. With the varied amount of water harvesting methods to use, the amount of water captured will differ as well.

There are no stormwater drainage or redirection methods on the site currently. With more stormwater management practices there will be less polluted street runoff and more water being recharged into the aquifer. The proposed methods for traffic calming and stormwater management will vary within each concept.

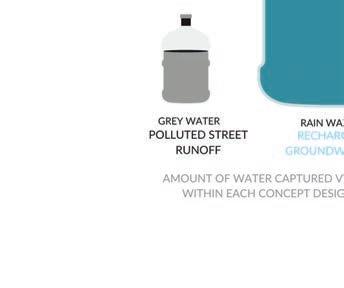

IMAGE ABOVE: Absraction displaying grey water that is polluted rainwater after roadway contact. Creating more permiable spaces within streetscape with be replenishing vegetation with green infrastructure.

Data Sources: Puget Sound Partnership Vital Signs, National Hydrography (NHD) Stream Data Incorporating the Green Infrastructure Handbook - Dibble (dibblecorp.com)

Chicane

Chicane StormwaterDrainage

A PATH TO WONDER

StormwaterDrainage

Stormwater Drainage

The main flooding concern on site is at the north end of N Mountainview Avenue. It is important to recharge the groundwater with this polluted water, that would be otherwise unused. Chicanes were chosen as the preferred water capture method. The natural slope creates security within the water capture of the site, playing into the natural drainage on site. The chicanes are curb extensions that slow traffic speeds significantly.

The Linear walking path is an underutilized portion of the property. The area is proposed to be densely planted with a natural path meandering through the vegetation. The increased tree canopy in this area improves walkability concerns while also expanding exploratory play areas. The native desert species will also expand habitat preservation on site. By expanding the critter’s and insects’ natural habitat the healthier their ecosystem will be.

The first section reflects the street view of the chicane expansion. Chicanes allow for increased pedestrian safety. Not only are pedestrians further from vehicular traffic, but there is indeed a barrier of tree trunks separating the walker from the road. The plan view of the illustrated plan gives an overhead perspective of how much of the road would be readapted for planting. The second section illustrates the 8” depth of the basin capturing water as well as how pedestrian access shifts once the curb has been extended. Four precedent images reflect existing chicanes within the Rincon Heights neighborhoods. The images reflect a corner chicane, a traffic calming chicane, a median chicane and a chicane during the monsoon season. It is important to plan for the chicane to endure all seasons, not only monsoon.

IMAGE ABOVE: Section displaying water capturing method used on site.

IMAGE ABOVE: dipitem delesseditam ut mo con cullentur? Lestrup tatiame volorepmpor re ipsam nonsed et laccatiis sit ea dipsam, quodis expliquas utecaborum

IMAGE ABOVE: dipitem delesseditam ut mo con cullentur? Lestrup tatiame volorepmpor re ipsam nonsed et laccatiis sit ea dipsam, quodis expliquas utecaborum

A PATH TO WONDER

Program

Burns Park

The emphasis of programable spaces is found within burns park. The reopening of Burns Park has activated the space for new users. While in the planning stage, we have th ebaility to program for the activites that cater to multi-generational engagement. The program is a way to phyiscally place goals within the site. Abstractly forming spaces within our site to achieve our goals. The full site program shows how the two different sections are threaded rtogether in a cohesive plan. Our goals were chosen to reflect the mini-grant parameters of green infrastructure baswed on traffic calming and stormwater management methods. The program is also addressing the user groups we are desuigning for, chosen within the inventory process. The objectives are tangible ways of how we would achieve our programs. There are also precedent images to display our ideas through existing examples.

Linear Walking Path

Utilizing the linear walking path to increase vegetation will expand green infrastructure throughout the site. The increased canopy coverage will address waslkability concerns while also expanding open exploratory play areas. Green infrastructure play setting strucures natural play settings fixed with logs and boulders.

Preserve Habitat

Residents emphasized the protection of the hawk population. Habitat preservation within this area will preserve exisiting tall canopies and infiltrate smaller microecosystems on the ground level to help pollinators and criters.

Guided Play

Green infrastructure play setting structured, natural play setting, allows exploration and discovery for childre n.

Green Chicane

» Stormwater collection systems redirect street runoff

» Acting as a curb extension to slow traffic speeds.

Team 3

Nadia Sarneyzehdoost Anna’s Hummingbird Calypte anna

Oscar Rodriguez Ponce Black-chinned Hummingbird Archilochus alexandri

Selenne Yescas Common Raven Corvus corax

Cordell Lee Western Screech Owl Megascops kennicottii

METAMORPHOSIS

METAMORPHOSIS Programming

Inspired by a caterpillar’s metamorphosis from a cocoon to a butterfly, our design proposal is to rejuvenate the Sierra Estates neighborhood. By activating a publicly accessible burns park, the addition of vegetated chicanes and a linear path to achieve the following goals for the community

The programming and the design of this neighborhood was mainly determined based on the comments, suggestions, opinions and feelings of the residents. Given the programming agenda, the residents had the pleasure of assisting in the design progress. Impactful feedback included the use of green spaces, water management, and traffic.

DIAGRAM

the program diagram is a graphic explanation of the goals intended for the program design of the Sierra Estates neighborhood. It captures a synthesized idea of what the main goals can be to tackle on the constraints and opportunities determined during the inventory and analysis phase.

CONTEXT MAP

context maps are helpful to give the viewer a better view of the spaces being described. here, a monochrome map with black arrows is simple, yet an effective representation of the spaces circulation.

GOALS

» increase vegetation

» reuse elements

» implement traffic calming features

TRAFFIC CALMING

Implement green infrastructure for traffic calming and to address water issues.

INCREASE

VEGETATION

Increase the presence of drought tolerant and native vegetation for thermal comfort and wildlife habitat.

REUSE ELEMENTS

Reutilize and organize existing element materials on site. Such as vegetation, soil, rocks, etc.

DIAGRAM ABOVE: representation of programming goals diagram MAP ON RIGHT: the monochromatic context map is a visualization for location purposes.

BURNS PARK

CHICANE

LINEAR PATH

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

Yescas, S. (2022). Context map. Space context map visual. Tucson, Az

Yescas, S. (2022). Program diagram. Programming. Tucson, Az

METAMORPHOSIS

Burns Park

Group 3’s design proposal for Burns Park focuses on creating multiple spaces for a variety of uses and user group, emphasizing safety and comfort. A fenced pet area allows users to let their dogs run free without worrying about them interacting with children or running to the street. The central area accommodates community activities and non-guided play for children, including many seating options. Lastly, the recreation area can be equipped with makeshift exercise machines or used for other activities. All of these spaces are connected by accessible trails, and stormwater management is reserved mostly to the far north of the site for ease of maintenance and safety. The entire park remains fenced for safety reasons and is to be open to the public during the day.

IMAGE ON LEFT: Context map with site limits, illustrated plan, and section

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

Section elaborated by Oscar Rodriguez. Referenced plan designed and rendered by Nadia Sarneyzehdoost and Selenne Yescas.

Linear Path and Chicanes

The following section shows how space is utilized in the wider portion of the Linear Walking Park. Conceived as a space for dog walking, running, and strolling, main feature is the large walking path that intermittently narrows down because of vegetative buffers, but still allowing for multiple people to use it at once. The swale is placed closer to the wall and helps convey stormwater to the rain garden at the east corner. A planting area softens the presence of the monolithic wall and utilizes the stormwater that flows through the swale, providing more canopy cover for the comfort of users.

The following section shows how space is broken down in the chicanes. Designed for traffic calming and stormwater management, the chicanes extend from the sidewalk and include planted stormwater detention basins at a depth of 8”. Water enters through a curb cut on the right side of the chicane and flood the basins inside. There is enough separation from this curb cut to the basins to prevent accidents and to keep vegetation from extending beyond the curb. Minimal edging was added to the sidewalk for the safety of wheelchair users, providing a physical barrier to the basins.

IMAGE ON LEFT:

IMAGE ON RIGHT: Context map with chicanes site limits

8’

20’

20’ road curb cut sidewalk planted stormwater detention basin A’

METAMORPHOSIS

Circulation and space

The circulation of the site is highly important as these spaces give the viewer a sense of place within these major spaces. Within the space hierarchy the diagram represents major spaces designated to the sites design.

CIRCULATION SPACES

The diagram with orange circulation paths was created with the procreate app for a more dramatic effect and visualization of how the residents can meander through each site- Burns park, linear path, and chicanes.

SPACE DEVELOPMENT

bubble diagrams represent the space hierarchy and importance of designated areas for a design to develop into a plan. The bubles in green represent vegetation, bubbles in blue represent water, and the darker unfilled bubbles represent the major spaces designated for this design.

DIAGRAMS ABOVE: the orange arrows on the diagrams represent the circulation process through the major spaces in the Sierra Estates neighborhood.

DIAGRAM ON RIGHT: space diagram development and relativity of spaces on site

REFERENCES, SOURCES & RECOMMENDED RESOURCES:

Reid, G.W. (2002). Lanscape graphics - plan, section, and perspective drawing of lanscape spaces, revised edition. Conceptual diagramming (pg. 52). Crown publishing group, New York. Yescas, S. (2022). Circulation. Space circulation paths. Tucson, Az Yescas, S. (2022). Conceptual diagramming. Space bubble diagrams. Tucson, Az

PHASE DESIGNS

darker bubbles: major resident spaces

blue bubbles: water

green bubbles: vegetation

METAMORPHOSIS

Stormwater managment

Within the design, a key aspect to solve issues along the site, the team proposed capturing stormwater thoughout the site to address the issues of flooding in the neighborhood.

CALCULATIONS

determined based on the area cubic feet of Burns park, linear path, and chicanes. these calculation proposals capture 2,107 cu. ft., manage 4% of water on the site, and has a runoff total of 57,095 cu. ft.

WATER PLANS

the water plans of the Burns park, linear path, and chicanes were placed on a monochromatic map to give a better visual representation of where the water is being disbursed and captured.

Burns park: 892 cubic feet of stormwater detention

Proposed Capture: 2,107 cu.ft.

Percent Managed: 4%

Chicanes: 778 cubic feet (389 cu ft on each chicane)

CIRCLE DIAGRAM: stormwater management calculations

Total Runoff:

Linear path: 437 cubic feet

REFERENCES, SOURCES & RECOMMENDED RESOURCES: Rodriguez, O. (2022). Stormwater management. Bubble diagram calculations. Tucson, Az Yescas, S. & Sarneyzehdoost N. (2022). Stormwater management. Water plan on Burns park, chicanes, and linear path. Tucson, Az

METAMORPHOSIS

Imagine

The purpose of imagining a space design in the metamorphosis concept before executed onto the landscape is to gather the key elements that will give it its personality with time.

SKETCH UP MODELS

perspective sketch up models are a great representation created by students to showcase the designed spaces with near to scale people. this creates a sense of place for the viewer.

REPRESENTATIVE IMAGERY

the take away from utilizing images that could represent the space being designed is that it would not be identical to the image, rather it creates a visual representation in the eye of the beholder. the idea is that our creative minds have the capacity of mimicking spaces such as those in the images to fit our own environments while acknowledging the different ecosystems.

KEY ELEMENTS TO VISUALIZE

» natural textures

» native desert vegetation

» wildlife conservation

» no hardscape

» soft walking paths

» canopy shade

» rocks and gravel

» water

IMAGES ABOVE: sketch up models - top perspective of Burns Park, middle perspective of chicanes, bottom perspective of linear way

Chicanes - residents walking on sidewalk Linear path South East corner

REFERENCES, SOURCES & RECOMMENDED RESOURCES: Lee, C. (2022). Sketch Up software - Perspective images created by student Cordell Lee. sketchup.com Representative images of spaces. (2022). retrieved from pinterest.com/selenneyescas

chicane curb representation

Lady well Fields by BDP

Dry river beds - Native Landscape Creations CBD Raingardens project in Bellingham Washington

Roberto Burle Marx, Rooftop Garden, Ministry Of Education And Public Health

One-lane chicane _ Source: Flickr Photose

Bliss Garden Design - Designer Tish Treherne

Stormwater BMP Design _John Burroughs School

UNIVERSITY OF ARIZONA COLLEGE OF ARCHITECTURE, PLANNING, AND LANDSCAPE ARCHITECTURE

Sonoran Birds & Climate Change Studio

PROJECT TEAM

Students

PROJECT TEAM

Community Partners

Faculty, Guest Instructors & Reviewers

TABLE OF CONTENTS

PROJECT PARTNERS

LONG TIME RESIDENTS

PRESERVE HABITAT

HIGH SCHOOL STUDENTS

PROJECT TIMELINE

PROJECT TIMELINE

SITE INVENTORY & ANALYSIS

REGIONAL ANALYSIS

WATER (STORM, SUPPLY & USE) CLIMATE CHANGE IMPACTS OVER TIME

Projected Changes in Water withdrawals

WATER (STORM, SUPPLY & USE) ANALYSIS

TUCSON WATER & RECHARGE EFFORTS

TUCSON’S RECLAIMED WATER NETWORK

HISTORICAL IRRIGATION PRACTICES AS PRECEDENT FOR MODERN WATER USE

CONNECTING WATER & HABITAT

The Habit-Water Connection

URBAN BIRD CORRIDORS

Urban Corridors Have the Potential to Support Important Bird Areas

Saguaro National Park

DRYWELLS & RECLAIMED WATER USE IN PARKS

Drywells & Reclaimed Water Can Turn Parks into a Thriving Bird Corridor

RISING TEMPERATURES CONSTRICT WILDLIFE HABITAT TO HIGHER ELEVATIONS

Habitat Restoration Projects in Tucson

TRANSPORTATION AND BIRD HABITAT

OVERLAND ROUTES, 1860

AUTOMOBILE ROUTES, 1907

URBAN SCALE ANALYSIS

WATER (STORM, SUPPLY & USE)

PRECEDENTS

ANALYZING URBAN

HEAT

EXPERIENCING HEAT

HIGH HEAT LOW HEAT

THEN NOW

HISTORY AND GROWTH

ECONOMICS, CAPITAL, AND LABOR: PARK ACCESS IN TUCSON IN RELATION TO DEMOGRAPHICS, INCOME, AND UNEMPLOYMENT

ECONOMICS, CAPITAL, AND LABOR: TUCSON’S INEQUITABLE ACCESS TO GREENERY

1971-Present

ECONOMICS, CAPITAL, AND LABOR: UNDERSERVED BY PARKS

CRITICAL STANCE

BRINGING PARKS TO THOSE WHO NEED THEM MOST

SITE SCALE ANALYSIS

SITE PHOTOS

Burns Park

Linear Walking Path

SITE TOPOGRAPHY

STREETS: EXISTING CONDITIONS

Room to Chicane

PROBLEM

SOLUTION

BROADWAY CRAYCROFT AREA PLAN SUMMARY

CITY OF TUCSON PLANNING

PUBLIC / PRIVATE

CITY OF TUCSON

PLANNING

LAND USE

CITY OF TUCSON PLANNING

SITE CIRCULATION

Public Transit

SITE CIRCULATION

Pedestrian Experience

SITE ECOLOGY

Ecological Overview

HUMAN DISTURBANCE

SITE ECOLOGY

Ecological Inventory

SITE ECOLOGY

Tree Species Inventory

SITE ECOLOGY

City of Tucson Tree Equity Score

METHODOLOGY

CITYWIDE CONTEXT

SITE HYDROLOGY
