It’s not just a handle, it’s a

Lock lock Brochure 2019 to print single page artwork.qxp_Layout 1 22/02/2019 15:27 Page 2

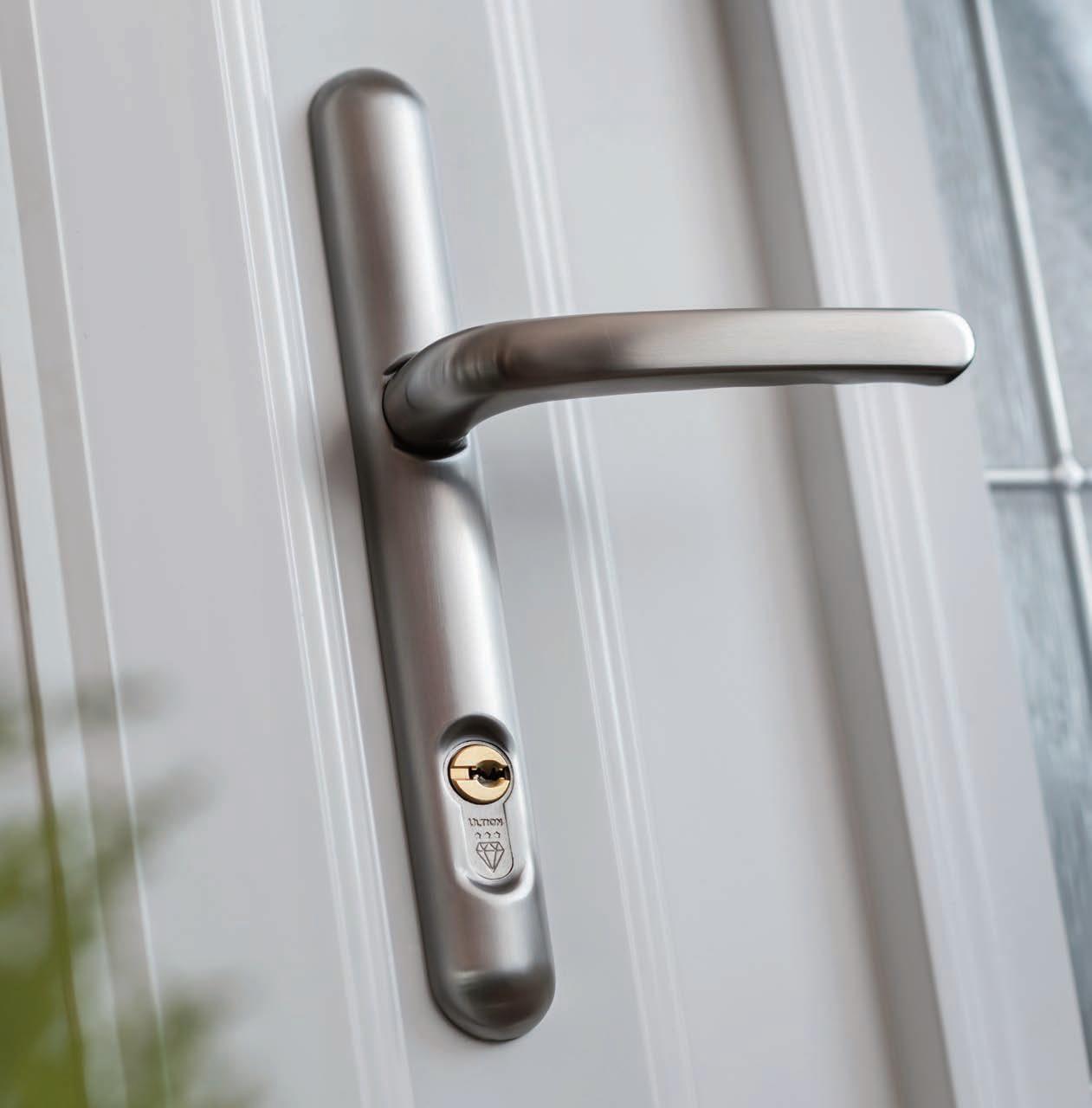

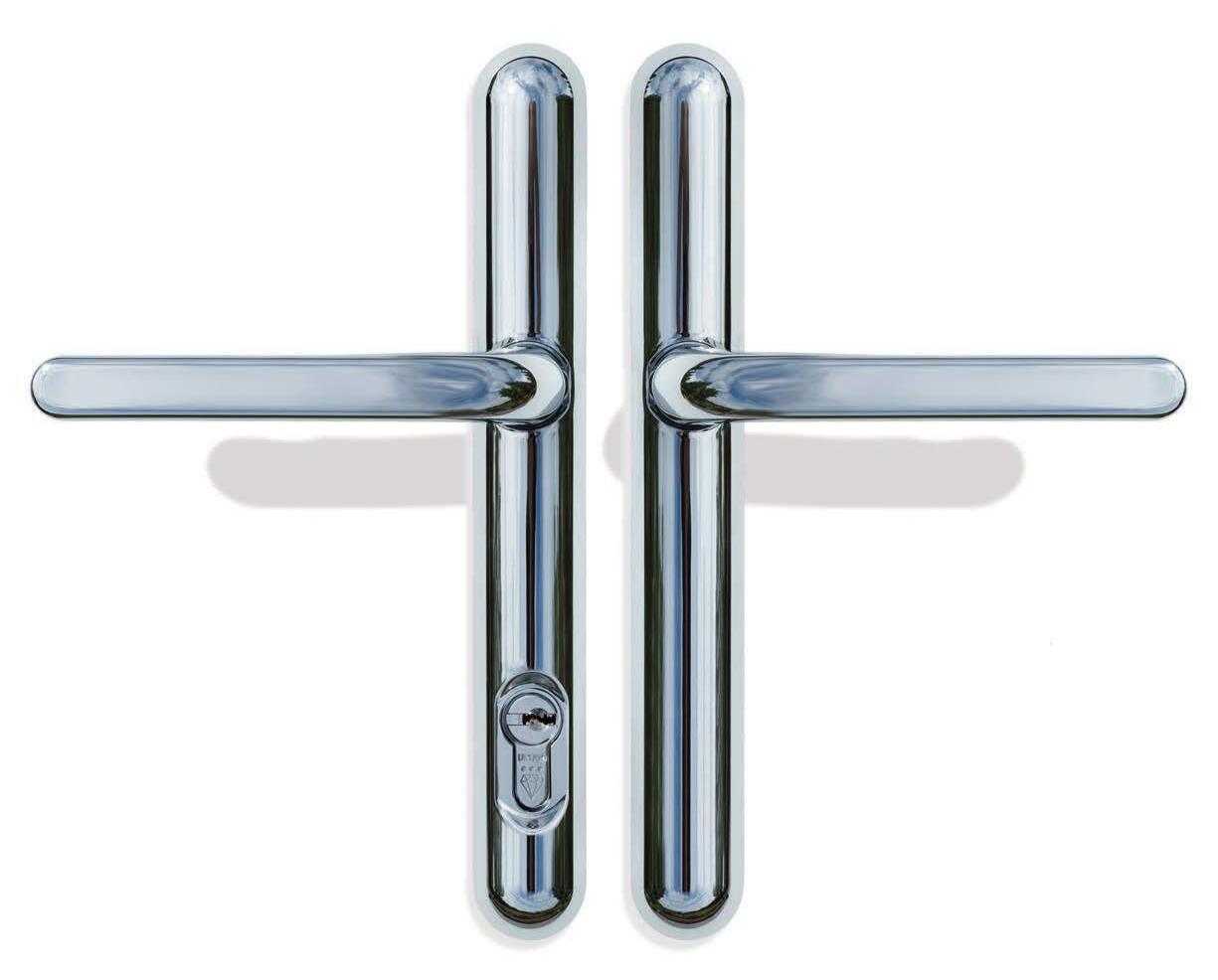

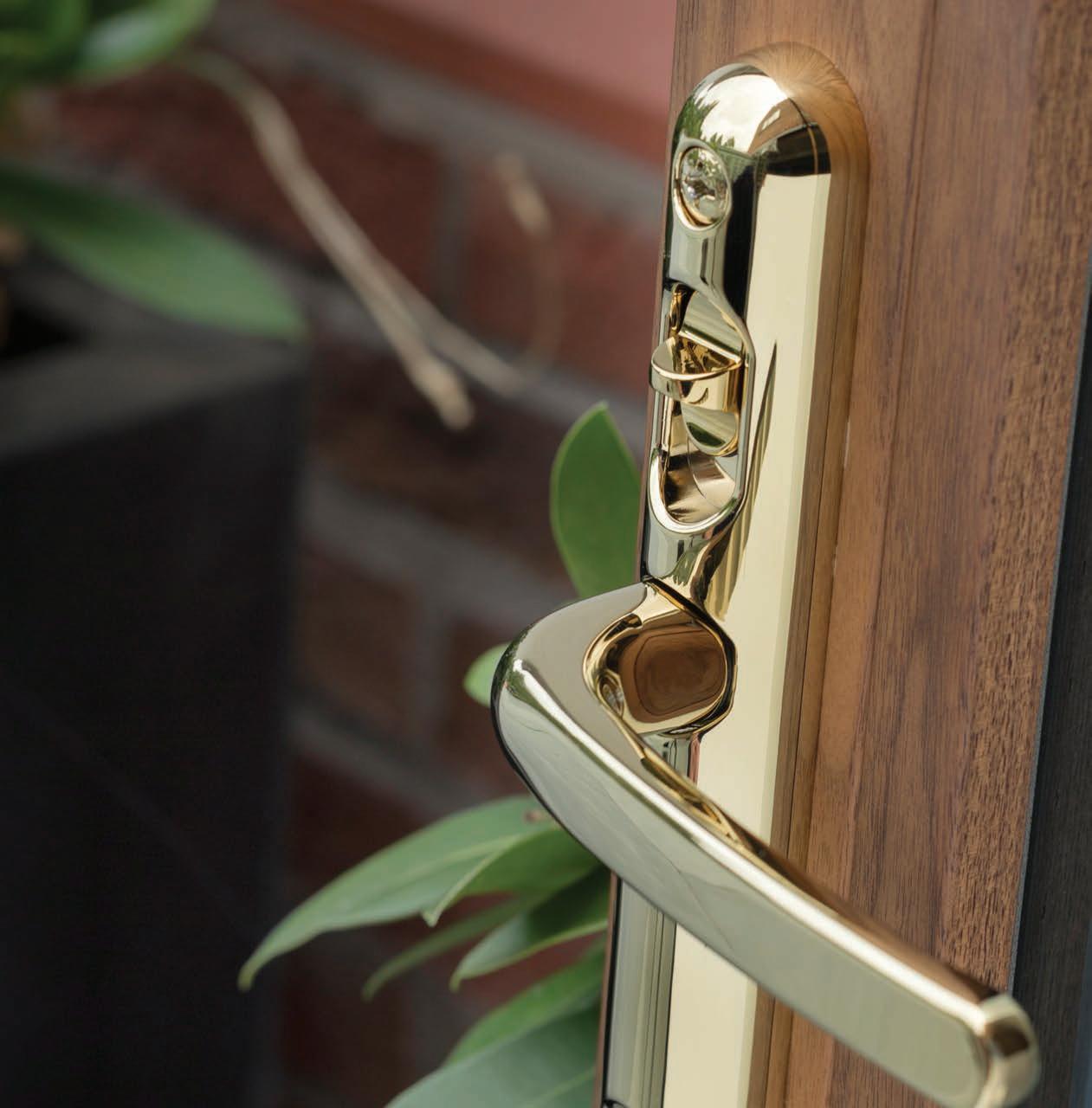

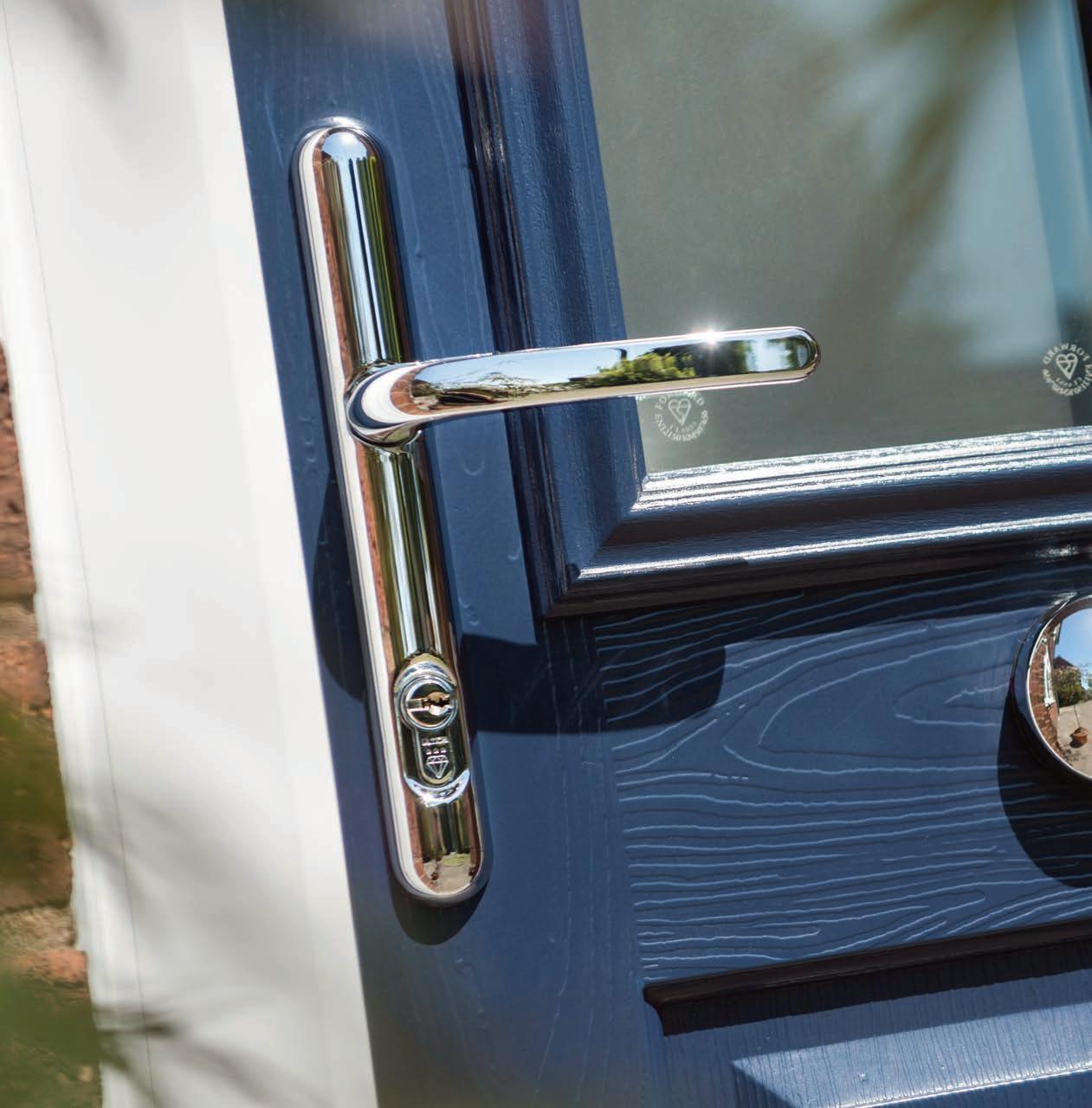

Option one The ‘with-key’ option can be used in the same way as standard door handles, with the added Lock Lock switch protection.

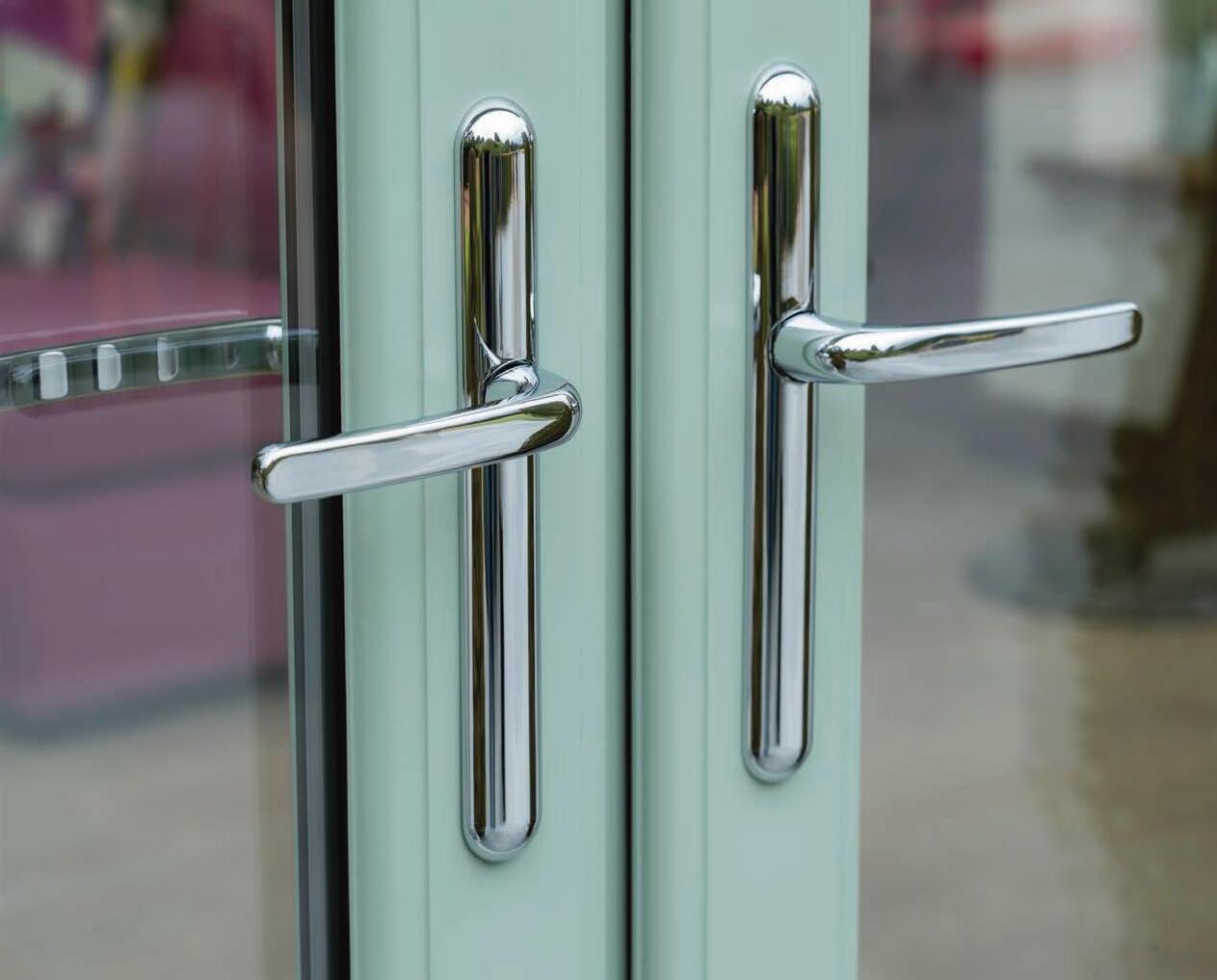

Option two The ‘keyless’ option is perfect for doors that you never lock from the outside.

Police approved security with seamless looks and simplicity.

Lock your door with a key or go keyless, either way...

Lock lock Brochure 2019 to print single page artwork.qxp_Layout 1 22/02/2019 15:27 Page 3

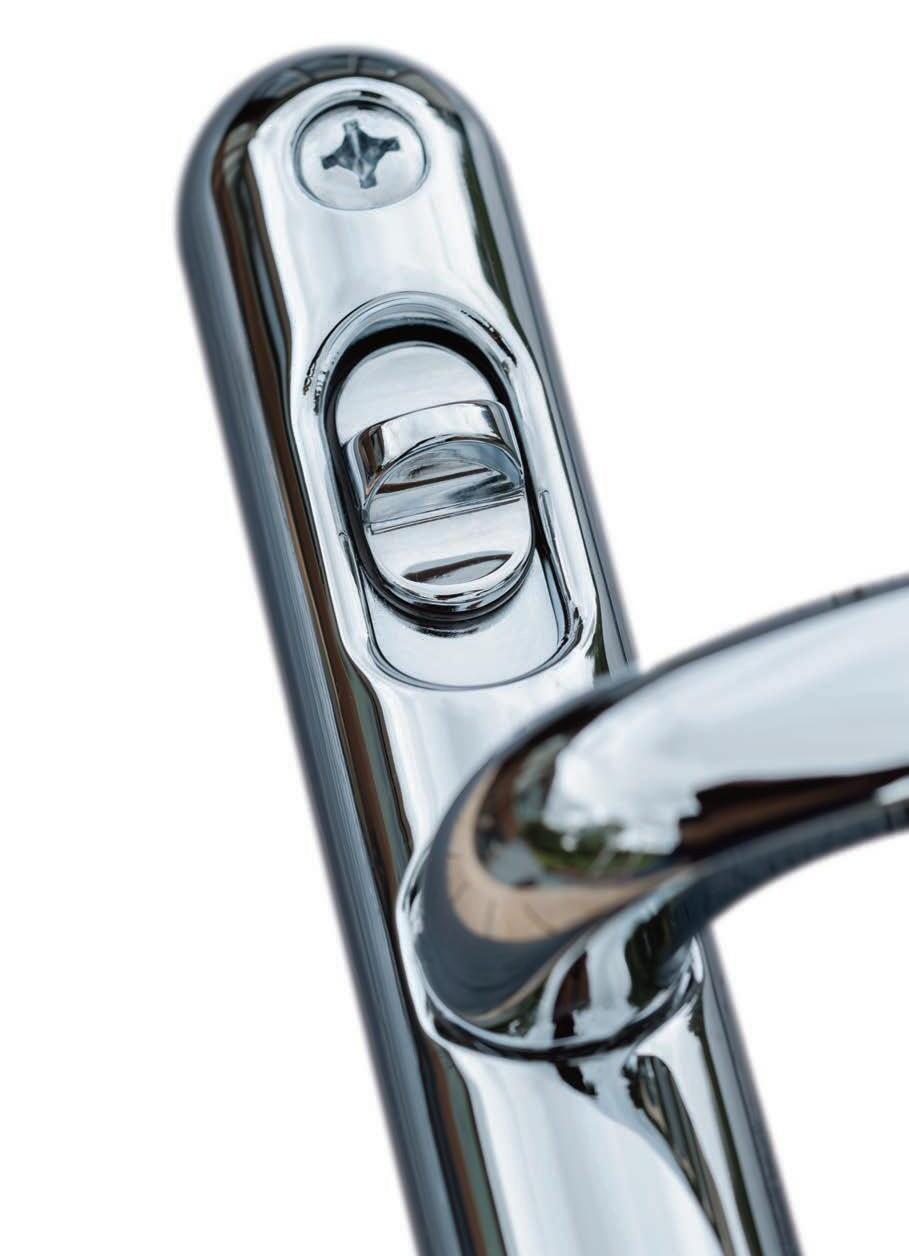

On both the ‘with-key’ and ‘keyless’ options the internal switch locks the door spindle. If the spindle can’t turn the door can’t open.

...lock lock it with the internal switch.

Lock lock Brochure 2019 to print single page artwork.qxp_Layout 1 22/02/2019 15:27 Page 4

Lock lock Brochure 2019 to print single page artwork.qxp_Layout 1 22/02/2019 15:27 Page 5

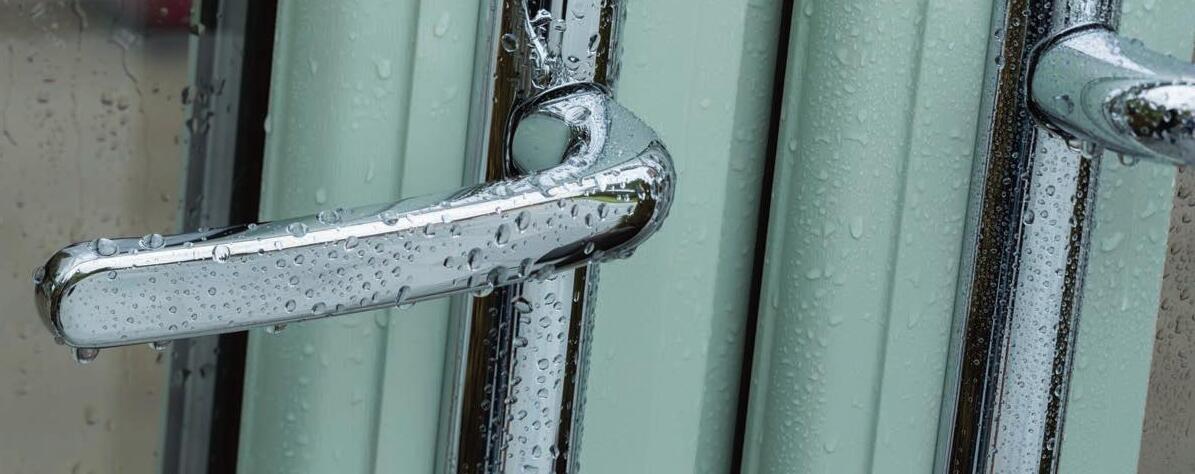

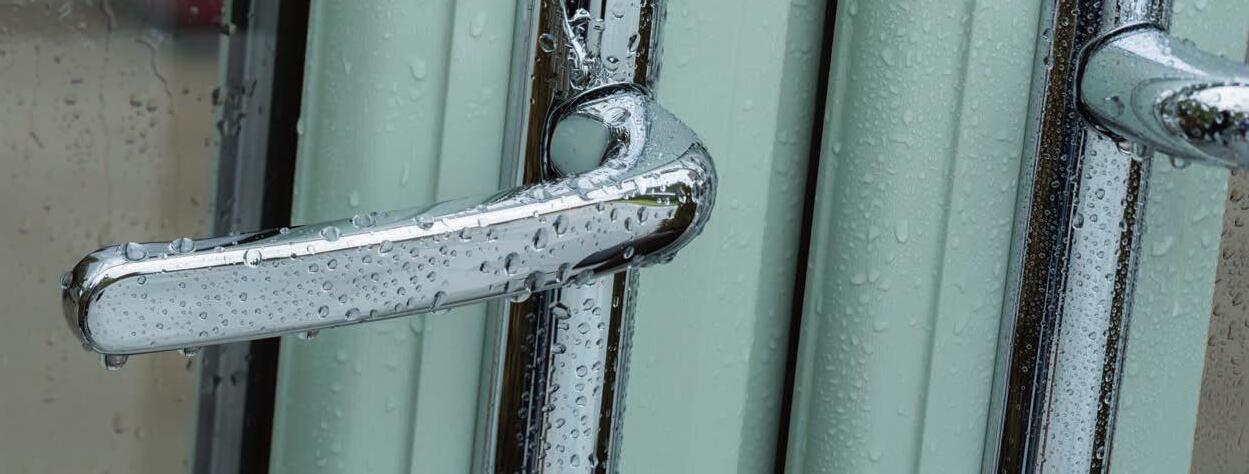

Weather protected.

Again and again and again.

Nickel Nickel Copper Copper

There are 2 layers of nickel and then 2 layers of copper on every highly-polished Lock Lock handle. This is why it performed well beyond the highest weather rating standard (grade 5) on a TS007 salt spray test. Looking great and for longer.

Reinforced Cast Zinc

Lock Lock 8000+ hours

Accreditation requirement 240 hours

Lock lock Brochure 2019 to print single page artwork.qxp_Layout 1 22/02/2019 15:27 Page 6

Lock lock Brochure 2019 to print single page artwork.qxp_Layout 1 22/02/2019 15:27 Page 7

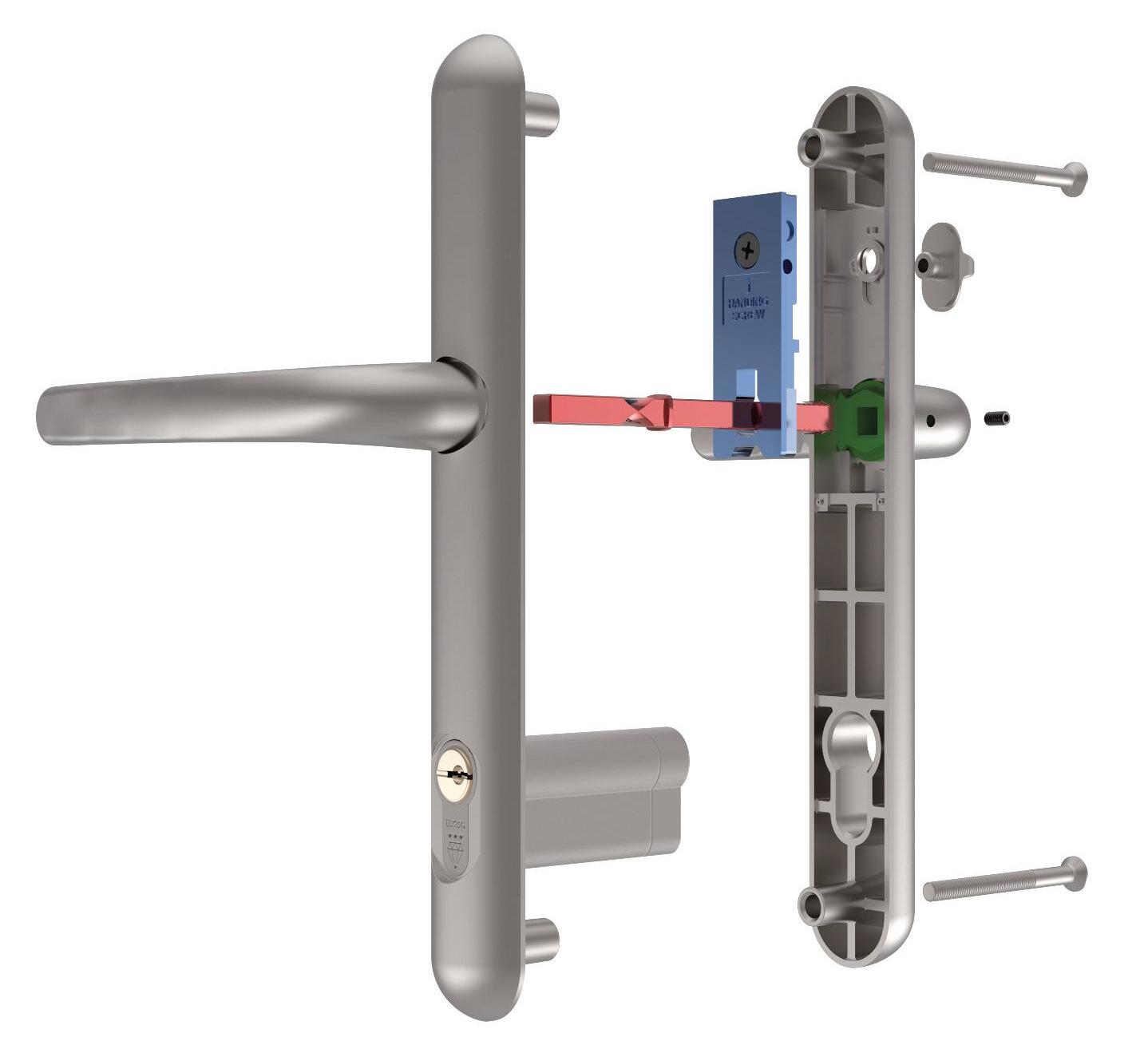

A NEW HANDLE ON LOCKING 9 ways that Lock Lock protects where handles don’t.

Curved design Hard to grip and tear off

Lock block Stops the spindle from turning

Sacrificial spindle Stops entry from forcing the lever

Security washer Stops the spindle being pushed through

Spindle knuckle Stops the spindle from being pushed through

Spindle grub screws Stops the spindle from being pulled out

Reinforced body Withstands forced attack

Hi-strength fixings Encased cylinder Can’t be grabbed with mole grips

210% stronger than standard handles

Lock lock Brochure 2019 to print single page artwork.qxp_Layout 1 22/02/2019 15:27 Page 8

Lock lock Brochure 2019 to print single page artwork.qxp_Layout 1 22/02/2019 15:27 Page 9

PROTECT WHAT MATTERS Key hunt not required An easier way to lock lock your door Just lift the handle and flick the switch to secure your home from inside. No more late night key hunts when you’re tired and just want to get to bed!

Emergency safe There’s an emergency and you need to get out of the house. Fast. What’s the last thing you want to be doing?

Searching for keys.

Lock lock Brochure 2019 to print single page artwork.qxp_Layout 1 22/02/2019 15:27 Page 10

Lock lock Brochure 2019 to print single page artwork.qxp_Layout 1 22/02/2019 15:27 Page 11

Plated finishes - 8056 hours EN1906 Grade 4 (highest level) Powder coated finishes - 8056 hours EN1906 Grade 4 (highest level)

Lever lever long fixing 32

13

20

Box quantity Fixing type

Spindle lengths

32 32

75 211 92

Finish 5 years Mechanical 10 years

44

Guarantee

TS007 2 star PAS 024 (enhanced security) Secured by Design

248

Accreditations

32

200,000 cycles EN1906 Grade 7 (highest level) 11.5

Durability

11.5

Salt spray

12

12

High strength steel alloy M6 EN1906 Grade 1 (highest level)

12

Lever lever short fixing

PVC 130mm Composite 104mm

Handed

No

Finishes

Chrome Gold White Black Brushed

(double nickel, double copper, chrome) (double nickel, double copper, chrome, PVD) (powder coated) (powder coated) (stainless steel)

HH TS007

Spindle fixing pack codes

Product code builder Suffix LCDH-

Lever type

Backplate

Lever

Long Short L S

LL

Colour Cylinder White Black Chrome Gold Stainless Without With WH CH GO BL SS C

Example: A lever lever, long back plate, white to accommodate a cylinder would be LCDH-LLLWHC

Suffix

Length Short

Long

LCDH-SP

PVC

COMP

Colour White Black Chrome Gold Stainless GO WH BL CH CH

Example: A spindle pack for a white PVC door would be LCDH-SPPVCWH

Lock lock Brochure 2019 to print single page artwork.qxp_Layout 1 22/02/2019 15:27 Page 12

www.lock-lock.co.uk

a BRISANTSECURE innovation
