BE CERTAIN IN YOUR CHOICES, WITH OUTSTANDING SUPPORT, RELIABLE AND EASY-TO-USE SOLUTIONS FROM BRILLIANT.
Brilliant is an industry leader with 40 years’ experience in lighting, electrical, air movement and smart products. We offer solutions for residential, commercial and architectural markets, through retail, DIY and trade channels in Australia and New Zealand.
We are committed to providing efficient and sustainable lighting. Our mission is to reduce our carbon footprint and increase sustainability throughout every aspect of our business. Our customers are at the forefront of what we do and we have a wide range to suit all of your requirements. Our commitment is to produce quality lighting, air movement and smart products that you can be confident in.
21719/05 21719/06 21721/05 21721/06 13
AMARI 56 SII DC CEILING FAN AND LIGHT
21723/05 21723/06 21725/05 21725/06 15 CAIRNS 48 DC CEILING FAN AND LIGHT
22970/05 22970/06 22974/05 22974/06
CAIRNS 52
DC CEILING FAN AND LIGHT
COSTA 52 LOW PROFILE DC CEILING FAN AND LIGHT
COLOSSUS 65 SII
INDUSTRIAL SIZED DC CEILING FAN
COLOSSUS 72 SII
INDUSTRIAL SIZED DC CEILING FAN
COLOSSUS 84 SII
INDUSTRIAL SIZED
CEILING FAN
COLOSSUS 120 SII
INDUSTRIAL SIZED DC CEILING FAN
SIZED
22972/05 22972/06 22976/05 22976/06
22945/05 22947/05
22979/05 22979/06 22979/13
22982/05 22982/06 22982/13
22986/05 22986/06 22986/13
22319/05 22319/13
22989/05 22989/06 22989/13
CEILING FAN 22677/05 22677/13
22687/05 22687/06 22693/05 22693/06
22689/05 22689/06 22695/05 22695/06
22691/05 22691/06 22697/05 22697/06
HOW TO CHOOSE
SEASONAL USE
BRILLIANT’S ALL-SEASONS TECHNOLOGY
IS
FOR USE ALL YEAR ROUND.
All Seasons technology allows you to change the direction the fan blades spin giving you the option to use your fan in Summer and Winter.
In Summer mode the air flows down and creates a breeze to create a cooling effect on your body. Winter mode is best used on a low speed as the aim is not to create airflow, but rather, to gently push down the hottest air in the room. By bringing the warm air down from the ceiling, you can set thermostat to a lower temperature to still obtain a comfortable and warm environment whilst also saving on your heating costs.
Note: All energy saving and air movement data is produced by an accredited test lab. In home results may vary depending on circumstances and installation.

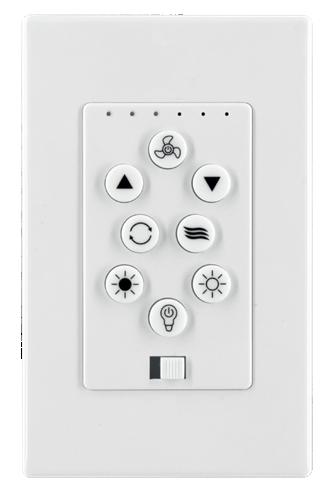

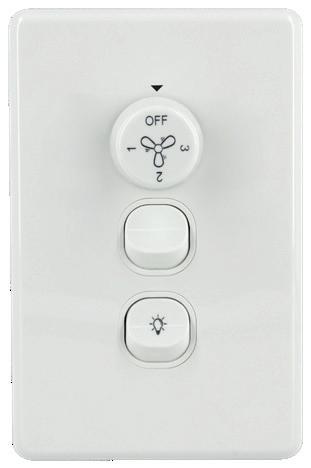

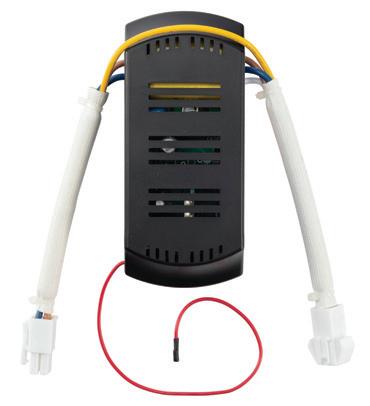

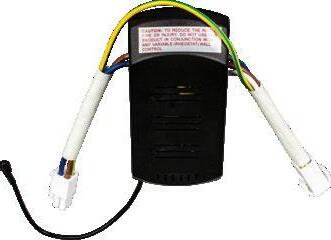

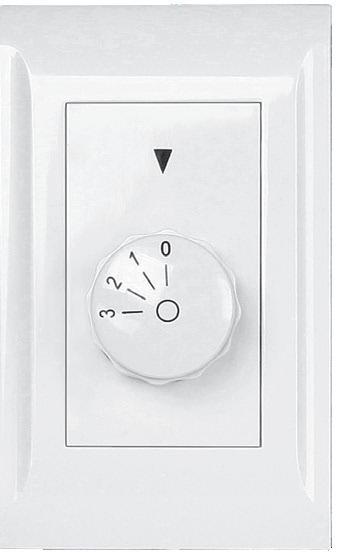

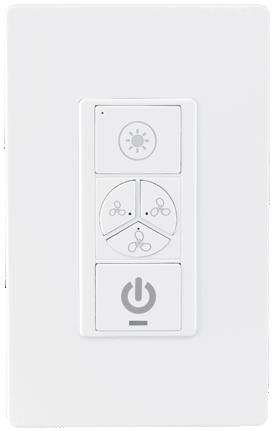

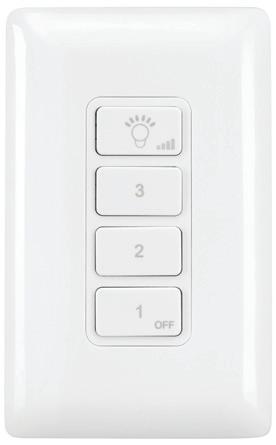

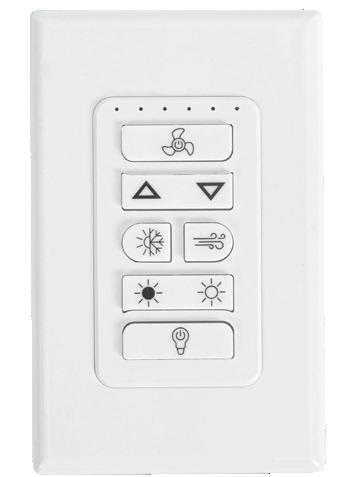

WALL CONTROLLER
Upgrade your AC ceiling fan to a remote control or specialised wall controller. See page 84 to 89 for options.
They can also be controlled using the Standard remote control 99999 & 99444, LCD model 99222, Wifi model 99111 and Touch model 88888.
SUMMER MODE
WINTER MODE
HOW TO CHOOSE
ROOM SIZE
What is the right airflow for your room size? In short, airflow is the measurement of air movement generated by the fan, our published figures are based on the highest and lowest speeds of our fans to highlight speeds intended for different spaces and uses.
Selecting the right fan should be based on application rather than a fan with the highest air movement. To give you an idea, with a bedroom ceiling fan you would prefer a gentle breeze. This would mean bedroom ceiling fans are generally set to the lowest speeds, so they don’t need to be high airflow fans.
In larger spaces, or if the fan will be installed in a room with a higher ceiling, then a fan with a high airflow would be more suited.
SMALL SPACES MEDIUM SPACES LARGE SPACES X-LARGE SPACES
CHOOSE A 48" or SMALLER CEILING FAN
CHOOSE A 48"-56" CEILING FAN
CHOOSE A 56"-66" CEILING FAN
CHOOSE A 66” or LARGER CEILING FAN
Small bedrooms, offices, media rooms, walkways
COVERAGE
Spaces less than 3m x 3m
Master bedrooms, living areas, dining areas
COVERAGE
Spaces that are between 3m x 3m and 4m x 4m
Open plan areas and outdoor spaces
COVERAGE
Spaces that are between 4m x 4m and 6m x 6m
Open plan areas and outdoor spaces
COVERAGE
Spaces that are over 6m x 6m
This, of course, is a guide only and the fan size to room size guide can be adapted to suit your needs or design. A larger fan can be used in an average sized room for better airflow or looks, or you might prefer to use two smaller fans to cool a larger, long room.
WHY US?
BE EFFICIENT = BE BRILLIANT
WHY BRILLIANT?
At Brilliant, we are committed to making things easier and better for our customers.

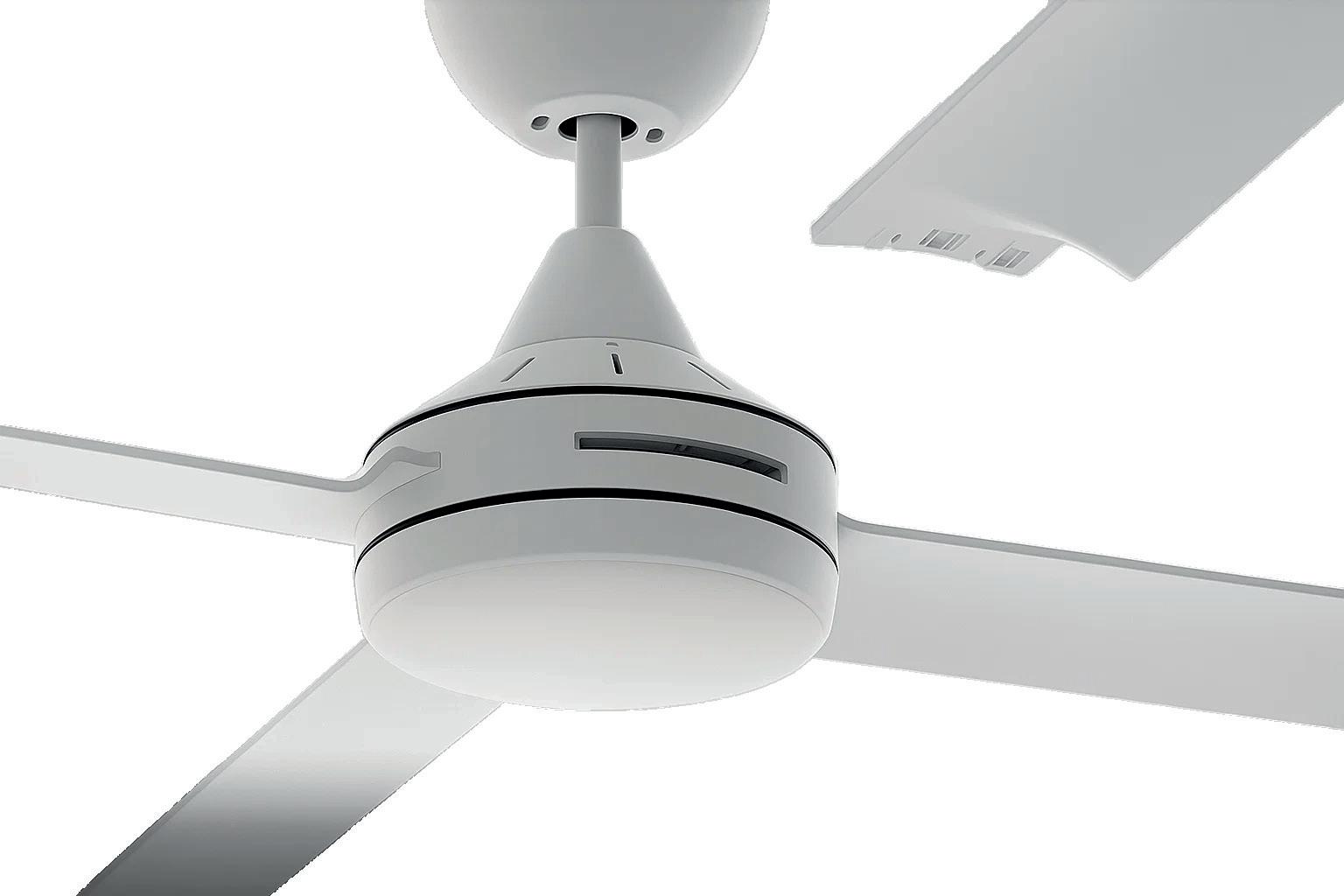

The EZI-FIT* design has re-invented the way we used to assemble ceiling fans.
Our patented design has saved thousands of hours for our customers and made installation quicker and easier than ever before.
This makes us the preferred choice for tradies, electricians and installers all around Australia.
Fully Pre-Assembled Motor Body*
Some extra features include: EZI-FIT BLADES QUICK & EASY INSTALLATION
*Selected Models Only

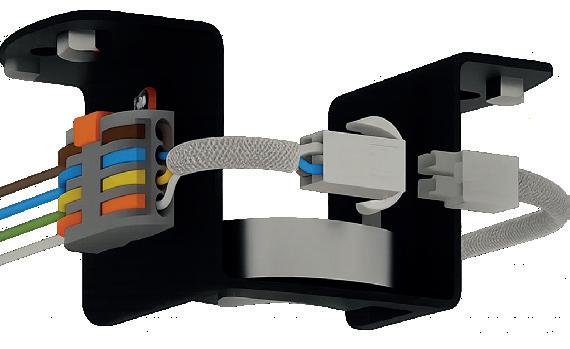

Large Canopy
Ezi-Fit Blade
Screwless wire terminal*
Quick Connect Plug
DC CEILING FANS
ADVANTAGES OF DC MOTOR CEILING FANS
High Efficiency
Ceiling fans with DC motors create a higher torque, meaning greater initial power and less energy consumption. DC motors consume up to 58% less energy than conventional ceiling fan motors.
Greater Control
DC motor control provides up to six speed settings and an easy-to-use reversing function for summer and winter operation. These motors are easier to start, stop and accelerate.
Light Weight
DC motors weigh less than conventional fan motors, resulting in a lighter product that is easier to install.
Quiet Operation
DC motors are virtually silent, ensuring a quiet operation.
BRILLIANT’S ALL-SEASONS TECHNOLOGY IS FOR USE ALL YEAR ROUND.
SUMMER MODE
WINTER MODE
Note: All energy saving and air movement data is produced by an accredited test lab. In home results may vary depending on circumstances and installation.

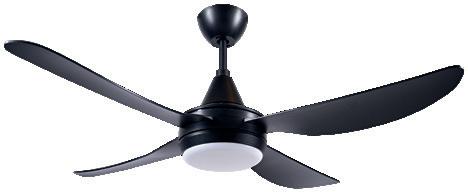

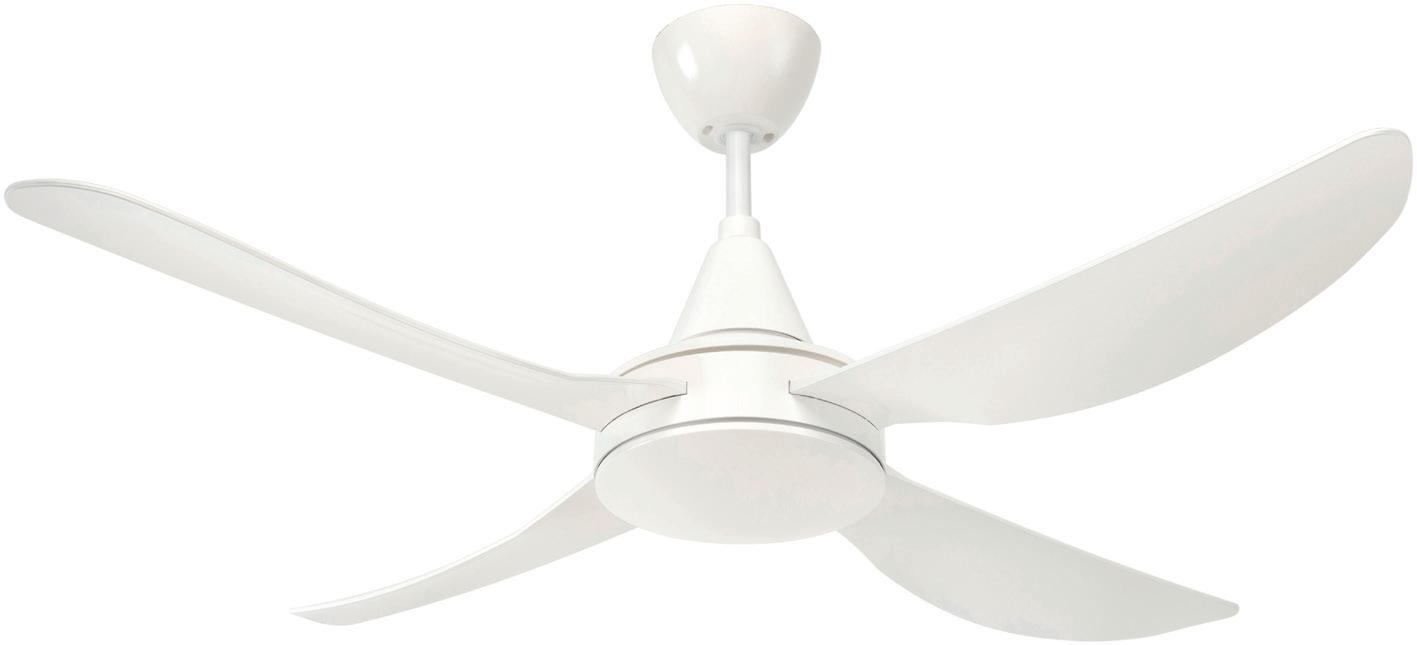

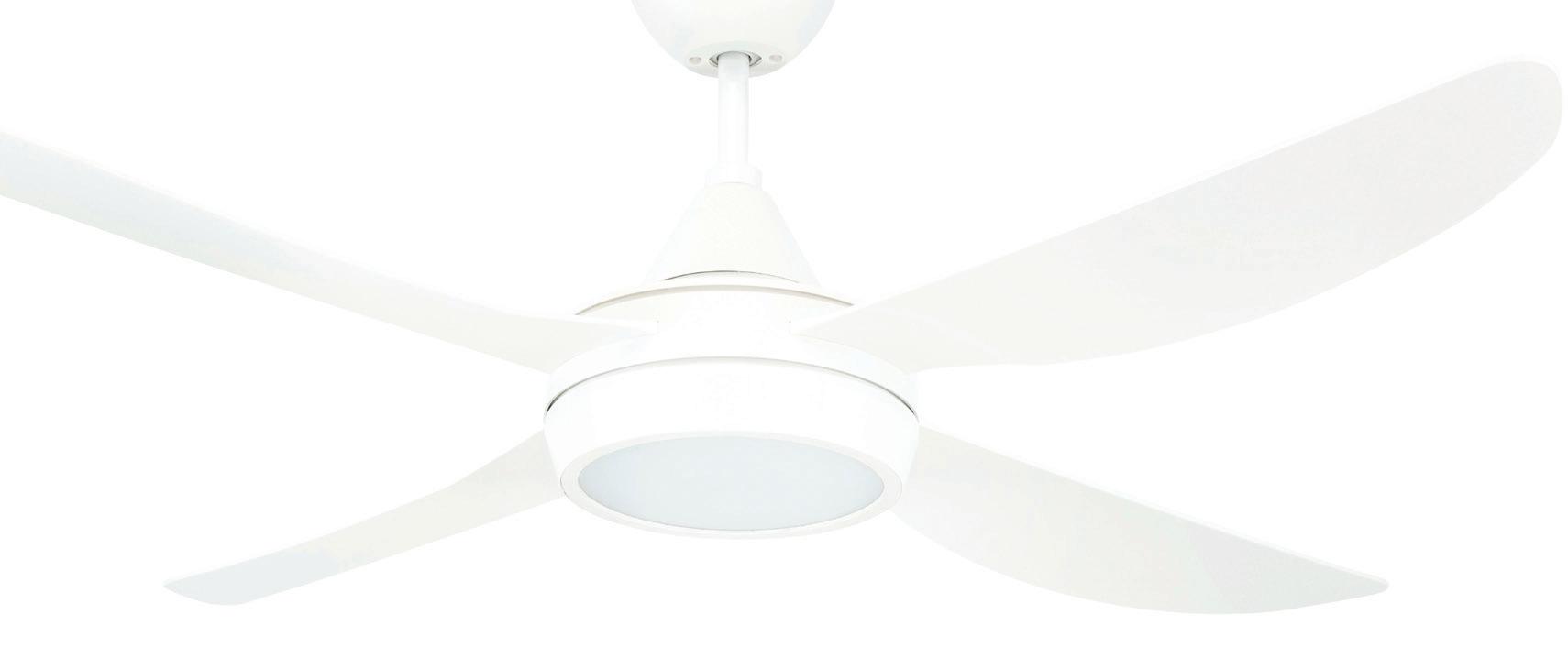

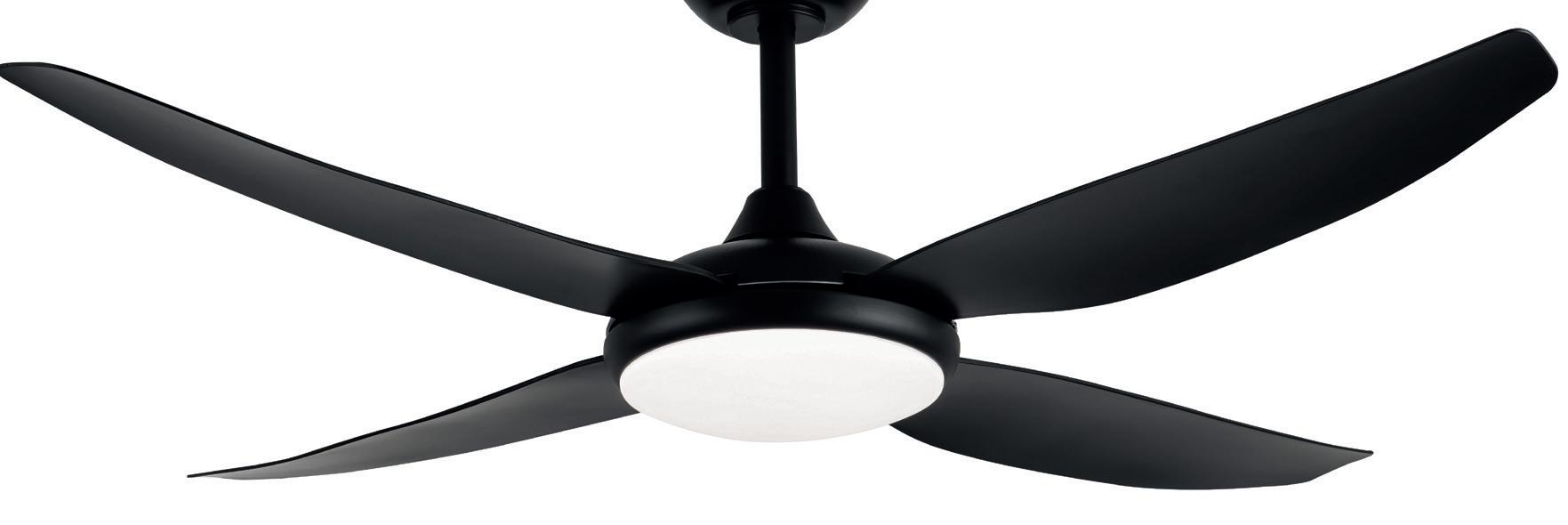

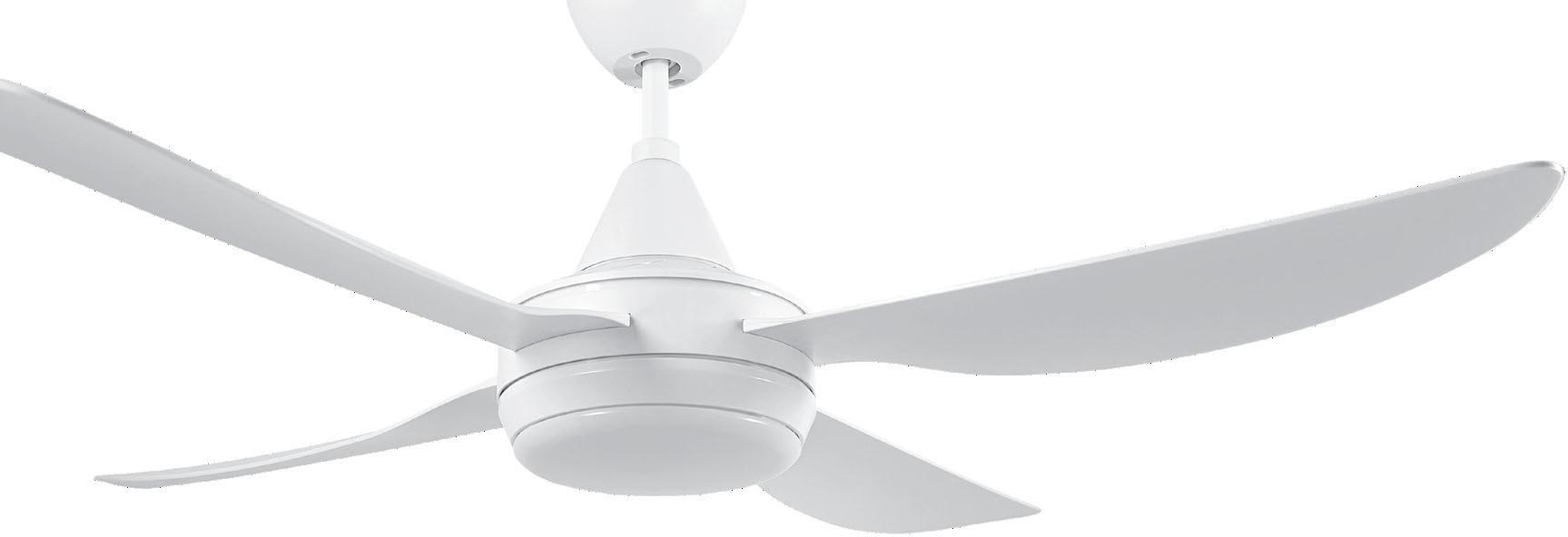

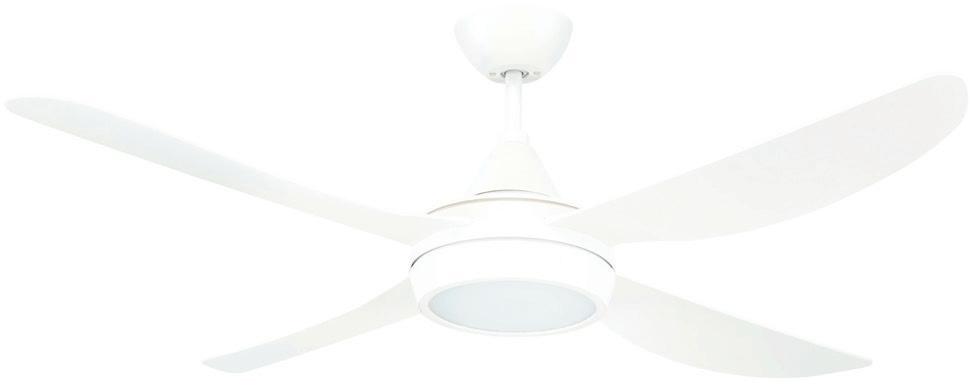

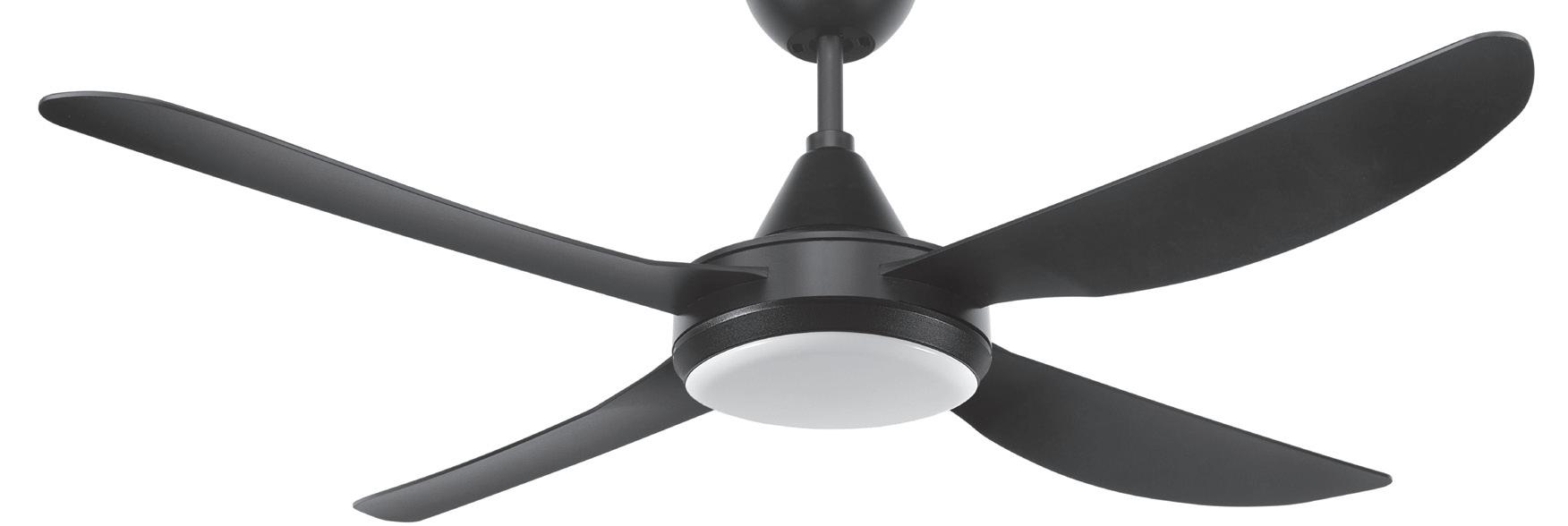

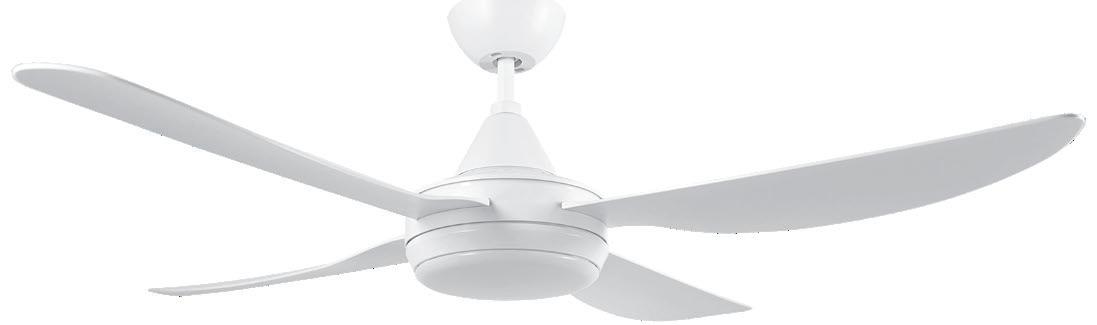

AMARI 52 SII
DC CEILING FAN AND LIGHT

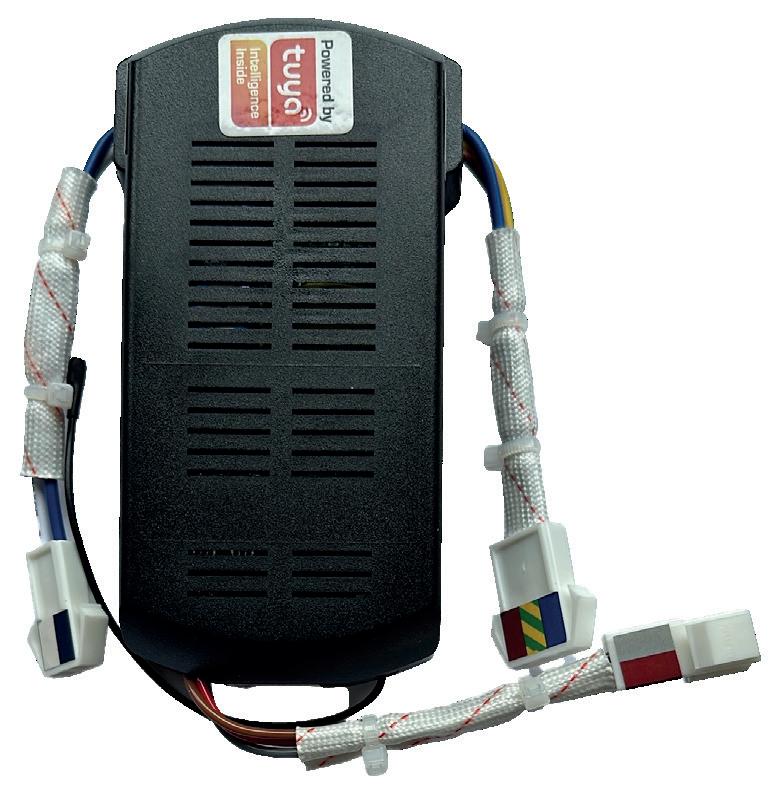

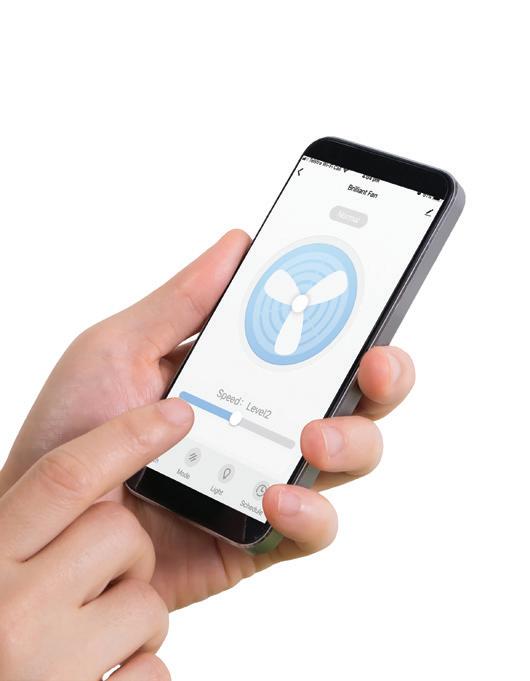

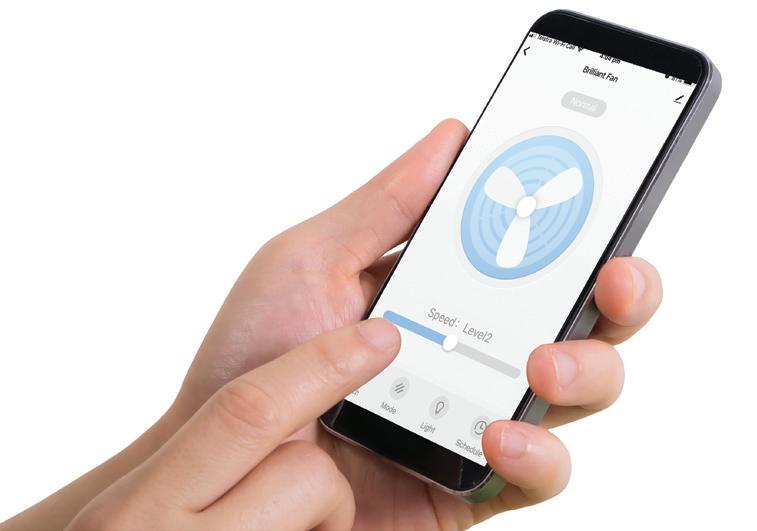

MAKE IT SMART... ADD A SMART RECEIVER.
An aerodynamically designed 52-inch ceiling fan suitable for coastal locations with its body, canopy and blades made from durable and anti-rust ABS plastic. With a powerful and efficient DC motor in combination with curved ABS blades for superior airflow. Improved performance with quieter motor and CCT switch on LED array.
Windbreeze mode: varies the fan speed to simulate a natural breeze effect. Reversible for Summer/Winter use.

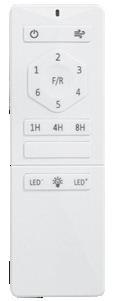

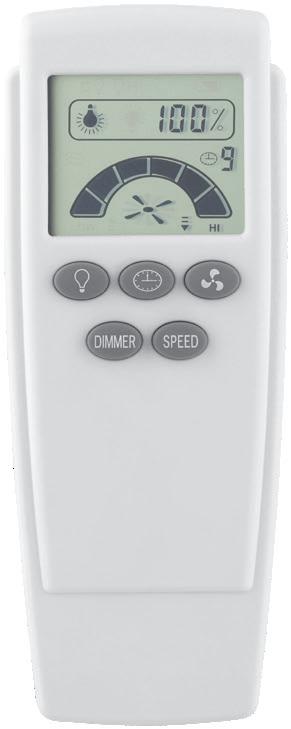

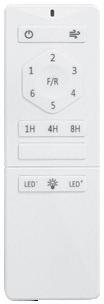

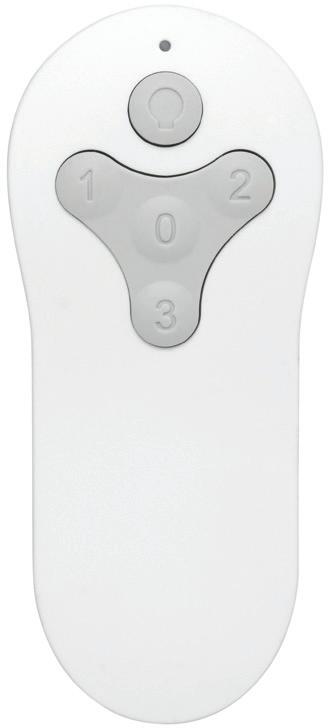

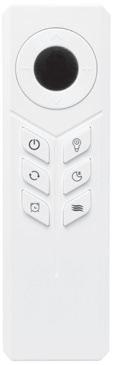

REMOTE CONTROL Light Option Available
MAX AIR MOVEMENT 14,800m3/hr
MIN AIR MOVEMENT 3,200m3/hr
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR Yes* (Suitable for coastal locations)
ø165mm
250mm Fan Drop (Blade)
ø1320mm
265mm (NL)
315mm (WL) Fan Drop (Body)
MODEL NUMBER DESCRIPTION
21719/05 Matt white
21719/06 Matt black
21721/05 Matt white (LED)
21721/06 Matt black (LED)
ACCESSORIES (incl.)
ACCESSORIES (sold separately)
WALL CONTROLLER ( Refer to page 89 ) DCWALLCONTROL ISODCWALLCONTROL
SMART RECEIVER ( Refer to page 86 ) 21721SMART
DC CEILING FAN AND LIGHT
MAKE IT SMART... ADD A SMART RECEIVER.
An aerodynamically designed 56-inch ceiling fan suitable for coastal locations with its body, canopy and blades made from durable and anti-rust ABS plastic. With a powerful and efficient DC motor in combination with curved ABS blades for superior airflow. Improved performance with quieter motor and CCT switch on LED array. Light Option Available
INCLUDED FEATURES Windbreeze mode: varies the fan speed to simulate a natural breeze effect. Reversible for Summer/Winter use.
MAX AIR MOVEMENT 17,300m3/hr
MIN AIR MOVEMENT 3,600m3/hr
ROOM SIZE Large
UNDERCOVER OUTDOOR Yes* (Suitable for coastal locations) ø1420mm 250mm Fan Drop (Blade) ø165mm
265mm (NL) 315mm (WL) Fan Drop (Body)
MODEL NUMBER DESCRIPTION
21723/05 Matt white
21723/06 Matt black
21725/05 Matt white (LED)
21725/06 Matt black (LED)
ACCESSORIES (incl.)
REMOTE CONTROL
ACCESSORIES (sold separately)
WALL CONTROLLER ( Refer to page 89 ) DCWALLCONTROL ISODCWALLCONTROL
SMART RECEIVER ( Refer to page 86 ) 21725SMART

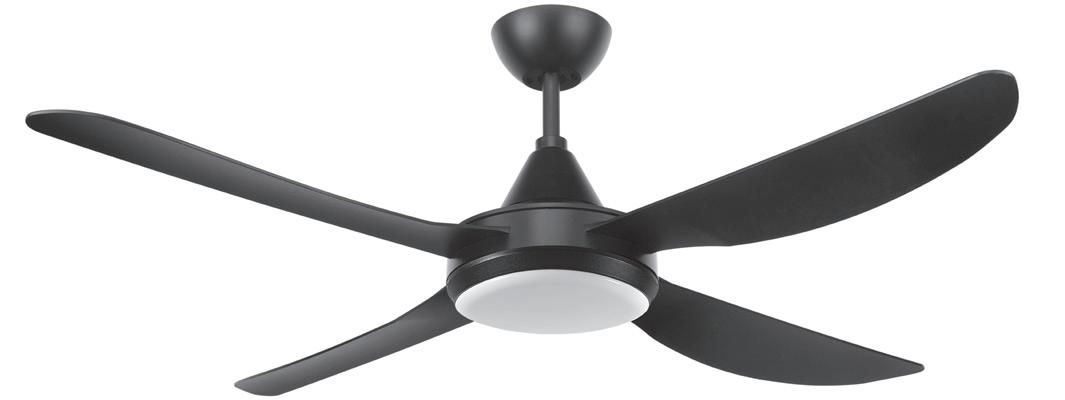

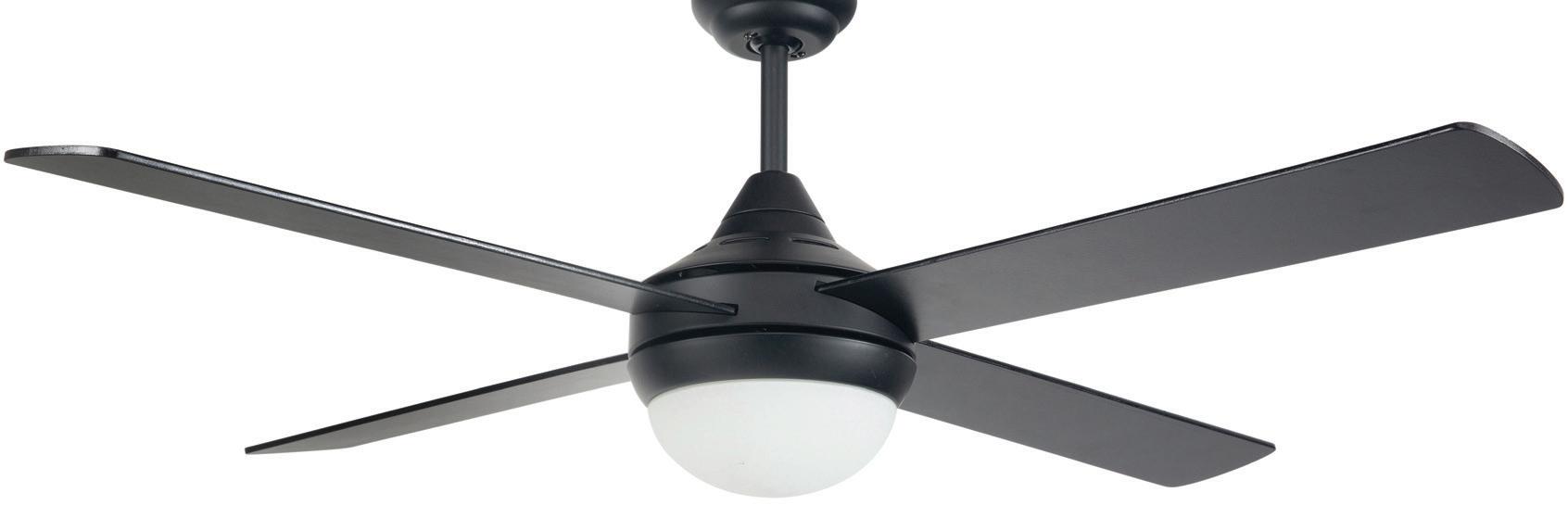

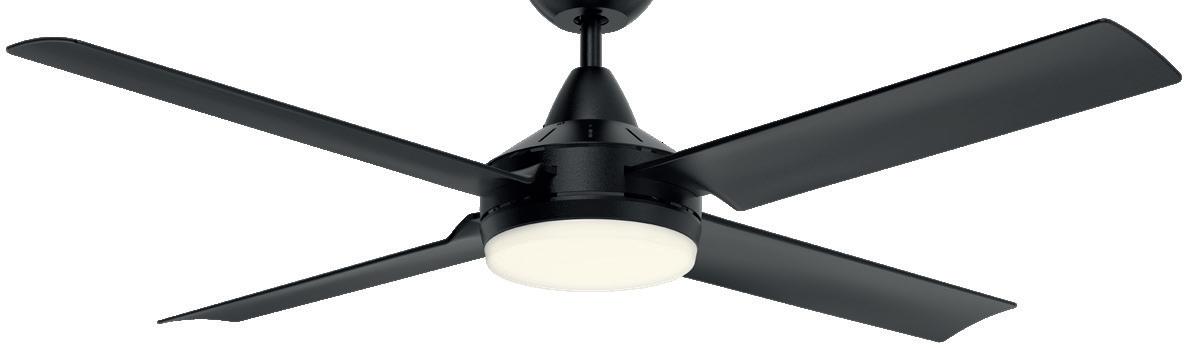

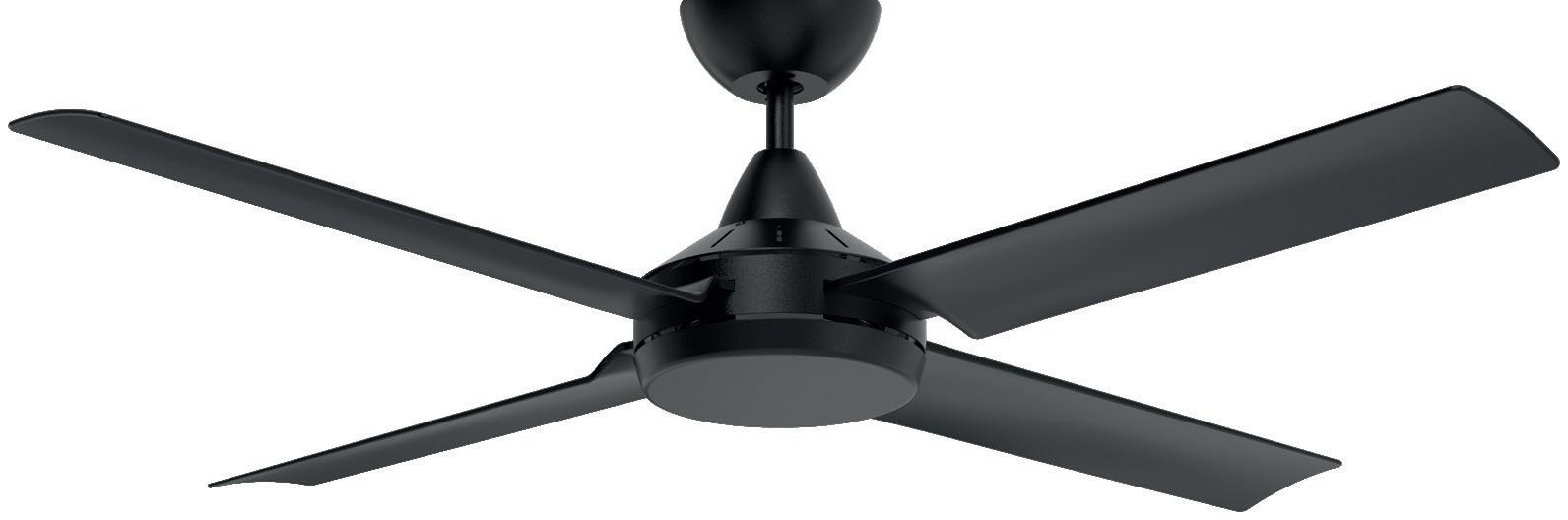

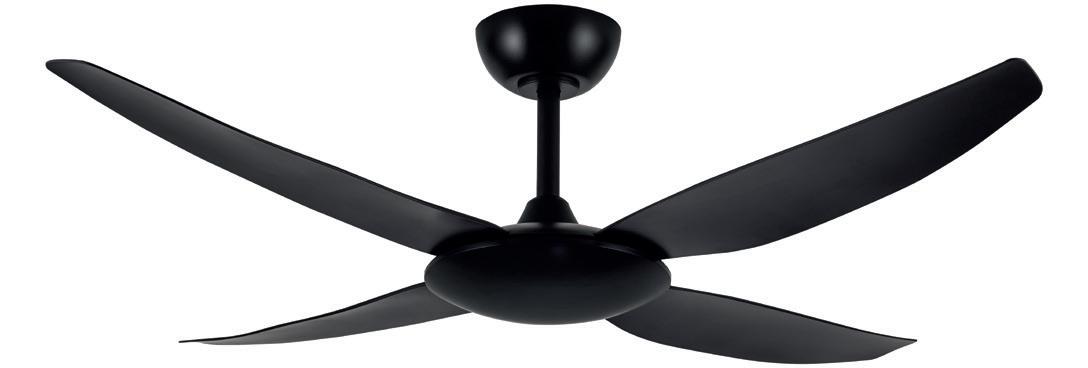

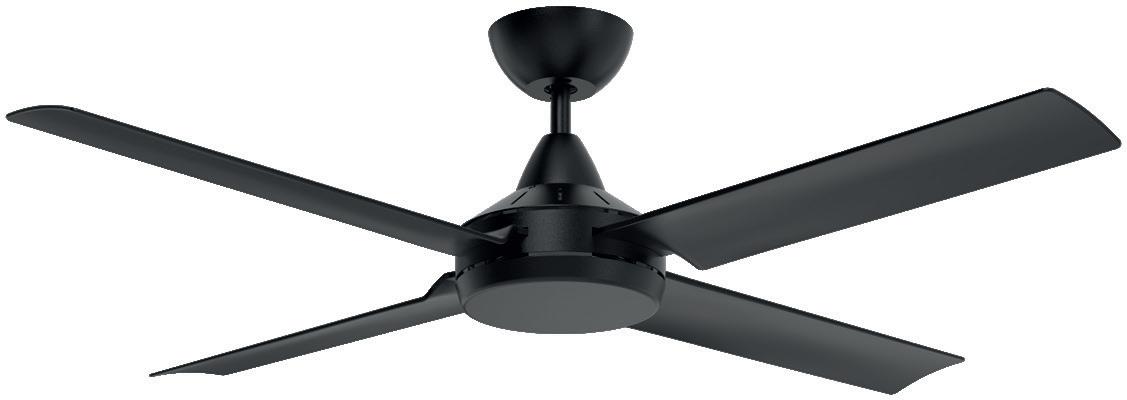

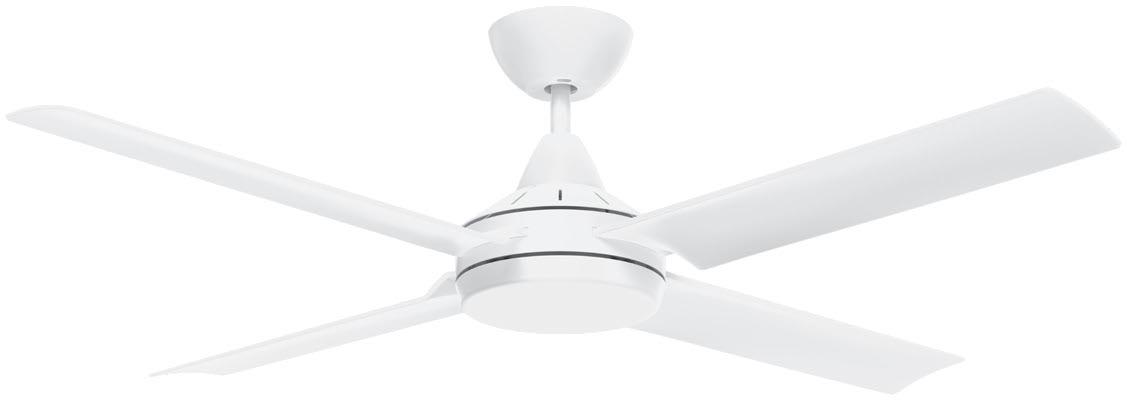

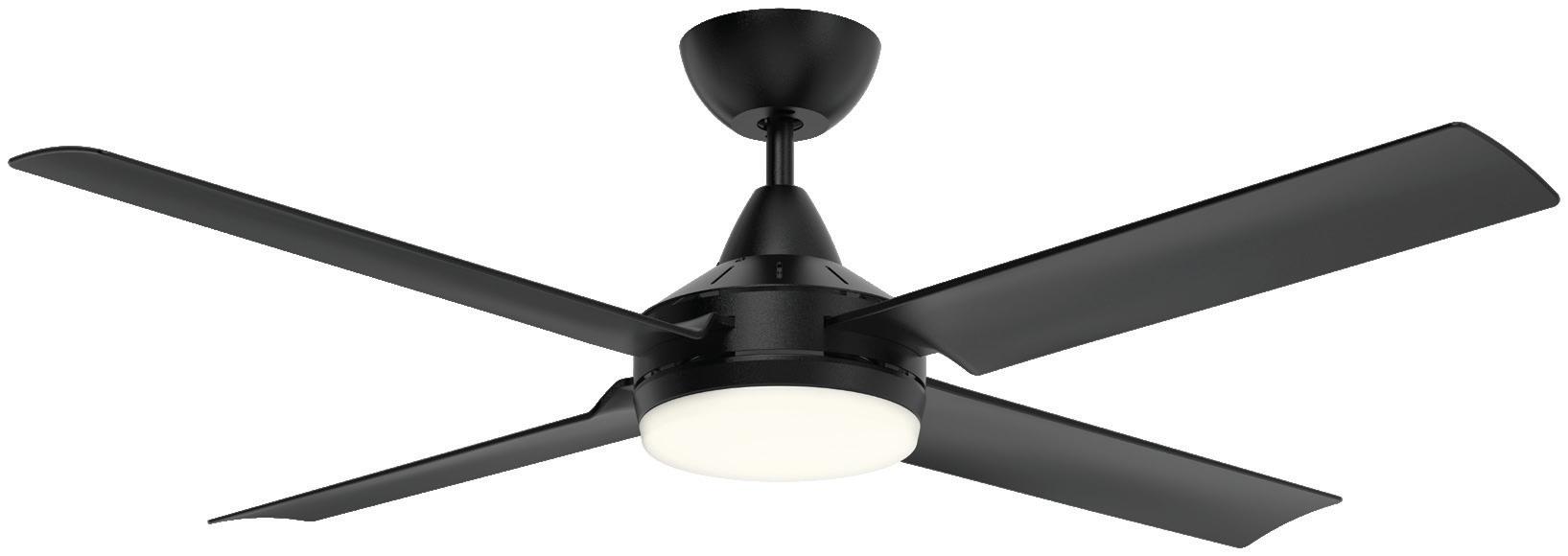

CAIRNS 48
DC CEILING FAN AND LIGHT
48INCH
EZI-FIT BLADES
QUICK & EASY INSTALLATION
Light Option Available
Brilliant’s new CAIRNS ceiling fan features a sleek, contemporary design that will bring style and airflow to your home. Incorporating our patented EZI-FIT blade technology, it makes installation a breeze and saves time. It also offers a choice between B22 light (replaceable globes) or an LED light for the clean, understated look.
LIGHT DIMMABLE Yes via remote (Must have dimmable globes) / Yes (Light Kit)
CEILING RAKE 10 degrees max

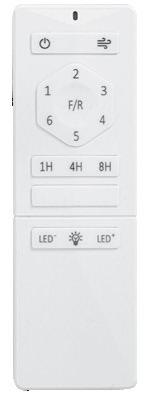

CONTROL 6-Speed Remote with timer
INCLUDED FEATURES
Ezi-Fit blades reduce fan assembly and installation time. Windbreeze mode: varies the fan speed to simulate a natural breeze effect. Reversible for Summer/Winter use.
MAX AIR MOVEMENT 10,000m3/hr
MIN AIR MOVEMENT 4,600m3/hr
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR Yes* (suitable for coastal locations)
285mm Fan Drop (Blade)
MODEL NUMBER DESCRIPTION
22970/05 Matt white
22970/06 Matt black
22974/05 Matt white (Globe)
22974/06 Matt black (Globe)
ACCESSORIES (incl.)
REMOTE CONTROL
ACCESSORIES (sold separately)
WALL CONTROLLER (Refer to page 88-89)
315mm (NL) 390mm (WL) Fan Drop (Body)
LIGHT KIT
DCWALLCONTROL
ISODCWALLCONTROL
DC3SPEEDFAN
22882/05 White
22882/06 Black

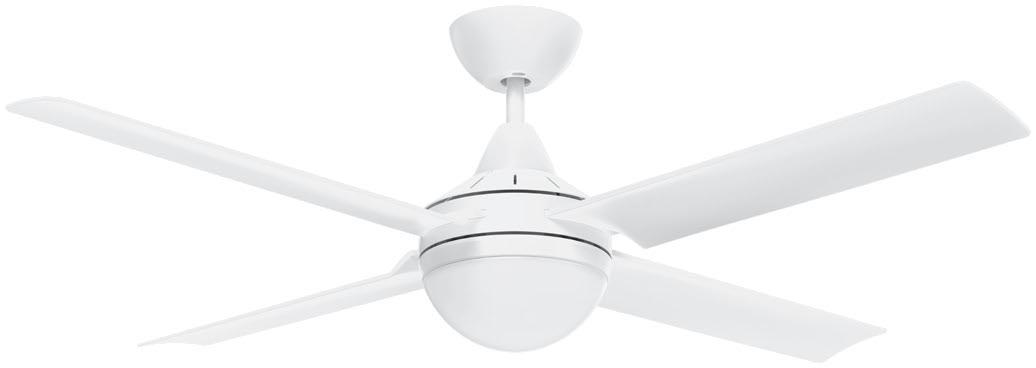

CAIRNS 52
DC CEILING FAN AND LIGHT
EZI-FIT BLADES
Light Option Available
Brilliant’s new CAIRNS ceiling fan features a sleek, contemporary design that will bring style and airflow to your home. Incorporating our patented EZI-FIT blade technology, it makes installation a breeze and saves time. It also offers a choice between B22 light (replaceable globes) or an LED light for the clean, understated look.
LIGHT DIMMABLE Yes via remote (Must have dimmable globes) / Yes (Light Kit)
CEILING RAKE 10 degrees max
CONTROL 6-Speed Remote with timer
INCLUDED FEATURES
Ezi-Fit blades reduce fan assembly and installation time. Windbreeze mode: varies the fan speed to simulate a natural breeze effect. Reversible for Summer/Winter use.
MAX AIR MOVEMENT 11,300m3/hr
MIN AIR MOVEMENT 5,100m3/hr
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR Yes* (suitable for coastal locations)
285mm Fan Drop (Blade)
MODEL NUMBER DESCRIPTION
22972/05 Matt white
22972/06 Matt black
22976/05 Matt white (Globe)
22976/06 Matt black (Globe)
ACCESSORIES (incl.)
REMOTE CONTROL
ACCESSORIES (sold separately)
WALL CONTROLLER (Refer to page 88-89)
315mm (NL) 390mm (WL) Fan Drop (Body)
ø1320mm
LIGHT KIT
DCWALLCONTROL
ISODCWALLCONTROL
DC3SPEEDFAN
22882/05 White
22882/06 Black

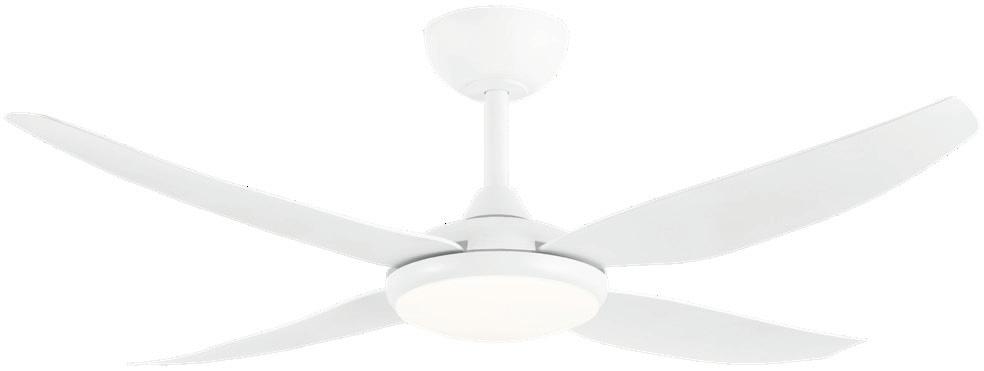

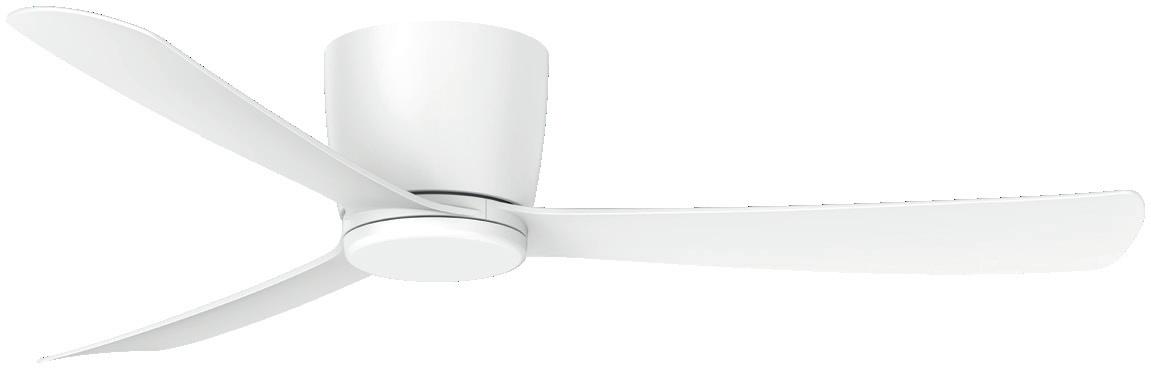

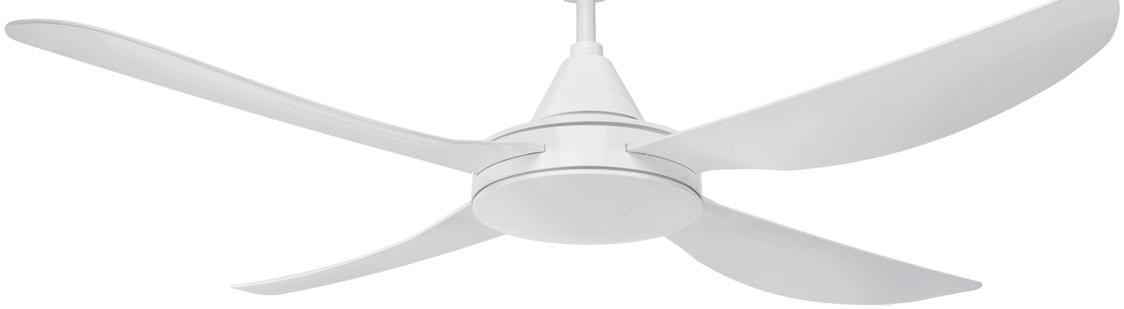

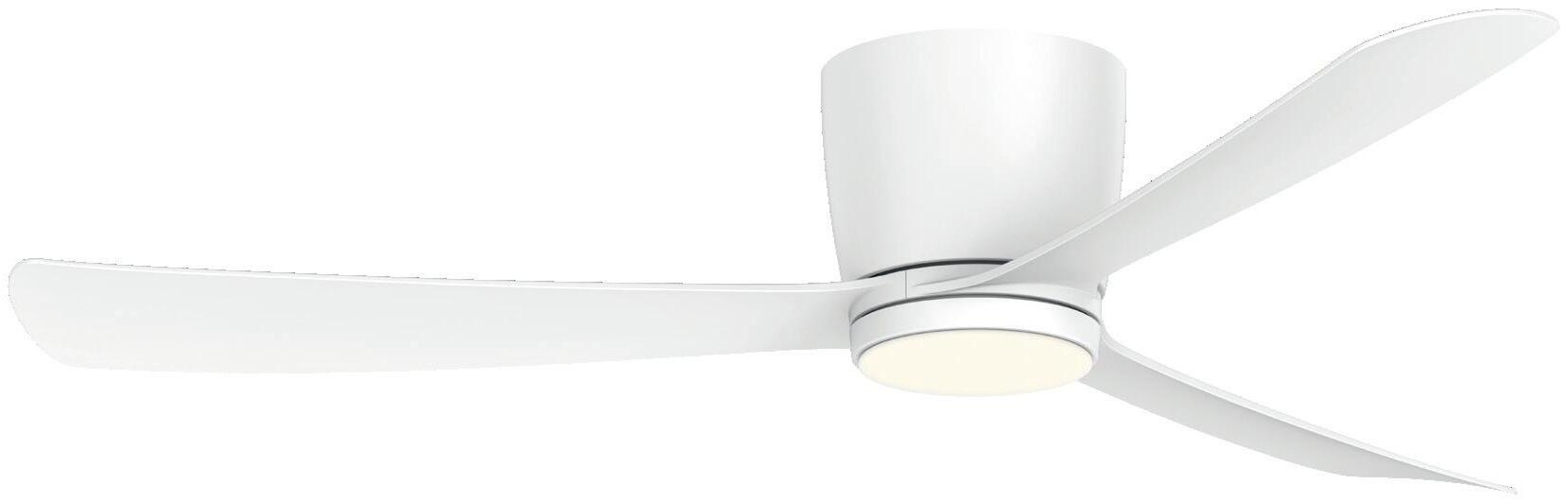

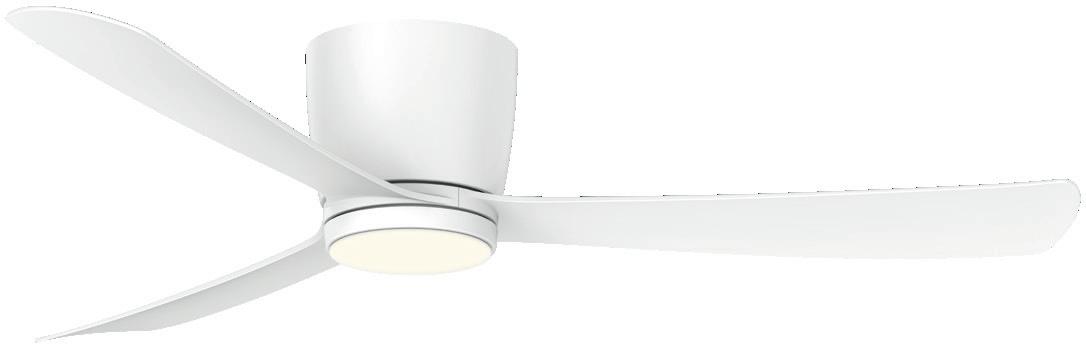

COSTA 52
Light Option Available
Brilliant’s COSTA DC ceiling fans are designed for low-ceiling rooms without sacrificing functionality or aesthetics. Made from durable ABS materials, these fans are suitable for both indoor and outdoor locations – even in coastal areas. Featuring a quiet DC motor, a 6-speed remote and models with an LED light option, they deliver style and comfort all year round.
SIZE
52-inch (1320mm)
MOTOR TYPE DC (Direct Current)
MOTOR WATTAGE 35W
CONSTRUCTION Durable ABS Plastic
BLADE MATERIAL Moulded ABS
BLADE PITCH 13 degrees
LIGHT WATTAGE 20W LED
COLOUR TEMP Selectable 3000K / 4200K / 6500K
LIGHT LUMENS 1000lm max
LIGHT DIMMABLE Yes
CEILING RAKE Flat ceiling only
CONTROL 6-Speed Remote with timer
INCLUDED FEATURES Windbreeze mode: varies the fan speed to simulate a natural breeze effect. Reversible for Summer/Winter use.
MAX AIR MOVEMENT 8,200m3/hr
MIN AIR MOVEMENT 3,700m3/hr
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR Yes* (suitable for coastal locations)
* Refer to page 91 for Outdoor Undercover installation use
MODEL NUMBER DESCRIPTION
22945/05 Matt white
22947/05 Matt white (LED)
ACCESSORIES (incl.) REMOTE CONTROL
ACCESSORIES (sold separately)
WALL
CONTROLLER ( Refer to page 88-89 )
DCWALLCONTROL
ISODCWALLCONTROL
DC3SPEEDFAN

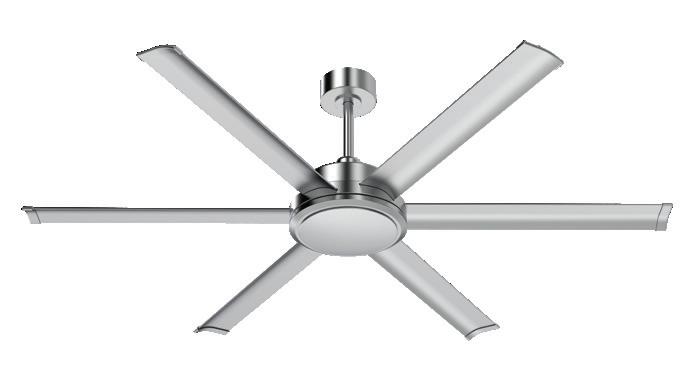

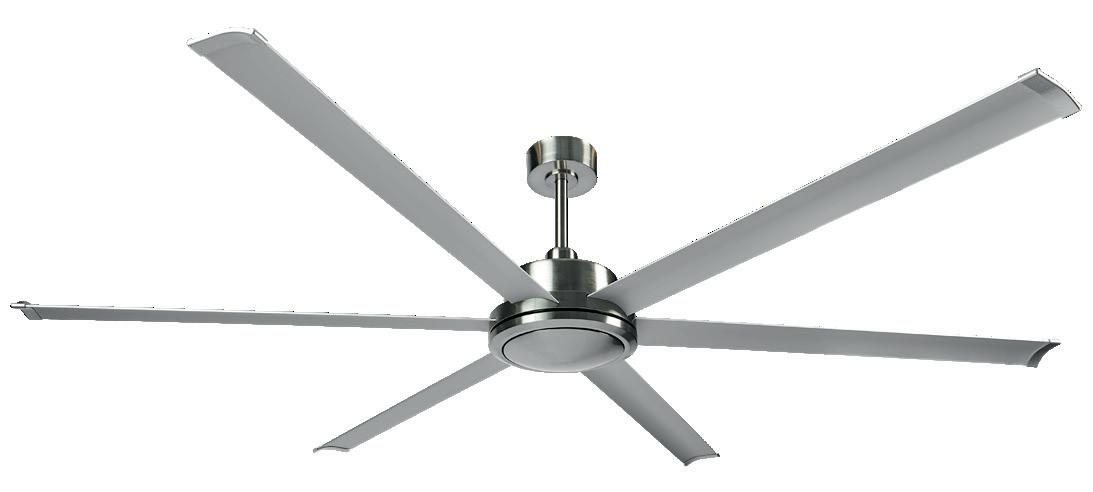

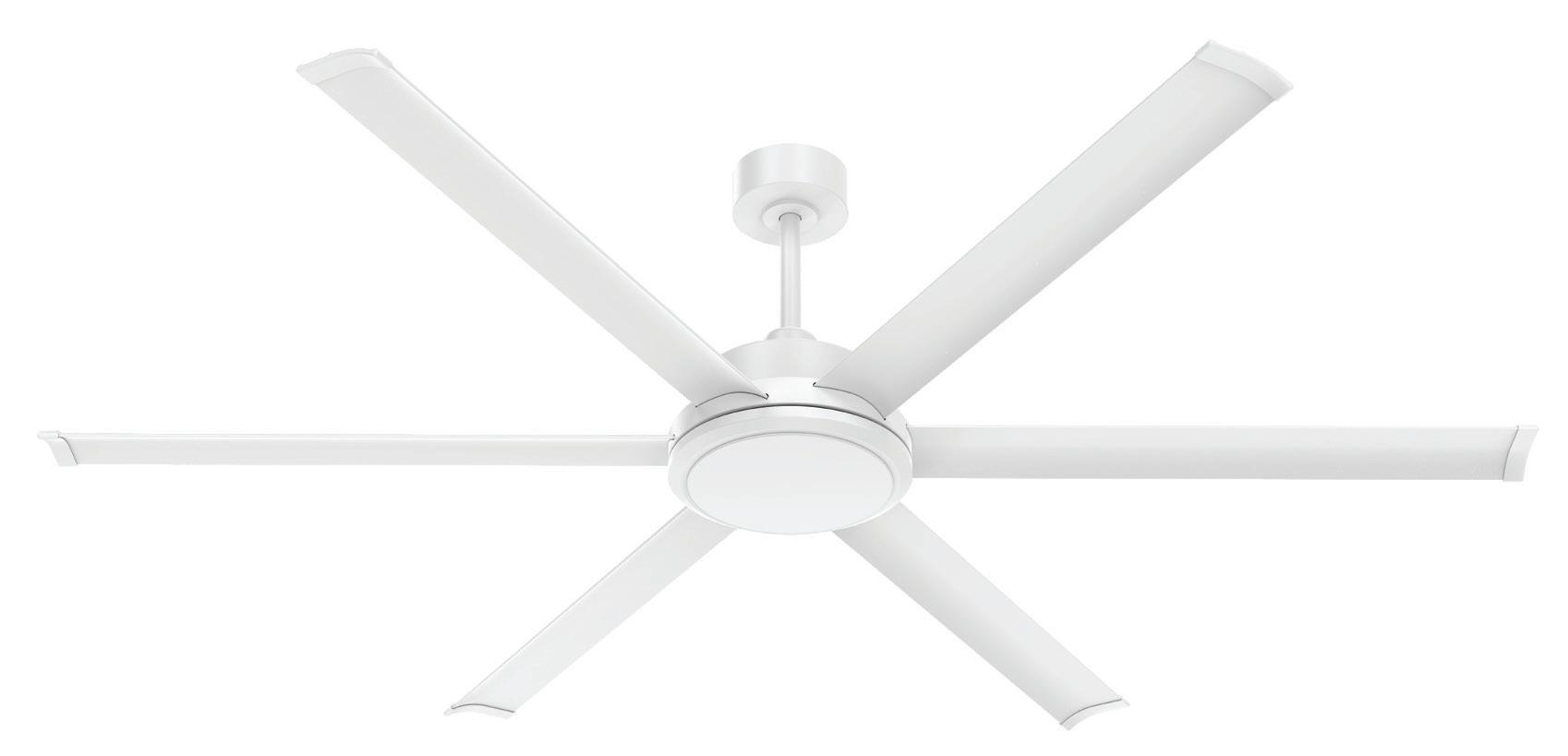

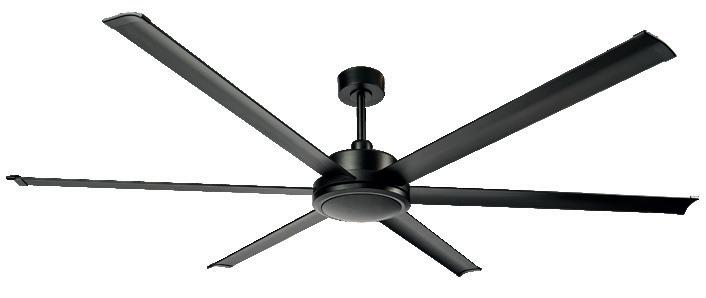

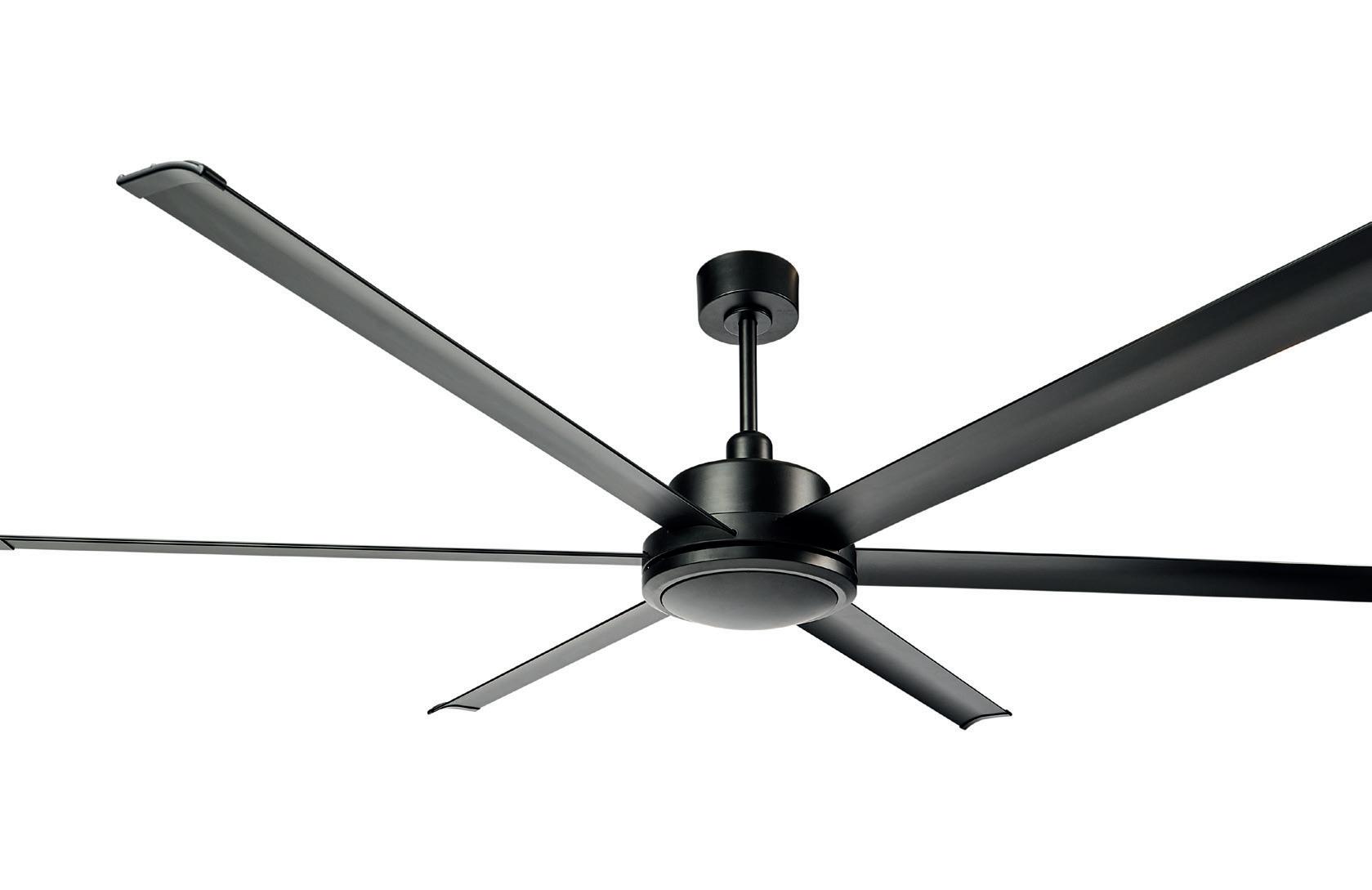

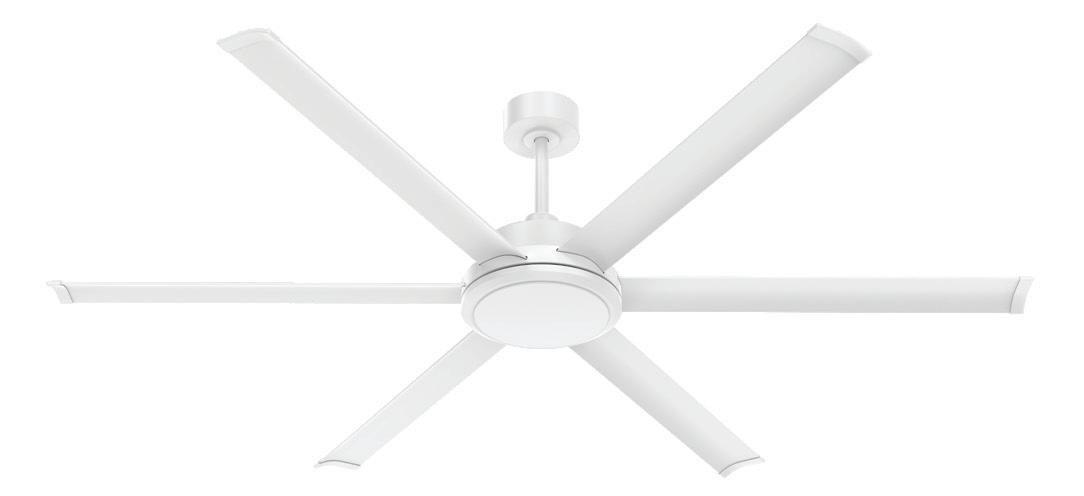

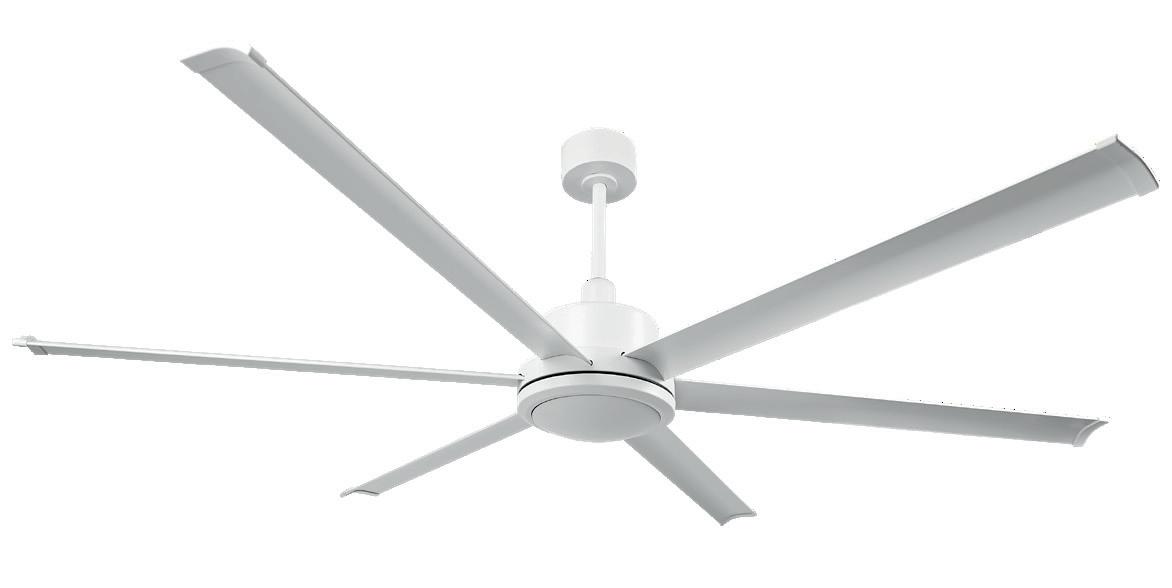

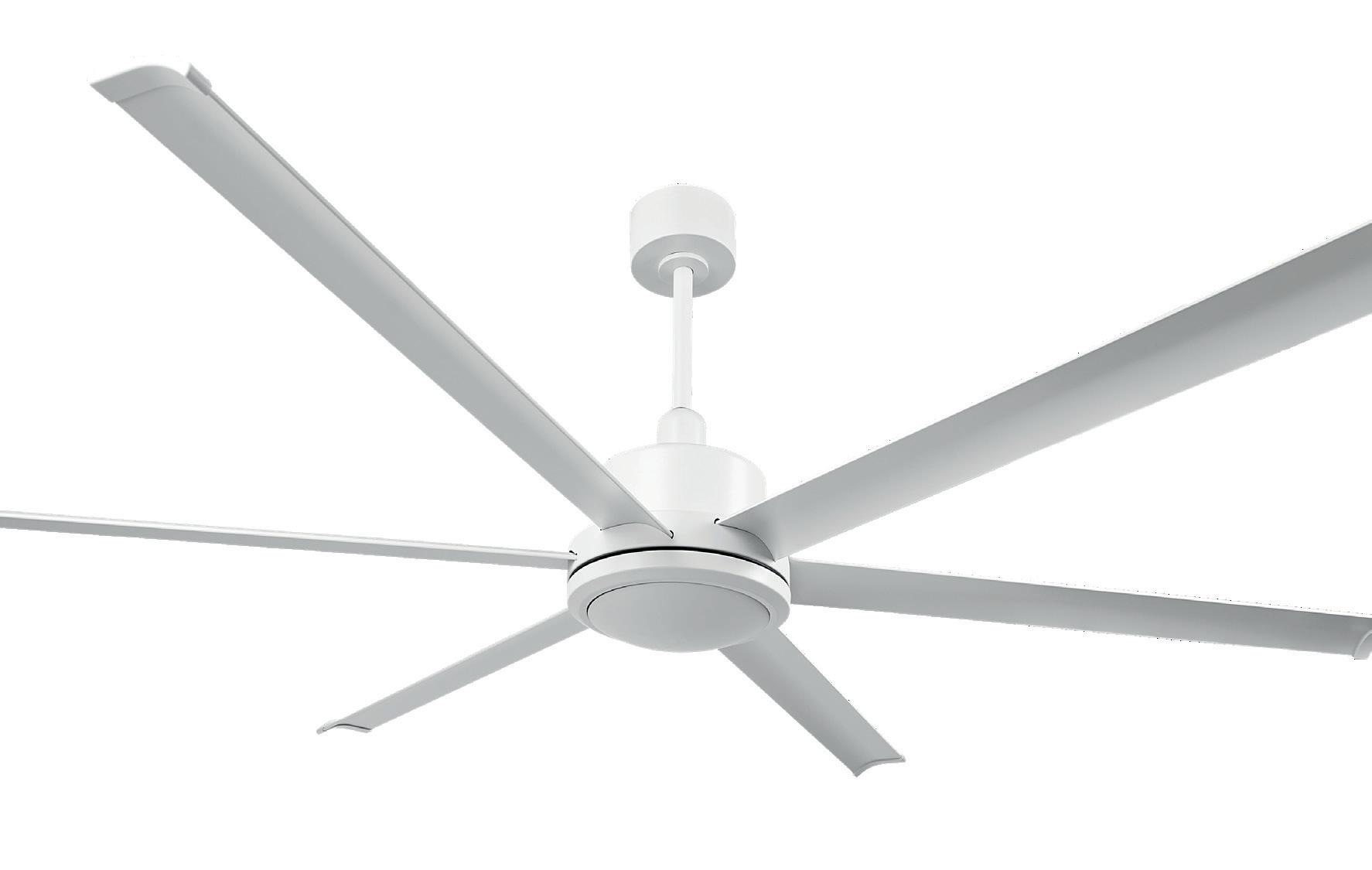

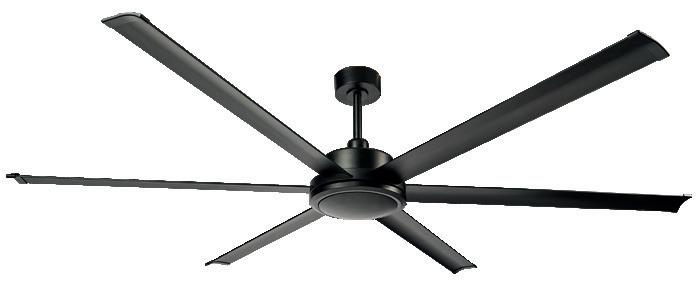

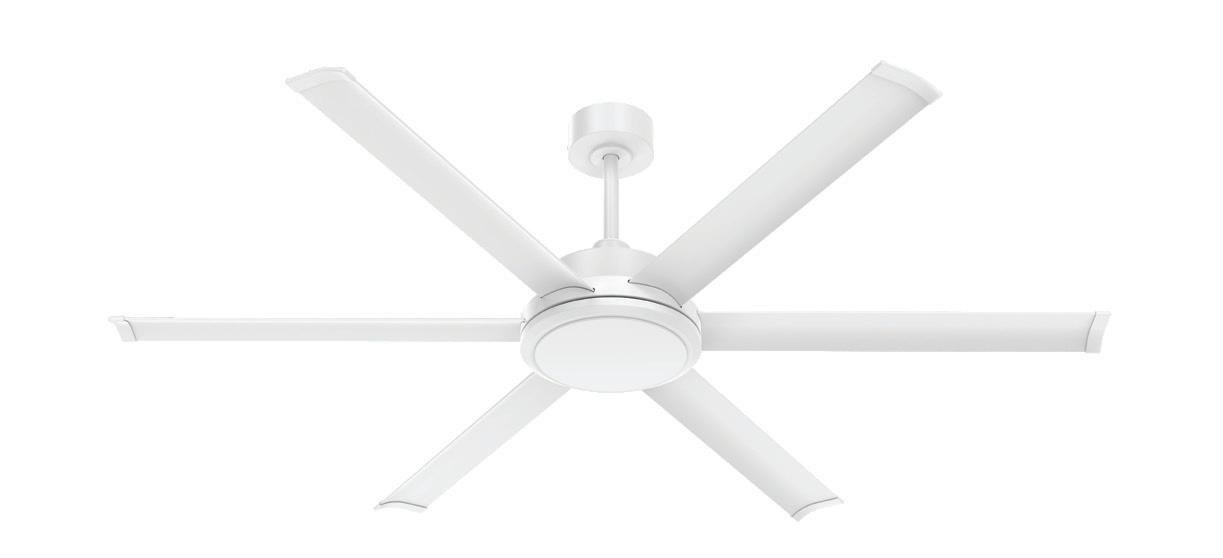

COLOSSUS 65 SII
INDUSTRIAL SIZED DC CEILING FAN
With 6 aluminium blades, the Colossus provides a balanced and streamlined look in large areas. The powerful DC motor is designed to deliver market leading airflow that moves a very high volume of air.
CONTROL 6 Speed Hand controller included (battery operated).
6 Speed Wall controller included (hardwired).
INCLUDED FEATURES Reversible for Summer/Winter use.
MAX AIR MOVEMENT 18,700m3/hr
MIN AIR MOVEMENT 8,500m3/hr
ROOM SIZE X-Large
UNDERCOVER OUTDOOR Yes*
MODEL NO. DESCRIPTION
22979/05 Matt white & white blades
22979/06 Matt black & black blades
22979/13 Satin nickel & aluminium blades
ACCESSORIES (incl.) REMOTE CONTROL
COLOSSUS 72 SII
With 6 aluminium blades, the Colossus provides a balanced and streamlined look in large areas. The powerful DC motor is designed to deliver market leading airflow that moves a very high volume of air.
CONTROL 6 Speed Hand controller included (battery operated).
6 Speed Wall controller included (hardwired).
INCLUDED FEATURES Reversible for Summer/Winter use.
MAX AIR MOVEMENT 20,400m3/hr
MIN AIR MOVEMENT 9,700m3/hr
ROOM SIZE X-Large
UNDERCOVER OUTDOOR Yes*
300mm (min) / 550mm (max) Fan Drop (Blade)
MODEL NO. DESCRIPTION
22982/05 Matt white & white blades
22982/06 Matt black & black blades
22982/13 Satin nickel & aluminium blades
ACCESSORIES (incl.)
REMOTE CONTROL
COLOSSUS 84 SII
With 6 aluminium blades, the Colossus provides a balanced and streamlined look in large areas. The powerful DC motor is designed to deliver market leading airflow that moves a very high volume of air.
CONTROL 6 Speed Hand controller included (battery operated).
6 Speed Wall controller included (hardwired).
INCLUDED FEATURES Reversible for Summer/Winter use.
MAX AIR MOVEMENT 30,100m3/hr
MIN AIR MOVEMENT 12,979m3/hr
ROOM SIZE X-Large
UNDERCOVER OUTDOOR Yes*
300mm (min) / 550mm (max) Fan Drop (Blade)
MODEL NO. DESCRIPTION
22986/05 Matt white & white blades
22986/06 Matt black & black blades
22986/13 Satin nickel & aluminium blades
ACCESSORIES (incl.)
REMOTE CONTROL
With 6 aluminium blades, the Colossus provides a balanced and streamlined look in large areas. The powerful DC motor is designed to deliver market leading airflow that moves a very high volume of air.
6 Speed Hand controller included (battery operated).
6 Speed Wall controller included (hardwired).
INCLUDED FEATURES Reversible for Summer/Winter use.
MAX AIR MOVEMENT 30,100m3/hr
MIN AIR MOVEMENT 12,979m3/hr
ROOM SIZE X-Large
UNDERCOVER OUTDOOR Yes*
300mm (min) / 550mm (max) Fan Drop (Blade)
MODEL NO. DESCRIPTION
22319/05 Matt white & white blades
22319/13 Satin nickel & aluminium blades
ACCESSORIES (incl.)
REMOTE CONTROL

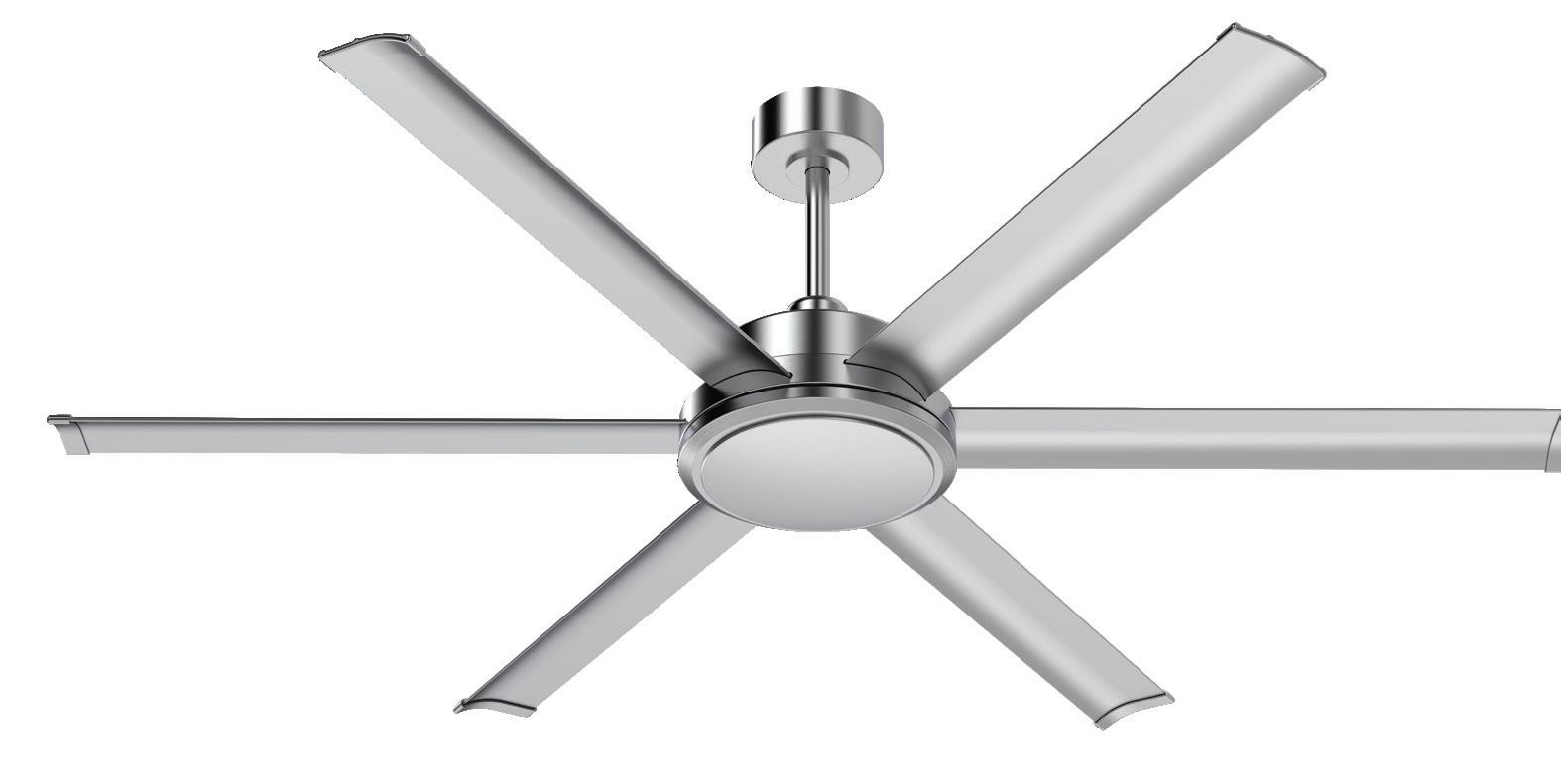

COLOSSUS 120 SII
INDUSTRIAL SIZED DC CEILING FAN
An industrial sized 6 bladed DC ceiling fan which provides a balanced and streamlined look in large areas. The aluminium blades are specifically designed to deliver quieter operation and gently move very high volumes of air.
CONTROL 6 Speed Hand controller included (battery operated).
6 Speed Wall controller included (hardwired).
INCLUDED FEATURES Reversible for Summer/Winter use.
MAX AIR MOVEMENT 35,500m3/hr
MIN AIR MOVEMENT 14,750m3/hr
ROOM SIZE X-Large
UNDERCOVER OUTDOOR Yes*
300mm (min) / 550mm (max) Fan Drop (Blade)
MODEL NO. DESCRIPTION
22989/05 Matt white & white blades
22989/06 Matt black & black blades
22989/13 Satin nickel & aluminium blades
ACCESSORIES (incl.)
REMOTE CONTROL
COLOSSUS 120
An industrial sized 6 bladed DC ceiling fan which provides a balanced and streamlined look in large areas. The aluminium blades are specifically designed to deliver quieter operation and gently move very high volumes of air.
INCLUDED FEATURES Reversible for Summer/Winter Use.
MAX AIR MOVEMENT 35,500m3/hr
MIN AIR MOVEMENT 14,750m3/hr
ROOM SIZE X-Large
UNDERCOVER OUTDOOR Yes*
300mm (min) / 550mm (max) Fan Drop (Blade)
MODEL NO. DESCRIPTION
22677/05 Matt white & white blades
22677/13 Satin nickel & aluminium blades
ACCESSORIES (incl.)
REMOTE CONTROL

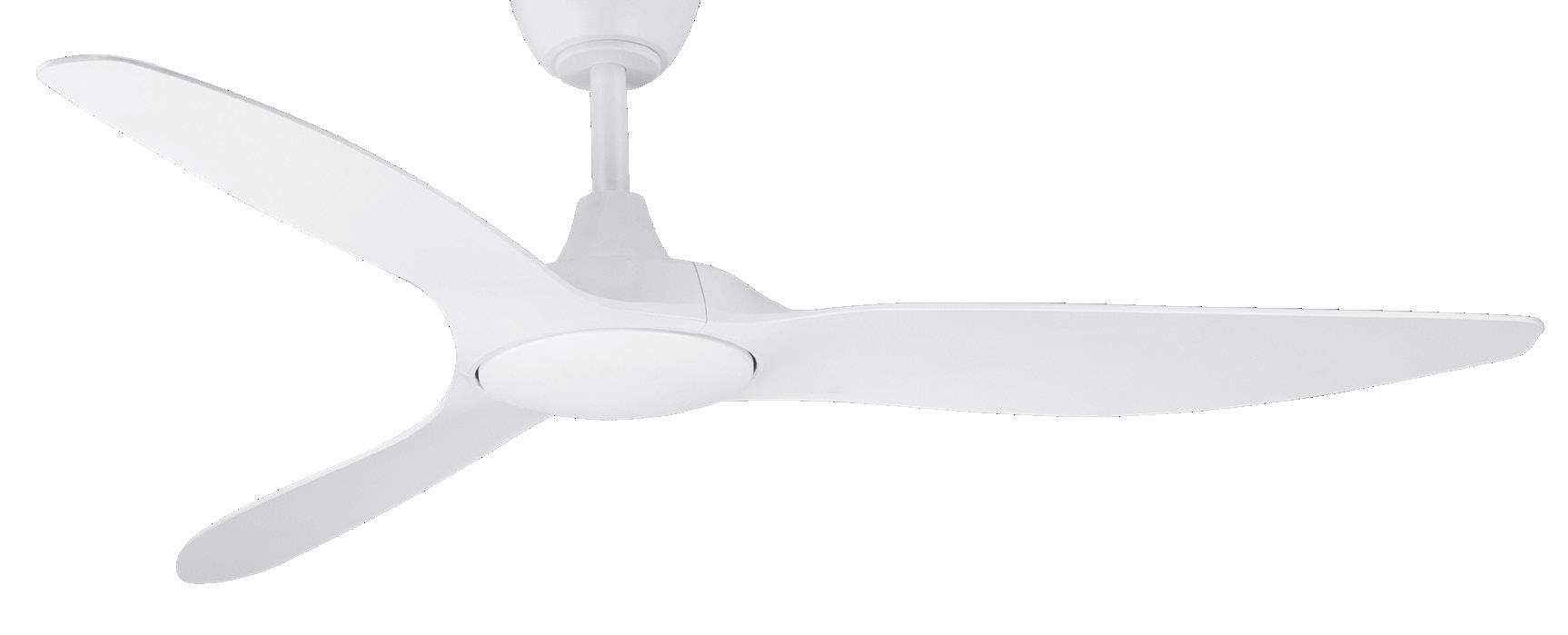

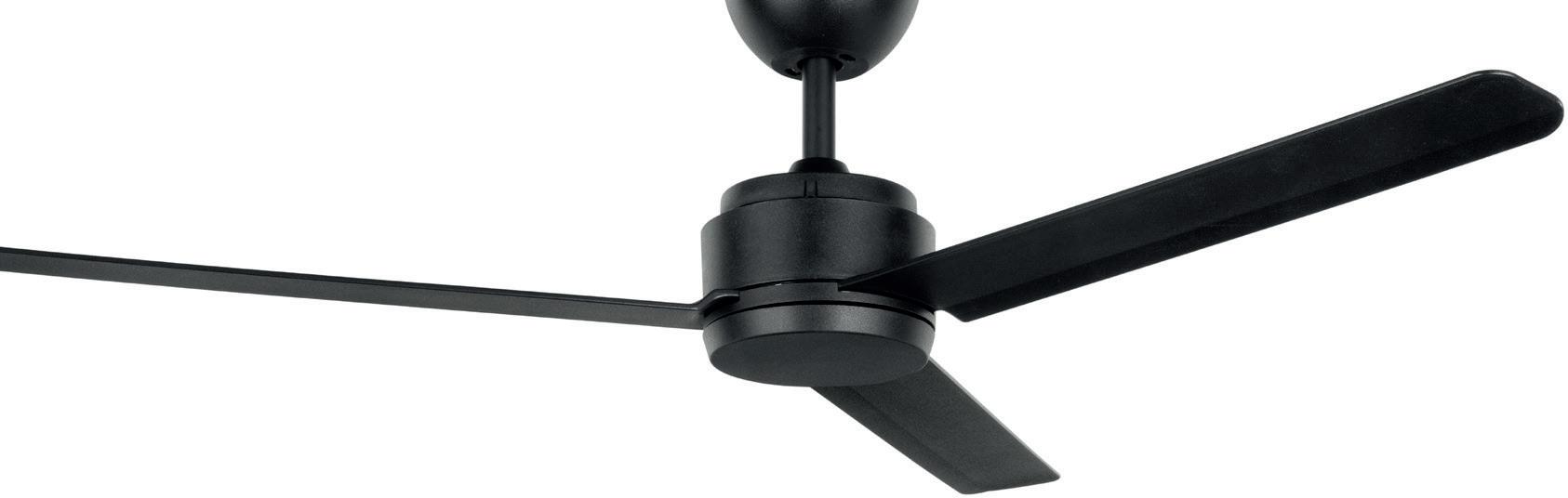

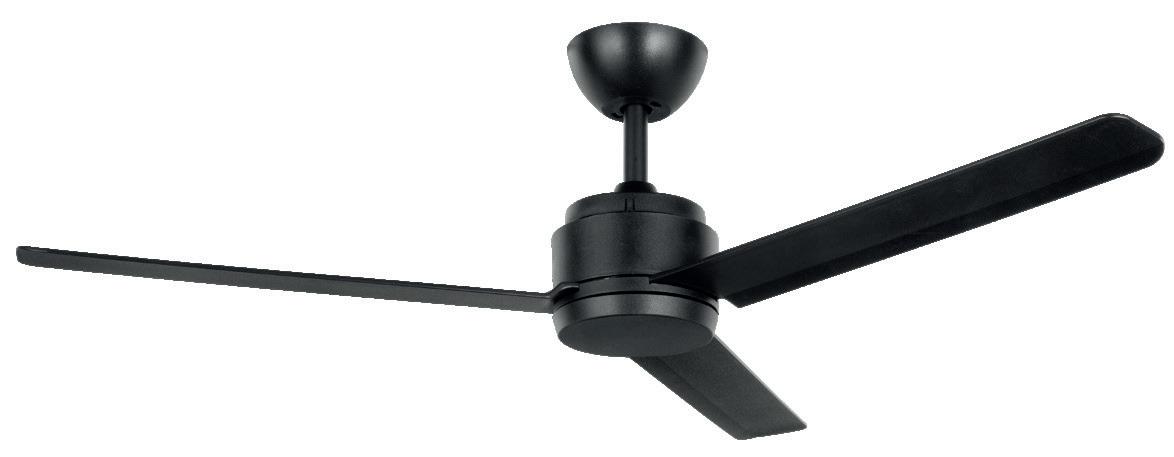

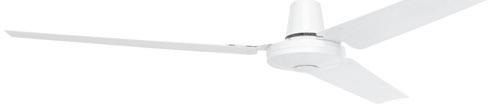

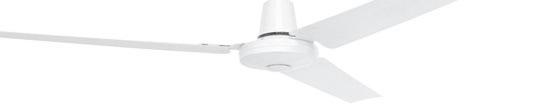

FANTASTIC 52
DC CEILING FAN
A 3-Blade DC ceiling fan with a slim compact motor design and aerodynamic blades to provide a quiet and effective airflow. A feature packed remote to give you total control. An elegant blade shape that will add a modern style to any space.
SIZE
52-inch (1320mm)
MOTOR TYPE DC (Direct Current)
MOTOR WATTAGE 35W
CONSTRUCTION ABS body and canopy
BLADE MATERIAL Moulded ABS
BLADE PITCH 21 degrees
CEILING RAKE 10 degrees max
CONTROL
6-Speed Remote with display
6-Speed Wall controller (optional)
INCLUDED FEATURES Reversible for Summer/Winter use.
MAX AIR MOVEMENT 12,200m3/hr
MIN AIR MOVEMENT 2,850m3/hr
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR Yes* (suitable for coastal locations)

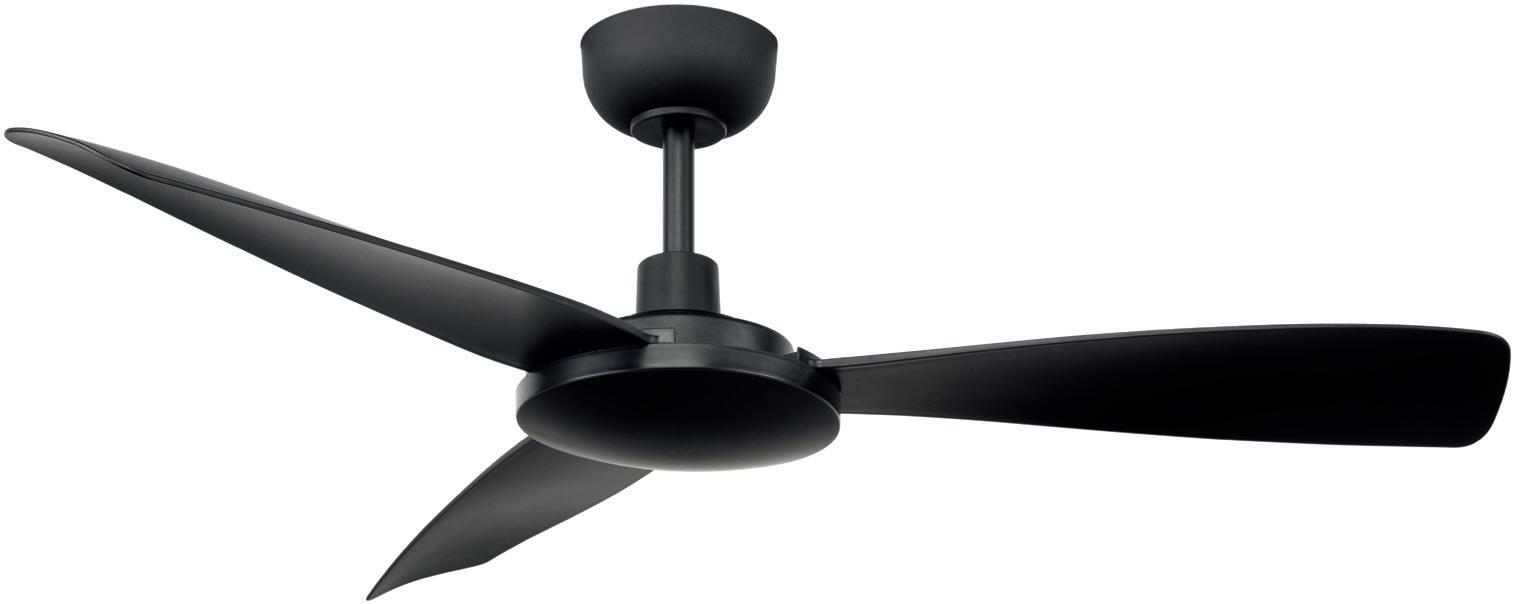

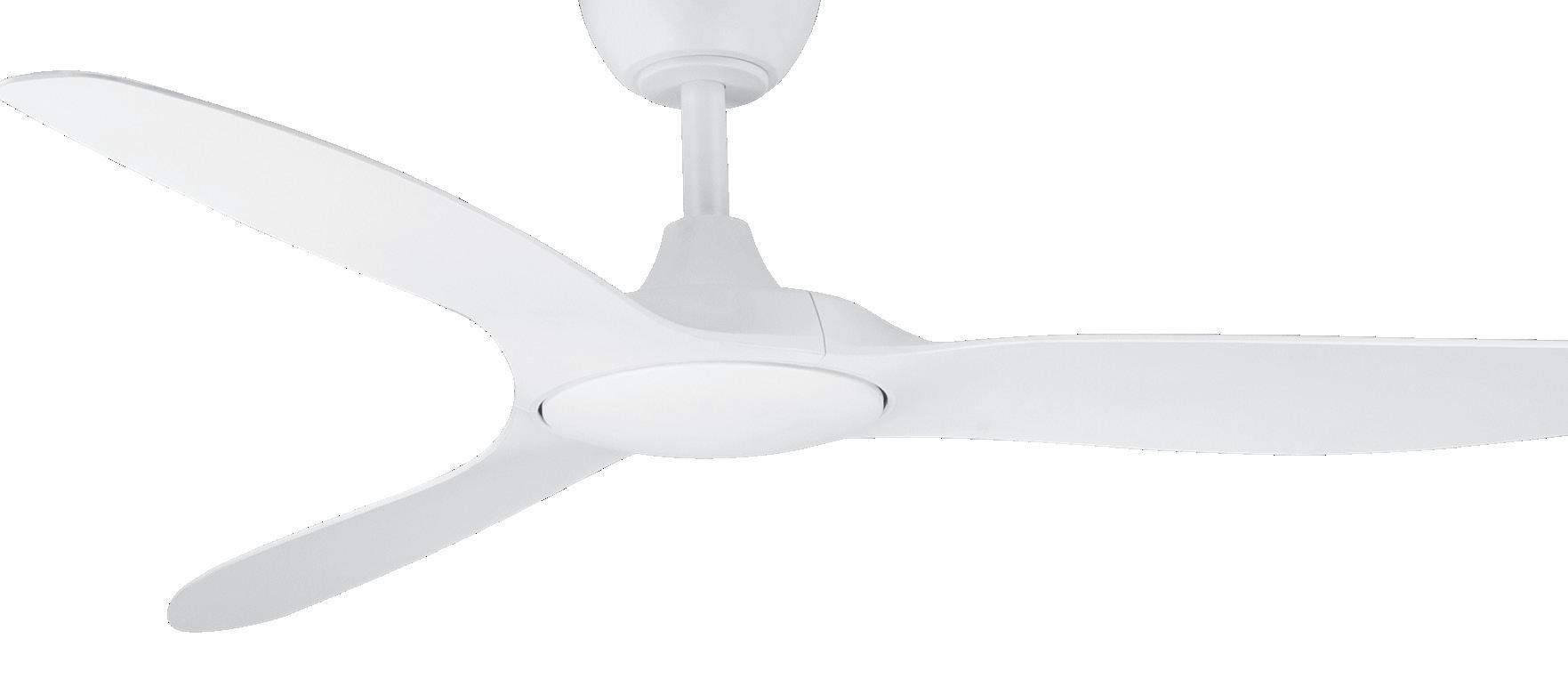

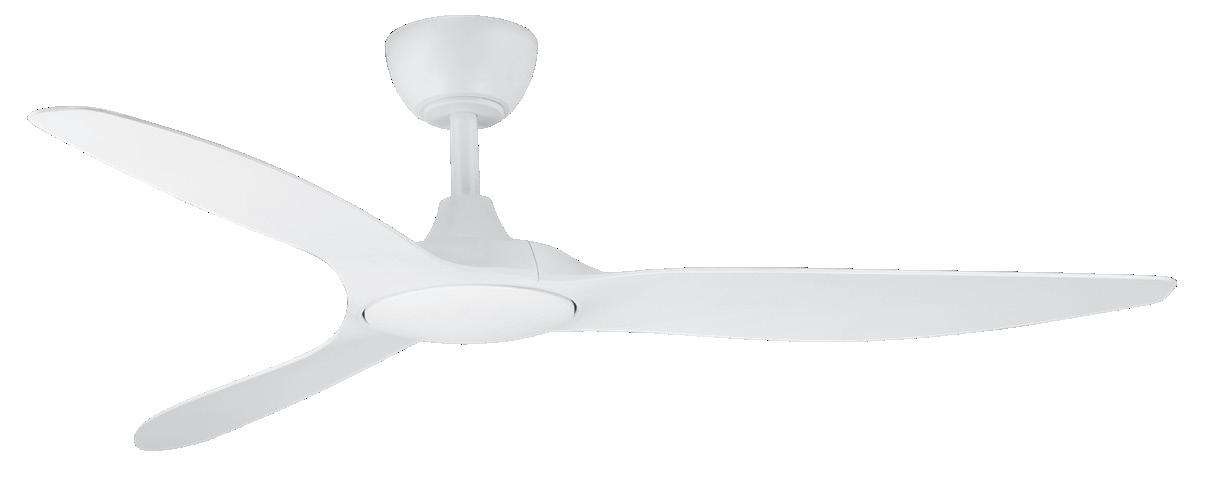

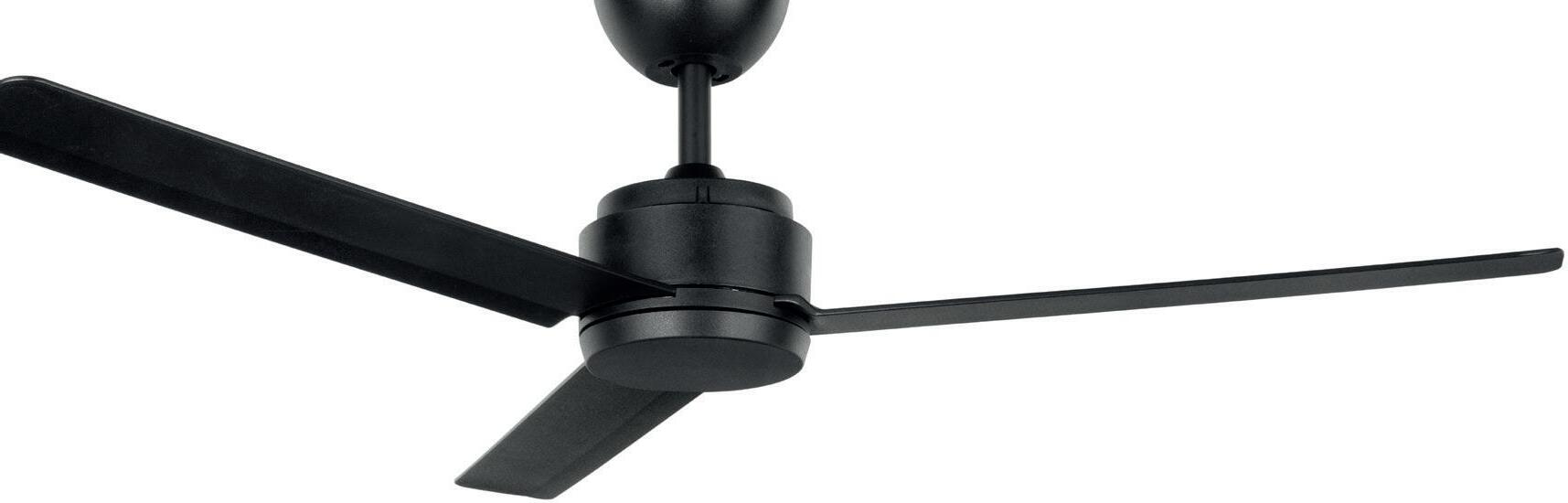

A 3-Blade DC ceiling fan with a slim compact motor design and aerodynamic blades to provide a quiet and effective airflow. A feature packed remote to give you total control. An elegant blade shape that will add a modern style to any space.
SIZE
60-inch (1520mm)
MOTOR TYPE DC (Direct Current)
MOTOR WATTAGE 35W
CONSTRUCTION ABS body and canopy
BLADE MATERIAL Moulded ABS
BLADE PITCH 21 degrees
CEILING RAKE 10 degrees max
CONTROL 6-Speed Remote with display
INCLUDED FEATURES Reversible for Summer/Winter use.
MAX AIR MOVEMENT 12,800m3/hr
MIN AIR MOVEMENT 5,100m3/hr
ROOM SIZE Large
UNDERCOVER OUTDOOR Yes* (suitable for coastal locations)
280mm Fan Drop (Blade)
Refer to page 82-83 for Extension Rod options
* Refer to page 91 for Outdoor Undercover installation use
290mm Fan Drop (Body)
MODEL NUMBER DESCRIPTION
22943/05 Matt white
22943/06 Matt black
ACCESSORIES (incl.)
REMOTE CONTROL
ACCESSORIES (sold separately)
WALL CONTROLLER (Refer to page 88-89)
LIGHT KIT
DCWALLCONTROL
ISODCWALLCONTROL
DC3SPEEDFAN
22808/05 White
22808/06 Black
A modern designed and crafted 3 bladed ceiling fan with simple clean lines that will suit many rooms and decors throughout your home, including covered outdoor spaces. Features an energy efficient DC motor combined with streamlined ABS blades for superior airflow.
LIGHT DIMMABLE Yes 3-Step via fan remote (Light Kit only)
CEILING RAKE 10 degrees max
CONTROL 6-Speed Remote with timer
INCLUDED FEATURES Reversible for Summer/Winter Use
MAX AIR MOVEMENT 11,500m3/hr
MIN AIR MOVEMENT 5,200m3/hr
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR Yes*
MODEL NUMBER DESCRIPTION
22197/06 Matt black
ACCESSORIES (incl.) REMOTE CONTROL
ACCESSORIES (sold separately)
LIGHT KIT
22201/06 Black
PACIFICA II
EASY SLIDE-ON BLADES

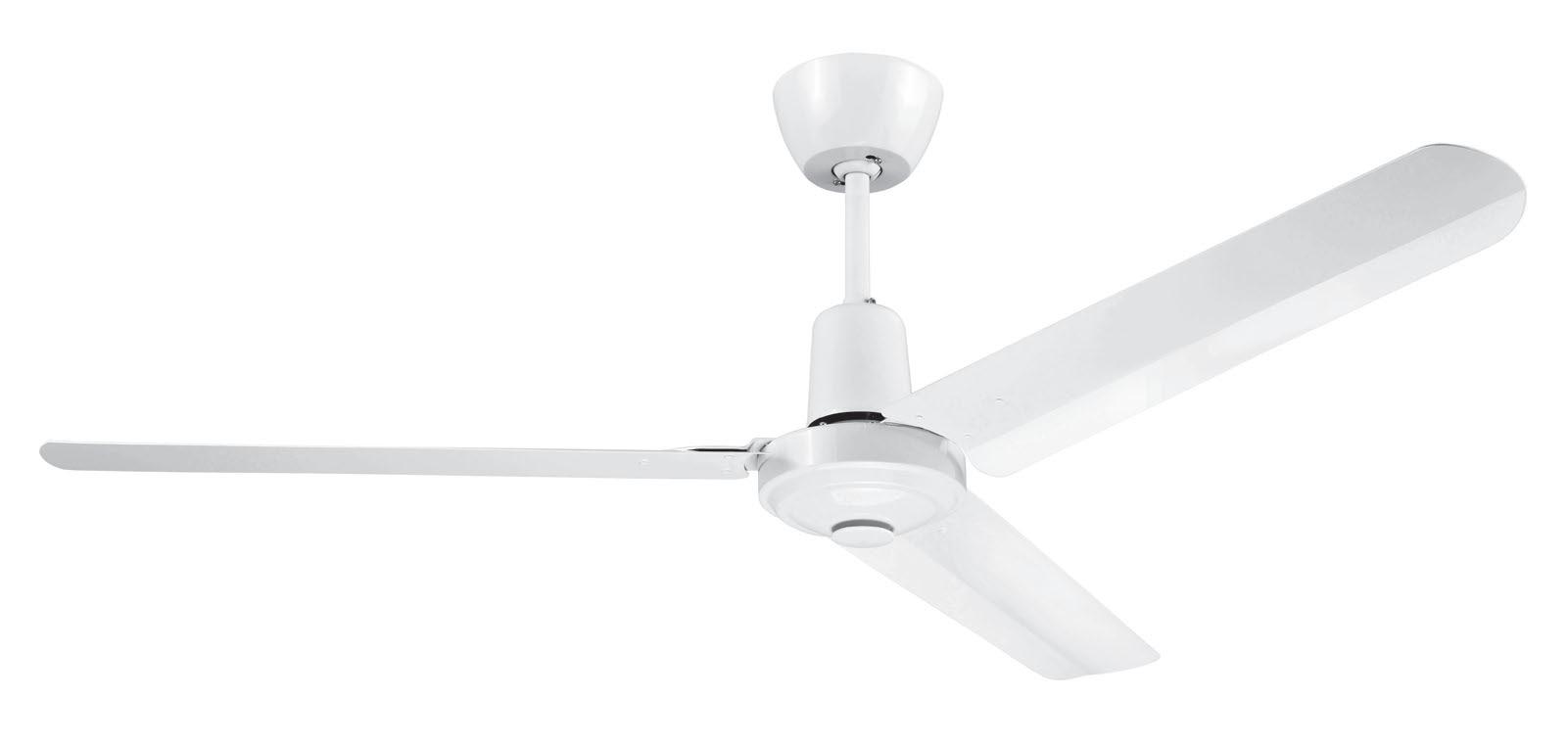

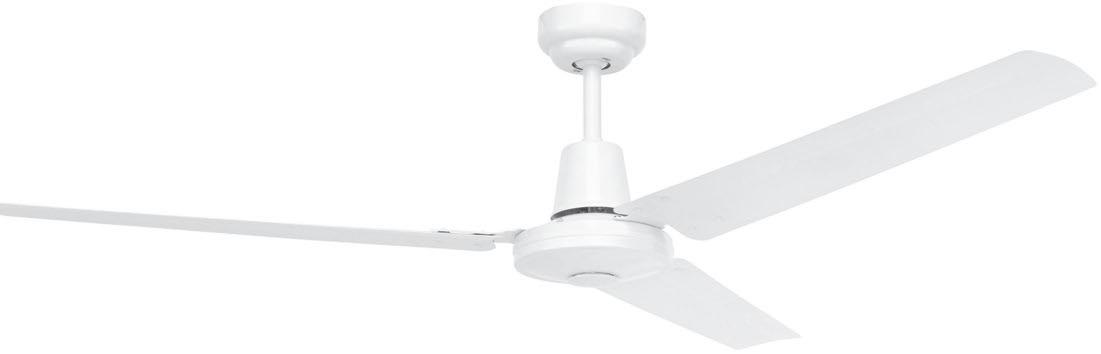

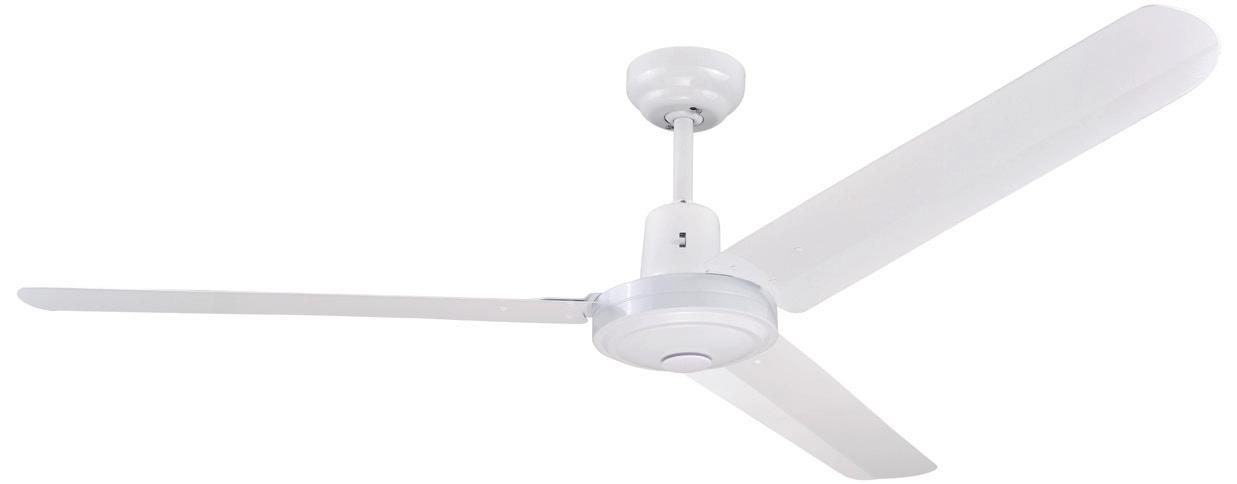

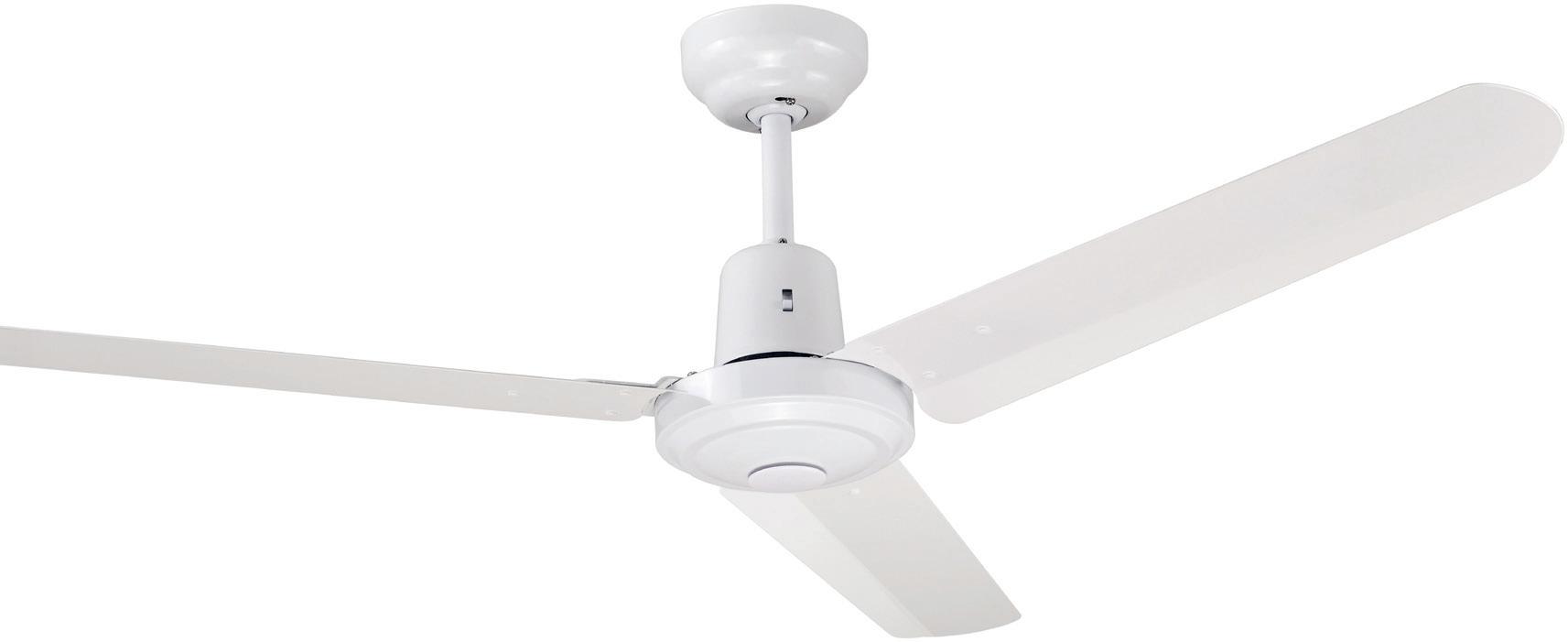

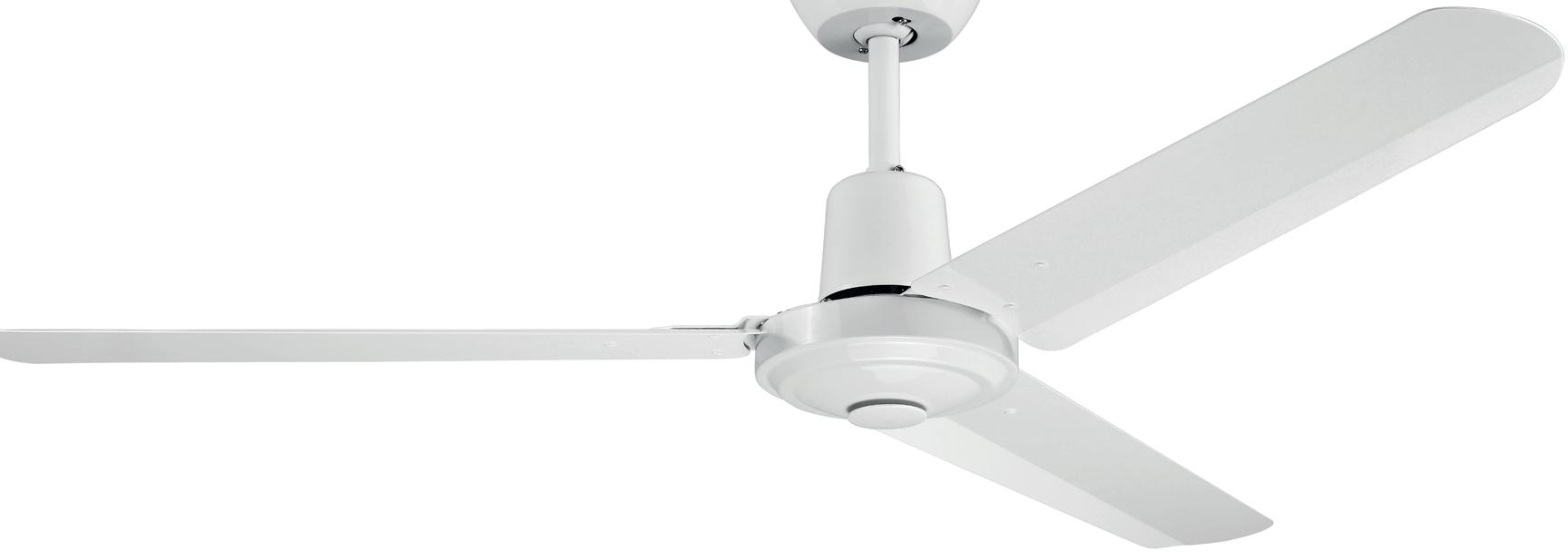

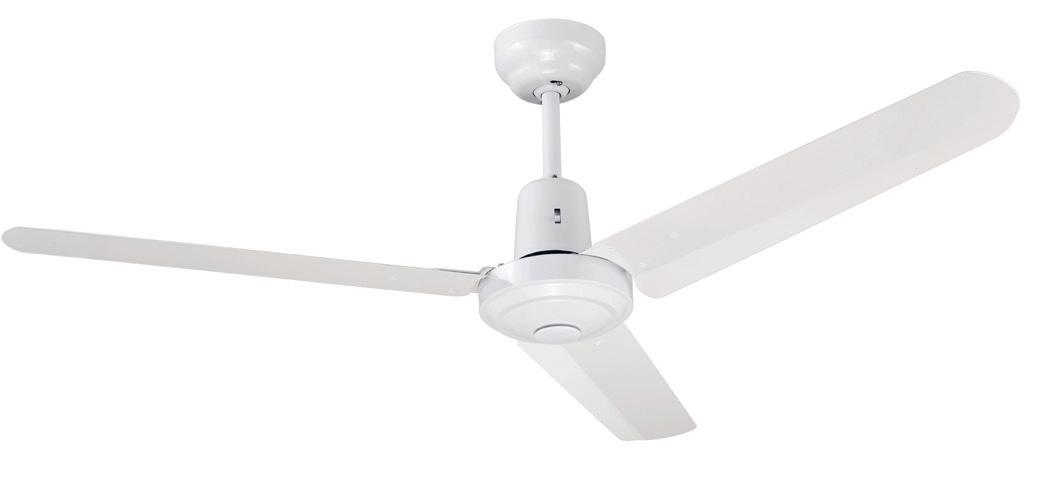

Classic styled metal fan with 3 easy to fit slide-on blades to make installation a breeze.
SIZE
48-inch (1220mm)
MOTOR TYPE DC (Direct Current)
MOTOR WATTAGE 30W
CONSTRUCTION Steel body and canopy
BLADE MATERIAL Aluminium
BLADE PITCH 12 degrees
CEILING RAKE 10 degrees max
CONTROL 3 Speed Wall controller included (hardwired).
INCLUDED FEATURES Reversible for Summer/Winter use.
MAX AIR MOVEMENT 10,500m3/hr
MIN AIR MOVEMENT 4,200m3/hr
ROOM SIZE Small-Medium
UNDERCOVER OUTDOOR Yes* 300mm Fan Drop (Blade)
MODEL NUMBER DESCRIPTION
22949/05 White
ACCESSORIES (incl.)
WALL CONTROLLER
ACCESSORIES (sold separately)
REMOTE CONTROL ( 22235SP002 ) LIGHT KIT
22723/05 Clipper
22724/05 Oyster
PACIFICA
EASY SLIDE-ON BLADES

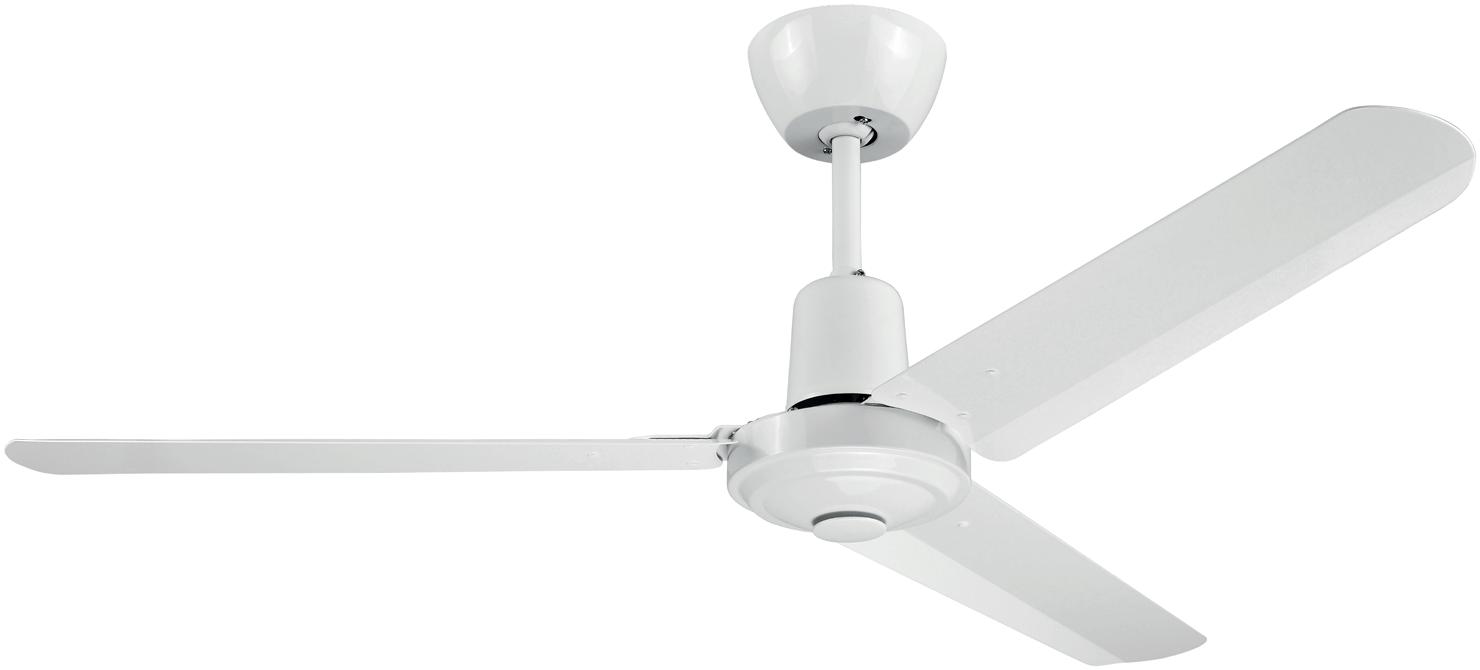

Classic styled metal fan with 3 easy to fit slide-on blades to make installation a breeze.
SIZE
48-inch (1220mm)
MOTOR TYPE DC (Direct Current)
MOTOR WATTAGE 30W
CONSTRUCTION Steel body and canopy
BLADE MATERIAL Aluminium
BLADE PITCH 12 degrees
CEILING RAKE 10 degrees max
CONTROL 6 Speed Wall controller included (hardwired).
INCLUDED FEATURES
Windbreeze mode: varies the fan speed to simulate a natural breeze effect. Reversible for Summer/Winter use.
MAX AIR MOVEMENT 10,500m3/hr (48")
MIN AIR MOVEMENT 4,200m3/hr (48")
ROOM SIZE Small-Medium (48")
UNDERCOVER OUTDOOR Yes* 300mm Fan Drop (Blade)
ACCESSORIES (incl.) WALL CONTROLLER
ACCESSORIES (sold separately)
22723/05
Fan Drop (Body)
Clipper
22724/05 Oyster
SOLANA
DC CEILING FAN

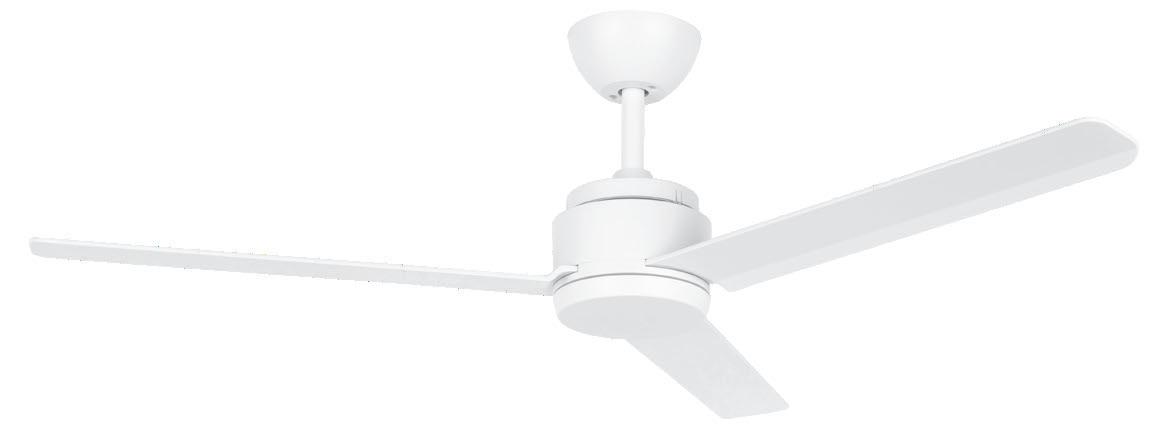

Minimalist 3 blade all ABS ceiling fan that will compliment any decor. Easy Slide-On blade design will reduce installation time. The perfect fan for any room, including outdoor/coastal areas.
SIZE
48-in (1220mm) / 52-in (1320mm)
MOTOR TYPE DC (Direct Current)
MOTOR WATTAGE 30W
CONSTRUCTION ABS body and canopy
BLADE MATERIAL ABS
BLADE PITCH 17 degrees
CEILING RAKE 10 degrees max
CONTROL 6 Speed remote controller included (AAA batteries).
INCLUDED FEATURES
MAX AIR MOVEMENT
MIN AIR MOVEMENT
Windbreeze mode: varies the fan speed to simulate a natural breeze effect. Reversible for Summer/Winter use.
9,300m3/hr (48"), 10,600m3/hr (52")
2,700m3/hr (48") / 2,900m3/hr (52")
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR Yes* (suitable for coastal locations)
22763/05
22763/06
22765/05
Matt white 48"
Matt black 48"
Matt white 52"
22765/06 Matt black 52"
ACCESSORIES (incl.)
Refer to page 82-83 for Extension Rod options * Refer to page 91 for Outdoor Undercover installation use
The popular Vector Ceiling Fan now has an energy efficient DC motor and an all-round ABS construction to suit any location around the home, indoor or outdoor. This contemporary ceiling fan will compliment any decor. Patented Ezi-Fit blade design makes installation a breeze.
The popular Vector Ceiling Fan now has an energy efficient DC motor and an all-round ABS construction to suit any location around the home, indoor or outdoor. This contemporary ceiling fan will compliment any decor. Patented Ezi-Fit blade design makes installation a breeze.
The popular Vector Ceiling Fan now has an energy efficient DC motor and an all-round ABS construction to suit any location around the home, indoor or outdoor. This contemporary ceiling fan will compliment any decor. Patented Ezi-Fit blade design makes installation a breeze.
AC stands for alternating current, meaning the electrical flow changes direction 50 times a second in order to provide a constant flow compared to a DC fan that has a variable, uneven flow.
AC ceiling fans have the options to change to a variety of controllers (wall or remote type).
AC fans can use a simple wall controller and are often easier to operate.
BRILLIANT’S ALL-SEASONS TECHNOLOGY IS FOR USE ALL YEAR ROUND.
DC FAN vs AC FAN WALL CONTROLLERS
AC ceiling fans are normally operated via a wall controller, where as DC ceiling fans can only be operated via an RF remote control. They can also be controlled using the Standard
Remote control 99999, LCD model 99222, Wi-Fi model 99111 and Touch model 88888.
Note: All energy saving and air movement data is produced by an accredited test lab. In home results may vary depending on circumstances and installation.
CAIRNS 48
AC CEILING FAN AND LIGHT
48INCH
EZI-FIT BLADES
QUICK & EASY INSTALLATION
Light Option Available

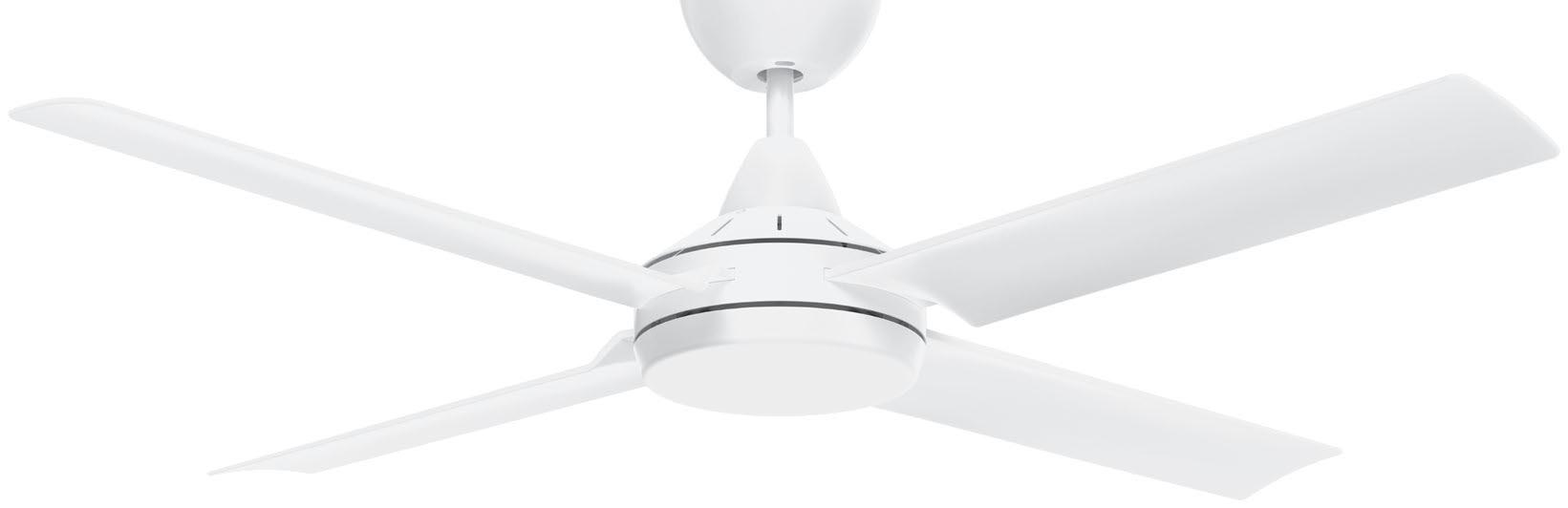

Brilliant’s new CAIRNS ceiling fan features a sleek, contemporary design that will bring style and airflow to your home. Incorporating our patented EZI-FIT blade technology, it makes installation a breeze and saves time. It also offers a choice between B22 light (replaceable globes) or an LED light for the clean, understated look.
LIGHT DIMMABLE Yes via dimmers (Must have dimmable globes)
CEILING RAKE 15 degrees max
CONTROL Wall 3 speed with ON/OFF switch
INCLUDED FEATURES Ezi-Fit blades reduce fan assembly and installation time. Reversible for Summer/Winter use.
MAX AIR MOVEMENT 8,400m3/hr
MIN AIR MOVEMENT 3,300m3/hr
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR Yes* (Suitable for coastal locations) 285mm Fan Drop (Blade)
MODEL NUMBER DESCRIPTION
22874/05 Matt white
22874/06 Matt black
22878/05 Matt white (B22)
22878/06 Matt black (B22)
ACCESSORIES (incl.)
WALL CONTROLLER 3 Speed
ACCESSORIES (sold separately)
99999 Basic 99222 LCD Display
REMOTE KITS
(Refer to page 84-90)
(NL)
(WL)
LIGHT KIT
99111 Smart WiFi
99444 Basic 99888 Wall WiFi
88888 Touch
22882/05 White
22882/06 Black
CAIRNS 52
AC CEILING FAN AND LIGHT
EZI-FIT BLADES
QUICK & EASY INSTALLATION

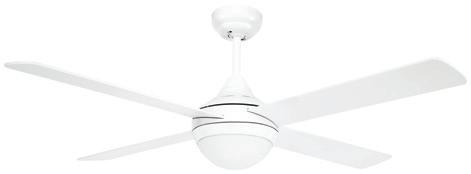

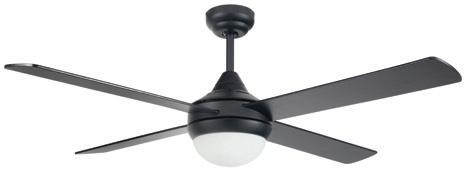

Brilliant’s new CAIRNS ceiling fan features a sleek, contemporary design that will bring style and airflow to your home. Incorporating our patented EZI-FIT blade technology, it makes installation a breeze and saves time. It also offers a choice between B22 light (replaceable globes) or an LED light for the clean, understated look. Light Option Available
Minimalist 3 blade all ABS ceiling fan that will compliment any decor. Easy Slide-On blade design will reduce installation time. The perfect fan for any room, including outdoor/coastal areas.
SIZE 48-in (1220mm) / 52-in (1320mm)
MOTOR TYPE AC (Alternate Current)
MOTOR WATTAGE 55W
CONSTRUCTION ABS body and canopy
BLADE MATERIAL Moulded ABS
BLADE PITCH 17 degrees
LIGHT WATTAGE LED 18W max. / Clipper - 1x40W E27 max. (globe not incl.)
CEILING RAKE 15 degrees max
CONTROL 3-Speed wall control
INCLUDED FEATURES Reversible for Summer/Winter Use.
MAX AIR MOVEMENT 9,000m3/hr (48”) / 10,300m3/hr (52”)
MIN AIR MOVEMENT 2,700m3/hr (48") / 2,900m3/hr (52")
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR Yes* (suitable for coastal locations)
MODEL NUMBER DESCRIPTION
22759/05 Matt white 48"
22759/06 Matt black 48"
22761/05 Matt white 52"
22761/06 Matt black 52"
ACCESSORIES (incl.)
WALL
CONTROLLER 3 Speed
ACCESSORIES (sold separately)
99999 Basic 99222 LCD Display
REMOTE KITS
(Refer to page 84-90)
99111 Smart WiFi
99444 Basic 99888 Wall WiFi
88888 Touch
22767/05
22767/06 LED
LIGHT KIT
Refer to page 82-83 for Extension Rod options
* Refer to page 91 for Outdoor Undercover installation use
22769/05
22769/06 Clipper
AC CEILING FAN AND LIGHT

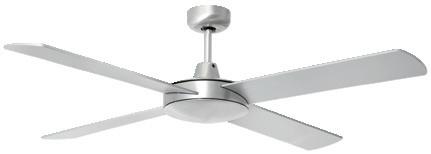

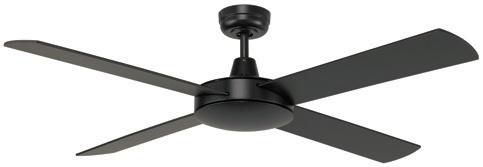

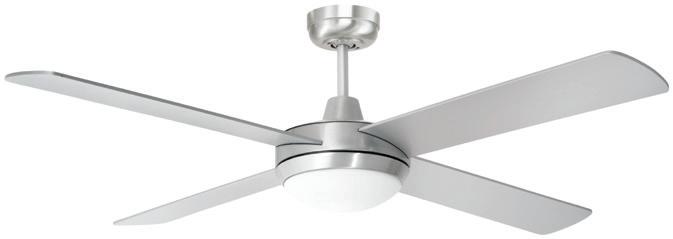

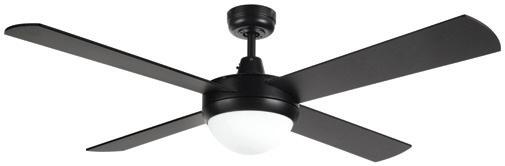

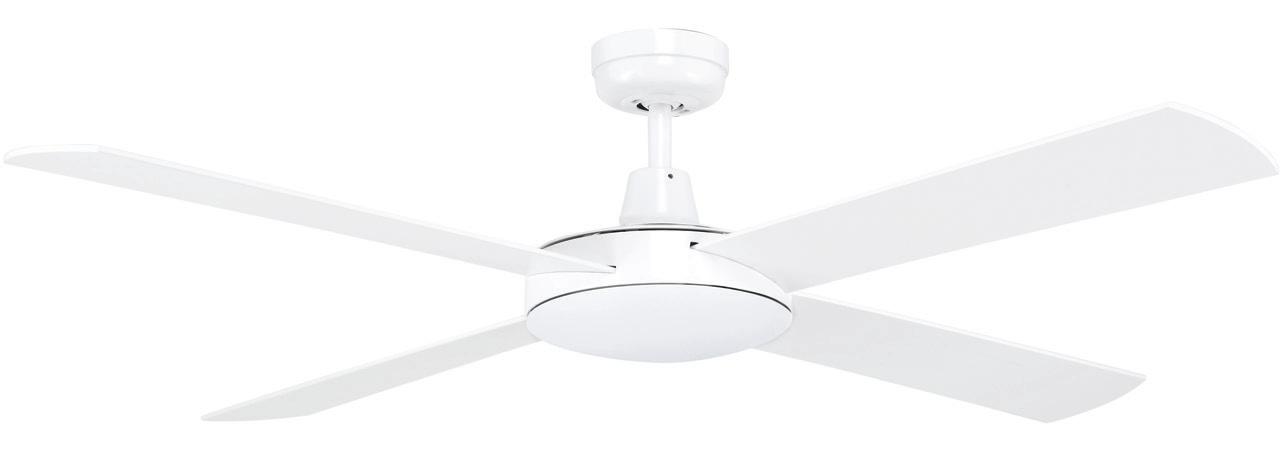

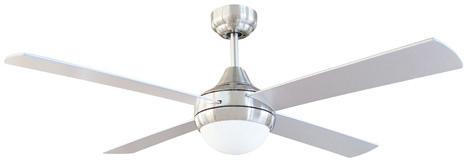

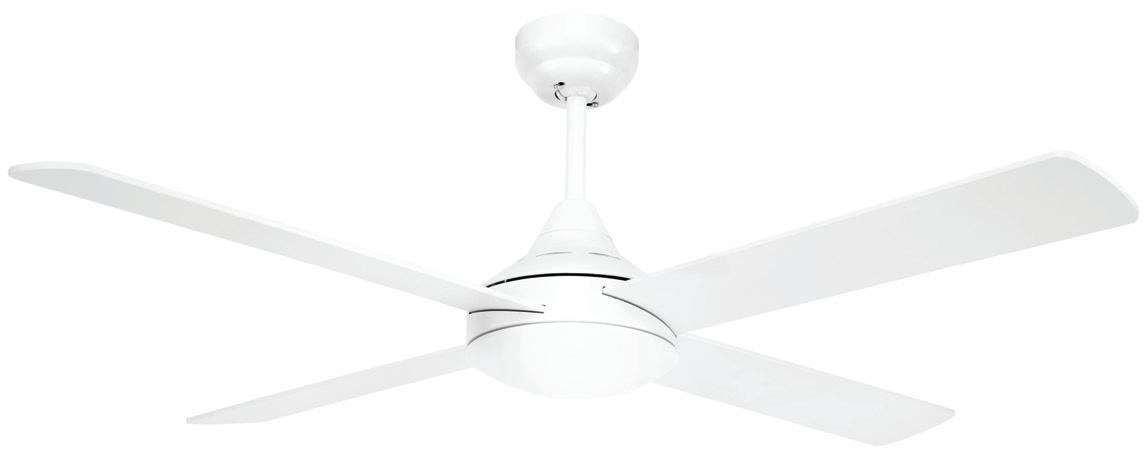

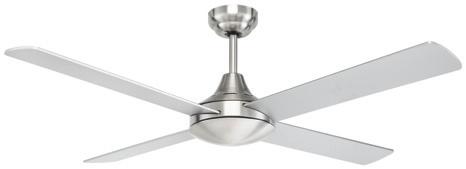

A reliable, contemporary styled ceiling fan with four quiet plywood blades combined with a powerful 50W motor. The great all-rounder fan.
SIZE
52-in (1320mm)
MOTOR TYPE AC (Alternate Current)
MOTOR WATTAGE 50W
CONSTRUCTION Diecast Aluminium body and canopy
BLADE MATERIAL Painted Plywood
BLADE PITCH 11 degrees
LIGHT WATTAGE 2 x 40W max B22 globe (Globes not included)
CEILING RAKE 32 degrees max
CONTROL 3-Speed wall control
INCLUDED FEATURES Reversible for Summer/Winter Use
MAX AIR MOVEMENT 10,450m3/hr
MIN AIR MOVEMENT 4,250m3/hr
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR No - Indoor only
265mm Fan Drop (Blade)
280mm (NL)
394mm (WL) Fan Drop (Body)
MODEL NUMBER DESCRIPTION
99983/05 White
99983/06 Matt black
99983/13 Brushed aluminium
99988/05 White (B22)
99988/06 Matt black (B22)
99988/13 Brushed aluminium (B22)
ACCESSORIES (incl.)
WALL CONTROLLER 3 Speed
ACCESSORIES (sold separately)
REMOTE KITS ( Refer to page 84-90 ) 99999 Basic
LCD Display
AC CEILING FAN AND LIGHT

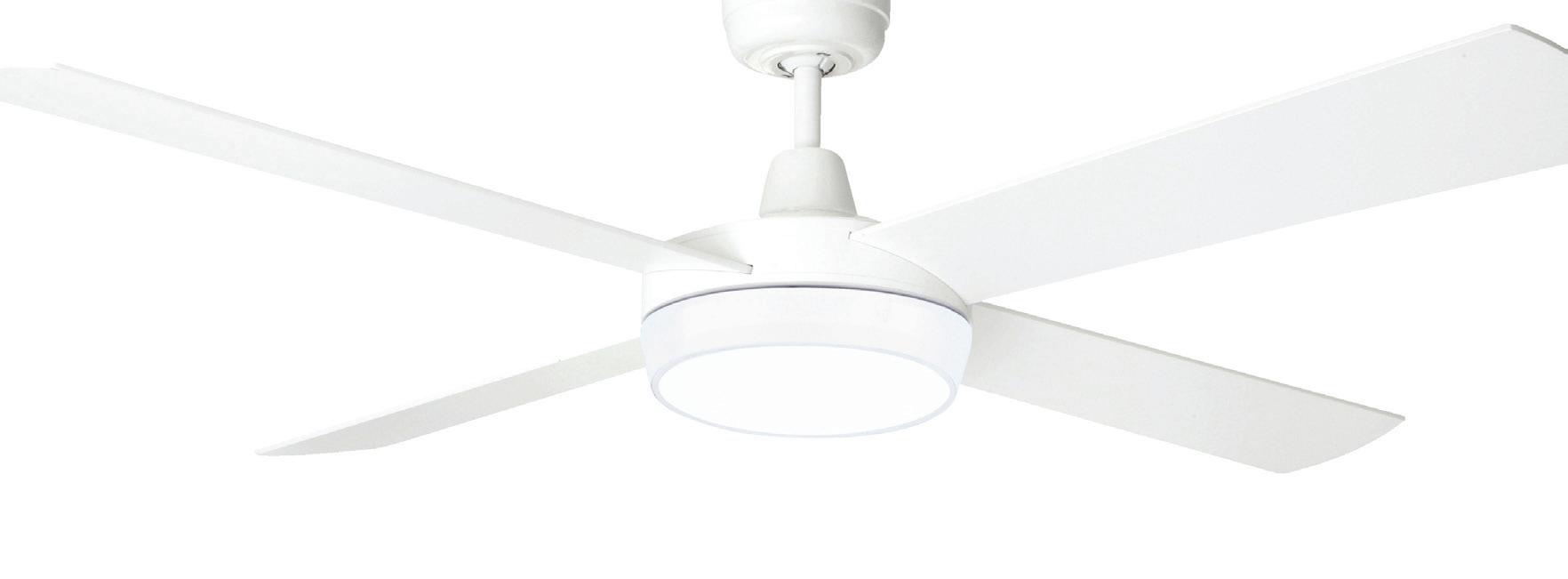

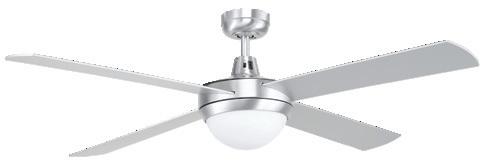

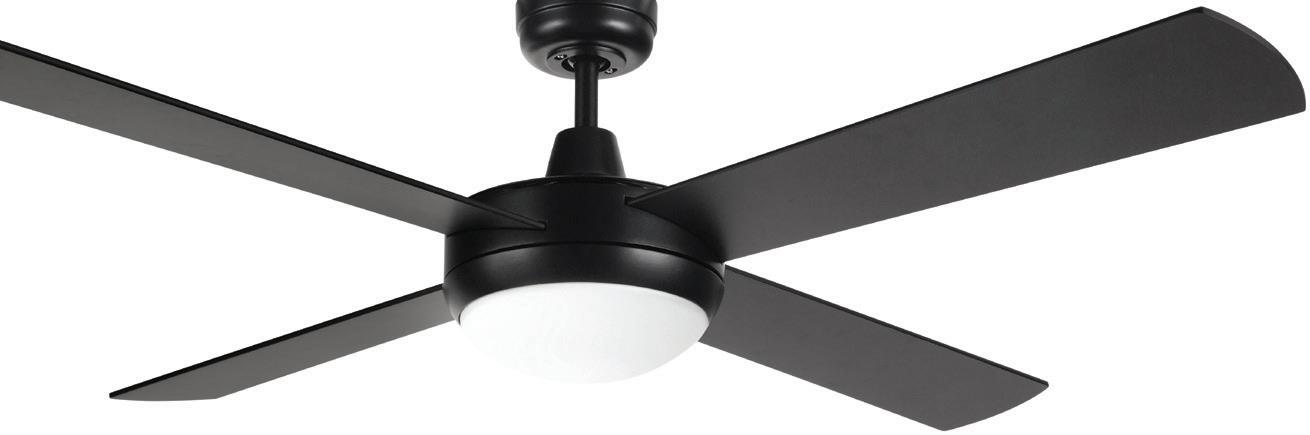

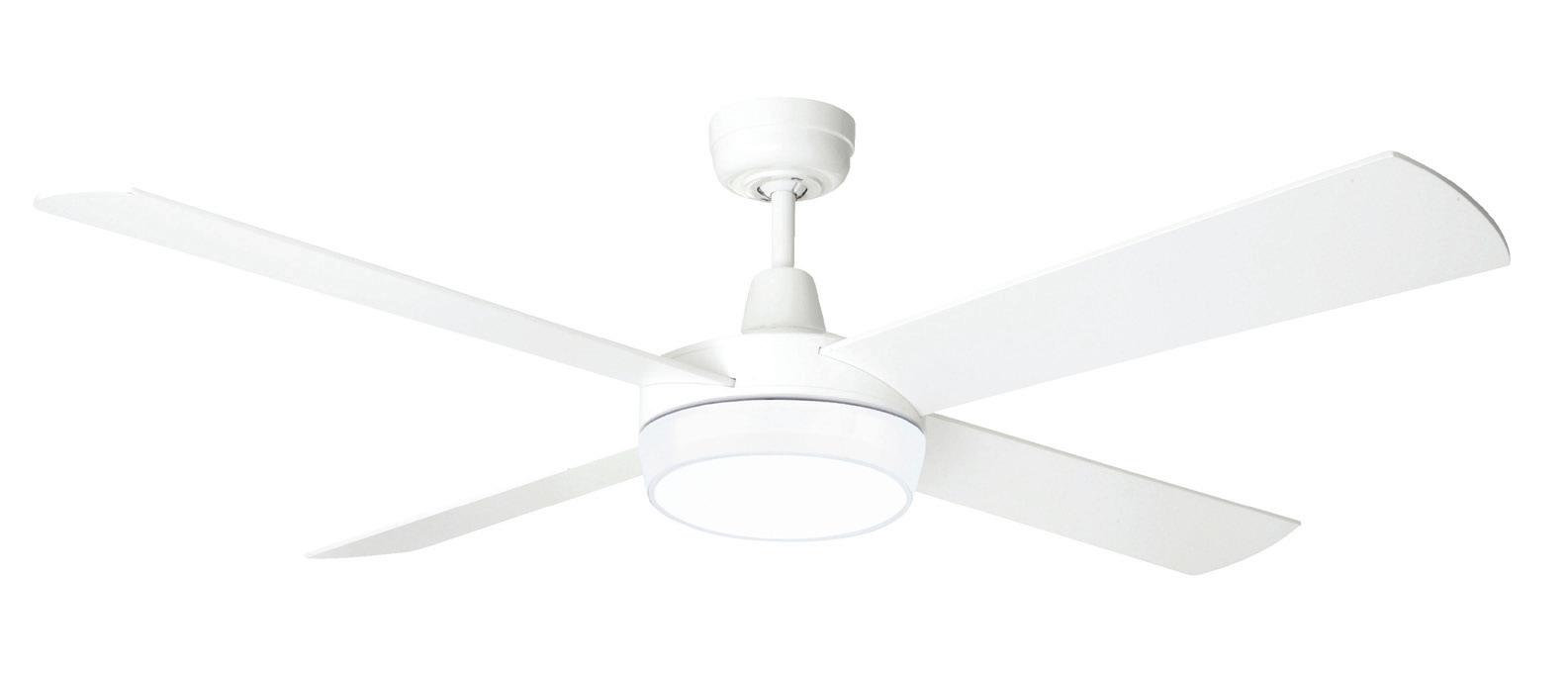

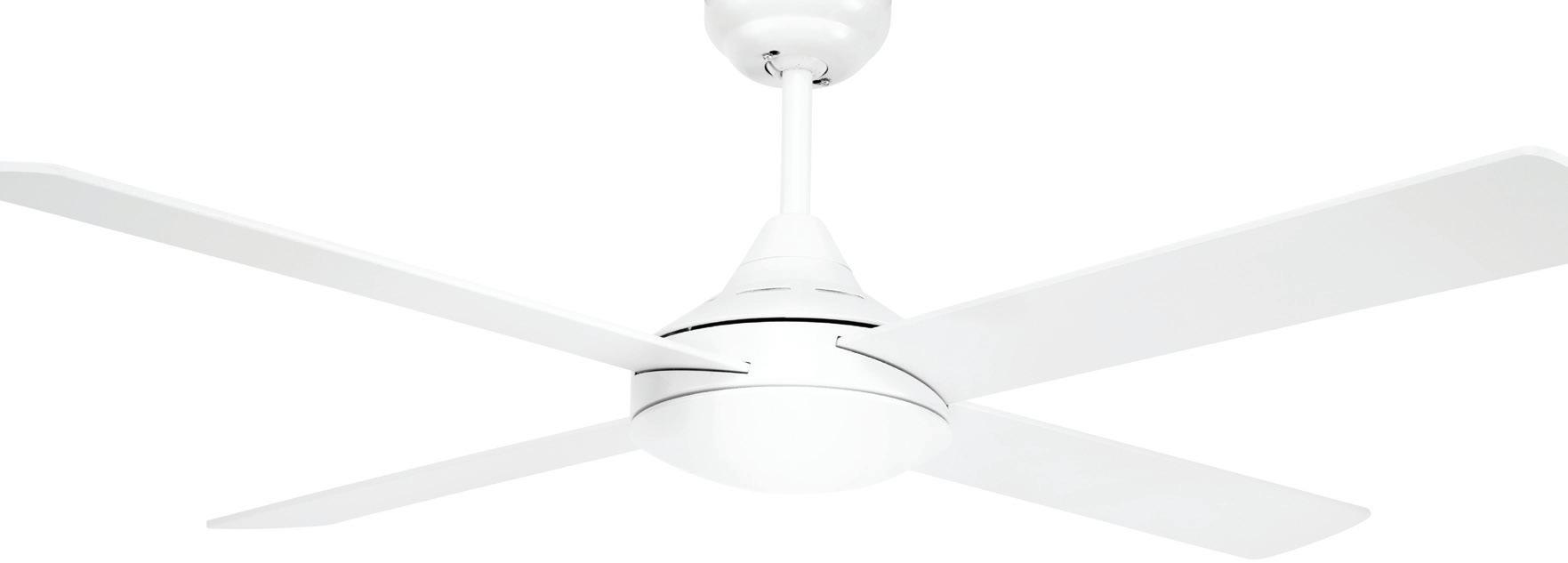

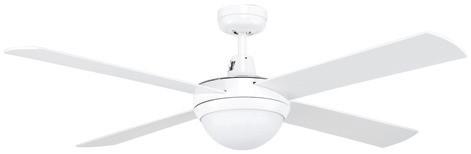

The popular Tempest ceiling fan comes with a CCT LED light, powerful 50W motor and moves a vast amount of air. With its stylish clean lines and dimmable light, this modern fan will suit many areas in the home. The great all-rounder fan.
INCLUDED FEATURES Reversible for Summer/Winter Use
MAX AIR MOVEMENT 10,450m3/hr
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR No - Indoor only
MODEL NUMBER DESCRIPTION
20580/05 White LED
20580/06 Matt black LED
20580/13 Brushed aluminium LED
ACCESSORIES (incl.)
WALL CONTROLLER 3 Speed
ACCESSORIES (sold separately)
REMOTE KITS ( Refer to page 84-90 )
TEMPEST SUPREME
AC CEILING FAN AND LIGHT

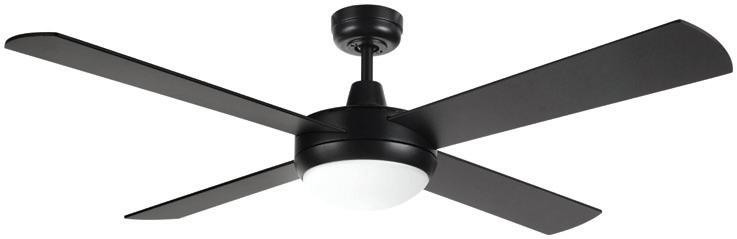

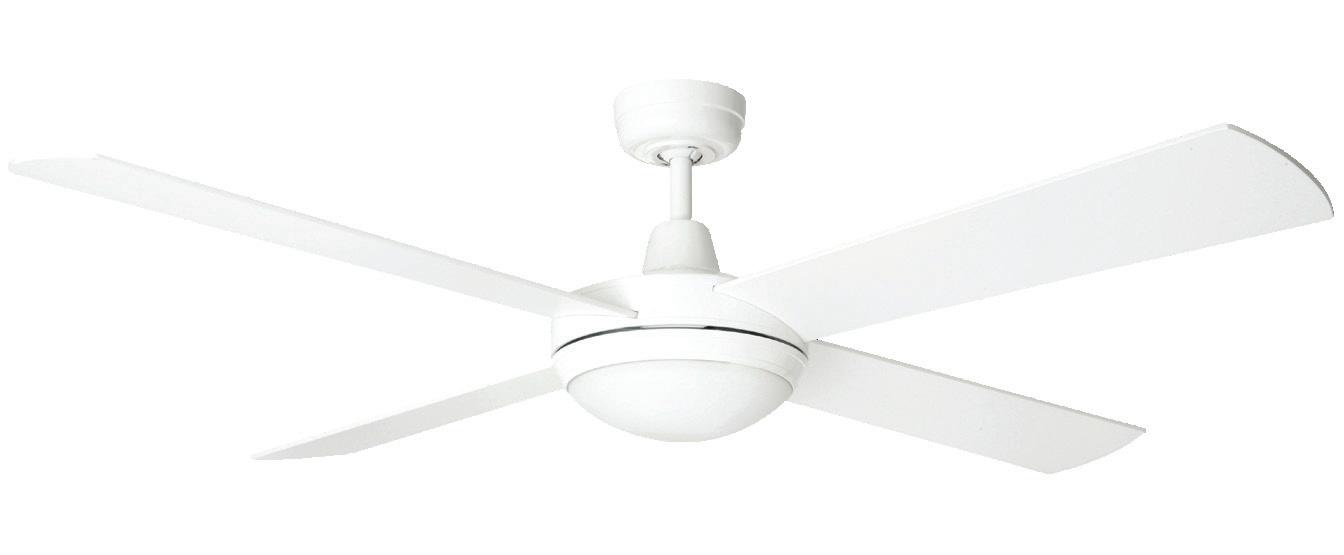

The popular Tempest ceiling fan comes with a new modern LED light, powerful 50W motor and moves a vast amount of air. With its stylish clean lines and dimmable light, this modern fan will suit many areas in the home.

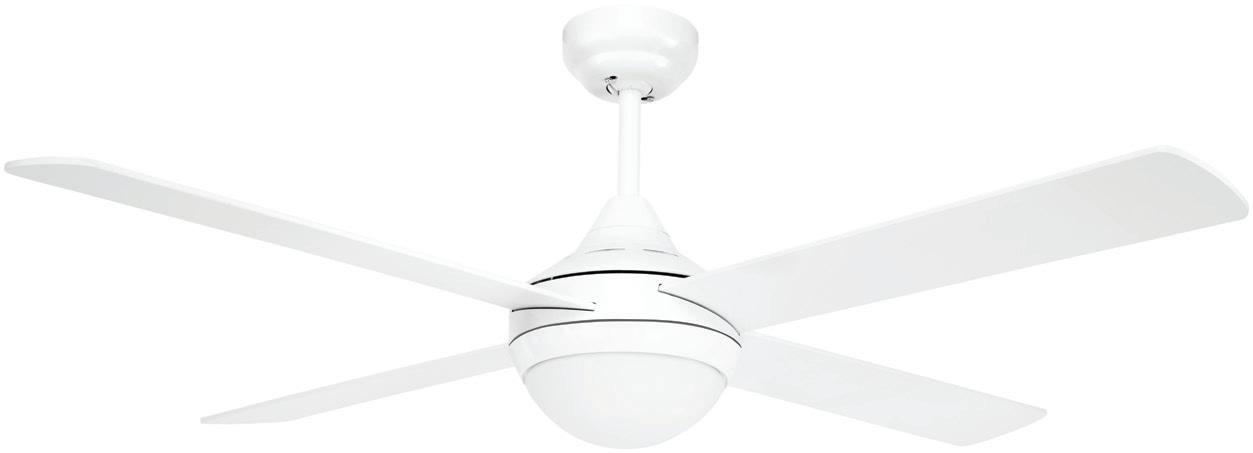

A modern designed ceiling fan with four plywood blades combined with a powerful 65W motor.
SIZE 48-in (1220mm) / 52-in (1320mm)
MOTOR TYPE AC (Alternate Current)
MOTOR WATTAGE 65W
CONSTRUCTION Steel body and canopy
BLADE MATERIAL Painted Plywood
BLADE PITCH 11 degrees
LIGHT WATTAGE 2 x 40W max E27 globes (Globes not included)
CEILING RAKE 14 degrees max
CONTROL 3-Speed remote control
INCLUDED FEATURES Reversible for Summer/Winter Use
MAX AIR MOVEMENT 7,699m3/hr (48") / 8,084m3/hr (52")
MIN AIR MOVEMENT 3,349m3/hr (48")/ 3,516m3/hr (52")
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR No - Indoor only
300mm Fan Drop (Blade)
(NL)
(WL) Fan Drop (Body)
MODEL NUMBER DESCRIPTION
22273/05R White 48”
22279/05R White 52”

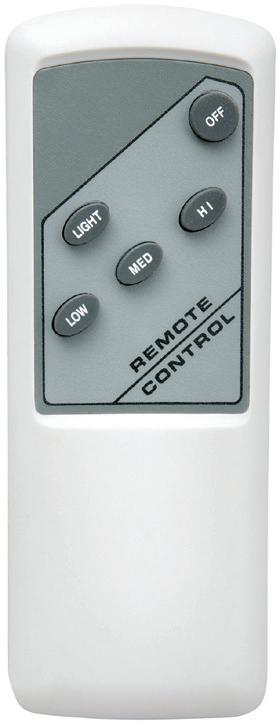

ACCESSORIES (incl.) REMOTE CONTROLLER 3 Speed
AC
CEILING FAN
EZI-FIT BLADES

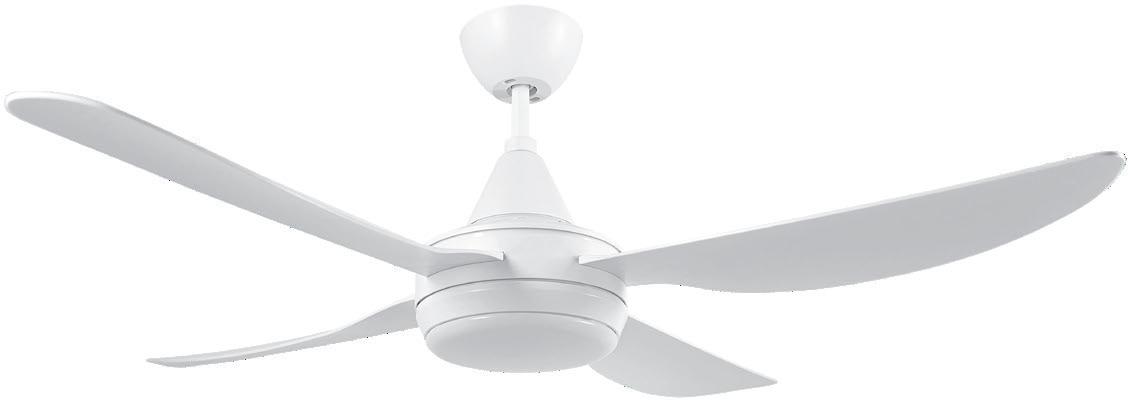

Made from UV resistant ABS plastic giving you endless options of where you can place them around your home. Patented Ezi-Fit Blade design allows for a super fast and easy installation. A simple modern design will compliment any space whilst giving you a great airflow.
SIZE
52-inch (1320mm)
MOTOR TYPE AC (Alternate Current)
QUICK & EASY INSTALLATION MODEL NUMBER DESCRIPTION 20167/05 Antique White
MOTOR WATTAGE 50W
CONSTRUCTION UV resistant ABS body and canopy
BLADE MATERIAL Ezi-Fit Moulded ABS
BLADE PITCH 14 degrees (effective)
CEILING RAKE 15 degrees max
CONTROL 3-Speed wall control
INCLUDED FEATURES Reversible for Summer/Winter Use
MAX AIR MOVEMENT 10,804m3/hr
MIN AIR MOVEMENT 5,049m3/hr
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR Yes* (Suitable for coastal locations)

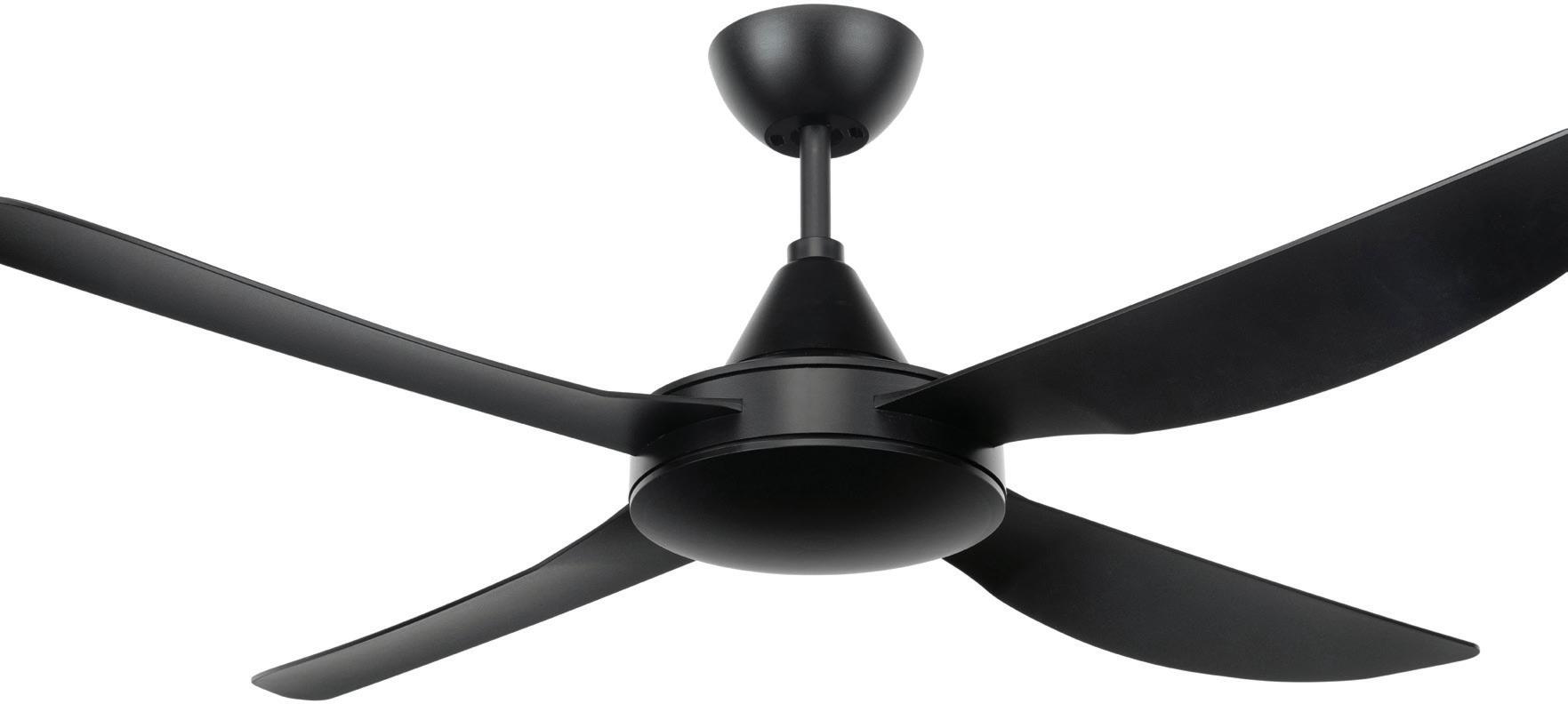

Made from UV resistant ABS plastic giving you endless options of where you can place them around your home. Patented Ezi-Fit Blade design allows for a super fast and easy installation. A simple modern design will compliment any space whilst giving you a great airflow.
SIZE
48-inch (1220mm)
MOTOR TYPE AC (Alternate Current)
MOTOR WATTAGE 60W
CONSTRUCTION UV resistant ABS body and canopy
BLADE MATERIAL Ezi-Fit Moulded ABS
BLADE PITCH 14 degrees
LIGHT WATTAGE 18W LED
COLOUR TEMP CCT 3000K / 4200K / 6000K
LIGHT LUMENS 1400lm
LIGHT DIMMABLE Yes
CEILING RAKE 15 degrees max
CONTROL 3-Speed wall control
INCLUDED FEATURES Reversible for Summer/Winter Use
MAX AIR MOVEMENT 12,600m3/hr
MIN AIR MOVEMENT 4,645m3/hr
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR Yes* (Suitable for coastal locations)

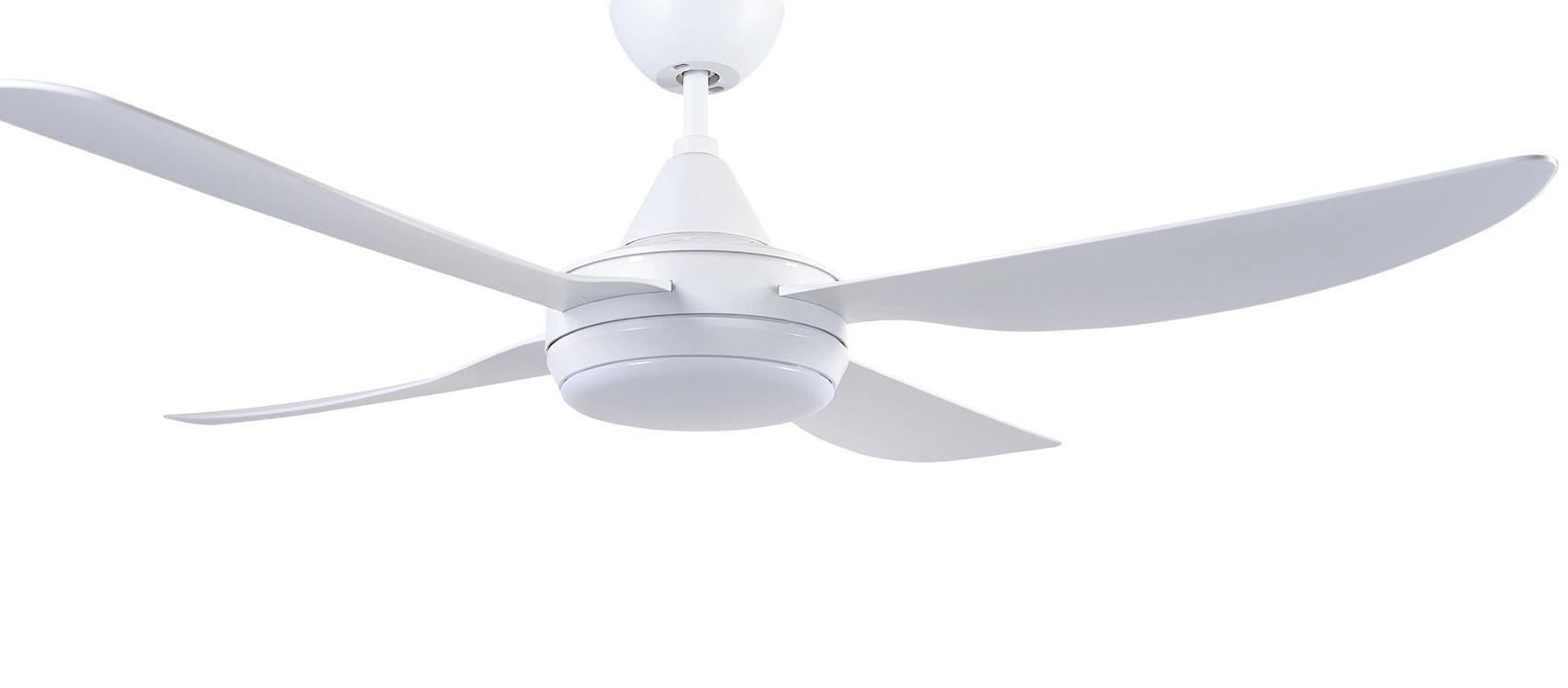

Made from UV resistant ABS plastic giving you endless options of where you can place them around your home. Patented Ezi-Fit Blade design allows for a super fast and easy installation. A simple modern design will compliment any space whilst giving you a great airflow.
SIZE
52-inch (1320mm)
MOTOR TYPE AC (Alternate Current)
MOTOR WATTAGE 60W
CONSTRUCTION UV resistant ABS body and canopy
BLADE MATERIAL Ezi-Fit Moulded ABS
BLADE PITCH 14 degrees
LIGHT WATTAGE 18W LED
COLOUR TEMP CCT 3000K / 4200K / 6000K
LIGHT LUMENS 1400lm
LIGHT DIMMABLE Yes
CEILING RAKE 15 degrees max
CONTROL 3-Speed wall control
INCLUDED FEATURES Reversible for Summer/Winter Use
MAX AIR MOVEMENT 13,400m3/hr
MIN AIR MOVEMENT 5,049m3/hr
ROOM SIZE Small / Medium
UNDERCOVER OUTDOOR Yes* (Suitable for coastal locations)
Made from UV resistant ABS plastic giving you endless options of where you can place them around your home. Patented Ezi-Fit Blade design allows for a super fast and easy installation. A simple modern design will compliment any space whilst giving you a great airflow.
SIZE
56-inch (1420mm)
MOTOR TYPE AC (Alternate Current)
MOTOR WATTAGE 65W
CONSTRUCTION UV resistant ABS body and canopy
BLADE MATERIAL Ezi-Fit Moulded ABS
BLADE PITCH 14 degrees
CEILING RAKE 15 degrees max
CONTROL 3-Speed wall control
INCLUDED FEATURES Reversible for Summer/Winter Use
MAX AIR MOVEMENT 14,800m3/hr
MIN AIR MOVEMENT 5,200m3/hr
ROOM SIZE Medium / Large

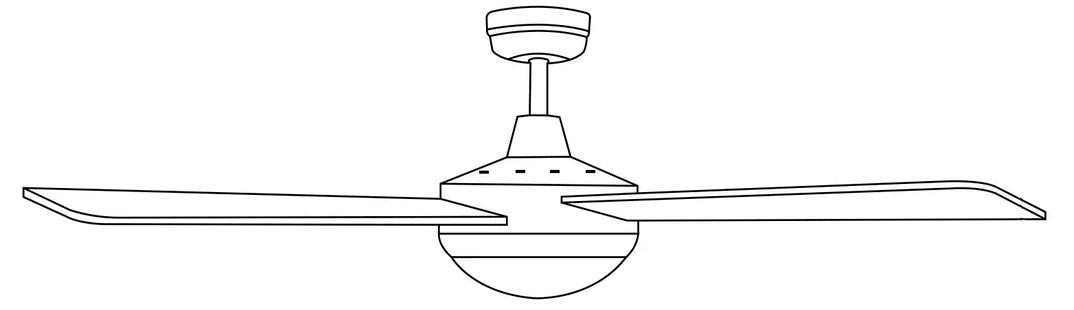

UNDERCOVER OUTDOOR Yes* (Suitable for coastal locations) ø1420mm ø160mm
290mm Fan Drop (Blade)
Refer to page 82-83 for Extension Rod options * Refer to page 91 for Outdoor Undercover installation use
320mm (NL) Fan Drop (Body)
MODEL NUMBER DESCRIPTION

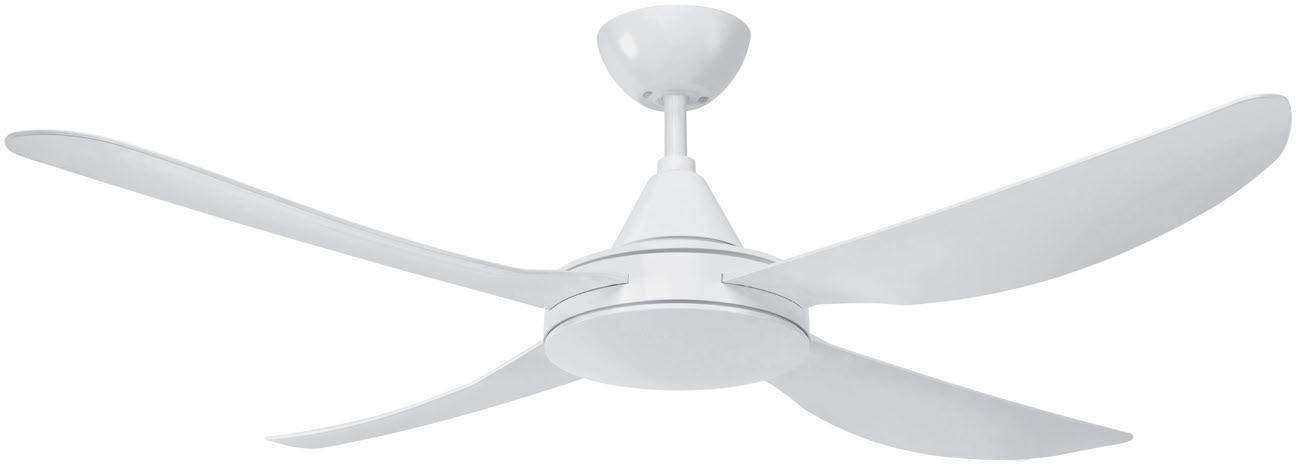

22563/05 Pure White

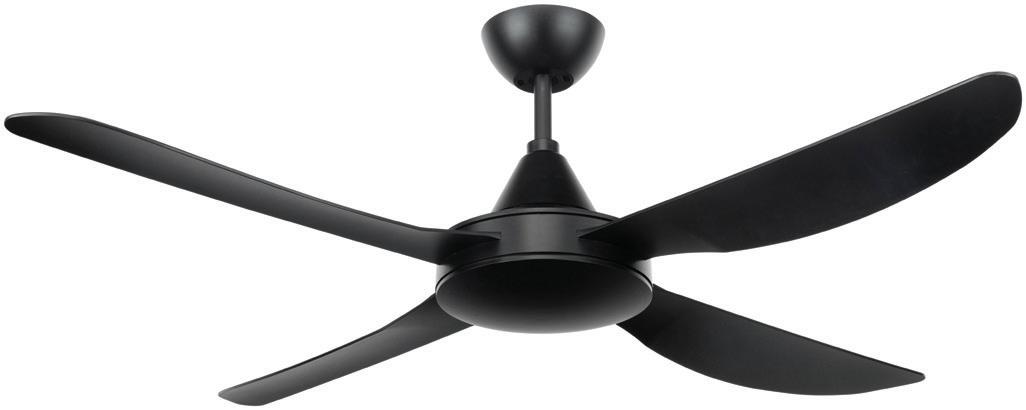

22563/06 Matt Black
ACCESSORIES (incl.)
WALL CONTROLLER 3 Speed
ACCESSORIES (sold separately)
REMOTE KITS ( Refer to page 84-90

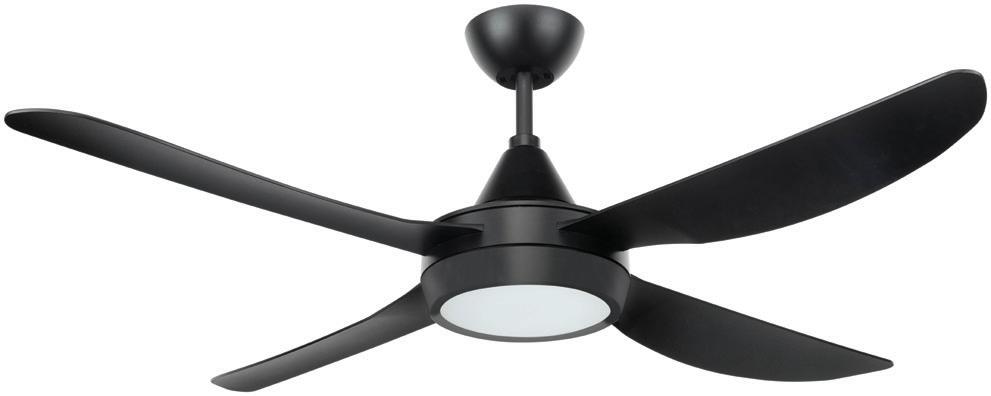

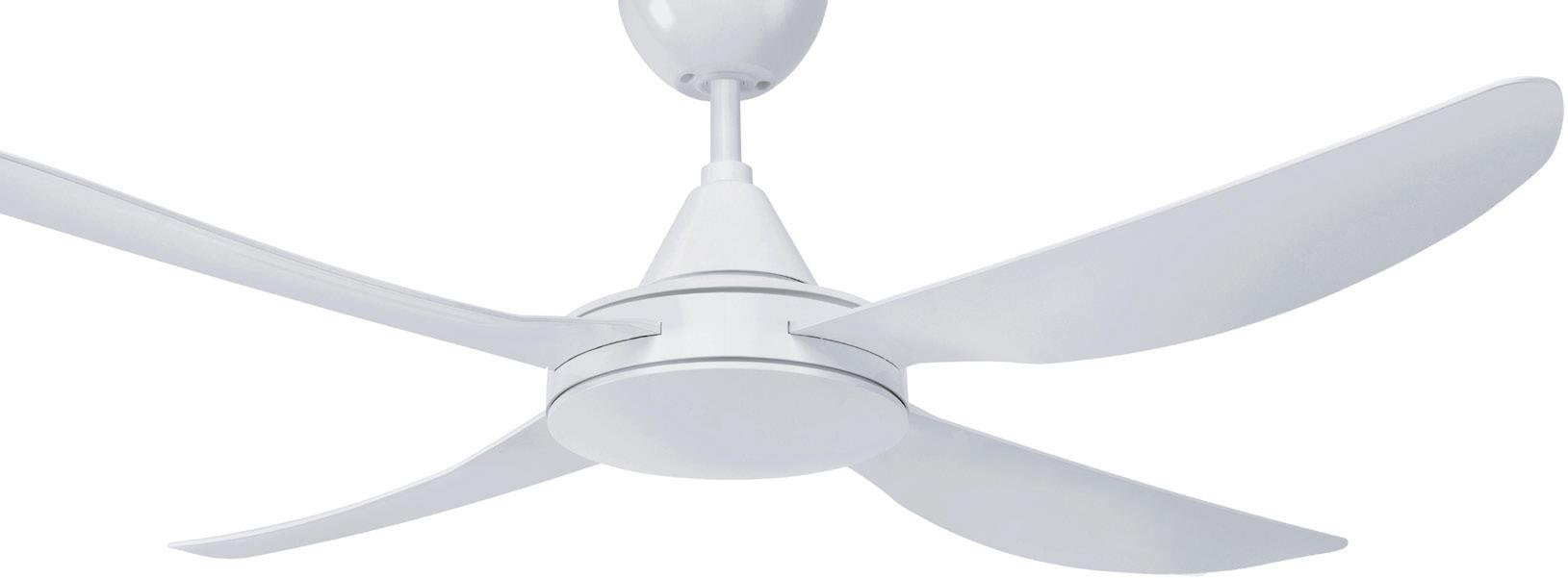

VECTOR II 56
AC CEILING FAN AND LIGHT
EZI-FIT
BLADES
QUICK & EASY INSTALLATION
Made from UV resistant ABS plastic giving you endless options of where you can place them around your home. Patented Ezi-Fit Blade design allows for a super fast and easy installation. A simple modern design will compliment any space whilst giving you a great airflow.
Turn your existing AC ceiling fan into a smart fan with our universal Smart Wi-Fi ceiling fan controller.
• Replaces an existing AC wall controller. No receiver installation required.
• Compatible with most other brands of AC ceiling fans.
• Create schedules & timing to automate your home. Control from anywhere via app or voice control.
• Smart Mode: Nature/Windbreeze, Normal, Sleep & Wake up (from App).
• LED indicator illuminates on each button when pressed.
• Installation: fits standard plaster/stud brackets.
CONTROL WALL CONTROL APP
DISPLAY N/A On Device
PRODUCT CODE 99888 -
INPUT Soft Touch Buttons On Screen
FAN ON/OFF ON/OFF
SPEED 1/2/3 1/2/3
LIGHT ON/OFF ON/OFF
• Wiring: 20mm2 terminals, suitable for 2.5mm cables. Requires Neutral and Earth for operation (3 Wires design).
• 1 Year Warranty.
MUST BE INSTALLED BY A LICENSED ELECTRICIAN
Security: Mac Encryption; WEP/WAPI/TKIP/AESWi-Fi
Standard: IEEE802.11b/g/n, 2.4GHz
• System Req’s: iOS 8.0 or higher, Android 4.1 or higher
Voice control
OTHER No receiver installation required Smart functions available includes Smart mode, scheduling, timers, automation, voice control along with many others in the BrilliantSmart App.
Smart phone and fan not included
SMART FAN WALL CONTROLLER
Wall control with quick connect receiver
Turn your existing AC ceiling fan into a smart fan with our universal smart ceiling fan remote control kit.
• Uses Brilliant’s unique quick connect plug-in design. Quick connect allows our remotes to be installed seamlessly in minutes with any Brilliant AC fan without any wire trimming or joining.
• Compatible with most other brands of AC ceiling fans (hard-wiring may be required).
• Create schedules & timing to automate your home.
• Control from anywhere via app or voice control.
• Smart Mode: Nature/Windbreeze, Normal, Sleep & Wake up (from App).
CONTROL WALL CONTROL APP
DISPLAY N/A On Device
PRODUCT CODE 99111
INPUT Soft Touch Buttons On Screen
FAN ON/OFF ON/OFF
SPEED 1/2/3 1/2/3
LIGHT ON/OFF/DIM ON/OFF/DIM
OTHER Wireless battery operated
• Works with other BrilliantSmart products.
• Includes 3-speed with light function wireless operated wall control with batteries (2xAAA).
MUST BE INSTALLED BY A LICENSED ELECTRICIAN
Security: Mac Encryption; WEP/WAPI/TKIP/AES
Wi-Fi Standard: IEEE802.11b/g/n, 2.4GHz System
Voice control
Smart functions available includes Smart mode, scheduling, timers, automation, voice control along with many others in the BrilliantSmart App.
Smart phone and fan not included
Receiver included
SMART RECEIVERS
TO SUIT AMARI SII AND VECTOR DC CEILING FANS
AMARI SII
Turn your existing Amari DC Series II ceiling fan into a Smart Fan with our Smart Receiver
• Seamlessly replace current receiver with this model with the easy-connect plugs
• Control your ceiling fan from anywhere via the BrilliantSmart app
• Separate models for 52" (21721SMART) and 56" (21725SMART)
Voice control
VECTOR DC
Turn your existing Vector DC ceiling fan into a Smart Fan with our Smart Receiver (VECTORDCSMART)
• Seamlessly replace current receiver with this model with the easy-connect plugs
• Control your ceiling fan from anywhere via the BrilliantSmart app
• One receiver to suit all fan sizes
Voice control
MULTI FAN WALL CONTROLLER
Brilliant’s Multi Fan Wall Control is a great option when wanting to control up to 4 fans with one action. It’s a fan only control that features 3 fan speeds and easy 2-wire installation.
• Designed to operate up to 4 ceiling fans from one wall controller (not for single fan use).
• Replaces an existing AC wall controller.
• Compatible with Brilliants AC ceiling fans and most other brands of AC ceiling fans.
• 3 speeds and an on/off function for quick and easy operation of multiple ceiling fans.
TECHNICAL SPECIFICATIONS
MODEL # 99777
OPERATING VOLTAGE 220-240V / 50Hz
CLASS Class I (1)
MOTOR TYPE AC (Alternate Current)
INGRESS PROTECTION Indoor use only
WARRANTY 1 year replacement MAX
• Must be installed by a licensed electrician.
• Installation: fits standard plaster/stud brackets.
• 1 year warranty.
MAXIMUM LOAD Fan Motor: 260W (for use with 3 to 4 fans)
Ceiling fan is not included. Photo used for illustration purposes only.
WALL CONTROLLER
UNIVERSAL CONTROLLER TO SUIT DC CEILING FAN
DC3SPEEDFAN
3 speed wall controller
Classic 3-speed wall controller suitable for selected Brilliant DC ceiling fans. Designed to fit into standard wall hole and the switches are compatible on most wall plates. Must be installed by a licensed electrician.
• Only needs 220-240V AC power to connect (no neutral wiring required).
• Easily pair and connect to the fan (receiver).
• Include light and isolation switch
TECHNICAL SPECIFICATIONS
INPUT Mechanical Switch
FAN ON/OFF
SPEED 3 Speed
LIGHT ON/OFF
DIMMER NO
REVERSE YES
WINDBREEZE NO
CONTROL RF 433MHz
WORKING DISTANCE UP TO 8m
• Control the fan from a radius of up to 8m. No limit of number of fans pairing if within working radius.
• 2 year warranty.
COMPATIBLE MODELS
FANTASTIC 60 22943
COSTA 22945, 22947
CAIRNS DC 22970, 22972, 22974, 22976
Ceiling fan is not included. Photo used for illustration purposes only.
TO SUIT SELECTED BRILLIANT DC CEILING FAN
DCWALLCONTROL
Wall control
ISODCWALLCONTROL
Wall control with Isolation switch
Modern wall controller suitable for selected Brilliant DC ceiling fans range. This controller is designed to fit into most wall switches hole (using c-clip bracket), without any additional cutout required. Must be installed by a licensed electrician.
• This wall control only needs a regular 220-240V AC power to connect.
• Easily pair and connect to the fan (receiver).
• Isolation switch to cut power to the fan.
TECHNICAL SPECIFICATIONS
INPUT Soft Buttons
FAN ON/OFF
SPEED 6 Speed
LIGHT ON/OFF
DIMMER YES
REVERSE YES
WINDBREEZE YES
CONTROL RF 433MHz
WORKING DISTANCE UP TO 8m
• Control the fan from a radius of up to 8m. No limit of number of fans pairing if inside working radius.
• 2 years warranty.
COMPATIBLE MODELS
AMARI SII 21719, 21721, 21723, 21725
FANTASTIC 22804, 22943
SOLANA DC 22763, 22765
VECTOR DC 22687, 22689, 22691, 22693, 22695, 22697
COSTA 22945, 22947
CAIRNS DC 22970, 22972, 22974, 22976
Ceiling fan is not included. Photo used for illustration purposes only.
FAN REMOTES
UNIVERSAL CONTROLLER TO SUIT AC CEILING FAN
Universal radio frequency ceiling fan remote controls with Brilliant’s unique quick connect plug-in design.
• Quick connect allows our remotes to be installed seamlessly in minutes with any Brilliant fan without any wire trimming or joining.
• Compatible with most other brands of AC ceiling fans (hard-wiring may be required).
• Includes wall bracket and batteries.
• 1 year warranty.
• Must be installed by a licensed electrician.
QUICK CONNECT RECEIVER
The Easy Connect connector plugs for quick and simple installation are only compatible with Brilliant Lighting fans.
* Warranty on all fans, not including controllers, remotes or light fittings, is 6 years. The first 3 years are covered by an In-home warranty with an additional 3 year replacement only. Consumable items such as batteries and light globes will not be covered by this warranty.
PRODUCT TYPE
The warranted use of fans outdoors are limited to enclosed alfresco like areas where conditions are similar to indoor installations.
The warranty conditions for fans installed in enclosed alfresco areas are as follows:
• Fan must be shielded from wind and rain (enclosed area, minimum 1.5m from edge of eave/roof).
• The warranty will cover open circuit motor faults, and remote control faults if not related to outdoor exposure.
• The warranty will not cover outdoor related issues such as rusting, or failure clearly caused by water, moisture or wind.
• The warranty will not cover external appearance or finish of any part of the ceiling fan.
• The warranty will not cover wooden blades. These are recommended only to be used indoors.
The warranty does not cover Ripple Control noise/interference (identified by a periodic or intermittent hum and light flickering). This must be addressed with your energy service provider. The warranty does not cover noises or faults due to poor installation or failure to balance fans as per instructions.
AUSTRALIAN SALES
T 03 9765 2555
T 1800 817 754 (Interstate only) F 03 9763 0277
E sales@brilliantlighting.com.au www.brillianttrade.com.au NEW ZEALAND SALES
T 09 974 9618
E sales@brilliantlighting.co.nz www.brillianttrade.co.nz
