EXHAUST FANS
22888/05 (White) 22889/05 (White)
22890/05 (White) 22891/05 (White)
22894/05 (White)
22895/05 (White)
TALON PROMAX WITH TIMER & LIGHT
22904/05 (White)
22907/05 (White)
22771/05 (White)
22772/05 (White)
22773/05 (White) 22774/05 (White)
TORNADO 19911/05 (White)
WHISPER 18203/05 (White) 18204/05 (White)
20750/05 (White) 20751/05 (White)
II 18193/05 (White) 18194/05 (White)
SARICO LED CCT 22375/05 (White) 22376/05 (White)
18255/05 (White) 18190/05 (White)
TALON LED CCT 22373/05 (White) 22374/05 (White)
22887/05 (White)
19847/05 (White) 19849/05 (White)
(White)
(White)
(White)
(Black)
(White)
(White)
(White)
(Black)
(White)
(Black)
20748/05 (White)
(White)
(White)
(White)
(Silver)

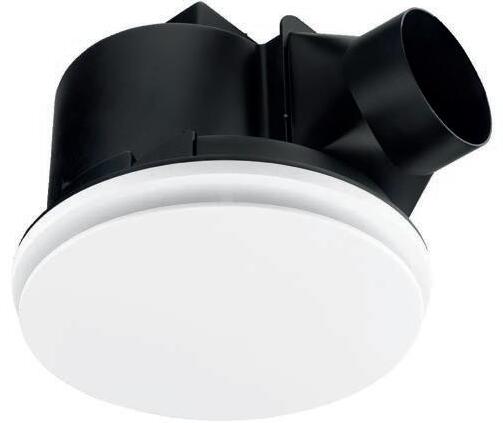

INTRODUCING THE NEW
TALON PROMAX
POWERFUL PERFORMANCE WITH QUIET OPERATION
WARRANTY
EXHAUST FANS
BATHROOM
INTRODUCING THE NEW
TALON PROMAX
THE MOST POWERFUL AC EXHAUST FAN IN THE RANGE
Brilliant’s Promax is engineered to meet today’s strict demand for home ducted ventilation, without breaking your budget. This new range will perform up to the task without compromising noise or installation time. Available in LED version, as well as build in timer to suit all needs.
*Testing is done based on 150mm duct diameter. **Recommended to avoid sharp bends/turns, as it will reduce the airflow significantly.
22888/0522889/05
High air extraction helps remove and control steam and moisture.

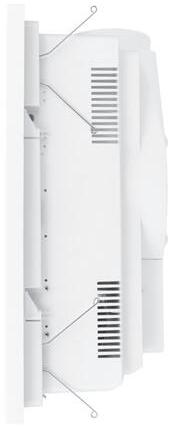

• Simple to install using easy clamp system.

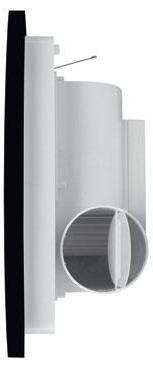

• Energy saving draft stopper to prevent unwanted airflow coming back through the exhaust fan.
• Removable and easy to clean fascia.
• Includes 100 & 150mm duct adapters.
• 3 Year warranty
COLOUR Matt White Matt White FEATURES

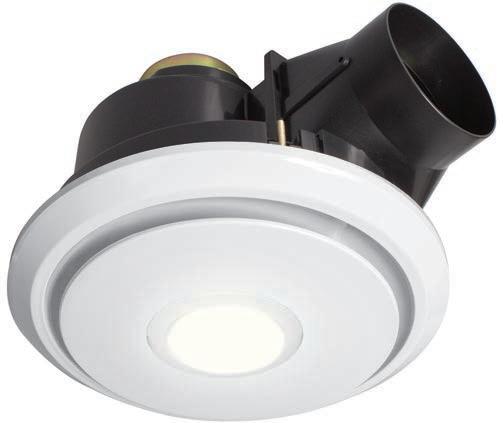

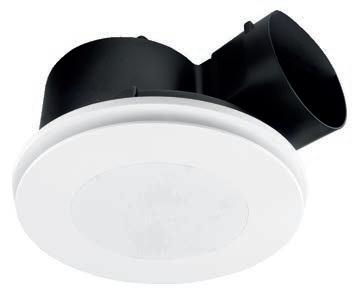

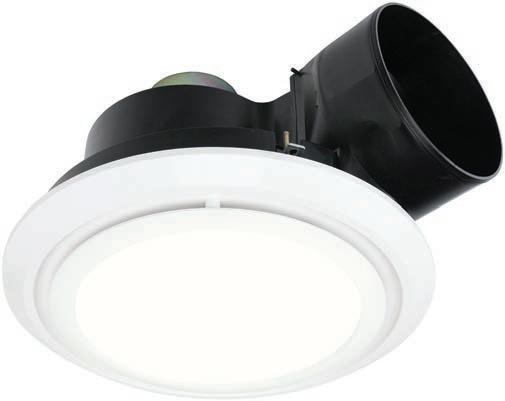

TALON PROMAX
EXHAUST FAN WITH LIGHT
High air extraction helps remove and control steam and moisture.
• Flush mounted Tri-colour LED light allows you to customise your lighting preference from warm white to cool white or daylight easily.
• Simple to install using easy clamp system.
22890/0522891/05
• Energy saving draft stopper to prevent unwanted airflow coming back through the exhaust fan.
• Removable and easy to clean fascia.
• Includes 100 & 150mm duct adapters.
• 3 Year warranty
MODEL NUMBER 22890/0522891/05
COLOUR Matt WhiteMatt White
FEATURES
Room Suitability
(up to 16m3)
(up to 24m3)
Light Type 15W CCT LED15W CCT LED
Noise (dB)44dB @3m46dB @3m
Air Extraction Up to 350m3/hr or 97l/sec Up to 460m3/hr or 128/sec
Cutout size255mm dia300mm dia
Outlet Diameter100 & 150mm dia100 & 150mm dia
Minimum ceiling
22894/0522895/05
Built-in delay OFF timer to meet NCC requirement.
• Simple to install using easy clamp system.
• Energy saving draft stopper to prevent unwanted airflow coming back through the exhaust fan.
• Removable and easy to clean fascia.
• Includes 100 and 150mm duct adapters.
• Adjustable 30min MAX timer integrated onto housing for easy setup.
• 3 Year warranty
EXHAUST FAN WITH LIGHT AND TIMER
Built-in delay OFF timer to meet NCC requirement.

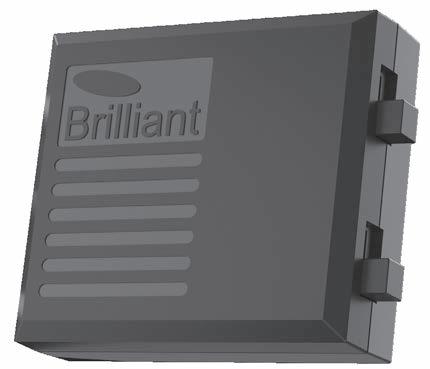

4-PIN Plug Base INCLUDED
• Flush mounted Tri-colour LED light allows you to customise your lighting preference from warm white to cool white or daylight easily.
• Simple to install using easy clamp system.
22904/0522907/05
• Energy saving draft stopper to prevent unwanted airflow coming back through the exhaust fan.
• Removable and easy to clean fascia.
• Includes 100 & 150mm duct adapters.
• Adjustable 30min MAX timer integrated onto housing for easy setup.
• 3 year warranty
MODEL NUMBER
22904/0522907/05
COLOUR Matt WhiteMatt White
FEATURES
Room Suitability Small (up to 16m3)
(up to 24m3)
Light Type 15W CCT LED15W CCT LED
Light Colour 3000K 4200K 6000K
Light Lumens
Noise (dB) 44dB @3m46dB @3m
Air Extraction Up to 350m3/hr or 97l/sec Up to 460m3/hr or 128/sec
Cutout size 255mm dia300mm dia
Outlet Diameter100 & 150mm dia100 & 150mm dia
Minimum ceiling depth220mm220mm
Timer SettingsOFF | 5m | 10m | 15m | 20m | 30m

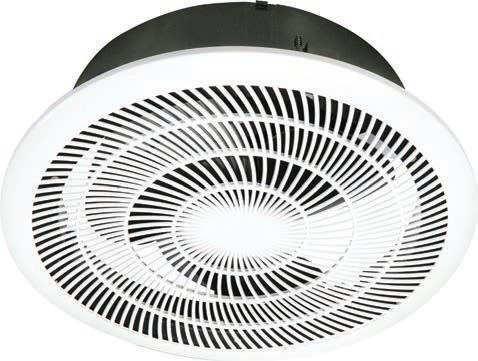

BLIZZARD SERIES II
22771/05 & 22773/05
MAX AIRFLOW
IDEAL FOR SMALLMEDIUM ROOMS
22772/05 & 22774/05
≤450 m3/hr MAX AIRFLOW ≤600 m3/hr
IDEAL FOR MEDIUMLARGE ROOMS
The most energy efficient DC Exhaust Fan in its class!

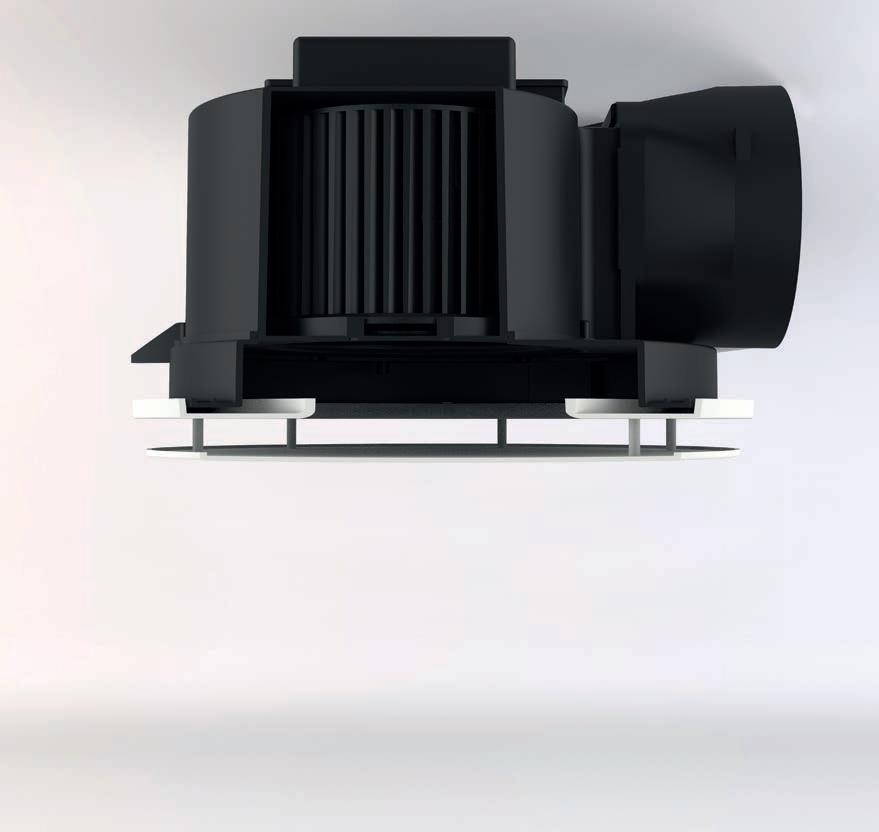

ENERGY SAVING DC MOTOR
• Our DC motor consumes up to 50% less power than most traditional AC motors and still achieves the same airflow extraction.
• Due to the lower operating temperature, it will outlast most AC counterparts in its lifespan. This means this may be the last exhaust fan you ever buy.
• Our duct adapter can be easily removed to enable easy ducting installation. Each adapter includes a back draft stopper to prevent drafts from entering your home.
• 5 Year warranty.
MODEL NUMBER
22771/05
22772/0522773/0522774/05
COLOUR Matt White Matt White Matt White Matt White
FEATURES
IP Ratings IPX4IPX4IPX4IPX4 Light Type 15W LED15W LED Light Colour N/AN/A 3000K | 4200K | 6000K
Powerful air extraction quickly removes steam and moisture, keeping the room clean and clear.
• Simple to install using easy clamp system.
• Removable and easy to clean fascia.
• Non-ducted.
• 1 Year warranty.
MODEL NUMBER

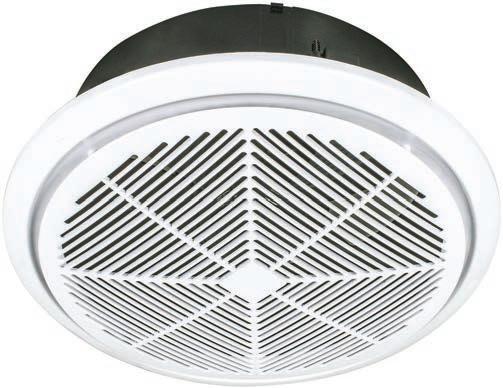

WHISPER
Powerful air extraction quickly removes steam and moisture, keeping the room clean and clear.
• Simple to install using easy clamp system.
• Energy saving draft stopper to prevent unwanted airflow coming back through the exhaust fan.
• Removable and easy to clean fascia.
• Ducting available with optional duct adapter (sold separately).
• 3 Year warranty.
FEATURES
High air extraction helps remove and control steam and moisture.
• Flush mounted Tri-colour LED downlight allows you to customise your lighting preference from warm white to cool white or daylight easily.
• Simple to install using easy clamp system.
• Energy saving draft stopper to prevent unwanted airflow coming back through the exhaust fan.
• Removable and easy to clean fascia.
• Includes 100 & 150mm duct adapters.
• 3 Year warranty

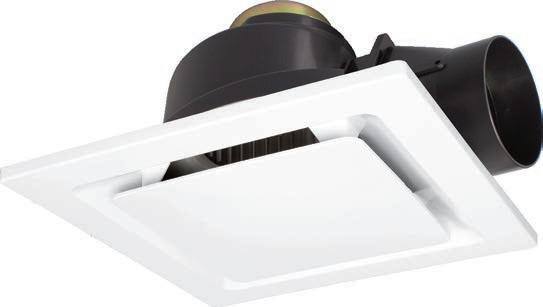

SARICO II
SQUARE EXHAUST FAN
Basic square exhaust fan with good air extraction helps to remove steam and moisture.
• Simple to install using easy clamp system.
• Energy saving draft stopper to prevent unwanted airflow coming back through the exhaust fan.
• Removable and easy to clean fascia.
• Includes 100 & 150mm duct adapters.
• 3 Year warranty

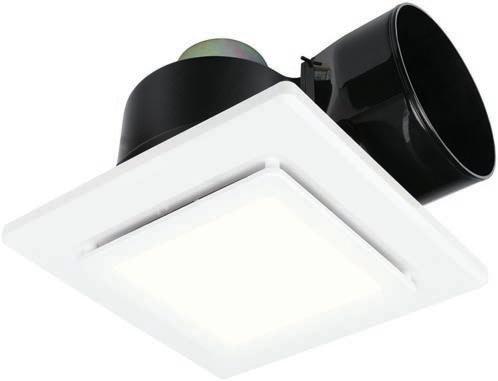

SARICO LED CCT
Basic square exhaust fan with good air extraction helps to remove steam and moisture.
• Flush mounted Tri-colour LED light allows you to customise your lighting preference from warm white to cool white or daylight easily.
• Simple to install using easy clamp system.
• Energy saving draft stopper to prevent unwanted airflow coming back through the exhaust fan.
• Removable and easy to clean fascia.
• Includes 100 & 150mm duct adapters.
• 3 Year warranty
MODEL NUMBER 22375/0522376/05
COLOUR White White
FEATURES
Suitability
Outlet Diameter100 & 150mm dia100 & 150mm dia
Minimum ceiling depth 220mm220mm
22375/05
22376/05

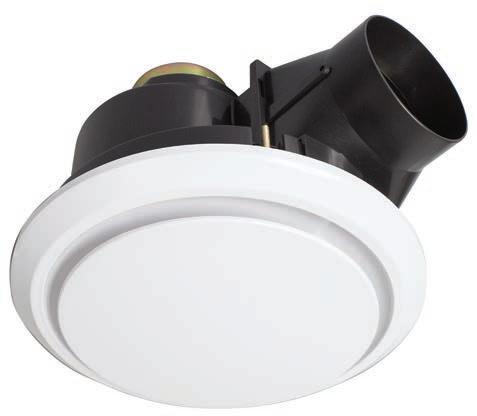

ROUND EXHAUST FAN
Basic round exhaust fan with good air extraction helps to remove steam and moisture.
• Simple to install using easy clamp system.
• Energy saving draft stopper to prevent unwanted airflow coming back through the exhaust fan.
• Removable and easy to clean fascia.
• Includes 100 & 150mm duct adapters.
• 3 Year warranty.
MODEL NUMBER
COLOUR White White
FEATURES

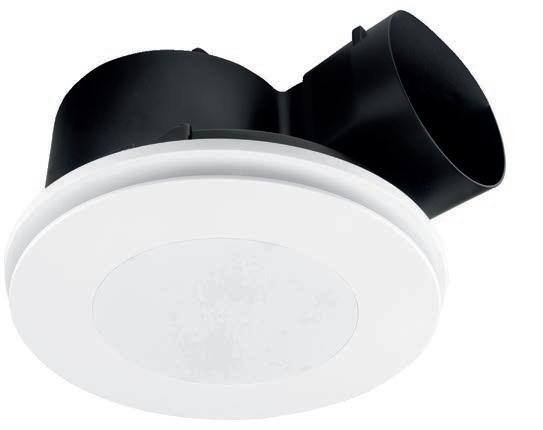

TALON LED CCT
Basic round exhaust fan with good air extraction helps to remove steam and moisture.
• Flush mounted Tri-colour LED light allows you to customise your lighting preference from warm white to cool white or daylight easily.
• Simple to install using easy clamp system.
• Energy saving draft stopper to prevent unwanted airflow coming back through the exhaust fan.
• Removable and easy to clean fascia.
• Includes 100 & 150mm duct adapters.
• 3 Year warranty.
MODEL NUMBER 22373/0522374/05
COLOUR White White
FEATURES
BATHROOM MATES
INTRODUCING THE NEW

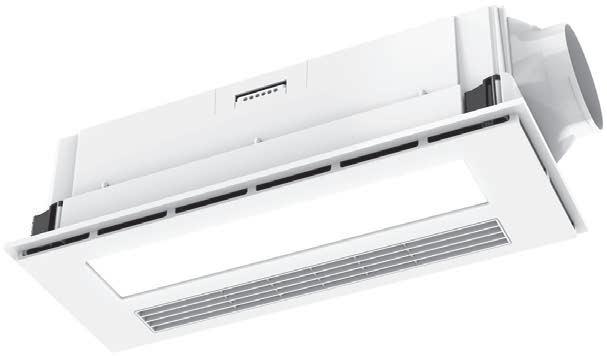

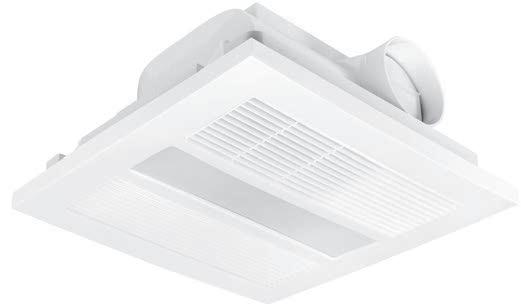

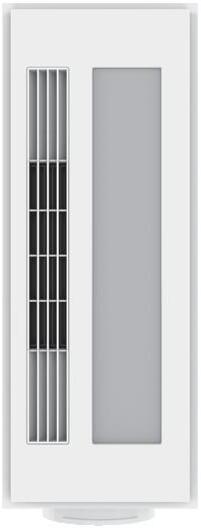

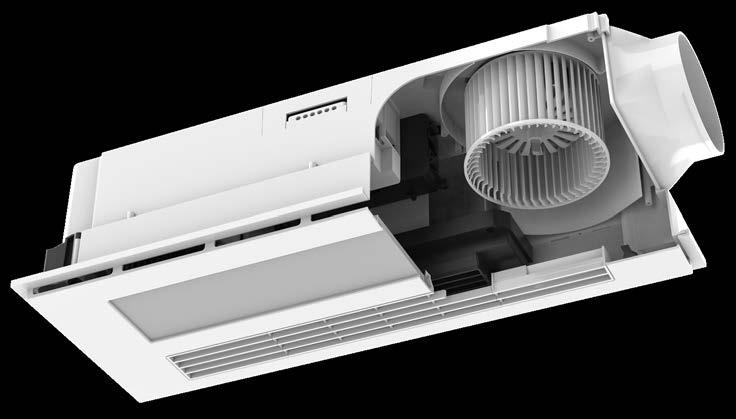

NEVADA 4-IN-1 BATHROOM MATE
Our new addition to the bathroom heater family, the Nevada offers a modern stylish design that will appeal to all decor. Not only it is aesthetically pleasing, but this compact heater offers performance that will match the bigger unit in it’s class.
FEATURES AND BENEFITS:
• Low profile and modern fascia - 18mm thickness.
• Powerful AC motor that produces 350m3/hr extraction.
• Super bright LED light with 1500 lumen output.
• Selectable CCT (3000K/4000K/6000K) from the light panel
• Dual motor included - you can turn your exhaust and fan both ON at same time.
• Safety thermal cutoff to prevent overheating.

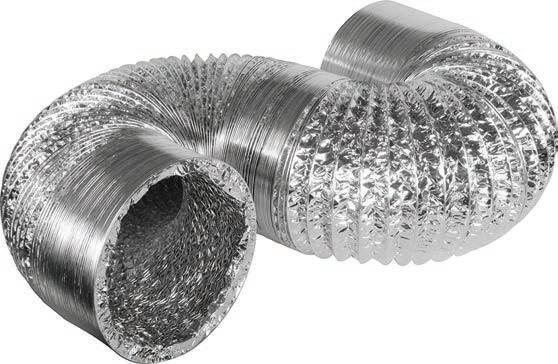

• Accessories include 4 gang wall switch, flexible duct and grille.
Slim modern fascia design with matt white finish
bright
4-IN-1 BATHROOM MATE WITH TRI COLOUR CCT LED LIGHT
1500lm 23W
2000W HEAT FAN
Nevada is a premium bathroom heater that not only delivers modern aesthetic design, but an all round powerful performance. It has a dual motor that can be used together or separately to create the perfect environment. With a 350m3/hr airflow and 1500 lumens of LED light, this heater is sure to impress.
MODEL NUMBER 22887/05
COLOUR Matt White
FEATURES
Room SuitabilitySmall - Medium (Up to 16-24m3)
Heat Type PTC Heating element
Light Type 23W LED CCT
Light Colour3000K 4000K 6000K
Light Lumens1500lm
Motor Power45W (Fan) 50W (Exhaust)
Air ExtractionUp to 350m3/hr
Cutout size 550mm x 200mm
Outlet Diameterø100mm
Minimum ceiling depth220mm

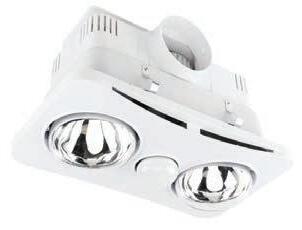

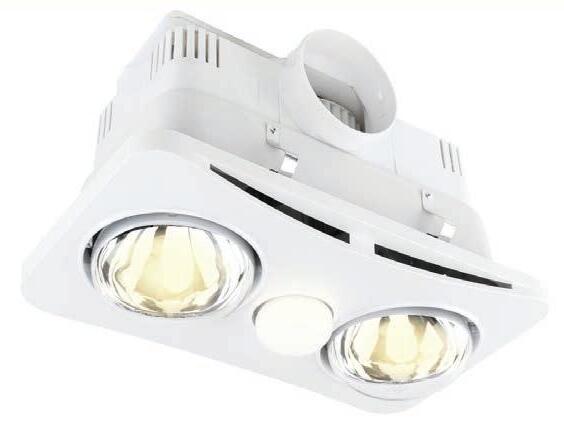

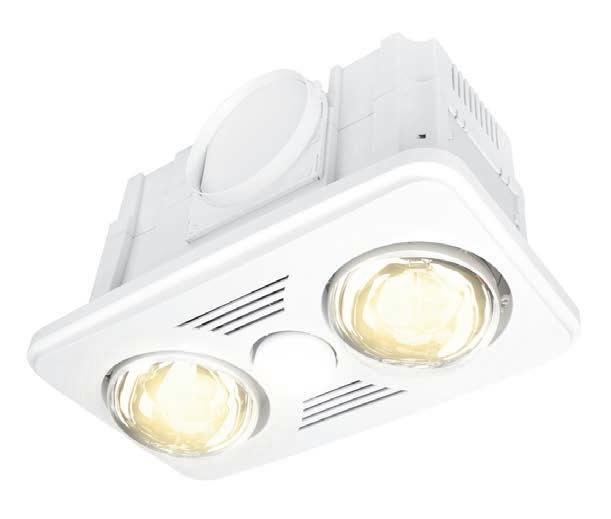

HORIZON

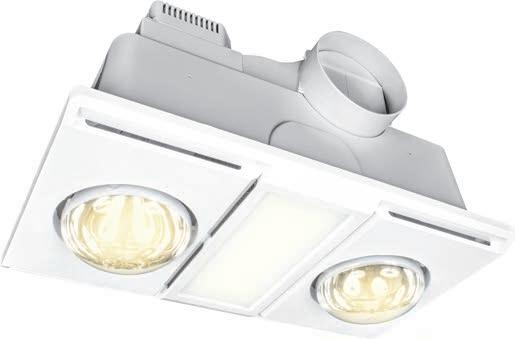

3-IN-1 BATHROOM MATE WITH CCT LED LIGHT
3-in-1 Bathroom Heater, Fan and Light that is the ultimate all-rounder with a modern design.
• Twin 275W instant heat infrared lamps that warm the body in the cooler months.
• Flush mounted Tri-colour LED light allows you to customise your lighting preference from warm white to cool white or daylight easily.
• High air extraction helps remove and control steam and moisture.
• 3 Year warranty.
MODEL NUMBER 19847/05
COLOUR White
FEATURES
Room SuitabilityMedium (up to 24m3)
Heat Type 2 x 275W instant heat infrared globes
Light Type 9W Tri-colour CCT LED
Light Colour 3000K 4200K 6000K
Light Lumens950lm 1050lm 1000lm
Motor Power 75W Longlife ball bearing
Air ExtractionUp to 300m3/hr Up to 83l/sec
Cutout size 355mm x 200mm
Outlet Diameterø125mm
Minimum ceiling depth250mm

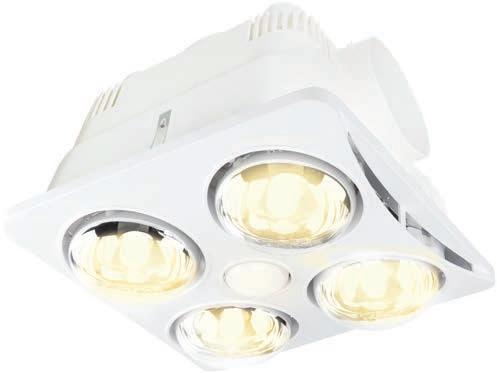

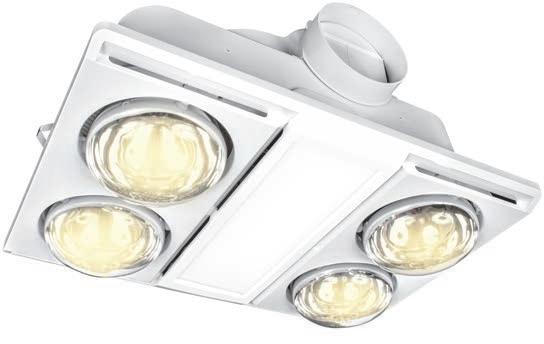

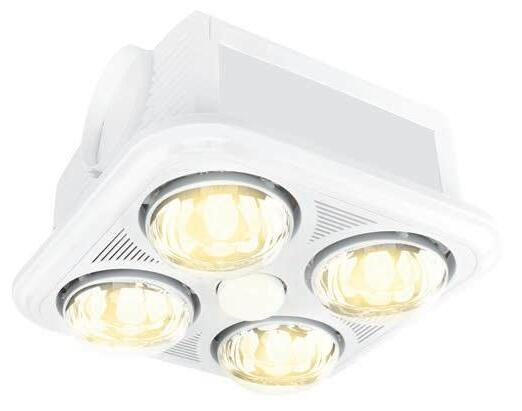

3-IN-1 BATHROOM MATE WITH CCT LED LIGHT
3-in-1 Bathroom Heater, Fan and Light that is the ultimate all-rounder with modern design.
• Four 275W instant heat infrared lamps that warm the body in the cooler months.
• Flush mounted Tri-colour LED light allows you to customise your lighting preference from warm white to cool white or daylight easily.
• High air extraction helps remove and control steam and moisture.
• 3 Year Warranty.
MODEL NUMBER
COLOUR White
FEATURES
Room SuitabilityMedium (up to 24m3)
Heat Type 4 x 275W instant heat infrared globes
Light Type 9W Tri-colour CCT LED
Light Colour
Light Lumens950lm 1050lm
Motor Power 75W Longlife ball bearing
Air ExtractionUp to 300m3/hr Up to 83l/sec
Cutout size
Outlet Diameterø125mm Minimum

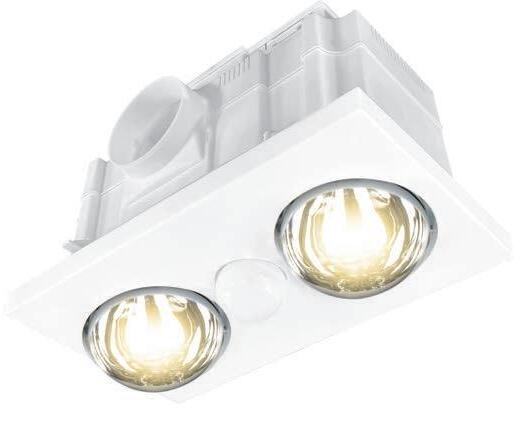

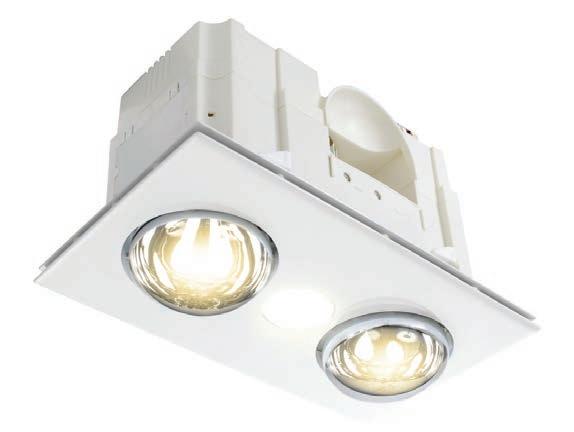

MAGMA DC

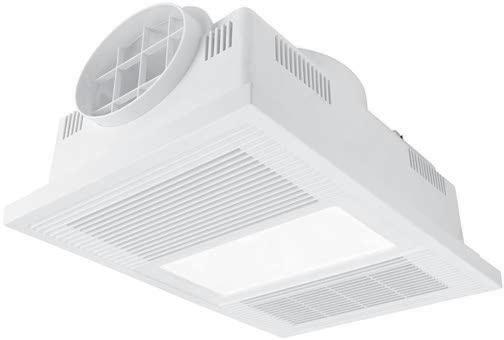

3-IN-1 BATHROOM MATE WITH TRI COLOUR CCT LED LIGHT
ENERGY SAVING DC MOTOR
Magma DC is a stylish modern design 3-in-1 bathroom heater that will compliment any décor. Featuring an energy saving DC motor, it produces a remarkable 330m3/hr airflow that can easily remove steam and moisture. In addition, it has a replaceable 9W A60 LED globe with CCT, 2-Heat IR heat lamps that provide instant warmth, side duct outlet with draft stopper, and a built in safety thermal cutoff for overheating. Overall, this is your ultimate bathroom solution.
MODEL NUMBER 22779/05
COLOUR Matt White
FEATURES
Room SuitabilitySmall - Medium (Up to 16m3-24m3)
Heat Type 2 x 275W IR Heat globe
Light Type 1 x E27 A60 LED 9W CCT
Light Colour 3000K 4200K 6000K
Light Lumens900lm
Motor Power20W DC Motor
Air ExtractionUp to 330m3/hr
Cutout

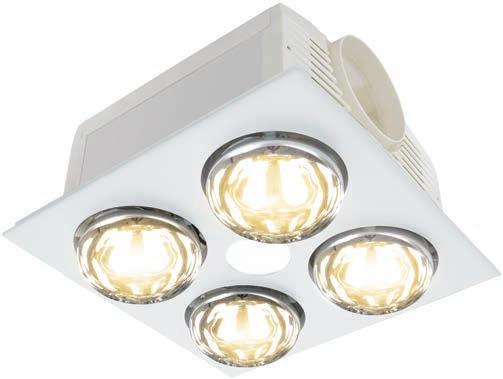

MAGMA DC
3-IN-1 BATHROOM MATE WITH TRI COLOUR CCT LED LIGHT
AIRFLOW ≤330 m3/hr
900lm 9W 275W IR GLOBES
YEAR WARRANTY
IDEAL FOR SMALL & MEDIUM ROOMS
Magma DC is a stylish modern design 3-in-1 bathroom heater that will compliments any décor. Featuring an energy saving DC motor, it produces a remarkable 330m3/hr airflow that can easily removes steam and moisture. In addition, it has a replaceable 9W A60 LED globe with CCT, 4-Heat IR heat lamps that provide instant warmth, side duct outlet with draft stopper, and a built in safety thermal cutoff for overheating. Overall, this is your ultimate bathroom solution.
MODEL NUMBER 22780/05
COLOUR Matt White
FEATURES
Room SuitabilitySmall - Medium (Up to 16m3-24m3)
Heat Type 4 x 275W IR Heat globe
Light Type 1 x E27 A60 LED 9W CCT
Light Colour3000K 4200K 6000K
Light Lumens900lm
Motor Power20W DC Motor
Air ExtractionUp to 330m3/hr
Cutout size 325mm x 325mm
Outlet Diameterø100mm
Minimum ceiling depth220mm
BATHROOM

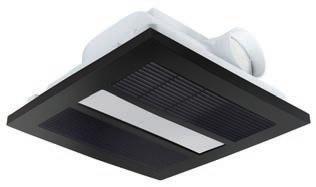

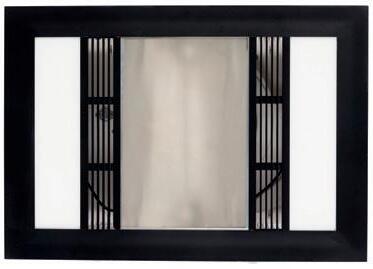

3-IN-1 BATHROOM MATE WITH TRI COLOUR CCT LED PANEL LIGHT
IDEAL FOR LARGE ROOMS
3-in-1 Bathroom Heater, Fan and Light offers a minimalistic design that delivers a modern slimline look.
• Instant heat infrared lamp warms the body in the cooler months.
• Powerful air extraction quickly removes steam and moisture, keeping the room clean and clear.
• Tri-colour LED light allows you to customise your lighting preference from warm white to cool white or daylight easily.
• SCHOTT tempered glass providing high impact and thermal resistance, ensuring a longer life and reliability.
• Now improved with selectable CCT switch.
• 3 Year warranty.
MODEL NUMBER
COLOUR Matt White Matt Black
FEATURES
Room SuitabilityLarge (up to 54m3)
Heat Type 1000W instant heat infrared R7S tube
Light Type 2 x 8W Tri-colour CCT LED Panels
Light Colour3000K 4200K 6000K
Light Lumens1000lm 1100lm 1200lm
Motor Power55W Longlife ball bearing
Air ExtractionUp to 500m3/hr Up to 139l/sec
Cutout size 475mm x 325mm
Outlet Diameterø150mm
Minimum ceiling depth250mm
3-IN-1 BATHROOM MATE WITH LED LIGHT
860lm 9W
3-in-1 Bathroom Heater, Fan and Light with traditional styling suited to smaller bathrooms
• Twin 275W instant heat infrared lamps that warm the body in the cooler months.
• High lumen R63 globe fills the room with an even light.
• High air extraction helps remove and control steam and moisture.
• 3 Year warranty.
MODEL NUMBER 20351/05
COLOUR White
FEATURES
Room SuitabilitySmall (up to 16m3)
Heat Type 2 x 275W instant heat infrared globes
Light Type 9W E27 LED R63 Globe
Light Colour 4200K
Light Lumens860lm
Motor Power35W Longlife ball bearing
Air ExtractionUp to 240m3/hr Up to 67l/sec
Cutout size 345mm x 185mm
Outlet Diameterø100mm
Minimum ceiling depth220mm
3-IN-1 BATHROOM MATE WITH LED LIGHT
4200K
IDEAL FOR SMALL ROOMS WHITE COOL
860lm 9W 275W IR GLOBES
3-in-1 Bathroom Heater, Fan and Light with traditional styling suited to smaller bathrooms
• Four 275W instant heat infrared lamps that warm the body in the cooler months.
• High lumen R63 globe fills the room with an even light.
• High air extraction helps remove and control steam and moisture.
• 3 Year warranty.
MODEL NUMBER 20352/05
COLOUR White
FEATURES
Room SuitabilitySmall (up to 16m3)
Heat Type 4 x 275W instant heat infrared globes
Light Type 9W E27 LED R63 Globe
Light Colour4200K
Light Lumens860lm
Motor Power35W Longlife ball bearing
Air ExtractionUp to 240m3/hr Up to 67l/sec
Cutout size 295mm x 295mm
SOLACE
4-IN-1 BATHROOM MATE WITH LED PANEL LIGHT
4-in-1 Bathroom Heater, Exhaust Fan, Light and Fan brings a modern feel to a smaller bathroom or ensuite, creating a light filled, evenly heated and well-ventilated bathroom.
• The twin setting fan forced heater creates a comfortable environment pushing warm air into the room.
• Use the Fan to create a cooling effect on warmer days.
• High air extraction helps remove and control steam and moisture.
• Bright LED Panel fills the room with an even light.
• 3 Year warranty.
MODEL NUMBER
FEATURES
Room SuitabilitySmall (up to 16m3)
Heat Type 1000W/2140W PTC heating element
Light Type 12W LED Panel
Light Colour4200K
Light Lumens900lm
Motor Power35W Longlife ball bearing
Air ExtractionUp to 240m3/hr Up to 69l/sec
Cutout size 350mm x 350mm
Outlet Diameterø100mm
Minimum ceiling depth 220mm
COLOUR Matt White Matt Black
SOLACE XL
4-IN-1 BATHROOM MATE WITH CCT LED PANEL LIGHT
m3/hr IDEAL FOR LARGE ROOMS
4-in-1 Bathroom Heater, Exhaust Fan, Light and Fan brings a modern feel to larger bathrooms.
• The twin setting fan forced heater creates a comfortable environment pushing warm air into the room.
• Using the Fan on its own creates a cooling effect on warmer days.
• Powerful air extraction quickly removes steam and moisture, keeping the room clean and clear.
• Tri-colour LED light allows you to customise your lighting preference from warm white to cool white or daylight easily.
• Now improved with selectable CCT switch.
• 3 Year warranty.
MODEL NUMBER
COLOUR Matt White Matt Black
FEATURES
Room SuitabilityLarge (up to 54m3)
Heat Type 2200W PTC heating element
Light Type 15W Tri-colour CCT LED Panel
Light Colour 3000K 4200K 6000K
Light Lumens900lm 1000lm 900lm
Motor Power60W Longlife ball bearing
Air ExtractionUp to 500m3/hr Up to 139l/sec
SUPERNOVA II
3-IN-1 BATHROOM MATE WITH CCT LED PANEL LIGHT
3-in1 Bathroom Heater, Fan and Light that combines both looks and performance for an ultimate bathroom solution.
• Twin 275W instant heat infrared lamps that warm the body in the cooler months.
• Powerful air extraction quickly removes steam and moisture, keeping the room clean and clear.
• Duo-colour LED light allows you to customise your lighting preference from warm white and natural light easily.
• 3 Year Warranty.
MODEL NUMBER 20748/05
COLOUR White
FEATURES
Room SuitabilityLarge (up to 54m3)
Heat Type 2 x 275W instant heat infrared globes
Light Type 12W Duo-colour CCT LED Panel
Light Colour 3000K 5000K
Light Lumens850lm 900lm
Motor Type 40W Longlife ball bearing
Air ExtractionUp to 500m3/hr Up to 139l/sec
Cutout size 430mm x 250mm
Outlet Diameterø150mm
Minimum ceiling depth250mm
SUPERNOVA II
3-IN-1 BATHROOM MATE WITH CCT LED PANEL LIGHT
3-in1 Bathroom Heater, Fan and Light that combines both looks and performance for an ultimate bathroom solution.
• Four 275W instant heat infrared lamps that warm the body in the cooler months.
• Powerful air extraction quickly removes steam and moisture, keeping the room clean and clear.
• Duo-colour LED light allows you to customise your lighting preference from warm white and natural light easily.
• 3 Year Warranty.
COLOUR
FEATURES
Room SuitabilityLarge (up to 54m3)
Heat Type 4 x 275W instant heat infrared globes
Light Type 14W Duo-colour CCT LED Panel
Light Colour 3000K 5000K
Light Lumens1050lm 1100lm
Motor Power40W Longlife ball bearing
Air ExtractionUp to 500m3/hr Up to 139l/sec
Cutout size 430mm x 270mm
Outlet Diameterø150mm
VELOCITY II
3-IN-1 BATHROOM MATE WITH LED LIGHT
3-in-1 Bathroom Heater, Fan and Light with traditional styling with a higher airflow for medium sized bathrooms.
• High lumen R63 globe fills the room with an even light.
• Powerful air extraction helps remove and control steam and moisture.
• 3 Year warranty.
MODEL NUMBER 20353/05
COLOUR White
FEATURES
Room SuitabilityMedium (up to 24m3)
Heat Type 2 x 275W instant heat infrared globes
Light Type 9W E27 LED R63 Globe
Light Colour 4200K
Light Lumens860lm
Motor Power70W Longlife ball bearing
Air ExtractionUp to 330m3/hr Up to 92l/sec
Cutout size 355mm x 200mm
Outlet Diameterø125mm
Minimum ceiling depth220mm
IDEAL FOR MEDIUM ROOMS
VELOCITY II
3-IN-1 BATHROOM MATE WITH LED LIGHT
3-in-1 Bathroom Heater, Fan and Light with traditional styling with a higher airflow for medium sized bathrooms.
• Four 275W instant heat infrared lamps that warm the body in the cooler months.
• High lumen R63 globe fills the room with an even light.
• Powerful air extraction helps remove and control steam and moisture.
• 3 Year warranty.
MODEL NUMBER 20354/05
COLOUR White
FEATURES
Room SuitabilityMedium (up to 24m3)
Heat Type 4 x 275W instant heat infrared globes
Light Type 9W E27 LED R63 Globe
Light Colour4200K
Light Lumens860lm
Motor Power70W Longlife ball bearing
Air ExtractionUp to 330m3/hr Up to 92l/sec
Cutout size 310mm x 300mm
Outlet Diameterø125mm
ACCESSORIES
DUCTING
ALUMINIUM DUCT
Non-insulated, single layer flexible duct that can be used to extend the ducting from your exhaust fan. Can be cut down to suit required length to remove bends that can reduce your exhaust fans performance.
MODEL NUMBER 19940
COLOUR Aluminium
FEATURES
Suits Diameter (mm)150mm
Suits Diameter (in)6in
Length 6m
EXHAUST FAN DELAY
Exhaust Fan Delay on/off timer suitable for most brands of exhaust fans. Compact design that works with a standard switch mechanism (wall switch not included). Easy to change different settings with push switch design. Note: Must be interlocked with light wiring to work.
MODEL NUMBER 22802
COLOUR Black
FEATURES

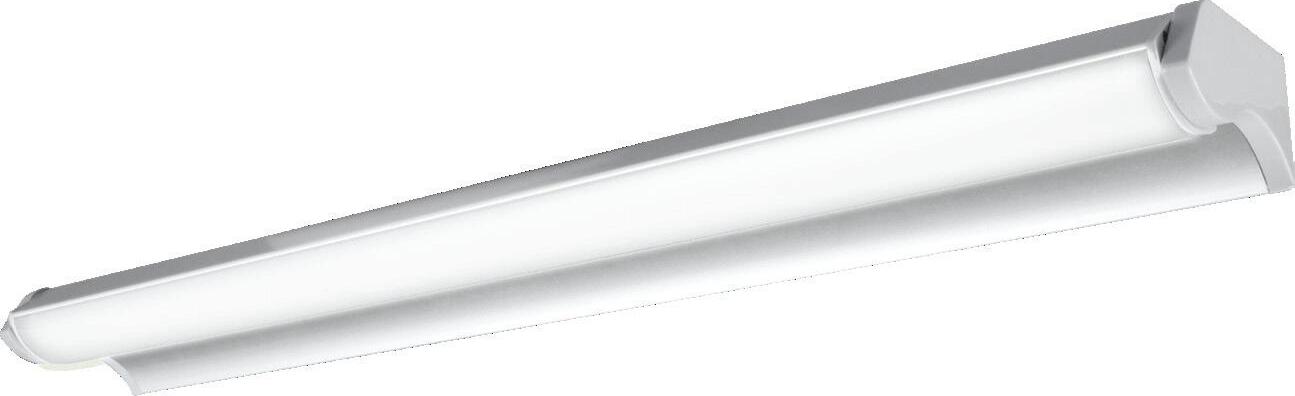

GRETA-II
Slimline adjustable vanity light in a smart silver finish.
• For bathrooms, kitchens, laundries and powder rooms.
• Bright LED provides generous light without being overwhelming.
MODEL NUMBER
18746/1118747/11
COLOUR Silver Silver
FEATURES
HEAT LAMP
INFRARED GLOBE
Infrared Heat Lamp globes for bathroom heaters, designed to operate at high temperatures. Long lasting, high grade construction to suit most standard bathroom heater lamp units.
MODEL NUMBER
FEATURES
WARRANTY
INSTALLATION CONDITIONS/WARRANTY
Brilliant Lighting warrants products against defects in manufacture and workmanship for a period of 3 years / 5 years from date of purchase. For products used in non-domestic or commercial applications, Brilliant Lighting warrants this product for a period of 3 months from date of purchase. This warranty is only valid for products installed by a qualified electrical contractor and operated within the guidelines specified by Brilliant Lighting, and within the correct operating voltage ranges as stated on the product’s rating label.
Warranty does not include damage or loss arising from incorrect installation, operation or maintenance of this product, damage caused through modification, incorrect installation, and service by unqualified or unauthorised personnel or lack of regular maintenance and cleaning. Proof of installation by qualified personnel may be required, eg. Electrical Safety Certificate. Proof of purchase must be supplied with all warranty claims. Heat lamps and Light fittings are subject to Limited warranty status:
3 Years / 5 Years
This warranty is provided in addition to any other rights and remedies of the customer under any law. In applications not intended for household, personal or domestic use, liability is limited to replacement or reimbursement of product only. Brilliant Lighting does not warranty the costs of removal or re-installation of this product or associated components.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and compensation for any other reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if goods fail to be of acceptable quality and the failure does not amount to a major failure.
Any claim under this warranty must be made within 3 years / 5 years of the date of purchase of the product. To make a claim under the warranty; at your own expense take the product (with proof of purchase – receipt or similar) to the store where you purchased the product or contact Brilliant Lighting
INSTALLATION
INFORMATION AND INSTALLATION TIPS
HEAT LAMPS
Heat Lamps have no warm up period because the infra-red lamps provide instantaneous heat, and are designed to heat you and not your bathroom. Also, to get the full benefit of infra-red warmth, stand directly under the heat lamps.
The half heat function is available on the 4 lamp models, and is another energy saving feature, allowing you to adjust the heat level to suit prevailing conditions or personal preference.
POSITIVE TEMPERATURE COEFFICIENT (PTC) FAN HEAT
Unlike IR heat lamps, models like the Nevada, Solace and Solace XL are designed to warm the room, essentially acting like a room heater.
VENTILATION
To ensure optimum performance of the exhaust fan, it is essential that there is adequate air flow into your bathroom to help the exhaust fan to quickly remove steam while you shower. It works by drawing steam-laden air from the room, and as with all exhaust fans it is essential that sufficient air inlet is provided. Ensure adequate inlets exist through windows, vents or under the door. Air flow path from inlet to fan should ideally pass over the steam source.
NOISE
All exhaust fans produced some noise due to the rapid movement of air through vents. This is normal and is not a defect of the product.
INSTALLATION GUIDE & TIPS
• For safety reasons it is not recommended to install bathroom heaters above shower recess. For optimum results, it should be installed directly above where you normally dry yourself.
• For larger bathrooms, it is recommended to install additional ventilation, such as stand-alone exhaust fans. Make sure to check our recommended room size information.
• Always check the size and depth of your roof cavity before selecting the heaters/exhaust fans to install.
• If you are replacing an existing heater/exhaust fan, make sure your new models can cover and fit the cut-out hole on your ceiling.
• Some of our exhaust fans have IPX4 Rated, which means they are safe to be installed directly above shower.
• Majority of our bathroom heaters and exhaust fans can be ducted. If you are using ducting, make sure to keep it as short as possible, and avoid any bends/corners.
• And finally, all our bathroom heaters and exhaust fans are design for ceiling installation only and are not suitable for wall.
WHAT IS NCC (NATIONAL CONSTRUCTION CODE)?
The National Construction Code (NCC) is Australia’s primary set of technical design and construction provisions for buildings. It’s a performance-based code, meaning it sets minimum requirements that buildings must meet, rather than dictating specific materials or methods. It was adopted by all states and territories in 2023.
HOW DOES IT AFFECT MY VENTILATION REQUIREMENTS?
Since 2019, NCC has introduced changes to the way exhausted air is ventilated into the roof space. This change has altered both the necessary specifications for your ventilation system and the process for its installation.
Clause 10.8.2 Exhaust systems states:
• Minimum 25 L/s (90m3/hr) for a bathroom or sanitary compartment
• Minimum 40 L/s (144m3/hr) for a kitchen or laundry
• Exhaust from a kitchen, kitchen range hood, bathroom, sanitary compartment or laundry must discharge directly or via a shaft or duct to outdoor air
• An exhaust system that is not run continuously and is serving a bathroom or sanitary compartment that has no natural ventilation (example, windows), must:
- Be interlocked with the room’s light switch;
- Include a run-on timer so that the exhaust system continues to operate for 10 minutes after being turned off.
WHY IS VENTILATION SO IMPORTANT?
A good ventilation system provides fresh air and removes problems such as condensation, humidity, mould, allergies and odours. Poor air quality will potentially lead to bad health and structural building damage. A proper ventilated home will provide a comfortable & healthier environment for residents.
SELECTION GUIDE
EXHAUST FANS
CHOOSING THE RIGHT EXHAUST FAN
At Brilliant, we have a wide range of exhaust fans that provide solutions for every need. Follow the table below to choose which exhaust fan is right for you.
MODEL WHISPERTALON / SARICOTALON PROMAXBLIZZARD
NCC
INSTALLATION LOCATION
After picking the exhaust fan, the next important step is to choose the right location to install. The placement of your exhaust fan is very important to maximize the performance of the fan, and your ventilation needs. Follow the guidelines below:
1. Exhaust fans should be positioned as far away as possible from source of fresh air (windows, doors), but to be as close to source of exhausted air (steam, shower vapour, odours). This makes the extraction more effective and faster.
2. Check the required length of duct needed. It is best to use as short as possible and avoid bends and turns. The longer the duct means higher pressure and lower airflow.
3. If you have a mirror, try to install the exhaust fan as close to the mirror to avoid fogging.
4. Always allow fresh air to come into the room, as it serves as a replacement for extracted air.
5. For higher ceilings and open showers, it is recommended to use a bigger and more powerful exhaust fan, such as the Promax or Blizzard range.
6. Before installing, remember to check for any physical obstructions above the ceiling (joist, cables, pipes, etc).
Warning: Do not cut the ceiling if this is not checked!
Note: Above guidelines are meant for reference only. Always consult with your
SELECTION GUIDE
BATHROOM HEATING
CHOOSING THE RIGHT BATHROOM HEATER
Bathroom heaters can provide a cozy, dry, warm and comfortable environment in your bathrooms or ensuites during colder months. Not only that, they also provide versatility functions such as exhaust ventilation and lighting, without the need for extra installation on your ceiling. That’s a Brilliant solution!
Before you choose your bathroom heaters, it is important to know the types you are installing. Here’s a comparison of the types of heaters available:
RADIANT HEAT
• Provides instant heat to the surface and body. It is important to know that it does not warm the air.
FAN HEAT
• Blows hot air to circulate the room. Perfect for users who like to walk into a warm room before showers.
IP RATINGS
HOW DO IP RATINGS RELATE TO A BATHROOM?
IP rating stands for ‘Ingress Protection rating’ and this helps determine where electrical products can go in particular bathroom zones. For bathroom related products it often refers to lighting, exhaust fans and bathroom heater units.
An IP (Ingress Protection) number or code is used in Australia to specify the protection of enclosures around electronic products with regard to moisture or water ingress. These ratings are determined by specific tests.
IP RATINGS EXPLAINED
The IP (Ingress Protection) number is composed of two numbers:
• The first number ranges from 0 - 6. This refers to the level of protection against solid foreign bodies such as dust.
• The second number ranges from 0 - 8. This refers to the level of protection against water.
The higher the number, the better the protection. For example, IP44 is protected against penetration of solid objects up over 1mm and from splashes of water. An IP67 light fixture, meanwhile, is completely dust tight and can withstand temporary water immersion. Only a rating of IP68 bathroom lighting and electricals are water resistant against long periods of immersion.
The type of product that requires an IP rating in the bathroom does vary, but generally it’s anything that uses electricity. This could be any sort of lighting or exhaust fan fitted on the ceiling or wall. You need to know the minimum rating required in your chosen zone to make sure you are fitting products safely and legally in your bathroom.
IP ZONES
WHAT ARE BATHROOM IP ZONES?
Bathroom zones are areas where electrical products must offer a certain degree of protection against water. The bathroom zone number refers to the amount of water likely to be present. The lower the zone number, the higher the IP rating needs to be. For example, Zone 0 covers areas inside baths or showers. These areas must have a particular minimum IP rating that protects against water immersion - in this case, IP67.
Zone 0
Zone 0 is inside the bath or shower itself. Any fitting used in this bathroom zone must be low voltage, (max 12V) and be rated at least IP67 which is total immersion proof. (We do not currently have any fittings that are suitable for Zone 0)
Zone 1
Zone 1 is the area above the bath to a height of 2.25m from the floor. An IP65 rating is recommended.
Zone 2
Zone 2 is an area stretching 0.6m outside the perimeter of the bath and to a height of 2.25m from the floor. In these bathroom zones an IP rating of at least IP44 is required. In addition, it is good practice to consider the area around a wash basin, within a 60cm radius of any tap, to be considered as Zone 2.
OUTSIDE ZONES
‘Outside Zone’ is anywhere outside zones 0, 1, and 2 (subject to specific limits) and where no water jet is likely to be used. No IP rating is required. However, if there is a likelihood of water jets being used for cleaning purposes in Zones 1, 2 and 3, a fitting rated to a minimum IP65 must be used.
GUIDE ONLY: Refer to AZ/NZS 3000:2018. Consult a qualified electrician for interpretation of the Standards for your particular situation.
Brilliant Australia
36 Lakeview Drive, Scoresby VIC 3179 Australia www.brillianttrade.com.au
