THM SERIES FITTINGS FOR 100R14 HOSE
Engineered to meet industry standards
• Long lasting, high quality for even the toughest jobs
Crimp collars accommodate .30 and .40 walled PTFE Smoothbore
Designed to pair with our PH179, PH311, and PH313 hose, available in a variety of jacket options
Brass Female SAE Insert, nut, and collar 5/16” -6 -6 THM06AEDN06B-ASM -06 SAE 3-PC F Swivel (5/8-18) 45° seat 5/8” -12 -12 THM12AEDN12B-ASM -12 SAE 3-PC F Swivel (1-1/16-14) 45° seat 1/8” -3 -3 THM03AUSD03B-ASM -03 FJIC/SAE 3-PC (3/8-24) 3/16” -4 -4 THM04AUSD04B-ASM -04 FJIC/SAE 3-PC (7/16-20) 1/4” -5 -5 THM05AUSD05B-ASM -05 FJIC/SAE 3-PC (1/2-20) 5/16” -6 -6 THM06AUSD06B-ASM -06 FEMALE JIC 3-PC (9/16-18) 13/32” -8 -8 THM08AUSD08B-ASM -08 FJIC/SAE 3-PC (3/4-16) 1/2” -10 -10 THM10AUSD10B-ASM -10 FJIC/SAE 3-PC (7/8-14) 5/8” -12 -12 THM12AUSD12B-ASM -12 FEMALE JIC 3-PC (1-1/16-12) 7/8” -16 -16 THM16AUSD16B-ASM -16 FJIC/SAE 3-PC (1-5/16-12)
and collar
Male NPT Insert and collar 1/8” -3 1/8” THM03AMNP02B-ASM 1/8” MNPT BY -03 BARB 3/16” -4 1/8” THM04AMNP02B-ASM 1/8” MNPT BY -04 BARB 3/16” -4 1/4” THM04AMNP04B-ASM 1/4” MALE NPT BY -04 BARB 1/4” -5 1/4” THM05AMNP04B-ASM 1/4” MALE NPT BY -05 BARB 5/16” -6 1/4” THM06AMNP04B-ASM 1/4” MALE NPT BY -06 BARB 5/16” -6 3/8” THM06AMNP06B-ASM 3/8” MALE NPT BY -06 BARB 13/32” -8 3/8” THM08AMNP06B-ASM 3/8” MNPT BY -08 BARB 13/32” -8 1/2” THM08AMNP08B-ASM 1/2” MNPT BY -08 BARB 1/2” -10 1/2” THM10AMNP08B-ASM 1/2” MALE NPT BY -10 BARB 5/8” -12 3/4” THM12AMNP12B-ASM 3/4” MNPT BY -12 BARB 7/8” -16 1” THM16AMNP16B-ASM 1” MNPT BY -16 BARB

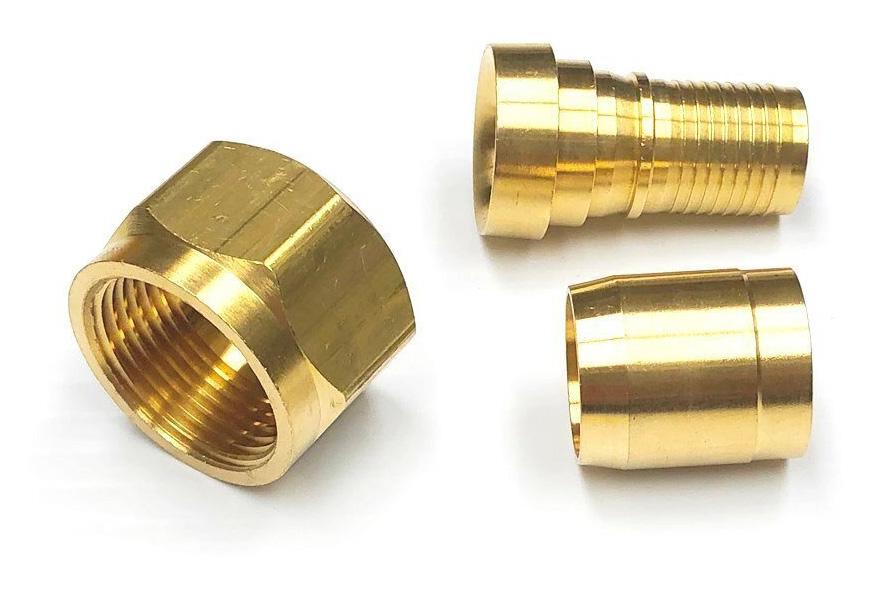

Brass Female JIC Insert,
nut,
Brass

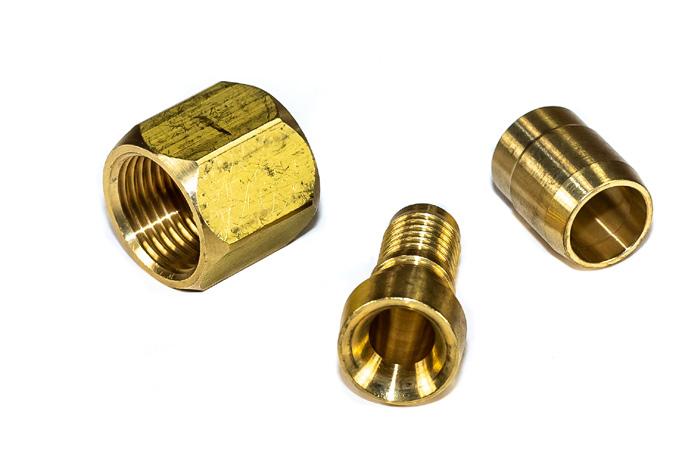

Brass Female JIC
Brass Female SAE
Fitting Hose ID Hose Size Fitting Size Part Number Description

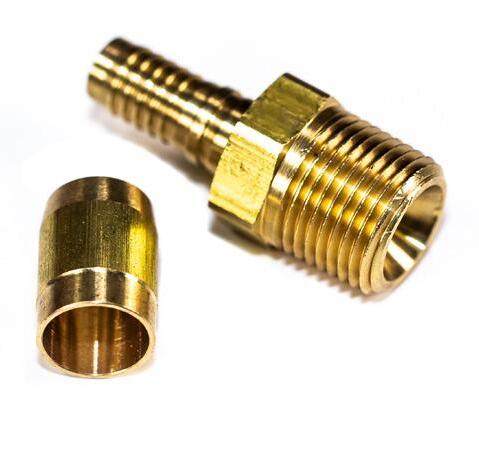

Brass Male NPT
POLYHOSE INC | POLYHOSE.US 800.270.0333 | PHUS.CASALES@POLYHOSE.COM

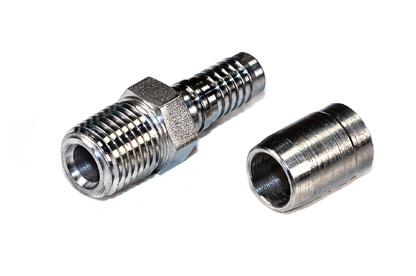

Fitting Hose ID Hose Size Fitting Size Part Number Description Stainless Steel Male NPT Insert and collar 1/8” -3 -3 THM03AUSD03J-ASM -03 FJIC/SAE (3/8-24) 3/16” -4 -4 THM04AUSD04J-ASM -04 FJIC/SAE 3-PC (7/16-20) 1/4” -5 -5 THM05AUSD05J-ASM -05 FJIC/SAE 3-PC (1/2-20) 5/16” -6 -6 THM06AUSD06J-ASM -06 FEMALE JIC 3-PC (9/16-18) 13/32” -8 -8 THM08AUSD08J-ASM -08 FJIC/SAE 3-PC (3/4-16) 1/2” -10 -10 THM10AUSD10J-ASM -10 FJIC/SAE 3-PC (7/8-14) 5/8” -12 -12 THM12AUSD12J-ASM -12 FEMALE JIC 3-PC (1-1/16-12) 7/8” -16 -16 THM16AUSD16J-ASM -16 FJIC/SAE 3-PC (1-5/16-12) Stainless Steel Female JIC Insert, nut, and collar 1/8” -3 1/8” THM03AMNP02J-ASM 1/4” MNPT BY -03 BARB 3/16” -4 1/8” THM04AMNP02J-ASM 1/8” MNPT BY -04 BARB 3/16” -4 1/4” THM04AMNP04J-ASM 1/4” MNPT BY -04 BARB 1/4” -5 1/4” THM05AMNP04J-ASM 1/4” MNPT BY -05 BARB 5/16” -6 1/8” THM06AMNP02J-ASM 1/8” MNPT BY -06 BARB 5/16” -6 1/4” THM06AMNP04J-ASM 1/4” MNPT BY -06 BARB 5/16” -6 3/8” THM06AMNP06J-ASM 3/8” MNPT BY -06 BARB 13/32” -8 3/8” THM08AMNP06J-ASM 3/8” MNPT BY -08 BARB 13/32” -8 1/2” THM08AMNP08J-ASM 1/2” MNPT BY -08 BARB 1/2” -10 1/2” THM10AMNP08J-ASM 1/2” MNPT BY -10 BARB 5/8” -12 3/4” THM12AMNP12J-ASM 3/4” MNPT BY -12 BARB 7/8” -16 1” THM16AMNP16J-ASM 1” MNPT BY -16 BARB

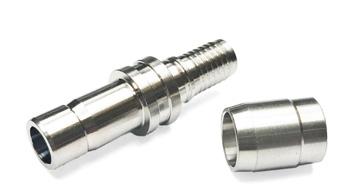

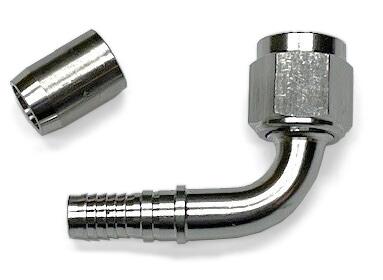

90° Female JIC Insert, nut, and collar 1/8” -3 -3 THM03CUSP03J-ASM -03 90° FEMALE JIC (3/8-24) 3/16” -4 -4 THM04CUSP04 J-ASM -04 90° FEMALE JIC (7/16-20) 5/16” -6 -6 THM06CUSP06 J-ASM -06 90° FEMALE JIC (9/16-18) Instrumentation / Tube Stub 316 SS insert + 304 SS collar 3/16” -3 1/4” THM04ATBI04K-ASM 1/4” Tube Stub by -04 barb 5/16” -6 3/8” THM06ATBI06K-ASM 3/8” Tube Stub by -06 barb 13/32” -8 1/2” THM08ATBI08K-ASM 1/2” Tube Stub by -08 barb Stainless Steel Female JIC 90° Female JIC Instrumentation / Tube Stub Stainless Steel Male NPT POLYHOSE INC | POLYHOSE.US 800.270.0333 | PHUS.CASALES@POLYHOSE.COM
