FA SAFETY & CONTROLS CATÁLOGO DESIGN DANIEL HERRERA G.

Safety & Controls

MONITORS

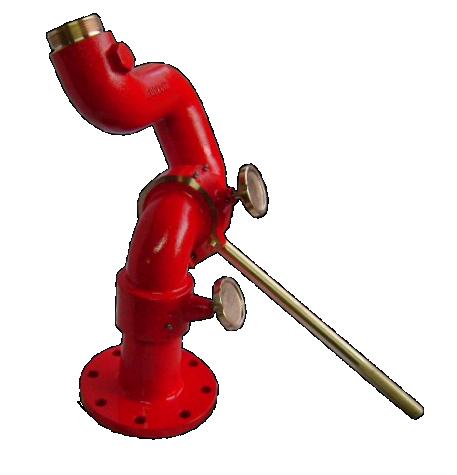

Spectrum FA Monitor

Safety & Controls

Designed for use in corrosive environments that require all bronze monitors. Equipped with a safe lifting brake, brass tiller bar control handle and bronze handles. Features top-grade water pipes providing excellent reach for water and foam streams. “Safety” red finish.

Model: F AM - 038

Inlet: 4" 150# Flange

Outlet Size: 2 ½” NHST (M) Rigid

Waterway: 3 Inches

Vertical Articulation: 80°

Horizontal Articulation: 360º

Flow @ 100 PSI: 1250 GPM

Safety & Controls

MONITORS

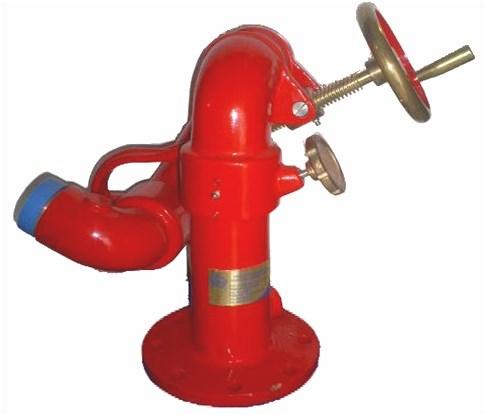

FA Star I Monitors

FA Star II Monitors

Safety & Controls

Designed for use in corrosive environments that require the dependability of all bronze monitors. Vertical control through handwheel/worm gear operation.

Model: F AM - 136

Inlet: 3" 150# Flange

Outlet Size: 2 ½” NHST (M) Rigid

Waterway: 3 Inches

Vertical Articulation: 90°

Horizontal Articulation: 360º

Flow @ 100 PSI: 1000 GPM

Model: F AM - 138

Inlet: 4" 150# Flange

Outlet Size: 2 ½” NHST (M) Rigid

Waterway: 3 Inches

Vertical Articulation: 90°

Horizontal Articulation: 360º

Flow @ 100 PSI: 1000 GPM

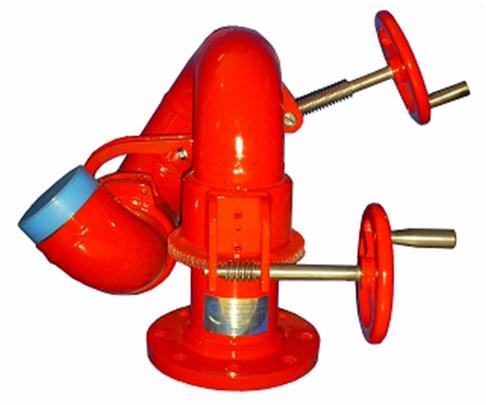

Designed for use in corrosive environments that require the dependability of all bronze monitors. Dual handwheel/worm gear operation for vertical and horizontal movement.

Model: F AM - 238

Inlet: 4" 150# Flange

Outlet Size: 2 ½” NHST (M) Rigid

Waterway: 3 Inches

Vertical Articulation: -10º & +90º

Horizontal Articulation: 360º

Flow @ 100 PSI: 1000 GPM

Model: F AM - 248

Inlet: 4" 150# Flange

Outlet Size: 3 ½” NHST (M) Rigid

Waterway: 4”

Vertical Articulation: -10º & +90º

Horizontal Articulation: 360º

Flow @ 100 PSI: 2000 GPM

NOZZLES

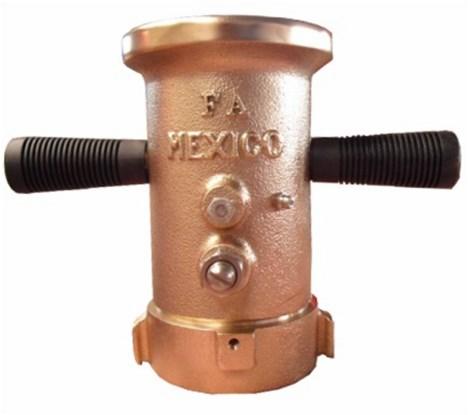

FA México Nozzle

Safety & Controls

Manufactured in SAE40 bronze. Outlet fully adjustable from straight stream to full fog. Standard jam nuts locks water or foam stream at desired pattern. Polished bronze finish.

Model FAM - 500

Inlet: 2 1/2" NHST (H)

Swivel

Reach: 50m (straight)

Flow @ 110 PSI: 500

GPM

BIG TEE Nozzle

Designed for use in corrosive environments that require the dependability of all bronze monitors. Dual handwheel/worm gear operation for vertical and horizontal movement.

Inlet: 2 1/2" NHST (H)

Rigid

Reach:40m (straight)

Flow @ 100 PSI: 350

GPM

Inlet: 2 1/2" NHST

(H) Rigid

Reach:45m (straight)

Flow @ 100 PSI: 500

GPM

Inlet: 2 1/2" NHST (H)

Rigid

Reach:50m (straight)

Flow @ 100 PSI: 700

GPM

Model: BTE-350

Model: BTE-500

Model: BTE -700

NOZZLES

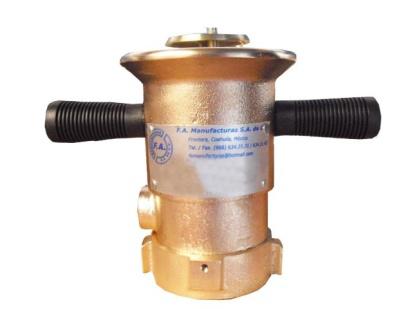

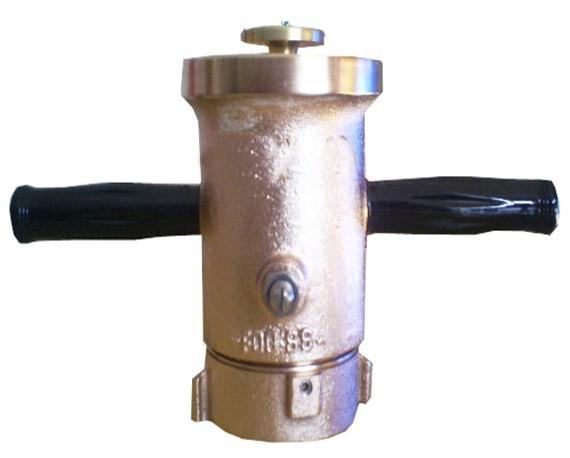

Hydrofoam Body Nozzels

Safety & Controls

High-volume, industrial-grade nozzle. Manufactured in SAE40 bronze. Outlet fully ajustable from straight stream to full fog. Standard jam nuts locks water or foam stream at desired pattern.

Polished bronze finish.

Model: FAM - 0M5

Inlet: 2 1/2" NHST (H) Swivel

Foam Inlet : 1” NPT (M) Rigid

Proportioning: 3%-6%

Reach: 40m (straight)

Flow @ 100 PSI: 500 GPM

Safety & Controls

NOZZLES

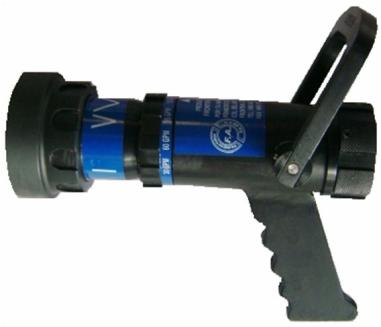

1 ½ Universal Aluminium Nozzle

Safety & Controls

FA Firefighting quick closure nozzles. Control operation from straight stream to fog at different gallonages, designed for use in fire hoses instead of traditional valves. Manufactured in hard-anodized A356 or A613 Alluminium a//o electrostatic paint finish with stainless steel bolting and balls for enhanced durability.

Model FAM -U A1.5

Operating pressure: 75 @ 100 PSI

Hydrostatic Test: @ 250 PSI

Inlet: 1½” H(NHST) Swivel

Selectable flow: 30, 60, 95 & 125 GPM

Safety & Controls

FOAM CHAMBERS

Foam Chambers

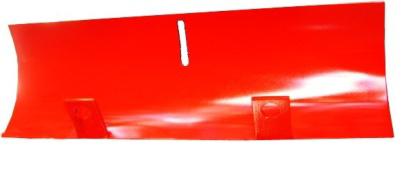

Manufactured in carbon steel. Consist of foam expansion chamber and integral foam maker including a straight or divided-type deflector, 304 stainless steel orifice plate, vapor seal calibrated at a proper thickness with rubber seat. “Safety” red paint finish resistant to marine environments.

Accessories

FOAM MAKERS

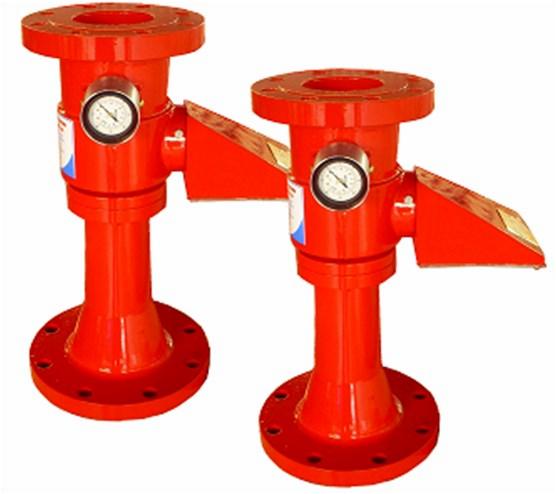

FMB High Back/pressure Foam Makers

Safety & Controls

Manufactured in A-356 Aluminium. Used for proportioning foam in floating-roof tanks from the inside. Pressure gauge included for accurate volume measurement.

High protection and “Safety” red paint finish resistant to marine environments.

FMB-45A FMB-50A

FMB-55A

EDUCTORS

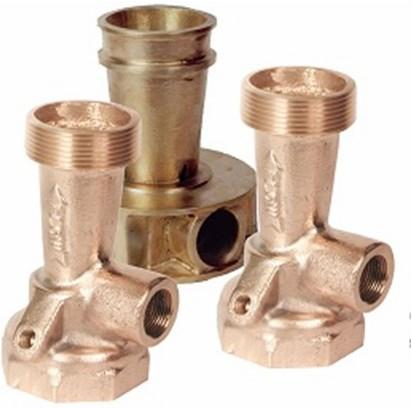

Spectrum 1 1/2”

Eductors

In-line Venturi-type eductor. Manufactured in SAE40 bronze. Designed for introducing a controlled foam concentrate stream into a pressurized water stream.

They could be used either in fixed or portable systems where a proper water pressure is available.

MODEL Inlet Foam

Inlet Rigid

Outlet Size

Flow @ 150 PSI

RATIO CONTROLLERS

Ratio Controllers

Ratio controller- type proportioners. Manufactured in SAE40 bronze. Designed for metering a proper amount of foam concentrate and introducing it into a pressurized water stream, within a wide range of flows and pressures. Polished bronze finish.

RATIO CONTROLLERS

Model: FAM – PO40AC

Safety & Controls

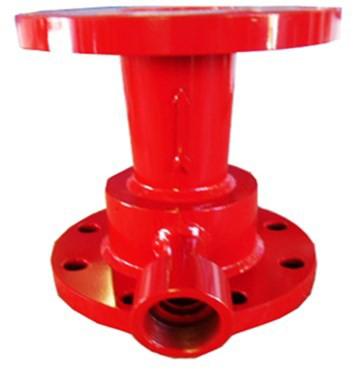

Proportioner manufactured in carbon steel. Designed for metering a proper quantity of foam concentrate and introducing it into a pressurized water stream within a wide range of flows and pressures. The body of the controller is clearly marked with a flow direction arrow. Finish: “Safety” red paint.

Inlet: 4” Flanged

Foam Inlet: 1½” NPT (H) Rigid Thread

Outlet Size: 4” Flanged

Model: FAM – PO40-3AC

Inlet: 4” Flanged

Foam Inlet: 1½” NPT (H) Rigid Thread

Outlet Size: 4” Flanged

Proportioner manufactured in carbon steel. Designed for metering a proper quantity of foam concentrate and introducing it into a pressurized water stream, within a wide range of flows and pressures. The body of the controller is clearly marked with a flow direction arrow.

Inlet: 4” Flanged

Foam Inlet: 1½” NPT (H) Rigid Thread

Outlet Size: 3” Flanged

Foam Proportion : 1%, 3% & 6%

(Based on restrictors)

Flow: 300 – 1250 GPM @ 100 PSI

Largo: 10”

FOAM CART

Safety & Controls

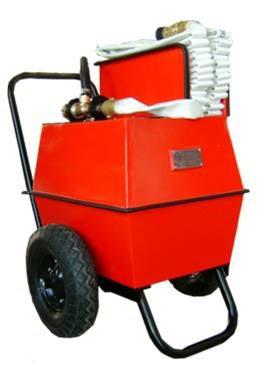

Foam Cart

36-gallon foam cart. Manufactured in fiberglass, a 1½” x 30m length in-line 120 gpm eductor and a 120 gpm universal nozzle. Its easy mobility and handling make it a highly effective unit for fire suppression involving flammable liquids.

Safety & Controls

MODEL

CABINETS

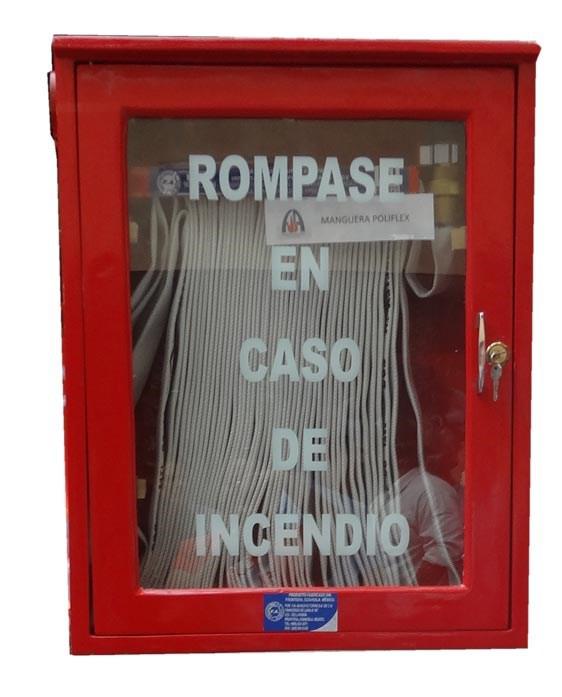

Complete Cabinet Assembly

Hose and Accessories

Model Length Height Depth Manuf. material

Fire hose cabinet manufactured in fiberglass, sheet and stainless steel sheet

- Nipple

- 1 1/2” angular globe valve

- Rack (unfolded or folding) manufactured as original equipment, not improvised.

- Fire hose 1 1/2” x 30m

- 80 GPM fog nozzle

Safety & Controls Safety & Controls

- Bronze universal wrench

- “Safety” red paint finish

Stainless steel sheet

FIRE HYDRANTS

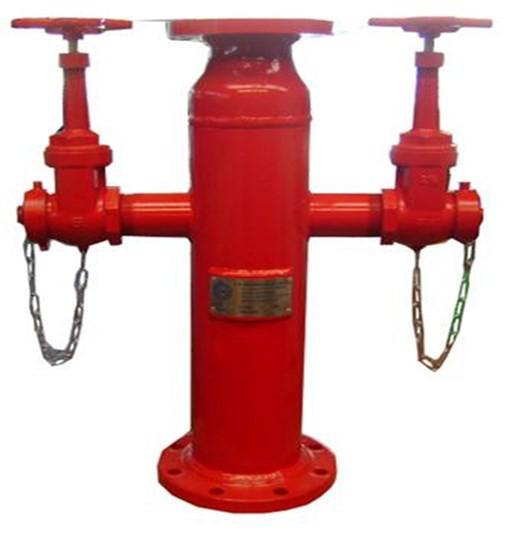

Monitor Hydrant I

Safety & Controls

Monitor hydrant assembly with 6” flanged inlet and 4” flanged outlet featuring two 2½” outlets including 2 hose valves with female cap & chain

Model: F AM – H6M 4

Body: 8” ASTM A53 schedule 40 seamless carbon steel pipe

Inlet Flange: 6” SO #150F.F flange

Outlet Flange: 4” SO #150F.F flange

Finish: "Safety” red paint

Monitor Hydrant I

Monitor hydrant assembly designed with 8” flanged inlet and 4” flanged outlet featuring two 2½” outlets including 2 hose valves with female cap & chain

Model: F A M – H8 M4

Body: 8” ASTM A53 schedule 40 seamless carbon steel pipe

Inlet Flange: SO #150F.F flange

Outlet Flange: 4” SO #150F. flange

Finish: “Safety” red paint

Safety & Controls

SIAMESE

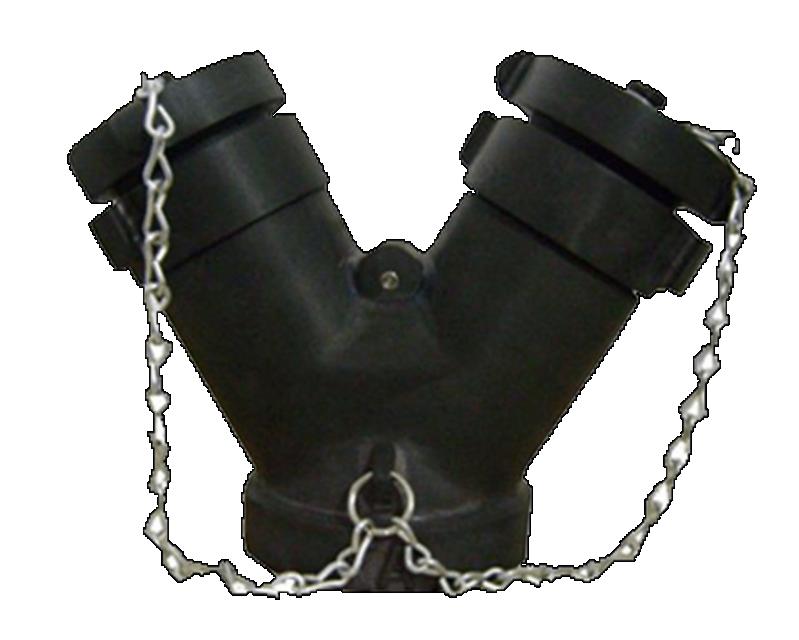

FA Siamese

Safety & Controls

4” NPT (H) diameter rigid inlet coupling siamese and two 2 1/2” NHST (H) swivel outlets. Furnished with caps and chains manufactured in hard- anodized A613 Aluminium.

Safety & Controls

MODEL

Length CC Inlet

Outlet Size

Weight

FAM-OTS4A

9 Inches

4” NPT (H) Rigid

2 1/2” NHST (H) Swivel

3.800 Kg
