Who we are…

In FA Safety & Controls, we have over 30 years of experience dedicating ourselvs to the desing and manufacture of specialized components for the firefighting networks, to secure and protect human and material assets.

Our mission is to provide products of the highest quality and contribute to the creation of a culture and awareness of fire prevention and firefighting.

We comply with the standars of PEMEX; NFPA and UL*

*(certification pending)

Safety & Controls

OUR PRODUCTS

Our main products are Foam Chambers, compatible with all the concentrates, foams existing on the market. Also, we have a range of complementary products such as:

Monitors

Nozzels

Eductors

Ratio Contollers

Spectrum Monitors

Hydrants

Cabinets

Foam Makers

Safety & Controls Safety & Controls

Safety & Controls

INDUSTRY AND SECTORS

Safety & Controls

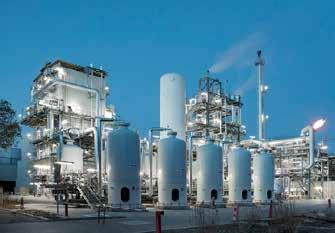

Refining and Petrochemistry

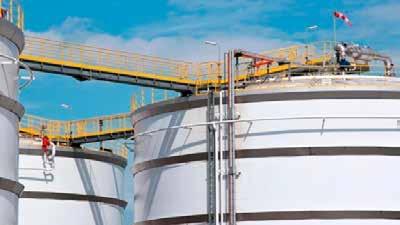

Fuel Storage Plants

Terrestrial and Marine Oil Platforms

Hospitals and Health Centers

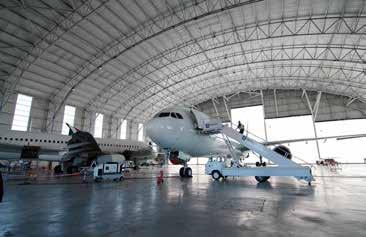

Industry Shopping Malls Hangars

INDUSTRY AND SECTORS

Excellent Quiality and Price

Market Knowledg

Specialized Products

Safety & Controls

Compliance and Delivery Time

Safety & Controls

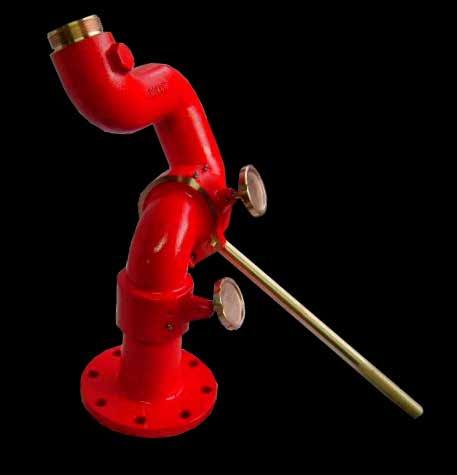

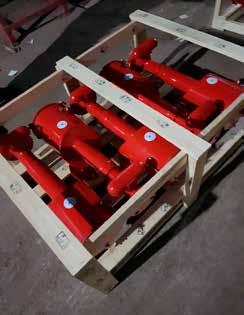

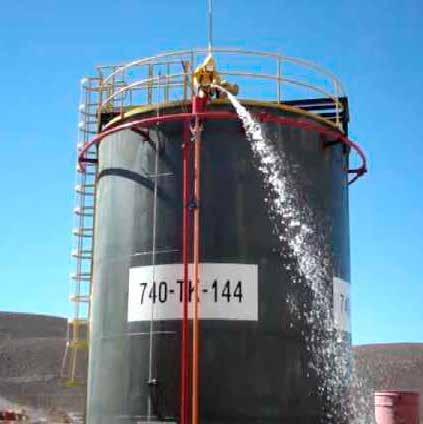

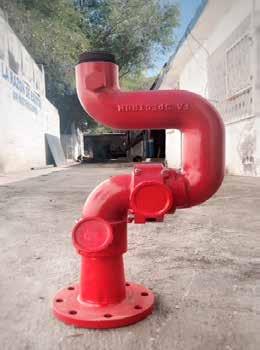

MONITORS

Spectrum FA Monitor

Safety & Controls

Designed for use in corrosive environments that require all bronze monitors. Equipped with a safe lifting brake, brass tiller bar control handle and bronze handles. Features top-grade water pipes providing excellent reach for water and foam streams. “Safety” red finish.

Model: F AM - 038

Inlet: 4" 150# Flange

Outlet Size: 2 ½” NHST (M) Rigid

Waterway: 3 Inches

Vertical Articulation: 80°

Horizontal Articulation: 360º

Flow @ 100 PSI: 1250 GPM

Safety & Controls

MONITORS

FA Star I Monitors

Safety & Controls

Designed for use in corrosive environments that require the dependability of all bronze monitors. Vertical control through handwheel/worm gear operation.

Model: F AM - 136

Inlet: 3" 150# Flange

Outlet Size: 2 ½” NHST (M) Rigid

Waterway: 3 Inches

Vertical Articulation: 90°

Horizontal Articulation: 360º

Flow @ 100 PSI: 1000 GPM

FA Star II Monitors

Model: F AM - 138

Inlet: 4" 150# Flange

Outlet Size: 2 ½” NHST (M) Rigid

Waterway: 3 Inches

Vertical Articulation: 90°

Horizontal Articulation: 360º

Flow @ 100 PSI: 1000 GPM

Designed for use in corrosive environments that require the dependability of all bronze monitors. Dual handwheel/worm gear operation for vertical and horizontal movement.

Model: F AM - 238

Inlet: 4" 150# Flange

Outlet Size: 2 ½” NHST (M) Rigid

Waterway: 3 Inches

Vertical Articulation: -10º & +90º

Horizontal Articulation: 360º

Flow @ 100 PSI: 1000 GPM

Model: F AM - 248

Inlet: 4" 150# Flange

Outlet Size: 3 ½” NHST (M) Rigid

Waterway: 4”

Vertical Articulation: -10º & +90º

Horizontal Articulation: 360º

Flow @ 100 PSI: 2000 GPM

Safety & Controls Safety & Controls

NOZZLES

FA México Nozzle

BIG TEE Nozzle

Safety & Controls

Manufactured in SAE40 bronze. Outlet fully adjustable from straight stream to full fog. Standard jam nuts locks water or foam stream at desired pattern. Polished bronze finish.

Model FAM - 500

Inlet: 2 1/2" NHST (H)

Swivel

Reach: 50m (straight)

Flow @ 110 PSI: 500

GPM

Designed for use in corrosive environments that require the dependability of all bronze monitors. Dual handwheel/worm gear operation for vertical and horizontal movement.

Model: BTE-350

Inlet: 2 1/2" NHST (H)

Rigid

Reach:40m (straight)

Flow @ 100 PSI: 350

GPM

Model: BTE-500

Inlet: 2 1/2" NHST

(H) Rigid

Reach:45m (straight)

Flow @ 100 PSI: 500

GPM

Model: BTE -700

Inlet: 2 1/2" NHST (H)

Rigid

Reach:50m (straight)

Flow @ 100 PSI: 700

GPM

Safety & Controls Safety & Controls

NOZZLES

Hydrofoam Body Nozzels

Safety & Controls

High-volume, industrial-grade nozzle. Manufactured in SAE40 bronze. Outlet fully ajustable from straight stream to full fog. Standard jam nuts locks water or foam stream at desired pattern. Polished bronze finish.

Model: FAM - 0M5

Inlet: 2 1/2" NHST (H) Swivel

Foam Inlet : 1” NPT (M) Rigid

Proportioning: 3%-6%

Reach: 40m (straight)

Flow @ 100 PSI: 500 GPM

Safety & Controls

NOZZLES

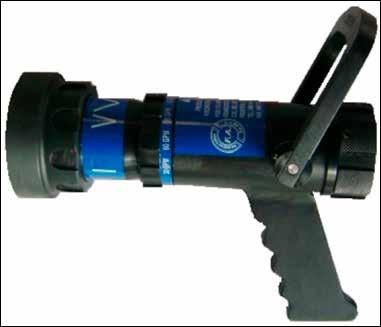

1 ½ Universal Aluminium Nozzle

Safety & Controls

FA Firefighting quick closure nozzles. Control operation from straight stream to fog at different gallonages, designed for use in fire hoses instead of traditional valves. Manufactured in hard-anodized A356 or A613 Alluminium a//o electrostatic paint finish with stainless steel bolting and balls for enhanced durability.

Model FAM -U A1.5

Operating pressure: 75 @ 100 PSI

Hydrostatic Test: @ 250 PSI

Inlet: 1½” H(NHST) Swivel

Selectable flow: 30, 60, 95 & 125 GPM

Safety & Controls

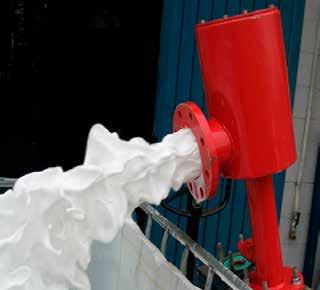

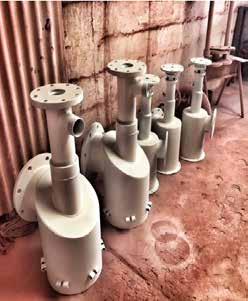

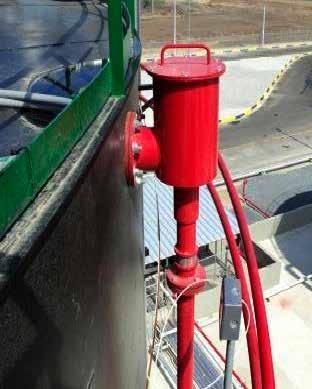

FOAM CHAMBERS

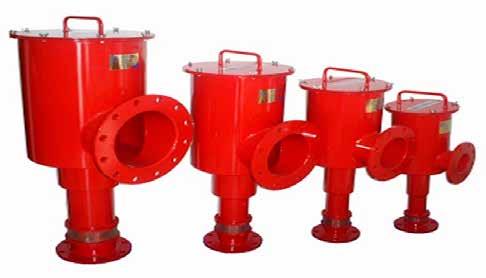

Foam Chambers

Manufactured in carbon steel. Consist of foam expansion chamber and integral foam maker including a straight or divided-type deflector, 304 stainless steel orifice plate, vapor seal calibrated at a proper thickness with rubber seat. “Safety” red paint finish resistant to marine environments.

Accessories

INLET 2 1/2” 150# FLANGE 3” 150# FLANGE 4” 150# FLANGE 6” 150# FLANGE OUTLET SIZE 4” 150# FLANGE 6” 150# FLANGE 8” 150# FLANGE 10” 150# FLANGE FLOW MIN/ MAX 50 / 150 GPM 100 / 300 GPM 180 / 625 GPM 390 / 1050GPM MODEL FA-B01

FA-B03 FA-B04

FA-B02

Orifice Plate Deflector Vapor Seal Safety & Controls Safety & Controls

FOAM MAKERS

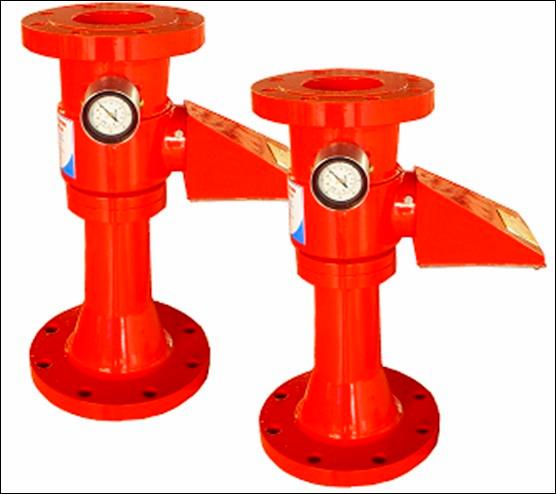

FMB High Back/pressure Foam Makers

Safety & Controls

Manufactured in A-356 Aluminium. Used for proportioning foam in floating-roof tanks from the inside. Pressure gauge included for accurate volume measurement.

High protection and “Safety” red paint finish resistant to marine environments.

INLET 4’’ 150# Flange 4’’ 150# Flange 4’’ 150# Flange 4’’ 150# Flange 4’’ 150# Flange OUTLET SIZE 6’’ 150# Flange 6’’ 150# Flange 6’’ 150# Flange 6’’ 150# Flange 6’’ 150# Flange Flow @ 150 PSI 350 GPM 400GPM 450GPM 500GPM 550GPM MODEL FMB-35A FMB-40A

FMB-45A FMB-50A FMB-55A

Safety & Controls

EDUCTORS

Spectrum 1 1/2”

Eductors

In-line Venturi-type eductor. Manufactured in SAE40 bronze. Designed for introducing a controlled foam concentrate stream into a pressurized water stream. They could be used either in fixed or portable systems where a proper water pressure is available.

MODEL Inlet Foam

Inlet Rigid

Outlet Size

Flow @ 150 PSI

FAM-E1506 1 1/2” NHST (H) Swivel 1 1/4” (M) -12 UNF 1 1/2” NHST (M) Rigid 60 GPM FAM-E1509 1 1/2” NHST (H) Swivel 1 1/4” (M) -12 UNF Rigid 1 1/2” NHST (M) Rigid 95 GPM FAM-E1512 1 1/2” NHST (H ) Swivel 1 1/4” (M) -12 UNF Rigid 1 1/2” NHST (M) Rigid 125 GPM

Controls Safety

Safety &

& Controls

RATIO CONTROLLERS

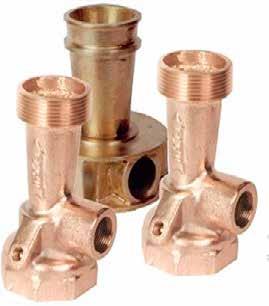

Ratio Controllers

Safety

&

INLET 2 1/2” NPT (F) Rigid 3” Falange Face 4”Falange Face 6” Falange Face 8” Falange Face FOAM INLET 1” NPT (H) Rigid 1 1/4” NPT (H) Rigid 1 1/2” NPT (H) Rigid 2” NPT (H) Rigid 2 1/2” NPT (H) Rigid OUTLET SIZE 2 1/2” NPT (M) Rigid 3” Flange face 4” Flange face 6” Flange face 8” Flange face Flujo @ 100 PSI 350 GMP 100-700 GMP 300-1250 GMP 500-2500 GMP 950-4500GMP MODEL FAM-P025 FAM-P030 FAM-P040 FAM-P060 FAM-P080

Ratio controller- type proportioners. Manufactured in SAE40 bronze. Designed for metering a proper amount of foam concentrate and introducing it into a pressurized water stream, within a wide range of flows and pressures. Polished bronze finish. Controls Safety & Controls

RATIO CONTROLLERS

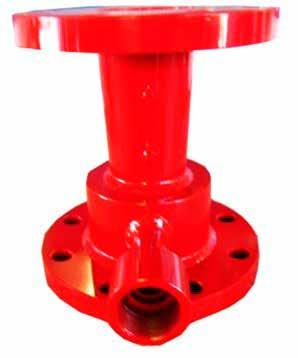

Model: FAM – PO40AC

Safety & Controls

Proportioner manufactured in carbon steel. Designed for metering a proper quantity of foam concentrate and introducing it into a pressurized water stream within a wide range of flows and pressures. The body of the controller is clearly marked with a flow direction arrow. Finish: “Safety” red paint.

Inlet: 4” Flanged

Foam Inlet: 1½” NPT (H) Rigid Thread

Outlet Size: 4” Flanged

Model: FAM – PO40-3AC

Inlet: 4” Flanged

Foam Inlet: 1½” NPT (H) Rigid Thread

Outlet Size: 4” Flanged

Proportioner manufactured in carbon steel. Designed for metering a proper quantity of foam concentrate and introducing it into a pressurized water stream, within a wide range of flows and pressures. The body of the controller is clearly marked with a flow direction arrow.

Inlet: 4” Flanged

Foam Inlet: 1½” NPT (H) Rigid Thread

Outlet Size: 3” Flanged

Foam Proportion : 1%, 3% & 6%

(Based on restrictors)

Flow: 300 – 1250 GPM @ 100 PSI

Largo: 10”

Safety & Controls Safety & Controls

FOAM CART

Foam Cart

Safety & Controls

36-gallon foam cart. Manufactured in fiberglass, a 1½” x 30m length in-line 120 gpm eductor and a 120 gpm universal nozzle. Its easy mobility and handling make it a highly effective unit for fire suppression involving flammable liquids.

Safety & Controls

MODEL

41

CAPACITY Hose Eductor Universal

36

1 1/2” NHST

30

120

FAM-CE36 36 Inches 31 Inches

Inches

nozzle

Gallons

x

m

GPM @

LENGTH WIDTH HEIGHT

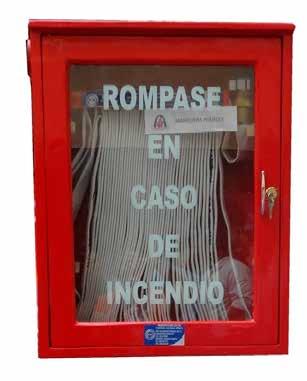

CABINETS

Complete Cabinet Assembly

Hose and Accessories

Safety & Controls

Fire hose cabinet manufactured in fiberglass, sheet and stainless steel sheet

- Nipple

- 1 1/2” angular globe valve

- Rack (unfolded or folding) manufactured as original equipment, not improvised.

- Fire hose 1 1/2” x 30m

- 80 GPM fog nozzle

- Bronze universal wrench

- “Safety” red paint finish

Model Length Height Depth Manuf. material

0.59 Meters

0.76 Meters

0.17 Meters

Stainless steel sheet

FAM-GM1-F

Fiberglass FAM-GM1-L

Sheet FAM-GM1-ACI

0.59 Meters 0.76 Meters 0.17 Meters

Safety & Controls

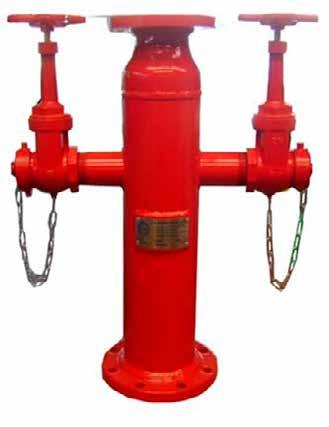

FIRE HYDRANTS

Monitor Hydrant I

Safety & Controls

Monitor hydrant assembly with 6” flanged inlet and 4” flanged outlet featuring two 2½” outlets including 2 hose valves with female cap & chain

Model: F AM – H6M 4

Body: 8” ASTM A53 schedule 40 seamless carbon steel pipe

Inlet Flange: 6” SO #150F.F flange

Outlet Flange: 4” SO #150F.F flange

Finish: "Safety” red paint

Monitor Hydrant I

Monitor hydrant assembly designed with 8” flanged inlet and 4” flanged outlet featuring two 2½” outlets including 2 hose valves with female cap & chain

Model: F A M – H8 M4

Body: 8” ASTM A53 schedule 40 seamless carbon steel pipe

Inlet Flange: SO #150F.F flange

Outlet Flange: 4” SO #150F. flange

Finish: “Safety” red paint

Safety & Controls

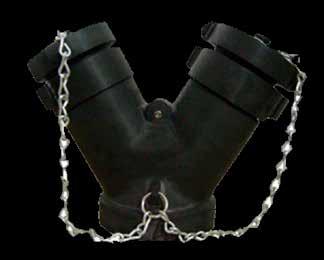

SIAMESE

FA Siamese

Safety & Controls

4” NPT (H) diameter rigid inlet coupling siamese and two 2 1/2” NHST (H) swivel outlets. Furnished with caps and chains manufactured in hard- anodized A613 Aluminium.
