M2MFD Internal & External Brochure

Internal & External M2MFD Steel fire doorsets, approved by Efectis for up to 240 mins

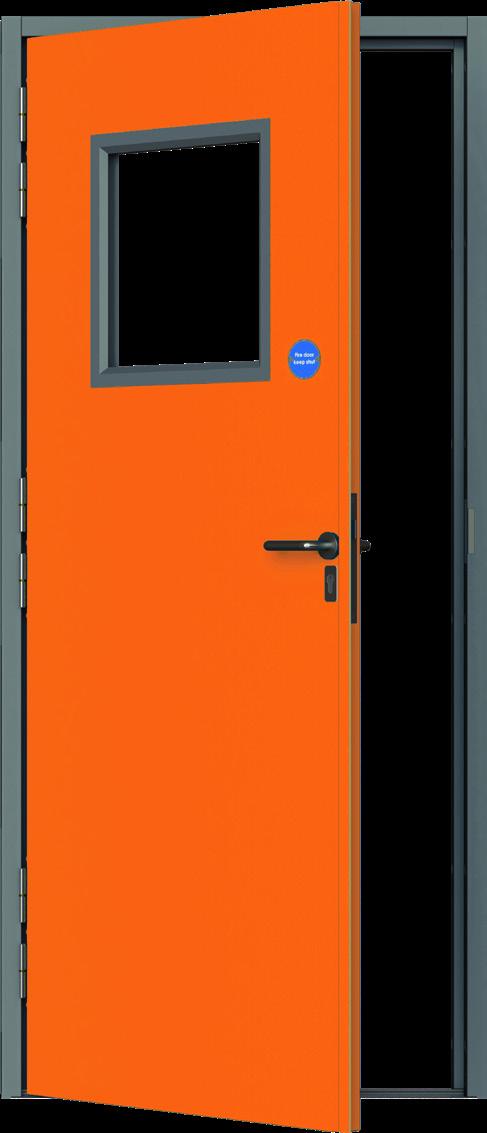

About M2MFD Bradbury Group’s M2MFD range offers an extensive series of fire doors, available with varying levels of security and a wide range of options to suit application and customer requirements.

M2M doorsets are available with a fire rating up to FD240, providing integrity fire resistance for up to 240 minutes, certified by Efectis to EN 14351-1 & EN 16034 (certificate numbers CE: 1812-CPR-1936; UKCA: 2822-UKCA-CPR-0020) for external application and “Efectis Certified” third party certification scheme (certificate number EFR-2506-0450) for internal application.

FD

Fire Rated

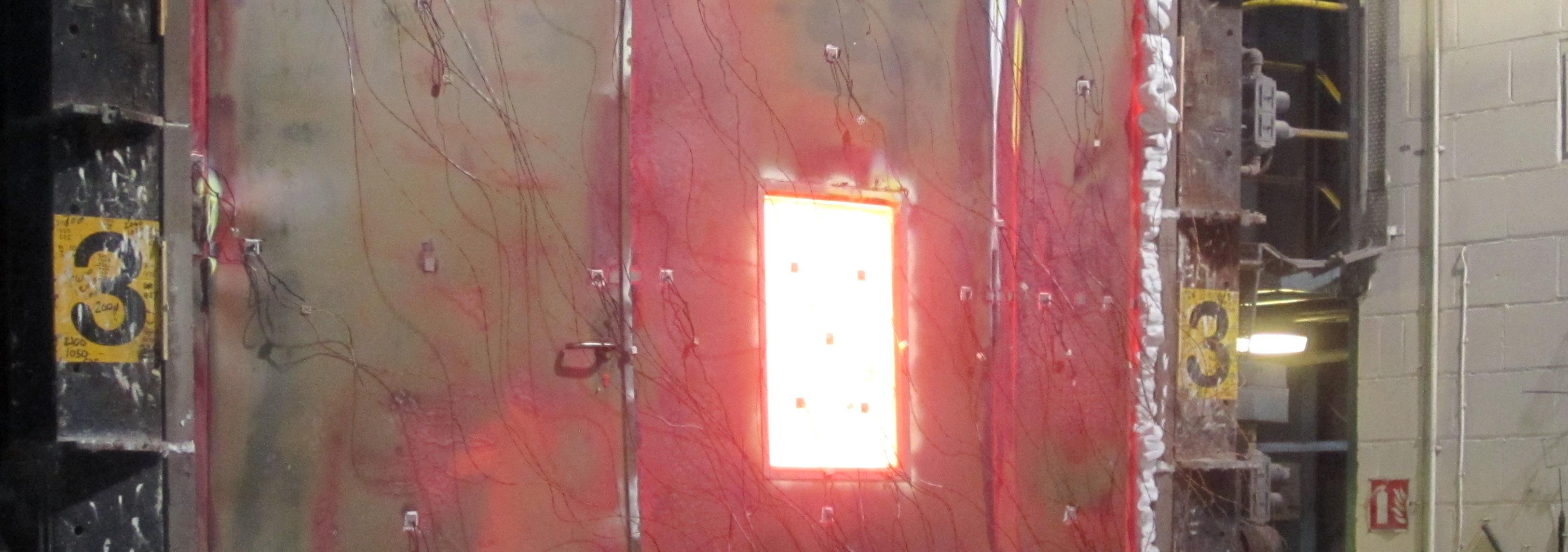

To achieve this fire rating, the doors were subjected to a furnace test, withstanding temperatures of up 1100°C for a period in excess of four hours.

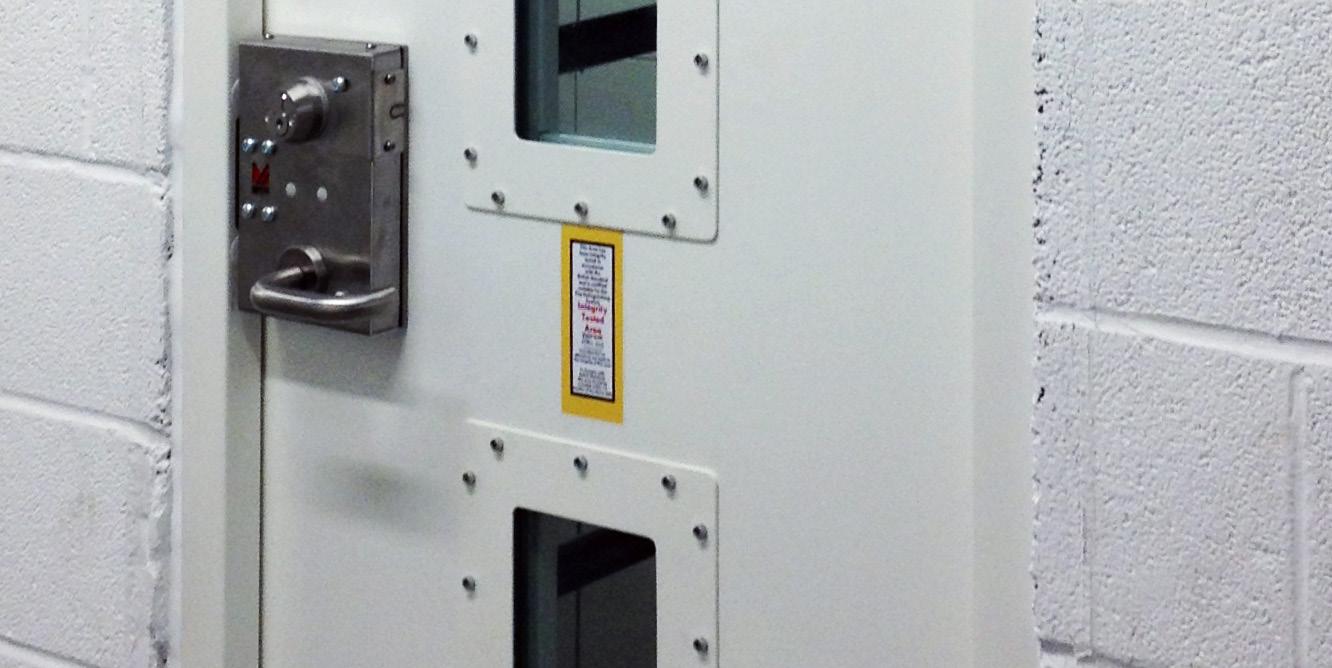

Combining solutions for fire and security, the M2MFD range includes doorsets with LPCB certification to LPS 1175 Security Rating 2, 3 and 4. Bradbury Group also offers a variety of fire doors which are Secured by Design approved.

M2MFD

CERTIFICATION

M2M2FD

M2M3FD

M2M4FD

Cert No. 312

LPS 1175: Issue 7 Security Rating 2 Cert no. 312f

LPS 1175: Issue 7 Security Rating 3 Cert no. 312e

LPS 1175: Issue 7 Security Rating 4 Cert no. 312e

Police Preferred Specification

Police Preferred Police Preferred Specification Specification

Upto 42db single Upto 40db Double

Upto 42db single Upto 40db Double

Upto 42db single Upto 40db Double

CE/UKCA

CE/UKCA

CE/UKCA

OPTIONS & EXTRAS

M2M2FD

M2M3FD

M2M4FD

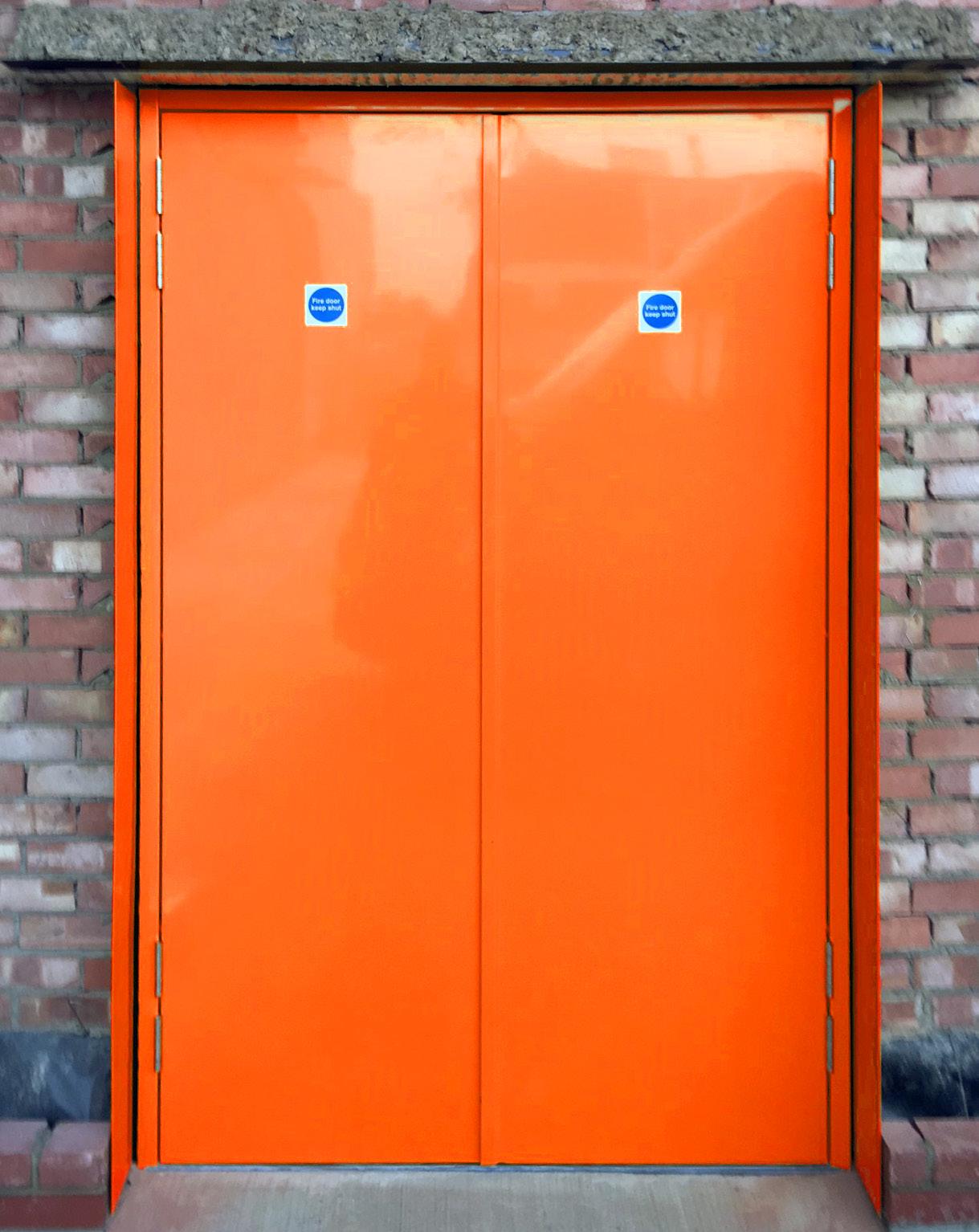

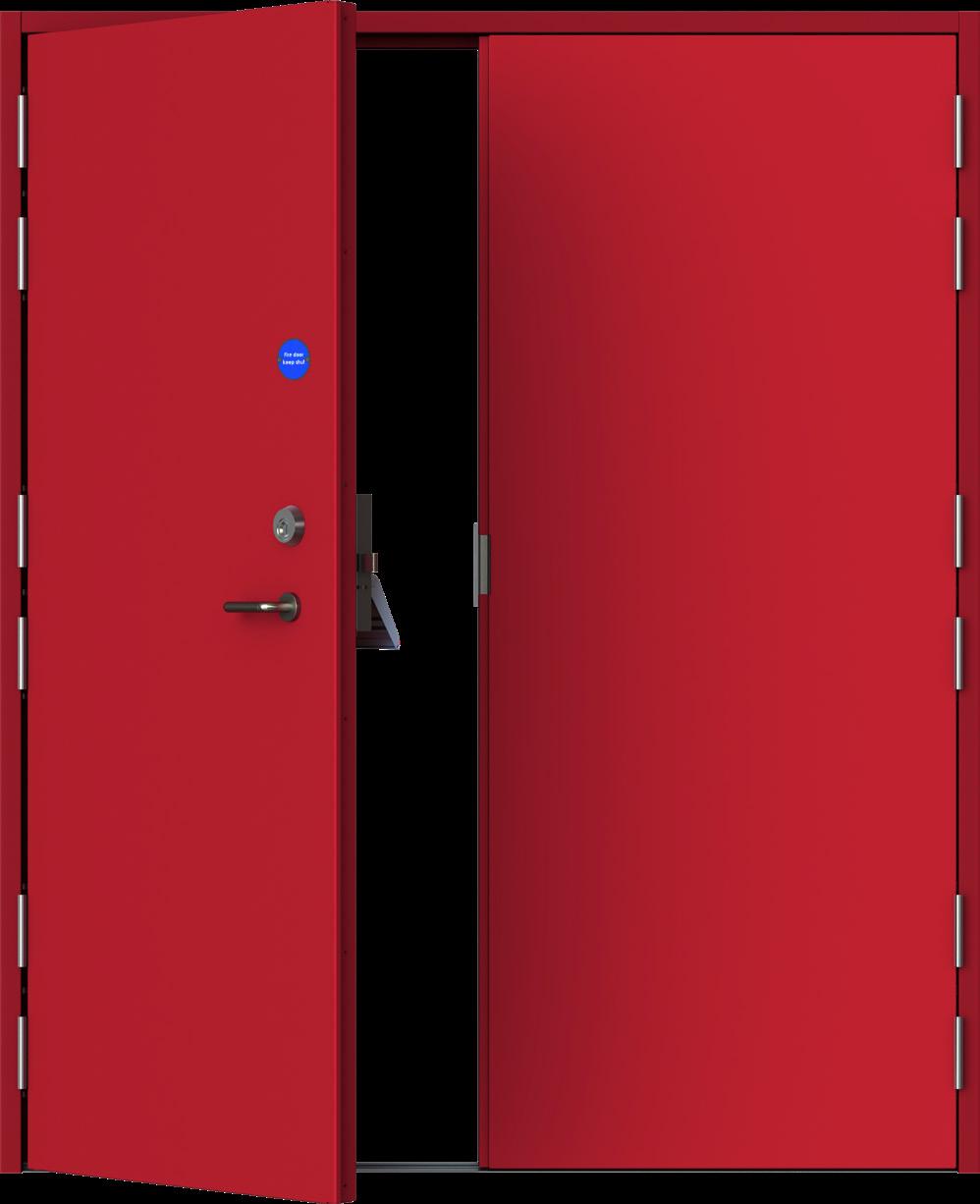

Single / Double Doorset

Single & Double

Single & Double

Single & Double

Inward / Outward Opening

Inward & Outward

Inward & Outward

Inward(Single Only) & Outward

Side Panel Over Panels Vision Panels Louvres

✓ ✓ ✓ ✓

✓ ✓ ✓

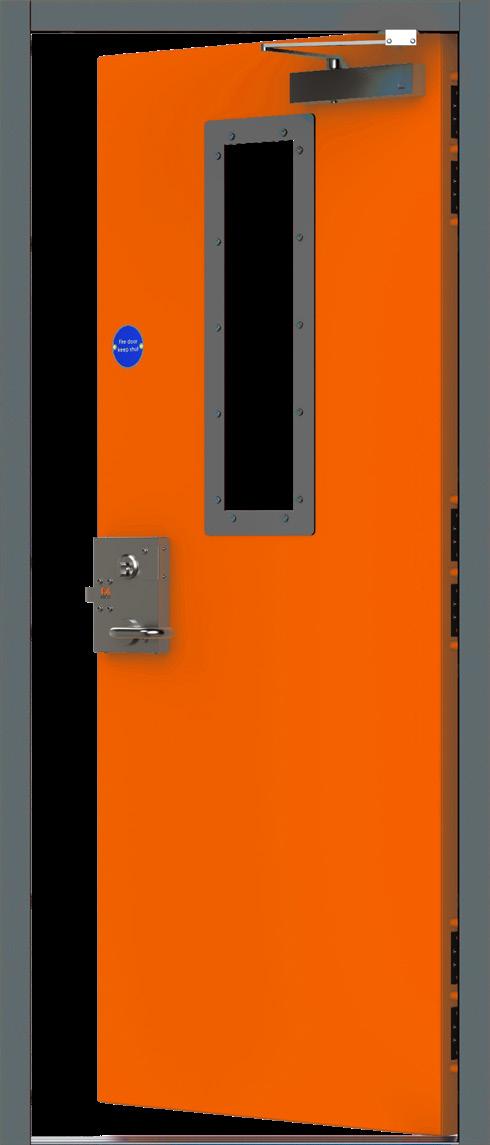

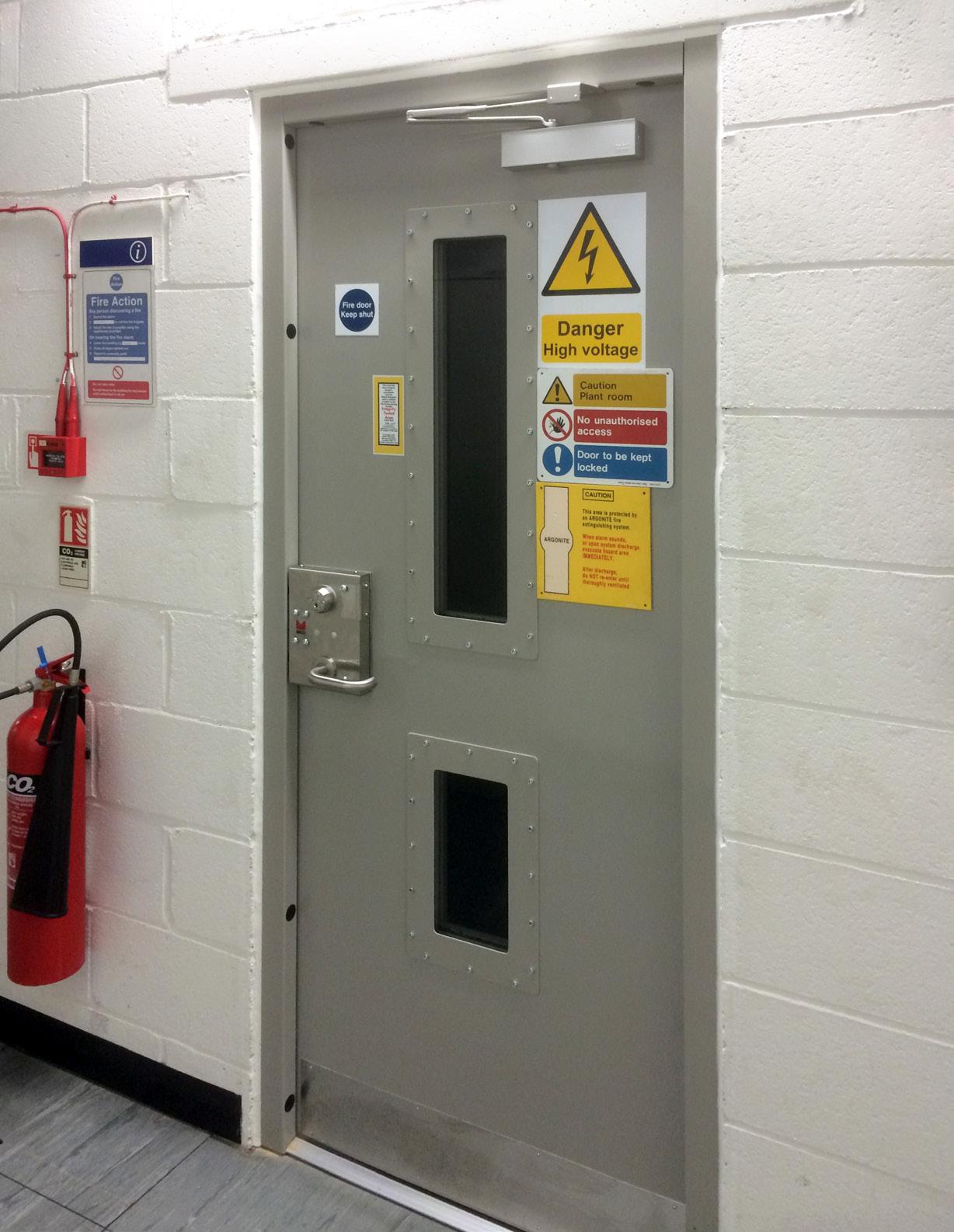

HARDWARE A wide range of locking options and door furniture is available to suit application, including personnel, fire exit and substation configurations. Our M2MFD doorsets are all fitted with approved door closers to comply with fire safety regulations.

✓ ✓ ✓ ✓

FINISH All of our fire doors are either primed or polyester powder coated in a wide range of high quality colours and finishes, as standard. Wood-grain effects, Extra Life powder coating warranty, and marine grade options are also available.

INSTALLATION Doors to be fully factory assembled, and must be installed by a Bradbury Group specialist or approved installer to guarantee integrity of the doorsets.

With over 25 years’ experience in the survey and installation of security products, Bradbury Groups team of accredited installation engineers provide a nationwide fitting service.

For more information on Bradbury Group doors, scan or click the QR code.

+44 (0)1724 271999 enquiries@bradbury-group.com 6 Atkinsons Way Foxhills Industrial Estate Scunthorpe North Lincolnshire DN15 8QJ United Kingdom www.bradbury-group.com

Fire Rated

M2MFD
