SYSTEM C? NATURALLY!
Natural supply combined with intelligent forced extraction

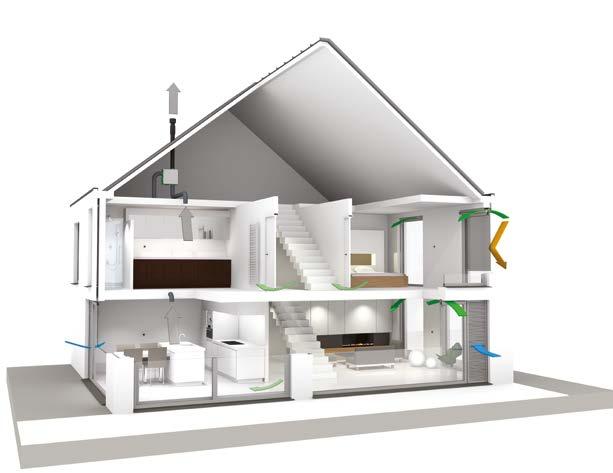

Since its inception Duco Ventilation & Sun Control has opted for ventilating in accordance with system C. Natural supply of fresh air into dry rooms, directly via an outside wall, combined with forced extraction of contaminated and/or moist air in wet rooms: this has been the successful formula for years for a healthy and comfortable indoor climate
Quiet and smart ventilation
The DucoBox is at the very heart of Duco’s DemandControlled Natural Ventilation Systems (DCNVS) and thus delivers ideal air quality in every room!
In order to be able to offer a solution for every situation, this powerful central extract unit is available in two variants: the whisper-quiet DucoBox Silent and the intelligent DucoBox Focus, which provide central and zonal air extraction
Efficient parameter readout
Rapid setting changes
LIVE air quality measurement
Time-saving and user-friendly

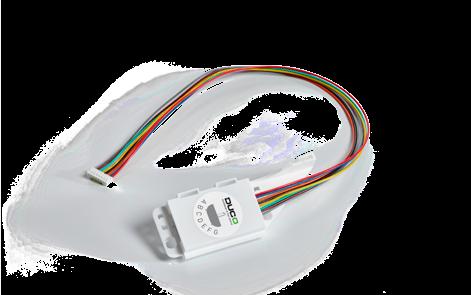

DUCO VENTILATION APP Ventilation using System C means low maintenance and no major maintenance expense! NEW The Duco Ventilation App can be used with a DucoBox equipped with the optional Communication Print.
DucoBox Silent
Europe’s QUIETEST central extract unit!

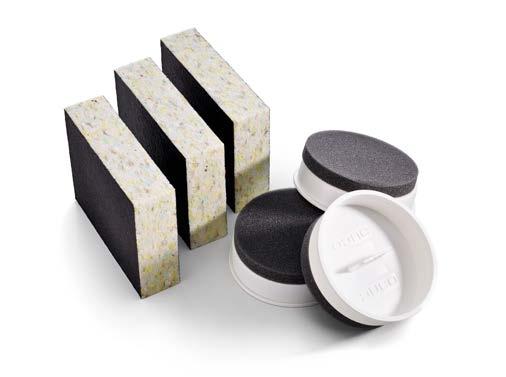

OPTIONAL: SILENT PLUS KIT FOR EXTRA SOUND ATTENUATION
With a sound power level of 57.5 dB(A) when extracting and 46.5 dB(A) emission from the housing (at 350 m3/h) the DucoBox Silent is Europe’s quietest box! Thanks to its double wall, combined with an acoustic baseplate, the central extract unit is as quiet as a whisper during operation. Moreover, with this type, you can choose between CO2 or Humidity sensors, integrated in the DucoBox or in the room
bre approved
SMART AND ENERGY EFFICIENT

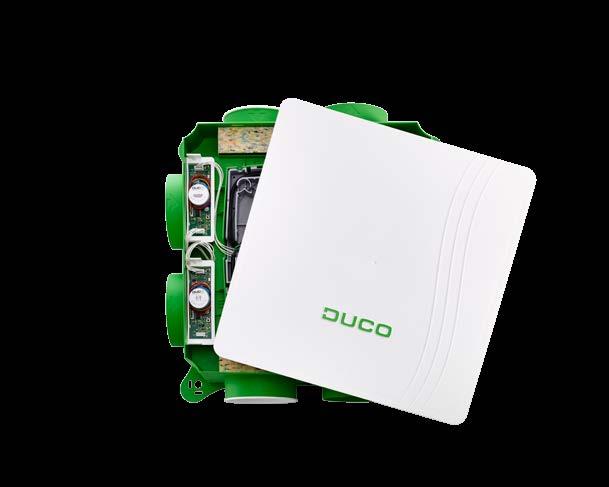

DucoBox Focus
Europe’s SMARTEST central extract unit!

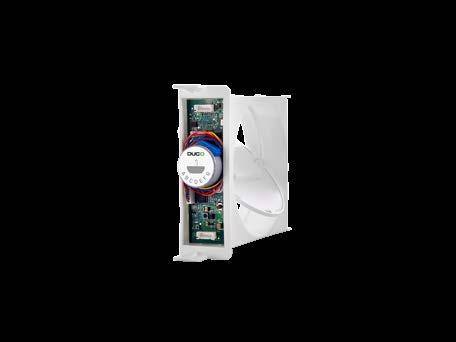

The DucoBox Focus is Europe’s quietest and smartest central extract unit. The integrated and patented CO2 and Humidity Control valves guarantee that the correct amount of air is extracted smartly and efficiently, and only when and where this is necessary! The NightBoost function integrated into the DucoBox Focus reduces the risk of overheating.
>
> Technical characteristics
Dimensions (W x H x D) 480 x 480 x 194 mm Weight 4.3 kg Connections Extraction from rooms 7 x 125 mm dia. Extraction to outside 1 x 125 mm dia.
Physical characteristics
Sound power level (db(A))* Flow (m³/h) Pressure (Pa) Absorbed power (W) Maximum power (W) Intake From DucoBox housing LOW DUCT RESISTANCE 100 70 10 11 39 35 100 100 13 13 43 36 150 100 15 16 44.5 37 250 100 27 29 50 43.5 300 100 42 44 53.5 44 350 100 57 59 57.5 46.5 HIGH DUCT RESISTANCE 150 150 20 22 47.5 39.5 225 150 32 43 50 41.5 250 150 34 48 53 43 300 150 48 63 54.5 46.5 325 150 58 72 55.5 48 350 150 60 76 57.5 49 400 150 81 84 60 52 * tested to EN ISO 5135/3741
DUCOBOX IN FIGURES
HOME OF OXYGEN
At Duco, we provide oxygen to each building in a perfectly natural way. Allowing fresh air from the outside to directly enter a building through the building envelope, without the need for complex air ducting systems, is the ultimate guarantee of a healthy indoor climate. The occupant’s health and wellbeing are, therefore, central to Duco.
A well-thought-out combination of basic ventilation, intensive (night) ventilation and solar shading is essential to ensure an optimum air quality. Duco provides an innovative solution for residential buildings, offices, schools or care centres where everyone feels at home.
A SOLUTION FOR EVERY SITUATION!
Discover our concepts in these brochures:
call +32 58 33 00 33 or e-mail info@duco.eu
We will be happy to provide you with any further information on our existing and new products.
We inspire at www.duco.eu
DUCO at WORK We inspire at Natural ventilation works better! DUCO AT DUCO at HOME We inspire at DUCO AT Natural ventilation that's a breath of fresh air! DUCO at CARE We inspire at DUCO AT Natural ventilation we care about it! DUCO at SCHOOL We inspire at Ventilate naturally study better! DUCO AT
L0001812-D 30.05.2017
