Zehnder Caladair Commercial

CALADAIR

Product overview Ventilation Solutions for Domestic and Commercial Applications

Discover Caladair

CALADAIR International, OAM in climate engineering for almost 40 years 1979 : Creation of CALADAIR as a supplier for climate engineering and commercial refrigeration equipment and solutions.

Beginning 2000 years : Industrial development operated with an extensive program in the ventilation area.

2012 : Launch of the Econological® and Bluetech® concept, impulsed by President Hervé Nuzzo.

2016 : Thermover®’s launching, combining in one equipment 35 years of know-how in thermodynamics and experience in ventilation and energy recovery.

60 employees, presents and actives in more than 30 Europeans and African countries.

At Mâcon-Loché, the BBC building is a showcase of our concept

Not all ventilation systems are equal

Bespoke Hand-built Construction Ventilation Solutions for Domestic and Commercial Applications Caladair hand build all the MVHR range to your bespoke specification at there factory in France to the highest standard starting from sheet metal that is over 1mm in thickness to final assembly and testing

Certification ISO 9001 since 2011 Certification ISO 14001 since 2012

ERP Compliant

Making installation simple Smart Plug & Play All Caladair MVHR units have an integrated control panel that is easy to use and install

All in One Solutions The Caladair Thermover is a Complete plug and play solution for ventilation, heating & cooling

Simple Zone Control With options like Lobby Constant Pressure you can Zone areas with an electric damper providing better energy efficiency and performance

Powerful selection software Caladair provides a range of powerful selection tools to help you quickly find the right product to meet your specific requirements.

SOFTWAIR® is a commercial and technical configuration which is offered to sales engineers, partners, distributors or contractors, an interactive solution for assisting in the selection and sizing of Caladair equipment.

BIMGO provides 3D and technical attributes of our equipment in REVIT and IFC format for all your projects in BIM (Building Information Modeling)

Website: http://www.caladair.com

Sample of CALADAIR International projects CHU of Rennes

Company restaurant Alcatel Space Industrie

Human Museum at Trocadéro - Paris

Hilton Yaounde Cameroun

Smoke exhausting F400-120 and VMC C4 PYROSTAR®, ECOTOWN® and NOE LOBBY®

Smoke exhausting F400-120 PYROSTAR® and MAXIPLUS® Air handling units CMH and CARMA® Château de Versailles Opera

Hospital Dalal Jam Dakar -Sénégal

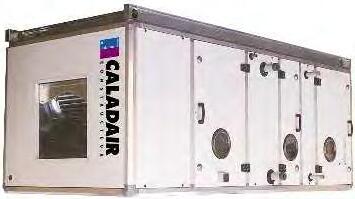

Air handling units Simple flux COMBIBOX CONCEPT® , CMH, Double flux CDFI, CARMA® .

Integrated communication control.

Smoke exhausting F400-120 PYROSTAR®, MINIMAX® and ECOTOWN®

Hotel Laico Tunis

Air handling units CMH

Theme park Terra Botanica

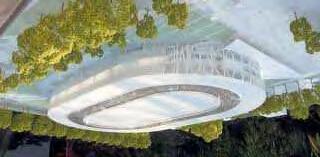

Vélodrôme of Roubaix

Air handling units CMH, COMBIBOXCONCEPT®, CARMA® and control system AQUAPACK PRO®

Air handling units CMH with control system AQUAPACK PRO, Smoke exhausting F400-120 PYROSTAR®, REFLEX®, VMC C4, fan box ECOTOWN® and NOE®

Air handling units high efficiency (90%) CARMA®

Air handling units COMBIBOX CONCEPT®, CDFI , With control systems ELECTROPACK PRO® and AQUAPACK PRO®

Products Energy savings NEOTIME®

CARMA®

COMBIBOX CBI®

SILVERTOP®

FREETIME®

HEXAMOTION®

COMBIBOX® CBP

COMBIBOX® CBZ

EVENTYS®

CMH

LOBBY®

ELECTROPACK®

AQUAPACK®

SYSTEM DIVA®

REFLEX®

DIABLO®

DIABLO TWIN®

PYROSTAR®

ECOBLUE®

ECOVOR®

ECONIZER®

NOE LOBBY®

MINIMAX®

MINIBLUE®

MINIBLUE LOBBY®

MAXIPLUS®

EXAECO®

Air handling THERMOVER®

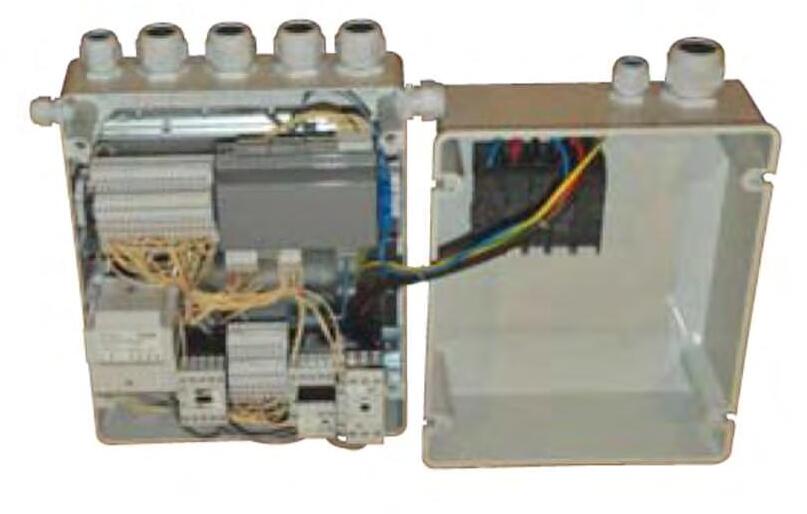

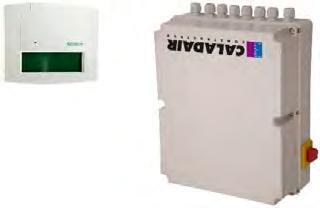

Control systems SYSTEM TOP®

Smoke exhaust units

Housing ventilation

Building ventilation

CDF

WONDEROOM®

ENERGY SAVINGS SOLUTIONS NEOTIME®

CARMA®

SILVERTOP®

FREETIME®

HEXAMOTION®

EXAECO®

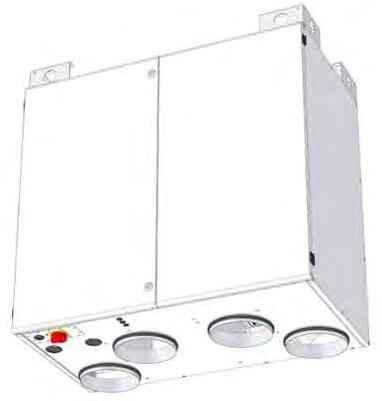

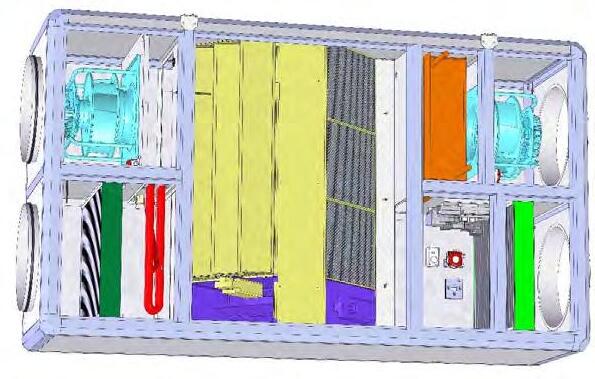

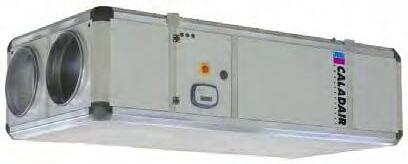

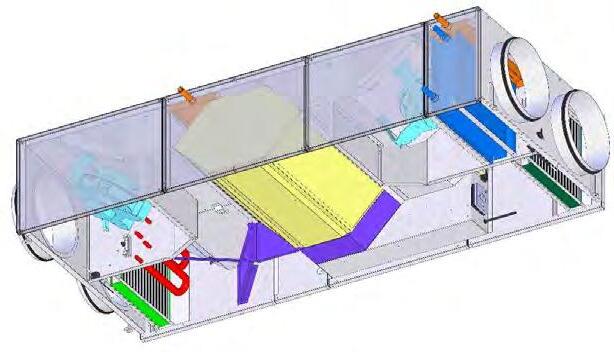

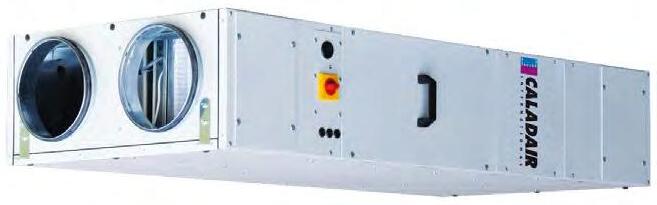

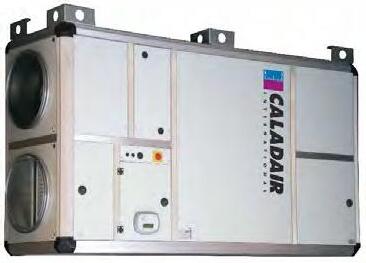

Energy savings solutions with counterflow exchanger NEOTIME® NEOTIME sizes

600 – 900 – 1300 – 1800 – 2500

Air flow

100 to 2400 m³/h

Finish

Pre-painted external sheet

Insulation Configuration Motor

25 mm Double skin Horizontal EXTRA SLIM – Ht max = 495mm EC (direct current) with metal impeller

Exchanger

High efficiency aluminum counter-flow plate

Accessories included

Bypass

100% and internal

Padlock switch

Filtration

F7 on air supply and G4 on air extract

Pressostats fans

Terminal connection

Circular connection with double seal lips

Pressostat supply air filter

Maintenance

On the 2 sides

Ceiling fixing bracket

Installation

Indoor only

Energy savings solutions with counterflow exchanger NEOTIME® versions

NEOTIME VERSIONS

SEASON

BASIC ONE (no Regulation– no Coil/Battery)

FIRST

REGULATION for Airflow management (no integrated Coil/Battery)

SMART

REGULATION for Airflow management & Electrical DEFROST HEATER

PREMIUM BE

REGULATION for Airflow management & ELECTRICAL BATTERY _heated temperature management

PREMIUM CO

REGULATION for Airflow management & CHANGEOVER WATER COIL _full temperature management

INFINITE BE

= SMART + PREMIUM BE (Electrical DEFROST HEATER + heated temperature management)

INFINITE CO

= SMART + PREMIUM CO (Electrical DEFROST HEATER + full temperature management)

Energy savings solutions with counterflow exchanger NEOTIME® Modulation

Adjustable BYPASS

FIRST – SMART – PREMIUM – INFINITE

ECO

1 or 2 selected airflows adjustable per fan

LOBBY

Constant pressure

DIVA

CO2 sensor for airflow management

FIRST - SMART – PREMIUM – INFINITE

Defrost

Opening the bypass (version FIRST & PREMIUM) Using defrost electric heater (version SMART & INFINITE)

Regulation

Free cooling

Bypass opening, outside cold air supplied inside the building

Control supply T° using outside T° (air law)

Night cooling

Bypass opening, outside cold air supplied inside the building and heat exhaust by increasing airflow (adjustable)

Communication Modbus – Bacnet – Web Weekly and holiday timer

(night boost ventilation)

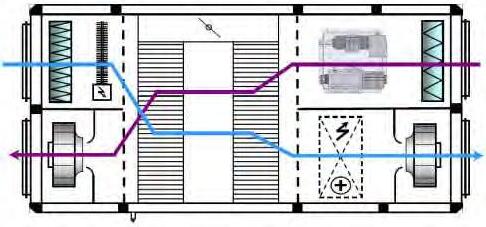

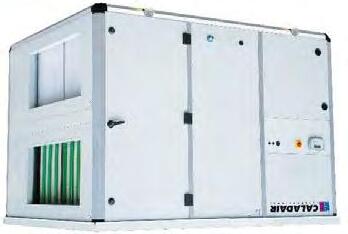

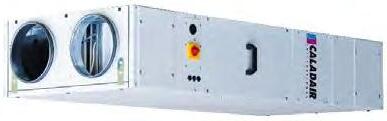

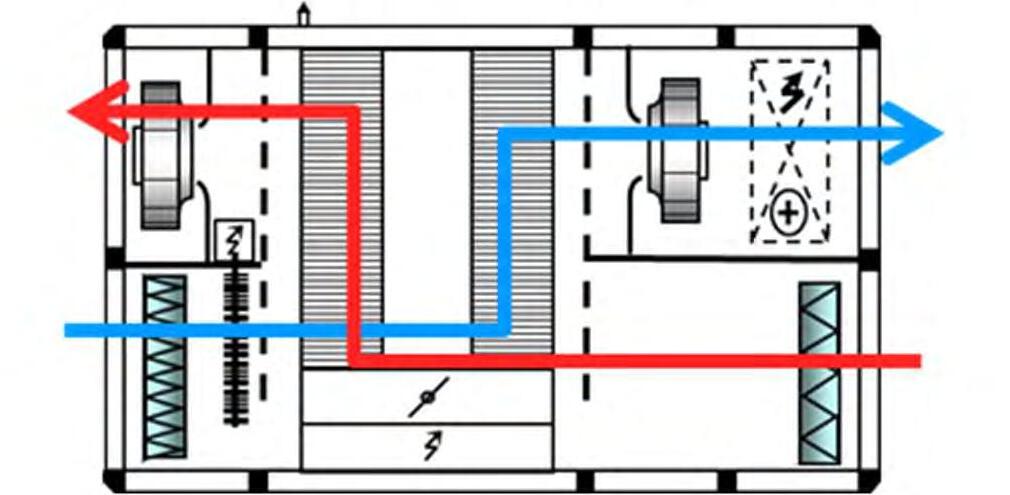

Energy savings solutions with counterflow exchanger CARMA® Multi-configurations :

CARMA

Horizontal or Vertical, right or left access Except CARMA 9048**

CARMA 9070**

sizes

9008 – 9010 – 9016 – 9023 – 9035 – 9048 – 9070

Air flow

200 to 8000 m³/h

Finish

Pre-painted external sheet

Insulation

50 mm Double skin

Structure

aluminium frame with thermal break sealing

Configuration Motor

Horizontal or Vertical** EC (direct current) with metal impeller

Exchanger

High efficiency aluminum counterflow plate exchanger

Included Accessories

Bypass

Internal 100% modulating bypass

Padlock switch

Filtration

F7 on supply and G4 on exhaust

Fans pressostats Supply air filter pressostat

Terminal connection Installation

Circular connection with double seal lips (except 9070)

Indoor or outdoor with top protection

Energy savings solutions with counterflow exchanger CARMA® Versions

CARMA VERSIONS

SEASON

BASIC ONE (no Regulation– no Coil/Battery)

FIRST

REGULATION for Airflow management (no integrated Coil/Battery)

SMART

REGULATION for Airflow management & Electrical DEFROST HEATER

PREMIUM BE

REGULATION for Airflow management & ELECTRICAL BATTERY _heated temperature management

PREMIUM CO

REGULATION for Airflow management & CHANGEOVER WATER COIL _full temperature management

INFINITE BE

= SMART + PREMIUM BE (Electrical DEFROST HEATER + heated temperature management)

INFINITE CO

= SMART + PREMIUM CO (Electrical DEFROST HEATER + full temperature management)

Energy savings solutions with counterflow exchanger CARMA® Modulation

FIRST – SMART – PREMIUM – INFINITE

ECO

1 or 2 selected adjustable airflows per fan

LOBBY

CONSTANT PRESSURE

DIVA

CO2 sensor for airflow modulation

MAC2

Constant airflow between 2 adjustable airflows

QUATTRO

CO2 sensor for airflow modulation between 2 adjustable CONSTANT AIRFLOWS

Adjustable BYPASS

Regulation Supplied T° control / outside T° (air law) Communication Modbus – Bacnet – Web Weekly and holiday timer

FIRST - SMART – PREMIUM – INFINITE

Defrost

Opening the bypass (version FIRST & PREMIUM) Using defrost electric heater (version SMART & INFINITE)

Free cooling

Bypass opening, outside cold air supplied inside the building

Night cooling

Bypass opening, outside cold air supplied inside the building and heat exhaust by increasing airflow (adjustable)

(night boost ventilation)

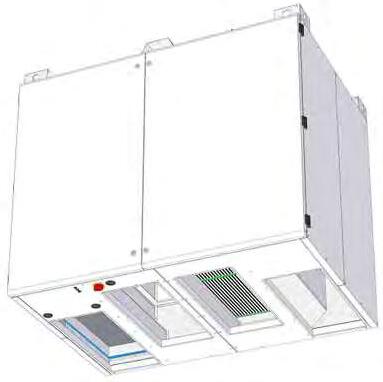

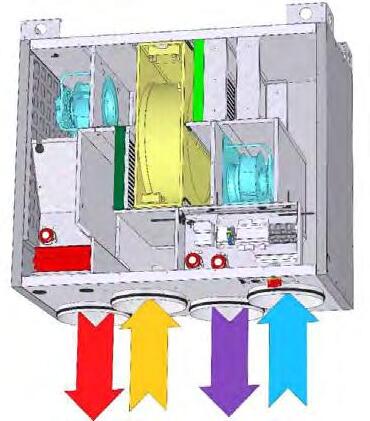

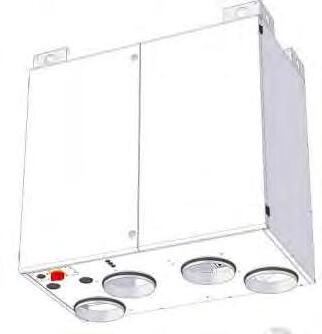

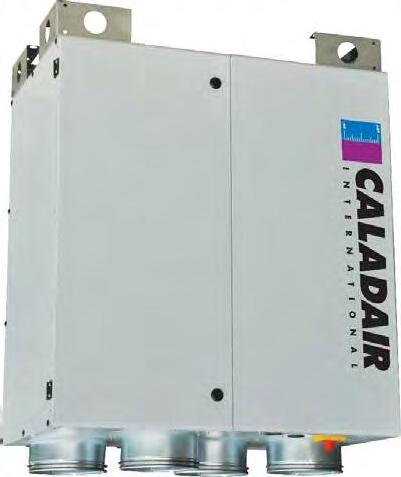

Energy savings solutions with counterflow exchanger SILVERTOP® Circular top connections 06 up to 35

SILVERTOP Rectangular top connections _52

sizes

06-08-15-23-35-52

Air flow

200 to 5500 m³/h

Finish

Pre-painted external sheet

Insulation Configuration Motor

25mm _05-08 & 50mm_15-23-35-52 Double skin Vertical EC (direct current) with metal impeller

Exchanger

High efficiency counterflow plate exchanger

Included Accessories

Bypass

Internal 100% modulating bypass

Padlock switch

Filtration

F7 on supply & G4 on exhaust

Pressostats fans

Terminal connection

Supplied air filter pressostat

Installation

Circular connection with double seal lips (except 52)

Indoor

Energy savings solutions with counterflow exchanger SILVERTOP® versions

SILVERTOP VERSIONS

SEASON

BASIC ONE (no Regulation– no Coil/Battery)

FIRST

REGULATION for Airflow management (no integrated Coil/Battery)

SMART

REGULATION for Airflow management & Electrical DEFROST HEATER

PREMIUM BE

REGULATION for Airflow management & ELECTRICAL BATTERY _heated temperature management

PREMIUM CO

REGULATION for Airflow management & CHANGEOVER WATER COIL _full temperature management

INFINITE BE

= SMART + PREMIUM BE (Electrical DEFROST HEATER + heated temperature management)

INFINITE CO

= SMART + PREMIUM CO (Electrical DEFROST HEATER + full temperature management)

Energy savings solutions with counterflow exchanger SILVERTOP® Modulation

ED Touch LCD display (except Season version)

Regulation Supplied T° control / outside T° (air law)

FIRST – SMART – PREMIUM – INFINITE

ECO

1 or 2 selected adjustable airflows per fan

LOBBY

CONSTANT PRESSURE

DIVA

CO2 sensor for airflow modulation

MAC2

Constant airflow between 2 adjustable airflows

QUATTRO

CO2 sensor for airflow modulation between 2 adjustable CONSTANT AIRFLOWS

Adjustable BYPASS

FIRST - SMART – PREMIUM – INFINITE

Defrost

Bypass opening (version FIRST & PREMIUM) Defrost electric heater (version SMART & INFINITE)

Communication Modbus – Bacnet – Web

Free cooling

Bypass opening, outside cold air supplied inside the building

Weekly and holiday timer

Night cooling

Bypass opening, outside cold air supplied inside the building and heat exhaust by increasing airflow (adjustable)

(night boost ventilation)

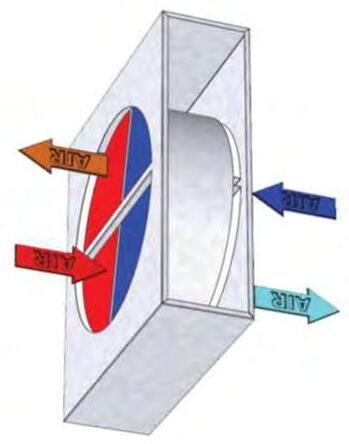

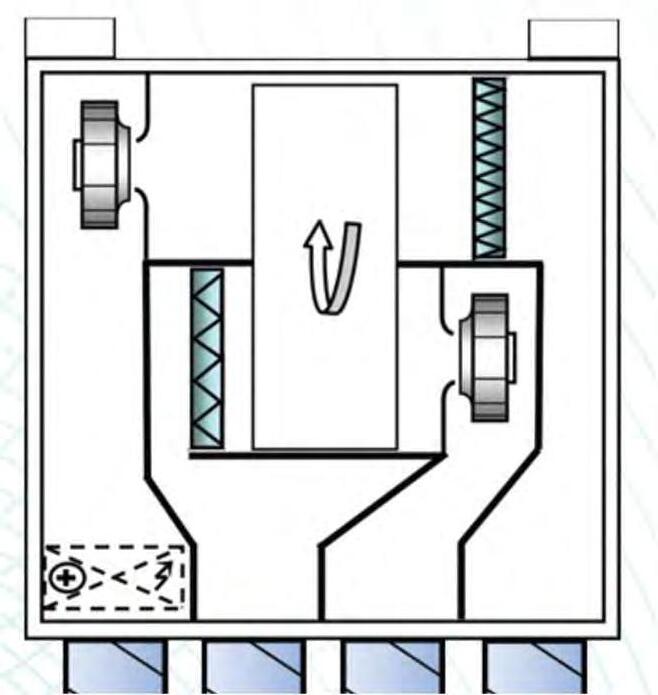

Energy savings solutions with rotary exchanger FREETIME® FREETIME sizes

500 – 800 – 1500 – 2000 – 2700 – 3500

Air flow

100 to 3500 m³/h

Finish

Pre-painted external sheet

Insulation

50 mm Double skin (except 500 and 800 : 25mm)

Configuration

Connections on the top

Motor

EC (direct current) with metal impeller

Included Accessories

Exchanger

High-efficiency variable speed rotary

Bypass

Rotary exchanger running stop

Padlock switch

Filtration

F7 on the supply air and G4 on extracted air

Pressostats fans

Terminal connection

Circular connection with double seal lips

Supply air filter pressostat

Maintenance

On the front (Doors on hinges)

Feets

Installation

Indoor only

Energy savings solutions with rotary exchanger FREETIME®

Versions

FREETIME

SEASON

BASIC ONE (no Regulation– no Coil/Battery)

FIRST

REGULATION for Airflow management (no integrated Coil/Battery)

PREMIUM BE

REGULATION for Airflow management & ELECTRICAL BATTERY _heated temperature management

PREMIUM BC

REGULATION for Airflow management & HEATING WATER COIL _heated temperature management

Energy savings solutions with rotary exchanger FREETIME® Modulation

FIRST – PREMIUM

ECO

1 or 2 selected adjustable airflows per fan

LOBBY

CONSTANT PRESSURE

DIVA

CO2 sensor for airflow modulation

MAC2

Constant airflow between 2 adjustable airflows

QUATTRO

CO2 sensor for airflow modulation between 2 adjustable CONSTANT AIRFLOWS

BYPASS management (using rotary wheel)

FIRST – PREMIUM

Controls

Free cooling/heating

Reduction of exchanger rotation (until total stop), fresh or warm outdoor air supplied inside the building

Supplied T° control/outdoor T° (air law)

Night cooling

Communication Modbus – Bacnet – Web

(boost night ventilation)

Stop of exchanger rotation, fresh or warm outdoor air supplied inside the building, exhaust of heat load with airflow increase (configurable airflow)

Weekly and holiday timer

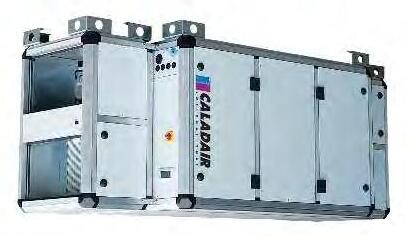

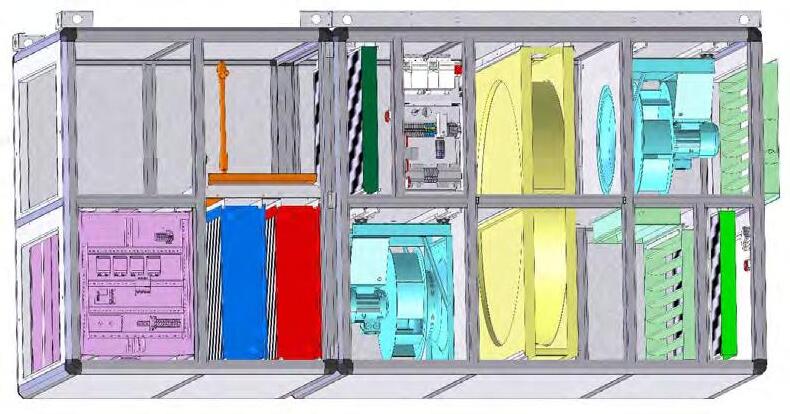

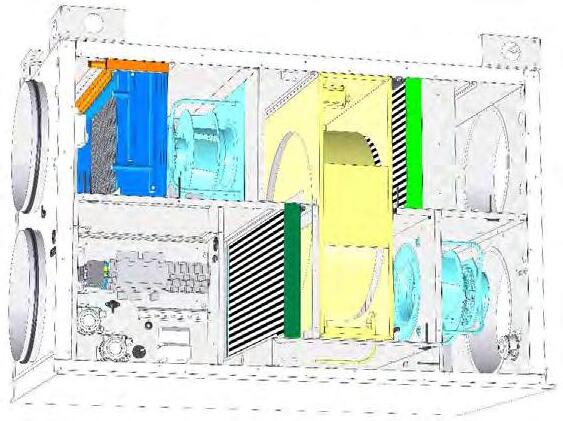

Energy savings solutions with rotary exchanger HEXAMOTION® HEXAMOTION sizes

05 – 08 – 15 – 20 – 27 – 35 – 45 – 60 – 80

Air flow

100 to 8000 m³/h

Finish

Pre-painted external sheet

Insulation Configuration Motor

50 mm Double skin Horizontal EC (direct current) with metal impeller

Exchanger

High-efficiency variable speed rotary

Included

Bypass

Rotary exchanger stop

Padlock switch

Filtration

F7 on both supply and exhaust air

Fan Pressostats

Terminal connection

Circular connection with double seal lips (except size 80)

Supply air filter Pressostat

Maintenance

Access from left or right (doors on hinges)

Feet support

Installation

Indoor or outdoor (top protection included)

Energy savings solutions with rotary exchanger HEXAMOTION® Versions

HEXAMOTION

SEASON

BASIC ONE (no Regulation– no Coil/Battery)

FIRST

REGULATION for Airflow management (no integrated Coil/Battery)

PREMIUM BE

REGULATION for Airflow management & ELECTRICAL BATTERY _heated temperature management

PREMIUM CO

REGULATION for Airflow management & CHANGEOVER WATER COIL _full temperature management

PREMIUM DXR

REGULATION for Airflow management & CHANGEOVER DX 410A COIL _full temperature management

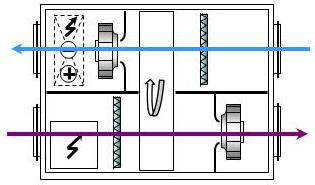

Energy savings solutions with rotary exchanger HEXAMOTION® Modulation

FIRST – PREMIUM

ECO

1 or 2 selected adjustable airflows per fan

LOBBY

CONSTANT PRESSURE

DIVA

CO2 sensor for airflow modulation

MAC2

Constant airflow between 2 adjustable airflows

QUATTRO

CO2 sensor for airflow modulation between 2 adjustable CONSTANT AIRFLOWS

BYPASS management (using rotary wheel)

Controls

FIRST – PREMIUM

Free cooling/heating

Reduction of exchanger rotation until total stop, fresh or warm outdoor air supplied inside the building

Communication Modbus – Bacnet – Web

Night cooling

Weekly and holiday timer

(night boost ventilation)

Stop of exchanger rotation, fresh or warm outdoor air supplied inside the building, exhaust of heat load with airflow increase (configurable airflow)

Supplied T° control/ utdoor T° (air law)

Energy savings solutions with rotary exchanger EXAECO® EXAECO sizes

10 – 13 – 17 – 22

Air flow

5000 to 22000 m³/h

Finish

Pre-painted external sheet

Insulation

50 mm Double skin

Structure

aluminium frame with thermal break sealing

Motor

IE3 (except size 10: EC) with mounted connected and preset Frequency Speed Controler

Included

Exchanger

High-efficiency variable speed rotary exchanger

Padlock switch

Bypass

By stopping the rotative exchanger

Fan Pressostats

Filtration

F7 on both supply air and extracted air

Supply air filter pressostat

Module FEE

Mixing 3 air way + CO2 sensor

Support frame

Installation

Indoor or outdoor with top protection

Energy savings solutions with rotary exchanger EXAECO®

Version

EXAECO

Standard

with REGULATION

ELITE

with REGULATION & INTEGRATED COILS

PURE

with REGULATION & CLEARMOTION

EDEN

with REGULATION, COILS & CLEARMOTION

Energy savings solutions with rotary exchanger EXAECO® Modulation

STANDARD-ELITE-PURE-EDEN

ECO

1 or 2 selected adjustable airflows per fan

LOBBY

CONSTANT PRESSURE

DIVA

CO2 sensor for airflow modulation

MAC2

Constant airflow between 2 adjustable airflows

QUATTRO

CO2 sensor for airflow modulation between 2 adjustable CONSTANT AIRFLOWS

BYPASS management (using rotary wheel)

Controls

STANDARD-ELITE-PURE-EDE

Free cooling/heating

Reduction of exchanger rotation until total stop, fresh or warm outdoor air supplied inside the building

Communication Modbus – Bacnet – Web

Night cooling

Weekly and holiday timer

(night boost ventilation)

Stop of exchanger rotation, fresh or warm outdoor air supplied inside the building, exhaust of heat load with airflow increase (configurable airflow)

Supplied T° control/outdoor T° (air law)

AIR HANDLING SOLUTIONS COMBIBOX CBI®

COMBIBOX® CBP

EVENTYS®

CMH

COMBIBOX® CBZ

THERMOVER®

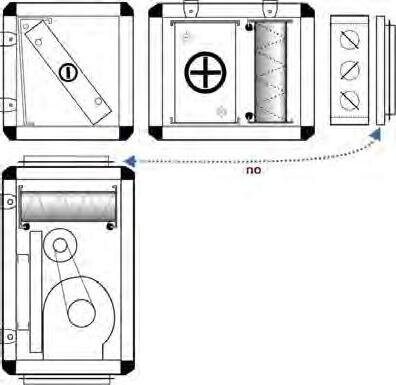

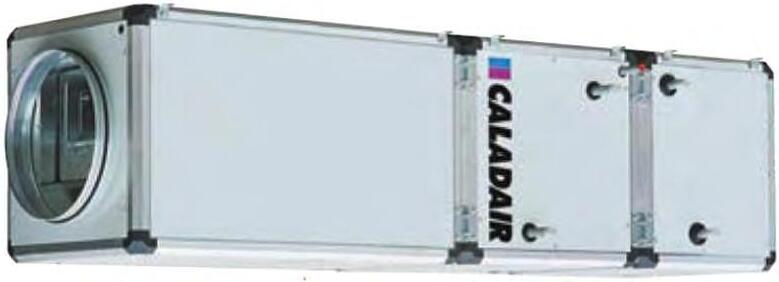

Modular air handling solutions COMBIBOX CBX® CBX sizes

4–5–6–7–8–9

Air flow

200 to 16000 m³/h

Structure

Aluminium frame

Finish

Pre-painted external sheet

Insulation

Double skin 25mm

Fan module

CBP – CBZ

Battery module Filtration

HOT WATER- COLD WATER ELECTRIC – DIRECT EXPANSION Activated carbon– G4 – F7 (others on request)

Mixing module

2 and 3 ways

Acoustic module

Acoustic baffles

Other

top protection in option for outdoor inst.

Modular air handling solutions COMBIBOX CBZ® CBZ EC sizes

4–5–6–7–8

Air flow

200 to 10000 m³/h

Structure

Aluminium frame

Finish

Pre-painted external sheet

Insulation

Double skin 25mm

Motor

EC – Free running fan

Supply

230V/1/50hz (4 and 5) - 400V/3/50hz (6,7 and 8)

CBZ OPTIONS

REGULATION*

LOBBY EC

Constant pressure

Régulation*

Setting by integrated potentiometer

DIVA EC

Proportional Airflow modulation depending on CO2 sensor information

Padlock switch

Included

MAC2 EC

Modulation between 2 Constant airflows

Terminal connection Other

Circular connection with double seal lips Option DEP, toiture

Modular air handling solutions COMBIBOX CBP® with Frequency Converter Box (CVFM/CVFT or CVFMI/CVFTI)

CBP sizes

6–7–8–9

Air flow

800 to 17000 m³/h

Structure

Aluminium frame

Finish Insulation

Pre-painted external sheet Double skin 25mm

Motor

IE3

Supply

400V/3/50hz

Terminal connection Connection

Other

Circular connection with double seal lips Several configurations Filter rack integrated Variable motor pulley + CVFM/CVFT or CVFMI/CVFTI Options IPC, DEP, Top protection

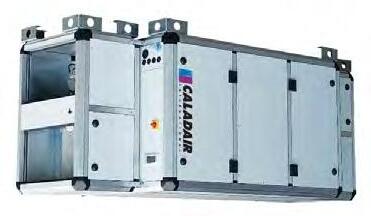

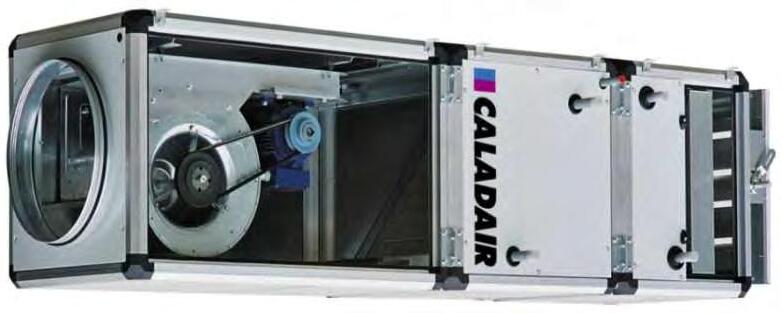

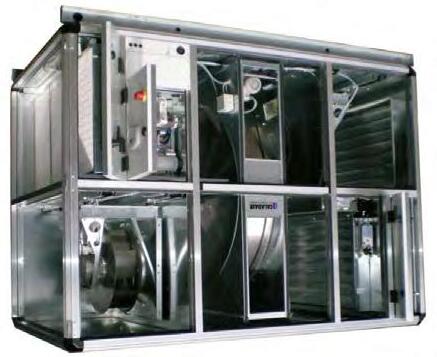

Modular air handling solutions CMH solution up to 60 000 m3/h

Tailor made CMH sizes

1000 to 60000 m³/h

Air flow

Single or dual path

Structure

Aluminium frame

Finish

Pre-painted external sheet

Insulation

Double skin 25mm or 50mm

Motor Coil / battery

Pulley belt motor IE3 Free running fan motor IE3 or EC Hot water, cold water, Electric and direct expansion

Filtration

from G4 to H13

Fabrication

Conform EN 1886 and EN 13053

On request

Finish stainless steel, window, light, etc…

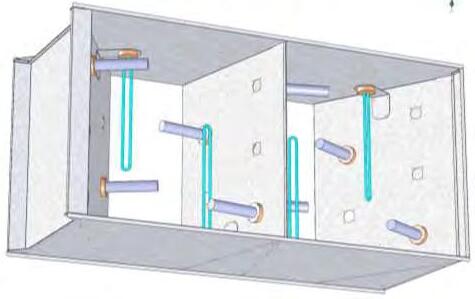

Specific air handling solution for air compensation with integrated electrical battery EVENTYS® EVENTYS sizes

1004 – 1511 – 3021

Air flow

200 to 2200 m³/h

Structure

Aluminium frame

Finish

PLUG & PLAY REGULATION LCD controler –Modbus RS485 communication 2 Temp. Sensors (Supply & External) – Integrated Timer Padlock switch- Air pressostat Electrical battery- Security thermostat Optional damper’s enslavement

Pre-painted external sheet

Insulation

Double skin 25mm

Motor

1 speed + REG or VEC

Supply

400V/3/50hz (except 1004, 230V/1/50hz)

Filtration

Included G4 Filter

Terminal connection Connection Other

Circular connection with double seal lips Right Top protection as standard

Complete air handling solution for air renewal with full temperature management THERMOVER® Air Handling Unit with thermodynamic system THERMOVER sizes

180S – 280S – 400S – 500S

Air flow

1000 to 5000 m³/h

Structure

Aluminium frame

Finish Insulation Motor

Pre-painted external sheet Double skin 50mm Free running fan motor EC

PLUG & PLAY- Carel Regulation

Exchanger

High efficiency rotary exchanger

LCD Controler dispaly – Modbus RS485 communication

Compressor

Copeland Digital Scroll reversible compressor

Temperature sensor–CO2 sensor – Integrated Timer

Refrigerant

R410A

Padlock switch

Filtration

Filter F7 supply and extract air

Complete plug and play solution for ventilation heating, coooling and heat recovery

Complete air handling solution for air renewal with full temperature management THERMOVER® Air handling unit with thermodynamic system THERMOVER Flow control

Constant pressure or Constant airflow

Module FEE

Integrated 4 modulating dampers : - Air quality - Free cooling - Night cooling - Cooling recovery - Fire security

Options

Domestic Hot Water production (MUST & GENIUS BE) Additional Electrical battery/Supply (PREMIUM BE & GENIUS BE)

Complete plug and play solution for ventilation heating, coooling and heat recovery

CONTROL & MANAGEMENT SOLUTIONS LOBBY®

ELECTROPACK®

AQUAPACK®

SYSTEM DIVA®

SYSTEM TOP®

WONDEROOM®

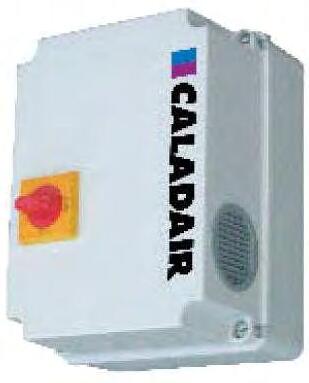

Airflow control at CONSTANT PRESSURE LOBBY® CONSTANT PRESSURE control box C4 Residential ventilation 400°C-1/2H, Building ventilation Compatible Direct coupling fan or Belt/pulley fan.

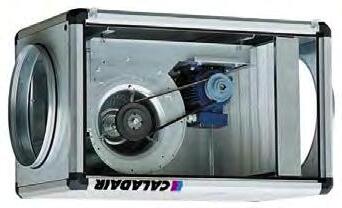

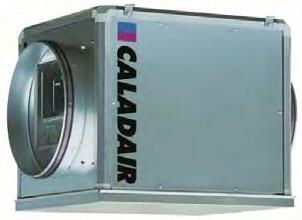

LOBBY Direct coupling fan (ex. MINIMAX – CBI)

015 à 100

Supply

230V mono

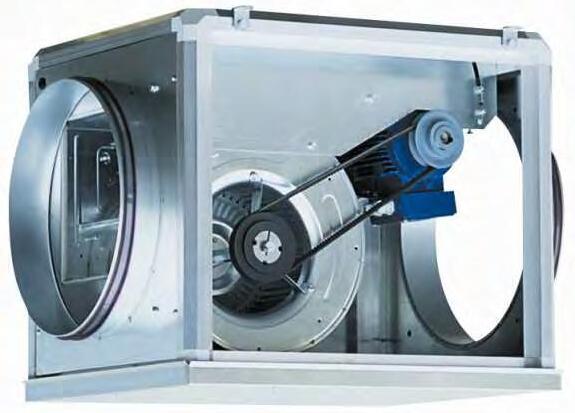

Belt/pulley fan

370 à 2K2

(ex. NOE – MAXIPLUS - CBP)

Supply

230V mono

Belt/pulley fan

370T à 11K0T

(ex. NOE – MAXIPLUS - CBP)

Supply

400V tri

Padlock switch

included

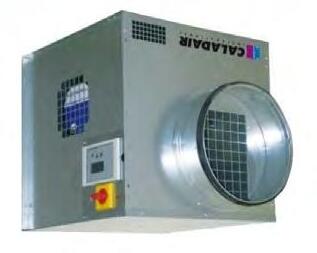

Airflow control and temperature management (Electrical battery) ELECTROPACK® PLUG & PLAY Control box : For Air Handling Units with electrical battery from 17 to 81 kW : air temperature management and control.

Also able to pilot the electrical battery and a cooling water coil or a direct expansion coil 3-way valve , Bypass management _ Airflow management (depending of finition ordered) size

ELECTROPACK 271 – 542 – 813

Power (kW)

3.75 to 81

Motor power

15 kW max

Padlock switch

Included

Fan pressostat

Included

Communication

Modbus RS485 Bacnet TCP/IP Web TCP/IP

4 Finitions

ECO- 1or2 selected speeds LOBBY – constant pressure DIVA – CO2 sensor MAC2 – constant flow

Version

TA (one path) or DF (double path)

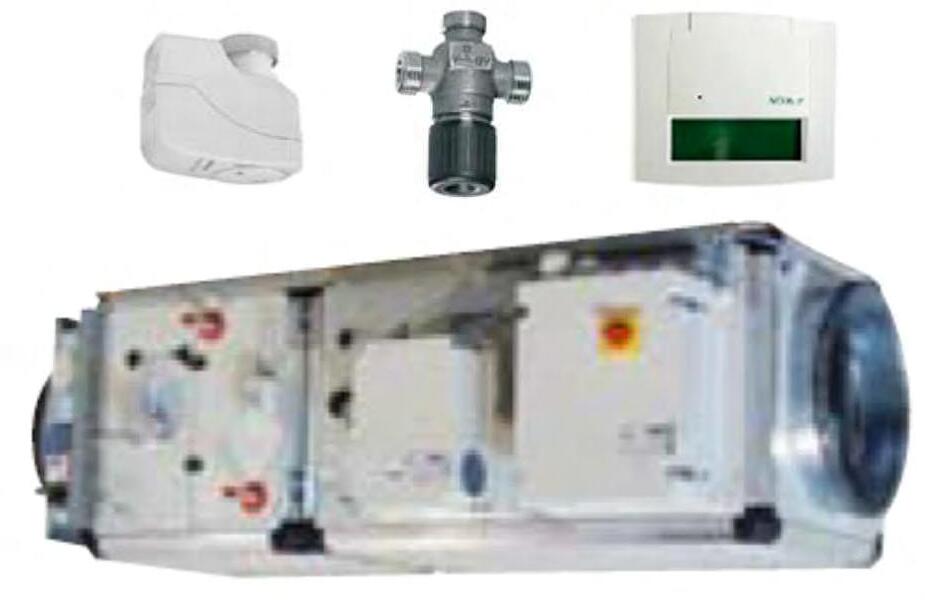

Airflow control and temperature management (Water or DX coils) AQUAPACK® PLUG & PLAY Control box : For Air Handling Units with water coils or changeover coils : air temperature management and control.

Also able to pilot the 3-way valve of the cooling water coils or of a direct expansion coil.

Bypass management _ Airflow management (depending of finition ordered)

AQUAPACK Power motor

15 kW max

Padlock switch

Included

Fan pressostat

Included

Communication

Modbus RS485 Bacnet TCP/IP Web TCP/IP

4 Finitions

ECO -1 or 2 selected speeds LOBBY – constant pressure DIVA – CO2 sensor MAC2 – constant flow

Version

TA (one path) or DF (double path)

Centralized Airflow control and temperature management SYSTEM TOP® (2 airflows) DIVA® (proportional airflow)

TOP and DIVA Accessories Control

CO2

Présence

Température

Transfo 230V/24V All or Nothing (SYSTEM TOP) 0-10V (SYSTEM DIVA)

Centralized Airflow control and temperature management WONDEROOM® Communicating MULTIFONCTIONS Area controler : management of area airflow, temperature, lightning.

Econological solution® for an active management of the buildings.

SMOKE EXHAUST SOLUTIONS REFLEX®

DIABLO®

PYROSTAR®

DIABLO TWIN®

CDF

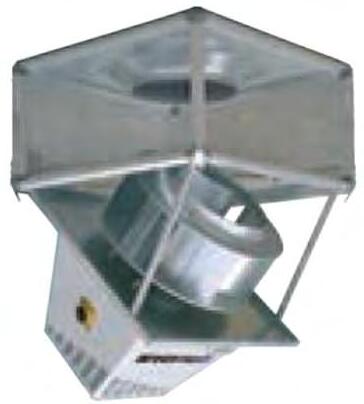

Fire rated smoke exhaust solutions REFLEX® Turrets certified F400-120, compliant with NF EN 12101-3.

Airflows from 300 to 18000 m3/h under pressures from 50 to 700 Pa

V

REFLEX

C

H

Air flow

300 to 18 000 m³/h

Version

C (free air discharge) H (horizontal air discharge) V (vertical air discharge)

Padlock switch

Included

Tilting kit

Included

Acoustic Insulation

Version H and V

Relay unit

Connected and mounted

Frequency speed control

Connected and mounted

Fire rated smoke exhaust solutions DIABLO® Smoke exhaust unit F400-120 , CE compliant, NF EN 12101-3 compliant Airflow from 300 to 35000 m3/h under pressure from 50 to 700 Pa

DIABLO Air flow

300 to 18 000 m³/h

Padlock switch

Included

Modulation

Moving panels

Insulation option

DIP (acoustic single skin – 25mm) DDP (double skin – 25mm)

Relay unit

Mounted and connected

Frequency speed control

Mounted and connected

Outdoor

Option cover protection

Fire rated smoke exhaust solutions DIABLO TWIN® Smoke exhaust unit F400-120 compliant with NF EN 12101-3 Airflow from 300 to 35000 m3/h under pressure from 50 to 700 Pa

DIABLO TWIN Air flow

600 to 36 000 m³/h

Description

2 X DIABLO flow

Padlock switch

Included

Modulation

Removable panels

Insulation option

DIP (acoustic single skin – 25mm) DDP (double skin – 25mm)

Relay unit

Mounted & connected

Frequency speed control

Mounted & connected

Outdoor

Option cover protection

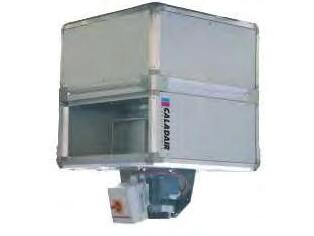

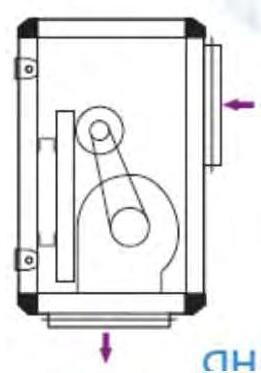

Fire rated smoke exhaust solutions PYROSTAR® Smoke exhaust unit F400-120, compliant with NF EN 12101-3 Belt/pulley transmission

DIABLO TWIN Size

4 to 50

Air flow

600 to 50 000 m³/h

fan

Backward or forward

Padlock switch Discharge

Included Horizontal or Vertical

Maintenance access

Left or right

Insulation option

DIP (acoustic single skin – 25mm) DDP (double skin – 25mm)

Relay unit

Mounted & connected

Frequency speed control

Mounted & connected

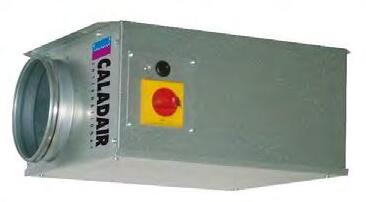

CENTRALIZED MECANICAL VENTILATION SOLUTIONS ECOBLUE®

ECONIZER®

NOE LOBBY® + NOE LOBBY SILENCE®

ECOVOR®

Centralized Mecanical Ventilation solutions – C4 (Fire resistance 400° 1/2h) Technical notice air valves ANJOS Hygro A – Hygro B – Hygro Gaz

ECOBLUE

ECOVOR

ECONIZER

Sizes

600 – 1000 – 1800

1500 – 3000 – 5000

600 – 1000 – 1800 – 3000 - 5000

Air flow

50 to 1800 m³/h

200 to 5000 m³/h

50 to 5000 m³/h

Motor

EC (Direct current)

EC (Direct current)

EC (Direct current)

fan

Forward

Backward

Forward and backward

Constant pressure LOBBY® communication Modbus RS485

- Constant pressure LOBBY® - Pressure auto-controled BLUETECH® Communication Modbus RS485

Set point adjustment via integrated potentiometer

230V 1 phase

230V 1 phase (but 5000, 400V)

230V 1 phase (but 5000, 400V)

Included

Included

Included

Volt free contact

Volt free contact

Option (not mounted)

Circular connection with double seal lips

Circular connection with double seal lips

Circular connection with double seal lips

At 90° - H or V

At 90° - H or V

At 90° - H or V

Speed control Supply Padlock switch Pressostat Terminal connection

Connection

Centralized Mecanical Ventilation solutions – C4 (Fire resistance 400° 1/2h) Technical Appraisal (ATec) with ANJOS humidity sensitive grills Hygro A – Hygro B – Hygro Gaz

NOE LOBBY – NOE LOBBY SILENCE Sizes

3800-6800-10000-11400 (4 sizes)

Air flow

1000 to 11400 m³/h

Motor

IE3

fan

Forward

Speed control Supply Padlock switch Pressostat Terminal connection Connection

LOBBY®Constant pressure 230V 1 phase Included Volt free contact Circular connection with double seal lips H or V

BUILDING VENTILATION SOLUTIONS MINIMAX®

MINIBLUE® MINIBLUE LOBBY®

MAXIPLUS®

CITYCOOL®

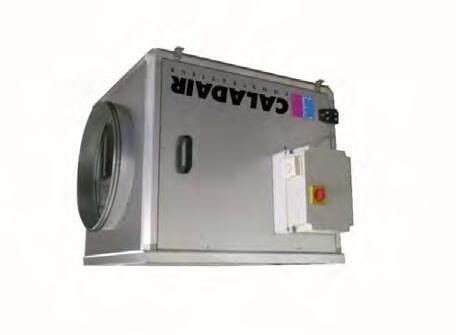

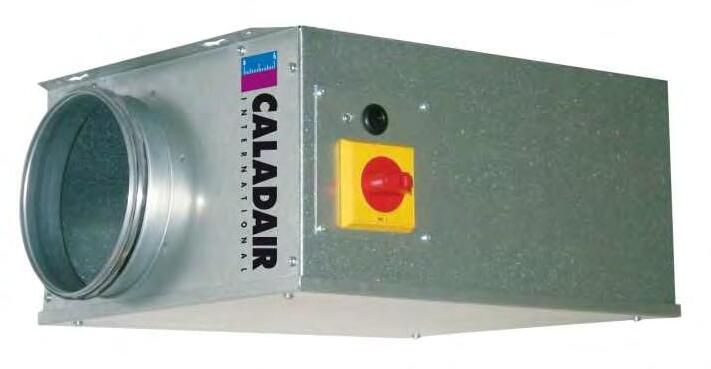

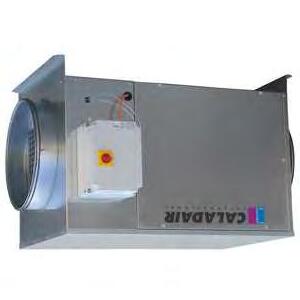

Standard Centralized Mecanical Ventilation solutions MINIMAX® - MINIMAX® PHONIC MINIMAX – MINIMAX PHONIC Sizes

125 -160-200-250-315-316-355

Air flow

40 to 3000 m³/h

Motor

3 speeds Ø125 to Ø250 Speed controler for Ø315 -316-355

Supply

230V one phase

Insulation

25mm for the PHONIC version

Padlock switch Pressostat Terminal connection Connection Other

Included Option (not mounted) Circular connection with double seal lips inlet / outlet in line Version with filter G4 integrated

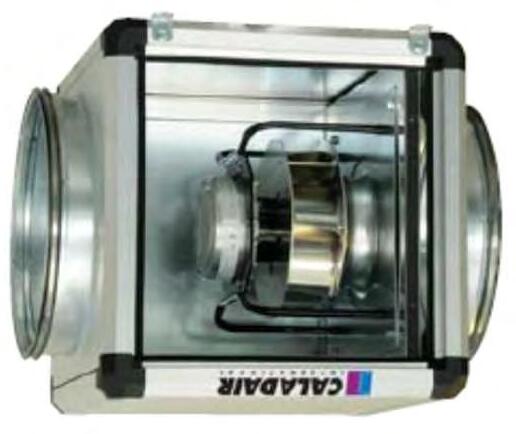

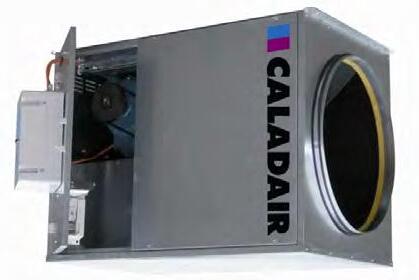

Standard Centralized Mecanical Ventilation solutions MINIBLUE® + MINIBLUE LOBBY® MINIBLUE

MINIBLUE LOBBY

Sizes

125 to 400

125 to 400

Air flow

50 to 3500 m³/h

50 to 3500 m³/h

Motor

EC (Direct current)

EC (Direct current)

Controls

Set point adjustment via integrated potentiometer

Constant pressure LOBBY®

Supply

230V 1 phase

230V 1 phase

Insulation

25mm

25mm

Padlock switch

Included

Included

Option (not mounted)

Option (not mounted)

Circular connection with double seal lips

Circular connection with double seal lips

inlet / outlet in line

inlet / outlet in line

Version with filter G4 integrated

-

Pressostat Terminal connection Connection Other

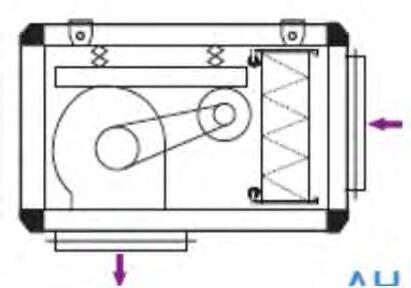

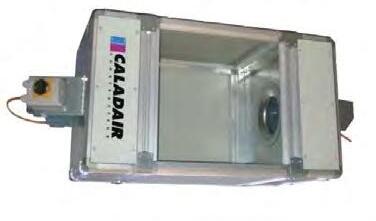

Standard Centralized Mecanical Ventilation solutions MAXIPLUS® MAXIPLUS – MAXIPLUS PHONIC Sizes

450-500-630-800

Air flow

200 to 17000 m³/h

Motor

IE3

Supply

400V tri

Controls

CVFM/CVFT or CVFMI/CVFTI

Padlock switch

Option (mounted/connected)

Pressostat

Option (mounted/connected)

Terminal connection Connection Other

Circular connection with double seal lips inlet / outlet in line Adjustable motor pulley, 25mn insolation phonic version

Authorised UK and ROI Distributors
