Housing the precariat 3/3 What...

co-Housing concept A model for housing the precariat

Project · Housing the precariat Projectnumber · P7

Date · 6 May 2024 Version · B

Housing the precariat co-Housing concept, A model for housing the precariat

Stijn Dries · student of architecture

@ Amsterdam University of the Arts

Website: stijndries.com e-mail: stijndries@icloud.com

Waterlooplein 211-213 1011PG Amsterdam

mail: Bontekoestraat 9H, 1013RB, Amsterdam visit: Centrale Groothandelsmarkt 186, 1051LJ Amsterdam

Mentor: Laura Álvarez Committee: Peter Kuenzli Niels Groeneveld

Introduction

What should we build?

Two thirds of the houses in The Netherlands are build for what a household is in the popular imagination; Two parents and two point four children.

In fact, two thirds of households in The Netherlands is comprised of one or two people. There is a massive mismatch between supply and demand. Neither the market, nor the government is creating what people need: Affordable and suitable housing for one or two inhabitants.

co-Housing co-Housing is emerging as part of the solution to the housing crisis that is unfolding. As with any emerging concept, the word co-Housing carries an aura of vagueness and ambigueity.

This publication offers a clear definition for co-Housing and illustrates that definition by means of a design for this emerging typology.

Defining co-Housing co-Housing is a typology to create affordable, and suitable, housing for the contemporary working-class (precariat). The typology has six defining characteristics: 1 co-Own 2 co-Habitate 3 co-Design 4 co-Create 5 co-Operate 6 co-Work

Image: Arnaud Adami

Table of contents

CO-HOUSING CONCEPT Introduction Affordable Suitable For the contemporary working-class (precariat)

08 14

co-Own Residents own a share of the real-estate (not the real-estate itself)

16

co-Habitate Shared facilities and shared space

18

co-Design Choosing and detailing the façade

24

co-Create Applying the finishes of the shared spaces

30

co-Operate Building - Group - Individual

34

co-Work Work connects residents to the city

36

Conclusion

08

AFFORDABLE

Each module is assembled from cross laminated timber and fully finished in the factory

09

AFFORDABLE

Affordable

Repeating the building as a whole introdues another benefit of repetion. By iterating from one building to next the quality, usability, comfort, and desireability of the building and it’s spaces can be assessed, and improved.

Modular fabrication

Co-Housing needs to be affordable. Combined with the scale of the task at hand, there is a logical starting point for the design of co-Housing: Repetition and modularity.

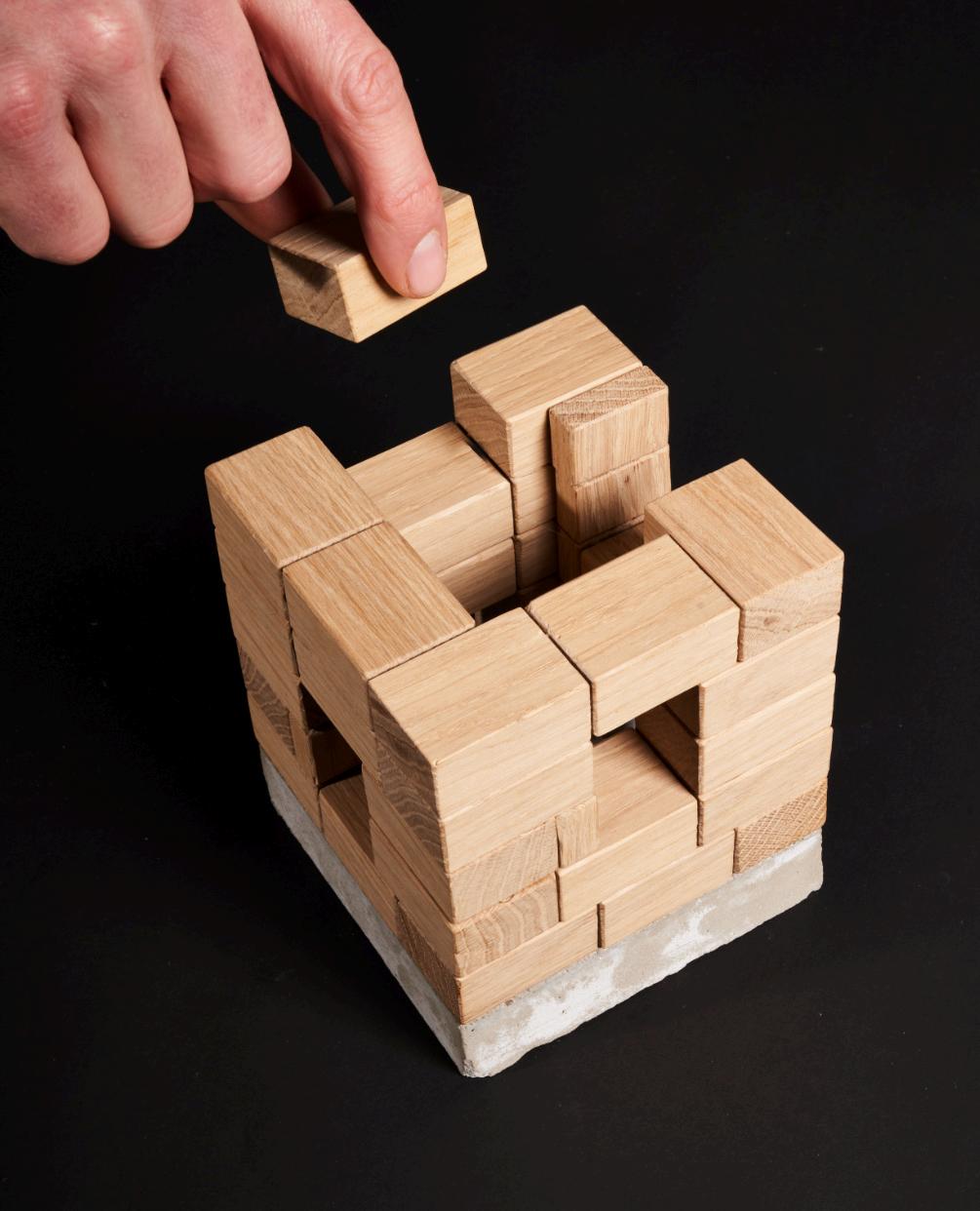

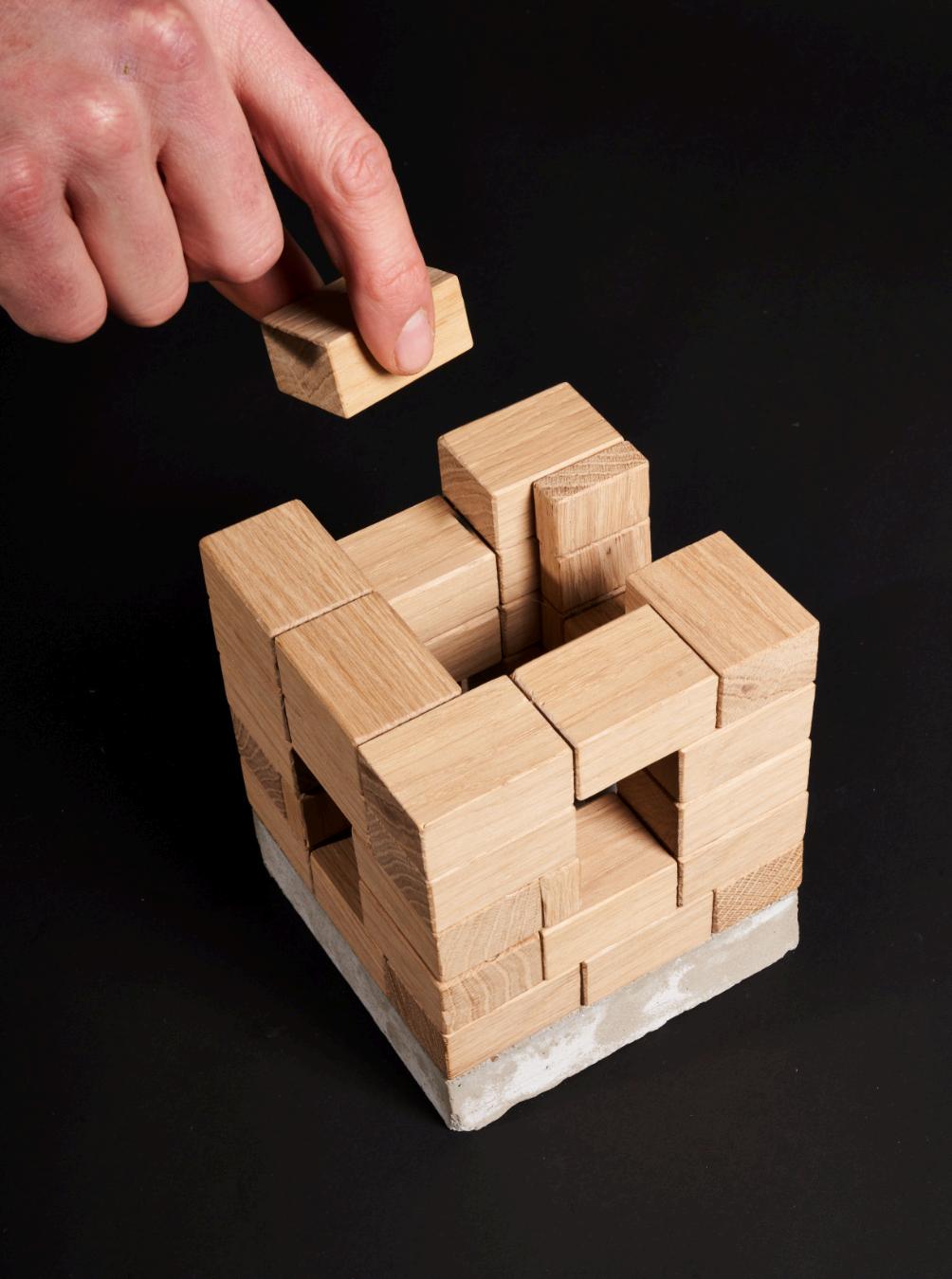

Repetition Repeating a simple module creates efficiency and it creates the possiblity of introducing an economy of scale into the building process.

Fabricating the units offsite also improves the quality.

Factory conditions reduce the impact of weather on the planning of the process and many materials require specific conditions to be processed.

Another major benefit goes to the workers. It is much easyer to create and sustain conditions that are beneficial to the people that bring the building together.

Ultimately all of these factors will increase the speed of production and allow for a reduction in the time it takes to make the buillding. #Time is money

In this design, prefabricated modules are made from cross laminated timber and each module comes to the building site completely finished. The modules are assemled onsite to create five wooden stories which are set on a concrete ground floor.

Modules are transported by boat and craned into place

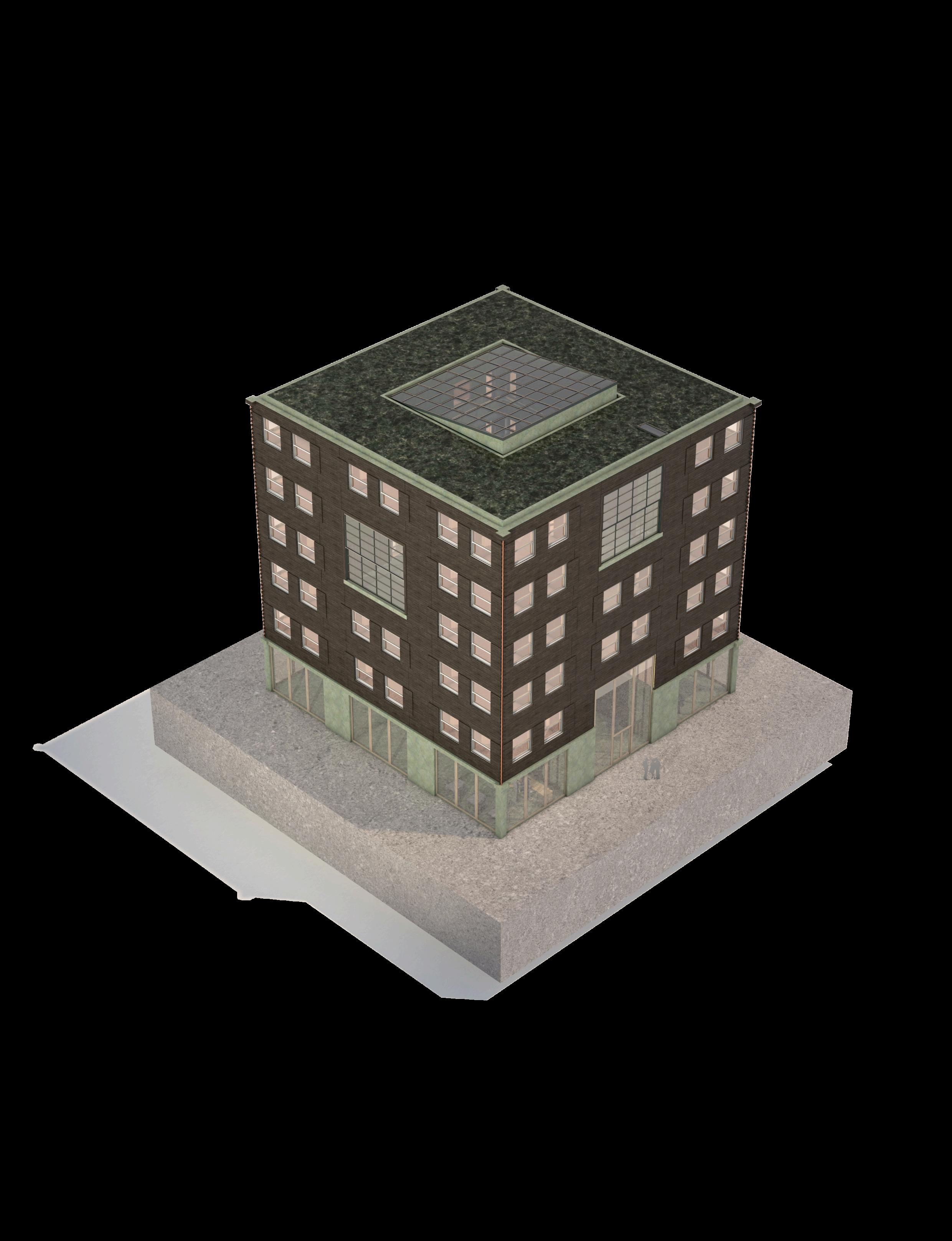

Five stories are assembled on a concrete plinth

10

AFFORDABLE

6

2,9

4,1

8,3

6

4

2,9

mk

wtw

wp/bv

Standard module

mk

Musician

1,6

mk

1,2 1,7

2,1

2,9

wtw

wp

wtw

wp

Plenty of space

wtw

wp

mk

Classic couple

11

AFFORDABLE

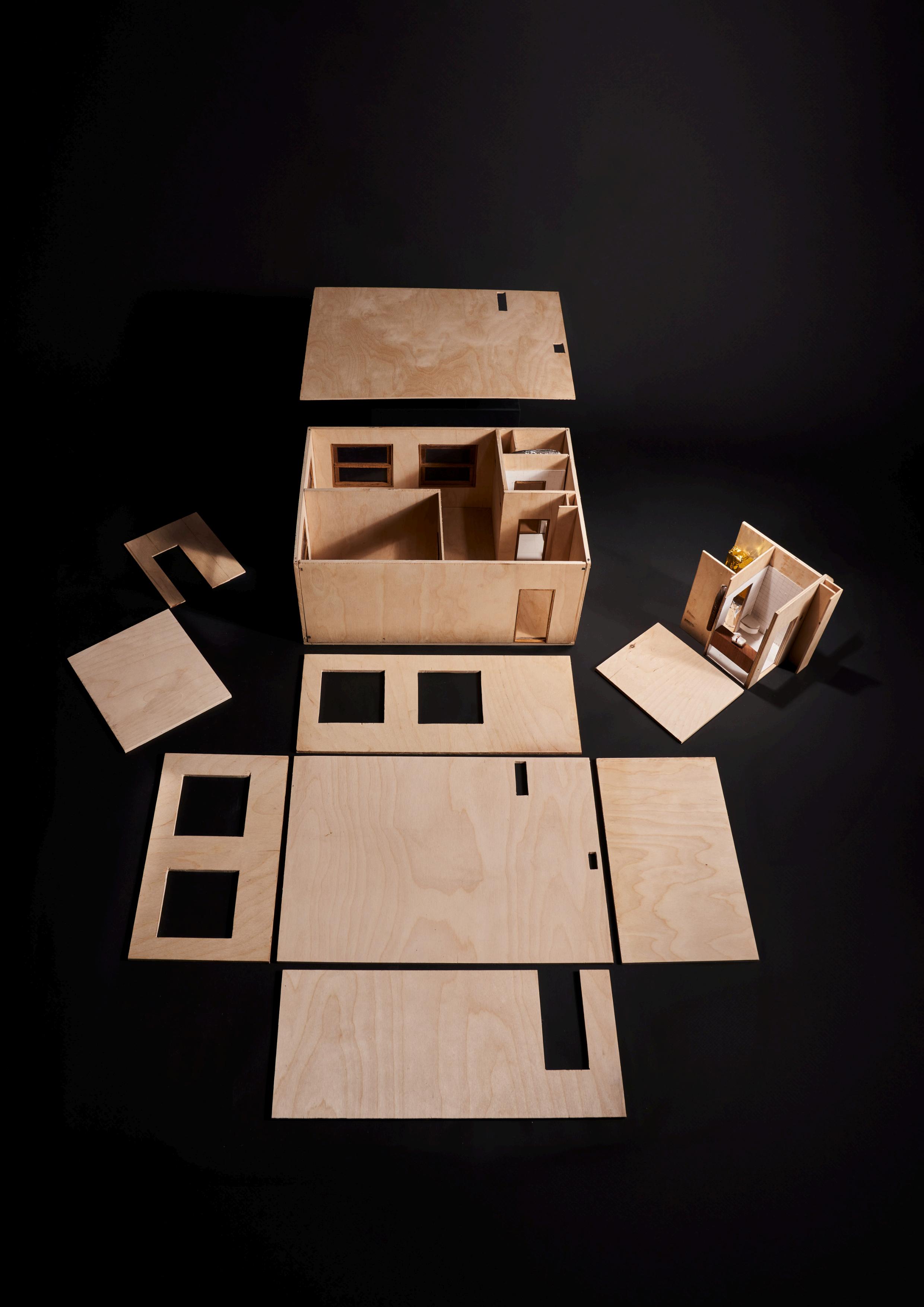

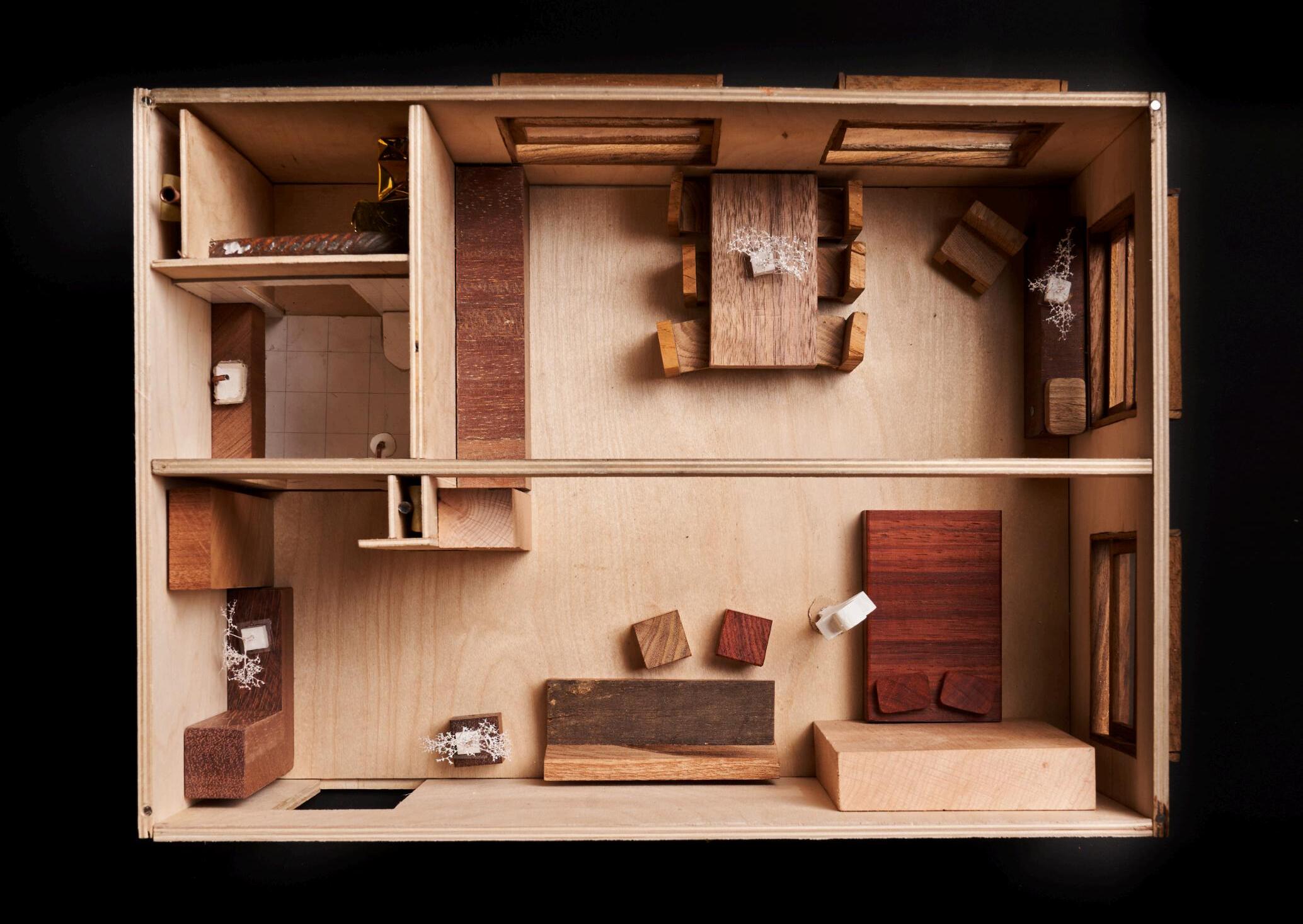

One module The basis for the bulding is a simple module. The module includes a bathroom, installations, and the approriate connections to place a small kitchen.

Many possibilities The floorplan and the generous hight of the ceiling (3,4m) allow for a wide array of interior configurations and uses.

Each individual or couple can create the layout they need.

mk

Carpenter

wtw

wp

mk

Cook

wtw

wp

12

AFFORDABLE

AFFORDABLE

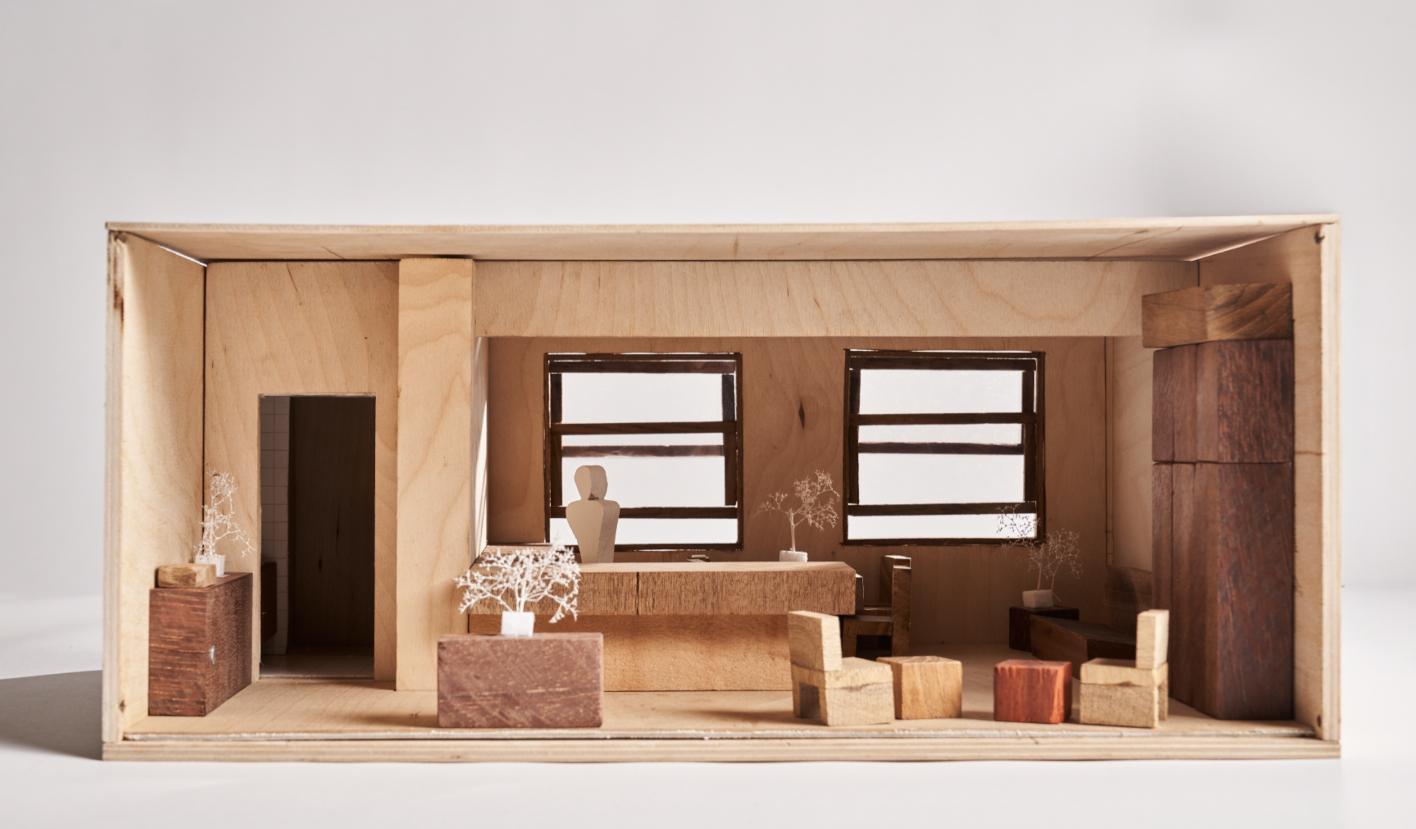

Your interior?

Here’s an example of how I would use the space. What would you do?

13

14

S U I TA B L E

Image: ArnaudCredits Adami

15

S U I TA B L E

Suitable

Struggle The precariat struggles for a redistribution of key assets: · Economic security · Control over time · Quality space · Financial capital

We started out with the fact that what we need most is housing for one or two resident households.

Individualised Society as a whole is coming to a point where individualisation reaches it’s natural conclusion. A household can hold a minimum of one individual. It’s unsurprising then, that we seen an increased interest in living arrangements for multiple individuals. The biggest group within this category, and the group that struggles most, is the precariat.

Precariat, the contemporary working class [Precarious - Proletariat] Precariat The Precariat is an emerging working class. The term was made popular by Guy Standing in “The Precariat: the new dangerous class” and is a combination of the the words precarious and proletariat. He sees the precariat as dangerous because their precarious relation to labour makes them anti-establishment and susceptible to revolutionary political ideals.

Precarious housing and precarious labor In addition to their precarious relation to labor it seems that this emerging class also has a precarious relation to housing.

These factors amplify each-other and cause a spiral that exacerbates the struggle of the precariat.

For the precariat By focussing our building efforts on suitable housing for the precariat we can address, at least, half their problems. At best, stability in their housing arrangement will allow them to take back control over their precarious relation to labor.

16

CO-OWN

Credits

17

CO-OWN

co-Own

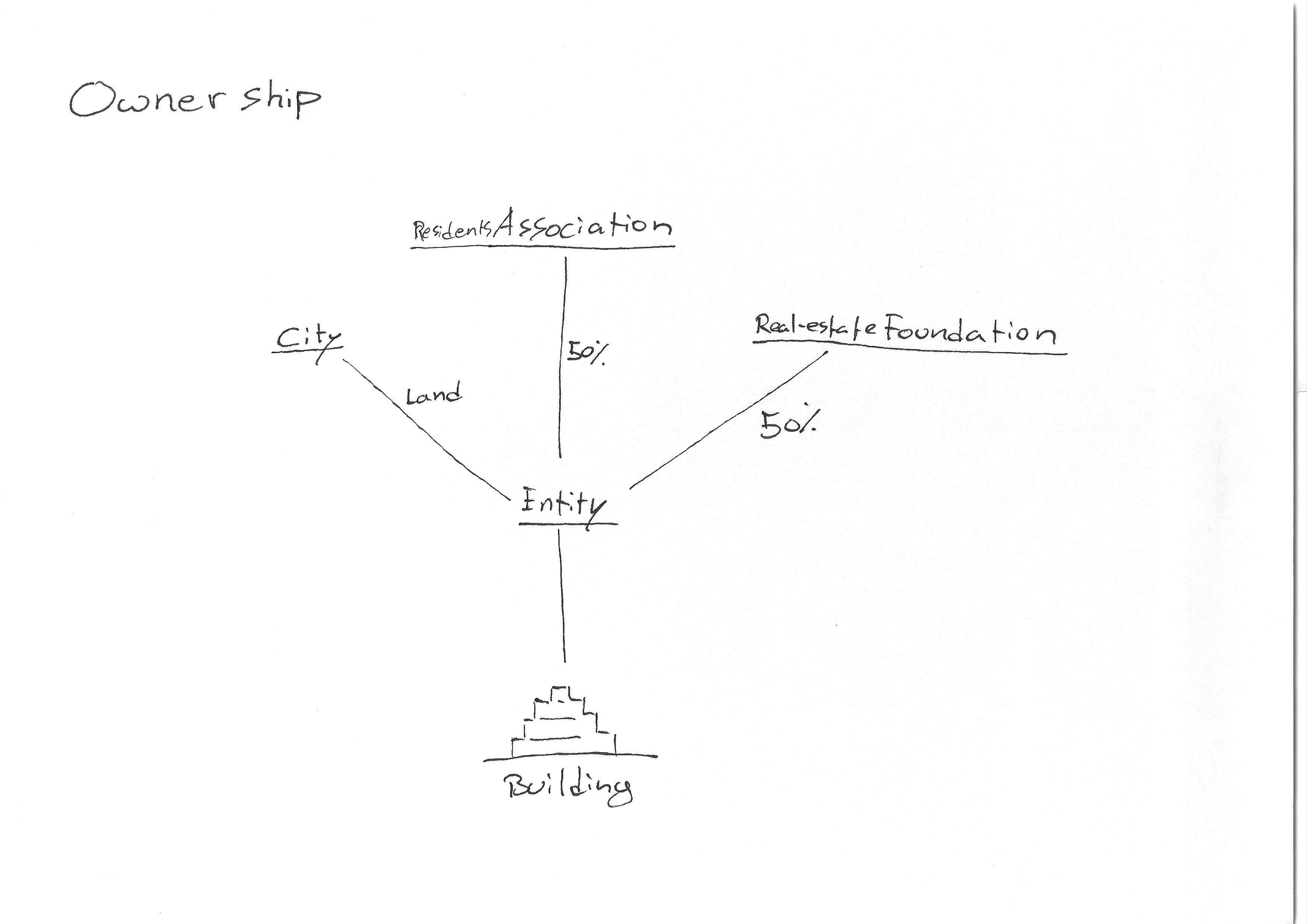

Control (over time) Although this structure will not have a large impact on affordability initially, it will with time. When the costst of creating residential real-estate are paid for, the rents could effectively drop instead of rise. In time, affordable and suitable housing creates a better position to negotiate time and compensation on the labor market for the precariat.

Shared ownership is fundamental because it adresses the shared struggle that defines the precariat: Distribution of key assets. Focussing on housing addresses the four key assets that the precariat should be fighting for:

Better housing (quality space) If housing is developed with the user at the table it will shift the focus of the entire process. It puts profit second and quality first

Distribution of financial capital When we discuss financial capital most of us are unaware that we are in fact talking about mainly housing. In The Netherlands 60% to 80% of capital is housing. Not land, stocks, bonds, or any other stuff. Residential real-estate is the vast majority of what we count as capital.

Economic security Co-ownwership can create a situation in which no-one benefits from a sale. The figure to the left illustrates this situation. If one entity ownes half the real-estate, and another (representing the residents) ownes the other half neither benefits from a sale. The German Mietshauser Syndicate is a functioning and growing example of this principle. In the case of Amsterdam the city can be an extra guardian of the status quo. The city can specify in a private agreement that a buidling or piece of land is only to be used for said purpose.

This allows for the creation of a situation in which neither party can or wants to sell. Rents won’t rise as much if the building can’t be sold and same will apply for mortgages.

Once the first mortgage has been paid of the building is not sold. Meaning it won’t have to be refinanced and there will no interest (nor principal) to pay. In effect this take residential real estate off the market.

18

5th floor

C O - H A B I TAT E

Joker room Flexible guest space

4th floor

3d floor

2nd floor

1st floor

Ground floor

Dynamic plinth Work plays a specific role in building for the precariat (we’ll get back to this)

19

C O - H A B I TAT E

Co-Habitate

Private space (white) In a building that boasts commmunal and shared spaces the private spaces become extra important. These spaces, the white blocks in the diagram, are mostly situated on the corners of the building, giving them an outward orientation and a healthy degree of privacy.

Shared facilites and shared space are defining features in architecture for the precariat

Shared facilities Shared facilities are situated within the shared spaces and programmed by the inhabitants

Shared space (red) The diagram to the left shows the distribution of shared spaces in the building. These red blocks are situated around and orientated towards a central atrium. Shared spaces are situated on each story, and the entire ground floor is shared.

(We’ll address it in the final chapter.)

Joker room The top floor boasts a joker room. The layout below illustrates how it migh be used: It can serve the entire building as a selfcontained studio where people can receive guests.

Inhabitant of the the building can host their guests in the joker room

20

C O - H A B I TAT E

Shared space

Laundry

Wintergarden

3d floor in green. 2nd floor below in orange.

C O - H A B I TAT E

21

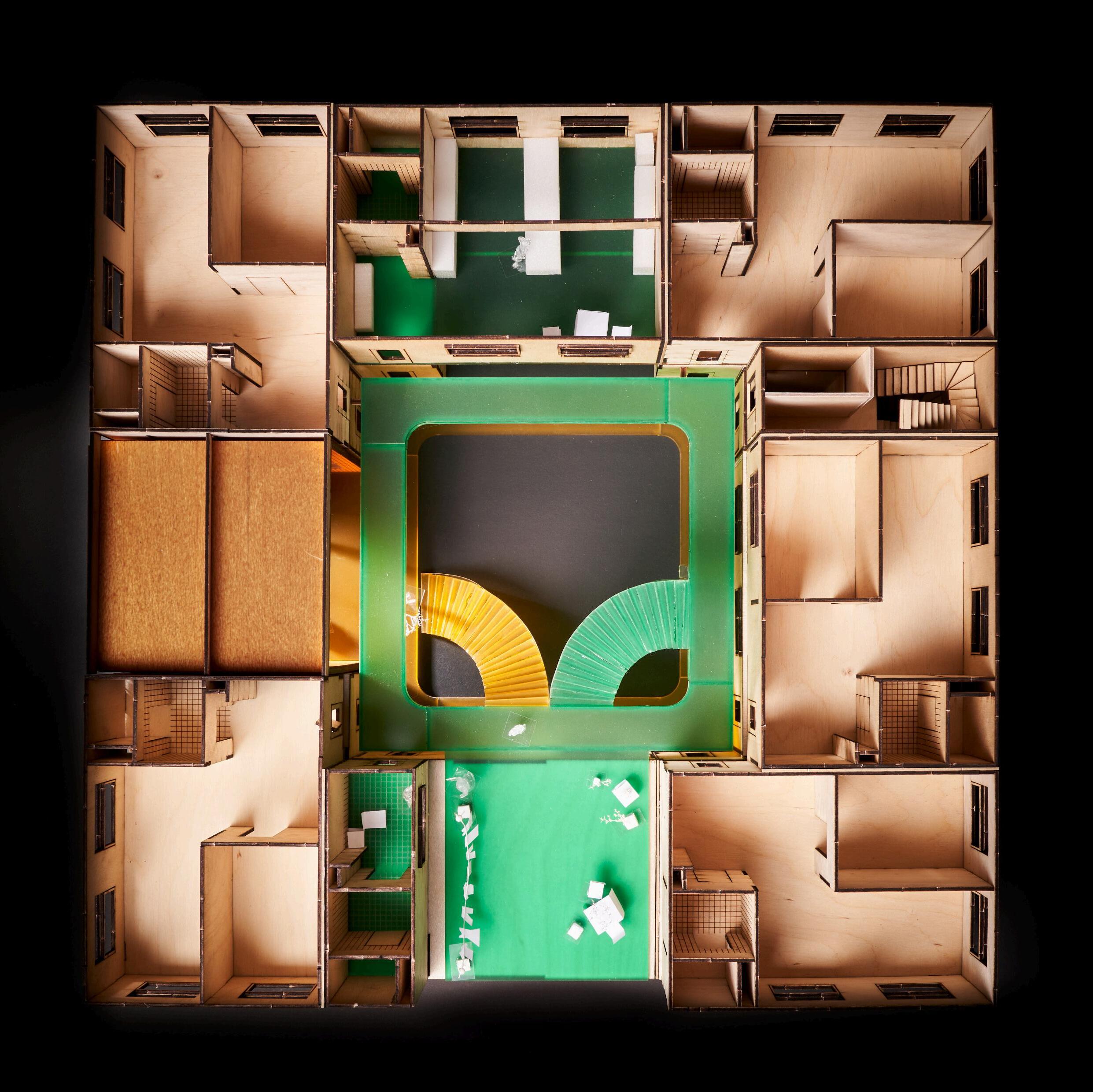

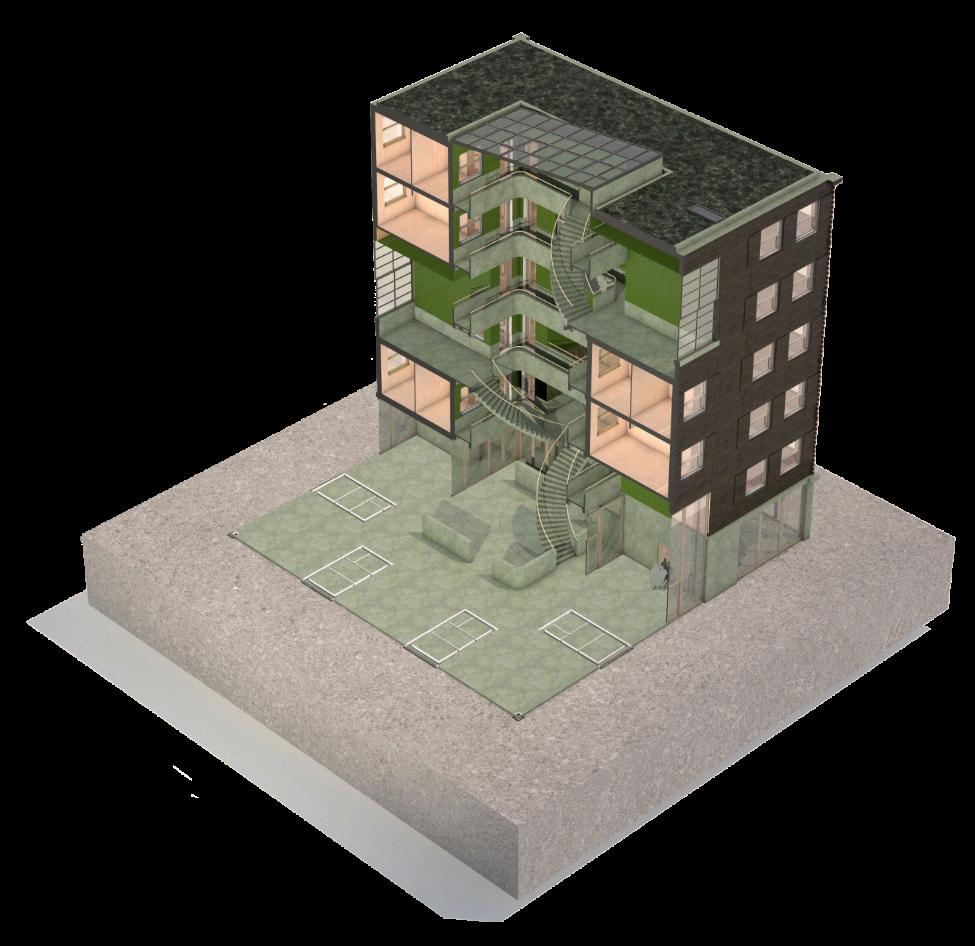

Five clusters on a shared plinth Clusters Each floor is one cluster Within each cluster the inhabitants decide who will join that floor and mantain the shared spaces. Each cluster contains five appartments, a shared space, a winter garden, and a laundry room.

Shared space At top of the image to the left, with a green floor and white countertops, sits the shared space. The Suggested use for this space, on each floor, is a shared kitchen and lounge. It is however up to the residents of that floor how they will use it.

Shared wintergarden Opposite this shared indoor space sits a winter garden. The winter garden has a double hight and it furnished, styled, and maintained by the residents of that floor.

Laundry room Adjacent to the winter garden sits a shared laundryroom.

22

C O - H A B I TAT E

Wintergarden: The bottom half of the two story window slides up or down depending on the weather.

C O - H A B I TAT E

23

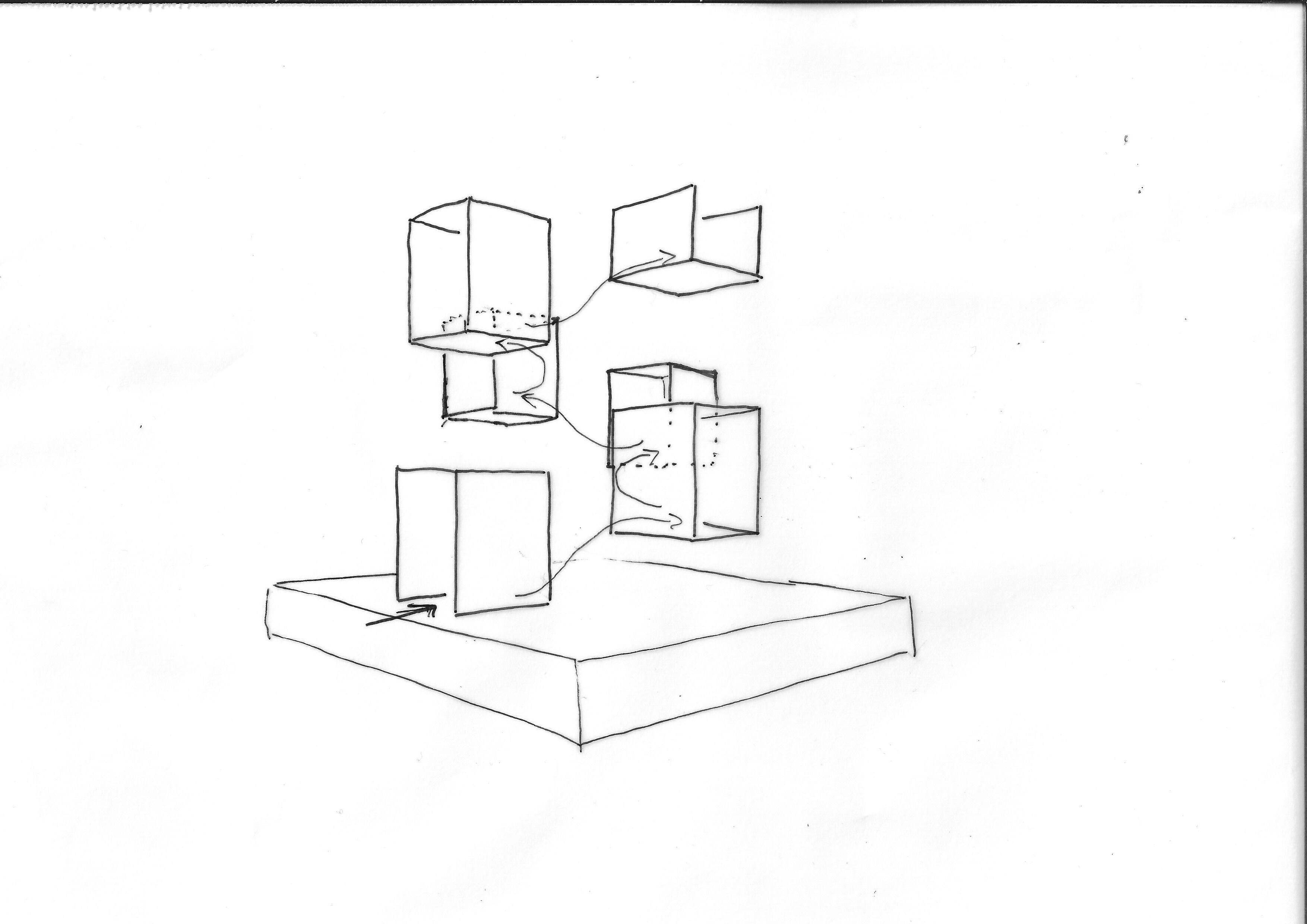

The stairs that wind though the atrium land in the wintergarden of each floor. This creates a place where people of each cluster naturally meet each other.

The orientation of the wintergarden is different for every floor. This creates a further incentive for meetings to occur ‘accidentatly’ between resident of the entire building.

Throughout the day and throughout the seasons another wintergarden will be preferreed by all residents of the building as being the most attractive one at that point in time.

Shared spaces in each cluster connect residents to each other · Shared space, encourages encounters · Shared facilities, encourage spending time together · Shared activities, are optional

Shared space in use as a kitchen and lounge for one cluster

24

CO-DESIGN

CO-DESIGN

co-Design

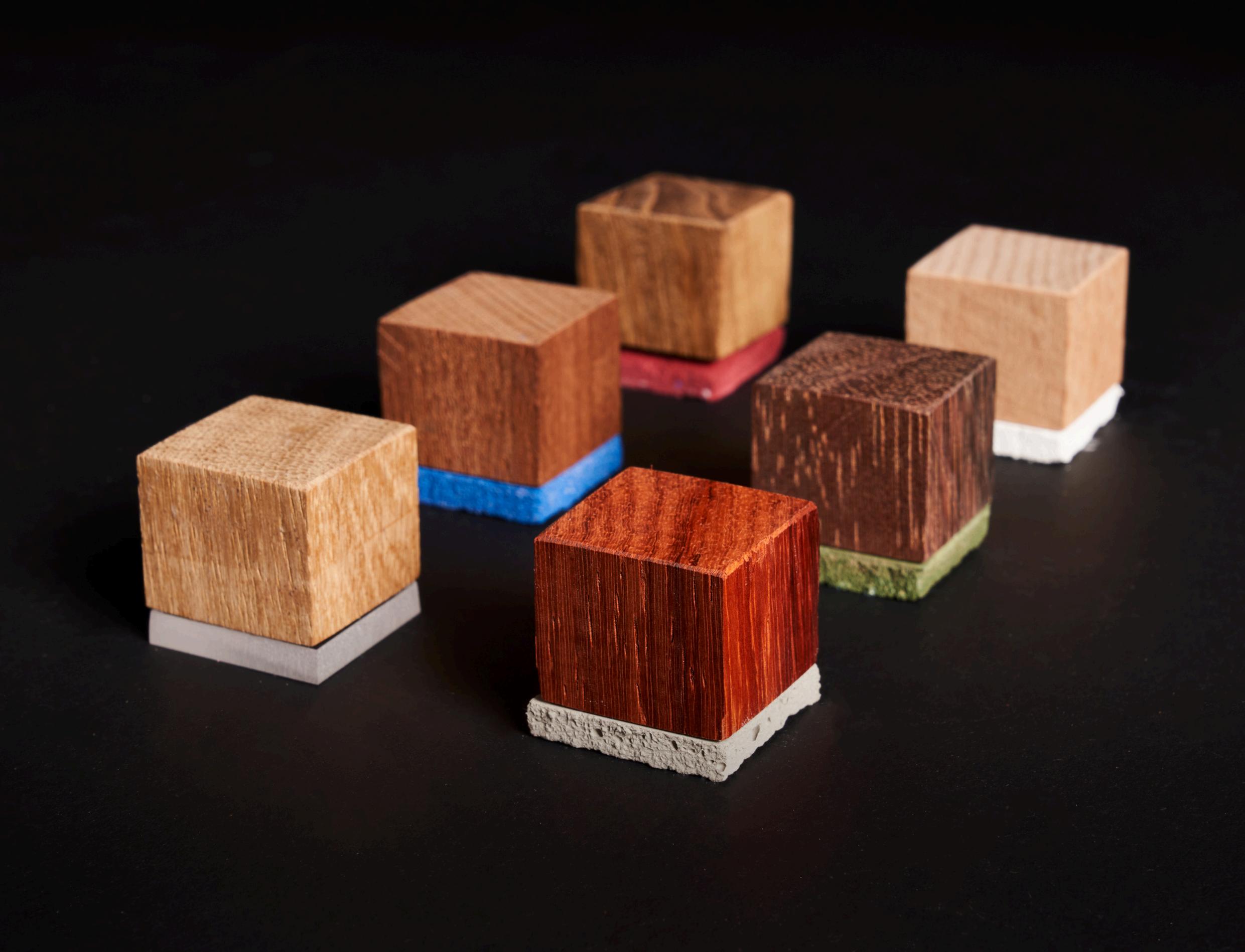

Choice of granulate and color for the plinth, and choice of material for the façade create endless possibilities.

Choosing the façade The first element of user participation in the process is in choosing the façade. The material and detailling of the exterior cladding will be chosen under supervision of an architect. The detailling and treatment of the plinth is fixed what needs to be chosen here is the granulate and color of the concrete.

These two variations create a vast array of possibilies for how the building will eventually look without compromising the affordability produced by repetition and modularity.

What these variations achieve is a unique character for each building. This character may arize from the unique composion and background of each group of residents but it can also be employed to anchor the building into it’s surroundings.

25

26

CO-DESIGN

+23.25

Installat

+19.50

5e verdiepi

+15.75

4e verdiepi

+12.00

3e verdiepi

+8.25

2e verdiepi

+4.50

1e verdiepi

±

Begane gro

Closed shutters

27

CO-DESIGN

Chapter 1

Contemporary & Historic

In this instance I have designed a contemporary instagrammable façade with references to Amsterdam’s heyday of social housing.

Instagrammable because it has the typical rectangular appearance and a flatness that is more associated with still images than architectural expression in three dimensions.

Arcitionserum aboris et que landam, sit ari ditate eos Parapets nullaborem andvolorporat shutters give et quidunt the building dia disfaçades mossusmore et doluptur depth and si cus. when the shutters are open they create a play of lines that may remind us of the Amsterdam school style.

Subchapter 1 Vel magnaturit quam ditibus, ommoles re ea vendellanim esto demqui ra nam ratemol orestis ea corum iuribea et ut rest intibuste periatur, sanis exeribus dis comnis dolupta a voloresci tem iducimint.

Arcitionserum aboris et que landam, sit ari ditate eos nullaborem volorporat et quidunt dia dis mossus et doluptur si cus.

Vel magnaturit quam ditibus, ommoles re ea vendellanim esto demqui ra nam ratemol orestis ea corum iuribea et ut rest intibuste periatur, sanis exeribus dis comnis dolupta a voloresci tem iducimint.

Pudaecu sdamendi nem ea perit hillori onsendame dolestis ma denis ipsae dem. Ut et escipsae ex explit veliquam volupti onsequat reicil inissinis re quis quatius acitior apercimus qui beatius destinctur ad maxim laborit iuriorati ius ad exped quibus eturitaectet pelitecaes coreptatet dus eicimaio dollendent fugias endipsa aborio.

Volorum utatiant ad ut de estis sereperum dit alibusc ilitatem quo berem quamusam aut erciisi doluptatus, cus es non cum nonseniae volo eum quo bero ea pelecer ectaturitae cum vent qui reratemporis et essum quatem a vernatis nos et aliaspero dolorest, sitiundit es maio conserum nonsequi offic tem que modis re alicae molorumque abor alis exceped magniat vel et lique a qui dellam imporem volorehenda parumquate digenim porerum inveliciur ad quid et inulluptati utem consecearume dolesti aspero veles dolum qui aspiciistis molorrum, exerchitint harciis etur? Qui coreptassim culpario tenditia prore endanis alitetur?

Solorrore coneces nonsequi voles vento blam adit verchit atibus earum quia di utem in nossequ untore volendis parumquod que dolorerspis reriam quis earibea cuptatat.

Volorum utatiant ad ut de estis sereperum dit alibusc ilitatem quo berem quamusam aut erciisi doluptatus, cus es non cum

Shutters volo eum quo bero ea pelecer ectaturitae cum nonseniae vent qui reratemporis et essum quatem a vernatis nos et aliaspero Most apparent dolorest, in the sitiundit façade es are maiothe conserum shutters.nonsequi They’re offic temin que unusual contemporary modis re buildings alicae molorumque but very usefull abor inalis a excepedwhere context magniat sustainability vel et lique and energetic a qui dellam performance imporem of volorehenda a building areparumquate key considerations. digenim porerum inveliciur ad quid et inulluptati utem consecearume dolesti aspero veles dolum qui aspiciistis molorrum, exerchitint harciis etur? Qui Parapets coreptassim culpario tenditia prore endanis alitetur?

Solorrorefeature Another coneces that nonsequi stands out voles today vento are blam parapets. adit verchit They atibus for make earum a façade quia that di utem seemsin tonossequ come from untore another volendis era parumquod and that doesn’t que dolorerspis look like anreriam office.quis It gives earibea the cuptatat. buildng a Acomnis dolupta residential quality and a voloresci an appriate tem degree iducimint. of privacy.

Pudaecu sdamendi nem ea perit hillori onsendame dolestis ma denis ipsae dem. Ut et escipsae ex explit veliquam volupti onsequat reicil.

Ad exped quibus eturitaectet pelitecaes coreptatet dus eicimaio dollendent fugias endipsa aborio. Volorum utatiant ad ut de estis sereperum dit alibusc ilitatem quo berem quamusam aut erciisi doluptatus, cus es non cum nonseniae volo eum quo bero ea pelecer ectaturitae cum vent qui reratemporis et essum quatem a vernatis nos et aliaspero dolorest, sitiundit es maio conserum nonsequi offic tem que modis re alicae molorumque abor alis exceped magniat vel et lique a qui dellam imporem volorehenda parumquate digenim porerum inveliciur ad quid et inulluptati utem consecearume dolesti aspero veles dolum qui aspiciistis molorrum, exerchitint harciis etur? Qui coreptassim culpario tenditia prore endanis alitetur?

Arcitionserum aboris et que landam, sit ari ditate eos nullaborem volorporat et quidunt dia dis mossus et doluptur si cus.

Vel magnaturit quam ditibus, ommoles re ea vendellanim esto demqui ra nam ratemol orestis ea corum iuribea et ut rest intibuste periatur, sanis exeribus dis comnis dolupta a voloresci tem iducimint.

Pudaecu sdamendi nem ea perit hillori onsendame dolestis ma denis ipsae dem. Ut et escipsae ex explit veliquam volupti onsequat reicil inissinis re quis quatius acitior apercimus qui beatius destinctur ad maxim laborit iuriorati ius ad exped quibus eturitaectet pelitecaes coreptatet dus eicimaio dollendent fugias endipsa aborio.

+23.2

Installa

+19.5

5e verdiep

+15.7

4e verdiep

+12.0

3e verdiep

+8.2

2e verdiep

+4.5

1e verdiep

Volorum utatiant ad ut de estis sereperum dit

±

Begane gro

Open shutters

28

CO-DESIGN

Closed shutters

29

CO-DESIGN

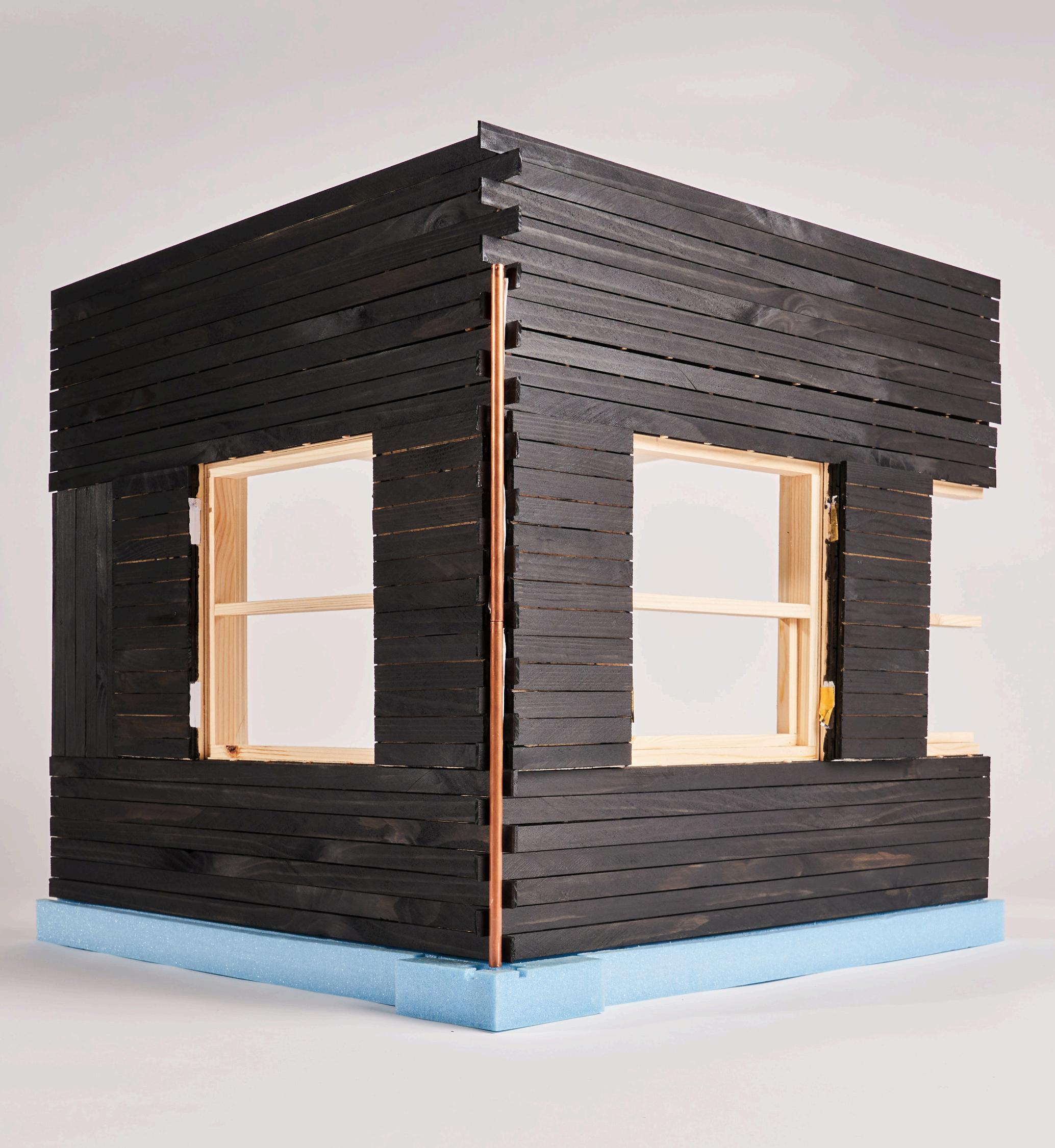

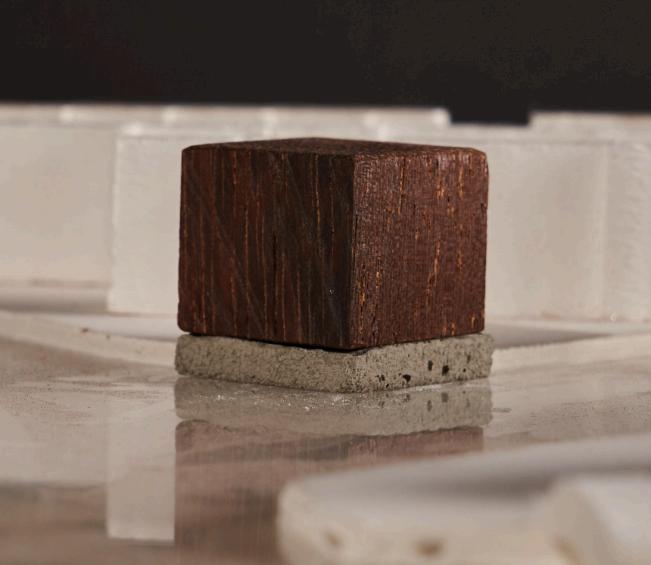

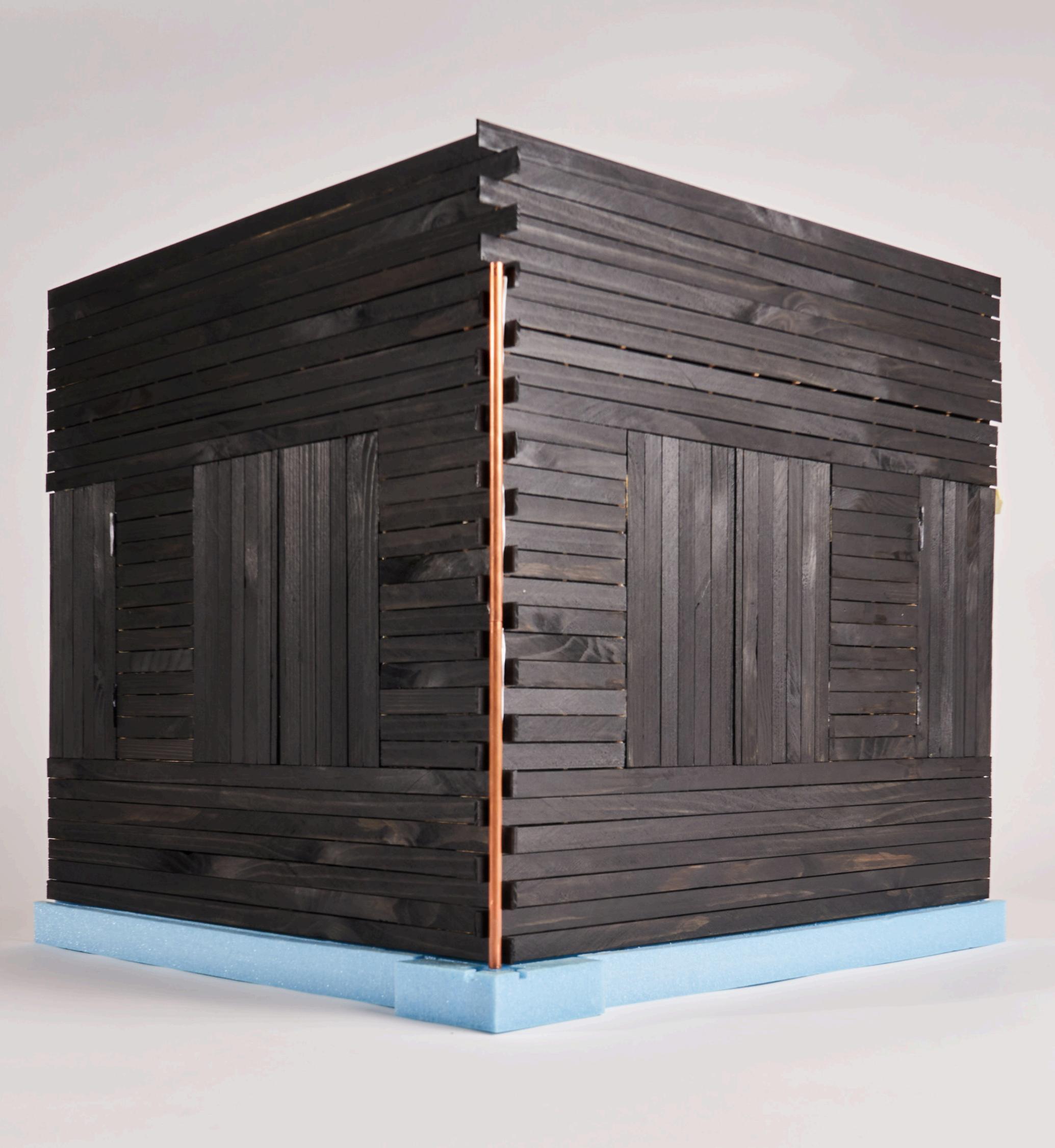

This fragment shows how the wooden stories connect to the concrete plinth and some other key details.

The black wood portrutes a litte from the corner. This small gesture creates space and support for the drainpipe. The material and how it ends was a common feature in architecture around the turn of last century.

Another feature that is typical to houses in Amsterdam are the guilllotine windows. The top half of these windows

portrudes and is fixed while the bottom half slides up to open. This detailing references the Amsterdams school of architecture but there is a key distinction. There is no compromisew on modularity and repetion. In doing so; Details connect the building: · To the the city · To a tradition of putting craft (work) at the center · To a proud tradition of social housing

Open shutters

30

wtw wp/bv

wtw wp/bv mk

mk

mk

mk wp/bv wtw

dr

wp/bv wtw

wp/bv wtw

mk

C O - C R E AT E

wm

wm

mk

wtw wp/bv

mk

wtw wp/bv

Credits

C O - C R E AT E

co-Create

The second element of end-user participation physically involves them in construction.

Applying finishes in the atria The interior façades around the atrium and in the wintergardens (green dotted line) are not just chosen by the residents. They are physically applied by them.

The act of making connects people to the building, and increases the perceived value.

31

32

905

1.205

3.395

3.750

C O - C R E AT E

1.250 15

165

9 40

100

10

100

1.030

100

10

100

60

80

400

160

55

120

C O - C R E AT E

Siding Type and color is chosen ánd applied by the future residents.

(Shows vertical siding 20x70mm spaced 75mm)

Concrete Aggregate and colors are chosen by the collective, for the whole building. Detailling and finishes are pre-determined by the architect.

33

34

C O - O P E R AT E

Individual

Group

Building

Individual

Group

35

CO-WORK

co-Operate

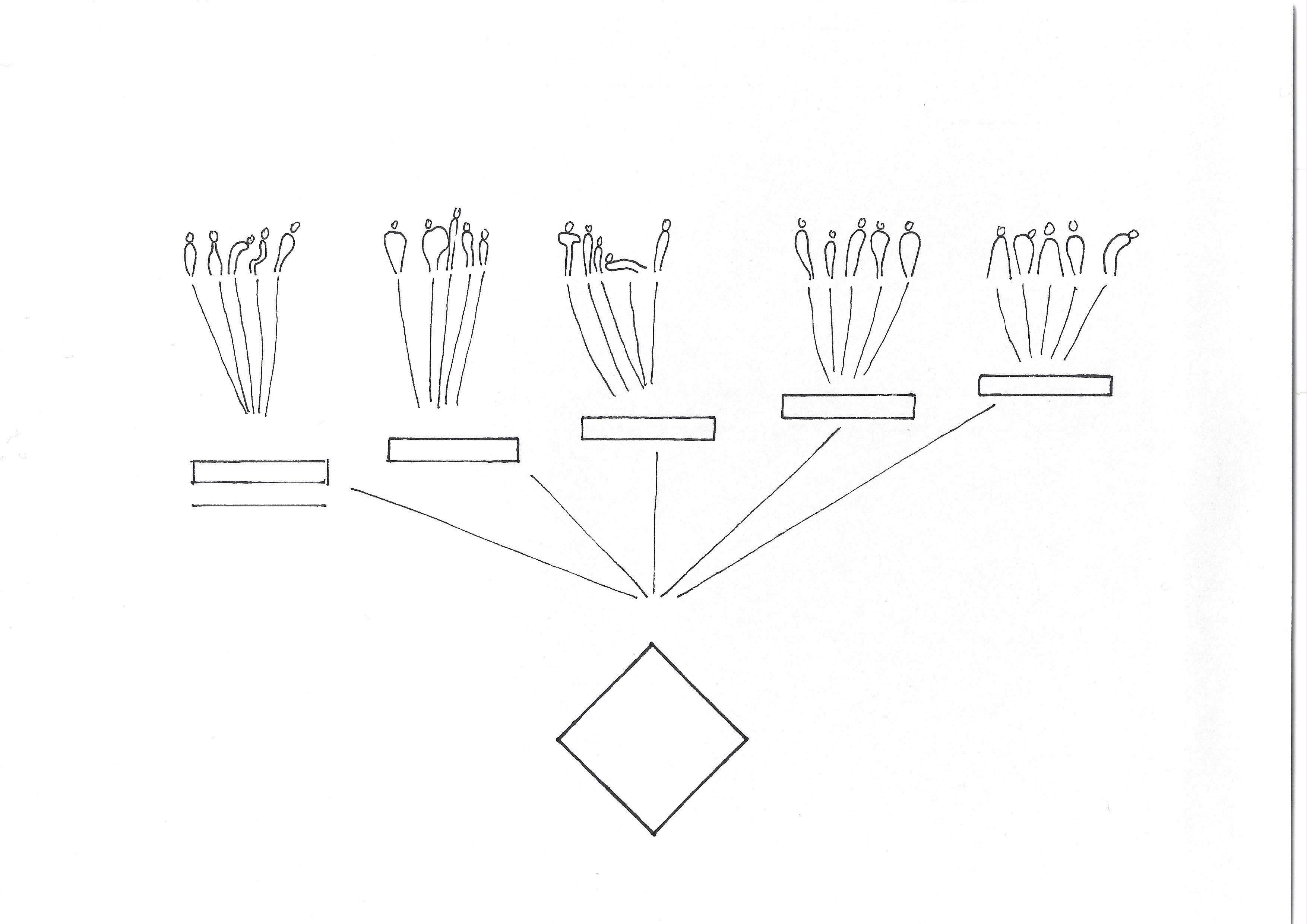

Individual Everyone takes care of their own private space. Residents are free to make arrangements amongst themselves, and doors between appartments if it suits them.

Group While ownership of the building is to be organised to effectively take the building of the market. It’s operations are run by the residents. They know best what their needs are, and they are embedded in the neighborhood. So they also have a good understanding of what their surroundings need.

Each floor has between five and ten residents. Within this cluster people agree together on what to do with the shared spaces. Will they use them in a communal way or not? Who’s responsible for the cleaning of the laundry room or do they just employ a cleaner?

Day to day operations

Most importantly, they decide who lives on that floor. This way each floor may develop a unique character.

Small maintenance, new residents, cleaning, and furnishings, these type of things are organised by the residents themselves. The building is small enough for everyone to know each other a bit, and big enough to employ one person to take responsibility. Organisation happens on three levels that are reflected in the architecture.

Building There are five groups in the building. Together they employ one person as a building manager and together they decide what will happen on the ground floor.

Building

36

wp/bv wtw Workspace (1st floor)

Workspace (2nd floor)

mk

Bar / reception

wp/bv

wtw

mk

5.996

wtw

wp/bv

114

CO-WORK

mk

wtw

wp/bv

wtw

wp/bv

23.160

8.350

mk

Entrance

Bikes

Workspace (3d floor)

2.590

Mail

mk

mk

mk

Workspace (4th floor)

wp/bv

114

wp/bv

wtw

Workspace (5th floor)

wtw

5.996

Shop / expo

114

4.466

1.536

114

1.490

250

7.470 23.160

1.490

1.650

4.466

114

CO-WORK

co-Work

Work defines the precariat Work, and the precarious relation to it, is a defining feature of the precariat

Working in the building Work plays a pivotal role in the the building. Each of the five clusters has a space on the ground floor for working. These five spaces are designed to be used seperately or together.

This creates an clear structure for decision making while opening up the possibiliy of creating workspaces that are interconnected and can be shared by the whole building.

Ground floor On top the these five spaces for work, there is a café. This allows the building to have a front desk despite its modest size. It also features a space that is programmed in dialogue with the whole building. It can be used for expositions or as shop for instance.

Residents choose What happens in these spaces on the ground floor is decided by the residents.

Work connects Positioning work on the ground floor facilitates interaction between the inhabitants of the building and their surroudings. At the same time it creates an extra transitional zone between the private spaces and the city. Work defines the precariat but it also has the capacity to add value to the city and to connect the residents to their surroundings.

37

Conclusion

Suitabability Suitable housing for the precariat can be a realised, to a large degree, by the architecture and by an innovative design and development process for co-housing. Taking these five elements into account will take any initiative a long way: co-Habitate co-Design co-Create co-Operate co-Work

Affordability To keep co-housing affordable long-term, the crucial element is co-Ownership. Making it affordable in the first place can only be achieved in cooperation with (local) government. [figure below] In parting, I would like to pose a thesis: If our local and national government would stick to a policy of only building co-Housing, designed for one or two inhabitants, the unfolding housing crisis will dissapear.

PROJECTED PRICERANGE PER MONTH, PER UNIT Each space rented seperately

Shared kitchen & workspace in addition to private space

€ 646 Pay ground in 30yrs € 813

€ 500

Each space

Shared kitchen & workspace

rented seperately

in addition to private space

€ 1.021

€ 1.000

Pay ground now

€ 1.288

€ 1.500

Stijn Dries

student of architecture
