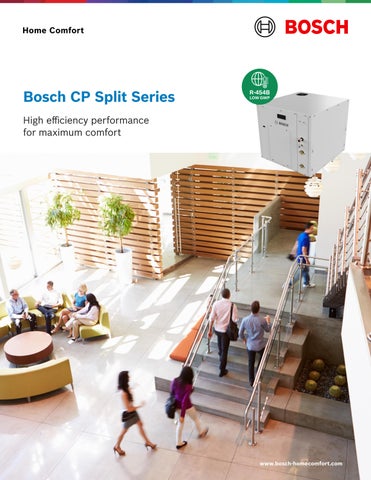

Bosch CP Split Series

Bosch CP Split Series High efficiency performance for maximum comfort

www.bosch-homecomfort.com

Flexible Installations, Maximum Comfort Bosch CP Split System The premium efficiency CP Split System is a versatile water source heat pump, offering flexible installation options for commercial projects. The air handler can easily be separated from the condensing section, which helps to save space and minimize noise. Equipped with R-454B refrigerant, the CP Split meets the criteria for a lower global warming potential A2L refrigerant.

Features 2 Stage Scroll Compressor Technology By matching output to demand, the two-stage scroll compressor ensures optimized comfort and energy efficiency.

Compact Cabinet Design Bosch engineered the cabinet to be one of the smallest condensing sections in the industry which makes it perfect for replacement in tight spaces.

Factory Provided Filter Drier A filter drier is provided to help protect critical components of the refrigerant system.

1 Year Warranty Bosch CP Split condensing section model come standard with a 1 year limited warranty on all parts.§ § Please go to boschheatingandcooling.com for full limited warranty details

Copper or Cupro-Nickel Coax Coil Choose between insulated copper or cupro-nickel heat exchanger. Cupro-nickel is recommended in conditions anticipating moderate scale formation or open loop applications.

Engineered for Quiet Operation Unit includes 1/2" closed-cell foam insulation. When combined with our floating compressor base pan, the unit offers sound levels as low as 51 dB. Bosch Quality Bosch products are built using top-grade materials and are tested to meet the highest standards for performance and sustainability.

Why Choose the Bosch CP Split System?

When it comes to creating a reliable, energy-efficient, and quiet indoor climate solution, the Bosch CP Split water source heat pump stands out as a smart investment. Designed with both the contractor and end-user in mind, this advanced system combines premium performance with maximum installation flexibility, making it the perfect choice for a wide variety of commercial applications.

Energy Efficiency That Pays Off

Quiet Comfort, Trusted Quality

At the heart of the CP Split is Bosch’s two-stage

Engineered with a floating compressor base,

scroll compressor technology, which intelligently

closed-cell insulation, and a specially constructed

adapts to heating and cooling demands. By

cabinet, the CP Split is one of the quietest systems

operating at partial load during milder conditions,

in its class, operating as low as 51 dB. Every unit is

it significantly reduces energy consumption while

built with Bosch’s proven durability and

maintaining consistent comfort levels. The system’s

commitment to excellence, tested to meet

use of R-454B refrigerant also ensures compliance

stringent quality standards and backed by a solid

with new low global warming potential (GWP)

1-year limited warranty on all parts.§

standards, giving customers an eco-conscious and future-ready solution.

A System from a Brand You Trust Whether it’s paired with Bosch’s versatile BIVB20

Flexibility That Fits Your Project

air handler, a BMAC cased coil, or a dual-fuel

The split design allows the air handler and

furnace, the CP Split system integrates seamlessly

condensing section to be installed separately, ideal

with a variety of components to build a high-

for tight mechanical rooms or challenging retrofit

performance HVAC solution tailored to your space.

scenarios. Compact cabinet sizing, front water

With Bosch’s legacy of innovation dating back to

connections, and multiple air handler mounting

1886, you can count on long-term reliability,

options (vertical, horizontal, or downflow) give

customer support, and industry-leading

installers more control and convenience, without

engineering.

compromising performance.

plit ch CP S The Bos tion sing sec conden lass best-in-c s e id v pro gs and cy ratin efficien um s maxim provide imum t at min comfor cost

Bosch CP Split System Options Dependable & Highly Efficient Solutions For Heating and Cooling Your Home Bosch’s CP Split Configurations Use any of the following options to make a complete heating and cooling system

A

Bosch CP Split Condensing Section (CS) The robust Bosch CP Split water source heat pump system utilizes just the right amount of energy to achieve ultimate comfort and maximum efficiency while fitting in your existing space constraints.

With its compact footprint and advanced engineering, the CP Split CS is designed to deliver superior performance across a wide range of applications. Whether you're upgrading an existing system or designing a new installation, the CP Split CS provides quiet operation, flexible configurations, and dependable year-round comfort.

B

Option 1 Bosch’s CP Split CS + Bosch's BIVB20 Air Handler B

Bosch's BIVB20 Air Handler* The BIVA20 is Bosch's robust & reliable Indoor multi-position air handler that can be mounted vertically, horizontally, or field configured downflow.

A

Option 2 Bosch’s CP Split CS + Bosch Cased Coil + Furnace C

D

(1)

Gas Furnace (Dual Fuel)* A Bosch or third-party furnace can be used in applications where gas can be used to produce heat on very cold days.

Bosch BMAC Cased Coil* The BMAC cased coil, when paired with a Furnace and CP Split condensing section, delivers some of the best comfort levels and efficiency on the market today. Bosch offers a complete range of air coils to fit your needs.

*Product sold separately. (1) Additional accessories may be required.

C

A

D

CP Split Model Components Features & Benefits

A

B

H

I G C F D E

A

The Bosch CP Split CS heat pump comes with a large electrical box to mount Bosch field mount accessories.

B

1/2" closed cell foam insulation helps to attenuate low frequency noise from the compressor.

C

All connections (water, refrigerant, and HCP) are located on corner post for easy access. Water connections come standard with FPT fittings.

D

E

F

The Bosch CP Split heat pump comes with a factory provided filter drier to help protect critical refrigerant system components.

G

The thermal expansion valve (TXV) is bi-directional and controls the refrigerant flow providing optimum superheat to the compressor.

H

The two-stage high-efficiency scroll compressor provides maximum comfort and quiet operation using minimal energy.

I

The unique floating base uses heavy steel plate combined with high density rubber pad and grommets to isolate the compressor from the cabinet. This double isolation limits vibration and noise transmission.

The compact cabinet is constructed out of durable powdered coat G90 Galvanized Steel.

The Coaxial water coil is wrapped for superior moisture protection in extended range applications.

System & Technical Information CP SPLIT CS DIMENSIONS (INCHES) MODEL SIZE

WIDTH (W)

HEIGHT (H)

DEPTH (D)

CP024-1CS

22

22

26

CP036-1CS

24

22

26

CP048-1CS

24

25.5

33

CP060-1CS

24

25.5

33

H

D

W

BIVB20 AIR HANDLER DIMENSIONS (INCHES) MODEL SIZE

PART NUMBER

WIDTH (W)

HEIGHT (H)

DEPTH (D)

BIVB-24RCB-M20X

8-733-982-684

19.625

46.5

21.625

BIVB-36RCB-M20X

8-733-982-685

19.625

46.5

21.625

BIVB-48RCB-M20X

8-733-982-686

22.0

54.5

24.0

BIVB-60RCB-M20X

8-733-982-687

22.0

54.5

24.0

BMAC CASED COIL DIMENSIONS

CASED

H

W

UNCASED

D

H

MODEL NUMBER

PART NUMBER

WIDTH (W)

HEIGHT (H)

DEPTH (D)

WIDTH (W)

HEIGHT (H)

DEPTH (D)

BMAC2430BBTA

8-733-965-424

17.5

20.0

21.0

16.375

15.375

20.5

BMAC3036BBTA

8-733-965-426

17.5

20.0

21.0

16.375

15.375

20.5

BMAC4248CBTA

8-733-965-429

21.0

30.0

21.0

19.875

26.8

21.0

BMAC4860CBTA

8-733-965-431

21.0

30.0

21.0

19.875

27.0

21.0

D

W Cased Coil

H

D Uncased Coil

CP SPLIT PART NUMBERS MODEL

COAX COIL

PART NUMBER

C

7-734-026-713

N

7-734-026-716

C

7-734-026-719

N

7-734-026-720

C

7-734-026-717

N

7-734-026-714

C

7-734-026-718

N

7-734-026-715

CP024-1CS

CP036-1CS

CP048-1CS

CP060-1CS

W
