Fall Protection in the Workplace Laws, Responsibilities and Best Practices

By Scott L. Weiland PE, SE, James T. Boatright PE, OSHA Qualified Person

Falls are the leading cause of preventable death and lost day injuries in the workplace. While most falls are from a higher to lower level, the majority of fatalities occur from heights of between 11 ft. and 20 ft., and most ladder fatalities occur from heights of 10 ft. or less.

Knowing these statistics, having a managed fall protection program not only helps satisfy the law, but it is the right thing to do to protect yourself, your workforce, property owners and property managers.

Laws

Until 1970, all states had their own safety regulations. However, as result of protests for the improvement of worker safety, President Richard M. Nixon signed into law the OSH Act. The Act was the culmination of almost a century of endeavors by the states and the federal government to mitigate the vulnerabilities of employees exposed to the hazards of the Industrial Age. The Occupational Safety and Health Act (OSHA) was officially formed as an agency of the U. S. Department of Labor on April 28, 1972, the date that the OSH Act became effective. Shortly thereafter, thousands of its first consensus standards were published.

The Code of Federal Regulations (CFR) are the published federal laws of the United States. Of the 50 Titles contained within the CFR, Title 29 – Labor includes Part 1900 that deals with OSHA. Part 1910 – General Industry is a catch-all of Occupational Safety and Health Standards that cover all workers unless they are covered by a more specific regulation such as those for Shipyard, Marine Terminal, Long Shoring, Construction, and Agriculture work. OSHA is charged with assuring safe and healthful conditions for working men and women by setting and enforcing standards, and providing training, outreach, and education and compliance assistance. In addition, the OSH Act’s general duty clause requires every employer to provide every employee with a place of employment free from recognized hazards. Among additional workers’ rights created by the OSH Act, employees are to be kept informed of workplace hazards, be allowed to report hazards to either the employer or OSHA without retaliation, and to receive training to minimize the exposure to known hazards.

To better protect workers from falls, OSHA issued a significant update and clarification to its Walking-Working Surface standards in 2017. This update was based on advances in technology, industry best practices, and national consensus standards from American Society of Safety Engineers (ASSE), American National Standards Institute (ANSI) and International Window Cleaning Association (IWCA). The primary intent of the update was to provide more flexibility and options for fall protection so there would be no excuse for not using it. Additionally,

fall hazard training of all workers exposed to a fall was mandated, and limitations were placed on fixed ladders over 24 ft. tall and use of Rope Decent Systems (RDS) over 300 ft.

Responsibilities

Voluntary ANSI/ASSE Z359 Fall Protection Standards help to fill in the gaps within the OSHA regulations. Of the 17 standards, Z359.2 Minimum Requirements for a Comprehensive Managed Fall Protection Program is a good comprehensive aid to developing a Fall Protection Program.

ANSI/ASSE Z359.2 requires a policy and commitment set by top management to provide a safe work environment for all employees working at height in any situation. OSHA Regulations are minimum requirements, and it will not take long for a managed fall protection program to far exceed the safeguards provided by OSHA.

The roles outlined by the ANSI/ASSE standard include the following:

Employer – Generates the policy, consequences for noncompliance, and appoints a Program Administrator. Program Administrator – Develops, implements, monitors, and evaluates the fall protection program. The administrator also verifies training of Qualified, Competent, and Authorized Persons. Qualified Person – An engineer who supervises the design, selection, installation, use, and inspection of certified anchorages and horizontal and vertical lifeline systems. The qualified also participates in investigation of all fall related incidents, actual or near misses.

Competent Person – Provides immediate supervision (usually a foreman or supervisor) of authorized persons in the implementation, use, and monitoring of the fall protection program. The competent person also prepares, updates, reviews, and approves written fall protection procedures and rescue plans, verifies training of authorized persons, and participates in investigation of all fall related incidents, actual or near misses.

Authorized Person – A worker trained to follow the employer’s policy, fall protection program, and competent persons instructions regarding the use of fall protection and rescue systems. The authorized person is also responsible for inspecting fall protection systems prior to each use and notifying the competent person of any unsafe condition(s).

Best Practices

Hazard Survey - Prior to assigning workers (Authorized Person) to a particular assignment, a hazard Survey should be conducted by the Foremen or Supervisor (Competent Person) to look for and address fall hazards among others. This survey should include 100% coverage including access and egress from the work area.

Triggers requiring fall protection include: • Aerial lifts • Working above dangerous equipment • Fixed ladders over 24 ft. • Holes (including skylights) • Scaffolds over 10 ft. • Unprotected edges and wall openings above 4 ft. to a lower level for general industry and 6 ft. to a lower level for construction.

Maintaining equipment is generally considered to fall under 29 CFR Part 1910 General Industry. Replacement could be considered to fall under 29 CFR Part 1926 Construction. However, it is best to follow the stricter requirements when in doubt.

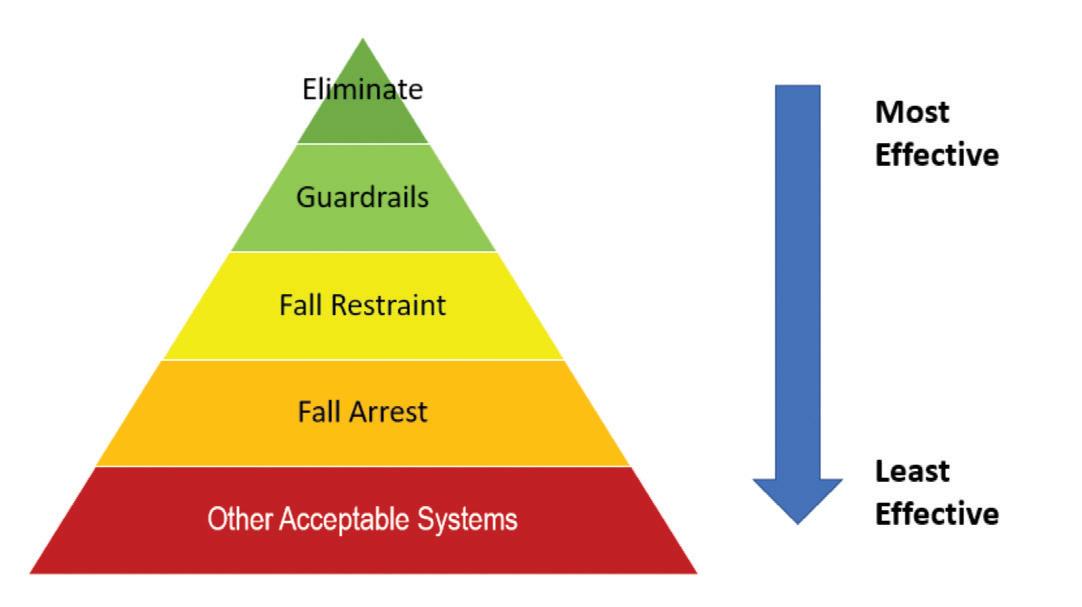

Fall Protection Options - The pyramid below demonstrates the most effective to least effective forms of fall protection.

Eliminate - Of the many options, complete elimination, or minimization of the hazard through safe building design is the most consistent form of fall protection. This can be accomplished by placing equipment on the ground or within the building as opposed to on the roof.

Guardrails – The use of guardrails provides a passive form of fall protection. Guardrails can be permanent or mobile and can be utilized on elevated platforms, aerial and scissor lifts, scaffolds, and around openings. Safe Design should make perimeter parapets a minimum of 42” above the roofing to provide a permanent guardrail.

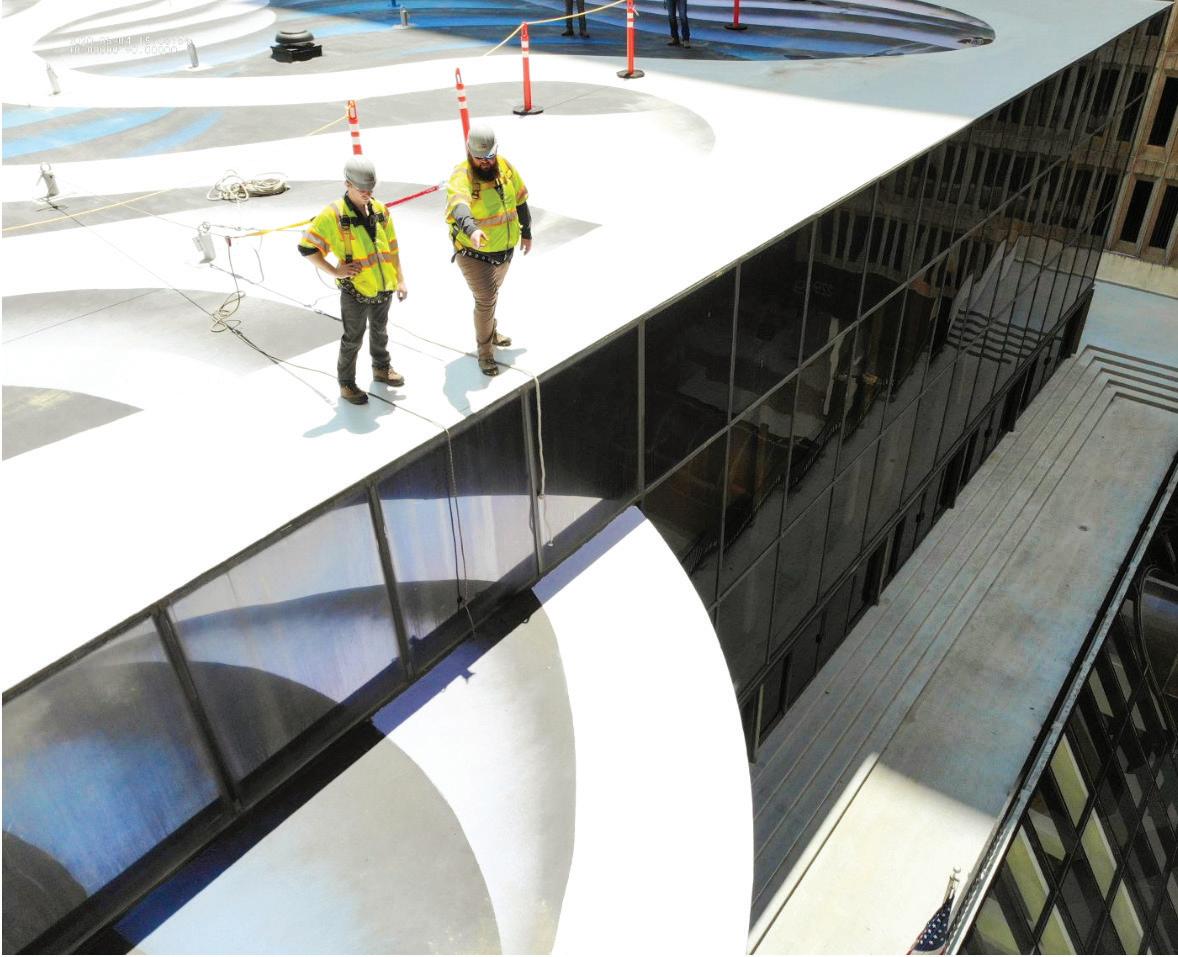

Fall Restraint – A travel restraint utilizing an anchor, lanyard, body belt or harness can be used to limit travel in the direction of an unprotected edge.

continued on page 32

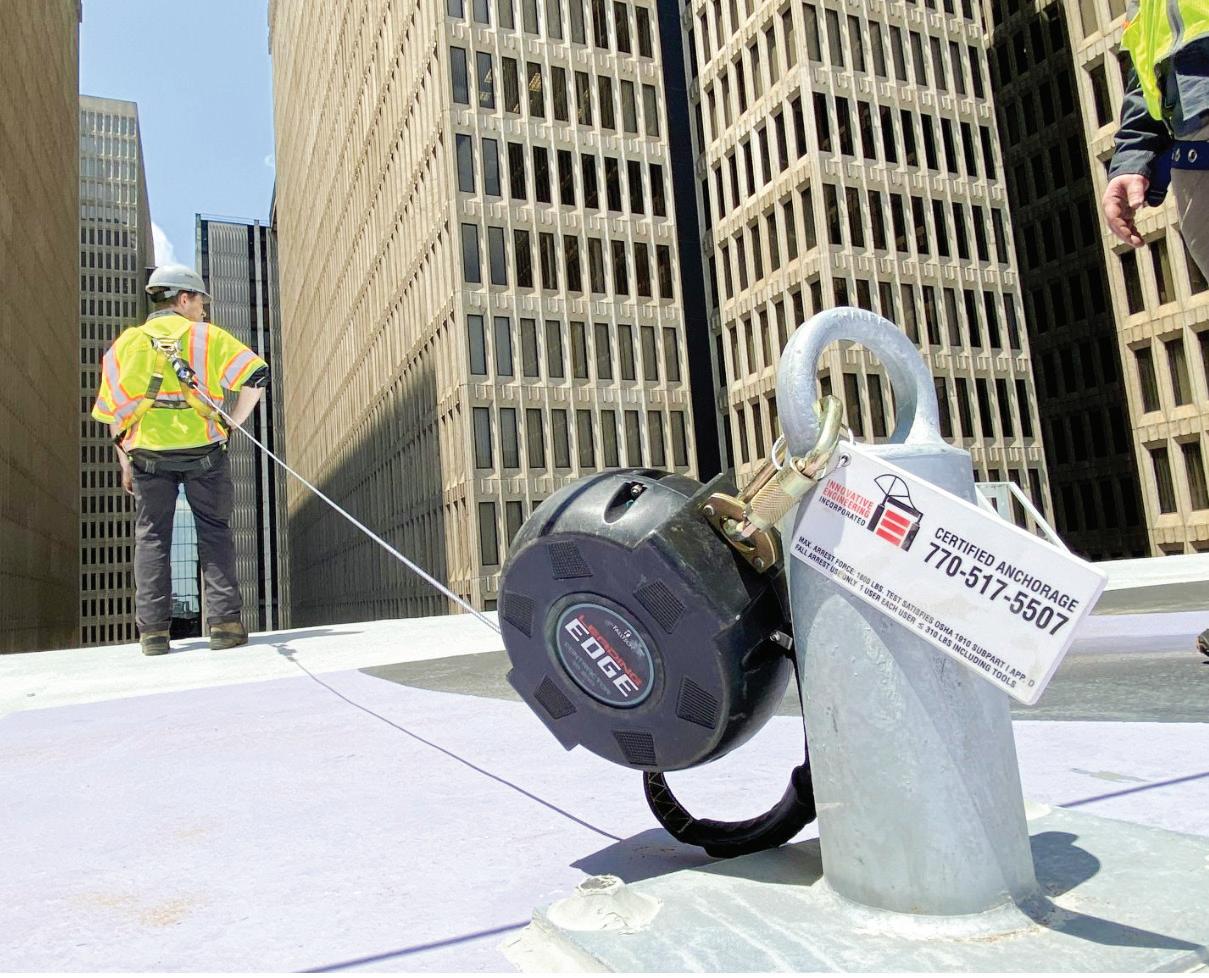

Fall Arrest – A fall arrest system can include an anchor, shock absorbing lanyard or self-retracting lifeline, and harness. However, everything must work perfectly to prevent injury and death while or after the fall is arrested. First, sufficient clearance is required to avoid striking an object during the fall, and once your fall has been arrested utilizing a harness, the harness straps crush your femoral vein which in turn slows blood circulation and pressure. Abruptly, your body slows your heart rate, blood pressure, and oxygen delivered to your brain and other vital organs. Symptoms are evident within 10 minutes, and you could die in less than 30 minutes if the blood circulation is not restored. Assuming the victim is conscious, blood flow can be restored with the use of footholds from optional trauma straps added to your harness or the provision of a ladder. Otherwise, rescue is required in as little as 6 minutes to avoid severe injury or death. Therefore, it is important for workers utilizing fall arrest harnesses to have a buddy system and not be allowed to work alone. Additionally important, a rescue plan needs to be in place in the event of a fall so rescue can be implemented immediately. Other Acceptable Systems – OSHA recognizes the use of Warning Systems at leading edges of low slope roofs when it can be documented that the use of conventional fall protection is infeasible and/or creates a greater hazard. As the lowest form of fall protection, a warning system relies on worker behavior and human nature in order to successfully protect workers from a fall hazard. A specific fall protection plan is required that is prepared by a Qualified Person and implemented by a Competent Person. A warning system ether utilizes a suspended and flagged warning line placed 6 ft. to 15 ft. minimum from the leading edge, depending on the activity, and/or a Safety Monitor that is a Competent Person who warns workers of fall hazards.

A managed fall protection program is continually updated and will soon far exceed the minimum fall protection requirements of OSHA. Not only does a fall protection program protect yourself, your workforce, property owners, and property managers, it is simply the right thing to do.
