SECTION 1 HOSES
Single Wire Braid
Enduromax Wrapped Cover
SAE100R1 › PAGE 6
Compact Double Wire Braid Hose
Exceed Wrapped Cover
2SC/100R16 › PAGE 8
Four & Six Wire Spiral Hose
Yokohama Premium 6000PSI
SAE100R15 › PAGE 9
Thermoplastic Hose
Non Conductive
SAE100R7 › PAGE 11
Accessory Hose
Premium Grease Line
GHP8.6 › PAGE 12
Accessory Hose
Premium Suction Hose
SAE100R4 › PAGE 14
Accessory Hose
Truck Hose - High Temperature
SAE100R5 › PAGE 15
Double Wire Braid Hose
Enduromax Wrapped Cover
SAE100R2 › PAGE 6
Four Wire Spiral Hose
Superflex 5000PSI
SAE100R12 › PAGE 8
Textile Braid Hose
SAE100R6
SAE100R6 › PAGE 10
Thermoplastic Hose
SAE100R8
SAE100R8 › PAGE 11
Accessory Hose
6mm Nylon Grease line
GHP6 › PAGE 13
Accessory Hose
High Temperature R5
SAE100R5 › PAGE 14
Double Wire Braid HoseHi-Temp
Enduromax Wrapped Blue Cover
SAE100R2 › PAGE 7
Double Wire Braid Hose
Yokohama Premium 2-Wire
SAE100R2 › PAGE 9
Thermoplastic Hose
SAE100R7
SAE100R7 › PAGE 10
Thermoplastic Hose Non Conductive
SAE100R8 › PAGE 12
Accessory Hose
Stainless - PTFE Smooth Bore
SAE100R14 › PAGE 13
Accessory Hose
Waterblast/Pressure Clean
100R1/R2PWH › PAGE 15

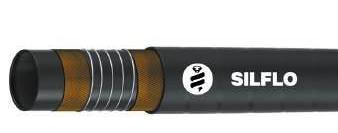

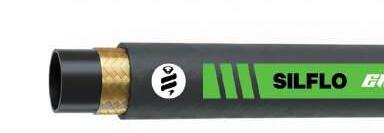

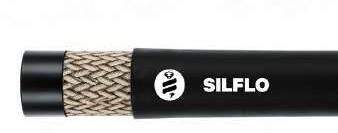

Single Wire Braid
SAE100R1 - Enduromax Wrapped Cover
PROPERTIES
INNER TUBE: Synthetic rubber
REINFORCEMENT: 1 high-tensile steel wire braid
OUTER COVER: Weather, oil and abrasion resistant synthetic rubber. MSHA cover.
SPECIFICATIONS: Non skive. Meets or exceeds SAE J517 100R1, EN853
APPLICATION: High-pressure hose suitable for petroleum-based hydraulic fluids, water-glycol and water-oil fire-resistant fluids, hot oil, grease, lubricants, crude oil, and fuel oils.
AIR APPLICATION: For air and insert gas applications above 100PSI the cover should be pin pricked.
TEMPERATURE RANGE: -40°C to +100°C
FITTING TYPE: Suits 1-Piece K Series & 2-Piece S Series Hosetails

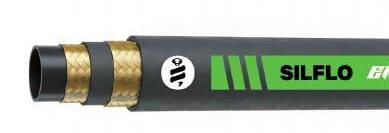

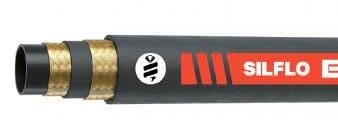

Double Wire Braid Hose
SAE100R2 - Enduromax Wrapped Cover
PROPERTIES
INNER TUBE: Synthetic rubber
REINFORCEMENT: 2 high-tensile steel wire braid
OUTER COVER: Weather, oil and abrasion resistant synthetic rubber. MSHA cover.
SPECIFICATIONS: Non skive. Meets or exceeds SAE J517 100R2, EN853
APPLICATION: High-pressure hose suitable for petroleum-based hydraulic fluids, water-glycol and water-oil fire-resistant fluids, hot oil, grease, lubricants, crude oil, and fuel oils. Tested beyond 200,000 impulse cycles
AIR APPLICATION: For air and insert gas applications above 100PSI the cover should be pin pricked.
TEMPERATURE RANGE: -40°C to +100°C
FITTING TYPE: Suits 1-Piece K Series & 2-Piece S Series Hosetails
3/16”

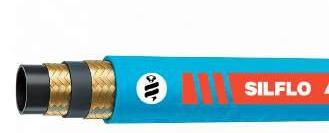

Double Wire Braid Hose - Hi-Temp
SAE100R2 - Enduromax Wrapped Blue Cover
PROPERTIES
INNER TUBE: Synthetic rubber
REINFORCEMENT: 2 high-tensile steel wire braid
OUTER COVER: Weather, oil and abrasion resistant synthetic rubber. MSHA cover.
SPECIFICATIONS: Non skive. Meets or exceeds SAE J517 100R1, EN853
APPLICATION: High-pressure hose suitable for petroleum-based hydraulic fluids, water-glycol and water-oil fire-resistant fluids, hot oil, grease, lubricants, crude oil, and fuel oils.
AIR APPLICATION: For air and insert gas applications above 100PSI the cover should be pin pricked.
TEMPERATURE RANGE: 40°C to +135°C (discontinuous 150’C), for air, not higher than 121°C
FITTING TYPE: Suits 1-Piece K Series & 2-Piece S-Series Hosetails
Compact Double Wire Braid Hose
2SC/100R16 - Exceed Wrapped Cover
PROPERTIES
INNER TUBE: Synthetic rubber
REINFORCEMENT: 2 high-tensile steel wire braid
OUTER COVER: Weather, oil and abrasion resistant synthetic rubber. MSHA and FRAS cover.
SPECIFICATIONS: Non skive. Meets or exceeds EN857, SAE J517, 100R16/ 2SC
APPLICATION: High-pressure service for petroleum-based hydraulic fluids, water-glycol and water-oil fire-resistant fluids, hot oil, grease, lubricants, crude oil, and fuel oils where tighter bend radius is required. Tested beyond 200,000 impulse cycles.
AIR APPLICATION: For air and insert gas applications above 100PSI the cover should be pin pricked.
TEMPERATURE RANGE: -40°C to +100°C
FITTING
Suits 1-Piece K Series

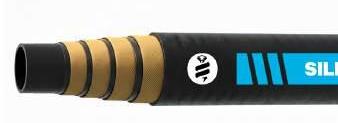

Four Wire Spiral Hose
SAE100R12 / ISO18752 Premium Superflex
PROPERTIES
INNER TUBE: Synthetic rubber
REINFORCEMENT: 4 high-tensile steel wire spirals
5000PSI
OUTER COVER: UHNWPE weather resistance and super abrasion resistance. MSHA and FRAS cover.
SPECIFICATIONS: Non skive. Flame resistant cover.
APPLICATION: Very high-pressure, super-flexible high-performance hose with up to 50% tighter bend radius than ISO 18752 and SAE standards. Offers greater flexibility than conventional spiral hoses and is tested beyond 500,000 impulse cycles. Suitable for mineral and vegetable oils, water-based solutions, water, air, and inert gases.
TEMPERATURE RANGE: -40°C to +121° -55°C to +100° FITTING TYPE: Suits 1-Piece K Series (& 1-Piece J Series – 12 & -16 only)

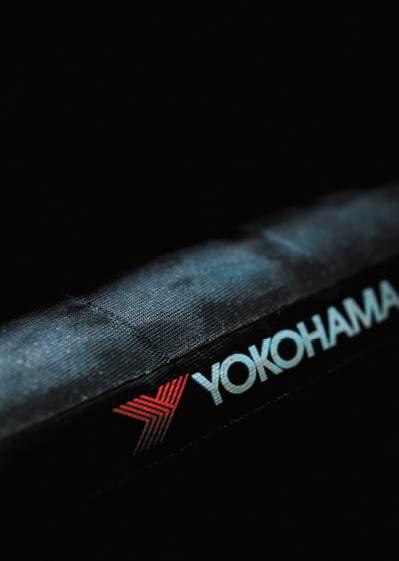

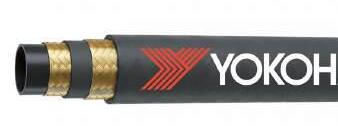

Double Wire Braid Hose
SAE100R2 - Yokohama Premium 2-Wire
PROPERTIES
INNER TUBE: Oil resistant synthetic rubber
REINFORCEMENT: 2 high-tensile steel wire braid
OUTER COVER: Abrasion & weather resistant synthetic rubber
SPECIFICATIONS: Non skive. Meets or exceeds SAE J517 100R2, EN853
APPLICATION: Hydraulic fluids & lubricating oils
TEMPERATURE RANGE: -40°C to +100°

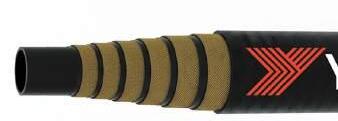

Four & Six Wire Spiral Hose
SAE100R15 Yokohama Premium 6000PSI
PROPERTIES
INNER TUBE: Oil resistant synthetic rubber
REINFORCEMENT: 4-6 high-tensile steel wire braid
OUTER COVER: Weather, oil and abrasion resistant synthetic rubber. MSHA and FRAS cover.
SPECIFICATIONS: Non skive. Isobaric hose, meets or exceeds EN857, SAE J517, ISO3862
APPLICATION: Very high pressure hose with high performance. Higher flexibility and reduced bend radius compared to conventional spiral hoses. For use in harsh conditions.
AIR APPLICATION: For air and insert gas applications above 100PSI the cover should be pin pricked.
TEMPERATURE RANGE: -40°C to +120°C
FITTING TYPE: Suits 1-Piece J Series 08-20

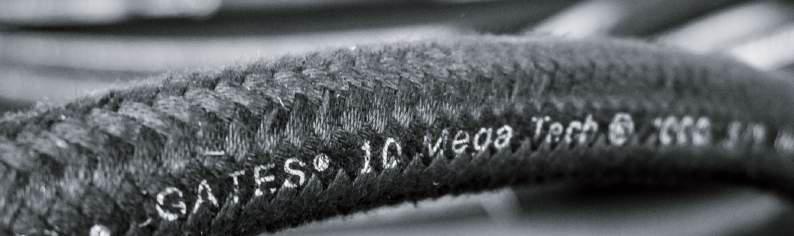

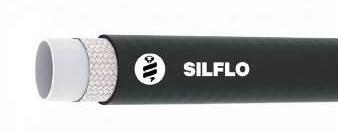

Textile Braid Hose
SAE100R6
PROPERTIES
INNER TUBE: Oil resistant synthetic rubber
REINFORCEMENT: One textile braid
OUTER COVER: Weather, oil and abrasion resistant synthetic rubber.
SPECIFICATIONS: Meets or exceeds SAE J617 100R6
APPLICATION: Medium pressure service and preoleum base hydarulic fluids, water-glycol and water-oil fire resistant.
AIR APPLICATION: For air and insert gas apllications above 100PSI the cover should be pin pricked
TEMPERATURE RANGE: -40°C to +100°C
FITTING TYPE: Suits P-Series Fittings

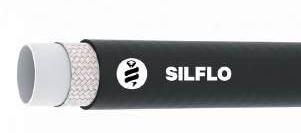

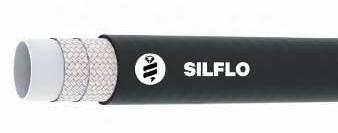

Thermoplastic Hose
SAE100R7
PROPERTIES
INNER TUBE: Oil resistant synthetic rubber
REINFORCEMENT: One high tensile polyester braid
OUTER COVER: Weather, oil and abrasion resistant synthetic rubber. Pin pricked
SPECIFICATIONS: Meets or exceeds SAE 100R7, EN 855, ISO 3949
APPLICATION: Medium-pressure hydraulic hose with enhanced abrasion resistance. Designed for use with petroleum, synthetic, or water-based hydraulic fluids. Suitable for general fluid power applications including earthmoving equipment, agricultural machinery, forklifts, and trucks.
TEMPERATURE RANGE: -40°C to +100°C. Not to exceed +65°C for air and water based fluids.
FITTING TYPE: Suits S-Series Hosetails

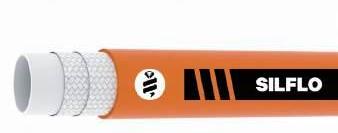

Thermoplastic Hose
SAE100R7 - Non Conductive
PROPERTIES
INNER TUBE: Polyester elastomer
REINFORCEMENT: One high tensile polyester braid
OUTER COVER: Oil and weather resitant polyurethane, pin pricked.
SPECIFICATIONS: Meets or exceeds SAE 100R7, EN 855, ISO 3949, ANSI A92.2
APPLICATION: Medium-pressure hydraulic hose designed for petroleum or synthetic-based fluids. Ideal for applications requiring high electrical insulation and non-conductivity in high-tension environments.
TEMPERATURE RANGE: -40°C to +100°C. Not to exceed +65°C for air and water based fluids.
FITTING TYPE: Suits S-Series Hosetails
Thermoplastic Hose
SAE100R8 PROPERTIES
INNER TUBE: Polyester elastomer
REINFORCEMENT: One high tensile polyester braid
OUTER COVER: Oil and weather resitant polyurethane, pin pricked.
SPECIFICATIONS: Meets or exceeds SAE 100R7, EN 855, ISO 3949
APPLICATION: Medium-pressure hydraulic hose designed for petroleum or synthetic-based fluids. Ideal for applications requiring high electrical insulation and non-conductivity in high-tension environments.
TEMPERATURE RANGE: -40°C to +100°C. Not to exceed +65°C for air and water based fluids.
FITTING TYPE: Suits S-Series Hosetails
Thermoplastic Hose
SAE100R8 - Non Conductive
PROPERTIES
INNER TUBE: Polyester elastomer
REINFORCEMENT: One high tensile polyester braid
OUTER COVER: Oil and weather resitant polyurethane, pin pricked.
SPECIFICATIONS: Meets or exceeds SAE 100R8, EN855, ISO 3949
APPLICATION: High-pressure hydraulic hose suitable for petroleum, synthetic, or water-based fluids. Features enhanced abrasion resistance and very low expansion. Ideal for general fluid power applications including earthmoving equipment, agricultural machinery, forklifts, and other high-pressure machinery.
TEMPERATURE RANGE: -40°C to +100°C. Not to exceed +65°C for air and water based fluids.
FITTING TYPE: Suits S-Series Hosetails
Accessory Hose | Grease Hose
GHP8.6 - Premium Grease Line
PROPERTIES
INNER TUBE: Polyamid 6
REINFORCEMENT: One high tensile polyester braid
OUTER COVER: Polyurethane
SPECIFICATIONS: Meets requirements of DIN 1283
APPLICATION: Suitable for manual and air-operated greasing guns, central greasing, and lubrication systems. Highpressure hose compatible with petroleum, synthetic, or water-based fluids, designed for a wide range of greasing and lubrication applications in industrial vehicles and handheld or automatic greasing equipment. Extremely compact and flexible with high kink resistance and a special anti-stick cover for easy installation and tight routing. Not suitable for impulse applications.
TEMPERATURE RANGE: -40°C to +60°C.
FITTING TYPE: G Series Hosetails
GHR8.6F: = Filled with NLGI Class 2 Grease
Accessory Hose | GHP6 Grease Hose
6mm Nylon Grease line
PROPERTIES
INNER TUBE: Thermoplastic polymade 12 free of plasticisers resitant to light or heat-induced ageing
REINFORCEMENT: One high tensile polyester braid
OUTER COVER: Polyurethane
SPECIFICATIONS: Meets requirements of DIN 73378
APPLICATION: Excellent resistance to oils, greases, lubricants, fuels, and chlorine-free cleaning agents and solvents. Not suitable for impulse applications.
TEMPERATURE RANGE: -40°C to +60°C.
FITTING TYPE: Push Fit Hosetails
GHR8.6F: = Filled with NLGI Class 2 Grease

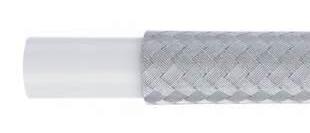

Accessory Hose | Stainless Smooth
SAE100R14 - PTFE Smooth Bore
PROPERTIES
INNER TUBE: Sintered tube of polytetrafluoroethylene (P.T.F.E)
REINFORCEMENT: Single braid of 304 series of stainless steel wire
SPECIFICATIONS: Meets SAE 100R14 / SAE J517
APPLICATION: P.T.F.E hose has an excellent temperature characteristics both in high and low temperature, Excellent chemical resistance, non contamination properties, low coefficient of friction and resists deterioration. Therefore the hose is used generally in applications where all or one of the above properties is the main criteria
TEMPERATURE RANGE: Continuous: -54°C to +260°C
FITTING TYPE: Suits S Series Fittings
Accessory Hose | Suction Hose
SAE100R4 - Premium Suction
PROPERTIES
INNER TUBE: Synthetic oil resistant rubber
REINFORCEMENT: One or two braids of textile and a helical spiral-wire
OUTER COVER: Synthetic-oil, waether and abrasion resistant rubber
SPECIFICATIONS: Exceeds 100R4
APPLICATION: Oil suction and discharge hose designed for low-pressure and vacuum applications using petroleum-based hydraulic fluids.
TEMPERATURE RANGE: -40°C to +100°C.
Accessory Hose | R5 BLACK (True Bore)
SAE100R5 - High Temperature
PROPERTIES
INNER TUBE: Synthetic oil resistant rubber
REINFORCEMENT: One high tensile steel wire braid
OUTER COVER: Black textile braid reinforced with synthetic rubber. MSHA approved.
SPECIFICATIONS: Meets SAE 100R5
APPLICATION: High-temperature, medium-pressure hydraulic hose for petroleum-based oil lines in impulse applications. Meets or exceeds SAE requirements and is suitable for mineral and vegetable oils, water-based solutions, water, air, and inert gases. Also compatible with diesel and unleaded fuels.
FITTING TYPE: 1-Piece K Series Hosetails FOR REEL LENGTH, RL: = Random Length

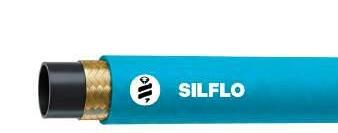

Accessory Hose | Waterblast Hose
100R1/R2PWH - Pressure Clean
PROPERTIES
INNER TUBE: Seamless hot water resistnt synthetic rubber
REINFORCEMENT: One or two high tensile steel wire braids
OUTER COVER: blue, oil, weather and abrasion resistant. Wrapped, pin-pricked. Synthetic rubber.
SPECIFICATIONS: Somplies with EN ISO7751, EN1829-2
APPLICATION: High-temperature and high-pressure cleaning applications.
TEMPERATURE RANGE: 0°C to +155°C
FITTING TYPE: Suits S Series & 1-Piece K Series Hosetails

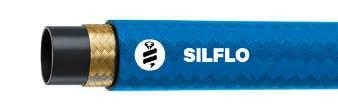

Accessory Hose | R5 Blue Truck Hose (Nominal Bore)
SAE100R5 - High Temperature
PROPERTIES
INNER TUBE: Polychloroprene.
REINFORCEMENT: One braid textile, one braid steel
OUTER COVER: Blue impregnated textile braid.
SPECIFICATIONS: Meets SAE 100R5
APPLICATION: High temperature, medium pressure hose for use in applications includingturbocharger oil lines, tilt cab cylinder and air brake lines, transmission coolant and filtration lines. Compatible with petroleum oil and phosphate ester-based hydraulic fluids, air, water, diesel fuel, petroleum based lubricating oils and coolants.
TEMPERATURE RANGE: SAE 100R5 Hydraulic Applications: -40°C to 150°C / Air Brake Application: -40°C to 93°C
FITTING TYPE: RF Series Reusable Hosetails
SFR5X-06

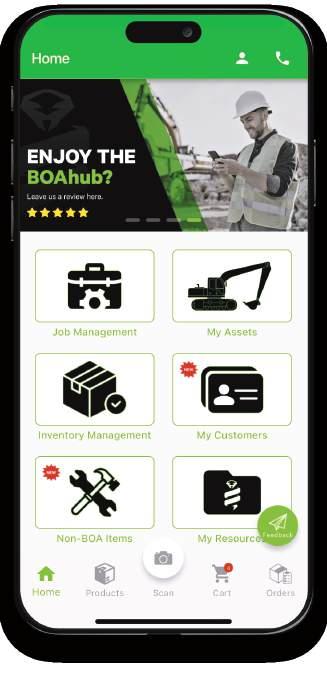

CAN’T FIND WHAT YOU NEED?

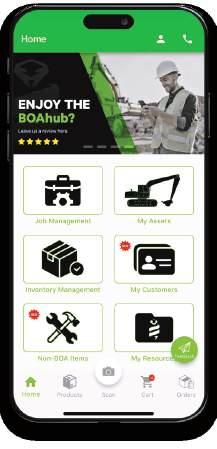

We’re updating parts and products all the time, and BOAhub is where you’ll find the latest.
Scan here to access BOAhub.

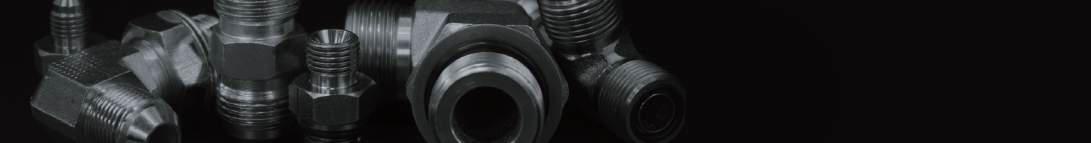

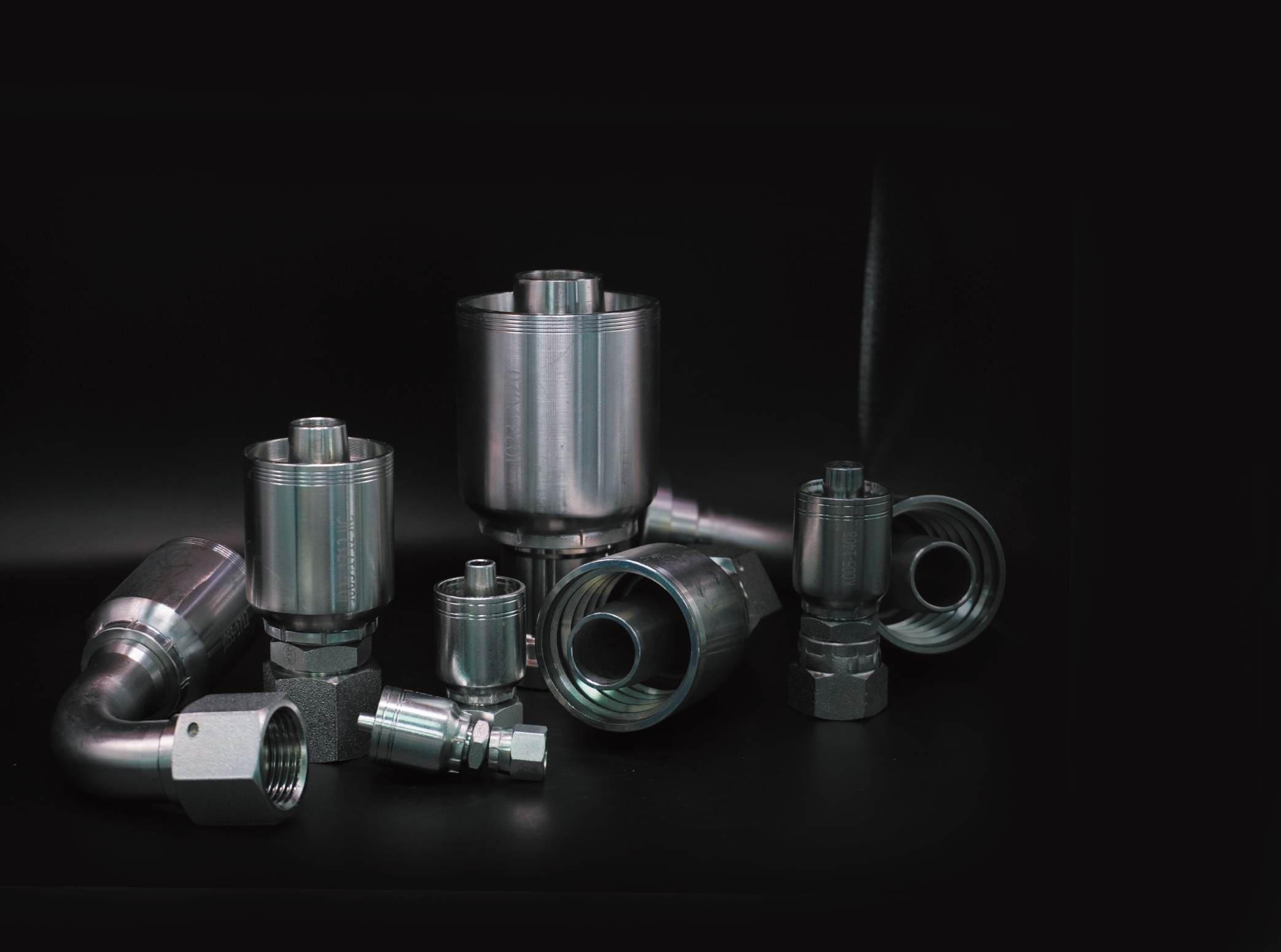

SECTION 2
HOSE TAILS
K
K
K
K
K
K029
100R15 Four Wire
J064
J SERIES STRAIGHT
DKOS Male Metric Heavy x 1-Piece M/S Non-Skive Tail
J078 › PAGE 49
J SERIES STRAIGHT
DKOS Female Metric Heavy x 1-Piece M/S Non-Skive Tail
J079 › PAGE 49
J SERIES 45 DEGREES
DKOS Female Metric Heavy x 1-Piece M/S Non-Skive Tail
J084 › PAGE 50
J SERIES STRAIGHT
Female Metric Heavy x 1-Piece M/S Non-Skive Tail
J083 › PAGE 50
100R15 Six Wire
J SERIES STRAIGHT
BF - BSP Female Parallel Pipe Swivel Straight 60° Cone
N001 › PAGE 54
J SERIES STRAIGHT
JF - JIC Female 37° Swivel Straight
N005 › PAGE 54
JF - JIC Female 37° Swivel 45° Elbow
N064 › PAGE 54
J SERIES 90 DEGREES
JF - JIC Female 37° Swivel 90° Elbow
N055 › PAGE 55
J068 › PAGE 51
J SERIES 90 DEGREES
SAE Code 61 90° Swept x 1-Piece M/S
J059
J SERIES STRAIGHT
SAE Code 62 Straight Flange x 1-Piece M/S Non-Skive Tail
J022 › PAGE 51
SAE Code 62 45° Flange x 1-Piece M/S Non-Skive Tail
J SERIES 90 DEGREES
SAE Flange Code 62 90° Swept x 1-Piece M/S Non-Skive Tail
J061 › PAGE 52
J062 › PAGE 52 N SERIES STRAIGHT FO - Female O-Ring Face Seal Swivel
N013 › PAGE 55
N SERIES 45 DEGREES
FO - Female O-Ring Face Seal Swivel 45° Elbow
N063 › PAGE 55
› PAGE 56
› PAGE
2-Piece Fittings
S
S012
S SERIES STRAIGHT
S005 - JIC Female x Swage Hosetail
S005 › PAGE 62
S SERIES 90 DEGREES
S029 - JIC Female Compact 90° x Swage Hosetail
S029 › PAGE 63
S SERIES STRAIGHT
S080 - DKOL Male Metric Light x Swage Hosetail
S080 › PAGE 67
S SERIES STRAIGHT
S081 - DKOL Female Metric Light x Swage Hosetail
S081 › PAGE 68
S SERIES 45 DEGREES
S087 - DKOL Female Metric Light Swept 45° x Swage Hosetail
S087 › PAGE 68
S SERIES 90 DEGREES
S086 - DKOL Female Metric Light Swept 90° x Swage Hosetail
S086 › PAGE 69
Straight x Swage Hosetail
S023 › PAGE 72
S SERIES 45 DEGREES
S068 - SAE Flange Code 61 Swept 45° x Swage Hosetail
S068 › PAGE 72
S SERIES 90 DEGREES
S059 - SAE Flange Code 61 Swept 90° x Swage Hosetail
S059 › PAGE 73
S SERIES 90 DEGREES
S059L - SAE Flange Code 61 x Swage Hosetail Long Drop
S059L › PAGE 73
S SERIES STRAIGHT
S022 - SAE Code 62 Flange Straight x Swage Hosetail
S022 › PAGE 74
Ferrules
S SERIES 45 DEGREES
S062 - SAE Flange
Code 62 Swept 45° x Swage Hosetail
S062 › PAGE 74
S SERIES 90 DEGREES
S061 - SAE Flange
Code 62 Swept 90° x Swage Hosetail
S061 › PAGE 74
S SERIES 90 DEGREES
S061L - SAE Flange
Code 62 Swept 90 x Swage Hosetail Long
S061 › PAGE 75

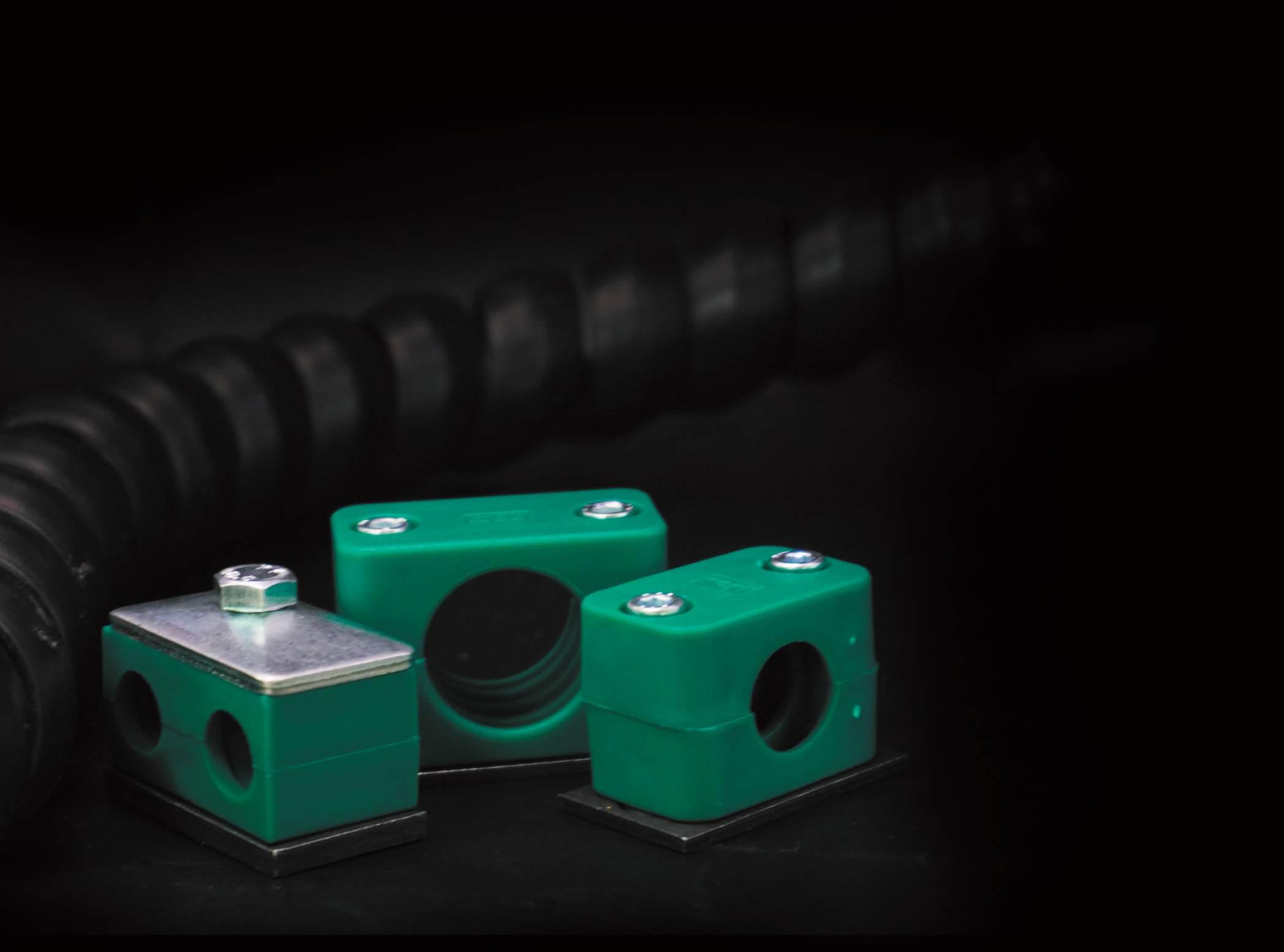

CLAMPS
W - Code 61 Flange Clamps
W › PAGE 75
CLAMPS
WHP - Code 62 Flange Clamps
WHP › PAGE 75
O RINGS
SAE - SAE Flange O-Ring
SAE › PAGE 76
ADAPTOR KITS
F61-F62-Kit - SAE
C61 & C62 Flange Adaptor To JIC Kit
F61G › PAGE 76
S SERIES STRAIGHT
S070 - Komatsu Female x Swage Hosetail
S070 › PAGE 76
RUBBER HYDRAULIC
SN1 - Universal Ferrule (1-2wire)
SN1 › PAGE 83
RUBBER HYDRAULIC
SN3 - Universal Ferrule (1-2wire)
SN3-04 › PAGE 84
S SERIES 90 DEGREES
S072 - Komatsu
Female Swept 90° x Swage Hosetail
S072 › PAGE 77
S SERIES STRAIGHT
S026 - JIS (BSP)
Inverted Flare Female x Swage Hosetail
S026 › PAGE 78
S SERIES 90 DEGREES
S027 - JIS (BSP) Inverted Flare Male x Swage Hosetail
S027 › PAGE 78
S SERIES STRAIGHT
S038 - Imperial Banjo x Swage Hosetail
S038 › PAGE 78
S SERIES STRAIGHT
S038M - Imperial Banjo x Swage Hosetail
S038M › PAGE 79
S SERIES STRAIGHT
S038B - Imperial Banjo Bolt
S038B › PAGE 79
S SERIES STRAIGHT
S095B - Metric Banjo Bolt
S095B › PAGE 80
S SERIES STRAIGHT
S090 - Hose Joiner x Swage Hosetail
S090 › PAGE 80
RUBBER HYDRAULIC
SMSNS - Multi-Spiral Non-Skive Ferrule (4-6 Wire)
SMSNS › PAGE 84
THERMOSPLASTIC
SN8 - Thermoplastic Ferrule
SN8-03 › PAGE 84
S SERIES STRAIGHT
S096 - Lifesaver x Swage Hosetail
S096 › PAGE 81
S SERIES STRAIGHT
S016 - NPT Male x Swage Hosetail
S016 › PAGE 81
S SERIES STRAIGHT
S020 - UNO Male x Swage Hosetail
S020 › PAGE 82
S SERIES STRAIGHT
S030 - Karcher Female x Swage Hosetail
S030 › PAGE 82
S SERIES STRAIGHT
S031 - Karcher Gun Insert x Swage Hosetail
S031 › PAGE 82
WEO 350 STRAIGHT SWEO x Swage Hosetail
SWEO › PAGE 83
WEO 350 90 DEGREES
SWEO Swept 90° x Swage Hosetail
SWEO › PAGE 83
THERMOSPLASTIC
SN14 - Smooth Bore Ferrule
SN14-03 › PAGE 84
100R16 Textile Braid
P SERIES STRAIGHT BF - BSP Female Parallel Pipe Swivel Straight 60°Cone
P001 › PAGE 85
P SERIES STRAIGHT BM - BSP Male Taper
P015 › PAGE 85
90 DEGREES
- BSP Female
Pipe Swivel 90° Elbow 60°Cone
P051 › PAGE 85
P SERIES STRAIGHT
P005 › PAGE 86
Single and Double Wire Braid Field Attachable
R SERIES STRAIGHT
R SERIES STRAIGHT BM - BSP Male Taper
R015 › PAGE 88
R SERIES 90 DEGREES BF - BSP Female
R051 › PAGE 89
R SERIES 45 DEGREES BF - BSP Female Parallel Pipe Swivel 45° Elbow 60°Cone
R060 › PAGE 89
R SERIES R1 /R2 - Reuseable shells to suit 100R1 & 100R2 & 100R17
RN1-04 › PAGE 91
RF SERIES STRAIGHT JF - JIC Female 37° Swivel Straight
RF005 › PAGE 92
RF
› PAGE 92
RF064 › PAGE 93
Grease Hose Tails
Suction Hose Low Pressure
100R1, 100R2, 2SC & 100R12
BSPT Taper Male x 1-2 Wire 1-Piece
Degrees
BSPP Female 90° Compact x 1-2 Wire 1-Piece Tail
PRODUCT DESCRIPTIONS
BSPP Female 90° Swept x 1-2 Wire 1-Piece Tail
JIC
JIC Male x 1-2 Wire 1-Piece Tail
PRODUCT DESCRIPTIONS
JIC Female 90 Swept x 1-2 Wire 1-Piece Tail
JIC Female 45° Swept X 1-2 Wire 1-Piece Tail
ORFS
ORFS Male x 1-2
ORFS Female 90 Swept x 1-2 Wire 1-Piece Tail
ORFS Female 45 Swept x 1-2 Wire 1-Piece Tail
DKOL Male Metric Light x 1-2 Wire 1-Piece Tail
DKOL Female Metric Light x 1-2 Wire 1-Piece Tail
90 Degrees
DKOL Female Metric Light 45° Swept x
DKOL Female Metric Light 45° Swept x 1-2 Wire 1-Piece Tail
DKOL Female Metric Light 90° Swept x 1-2 Wire
DKOS Female Metric Heavy x 1-2 Wire 1-Piece Tail
DKOS Female Metric Heavy 90 Swept x 1-2
SAE Code 61 Flange
SAE Code 61 45 Swept Flange x 1-2 Wire 1-Piece Tail
SAE Flange Code 61 90° Swept x 1-2
SAE Code 62 Flange
SAE Code 62 45 Swept Flange x 1-2 Wire 1-Piece Tail
SAE Code 62 45 Swept Flange x 1-2
SAE Flange Code 62 90° Swept x
NPT
NPT Male x 1-2 Wire 1-Piece Tail
PRODUCT DESCRIPTIONS HOSE ID THREAD
NPT Female x 1-2 Wire 1-Piece Tail
Metric Standpipe
Metric Standpipe x 1-2 Wire 1-Piece Tail
DESCRIPTIONS
JIS
JIS Imperial x 1-2 Wire 1-Piece Tail
PRODUCT DESCRIPTIONS
ID THREAD
JIS (BSP) Inverted Flare 90 Swept Female
Komatsu
Komatsu
SAE Code 62 Straight Cat Flange x 1-2 Wire
SAE Flange Code
Hose Joiner x 1-2 Wire 1-Piece
PRODUCT DESCRIPTIONS HOSE ID THREAD
Lifesaver x 1-2 Wire 1-Piece Tail
Male UNO Swivel 90 Compact x 1-2 Wire 1 Piece
PRODUCT DESCRIPTIONS
100R15 Four Wire
BSPP Female x MS355/MS360 1-Piece M/S Non-Skive Tail J SERIES SPECIFICATIONS HOSE ID THREAD
BSPP Female 45° Swept x MS355/MS360 1-Piece M/S Non-Skive Tail J SERIES
SPECIFICATIONS
JIC
JIC Male x MS355/MS360 1-Piece M/S Non-Skive Tail J SERIES
JIC Male x MS355/MS360 1-Piece M/S Non-Skive Tail J SERIES SPECIFICATIONS
JIC Female 90° Swept x MS355/MS360 1-Piece M/S Non-Skive Tail J SERIES
SPECIFICATIONS
45 Degrees
JIC Female 45° Swept x MS355/MS360 1-Piece M/S Non-Skive Tail J SERIES SPECIFICATIONS
JIC Female 45° Swept x MS355/MS360 1-Piece M/S Non-Skive Tail J SERIES
SPECIFICATIONS
ORFS
ORFS Male x MS355/360 1-Piece M/S Non-Skive Tail J
SPECIFICATIONS
ORFS Male x MS355/360 1-Piece M/S Non-Skive Tail J SERIES
SPECIFICATIONS
90 Degrees
ORFS Female 90 Swept x MS55/MS360 1-Piece M/S Non-Skive Tail J SERIES
45 Degrees
ORFS Female 45 Swept x MS55/MS360 1-Piece M/S Non-Skive Tail J SERIES
J063-2720
DKOL
Male Metric Light x 1-Piece M/S Non-Skive Tail
SPECIFICATIONS
45 Degrees
DKOL Female Metric Light 45° Swept x 1-Piece M/S Non-Skive Tail J SERIES
SPECIFICATIONS
DKOL Female Metric Light 90° Swept x 1-Piece M/S Non-Skive Tail J SERIES
DKOS Female Metric Heavy x 1-Piece
DKOS Male Metric Heavy x
45 Degrees
DKOS Female Metric Heavy 45 Swept x 1-Piece M/S Non-Skive Tail J SERIES
SPECIFICATIONS
DKOS Female Metric Heavy 90 Swept x 1-Piece M/S Non-Skive Tail J
SPECIFICATIONS
SAE Flange
SAE Code 61 Straight Flange
SAE Code 61 45° Swept x 1-Piece M/S Non-Skive Tail J SERIES SPECIFICATIONS
SAE Code 61 90° Swept x 1-Piece M/S Non-Skive Tail
SAE Code 62 Straight Flange x 1-Piece M/S Non-Skive Tail
SPECIFICATIONS
SAE Code 62 45° Flange x 1-Piece M/S Non-Skive Tail
SPECIFICATIONS
Degrees
SAE Flange Code 62 90° Swept x 1-Piece M/S Non-Skive Tail
SPECIFICATIONS
SAE Code 62 Cat Straight x 1-Piece M/S Non-Skive Tail J SERIES
ORFS
JF - JIC Female 37° Swivel 90° Elbow
FO - Female O-Ring Face Seal Swivel 90° Elbow SPECIFICATIONS
F61 - SAE Code 61 Flange Straight SPECIFICATIONS
90 Degrees
F61 - SAE Code 61 Flange 90° Elbow
SPECIFICATIONS
F62 - SAE Code 62 Flange Straight
SPECIFICATIONS
F62 - SAE Code 62 Flange 45° Elbow
SPECIFICATIONS
F62 - SAE Code 62 Flange 90° Elbow
SPECIFICATIONS
2-Piece Fittings
S002 - BSPP Female Flat Face x Swage Hosetail
S012 - BSPP Male x Swage Hosetail
S015 - BSPT Male x Swage Hosetail
- BSPT Male x Swage Hosetail
S025 - BSPP Female Compact 90° x Swage Hosetail
S051 - BSPP Female Swept 90° x Swage Hosetail
- BSPP Female Swept 45° x Swage Hosetail
S018 - JIC Male x Swage Hosetail
S005 - JIC Female x Swage Hosetail
S029 - JIC Female Compact 90° x Swage Hosetail
S055 - JIC Female Swept 90° x Swage Hosetail
S055 - JIC Female Swept 90° x Swage Hosetail
S064 - JIC Female Swept 45° x Swage Hosetail
S040 - ORFS Male x Swage Hosetail
S052 - ORFS Female Swept 90° x Swage Hosetail
S063 - ORFS Female Swept 45° x Swage Hosetail
S081 - DKOL Female Metric Light x Swage Hosetail S SERIES
THREAD & TERMINATION INFORMATION HOSETAIL INFO
S087 - DKOL Female Metric Light Swept 45° x Swage
S078 - DKOS Male Metric Heavy x Swage Hosetail
S078-2208
S078 - DKOS Male Metric Heavy x Swage Hosetail
S078-3612
S079 - DKOS
S079-3010
S079-4216
Female Metric Heavy x Swage Hosetail
45 Degrees
S084 - DKOS Female Metric Heavy Swept 45° x Swage Hosetail S
- DKOS Female Metric Heavy Swept 90° x Swage Hosetail S
SAE Flange
S003 - SAE Female x Swage Hosetail
S023 - SAE Code
S061 - SAE Flange Code 62 Swept 90° x Swage
W - Code 61 Flange Clamps
S061 - SAE Flange Code 62 Swept 90° x Swage Hosetail
S061L - SAE Flange Code 62 Swept 90 x Swage Hosetail Long S
SAE - SAE Flange O-Ring
F61-F62-Kit - SAE C61 & C62
F61G-1217 3/4 C61 Flange x 1 - 1/16
S070 - Komatsu Female x Swage Hosetail
S072 - Komatsu Female Swept 90° x Swage Hosetail S SERIES
KOMATSU FEMALE SWEPT 90° M24-1.5 22.5 1/2"
S072-2410 KOMATSU FEMALE SWEPT 90° M24-1.5 31.5 5/8"
S072-3316 KOMATSU FEMALE SWEPT 90° M33-1.5
S026 - JIS (BSP) Inverted Flare Female x Swage Hosetail S
THREAD & TERMINATION INFORMATION HOSETAIL INFO THREAD TYPE / FITTING TYPE
S026-0204 JIS (BSP) INVERTED FLARE FEMALE
S026-0404 JIS (BSP) INVERTED FLARE FEMALE 1/4" - 19
S026-0406 JIS (BSP) INVERTED FLARE FEMALE 1/4" - 19
S026-0604 JIS (BSP) INVERTED FLARE FEMALE
S026-0606 JIS (BSP) INVERTED FLARE FEMALE 3/8" - 19
S026-0806 JIS (BSP) INVERTED FLARE FEMALE 1/2" - 14
S026-0808 JIS (BSP) INVERTED FLARE FEMALE 1/2" - 14
S026-1208 JIS (BSP) INVERTED FLARE FEMALE 3/4" -
S026-1212 JIS (BSP) INVERTED FLARE FEMALE 3/4" - 14
S026-1616 JIS (BSP) INVERTED FLARE FEMALE
S026-2020 JIS (BSP) INVERTED FLARE FEMALE 1 1/4"
S026-2424 JIS (BSP) INVERTED FLARE FEMALE
S027 -
S027-0808 JIS (BSP) INVERTED FLARE MALE
S027-1212 JIS (BSP) INVERTED FLARE MALE 3/4"
- Imperial Banjo x Swage Hosetail
S038M-2210
S038B-0008
S038 - Imperial Banjo x Swage Hosetail
S038M - Imperial Banjo
S038B - Imperial Banjo Bolt
S038B - Imperial Banjo Bolt
S038B-0016
S095B - Metric Banjo Bolt
Hose Joiner
S090 - Hose Joiner x Swage Hosetail
S090-0404 HOSE JOINER
S090-0505 HOSE JOINER
S090-0606 HOSE JOINER 3/8"
S090-0808 HOSE JOINER 1/2"
S090-1212 HOSE JOINER 3/4"
S090-1616 HOSE JOINER 1"
S090-0303 HOSE JOINER 3/16"
S090-1010 HOSE JOINER 5/8"
Lifesaver
S096 - Lifesaver x Swage Hosetail
S016 - NPT Male x Swage Hosetail
S020 - UNO Male x Swage Hosetail
THREAD & TERMINATION INFORMATION
Karcher
S030 - Karcher Female x Swage Hosetail
SPECIFICATIONS
S031 - Karcher Gun Insert x Swage Hosetail
SPECIFICATIONS
Ferrules
SN1 - Universal Ferrule (1-2wire)
WEO
Hose
SN3 - Universal Ferrule (1-2wire)
SMSNS - Multi-Spiral Non-Skive Ferrule (4-6 Wire)
SN8 - Thermoplastic Ferrule
SN14 - Smooth Bore Ferrule
100R16 Textile Braid
90 Degrees
BF - BSP Female Parallel Pipe Swivel 90° Elbow 60°Cone P SERIES
JF - JIC Female 37° Swivel Straight
JM - JIC Male 37° Straight
Single and Double Wire Braid Field Attachable
BM - BSP Male Taper
1/2 3/4-14 R015-1212 3/4 3/4-14
Degrees BF - BSP Female Parallel Pipe Swivel 90° Elbow 60°Cone
JIC
JF - JIC Female 37° Swivel Straight
JM - JIC Male 37° Straight
JF - JIC
FO - Female O-Ring Face Seal Swivel 90° Elbow
45 Degrees
FO - ORFS Female 45° Elbow
SF - SAE Female Straight
Reusable Ferrules
R1 /R2 - Reuseable shells to suit 100R1 & 100R2 & 100R17
RN1-04
0.74 To suit SAE100R1
RN1-06 22.1 0.87 To suit SAE100R1
RN1-08 27.0 1.06 To suit SAE100R1
RN1-12 30.0 1.18 To suit SAE100R1
RN1-16 35.0 1.37 To suit SAE100R1
RN2-04 20.0 0.78 To suit SAE100R2
RN2-06 24.0 0.94 To suit SAE100R2
RN2-08 27.0 1.06 To suit SAE100R2
RN2-10 31.75 1.25 To suit SAE100R2
RN2-12 35.0
RN2-16
R5 Truck Hose Tails
To suit SAE100R2
To suit SAE100R2
JF - JIC Female 37° Swivel Straight
JF - JIC Female 37° Swivel 45° Elbow
Grease Hose Tails
JF - JIC Female 37° Swivel Straight
JF - JIC Female 37° Swivel 90° Elbow
Suction Hose Low Pressure

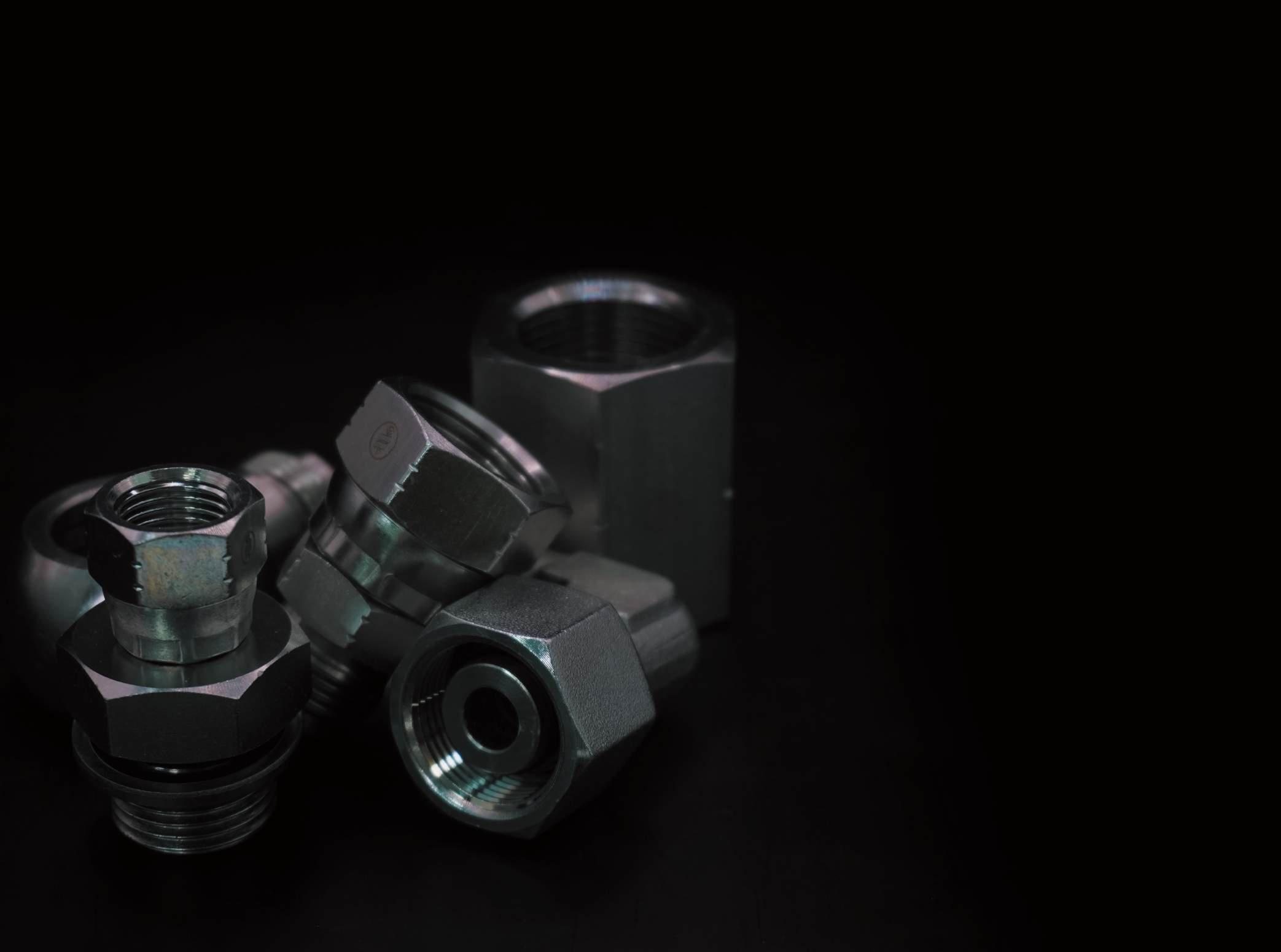

SECTION 3 ADAPTORS
Male x Female Swivels Male
Reducing Bushes
Sockets Bulkheads
Banjo x JIC
Banjo Bolts
Elbow Blocks
Elbow Tubes
Tee Pieces
Tube Fittings Imperial
FLARE NUTS JIC Tube Nut
JNUT › PAGE 176 WELD ON FEMALE JIC Female Swivel Tube Weld
FLARE NUTS JIC Tube Sleeve
JSLV › PAGE 176
FLARE NUTS
JIC Tube Nut & Sleeve Stainless Steel
WELD ON FEMALE BSPP Swivel Tube Weld CTW › PAGE 177
Flange Block/ Side Port
CD61
Flange Clamps & Bolts
SET
61 Allen Head Bolt Set Metric WBM0 › PAGE 181
JTW › PAGE 177
WELD ON MALE BSPT Male Weld-On ATW › PAGE 178
CD61G-BL
BOLT SET
62 Flange Bolt Set - UNC WHP9U0 › PAGE 182
FLANGE BLOCK
Code 62 Flange Block x BSPP Female - UNC
CD62FUNC › PAGE 181
BOLT SET Code 61 Hex Bolt Set - UNC
JNUT-07 › PAGE 177 CLAMP Caterpillar Flange Clamp - NO BOLTS
WBU0 › PAGE 181
BOLT SET Code 62 Flange Bolt Set - Metric
WHP9M0 › PAGE 182
WHPC › PAGE 182
Code 62 Flange Clamp
WHP › PAGE 183
CLAMP
Caterpillar Flange Spacing Ring
CATPACK › PAGE 183
NIPPLE
NIPPLE
NIPPLE
BSPT Male x JIS Metric (Komatsu) Male
TUBE FITTING 5
Metric Tube Male x BSPT Male
NIPPLE
Imperial Male x JIC Male
NIPPLE JIC Male x JIS Komatsu Male
GM1718L
GM1727S
GM1730L
GM1730S
27MM x 2 1 1/16
22MM 30MM x 2 1 1/16
20MM 30MM x 2 1 1/16
NIPPLE Metric Tube Male x JIC Male
x NPT Male
NIPPLE
NIPPLE
Metric Male Port x ORFS Male
Male x Female Swivels
BSPP Female Swivel x BSPP Male
SWIVEL Metric Tube Female Swivel x BSPP Port Male
SWIVEL/SOLID JIC Female x JIC Male
Male x Female Solid
Reducing Bushes
BUSH
BUSH JIC Female x JIC Male
BUSH NPT Female x NPT Male
Female Swivel x Female Swivel
Female Swivel x Female Solid
Sockets
Bulkheads
BULKHEAD Metric Tube Blanking Plug
Flanges
MMK-2222L
CD61G-2421
CD61G-2430
Code 62 Flange x JIC Male
Banjo x JIC
BANJO X JIC BSP Banjo x JIC Adaptor
7/16
7/16
9/16
BANJO X JIC Metric Banjo x JIC Adaptor
Banjo Bolts
BANJO BOLTS BSPP
S095B-0012
S095B-0016
S095B-0018
Elbow Blocks
45 Degree Elbows
ELBOW BLOCK
ELBOW BLOCK
ELBOW BLOCK BSPT Solid Female 45°
AG45-0614
AG45-0809
AG45-0812
AG45-0814 1/2 7/8
AG45-0817 1/2 1 1/16
AG45-1214 3/4 7/8
AG45-1217 3/4
AG45-1221
AG45-1621
AG45-1626
ELBOW BLOCK
Elbow Tubes
GJ45S-1414
GJ45S-1717
90 Degrees
ABP90-1616
ABP90-1216
BGP90-0409
ELBOW BLOCK
BPM90-1230L
BPM90-1636S
BPM90-2045L
BPM90-2452S
BPM90-2452L
ELBOW BLOCK
ELBOW BLOCK Metric Tube Male x BSPP Male - 90°
ELBOW BLOCK
BSPT Solid Female - 90°
AJ90-0409 1/4 9/16 AJ90-0609 3/8 9/16
AJ90-0812 1/2 3/4
AJ90-0814 1/2 7/8
ELBOW BLOCK
ELBOW BLOCK
AG90-0207
AG90-0208
AG90-0209
AG90-0408
AG90-0412
AG90-0607 3/8 7/16
AG90-0609 3/8 9/16
AG90-0612 3/8 3/4
AG90-0614
AG90-0807
AG90-0809
AG90-1214
AG90-1217
AG90-1612
AG90-2426
AG90-2430
AG90-2440
AG90-3240
AM90-0412L
AM90-0414S
ELBOW BLOCK
ELBOW BLOCK
MM90-4242S
MM90-4545L
MM90-5252S
Tube Male x UNO (SAE O’Ring) Male - 90°
MNP90-1409L
MNP90-1609S
MNP90-1812S
MMX90-V1-24S24S
MMX90-V1-36L36L L 28MM
ELBOW BLOCK
Tee Pieces
GGA-121208 3/4 3/4 1/2
GGNP-171717
TEE
MMXM-24S24S24S S 16MM
MMXM-26L26L26L L 18MM
MMXM-36L36L36L L 28MM
MMXM-42S42S42S S 30MM
MMXM-45L45L45L L 35MM
MMXM-52S52S52S
MMXM-52L52L52L
TEE PIECE JIC Male
MMM-363636L
GJG-070707
GJG-080808
GJG-121212
GJG-120909
GJG-121209
GJG-141414 7/8 7/8 7/8
GJG-141409 7/8 7/8 9/16
Equal Male
TEE PIECE JIC Male
MMXM-222222L
MMXM-242424S S 16MM
MMXM-262626L
MMXM-363636L L 28MM
MMXM-424242S S 30MM
MMXM-454545L L 35MM
MMXM-525252S S 38MM
MMXM-525252L L 42MM
x 2
Cross
Plugs
BSPT Male - Counter Sunk Allen Head
Code 61 Flange Disc
PLUG
Code 62 Flange Disc
PLUG JIC Male
PLUG JIS Imperial BSP Male (Mitsubishi)
PLUG
Male Port Plug
PLUG
Male Port Plug
PLUG
NPT Male - Counter Sunk Allen Head
JIS Metric Female (Komatsu)
Metric Tube Blanking Plug
Tube Fittings Imperial
MCR-12-LS
MCR-15-L
MCR-18-L
MCR-22-L
MCR-25-S
25MM
MCR-28-L L 28MM
MCR-30-S S 30MM
MCR-35-L L 35MM
MCR-38-S S 38MM
MCR-42-L L 42MM
TUBE NUT
Metric Tube Nut
TUBE NUT
Metric Tube Nut
FLARE NUTS JIC Tube Nut
FLARE NUTS JIC Tube Sleeve
Flange Block/ Side Port
CD61F-BL1616
CD61F-BL2020
CD61F-BL2424
CD61FUNC1616
CD61FUNC2020
CD61FUNC2424
CD61G-BL1621
CD61G-BL2026
CD61G-BL2430
Flange Clamps & Bolts

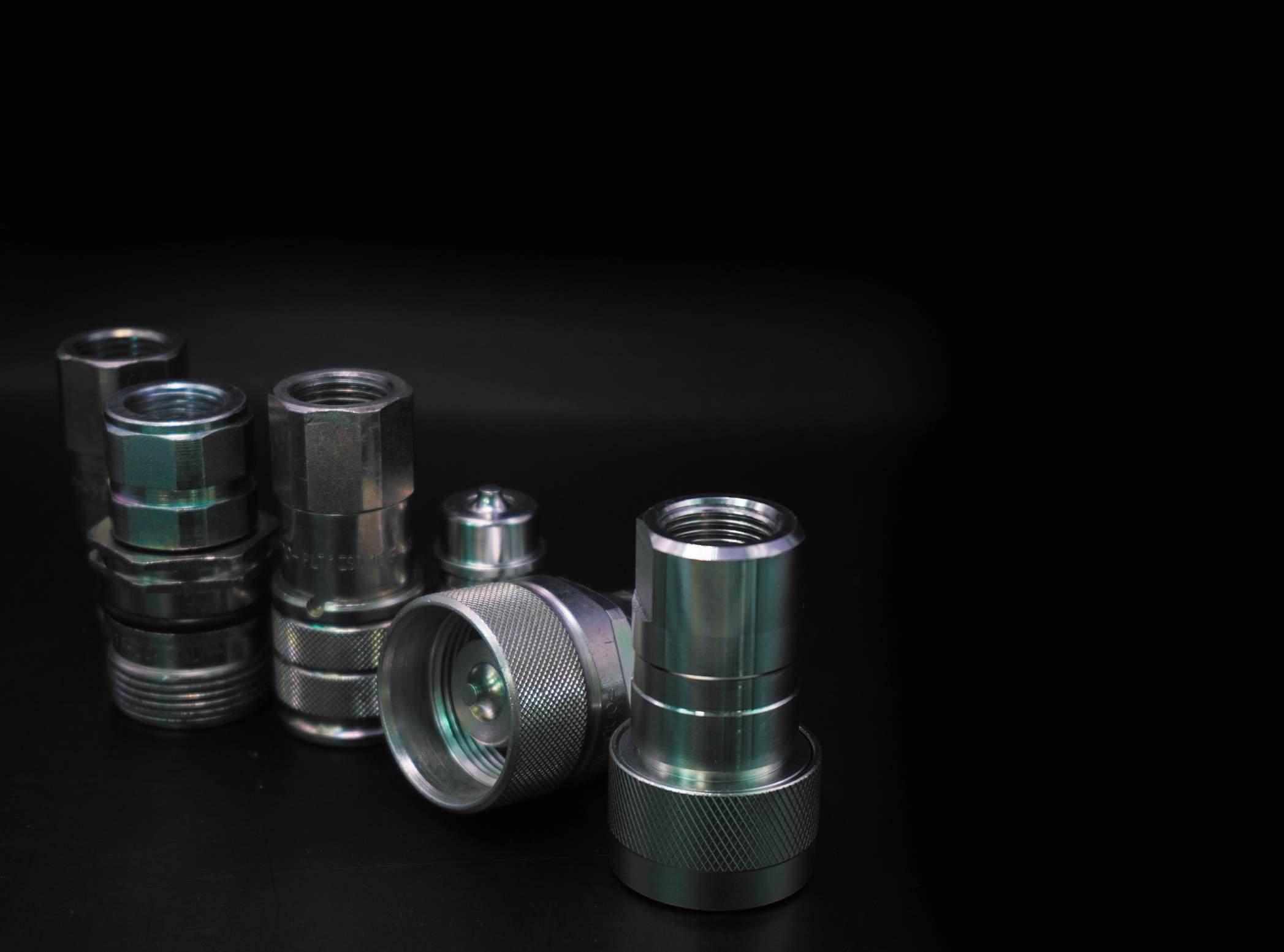

SECTION 4 COUPLERS
Poppet Occulsion
Ball Occulsion
Flat Face
Dust Covers
Screw Type
Seal Kits
Poppet Occulsion
ISO7241-1 A Series
TECHNICAL DATA
STANDARD: ISO 7241-1 A
STANDARD SEALS: NBR
OCCLUSION: Poppet
WORKING TEMPERATURE: -25 °C +100 °C
LOCKING: Radial Balls
WORKING PRESSURE: 160-350 bar
MATERIAL: Steel
CONNECTION UNDER PRESSURE: Not allowed FINISHING: Zn-Fe (Cr III)
NV Faster Interchange
TECHNICAL DATA
OCCLUSION: Poppet
WORKING TEMPERATURE: -25 °C +100 °C
LOCKING: Radial Balls
OPTIONAL SEALS: FKM, EPDM or more
MATERIAL: Steel
WORKING PRESSURE: 100-400 bar
FINISHING: Zn-Fe (Cr III)
CONNECTION UNDER PRESSURE: Not allowed
STANDARD SEALS: NBR
PDV1-1313002
ISO7241-1 A-Series Connect Under Pressure
TECHNICAL DATA
OCCLUSION: Poppet
WORKING TEMPERATURE: -25 °C +100 °C
LOCKING: Radial Balls
OPTIONAL SEALS: FKM, EPDM or more
MATERIAL: Steel
WORKING PRESSURE: ~250-300 bar
FINISHING: Zn-Fe (Cr III)
CONNECTION UNDER PRESSURE: Allowed
STANDARD SEALS: NBR
ISO7241-1 A-Series Push Pull
TECHNICAL DATA
STANDARD: ISO 7241-1 A
MATERIAL: Steel
SLEEVE: Double acting
FINISHING: Zn-Fe (Cr III)
OCCLUSION: Poppet
STANDARD SEALS: NBR
LOCKING: Radial Balls
ISO7241-1 B Series
TECHNICAL DATA
OCCLUSION: Poppet
WORKING TEMPERATURE: -25 °C +100 °C
LOCKING: Radial Balls
OPTIONAL SEALS: FKM, EPDM or more
MATERIAL: Steel
WORKING PRESSURE: 100-500 bar
FINISHING: Zn-Fe (Cr III)
CONNECTION UNDER PRESSURE: Not allowed
STANDARD SEALS: NBR
ISO7241-1 B Series (Carpet Cleaners)
TECHNICAL DATA
OCCLUSION: Poppet
WORKING TEMPERATURE: -25 °C +100 °C
LOCKING: Radial Balls
OPTIONAL SEALS: FKM, EPDM or more
MATERIAL: Brass
WORKING PRESSURE: Up to 345 bar
FINISHING: Brass natural
CONNECTION UNDER PRESSURE: Not allowed
STANDARD SEALS: NBR
Ball Occulsion
Ball Coupler
TECHNICAL DATA
OCCLUSION: Ball
STANDARD SEALS: NBR
LOCKING: Radial Balls
WORKING TEMPERATURE: -25 °C +100 °C
MATERIAL: Steel OPTIONAL SEALS: FKM, EPDM or more
Ball Push Pull
ISO7241-1 A-Series
TECHNICAL DATA
OCCLUSION: Ball Check valve
WORKING TEMPERATURE: -25 °C +100 °C
LOCKING: Radial Balls
OPTIONAL SEALS: FKM, EPDM or more
MATERIAL: Steel
WORKING PRESSURE: 200 bar
FINISHING: Zn-Fe (Cr III)
CONNECTION UNDER PRESSURE: Not allowed STANDARD SEALS: NBR
Tractor Rigid Mount Breakaway Coupler
TECHNICAL DATA
OCCLUSION: Ball Check
WORKING TEMPERATURE: -40 °C +106 °C
LOCKING: Radial Balls / push-pull type
OPTIONAL SEALS: FKM, EPDM or more
MATERIAL: Carbon steel with trivalent plating
WORKING PRESSURE: ~300 bar
FINISHING: Zn-Fe (Cr III) plating
CONNECTION UNDER PRESSURE: Allowed on some designs
STANDARD SEALS: NBR
PBR Interchange Poppet Coupler
TECHNICAL DATA
OCCLUSION: Poppet
-25 °C +100 °C
LOCKING: Radial Balls
OPTIONAL SEALS: FKM, EPDM or more
MATERIAL: Steel
WORKING PRESSURE: Up to 300 bar
FINISHING: Zn-Fe (Cr III)
CONNECTION UNDER PRESSURE: Not allowed STANDARD SEALS: NBR
Nordic Interchange (Tema T Series) Connect Under Pressure Coupler
TECHNICAL DATA
OCCLUSION: Poppet
WORKING TEMPERATURE: -25 °C
LOCKING: Radial Balls
SEALS: FKM, EPDM or more
Steel
WORKING PRESSURE: 280–370 bar
FINISHING: Zn-Fe (Cr III)
CONNECTION UNDER PRESSURE: Allowed STANDARD SEALS: NBR
Flat Face
IS016028 A-Series High-Pressure
TECHNICAL DATA
STANDARD: ISO 16028
WORKING TEMPERATURE: -25 °C +100 °C
OCCLUSION: Flat Face
STANDARD SEALS: NBR
LOCKING: Radial Balls
250-300 bar
MATERIAL: Steel
CONNECTION UNDER
Not allowed
Zn-Fe (Cr III)
ISO16028 A-Series High-Pressure Connect Under Pressure
TECHNICAL DATA
OCCLUSION: Flat Face valve
WORKING TEMPERATURE: -25 °C +100 °C
LOCKING: Radial Balls
OPTIONAL SEALS: FKM, EPDM or more
MATERIAL: Steel WORKING PRESSURE: 200-450 bar
Zn-Fe (Cr
CONNECTION UNDER PRESSURE: Allowed STANDARD SEALS: NBR
Screw Type
ISO14541 VD Poppet
TECHNICAL DATA
STANDARD: ISO 14541
WORKING TEMPERATURE: -25 °C +100 °C
OCCLUSION: Poppet
WORKING PRESSURE: 300-450 bar
LOCKING: Screw
CONNECTION UNDER PRESSURE: Allowed (both male or female side)
MATERIAL: Steel
MAX RESIDUAL PRESSURE: Working pressure
FINISHING: Zn-Fe (Cr III)
PVV3-2525113
Faster VV Interchange
TECHNICAL DATA
OCCLUSION: Poppet
STANDARD SEALS: NBR
LOCKING: Screw and Radial Balls
WORKING TEMPERATURE: -25 °C +100 °C MATERIAL: Steel
WORKING PRESSURE: 230-300 bar
Zn-Fe (Cr III)
VEP Interchange
TECHNICAL DATA
OCCLUSION: Flat Face valve
WORKING TEMPERATURE: -40 °C +121 °C
LOCKING: Screw connection
OPTIONAL SEALS: FKM, EPDM or more
MATERIAL: Steel
WORKING PRESSURE: Up to ~600 bar
FINISHING: Zn-Ni / Cr III plating
CONNECTION UNDER PRESSURE: Allowed
STANDARD SEALS: NBR
ISO14540 720 BAR
TECHNICAL DATA
OCCLUSION: Poppet or spherical valve per ISO 14540 specification
WORKING TEMPERATURE: -25 °C +100 °C
LOCKING: Screw connection
OPTIONAL SEALS: FKM, EPDM or more
MATERIAL: Steel
WORKING PRESSURE: 720 bar
FINISHING: Zn-Fe (Cr III)
Dust Covers
ISO7241-1 A-Series Caps & Plugs
SPDV-20003 3/4
SPDV-20002 3/4 PLUG FEMALE
SPDV-25003 1 CAP MALE PVC
SPDV-25002 1 PLUG FEMALE PVC
SPDV-13002 1/2 PLUG FEMALE PVC
SPDV-13003 1/2 CAP MALE PVC
Caps & Plugs
ISO14541 700 BAR Caps and Plugs
SECTION 5 ACCESSORIES
Hose Protection Clamps Stacking Bolts
HOSE PROTECTION Fabric Sleeve
MFS › PAGE 199
FAST WRAP Fast Wrap
FSTWRAP › PAGE 199
HOSE PROTECTION Spiral Guard
R › PAGE 199
HOSE PROTECTION Fire Sleeve
FSRS › PAGE 200
HOSE PROTECTION Bundle Straps
BS25 › PAGE 200
HOSE PROTECTION Spring Guard
AC-A
SG › PAGE 200 CLAMPS Single Pipe Clamp
HOSE PROTECTION Crimp Rings
CR › PAGE 200

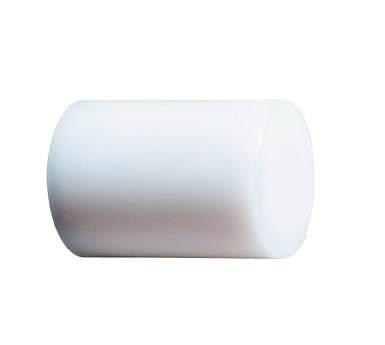

Plastic Caps & Plugs
PLASTIC CAPS & PLUGS
B-Plug - Plastic Plug to suit Female BSP Thread
B-PLUG › PAGE 205
PLASTIC CAPS & PLUGS
G-Plug - Plastic Plug to suit Female JIC Thread
G-PLUG › PAGE 206
PLASTIC CAPS & PLUGS
R-Plug - Plastic Plug to suit Female Thread
R-PLUG › PAGE 206
AC-MMP › PAGE 202
AC-MD › PAGE 202
HP Ball Valves
BALL VALVES
AC-MAD › PAGE 203
CLAMPS Single Cushion Clamps
PPC › PAGE 203
CLAMPS
Ultra Heavy Duty (Mikalor brand) CCMARW3033
CC-MARW › PAGE 204
PLASTIC CAPS & PLUGS
C-Cap - Plastic Plug to suit Male BSP Thread
C-CAP › PAGE 206
PLASTIC CAPS & PLUGS
J-Cap - Plastic Cap to suit Male JIC Thread
J-CAP › PAGE 206
PLASTIC CAPS & PLUGS
R Plug - Plastic Plug to suit Female Thread
R-PLUG › PAGE 207
BVH2 - High Pressure
2-Way Ball Valve (500bar) Fem/Fem BSPP Threads
BVH2 › PAGE 205
PLASTIC CAPS & PLUGS Heat Shrink Caps
CSC › PAGE 207
O-Rings/Dowty Seals
O-Ring Kits
Kits
Testing
O-RINGS/SEALS
SAE
Sleeve
Spiral Guard
Fast Wrap
Fast Wrap
Hose Protection
Fire Sleeve
Bundle Straps
BS25-600 600mm
BS25-800 800mm
BS25-1000 1000mm
BS25-1500 1500mm BS25-5000 5000mm
Spring Guard
Crimp Rings Hose Protection
Single Pipe Clamp Complete
AC-A16.4 6.4MM 6.4MM SINGLE PIPE CLAMP COMPLETE
AC-A19.5 9.5MM
AC-A212 12MM
SINGLE PIPE CLAMP COMPLE
SINGLE PIPE CLAMP COMPLETE
AC-1212.7 12.7MM 12.7MM SINGLE PIPE CLAMP COMPLETE
AC-A214 14MM 14MM SINGLE PIPE CLAMP COMPLETE
AC-A216 16MM 16MM SINGLE PIPE CLAMP COMPLETE
AC-A218 18MM 18MM SINGLE PIPE CLAMP COMPLETE
AC-A312 12MM 12MM SINGLE PIPE CLAMP COMPLETE
AC-A320 20MM 20MM SINGLE PIPE CLAMP COMPLETE
AC-A322 22MM 22MM SINGLE PIPE CLAMP COMPLETE
AC-A325 25MM 25MM SINGLE PIPE CLAMP COMPLETE
AC-A332 32MM 32MM SINGLE PIPE CLAMP COMPLETE
AC-A430
AC-A435 35MM
SINGLE PIPE CLAMP COMPLETE
SINGLE PIPE CLAMP COMPLETE
AC-A538 38MM 38MM SINGLE PIPE CLAMP COMPLETE
AC-A542 42MM 42MM SINGLE PIPE CLAMP COMPLETE
AC-A644.5
AC-A60.3
Double Pipe Clamp Complete
SINGLE PIPE CLAMP COMPLETE
SINGLE PIPE CLAMP COMPLETE
SINGLE PIPE CLAMP COMPLETE
DOUBLE PIPE CLAMP COMPLETE
AC-AD21414 14MM 14MM DOUBLE PIPE CLAMP COMPLETE
AC-AD21616 16MM 16MM DOUBLE PIPE CLAMP COMPLETE
AC-AD21818
AC-AD32020
Clamps
DOUBLE PIPE CLAMP COMPLETE
DOUBLE PIPE CLAMP COMPLETE
DOUBLE PIPE CLAMP COMPLETE AC-AD43030
AC-AD32525 25MM
DOUBLE PIPE CLAMP COMPLETE
DOUBLE PIPE CLAMP COMPLETE
AC-AD325.425.4 25.4MM 25.4MM DOUBLE PIPE CLAMP COMPLETE
AC-AD42828 28MM 28MM DOUBLE PIPE CLAMP COMPLETE
AC-AD43030
DOUBLE PIPE CLAMP COMPLETE AC-AD53232
DOUBLE PIPE CLAMP COMPLETE
AC-AD53838
Heavy Duty Single Pipe Clamp Complete
AC-MMP333.7
AC-MMP442
AC-MMP448.3
AC-MMP450.8
AC-MMP457
AC-MMP460.3
AC-MMP470
Single Pipe Clamp Complete
SINGLE PIPE CLAMP COMPLETE
SINGLE PIPE CLAMP COMPLETE
Clamps
AC-MD18 18MM 18MM DOUBLE PIPE CLAMP COMPLETE
AC-MD19.5
AC-MD212.7
DOUBLE PIPE CLAMP COMPLETE
DOUBLE PIPE CLAMP COMPLETE
AC-MD214 14MM 14MM DOUBLE PIPE CLAMP COMPLETE
AC-MD215 15MM 15MM DOUBLE PIPE CLAMP COMPLETE
AC-MD216 16MM 16MM DOUBLE PIPE CLAMP COMPLETE
AC-MD218 18MM 18MM DOUBLE PIPE CLAMP COMPLETE
AC-MD319 19MM 19MM DOUBLE PIPE CLAMP COMPLETE
AC-MD320 20MM 20MM DOUBLE PIPE CLAMP COMPLETE
AC-MD322 22MM 22MM DOUBLE PIPE CLAMP COMPLETE
AC-MD325.4 25.4MM 25.4MM DOUBLE PIPE CLAMP COMPLETE
AC-MD428 28MM 28MM DOUBLE PIPE CLAMP COMPLETE
AC-MD430 30MM 30MM DOUBLE PIPE CLAMP COMPLETE
AC-MD532 32MM 32MM DOUBLE PIPE CLAMP COMPLETE
AC-MD535 35MM 35MM DOUBLE PIPE CLAMP COMPLETE
AC-MD538 38MM 38MM DOUBLE PIPE CLAMP COMPLETE
AC-MD542 42MM 42MM DOUBLE PIPE CLAMP COMPLETE
AC-MD650.8 50.8MM 50.8MM DOUBLE PIPE CLAMP COMPLETE
Clamps
Double Pipe Clamp Complete
AC-MD10808
AC-MD19.59.5
AC-MD212.7
AC-MD21414 14MM 14MM DOUBLE PIPE CLAMP COMPLETE
AC-MD21515 15MM 15MM DOUBLE PIPE CLAMP COMPLETE
AC-MD21616
AC-MD21818
AC-MD31919
AC-MD32020
AC-MD325.425.4
AC-MD42828
DOUBLE PIPE CLAMP COMPLETE
AC-MD43030 30MM 30MM DOUBLE PIPE CLAMP COMPLETE
AC-MD53232
AC-MD53838
Single Cushion Clamps
PPC45-2513 45MM 25MM 13MM
PPC46-2513 46MM 25MM 13MM
Clamps
PPC90-2523
Ultra Heavy Duty (Mikalor brand)
CC-MARW3033 SUITS SFR4-12
CC-MARW3639 SUITS SFR4-16
CC-MARW4447 SUITS SFR4-20
CC-MARW4751 SUITS SFR4-24
CC-MARW6467 SUITS SFR4-32
CC-MARW7379 SUITS SFR4-40
Stacking Bolts
Stacking Bolts
Stacking Bolts
Stacking Plate Single
Stacking Bolts
Stacking Plate Double
Stacking Bolts
HP Ball Valves
BVH2
BVH2-L-08
BVH3-L-12 3/4
Plastic Caps & Plugs
B-Plug - Plastic Plug to suit Female BSP Thread
B-PLUG04 1/4" BSP MALE
B-PLUG06 3/8" BSP MALE
B-PLUG08 1/2" BSP MALE
B-PLUG12 3/4" BSP MALE
B-PLUG16 1" BSP MALE
Plastic Caps & Plugs
G-Plug - Plastic Plug to suit Female JIC Thread
G-PLUG07 7/16" JIC MALE
G-PLUG09 9/16" JIC MALE
G-PLUG12 3/4" JIC MALE
G-PLUG14 7/8" JIC MALE
G-PLUG17 1 1/16" JIC MALE
G-PLUG21 1 5/16 JIC MALE
G-PLUG26
G-PLUG30
5/8 JIC MALE
7/8 JIC MALE
R-Plug - Plastic Plug to suit Female Thread
R-PLUG11 11/16 ORFS MALE
R-PLUG13 13/16 ORFS MALE
R-PLUG16 1 ORFS MALE
R-PLUG19 1 3/16 ORFS MALE
R-PLUG23 1 7/16 ORFS MALE
R-PLUG27 1 11/16 ORFS MALE
C-Cap - Plastic Plug to suit Male BSP Thread
C-CAP04 BSP 1/4 BSP FEMALE
C-CAP06 BSP P3/8 BSP FEMALE
C-CAP08 BSP 1/2 BSP FEMALE
C-CAP12 BSP 3/4 BSP FEMALE
C-CAP16 BSP 1 BSP FEMALE
C-CAP20 BSP 1 1/4 BSP FEMALE
C-CAP24 BSP 1 1/2 BSP FEMALE
C-CAP32 BSP 2 BSP FEMALE
J-Cap - Plastic Cap to suit Male JIC Thread
J-CAP07 7/16" JIC FEMALE
J-CAP09 9/16" JIC FEMALE
J-CAP12 3/4" JIC FEMALE
J-CAP14 7/8 JIC FEMALE
J-CAP17 1 1/16 JIC FEMALE
J-CAP21 1 5/16 JIC FEMALE
J-CAP26 1 5/8 JIC FEMALE
J-CAP30 1 7/8 JIC FEMALE
Caps & Plugs
Caps & Plugs
Plastic Caps & Plugs
Plastic Caps & Plugs
Plastic
Plastic
Heat Shrink Caps
CSC-2527P
CSC-3133P
CSC-3840P
CSC-4345P
CSC-6760P
CSC-8060P
O-Rings/Dowty Seals
ORFS Male O-Ring D90
ORFS-11 11/16
ORFS-13 13/16
ORFS-16 1
ORFS-19 1 3/16
ORFS-23 1 7/16
ORFS-27 1 11/16
ORFS-32 2
SAE Flange O-Ring D90
O-Rings/Dowty Seals
O-Rings/Dowty Seals
CAT Flange D90
O-Rings/Dowty Seals
UNO O-Ring D90
O-Rings/Dowty Seals
7/8 UNO-17 1 1/16
1 5/16 UNO-26 1 5/8 UNO-30 1 7/8 UNO-40 2 1/2
Metric DIN O-Ring
METDIN-08LS 08S
METDIN-10LS 10LS
METDIN-12LS 12LS
METDIN-14S 14S
METDIN-15L 15L
METDIN-16S 16S
METDIN-18L 18L
METDIN-20S 20S
METDIN-22L 22L
METDIN-25S 25S
METDIN-28L 28L
METDIN-30S 30S
METDIN-35L 35L
METDIN-38S 38S
METDIN-42L 42L
Metric Dowty Seal
O-Rings/Dowty Seals
O-Rings/Dowty Seals
DS20M 20MM
DS22M 22MM
DS24M 24MM
DS26M 26MM
DS27M 27MM
DS30M 30MM
DS33M 33MM
DS36M 36MM
DS42M 42MM
DS45M 45MM
DS48M 48MM
DS52M 52MM
Imperial Dowty Seal
O-Rings/Dowty Seals
O-Ring Kits
Dowty Washer Kits
O-Ring Kit -
5a
O-Ring Kit - Metric 4a
O-Ring Kit - COM
O-Ring Kits
O-Ring Kit - ORFS
O-Ring Kit - CAT
Airbrake Hose & Emergency Grab Kit
ABKM Metric
8.6MM Grease Fittings
GFK6 6MM Grease Fittings Kit-Push In
GFK12-CLPMC06M06
GFK12-CLPMC06M08
Testing
Test Kit Analogue
Test Kit
2 x COUPLERS (- CASE/JOHN DEERE * 1/8BSPF, - KOMATSU/ HITACHI X M141.5F)
9 TEST COUPLINGS: (- 1/8 BSPP, - 1/4 BSPP, - 3/8 BSPP, - M101, - M101.25, - M141.5, - 7/16-20UNF, - 9/16-18UNF, - 1/4NPT)
Analogue Pressure Gauges Gauges
PG63BE-14.5 PRESSURE GAUGE DN63 1/4 BSPPG
PG63BE-23.2
PG63BE-36.25
GAUGE DN63 1/4 BSPPG
GAUGE DN63 1/4 BSPPG
PG63BE-58 PRESSURE GAUGE DN63 1/4 BSPPG
ENTRY
BOTTOM ENTRY
PG63BE-87 PRESSURE GAUGE DN63 1/4 BSPPG 87 BOTTOM ENTRY
PG63BE-145 PRESSURE GAUGE DN63 1/4 BSPPG
PG63BE-232 PRESSURE GAUGE DN63 1/4 BSPPG
PG63BE-362.5 PRESSURE GAUGE DN63 1/4 BSPPG
BOTTOM ENTRY
BOTTOM ENTRY
PG63BE-580 PRESSURE GAUGE DN63 1/4 BSPPG 580 BOTTOM ENTRY
PG63BE-870 PRESSURE GAUGE DN63 1/4 BSPPG 870 BOTTOM ENTRY
PG63BE-1450 PRESSURE GAUGE DN63 1/4 BSPPG 1450 BOTTOM ENTRY
PG63BE-2320 PRESSURE GAUGE DN63 1/4 BSPPG 2320 BOTTOM ENTRY
PG63BE-3625 PRESSURE GAUGE DN63 1/4 BSPPG 3625
ENTRY
PG63BE-5800 PRESSURE GAUGE DN63 1/4 BSPPG 5800 BOTTOM ENTRY
PG63BE-8700 PRESSURE GAUGE DN63 1/4 BSPPG 8700 BOTTOM ENTRY
PG63RE-14.5 PRESSURE GAUGE DN63 1/4 BSPPG 14.5 REAR ENTRY
PG63RE-23.2 PRESSURE GAUGE DN63 1/4 BSPPG 23.2 REAR ENTRY
PG63RE-36.25 PRESSURE GAUGE DN63 1/4 BSPPG 36.2 REAR ENTRY
PG63RE-58 PRESSURE GAUGE DN63 1/4 BSPPG 58 REAR ENTRY
PG63RE-87 PRESSURE GAUGE DN63 1/4 BSPPG 87 REAR ENTRY
PG63RE-145 PRESSURE GAUGE DN63 1/4 BSPPG 145 REAR ENTRY
PG63RE-232 PRESSURE GAUGE DN63 1/4 BSPPG 232 REAR ENTRY
PG63RE-362.5 PRESSURE GAUGE DN63 1/4 BSPPG 362 REAR ENTRY
PG63RE-580 PRESSURE GAUGE DN63 1/4 BSPPG 580 REAR ENTRY
PG63RE-870 PRESSURE GAUGE DN63 1/4 BSPPG
PG63RE-1450 PRESSURE GAUGE DN63 1/4 BSPPG 1450
PG63RE-2320 PRESSURE GAUGE DN63 1/4 BSPPG
PG63RE-3625
PG63RE-5800
PG63RE-8700
GAUGE DN63 1/4 BSPPG
GAUGE DN63 1/4 BSPPG
GAUGE DN63 1/4 BSPPG
ENTRY
ENTRY

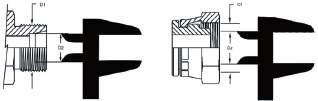

Thread Gauge Kit Testing
BSPP Female x BSPP Male x UNO Female Testing
Flange Clamps
W
Clamps
WHP - Code 62 Flange Clamps SPECIFICATIONS
Flange O-Rings O-Rings
Flange Adaptor Kits
F61G-0814 1/2 C61 Flange x 7/8 JICM ADAPTER
F61G-1217 3/4 C61 Flange x 1 - 1/16 JICM ADAPTER
F61G-1621
F61G-2026
C61 Flange x 1 - 5/16 JICM ADAPTER
1/4 C61 Flange x 1 5/8 JICM ADAPTER
F62G-0814 1/2 C62 Flange x 7/8 JICM ADAPTER
F62G-1217 3/4 C62 Flange x 1 - 1/16 JICM
F62G-1621 1 C62 Flange x 1 - 5/16 JICM
F62G-2026 1 - 1/4 C62 Flange x 1 - 5/8 JICM
Adaptor Kits
HOSE ASSEMBLY EQUIPMENT

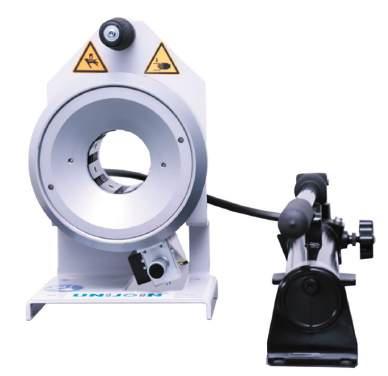

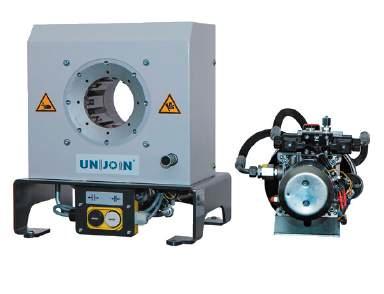

MOBILE CRIMPER

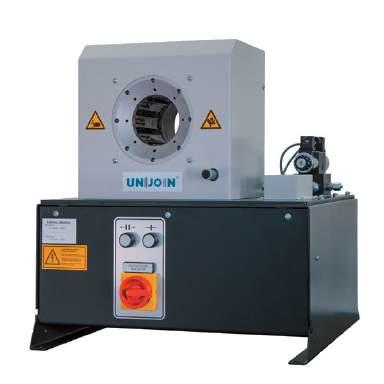

German Made Unijoin Hydraulic Crimper
UG16-HP › PAGE 220
MOBILE CRIMPER

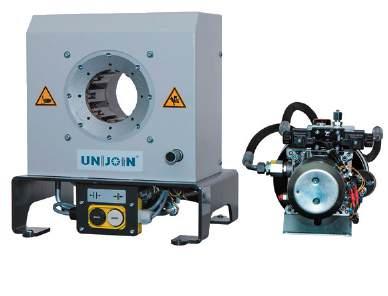

Unijoin Hydraulic Crimper
>1-1/2” 12 Volt
UG20-12V › PAGE 221
MOBILE CRIMPER
Unijoin Hydraulic Crimper
>2” 12 Volt
UG32-12V › PAGE 222
WORKSHOP CRIMPER
Unijoin Hydraulic Crimper
>1-1/2” 240 Volt
UG20-240V › PAGE 223
WORKSHOP CRIMPER
Unijoin Hydraulic Crimper
>2” 240 Volt
UG32-240V › PAGE 224
MOBILE CRIMPER
Unijoin Mobile Hydraulic Crimper
EM3-230V › PAGE 226
MOBILE SAW
Hydraulic Hose Cut Off
Saw - 1 1/4” 12 Volt
EM3.4-12V › PAGE 225
WORKSHOP SAW
Hydraulic Hose Cut Off
Saw - 1 1/2” 230 Volt
EM3E-230V › PAGE 227
HOSE CUT-OFF SAWS
Unijoin Mobile Hydraulic Crimper
EM6E-230V › PAGE 228
HOSE CLEANING
Projectile Launch Kit
UC-EL-8 › PAGE 229
HOSE CLEANING
Foam Bullets
FOAM BULLETS › PAGE 229
HOSE RACKS
6 Tier Hydraulic Hose Rack
RACK › PAGE 229
German Made Unijoin Hydraulic Crimper
UG16-HP
ACCESSORIES
QDS 263 B
UG 16 Ecoline:
UG 16 Ecoline Package = Machine
PB Ø 14, 17, 20, 24, 32, 36, 40
QDS 26X B Telescopic hand-lever
An optical signal is given when the crimp measure is reached. The electric and pneumatic variants have an automatic stop funtion.
UG16 Ecoline TECHNICAL DATA
Crimp force (kN / Ton) 900 / 90
Greased machine
Control
Control A
SAE R12 / 4SH 1 piece fitting * 1"
SAE R15 / 4SH 2 piece fitting * 3/4"
SAE R12 / 4SP 2 piece fitting * 1"
Industrial 1 1/4"
90° Elbows 1"
Crimp range 63 mm**
Opening +22mm
Opening without dies 77mm
Master dies length (mm) 75mm
Type of dies 263 Drive manual
Oil 0.75 L
L x W x H (mm)
218 x 165 x 352
Weight 29 kg
*according to the fitting
**with master dies
We reserve the right to make technical changes without notice. Options are machine parts that can only be ordered while buying the machine.
Unijoin Hydraulic Crimper >1-1/2" 12 Volt
UG20-12V
ACCESSORIES
Die Rack to suit UG20 Crimpers
UG20-DR
Quick Change Tool to suit UG20 Crimper
UG20-DR
Deep Cycle Battery C12V104
UG20-12V TECHNICAL DATA
Max Hydraulic Hose* 1-1/2"
Master Die Length (mm) 100
Max Opening (mm) 97
Crimping Force (kn/Ton) 1900/190
Control Micro Dial
L*W*H mm 430 x 370 x 440**
Weight 110
*Can vary across hose & fitting brands **12 volt power pack is mounted seperately
MAIN FEATURES
– Proven quality
– Simple operation
– Ideal for all fitting types
– 12 volt operation, great for mobile or remote applications
Unijoin Hydraulic Crimper >2" 12 Volt
UG32-12V
ACCESSORIES
Die Rack to suit UG20 Crimpers
UG20-DR
Quick Change Tool to suit UG20 Crimper
UG20-DR
Deep Cycle Battery
C12V104
Ideal for crimping hydraulic hoses up to 2" multi-spiral in mobile or remote situations where a 12 volt power supply is more suited.
UG32-12V TECHNICAL DATA
Max Hydraulic Hose* 2"
Master Die Length (mm) 110
Max Opening (mm) 143
Crimping Force (kn/Ton) 2400/240
Control
Micro Dial
L*W*H mm 505 x 430 x 490**
Weight KG 172
*Can vary across hose & fitting brands **12 volt power pack is mounted seperately
MAIN FEATURES
– Proven quality
– Simple operation – Ideal for all fitting types
– 12 volt operation, great for mobile or remote applications
Unijoin Hydraulic Crimper >1-1/2" 240 Volt
UG20-240V
ACCESSORIES
Die Rack to suit UG20 Crimpers
UG20-DR
Quick Change Tool to suit UG20 Crimper
UG20-QCT
Ideal for crimping hydraulic hoses up to 1-1/2" multi-spiral in mobile or remote situations where a 12 volt power supply is more suited.
UG20-240V TECHNICAL DATA
Max Hydraulic Hose* 1-1/2"
Master Die Length (mm) 100
Max Opening (mm) 97
Crimping Force (kn/Ton) 1900/190
Control Micro Dial
L*W*H mm 550 x 580 x 630
Weight KG 150
*Can vary across hose & fitting brands
MAIN FEATURES
– Proven quality
– Simple operation
– Ideal for all fitting types
– 240 volt single phase for workshop applications
Unijoin Hydraulic Crimper >2" 240 Volt
UG32-240V
ACCESSORIES
Die Rack to suit UG32 Crimpers
UG32-DR
Quick Change Tool to suit UG20 Crimper
UG32-DR?
WORKSHOP CRIMPER
Single phase mains power option for workshops or other application where mains power is readily available.
UG32-240V TECHNICAL DATA
Max Hydraulic Hose* 2"
Master Die Length (mm) 110
Max Opening (mm) 147
Crimping Force (kn/Ton) 2000/200
Control Micro Dial
L*W*H mm 700 x 600 x 735
Weight KG 275
*Can vary across hose & fitting brands
MAIN FEATURES
– Proven quality
– Simple operation
– Ideal for all fitting types
– 230 volt single phase for workshop applications

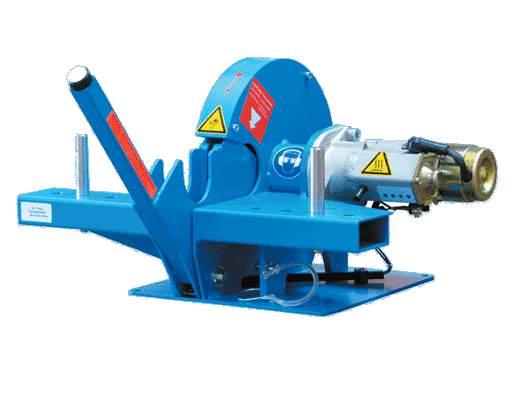

Hydraulic Hose Cut Off Saw - 1 1/4" 12 Volt
EM3.4-12V
CE Compliance
Approved Cutting Blade
Energy Efficient
Ideal for cutting hydraulic hoses up to 1-1/4" multi-spiral in mobile or remote situations where a 12 volt power supply is more suited.
The unique drive motor with double bearings and oversized shafts maximises motor life, significantly reducing cost of ownership
EM3.4-12V TECHNICAL DATA
Max Hydraulic Hose 1-1/4 Multi-spiral
Max Outside mm 60
Noise Level bBA (approx) 93 Drive 12V
Cutting Blade
TM 250 x 2 x 4OZ
L*W*H mm 470 x 567 x 365
Weight KG Approx. 29
MAIN FEATURES
– European Made Machine
– Faster, cleaner cuts
– Reduced contamination
– Very compact, ideal for mobile service
– Long lasting German quality steel blades

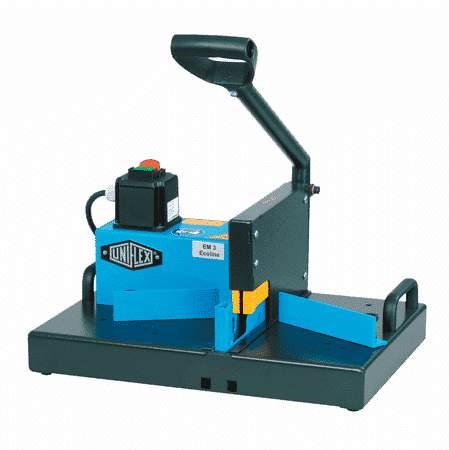

Unijoin Mobile Hydraulic Crimper
EM3-230V
EM3-230V TECHNICAL DATA
Production SAE R 13 & SAE R 15 3/4"
Workshop SAE R 13 & SAE R 15* 1 1/4"
SAE R 12 1 1/4"
Industry 2"
Max. Outside (mm) 80
Noise level (dBA) 90
Brake motor
Suction connection (mm) 80
Drive 3 KW 3 VAC
Cutting blade (mm) TM 275 x 3 x 30
Length machine (mm) 540
Width machine (mm) 440
Height machine (mm)
Weight (kg)
FEATURES
Longer service life due to higher quality
– Unique drive motors
– Double bearing
– Massive design for vibration damping
– Less waste, more cuts
– Less pollution
– Faster and straighter cutting
Quality steel knife
– German development of durable steel blades to reduce operating costs
Compact design
– Finds place in any workshop
– Ideal for on-site service
Ecoline version
– Entry level model in the same quality
CE compliant
– Engine brake
– Knife guard

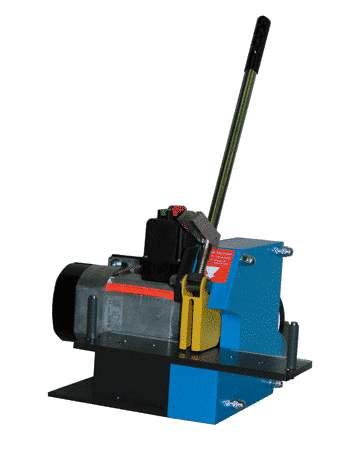

Hydraulic Hose Cut Off Saw - 1 1/2" 230 Volt
EM3E-230V
Ideal for cutting hydraulic hoses up to 1-1/2" multi-spiral in workshop situations where a 230240 volt power supply is available. Recessed blade and guards for operators safety.
EM3E-230V TECHNICAL DATA
Max Hydraulic Hose 1-1/2" Multi-spiral
Max Outside mm 52mm
Suction Connection 40mm
Cutting Blade TM G 200x1,6x25
L*W*H mm 400 x 510 x 540
Weight KG Approx. 20
MAIN FEATURES
– European Made Machine
Faster, cleaner cuts – Reduced contamination
Great capacity for its size

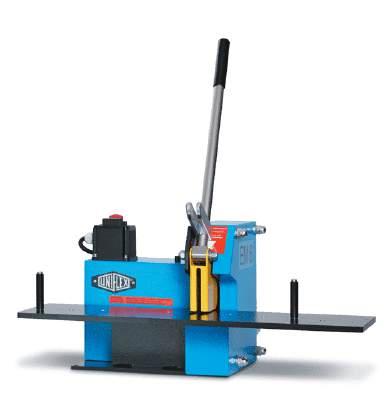

Unijoin Mobile Hydraulic Crimper
EM6E-230V
EM6E-230V TECHNICAL DATA
Production SAE R 13 & SAE R 15 –
Workshop SAE R 13 & SAE R 15* 2"
SAE R 12 2"
Industry 2"
Max. Outside (mm)
Brake motor
Extraction connection (mm)
FEATURES
Longer service life due to higher quality
– Unique drive motors
– Double bearing
– Solid design for vibration damping
– Less waste, more cuts
– Less pollution
– Faster and straighter cutting
Quality steel knife
– German development of durable steel blades to reduce operating costs
Compact design
– Finds space in every workshop
– Ideal for on-site service
Ecoline version
– Entry-level model in the same quality
CE compliant
– Engine brake
– Knife guard

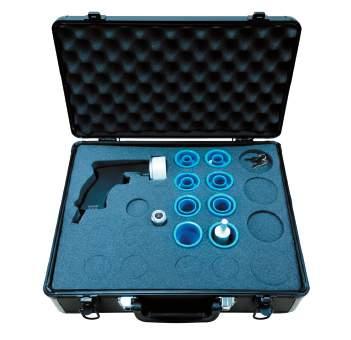

Projectile Launch Kit
UC-EL-8
Hose Assembly Accessories
Foam Bullets
Over 80% of hydraulic failures are caused by contamination - don’t risk it!
These pnuematic projectile launchers, paired with SC-TCS projectiles clean hydraulic hose on the inside to avoid any particles left from the cutting process or storage from entering sensitive components and causing costly damage.
CONTENTS:
– Projectile Launch Gun
– Nozzles to suit 1/4" through to 1-1/4" hose
– Air line adpator
– Lockable Case
Kits with nozzles to suit hose larger than 1-1/4" available on request.
Standard projectile material - polyurethane.

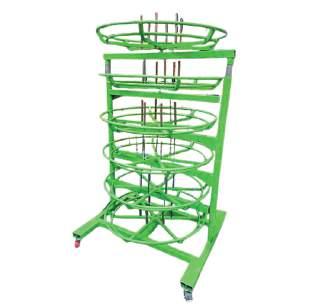

6 Tier Hydraulic Hose Rack
To suit 3/16" to 1 ¼" hydraulic hose
Hydraulic Hose Rack
HOSE RACKS
TECHNICAL INFORMATION
REFERENCE
Thread Identification using Verniers – JIC, UNO, BSP, ORFS
DOC › PAGE 232
REFERENCE
Thread Identification using Verniers – Metric
DOC › PAGE 233
REFERENCE
Thread Identification using Verniers – Banjos
DOC › PAGE 234
REFERENCE
Thread Identification using Verniers –SAE Code 61 & Code 62
DOC › PAGE 235
O.R.F.S.
D.K.L.
D.K.O.L.
D.K.S.
REFERENCE Glossary of Abbreviations
DOC › PAGE 235
REFERENCE
Conversion Chart
DOC › PAGE 236
REFERENCE Hose Assembly Installation Recommendation Practice
DOC › PAGE 237
REFERENCE Hose Assembly Checks
DOC › PAGE 238
REFERENCE Rotation Angle Chart
DOC › PAGE 239
REFERENCE Yokohama Hose and Matched Fittings
DOC › PAGE 240
REFERENCE Identifying Fitting Codes
DOC › PAGE 241
Thread Identification using Verniers –
JIC, UNO, BSP, ORFS
By measuring the outside diameter of a male thread, or the inside diameter of a female thread, with verniers, you will arrive at the mm measurement. By finding the same value on the table below you will be able to accurately determine the correct thread type.
5/16”
1/2” JIC/UNO MALE
1/2” JIC EFMALE
9/16” ORFS FEMALE
1/4”
3/4” JIC FEMALE
1/2” BSP FEMALE
3/4” JIC/UNO MALE 19 19.05 13/16” ORFS FEMALE
20.5 7/8” JIC FEMALE 20.6 5/8” BSP FEMALE
13/16” ORFS MALE 20.82
1/2” BSP MALE 20.96
7/8” JIC/UNO MALE 22.17
5/8” BSP MALE 22.91 23.62 1” ORFS FEMALE 24.13 3/4” BSP FEMALE 25 1 - 1/16” JIC FEMALE
1 - 3/16" JIC/UNO MALE 30.1 1 - 3/16" ORFS MALE 30.22
1 - 3/16" JIC FEMALE
1 3/16” ORFS FEMALE
1" BSP FEMALE
1 - 5/16" JIC FEMALE 1" BSP MALE 33.25
2 - 1/2" JIC/UNO MALE 63.45
Thread Identification using Verniers – Metric
Step 1
Measure
Step 2
Measure
Metric DIN 2353 24° cone fittings are available in two categories: DIN 2353 L (light) and DIN 2353 S (heavy) classes. Each has its own tube sizes and thread dimensions as shown in the following table:
Thread Identification using Verniers – Banjos
Thread Identification using Verniers
–SAE Code 61 & Code 62
* Komatsu produce flanges to the JIS standard that are the same as Code 61 & Code 62 except for O-Ring groove dimensions.
Dash size -10 is unique to JIS Komatsu flange standard
‘CAT’ or ‘Supercat’ Flanges Flanges that are the same diameters as Code 62 flanges but have a thickness of 14.2mm. BOA supplies a range of packers to adapt Code 62 flanges or Code 62 Flange Clamps to replace the Supercat flange clamps to allow the use of a standard Code 62 flange.”
Glossary of Abbreviations
B.S.P.T. British Standard Pipe Taper Thread
B.S.P.P. British Standard Pipe Parallel Thread
U.N. Unified National Thread
N.P.T. National Pipe Taper Thread
N.P.S. National Pipe Straight Thread
J.I.C. Joint Industries Council (thread U.N.)
S.A.E. Society of Automotive Engineers (Thread U.N. or Flange)
O.R.F.S. O-Ring Face Seal (S.A.E. Standards)
D.K.L. Dicht Kegel Leicht (Metric Light Series 24° Cone)
D.K.O.L. Dicht Kegel O-Ring Leict (Metric Light O-Ring Series 24° Cone)
D.K.S. Dicht Kegel Schwer (Metric Heavy Series 24° Cone)
D.K.O.S Dicht Kegel O-Ring Schwer (Metric Heavy O-Ring Series 24° Cone)
D.K.O. Dicht Kegel O-Ring (Metric O-Ring Seal 24° Cone)
D.K.M. Dicht Kegel Metric (Metric 60° Cone)
D.I.N. Deutsche Industrie Normen (German Industrial Standard)
J.I.S. - M Japanese Industrial Standard - Metric Male Thread
J.I.S. - MU Japanese Industrial Standard - Metric Union (Female Thread and Cone)
J.I.S. - R Japanese Industrial Standard - B.S.P.T. Male Pipe Thread
J.I.S. - G Japanese Industrial Standard B.S.P.P Male Pipe (Thread Female Cone)
J.I.S. - GUI Japanese Industrial Standard B.S.P.P Pipe Thread Female Union (Female Cone)
J.I.S. GUO Japanese Industrial Standard B.S.P.P Pipe Thread Female Union (Female Cone)
J.I.S. - GGO Japanese Industrial Standard B.S.P.P. Male Pipe (Thread (Male Cone)
HS J.I.S Designation for S.A.E. Flange Connections Standard Pressure Code 61
HH J.I.S. Designation for S.A.E. Flange Connections High Pressure Code 62
I.D. Inside Diameter
N.B. Nominal Bore
O-Ring O-Ring Seal
O.D. Outside Diameter
STD. Standard
T.W. Tube Weld
W.P. Working Pressure
Conversion Chart
Kilopascal
MPa Megapascal
kg/cm² Kilograms per square centimetre
Atm. Atmosphere
p.s.i Pounds per square inch
Nm Newton Metre
x 14.5 = p.s.i.
x 145 = p.s.i.
x 14.223 p.s.i. Atm. x 14.7 = p.s.i.
1 kPa = .145 p.s.i.
1 Bar = 14.5 p.s.i.
1 MPa = 145 p.s.i.
p.s.i. x 6.89 = kPa
p.s.i. x .0689 = Bar
p.s.i. x .00689 MPa
1 NM = .737 FT/LB
1 Nm = 8.850 in/lb
1 ft/lb = 1.355 Nm
1 in/lb = .113 Nm
Hose Assembly Installation Recommendation Practice
The following are intended only as a guide to installation recommended practices to get the best life from your hose assemblies.
WARNING: No hose fitting can be relied on if it has not been assembled correctly. – Only use hose in the application it was designed for

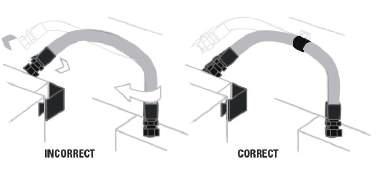

Avoid torsional twist
– Avoid running hose where temperature, rubbing and/or abrasion are high, or consider using appropriate protection.
MOTION ABSORPTION
Provide correct length to absorb movement.
PRESSURE ABSORPTION
Provide correct length to accommodate changing pressures.
PRESSURE & MACHINE TOLERANCES
Provide correct length to allow for pressure changes & movement.

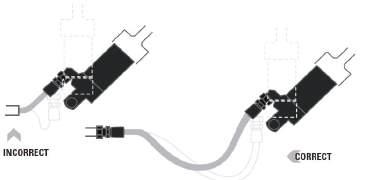

MULTIPLE BENDS
Prevent hose from bending in more than one place.
HIGH TEMPERATURES
Hose should keep away or be insulated from high temperatures.

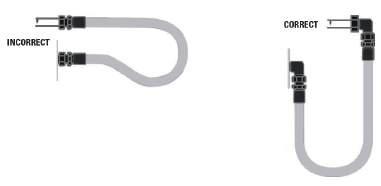

HOSE ROUTING
Use correct fittings or adaptors to ensure hose isn’t bent beyond minimum bend radius.
Hose Assembly Checks
Always ensure hose tails are pushed all the way on to the hose
1. Line the fitting up next to the hose and mark where the fitting should come to when pushed all the way home
When using 2-piece fittings, ensure the collar of the ferrule aligns with the groove in the fittings
1. Identify the groove on the fitting and the collar on the ferrule
Crimp the entire ferrule
1. Make sure the entire ferrule is in the crimping dies so the entire ferrule is crimped.
Always check your final crimp
Always measure your completed crimp with verniers and check against the crimp specification.
2. It is easy to see when the hose is pushed right on as the end of the ferrule should line up with the mark you have made
2. Ensure the groove and collar align so when crimped, the collar is pushed into the groove
2. If the entire ferrule is not crimped the hose assembly should not be used as it is likely to fail.
Rotation Angle Chart
For hose assemblies with two angled hose-end fittings
Hold the assembly so that yo u can look along the length of the hose and with the fitting furtherest away from you in the vertical position Measure the angle between the vertical fitting and the one nearest to you in a clockwise direction. Relationship can be expressed from 00 to 3600 If the angle is not given, the elbows are positioned at 00.
Yokohama Hose and Matched Fittings
It is important to BOA that our customers who work with high-pressure hoses in high-pressure environments, have a product that is superior in performance and service life. That’s why we partnered with Yokohama who have a reputation for “Long Life and High Durability” hoses.
Yokohama have been operating since 1917, and are a market leader who supply many of the industry’s best such as Hitachi, IHI, Kato, Kobelco, Komatsu and Yanmar.
As the preferred partner of Yokohama in NZ we take great pride in the service and quality we offer our customers through this partnership.
6 Key Benefits of Yokohama Hoses
Half the Bend Radius - Bend radius is half of theconventional
the Bend Radius - Bend radius is half of theconventional
Smaller O.D. - Enables you to fit more hose in tight quarters, or jump up a hose size for better flow
Smaller O.D. - Enables you to fit more hose in tight quarters, or jump up a hose size for better flow
Impulse Test Performance - Superior performance & service life.
Impulse Test Performance - Superior performance & service life.
Constant Pressure - Made to ISO 18752 specifications, and
Constant Pressure - Made to ISO 18752 specifications, and
High Abrasion Resistance - Delivers long dependable service life in rigorous installations.
High Abrasion Resistance - Delivers long dependable service life in rigorous installations.
Lighter Hose - Weighs 25% less than conventional spiral hoses, so is easier to handle and install
Lighter Hose - Weighs 25% less than conventional spiral hoses, so is easier to handle and install
Superior Testing Method for Yokohama Hoses
Flexibility is a key feature of Yokohama hoses
is a key feature of
hoses
Yokohama hoses are tested using the rigorous Hitachi and Komatsu spike testing method. This method uses a higher pressure cycle than normal SAE testing, at 1.2 million impulses compared with average SAE testing of 400,000-500,000 impulses.
Square Testing Wave
SAE and EN hoses apply this method
Square Testing Wave
SAE and EN hoses apply this method
Surge/Peak Testing Wave Comes from the JIS, Komatsu and Hitachi method. (Simulating the hammering condition of heavy machines)
Surge/Peak Testing Wave Comes from the JIS, Komatsu and Hitachi method.
(Simulating the hammering condition of heavy machines)
All images displayed are generic and product supplied may not be identical to image. Details and specifications are correct at date of publication; however, Silverline Group T/A BOA reserves the right to change details and specifications without notice. Please contact Silverline Group T/A BOA for further specifications and availability. It is the end users responsibility to ensure products are used & installed safely, Silverline Group T/A BOA accepts no responsibility for any damage or personal injury gained while using products. Names and numbers used in this catalogue for reference only. E & OE.
Flexibility
Yokohama
