PARTNERING WITH YOU TO BUILD BETTER RETAIL

Table of Contents Core System............................................ 4 Signage................................................... 5 Feature Ends........................................ 6-9 Rainware Displays............................ 10-11 Selling Centres.................................. 12-15 Window & Door Displays.................. 16-17 Door Displays.................................... 18-22 Moulding Display.................................. 23

LBM Department Catalogue

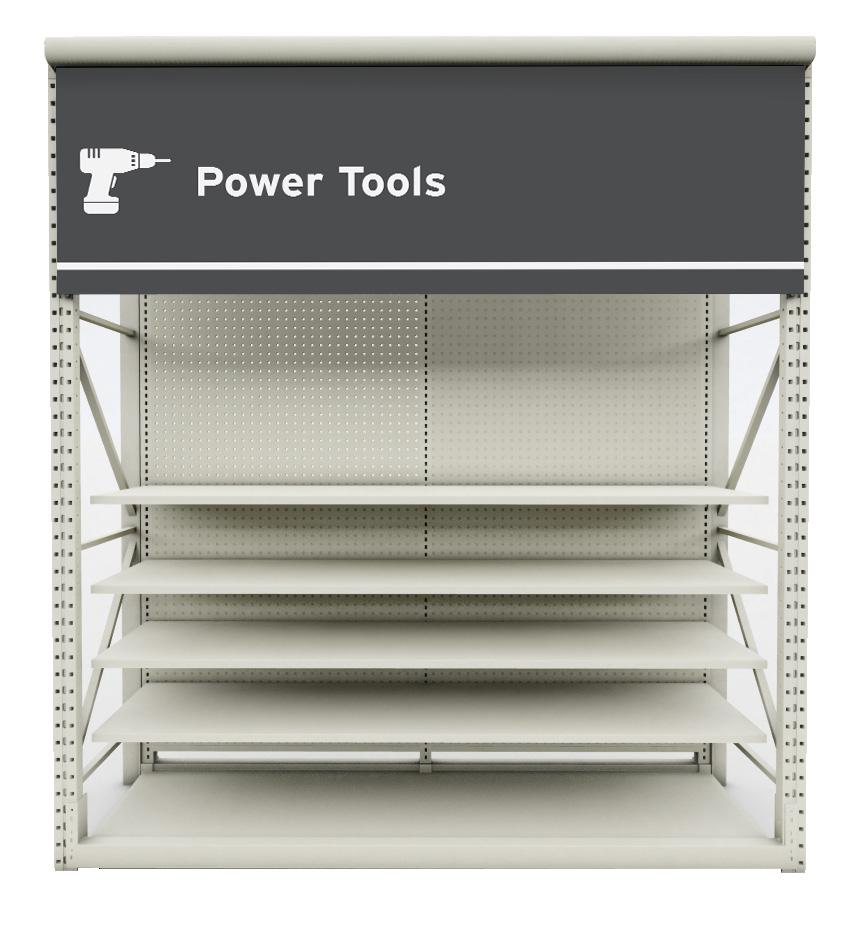

Core System The core system blends traditional merchandising with the efficiency of pallet racking for overhead storage, optimizing space and reducing costs. Our graphic design team can collaborate with your marketing team to create custom icons that align with your branding.

Custom Signage

Overhead Storage • Reduces handling costs • Easy down stock • Keeps staff on the floor

Floating Core • Adjustable depth • Merchandise with shelves, peg hooks, & other merchandising accessories

4

Signage

Way-Finding Endcap Signage Positioned at the end of a racking run, above a gondola endcap.

2

3

Garbage Cans

Signs & Numbers

Cleaners & Rags

Mailboxes

Brooms & Brushes

Closet Rods

Key Features •

Increased visibility

•

Improved navigation and way-finding

•

Brand visibility and recognition

•

Space utilization efficiency

24” and 48” High Overstock Banners Wooden dowel sewn into bottom of banner to ensure canvas material hangs straight.

Key Features •

Clear product segmentation

•

Hide overstock product

•

Effective communication

•

Strong visual focus on product

5

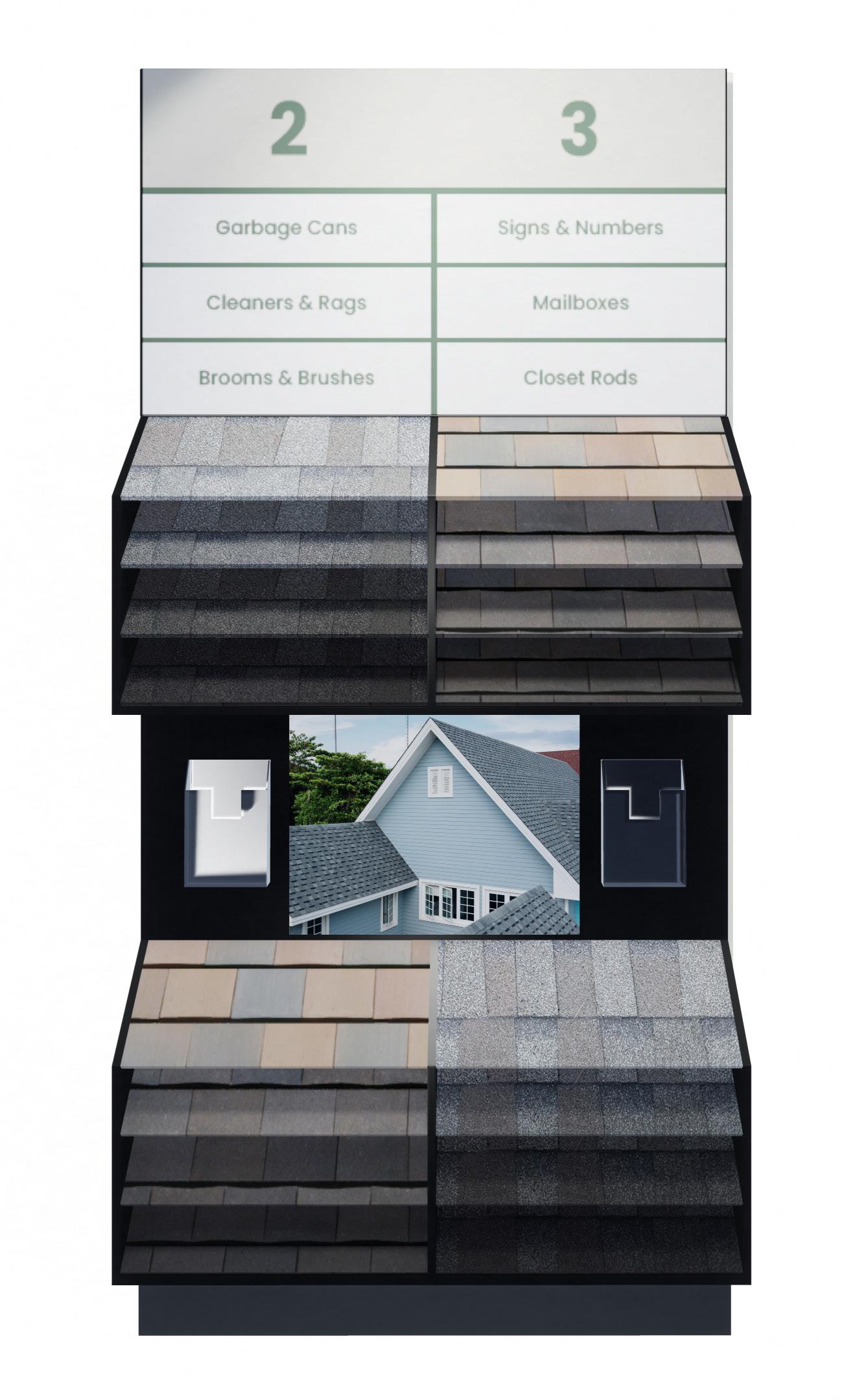

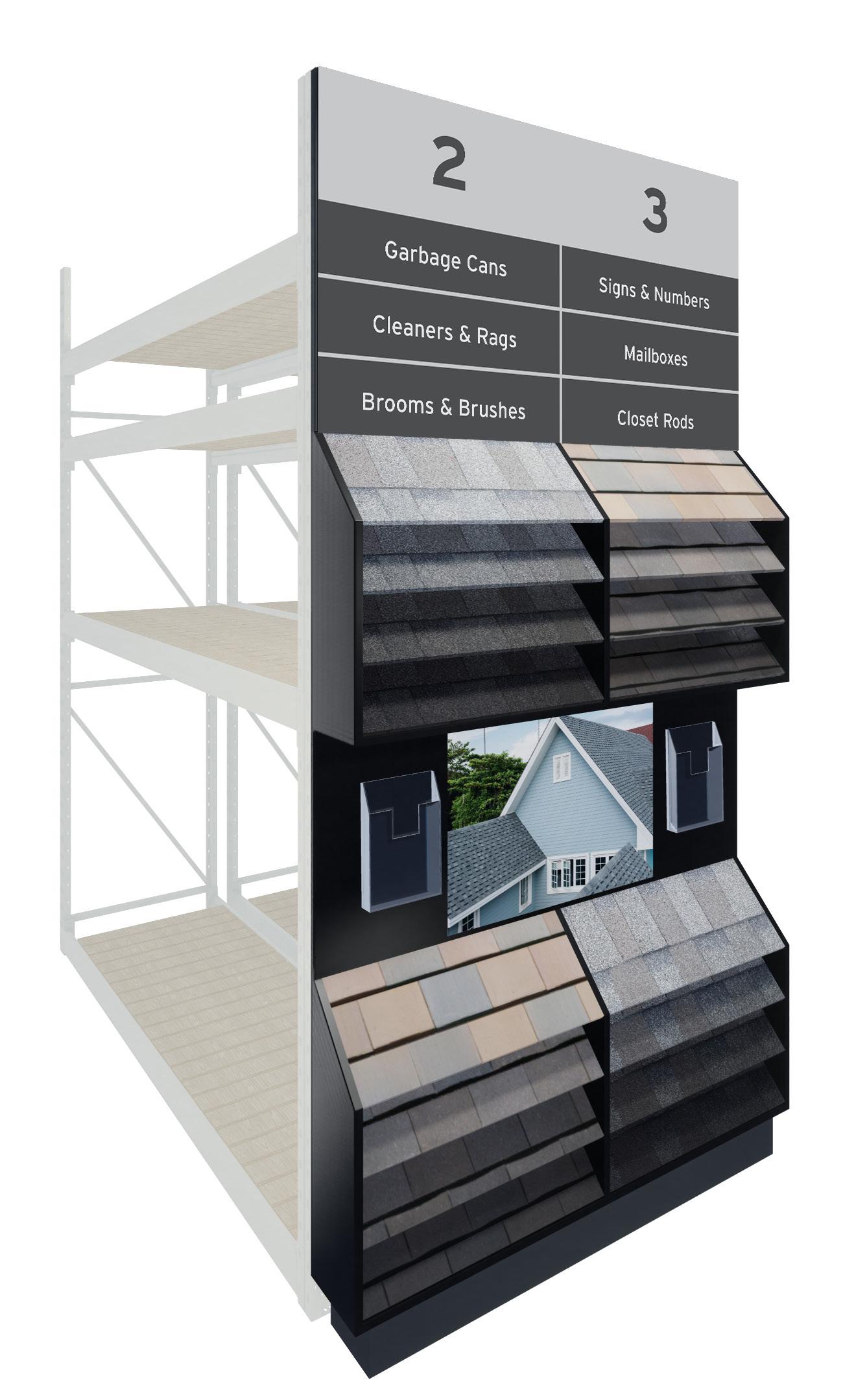

Feature End - Roofing Select from a variety of feature ends to display your products and samples. Use interchangeable fabric graphics on each end to emphasize features and boost your branding. Opportunity for 8.5”x11” brochure holders to be mounted to display.

Front View

6

Iso View

2

3

Garbage Cans

Signs & Numbers

Cleaners & Rags

Mailboxes

Brooms & Brushes

Closet Rods

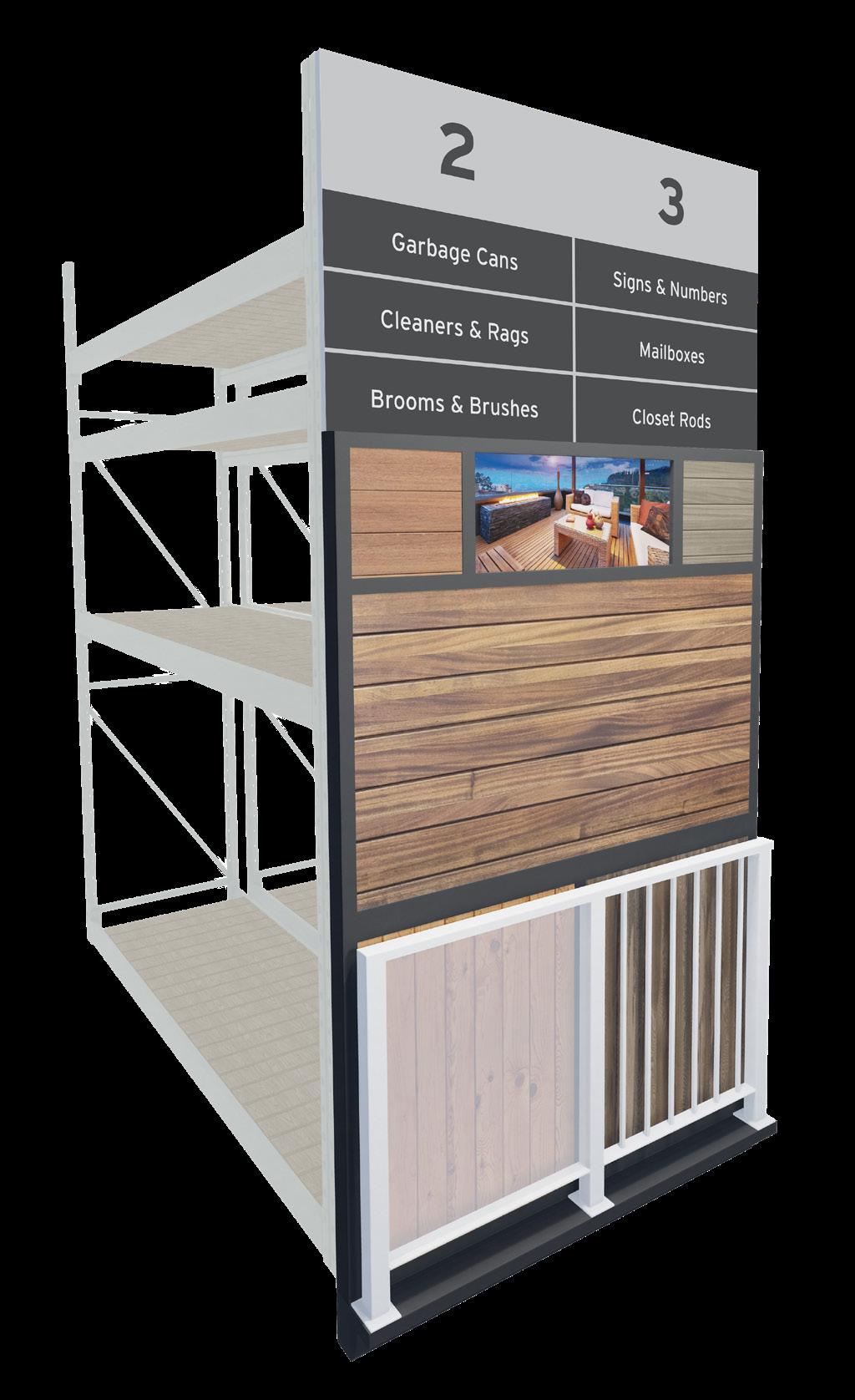

Feature End - Decking & Railing Feature ends are placed at the end of a display run and help create a strong visual statement in power aisle. Include wayfinding signage to help customers easily locate products in the aisles.

Feature ends width and height can be customized to suit your needs.

Front View

Iso View

2

3

Garbage Cans

Signs & Numbers

Cleaners & Rags

Mailboxes

Brooms & Brushes

Closet Rods

7

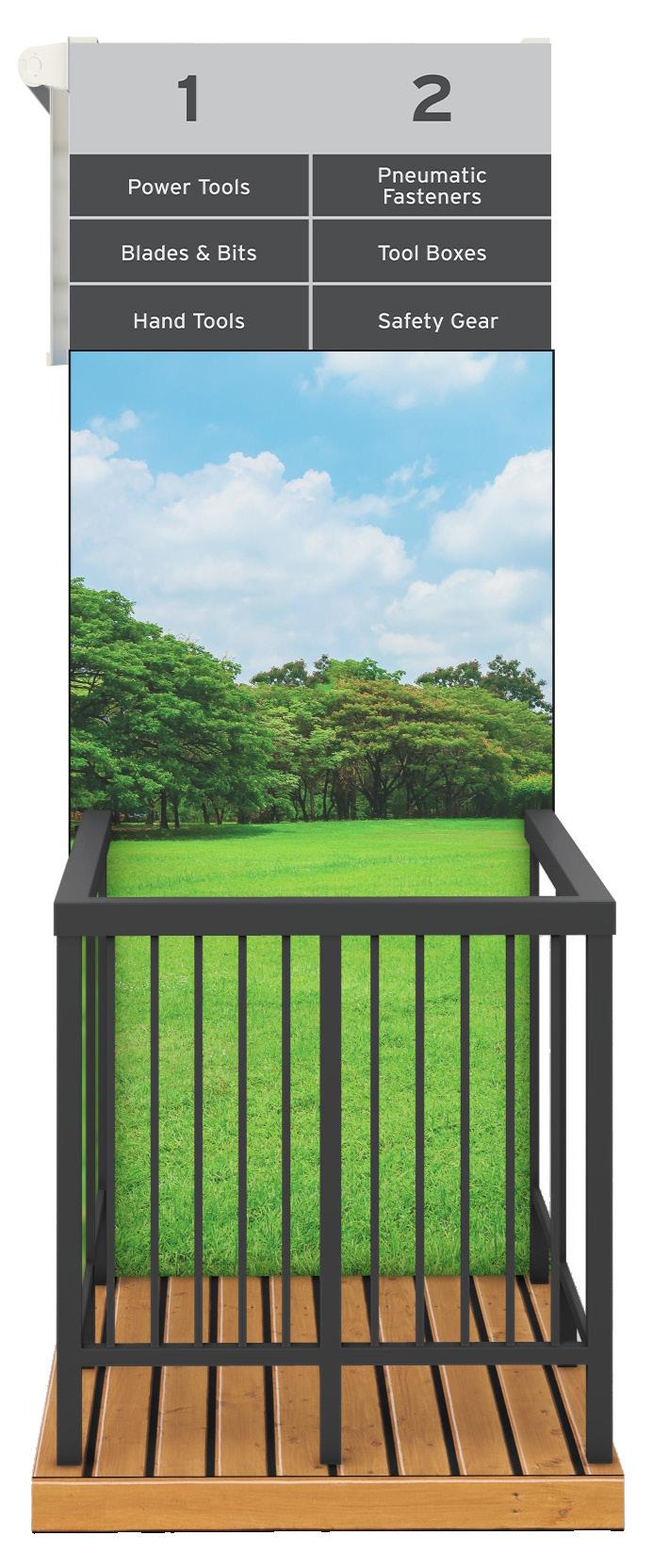

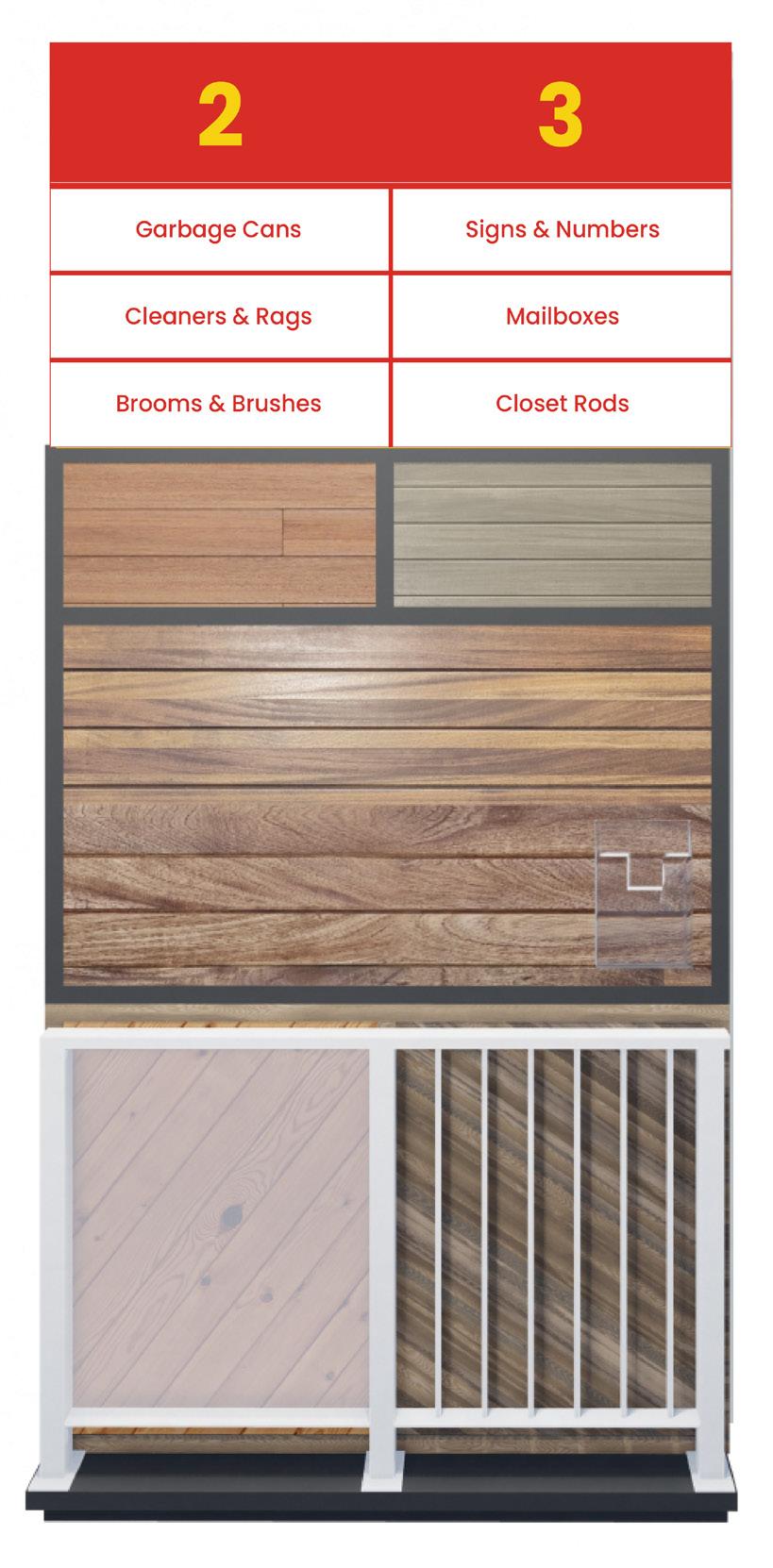

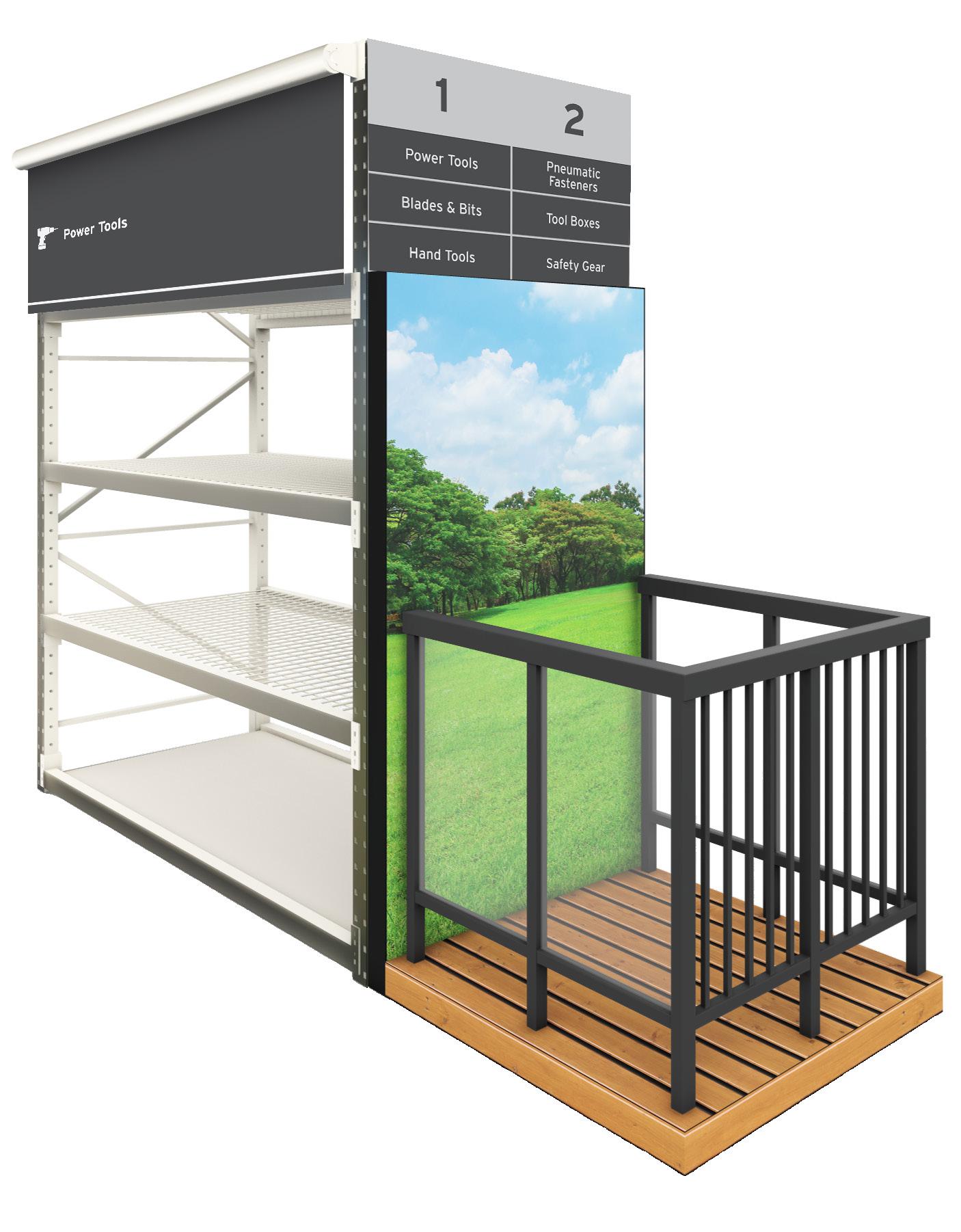

Feature End - Decking & Railing Display a physical deck and railing setup featuring an illuminated light box and interchangeable fabric graphics to give customers a more realistic view of the product in use.

Front View

8

Iso View

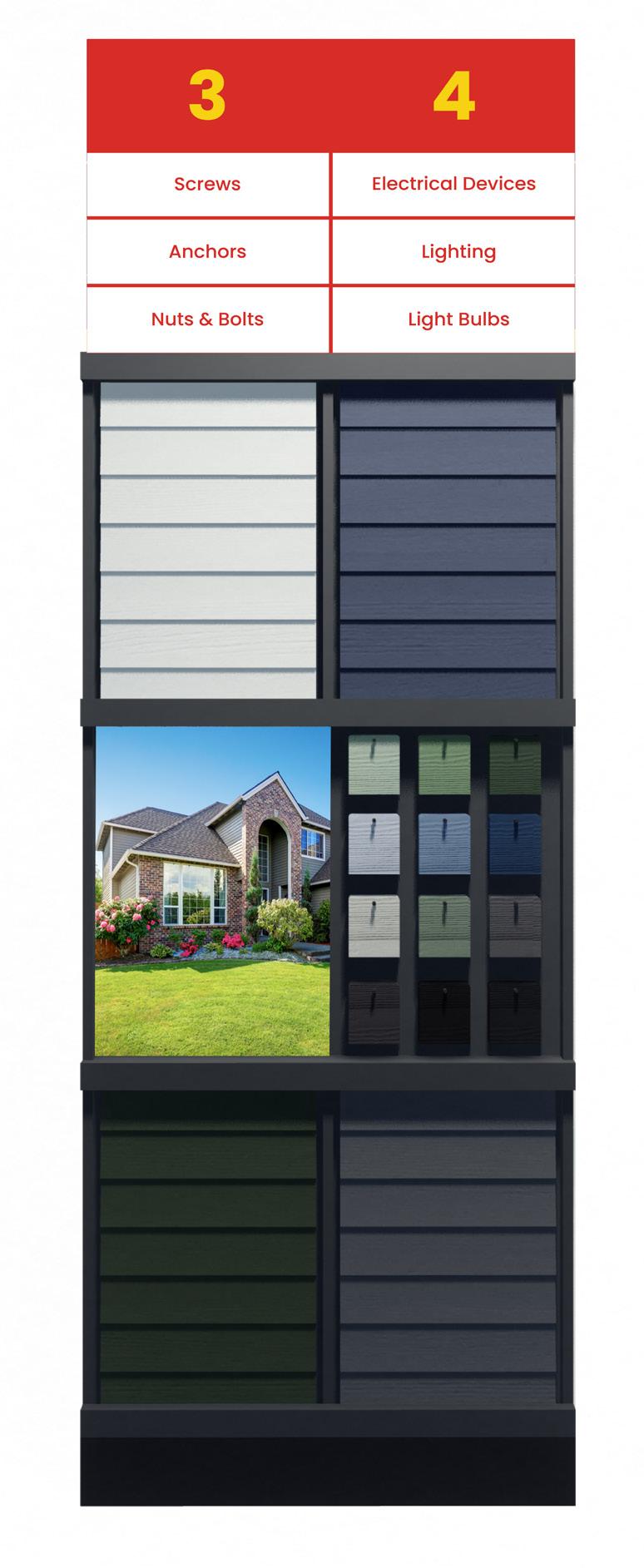

Feature End - Siding Present siding samples in a clean, organized format with fixed chip pins that allow samples to hang neatly for easy customer access. Integrated fabric graphics and wayfinding signage complete the feature for a cohesive, informative display.

Front View Sample Chips

Samples sit on cleats which make it easy to change out.

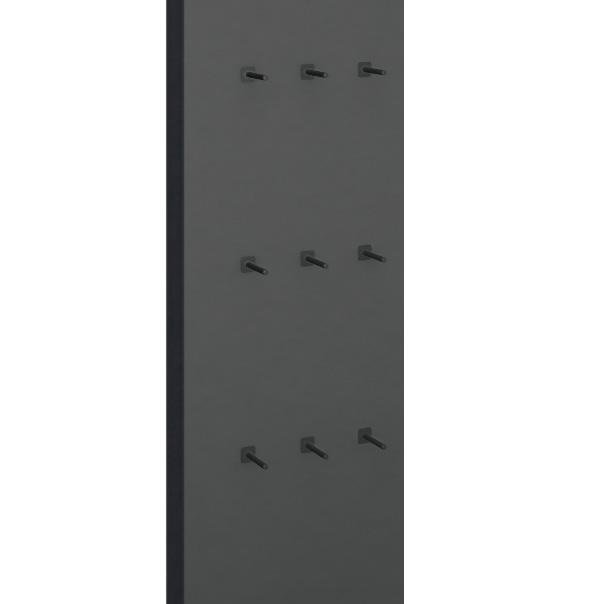

Fixed Chip Pins

Pins are fixed to back panel. 1 1/4” for hanging chips.

9

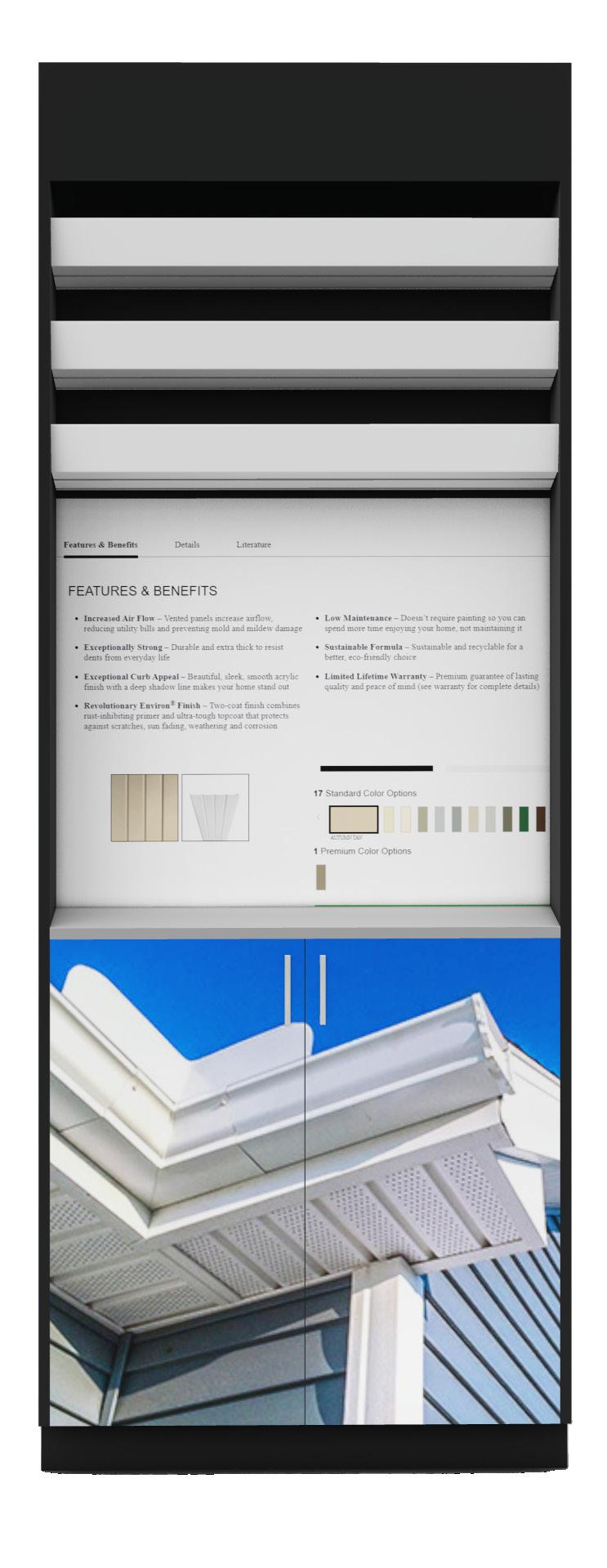

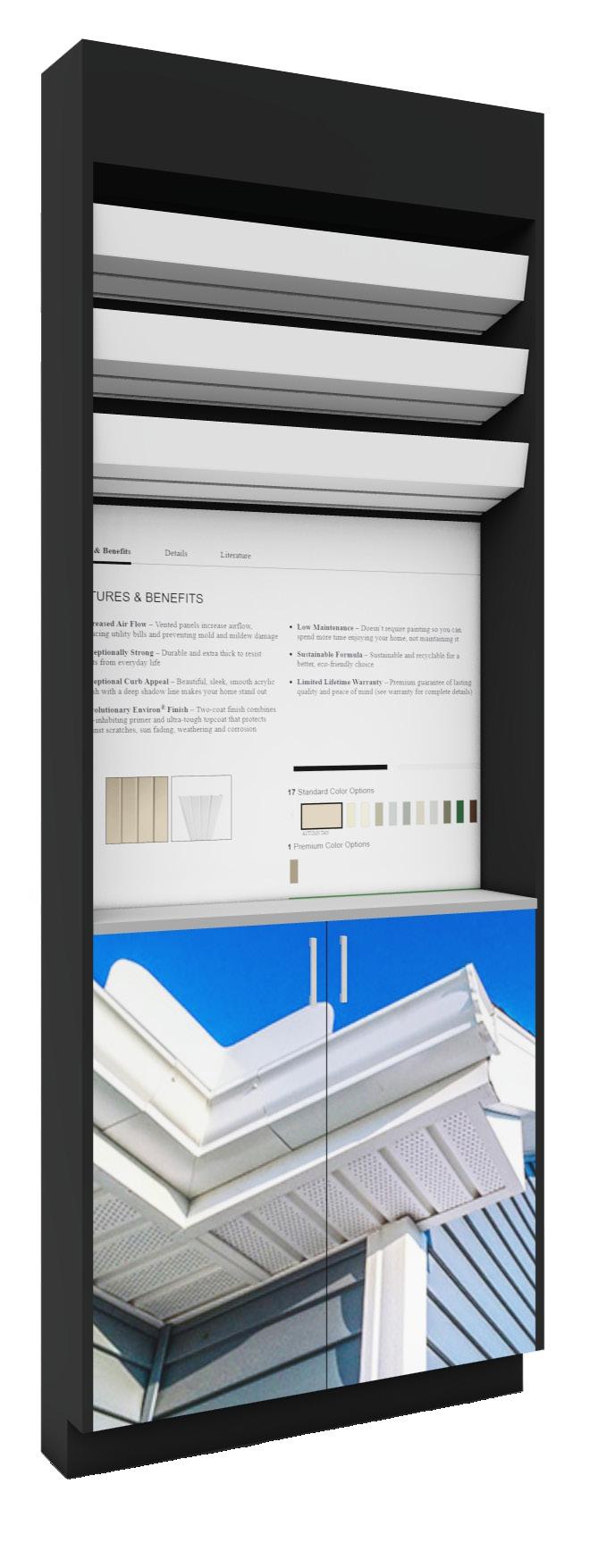

Rainware - Eavestrough Display The eavestrough display features integrated lower storage with vinyl graphics applied to the cabinet doors. The upper section highlights a graphic, while the top tier is designed to effectively showcase products.

Front View

10

Iso View

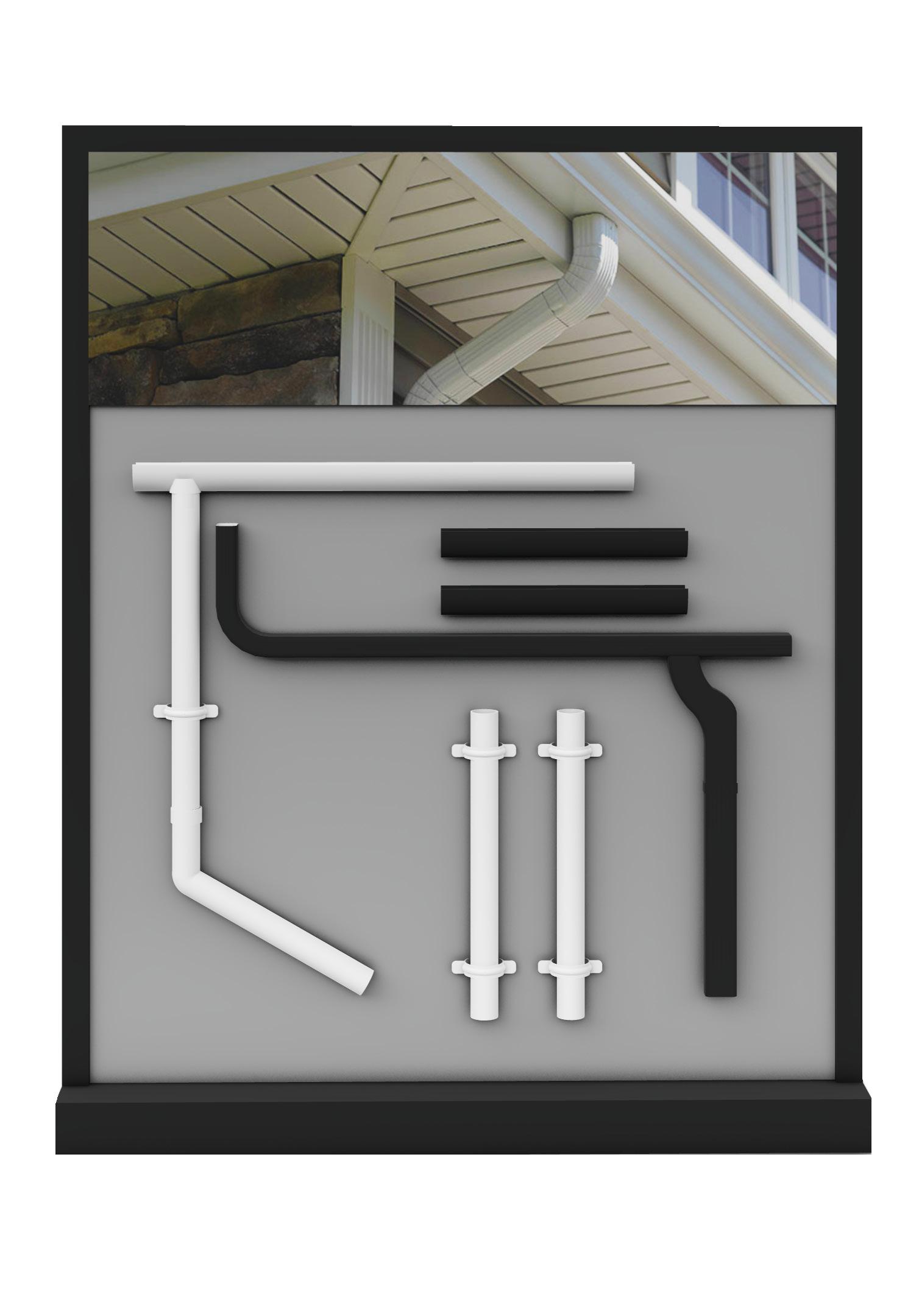

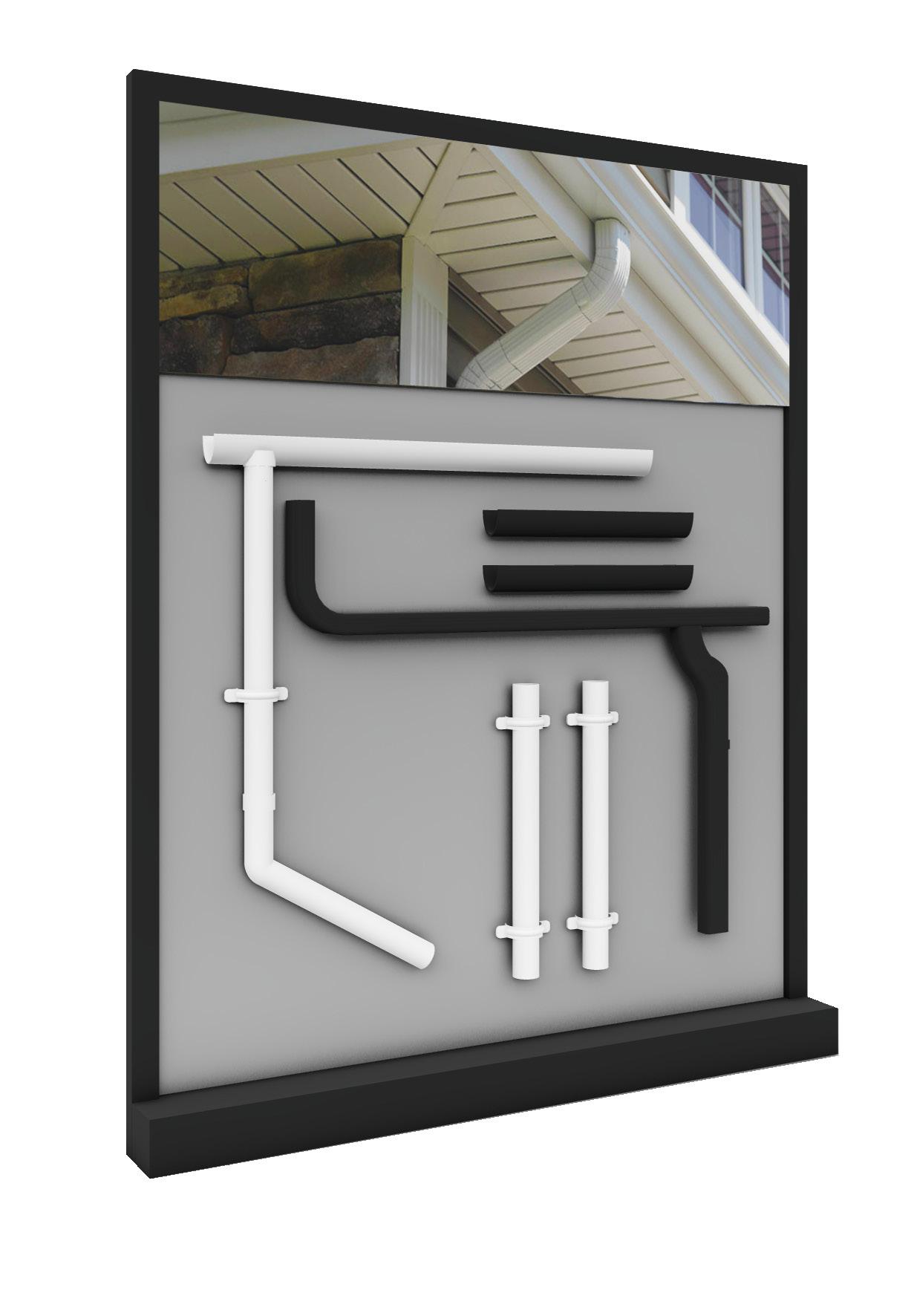

Rainware - Gutter & Piping Display Display physical piping and gutter products with the opportunity for a fabric graphic insert above.

Width and height measurements are customizable to suit your store needs.

Front View

Iso View

11

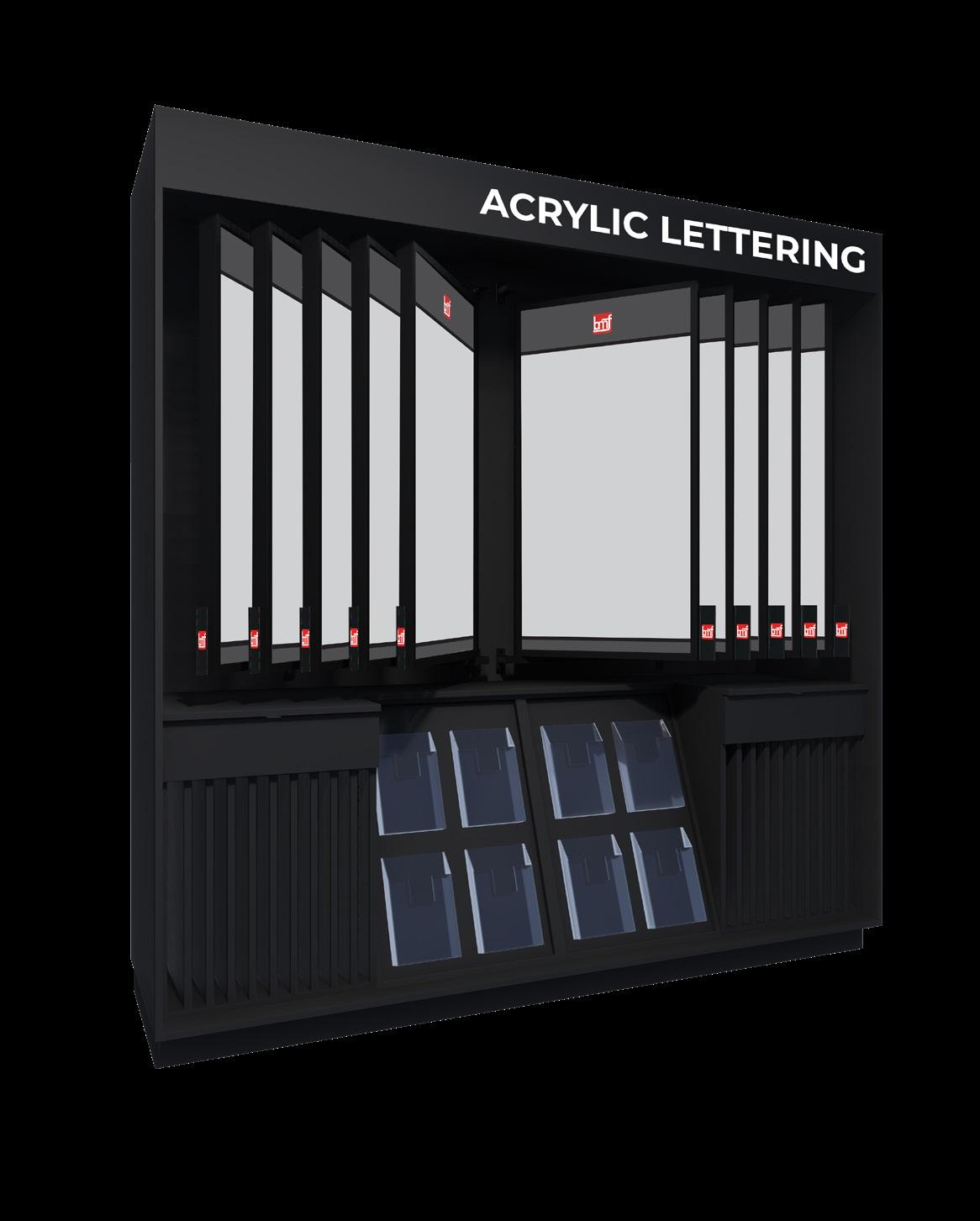

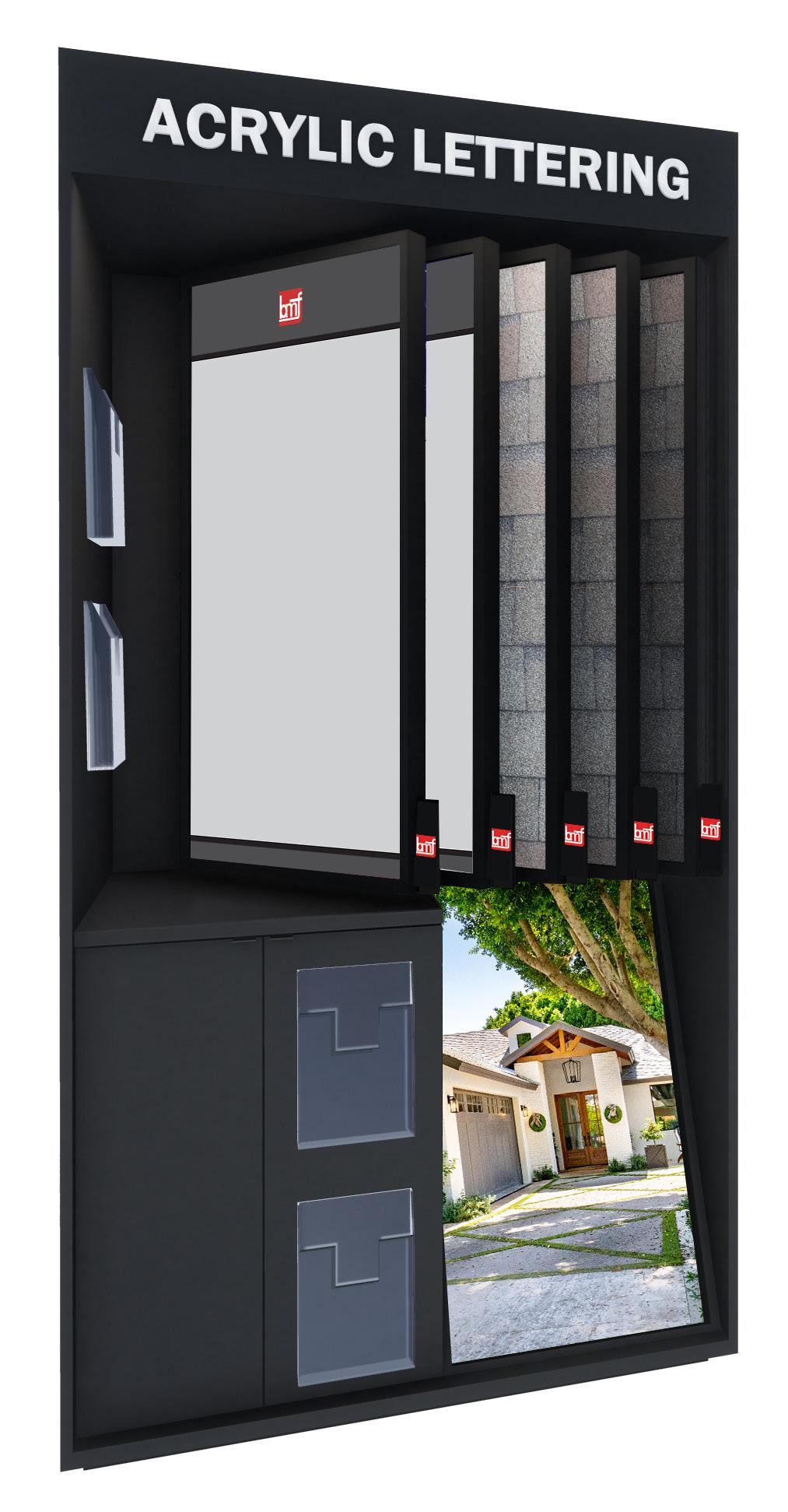

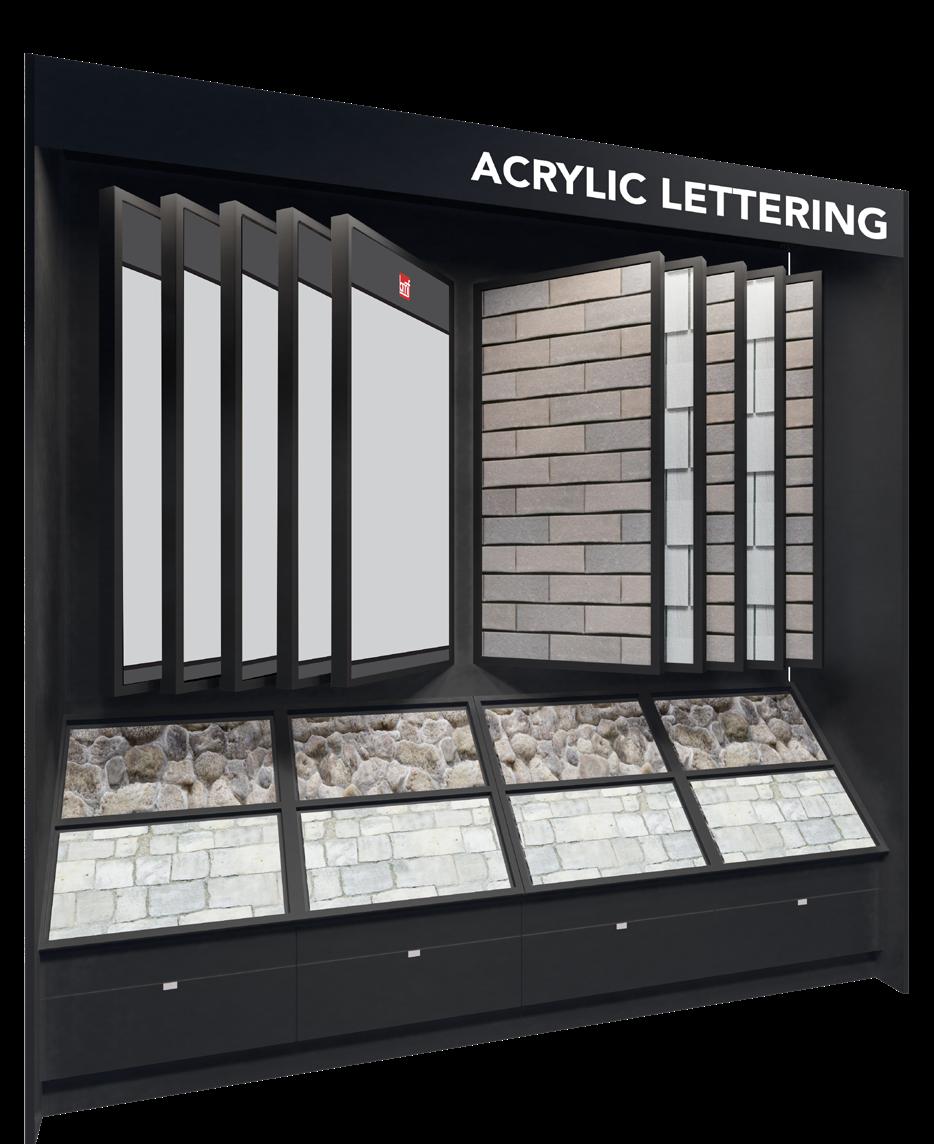

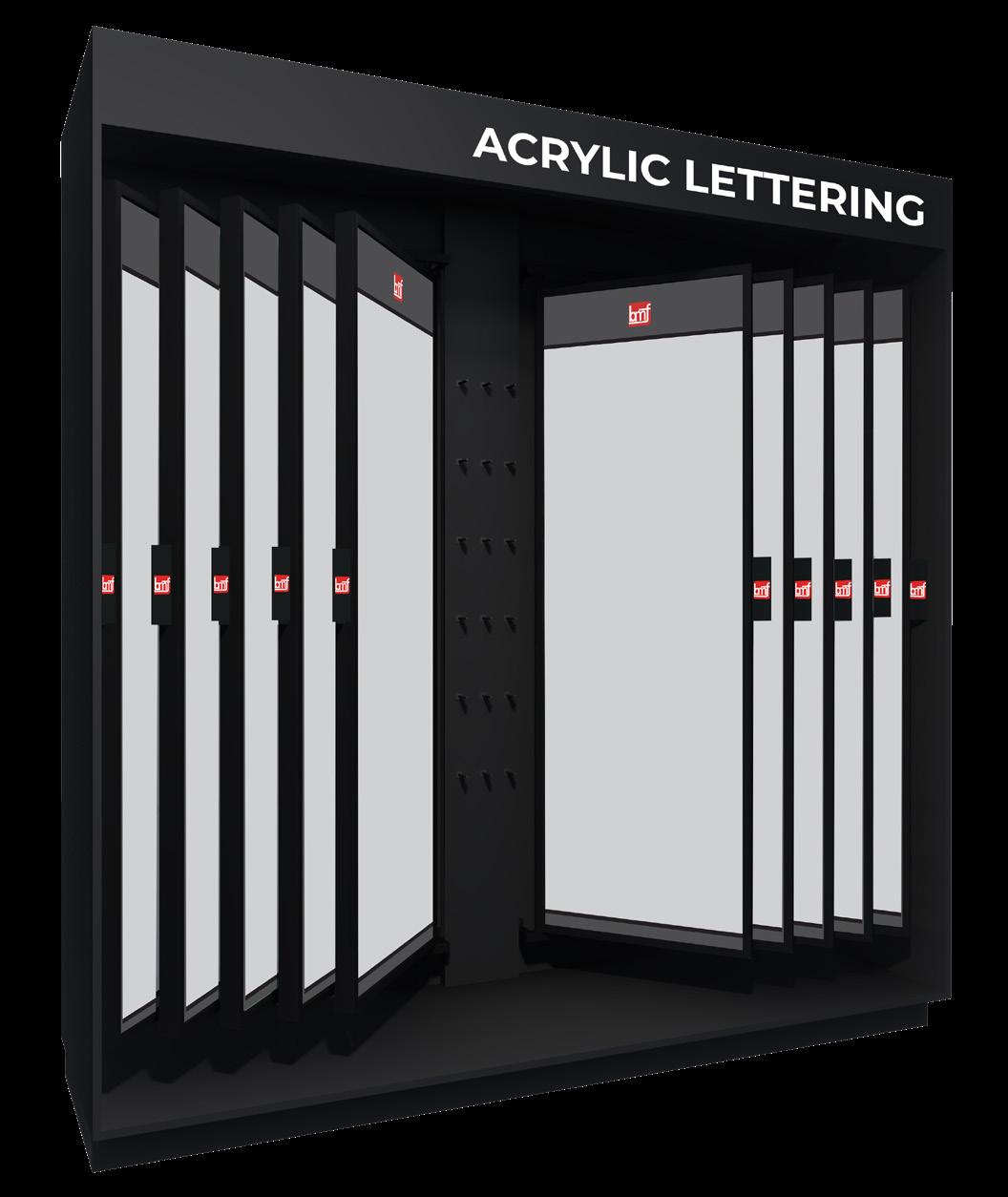

Selling Centres Selling centres offer a seamless solution for updating your displays with minimal effort. Instead of having to replace the entire setup, you can easily swap out and update individual pages as needed.

These displays are freestanding or can be slid into a bay.

8’ Full Page

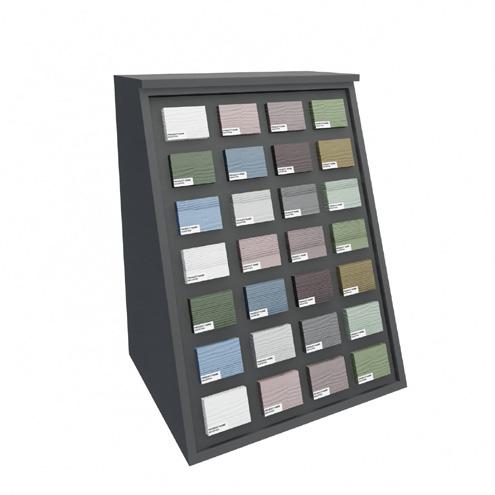

Sample Chips Showcase various sample chips by hanging them onto chip pins.

Chip Pins Pins are fixed from behind the back panel to hang sample chips.

1 1/4” for hanging chips.

12

8’ Half Page

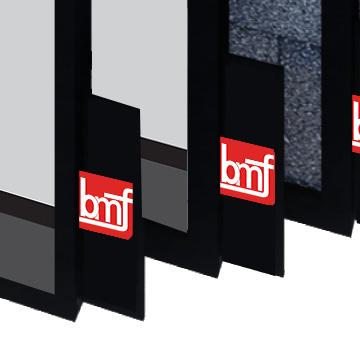

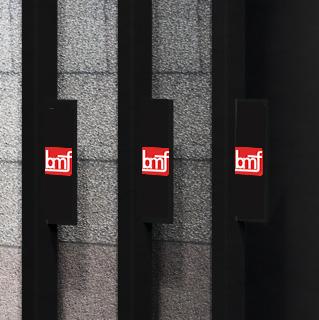

Pages Tabs with logo graphics are attached to pages for easy flip through.

Exploded Views See below how the selling centres are built.

Exploded View (excluding pages)

Exploded View (including pages)

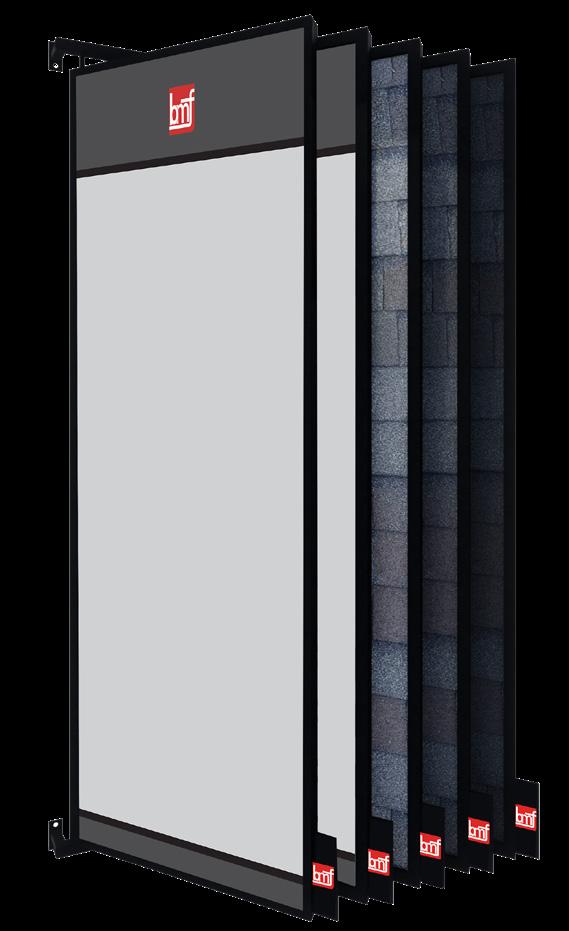

Single Page The 1/2” board is positioned back-to-back in the top and bottom channels of each page. The pages are designed to hold mounted samples on a printed graphic board, allowing for easy adjustments and updates.

Each page sits on a pin that resets to original position after viewing.

13

Selling Centres - Width & Cabinet Options Flexibility makes selling centers both efficient and versatile, allowing you to easily keep your displays fresh and up-to-date without the need for a complete redesign. 4’ and 8’ variations are available. Dealers can select lower cabinets based on the required vendor product.

8’ Half Page

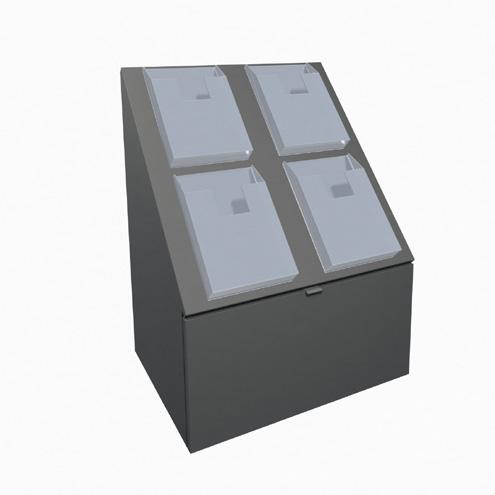

Angled Brochures

14

8’ Full Page

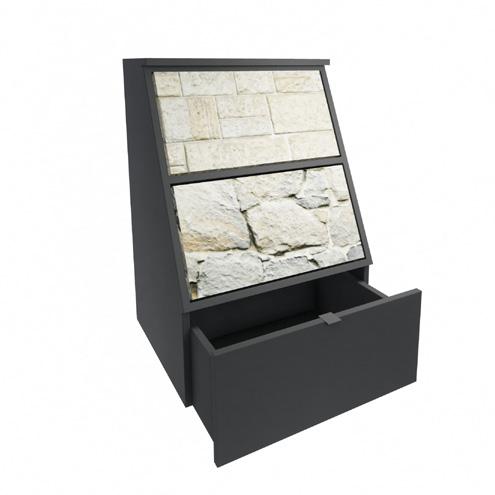

Sample Holder + Drawer Available

Sample Chip Pins

4’ Half Page

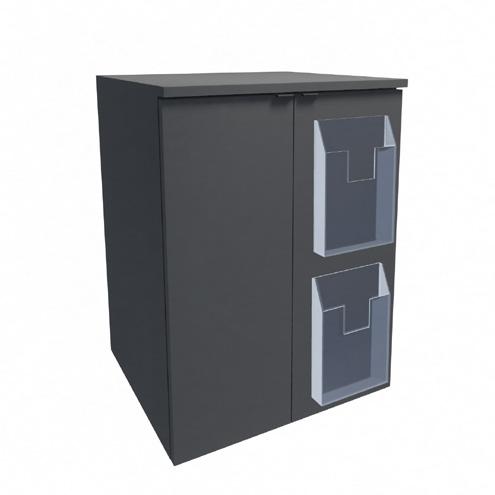

Cabinet + Brochures

4’ Full Page

Sample Chips

Tab Logo Graphics

15

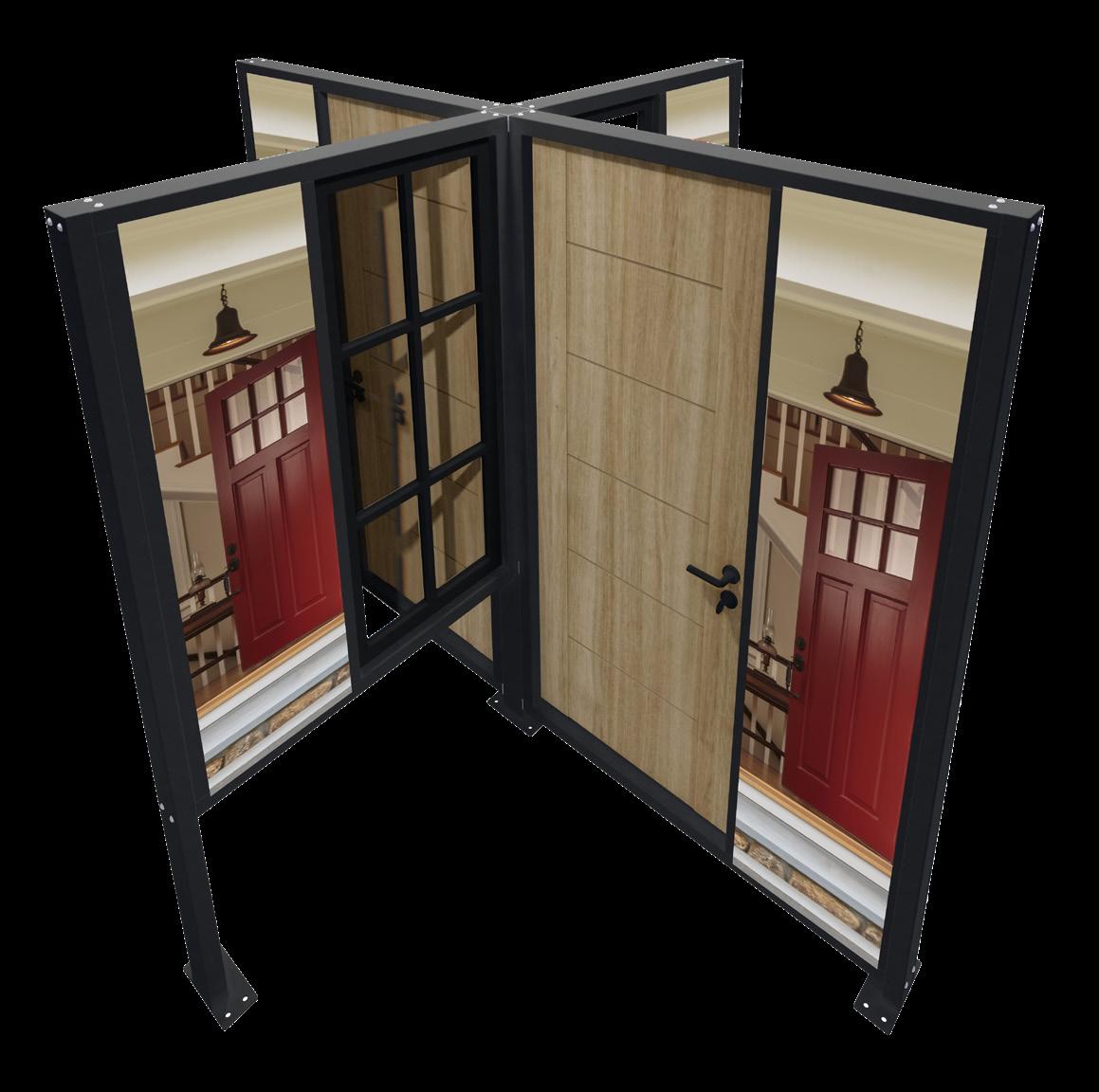

Window & Door Display Transform your space with our versatile window display, designed to meet unique product sizes.

Choose between the door and window display combo or just the window display, depending on your store’s needs.

2 Window + 2 Door Display

4 Window Display

Graphic Opportunities

Metal Colour Options Available

Use custom fabric graphics or vinyl peel-and-stick graphics on a melamine panel.

Option to add woodgrain paneling below the windows for a more finished look

16

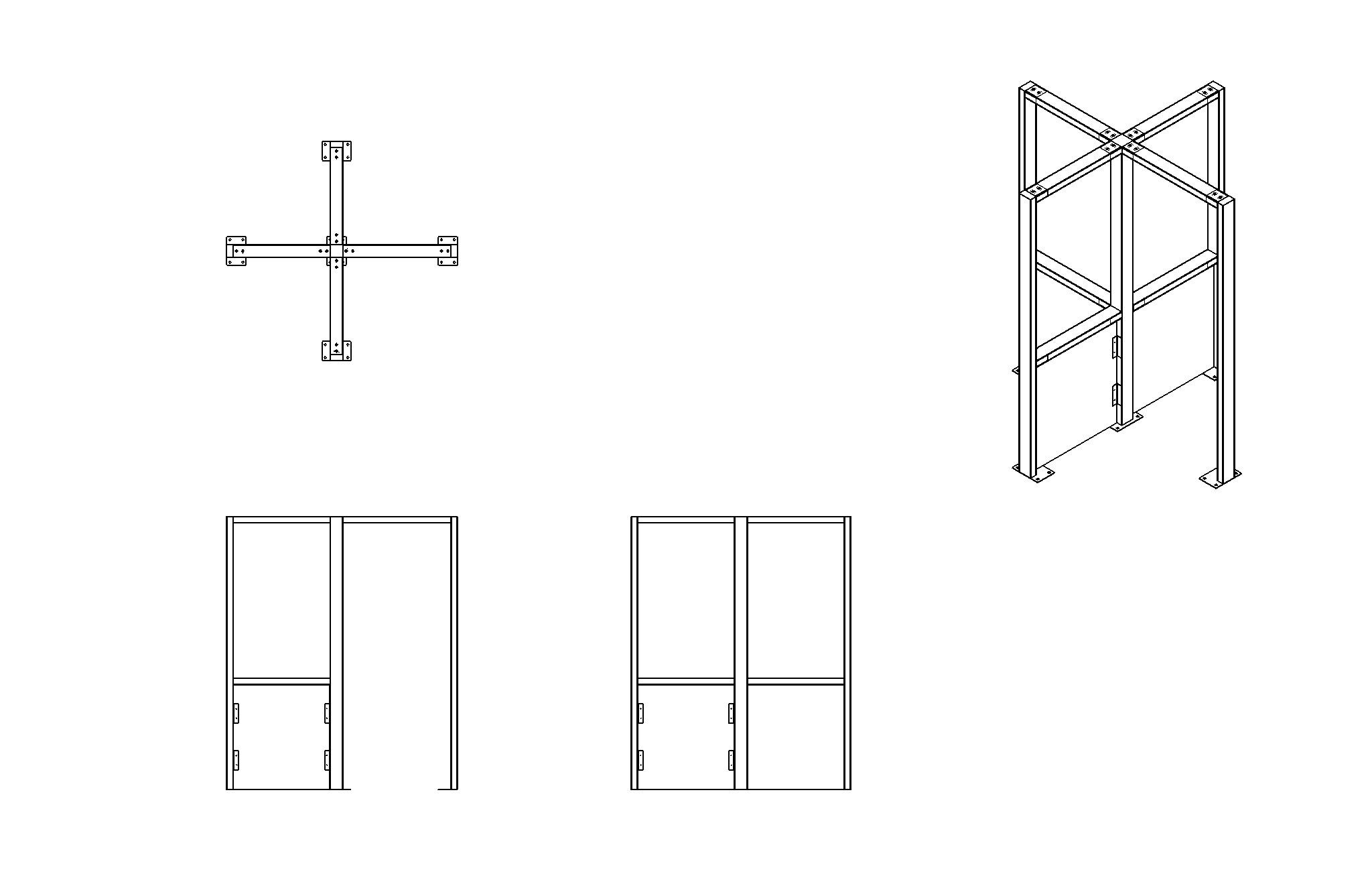

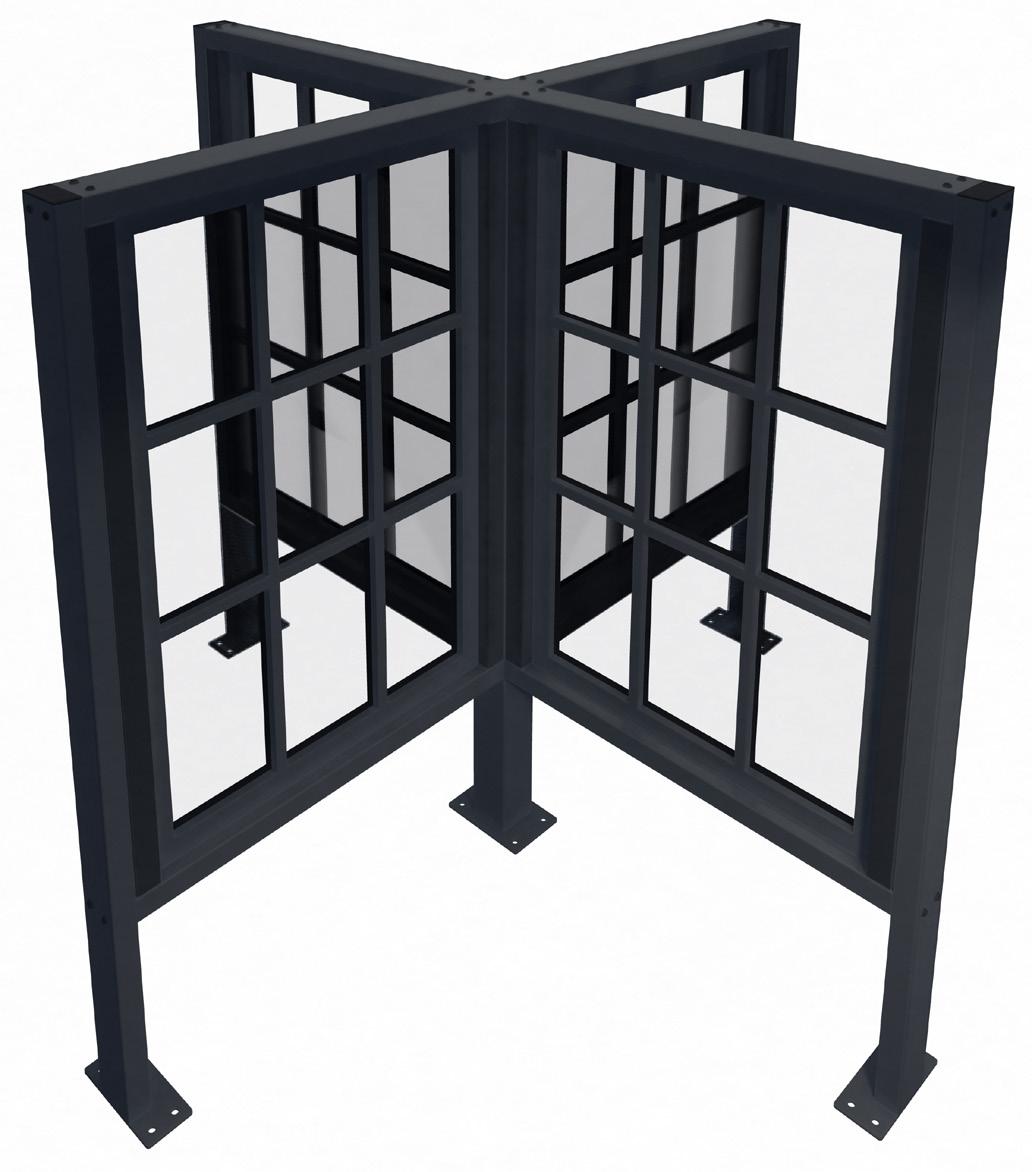

How It Works This design allows for customizable window sizes, enabling the display of various content as needed.

Top View

It is constructed from powdercoated metal, ensuring long-lasting durability and resistance to wear.

Side View

Window

For added stability, unit is securely mounted to the floor using screws.

Door

Angled View

Overall Height: 84.62” Window: 30” x 48.5”

Door: 33.5” x 82.5”

Woodgrain Panel Insert 29.875” x 32.375”

17

Door Displays The 12 door display shown below sits within 98” bay, height from bottom beam to top beam is 93”. System can accommodate 1 3/8” - 1 3/4” doors. Cladded bay option available with melamine panels to create a more built-in look.

Top View Various Depths - system can work in various racking bay depths (24/30/36/48)

Overstock Banner - add graphic banner above to hide overstock products.

Graphics Option - 3/4” melamine panel with vinyl peel and stick graphic.

18

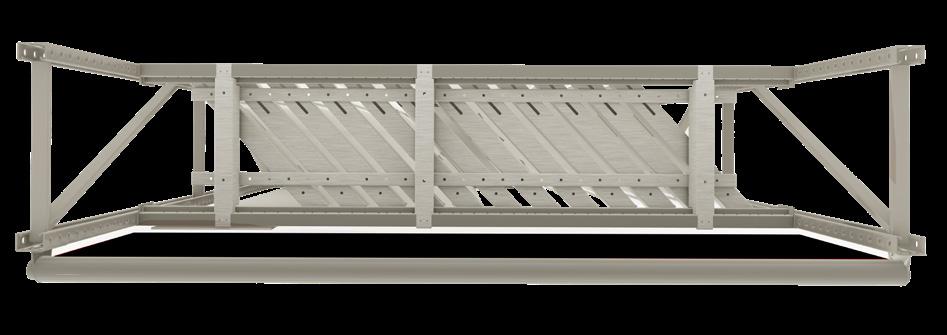

How It Works The pull-out door display features durable metal sliders securely attached to warehouse racking, allowing for smooth, effortless access to each door.

Simply pull on the metal handles to view each door.

Pull-Out Doors •

Angled design for easy viewing

•

Sturdy dowels at base

•

Doors stay neatly in place

•

Display up to 12 different doors

19

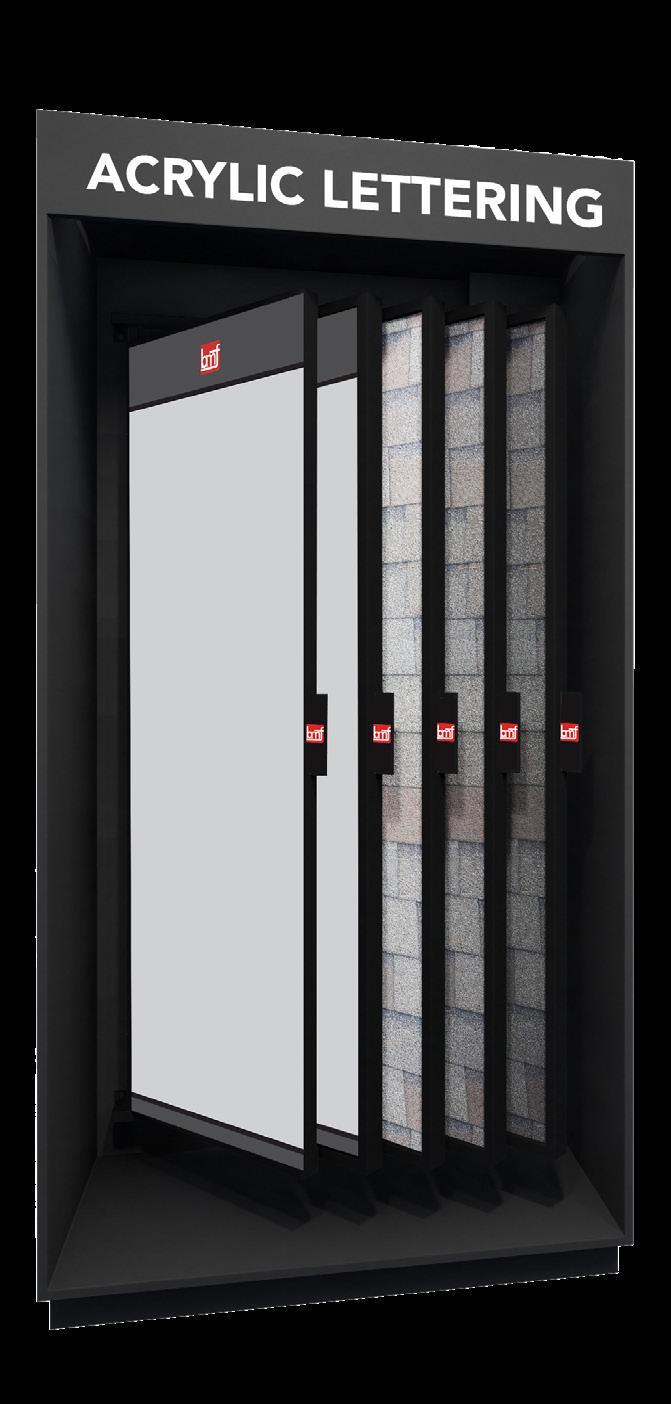

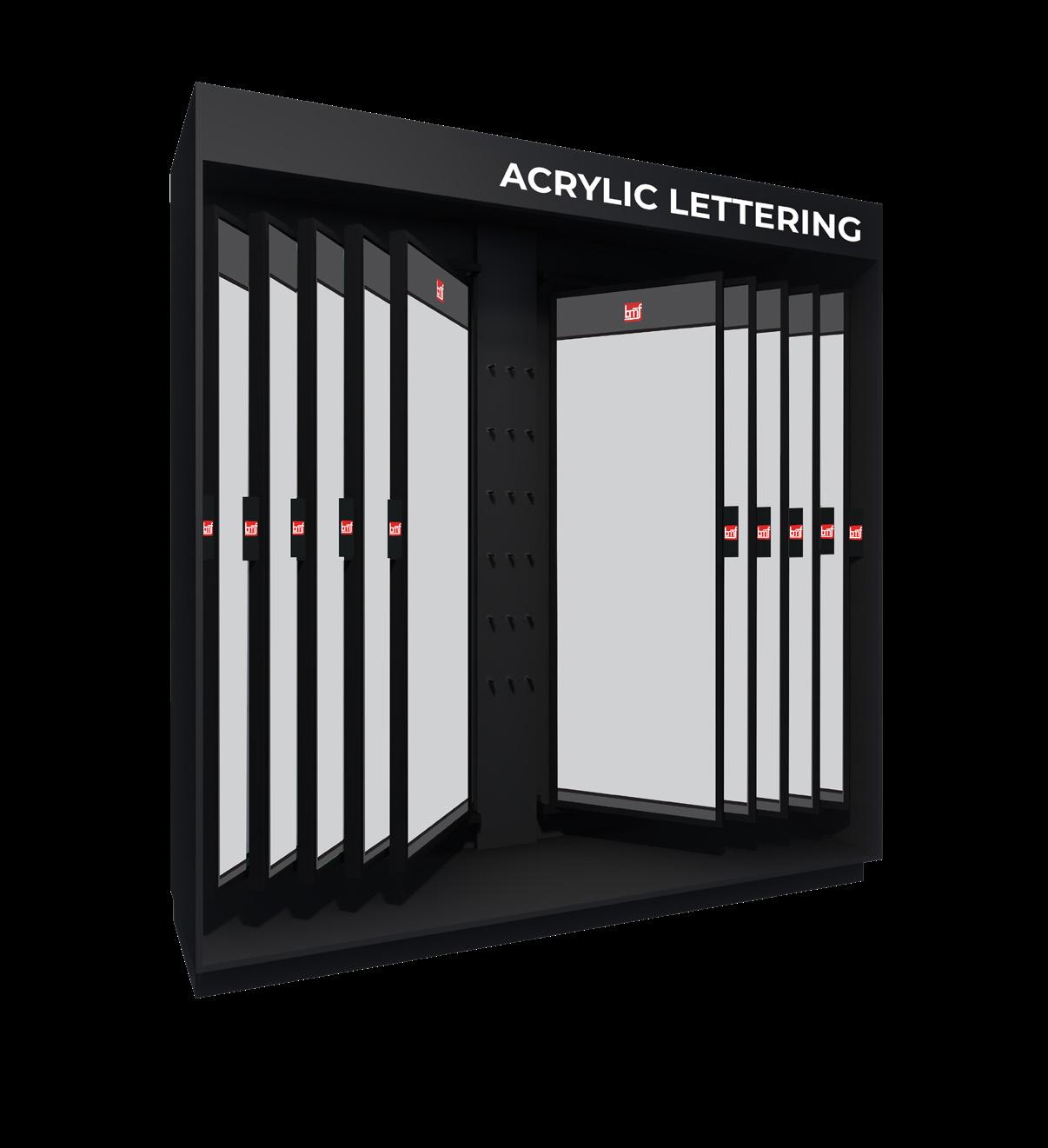

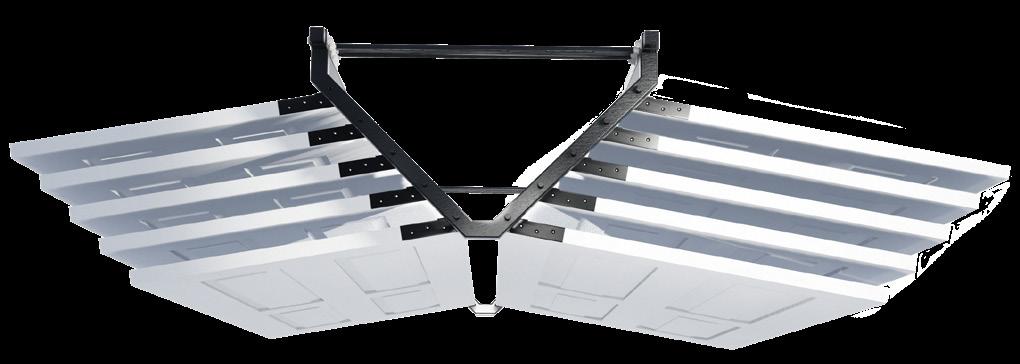

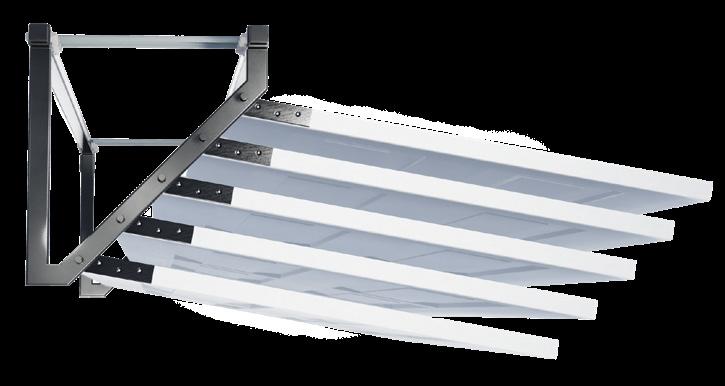

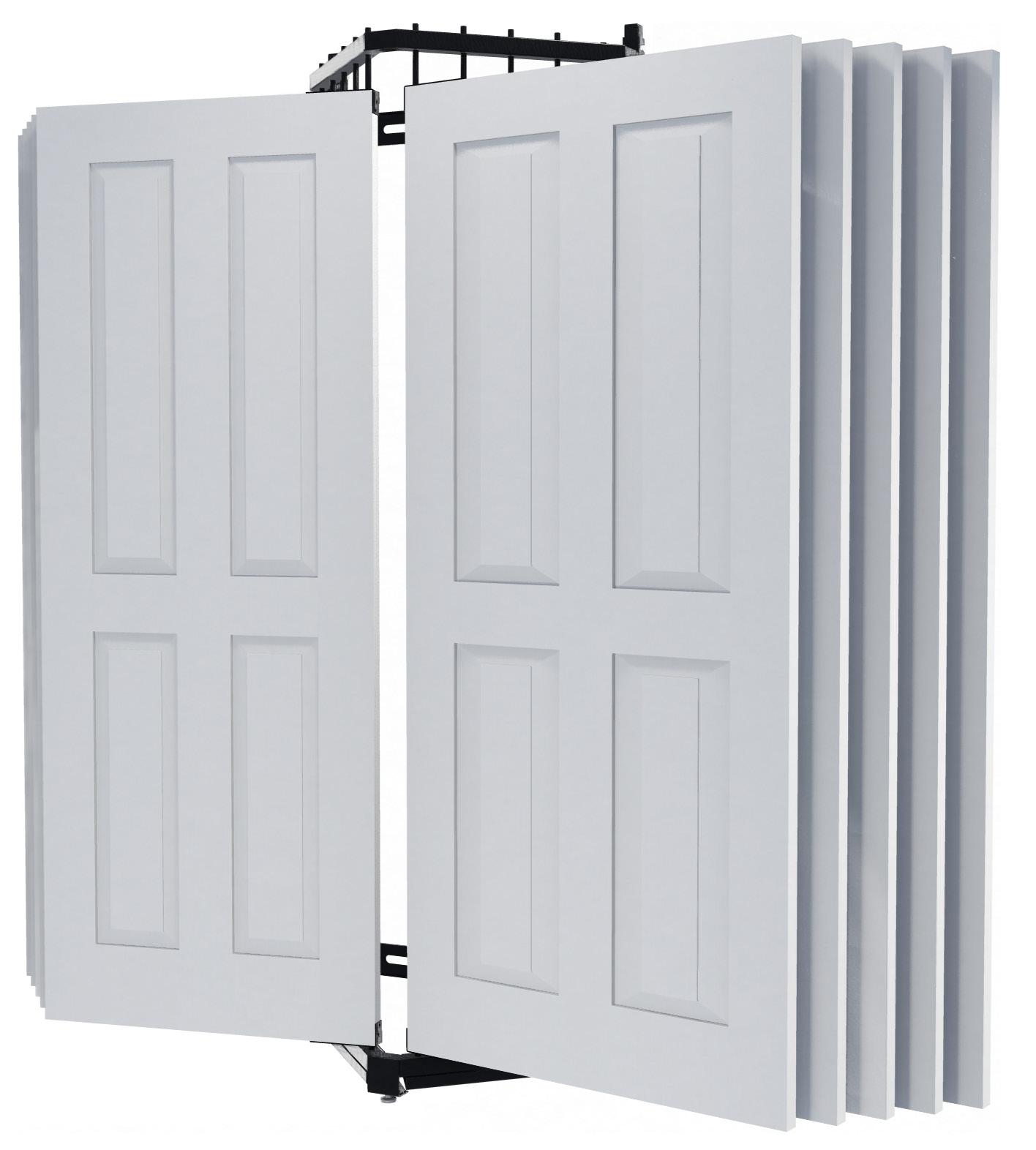

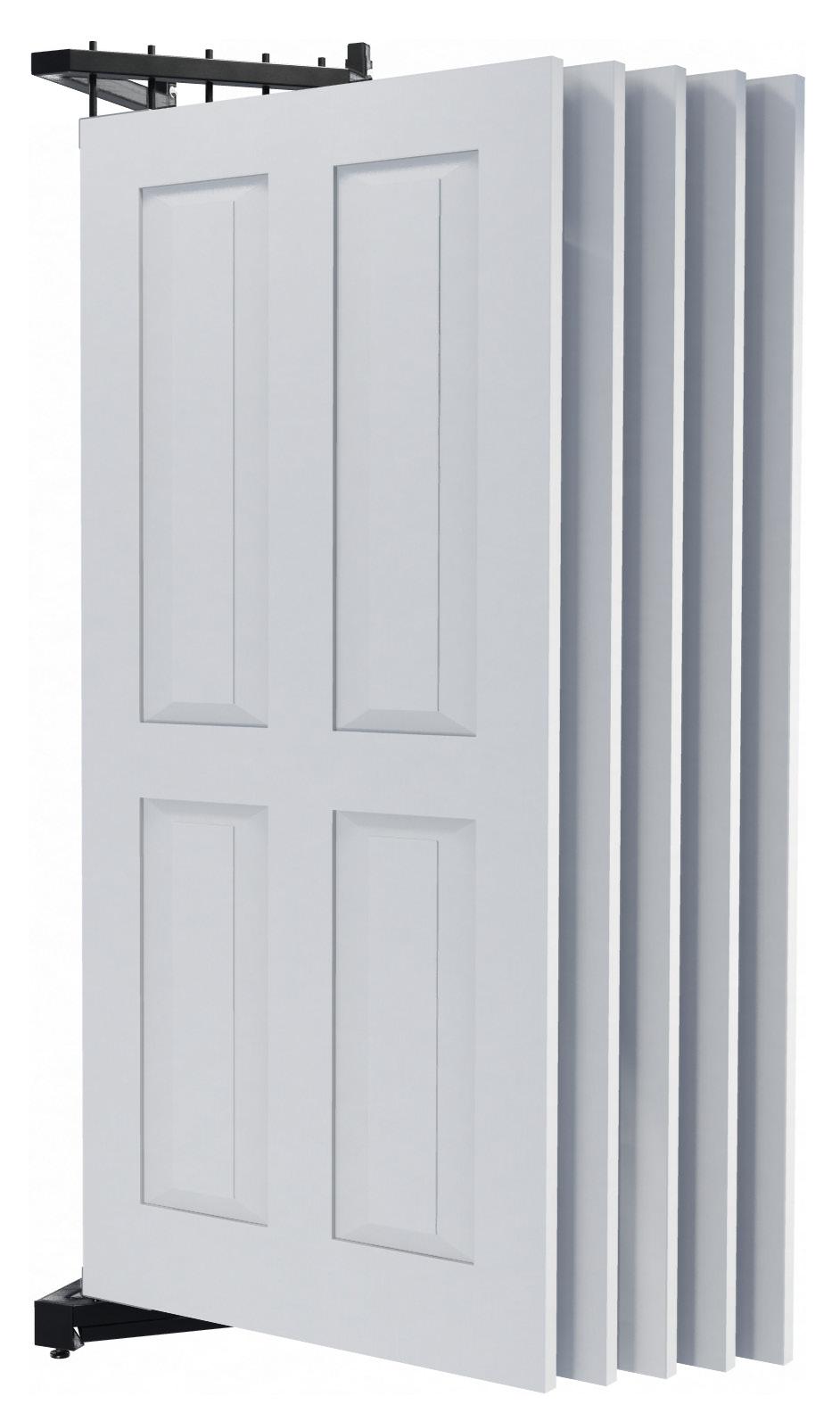

5 & 10 Door Swing Displays 5 and 10 door systems fit 1 3/4” and 1 3/8” doors. Bottom pin ensures door resets to original position after viewing. It is height adjustable and includes mounting brackets to attach it to the wall. In-bay systems are available.

Top View

Graphics Option - to add graphic that runs down the front spine

Doors - sit at a 45-degree angle

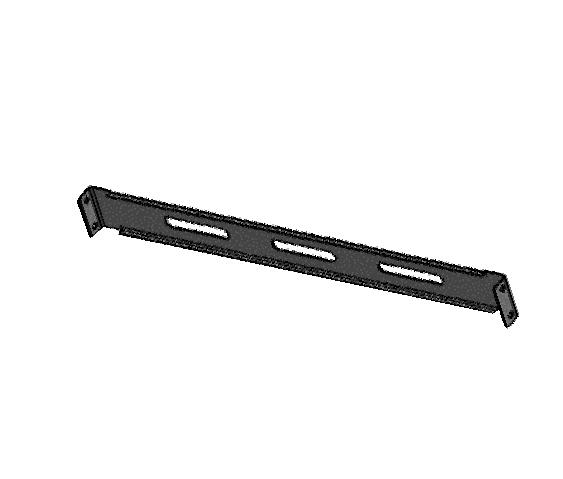

(2) Mounting Brackets - allow for ability to fix door system to wall

20

Top View

Graphic Option - add graphic that runs down the front spine

(2) Mounting Brackets - allow for ability to fix door system to wall Levelers - display is secured with 3 levelers at the bottom

21

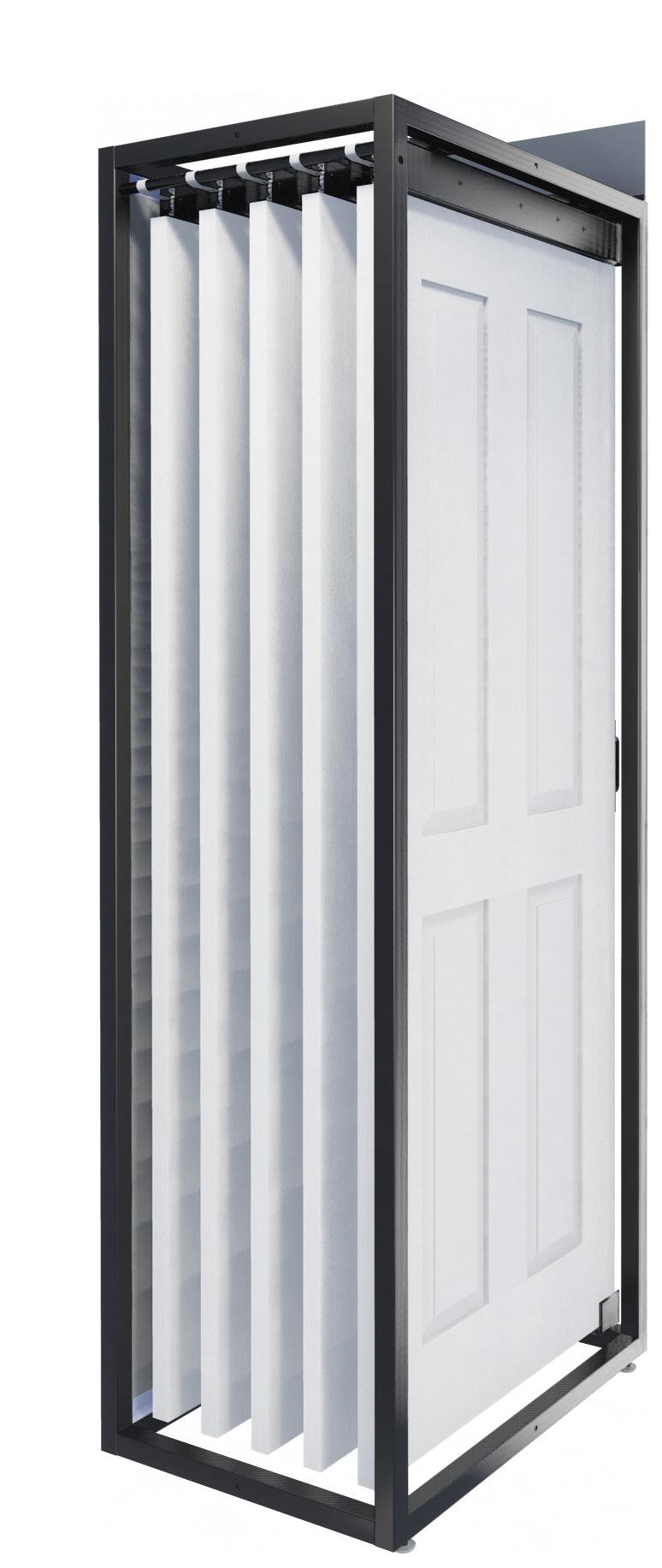

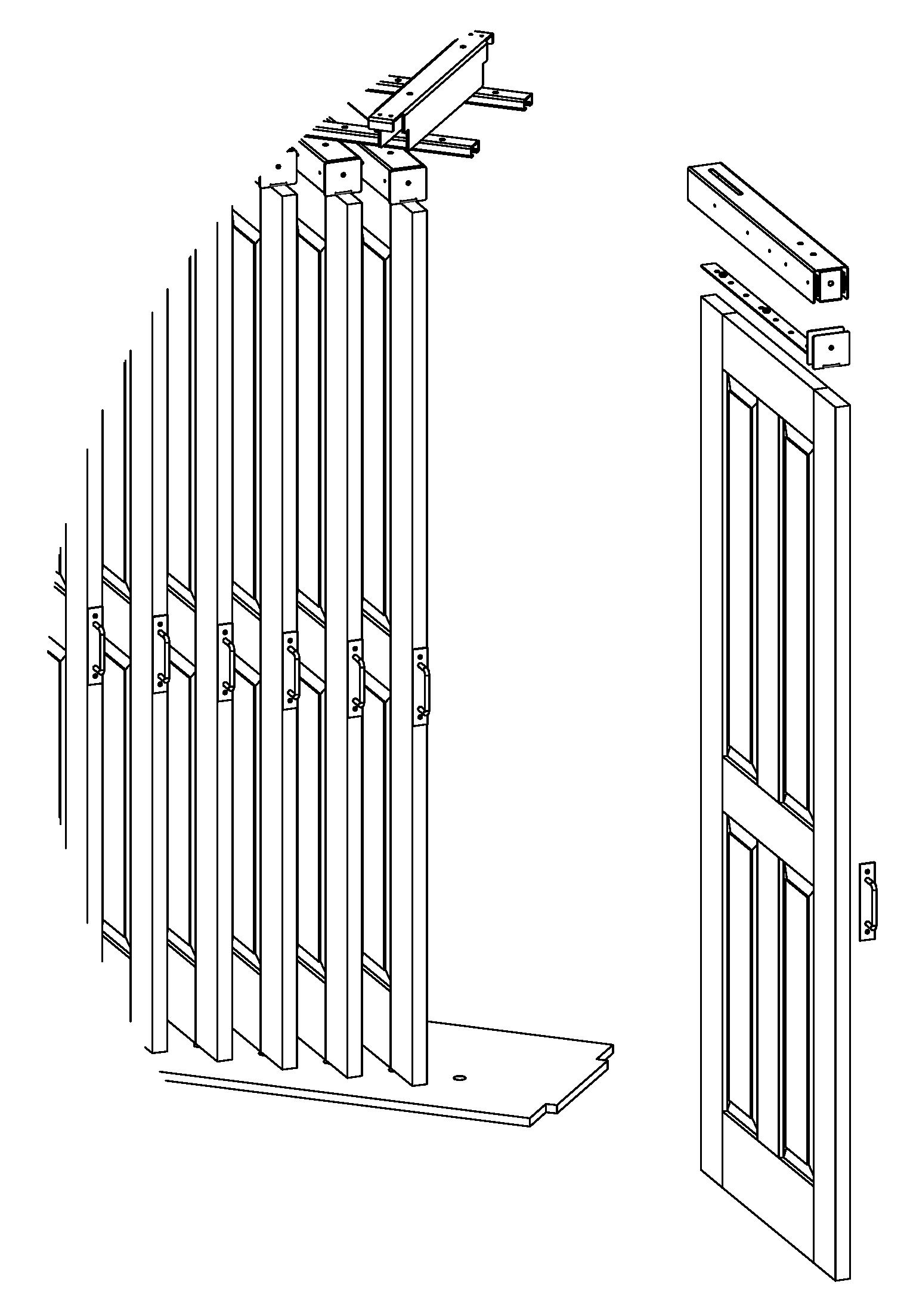

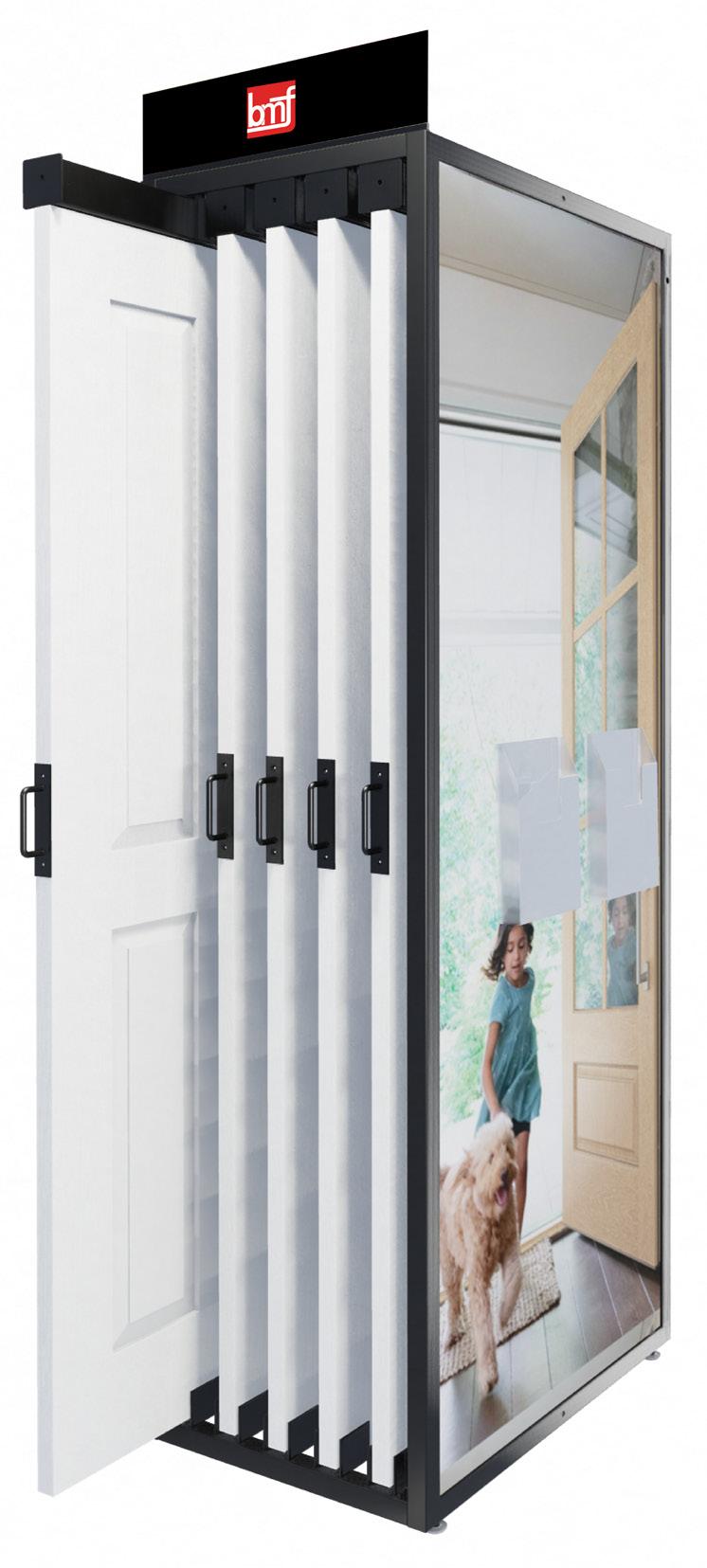

Freestanding 5 Door Pull Out The system is 24” W x 33” D x 87” H and can be arranged side-by-side or back-to-back, fitting 1 3/4” and 1 3/8” doors. Each door features a pull-out metal handle, with force springs in top support bar to return doors to original position after viewing. Various metal frame colors are available.

Front View

Rear View

1/8” Styrene Header - panel with graphic 24” W x 6” H

6mm Di-Bond Panel - with printed graphic 30” W x 84” H

Optional Brochure Holders - fixed to side panel 8.5” W x 11” H

Levelers - display sits on 4 levelers for stability

22

Moulding Display Moulding displays fit perfectly within bays or work well as feature ends.

Adjustable - push out beams

Graphics Opportunity - beam with POP plate

23
