AT BLACKWOODS, WE KNOW SAFETY ISN’T JUST ABOUT EQUIPMENT.

It’s about having the specialist expertise and relationships to assess your hazards, the range to equip you with the right gear and the training support to ensure you know how to use and maintain it correctly.

When you work with Blackwoods, you’re dealing with an expert team focused on ensuring Australian workers make it home safely everyday.

BLACKWOODS KNOWS SAFETY.

FLIP TO SEE THE FULL RANGE OF

APPAREL & FOOTWEAR

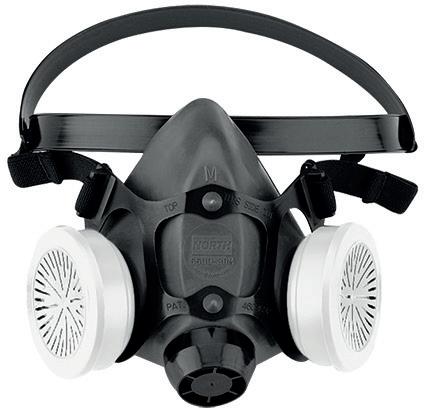

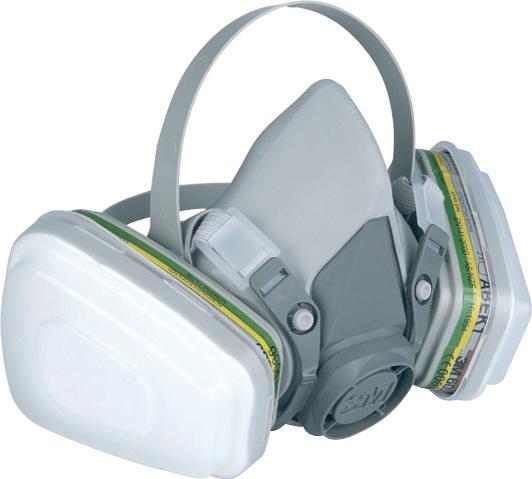

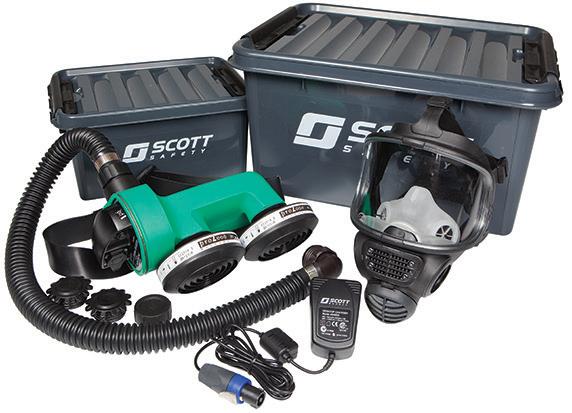

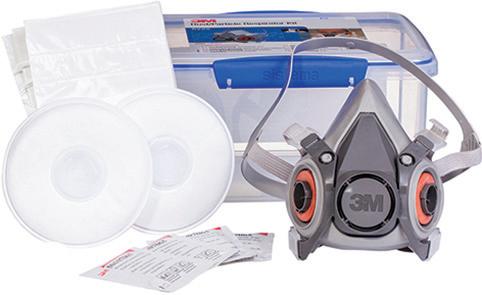

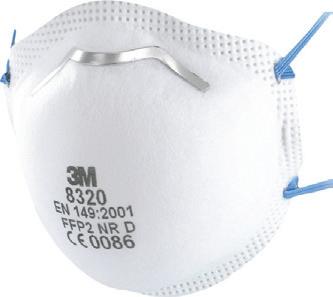

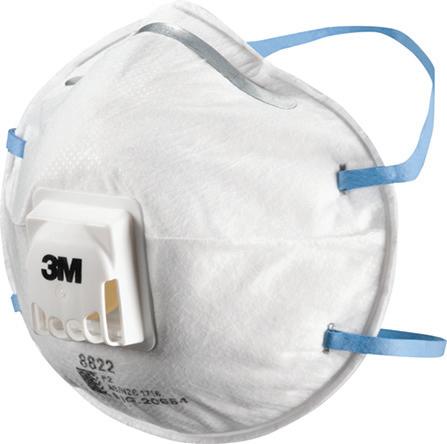

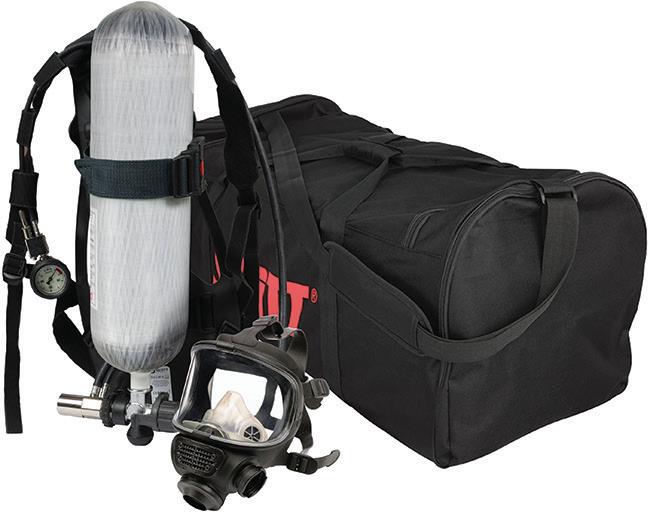

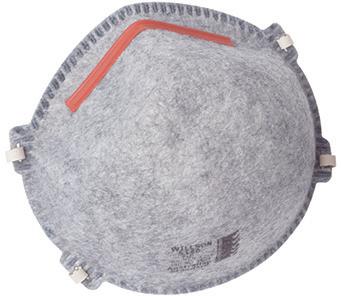

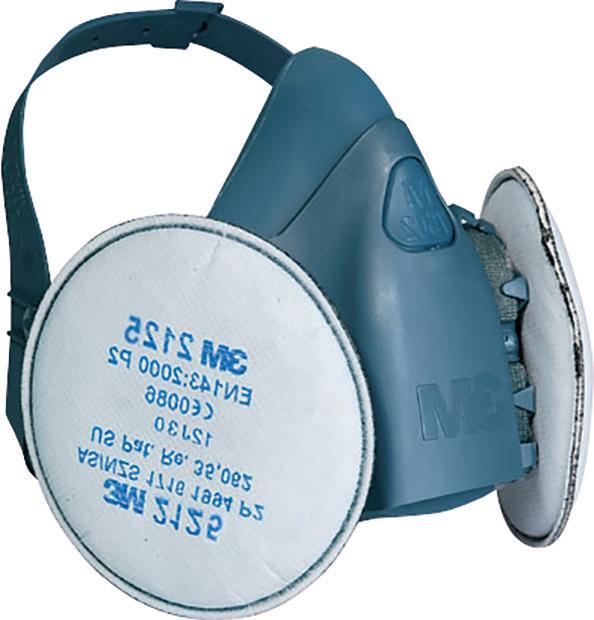

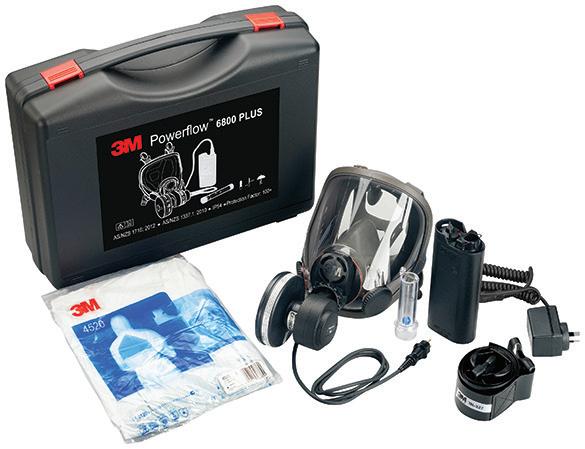

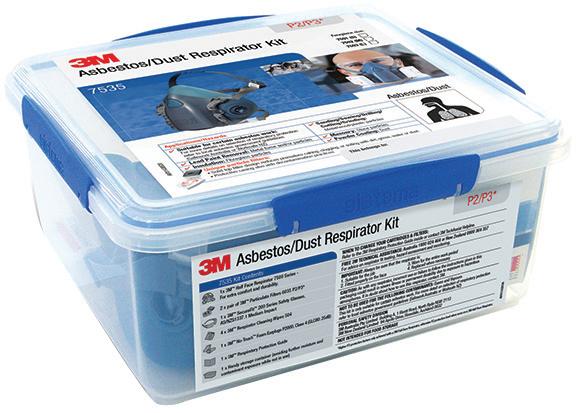

RESPIRATORY PROTECTION PAGE 134

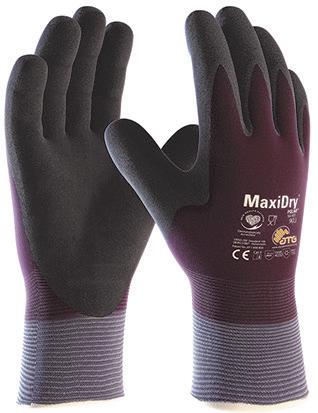

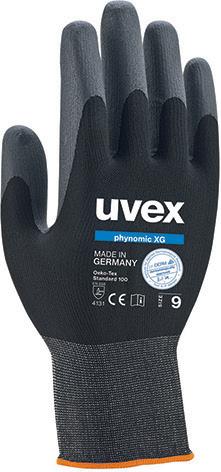

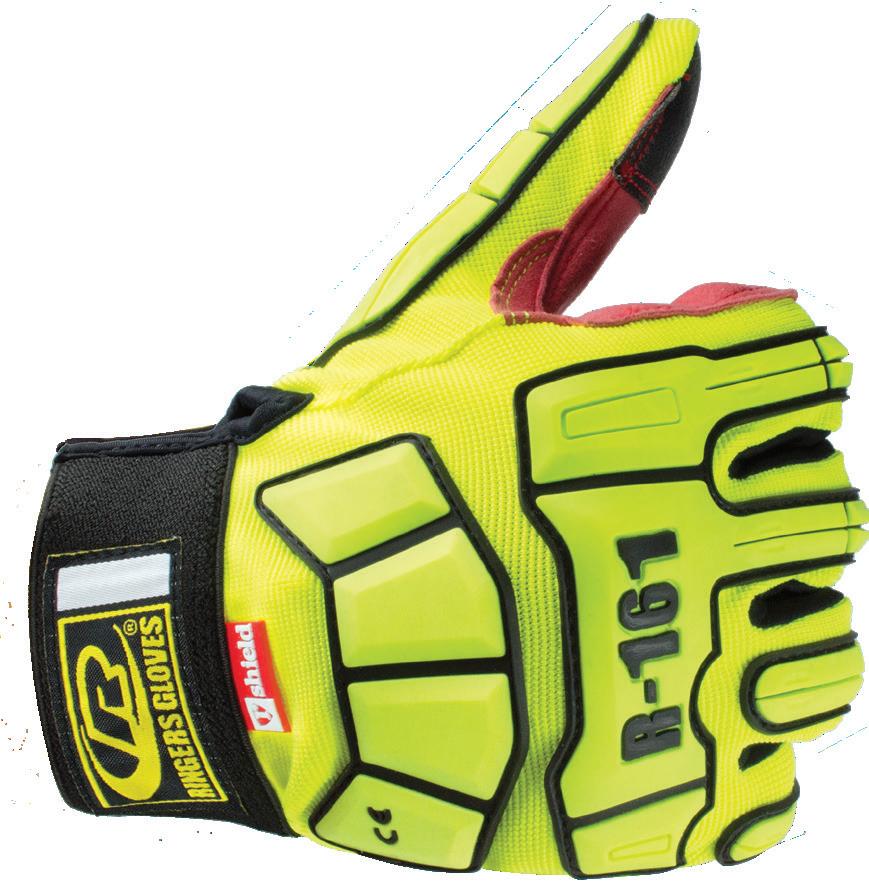

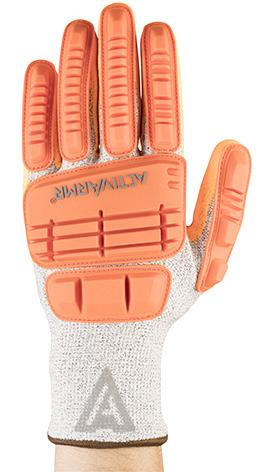

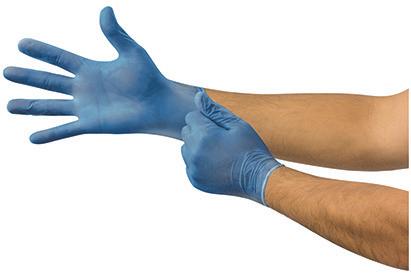

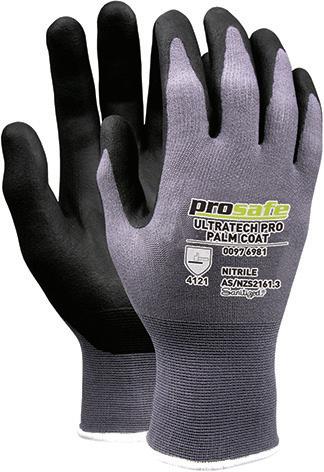

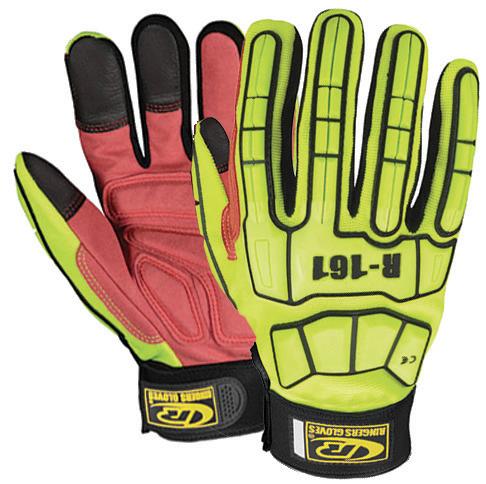

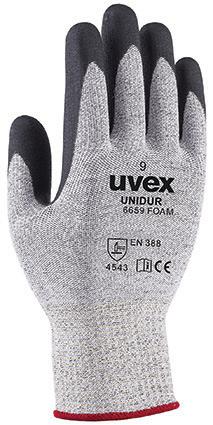

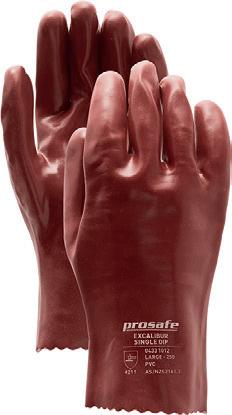

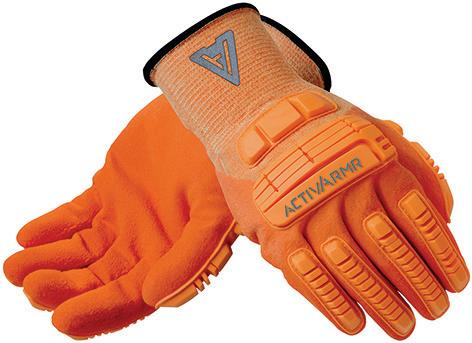

HAND PROTECTION PAGE 76

HEAD PROTECTION – STANDARDS

Head protection is mandatory on almost every worksite operating in Australia and around the world. The risk of being severely injured by falling objects, restricted headroom or falling when working at height makes wearing a safety helmet an essential part of personal protective equipment

AS/NZS 1800:1998 Occupational protective helmets – Selection, care and use

This Standard sets out recommended practices for the selection, use and maintenance of occupational protective helmets meeting the requirements of AS/NZS 1801 for head protection in building work, construction, general industry, underground working, mining, quarrying, forestry, bush fire fighting, high temperature workplaces and other occupations with similar hazards.

AS/NZS 1801:1997 Occupational protective helmets

This Standard sets out the requirements for three types of protective helmets based on their intended use. It specifies requirements for occupational protective helmets to protect wearer’s heads from falling objects in building and construction, quarrying, shipbuilding, forestry and other occupations with similar hazards. These requirements include the construction and materials of the helmet shell and head harness, mechanical strength of the shell and finish of the helmet.

Specific additional performance requirements are given for occupational protective helmets used in high temperature workplaces and for bush fire fighters’ helmets based on industrial helmets.

Both Standards above do not cover helmets for motor vehicle users, pedal cyclists, horse riders and structural firefighters.

Requirements for such helmets are given in AS 1698, AS/NZS 2063, AS 2063.1 and 2063.3, and AS 4067, respectively.

TYPES OF PROTECTIVE HELMETS

Type 1 ABS Plastic Construction, Building, General, Industry, Mining and Forestry

Type 2 Polycarbonate

Type 3

Polycarbonate with Bush fire applications

High heat environments; foundries and smelters

High heat environments; bush fire and wildfire fighting

BUMP CAPS VS. SAFETY CAPS

Vented^

Cooling for high heat environments

Non-Vented^

Ideal for dust and chemical environments

Full brim^

Provides added protection from falling objects, sun and rain

Non-Vented/Full brim only^

*Type 3 is the helmet tested and approved in accordance with AS/NZS 1801 with reflective tape and chinstrap

• Bump caps are not tested in Australia and do not comply to any Australian Standard

• Bump caps are very effective against scrapes, and minor knocks

• Bump caps are often recommended for use in domestic security, police, transport and some trades

• Bump caps cannot be used in designated environments requiring head protection

HI-VIS HELMETS

• ABS fluorescent coloured helmets are designed to be used in low light areas such as forests, indoors or underground work

• In full sunlight, the life of a fluorescent ABS helmet may be reduced

• Polycarbonate fluorescent coloured helmets are less likely to be effected by deterioration under high UV light so are ideal for outdoor workers

• Damage caused by UV can be identified as the helmet will lose its glossy finish and eventually take on a chalky appearance

HELMET INSPECTION, CARE & MAINTENANCE

Naturally the material will age. Based upon industrial field tests, Australian and New Zealand Standards recommend in general terms, an industrial safety helmet/cap should be replaced every 3 years from date of issue, and the harness should be replaced every 2 years. Harsh conditions and/or rough usage dictate that a helmet may be replaced sooner.

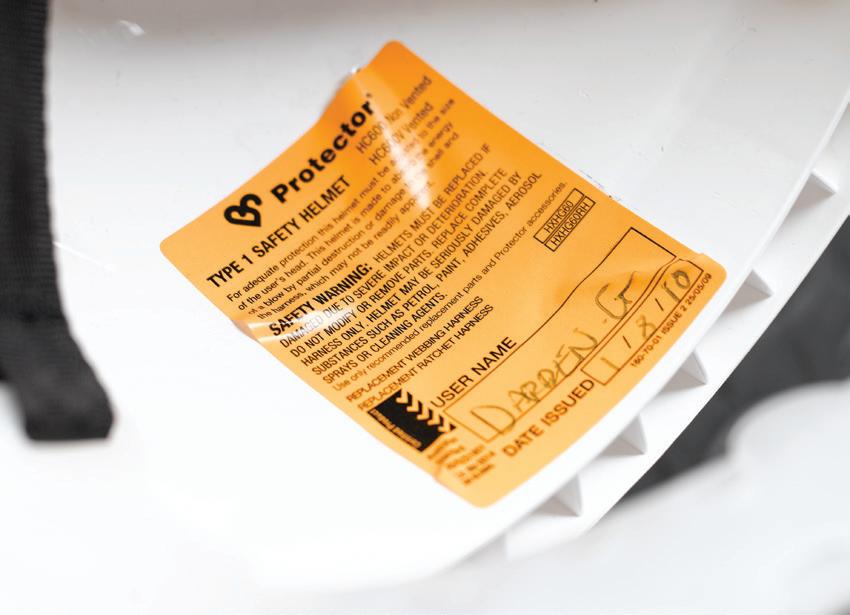

Every Protector® brand safety helmet has an issue date sticker on the inside of the shell for wearers to record their name and date of issue. After 3 years, remove the helmet from use or earlier if the helmet has changed in colour or exhibits any signs of wear or damage due to impact or deterioration.

Month the helmet was manufactured i.e. April

Year the helmet was manufactured i.e. 2010

The material the helmet is manufactured from (i.e. A.B.S. Acrylonitrile Butadene Styrene)

If the sticker has not been used or has been removed, replace the helmet three years from the manufacture date stamp under the brim or peak of the helmet. In the centre of the stamp is the year with a directional arrow pointing to the month of the year in which the helmet was made.

Also under the brim or peak is a stamp indicating the material that the helmet is constructed from.

CARE & MAINTENANCE

When not in use, helmets must be stored in a cool, dry environment away from direct sunlight, heavy or sharp objects and chemicals.

• The shell of the helmet can be weakened by exposure to paints, paint thinners, adhesives and some cleaning agents. These may also reduce electrical resistance

• Ensure that any stickers or decals use a non-solvent based adhesive

• Extreme heat can reduce the strength of the helmets. Do not store or transport helmets on the front or rear window selves of vehicles or in direct sunlight

SAFETY TIP

HEAD PROTECTION

Serious industrial injuries can be prevented by wearing adequate head protection. Safety helmets contain an inner suspension, which provides space between the helmet shell and head. This space helps to serve as a shock absorber in the event of an impact. For duty stakeholders, AS/NZS 1801 provides the basis for appropriate selection.

SAFETY HELMETS

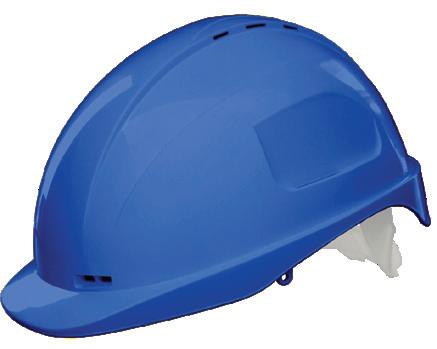

630 Type 1 Vented Safety Helmet

Safety Caps

• Type 1 vented, lightweight ABS material

• Short peak provides improved field of vision

• Six point suspension harness with adjustable pin lock

• 30mm slots for attachment of accessories

• Suitable for general industrial, construction and mining applications where danger exists from falling objects

Why are Safety Caps and Helmets so effective?

Harness stretches on impact Shell deflects objects and absorbs impacts Headband separates skull and shell of helmet and allows for cool air flow

All Blackwoods helmets are Certified to AS/NZS 1801:1997 unless otherwise specified

HC43 Type 1 & HC49 Type 2 Tuffmaster Lite Non-Vented Safety Helmet

• HC43 Non-vented – Type 1 ABS and HC49 Non-vented Type 2 Polycarbonate material

• Six point 25mm webbing harness with adjustable headband

• 25mm slots for attachment of accessories

• HC43 for general industry, mining, construction, transport, forestry, heavy industry

• HC49 ideal for smelting, foundries and high heat applications

HC43:FLOR

HC43:FLYE

HC43:GN

HC43:GY

HC43:OR

HC43:RD

HC43L:FLYE

HC43L:WH

HC43L:YE

lamp bracket Green 04290994

HC43M:OR HC43 w/metal lamp bracket Orange 04291028

HC43M:RD HC43 w/metal lamp bracket Red 04291045

HC43M:WH HC43 w/metal lamp bracket White 00505376

HC43M:BL HC43

HC43M:YE

HC49:FLLM

HC49:FLOR

HC49:RD

HC49:WH

HC49:YE

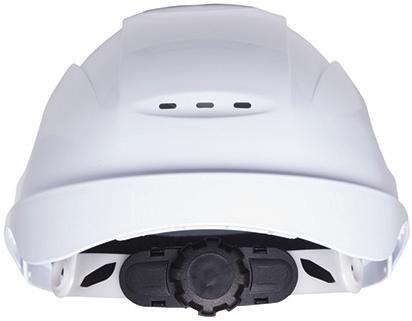

Ratchet Harness

Chin Strap

HC43 Yellow

HC600V Vented & HC600

Non-Vented Type 1 Safety Helmet

• HC600 Non-vented and HC600V Vented, Type 1 ABS material

• Six point webbing harness with adjustable headband

• 25mm slots for attachment of accessories

• Custom logos and reflective tape options available

• Suitable for mining, construction, transport, forestry and heavy engineering industries

Mfr

HC600V:WH Vented Type 1 White 04297335

HC600V:YE Vented Type 1 Yellow 04297352

HC600V:OR Vented Type 1 Orange 04297284

HC600V:BL Vented Type 1 Blue 04297199

HC600V:RD Vented Type 1 Red 04297301

HC600V:GN Vented Type 1 Green 04297250

HC600V:GY Vented Type 1 Grey 04297267

HC600V:WA Vented Type 1 Watermelon 04297318

HC600V:FLYE Vented Type 1 Fluoro yellow 04297233

HC600V:FLOR Vented Type 1 Fluoro orange 04297216

HC600:WH Non-vented Type 1 White 04296757

HC600:YE Non-vented Type 1 Yellow 04296774

HC600:OR Non-vented Type 1 Orange 04296706

HC600:BL Non-vented Type 1 Blue 04296621

HC600:RD Non-vented Type 1 Red 04296723

HC600:GN Non-vented Type 1 Green 04296672

HC600:WA Non-vented Type 1 Watermelon 04296740

HC600:FLYE Non-vented Type 1 Fluoro yellow 04296655

HC600:FLOR Non-vented Type 1 Fluoro orange 04296638

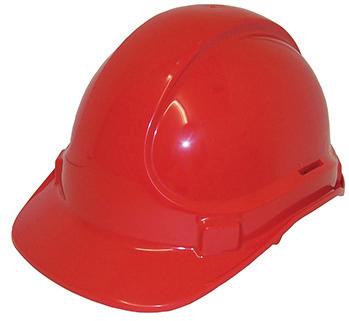

Unisafe TA500 Series Type 1 Safety Helmet

• TA560 Non-vented or TA570 Vented, Type 1 ABS material

• 25mm slots for attachment of accessories

• Adjustable six point head harness

• Custom logos and reflective tape options available

• Suitable for mining, construction, transport, forestry and heavy engineering industries

– Non-Vented

TA560:WH Non-vented safety cap

TA570:WH Vented safety cap

TA570:YE Vented safety cap

– Vented

03076633

TA570:FLYE Vented safety cap Fluoro yellow 02843802

TA570:OR Vented safety cap

TA570:FLOR Vented safety cap

TA570:RD Vented safety cap

TA570:BL Vented safety cap

01752368

TA570:GN Vented safety cap Green 01815608

TA570:WA Vented safety cap Watermelon 01815642

TA560M:WH Non-vented w/metal lamp bracket White 03589755

TA570M:WH Vented w/metal lamp bracket White 03076650

TA597 Pinlock headgear for TA500 helmets – 03176304

TA598 Ratchet headgear for TA500 helmets – 01815710

TA175 Chinstrap for TA400/TA500 series helmets – 00974355

TECHNICAL TIP

TYPES OF PROTECTIVE HELMETS

Building, General, Industry,

Forestry

heat environments; foundries and smelters

Type 3 Polycarbonate with *Bushfire applications

High heat environments; bushfire and wildfire fighting

– Cooling for high heat environments Non-Vented – Ideal for dust and chemical environments Full brim – Provides added protection from falling objects, sun and rain

Non-Vented/Full brim only – *Type 3 is the helmet tested and approved in accordance with AS/NZS 1801 with reflective tape and chin strap

HC600V:RD – Vented

TA570:WH

TA560:RD

SAFETY – PPE

HC660V Vented & HC660

Non-Vented Type 2

Safety Helmet

• HC660 Non-vented and HC600V Vented Type 2 Polycarbonate material

• Six point 25mm webbing harness with adjustable headband

• 25mm slots for attachment of accessories

• Custom logos and reflective tape options available

• Suitable high heat applications including smelting and foundries

HC660V:WH – Vented

Mfr

HC660V:WH Vented Type 2 White 05363745

HC660V:FLYE Vented Type 2 Fluoro yellow 05363677

HC660V:FLOR Vented Type 2 Fluoro orange 05363728

HC660V:FLLM Vented Type 2 Fluoro lime 01626313

HC660:WH Non-vented Type 2 White 05360175

HC660:FLYE Non-vented Type 2 Fluoro yellow 05360209

HC660:FLOR Non-vented Type 2 Fluoro orange 05360192

HC660:FLLM Non-vented Type 2 Fluoro lime 01626296

HH40 Type 1 & HH44 Type 2

Non-Vented Full Brim Safety Helmet

• HH40 Non-vented Type 1 ABS and HH44 Non-vented Type 2 Polycarbonate material

• Full brim for extra sun or splash protection

• Six point 25mm webbing harness with adjustable headband

• Customised logos and reflective tape options available

• HH40 suitable for mining, construction, transport, forestry and heavy engineering

• HH44 Ideal for high heat applications including smelting and foundries

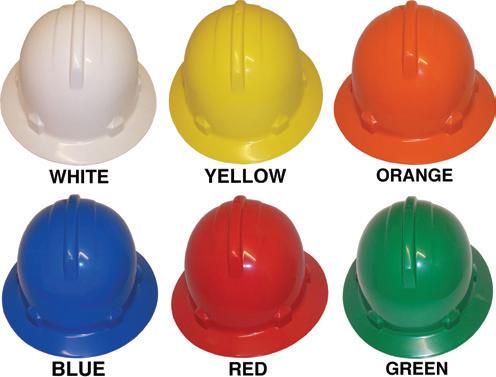

HH40/HH44

HH40:WH Non-vented Type 1 White 04311394

HH40:YE Non-vented Type 1 Yellow 03973202

HH40:OR Non-vented Type 1 Orange 03973503

HH40:BL Non-vented Type 1 Blue 03973309

HH40:RD Non-vented Type 1 Red 03973008

HH40:GN Non-vented Type 1 Green 04311343

HH40L:WH Type 1 w/lamp bracket White 04311598

HH40L:GY Type 1 w/lamp bracket Grey 04311564

HH40L:YE Type 1 w/lamp bracket Yellow 04311615

HH40M:OR Type 1 w/metal lamp bracket Orange 04311700

HH40M:WH Type 1 w/metal lamp bracket White 04311717

HH40M:GN Type 1 w/metal lamp bracket Green 03477001

HH44:OR Type 2 polycarbonate Orange 04312074

HH44:WH Type 2 polycarbonate White 04312108

HH44:SLV Type 2 polycarbonate Silver plated 04311411

HXNF44 HF44 Flame retardant neck flap – 00202878

PRODUCT INSIGHT

SAFETY HELMET RANGE

Certified Systems – PPE compatibility

The range of Protector® brand safety helmets are compatible with Protector® brand hearing, eye and face protection. Various Protector® brand PPE combinations are Certified (including manufacturer’s Certified accessories) to Australian/ New Zealand Standards.

Optional Extras

Replacement accessories are available for all Protector® brand safety helmets which include sweatband, chinstrap and headgear.

Optional models available on request include safety helmets outfitted with miner’s lamp brackets in metal or polycarbonate.

Colour Range

Available in a wide range of colours, the swatch below provides a reference guide when choosing colours.

HC71 Type 1 & HC75 Type 2

Tuffmaster 2 Non-Vented Safety Helmet

• HC71 Non-vented Type 1 ABS and HC75 Non-vented Type 2 Polycarbonate material

• Six point 25mm webbing harness with adjustable headband

• 25mm slots for attachment of accessories

• Custom logos and reflective tape options available

• HC71 Suitable for mining, construction, transport, forestry and heavy engineering industries

• HC75 Ideal for high heat applications including smelting and foundries

HC71:WH Non-vented Type 1 White 02275503

HC71:YE Non-vented Type 1 Yellow 02275406

HC71:OR Non-vented Type 1 Orange 05997011

HC71:BL Non-vented Type 1 Blue 00350438

HC71:RD Non-vented Type 1 Red 04304254

HC71:GN Non-vented Type 1 Green 04304220

HC71:GY Non-vented Type 1 Grey 04304237

HC71:WA Non-vented Type 1 Watermelon 04304271

HC71L:WH Type 1 w/lamp bracket White 02276007

HC71M:OR Type 1 w/metal lamp bracket Orange 04305291

HC75:OR Non-vent polycarbonate Type 2 Orange 04305767

HC75:WH Non-vent polycarbonate Type 2 White 04305784

SPECIALTY HELMETS – FIRE & RESCUE

HF49 Type 3 Bush Fireman's Helmet

• Type 3 Polycarbonate material

• Fitted with neck flap, elastic chin strap and reflective tape as standard

• Flame resistant neck flap

• Customised logo available

• Ideal for high temperature tasks including fire fighting, forestry and emergency response Mfr

HF49:WH – Fitted with neck flap, chin strap & reflective tape

HF49:WH Bush fire helmet w/chin strap White 04310663 *Visor carrier and visors sold separately

HF44 Type 3 Bush Fireman's Helmet

• Wide brim Type 3 Polycarbonate material

• Fitted with neck flap, elastic chin strap and reflective tape as standard

• Flame resistant neck flap

• Customised logo available

• Ideal for high temperature tasks including fire fighting, forestry and emergency response

HF44:WH – Fitted with neck flap, chin strap and reflective tape

HF44:WH Bush fire helmet w/elastic chin strap White 04310000

HF44:YE Bush fire helmet w/elastic chin strap Yellow 04310017

HF44:OR

HF44P:WH

HF44P:YE

HF44V:WH

HF46 Type 3 Bush Fireman's Helmet

• Wide brim Type 3 Polycarbonate material

• Fitted with neck flap, elastic chin strap, front and rear harness sweatbands and reflective tape as standard

• Flame resistant neck flap

• Integrated hanging hook for storage

• HF46B incorporate hearing protector mounting slots

• Customised logo available

• Ideal for high temperature tasks including fire fighting, forestry and emergency response

HF46BV:YE – Fitted with neck flap, chinstrap, visor, hearing protector mounts and reflective tape

HF46B:WH

HF46B:YE

HF46NL:RD

HF46NL:BL Bush fire helmet w/4 point chinstrap Blue 02414858

HF46NL:OR Bush fire helmet w/4 point chinstrap Orange 02414892

HF46BV:WH Helmet complete with elastic chinstrap & visor White 04679971

HF46BV:YE Helmet complete with elastic chinstrap & visor Yellow 04310561

HF46BV:RD Bush fire helmet w/chinstrap & visor Red 02387080

HF46BV:BL Bush fire helmet Blue 02387029

HF46BV:OR Bush fire helmet Orange 02387063

HXVPS46 HF46 Short visor 100mm x 400mm Clear 02206863

HXVPL46 HF46 Long visor 165mm x 400mm Clear 02206880

HXNFPC4 HF46 Flame resistant neck flap Yellow 02206812

HXVPC46 Polycarbonate visor suits HF46 helmet Clear 04801674

*Hearing protectors sold separately

HC71/HC75

HEAD PROTECTION ACCESSORIES

Safety Cap Decals

• Applied to hard hats to identify people

• Supplied in packs of five decals

• Size: 56mm diameter

• Material: Self Adhesive Vinyl (SAV)

Protector/3M Helmet Accessories

Chinstraps

• Keeps helmet in place in active situations Sweatbands

• Replaceable sweatband to suit helmets and browguards

• Lambswool provides additional comfort Headgear

• Six point webbing headgear with pinlock or ratchet adjustment

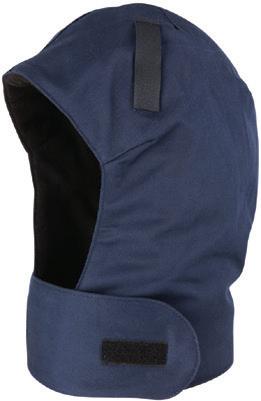

Hard Hat Balaclava

• Compatible with 3M/Protector helmets or worn as a stand-alone item

• Loop and hook fastener attachment lugs fit easily to helmet harness and balaclava moves with head movement

• Machine washable

• Suitable for construction, forestry, cold storage, plant operations and cold working environments

Canvas Wide Brim & Neck Flap for Safety Helmets

• Easy to fit brim with neck flap protects from sun and splashes

• Fits 3M/Protector safety helmets

• Suitable for mining, forestry, construction and general outdoor work

Towelling Sweatband

Chinstrap

BUMP CAPS

HC22 & HC23 First Base 3 Bump Caps

• Cloth covered polyethylene shell bump cap

• Vented, machine washable fabric

• Suitable for work areas where head bump risks exist but helmets not mandated

• Approved to European Standards EN812 - Industrial bump caps

TECHNICAL TIP

VISOR CERTIFICATION

All Blackwoods Visors and Visor with Browguard combinations are Certified to AS/NZS 1337.1:2010 for impact protection unless otherwise specified

FACE SHIELDS & VISORS

uvex u-cap sport bump cap

• Flexible plastic shell for various head sizes

• Selected models incorporate mesh fabric for ventilation

• Suitable for work areas where head bump risks exist but helmets not mandated

• Approved to European Standards EN812Industrial bump caps

Armadillo Faceshield

• Lift up design and can be used in conjunction with half mask respirators and neck band style earmuffs

• Browguard includes a ratchet mechanism harness with sweatband

• Shade 5 Lens suitable for oxygen cutting, lancing and deseaming, flame gouging, general and braze welding, limited to maximum Shade 5 applications only (AS/NZS 1338.1.2012)

TECHNICAL TIP

BUMP CAPS VS. SAFETY CAPS

• Bump caps are not tested in Australia and do not comply to any Australian Standard

• Bump caps are very effective against scrapes, and minor knocks

• Bump caps are often recommended for use in domestic security, police, transport and some trades

• Bump caps cannot be used in designated environments requiring head protection

Reduced Peak

High Visibility Orange

F408BG Browguard & Visor

• Browguard with ratchet adjustable headgear

• Impact, heat and chemical resistant

• Visors sold separately – see visor selection table

• Suitable for face protection against medium to high impact, chemical and heat hazards

F408BG Browguard only 04238658

F4088PC:CL Complete Browguard with clear visor 04276459

F4089FCG:5 Complete Browguard with shade 5 visor 04077781

F4087PCGY:CL Complete Browguard with clear chinguard visor 09818459

F4088PR Browguard with visor – larger Browguard with rachet 04276476

V7F508CGY:CL Clear polycarbonate replacement visor 09818476

HXTTSB Terry towelling sweatband 00482579

F600 Tuffguard Browguard & Visor

• Polycarbonate browguard with integrated chinguard

• Impact, heat and chemical resistant

• Friction adjustment for easy one hand lifting and lowering of visor

• Visors sold separately – see visor selection table

• Suitable for face protection against medium to high impact, chemical and heat hazards

F600CBG –Browguard only

V8F316:CL 0.76mm Flared

V8F416:CL 1mm Flared*

V8F516:CL 1mm Flared

04482261 *Visor is made from Thermoguard+ for high heat applications

F203 Browguard & Visor Combination

• Medium impact, cost effective face shield

• Friction adjustment for easy one hand lifting and lowering of visor

• Visors sold separately – see visor selection table

• Suitable for face protection against medium impacts

with Visor

Chinguard Polycarbonate Visors

• High impact polycarbonate visors with chinguard to suit Protector F408BG Browguard and FXVH400/P Visor holders

• Heat resistant (70°C to 105°C) and provides protection from molten splashes and radiated heat

• Resistant to acids and weak solvent splashes

*Visor is made from Thermoguard+ for high heat applications

General Purpose Polycarbonate Visors

• High impact polycarbonate visors with chinguard to suit Protector F408BG Browguard and FXVH400/P Visor holders

• Heat resistant (70°C to 105°C) and provides protection from molten splashes and radiated heat

• Resistant to acids and weak solvent splashes

F203 Browguard with visor 04276442

V832:CL Clear polycarbonate replacement visor 04482057

HXTTSB Terry towelling sweatband 00482579

*Visor is made from Thermoguard+ for high heat applications

Mesh Visors

• Low impact protection against large particles as well as some heat absorption

• Additional eye protection should be worn underneath visor

• Suitable for industries requiring protection from flying particles

Flared with Chinguard

Clear Visor

Metal Mesh Visor

Browguard Only

Browguard with Visor

Browguard & Visor Browguard

Shaded Visors

• High impact polycarbonate visors with chinguard to suit Protector F408BG Browguard and FXVH400/P Visor holders

• Heat resistant (70°C to 105°C) and provides protection from molten splashes and radiated heat

• Resistant to acids and weak solvent splashes

• Suitable for grinding, welding or furnace applications

*Visor is made from Thermoguard+ for high heat applications

Head & Face Protection

3M™ Headgear G500

• Versatile and comfortable solution for wearers requiring face and hearing protection

• Adjustable headband

• Choice of high impact polycarbonate or low impact mesh visor

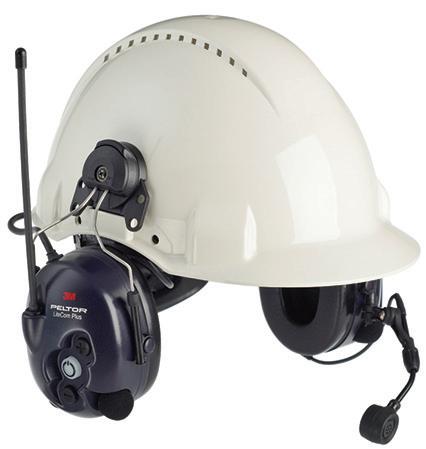

• Designed to work with Peltor communication products

• Suitable for grinding, sanding and food processing Lumberjack Combination Helmet

• Low impact V4 mesh visor

• Rain protection flap

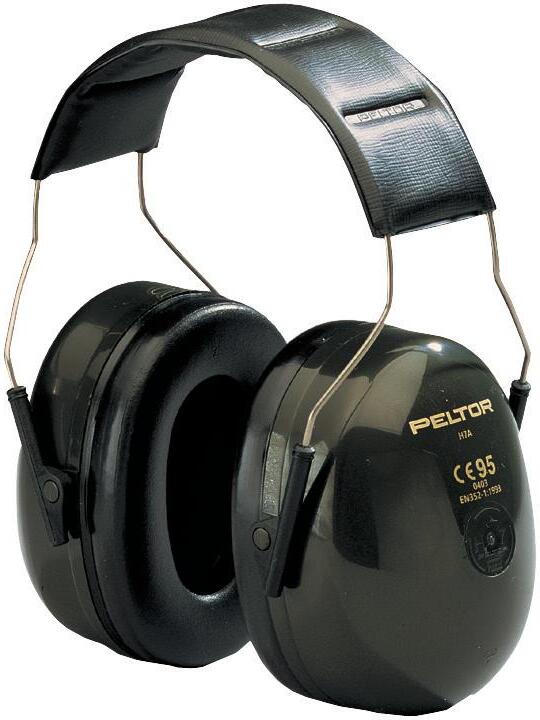

• Includes Peltor Class 5 Earmuffs

• Suitable for logging, gardening and forestry

Sphere

• Fully adjustable head gear and Browguard for both height and depth

• Suitable for chemical splash and electric arc protection, and high impact work environments

• Approved to AS/NZS 1337.1:2010 – High Impact Protection and EN166 for Electrical Flash

Flared with Chinguard

Shaded Visor

Forestry

Industrial

Lumberjack

SAFETY

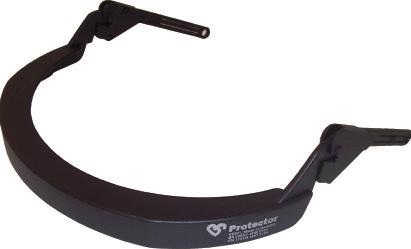

Safety Helmet & Earmuff Visor Holders

• Used to attach visors to helmets

• Helmets, earmuffs and visors sold separately according to user application

Safety Helmet & Earmuff Visor Holders

• Visor holders to suit Protector range of visors

• Helmets, earmuffs and visors sold separately according to user application Mfr

KF001 Flexi-seal visor holder to suit HC43 helmet 04702768 KF010 Flexi-seal visor holder to suit HC71/HC600 helmet 04702785 KF002 Nylon visor holder – Peaked 00971575

KF003 Visor carrier to suit HC71 & HC600 helmet 01056235

2010892 Visor holder cap attachment posts 00617618

FCP200 Clear polycarbonate visor 185 x 360 medium impact 04677591

FXVH400 Safety Helmet & Ear Muff Visor Holder

• Peaked and non-peaked style

• Durable injection moulded nylon with specialised fillers

• Dialectic design does not conduct electricity

• Lightweight with high velocity impact strength

• Slots into Protector® safety helmets or all Protector® EC series earmuffs via posts (supplied with each holder)

• Helmets, earmuffs and visors sold separately according to user application

• Suitable for general industry – used to attach visors onto other personal protective equipment such as helmets and earmuffs

Mfr No. Description Part Number

FXVH400:BK Visor holder 04799498

FXVH400P Visor holder with sun peak 04799515

*Visor Holder shown installed – helmet, visor and ear muffs sold separately

VISOR TYPES PRODUCT INSIGHT

Faceshields are used in many industries to protect operators against flying particles, liquid, chemical and molten splashes, radiated heat and glare.

Protector® Polycarbonate Visors

• Available in 0.76mm – medium impact or 1mm – high impact protection

• Resistance to high heat and a wide range of chemicals

• Temperature range = 70°C to 105°C

• Very resistant to impact and water based liquids (acid, weak solvents)

Protector® Thermoguard+ Visors

• Provide high impact protection

• Resistance to high heat and a wide range of harsh chemicals

• Temperature range = 90°C to 125°C

Protector® Shaded Visors

• Provide high impact protection

• Available in shades 2 and 5

• Designed for use in high heat environments where glare and low levels of light radiation are present

Protector® Gold Plated Visors

• Used for protection against impact, liquid splash and molten metal splash

• Visors resist high levels of radiant heat by reflecting heat away and reducing surface temperature of material

Protector® Chinguard Visors

• Provide extra protection to neck and face from impact, heat and chemical splash

• Available in polycarbonate, Thermoguard+, shades 2 and 5 and gold plate

Protector® Mesh Visors

• Available in aluminium, nylon, steel mesh or stainless etched steel

• Mesh visors only provide low impact protection and are excellent in working environments where humidity causes fogging

• Additional eye protection should be worn beneath the visor

Specifications

• All visors and holders are approved to AS/NZS 1337.1:2010

• AS/NZS 1337.2:2012 does require mesh visors to be tested and rated depending on their intended use

Visor Holder

Visor Holder Visor Holder with Sun Peak*

PRODUCT INSIGHT

LOGO PRINTING

Protector® safety helmets have been designed to allow customisation with company logos and images.

This process allows for Protector® brand safety helmets to be branded with a logo on orders as few as 20 units. There are numerous logo positions and an extensive range of colours available, including the new larger logo and pad printing designs on the side of your safety helmet. Your safety helmet does more than protect your head. It represents you, your company and even your achievements. Our top quality logo safety helmet service is dedicated to putting your logo or slogan on your choice of safety helmet accurately and quickly.

Standards: AS/NZS 1801:3.2.5

High performance silver retroreflective 25mm tape – one strip on both sides – can be used for increase wearer visibility in areas where moving vehicles and headlights are present.

Suitable for: HC600, HC71 and HC43 series safety helmets.

Very high prismatic silver 25mm tape provides visibility regardless of the angle. Includes one curved strip on each side and one straight across strip on rear.

Suitable for: HC600, HC71 and HH40 series safety helmets.

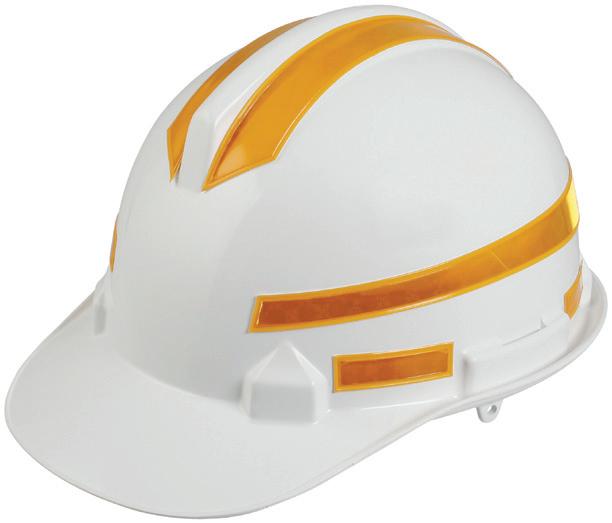

REFLECTIVE TAPING

Protector® brand safety helmets fitted with reflective tape have the advantage of improved visibility, making it easier to see where people are working, particularly in low light areas at night.

The tapes used by Scott Safety have been extensively tested to ensure that the adhesive is fully compatible with the ABS and Polycarbonate Protector® brand Safety Helmets.

The different shapes and patterns have been designed to fit the helmets and enhance the day time and night time visibility of the user.

Most patterns have been designed to also fit around safety helmet accessories such as lamp brackets and company logos.

Standards:

Certified to AS/NZS 1801:3.2.5:1997/Reflective tapes are certified to AS/NZS 1906.1

25mm tape, 4 all round strips in white, yellow or red for extreme environments such as forestry. Tape performs up to and exceeding 120°C Class 1 high visibility.

Suitable for: HC43 and HH40 series safety helmets.

Configuration suitable for use in mining environments. Designed for visibility regardless of the angle.

Suitable for: HC43 and HH40 series safety helmets.

SAFETY – PPE

STEPS IN IMPLEMENTING AN EYE AND FACE PROTECTION PROGRAM

1. IDENTIFICATION OF RISK AREAS/TASKS

• When the need for an eye protection program has been acknowledged the first step is to identify the risk and document the areas and tasks where the use of eye protectors is required

• Employees or their representatives should be included in the survey, as injury data can help identify the hazards and high risk areas or tasks

• Keep in mind that a process or task may give rise to a combination of hazards and the eye protectors may need to be worn in conjunction with other PPE i.e. eye and respiratory protection

2. SITE SURVEY

• The survey needs to be documented and it is best to follow the “flow” of the processes on site

• If it is a manufacturing process, the survey should start at the point where the raw materials enter the process, and follow the process through the site

• It is important to use the same terminology in the site survey as that used in the workplace

3. SELECTION OF STYLES

• When elimination or control of the hazard are either not practical or have only reduced the risk, then PPE is required

• Agreement should be reached with all persons involved in the eye protection program on the type of protection needed and the requirements for wearing eye protectors

• In all work situations consideration should be given to the layout of work stations to minimize the risk of hazards coming from the side or rear

• If a face shield or hood is used, consideration should be given to eye protection once the shield or hood has been removed

4. DON’T FORGET SIGNAGE PROMOTION AND EDUCATION

• Before the use of eye protectors becomes mandatory, an education program should be implemented to ensure cooperation of the work force

• The educational program should be tailored as much as possible to the requirements, environment and culture of the organisation, to counter any resistance to wearing eye protectors

• Warning signs should be used to indicate areas where eye protection, or a particular type of eye protector is required to be worn

• The use of eye protectors should be written into work procedures, site induction programs and policy documents

5. PLAN FOR AN EMERGENCY

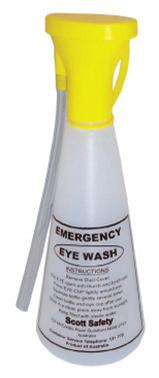

• Implement first aid procedures for eye injuries. Have eye wash stations that are easily accessible, especially where chemicals are used. Train employees in basic first aid

6. SUPPORT / REVIEW / DOCUMENT

• Management support is key to having a successful eye safety program

• Regularly review and update your accident prevention policies. Your goal should be no eye and face injuries or accidents

• Once your safety program is created, document and display it in the workplace and employee gathering areas

THE AUSTRALIAN/NEW ZEALAND STANDARD AS/NZS 1336:2014 – EYE AND FACE PROTECTION GUIDELINES STATE THAT:

“A workplace eye and face safety program should be introduced where persons are exposed to a recognized risk of injury to the eyes and/or face. The aim of the eye and face safety program is to protect the eyes and faces of persons through elimination or control of hazards and, where necessary, the wearing of eye and face protectors.”

NEED FOR EYEWEAR PPE PROGRAM ESTABLISHED

ARE THE INDIVIDUAL PPE COMPONENTS COMPATIBLE? NO YES

PPE ISSUED, INDIVIDUALLY FITTED: EMPLOYEE MEDICALLY SCREENED IF NECESSARY TRAINING • NEED FOR PPE

• CORRECT USE

• REQUIRED MAINTENANCE

PPE USE MONITORED AND REVIEWED WHEN NECESSARY

INCIDENT AND ACCIDENT REPORTING MONITORED

SELECTION OF EYE PROTECTORS

AS/NZS 1336:2014 requires the hazards and risks associated with a particular task or area to be evaluated and the most appropriate type of eye protector selected. In the selection of eye protectors the following should be considered:

• The nature of the hazards and risks to the eyes

• The condition under which the operator is working

• The visual requirements of the task

• The condition of the operators eyesight

• The appropriateness of the frame as a safety frame

• The personal preference of the wearer for particular safety frames

HAZARDS

COMPATIBILITY WITH OTHER PPE

ENVIRONMENT

WHAT IS IMPACT RESISTANCE?

All eye protection is tested to be capable of withstanding impact from a specified weight ball without cracking, detaching or dislodging, breaking or coming into contact with the eye or the head. AS/NZS test requirements categorise impact resistance into four categories:

Low Impact

Tested full-face-on at 12m/sec

Medium Impact

Tested front-on, as well as side-on at 45m/sec

High Impact

Tested front-on, as well as side-on at 120m/sec

Very High Impact

Tested front-on, as well as side-on at 190m/sec

Safety spectacles provide low and medium impact only.

All safety spectacles in the Blackwoods range are certified to AS/NZS 1337.1 with Medium Impact resistance unless otherwise specified.

High Impact and Very High Impact is applicable to visors only.

Visors are the only eye/face products that can be rated to this level of protection. For faceshields and visors go to page 13.

FEATURES OF COMPLIANT SAFETY EYEWEAR?

Check to see that the spectacles are certified to Australian Standards – AS/NZS 1337.1 – Eye and face protectors for occupational applications or AS/NZS 1337.6 – Prescription eye protectors against low and medium impact. Certified products will carry the independent certifier’s logo on the packaging.

There are also certain markings indicating suitability for specific applications that you should look for.

FRAME AND LENS MARKING GUIDE

Marking on Frame

AS/NZS 1337.1 LIC NO 2773 Cat.3

Independent certifiers mark Standard Number Manufacturers license number

Marking on Lens

Lens category 1-3 protection. 3

Denotes high sun glare reduction and good UV protection

Manufacturers mark

Denotes impact protection level. I or F is medium protection level – highest achievable level for spectacles or goggles

Denotes indoor/ outdoor use –adequate protection against UV

MARKING OF ASSEMBLED EYE PROTECTORS

Type of Protection Eye Protector Marking

Low Impact S Optional

Medium Impact I or F

High Impact V or B

Extra High Impact A “Mesh Visor V or B”

Molten Metal M or 9

Splash proof C or 3

Dust proof D or 4

Gas-tight G or 5

Outdoor use, untinted O

Sun glare ocular Category number (0 – 3)

Photo-Chromatic/Transitional Category number (1 – 3)

High Temperature H

EYE & FACE PROTECTOR SELECTION GUIDE

Protective devices do not provide unlimited protection. This information is intended to aid in identifying and selecting the types of eye and face protectors that are available, their capabilities and limitations for the hazards listed. This guide is not intended to be the sole reference in selecting the proper eye and face protector.

HAZARD

PRIMARY PROTECTION

SECONDARY PROTECTION

IMPACT – CHIPPING, GRINDING, MACHINING, MASONRY WORK, RIVETING, & SANDING

Flying fragments, objects, large chips, particles, sand, dirt, etc.

Safety spectacles

Positive seal safety spectacles (POS)

Goggles with direct or indirect ventilation

Faceshield worn over spectacles or goggles (dual protection)

HEAT – FURNACE OPERATIONS – POURING, CASTING, HOT DIPPING, GAS CUTTING, & WELDING

Hot sparks

Splash from molten metal

High temperature exposure

Faceshield worn over spectacles or goggles (dual protection)

Safety spectacles

Positive seal safety spectacles (POS)

Goggles with direct or indirect ventilation

CHEMICAL – ACID AND CHEMICAL HANDLING, DEGREASING, PLATING

Splash and irritating mists

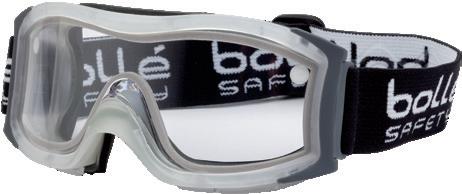

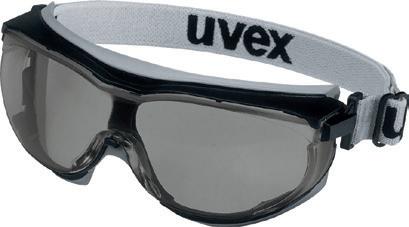

Goggles with indirect ventilation (eye cup or cover type)

Faceshield worn over spectacles or goggles (dual protection)

DUST – WOODWORKING, BUFFING, GENERAL DUSTY CONDITIONS

Nuisance dust

Positive seal safety spectacles (POS)

Goggles with direct or indirect ventilation

Key: – Medium Impact – High Impact

Safety spectacles

Positive seal safety spectacles (POS)

Atmospheric conditions and the restricted ventilation of a protector can cause lenses to fog. Frequent cleaning may be required

WHAT LENS SHOULD I CHOOSE?

0 Clear lens, no colour film applied, this lens is ideal for indoor or low light conditions.

0 Blocks the blue portion of the visible light spectrum, creating maximum contrast enhancement, particularly in low light.

0 Serves the same purpose as the amber lens, yet allows visible light through the lens. Also helps reduce glare from artificial light such as halogen and fluorescent lights.

1 Serves the same purpose as the grey lens, yet allows more visible light through the lens.

1 Where sunlight and glare cause eye strain and fatigue. ‘Mirror’ coating reflects light, reducing the amount of light that passes through the lens.

2 “Mirror” coating reflects light, reducing the amount of light that passes through the lens.

2 A neutral density brown lens that provides true colour definition by fighting glare while enhancing colour contrast.

3 A neutral density grey lens with a polarising filter, that provides the perfect balance between comfort and protection. Also reduces glare at certain angles from shiny surfaces such as wet surfaces.

Photo-chromatic lenses adapt to the UV light intensity, darkening automatically in sunlight, then fading back indoors. Lens colour will shift the ocular category between 0-3. The rate of change can take anywhere up to 2 minutes.

LENS COLOUR AND OCULAR CATEGORY

Category 0 Clear/Amber lens

Category 1 Slightly Tinted Limited sun glare reduction and UV protection. Not Suitable for driving at night. Visible light transmittance of 43% – 80%.

Category 2 Medium Tint sun glare reduction and good UV protection. Visible light transmittance of 18% – 43%.

Category 3 Dark Tint High sun glare reduction and good UV protection. Visible light transmittance of 8% – 18%.

Photo-Chromatic Lenses adapt to the UV light intensity, darkening automatically in sunlight, then fading back indoors. Lens colour will shift the ocular category between 0 – 3.

SAFETY TIP

EYE & FACE PROTECTION

Every year thousands of workers suffer eye injuries causing pain or discomfort, and often resulting in loss of income and even blindness.

Such injuries can be prevented by following safety procedures, including wearing correct eye protection equipment to suit the job or task at hand.

Why is Safety Eyewear so effective?

Safety eyewear protects the vital parts of the eyes that have few natural defences, including:

• Cornea and lens: the primary focusing areas of the eye; they have few blood vessels and heal very slowly

• Retina: the lining at the back of the eye; it is mainly constructed of nerves and once damaged or destroyed does not heal naturally

Are Sunglasses the same as Safety Spectacles?

Whilst standard sunglasses provide UVA/B light protection, they do not provide the impact resistance protection that safety spectacles provide.

Major Types of Eye and Face Hazards include:

Hazard

Chemical

Burns from steam

Splashes from grease and oil

Vapours and dusts from processes such as spray-painting, laboratory work and general handling/mixing

Selecting the Correct Protection

Safety eyewear and faceshields have evolved to suit specific tasks, workplaces and associated hazards.

When selecting the appropriate eye protection, it is important to include the following:

• Risk/Hazard at hand

• Possible elimination/control of the hazard

• Safe work practices, procedures and/or training that could be implemented

• Appropriate eye and/or face protection for the specific application, and whether other Personal Protective Equipment (PPE) is required

The table below explains the equipment markings under the standard:

Classification

Low Impact

Tested to 22mm ball 42g dropped 1.8m or travelling at 12m/sec

Medium Impact

Tested to 6mm ball travelling at 40m/sec 144km/h

High Impact

Tested to 6mm ball travelling at 120m/sec or 430km/h

Molten metal/hot solids

Splashes

Dust

Gas

Outdoor use

99% UV spectrum up to 380nm

Non-ionising radiation

Appropriate Marking Type

HT = Heat tempered

CT = Chemically tempered

I or F = Medium impact

V or B =High impact

M or 9 = Molten metal resistant

C or 3 =Splash resistant

D or 4 =Dust resistant

G or 5 =Gas resistant

O = Outdoor untinted

N = Protector spectacles

outdoor tinted 400nm

Shade #

Tempered safety lenses and filters

Safety goggles, safety spectacles and some faceshields

Faceshields only, it is recommended to wear eye protection (goggles or safety spectacles) under faceshields

Faceshields, wire mesh screens with plastic lenses

Wide vision goggles with indirect ventilation, faceshields

Goggles with indirect ventilation

Goggles without ventilation

Safety spectacles, goggles, faceshields

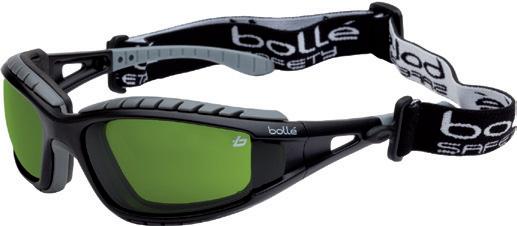

Welding spectacles, goggles, helmets and handshields

BLUE LIGHT: A POTENTIAL RISK FOR YOUR EYES

Prolonged exposure to blue light can cause eye strain, stinging eyes and headaches. Blue light or high-energy visible light (HEV) is also 15 times more harmful for the structures of the eye such as the crystalline lens and the retina than the other colours in the spectrum.

THE WAVELENGTHS

THE RISKS ASSOCIATED WITH BLUE LIGHT

Aggravates age-related macular degeneration (ARMD).

Dazzle and visual discomfort (blurred vision). Strobe effect linked to the gradual fluctuating intensity of the light. Headaches.

Wavelengths are the basis of how we perceive the world. Two organs receive these wavelengths: The eyes receive light and the ears receive sound.

THE VISIBLE CONSEQUENCES OF BLUE, VIOLET, ULTRA-VIOLET AND INFRA-RED RADIATION ON THE EYE

SAFETY – PPE

– PROSAFE

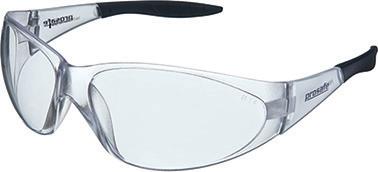

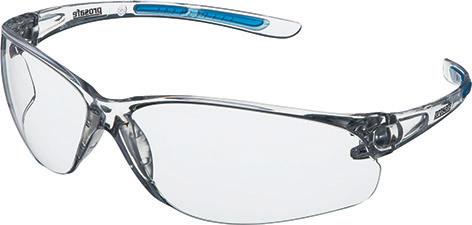

Harrier

•

Kite

•

Gloss Grey/Clear

Ibis

• Lightweight ergonomic design with flexible temple arm tips for all day comfort

• Close fit wrap around style for excellent ocular area coverage

• Suitable for a wide range of industries

TECHNICAL TIP

EXTREME COAT LENS

Extreme Coating provides our highest level of scratch resistance to both sides of the lens for use in highly abrasive work environments where protective eyewear needs to last. Models with this coating are compliant to the Resistance to Surface Damage by Fine Particles criteria of the European standard EN166 Personal Eye Protection. The Prosafe Harrier and Kite are the first two styles within our range to feature our Extreme Coat lens.

Law

• Lightweight ergonomic design with Thermoplastic Rubber (TPR) temple arms pads for all day comfort and grip

• Excellent ocular area coverage

• Metal free hinge design for environments where conductivity may be a hazard

• Suitable for a wide range of industries

Egret

• Lightweight ergonomic design with Thermoplastic Rubber (TPR) nose and temple arm pads for all day comfort and grip

• Close fit wrap around style for excellent ocular area coverage

• Suitable for a wide range of industries

Griffon

• Lightweight ergonomic design with Thermoplastic Rubber (TPR) nose and temple arm pads for all day comfort and grip

• Stylish design with good ocular area coverage

• Suitable for a wide range of industries

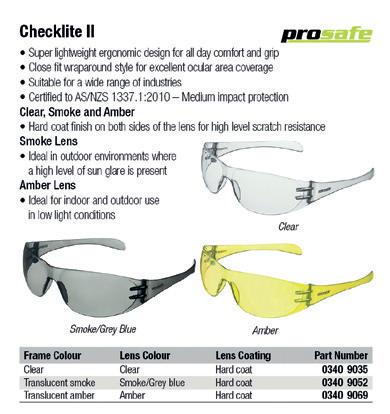

Checklite II

• Super lightweight ergonomic design for all day comfort and grip

• Close fit wraparound style for excellent ocular area coverage

• Suitable for a wide range of industries

Blackwoods has been a proud partner of The Fred Hollows Foundation, supporting the Indigenous Australia Program since 2008. Purchase any Prosafe eyewear, faceshield and accessories and 10% of proceeds from each product sold will be donated to The Foundation’s Indigenous Australia Program. To purchase a product or for more information, visit blackwoods.com.au or contact your Blackwoods Account Manager.

SAFETY – PPE

Peregrine

• Lightweight half frame design with Thermoplastic Rubber (TPR) temple arms pads for all day comfort and grip

• Wraparound style for close fit and excellent ocular area coverage

• Suitable for a wide range of industries

Plasma

• Full frame design with Thermoplastic Rubber (TPR) temple arm and nose pads for all day comfort and grip

• Close fit wraparound style for excellent ocular area coverage

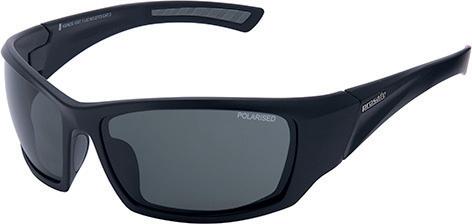

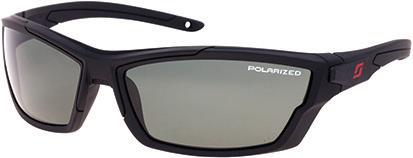

• Polarised models suitable for outdoor environments where glare from the sun is present

Klondike

• Half frame design with adjustable length temple arms for optimal fit

• Wraparound style for close fit and excellent ocular area coverage

• Suitable for a wide range of industries

Atacama

• Full frame design with Thermoplastic Rubber (TPR) temple arm and nose pads for all day comfort and grip

• Close fit wraparound style for excellent ocular area coverage

• Suitable for outdoor environments where glare from the sun is present

Karoo

• Full frame design with Thermoplastic Rubber (TPR) temple arm and adjustable nose pads for all day comfort and grip

• Close fit wraparound style for excellent ocular area coverage

• Suitable for outdoor environments where glare from the sun is present

Oasis

• Full frame design with Thermoplastic Rubber (TPR) temple arm and nose pads for all day comfort and grip

• Close fit wraparound style for excellent ocular area coverage

• Suitable for outdoor environments where glare from the sun is present

Hawk

• Full frame design with Thermoplastic Rubber (TPR) temple arm and nose pads for all day comfort and grip

• Stylish design with clear frame finish on selected styles

• Polarised models suitable for outdoor environments where glare from the sun is present

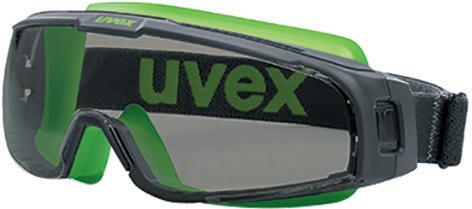

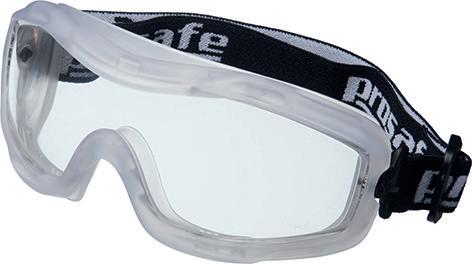

Snipe

• One piece moulded lens with removable closed cell foam seal

• Indirect vents to reduce heat and perspiration vapour

• Suitable for environments requiring protection against nuisance dust and small particles

Rattler

• One piece moulded lens with EVA closed cell foam seal

• Interchangeable adjustable angle temple arms and elastic headband

• Low profile to fit close to the face and provide excellent peripheral vision

• Suitable for environments requiring protection against nuisance dust and small particles

Yukon

• Cost effective option and ideal visitor’s spectacle

• Vented side shields for humid conditions

• Can be worn over some prescription spectacles

• Suitable for a variety of industries

Bearkat

• Lightweight ergonomic design with flexible temple arm tips for all day comfort

• Wraparound style for close fit and excellent ocular area coverage

• Suitable for a wide range of industries

Economy Spectacles

• Super lightweight and ergonomic design for all day comfort

• 12 pack

• Suitable for general purpose and visitor’s spectacle

TECHNICAL TIP

Checkmate

• Lightweight ergonomic design with Thermoplastic Rubber (TPR) nose and temple arm tips for all day comfort and grip

• Wraparound style for close fit and excellent ocular area coverage

• Suitable for a wide range of industries

PROSAFE LENS COATING

Extreme

Hard Coat (HC)

Checklite

• Super lightweight ergonomic design for all day comfort

• Amber option for indoor and outdoor use in low light conditions

• Suitable for a wide range of industries

Provides our highest level of scratch resistance to both sides of the lens for use in highly abrasive work environments where protective eyewear needs to last. Models with this coating are compliant to the Resistance to Surface Damage by Fine Particles criteria of the European standard EN166 Personal Eye Protection.

Provides high level scratch resistance to both sides of the lens for abrasive work environments. Anti-fog/ Anti-scratch (AF/AS)

Provides resistance to fogging on both sides of the lens from environmental conditions or wearer heat perspiration and good scratch resistance even in a demanding work environment.

Mirror Mirror finishes are available on select styles in a variety of colours. These are cosmetic coatings not affecting the wearers vision and are applied over Hard Coat lens treatments. The term ‘Flash Mirror’ is used to identify a light mirror finish.

Kite

Law Bearkat

Harrier

SAFETY – PPE

SAFETY SPECTACLES – BOLLÉ

Phantom

• Rubber nose pads and temple tips for superior comfort and non slip fit

• Suitable for construction, driving, local government and councils, manufacturing, mining, transportation and utilities

Contour (Sidewinder)

• Lightweight and strong half frame design

• Rubber temple tips and nose pads for non slip fit

• Platinum coating – anti-fog/ anti-scratch coating applied to both sides of lens

• Suitable for construction, local government and councils, manufacturing, medical, mining and utilities

Prowler

• Thermoplastic (TP) inner temples and nose pads for non slip fit with nylon frame for strength

• Suitable for local government and councils, mining, transportation, construction, dental, fisheries and utilities

Prism

• Ultra lightweight and comfortable for long term wearing with no metal parts

• Optically correct, single piece distortion free lens

• Suitable for construction, food processing, manufacturing, medical, mining, government and petrochemical industries

Hurricane

• Lightweight

• Polarised option reduces

• Suitable for construction, local government and councils, mining, transportation, manufacturing, medical and dental, food industry, petrochemical and utilities

Blade

• Lightweight, comfortable, one piece rimless polycarbonate frame

• Exceptional eye coverage from high contour (10 base curve) lens

• Suitable for construction, local government and councils, manufacturing, medical, mining and utilities

Bandido

• Lightweight, comfortable, one piece rimless polycarbonate frame

• Exceptional eye coverage from high contour (10 base curve) lens

• Suitable for construction, local government and councils, manufacturing, medical, mining, food industry, petrochemical and utilities

Tracker 2 Welding

• Rubber temple tips and adjustable head strap

• Rubberised eye seal provides protection against dust and other particles

• Outstanding visual clarity through an 8 base curve distortion free lens

• Suitable for gas welding and cutting processes when used within recommendations of AS/NZS:1338

Hustler

• Fashionable and comfortable design

• Exceptional eye coverage

• Suitable for high glare, driving and outdoor work environments

Hustler Seal

• EVA positive seal with fixed gasket

• Black, high gloss nylon frame with rubber nose pads and EVA temple tip inserts for improved grip and comfort

• Exceptional visual clarity through an 8 base curve, distortion free lens

• Platinum coating – anti-fog/ anti-scratch coating applied to both sides of lens

• Suitable for high dust environments, solar UV exposure, emergency response, rigging, assembly and production work and driving

CUSTOMISE

your eyewear with your company’s corporate colours & logo!

Bollé Safety offers you the possibility of customising our RUSH+ model with your corporate branding and colours. It’s quick and easy.

1 Email your HD logo

Please supply your logo high-res (300dpi / .eps)

2 Choice of customisation

• Branding on the lens. Size cannot exceed 1.5cm

• Temple colouring

• Branding on a microfibre pouch is also available at limited cost

3 Company Style Guide

Provide your style guide with your pantone colours for Bollé Safety to match the temple colours.

Our customers have already personalised their eyewear!

*Offer valid for a minimum order of 1,200 pairs.

Production & Delivery: The standard manufacturing and delivery time is 90 days from confirmation by the customer of preproduction sample. Contact your Customer Service Centre or Sales Representative for more information.

SAFETY – PPE

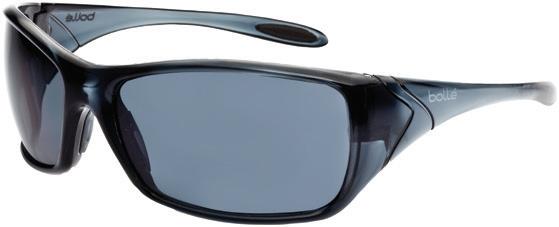

Voodoo

• Fashionable and comfortable unisex design

• Polarised version supplied with microfibre pouch

• Suitable for driving and solar UV exposure

Rush+

• Ultra sporty design with co-injected and ultra flexible temples

• Adjustable Polyvinyl Chloride (PVC) and non slip nose bridge

• Gasket and strap kit available for dusty environments (specs not included)

• Platinum coating – anti-fog/ anti-scratch coating applied to both sides of lens

• Suitable for emergency response, laboratory, assembly, production and process work

1652719 Brown Brown polarised Hard coat 00863285

Cobra Spectacle

• Tilt adjustable temple arms to optimise individual fit

• Full EVA eye seal

• Suitable for protection against dust and nuisance particles

Cobra TPR

• Compact, lightweight with built in Thermoplastic Rubber (TPR) foam and neoprene strap

• Platinum coating – anti-fog/antiscratch coating applied to both sides of lens

• Suitable for assembly/production work, driving, solar UV exposure, emergency response, rigging, laboratory and dental work

TECHNICAL TIP UV PROTECTION

All polycarbonate safety glasses and goggles sold in Australia absorb 99.9% of all UVA and UVB

The lens colour simply differentiates which product is suitable for the task. For example, wearing clear lenses outdoors may result in eye fatigue due to glare versus a tinted lens.

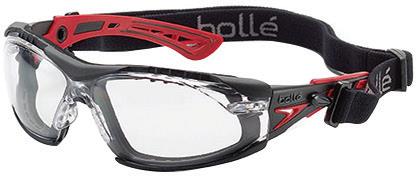

Rush+ Seal

• Ultra lightweight with built in brow protection

• Positive seal gasket and strap kit

• Platinum coating – anti-fog/antiscratch coating applied to both sides of lens

• Suitable for environments requiring protection from dust and nuisance particles

Rush+ Seal Small

• Small fit, some models assembled with gasket and strap kit

• Ultra lightweight, adjustable Polyvinyl Chloride (PVC) nose bridge with co-moulded temple arms

• Platinum coating – anti-fog/ anti-scratch coating applied to both sides of lens

• Suitable for environments requiring protection from dust and nuisance particles (gasket and strap models)

Rush+ Glow

• Equipped with phosphorescent temples, five minutes under a light source achieves glow

• Ultra flex temples, upper brow protection and non slip adjustable bridge

• Platinum coating – anti-fog/ anti-scratch coating applied to both sides of lens

• Ideal for night work

Overlight II

• Lightweight OTG design that fits over most prescription spectacles

• Tilt adjustable temple arms for comfortable fit

• Suitable for construction, local councils, manufacturing, mining, transportation and utilities

IRI-S Diopter

• Adjustable B-flex nose bridge allowing tilt and width adjust

• Tilt adjustable, co-moulded temple arms for customised secure fit

• Suitable for wearers requiring reading lens

Jet

• Rubber nose pads for non slip fit

• EVA co-moulded temple tips for comfort

• Platinum coating – anti-fog/ anti-scratch coating applied to both sides of lens

• Suitable for emergency response, driving, solar UV exposure, rigging and high glare, outdoor work places

Baxter

• Wrap around frame with waterproof foam and removable strap

• Platinum coating – anti-fog/ anti-scratch coating applied to both sides of lens

• Suitable for dust protection, engineering, process work, solar UV exposure, milling, rigging and laboratory work

Silium+

• Ultra lightweight frame with adjustable non slip bridge

• Platinum coating –high performance anti-fog/ anti-scratch coating applied to both sides of lens

• Suitable for assembly/ production work, driving, solar UV exposure, emergency response, rigging, laboratory and dental work

02878686

02878703 IRIDPSF1

00005886

00005818

00005835 IRIDPSF2.5 Black/Grey

+2.5 ALS Anti-fog/ Anti-scratch 00005852

IRIDPSF3 Black/Grey Smoke +3.0 ALS Anti-fog/ Anti-scratch 00005869

Photographer

Fred Bourcier

Axis 2

• High contour (10.5 base), single piece lens with 180° distortion free viewing

• Adjustable silicone pads and tilt adjustable co-moulded temple arms for customised fit

• Suitable for laboratory, dental work, process work, emergency response, assembly and production work

SAFETY SPECTACLES – UVEX

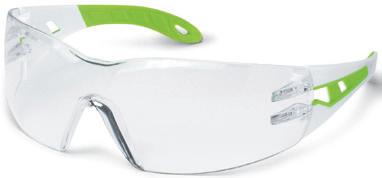

uvex pheos

• Trendsetting design with excellent coverage and peripheral vision

• Ventilated arms

• No metal parts

• Vented closed cell foam guard models provide additional dust protection

• Suitable for manufacturing, mining, food and construction industries

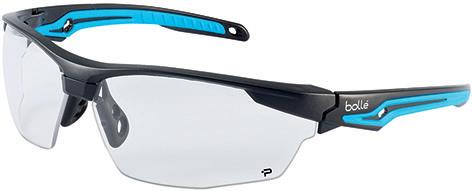

Tryon

• Wrap around frame with PC/TPR co-injected temples

• Adjustable non slip bridge with 160º temple flex

• Platinum coating – anti-fog/ anti-scratch coating applied to both sides of lens

• Suitable for a wide range of industries

04068397

04068414

Blue/Black CSP Platinum 04068431 TRYOFLASH Blue/Black Blue Flash Hard Coat 04068448 TRYOTGPSI Blue/Black Clear Platinum 04068465

TRYOTGPSF Blue/Black Smoke Platinum 04068482

SAFETY TIP

9192-061

9192-304G

9192-307G

9192-310G

(guard)

COMMON HAZARDS IN THE WORKPLACE

There are five main hazard categories:

PRODUCT INSIGHT

PERMANENT LENS COATING TECHNOLOGY

uvex supravision sapphire (HC3000)

anti-scratch coating applied to both sides is extremely scratch resistant and easy to clean due to its Nano technology properties which assist in repelling water and dust.

uvex supravision excellence (HC-AF)

extremely scratch resistant on the outside and anti-fog resistant on the inside. The Nano Technology properties on the outside of the lens ensure that the lenses are very easily cleaned and less susceptible to dirt.

uvex supravision THS

superior anti-fog coating both sides prevents moisture from accumulating to ensure a constantly fog-free lens.

uvex pheos small

• Smaller version of the pheos for smaller faces

• Ventilated arms

• No metal parts

• Vented closed cell foam guard models provide additional dust protection

• Suitable for manufacturing, mining, food and construction industries

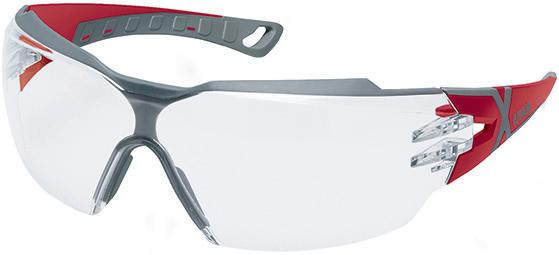

uvex pheos cx2

• Wraparound style with wide field of vision

• Soft grip side arms with inbuilt browguard for additional protection

• Metal free hinge design

• Suitable for manufacturing, construction, mining, food, engineering and outdoor activities

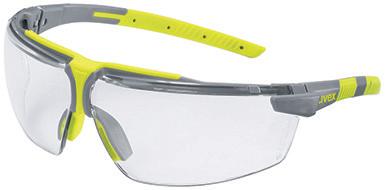

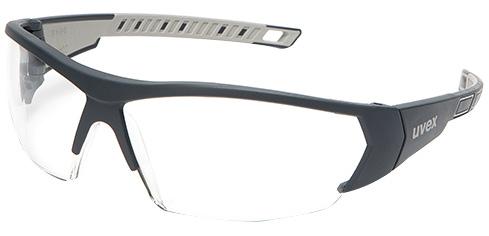

uvex i-3

• Lightweight with variable side arm angle and no metal parts

• Suitable for construction, mining, manufacturing and food industries

9190-400

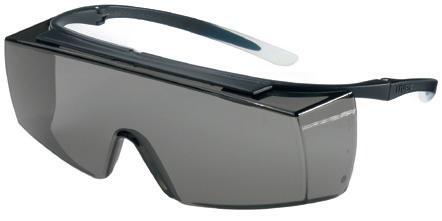

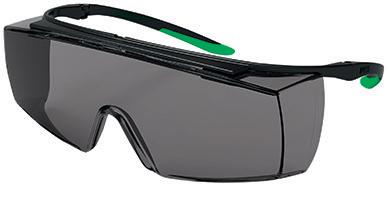

uvex super f OTG

• Ultra lightweight with slim, soft end side arms

• Fits over most prescription glasses

• Optidur NCH – scratch resistant on both sides of lens

• Suitable for engineering, manufacturing, medical industries and emergency services

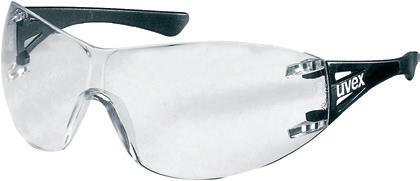

uvex x-one

• Lightweight wraparound style with integrated brow

• No metal parts

• Suitable for manufacturing, mining, food and construction industries

uvex i-3 add

• Lightweight with variable side arm angles and no metal parts

• Comes with soft spec case with microfibre cleaning cloth

• Suitable for wearers who need to read whilst wearing safety eye wear

uvex sportstyle

• Ultra

• Ideal for mining, construction and manufacturing industries

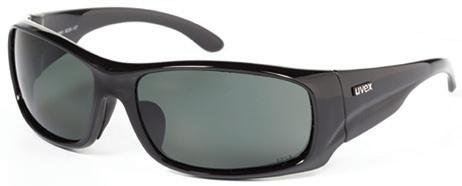

uvex torque

• Rubber sports grip on temple ends and soft nose pads

• Polarised spectacles suitable for high glare, marine and transportation

uvex x-trend

• Lightweight wraparound style with no metal parts

• Larger lens provide extra protection

• Suitable for milling, light and precision engineering, assembly, maintenance, laboratory and outdoor work

9193-065

SAFETY – PPE

uvex i-vo

• Sports style design with soft nose bridge

• Five point lens inclination for individual fit

• Suitable for mining, transport, construction and roadworks

Mfr

9160-001 Blue/Grey Clear Supravision sapphire 04944729

9160-004 Black/Grey Grey Supravision sapphire 04944610

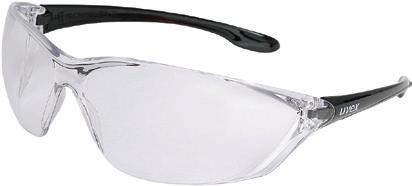

uvex predator

• Close fit design with soft nose pads

• Stylish arms with soft touch inlay

• Suitable for manufacturing, mining, medical and transport industries

uvex overspec

• Fits over most prescription glasses

• Integrated brow guard and side shields

• Four point length adjustable side arms with soft temple ends

• No metal parts

• Suitable for on-site visitors, engineers, safety officers and medical staff

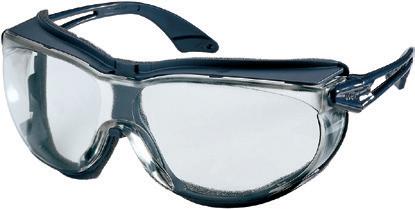

uvex skyguard

• Positive seal against dust and particles

• Two point lens inclination for individual fit

• Suitable for mining, manufacturing, emergency services and precision engineering work

UVEX-PD385

UVEX-PD485

UVEX-PD505

UVEX-PD884

uvex cybric

• Adjustable five point lens inclination and length adjustable side arms

• Suitable for mining, transport, construction and roadworks

uvex duoflex

• Close fit with side shields

• Four point length adjustable side arms and nine point lens inclination

9188-304

9188-305

05471219 9188-501

9188-502

uvex cybri-guard

• Adjustable five point lens inclination and length adjustable side arms

• Fitted with vented foam guard

• Suitable for dusty and humid working environments

05471236

05471253

• Optidur NCH coating – scratch resistant on both sides

• Infradur plus coating – anti-fog inside and extremely scratch resistant outside

• Suitable for oxy-welding (9180-945 only), turning, milling, light and precision engineering, assembly and maintenance

PRODUCT INSIGHT

uvex CBR65 and CBR75

Our focus: relaxed, comfortable vision

Bright light, reﬂective surfaces or changing light conditions can all put additional eye strain on your eyes. This can increase the onset of fatigue and in some cases pose a risk.

The innovative uvex CBR65 and uvex CBR75 lens tint oﬀers better contrast for noticeably more comfortable vision, even in lower light conditions.

uvex CBR65 / CBR75

Contrast

For clear and accurate vision in every situation – even in low and continually changing light conditions

uvex pheos cx2 CBR65

Bluelight reduction

Protection against harmful radiation from blue light. Ideal for night work with bright ﬂoodlights

9198-065

Relaxed vision

Reduce eye fatigue, even during extended period of use – improve concentration and enhance attention

65/75% transmission

Optimum protection against sun glare – yet bright enough for working in shady conditions

uvex sportstyle CBR75 FOR MORE INFORMATION simply scan the QR code

9193-065

SAFETY – PPE

uvex sonic

• Close fit with side arms allowing airflow

• Suitable for law enforcement, security, emergency services and transport industries

uvex i-works

• Sporty design with soft grip side arms

• No metal parts

• Suitable for manufacturing, construction, mining, automotive, health care, utilities and warehousing industries

uvex hunter

• Close fitting, one piece wraparound lens

• Suitable for contractors, manufacturing and mining industries

uvex x-fit

• Ultra lightweight and metal free

• Hinged side arm

• Suitable for manufacturing, construction, mining, food and engineering industries

uvex warrior

•

uvex rally mkII

• Straight moulded arms with unique high tech frame material

• Suitable for use in transportation, construction, security and trades

uvex x-fit pro

• Close fitting with soft nose bridge

• Comfort slider for adjustable inclination and optimised fitting

• Suitable for manufacturing, mining, construction and engineering industries

uvex grey welding range

• Infradur plus coating – anti-fog on the inside and extremely scratch resistant on the outside

• Lens minimises damage from welding sparks

• Suitable for gas welding industry

– acetylene cutting, gas soldering, brass and copper cutting when used within the recommendations of AS/NZS:1338

Mfr

9169-043 Black/Green tip Shade 3 Infradur AF 02697806

9169-045 Black/Green tip Shade 5 Infradur AF 02697823

9178-943 Black/Green tip Shade 3 Infradur AF 02697789

9302-943 Black/Green body Shade 3 Infradur plus 02697840

9302-945 Black/Green body Shade 5 Infradur plus 02697857

9302-073F Flip up lens Shade 3 Infradur plus 02697874

9302-075F Flip up lens Shade 5 Infradur plus 02697891

SAFETY SPECTACLES – PROTECTOR®

• Lightweight with side temple arms providing additional protection

• Suitable for construction, fabrication, mining and petrochemical industries

uvex clean range

• Lightweight and autoclavable

• Supravision clean coating –autoclavable and resistant to chemicals, anti-fog on the inside, extremely scratch resistant on the outside

• Suitable for hospitals, laboratories, food production, dentistry, pharmaceutical industry and areas requiring a sterile environment

Mist

• Lightweight with excellent cheek to frame coverage

• Available with clip on/off dustguard attached (clear and smoke only) or as a optional accessory

• Suitable for grinding, cutting, sanding, general applications and dusty environments

S56SDG

dust guard

• Fitted browguard on some models for additional protection

• Welding options available in Shade 3 and Shade 5 when used within the recommendations of AS/NZS:1338

• Suitable for automotive, fabrication, manufacturing, medical and mining industries

Shade 3 (9169-043) Shade 3 (9178-943)

(9302-943)

Whim Creek

S99C – Clear with Browguard

S99S – Smoke with Browguard

S56C – Clear

S56S – Smoke

Explorer

• Lightweight and wraparound design for improved cover

• Suitable for construction, laboratories and mining

SAFETY SPECTACLES – 3M

UniSafe Buster

• Sporty design with flexible frame

• Shade 3 and Shade 5 options available for welding when used within the recommendations of AS/NZS:1338

• Suitable for mining, heavy industry, fabrication, engineering and construction

04436259

Econospec

• Lightweight and wraparound frame for extra protection

• Suitable for construction, education, healthcare and recreation industries

S55C Clear Clear Anti-scratch 06520986

S55S Smoke Smoke Anti-scratch 06521003

S55B Brown Brown Anti-scratch 00822519

Slinger

• Close fit wraparound frame

• Rubberised coated frame

• Suitable for transport, utilities and municipalities, laboratories, green and general industries

S69C Matt Black/Blue Clear

03711227

S69S Matt Black/Blue Smoke Anti-fog/Anti-scratch 03711244

S69SS Matt Black/Blue Sunset Anti-fog/Anti-scratch 03711261

Crackerjack

• Matte black or brown rubberised coated frame

• Contours to the face reducing risk from flying particles

• Suitable for a wide range of industries

S27S Matt black rubberised coated Smoke

03711278

S27SP Matt black rubberised coated Smoke Polarised Anti-scratch 03711295

S28B Matt brown rubberised coated Brown Anti-fog/Anti-scratch 03711414

UniSafe Bark Hut

• Lightweight with flexible matte black frame

• Dust guard available as an optional accessory

• Suitable for cutting, non hazardous liquids, lathe work, dust, sawing, chipping, riveting, glare and solar radiation

SNN007SDG

UniSafe Savannah

• Wraparound frame for wide eye protection

• Co-moulded side arms temple grips and moulded multi-fit nose bridge

• Dust guard available as an optional accessory

• Suitable for mining, construction, forestry and high dust applications

SAFETY SPECTACLES – ACCESSORIES

Spectacle Accessories

Bag and Case

• Bag provides scratch protection

• Fits most sizes of spectacles from most brands

• Belt loop and clip

Adjustable Spectacle Strap

• Adjustable to suit most wearers

• Fits most sizes of spectacles from most brands

Neoprene Spectacle Strap

• Provides a snug fit to hold eyewear stable in rugged work environment

• Fits most size spectacles of most brands

Spectacle Retaining Straps

• Adjustable straps keep spectacles in position

• Straps allow spectacles to be worn without interfering with earmuff seal

• Suitable for most uvex spectacles

Spectacle and Goggle Cases & Bags

• High quality to keep eyewear clean

• Easily transportable and stored, even in demanding work environments

• Suitable for most uvex spectacles and goggles

Bollé Accessories

• Cord – convenient and adjustable

• Case – belt loop attachment

• Pouch – microfibre washable

Satin Bag

Adjustable Spectacle Strap Neoprene Spectacle Strap

SAFETY – PPE

Unisafe/Scott Safety

Spectacle Accessories

• Suitable for cleaning, maintenance, eyewear retention and eye care

LENS CLEANING ACCESSORIES

Mitywipe Anti-fog Towelette

• Pre-moistened towelette with anti-fog formula

• Non-abrasive and non-woven

• Suitable for hygienically cleaning spectacle lenses, earmuffs and respirators

Lens Cleaning Towelette

• Alcohol based pre-moistened non-abrasive towelettes

• 500 Sachets per dispenser box

• Suitable for prescription eyewear

• Ideal for safety and prescription glasses, and sunglasses

• Not suitable for use on anti-fog spectacles

SPECTACLES – VARIOUS

ESH600 Galactic Eye Shield

– Ventilated

• Suits Protector® 600 series helmets (sold separately)

• Shield slides into helmet cavity when not in use

• Anti-fog treated with comfort nose bridge

• Provides convenient and greater eye and face protection than spectacles

Lens Cleaner

•

EC005

EW001 EC240

SACT24

SC500

Microfibre Lens Cleaning Cloth

• Technically advanced ultrafine design of the microfibre cloth enables superior cleaning of dust, fingerprints and residue from lenses and screens

• Unique construction of the cloth produces a sponge type action, lifting dust and grease without scratching or smearing

• Machine washable with no fabric softener required

• Soft microfibre cloth suitable for use on all Prosafe spectacles

• Not for use on contact lenses

• Suitable for cleaning spectacles, sunglasses, GPS units, smart phones and safety glasses

Lens Cleaner – bclean

• Anti-bacteria, anti-static, anti-reflective

• Water based formula

• Alcohol and silicone free

• Certified by COLTS laboratory 1651410

• Lens cleaning product

• Anti-bacteria, anti-static, anti-reflective

• Water based formula

• Alcohol and silicone free B600

• Includes 500ml spray and 2x 200 tissues

• Suitable for use on all Bollé Safety lenses

• Certified by the COLTS laboratory

Lens Protection & Cleaning Towelettes

• Specifically formulated for uvex lens coatings

• Provides a complete lens protection system

• Designed to be used as a counter dispenser, wall mounted dispenser and/ or fitted in uvex 1007 lens cleaning station (1005 only)

Lens Cleaning Station & Accessories

• Stations are wall mountable, providing access for clear visibility and improved safety

• Spray on and dry off – no smearing or scratching

• Features highly absorbent, non-abrasive tissues

• Wipes, tissues and fluid sold separately

• Suitable for all uvex lenses and coatings

JAEGER

• One piece moulded lens with TPR frame for excellent comfort and fit

• Low profile design for a close fit to the face

• Excellent peripheral vision

SAFETY – PPE

SAFETY GOGGLES – BOLLÉ

Blast

• Low profile and lightweight (PVC) frame with polycarbonate lens

• Closed cell foam bound for added protection against liquid splashes

• Optional mouth guard and prescription Rx adaptor available

• Can be worn over most spectacles

• Suitable for chemical processing, laboratories, manufacturing, medical and mining

Vapour

• Low profile and lightweight with Thermoplastic Rubber (TPR) frame

• Indirect lower vents and closed cell foam

• Optional prescription Rx adaptor available

• Suitable for construction, manufacturing, mining and petrochemical industries

Vapour Duo

• Low profile and lightweight with Thermoplastic Rubber (TPR) frame

• Duo lens: 3mm polycarbonate outer lens, 0.5mm acetate inner lens

• Indirect lower vents with closed cell foam

• Optional prescription Rx adaptor available

• Suitable for construction, manufacturing, mining and petrochemical industries

Blast Duo

•

• Designed to be worn over most spectacles and disposable respirators

• Optional prescription Rx adaptor available

• Suitable for chemical processing, laboratories, manufacturing, medical and mining

• Low profile and lightweight with PVC frame

• Platinum coating – anti-fog and anti-scratch coating applied to both sides of the lens

• Suitable for chemical splashes and dust protection

Blue w/ Foam & Mouth Guard

Pilot 2

• Polycarbonate/Thermoplastic Rubber (TPR) twin material frame

• Pilot 2 fire model designed to fit under fire fighting helmets

• Platinum coating – anti-fog and anti-scratch coating applied to both sides of the lens

• Suitable for chemical splash protection, cutting, spray, dust protection, acid and alkaline handling, wood and metal work

SAFETY TIP

CARE AND MAINTENANCE OF EYE AND FACE PROTECTION

Despite its strength, polycarbonate generally used in the manufacture of safety lenses is a relatively soft material and prone to surface scratching. Therefore, eyewear should be inspected regularly and replaced if showing abrasions or scuffing. Avoiding extremes of heat and humidity will help to preserve the life of safety eyewear.

Replacing eyewear in a protective casing when out of use will keep scratches to a minimum.

Following a simple and regular lens cleaning discipline will make the lenses easier to see through and will also make them last longer.

Lens cleaning is a simple process:

1. Rinse dust and coarse particles off the lens under running water.

2. Spray a small amount of cleaning fluid onto both sides of the lens.

Coverall 3

• Fits over most prescription spectacles

• Platinum coating – anti-fog and anti-scratch coating applied to both sides of the lens

3. Using a lens cleaning tissue, wipe the lens inside and out. Using a circular motion, do not scrub backwards and forwards.

4. Do not clean the lens dry. Allow the residue of fluid to evaporate.

5. Store eye protection in a clean pouch or bag when not in use.

ULTIM8

• Sealed Thermoplastic Rubber (TPR) foam

• Spectacle/goggle transformation kit

• Platinum coating – anti-fog/anti-scratch coating applied to both sides of the lens

Solvents including acetone or methyl chloride often found in glass cleaners and household cleaners can damage polycarbonate lenses and any special coating (e.g. anti-fog coating).

SAFETY – PPE

uvex ultravision

• Fits over most prescription spectacles

• Soft face liners for close and pressure free fit

• Lens replacement available

• Suitable for mining, medium to heavy manufacturing, oil and gas refineries

uvex ultravision lower faceguard flip-up

• Compatible with all 9301 ultravision goggles

• Easy to attach flip up design

• Suitable for alumina refineries, metal foundries, petrochemical and chemical industries

Goggle not included

uvex ultrasonic

• Fits over most prescription spectacles (Rx insert available)

• Lens replacement available

• Suitable for mining, manufacturing, engineering, refineries, foundries and transportation industries

& Bottom Vent

Clear (9301-603)

Clear (9301-614)

Grey (9301-628)

uvex ultrashield lower faceguard

• Ultravision goggle fitted with lower face guard

• Available in polycarbonate and acetate lenses

• Suitable for mining, medium to heavy manufacturing, oil and gas refineries Mfr

9301-381 Transparent, TVC Closed cell Acetate Clear Anti-fog 07800678

9301-385 Transparent Open cell Polycarbonate Clear Supravision excellence 00527068

9301-383 Transparent, vented Open cell Acetate Clear Anti-fog 00413372

9301-382 Transparent, vented – Acetate Clear Anti-fog 06845074

9301383F Replacement lower faceguard only – – – – 01081173

TVC: Top Vent Closed

uvex bush fire goggles type 1, type 2 & type 3

• Ventilation system designed based on NSW RFS smoke hut test results

• Resists smoke penetration whilst allowing humid air to escape

• Air volume minimises eye damage from radiant heat

• Suitable for bush firefighting, back burning and protection from chemical splashes

• Further approved to NSW RFS as Type 1, 2 & 3 – heat resistant and flame retardant

uvex carbonvision

• Lightweight, positive seal goggles

• Compatible with other PPE

• Lens replacements available

• Suitable for mining, foundries, milling, laboratories and engineering

9302-342 Red (T and BVR) Polycarbonate

9301-342 Red – top and bottom vents closed, sides open with open cell foam Polycarbonate Clear Supravision excellence 07760762

9308-342 Red (T and B VR) Polycarbonate Clear Supravision excellence 03330376

T and BVR: Top and Bottom Vent Reduced

uvex blacknight

• Can be worn over most prescription spectacles

• Infradur plus coating – anti-fog on the inside and scratch resistant on the outside

• Suitable for gas welding and cutting processes when used within the recommendations of AS/NZS:133

uvex u-sonic

• Low profile and close fitting

• Excellent peripheral vision

• Suitable for mining, construction, manufacturing and emergency services

TIP

WHAT IS AN RX INSERT?

The RX adaptor is a lightweight insert that clips inside selected styles of safety goggles/spectacles allowing the attachment of prescription lens. It is a cost effective solution for people who need corrective eyewear in addition to eye protection.

SAFETY – PPE

SAFETY GOGGLES – PROSAFE

Petrel

• Closed cell foam seal

• Splash resistant with drain channel to direct splash fluid away from vents

• Vented to reduce heat and perspiration vapour

• Suitable for a wide range of industries including where protection from low hazard splash is required

• Suitable for a wide range of industries where protection from splash and flying particles is required

Jaeger

• One piece moulded lens with Thermoplastic Rubber (TPR) frame

• Splash resistant with drain channel to direct fluid away from vents

• Vented to reduce heat and perspiration vapour

• Suitable for a wide range of industries including where protection from low hazard splash is required

Gull

• One piece moulded lens and frame

• Splash resistant with drain channel to direct splash fluid away from vents

• Vented to reduce heat and perspiration vapour

• Suitable for a wide range of industries including where protection from low hazard splash is required

Cormorant

• Low profile with EVA closed cell foam

• Suitable for a wide range of industries where traditional spectacles may shift out of position or get knocked off due to wearer movement or work environment

Impact General Purpose 1010

• Flexible PVC frame

• Direct vented protecting against dust and flying particles

• Suitable for manufacturing, construction and mining

Chemical Splash 1012

• Indirect top and bottom venting provides resistant against splash hazards

• Suitable for chemical processing, manufacturing, construction and mining industries

SAFETY GOGGLES – PROTECTOR® / 3M

Spectra Vu Ultra Wide Vision

• Soft body goggle providing wide vision

• Can be worn over most prescription spectacles

• Lens replacements available

• Suitable for manufacturing, construction and mining

Mfr No. Frame Colour Lens Colour Lens Coating Part Number

GCV90:CL Clear, vented Clear Anti-fog 04678033

GCV90:SM Smoke, vented Smoke Anti-fog 04678050

GCV90RB:CL Clear, vented, foam bound Clear Anti-fog 04678152

GCV90NV:CL Clear, unvented Clear Anti-fog 04678118

GCV90BVRB:CL Clear, unvented, foam bound Clear Anti-fog 04678084

GL90:CL –Replacement clear lens Anti-fog 04678271

GL90:SM –Replacement smoke lens Anti-fog 04678288

GXHB90 –Replacement strap – 04678611

Chemview Wide Vision

• Soft, flexible PVC goggle

• Available as indirect vented for splash resistance or rubber bound

• Lens replacement available

• Suitable for chemical processing, manufacturing, construction and mining

Mfr No. Frame Colour Lens Colour Lens Coating Part Number

GCV76:CL Clear, vented Clear Anti-fog 00162996

GCV76RB CL Clear, vented, foam bound Clear Anti-fog 00043945

GCV76RB:SM Smoke, vented, foam bound Smoke Anti-fog 04677948

GCV76RBVO Clear, foam bound Clear Anti-fog 04677965

GL76:CL –Replacement clear lens Anti-fog 00174386

GL76:SM –Replacement smoke lens Anti-fog 04678220

Viewmaster Economy Impact

• Soft, flexible PVC goggle

• Direct all round grid ventilation

• Lens replacement available

• Suitable for manufacturing, construction and mining

Bushfire/General – G900 Series

• Vented and unvented options available as well as foam bound for improved seal

• Shade 5 option available for gas welding and cutting withing recommendations of AS/NZS:1336

• Rx prescription lens insert available

• Suitable for bushfire (G950), gas welding (G930), chemical and general application

Disposable Dust Goggle

• Soft and comfortable frame

• Easy on/off

• Not suitable for work requiring impact protection

• Suitable for basic protection against dust and large droplets

Bushfire Compact – G760 Series

• Thermoplastic vulcanisation (TPV) body for high heat resistance

• Soft wraparound vented body

• Suitable for use in bushfire fighting and general application

PERFORMANCE YOU CAN TRUST

• Gloves

• Eyewear

• Hearing protection

• Respirators

• Site safety

• Traffic management

• Spill sorbents

BLACKWOODS MAKES PRESCRIPTION SAFETY EYEWEAR EASY

BLACKWOODS CAN OFFER PRESCRIPTION SAFETY EYEWEAR NATIONWIDE

Our customers can order directly online through the Online Portal or by requesting an onsite visit by a participating Optometrist.

ONLINE

1. Login to the Online Portal.

2. Once logged in, complete your details in the fields displayed. Then enter your city/suburb to search and select your nearest participating Optometrist.

3. Click ‘Submit your request’ then call your selected Optometrist to arrange your appointment.

4. Visit your local Optometrist for the scheduled appointment. Blackwoods will organise for your specs to be made and delivered to your Optometrist.

5. Collect your Prescription Safety Eyewear from the Optometrist (allow 10-14 working days).

ONSITE

1. Customer requests Blackwoods Account Manager to organise an onsite fitting by an All Australian Safety (AAS) Optician.

• No payment required at this stage for customer.

• Customer to have prescription details before site visit.

2. Blackwoods requests an onsite visit to AAS on behalf of customer.

3. AAS Visits site, fits and assesses customer’s needs. Order is taken and sent to Blackwoods.

4. Blackwoods contacts customer to confirm order details and receives purchase order from customer.

5. Blackwoods raises Purchase Order and emails to AAS who prepares and delivers eyewear to customer.

PLEASE NOTE: Site visit requires lead time 24-48 hours. Minimum 8-10 staff required for country/regional visits (no limit for Metro). Delivery of order approx. 14 days lead time from receipt of Blackwoods Purchase Order.

Getting your Prescription Safety Eyewear is that simple. Contact your Blackwoods Account Manager for more information.

NOTE: All orders for safety eyewear are firm orders and non refundable. All Safety Eyewear is manufactured to comply with Australian Standards, and each order will be supplied with a SAI Global endorsed Medium Impact Certificate.

BLACKWOODS OFFERS A RANGE OF LENS AND FRAME OPTIONS TO SUIT

LENS

Single Vision Clear Lens

Bifocal Clear Lens

Visible line separates top part of lens for distance and lower part of lens for reading

Multifocal Clear Lens

Continuous gradual change in lens with no visible dividing line. Prescription changes from upper distance correction to lower reading correction

Transition Lens

Automatically adjust to light (clear indoors to grey tint outdoors)

Multi-coating Lens

Clear anti-reflective coating to reduce glare

Polarised Lens

Permanent grey sunglass tint

PART NUMBER

04198447

04198464

FRAMES

04198481

04198498

04198515

04198532

FRAME PART NUMBER 04198549

Bollé Drift (Black) Cannon (Matt Black) Rio (Black/Red)

Bollé Skate (Clear)

Bollé Skate (Translucent Brown) Mojo (Black/Red + Foam Gasket) MF167 (Gunmetal) 108 (Gunmetal) Twister (Black)

THE FRED HOLLOWS FOUNDATION’S INDIGENOUS AUSTRALIA PROGRAM

Aboriginal and Torres Strait Islander adults are three times more likely to go blind than non-Indigenous Australians, yet 94% of their vision loss is preventable or treatable. The Fred Hollows Foundation works to put an end to these alarming figures by focusing on education, screening and treatment.

The Foundation’s Indigenous Australia Program supports increased investment and access to culturally appropriate eye care services to remote and under-serviced Aboriginal and Torres Strait Islander communities. The Foundation is working hard to achieve the following:

1. Deliver surgery and medical treatment for cataract, diabetic retinopathy and the elimination of trachoma

2. Increase access to services for patients in remote communities.

3. Coordinate and improve outreach services so everyone who needs medical care gets it.

4. Provide training and support to Aboriginal and Torres Strait Islander health staff.

How can you and your business help end avoidable blindness?

Blackwoods has been a proud partner of The Fred Hollows Foundation since 2008. To support The Fred Hollows Foundation, simply purchase any PROSAFE eyewear, face shield or related accessory from Blackwoods and 10% of proceeds from each sale will be donated to The Foundation’s Indigenous Australia Program.

HEARING PROTECTION STANDARDS

In Australia and New Zealand one of the major areas of workers compensation is industrial hearing loss. Hearing loss tends to occur over time, however is completely preventable.

Standard AS/NZS 1269.0:2005 provides an overview of the general requirements for occupational noise management. The series deals with noise as it affects hearing, but does not deal with other effects of noise. It also provides an integrated approach to establishing, implementing and evaluating an occupational noise management program.

See SAI Global for more information on AS/NZS 1269 Occupational Noise Management Parts 0 – 4 (Standards Australia).

AS/NZS 1270:2002 ACOUSTICS – HEARING PROTECTORS

This Standard specifies requirements for the design, materials, and performance of conventional hearing protectors. It also provides guidance on the general requirements for, and the physical and acoustic testing of, specialist hearing protectors.

Under Standard AS/NZS 1270, hearing protectors are tested across a range of noise frequencies where a SLC80 rating is mathematically calculated. The results are stated as Class which is determined by the SLC80 rating obtained. The test results are found on the packaging of the hearing protector.

SOUND LEVEL CONVERSION SLC80

SLC stands for Sound Level Conversion; it is a rating defined as the difference between the sound level of the environment in which the hearing protection device is worn, and the sound level reaching the wearer’s ears. The SLC value includes a correction to ensure that the stated degree of noise reduction is obtained on 80% of occasions hence the SLC80 rating.

For example, the sound level in a workplace is 104dB(A) (as an average over an eight hour period). The target “in ear” noise level is 80dB(A). To calculate the minimum SLC80 rating required for a hearing protector in this workplace would be: 104dB(A) – 80dB(A) = 24dB(A)

The result of 24dB(A) indicates that a SLC80 24dB(A) rated hearing protector is required which, based on the table to the right corresponds to a Class 4.

To assist with selection, the class and decibel rating for each hearing product has been included. ALL EARPLUGS & EARMUFFS IN THE BLACKWOODS RANGE ARE CERTIFIED TO AS/NZS 1270:2002 UNLESS OTHERWISE SPECIFIED

THE CLASS SYSTEM

Under the Standard AS/NZS 1270, there is a classification method for the selection of hearing protectors. Once the extent of the noise hazard has been determined by a noise level survey, the user simply applies this to the classification table below to select an appropriate hearing protector. The class system is a simple way to select hearing protection appropriate to the noise exposure.

Class SLC 80 Effective for use in Noise Up To...

1 10 - 13 dB(A) 90 dB(A)

2 14 - 17 dB(A) 95 dB(A)

3 18 - 21 dB(A) 100 dB(A)

4 22 - 25 dB(A)

PRO-SOFT EARPLUGS

• High attenuation level

• Non-allergenic and non-irritating

• Polyurethane (PU) foam

• Self-adjusting foam

• Ideal for high noise environments

• Suitable for use in noise levels

100 to 105dB(A): Class 4

• Certified to AS/NZS 1270:2002

• Rated SLC80 25dB(A): Class 4

HEARING PROGRAMME

FIVE STEP PROGRAMME

STEP 1 – NOISE SURVEY

Conduct a preliminary noise survey to identify any possible noise hazards.

STEP 2 – DETAILED ASSESSMENT

If the preliminary noise survey averages over 84dB over an 8 hour period a detailed assessment is required.

A formal noise survey should be carried out by an occupational hygienist or specially trained occupational health nurse.

The assessment will:

(a) Quantify the amount of noise to which employees are exposed

(b) Identify sources of noise

(d) Determine appropriate hearing protector needs

STEP 3 – CONTROL

Eliminate – if practicable, control noise at source

Isolate – where practicable move noise sources away from employees

Minimise – Provide hearing protectors or use enclosures to reduce the amount of noise emitted.

STEP 4 – HEARING PROTECTORS

If hearing protectors are being used as a control, you must consider

1. Staff education as to the need for hearing protectors

2. Define hearing protector areas with signage

3. Provide a selection of hearing protectors (not one will fit all)

4. Issuing hearing protectors to individuals and validation of the fit to the individual user

5. Cleaning and maintenance of hearing protectors

6. Training and education for people wearing hearing protectors.

STEP 5 - MONITORING

Monitor the health effects of noise in the workplace (hearing testing) and notify any serious harm (any signs of hearing loss).

An occupational hygienist or specially trained occupational health nurse should conduct testing:

(a) Before an employee starts work

(b) At intervals of no longer than 12 months thereafter

HEARING PROTECTORS

CONSIDERATIONS WHEN SELECTING HEARING PROTECTORS

Noise reduction is one of many factors in determining the best hearing protector for a noise-exposed worker.

1. COMFORT

Will the wearer be comfortable wearing the protector. Consider the conditions worked in, is it hot or cold etc

2. NOISE REDUCTION

Will the protector reduce the noise level enough

3. SIZE

Will the earplugs fit correctly in the ear canal. Not too loose or too tight

4. COMMUNICATION NEEDS

Are there audible warnings or alarms that need to be heard

5. SPECIAL JOB REQUIREMENTS

Is there restricted access or object that could limit size of the protectors

6. CLEANLINESS

Will the wearer be working in a hygienic or toxic area and need to dispose of the protector

7. COMPATIBILITY WITH OTHER PPE

Helmets, shields, hats, glasses etc. All need to be considered

OVER PROTECTION

Wearing hearing protectors that block too much noise (overprotection) has a negative effect.

Overprotected workers typically compromise the fit of their protector by pulling the earplug out partway, or lift up the cup of the earmuff to hear instructions from co-workers, maintenance sounds from the machinery, warning signals etc.

Audiologists often see more hearing loss in workers who ‘cheat’ on the fit and wear time of their earplugs.

SAFETY – PPE

EARPLUGS – DISPOSABLE

Torpedo

• Tapered design and highly visible with slow release Polyurethane (PU) foam to enable easy insertion and proper fit

SAFETY TIP

TYPES OF EARPLUGS

Disposable foam earplugs

Earplugs are required to be rolled down between thumb and finger before fitting into the ear canal.

• This creates an exceptionally good fit

• Provides a high level of protection

• Are compatible with most other Personal Protective Equipment (PPE)

• Does not hold in heat around the ear

Pro-Soft

• Non-allergic and non-irritating self adjusting Polyurethane (PU) foam

E-A-RSoft™ FX

• Flanged end, single size Polyurethane (PU) foam

• Shaped design helps fit ear canal

• Ideal for high noise environments

E-A-R™ Taperfit™ II

• Tapered design provides high attenuation for high noise environments

• Large size option for larger ear canals

• Conversely, if hands are dirty when rolling down the plugs, hygiene can be compromised

Re-usable earplugs

Re-usable plugs do not require roll down.

• Hygiene is maintained with no contact required with the inserted part of the plug

• Can be washed and re-used with a life span of up to three months, providing great value

Corded earplugs

Available in both foam disposable and re-usable ranges.

• Cords keep the plugs more secure and joined helping to prevent contamination of product

• Can be hung round the wearer’s neck when not in use

Banded earplugs

Earplugs held in to the ear canal by a head band.

• Comfortable fit for most wearers

• Easy to put on and off

• Ideal for intermittent use

• Have lower protection levels

E-A-RSoft™ Superfit™

• Non-allergenic and non-irritating self adjusting Polyurethane (PU) foam

• Large size option for larger ear canals

E-A-R™ Classic™

•

• Flame retardant

X-treme®

• Smooth, tapered shape for easy insertion and removal

• Suitable for high noise environments

Max®

• Bell shape delivers maximum comfort

• Suitable for high noise environments

E-A-R™

•

E-A-R™ Neon Blast

• Tapered design, non-irritating Polyurethane (PU) foam

• Suitable for mining and general manufacturing

SAFETY TIP

HEARING LOSS

Warning Signs

• You hear ringing or buzzing (tinnitus) in your ears after exposure to noise

• You notice that you can hear people talking, but you have difficulty understanding them after exposure to noise

• You experience ‘fullness’ in your ears after leaving a noisy area

Protecting Your Hearing

• Check with your employer to make sure that your workplace has an effective program to adequately protect your hearing whilst ensuring it meets national or state regulations

• Wear hearing protection when using loud equipment at work or at home

• Buy quieter products (compare dB ratings and ask for low-noise products)

• See a hearing health professional routinely for hearing testing

SAFETY – PPE

Max Lite® Earplugs

• Ideal shape for smaller ear canals

• Contoured T-shape for easy handling and wear

EARPLUGS – DISPOSABLE – PUSH IN

3M™

Skull Screws™

• High attenuation level push in earplug with no roll down required

• Grip rings ensures plug stays in the ear with no touch insertion to reduce contamination

• Ideal for high noise environments

• Universal fit

Laser Lite®

• Self adjusting foam expands to fit virtually every wearer

• Contoured T shape for easy handling and wear

• Suitable for high noise environments

uvex x-fit

• Patented x-recess reduces pressure build up in the other ear and comfortable fitting

• ‘x’ grip for easy fingertip removal

SAFETY TIP

WORKPLACE PROTECTION

Discomfort or irritation when wearing hearing protection can occur and can lead to removal of the hearing protector. This is commonly what happens with high attenuating hearing protectors which can be heavier and bulkier. You only have to remove your hearing protection a few minutes every day for the damaging effects of noise to accumulate. This is why 100% wear time is so important.

• Suitable for construction, light manufacturing, areas where nuisance noise is present and manufacturing plants with medium level noise

An example of reduced effective protection is removing your hearing protector for ten minutes during a total exposure time of one hour. The effective protection provided by a high attenuating hearing protector (30dB) is reduced to 8dB. This makes the effective protective value 22 dB less than expected, by wearing the hearing protector 83% of the time over one hour.

It is vital that every effort is made to encourage 100% wear time. This can be achieved through training and providing suitable hearing protection that is comfortable enough to wear all day.

Class 5

E-A-R™ Push-Ins™ with Grip Rings

• Push in earplug with no roll down required

• Grip rings ensures plug stays in ear

• Cone shape inserts easily into ear canal

E-A-R™ Push-Ins™

• Push in earplug with no roll down required

• Insertion stem to aid fitting as well as providing hygiene benefits

• Heat activated foam creates in-ear seal

• Ideal for mining and general manufacturing

E-A-R™ Express™

•

EARPLUGS – REUSABLE

E-A-R™ Ultrafit™ 27

• Insertion stem allows for deeper insertion and higher attenuation

• Reusable triple flange design ensures high protection levels

E-A-R™ Ultrafit™

• Comfortable and non-irritating

• No roll down required for instant use

• Triple flange design

AirSoft® Multiple Use

• Increased comfort, especially for long term wear

• Suitable for high noise environments

uvex xact-fit

• Ergonomically shaped pins for left and right ear and thumb indentations for handling

• Hygienic – no need to roll and touch earplug

• Suitable for aviation, entertainment, light manufacturing, fabrication and emergency services

EARPLUGS – BANDED

E-A-Rflex™ Banded

• Worn over the head, under the chin or behind the neck

• Tapered pods are washable, replaceable, hygienic and dielectric

• Ideal for low noise environments

Quiet® Banded Earplugs

• Lightweight and portable – designed especially for environments with intermittent noise hazards

• Replacement ear pods available

uvex xact-band

• Ergonomic thumb indentations for easy handling

• Designed and tested for under the chin wearing mode only

• Replacement pods available (0149 8524)

• Suitable for aviation, entertainment, light manufacturing, fabrication and emergency services

E-A-R™ Swerve™ Banded

• Lightweight, contoured design floats around neck

• Designed to limit contact with headwear and collars

• Ideal for high noise environments and for constant insertion and removal

EARPLUGS – METAL DETECTABLE

Torpedo Metal Detectable Earplugs

• Metal detectable plugs and cord

• Tapered design with slow release Polyurethane (PU) foam

• Blue colour for easy visual identification

• Suitable in food processing and similar environments where product contamination is a risk

WHERE TO USE METAL DETECTABLE EARPLUGS

Metal detectable earplugs are designed to avoid contamination in food and other processing industries. A metal component is added to the earplug and/or cord during production which can be recognized by contamination sensors in the processing line.

In a visually detectable earplug, colourant (in most cases blue) is used to produce an earplug that is easily detected in contaminant inspections.

E-A-RSoft™

• Metal detectable plugs and cord

• Tapered design with Polyurethane (PU) foam

• Suitable for high noise environments, food processing and other environments where detection is required to avoid product contamination

PRODUCT INSIGHT

E-A-R™

Ultrafit™

• Non food blue for easy detectability

• No roll down required, comfortable and non-irritating

• Triple flange design is washable and reusable

EARPLUG USE, CARE AND MAINTENANCE

How to Use

Slowly roll and compress foam earplugs into a very thin cylinder. While compressed, insert the earplug well into the ear canal. Fitting is easier if you reach around the head to pull the ear outward and upward during insertion.

Disposable Earplugs

Reach around the back of your head and pull upward on the ear while inserting the plug until you feel it sealing. This may seem tight at first, especially if you have never worn earplugs.

Reusable Pre-Moulded Earplugs

Hold the large ends of the pods and swivel them to direct the tips into the ear canal openings. Firmly push and wiggle the pods into the ear canal until a snug seal is obtained. Pulling on the outer ear while pushing the pods will be helpful to most wearers.

Banded Earplugs

Care and Cleaning

Keep the earplugs clean and free from material that can irritate the ear canal.

Pre-moulded earplugs could last several months depending on the type and on your work environment, hygiene and body chemistry. They should be replaced if they shrink, harden, tear, crack or become permanently deformed. Wash them in warm soapy water and rinse well. When dry, store them in a carrying case.

Most semi-aural hearing protectors can be cleaned in the same way as pre-moulded earplugs. Since the band holds the tips in place to provide an acoustic seal, do not tamper with it otherwise the protection afforded by the device may be reduced.

SAFETY – PPE

• Non ferrous metal, metalised polycord and bright colour are easily detected by visual and automated inspections

• Suitable for high noise environments

Earplug Dispensers

LS-500

• Crank handle to dispense earplugs

• Heavy duty anodised aluminium construction withstands constant use

• Suitable for Prosafe Prosoft, Max®, Max-Lite® and Laser Lite® earplug refills

HL400

• Simple twist knob to dispense earplug

• Plug N Play dispenser canisters, attaches easily to the base

• Can be wall mounted

• Patented x-recess reduces pressure build up in the outer ear

• ‘x’ grip for easy fingertip removal

• Suitable for food and beverage, manufacturing and packaging industries, bottling plants and abattoirs and other high noise environments

EARPLUGS – DISPENSERS

E-A-R™ One-Touch™ Dispenser

• Dispenses one earplug at a time directly into hand

• Durable ABS material for tough environments

• Can be free standing or wall-mounted

PRODUCT INSIGHT

EASY EARPLUG DISPENSING

The Honeywell HL400 Earplug Dispenser is built for lightweight, durable convenience. With a simple twist of the knob, it dispenses any Howard Leight disposable foam earplug. Better yet, refilling and mounting the dispenser is just as easy.

Hearing protection close at hand Allow employees easy access to hearing protection – and make sure that the choices are specifically matched to the work environment. Place dispensers by the shop door or in the lunchroom, and employees can access a new pair of earplugs as they enter the workspace.

Dispenser Refills

LS-500 HL400

uvex earplug dispenser

• Single quick earplug release with collection tray

• Wall mountable

• Suitable for oil and gas refineries, transport, emergency services, warehousing, mining and manufacturing industries Mfr

EARPLUGS – VALIDATION SYSTEMS

E-A-Rfit™ Validation System

• Personal Attenuation Rating (PAR) for each worker in 8 seconds to determine what level protection

• Test is compatible with a variety of different E-A-R™ earplugs

E-A-Rfit™ Validation System includes:

• Software

• Speaker

• Impact resistant carry case

Mfr No.

393-2000-50 Probed earplugs – Neon 10 00998979

393-2001-50 Probed earplugs – Ultrafit 10 00998996

393-2002-50 Probed earplugs – Push-Ins™ 10 00999013

393-2003-50 Probed earplugs – Classic 10 00999030

393-2004-50 Probed earplugs – E-A-Rfit™ FX 10 00999047

393-2006-50 Probed earplugs – Taperfit 10 00999064

393-2007-50 Probed earplugs – Ear 10 00999081

393-2008-50 Probed earplugs – E-A-Rfit™ express 10 00999098

393-2010-50 Probed earplugs – E-A-Rfit™ 1100 10 01055555

393-2011-50 Probed earplugs – Tri Flange™ 10 02004597

393-2012-50 Probed earplugs – Skull Screws™ 10 02004580

393-2014-50 Probed earplugs – E-A-Rsoft™ Yellow Neons™ 10 02296810

393-2015-50 Probed earplugs – Push-Ins™ with Grip Rings™ 10 02296827

E.A.Rfit™ 5.0 Dual Validation Unit

• Dual ear testing all 7 frequencies

• Fast, clear and accurate results with seamless software integration

• Earmuff testing capability

• Ideal for mining, manufacturing and construction industries

Push Ins-With Grip Rings™ In use

393-2008-50

393-2010-50

393-2011-50

393-2012-50

PRODUCT INSIGHT

The right fit test. Right now.

Finding each employee’s number will help you reach compliance and have assurance that their hearing protection can protect them.

That’s why we made the new 3M™ E-A-Rfit™ Dual-Ear Validation System fast, accurate and easy.

EARsoft™ Neons™

Skull Screws™

SAFETY – PPE

E-A-R™ Dual Ear Validation System

• Unit measures the actual protection levels provided to individual workers by selected 3M™ E-A-R™ earplugs

• Accurate objective data is collated and delivered within 8 seconds

• Free online training and user support

• Requires probed test plugs

• Fit testing kit

• Includes software, speaker and impact resistant carrying case

• Suitable for high noise environments in construction, general manufacturing, metal fabrication, mining, oil and gas, primary metals and transportation

Peltor™ Select Performance H9 Series

• Low profile and lightweight

• Stainless steel headband wires with four point suspension to help distribute cushion pressure evenly

• Soft, liquid filled ear cushions

• Generous inside depth helps the hears to rest comfortably

EARMUFFS

5000 and 7000 Series

• Lightweight, durable construction

• Even pressure for all day comfort and use

• Ideal for high noise industries such as heavy industry, construction and manufacturing

Helmet

Peltor™ Deluxe Earmuffs H7 Series

• Increased low frequency attenuation

• Stainless steel headband wires with four point suspension to help distribute cushion pressure evenly

• Soft, liquid foam filled ear cushions

• Generous inside depth helps the ears to rest comfortably

Peltor™ Extreme Performance H10 Series

• Double casing minimising resonance and provides maximum low frequency attenuation

• Broad sealing rings with good inside depth for ears to rest comfortably

• Stainless steel headband wires with four point suspension to help distribute cushion pressure evenly

• Soft, liquid filled ear cushions

• Ideal for high noise environments

Helmet attachments

Peltor™ Low Profile H6 Series

• Low profile and lightweight

• Stainless steel headband wires with four point suspension helps distribute cushion pressure evenly

• Pivoting ear cups

• Foam sealing rings

Class 4

Class 5 Mfr

Peltor™ X5A Series

• Electrically insulated (dielectric) wire headband

• Twin headband design reduces heat build up and comfort for long use

• Ear cushion foam provides acoustic seal and protection

• Suitable for mining, agriculture, construction, transport, oil, gas, utilities and electrical trades and electrical utilities

Peltor™ H505B

Welding Earmuff

• Designed to fit under welding helmets

• Protects against hazardous noise levels but still allows you to hear warning sounds

• Low profile and lightweight

• Suitable for welding and metal fabrication environments

Peltor™ Hygiene Pads

• Keeps cushions hygienically clean

• Suitable for the food industry

• Ideal for multiple wearers

Viking® Series

PeltorPeltor™ X4A Series

• Low profile and lightweight

• Electrically insulated (dielectric) wire headband

• Twin headband design reduces heat build up and comfort for long use

• Ear cushion foam provides acoustic seal and protection

• Suitable for mining, agriculture,

Peltor™ Airstream

• Low profile

• For use with 3M™ Airstream helmets

oil, gas, utilities and

• Sealing rings filled with combination of fluid and foam for optimum seal and comfort even for long periods of use

• Three position (over the head, behind the neck or under the chin) headband allows worker to select position to best suit their working application

• Allows use of other Personal Protective Equipment (PPE), including hard hats, respirators and visors

• Dielectric construction – does not conduct electricity

SAFETY TIP

EARMUFF ATTENUATION

The attenuation of an earmuff depends upon a tight seal between the ear cushion and the head. Gaps provide an easy path for sound to penetrate the ear cup, thus reducing the amount of attenuation provided by the earmuff. Several factors contribute to the size of those gaps and must be considered when selecting an earmuff:

• Band pressure of the earmuff, head shape and head size

• Compliance of the ear cushion material (stiffer material creates more gaps)

• Thickness of any protective eyewear worn

SAFETY – PPE

Leightning® Series

• Robust design withstands demanding use, especially in tough environments

• Telescoping height adjustment

• Helmet attached models include hard hat adaptors

Mach™ 1 Over-Head

• Spacious cups and broad air cushions for improved wearer comfort

• Dielectric design for risk free work in high voltage areas

uvex K series earmuff

• Lightweight design

• Easy length adjustment for perfect fit

• Extra soft memory foam cushions for comfort

• Dielectric version K200

• Suitable for industrial plants with high level noise, manufacturing, fabrication and aviation industries

SAFETY TIP

Thunder® Series

• Offers a solution to workers who need to wear hearing protection with hard hats

• Earcups lock in place and can rotate back to park

• Hard hat adaptors included

EARPLUGS OR EARMUFFS?

Not all ears are the same.

Ear shapes vary from person to person. It is important to choose a hearing protection solution that:

• Suits your working environment

• Meets the protection needs of the wearer

• Encourages compliance and 100% wear time

Earplugs are best for people who work all day in noise and who have to wear other safety equipment such as hard hats, masks or goggles.

Earmuffs are easier to put on and take off, so they are more convenient for people who are intermittently exposed to noise.

It is a matter of personal preference and both will provide protection provided that they are worn correctly.

Headband L1

Headband

Helmet Attach L1H

Folding High Visibility L2FHV

Neckband L2N

Helmet Attach T1H

Helmet Attach T3H

uvex dBex 2000 Earmuff

• Dielectric

• Soft cushions with large surface area to minimise pressure

• Suitable for construction, electrical trade, education institutions and DIY activities

Protector® EMLU60 Headband Earmuffs

• Sliding adjustment for secure and comfortable fit

• Earmuff arm attaches at central pivot point distributing even clamping pressure

• Ideal for high noise environments and general light industrial applications

EARMUFFS – ELECTRONIC & COMMUNICATION

WS Alert XPI

• Multi-Point Bluetooth® Wireless connectivity and flexibility for mobile phone or media players

• Noise cancelling microphone for clear speech and voice command

• Level dependent allowing listening to ambient sounds

• Built in FM Radio with voice guided menu

• Suitable for landscaping, earthmoving equipment, construction, maintenance and equipment repair operations

Peltor™ WS Protac XP

• DSP (Digital Noise Reduction)

• Supports Bluetooth A2DP profile for streaming high quality stereo sound

• Advanced VOX (Voice Operated Transmit)

• Ambient listening function to hear surrounding noises and converse with colleagues

TEAM CONNECTIVITY, INCREASED PRODUCTIVITY

In work environments where constant, high-volume noise is hazardous to hearing, 3M™ Peltor™ electronic level-dependent hearing protectors provide the ideal solution.

The 3M™ Peltor™ range has a series of communications headsets designed to not only minimise the impact sound has on the ear drum, but also to allow employees to communicate with fellow workers easily in loud, demanding environments. With features such as hands free, wireless, Bluetooth - speaking to colleagues in challenging environments is effortless, improving efficiency, productivity and safety.

Class

Class 5 Mfr

SAFETY – PPE

Peltor™

Tactical 6 (Soundtrap) Headset

• Built in active sound function allows hearing of ambient sounds, warning signals, machine sounds and conversations

• Sudden impulse noises at harmful levels are immediately attenuated

• Suitable for environments where person to person communication is required whilst wearing hearing protection – forklift operations, rail yards, hunting and shooting, and law enforcement

Peltor™ Listen Only Headset

• Listen only headset for two way radios, phones and audio players

• Designed for working in constant noisy environments

• Stereo version with sound limited to 82dB(A)

• Headset used to plug into machinery audio jacks

Peltor™ Tactical XP Intrinsically

Safe Headset

• Level dependent function that allows hearing of ambient sound: conversation, machine sounds and warning signals

• Audio input jack for external radio

• Suitable for underground coal mining and oil and gas environments

SAFETY TIP NOISE EXPOSURE

Decibel Exposure Time Guidelines

Recommended permissible exposure time for continuous time weighted average noise, according to NIOSH (American Standards, 2002).

For every 3dBs over 85dB, the permissible exposure time before possible damage can occur is halved.

Continuous dB Permissible Exposure Time

8 hours

4 hours

2 hours

1 hour

30 minutes

15 minutes

7½ minutes

3¾ minutes

Approx.

Peltor™ High Attenuation Headset

• Connects to two way radio via Push To Talk (PTT)

• Noise cancelling microphone for superior speech clarity

• Suitable for use with majority of common communications devices: two way radio; UHF, VHF or CB

• Ideal for environments where there is a requirement to wear hearing protection and communicate via radio – construction sites, rail yards, shipyards, road surfacing and timber industry

Peltor™ Lite-Com™ Plus Headset

• Built in active sound function lets you hear ambient sounds, warning signals, machine sounds and conversation, sudden impulse noise at harmful levels are immediately attenuated

• Separate PTT (push to talk) button for the auxiliary input, where a mobile phone, radio, or other audio source can be connected

• Allows users to be better connected with their immediate environment, hearing ambient sounds such as conversation and warning signals while still maintaining clear two way communication over long distances

• Ideal for people who work in teams or groups, where communication is essential

Peltor™ Lite-Com Pro II

• Fully programmable two way headset

• 3km range, licence free communication

• Operates in the UHF band: 450 – 520MHz with 25KHz channel spacing

• Separate Push To Talk (PTT) for AUX input

• Ideal for people who work in teams or groups, where communication is essential

3M LiteTalk Group Communicator

• Operates directly with 3M Peltor LiteCom™ Plus UHF Wireless Headset

• Interfaces seamlessly via a standard 3M™ Peltor™ connector of Flex interface cable to a wide range of 3M Peltor communication headsets

• Operates in license free ISM frequency (433MHz – Industrial, scientific and medical)

• 3km range (line of sight)

Peltor™ Protac III

• Digital level dependent ambient noise attenuating headset

• Dual shell designed to protect the electronic circuitry inside the cup

• 3.5mm jack – listen-only stereo input (limited to 82dB)

• Stainless steel wire headband offers comfortable and consistent pressure

• Suitable for construction, general industry, rails and transportation

Class 5

Headband

Class 5

Headband

SAFETY – PPE

Impact™ Sport Earmuff

• Ambient sounds are amplified safely to 82dB with automatic noise blocking for hazardous impulse and continuous noise

• Easy height adjustment with padded headband

• Equipped with external input and connection cord for external audio sources

• Compact folding design

• Suitable for environments where impact noise exists, including heavy fabrication, ship building, manufacturing, shooting range, military and where close proximity communications is required

Hi-Vis SYNC™ Radio AM/FM Earmuff

• Digital LCD display stores up to 10 pre-set stations

• AM/FM radio

• AUX input can connect to MP3 players and other portable audio devices

• Suitable for use during night and day in lowlight and inclement conditions

Sync™ Wireless Bluetooth Earmuff

• Easy push button connectivity to any Bluetooth device

• Robust boom microphone with windsock for voice clarity in high noise environments

• No battery replacement required; includes USB cord and wall charger

• Suitable for environments where impact noise exists, including heavy fabrication, ship building, manufacturing, military and where close proximity communications is required

BLUETOOTH® TECHNOLOGY – WIRELESS, WORK, STREAM AND TALK

• User-friendly device lets you answer calls while performing day-to-day tasks via Bluetooth® – without the hassle of cables

• Sleek, ergonomic design makes operation simple, with volume control buttons and flashing coloured lights to indicate different settings

• The earmuff connects wirelessly to mobile phones, and features a robust boom microphone that lets you answer calls with the confidence you’ll be understood

• You can easily stream information from your mobile device ‒ enhancing your enjoyment while improving situational awareness

Lithium Ion battery featuring 16+ hours of battery life while streaming

Volume control buttons and flashing coloured lights visually indicate different settings

No battery replacement required; includes USB cord and wall charger High passive attenuation SLC80 31dB

Robust boom microphone with windsock for voice clarity in high-noise environments

Class

PERFORMANCE YOU CAN TRUST

• Gloves

• Eyewear

• Hearing protection

• Respirators

• Site safety

• Traffic management

• Spill sorbents

IMPORTANCE OF HAND PROTECTION

The hand is an engineering marvel containing a clever network of nerves, tendons, ligaments, muscles, blood vessels, skin, nails and 27 bones. Working in unison they allow us to help perform routine tasks to highly complicated precision movements.

WRIST AND HAND

DEEPER PALMAR UP DISSECTION AT RIGHT HAND

Superficial palmar branch of radical artery and recurrent ranch of median nerve to thenar muscles

Proper palmar digital nerves of thumb

Fascia over adductor pollicis muscle

Thenar space (deep to flexor tendons and 1st lumbrical muscle)

1st dorsal interosseous muscle

Probe in dorsal extension of thenar space deep to adductor pollicis muscle

Septum separating thenar from midpalmar space

Common palmar digital artery

Proper palmar digital arteries and nerves

Annular and cruciform parts of fibrous sheath over (synovial) flexor tendon sheaths

Ulnar artery and nerve

Hypothenar muscles Common palmar digital branches of median nerve

Common flexor sheath (ulnar bursa)

5th finger (synovial) tendinous sheath

Midpalmar space (deep to flexor tendons and lumbrical muscles)

Insertion of flexor digitorum superficialis tendon

Insertion of flexor digitorum produndus tendon

Because of their tremendous versatility, hands are exposed and susceptible to many types of injuries during day-to-day activities. These include exposure to risks such as sharp objects, heat, chemicals that may result in injuries from lacerations and cuts ranging from minor to major if tendons or nerves are severed, fractures, broken bones from being crushed or falling and amputations, resulting in a loss of part or all of the hand.

It is important to note that a high portion of hand-related injuries occurs in the workplace. Without adequate protection, both minor and major injuries can have a serious impact on both the professional and social level. Attention to the various hazards in the workplace and the provision of the appropriate gloves for the various applications, minimize the risks.

The selection of the right gloves ensures effective protection and unambiguous performance of the work. Protecting your hands at work also ensures the continued execution of things that are important outside of the work environment.

HAND INJURIES ARE PREVENTABLE

THE KEY TO HAND INJURY PREVENTION IS YOU!

GET A GRIP ON HAND PROTECTION

SAFETY INSIGHT

ELEMENTS OF A HAND PROTECTION PROGRAM

HAZARDS RECOGNITION & ANALYSIS

EMPLOYEE ENGAGEMENT

SAFE TOOLS & EQUIPMENT

GLOVE USER

PRODUCT SELECTION & INDIVIDUAL FITTING

SITE SURVEY

SAFETY TRAINING

REGULAR EVALUATION & REVIEW

Blackwoods can help you conduct a hand protection site review to identify hand hazards in your workplace.

GLOVE EVALUATION TRIALS

A practical trial is always recommended because mechanical test ratings do not replicate the real world.

Contact your local Blackwoods sales team for assistance in developing a hand protection program in your workplace.

HAZARDS RECOGNITION & ANALYSIS

A job-hazard analysis is a technique that focuses on job tasks as a way to identify hazards. It focuses on the relationship between the employee, the task, the tools, and the work environment.

Once a risk has been identified, this analysis should be used to evaluate the risk based on severity, frequency, and probability of occurrence. This component is critical to reducing hand injuries as it identifies uncontrolled hazards and allows for the implementation of procedures to eliminate or mitigate the potential of risk exposures.

SAFETY TRAINING

At a minimum, employers should provide hand care awareness and protection training to all employees on an ongoing basis.

Training should address the following:

• Tasks for which hand protection use is required and potential hazards of tasks

• What hand protection is required

• How to wear the hand protection

• Limitations of the hand protection

• Signs and symptoms of exposure

• Proper use and care of hand protection, maintenance, inspections, service life, and disposal exposures.

PRODUCT SELECTION & INDIVIDUAL FITTING

Offering employees glove clips ensures that gloves are always readily available and within close reach when work tasks require hand protection.

In addition, a hand protection wear policy for employees, contractors, and visitors when the work task or situation requires glove use will help reduce hand related injuries on your work site.

EMPLOYEE ENGAGEMENT

Identifying trends or patterns related to incidents of hand injuries in your facilities. The analysis of these trends helps to gain a better understanding of the types of hand injuries employees are experiencing and what behaviours or work tasks may be leading to those injuries.

BLACKWOODS

KNOWS HAND PROTECTION

FIT FOR PURPOSE PRODUCT SELECTION

GLOVE SELECTION - CONSIDERATIONS IN CHOOSING THE CORRECT GLOVE

PROTECTION, PERFORMANCE & FUNCTIONALITY

• GRIP – The correct grip should provide the user with more control

• Puncture – Industrial protection from large objects that pose a puncture threat (timber, metal fabrication) or fine sharp objects such as medical needles

• CUT – When assessing the cut-resistant properties of a glove, you must consider several keys areas, including: material of construction, basis weight, fabric construction and coatings

• IMPACT – Back of Hand impact protection is designed to scatter impact force energy away from the bone, helping to prevent and or reduce hand/finger injuries

FIT & COMFORT

• FLEXIBILITY – Glove should be unrestricting for the user letting them make a complete fist

• DEXTERITY – Should allow the user to perform each action without the need to take off the glove

• LINER COMFORT – Should be soft and smooth without irritating the user’s skin

• MOISTURE MANAGEMENT – Based on task and environment conditions the glove should be able to be worn for long periods

Flat Nitrile High abrasion and snag resistance, smooth finish, tacky

Foam Nitrile Gloves with a sponge coating (chemically foamed) are softer and more flexible than flat nitrile and perform well in dry and oily applications.

Polyurethane (PU) Is a lightweight, flexible, durable grip coating that features good abrasion and puncture resistance. This coating is incredibly popular and sufficient for a wide range of applications.

Natural Latex Is flexible, more resistant to abrasion compared to PU and nitrile, but has minimal tackiness. Natural rubber latex features an excellent dry grip.

Sandy Nitrile Is highly abrasion resistance. It’s also more elastic and form fitting compared to other nitrile coatings. It’s excellent in oily situations and very good in wet environments.

Neoprene The coating ensures a coating with a higher resistance to heat whilst providing a secure grip in wet, oily and dry environments to reduce slippage and tension in the hands.

DURABILITY

• ABRASION – Ensures the glove provides the same level of protection at the end of the shift as it did at the beginning

Less soft, so faster hand fatigue, “soapy” in wet environment.

Due to porous structure, moisture penetration is high, not as durable as Flat and Sponge Nitrile.

Porous, highly permeable.

Automotive, transportation, assembly, packing, machinery, construction.

Material handling, automotive, construction, manufacturing, engineering, assembly, inspection.

Detailed assembly, light fabrication, small parts handling, inspection.

Heat sensitive, latex proteins can cause allergic reactions, less abrasion resistant than PU or Nitrile, breaks down in presence of oil.

Due to porous structure, moisture penetration is high, not as durable as Flat and Sponge Nitrile.

Less resistant to snags/abrasions than Nitrile or Latex, slight solvent odour.

Material handling, packing, construction, manufacturing, glass handling, agriculture.

Material handling, automotive, construction, manufacturing, engineering, assembly, inspection.

Mining, construction, automotive, forestry.

TECHNICAL TIP

HAND PROTECTION STANDARDS

International (ISO) and Australian/New Zealand standards help classify specific attributes of products and communicate the quality and protection levels of personal protective equipment. An understanding of numeric codes and symbols used for specifying protection levels ensures workers are issued with the correct level of protection for their task. Safety standards for gloves provide the user with a valuable guide in helping to identify the right level of performance for the task at hand. Matching the right product to the appropriate risk can also help with cost controls.

For gloves to achieve any of these ratings, they are required to be appropriately tested under the supervision of a third party registered certifying body. These tests determine their rated level of protection providing a useful guide for anyone responsible for ensuring the safety of workers.

GUIDE TO STANDARDS FOR PROTECTIVE GLOVES AND SLEEVES

EN 388 – Mechanical protection This standard applies to all kinds of protective gloves in respect of physical and mechanical aggressions caused by abrasion, blade cut, puncture and tearing.

388:2016 abcdefg

EN ISO Cut Resistance (Newtons)

f EN Impact Protection PASS or FAIL

NOTE: Level X can also be applied for a through e above, which means “not tested” or “not applicable” .

EN 388:2016: main changes from the previous EN 388:2003 standard

1. ABRASION – New abrasion paper used in testing.

2. CUT– New procedure for Coupe Test which also determines if dulling occurs. If dulling occurs, the new EN ISO 13977 test method becomes the reference whilst the Coupe Test would only be indicative.

3. IMPACT – Test method for areas claiming impact protection. “P” for pass whilst no code will apply in case of fail.

UNDERSTANDING THE NEW EN 388:2016 CUT LEVEL BY APPLICATION — AS EASY AS A-B-C

EN ISO Cut level resistance is measured in Newtons and ranges from 2 (Level A) through to 30 (Level F).

The more weight required to cut through the glove material, the higher the rating. The following information provides guidance on the appropriate level of protection for some common industrial tasks.*

• Screwing and unscrewing

• Raw materials reception

A 2 Minimal to low

B 5

C 10

• Grinding

• Shipping and receiving

• Wire assembly and fastening

• Metal part and component assembly

• Plastics injection and moulding

• Light metal presses

• Body shop work (excluding welding) • Glass or metal sheet handling • Stamping

• Metal parts and components assembly

Automated welding and feeding

Metal finish inspection

• Warehouse work

• Stamping operations

• Inspection and packing of small components

• General handling

• Whitegoods assembly

• Glass repair

• Building materials handling

Hardware assembly

Raw materials handling

Glass manufacturing

Machine tool operation

Sheet metals and metalwork E 22 High

• Waste handing (recycling and sorting glass, cans or other metal pieces)

• Handling heavy loads and metal edges

• Handling glass sheets or shard-edged objects • Metal sheet handling

• Heavy final assembly

• Machining and grinding

F 30 Extreme

• Maintenance work

• Materials handling

• Cutting of dry, painted or galvanised metal pieces

Metal press work • Primary assembly

Stamping

Disclaimer: This guide has been prepared to allow viewers to understand the concepts of cut resistance. No glove provides complete protection against cuts, abrasions or chemicals. Users of hand protection must ensure that they undertake their own testing within their own work environment to ensure that the products are suitable for the intended task. No reliance may be made on this guide as evidence of the efficacy or fit for purpose of these gloves

TECHNICAL TIP

EN ISO 374 – Chemical protection and/or protection against micro-organisms

This standard specifies the capability of gloves to protect the user against chemicals and/or micro-organisms.

Micro-organisms

Old: AQL (Acceptable Quality Level) for liquid penetration.

A high index number is poor and a low index number is good. Gloves need to pass water and air leak test, and this test method remains unchanged as per the new EN ISO 374 standard.

New: In addition to testing for protection from bacteria and fungi, each glove can be tested for its protection against viruses with a new viral penetration test.

Chemical protection

EN 374:2003

Type C

374-1:2016 Type B

374-1:2016 Type A

Old: breakthrough time > 30 minutes for at least three chemicals from this list (XYZ represent the code letters for three of these chemicals for which the glove obtained > 30 minutes breakthrough time)

New:

Type C At least Level 1 performance (more than 10 minutes) against at least one chemical on the list – cuffs are also tested.*

Type B At least Level 2 performance (more than 30 minutes) against at least three chemicals on the list – cuffs are also tested.*

Type A At least Level 2 performance (more than 30 minutes) against at least six chemicals on the list – cuffs are also tested.*

The beaker icon (low chemical resistance/waterproof) has been eliminated.

A. Methanol

B. Acetone

C. Acetonitrile

D. Dichloromethane

E. Carbon disulphide

F. Toluene

Additional chemicals

M. Nitric acid 65%

N. Acetic acid 99%

O. Ammonium hydroxide 25%

For further information on choosing the correct glove for your chemical needs:

• Ansell Online product Chemical recommendation at https://www.ansellguardianpartner.com

• uvex Glove Expert System at https://ces.uvex.de

407 – Heat

G. Diethylamine

H. Tetrahydrofurane

I. Ethyl acetate

J. n-Heptane

K. Sodium hydroxide 40%

L. Sulphuric acid 96%

P. Hydrogen peroxide 30%

S. Hydrofluoric acid 40%

T. Formaldehyde 37%

* Only if the glove is > = 40cm

SEAMLESS KNITTED COATED GLOVES

SAFETY – PPE

CUT

CHEMICAL GLOVES

THE GLOVES YOU NEED TO GET THE JOB DONE

Now the iconic MaxiFlex® gets even better thanks to the inclusion of the new AD-APT® Technology from ATG®.

This Technology is activated by the movement of your hands and increased temperature within the glove, releasing a natural cooling agent that keeps your hand dry and make them cooler.

MEDIUM CUT RESISTANCE

MaxiFlex® Cut™ is a cut resistant MaxiFlex® that remains super thin, flexible, dexterous and comfortable. It‘s also DMF free and free from SVHCs (REACH).

It's certified according to EN 388:2016

Performance Levels 4331B

31% COOLER HANDS VERSUS STANDARD GLOVES*

Today 97% of glove wearers claim that comfort is their number one priority when choosing gloves with the key challenge being hot hands.

Inspired to find a solution, led us to develop the AD-APT® cooling technology that we’ve integrated into the iconic MaxiFlex ®

AD-APT® works in partnership with our AIRtech® technology platform to keep your hands cool, dry and productive even in demanding conditions.

AD-APT® is available as MaxiFlex® Ultimate™ 42-874, 42-876, 42-878 and 42-874FY

HANDCARE™

MaxiCut® Ultra™ is our latest cut offering that integrates the core values of MaxiCut® into a thinner, more comfortable and durable package.

It's certified according to EN 388:2016

Performance Levels 4542C

All ATG® gloves are dermatologically accredited by the Skin Health Alliance and are post washed prior to packaging enabling us to guarantee them “fresh out of the pack” as certified by Oeko-Tex®. All ingredients used in the production of our gloves are according to REACH and none of our product contains SVHC. ATG® gloves. Guaranteed skin friendly.

Standard Glove MaxiFlex ®

GLOVES – GENERAL PURPOSE – PRECISION WORK

Ultratech PU Nylon

• Seamless 13 Gauge 100% nylon liner

• Polyurethane (PU) palm coating for extra sensitivity and sense of touch

• Excellent abrasion resistance

• Suitable for assembly, automotive, engineering, manufacturing and shipping industries

• Sizes: S – XL

EN Mechanical Hazard

• Complies with EN 388:2016

uvex unipur – UP6631

• Lightweight, flexible with outstanding tactile sensation

• High abrasion resistance due to the polyamide liner and Polyurethane (PU) coating

• Suitable for precision work, construction, fine assembly work, lightweight duty maintenance, light and dry components assembly and horticultural industries

• Sizes: 6 – 11

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

HyFlex® 11-818

• Ultra light 18 Gauge liner providing maximum dexterity

• Features the Ansell FORTIX™ coating

• Long lasting – abrasion level 4

• Silicone free

• Suitable for the assembly of dry parts, fine mounting of small nuts and bolts, handling of small parts and ultra fine mechanical applications

• Sizes: 6 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

uvex phynomic lite – 60040

• High level of breathability with the porous coating, which reduces sweating

• Free of harmful substances in accordance with OEKO-TEX® Standard 100

• Excellent skin tolerance – confirmed by the proDERM Institute

• Perfect fit with 3D Ergo technology

• Exceptionally light and flexible providing wearer comfort in long period of use

• Suitable for mining, construction, manufacturing, engineering, maintenance and precision work

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

HyFlex® 11-618

• Lightest lined and coated glove ever made by Ansell

• Outstanding comfort and sensitivity

• Good grip in dry or slightly oily conditions

• Suitable for automotive, building and construction, electronics, mining, metal fabrication and oil and gas industries

• Sizes: 6 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

MaxiFlex® Elite™ – 34-274

• Designed and developed to be the lightest fully breathable coated glove

• MaxiFlex® Elite™ delivers a user experience that sets game changing new standards

• Weighing 36% less and is 30% thinner than traditional foam nitrile gloves

• DURAtech® coating provides outstanding durability

• AIRtech® technology delivers 360º breathability

• Weighing only 14g with a palm thickness of just 0.75mm

• Dermatologically accredited by the Skin Health Alliance ensuring a fresh out of the pack experience

• Ideal for assembly, logistics, maintenance, small components and instrument handling and wiring

• Suitable for all general purpose tasks especially where dexterity and breathability are important

• Sizes: 6 – 11

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

SAFETY – PPE

GLOVES – GENERAL PURPOSE – DRY WORK

MaxiFlex® Ultimate™ with AD-APT™ – 42-874

• AD-APT® cooling technology integrated into the iconic MaxiFlex® keeps your hand cool, dry and productive

• AIRtech® micro-foam nitrile palm coating technology delivers 360° breathability

• DURAtech® coating provides outstanding durability and is 25% thinner than most foam nitrile gloves on the market

• ERGOtech® technology provides a comfortable fit reducing hand fatigue while maximising dexterity and flexibility

• Dermatologically accredited by the Skin Health Alliance ensuring a fresh out of the pack experience

• Also available in a Hi Vis Yellow (42-874FY)

• Suitable for all general purpose tasks especially where durability, breathability and dexterity are important

• Sizes: 5 – 12

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

Ultratech Non-Breathable –W9673NBP

• Seamless 15 Gauge nylon liner

• Ultratech non-breathable non-porous black nitrile coat to prevent oil and water penetration and to provide excellent grip and wear resistance

• Excellent abrasion resistance

• Suitable for assembly, automotive, general maintenance, materials handling and metal fabrication industries

• Ideal for grip in oily environments

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2016

HyFlex® 11-840

• Coating lasts 40 times longer, on average, than best in class competitor glove in EN 388 Martindale Abrasion testing

• Form fitting design that moulds to the hand increasing tactility

• Features Ansell FORTIX™ coating – a thin, strong and breathable nitrile patent pending formulation

• Exceeds EN Level 4 Abrasion performance

• Silicone free

• Suitable for handling and assembly of dry and light oily parts and handling nuts and bolts

• Suitable for general mechanic, warehousing, maintenance and utility, general purpose and packaging areas

• Sizes: 6 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

HyFlex® 11-800

• Palm coated foam nitrile with a nylon liner

• Excellent dexterity

• Knitted liner has no uncomfortable seams

• Foam nitrile coating offers excellent grip

• Suitable for automotive, delicate and precise operations, and metal component assembly

• Sizes: 6 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

uvex unilite – UL6607

• High abrasion resistance with outstanding dexterity

• Foamed Nitrile Butadiene Rubber (NBR) coating on palm and fingertips

• Excellent grip in wet, oily and greasy conditions

• Suitable for mining, construction, engineering, manufacturing and maintenance industries

• Sizes: 6 – 11

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005

Ultratech Latex Nylon – W9680RFL

• Seamless 15 Gauge nylon liner

• Textured latex palm coat for excellent grip even with wet or slippery items

• Suitable for assembly, glass handling, manufacturing and shipping industries

• Ideal for grip in wet environments

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2016

GLOVES – GENERAL PURPOSE – OILY WORK

Nitrile Ultratech Foam – W9673BP

• Seamless 15 gauge nylon liner

• Breathable nitrile foam palm coat for excellent grip and wear resistance in both dry and oily conditions

• Our most popular nitrile coated glove

• Suitable for assembly, automotive, general maintenance, materials handling, metal fabrication and warehousing industries

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2016

MaxiDry® ¾ Coat Knit Wrist – 56-425

• Synthetic coating combined with an industry leading super light seamless knit liner provides excellent comfort, sensitivity, fit and dexterity

• ERGOtech® ensures the glove does not slip off the hand: an exclusive elasticated support in the wrist area provides a locking effect for a close and snug fit

• GRIPtech® technology micro-cup non-slip grip finish on the palm allows for a controlled and superior grip in oily and wet applications

• Non-slip grip is only applied where it is actually needed – in the palm area – to ensure flexibility isn’t compromised

• Splash resistance to liquids is delivered through the LIQUItech® technology platform

• Dermatologically accredited by the Skin Health Alliance ensuring a fresh out of the pack experience

• Suitable for mining, construction, white goods assembly, maintenance, transportation, warehousing and logistics

• Sizes: S – XXL

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005

HyFlex® 11-926

• Ultimate performance for oily environments

• Lightweight style combines ¾ dip geometry, oil repellence and oil grip in a single, flexible glove

• Provides enhanced fit, flexibility, tactility and oil grip to the previous generation design

• ¾ Dip geometry with a durable coating provides added protection against oil exposure and knuckle abrasion and secure grip in oily environments

• Robust mechanical protection

• Ansell GRIP™ technology and RIPEL™ liquid repellence technology

• Ideal for handling metal components coated in oil or lubricant

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 –AS/NZS 2161.3:2005

uvex unilite – UL7700

• High abrasion resistance with outstanding dexterity

• Nitrile Butadiene Rubber (NBR) Polyurethane (PU) coating on the palm and fingertips

• Excellent grip in wet and oily conditions

• Suitable for mining, construction, engineering, manufacturing and maintenance industries

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

uvex phynomic XG – 60070

• Outstanding abrasion resistance thanks to the aqua-polymer Xtra Grip coating

• Free of harmful substances in accordance with OEKO-TEX® Standard 100

• Excellent skin tolerance – confirmed by the proDERM Institute

• Perfect fit with 3D Ergo technology

• Excellent dexterity and grip in wet and dry condition

• Suitable for precision work, manufacturing, engineering, general maintenance, mining and construction industries

• Sizes: 6 – 11

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

Ultratech Pro Palm Coat –W9616PSN

• Seamless 15 Gauge, lycra/nylon liner for a close fit and all day comfort

• Breathable nitrile foam palm coat for excellent grip and wear resistance in both dry and oily conditions

• Excellent abrasion resistance

• Suitable for assembly, automotive, general maintenance, materials handling, metal fabrication and warehousing Sizes: S – XL

EN Mechanical Hazard

• Complies with EN 388:2016

SAFETY – PPE

GLOVES – GENERAL PURPOSE – HI VISIBILITY

MaxiFlex® Ultimate™ Hi Vis Yellow with AD-APT® – 42-874FY

• Intelligent way to keep gloved hands dry, cool and productive

• AD-APT® cooling technology embedded into glove

• AIRtech® delivers unrivalled 360º breathability

• High abrasion resistance/unbeatable durability

• Excellent flexibility and dexterity

• Dermatologically accredited by the Skin Health Alliance ensuring a fresh out of the pack experience

• Suitable for all general purpose tasks especially where durability, breathability and dexterity are important

• Sizes: 6 – 11

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

ActivArmr® 97-012

• Contrast vivid orange colour increases visibility

• Exclusive nitrile foam compound

• 15 Gauge nylon liner design

• Superior wet and dry grip

• Suitable for general tasks requiring visibility in low light, material handling, maintenance/ repair, flagging/hand signalling, light carpentry, assembly/inspection, heavy equipment operation and digging/trench work

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

Ultratech Pro Hi Vis – W9617P

• Seamless 18 Gauge lycra/nylon liner for a close fit and all day comfort

• Breathable nitrile foam palm coat for excellent grip and wear resistance

• High visibility colour for excellent day time visual exposure

• Excellent abrasion resistance

• Excellent alternative to traditional leather riggers gloves

• Suitable for assembly, automotive, general maintenance, materials handling, metal fabrication and warehousing

• Sizes: XS – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005

Cheetah Hi Vis

• Reinforced synthetic palm and finger tips for extended life

• Nylon back combined with premium synthetic leather

• Perforated finger fourchettes for breathability and comfort

• Hook and loop fastener wrist closure for the perfect fit

• High visibility colour for excellent day time visual exposure

• Most popular mechanics style glove

• Suitable for automotive, shipping and receiving, roadworks, emergency response and utilities (power, gas and water)

• Sizes: XS – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005

Hi Vis Utility – H15-99

• Hi Vis utility glove is constructed with a two piece synthetic leather palm to eliminate material bunching, so you have better control when using hand tools

• Touch screen capable eliminating the need remove gloves to operate phones

• Breathable TrekDry® forms to the back of your hands to help keep them cool and comfortable on hot workdays

• Thermoplastic Rubber (TPR) top closure provides a secure fit

• Reflective ink provides eye catching luminance

• Reinforced thumb and index finger provide added durability

• Suitable for but not limited to multipurpose, landscaping, civil, construction, maintenance, repair and equipment operation

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005 (3121)

uvex unilite 7701 HV

• High flexibility

• High visibility

• Outstanding dexterity

• Excellent grip in wet and oily conditions

• High abrasion resistance

• Good mechanical strength

• Coating provides resistance to oils

• Suitable for engineering, maintenance and mining industries

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

GLOVES – GENERAL PURPOSE – MECHANICS STYLE

Mech Cheetah

• Tough reinforced synthetic palm and finger tips for extended life

• Vented finger fourchettes for breathability and comfort

• Breathable black nylon back

• Hook and loop fastener wrist closure for a perfect fit

• Suitable for automotive, mining, shipping and receiving, general maintenance and emergency response

• Sizes: 2 – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

Fastfit – MFF-05

• Form fitting TrekDry® material helps keep hands cool and comfortable

• Elastic cuff provides a secure fit with easy on/off flexibility

• Reinforced thumb and index finger provide added durability

• Anatomically designed two piece palm eliminates material bunching

• Durable synthetic palm

• Suitable for multi-purpose, maintenance and repair, equipment operation and DIY home improvement

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005 (2121)

Ringers Turbo Plus – 138T/S

• Slip on elastic cuff allows for easy access

• Touch screen capability

• Soft and durable premium mesh fabric on top of hand for optimal comfort and flexibility

• Premium synthetic leather used for split palm construction for long lasting durability

• Wrap around index finger construction protecting vulnerable wear and tear zone

• Lightweight fabric between fingers for excellent dexterity

• Reflective logo on top of hand for increased visibility

• Suitable for automotive, supervisor work and light material handling assembly

• Sizes: S – 3XL

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

Synthetic Bronco – W904

• Tough reinforced synthetic palm and finger tips for extended life

• Black spandex back for comfort and flexibility elastic cuff for a snug fit

• High visibility colour option for excellent day time visual exposure

• Excellent alternative to traditional leather riggers gloves

• Suitable for search and rescue, construction, carpentry and shipping industries

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005

Original – MG-05

• Durable synthetic leather palm provides optimal dexterity

• Breathable TrekDry® back of hand helps keep hands cool and comfortable

• Flexible Thermoplastic Rubber (TPR) closure provides a secure fit to the wrist

• Industrial grade hook and loop fastener

• Double stitched index finger and thumb construction improves durability

• Seamless synthetic leather palm provides optimal dexterity

• Suitable for but not limited to multipurpose, maintenance & repair, equipment operation and DIY home improvement

• Sizes: 3XS – 3XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005 (3121)

uvex synexo M100 – 60021

• Seamless mechanics glove with reinforced thumb joints

• Neoprene palm pad for extra comfort and protection against shocks and impacts

• Ideal for greasy and oily conditions due to sand grip finish

• Hook and loop fastener wrist for easy on and off

• Suitable for mining, construction, manufacturing, maintenance and stone masonry industries

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

7000 SERIES EARMUFFS

• Durable construction ideal for use in extreme work environments

• Design ensures pressure is evenly dispersed promoting day long use

SEE HEARING PROTECTION PAGE 68

Ringers SuperHero C5 R-169

• Exceptional fit and comfort

• Flexible Thermoplastic Rubber (TPR) impact protection on top with maximum coverage for knuckles and fingers

• Excellent grip in wet conditions

• Premium synthetic leather used in palm construction for long lasting durability

• Seamless index finger design protecting vulnerable wear and tear zone

• Suitable for oil and gas, high cut potential, upstream, material handling, steel handling and processing, heavy mechanic and automotive, pipeline, assembly, road and construction work

• Blade Cut Resistance: Performance Level 5E

• Sizes: S – 3XL

EN Mechanical Hazard

• Complies with EN 388:2016

Original CR5A5 – SMG-C919

• Multi-Viz Original® CR5A5 protects working hands with EN 388 Level 5 Cut resistance

• Palm and fingers are protected by an internal layer of high tenacity Armortex® to prevent abrasions and lacerations when working with sharp tools and sharp materials

• Breathable TrekDry® material with reflective ink keeps working hands cool, comfortable and easy to see even in low light environments

• Touch screen capable palm and fingers

• Suitable for but not limited to rigging, scaffolding, manual handling, heavy mechanical, mining, construction, forestry, civil works, sharp tool and material handling

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2016 (4543E)

• Complies with ANSI: A5

Chrome Series® 4018

• SuperFabric® brand material for the highest cut resistance available on the market

• Innovative industrial puncture protection on enhanced areas from wires, metal, wood and glass

• Synthetic leather palm enhances grip in dry and light oil applications, while providing dexterity to utilise tools and equipment

• Machine washable

• Suitable for general applications, glass, metal, wood, cable and wire handling

• Ideal for use during belt splicing and when using sharp blades

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003

Mecdex Rough Handler Rigger 360 C5

• 360° Cut Level 5 Protection – entire glove is Cut Level 5

• Reinforced area between thumb and forefinger

• Kevlar® stitched for greater durability

• High quality, durable goatskin leather

• Excellent fit and comfort

• Maximum dexterity, durability and protection

• Suitable for oil and gas, high cut potential, upstream, material handling, steel handling and processing, heavy mechanic and automotive, pipeline, assembly, road and construction work

• Blade Cut Resistance: Performance Level 5D

• Sizes: S – 3XL

EN Mechanical Hazard

• Complies with EN 388:2016

Cut Resistant Fastfit CR5 – SFF-C91

• Synthetic leather palm with an internal layer of Armortex® delivers CE Level 5 and ANSI A5 Cut resistance

• Breathable TrekDry® material keeps working hands cool and comfortable

• Touch screen capable palm and fingers

• High visibility wrist cuff and finger fourchettes improve visual awareness

• Stretch elastic wrist closure provides easy on and off flexibility

• Fully machine washable

• Suitable for but not limited to rigging, scaffolding, manual handling, heavy mechanical, mining, construction, forestry, civil works, sharp tool handling and sharp material handling

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN388:2016 (4543E)

• Complies with ANSI:A5

Mechanix M-Pact – MPT-58

• Patented Impact Guard™ and moulded Thermoplastic Rubber (TPR) absorb blunt force impact to the hand and fingers

• D3O® palm padding absorbs and dissipates high impact energy through the palm

• Form fitting TrekDry® material helps keep hands cool and comfortable

• Thermoplastic Rubber (TPR) closure with hook and loop provides a secure fit

• Armortex® palm reinforcement panel

• Dual layer internal fingertip reinforces the index and thumb for added durability

• Embossed and textured index finger and thumb provides grip

• Durable synthetic leather palm

• Suitable for but not limited to equipment operation, manual handling, mechanical, mining, construction, forestry, civil works and transport

• Sizes: S – 3XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005 (3121)

Rig Lizard® 2021

• One piece, direct inject high performance IR-X® smash guards for seamless back of hand impact protection engineered to prevent catch or pinch points

• TP-X® palm reinforcement strengthens areas of the palm that most frequently wear out

• Cuff and major seams double stitched for extra durability

• High visibility colouring for easier signalling and compliance

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005

Open Cuff Leather M-Pact – LMPC-75

• DuraHide™ leather palm provides extreme abrasion resistance

• Form fitting TrekDry® material keeps your hands cool and comfortable while you work

Leather M-Pact Framer – LFR-75

• Flexible Thermoplastic Rubber (TPR) closure provides a secure fit to the wrist

• Form fitting TrekDry® material keeps your hands cool and comfortable while you work

• Patented Impact Guard™ protects the first knuckle with EVA foam padding

• Fingerless design frees your thumb, index and middle finger to provide optimal control

• Thermoplastic Rubber (TPR) knuckle guard and full length fingertip protection reduce the risk of impact and pinching injuries

• DuraHide™ leather palm provides extreme abrasion resistance

• D30® palm padding absorbs impact and vibration through the hand

• Suitable for but not limited to carpentry, construction, mechanical and electrical use

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005 (4111)

Hi Vis M-Pact-XD – SMP-91

• XD™ synthetic leather provides extreme durability

• Thermoplastic Rubber (TPR) knuckle guards and full length fingertip protection reduce the risk of impact and pinching injuries

• Hi Vis TrekDry® helps keep working hands cool and comfortable

• D3O® palm padding absorbs and dissipates high impact energy through the palm

• Hi Vis reflective print enhances visibility when illuminated

• Fully machine washable

• Suitable for but not limited to rigging, scaffolding, manual handling, heavy mechanical, mining, construction, forestry and civil works

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005 (4111)

Ringers SuperHero – R-161

• Thermoplastic Rubber (TPR) impact protection on top with maximum coverage for knuckles and fingers

• Secured cuff closure with hook and loop Thermoplastic Rubber (TPR) pull tab closure

• Thermoplastic Rubber (TPR) knuckle guards and full length fingertip protection reduce the risk of impact and pinching injuries

• D3O® palm padding absorbs and dissipates high impact energy and vibration through the palm

• Comfortable stretch elastic cuff provides easy on/off flexibility

• DuraHide™ leather thumb reinforcement for long lasting durability

• Fully machine washable

• Suitable for but not limited to rigging, scaffolding, manual handling, heavy mechanical, mining, construction, forestry and civil works

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005 (4111)

• Split fit padded palm for comfort

• High visibility colours for increased safety

• Premium synthetic leather palm for long lasting durability

• Seamless index finger design protecting vulnerable wear and tear zone

• Suitable for automotive, hand, power and impact tool use, light material handling and assembly

• Sizes: S – 3XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

RINGERS GLOVES RATED BEST-IN-CLASS

IMPACT + DEXTERITY

KNIT CUT 5 IMPACT R-65

+ TPR impact protection on top of hand and full length of fingers

+ Touch screen compatible

SUPERHERO R-161

+ TPR impact protection

+ Separated finger TPR design for greater dexterity

+ Secure, adjustable cuff with hook and loop TPR pull tab

+ Premium synthetic padded leather palm

INDUSTRIES

+ Construction, automotive, rail and logistics

+ High visibility finger TPR and palm for increased safety

+ CE rated for EN388 level 5 cut resistance and level 3 puncture resistance

+ Superior grip on wet and dry surfaces

+ Excellent dexterity for all conditions

INDUSTRIES

+ Construction, oil/ gas, stevedoring, logistics

Ringers Knit Cut 5 Impact R-65 and all-new SuperHero R-161 gloves are designed for maximum dexterity and durability. Engineered with F3 TechnologyTM for optimised fit, form, and function, these gloves feature TPR impact protection, synthetic leather and padded palms, and high visibility colours for safety. Comfortable enough for all-day wear, they’re ideal for all-purpose, general duty needs (R-161) or tougher, high cut and puncture risk applications (R-65). Take advantage of superior dexterity and durability SuperHero R-161 and Knit Nitrile Cut 5 Impact R-65.

065T

GLOVES – PRECISION/DEXTERITY

– IMPACT PROTECTION

Thin Lizzie™ Rig Lizard® 2090X

• 13 Gauge High Performance Polyethylene (HPPE), glass blend shell protects hands from cut hazards while allowing maximum dexterity

• IR-X® Impact Exoskeleton™ with high flex design protects against forceful blows to the back of hand

• Abrasion resistant sandy nitrile palm dip provides exceptional grip in saturated situations

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005

Ringers Impact Knit 5 R-65

• Cut Level 5, Puncture Level 3

• Touchscreen compatible

• Superior grip on wet and dry surfaces

• Excellent dexterity for all working conditions

• High visibility finger Thermoplastic Rubber (TPR) and palm for increased safety

• Soft nitrile foam dip with sandy finish

• Suitable for material handling, rig support, manufacturing, recycling, machine shops, automotive and assembly

• Blade Cut Resistance: Performance Level 5C

• Sizes: S – 3XL

EN Mechanical Hazard

• Complies with EN 388:2016

M-Pact® X-Plor™ High Dex

– MPDX-91

• Extended Neoprene cuffs protect your wrists and keep debris out

• Thermoplastic Rubber finger guards and pinch -point fingertip impact protection

• Dexterous synthetic leather with enhanced gripping power

• D3O® palm padding absorbs and dissipates high-impact energy while you work

• Red carrier loops provide convenient storage

• Machine washable

• Thermoplastic Rubber knuckle meets EN 13594 impact standard

• Sizes: S – 2XL

uvex impact 1 – 60598

• High Performance Polyethylene (HPPE)/glass blend material providing high level of cut protection (C)

• Nitrile Butaden Rubber (NBR)/Polyurethane (PU) blend coating with sand finish for excellent abrasion and grip resistance in oily conditions

• Moulded knuckle and finger guard provides rugged impact protection to the back of the hand

• Hook and loop fastener wrist for easy on and off

• Suitable for mining, construction, heavy maintenance industries

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005 (R 2016)

Knit M-Pact CR5A5 – KHD-CR

• 13 Gauge knitted shell delivers 360° CE Level 5 and ANSI A5 Cut resistance

• Metacarpal, knuckle, finger and pinch point impact protection

• Double dipped sandy nitrile palm for improved grip and outstanding abrasion resistance

• D30® palm padding dissipates high impact energy and vibration while you work

• Extended slip on cuff

• Fully machine washable

• Suitable for but not limited to oil and gas, industrial environments and heavy equipment operation

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2016 (4544)

• Complies with ANSI:A5

TECHNICAL TIP

SEAMLESS KNIT GLOVES –UNDERSTANDING THE TERMINOLOGY

– GLOVE GAUGE

You may sometimes hear seamless gloves referred to as a “13-gauge” or “18-gauge” glove. The term gauge simply refers to the size and type of needles used in a seamless knitting machine to produce a glove. Traditionally speaking, and depending on the yarn, the higher the gauge a glove is, the thinner, more dexterous, and comfortable the glove can be. The lower the gauge of a glove, the bulkier and less dexterous it can be.

SAFETY – PPE

GLOVES – SPECIAL PURPOSE – IMPACT PROTECTION

Ringers Roughneck Kevlar® Cut 5 R-299

• Thermoplastic Rubber (TPR) impact protection on top of hand and full length of fingers

• High visibility colours for increased safety

• CE rated for EN 388 Level 5 Cut and Level 4 Puncture

• Kevloc grip system on palm and fingers enhances grip

• Suitable for high cut and impact, oil & gas upstream, rig floor, material handling, steel processing/distribution/ handling and refinery

• Blade Cut Resistance: Performance Level 5E

• Sizes: S – 3XL

EN Mechanical Hazard

• Complies with EN 388:2016

ActivArmr® 97-120

• High visibility

• Back of hand impact protection

• Oil impermeable barrier

• Enhanced oil grip

Ringers Impact C5 R-75

• Cut Level 5 and Chemical resistant and Impact resistant

• Thermoplastic Rubber (TPR) impact protection on top of hand for maximum coverage

• Suitable for connection of pipes, disassembly/assembly of motors/tools, handling pipes, bits and other materials, reworking tools, running cables, washing and cleaning tools, longwall operation, and heavy machinery/ equipment maintenance

• EN Mechanical Hazard: Complies with EN 388:2003 – AS/NZS 2161.3:2005

• Abrasion Resistance: Performance Level 4

• Blade Cut Resistance: Performance Level 2

• Tear Resistance: Performance Level 4

• Puncture Resistance: Performance Level 2

• EN Heat and Flame Hazard: Complies with EN 407:2004

– AS/NZS 2161.4:1999

• Sizes: 9 – 12

M-Pact® Xplor™ D4 – MPCR-91

• Extended Neoprene cuffs protect your wrists and keep debris out

• Thermoplastic Rubber finger guards and pinchpoint fingertip impact protection

• CE Level D and ANSI A4 cut resistant synthetic leather palm with enhanced gripping power

• Thermoplastic Rubber knuckle guard meets EN 13594 standard for impact resistance

• Sizes: S – 2XL

• Proprietary Polyvinyl Chloride (PVC) coating for waterproof and chemical resistance

• High visibility colours for increased safety

• Suitable for chemical, power washing, manufacturing, large assembly, moving drums, fluid transfer, truck drivers and haulers, upstream, midstream and downstream and oil and gas

• Sizes: S/M – 2XL/3XL

EN Mechanical Hazard

• Complies with EN 388:2016

EN Chemical Hazard & Micro-organisms Hazard

• Complies with EN 374-1:2003

– AS/NZS 2161.10.1:2005 (AJKL)

• Complies with EN 374-2:2003 and EN 374-3:2003

GGT5® MudGrip® 4021X

• SuperFabric® brand material for the highest cut resistance available on the market – exceeds ISEA level 5

• Puncture protection from wickers, burrs and cable wire

• Enhanced impact protection with increased coverage, softer and more flexible Thermoplastic Rubber (TPR) increases absorption of impact

• High visibility colouring for easier signalling and compliance

• Machine washable

• Suitable for light to medium oil based mud situations, oil and gas operations and extrication

• Sizes: S – 3XL

EN Mechanical Hazard

• Complies with EN 388:2003

M-Pact® Xplor™ Max Grip – MPGR-91

• Extended Neoprene cuffs protect your wrists and keep debris out

• Thermoplastic Rubber finger guards and pinch-point fingertip impact protection

• Armortex grip provides durable gripping power in slick conditions

• D3O® palm padding absorbs and dissipates high-impact energy while you work

• Red carrier loops provide convenient storage

• Machine washable

• Thermoplastic Rubber knuckle guard meets EN 13594 standard for impact resistance

• Sizes: S – 2XL

GLOVES – CUT RESISTANT – IMPACT PROTECTION

Rig Lizard® 2025

• Durable TP-X+® palm provides industry leading abrasion resistance and highly specialized grip for dealing with saturated or oily situations

• Cut Level 5 SuperFabric® brand material (interior layer) provides industry leading cut and abrasion resistance

• Improved IR-X® Impact Exoskeleton™ delivers protection with better dexterity

• Additional IR-X® guard between thumb and index finger secures common catch points

• Reinforced seams add durability and extend glove life

• SlipFit® cuff with pull tab for easy on and off

• Name tag for easy identification

• Hi Vis colour scheme provides increased hand awareness

• Machine washable

• Sizes: XS – 3XL

Mecdex Rough Handler Impact Rigger 360 C5 – PR-616

• 360° Cut Level 5 Protection – entire glove is Cut Level 5

• D30® palm padding impact protection

• Flexible Thermoplastic Rubber (TPR) finger and knuckle impact protection

• Reinforced area between thumb and forefinger

• Kevlar® stitched for greater durability

• High quality, durable goatskin leather

• Excellent fit and comfort

• Suitable for oil and gas, high cut potential, upstream, material handling, steel handling and processing, heavy mechanic and automotive, pipeline, assembly, road and construction work

• Blade Cut Resistance: Performance Level 5D

• Sizes: S – 3XL

EN Mechanical Hazard

• Complies with EN 388:2016

Chrome Series® 4026

• Synthetic leather palm with Polyvinyl Chloride (PVC) dot pattern enhances grip in dry and light oil applications while providing dexterity

• SuperFabric® brand material palm provides Level 5 Cut resistance

• Back of hand impact protection

• High visibility colouring and reflective tape on back of hand

• Sizes: S – 3XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

GLOVES – GENERAL PURPOSE – IMPACT PROTECTION

Cut Resistant Fastfit CR5A5 – SMP-C919

• Multi-Viz M-Pact® CR5A5 protects working hands with EN 388 Level 5 Cut resistance and knuckle, finger and pinch point impact protection

• Palm and fingers are protected by an internal layer of high tenacity Armortex® to prevent abrasions and lacerations when working with sharp tools and sharp materials

• Breathable TrekDry® material with reflective ink keeps working hands cool, comfortable and easy to see even in low light environments

• Touch screen capable palm and fingers

• D30® palm padding dissipates high impact energy and vibration while you work

• Suitable for but not limited to rigging, scaffolding, manual handling, heavy mechanical, mining, construction, forestry, civil works, sharp tool and material handling

• Sizes: 8 – 12

EN Mechanical Hazard

• Complies with EN 388:2016 (4543E)

• Complies with ANSI:A5

ActivArmr® 97-125

• Double dip nitrile coating provides excellent grip and control when working with oils and other liquids

• High Performance Polyethylene (HPPE) seamless knit glove keeps hands cool and comfortable

• Double dip nitrile coating defends against oil exposure and abrasion injuries

• Designed for dynamic environments which have impact and cut hazards present

• Suitable for but not limited to drilling/extraction, heavy equipment servicing, infrastructure, production services/processing, shop work and fixture setup, transport and logistics

• Sizes: 8 – 12

EN Mechanical Hazard

• Complies with EN 388:2016

ForceField Rigger Defence – FRD

• Full leather construction providing 360° Level 5 Cut protection

• Back of hand, finger and knuckle protection

• High dexterity and tactility

• Slip fit cuff with loop and hook fastener providing secure fit while limiting the ingress of dirt and debris

• Reinforced saddle for high durability between thumb and index finger

• 100% Machine washable

• Suitable for grinding, spot welding, manual handling, rigging, metal work, automotive, forestry, general maintenance, warehousing, heavy equipment operation, plumbing, search and rescue, transportation, construction and earthworks

• Sizes: S – 3XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005 (3542)

• Complies with EN 407:2004 (12333X)

• Complies with EN 511:2006 (X1X)

SAFETY – PPE

GLOVES – CUT RESISTANT – LOW RISK – LEVEL 3

MaxiFlex® Cut™ – 34-8743

• MaxiFlex® Cut™ sets a new benchmark for Class 3 Cut resistant hand protection

• CUTtech® high performance yarns and fibres that offer cut protection, flexibility, dexterity and comfort

• Reinforcement between the thumb and forefinger, improves cut resistance and glove life

• Cut Level 3 Protection with only 0.75mm thickness

• AIRtech® technology offers 360º breathability

• Silicone free

• Dermatologically accredited by the Skin Health Alliance ensuring a fresh out of the pack experience

• Suitable for all general purpose tasks where cut resistance, breathability and dexterity are important

• Suitable for assembly, maintenance, mining, construction and manufacturing

• Sizes: 6 – 12

EN Mechanical Hazard

• Complies with EN 388:2016

HyFlex® 11-724

• Best in class cut resistance technology

• Palm dip long life coating

• Lightweight comfortable liner

• Suitable for metal parts assembly, handling light metal sheets, general maintenance and freight loading and unloading

• Sizes: 6 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

Ultratech Cut 3 – W9676PUHW

• Seamless 13 Gauge High Performance Polyethylene (HPPE) liner for good cut resistance

• Polyurethane (PU) palm coating for excellent grip

• Tear resistant construction for extended glove life

• Suitable for metal fabrication, automotive assembly, glass handling and mining industries

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2016

uvex unidur – UD6641

• Good cut protection (Level B) with high quality High Performance Polyethylene (HPPE) fibres

• Polyurethane (PU) palm and fingertips coating

• High abrasion resistance with outstanding dexterity

• Suitable for mining, construction, steel, glass, manufacturing and general manual handling industries

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005 (R 2016)

Shogun Cut 3 PU – WSHO3PU

• Seamless 13 Gauge High Performance Polyethylene (HPPE) for excellent cut resistance

• Polyurethane (PU) palm coating for excellent grip

• Level 3 Cut resistant glove designed to protect the wearer from minor cut hazards whilst providing comfort, dexterity and flexibility

• Excellent abrasion resistance

• Tear resistant construction for extended glove life

• Reusable and washable

• Suitable for metal fabrication, automotive assembly, glass handling and mining and or any application requiring a low level of cut protection

• Sizes: S – XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

HyFlex® 11-531

• Best in class cut resistance technology

• Ultra lightweight for unparalleled comfort

• Fully dipped long life coating with performance grip

• Advanced abrasion protection for long life

• Suitable for assembly of small sharp parts, handling small sharp metal parts, light duty stamping and maintenance

• Sizes: 6 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

Shogun Cut 5 Grey – WSHO5PU

• Seamless 13 Gauge High Performance Polyethylene (HPPE) for excellent cut resistance

MaxiCut® Ultra™ – 44-3745

• Designed and developed using CUTtech™ delivers a class leading breathable Level 5 Cut resistant glove

• MaxiCut® combines high level cut protection with comfort, dexterity and breathability

• CUTtech® high performance yarns and fibres that offer cut protection, flexibility, dexterity and comfort

• AIRtech® technology delivers 360° breathability

• Cut Level 5 Protection with only 1mm thickness

• Dermatologically accredited by the Skin Health Alliance ensuring a fresh out of the pack experience

• Suitable for maintenance, logistics and warehousing, assembly, glass handling and sharp edged metal sheets

• Sizes: 6 – 12

EN Mechanical Hazard

• Complies with EN 388:2016

uvex unidur – UD6659

• High cut protection (Level C) with High Performance Polyethylene (HPPE)/fibreglass combination

• Nitrile Butadiene Rubber (NBR) foam coated palm, fingertips for grip and breathability

• High abrasion resistance with outstanding dexterity

• Suitable for mining, construction, manufacturing, maintenance, agriculture and horticulture industries

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005 (R 2016)

HyFlex® 11-738

• Unique combination of INTERCEPT™ nylon, lycra, and fibreglass

• Ultra strong, provides extreme resistance against cuts and burrs

• Reinforced thumb crotch for increased protection and extended use life

• OEKO-TEX® Standard 100 approved

• Silicone free

• Suitable for but not limited to the use in automotive, glass industry, machinery and equipment, metal fabrication and transport equipment

• Sizes: 6 – 9

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

• Polyurethane (PU) palm coating for excellent grip

• Level 5 Cut resistant glove designed to protect the wearer from cut hazards whilst providing comfort, dexterity and flexibility

• Excellent abrasion resistance

• Tear resistant construction for extended glove life

• Reusable and washable

• Suitable for metal fabrication, automotive assembly, glass handling and mining and or any application requiring a high level of cut protection

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005

Shogun Cut 5 Nitrile – WSHO5SN

• Seamless 13 Gauge High Performance Polyethylene (HPPE) for excellent cut resistance

• Sandy finish nitrile palm coating for wear resistance and grip in both dry and light oil applications

• Level 5 Cut resistant glove specially designed to protect the wearer from cut hazards whilst providing comfort, dexterity and flexibility

• Excellent abrasion resistance

• Tear resistant construction for extended glove life

• Reusable and washable

• Suitable for metal fabrication, automotive assembly, glass handling and mining and or any application requiring a high level of cut protection

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005

uvex C500 foam – HX60494

• High cut protection (Level C) with Bamboo Twin Flex® Technology, which wicks moisture away – cooling effect in summer

• High abrasion resistance thanks to the innovative Soft-Grip-Coating

• Free of harmful substances in accordance with OEKO-TEX® Standard 100

• Silicon free based on the fingerprint test

• Suitable for mining, construction, steel, glass, manufacturing, heavy maintenance, general manual handling and oil and gas industries

• Complies with OEKO-TEX® Standard 100 Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 –AS/NZS 2161.3:2005 (R 2016)

SAFETY – PPE

GLOVES – LEATHER

Leather Warrior – 750

• 100% Leather

• Premium cow grain leather riggers glove

• Keystone thumb design for comfort and dexterity

• Double stitched in high wear areas for durability

• Gathered elastic strip at the back of the wrist to restrict dirt entering

• Suitable for but not limited to automotive, forestry, general maintenance, warehousing, heavy equipment operation, plumbing, search and rescue, transportation, construction and earthworks

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005

Leather Warrior – 250

• 100% Leather

• Cow grain palm with split leather back of hand

• Winged thumb design

• Gathered elastic strip at the back of the wrist to restrict dirt entering

• Suitable for general handling, building construction and earthworks

• Sizes: S – 2XL

All Leather – GLRD0025

• Durable

• Lined palm

• Cow grain split leather front and back

• Suitable for mining, steel fabrication, automotive, construction, engineering, shipping, smelters and foundries

• Size: L

Leather Warrior – 500

• Cow grain leather

• Winged thumb design

• Gathered elastic strip at the back of the wrist to restrict dirt entering

• Suitable for general handling, building construction and earthworks

• Sizes: S – 2XL Extended Cuff

• Provides some wrist protection

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

Leather Jackaroo – GLCH0015

• Chrome split leather for durability

• Cotton drill back with leather knuckle strip for added protection

• Winged thumb design

• Gathered elastic strip at the back of the wrist to restrict dirt entering

• Canvas cuff for wrist protection

• Suitable for mining, steel fabrication, automotive, construction, engineering, shipping, smelters and foundries

• Size: L

Candy Stripe

• Durable

• Canvas candy stripe back and cuff

• Leather knuckle bar

• Suitable for mining, steel fabrication, automotive, construction, engineering, shipping, smelters and foundries

• Size: L

Extended Cuff

Knit Wrist

Patch Palm

Single Palm

Cotton Interlock Knit Wrist

– GKIN0010

• Interlock cotton liner

• Knit wrist to prevent dirt from entering

• Reversible fit for extended use

• Suitable for food processing, light engineering, light assembly and cold storage applications

• Suitable for general handling and warehousing

• Sizes: S and L

Cotton Interlock – GKIN0010

• Interlock cotton liner

• Reversible fit for extended use

• Ideal for use as a liner glove

• Suitable for general handling and warehousing, food processing, light engineering, light assembly and cold storage applications

• Sizes: S and L

TECHNICAL TIP

Poly Cotton Knit – GKPC0010

• Seamless 7 Gauge poly/cotton knit liner

• Reversible fit for extended use

• Suitable for general handling and warehousing

• Sizes: S and L

Poly Cotton Polka Dot Knit –GKPC0015

• Seamless 7 Gauge poly/cotton knit liner

• Polyvinyl Chloride (PVC) polka dot palm for improved grip

• Suitable for food processing, light engineering, light assembly and cold storage applications

• Sizes: S and L

EN388 STANDARD CHANGES – WHAT YOU NEED TO KNOW

The EN388:2003 standard has changed. An update to the way gloves are tested are included in these changes. Previously rated numerically, gloves are now rated alphabetically as shown below

OLD

NEW

A. ABRASION RESISTANCE (1 – 4)

Based on the number of cycles required to make a hole in the glove fabric. The higher the number, the better the glove resistance.

B. CUT RESISTANCE (1 - 5)

Based o the number of cycles required to cut through the glove fabric at a constant speed.

A. ABRASION RESISTANCE (1 – 4)

Based on the number of cycles required to make a hole in the glove fabric. The higher the number, the better the glove resistance.

B. CUT COUP TEST (1 – 5)

Based on the number of cycles required to cut through the glove fabric at a constant speed. Not applicable if glove material (ie: glass ﬁbres, steel ﬁbres or Dyneema) has a blunting effect on the blades.

C. TEAR RESISTANCE (1 – 4)

Based on the amount of force required to tear the glove fabric.

C. TEAR RESISTANCE (1 – 4)

Based on the amount of force required to tear the glove fabric.

D. PUNCTURE RESISTANCE ( 1- 4)

Based on the amount of force required to pierce the sample with a standard sized point.

D. PUNCTURE RESISTANCE (1 – 4)

Based on the amount of force required to pierce the sample with a standard sized point.

E. TDM CUT RESISTANCE (A – F)

The force required to make a cut through at 20mm travel distance with a razor-sharp blade.

F. IMPACT RESISTANCE (P, F, X)

The transmitted force of a pre-deﬁned weight of 2.5kg with an impact energy of 5 J onto the glove.

SAFETY – PPE

GLOVES – SPECIALITY – WELDING

Weldtec Blue Reinforced

• AB grade blue split shoulder cow leather

• Reinforced palm, thumb and knuckle guard

• DuPont Kevlar® Stitching

• 260g White cotton knit lining in palm and fingers

• 10oz Denim liner in cuff

• 41cm For lower arm protection

• Suitable for stick and MIG welding, as well as torch cutting and grinding

• Complies with EN 12477:2001 – Protective Gloves for Welders: Performance Level Type A

• Size: L

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

EN Heat and Flame Hazard

• Complies with EN 407:2004 – AS/NZS 2161.4:1999

Weldtec Black & Gold

• AB grade blue split shoulder cow leather

• Flame retardant stitching

• 260g White cotton knit lining in palm and fingers

• 10oz Denim liner in cuff

• 41cm For lower arm protection

• Suitable for stick and MIG welding, as well as torch cutting and grinding

• Complies with EN 12477:2001 –Protective Gloves for Welders

• Size: L

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005

EN Heat and Flame Hazard

• Complies with EN 407:2004 –AS/NZS 2161.4:1999

Weldtec Red

• AB grade red split shoulder cow leather

• DuPont Kevlar® stitching

• 260g White cotton knit lining in palm and fingers

• 10oz Denim liner in cuff

• 41cm For lower arm protection

• Suitable for stick and MIG welding, as well as torch cutting and grinding

• Complies with EN 12477:2001 – Protective Gloves for Welders: Performance Level Type A

• Size: L

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

EN Heat and Flame Hazard

• Complies with EN 407:2004 – AS/NZS 2161.4:1999

Tig Welding Glove – 25Tig/Goat

• Heavy duty welding gauntlet

• Goat leather palm an split leather cuff

• Full 40cm in length for extra wrist protection

• Complies with EN388:2016 EN407

• Sizes: M – XL

ActivArmr® 43-217

• ActivArmr® 43-217 glove is a light duty welding glove that provides EN 12477 Type B protection for precise welding and thermal tasks

• Provides protection from heat, flames, sparks and weld spatter

• Three dimensional thumb design greatly increases fine dexterity for precise welding control

• Premium full grain goatskin and welted seams with para-aramid thread ensure durability in use

• Long split cowhide cuff extends protection to the forearms

• Suitable for TIG welding, as well as grinding, brazing, metal fabrication and maintenance

• Complies with EN 12477 –Protective Gloves for Welders: Performance Level Type B

• Sizes: 9 – 11

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

EN Heat and Flame Hazard

• Complies with EN 407:2004

– AS/NZS 2161.4:1999

ActivArmr® 43-216

• Provides EN 12477 Type A protection for demanding welding and thermal applications

• Improved three dimensional thumb design greatly increases fine dexterity for precise welding control

• Premium split cowhide leather and welted seams with Kevlar® thread ensure durability in use

• Comfortable cotton lining provides thermal insulation and extended comfort

• Long cuff extends protection over the forearm

• Suitable for stick and MIG welding, as well as torch cutting and grinding

• Complies with EN 12477 –Protective Gloves for Welders: Performance Level Type A

• Sizes: M – XL

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

EN Heat and Flame Hazard

• Complies with EN 407:2004

– AS/NZS 2161.4:1999

GLOVES – SPECIALITY – THERMAL PROTECTION – HOT

Grip Sharp Leather – W9686

• Seamless 7 Gauge Kevlar® liner for high level abrasion and cut resistance

• Tough split leather palm provides excellent protection against abrasion, cut, tear and puncture hazards

• Kevlar® and leather palm combination provides a reasonable level of resistance to heat

• Excellent abrasion resistance

• Tear resistant construction for extended glove life

• High resistance to puncture

• Suitable for automotive, construction and metal fabrication industries

• Size: L

EN Mechanical Hazard

• Complies with EN 388:2003 –AS/NZS 2161.3:2005

Crusader Flex™ 42-474

• Sweat absorbent non-woven felt inner

• Designed for intermittent handling of hot objects up to 180°C

• Enhances grip on dry and oily surfaces

• Resistance to cuts, snags and abrasion

• Sizes: 9 – 10

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

• Complies with EN 407:2004

– AS/NZS 2161.4:1999

Vantage® 70-765

• Design helps guard against sharp snags and punctures, and premium leather on palm offers superior grip even in oily environments

• Reinforced thumb and seams relocated to backs of fingers, reducing exposure to cuts and offering greater protection and longer life

• Suitable for automotive, metal fabrication, oil and gas industries

• Sizes: 8 – 11

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

EN Heat and Flame Hazard

• Complies with EN 407:2004

– AS/NZS 2161.4:1999

Mitt – Aramid Woven Palm, Felt Back – KM803105

• Heat resistance to 430°C

• Woven palm offers excellent cut, slash and abrasion resistance

• Wool lined for increased thermal protection

• Sewn in Aramid thread

CRIMPED CAPS

• 12gsm, Polypropylene (PP)

• 21”/53.34cm Diameter

• Latex free with twin elastic

• Lightweight, breathable and non-woven

• Pleated for easy dispensing and donning

• Single use disposable

• Outer: carton of 1,000 caps

• Inner: 10 packs of 100 units per carton

SEE APPAREL & FOOTWEAR SECTION PAGE 86

Gauntlet – Full Woven Aramid – KG803008 & KG803009

• Heat resistance to 430°C

• Full woven Aramid offers excellent cut, slash and abrasion resistance

• Wool lined for increased thermal protection

• Sewn in Aramid thread

• Suitable for industries that require heat protection such as glass manufacturing, steel manufacturing, aluminium and copper smelting and gold refining

• Length: Double palm 460mm

• Suitable for industries that require heat protection such as glass manufacturing, steel manufacturing, aluminium and copper smelting and gold refining

• Length: 400mm and 460mm

GLOVES – SPECIALITY – THERMAL PROTECTION – COLD

Winter Goat Palm Mechanics

– W901T

• Soft but durable premium grain leather palm and fingers

• Black spandex back for comfort and flexibility

• Thinsulate™ liner

• Vented finger sidewalls allow airflow for comfort

• Hook and loop fastener wrist closure for a perfect fit

• Sizes: M and XL

EN Mechanical Hazard

• Complies with EN 388:2016

MaxiDry® Zero™ – 56-451

• MaxiDry® Zero™ integrates the core values of the MaxiDry® brand to bring comfort and liquid repellence together and combine them with our THERMtech® technology platform to offer thermal resistance inside with a coating designed for temperature up to -30°C

• THERMtech® uses cold resistant yarns and fibres to ensure high thermal insulation properties without sacrificing flexibility, dexterity and comfort

• GRIPtech® ensuring superior non-slip grip in oily and wet conditions

• LIQUItech® splash resistance delivered through a waterproof coating

• Suitable for cold room storage, general maintenance and work in a cold environment and handling frozen food produce

• FDA Compliant to CFR Title 21 Part 177

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.10.1:2005

• Complies with EN 511:1994

– AS/NZS 2161.5:1998

Polar Grip™ 23-700

• Rugged winter glove that outwears leather, sheds water, and resists salts and chemicals

• Polyurethane (PU) foam insulation for extra warmth and comfort

• Rough finish Polyvinyl Chloride (PVC) coating provides gripping power on wet and slippery surfaces

• Suitable for building and construction, chemical refining, cold environments, logistics, road works, transport and warehousing

• Size: 9

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

EN Cold Hazard

• Complies with EN 511:2006

– AS/NZS 2161.5:2005

Ultratech Freeze – WN9690

• Seamless 7 Gauge acrylic terry inner liner for thermal insulation

• 15 Gauge nylon outer shell

• ¾ Polyvinyl Chloride (PVC) foam coating

• Coating remains soft and flexible to -50˚C

• Sizes: S – XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

• Complies with EN 511:2006

– AS/NZS 2161.5:2005

PowerFlex® 80-400

• Thermal terry loop acrylic liner with a naturally insulating latex coating provides excellent insulation against the cold

• Provides comfort and protection for the wearer in temperatures down to as low as -30°C, for short or intermittent contact

• Bright yellow liner offers extra high visibility

• Suitable for building and construction, cold environments, logistics, transportation and warehousing industries

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

EN Cold Hazard

• Complies with EN 511:2006 – AS/NZS 2161.5:2005

EN Heat and Flame Hazard

• Complies with EN 407:2004 – AS/NZS 2161.4:1999

Cold Weather Glove – MCW-WR

• Heavy weight fleece and laminated wind resistant lining protect against the elements

• C40 3M™ Thinsulate™ insulation traps warm air to help regulate your body temperature

• Rubberised, water resistant palm

• AX™ Double connect touch screen compatible thumb and index finger

• Reinforced fingertip panels improve durability

• Hook and loop fastener closure provides a secure fit

• Suitable for multipurpose cold weather applications, maintenance and repair, equipment operation and DIY home improvement

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005 (3111)

• Complies with EN 511:2006 (11X)

GLOVES – SPECIALITY – ANTI-VIBRATION

VibraGuard® 7-111/7-112

• Interlock cotton liner with nitrile coating offers good resistance to cuts, punctures and abrasion and repels grease and oil

• Soft padding in the thumb, index finger and palm area enhances the shock impact protection

• No need to remove the glove to screw or handle very small parts like nails

• Sizes: 8 – 10

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

Ringers SuperHero – R-161

• Thermoplastic Rubber (TPR) impact protection on top with maximum coverage for knuckles and fingers

• Secured cuff closure with hook and loop Thermoplastic Rubber (TPR) pull tab closure

• Split fit padded palm for comfort

• High visibility colours for increased safety

• Premium synthetic leather palm for long lasting durability

• Seamless index finger design protecting vulnerable wear and tear zone

• Suitable for automotive, hand, power and impact tool use, light material handling and assembly

• Sizes: S – 3XL

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

Ringers SuperHero – R-162

• Thermoplastic Rubber (TPR) impact protection on top with maximum coverage for knuckles and fingers

• Secured cuff closure with hook and loop fastener Thermoplastic Rubber (TPR) pull tab closure

• Proprietary silicone grip technology on palm

• Split fit padded palm for comfort

• High visibility colours for increased safety

• Suitable for automotive, hand, power and impact tool use, light material handling and assembly

• Sizes: S – 2XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

ForceField Vibration Defence – FVD

• Full leather construction providing 360° Level 5 Cut protection

• Back of hand, finger and knuckle protection

• High dexterity and tactility

• Slip fit cuff with hook and loop fastener providing secure fit while limiting the ingress of dirt and debris

• Reinforced saddle for high durability between thumb and index finger

• Ergonomically placed vibrations abatements

• Sizes: S – 3XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005 (3542)

• Complies with EN 407:2004 (14334X)

• Complies with EN 511:2006 (11X)

MecDex VIBE Pro – PR-751

• Rubber padding on palm, thumb and index finger to maximise resistance to vibrations

• Neoprene, hook and loop fastener wrist wraparound to keep debris out of glove and maintain wrist stability

• Reinforced thumb and forefinger area for added durability

• Impact protection on back of hand

• Terry cloth area for wiping sweat or debris on safety eye wear

• Excellent fit and dexterity

• High visibility

• Suitable for automotive, hand, power and impact tool use, light material handling and assembly

• Sizes: M – 3XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

RELATED PRODUCT

KITE

• Lightweight ergonomic design with thermo plastic rubber temple arm and medical grade PVC nose pads for all day comfort and grip

• Deep fit style for excellent ocular area coverage

• Wide temple arms for extended protection area coverage

SAFETY – PPE

GLOVES – SPECIALITY – PUNCTURE RESISTANT

Sharpsmaster HV® 7082

• Highest needle stick resistance available provided by the layering of SuperFabric® brand material

• Flat nitrile three quarter knuckle coating

• Tested using actual 25 Gauge needles (modified ASTM 1342-05 test)

• Highest level of cut resistance in enhanced areas

• Sizes: S – XL

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

Sharpsmaster II® 9014

• Highest needlestick resistance available provided by the layering of SuperFabric® brand material

• Wrinkle rubber palm coating with Actifresh™ anti-microbial treatment

• Tested using actual 25 Gauge needles (modified ASTM 1342-05 test)

• Highest level of cut resistance in enhanced areas

• Sizes: S – XL

EN Mechanical Hazard

• Complies with EN 388:2003

PRODUCT INSIGHT

WHAT IS SUPERFABRIC ?

– AS/NZS 2161.3:2005

SuperFabric® brand materials are new protective fabrics engineered for optimum resistance to abrasions, lacerations, punctures, stains and more, while remaining highly flexible. HexArmor® utilises variations of SuperFabric® technologies that are directly integrated into high performance products, including gloves, arm and body protection.

Cut Resistance

• Exceeds ASTM/ISEA and CE Level 5

• Won’t snag like typical fabrics

• Sharp hazards such as blades, razors, glass and wood are deflected away from the wearer

Puncture Resistance

• Guard plate configurations provide industry leading puncture protection from nails, slivers and wires

• Outperforms conventional materials such as cotton, leather and nylon, which generally perform poorly against puncture hazards

• Spacing between guard plates provides flexibility and maintains performance

Needle Resistance

• Layered guard plates arrest, trap and block needles and other hazards

• Products tested using actual 25 gauge needles to deliver highest levels of relevant protection

• Traditional woven products are easily penetrated by sharps and needles that push fibres aside with little resistance

Abrasion Resistance

• SuperFabric® material provides incredibly high resistance to abrasive surfaces

• Longer durability means better overall cost, without sacrificing performance

• Outlasts leather by 10:1

GLOVES – SPECIALITY – ELECTRICAL

Electrosoft Composite Gloves

– 2092012/2092015

• Natural latex base covered with an outer layer of polychloroprene that combines mechanical resistance and comfort with a high protection level

• Offers anatomical shaping for ease of movement and increased comfort

• Gloves especially recognised for their durability and dexterity

• Not required to be used with an overglove

• Provides an ATPV rating of 60.3cal/cm²

• Patterned finish of fingertips provides good grip, particularly useful for outdoor work

• Length: 360mm

• Ideal when coming into contact with high voltage electricity

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with IEC EN 60903:2003

Electrosoft Overgloves – 2012897/2012898/2012899

• Provides workers with additional protection for their latex electrical gloves

• Made from yellow cowhide grain leather ensuring good flexibility, water repellence and mechanical protection

• When worn with the corresponding electrical glove, the overglove provides mechanical protection from cuts and tears, improving and ensuring complete protection

• Hook and loop fastener adjustment strap on the back provides glove with good support

• Length: 310mm

• Any application when using latex electrical gloves which require overgloves

• Available: 2.5-5KV, 10KV and 30KV

• Sizes: 8 – 11

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

BEARD COVERS

• Twin loop

• Latex free

• Polypropylene

Electrosoft Latex Gloves

– 2091903/2091907

• Latex gloves possess high dielectric characteristics making them perfect for use in many electrical applications, from low voltage (500V) to ultra high voltage (36000V)

• Ergonomic design combined with a lightly powdered interior increases comfort by providing additional softness and allows glove to be put on and taken off easily

• Length: 360mm

• Suitable when coming into contact with high voltage electricity

• Sizes: 9 – 11

EN Mechanical Hazard

• Complies with IEC EN 60903:2003

ActivArmr® 80-813

• Thin 13 Gauge knitted liner, featuring Ansell’s Zonz™ Knit technology which provides excellent dexterity

• Soft foam coating provides excellent grip in wet, oily and dry conditions, reducing slippage and hand tension

• Combines high levels of flame resistance and cut protection into one comfortable, ergonomic design

• Ideal for wet, oily and dry applications

• Sizes: 6 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

• Complies with EN 407:2004 – AS/NZS 2161.4:1999

SAFETY TIP

ELECTRICAL GLOVES

Electrical gloves are given a class based on their voltage levels, ranging from Class 00 to Class 4, as the thickness of the glove increases, the higher the class becomes.

Glove Inspections

It is essential that electrical gloves are kept in perfect condition as any slight puncture in the glove could have fatal consequences. It is important that before each use, a visual inspection is carried out and punctures are checked via inflation test (roll test) of the glove. If a puncture or perforation is found, the glove is unusable. It is strongly recommended that Overgloves are worn with Latex Electrical gloves, to provide increased mechanical resistance. Alternatively, if dexterity is required, Honeywell’s Composite gloves are latex gloves with an outer layer of Polychloroprene, combining mechanical resistance and comfort, eliminating the need to wear Overgloves.

SAFETY – PPE

GLOVES – CHEMICAL RESISTANT – NEOPRENE

Neotop™ 29-500

• Economical alternative to latex exam gloves

• Medium duty chemical protection with outstanding flexibility and ease of handling

• Protects against a wide range of acids, caustics, alcohols and many solvents

• Ideal for use in cold conditions: neoprene maintains its superb elasticity even at low temperatures

• Suitable for chemical handling, cleaning and maintenance, agriculture and oil and fuel refining

• Sizes: 8 – 10

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

• Complies with EN 374-1:2016

– AS/NZS 2161.10.1:2005

Scorpio® 8-354

• 100% Liquid proof

• Soft stretchy knit liner for comfort and sweat absorption

• Excellent wet grip

• Exceptional flexibility

• Suitable for chemical processing and handling, petrochemical, oil refining, pharmaceutical and laboratory applications

• Sizes: 9 – 10

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

EN Chemical Hazard & Micro-organisms Hazard

• Complies with EN 374-1:2016

– AS/NZS 2161.10.1:2005

Scorpio® 9-928

• Neoprene coating protects against a wide range of oils, acids, caustics, alcohols and many solvents

• Good resistance to all mechanical hazards

• Special insulated gauntlet option with quilted cotton liner, for use in both hot and cold temperatures

• Comfortable anatomical glove shape follows contours of the hand at rest, improving dexterity and reducing hand fatigue

• Suitable for chemical handling, pharmaceutical and laboratory applications, metal fabrication, and refining (oil and petrol)

• Size: 10

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

EN Chemical Hazard & Micro-organisms Hazard

• Complies with EN 374:2016

– AS/NZS 2161.10:2005

AlphaTec® Solvex 37-175

• Reusable

• Abrasion resistant

• Reversed lozenge enhances levels of grip

• Suitable for chemical processing and handling, petrochemical, oil refining, pharmaceutical and laboratory environments

• Sizes: 6 – 11

EN Chemical Hazard & Micro-organisms Hazard

• Complies with EN 374-1:2016

– AS/NZS 2161.10.1:2005

AlphaTec® 58-530/58-535

• Incorporates Ansell Grip Technology™, enabling users to handle wet or oily objects with less grip force and more control

• Reliable chemical protection for added user safety

• Patented Ansell Grip Technology™ ensures the coating polymer does not penetrate liner during manufacture; coating is therefore consistent and significantly reduces likelihood of chemical leakage onto skin

• Suitable for chemical handling, automotive, agriculture, emergency services, mining, oil and gas, building and construction

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

EN Chemical Hazard & Micro-organisms Hazard

• Complies with EN 374-1:2016 – AS/NZS 2161.10.1:2005

AlphaTec® Solvex 37-185

• Reusable

• Abrasion resistant

• Reversed lozenge enhances levels of grip

• Unlined gauntlet has no inner cotton flocking, reducing risk of lint contamination

• Suitable for chemical processing and handling, petrochemical, oil refining, pharmaceutical and laboratory environments

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

EN Chemical Hazard & Micro-organisms Hazard

• Complies with EN 374-1:2016

– AS/NZS 2161.10.1:2005

MaxiChem® – 56-635

• MaxiChem® is designed and developed for those working with chemicals requiring longer and higher levels of protection

• Ultra lightweight synthetic coating combined with a seamless knit liner provides excellent comfort, sensitivity, fit and dexterity

• GRIPtech® technology non-slip finish in the palm allows for a controlled and superior grip in oily and wet applications

• LIQUItech® technology delivers excellent chemical resistance

• Excellent resistance to hydrocarbons and caustics

• Dermatologically accredited by the Skin Health Alliance ensuring a fresh out of the pack experience

• Also available in a EN 388 Cut Level 3 (56-633)

• Ideal for chemical manufacturing and handling, refineries, oil and gas, maintenance and cleaning

• Suitable for all general purpose tasks where high levels of chemical resistance, grip and dexterity are important

• Sizes: 7 – 11

EN Mechanical and Chemical Hazards

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

• Complies with EN 374-2:2003 and EN 374-3:2003

AlphaTec® 58-270

• Enhanced dexterity and comfort

• Thin, double wall nitrile shell and 15 Gauge seamless nylon liner offer users excellent tactility and flexibility

• Incorporates Ansell Grip Technology™ providing best grip wherever chemicals, oil and grease are present

• Liquid proof

• Safety cuff shape designed to prevent snagging and avoid itching on bare hands; wearers keep their hands clean and skin protected

• Suitable for mining, automotive, petrochemical, metal fabrication, engineering, construction, chemical handling and processing, ink and paint manufacture

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

EN Chemical Hazard & Micro-organisms Hazard

• Complies with EN 374-1:2016 – AS/NZS 2161.10.1:2005

uvex rubiflex S XG35B & XG27B

• Nitrile Butadiene Rubber (NBR) chemical gloves with grip coating

• Free of harmful substances in accordance with OEKO-TEX® Standard 100

• Outstanding wearer comfort due to the high quality cotton interlock liner

• Exceptional dry and wet grip

• Excellent resistant to many chemicals

• Suitable for working with chemicals in: handling contaminated materials, maintenance (parts wash, hose down, pressure cleaning) and laboratories

XG35B • 35cm

XG27B • 27cm

• Sizes: 8 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005 (R 2016) – (3121X)

EN Chemical Hazard

• Complies with EN 374-1:2016 Type A

– AS/NZS 2161.10.1:2005 (R 2016) – (JKNOPT)

AlphaTec® 58-735

• Hi Vis INTERCEPT™ liner acts as an indicator when chemical safety is being compromised

• Palm dipped for further enhanced flexibility

• Optimised fit that integrates the cut liner into nitrile shell for better dexterity, tactility and consistent cut protection than double donning

• Longer cuff you can fold, so the chemicals do not run up your arm

• Silicone free and latex free

• Suitable for but not limited to the chemical, oil and gas, automotive and agriculture industries

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2016

• Complies with EN 374-1:2016

PRODUCT INSIGHT ANSELL GRIP TECHNOLOGY™

• Coating treatment that minimises force to grip dry, oily and wet tools or materials

• Reduces hand and arm fatigue

• Improves dexterity, safety and productivity

XG35B XG27B

SAFETY – PPE

Excalibur Double Dip

• Double dip Polyvinyl Chloride (PVC) full coat with cotton jersey lining for comfort

• Variety of lengths are available for wrist to elbow protection

• Textured palm and back of hand for additional grip

• Excellent abrasion resistance

• Suitable for aeronautics, construction, manufacturing, masonry applications

• Sizes: S – L

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

Snorkel® 4-644

• Excellent protection from oils, acids, caustics and alcohols

• Flexible and comfortable allowing better dexterity

• Roughened finish provides enhanced grip

• Broad range chemical protection

• Suitable for chemical handling, petrochemical, cleaning, janitorial, mining and construction

• Sizes: 9 – 11

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

PVC Premium – 806

• Polyvinyl Chloride (PVC) full coat glove with cotton jersey lining for comfort

• 270mm and 350mm Overall length for wrist protection

• Textured palm and back of hand for additional grip

• Suitable for aeronautics, construction, manufacturing, masonry and petrochemical environments

• Sizes: 8 – 11

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

EN Chemical Hazard

• Complies with EN 374-1:2003

– AS/NZS 2161.10.1:2005

Excalibur Knit Wrist

• Single dip Polyvinyl Chloride (PVC) full coat with interlock lining

• Knit wrist for a snug fit and to prevent dirt from entering

• Textured palm and back of hand for additional grip

• Excellent abrasion resistance

• Suitable for liquid handling, construction, manufacturing and masonry applications

• Size: L

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

Excalibur Single Dip

• Single dip Polyvinyl Chloride (PVC) full coat with interlock lining

• Textured palm and back of hand for additional grip

• Excellent abrasion resistance

• Range of lengths available for wrist and elbow protection

• Suitable for aeronautics, construction, manufacturing, masonry and petrochemical environments

• Size: L

EN Mechanical Hazard

• Complies with EN 388:2003

– AS/NZS 2161.3:2005

SAFETY TIP

CHEMICAL GLOVE MATERIALS

• Nitrile provides the best protection against bases, oils, many solvents and animal fats; also excellent resistance to snags, punctures, abrasions and cuts. Not recommended for use with ketones and some organic solvents.

• Natural rubber has great flexibility and resistance to many acids and alcohols, and is a comfortable choice for chemical and liquid protection. May cause allergic reactions and, in addition, should not be used when lubricants and/or oils are present.

• Neoprene is flexible with excellent chemical resistance to oily material, acids (nitric or sulphuric), caustics, large range of solvents (phenol, ethylene glycol, aniline). However, it is less resistant to snags, punctures, abrasions and cuts than nitrile or natural rubber.

ChemTek™ 38-514

• Provides best resistance to the most aggressive chemicals, without compromising dexterity or comfort

• Flexible and provides excellent dexterity

• Designed for comfort with a natural, curved ergonomic shape and soft feel

• Absence of latex proteins means there is no risk of latex allergies

• Offers superior protection against aldehydes, ketones and esters as well as concentrated mineral acids

• Suitable for chemical manufacturing, processing, refining, handling, printing, mining and disaster response

• Suitable for chemical processing and preparation, disaster response, mining and printing industries

• Sizes: 7 – 11

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

EN Chemical Hazard & Micro-organisms Hazard

• Complies with EN 374-1:2016

– AS/NZS 2161.10.1:2005

Barrier® 02-100

• Extreme resistance against a wide range of chemicals

• Five layered laminated glove

• 100% Inspected, each glove individually air pressure tested

• Good flexibility

• Suitable for chemical processing and handling, petrochemical, emergency services, oil refining, pharmaceutical and laboratory applications

• Sizes: 8 – 10

EN Chemical Hazard & Micro-organisms Hazard

• Complies with EN 374-1:2016

– AS/NZS 2161.10.1:2005

ChemTek™ 38-612

• Provides best resistance to the most aggressive chemicals, without compromising dexterity or comfort

• Offers protection against aliphatic, halogenated and aromatic hydrocarbons as well as concentrated mineral acids

• Very flexible and provide excellent dexterity

• Designed for comfort with a natural, curved ergonomic shape and soft feel

• Easy donning and good grip

• Suitable for chemical processing and preparation, disaster response, mining and printing industries

• Sizes: 8 – 10

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

EN Chemical Hazard & Micro-organisms Hazard

• Complies with EN 374-1:2016 – AS/NZS 2161.10.1:2005

PVA™ 15-554

• One of the only gloves suitable for handling strong organic solvents

• Virtually inert in aromatic and chlorinated solvents

• Comfortable anatomical glove with pre-curved fingers and winged thumb, making it easier to manipulate and also less tiring to wear

• Soft two piece knitted liner cushions the hand and absorbs perspiration

• Suitable for chemical processing and handling, petrochemical and oil refining, pharmaceutical and laboratory applications

• Sizes: 9 – 10

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

EN Chemical Hazard & Micro-organisms Hazard

• Complies with EN 374-1:2016

– AS/NZS 2161.10.1:2005

Chemi-Pro™ 224

• Latex/Neoprene blend for reliable protection against a very wide range of chemicals

• Double dipped for double protection

• Heavyweight resistance to salts and detergents

• Unsupported heavyweight glove with embossed lozenge finish

• Strong and durable with excellent wet and dry grip

• Suitable for chemical handling, aircraft assembly, electronic and battery manufacture

• Sizes: 8 – 10

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

EN Chemical Hazard & Micro-organisms Hazard

• Complies with EN 374-1:2016

– AS/NZS 2161.10.1:2005

Ringers Impact C5 R-75

• Cut Level 5 and Chemical resistant and Impact resistant

• Thermoplastic Rubber (TPR) impact protection on top of hand for maximum coverage

• Proprietary Polyvinyl Chloride (PVC) coating for waterproof and chemical resistance

• CE rated EN 388 Cut Resistance Level 5 and Abrasion Resistance Level 4

• High visibility colours for increased safety

• Gauntlet style, to the elbow cuff to keep debris and liquid away from hands

• Suitable for chemical, power washing, manufacturing, large assembly, moving drums, fluid transfer, truck drivers and haulers, upstream, midstream and downstream and oil and gas

• Blade Cut Resistance: Performance Level 5C

• Sizes: S/M – 2XL/3XL

EN Mechanical Hazard

• Complies with EN 388:2016

EN Chemical Hazard & Micro-organisms Hazard

• Complies with EN 374-1:2003

– AS/NZS 2161.10.1:2005 (AJKL)

• Complies with EN 374-2:2003 and EN 374-3:2003

durable multilayer construction delivers certified abrasion resistance. the world’s

thinnest level 2 abrasion

natural fibre absorbent lining manages sweat and cushions hands.

BIODEGRADABLE

EcoTek™ Biodegradability Technology

EcoTek™ is an important technology SW has developed in support of global sustainability initiatives.The new technology dramatically accelerates biodegradability of our nitrile gloves ultimately in landfills.

Gloves are the Same, Only Better: SW nitrile gloves updated with EcoTek Biodegradability

Technology deliver the same performance and comfortasthenon-EcoTek gloves, but are rapidly biodegradableinlandfills.

Contribution to Global Sustainability: SW’s EcoTek Biodegradability

Technology ultimately reduces waste, saving valuable landfill space by facilitating the breakdown and return of nitrile gloves to nature in timeframes that can be measured in months and years rather than centuries.

TouchNTuff® 92-500

• 100% Nitrile construction, 0.11mm thickness

• Very good splash protection against chemicals

• More puncture resistant than latex and vinyl disposable gloves

• Gloves per box: 100

• Length: 240mm

• Suitable for chemical handling, printing, pharmaceutical, food processing, laboratory, electronics and intricate assembly operations

• Sizes: S – XL

EN Micro-organisms Hazard & Low Level Chemical Hazard

• Complies with EN 374-1:2016

– AS/NZS 2161.10.1:2005

Microflex™ 93-260

• Three layer design for superior protection against harsh chemicals including acids, solvents and bases

• Thin construction provides enhanced tactility and dexterity

• Extra soft material and ergonomic design for outstanding fit, feel and flexibility for longer wear time

• Lower acceptable pinhole rate (0.65 AQL) and extended cuff for reliable protection against hazardous substances

• Silicone free formulation and processing ensure better product protection

• Ideal for blending, compounding materials, handling of painting tools including spray guns and robots, handling unexpected leaks, spills or other releases, maintenance and equipment clean up, mounting & dismantling, assembly, petrochemicals processing, routine & experimental testing, sample taking & lab processing, transferring liquid & solids

• Sizes: XS – XXL

EN Mechanical Hazard

• Complies with EN 374-1:2016

– AS/NZS 2161.10.1:2005

TouchNTuff® 92-600/92-605

• 100% Nitrile construction, 0.11mm thickness, lightly powdered

• Very good splash protection against chemicals

• More puncture resistant than latex and vinyl disposable gloves

• Contains no natural rubber proteins, reducing the risk of irritation

• Highly versatile

• Gloves per box: 100

• Suitable for chemical handling, paint and spray shops, printing, pharmaceutical, food processing, laboratories, electronics and light assembly of oil coated pieces

• Sizes: 240mm & 300mm

EN Micro-organisms Hazard & Low Level Chemical Hazard

• Complies with EN 374-1:2016 – AS/NZS 2161.10.1:2005

Microflex™ 93-856

• High visibility for increased safety

• Chemical splash resistance

• Extended cuff for additional protection

Ultimate Barrier Disposable Nitrile Glove 93-850

• Ultimate barrier significantly reduces risk of harmful exposures and rip-tear

• 2X more chemical splash protection than leading brands due to breakthrough polymer bonding technique

• Highest known standard for barrier quality and consistency

• Made with TNT Chemical Splash Resistance Technology for soft durable protection against a wide range of chemicals

• Silicone-free formulation for product protection

• Suitable for but not limited to the use in automotive, chemical, food processing, life sciences, manufacturing and transportation industries

• Complies with EN ISO 374

• Complies with EN ISO 374-5

• Complies with EN 421

• Sizes: XS – 2XL

• Latex free protects against type 1 allergies

• Ideal for light duty maintenance when dexterity is needed

• Suitable for mechanical repairs and assembly, patient examination, re-fuelling and chemical handling tasks

• Sizes: S – XL

EN Mechanical Hazard

• Complies with EN 374-1:2016

– AS/NZS 2161.10.1:2005

TORPEDO METAL DETECTABLE EARPLUGS

• Metal detectable plugs complete with metal detectable cord to increase the level of detectability

• Tapered design and softness for comfortable fit

• Slow release Polyurethane (PU) foam to enable easy insertion and a proper fit

• Blue in colour for visual identification in food processing environments

• Convenient dispenser box

SEE HEARING PROTECTION PAGE 64

SAFETY – PPE

Ultra Feel Nitrile

Eco Blue Powder Free

• Incredible dexterity and sense of touch

• Beaded cuff makes easy donning and helps prevent rollback

• Ambidextrous

• 100 gloves per box

• HACCP Certified

• Registered with TGA – Medical Device Class 1

• Sizes: XS – XL

Ultra Fresh Black Nitro – 468460

• Ambidextrous

• HACCP food safety certified

• TGA listed

• Latex free

• Superior strength

• Suitable for mechanics, hairdressing, tattoo studios and panel beaters

• Complies with AS/NZS 4011:2014

• Sizes: S – XXL

Microflex™ 93-852

• Masks stains for extended use

• Exceptional flexibility with high tensile strength

• Firm and consistent grip, even when wet

• Latex free protects against type 1 allergies

• Suitable for light duty maintenance, mechanical repairs and assembly, paint and spray shops, pharmaceutical manufacturing and life sciences

• Sizes: XS – XL

EN Mechanical Hazard

• Complies with EN 374-1:2016 – AS/NZS 2161.10.1:2005

Ultra Fresh Blue Nitrile – 468411/468410

• HACCP food safety certified

• TGA listed

• Latex free

• Superior strength

• Ambidextrous, fully textured surface, beaded cuff, blue

• Suitable for hospitals, dental, hospitality, laboratories, forensics and food processing

• Complies with AS/NZS 4011:2014

• Sizes: S – XL

Megaman Nitrile

• Dermatologically accredited

• World first abrasion resistant level 2 disposable glove

• DriTek™ lining wicks moisture away from the skin

• TouchTek™ protects skin and prevents contamination

• MilTek™ offers durability and tactile sensitivity

• Available in vending packs of 4 pairs

• Sizes: S – 3XL

HARRIER

• Lightweight ergonomic design with co-moulded TPR temple arm tips and nose pads for all day comfort and grip

• Close fit wrap around style for excellent ocular area coverage

TouchNTuff® 69-210

• Natural rubber latex powdered glove

• Ambidextrous design

• Flexible and comfortable to wear; cooler than vinyl, with superior finger flexibility and grip

• Gloves per box: 100

• Suitable for automotive, transport, laboratories, pharmaceuticals and electronics

• Sizes: S – XL

EN Mechanical Hazard

• Complies with EN 374-1:2016

– AS/NZS 2161.10.1:2005

Caution:

This product contains natural rubber latex which may cause allergic reactions in some people

TouchNTuff® 69-318

• Soft, elastic latex material provides exceptional comfort

• Thin, lightweight design for enhanced tactile sensitivity

• Textured fingers enable easier handling of small objects and delicate tools

• Complies with FDA food handling requirements

• Sizes: S – XL

Ultra Fresh Clear Latex – 468404/468405

• HACCP food safety certified

• TGA listed

• Ambidextrous, smooth surface with beaded cuff

• Gloves per box: 100

• Available in powdered or powder free

• Suitable for hospitals, dental, hospitality, laboratories and food processing

• Sizes: XS – XL 468405 –Powder Free

• Textured surface 468404 –

Powdered

• Smooth surface

• Complies with AS/NZS 4011:2014

TECHNICAL TIP

EN Mechanical Hazard

• Complies with EN 3741:2016

– AS/NZS 2161.10.1:2005

Ultra Fresh Blue Latex

–

468413/468412

• HACCP food safety certified

• TGA listed

• Ambidextrous, smooth surface with beaded cuff

• Gloves per box: 100

• Available in powdered or powder free

• Suitable for hospitals, dental, hospitality, laboratories and food processing

• Complies with AS/NZS 4011:2014

• Sizes: S – XL

INFLUENCING FACTORS IN SELECTING THE CORRECT GLOVE FOR THE TASK AT HAND

Comfort

Regardless of the application, look for a lightweight solution that incorporates suitable liner materials to ensure the highest protection is also comfortable, increasing the likelihood of continual wear and adherence to Personal Protective Equipment (PPE) policy.

Dexterity

Regardless of the task being undertaken, there will always be demand for a reasonable degree of dexterity. Bulky or ill-fitting options will often lead to removal, so it’s important to select a glove that permits the wearer to carry out tasks effectively, while still providing adequate defence.

Grip

Often the root cause of cut injury is not the most obvious one. Failing to select hand protection with suitable grip can lead to higher injury rates, as objects with sharp edges can slip when being handled — this is exacerbated in the case of wet or oil covered objects — resulting in a slicing motion through the glove. Insufficient grip can also contribute to other unwanted conditions including stress, fatigue and muscle strain.

Construction

Consider the overall construction, as well as the materials used. There are many available solutions, some of which offer specific additional features; consider latex or silicone free alternatives where allergies are a consideration, or an antistatic option if the environment demands it.

Glove Coatings

Cut resistant fabrics are constructed by rolling and twisting cut resistant fibres to deliver a material that provides suitable defence. When a coating is applied, the fibre’s cut resistance efficacy can be reduced. Most coated gloves will provide a higher resistance on the back of the hand than the palm, as those fibres may not be coated, so this needs to be considered when assessing potential options.

Designed for Duty

The most suitable length, fit and cuff style will all be determined by the application. Look for a manufacturer that designs hand protection solutions for specific applications and makes industry specific recommendations for each available alternative, simplifying the decision-making process. Duty level should also be factored in, as it will influence the longevity of the chosen solution. Cut protection gloves can be divided into three categories depending on the type and risk of danger the gloves should protect against.

SAFETY – PPE

Ultra Fresh Clear Vinyl

– 468402/468403

• Ambidextrous

• HACCP food safety certified

• TGA listed

• Latex free

• Suitable for food handling, catering, bakeries and canteens

• ASTM D5250-92, EN 455

• Sizes: S – XL

Fresh Touch™ Clear 850/Blue 851

• Disposable vinyl glove with beaded cuff

• Powder free – no risk of contaminating food with cornstarch used to powder gloves

• Gloves per box: 100

• Suitable for cold food catering, delicatessens, restaurants and cafes, cleaning and janitorial applications

• Ideal for acidic, aqueous and alcoholic food contact

Ultra Fresh Blue Vinyl

– 468407/468406

• Ambidextrous design

• HACCP food safety certified

• TGA listed

• Latex free

• Gloves per box: 100

• Suitable for food handling, catering, bakeries and canteens

• ASTM D5250-92, EN 455

• Sizes: S – XL

FoodSafe™ Clear 870

• Disposable vinyl glove with beaded cuff

• Use in large scale food operations and high volume situations requiring frequent glove changes

• Lightly powdered for easy donning and doffing

• Gloves per box: 870 – 100, 871 – 200

• Suitable for food handling, catering, bakeries and high volume canteens

• Ideal for cooked foods to reduce the risk of cross food contamination

• Sizes: S – XL

FDA Status

• All ingredients conform to the applicable FDA indirect food additive regulations as prescribed by the FDA Code of Federal Regulations, Title 21, Part 177, Section 2600, Rubber Articles

EN Mechanical Hazard

• Complies with EN 374-1:2003 – AS/NZS 2161.10.1:2005

• Sizes: S – L

FDA Status

• All ingredients conform to the applicable FDA indirect food additive regulations as prescribed by the FDA Code of Federal Regulations, Title 21, Part 177, Section 2600, Rubber Articles

FoodSafe™ Blue 874

• Disposable vinyl glove

• Lightly powdered for easy on and off

• Gloves per box: 100

• Suitable for food handling, catering, bakeries and high volume canteens

• Sizes: S – XL

EN Mechanical Hazard

• Complies with EN 374-1:2016 – AS/NZS 2161.10.1:2005

FDA Status

• All ingredients conform to the applicable FDA indirect food additive regulations as prescribed by the FDA Code of Federal Regulations, Title 21, Part 177, Section 2600, Rubber Articles

TECHNICAL TIP

GLOVE MATERIALS & FIBRES

FIBRE & LINER TYPE PERFORMANCE

Cotton Comfort

Leather Durability and Heat Resistance

Polyester Toughness

Nylon

Stretch

Lycra® Elasticity

Synthetic Leather Durability and Water Resistance

Deer Skin Softness and Dexterity

Chain Mesh

Extreme Cut Resistance

Glass Fibre Cut Resistance

Spectra® Cut Resistance

Kevlar Cut and Heat Resistance

TouchNTuff® 92-670/92-481

• Textured finish on fingertips improves grip

• Contains no natural rubber

• Suitable for contact with fatty foods

• Powder free – no risk of contaminating food with cornstarch used to powder gloves

• Blue colour offers increased visibility during food processing

• Gloves per box: 100

• Suitable for food handling, catering and food service, dairy processing and controlled environment rooms

• Sizes: S – XL

EN Micro-organisms

Hazard & Low Level

Chemical Hazard

• Complies with EN 374-1:2016

– AS/NZS 2161.10.1:2005

Polar Bear® 74-045

• High level cut resistance

• Dyneema® core construction with high strength outer wrap fibres

• Lightweight – can be used as a liner under another glove

• Suitable for food, meat, poultry, seafood, fruit and vegetable processing

• Sizes: 6 – 11

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

FDA Status

• All ingredients conform to the applicable FDA indirect food additive regulations as prescribed by the FDA Code of Federal Regulations, Title 21, Part 177, Section 1520 Olefin polymers and Part 117, Section 2800 Textile and Textile Fibres

Therm-A-Knit™ 78-150

• Ideal liner glove under rubber, disposable and chemical resistant gloves

• Unique Dacron ThermaStat® fast wicking fibres act as hand warmer in cold and damp environments, channelling moisture away from skin

• Machine washable

• Suitable for food processing and handling chilled or refrigerated products

• One Size

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

Caution: This product contains natural rubber latex which may cause allergic reactions in some people

Superfood Blue™ 356

• Case hardened for improved resistance against fats and oils

• Sanitised to help reduce bacterial build up on the glove

• Double dipped for increased protection against chemicals

• Suitable for cleaning, janitorial, meat processing, food handling and catering

• Sizes: 6.5 – 10

EN Mechanical Hazard

• Complies with EN 388:2016 – AS/NZS 2161.3:2005

• Complies with EN 374-1:2003 – AS/NZS 2161.10.1:2005

FDA Status

• All ingredients conform to the applicable FDA indirect food additive regulations as prescribed by the FDA Code of Federal Regulations, Title 21, Part 177, Section 2600, Rubber Articles

HyFlex 74-500

• INTERCEPT Technology delivers highest Cut Protection Level F throughout entire glove and cuff; even after repeat laundering

• 7 times more durable

• Stain masking designed for extended life use

• Sizes: 7 – 10

RATTLER

• One piece moulded lens with integrated full frame and moulded EVA closed cell foam seal

• Interchangeable adjustable angle temple arm provides the comfort option of a traditional spectacle

SEE EYE PROTECTION PAGE 29

SAFETY – PPE

Premium Pink™ 352

• Double dipped for increased protection against chemicals

• Silverlined for easy on and off

• Suitable for cleaning and janitorial, food handling, catering and meat processing

• Ideal for applications where superior performance and greater durability is required

• Sizes: 6.5 – 11

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

EN Micro-organisms Hazard

& Low Level Chemical Hazard

• Complies with EN 374-1:2003

– AS/NZS 2161.10.1:2005

FDA Status

• All ingredients conform to the applicable FDA indirect food additive regulations as prescribed by the FDA Code of Federal Regulations, Title 21, Part 177, Section 2600, Rubber Articles

Caution: This product contains natural rubber latex which may cause allergic reactions in some people

HyCare® 739

• Heavy duty natural rubber latex glove with cotton liner

• Durable construction for longer life

• Excellent wet and dry grip

• Good insulation from hot and cold environments

• Suitable for cleaning and janitorial, food processing and service

• Sizes: S – XL

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

• Complies with EN 374-1:2003

– AS/NZS 2161.10.1:2005

FDA Status

• All ingredients conform to the applicable FDA indirect food additive regulations as prescribed by the FDA Code of Federal Regulations, Title 21, Part 177, Section 2600, Rubber Articles

This

PRODUCT INSIGHT

Premium Blue™ 354

• Case hardened for improved resistance against fats and oils

• Sanitised to help reduce bacterial build up on the glove

• Double dipped for increased protection against chemicals

• Suitable for cleaning, janitorial, meat processing, food handling and catering

• Sizes: 7 – 10

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

FDA Status

• All ingredients conform to the applicable FDA indirect food additive regulations as prescribed by the FDA Code of Federal Regulations, Title 21, Part 177, Section 2600, Rubber Articles

Caution: This product contains natural rubber latex which may cause allergic reactions in some people

Ultragrip Yellow™ 396

• Close fitting contoured glove

• Raised grip pattern for improved wet grip

• Sanitised to help reduce bacterial build up on the glove

• Silverlined for easy on and off

• Suitable for cleaning and janitorial tasks

• Sizes: 6.5 – 10

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

• Complies with EN 374-1:2003

– AS/NZS 2161.10.1:2005

Caution: This product contains natural rubber latex which may cause allergic reactions in some people

WHICH CUT RESISTANT LEVEL DO I CHOOSE?

Suitable but not limited to heavy metal stamping, plate glass handling, meat and poultry, some pulp and paper applications.

Suitable but not limited to light metal stamping, light-duty glass handling applications.

Suitable but not limited to paper cuts, automotive maintenance, parts assembly, material handling.

These recommendations are not speciﬁc to everyone’s needs. Always ensure your selected glove complies with the relevant safety standard recommended for the application.

Caution:

product contains natural rubber latex which may cause allergic reactions in some people

GLOVES – SPECIALITY – PROTECTIVE SLEEVES

Aracut® Sleeve II

• 100% Kevlar®

• Leather reinforcement on inner arm

• 2Ply (standard weight) Protection with thumb hole holding the sleeve securely in place

• Superior cut, slash and heat resistance

• Suitable for glass handling, fabrication, precision assembly, sheet metal, canning, automotive and steel manufacturing, welding and injection moulding

• Length: 330mm

EN Mechanical Hazard

• Complies with EN 388 (4443)

• Complies with EN 407 (X2XXXX)

GoldKnit™ Sleeve 70-138

• 100% Kevlar®

• Thumb slot and hook and loop fastener strap for more comfort

• Double layered for greater arm protection

• Protects forearms from heat, burns and cuts

• Suitable for automotive, durable goods and glass industries

• Length: 450mm

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005

EN Heat and Flame Hazard

• Complies with EN 407:2004

– AS/NZS 2161.4:1999

uvex C500 sleeve – HX60491

• High cut protection (Level C) with bamboo Twin Flex® Technology, which wicks moisture away – cooling effect in summer

• Free of harmful substances in accordance with OEKO-TEX® Standard 100

• Silicone free according to imprint test

• Highly breathable

• Hook and loop fastener for easy adjustment

• Suitable for metal, glass, construction, transport, shipping, logistics, maintenance and repair industries

• Complies with OEKO-TEX® Standard 100

• One size

EN Mechanical Hazard

• Complies with EN 388:2016

– AS/NZS 2161.3:2005 (R 2016)

Shogun Cut 5 Sleeve

• 10 Gauge High Performance Polyethylene (HPPE) for excellent cut resistance

• Level 5 Cut resistant, 35cm sleeve with thumb slot designed to protect the wearer from forearm and wrist cut hazards

• Stretchable and breathable for a snug fit, dexterity and all day wearer comfort

• Reusable and washable

• Suitable for automotive, glass industry, sheet metal handling, metal stamping, workshops working with metal, plastic extrusion

• Size: 35cm

EN Mechanical Hazard

• Complies with EN 388:2003 – AS/NZS 2161.3:2005

HexArmor® Arm Guard – AG10009S

• SuperFabric® brand material for the highest cut resistance available on the market

• Superior puncture protection from wires, metal and glass

• Will not fall down like knit sleeves

• Durable and long lasting

• Cooler than Kevlar® or leather sleeves

• Spandex wrist insert with thumb hole

• Machine washable

• Sizes: S – 2XL

Cane Mesh Sleeve 59-801

• Black/White synthetic knitted protective sleeve

• Comfortable and cool to wear

• Easy to do due to hook and loop fastener closure

• High level of cut protection

• Suitable for automotive, glass handling and sheet metal work

• Length: 225mm & 230mm

GLOVES – SPECIALITY – ACCESSORIES

Glove Clips – Proclip

• Clip attaches to belt loop and pocket

• Ability to grip onto gloves, earmuffs and sleeve protectors

• Offers safety breakaway in case of glove entanglement

• Dielectric

• Non-corrosive

• Prevents glove misplacement

• Ideal for all glove wearers

Glove Dispensers

– 910000/910001

• Powder coated

• Strong steel frame

• Sizes: 24cm x 8cm & 24cm x 35cm

Glove Poly Clip – Glovekeeper

• Attaches gloves to clothes or accessories

• Breakaway safety feature to protect worker in case of glove entanglement

• Functional attachment and detachment design

• Suitable for keeping gloves on hand and preventing wastage

SAFETY CAPS – 630

• Suitable for general industrial, construction and mining applications where danger exists from falling objects

• Certified to AS/NZS 1801:1997

– Type 1 Industrial Helmet

SEE HEAD PROTECTION PAGE 8

TECHNICAL TIP HAND INJURIES CAN BE AVOIDED WHEN WEARING THE RIGHT GLOVE FOR THE APPLICATION

In the workplace, your hands are subjected to many hazards. A hazard is any energy that can cause harm. Injuries can be immediate like cuts, punctures and burns, or may happen over time, like Raynaud’s syndrome (white finger) or Carpal tunnel syndrome. The following injuries can be avoided by selecting the correct safety gloves for the handling application, and ensuring that these safety gloves are worn at the right times:

One kN is approximately equal to 100kg (1kN = 100kg).

Therefore 15kN is equivalent to 1500kg or 1.5 tonnes.

AS/NZS 1891 states the following requirements for anchorage strengths:

• Puncture wounds

• Cuts and scrapes

• Heat and chemical burns

• Hazardous substances that can irritate or be absorbed by the skin

• Extreme heat or cold

• Biological agents like bacteria and viruses

• Needlestick injuries

PERFORMANCE YOU CAN TRUST

• Gloves

• Eyewear

• Hearing protection

• Respirators

• Site safety

• Traffic management

• Spill sorbents

RESPIRATORY PROTECTION

RESPIRATORY STANDARDS

In Australia and New Zealand a ‘Duty of Care’ requires all stakeholders to be able to identify hazards in the work environment, quantify the risk and formally (in writing and action) put into place training and controls for the proper selection and ongoing use of respiratory protective equipment.

AS/NZS 1715:2009 Selection, use and maintenance of respiratory protective equipment

This Standard sets out the principles of respiratory protection, requirements and recommendations for the selection, use and maintenance of personal Respiratory Protective Equipment (RPE) in the workplace.

AS/NZS 1716:2012 Respiratory protective devices

This Standard specifies requirements for respiratory protective devices (respirators) intended to provide, according to type, varying degrees of protection against atmospheres containing substances which may be harmful if inhaled; also, with certain types, to provide protection against atmospheres which may be deficient in oxygen. It does not give guidance on the selection, use and maintenance of respirators. This is covered in AS/NZS 1715.

The Standard also specifies requirements, performance and testing criteria to be observed in the manufacture of respirators.

TYPES OF RESPIRATORY PROTECTION

Air-Purifying Respirators

Respirators which filter contaminants from inhaled air.

DISPOSABLE

Single use, protection against dusts, mists and fumes. Applications include sawing, grinding, welding fume and bushfire smoke

Air-Supplied Respirators

Respirators that provide the user with clean air from a source independent of the ambient atmosphere, either via a compressor through a filtering system or stored as high pressure air in cylinders. Airline supplied systems shall be used in the following conditions; the ambient conditions are unknown, concentration of contaminant could be immediately dangerous to life and health (IDLH), oxygen content of the ambient air is below 19.5%, and confined, enclosed or unventilated spaces as per risk assessments.

Protection against dusts, mists, fumes, gases and vapours by using specific filters. Applications include painting, grinding, printing and mining

Higher levels of respiratory protection and/or where eye or face protection is required. Industries include chemical, petroleum, steel and pharmaceutical

Higher levels of respiratory protection and/or where head, eye, face or additional comfort is required. Industries include pharmaceutical, food manufacturing and foundries

HALF FACE RESPIRATORS

FULL FACE RESPIRATORS

POWERED AIR PURIFYING RESPIRATOR (PAPR)

RESPIRATORY HAZARDS

Your lungs are vital to your health – if hazardous particles reach the lungs they can damage the delicate tissue and cause illness. Your body has some natural defences against airborne particulate hazards but if the contaminant is in a large enough quantity and/ or made up of very small particles, these defences may be overcome, resulting in ill health and increased risk of diseases such as occupational asthma, pulmonary fibrosis and cancer. Gases and vapours are other types of respiratory hazards. As they mix readily with the air we breathe, gases and vapours are readily inhaled and may cause direct damage to the lung tissue e.g. acid gases. Other types (e.g. solvents, pesticides, mercury) can enter the bloodstream via the lungs and can then be transported around the body where they can damage organs like the liver, kidneys and effect the central nervous system and at high concentrations can be lethal.

FILTER CLASSES AND SELECTION

Under the Standard AS/NZS 1716, filters used in respirators are required to meet certain performance levels to achieve a classification – this then allows determination of its suitability for use against specific contaminants at various concentrations as explained in AS/NZS 1715.

PARTICLE FILTERS

Filters are tested for capture efficiency in the laboratory using a salt aerosol challenge agent. Under specified test conditions, the amount of these particles that break through the filter is measured which allows classification of the filter. Under the Standard AS/NZS 1716, there are three classes of particle filters.

CLASS COLOUR

P1 White

P2 White

P3 White

APPLICATION

Used for mechanically generated particulates e.g. dust, mists, flour and silica. This class of filter is suitable for relatively “large” particles (>1 micron) released in mechanical operations e.g. sanding, drilling, cutting, sawing and crushing.

Used for mechanically and thermally generated particles e.g. welding fume. This class of filters has a higher capture efficiency to be able to effectively filter the many sub micron sized thermally generated particles. The P2 is also the class of filter recommended for specific infection control applications e.g. H1N1 Influenza 09 (Human Swine Influenza), Tuberculosis (TB) or other infectious diseases, where they can capture biologically active airborne particles and aerosols under specified conditions.

Used for mechanically and thermally generated sub-micron particulates, viruses, bacteria and highly toxic materials e.g. Beryllium, radioactive particles. A P3 filter offers higher protection than a P2 filter however this is only achieved when the P3 filter is used in combination with a full face respirator*.

*NOTE: To achieve these high protection levels, any P3 filter must be worn on a full face mask or as part of a head-covering respirator. If P3 filters are fitted to any half face mask, this combination is graded by AS/NZS 1715 to perform only as well as a P2 rated filter on this mask. This is because the “weak point” of the half face mask respirator is the face seal, not the filter performance i.e. in practice most leakage on a half face mask respirator will occur around the seal on the face, not through the filters.

GAS & VAPOUR FILTERS

Gas/Vapour filters are produced specifically for use against various gases and vapours and are tested and marked accordingly. AS/NZS 1716 uses a code/colour classification system to identify the different types of contaminants these treated carbon grains will capture.

CLASS COLOUR

APPLICATION

A Brown Organic vapours with boiling points > 65°C

AX Brown Organic vapours with boiling points < 65°C

B Gray Inorganic gases

E Yellow Acid gases

K Green Ammonia

Hg Red Mercury

G Brown Organic compounds with low vapour pressure

There are also other gas filter types for other specified chemicals.

All gas/vapour filters are also rated for their absorptive capacity. In increasing capacity there are Class Aus, Class 1, Class 2 and Class 3 filters for example; A1/B1/E1 Filter ABE – The types of contaminants the filter will capture 1 – Represents the class of absorptive capacity

The higher the class, the higher and longer the concentration they are able to deal with when fitted on the right type of respirator. By combining the two types of filters (particle and gas and vapour), we can get combination filters like A1P2, BAusP1 or A2B2E2K1P3.

SAFETY – PPE

RESPIRATORS – DISPOSABLE

Vertical Flat Fold Dust, Mist and Fume Respirator – P2

• Contoured profile for excellent facial fit and optimal seal

• Malleable aluminium free nose bridge tab with closed cell foam seal to reduce leakage risk

• Continuous loop headband strap with staple free attachment

• Adjustable to fit a wide range of wearers

• Low resistance to air flow particulate filter fabric for easy breathing and effective filtration

• Soft inner lining material for wearer comfort

• Individually packed for hygienic storage and transportation

• Suitable for a wide range of industries

• Ideal for use against both mechanically and thermally generated particulates such as particulates generated through sanding, dusting, grinding, or combustion and low toxicity mists that do not produce harmful gases or vapours

• Complies with AS/NZS 1716:2012

AS/NZS/1715 SELECTION USE & MAINTENANCE OF RESPIRATORY PROTECTIVE EQUIPMENT

Sets out principals of respiratory protection, requirements and recommendations for the selection, use and maintenance of personal protective equipment (RPE) in the workplace.

To comply with AS/NZS 1715:2009 you require a respiratory programme in place covering the following:

1. Appointing a programme administrator

2. Selection of RPE

3. Medical screening of end users

4. Training

5. Issue of RPE

6. Fitting of RPE

7. Testing of RPE

8. Wearing of RPE

9. Maintenance of RPE

10. Record keeping

11. Programme evaluation

Vertical Flat Fold Dust, Mist and Fume Respirator with Exhalation Valve – P2

• Contoured profile for excellent facial fit and optimal seal

• Malleable aluminium free nose bridge tab with closed cell foam seal to reduce leakage risk

• Continuous loop headband strap with staple free attachment

• Adjustable to fit a wide range of wearers

• Low resistance to air flow particulate filter fabric for easy breathing and effective filtration

• Soft inner lining material for wearer comfort

• Individually packed for hygienic storage and transportation

• Suitable for a wide range of industries

• Complies with AS/NZS 1716:2012

Flat Fold Dust, Mist and Fume Respirator – P2

• Foam nose seal

• Adjustable nose piece for secure seal

• Malleable aluminium free nose bridge tab with closed cell foam seal to reduce leakage risk

• Continuous loop headband strap with staple free attachment; adjustable to fit a wide range of wearers

• Low resistance to air flow particulate filter fabric for easy breathing and effective filtration

• Individually packed for hygienic storage and transportation

• Suitable for a wide range of industries

• Complies with AS/NZS 1716:2012

Flat Fold Dust, Mist and Fume Respirator with Exhalation Valve – P2

• Foam nose seal

• Adjustable nose piece for secure seal

• Exhalation valve increases comfort by assisting in expelling hot air

• Malleable aluminium free nose bridge tab with closed cell foam seal to reduce leakage risk

• Continuous loop headband strap with staple free attachment; adjustable to fit a wide range of wearers

• Low resistance to air flow particulate filter fabric for easy breathing and effective filtration

• Individually packed for hygienic storage and transportation

• Suitable for a wide range of industries

• Complies with AS/NZS 1716:2012

Dust, Mist and Fume Respirator – P2

• Pre-moulded contour design for increased comfort

• Foam rubber nose seal

• Adjustable nose bridge for secure seal

• Twin elastic headbands

• Suitable for protection against mechanically and thermally generated particles –welding, soldering, sawing, sanding, grinding and crushing

• Complies with AS/NZS 1716:2012

Dust, Mist and Fume Respirator with Exhalation Valve – P2

• Pre-moulded contour design for increased comfort

• Closed cell foam rubber nose seal

• Adjustable nose bridge for secure seal

• Twin elastic headbands

• Exhalation valve increases comfort by assisting in expelling hot air

• Suitable for protection against mechanically and thermally generated particles such as silica, coal, lead, wood dust and low toxicity mists that do not produce harmful gases or vapours

• Complies with AS/NZS 1716:2012

Dust, Mist and Fume Respirator with Carbon

and Exhalation Valve – P2

• Pre-moulded contour design for increased comfort

• Closed cell foam rubber nose seal

• Adjustable nose bridge for secure seal

• Twin elastic headbands

• Exhalation valve increases comfort by assisting in expelling hot air

• Carbon layer to help filter out nuisance levels of odours and ozone

• Suitable for protection against mechanically and thermally generated particles such as silica, coal, lead, wood dust and low toxicity mists that do not produce harmful gases or vapours

• Ideal in environments where low levels of odours and ozone toxicity mists exist such as generated from some metal welding and agricultural spraying operations

• Complies with AS/NZS 1716:2012

Dust and Mist Respirator – P1

• Pre-moulded contour design for increased comfort

• Foam rubber nose seal

• Adjustable nose bridge for secure seal

• Twin elastic headbands

• Suitable for protection against mechanically generated particles from sawing, sanding, grinding and crushing

• Complies with AS/NZS 1716:2012

Dust and Mist Respirator with Exhalation Valve – P1

• Pre-moulded contour design for increased comfort

• Foam rubber nose seal

• Adjustable nose bridge for secure seal

• Twin elastic headbands

• Exhalation valve increases comfort by assisting in expelling hot air

• Suitable for protection against mechanically generated particles from sawing, sanding, grinding and crushing

• Complies with AS/NZS 1716:2012

PRODUCT INSIGHT

PROSAFE CONICAL STYLE & FLAT FOLD STYLE RESPIRATORS

Prosafe is committed to providing you with quality safety products to ensure you are protected from harm now, so you can enjoy your future. The range features both Class P1 and P2 respirators (with or without an exhalation valve) making them suitable for a large range of industries. Available in both conical and flat fold, there’s a style to suit almost everyone.

Conical Style

This traditional conical design respirator suits a variety of face shapes and is designed for performance and comfort while at work. Featuring a foam rubber flange the respirator seals easily. An adjustable outer nose bridge assists in achieving a correct and comfortable fit.

Flat Fold Style

Increasingly popular, flat fold respirators offer design and packaging benefits over conical respirators. The individual packaging allows convenient and hygienic storage and transport. The respirators can even be carried in your pocket so they are on hand when and where you need them.

3M™ COOL FLOW™ VALVE

MAKES BREATHING MORE COMFORTABLE

The 3M™ Cool Flow™ valve is designed to release your hot, humid exhaled breath quickly, helping to prevent heat build up inside the respirator which can be a significant cause of discomfort to wearers.

The cooler thermal imaging shades of the picture on the left indicate how the respirator fitted with the Cool Flow™ valve expels the breath, together with its natural heat, more rapidly. As the hot exhaled air exists through the valve, the rest of the respirator remains cooler and more comfortable.

This makes Cool Flow valved respirators ideal for long periods of wear, especially where conditions are hot, humid or physically demanding.

COOLER < > HOTTER

Top: 3M Particulate Respirator 8511, N95, with the Cool Flow™ valve (similar to 3M 8322).

Bottom: 3M™ Particulate Respirator 8510, N95, unvalved (similar to 3M 8320).

3M™ Aura™ Series Disposable Respirators – P2

• Can provide protection against mechanically (P1) and thermally generated particulates (P2)

• Foldable, easy to store, three panel design accommodates facial movement for wearer comfort

• Sculptured nose panel conforms to the nose and contours of the face and helps improve compatibility with 3M™ eye wear

• Embedded nose clip is concealed and is metal detectable

• Nose clip is kept securely in place within the layers of the respirator

• Large, soft nose foam comfortable on the skin

• Hygienic individual packaging helps protect the respirator from contamination before use

• 3M™ Low breathing resistance filter technology gives effective filtration for consistent high quality performance

• Embossed top panel of the respirator helps to reduce fogging of eye wear

• Innovative chin tab designed for ease of donning and adjustment to help achieve a more comfortable fit

• 3M™ Cool Flow™ exhalation valve offers improved comfort in hot, humid environments and/or where work is hard and physical (9322A+, 9320A+)

• Even strap pressure improves comfort on the neck, face and head with a secure feel

• Coloured headbands for easy identification: yellow for P1, blue for P2

• Suitable for environments with exposure to airborne dust particles and non-volatile liquid particles

• Complies with AS/NZS 1716:2012

RESPIRATOR FIT TESTING

Checking that a respirator, with a tight fitting facepiece, provides an adequate seal to the wearer’s face and is covered under AS/NZS 1715:2009 Section 2.6 which has long been considered best practice as part of a general Respiratory Protection Program.

Respirators with tight fitting facepieces include disposable respirators, half and full-face masks, including those that form part of a powered or air-fed respirator.

WHEN TO FIT TEST?

Fit testing should be carried out:

• Before the respirator is issued

• On all wearers of respirators with tight fitting facepieces where fit testing has previously not been performed

Fit testing should be repeated at appropriate times such as:

• If the wearer significantly loses or gains weight, has major dental work or sustains a major facial injury

• If a different size or model of Respiratory Protective Equipment (RPE) is specified

• At least annually or when specified by the company policy e.g. during a health surveillance check

• Fit testing is in addition to performing a fit check prior to each use as a determination of suitable fit

FIT TEST METHODS

There are two (2) main methods of fit testing available:

• Qualitative fit testing

A pass or fail assessment of the adequacy of a respirator.

A qualitative fit test determines whether or not someone can detect various scents or flavours.

• Quantitative fit testing

An assessment of the adequacy of respirator fit that uses numerical measurement of the amount of leakage into the respirator.

Quantitative fit tests use a probe inside the face mask.

Qualitative Fit Test Kit and FT

Sensitivity Solution

• For testing 3M™ disposable and half face reusable respirators fitted with particulate or combination gas/vapour and articulate filters

• Offers a fast and easy method for performing qualitative fit testing

• No calibration of equipment required

• No modification of face piece required

• Test operator can be self taught/instructed

• Each kit contains a hood and collar assembly, two nebulisers, sensitivity solution, test solution and detailed instructions

• Replacement solutions and accessories can be purchased separately

• Complies with AS/NZS 1715:2009

FACIAL HAIR & RESPIRATORS

The effects of facial hair or beards is a common issue wherever respirators are worn. Does it matter?

The answer is clear – beards are not acceptable if close fitting respirators are worn. AS/NZS 1715 Section 7.5.3 states “individuals with stubble, a moustache, sideburns or a beard which passes between the skin and the sealing surface must not wear a respirator which requires a facial seal.” This includes any close fitting respirators – full or half facepieces.

What is the problem with beards?

Close fitting respirators need to seal tightly to the face. Gaps in the face seal allow dirty air to leak inside the respirator. Respirator filters cannot clean the air leaking through the face seal. Even a day or two’s growth of stubble for some individuals can be enough to give significant leak paths for contaminants. Face seal leakage reduces the wearer’s protection. It is not true to say that hair is “very fine” and aids the filtering process. The size of particles that is most dangerous to the lungs is far too small to be caught by a few human hairs.

What is the solution?

Individuals who cannot obtain an effective face seal due to facial hair will need to wear a hood type respirator either a Powered Air Purifying Respirator (PAPR) with appropriate filters or an air supplied hood, which ever type your risk assessment or the situation dictates.

3M™ FT-11 Sensitivity Solution – Sweet (Saccharin)

• Accessory item for the FT-10 Fit Test Kit – Sweet (Saccharin)

3M™ FT-12 Fit Test Solution – Sweet (Saccharin)

• Accessory item for the FT-10 Fit Test Kit – Sweet (Saccharin)

3M™ FT-31 Sensitivity Solution – Bitter (Bitrex)

• Accessory item for the FT-30 Fit Test Kit – Bitter (Bitrex)

3M™ FT-32 Fit Test Solution – Bitter (Bitrex)

• Accessory item for the FT-30 Fit Test Kit – Bitter (Bitrex)

SAFETY – PPE

Cupped Particulate Respirators

8300

Series P2

• Super soft cushioned inner lining for added worker comfort

• Robust shell construction for durability

• Proprietary 3M™ Cool Flow™ exhalation valve helps user breathe easier during prolonged wear (8322)

• Flexible textured edge offers a comfortable and secure fit

• Suitable for protection against dusts, mists and fumes generated during burning wood, cleaning animal sheds, ship building, foundry work and metalwork

• Complies with AS/NZS 1716:2012

Cupped Particulate Respirators

8000 Series P2

• Lightweight construction for added comfort that may increase wearer time

• Galvanised steel nose clip for use in intrinsically safe environments (8822)

• Adjustable nose clip helps to reduce eye wear fogging

• Proprietary 3M™ Cool Flow™ valve helps to reduce unpleasant build-up of heat inside the respirator for easier breathing (8822)

• Suitable for protection against dusts, mists and fumes generated during composting, handling infected animals, roadworks and carpentry

Cupped Welding Respirators

8500 Series P2

• Low profile design allows compatibility with welding shields

• Flame retardant, cake resistant filter media reduces caking of particles on filter surfaces

• Heavy duty adjustable buckled straps provide secure feel

• Proprietary 3M™ Cool Flow™ valve helps to remove exhaled air and minimise risk of misting eyewear

• 8514 – Activated carbon layer to filter out ozone and nuisance levels* of organic vapour

• Suitable for protection against ozone, welding fumes and nuisance odours (8514) including welding – MIG, TIG, metal fumes

• Complies with AS/NZS 1716:2012

Cupped Particulate Respirators

8300 Series P1

• Super soft cushioned inner lining for added worker comfort

• M-shaped nose clip to customise to wearer's nose shape for a secure fit

• Robust shell construction for durability

• Proprietary 3M™ Cool Flow™ exhalation valve helps user breathe easier during prolonged wear (8312)

• Flexible textured edge offers a comfortable and secure fit

• Suitable for protection against dusts and mists generated during sawmills, construction, wood chopping and pottery/ceramics

• Complies with AS/NZS 1716:2012

Cupped Particulate Respirators

8000

Series P1

• Lightweight construction for added comfort that may increase wearer time

• Galvanised steel nose clip for use in flammable atmosphere (8812)

• Adjustable nose clip helps reduce eye wear fogging

• Proprietary 3M™ Cool Flow™ valve helps user breathe easier during prolonged wear (8812)

• Suitable for protection against dusts and mists generated during sawing, tree lopping, grinding and hay making

• Complies with AS/ NZS 1716:2012

Folded Specialty Respirator 9542A

– Organic Vapour P2

• Activated carbon layer for effective relief from nuisance levels* of organic vapours and odours

• Folded design for easy storage and dispensing in the workplace

• Individually wrapped for protection from contamination prior to use

• Soft cover web on inner panel feels comfortable against the wearer’s skin

• Suitable for protection against dusts, mists, fumes and organic vapours generated during light welding, solvent cleaning, waste disposal and recycling management

• Complies with AS/NZS 1716:2012

Cupped Specialty Respirators – Acid Gas

• Robust shell maintains its shape during wear

• Dual straps for even pressure on neck, face and head that improves comfort

• Proprietary 3M™ Cool Flow™ valve reduces heat and moisture build up in hot and humid working environments (9916 and 9926)

• Suitable for protection against dusts, mists and fumes generated during chemical processing, acid etching, chrome plating, chlorine, sulphur dioxide and hydrogen fluoride

• Complies with AS/NZS 1716:2012

*Nuisance levels are those acid gas levels below the Workplace Exposure Standard

Cupped Specialty Respirator 9923V –Organic Vapour P2

• Non-aluminium nose clip specifically designed for use in flammable atmosphere, such as coal mines

• Activated carbon layer for effective relief from nuisance levels* of organic vapours and odours

• Proprietary 3M™ Cool Flow™ exhalation valve helps user breathe easier by reducing heat and moisture build up

• Suitable for protection against dusts, mists, fumes and organic vapours generated during mining, including underground coal and metalliferous mining, diesel particulate matter, welding, lead fumes, unburned fuel vapours and at construction sites

• Complies with AS/NZS 1716:2012

*Nuisance levels are those acid gas levels below the Workplace Exposure Standard

Every face is different.

A respirator can’t protect you if it doesn’t fit your face.

Why Validate PPE?

Every wearer is different – different shape of nose, ear canal, orbital area of eye etc.

Confidence in performance - For some PPE loss of protection is directly correlated with PPE fitting. The more poorly fitting the PPE, the greater the potential loss of protection.

Confirm your choice.

Comply with standards in Australia and New Zealand.

Regular training on the correct fitting and usage of PPE helps to prevent poor fitting. There are a range of helpful tool kits available from 3M to assist both the wearer and the trainer.

SAFETY – PPE

4000 Series P2 Flat Fold Dust Respirators

• Can provide protection against thermally and mechanically generated dusts and mists

• No staples

• Latex, PVC, silicone free materials used

• Innovative exhalation valve – maximum frontal protection with minimal exhalation resistance

• Individually wrapped to be stored hygienically and conveniently in a pocket

• Filter media hypoallergenic and humidity resistant for maximum service life

• Suitable for use in food industry, glass etching, grinding, sanding, dusty and hot operations

• Complies with AS/NZS 1716:2012

5000 Series Premium P2 Cupped Welding Respirators

• Can provide protection against thermally and mechanically generated dusts and mists

• Ultra soft triple layer face seal

• Innovative exhalation valve – frontal protection of valve membrane, minimal exhalation resistance

• Dolomite tested – demonstrates resistance to clogging over time

• Latex, PVC, silicone free materials used

• Pre-formed and colour coded nose bridge

• Suitable for grinding, drilling, brazing, welding, soldering and torch cutting

• Complies with AS/NZS 1716:2012

Superone P2 Disposable Respirators

• Pre-formed for an excellent fit, comfort and protection

• Latex silicone and PVC free

• Ultra lightweight for all day wear

• Welded straps provide increased comfort against the wearers face

• No metal parts – ideal for dielectric applications

• Suitable for medical, sanding, grinding, woodworking, polishing and dusty environments

• Complies with AS/NZS 1716:2012

5000 Series Premium P2 Nuisance, Acid Gas and Vapour Respirators

• Can provide protection against thermally and mechanically generated dust, mist and fume and acid gas/organic vapour odour relief

• Ultra soft triple layer face seal

• Innovative exhalation valve – frontal protection of valve membrane, minimal exhalation resistance

• Dolomite tested – demonstrates resistance to clogging over time

• Latex, PVC, silicone free materials used

• Pre-formed and colour coded nose bridge

• Complies with AS/NZS 1716:2012

5000 Series Premium P1 Cupped Nuisance, Odour Respirators

• Can provide protection against mechanically generated dusts and mists and nuisance acid gas/organic vapour odour relief

• Willtech™ face seal – ultra soft triple layer face seal for soft textile sensation

• Innovative exhalation valve – frontal protection of the vale, with minimal exhalation resistance

• Dolomite tested – demonstrates resistance to clogging over time

• Latex, PVC, silicone free materials used

• Increased inner volume for a non-oppressive feeling on the face and ease of movement for speech

• Filter media hypoallergenic and humidity resistant

• Suitable for grinding, drilling, sanding, glass etching, dusty and hot operations

• Complies with AS/NZS 1716:2012

TYPES OF FILTERS

PARTICLE FILTERS

How do particle filters work?

A bed of randomly oriented fibres are used to create the filter. These fibres are treated to attract and capture particles as they flow into and through the filter material. Increasing the thickness and effectiveness of the filter material increases the filter efficiency at capturing particles.

How long do particle filters last?

As particle filters load up with the contaminant, they actually become a better filter. However, they also become harder to breathe through. The wearer will notice this increased load at some point, decide the restriction is too high and will then need to change the filter. This decision point will vary from individual to individual as some people are more sensitive to breathing load than others. So the filter should be changed when the breathing resistance becomes excessive OR if the filter is damaged in any way.

Situations where particle filters must not be used

There are several applications where particle filters should NOT be used:

• When the ambient oxygen level is not guaranteed to be > 19.5%

• For capture of gases or vapours

• When the airborne particulate contaminant concentrations are very high

• When Government Regulations require use of airline or other specific type of respirator for specific applications

Where practicable RPE shall be issued for a wearers exclusive use. Records documenting the issue of mask and consumables (filters etc.), and maintenance of the mask need to be established. Filters need to be marked with the date of issue and users ID. Non-personal RPE must be cleaned prior to re-issue.

GAS & VAPOUR FILTERS

How do gas & vapour filters work?

These filters rely on a sorbent material to ‘soak up’ the gas/vapour molecules. Typically a container of fine activated carbon grains is used for this. Depending on the chemical treatment of the carbon surface, this material will absorb different types of gases or vapours. AS/NZS 1716 uses a classification system to identify the different types of contaminants these treated carbon beds will capture.

How long do gas & vapour filters last?

Gas and vapour filters are rated according to their absorptive capacity. In increasing capacity, the class ratings are: Aus, 1, 2 or 3. This means we can have an A1 or a B2 or a multigas type filters like an A2B2EAusK1. The service life (i.e. how long will it perform) of any gas and vapour filter is affected by many factors – concentration and identity of contaminants, breathing rates, humidity levels, ventilation, temperature, type of carbon etc.

Situations where gas & vapour filters must not be used

There are several applications where gas and vapour filters should NOT be used:

• When the oxygen level is not guaranteed to be > 19.5%

• For capture of particles e.g. dusts, mists, fumes or fibres

• When airborne gas and vapour contaminant concentrations are very high

• When spraying materials (e.g. 2-pack paints) containing Isocyanates

• Where the contaminant(s) present cannot be captured by the gas and vapour filter

• When regulations require use of airline or other specific type of respirators for certain applications

• When the contaminant has poor warning properties

IDENTIFY THE HAZARDS

INDUSTRY APPLICATION

Construction Painting, spraying, varnishing, coating

Welding, metal cutting, metal pouring, soldering, brazing

Metal Fabrication

Agriculture

Automotive

Welding – TIG, MIG and other

Spraying low vapour pressure*** pesticides, herbicides or fungicides

Mixing pesticide, herbicide or fungicide or spraying organic vapours

Cleaning or using organic solvents, degreasing, paint thinners and glues

Brush or roller application* of 2-pack type paints

Laying up

Fibreglass

Using a chopper gun

Spray painting & cleaning moulds

Maintenance Disinfection, cleaning

Solvent-based paint

Solvents, resins, synthetic resins

Latex-paint, residual solvents

Spray-on glue, foam, varnish, adhesive

fumes, ozone gas Nuisance levels of organic vapours

vapour, mist, dust

Other Handling

3M™ REUSABLE RESPIRATORY

Epoxy and polyester resin, amine & anhydride hardener

Methyl ethyl ketone peroxide (MEKP), styrene vapour

Glass fibre, dust, resin and styrene vapour

vapour and mist

Organic vapour, mist, dust

Organic vapour, formaldehyde, mist, dust

Ammonia (NH3)**

Bacteria, spores, odours

Hydrochloric acid vapour or mist**

solvents

Sulphur dioxide **

Sulphuric acid (H2SO4)**

Hazardous goods storage/transport

* For protection from Isocyanates when spraying polyurethanes/2 pack, please contact the 3M™ TechAssist Helpline

** Also need to consider eye/face/skin protection

*** Low vapour pressure < 1.3Pa @ 25°C

P3 protection is only achieved on a full face respirator.

Application limits for Gas & Vapour respirators (AS/NZS1715):

– Half face respirators can be used up to 10 times the relevant Workplace Exposure Standards (WES) or up to 1000ppm, whichever limit is reached first.

– Full face respirators can be used up to 100 times the WES with a Class 2 filter or up to 5000ppm, whichever limit is reached first.

– A1 and A2 Cartridges are designed for use with organic vapours with a boiling point above 65°C.

– AX Cartridges are used for organic vapours with a boiling point under 65°C.

Note: 3M™ AX Cartridges are single use and can only be fitted to 3M™ Full Face respirators.

This selection guide is only an outline designed to focus on products which may be appropriate for typical applications – it should not be used as the only means of selecting a product. Selection of the most appropriate personal protective equipment (PPE) will depend on the particular situation and exposure levels and should be made only by a competent person knowledgeable of the assessed risks, actual working conditions and limitations of PPE.

Details regarding performance and limitations are set out on the product packaging and user information. If in doubt, contact a safety professional or 3M.

RESPIRATORS – HALF/FULL FACE REUSABLE

Full Face Respirators 6000 Series

• Lightweight and well balanced

• Simple and easy to use

• Polycarbonate, high impact visor provides wide field of vision

• Proprietary 3M™ Cool Flow™ Exhalation valve provides low breathing resistance and minimises heat build up in the respirator

• Spare parts and accessories also available including replacement visor, lens covers and spectacle kit

• Low profile, well balanced twin cartridge and filter design

• Suitable for use with 3M™ 2000, 5000 and 6000 series cartridges and filters (sold separately)

• Complies with AS/NZS 1716:2012

• Complies with AS/NZS 1337.1:2010

– High impact resistance

Half Face Respirators Rugged Comfort 6500 Series

• Lightweight, rugged mask with a wide field of vision

• Built from comfortable, durable silicone for extended product life

• Low profile design

• New valve cover design directs moisture and exhaled air downwards

• Cool Flow™ valve for minimised breathing resistance

• QL versions features quick latch design for easy donning and doffing

Mfr No.

6501 Rugged comfort respirator 6501 S 03670393

6502 Rugged comfort respirator 6502 M 03670410

6503 Rugged comfort respirator 6503 L 03670427

6581 Cradle head 6581 – 03670444

6583 Exhalation valve 6583 – 03670461

6501QL Rugged comfort respirator (Quick Latch) S 04129818

6502QL Rugged comfort respirator (Quick Latch) M 04129835

6503QL Rugged comfort respirator (Quick Latch) L 04129852

6582QL Cradle head (Quick Latch) – 04129869

Particulate Filters 2000, 5000, 6000 Series

• 3M™ Bayonet Connection System ensures precise and secure locking

• Low profile and well balanced twin filter design

• Suitable for a range of industries such as manufacturing, agricultural, construction and automotive

• Ideal for use with 3M™ half and full face respirators

Half Face Respirators 7500 Series

• Soft silicone faceseal for extra comfort and durability

• Proprietary 3M™ Cool Flow™ Exhalation valve provides low breathing resistance and minimises heat build up

• 3M™ Cool Flow™ Exhalation valve provides low breathing resistance and minimises heat build up in the respirator

• Low profile and well balanced twin cartridge and filter design

• Suitable for use with 3M™ 2000, 5000 and 6000 series cartridges and filters (sold separately)

• Complies with AS/NZS 1716:2012

Half Face Respirators 6000 Series

• Simple and lightweight reusable respirator

• Thermoplastic Elastomer (TPE) facepiece

• Cradle head harness and easy to fasten neck strap

• Low profile and well balanced twin cartridge and filter design

• Suitable for use with 3M™ 2000, 5000 and 6000 series cartridges and filters (sold separately)

• Complies with AS/NZS 1716:2012

• Complies with AS/NZS 1716:2012 *P3 protection achieved only when worn with a 3M™ Full Face Respirator; provides P2 protection with 3M™

SAFETY – PPE

Gas & Vapour Filters 6000 Series

• 3M™ Bayonet Connection System ensures precise and secure locking

• Low profile and well balanced twin cartridge/filter design

• Suitable for a range of industries such as manufacturing, agriculture, construction, pharmaceutical, mining, oil and gas

• Complies with AS/NZS 1716:2012

*P3 protection achieved only when worn with a 3M™ Full Face Respirator; provides P2 protection with 3M™ Half Face Respirators 6098 – Filter is single use only and must be worn with a 3M™ Full Face Respirator 6099 – Filter must be worn with a 3M™ Full Face Respirator

Respirator Starter Kits

• Convenient and easy to use – an ideal solution to get you started

• All kits include a 3M™ facepiece, filters, 3M™ Respirator Cleaning Wipes and a 3M™ Respiratory Protection Guide

• Store the respirator in the handy, sealable storage container, avoiding moisture and contaminant exposure

• Complies with AS/NZS 1716:2012 6225

• Suitable for sanding/sawing, lead paint removal, food manufacturing, insulation, drilling/cutting, masonry, grinding and powder coating 6228 and 7528

• Suitable for welding, soldering/brazing, grinding/polishing, drilling, metal pouring and machining 6251 and 7551

• Suitable for paint spraying*, pesticide spraying, chemical handling, fibreglassing, printing and degreasing 6259

• Suitable for a range of vapours and gases including (but not limited to):

6251 – Spraying Respirator Kit

7528 – Welding Respirator Kit

7551 – Spraying Respirator Kit

6225 – Dust/Particle Respirator Kit

So is understanding its pressure sensitive areas. Every face is different.

Compatibility

SAFETY – PPE

Respirator Kit – Asbestos/Dust Half Face 7535 Series

• Convenient respiratory kit designed for asbestos* removal and environments containing dust

• Rating – P2/P3**

• Kit Includes:1 x 3M™ Half Face Respirator 7500 Series, 2 x Pair of 3M™ Particulate Filters 6035 P2/P3** and 1 x Pair of 3M™ SecureFit™ 200 Series Safety Glasses

• Unique solid top 6035 particulate filter casing design reduces premature caking and clogging from dirt, grime, water or dust and aids decontamination practices

• Suitable for certain asbestos work

– refer to local asbestos government guidelines (SafeWork Australia)

• Ideal for lead paint removal, sanding, sawing, drilling, cutting, grinding, masonry, insulation and powder coating

• Complies with AS/NZS 1716:2012

• Complies with AS/NZS 1337.1 –Medium impact

*Refer to local asbestos government guidelines (Safe Work Australia)

**Higher P3 protection factors only achieved with a 3M™ Full Face Respirator, otherwise P2 protection level when worn on a 3M™ Half Face Respirator

Spraying/Painting Full Face 6851 Series Respirator Kit

• Convenient respiratory kit designed for certain painting and spraying environments

• Comes with the 3M™ Full Face Reusable 6000 Series Respirator

• Respirator is easy to use, durable, well balanced and provides a wide field of vision

• Provides protection against particulates and organic vapours with boiling point > 65°C

• Filter Rating: A1P2

• Suitable for paint spraying, pesticide spraying, chemical handling of organic vapours (eg: from thinners and adhesives), fibreglassing, printing and furniture manufacturing

• Complies with AS/NZS 1716:2012

Respirator Cleaning Wipes 504

• Pre-moistened towelettes for hygienically cleaning reusable respirators

• Alcohol-free and individually packaged in sealed sachets

• 100 Wipes per box

Respirator Kit – Asbestos/Dust Full Face 6835 Series

• Convenient respiratory kit designed for certain asbestos* removal and environments containing dust

• Rating – P3**

• Kit Includes: 1 x 3M™ Full Face Respirator 6000 Series and 2 x Pair of 3M™ Particulate Filters 6035 P2/P3**

• Unique solid top 6035 particulate filter casing design reduces premature caking and clogging from dirt, grime, water or dust and aids decontamination practices

• Suitable for certain asbestos work requiring higher protection levels – refer to local asbestos government guidelines (SafeWork Australia)

• Suitable for environments requiring face and eye protection

• Ideal for lead paint removal, sanding, sawing, drilling, cutting, grinding, masonry, insulation and hazardous particulates such as silica and beryllium

• Complies with AS/NZS 1716:2012

Promask Single Full Face Respirator

• DIN40 threaded filter connection

• Wide range of high performance Pro2000 filters available to address a variety of hazards

• Non-allergenic halo butyl face piece with wide panoramic polycarbonate visor

• Five point adjustable head harness provides increased wearer comfort and fit

• Speech diaphragm provides clear and audible speech transmission

• Ideal for heavy industrial, mining and emergency service industries

• Certified to AS/NZS 1716:2012

RFF1000 Vision Full Face Respirator

• Full face respirator with silicone face piece (front mounted filter connection)

• Unique toroidal visor offers exceptional vision

• Speech diaphragm helps clear and audible speech transfer

AVIVA 40 Half Face Respirator

• Half mask made from soft TPE material

• Unique hybrid reflex seal for increased comfort and fit

• Integrated voice panel, for enhanced voice intelligibility

• Goggle pinch – allows better integration with eyewear

• Five point adjustable head harness provides increased wearer comfort and fit

• Uses the Pro2000 range of filters (sold separately)

• Suitable for construction, demolition, defence, light and heavy industries, toxic chemical, dust and biological hazards

• Certified to AS/NZS 1716:2012

AVIVA 40 Respirator Kit

Half Face – Asbestos/Dust

• Complete respirator kit with AVIVA 40 half face respirator and a P2 Pro2000 filter with pre-filter

• Packed in a convenient resealable storage container for mask and filter protection

• Suitable for light and heavy industries, agriculture and construction

• Ideal for asbestos removal (non-friable) and dust

• Certified to AS/NZS 1716:2012

AVIVA 40 Respirator Kit

Half Face – Spraying

• Complete respirator kit with AVIVA 40 half face respirator and a A2P2 Pro2000 filter with pre-filter

• Packed in a convenient resealable storage container for mask and filter protection

• Ideal for spray painting (organic and water based, excluding isocyanate or ‘twopack’ polyurethane paints), welding and metal cutting (including coated products)

• Suitable for manufacturing, smelters, automotive, agriculture (spraying herbicides and fungicides)

• Certified to AS/NZS 1716:2012

• Low breathing resistance

• Positive fit check button – enables easy and good face fit

• AVIVA 40 is approved with a select range of Pro2000 Filters – refer to filter chart

• Suitable for light and heavy industries, agriculture and construction

• Ideal for asbestos removal (non-friable)

• Certified to AS/NZS 1716:2012

Pro2000 Filters to suit Promask

Single, AVIVA 40, and Proflow

• DIN40 thread Scott Safety manufactured filters

• Wide range of filter protection factor options to address a variety of workplace hazards

• Suitable for use with the Scott Safety Promask Single and Vision RFF1000 Full Face Respirator and Proflow – select Pro2000 Filters are also approved with AVIVA 40 Half Face Respirator

• Suitable for construction, manufacturing, mining, chemical handling, emergency services, military, agricultural and laboratory work

• Certified to AS/NZS 1716:2012

7700 Series Half Mask

• Low dead air space means less exhaled breath is re-breathed which encourages increased worker productivity

• Strategic placement of exhalation valve allows more breath to be exhaled out of the mask faster leaving workers feeling cooler and comfortable

• Variable thickness in sealing area means the nose area is flexible enough to conform to the bridge, it provides superior comfort without sacrificing fit of the nose, but not too thin to collapse

• Built up chin area supports the mask, maintains fit even while the wearer is talking

• Only 9 parts – all parts are replaceable meaning they are quick and easy to strip down and clean

• Latex free

• Not suitable for use in IDLH environments incl atmospheres with less than 19.5% oxygen

• Ideal for use with Honeywell Filter Cartridges – sold separately

• Suitable for various applications requiring respiratory protection with HF mask against various contaminants depending on the filter used

• Complies with AS/NZS 1716:2012

5500 Series Half Mask

• Strategic placement of exhalation valve allows more breath to be exhaled out of the mask faster leaving workers feeling cooler and comfortable

• Variable thickness in sealing area means the nose area is flexible enough to conform to the bridge, it provides superior comfort without sacrificing fit of the nose, but not too thin to collapse

• Only 9 parts – all parts are replaceable meaning they are quick and easy to strip down and clean

• Latex free

• Low dead air space means less exhaled breath is re-breathed which encourages Increased worker productivity

• Built up chin area supports the mask, maintains fit even while the wearer is talking

• Not suitable for use in IDLH environments

• Ideal for use with Honeywell Filter Cartridges – sold separately

• Suitable for various applications requiring respiratory protection with HF mask against various contaminants depending on the filter used

• Complies with AS/NZS 1716:2012

RU6500 Full Face Respirator

• Wide viewing area for distortion free visibility and optical clarity

• Polycarbonate lens with 200° field of vision

• Silicone nose cup offers a soft, comfortable fit ideal for all day use

• Fits North Filters, which are sleek and lower profile so cartridges don’t intrude into the work zone – sold separately

• Silicone skirt offers exceptions durability and comfort

• Enhanced five strap head harness offers quick and easy adjustment

• Suitable for manufacturing and general industrial applications

• Complies with AS/NZS 1716:2012

7600 Series Full Face Mask

• Silicone mask provides all day comfort

• Speech diaphragm is standard which amplifies workers’ conversations in noisy work environments

• Dual flange sealing area provides a wider sealing area with added flexibility for difficult to fit faces

• Five strap head harness – centre strap helps to position and hold the mask for a more secure fit even during strenuous jobs requiring lots of movement

• Nose cup is standard which means less dead air space for increased worker comfort and productivity

• Channels exhaled breath meaning lens does not fog up

• Chin cup positions the face piece correctly for a more secure fit

• Lens offers 200° field of vision, for a wider viewing area in all directions plus downward view facilitates going up and down ladders

• Not suitable for use in IDLH environments including atmospheres with less than 19.5% oxygen

• Idea for use with Honeywell for use with Honeywell Filter Cartridges – sold separately

• Suitable for various applications requiring respiratory protection with full face mask against various contaminants depending on the filter used

• Complies with AS/NZS 1716:2012

Honeywell Filters – 5500, 7700, 7600 & RU6500 Series Respirators

• Threaded filter for use with Honeywell North face masks

• Low profile, lightweight design for all day use

• Each filter provides protection against various contaminants and particulates

• Ideal for use with the Honeywell 5500, 7700 half face, 7600 and RU6500 full face masks

• Suitable for manufacturing, agriculture, construction, welding, glazier and dusty environments

• Complies with AS/NZS 1716:2012

Half Face Asbestos Respiratory Kits

• Handy kits make product selection quick and easy

• Silicone half mask is latex free and easy to wear and adjust

• Lunchbox packaging provides storage for the kit, when not in use

• Contains half face silicone mask, along with filter sets for applications where users are working around asbestos contamination, or suspect asbestos in the working area*

• Ideal for electricians, roof plumbers, roof tilers, plasterers and painters

• Complies with AS/NZS 1716:2012

*Not for the restricted removal of asbestos

Half Face Spray Respiratory Kits

• Handy kits make product selection quick and easy

• Contains half face silicone mask, along with filter sets for respiratory protection in spray and agricultural spraying

• Silicone half mask is latex free, and easy to wear and adjust

• Lunchbox packaging provides storage for the kit, when not in use

• Ideal for spray painting and agricultural spraying

• Complies with AS/NZS 1716:2012

Half Face Welders

Respiratory Kits

• Handy kits make product selection quick and easy

• Silicone half mask is latex free, and easy to wear and adjust

• Lunchbox packaging provides storage for the kit when not in use

• Contains half face silicone mask, along with P2 OV filters

• Suitable for welding, soldering and dusty environments

• Complies with AS/NZS 1716:2012

PRODUCT INSIGHT

GLOBAL LEADERS IN RESPIRATORY PROTECTION

Honeywell lead the way in the design and manufacture of respiratory protection products

Worker comfort and ease of use are our priority. That’s why our products are designed to be worn day-in, day-out.

Reusable Respirators

A reusable respirator can provide a higher level of protection and customisation for workers using respiratory protection more frequently. Spare parts are available to reduce replacement costs.

Reusable respirators use replaceable filters to clean the air when combined with a half face piece, full face piece, or head covering. Wearers are protected from finely divided solids or liquid matter (particulates), or gases and vapours from the air.

Filters are available to protect against contaminants such as organic vapours, acid gases, sulphur dioxide and ammonia.

At Blackwoods, our philosophy is to make safety easy, so you can focus on growing your business. That’s why our dedicated team of safety specialists deliver complete Assess, Train, Equip safety solutions providing you better choice, better advice and better price, helping your people make it home safely each day.

SAFETY – PPE

RESPIRATORS – POWERED AIR – VERSAFLO™

Versaflo™ PAPR

• Lightweight Powered Air Purifying Respirator (PAPR) is an easy to use, versatile respiratory protection system for particulate environments

• Includes Versaflo™ turbo air filter unit, pre filter, P3-PAPR filter, battery pack and charger, standard belt and length adjusting breathing tube

• Slim profile designed for use in tight spaces

• Compact shape and location of air inlet allows user to be seated without compromising air intake

• Curved design allows the turbo to be worn close to users back, reducing leverage effect that can cause the unit to feel heavier

• Sophisticated electronics maintain factory calibrated airflow at a nominal 190L/min

• Audible and visual alarm for low airflow and low battery charge

• LED indicators on the battery pack indicate charge status

• 10 Hour battery capacity with a recharge time of less than 3.5 hours

• Lightweight lithium-ion battery pack has no memory effect, meaning it can be easily removed for charging

• Intelligent battery chargers help maintain optimum battery performance and are available in single and four station charging configurations

• Suitable for environments with hazardous particles including woodworking, metal fabrication, grinding and manufacturing

• Complies with AS/NZS 1716:2012 – Respiratory protection

Versaflo™ PAPR Faceshield System

• Includes Versaflo™ powered air filter unit (air turbo, breathing tube, waist belt, battery pack and charger, airflow indicator, P3 filter and user instruction) and M-106 Versaflo™ faceshield with comfort faceseal or M-107 Versaflo™ faceshield with flame resistant faceseal

• Integrated respiratory, eye and face protection with optional helmet mounted earmuffs (sold separately)

• Visual and audible alarm for low battery or low air flow

• Versaflo™ M-100 series faceshield has an in built air deflector that allows users to direct the airflow inside the helmet for increased control and comfort

• Comfort and integrated protection against a range of workplace hazards

• High impact polycarbonate visor combines excellent peripheral and downward vision with exceptional optical clarity

• Coated visor provides added chemical and scratch resistance

• Three filter types to cater for nearly all industry dust, mist and fume requirements

• Suitable for woodwork, surface coating, agriculture, pesticide application, pharmaceutical manufacturing, powder pulverising and chemical industries

• Complies with AS/NZS 1716:2012 – Respiratory protection

• Complies with AS/NZS 1337.1:2010 – High impact eye protection

Versaflo™ PAPR Filter Systems

• Suitable for construction industry, ground mining, and pharmaceutical manufacturing

Filter – Particulate only, TR-3712E

• PAPR-P3 particulate filter

• Suitable for providing respiratory protection from particles in most workplace situations such as manufacturing, pharmaceuticals and food processing

• Ideal for dealing with dusts, mists and aerosols produced in the workplace, which can be injurious to the lungs

Filter – Particulate plus nuisance level OV, TR-3800E

TR-3712E/TR-3802E/TR-3822E

• PAPR-P3 Filter with nuisance level organic vapour relief

• Nuisance level refers to concentrations below applicable occupational exposure limits

• Suitable for providing respiratory protection from particles in most workplace situations such as manufacturing, pharmaceuticals, food processing and welding with suitable welding shield

• Ideal for dealing with dusts, mists, fumes and aerosols produced in the workplace, which can be injurious to the lungs

Filter – Particulate plus Nuisance Level HF and Acid Gas, TR-3822E

• PAPR-P3 particulate filter that provides protection against hydrogen fluoride as well as offering nuisance level acid gas performance

• Nuisance level refers to concentrations below applicable occupational exposure limits

• Suitable for providing respiratory protection from particles in most workplace situations such as manufacturing, pharmaceuticals, food processing and spraying agricultural chemicals

• Ideal for dealing with dusts, mists and aerosols produced in the workplace, which can be injurious to the lungs

Respirator Prefilter, TR-3600

• Disposable filter medium that extends the service life of the main filter by minimising particulate loading

• Suitable for all applications where hot particles are not present

Respirator Spark Arrestor, TR-362E

• Reduces the risk of sparks and other hot materials coming into contact with filter and turbo motor

• Mandatory for welding and in all situations where the TR-300 may be exposed to sparks, molten metal and other hot particulates

3M™ Versaflo™ TR Acid Gas Filter 3822E

• P3 filter

• Particle filter and nuisance acid gas

• For use with Versaflo™ TR-300 powered turbo

• Compatible with TR-371+ filter cover

• Complies with AS/NZS 1716:2012

TR-3600

TR-362E

TR-3822E

Versaflo™ PAPR Helmet System

• Includes Versaflo™ powered air filter unit (air turbo, breathing tube, waist belt, battery pack and charger, airflow indicator, P3 filter and user instruction) and a M-306 Versaflo™ high impact helmet with comfort faceseal or a M-307 Versaflo™ high impact helmet with flame resistant faceseal

• Integrated respiratory, head, eye and face protection with optional helmet mounted earmuffs (sold separately)

• Visual and audible alarm for low battery or low air flow

• Versaflo™ M-300 series high impact helmet has an in built air deflector that allows users to direct airflow inside the helmet for increased control and comfort

• PAPR system delivers comfort and integrated protection against a range of workplace hazards

• High impact polycarbonate visor combines excellent peripheral and downward vision with exceptional optical clarity

• Coated visor provides added chemical and scratch resistance

• Three filter types to cater for nearly all industry dust, mist and fume requirements

• Suitable for metalworking (surface preparation, metal fabrication), machining, polishing and grinding, smelting and foundry (coke oven work)

• Complies with AS/NZS 1716:2012 – Respiratory protection

• Complies with AS/NZS 1337.1:2010 – High impact eye protection

• Complies with AS/NZS 1801:1997 – Type 1 Industrial safety helmet

Versaflo™ PAPR Faceshields M-100 Series

• Respiratory, eye and face protection

• Two options available: M-106 with comfort faceseal and M-107 with flame resistant faceseal

• Coated lens provides chemical and scratch resistance

• Deflector allows users to direct airflow inside faceshield for increased control and comfort

• Visor design combines excellent peripheral and downward vision with exceptional optical clarity

• Optional head, shoulder and neck cover

• Headtop attached hearing protector is available separately

• Faceshield is suitable for use with all 3M™ approved air delivery systems

• Suitable for woodworking, surface cleaning and coating, spray painting, grinding and manufacturing applications

• Complies with AS/NZS 1716:2012 – When used with 3M™ approved respiratory protection systems and devices

• Complies with AS/NZS 1337.1:2010 –High impact eye protection

PRODUCT INSIGHT

VERSAFLO™ POWERED AIR TURBO TR-300+

The 3M™ Versaflo™ Powered Respirator System TR-300+ combines performance, protection and functionality with modern, stylish design and comfort. It is the key to easy-to-use, versatile, respiratory protection systems for particulate environments.

FEATURES AND BENEFITS:

Comfortable Airflow

• Two user selectable flow rates to maximise comfort: 185L/m and 205L/m Controlled airflow delivers steady flow as battery discharges or filter loads with particulates

Ease of Use

• Electronic audible and visual alarm incase of low battery and/or low air flow

• TR-300+ display shows battery charge status, particulate filter loading status during use as well as selected airflow

• Charge status is indicated by a useful LED display

• No user calibration of turbo required

Comfort

• Light and small – extremely slim, lightweight, balanced design for comfort

Multiple Applications

• High efficiency filter captures hazardous dust, mist and fume plus options for nuisance level gases and vapours

• IP53 rating. Suitable for use in decontamination shower

Safety

• The TR-300+ Powered Air Turbo, in combination with 3M approved headtops, has been tested and is compliant with AS/NZS 1716:2012

Versaflo™ PAPR Helmets M-300 Series

• Respiratory, head, eye and face protection

• Two options available: M-306 with comfort faceseal and M-307 with flame resistant faceseal

• Coated lens provides chemical and scratch resistance

• Deflector allows users to direct airflow inside helmet for increased control and comfort

• Visor design combines excellent peripheral and downward vision with exceptional optical clarity

• Optional head, shoulder and neck cover

• Helmet attached hearing protector is available separately

• Helmet is suitable for use with all 3M™ approved air delivery systems

• Suitable for surface cleaning, grain handling, pulp and paper processing, refining and purifying and metalworking applications

• Complies with AS/NZS 1716:2012 – When used with 3M™ approved respiratory protection systems and devices

• Complies with AS/NZS 1337.1:2010

– High impact eye protection

• Complies with AS/NZS 1801:1997

– Type 1 Industrial safety helmet

SAFETY – PPE

Versaflo™ Headcover S-133

• Easy to use polypropylene laminate headcover

• Integrated head suspension that is fully assembled and ready to use straight out of the box

• Wide field of view and high durability Polyethylene Terephthalate Glycol (PETG) visor

• Soft elastic faceseal for improved comfort and reduced noise

• Head top suitable for use with all 3M™ approved air delivery systems

• Suitable for general purpose, woodworking, powder and grain mixing and food processing applications

• Ideal for applications that require frequent replacement of the entire head top assembly

• Complies with AS/NZS 1716:2012 –When used with 3M™ approved respiratory protection systems and devices

Versaflo™ Breathing Tubes

• Incorporates the 3M™ Quick Release Swivel (QRS) connection

• Compatible with all 3M™ PAPR and supplied air delivery units

• Complies with AS/NZS 1716:2012 – When used with 3M™ approved respiratory protection systems and devices

BT-20

• Standard duty polyurethane option of two lengths; short: 735mm, long: 965mm

BT-30

• Self adjusting polyurethane length, 525 – 850mm

BT-40

• Heavy duty neoprene, 840mm

Versaflo™ Headcover S-333

• Easy to use polyurethane coated, knitted nylon headcover

• Integrated head suspension

• Fully assembled and ready to use straight out of the box

• Wide field of view and scratch resistant polycarbonate visor

• Soft elastic faceseal for improved comfort and reduced noise

• Head top suitable for use with all 3M™ approved air delivery systems

• Suitable for pharmaceutical manufacturing, woodworking, food processing, and powder and grain mixing applications

• Ideal for applications that require softer fabric with more drape than the S-133

• Complies with AS/NZS 1716:2012 –When used with 3M™ approved respiratory protection systems and devices

Versaflo™ Hood S-433

• Easy to use polypropylene coated knitted polyamide hood with integrated head suspension hood

• Fully assembled and ready to use straight out of the box

• Wide field of view and high durability Polyethylene Terephthalate Glycol (PETG) visor

• Soft elastic faceseal for improved comfort and reduced noise

• Head top suitable for use with all 3M™ approved air delivery systems

• Suitable for pharmaceutical manufacturing

• Ideal for applications that require neck and shoulder coverage, and where frequent replacement of the entire head top assembly is necessary

• Complies with AS/NZS 1716:2012 –When used with 3M™ approved respiratory protection systems and devices

Versaflo™ 6800-TR Plus Full Face Powered Air Respirator

• Full face respirator combined with belt mounted Versaflo™ Powered Air Respirator TR-300

• Wide field of view full facemask with soft pliable silicone faceseal

• High impact visor with exceptional optical clarity

• Provides protection against mechanically and thermally generated particulates

• Can be worn in decontamination shower using the decontamination kit

• Nominal flow = 190L/min Kit includes:

• 1 x Full face mask – medium (0529 3569)

• 1 x Versaflo air filter unit (0161 4362)

• 1 x Easy clean belt (0161 4413)

• 1 x Battery pack (0161 4464)

• 1 x Battery charger (0161 4481)

• 1 x DIN/QRS Breathing tube assembly (0148 5807)

• 1 x Particulate filter PAPR-P3 (0161 4566)

• 1 x Disposable coverall (0215 6696)

• 1 x Storage case

• Provides effective, robust and reliable protection against respiratory, face and eye hazards present in the stripping and handling of asbestos*

• Suitable for work environments where significant levels of airborne dust particles and fibres are routinely present

• Complies with AS/NZS 1716:2012 – Respiratory protection

• Complies with AS/NZS 1337.1:2010 – High impact eye protection

*Refer to SafeWork Australia guidelines to identify

will be performing

Jupiter™ PAPR System

• Compact Powered Air Purifying Respirator (PAPR) designed to deal with dusts, particles, fumes, gases and vapours produced in the workplace, which can be harmful to the lungs

• Jupiter™ powered air filter unit includes turbo case, motor, blower, decontamination belt, eight hour duration NiMH battery and user instructions (head top, charger and hose not included)

• Designed with user comfort in mind

• System has audible and visual alarms to help user correctly maintain integrity of system

• Intrinsically safe four hour battery and pouch kit, braces, flame retardant hose cover and a heavy duty breathing hose are available as optional accessories for the Jupiter™ system

• Three filter types to cater for nearly all industry dust, mist, fume, gas and vapour requirements

• Suitable for metalworking, automotive, demolition, stripping, painting (excluding 'twopack'), woodworking, agriculture, mining, chemical and pharmaceutical applications

• Complies with AS/NZS 1716:2012

Jupiter™ Standard Helmet System JT12C

• Jupiter™ JT12C includes the Jupiter™ powered air filter unit (turbo case, motor, blower, decontamination belt, eight hour duration NiMH battery and user instructions), No.12 Airstream™ style helmet head top, hose and charger

• No.12 helmet head top delivers face, eye, head and respiratory protection all in one system and includes a high impact visor and head/faceseal

• Suitable for shipbuilding, metal fabrication, construction, electrical, asbestos removal and maintenance repair operations

• Ideal for gas, vapour, dust, mist and fume environments

• Complies with AS/NZS 1716:2012

• Complies with AS/NZS 1337.1:2010 – High impact eye protection

• Complies with AS/NZS 1801:1997– Type 1 Industrial safety helmet

Jupiter™ Powered Air Respirator with Versaflo™ Faceshield

• PAPR kit includes Jupiter™ powered air filter unit (turbo case, motor, blower, decontamination belt, eight hour duration NiMH and user instruction) and M-106 Versaflo™ faceshield with comfort faceseal or M-107 Versaflo™ faceshield with flame resistant faceseal

• High impact faceshield provides comfort and integrated protection against a range of workplace hazards

• Coated visor provides chemical and scratch resistance

• Suitable for woodworking, surface cleaning and coating, grinding and manufacturing

• Complies with AS/NZS 1716:2012 – Respiratory protection

• Complies with AS/NZS 1337.1:2010 – High impact eye protection

Jupiter™ System Filters

• Filters for use with 3M™ Jupiter™ Powered Air Purifying Respirators (PAPR)

• Suitable for construction, manufacturing, agriculture, pharmaceutical and chemical handling

• Complies with AS/NZS 1716:2012 – PAPR respiratory protection

Jupiter™ Headcover System JTS-133LC

• Jupiter™ Headcover JTS-133LC includes the Jupiter™ powered air filter unit (turbo case, motor, blower, decontamination belt, eight hour duration NiMH battery and user instructions), Versaflo™ Headcover S-133L, hose and charger

• Easy to use polypropylene laminate headcover

• Wide field of view and high durability Polyethylene Terephthalate Glycol (PETG) visor

• Audio and visual warning system for low battery and airflow

• Intelligent battery charger is standard

• Battery duration – standard 8 hours

• Suitable for pharmaceutical and food industries

• Ideal for gas, vapour, dust, mist and fume environments

• Complies with AS/NZS 1716:2012

Powered Air Filter Unit

SAFETY – PPE

Proflow Powered Air Purifying Respirator ReadyPaks

• Complete PAPR kit with proflow twin filter blower, a full face mask or welding headtop and P3 filters (2)

• Packed in resealable, stackable storage container or carry case

• Designed with a wipe down belt and EPDM hose for easy decontamination

• 160L/min Flow rate, ideal for manual working tasks like asbestos removal

• Built in electronics manage data logging and maintain flow rate

• Up to seven hours of operation on a fully charged battery

• Full face masks can optionally be used with DIN40 filters as a negative pressure mask

• Welding ReadyPak suitable for welding and dust applications

• Suitable for asbestos removal work or other areas exposed to irritant dusts

• Certified to AS/NZS 1716:2012

Powerflow™ 6800+ Full Face PAPR

• Full face respirator combined with face mounted air filter unit as a ready to use kit

• Wide field of view full facemask with soft pliable silicone faceseal

• High impact visor with exceptional optical clarity

• Provides protection against mechanically and thermally generated particulates

• Can be worn in decontamination shower using the decontamination kit

• Nominal Flow = 110L/min Kit includes:

• 1 x Full Face Mask – Medium (0529 3569)

• 1 x Powerflow AirTurbo (0148 6742)

• 1 x Easy Clean Belt (0161 4413)

• 1 x Battery Pack (0137 5103)

• 1 x Battery Charger (0137 5120)

• 1 x P3 Particulate Filter (0148 6283)

• 1 x Disposable Coverall (0215 6696)

• 1 x Powerflow Airflow Tube

• 1 x Decontamination Shroud

• 1 x Storage Case

• Suitable for work environments where significant levels of fibres are routinely present in the atmosphere

• Effective, robust and reliable protection against respiratory, face and eye hazards present in the stripping and handling of *asbestos

• Complies with AS/NZS 1716:2012 – Respiratory protection

• Complies with AS/NZS 1337.1:2010 – High impact eye protection

*Refer to SafeWork Australia guidelines to identify the asbestos work procedure or task you will be performing

Powerflow™ Respirator Filters

• Filters for use with 3M™ Powerflow™ Powered Air Purifying Respirators (PAPR)

• Suitable for asbestos removal and work environments where significant levels of fibres are routinely present in the atmosphere

• Complies with AS/NZS 1716:2012 –PAPR respiratory protection

XP100544731

AT010660192

XP100231594

Versaflo™ Spray Painters Kit ALVM-106E

• Includes Versaflo™ Faceshield M-106, Versaflo™ Supplied Air Regulator V-500E, Standard Belt, Breathing Tube, Tote Bin and User Instructions

• Lightweight faceshield, with excellent balance and field of view

• Fully adjustable head suspension for optimal fit and weight distribution

• Deflector allows airflow to be directed for increased comfort and control

• Integrated low pressure warning whistle and silencer reduces noise level to less than 65dB(A)

• Constant flow of air with locking control knob

• Auxiliary port allows air tools such as paint spray guns to be connected

• Accessories include earmuffs, peel off visor overlay, head cover and chin strap

• Suitable for surface cleaning and coating, paint spraying and powdercoating

• Complies with AS/NZS 1716:2012 – Respiratory protection

• Complies with AS/NZS 1337.1:2010 – High impact eye protection

RESPIRATORS – SELF CONTAINED

Sigma 2 Type 2 Compliance SCBA Set

• Scott Safety Sigma 2 Type 2 Industrial and Marine Compliance SCBA kit

• Fully adjustable shoulder and waistband harness straps

• Promask Halo butyl non-allergenic mask with five point adjustable head harness and T-bar seal

• Low maintenance proven pneumatics with first breath activated demand valve Kit includes:

• Sigma 2 Type 2 compliant SCBA harness and pneumatics

• Promask PP with Left Quick Fit (LQF) port to suit demand valve

• 6.8L, 300bar Carbon composite breathing air cylinder with T valve

• Heavy duty rip stop nylon carry bag

• Suitable for marine and industrial use including short duration confined space entry

• Certified to AS/NZS 1716:2012 and MED Shipswheel

ELSA® Escape Emergency Life Support Apparatus

• Scott Safety ELSA® Escape Breathing Set with 15 minute air cylinder

• Adjustable shoulder strap for carrying convenience

• Automatic activation upon opening the carry bag – delivers constant flow of air

• Integrated warning whistle on low air condition

• Easily rechargeable and reusable

• Cubic hood design allows wearing by users with beards or eye glasses

Kit includes:

• Hi-Vis PVC coated polyurethane ELSA® Escape Hood and cylinder sling bag

• 15 Minute breathing air cylinder

• Suitable for gas storage areas, marine, industrial and plants utilising toxic chemicals

• Certified to AS/NZS 1716:2012 and MED shipwheel

GAS DETECTION – PORTABLE

PS200 Gas Monitor

• LEL, 02, CO/H2S sensors

• Simultaneous gas readings

• One button operation

• Optional internal pump

• Audible, visual and vibrating alarms

• Robust rubberised casing

• Optional calibration and bump station

• Suitable for general industrial applications

• Ideal for confined space entry

• Complies with IEC Ex ia d IIC T4 Gb

• Complies with ATEX Ex II 2 G Ex ia d IIC T4

• Complies with CSA Class 1 Div 1 Groups A,B,C,D, T4

Protégé Single Gas Monitor

• IR Communication

• Visible alarms

• Two button operation – on and off

• Replaceable sensors and filter

• LCD Display with multi-language, gas readings and alarm levels

• Temperature Range -20°C to 50°C

• Sensor Options: LEL IR, H2S, CO, O2, O3, HCN, NO, NO2, PH3, SO2, NH3, Cl2 and ClO2

• Suitable for general industrial applications

• Ideal for chemical and mineral processing

FALL PROTECTION

FALL PREVENTION

RISK ASSESSMENT PROGRAM

Before undertaking any work at height and confined space entry, it is always a good idea to develop a risk assessment program. The following relevant fall protection Australian/New Zealand standards may be used as a reference, and are recommended reading.

AS/NZS 1891.1 Safety belts and harnesses

AS/NZS 1891.2 Horizontal lifeline and rail systems

AS/NZS 1891.3 Fall arrest devices

AS/NZS 1891.4 Selection, use and maintenance of industrial fall arrest systems/devices

AS/NZS 2865 2009 Confined Spaces

AS/NZS 4488 Industrial rope access systems

Also refer to the relevant Codes of Practice relating to fall protection, confined spaces, managing the risk of falls at workplaces and preventing falls in housing construction published by the respective government workplace authorities e.g. Workcover and Worksafe.

HIERARCHY OF CONTROL WHICH SHOULD BE FOLLOWED:

1. Identify all of the immediate and potential hazards

2. Eliminate the hazard if possible

3. If hazard cannot be eliminated, change work practices and procedures to avoid exposure to the risk

4. If exposure to the risk cannot be avoided by changing your work practices, use engineering controls to contain or minimise the hazard

5. Always use personal fall protection to work safely at heights

UNDERSTANDING FALL PROTECTION APPLICATIONS

Fall Arrest

• Typically used to protect workers when 2m or more above the ground – steel erection, general construction, elevated maintenance and suspended platform work

• For maximum safety fall arrest systems are designed to limit the maximum arresting forces to 6kN or less

Work Positioning

• Hold and sustain the worker at a specific work location, limiting any free fall to 600mm or less, such as ladder, tower and pole work applications

Restraint

• Prevent the worker from reaching an area where a free fall could occur, such as in leading edge roof work

Suspension

• Supports and holds the worker without any possibility of a free fall while the worker is being raised or lowered

• Typical applications are confined space entry/exit and bosun’s chair, such as painting or window washing Rescue

• Designed to raise or lower the worker to safety in an emergency without any possibility of a free fall

• Typically used in confined space work or anywhere where a worker may fall or become incapacitated

HEIGHT SAFETY TERMINOLOGY

Fall Protection

• Overall industry and process of protecting workers at height

Fall Prevention

• Systems and techniques that eliminate the possibility of a fall to a lower level

• Most desirable method of fall prevention is to engineer out or modify the work plan to eliminate the hazard

Fall Arrest Systems

• Protect the worker after a fall from hitting the ground and/or obstructions below the work platform

• Passive systems require little or no personal involvement from the worker

• Active systems require the worker to actively use the system in order for it to be effective

• It is not always practical, cost effective or possible to employ passive systems, in such cases, a Personal Fall Arrest System (PFAS) is required

Personal Fall Arrest Systems (PFAS)

• Active fall protection methods that require the participation of the worker

Fall Restraint Systems

• Use lanyards or some kind of tethering system, measured so that workers cannot go beyond the edge where the potential for a fall exists

• Sometimes referred to as Travel Restraint Systems

Rescue

• Refers to the ability to retrieve or rescue an individual from confined spaces or heights and must always be a component of any fall protection program

THE ABCD OF FALL PROTECTION

The A,B,C,D of Fall Protection covers the fundamental requirements of every personal fall protection system. Use it as a guide when evaluating your fall protection requirements, however, always consult a fall protection specialist if you’re unsure of any aspect of fall protection or fall protection equipment.

A ANCHORAGE

Anchorage devices provide a secure point of attachment (to an existing structure) for the fall arrest system. Anchorage devices can be permanent or temporary and vary to suit the types of structure available.

C CONNECTOR

Connectors are devices that connect the full body harness to the anchorage system. They can be single products or multiple devices working together.

B BODY SUPPORT

Full body harnesses connect the worker to the fall arrest system. They are specially designed to protect the worker against serious injury in the event of a fall whilst also remaining comfortable to wear.

D DESCENT/RESCUE

Descent & Rescue systems enable the retrieval of an injured or incapacitated worker. In the event of a rescue, this equipment facilitates rapid recovery of the worker without endangering other workers in the process.

CALCULATING FALL CLEARANCE

• When setting up and using a personal fall arrest system, fall clearance is a critical issue

• Should a fall occur, there must be sufficient clearance below the user to arrest the fall before the user strikes the ground or any other object

• The user of the equipment must determine if the system will arrest the fall within the available clearance

• Some factors that affect the determination include anchorage location, type and length of connecting system (lanyard, self-retracting lifelines, rope grab), deceleration distance (the elongation of the decelerating device when deployed), worker height and movement of harness attachment element

FALL CLEARANCE CALCULATION CHARTS

To determine the required Fall Clearance add the appropriate factors together, this will give you the safe required distance (RD) below the working surface for work which is to be carried out where there is any risk of falling.

Shock Absorbing Lanyard

RD - Required Distance Below Working Surface to Nearest Obstruction

FFD Free fall Distance

(2.0m maximum allowed)

DD - Energy Absorber Deceleration Distance (When using a DBI-SALA Lanyard) (1.75m max. for users up to 136kg) (1.95m max. for users from 136kg to 160kg) + D-ring Slide and Harness Stretch

C - Clearance to Obstruction During Fall Arrest

(1.0m minimum safety factor required)

As per AS/NZS 1891.4, DD can be estimated

Self Retracting Lifeline

RD - Required Distance Below Working Surface to Nearest Obstruction

DD - Free Fall, Lock Off and Deceleration (1.4m max.) + D-ring Slide and Harness Stretch (0.25m)

C - Clearance to Obstruction During Fall Arrest (1.0m minimum safety factor required)

As per AS/NZS 1891.4, DD can be estimated at 700mm. 250mm must be added for D-Ring slide.

FALL PROTECTION EQUIPMENT INSPECTION & MAINTENANCE

Conscientious inspection of all fall protection equipment is essential to ensure product performance and the safety of the user.

INSPECTING FREQUENCY

• Equipment should be inspected by the user before and after each use

• Detailed inspections should be performed by a competent person every six months for webbing products and every three months for Self Retracting Lifelines (SRL’s)

• If there is ever any sign of an unsafe condition or if the equipment has been used to arrest a fall it should be immediately withdrawn from service and destroyed, or sent to an authorised service centre for re-certification. Inspections should be recorded in a centralised logbook that includes the serial number, date of purchase, dates of inspection, servicing performed and authorised signatures.

WHEN SHOULD EQUIPMENT BE REMOVED FROM SERVICE?

• Six monthly service and/or periodical inspection is due

• It has been involved in a fall

• Labels have been removed, are missing or illegible

• Excessive abrasive wear (furry or frayed surfaces) has occurred

• Broken fibres, tears, cuts, snags and splinters are present

• Weld burns are present

• Deterioration or stretching has occurred

• Loss of resilience, discolouration or visible damage is experienced

• Parts and mechanisms are not moving freely or are corroded

• There is reduction in cross-section of rope area or webbing

• There is excessive contamination not removed by approved cleaning methods

• It is more than 10 years old for AS/NZS certified products

INSPECTION GUIDELINES

Hardware

• Inspect hardware (including snap hooks, D-rings and buckles) for damage

• Check for distortion, corrosion, burns, cracks and worn parts

• Inspect mechanical devices for correct assembly and operation –such as SRL’s should retract and lock up

Webbing

• Inspect webbing for frays, cuts or broken fibres

• Check for tears, abrasion, mould, burns, heavy soiling or discolouration

• Inspect stitching for damage

• Inspect impact indicators (if present)

Wire and Synthetic Ropes

• Inspect for cuts, kinks, broken wires and fibres, corrosion, chemical contact and severely abraded areas

• Inspect impact indicators (if present)

Labelling

• All labels must be present and fully legible

If inspection or operation reveals a defective condition, remove the product from service and destroy it or contact an authorised service centre for repair.

Maintenance and Storage

• Most webbing and hardware items can be washed with mild soap and detergent, water and a rag

• Excess grease, dirt and grime should be removed

• Equipment should be left to drip dry out of direct sunlight

• Some hardware, if stiff or sticking can be lubricated – however, any hardware that comes in contact with webbing should be free from grease or solvent

• Additional servicing and maintenance should be performed only by factory authorised service centres

• Equipment should be stored in a cool, dry and clean environment that is out of direct sunlight

Refer to manufacturer’s instructions for complete details on inspection, storage and maintenance.

CORRECT HARNESS FITTING

Hold harness by back D-ring, ensure all buckles are undone and ensure there are no tangles in the webbing.

The positioning of the sub-pelvic strap is critical. Adjust the shoulder straps to ensure the sub-pelvic strap is positioned directly below the buttocks.

Adjust the leg straps so that a flat hand (not a fist) can be placed between the leg and the leg strap.

HARNESS SIZING CHART

Position chest strap across the middle of the chest, approximately 3 finger widths above the base of the sternum. Shoulder straps should be vertical, not pulled into centre of body.

The harness should be comfortable without undue pressure on the shoulders, thighs or pelvis. You should still have your full range of motion with the harness fitted.

Whether you wear a harness for 4 hours a day or 14 hours a day, proper fit is essential. The harness needs to feel good and fit right for optimum comfort, safety and productivity.

3MTM manufactures harnesses that are designed to fit most body sizes or shapes (S – XL) under the brands of DBI-SALA® and PROTECTA®.

SAFTEY – PPE

HARNESSES & LANYARDS – DBI-SALA®

ExoFit NEX™ Riggers Harnesses

• Confined space retrieval/attachment points

• Rip stitch indicator allows the user to quickly and easily inspect the harness for impact loading

• Models with additional features suitable for specific industry applications also available

• Ideal for use as a professional general purpose harness in rigging, ladder climbing and confined space access work

• Certified to AS/NZS 1891.1:2007

603S2018

603M2018

603XL2018

ExoFit NEX™ Confined Space Harnesses

• Confined space retrieval/attachment points

• Wide padded lower back/hip pad

• Rip stitch indicator allows the user to quickly and easily inspect the harness for impact loading

• Suitable for the professional performing confined space access work, ladder access and rescue

• Certified to AS/NZS 1891.1:2007

623S2018

623L2018 Confined

ExoFit NEX™ Cross-Over Harnesses

• Rip stitch indicator allows the user to quickly and easily inspect the harness for impact loading

• Ideal harness for women

• Suitable for the professional performing roof construction, maintenance and ladder access work

• Certified to AS/NZS 1891.1:2007

09976406

09976848

09987575

09976661

09976440

REPEL™ Technology Webbing

Water, mould and dirt repellent – up to 5 times more abrasion resistance

Tech-Lite™ Aluminium D-rings

Patented spring loaded stand up dorsal D-ring for easy, safe connection

Duo-Lok™ Quick Connect Buckles

One-handed operation with memory-fit web-lock for fast, slip free connection

Revolver™ Vertical Torso Adjuster

Fast, simple adjustment, eliminating loose ends and locks into place preventing slippage

Integrated Trauma Straps

Provides relief after a fall to minimise suspension trauma

Covered Labels and i-Safe™

Built-in RFID tag makes accessing and recording inspections fast and easy

ExoFit NEX™ Tower Workers Harnesses

Hard wearing harness storage backpack

• Contoured back pad and drop down buttock strap provides comfort for restraint and suspension activities

• Rip stitch indicator allows the user to quickly and easily inspect the harness for impact loading

• Suitable for the professional performing pole work, rigging and work positioning, activities involving suspension, and for electrical utility applications

• Certified to AS/NZS 1891.1:2007

UV, ambient heat, water and a wide range of chemicals

DELTA™ Riggers Harnesses

• Confined space retrieval/attachment points

• Corrosion resistant hardware

• Rip stitch indicator allows the user to quickly and easily inspect the harness for impact loading

• Riggers harness with stainless steel hardware also available

• Suitable for rigging, confined space, ladder access and general height safety

•

Label Pack Built in RFID tag makes accessing and recording inspections, inventory and user information fast and easy

i-Safe™ Intelligent Safety System

DELTA™ Comfort Riggers Harnesses

• Confined space retrieval/attachment points

• Lightweight aluminium hardware for reduced weight

• Lightweight moisture wicking and breathable comfort padding on shoulders, back and legs

• Rip stitch indicator allows the user to quickly and easily inspect the harness for impact loading

• Suitable for rigging, construction, confined space access and general work at height

• Certified to AS/NZS 1891.1:2007

Mfr No.

DELTA™

All Purpose Harnesses

• Waist belt with large side D-rings for work positioning

• Confined space retrieval/attachment points

• Corrosion resistant hardware

• Rip stitch indicator allows the user to quickly and easily inspect the harness for impact loading

• All purpose harness with stainless steel hardware also available

• Suitable for multi-purpose access including confined space entry, rigging, ladder access work and work positioning at height

• Certified to AS/NZS 1891.1:2007

DELTA™ Cross-Over Harnesses

• Corrosion resistant hardware

DELTA™ Tower Workers Harnesses

• Confined space retrieval/attachment points

• Padded work positioning buttock seat with padded waist belt and side D-rings

• Front fall/arrest belay loops

• Corrosion resistant hardware

• Rip stitch indicator allows the user to quickly and easily inspect the harness for impact loading

• Model with stainless steel hardware also available

• Suitable for use by telecommunications and power industry personnel when working on towers and poles

• Certified to AS/NZS 1891.1:2007 Mfr

• Rip stitch indicator allows the user to quickly and easily inspect the harness for impact loading

• Ideal harness for women

• Suitable for roof construction, maintenance and ladder access

• Certified to AS/NZS 1891.1:2007

SAFTEY – PPE

PRO™ Riggers Harnesses

• Front fall arrest rated D-ring

• Large rear fall arrest rated D-ring, for fast, easy and safe connections to your fall protection system

• Pass-thru buckles on chest and leg straps, provides quick and easy donning and adjustments

• Retrieval attachment points, for raising and lowering in rescue and confined space applications

• Polyester webbing, for superior abrasion resistance and durability

• Sub pelvic strap, for extra protection

• Suitable for rigging, rescue, construction, ladder access work, roof work and general height safety

• Certified to AS/NZS 1891.1:2007

AB123S S 03628845

AB123M M 03628862

AB123L L 03628879

AB123XL XL 03628896

PRO™ All Purpose Harnesses

• Front fall arrest rated D-ring

• Large rear fall arrest rated D-ring, for fast, easy and safe connections to your fall protection system

• Pass-thru buckles on chest and leg straps, provides quick and easy donning and adjustments

• Retrieval attachment points, for raising and lowering in rescue and confined space applications

• Waist belt with large side D-rings, offers an attachment point for work positioning or pole strap use

• Polyester webbing, for superior abrasion resistance and durability

• Sub pelvic strap, for extra protection

• Suitable for rigging, rescue, construction, work positioning, restraint work, ladder access work, roof work and general height safety

• Certified to AS/NZS 1891.1:2007 Mfr

AB124S S 03629185 AB124M M 03629202 AB124L L 03629219 AB124XL XL 03629236

PRO™ Welders Harnesses

• Large rear fall arrest rated D-ring

• Front fall arrest rated D-ring

• Pass-thru buckles on chest and leg straps

• Easy adjust torso buckles

• Lightweight hardware and components

• Heat resistant & flame retardant webbing

• Kevlar® fibre thread/stitching

• Sub pelvic strap

• Suitable for welding, cutting and electrical applications

• Certified to AS/NZS 1891.1:2007

Protecta® Green Basic Climbing Harness

• Large fall arrest rated rear stand-up D-ring for easy connection

• Fall arrest rated frontal D-ring for work positioning and rescue

• Adjustable chest, shoulder and leg straps

• Quick donning and easy adjust hardware

• Pelvic strap for added security

• Suitable for rigging, rescue, construction, elevated work platform, ladder access and general height safety

• Certified to AS/NZS 1891.1:2007

Protecta® Green Confined Space Retrieval Harness

• Large fall arrest rated rear stand-up D-ring for easy connection

• Fall arrest rated frontal D-ring for work positioning and rescue

• Sliding shoulder D-rings

• Adjustable chest, shoulder andleg straps

• Quick donning and easy adjust hardware

• Pelvic strap for added security

• Suitable for rigging, confined space, construction, work positioning, restraint work and general height safety

• Certified to AS/NZS 1891.1:2007

Protecta® Green Pole Work Harness

• Large fall arrest rear D-ring

• Fall arrest rated frontal D-ring

• Integrated shoulder and lower back pads

• Waist belt with side D-rings for work positioning

• Quick donning and easy adjust hardware

• Adjustable chest, shoulder and leg straps

• Sub pelvic strap for extra protection

• Suitable for rigging, mining, construction and general industrial applications requiring a work positioning belt

• Certified to AS/NZS 1891.1:2007

FORCE2™ SHOCK ABSORBING LANYARDS PRODUCT INSIGHT

The new and improved FORCE2™ SHOCK ABSORBING LANYARD RANGE now even Lighter, STRONGER and MORE DURABLE than ever.

• Smallest shock absorber in the world 66% smaller* & 40% lighter.*

• Expanded range of connectors for all industry applications and demands.

• Lightest & strongest connector combinations on the market.

Available with a wide range of connectors including triple action snap and scaffold hooks.

Redesigned steel snap hooks for lighter weight Lightest, strongest, smallest shock absorber in the world

High visibility reflective material keeps you safe in low light conditions

Rugged and durable soft cover designed to last

Protected labels for durability and longevity – includes i-SAFE™ identification tag

REPEL™ technology webbing, water repellent to reduce attraction of mould and dirt - up to 5 times more abrasion resistance than standard webbing

*Compared to previous FORCE2™ models

Force2™ Shock Absorbing Webbing Lanyard – Single Tail

• Z10200909: 9502116 Snap hooks on both ends

• Certified to AS/NZS 1891.1:2007

Mfr

Force2™ Adjustable Shock Absorbing Webbing Lanyard – Single Tail

• Adjusts from 750mm to 2m in length

• Z11200909: 9502116 Snap hooks on both ends

• Certified to AS/NZS 1891.1:2007

3M™ DBI-SALA® Lanyards with Comfort Grip Connectors

• Protect your hands and connect easier

• Designed and certified to arrest a fall when loaded in multiple orientations

• Designed to self align in direction of fall in transverse applications

• New design positions the fingers so the gate is completely open

• Anchor efficiently and comfortably in multiple orientations

• 22.2kN Tensile strength, 16kN gate strength, 16kN transverse strength

• Suitable for scaffold work

• Certified to AS/NZS 1891.1:2007

Force2™ Shock Absorbing Webbing Lanyards – Double Tail

• Z12200909: 9502116 Snap hooks on all ends

• Z12202519: 9505254 Snap hook and 9502058 scaffold hooks on tails

• Certified to AS/NZS 1891.1:2007

Force2™ Shock Absorbing Elasticated Webbing Lanyard – Double Tail

• Z12202519E: 9505254 Snap hook and 9502058 scaffold hooks on tails

• Certified to AS/NZS 1891.1:2007

Force2™ Adjustable

Shock

Absorbing Kernmantle Rope Lanyard – Single Tail

• Adjusts from 750mm to 2m in length

• Z11206159R: 8700552 Triple action karabiner and 2000184 triple action karabiner on rope adjuster

• Certified to AS/NZS 1891.1:2007

Z12200909

Z12202519

SAFTEY – PPE

PRO™ Welders

Shock Absorbing Lanyards

• Kevlar® fibre webbing flame/heat resistant lanyard

• Removable Kevlar® fibre protective shock pack cover

• Ideal for use during welding, cutting, electrical maintenance and other high temperature 'Hot Work' applications

• Ideal for fall arrest positioning and restraint

• Complies with approved to AS/NZS 1891.1:2007

Suspension Trauma Safety Strap

• Allows the user, who is suspended, to stand up in their harness to relieve pressure

• Installation to the harness is fast and efficient – just choke off the strap and it is ready

• Extremely compact and lightweight design stays out of the worker's way

• Deployment and operation is fool proof, simply unzip and hook straps together

• Continuous loop design allows for either one or two foot suspension relief without pinching

• Safety accessory can be attached to most harness brands

• Helps prevent the effects of suspension trauma after a fall

Protecta® Green Lanyards

• Includes double action snap hooks for attachment to harness fall arrest point and anchorage

• Shock absorbing unit encased in UV resistant transparent plastic for easy inspection

• Elasticated webbing reduces trip fall hazards, dragging and catching for complete freedom of movement

• Double tail style helps you remain connected at all times

• End connectors consist of double action scaffold hooks for easy connection to anchorage points during attached climbing

• Suitable for fall arrest, work positioning and restraint

• Certified to AS/NZS 1891.1:2007

SAFETY TIP

HOW STRONG IS YOUR ANCHOR?

It is important that the anchorage and the structure it is connected to is capable of withstanding the forces generated in the event of a fall.

Kilo newton (kN) is the measure of force and is commonly used when dealing with fall protection. One kN is approximately equal to 100kg (1kN = 100kg). Therefore 15kN is equivalent to 1500kg or 1.5 tonnes.

AS/NZS 1891 states the following requirements for anchorage strengths:

• 12kN for limited free-fall and abseil

• 15kN for 1 person fall-arrest

• 21kN for 2 people fall-arrest

REPEL™ Pole Straps

• Constructed from REPEL™ technology webbing

• Includes double action snap hooks for attachment to harness

• Easy and efficient adjustment system (easy adjuster), can be adjusted whilst working

• Latch Protection Device (LPD) on all hooks reduces the risk of unintentional tripping of the hooks’ locking gate

• 16kN Gate strength on all hooks removes the risk of accidental disengagement from excessive gate loadings

• i-Safe™ enabled to track inspection and control inventory

• Suitable for work positioning, restraint and assisted climbing

• Certified to AS/NZS 1891.1:2007

PRODUCT INSIGHT

HOOK GLOSSARY

To assist with determining the type of hook/s provided on lanyards and fall arrest devices, please refer to the guide below.

SNH Snap Hook

SCH Scaffold Hook

TAK Triple Action Karabiner

Z51204545RP Lanyard

Z90200919ERP Lanyard elasticated with

HARNESSES & LANYARDS – MILLER®

AirCore™ Tower Worker Harnesses

• Lightweight components reduce fatigue, increasing productivity

• Quick operating shoulder cam buckles for vertical adjustment

• Quick connect leg buckles

• Non-metallic frontal arrest and rear fall arrest D-ring with fall indicator

• Work positioning side D-rings for working with pole straps

• Confined space loops for attachment to spreader frame

• Built in buttock pad for increased work positioning comfort

• Suitable for building, construction, roof work, pole work, electrical, Elevated Work Platforms (EWP), tower and ladder work

• Certified to AS/NZS 1891.1:2007

AIRCORE™ HARNESS RANGE

The AirCore™ is a lightweight, full-body harness designed with breathable, open-core padding technology that provides optimal air flow, while reducing heat and moisture entrapment

– keeping you cooler, drier and more comfortable.

• Reduces padding contact

• Reduces weight

• Increases worker comfort

AirCore™ Riggers Harnesses

• Lightweight components reduce fatigue, increasing productivity

• Quick operating shoulder cam buckles for vertical adjustment

• Quick connect leg and secure heavy duty rated chest buckles

• Frontal D-ring and rear fall arrest D-ring with fall indicator

• Work positioning side D-rings for working with pole straps

• Confined space loops for attachment to spreader frame

• Suitable for building, construction, roof work and pole work

• Certified to AS/NZS 1891.1:2007

AirCore™ Construction Harnesses

• DuraFlex™ stretchable webbing

– very comfortable and durable

• Quick connect leg and chest buckles for easy donning

• Aluminium hardware makes for a lightweight harness, reducing fatigue and improving productivity

• Confined space attachment points, front and rear fall arrest

• Suitable for building, construction and roof work

• Certified to AS/NZS 1891.1:2007

DuraFlex™ Harnesses

• Frontal fall arrest attachment point, rear and extended dorsal D-ring

• Easy to don with fully adjustable chest, shoulder and leg straps

• Confined space loops

• Work positioning side D-rings (M1020068)

• Waist belt offering greater back support and stability (M1020068)

• Suitable for construction, maintenance, scaffolding, ladder safety systems, confined space and rescue, Elevated Work Platforms (EWP) and work positioning

• Certified to AS/NZS 1891.1:2007

DuraFlex™ Glove and Barrier Harness

• 500mm Extension of rear fall arrest soft eye D-ring

• Frontal fall arrest attachment and confined space shoulder loops

• Adjustable leg and chest straps

• DuraFlex™ webbing provides optimum worker comfort

• Label pack with lanyard parking ring stores harness documents

• Suitable for live wire applications, Elevated Work Platforms (EWP) and confined spaces

• Certified to AS/NZS 1891.1:2007

SAFTEY – PPE

Polyester Harnesses

• Frontal fall arrest attachment point and dorsal D-ring

• Easy to don with fully adjustable chest, shoulder and leg straps

• Label pack stores all relevant harness documents

• Brightly coloured webbing to increase worker visibility

• Suitable for construction, maintenance, scaffolding, warehousing and roof work

• Certified to AS/NZS 1891.1:2007

Pole Straps

• Fitted with adjuster to easily adjust the working length

• Protective sleeve to lengthen life of webbing

• Double acting 19mm hooks at each end

• Suitable for line and pole top work

Contractor Value Plus Harness

• Frontal fall arrest attachment point and rear dorsal D-ring

• Integrated 2m shock absorbing lanyard

• Easy to don with fully adjustable chest, shoulder and leg straps

• Label pack with lanyard parking ring stores harness documents

• Suitable for Elevated Work Platforms (EWP), construction and general maintenance

• Certified to AS/NZS 1891.1:2007

Elasticated Lanyards

• Unique stretchable lanyard design that minimises length of lanyard, preventing tripping or snagging

• Elastic inner core contains the unextended length of webbing

• Outer load bearing tubular polyester webbing

• Reliable visual inspection if a fall has been taken

• Available in single or twin leg versions

• Suitable for construction, scaffolding, tower work, ladder work and Elevated Work Platforms (EWP)

• Certified to AS/NZS 1891.1:2007

Lanyards

• Constructed from 35mm polyester webbing

• Integral compact energy absorber smoothly expands for greater shock absorption

• 19mm Double acting hooks at each end

• Available in various lengths and a twin leg version

• Suitable for any work at height and restraint applications, Elevated Work Platforms (EWP), scaffolding, tower work, climbing, construction, maintenance and work positioning

• Certified to AS/NZS 1891.1:2007

Adjustable Webbing Lanyards

• Levitator adjustable lanyards offer unique versatility whilst working at height

• Working length of the lanyard is easy to adjust

• Brightly coloured webbing increases worker visibility

• Suitable for any work at height and restraint applications, Elevated Work Platforms (EWP), scaffolding, construction, maintenance and work positioning

• Certified to AS/NZS 1891.1:2007

M1010004

Adjustable Kernmantle Lanyard

• Manufactured out of robust kernmantle rope for greater abrasion resistance

• Allows user to minimise fall risks by adjusting the lanyard to suit job

• Maximum length of adjustment is 5m

• Triple action karabiners (TAK) at each end

• Integrated compact energy absorber smoothly expands for greater shock absorption

• Suitable for any work at height and restraint applications, construction, maintenance, and work positioning

• Certified to AS/NZS 1891.1:2007

Sharp Edge Lanyards

• Sharp edge rated kernmantle rope provides extra protection when working near sharp edges

• Adjustable lanyards allow the user to minimise fall risks by adjusting the lanyard to suit the job

• Lanyards have been manufactured from robust 12mm sharp edge rated kernmantle rope

• Available in various configurations including single, adjustable and twin leg lanyards

• Ideal for any application work at height

• Suitable for any application where fall protection equipment may come into contact with a sharp edge

• Certified to AS/NZS 1891.1:2007

FALL PROTECTION SELECTION GUIDE

OVERVIEW OF HARNESSES AND CONNECTION EQUIPMENT WITH RECOMMENDATIONS FOR SPECIFIC WORK APPLICATIONS

HARNESSES CONNECTORS

Select

Roof Work

Ladder Work

Construction

Scaffolding

Warehouse

Utilities SAFETY

Confined

Elevated

Work

SAFTEY – PPE

DROPPED OBJECTS PREVENTION ACCESSORIES

3M™ DBI-SALA® Attachment Points

• Attachment points make it possible to tether virtually any tool in a matter of seconds without defacing or structurally modifying tools

• D-ring attachment points used with quick wrap tape create instant attachment points on virtually any tool

• D-ring attachment point with cord provides a simple, fast and easy tie off point on tools with pre-drilled hole or closed handles

• Quick spins are easily installed and removed from tools in seconds, the top rotates and prevents tangles when using tools such as screwdrivers

• D-ring tool cinch attachment point features a unique cinch design that allows users to quickly secure even the most difficult to tether tools

• Once an attachment point has been installed on a tool, a Python Safety tool lanyard can be used to tie the tool off

3M™ DBI-SALA® Tethers

• Tool lanyards are ideal to tie off a wide variety of tools, including: hard hats, radios, power tools, even tools weighing up to 36kg

• Compact hard hat coil tether allows for fast and easy tethering of hard hats whilst staying out of the user's way

• Lightweight and ultra compact vinyl coated coil tethers are designed to stay out of the way when not in use and are load rated up to 2.3kg

• Medium duty bungee tethers feature double action autolock karabiners and are load rated up to 15.9kg

• Heavy duty lanyards feature double action auto lock karabiners including a large wide gate opening karabiner ideal to accommodate large anchorage structures and are load rated up to 36.3kg

1500028

150003

FALL ARRESTORS & LIFELINES

Nano-Lok™ Self Retracting Lifelines

• Automatic quick activating arrestor

• Extremely compact and lightweight

• Single or twin leg harness interface connector, cab mount or karabiner

• Impact indicator

• 1.8 – 1.95m Working length depending on the hook/anchorage configuration

• 2.8m and 3.4m Extended length lifeline models also available

• i-Safe™ enabled to track inspection and control inventory

• 360° Swivelling anchorage loop

• Impact resistant housing

• Retractable lifeline

• Triple Action Karabiner, snap or scaffold hook with 16kN gate strength

• Suitable for stock picking, rigging, roofing, cherry picking, construction work and for mine sites

• Certified to AS/NZS 891.3:1997

Mfr

3101330 Single webbing lifeline with steel snap hook on lifeline and steel single leg connector on anchorage

Single webbing lifeline with aluminium scaffold hook on lifeline and steel single leg connector on anchorage 01575007

Single webbing lifeline with steel swivel snap hook on lifeline and steel single leg connector on anchorage 01575024 3101333 Single webbing lifeline with steel scaffold hook on lifeline and steel single leg connector on anchorage 01575041 3101335 Single webbing lifeline with stainless steel triple action karabiner on lifeline and steel single leg connector on anchorage 01575092 3101336 Single webbing lifeline with steel swivel snap hook on lifeline and stainless steel cab mount bracket on anchorage 01575109

Aluminium scaffold hook on lifeline end 01575143 3101339 Single webbing lifeline with steel triple action karabiner on lifeline and steel triple action karabiner on anchorage 01575160

3101340 Single webbing lifeline with stainless steel triple action karabiner on lifeline and stainless steel triple action karabiner on anchorage 01575177

3101341 Single webbing lifeline with aluminium scaffold hook on lifeline and stainless steel triple action karabiner on anchorage 01575194

3101342 Single webbing lifeline with steel scaffold hook on lifeline and steel triple action karabiner on anchorage 01575211

3101345 Twin webbing lifelines with steel scaffold hooks on lifelines and steel twin leg connector on anchorages 01575228

Rebel™ Personal Self Retracting Lifelines

• Compact, and lightweight design

• 25mm Polyester web lifeline

• Swivelling anchorage loop with karabiner

• Self-locking steel snap hook on lifeline

• Quick activating speed sensing brake

• Tough and impact resistant thermoplastic housing

• Webbing or cable lifeline models available

• Certified to AS/NZS 1891.3:1997

• Certified to EN 360:2002

Ultra-Lok™ Self Retracting Lifelines

• Stainless steel working components for corrosion resistance

• 5mm Galvanised cable lifeline for durability

• Self-adjusting disc brake for reliability

• Built in anti-ratcheting capabilities

• Audible indicator ensures the breaking system is functioning properly

• Reserve lifeline retention system for added safety

• Self-locking swivel snap hook with impact indicator

• Swivelling anchorage loop to prevent twisting of lifeline

• i-Safe™ enabled to track inspection and control inventory

• Certified to AS/NZS 1891.3:1997

• Certified to EN 360:2002

Rebel™ Self Retracting Lifelines

• Retractable technology reduces fall clearance and trip hazards for complete safety

• Stainless steel or galvanised cable options available

• Rugged thermoplastic housing can withstand rough use

• Self-locking swivel snap hook with impact indicator on lifeline and connecting karabiner on housing

• Also available with Triple Action Karabiner (TAK) terminations

• Suitable for working at heights, construction and maintenance applications

• Certified to AS/NZS 1891.3:1997

• Certified to EN 360:2002

HEIGHT SAFETY ANCHORS

Anchor Straps

• Tie off adaptor anchor straps with interlocking rings

• Lightweight, high strength rated to 22.2kN for personal use

• Extra heavy duty – wide integral wear pad provides abrasion resistance and extends product life

• Pass through design (interlocking rings) makes attaching to an anchorage point quick and easy

• Coated steel hardware for corrosion resistance and strength

• Anti roll out design

• i-Safe™ enabled to track inspection and control inventory

• Suitable for use as anchorage connector for fall arrest, restraint, work positioning, suspension and rescue systems

• Certified to AS/NZS 5532:2013

SAFTEY – PPE

FALL ARRESTORS & LIFELINES

Sayfline™ Temporary Horizontal Lifelines (THLL) Kit

• Lightweight and portable, allowing you to move and reuse the system

• Suitable for multi-person use (rated for two persons)

• Ideal for temporary applications such as maintenance, painting or billboard work where the system will be left in place for minutes or several days

• Certified to AS/NZS 1891.2:2007 Kit includes:

• 1 x Rope lifeline assembly

• 1 x Tensioning device

• 2 x Anchor straps

• 2 x Attachment runner pulleys

• 1 x Carry bag Mfr

P-2000-15 15 04449026

P-2000-20 20 04449043

P-2000-25

Protecta® Green Rope Grab/Lifeline

• 15m x 11mm Kernamantle rope lifeline

• Rope adjuster with integral shock absorbing lanyard

• Karabiners

• Sewn eye and end stop

• Designed to provide continuous fall protection on rope lifeline systems

HEIGHT SAFETY ANCHORS

Protecta® Green Anchor Strap

• Provides a portable fall arrest rated anchorage device that can be used almost anywhere

• Durable, lightweight, portable and easy to install

• High strength rated to 15kN for personal use

Saflok™ Concrete Wedge Anchor

• Portable and reusable, can be removed and simply re-installed in a new location

• Swivelling forged steel ring for compatible and safe connections

• Easy grip trigger for fast and easy operation

• Corrosion resistant stainless steel and aluminium construction

• Provides a safe, fall arrest rated 22kN anchor point for vertical or overhead concrete applications

• Certified to AS/NZS 5532:2013

ROOF WORKER KITS & ACCESSORIES

Fall Protection Kits

• Compact kits for easy transportation and storage

• Available in either a roof workers or construction workers kit

• Suitable for specific worker applications that include all the necessary elements of the ABC of fall protection to ensure worker safety

• i-Safe™ enabled to track inspection and control inventory

• Certified to AS/NZS 1891.1:2007

Roof Workers Kit includes:

• Delta™ Roof workers harness (360M-0016)

• 15m Rope lifeline and rope grab

• Use as anchorage connector for fall arrest, restraint, work positioning, suspension or rescue systems

• Certified to AS/NZS 5532:2013

Anchor on the Go™ Temporary Roof Anchor

• Heavy duty 15kN fall arrest rated anchor point

• Ez-Stop™ 1.0m shock absorbing lanyard (Z90103636)

• 1.5m Tie off adaptor (E849-015)

• Karabiner (R-105-S)

• Storage bag (1900-0000)

• Roof workers kit designed to suit most roofing height situations

Construction Workers Kit includes:

• Delta™ All-Purpose harness (380M-0018)

• Talon™ SRL 2.4m fall arrestor (3101000)

• Ez-Stop™ 2.0m shock absorbing lanyard (Z90203636)

• Re-positionable locking cams for a perfect fit on a variety of roof sheeting

• Rubber end cap provides protection for roof sheeting

• Swivelling fall arrest rated anchor point

• Easy to use, economical, temporary roof anchor for metal roof applications

• Anchorage point for fall protection during all aspects of roof access and maintenance in both residential and commercial applications

• Certified to AS/NZS 5532:2013

• 1.5m Tie off adaptor (E849-015)

• Storage bag (1900-0000)

• Construction workers kit designed to suit most construction height situations

Roof Workers Kit – Protecta® Green

• Compact kit for easy transportation and storage

• Kit designed to suit most roofing height situations Kit includes:

• Protecta® basic harness with front and rear fall arrest connection

• 15m Kernmantle rope lifeline assembly system (with integral shock absorbing lanyard, rope grab, sewn end stop and karabiners

• Anchor strap

• Storage bag

• Specifically designed for roof workers, particularly those required to work on building edges

• Certified to AS/NZS 1891.1:2007

Confined Space Kit with Retrieval SRL

• Complete confined space system Kit includes:

• Lightweight and durable 2.4m aluminium tripod (AM100)

• 15m, 3 Way emergency retrieval Self Retracting Lifeline (SRL) (3591002) with built in winch allows the load to be raised or lowered during emergencies

• Retrieval SRL tripod mounting bracket (3590498)

• Routing pulley for confined space entry

• Rated to 140kg

• Suitable for rescue and confined spaces

• Certified to EN 360:2002 and EN 1496:2006

– Class B, EN 795 – Class B, OSHA, ANSI Z359.14 and AS/NZS 5532:2013

CONFINED SPACE/RESCUE DEVICES

Salalift™ II Winch

• Easy operation, gear ratio is 6:1 with an average lifting speed of 3.9m/min

• Quick mount system complete with unique quick mount bracket making attachment to DBI-SALA® support structures easy

• Housing constructed from durable, medium density polyethylene (reduces weight and will not dent or corrode like metal) with a built in ergonomic carrying handle

• Corrosion resistant construction complete with anodised aluminium side plates, zinc plated gears and shafts, stainless steel springs and aluminium drum

• Reserve lifeline retention system for added safety

• Self-locking swivel, double action snap hook with visual impact indicator

• Supplied with mounting bracket and storage bag

• Galvanised cable

• Stainless steel cable versions available

• i-Safe™ enabled to track inspection and control inventory

• Suitable for raising, lowering or supporting personnel and is designed specifically for confined space entry/retrieval applications

• Certified to ANSI Z359.1:1991 and ANSI A10.14:1991

Tripods

• Fall arrest rated for up to two persons

• Lightweight and portable, requiring only one person to set up

• Adjustable locking legs for added versatility and safety

• Complete with safety chain to prevent movement and safety feet that incorporate a rubber sole for flat surfaces and spiked edges for slippery surfaces

• Durable, corrosion resistant aluminium and heat treated cast aluminium construction

• i-Safe™ enabled to track inspection and control inventory

• Suitable for working in confined spaces and rescue applications and is designed for manhole and confined space entry/retrieval applications

• Certified to AS/NZS 5532:2013

Rollgliss™ R250 Rescue Kit

• Safe, reliable and cost effective packaged rescue solution for use in industrial rescue

• Easy to operate, no specialist tools, rescue skills or power source required

• Fast efficient rescue – on average a rescue takes less than 10mins

• Large hook design is easier to connect the rescue device to the suspended person Kit includes:

• R250 Descender with karabiner

• Rope

• Safety hook

• Extension pole

• Mini-haul system anchorage strap

• Two carry bags

• Suitable for rescue of a worker left suspended at height after a fall

• Certified to ANSI Z117.1, EN 341:1993 and EN 1496:2006

Rollgliss™ R550 Rescue Kit

• Fully automatic controlled descent

• Bi-directional design enables multiple rescues

• High strength corrosion resistant construction

• Compact and lightweight design Rescue kit includes

• R550 twin brake descender

• Rescue hub with drill adaptor

• Double action connecting karabiner on housing

• 9.5mm Kernmantle rope with double action snap hooks on both ends

• Multiple length options available

• Suitable for escape and rescue applications from cell phone towers, aerial lifts, cranes, wind towers and buildings

• Certified to EN 341 and EN 1496

• Certified to ANSI Z359.4-2013

• Certified to CSA Z259.2.3-12

Spreader Bar Attachment

• Ensures user is kept upright

• Reduces space needed to extract user during retrieval

• Karabiner connections allow quick and easy attachment to harness confined space attachment points

• i-Safe™ enabled to track inspection and control inventory

• Suitable to raise and lower a worker into and out of a confined space with a winch and davit arm or tripod assembly

• Designed to enable rescue in the event of an encountered hazard

KARABINERS

Triple Action Autolock Karabiners

• Triple action self-closing and locking gate provides added security and automatically closes and locks

• High strength stainless steel construction

• User friendly design for quick and easy one handed operation

• Certified to AS/NZS 1891.1:2007

• Certified to EN 362:2004

ENTERING A CONFINED SPACE? HANDY HINT

Contact Blackwoods to discuss your SCBA and Gas Detection equipment requirements with one of our technical safety specialist

Screw Gate Karabiners

• Double action self-closing with manual screw lock gate

• High strength corrosion resistant construction

• User friendly design for quick and easy one handed operation

• Certified to AS/NZS 1891.1:2007

• Certified to EN 362:2004

PRODUCT INSIGHT

3M™ DBI-SALA® 5-PIECE HOIST SYSTEM

THE MOST ADVANCED IN RETRIEVAL SYSTEM

Designed for manhole and confined space entry/retrieval applications.

The Davit pivots for ease of rescue and has an adjustment for overhead clearance restrictions. The lower base adjusts to fit most standard entries.

A range of bases and masts are available.

5-PIECE DAVIT HOIST SYSTEM

• Integrated 5,000 lb. (22 kN) mast anchorage point

• Fall arrest rated in all davit offset mast positions

• Adjustable offset upper davit mast (model 8518001)

• Built-in primary and secondary pulleys

• Adjustable vertical height of 33 in. to 43 in. (83.8 to 109.2 cm)

• Detent and knob style adjustment

• 83.8cm lower davit mast extension (model 8518002)

• Combine up to 2 extensions

• Extends your davit mast height ensuring it remains visible for the life of the harness. RFID equipped

• Helps track equipment and manage safety inspection programs

DROPPED OBJECTS PREVENTION ACCESSORIES

Lanyards

• Suitable for tethering of tools

Bungee Lanyard

• High strength elastic bungee carries up to 6.8kg Coil Lanyard

• Reliable and safe – durable design and materials

• Coil style carries 2.3 kg

• Versatile – adjustable products to match any tool type and size Mfr

MCOILLAN36-48/1 Lanyard Coil with Swivel and Karabiner Stainless steel 00040226

Double D-Ring

• Featuring an anti-vibration eye pin

• Shackle fits multiple sizes

• Simple to install and clean

• Stainless steel for tools up to 4.5kg

• Suitable for use with a variety of tools

Mfr

FALL ARRESTORS & LIFELINES

TurboLite™ Fall Arrestor

• Retractable technology prevents trip hazards while built in swivel also prevents lifeline twisting

• Extremely compact and lightweight

• High strength, impact resistant nylon housing and engineered high tech polyester/vectran webbing provide more resistance to abrasion, increasing durability

• Suitable for construction, utilities, warehousing and mining

• Ideal for use in horizontal and foot level applications where an overhead anchorage point is unavailable

• Certified to AS/NZS 1891.3:1997 –Type 2 fall arrest device

Falcon™ Fall Arrestor

• Unique side pay out design reduces entry guide and cable wear

• Load indicating hook identifies unit removal from service

• Lightweight, smooth composite housing increases durability

• Dual swivels (top of unit and snap hook end) reduces twisting during use

• Galvanised wire, webbing or fully stainless steel unit options

• Suitable for construction, maintenance, steel erection and concrete construction

• Certified with AS/NZS 1891.3:1997

– Type 2 fall arrest device

Retractable Lanyard

• Compact and lightweight – reduces fatigue and increase productivity

• Simple – easy to install, easy to use

• Retractable style carries up to 1.4kg

• Suitable for use with a variety of tools

Clinch Strap

• Easily attaches to tool hang holes or slots

• Durable with a high resistance to abrasion

• Holds up to 4.5kg tool weight

• Suitable for use with a variety of tools Mfr

Temporary Static & Anchorage Lines

• Suitable for construction, maintenance and roof work applications Static Line

• Two person fall arrest system

• Full kit contains 20m rope, karabiners, split running blocks and tie off adaptors

• Ideal for situations where accessibility along a length of an area is required on a temporary basis

Bungee Lanyard Coil Lanyard

SAFTEY – PPE

HEIGHT SAFETY ANCHORS

Accessories

Webbing Tie Off Adaptors

• Wraps around an anchorage point providing a suitable connection

• Single person anchorage point

Relief Step™ Safety Device

• Designed for the temporary prevention of suspension trauma

• Attaches easily to any full body harness

• Suitable for work at height and suspension trauma prevention

ROOF WORKER KITS & ACCESSORIES

Roof Workers Kits

• Compact kit for easy transportation and storage

• Kit designed to suit most roofing situations

• Suitable for roof work

M1070004

• 15m Anchorage line with Type 1 fall arrestor

• Webbing tie off adaptor

• Contractor two point harness (M1020002)

CONFINED SPACE/RESCUE DEVICES

Tripods

• Lightweight, high strength aluminium construction

• Withstands up to 22kN of vertical pull

• Adjustable legs with integral push pins, ideal for uneven surfaces

• Suitable for rescue and confined spaces

• Certified to AS/NZS 1891.4:2009

MightEvac™ Fall Arrestor

• Promotes quick and easy rescue with a 4:1 mechanical advantage (average speed of 7.6m per minute)

• Corrosion resistant stainless steel and aluminium components

• Suitable for rescue, emergency retrieval and confined space

• Certified to AS/NZS 1891.3:1997 – Type 2 fall arrest device

Escape Master

• Installed onto Elevated Working Platforms (EWP) for emergency escape

• High visible load density polyethylene deployment container

• Descent can be easily controlled by the user or the person on the ground

• Suitable for Elevated Work Platforms (EWP) rescue

Rescue Master Kits

• Comprehensive kit specifically designed for assisting in rescue from difficult to access areas

• Raise and lower pulleys with a 3:1 ratio

• Packed into a convenient backpack for easy transportation

RM-45M-L

• Contains: Pulleys, rope and tie off RM-45MT

• Contains: Pulleys, rope, rope grip, tie off and chest strap for rescue

• Suitable for areas that are difficult to access and rescue

KARABINERS

Karabiners

• Karabiners act as a connection point between harness and ancillary fall arrestor, or between fall arrestor and anchorage point

• Convenient and lightweight, offering the worker flexibility

• Alloy steel construction

• Suitable for all work at height applications

• Compliant with AS/NZS 1891.1 –Connection Hardware

DBI-SALA® ENGINEERED SYSTEMS

CUSTOM SOLUTIONS DESIGNED THE WAY YOU WANT!

You can always depend on DBI-SALA®’s horizontal safety systems for mobility and safety when working at height. A comprehensive range of height safety products offering fully compliant, practical solutions for structures of all types, in all industries. Engineered fall protection systems are used to protect workers while working at height who may not have continuous access to suitable anchorage points.

Every permanently installed system offers comfort, mobility and safety combined with ease of use, flexibility and low maintenance.

Designed for optimum performance and worker satisfaction, engineered systems are typically required in the following sites and applications:

• Railcars

• Truck trailers

• Buses/mass transit

• Commercial buildings

• Aircraft hangers

• Cranes

• Rooftops

• Window washing

• Warehouses

• Bridges

The team at Bullivants offers a network of fully trained, certified installers providing industry leading installation services of the DBI-Sala engineered systems range. Contact Blackwoods on 13 73 23 for an on-site assessment by Bullivants consultant to provide a customised, cost effective solution.

WE MAKE IT EASY TO DO BUSINESS WITH US.

Our specialist safety teams will help you find the right solution and you can choose how you want to do business with us – online, in-store or by phone. You also have access to the largest sales force in the market who know the industry and environment in which you operate and will help you make the best purchasing and process decisions as well as provide support every step of the way to help you keep your people safe.

ONLINE

Get immediate access to all the latest products. Register online at blackwoods.com.au and start ordering securely anytime, anywhere.

IN-STORE

Come in and see us! We’ve got a great range available in stock and you can ask our expert staff any questions.

PHONE

Call 13 73 23 to talk to our customer service team who can help find the right product for the right application.

YOUR SPECIALIST TEAM.

You need trusted suppliers who understand the challenges you face – partners who can work with you to help your business operate more efficiently, reduce costs, and simplify your procurement workload without removing focus from critical areas like employee safety and productivity.

Blackwoods is Australia’s largest Safety, MRO & Industrial supplier with over 140 years’ experience delivering end-to-end specialist solutions to all industries. We continue to push hard every day, striving to improve, innovate and adapt alongside the small, medium and large Australian businesses we serve.

With unrivalled expertise and the ability to bring together the best of the best, we have earned our place as Australia’s first choice for industrial and safety products and services.

With a national footprint of over 60 branches and six Distribution Centres, we leverage global sourcing capabilities and strategic partnerships with worldclass brands and suppliers to source the best products at the most competitive prices.

Blackwoods has built strategic partnerships with market-leading brands to deliver the best products at the most competitive prices. We offer an ideal range of safety products from world-class manufacturers, combined with the latest solutions tailored to the industry and environment in which you operate.

ETHICAL SOURCING.

Blackwoods is a recognised leader in managing design, development and supply chains globally.

We are committed to working with our supply partners to continuously improve ethical business practices by engaging with the partners to deliver sustainable solutions.

Through our business strategy and in line with our Ethical Souring Program, we aim to not only better mitigate reputation risk to our business and our

customer, but through stronger relationships with our preferred suppliers, we proactively promote responsible behaviours in our supply chain to protect the brands, the well-being of workers and the communities of the factories we work with.

PRODUCT SAFETY & QUALITY.

Blackwoods is committed to maintaining its place as Australia’s first choice for industrial and safety products and services by continually maintaining and improving the quality of its processes and products.

We maintain an effective quality management system, accredited to ISO 9001 and work closely with suppliers across operational areas such as regulatory compliance, sustainability, quality systems and inspections, transport chain of responsibility compliance and workplace health, safety and wellbeing.

Putting customers and safety first, we ensure that our products and services meet the relevant legislative and industry based requirements and comply with recognised local and international standards in line with expectations.

Blackwoods knows the industry and environment in which you operate – we have it covered when it comes to safety, no matter what the application. The Blackwoods Safety team will help you make the best purchasing and process decisions and provide support every step of the way to help you keep your people safe.

Blackwoods safety specialists are available to provide you the best advice to select the correct personal protective equipment and workwear for your business.

Our team is available to help explain terminology and regulations, looking at facilities or job sites, and helping establish exactly what equipment is required, why it is needed, how to safely use and wear the equipment, and implement any changes.

WORKING WITH US IS SIMPLE AND STRAIGHT-FORWARD.

• We’ll answer all your questions

• We’ll figure out what you need

• We’ll show you how to use it

• Set-up an easy way to order your equipment

• Keep it serviced, and compliant

Blackwoods expertise carries into the specialist risk prevention area, with a specific team available to ensure people are safe in the workplace and on project sites.

Our dedicated safety specialists not only conduct site surveys and assessments to identify hazards, they also devise customised solutions to mitigate risk.

Visit blackwoods.com.au/safety to connect with our safety team today

OUR FOCUS ON INDIGENOUS ENGAGEMENT

Blackwoods is committed to supporting Supplier Diversity and creating an inclusive work environment, with particular attention to the inclusion, recruitment, development and mentoring of Aboriginal and Torres Strait Islander people within our teams.

In order for our own business to reflect the communities in which we operate, we actively work towards goals set by the Federal Government Employment Parity Initiative (EPI), which encourages organisations to create a workforce representative of the total Australian populace, where 3% of the population identifies as Aboriginal or Torres Strait Islander.

Our Indigenous Employment Strategy, as part of our Stretch Reconciliation Action Plan, is an important platform on which to continue to build a diverse workplace that better represents Australia as a whole.

PARTNERSHIPS AND PROGRAMS

As a truly Australian company, Blackwoods is focused on making a positive impact and contribution to the communities in which we operate. We foster and build strong relationships with a number of different Indigenous organisations and foundations, such as:

• CareerTrackers: Blackwoods provides internships for Indigenous university students helping to obtain valuable experience and knowledge across various areas of the business

• The Clontarf Foundation: providing Indigenous high school students with the opportunity to succeed through School Based Traineeships, graduate and alumni employment opportunities at many of our branches

• Australian Indigenous Mentoring Experience (AIME): bringing Indigenous school students together with university students and Blackwoods team members as mentors, education heroes and role models

• The Fred Hollows Foundation: committed to ending avoidable blindness and improving eye care of Aboriginal and Torres Strait Islanders. Look for our ‘Prosafe’ range of eye related products, where 10% of sales are donated directly to the Foundation by Blackwoods

With their help, we aim to support and provide disadvantaged Indigenous young adults to receive employment, medical treatment and education opportunities.

Fred Hollows

NATIONAL BRANCH NETWORK

AUSTRALIAN CAPITAL TERRITORY

Canberra (Fyshwick)

187 Gladstone Street Fyshwick ACT 2609

NEW SOUTH WALES

Albury Unit 2, 115 Catherine Crescent Lavington NSW 2641

Broken Hill

105-107 Argent Street Broken Hill NSW 2880

Coffs Harbour 14 Isles Drive

Coffs Harbour NSW 2450

Dubbo

33-35 Cobbora Road

Dubbo NSW 2830

Lismore

23 Krauss Ave

South Lismore 2480

Newcastle (Sandgate)

9-13 Rural Drive

Sandgate NSW 2304

Orange 18-22 Peisley Street

Orange NSW 2800

Singleton

5 Magpie Street

Singleton NSW 2330

Sydney (Greystanes)

1 Bellevue Circuit

Greystanes NSW 2145

Tamworth

Cnr Plain & Belmore Street

Tamworth NSW 2340

Tuggerah

6 Colony Close

Tuggerah NSW 2259

Wagga Wagga

85-87 Copland Street

Wagga Wagga NSW 2650

Wetherill Park

445 Victoria Street

Wetherill Park NSW 2164

Wollongong (Unanderra)

Unit 1, 175-177 Five Islands Road

Unanderra NSW 2526

NORTHERN TERRITORY

Darwin (Winnellie)

98-100 Reichardt Road

Winnellie NT 0820

Geminex Winnellie

Cnr Coonawarra Road & Sweet Street

Winnellie NT 0820

QUEENSLAND

Brisbane (Carole Park)

131-137 Mica Street

Carole Park QLD 4300

Bundaberg

Unit 2, 5 Scotland Street

East Bundaberg QLD 4670

Cairns (Portsmith)

Cnr Cook & Tingira Street

Portsmith QLD 4870

Gladstone

42 Bensted Street

Gladstone QLD 4680

Gold Coast

72 Link Drive

Yatala QLD 4207

Gympie

35 Oak Street

Gympie QLD 4570

Hamilton

712-717 Kingsford Smith Drive

Hamilton QLD 4007

Ipswich

292-296 Brisbane Street

West Ipswich QLD 4305

Mackay (Paget)

69-79 Diesel Drive

Paget QLD 4740

Mt Isa

1 Traders Way

Mount Isa QLD 4825

Rockhampton

211-213 Farm Street

North Rockhampton QLD 4701

Toowoomba

313 Taylor Street

Toowoomba QLD 4350

Townsville

1-3 Greg Jabs Court

Townsville QLD 4814

SOUTH AUSTRALIA

Adelaide (Regency Park)

3 Naweena Road

Regency Park SA 5010

Mt Gambier

322B Commercial Street West Mt Gambier SA 5290

Roxby Downs

3 Gosse Street

Roxby Downs SA 5725

Whyalla

132B Norrie Ave

Whyalla SA 5600

TASMANIA

Burnie

21-23 Wellington Street

Burnie TAS 7320

Hobart (Derwent Park)

11 Derwent Park Road

Derwent Park TAS 7009

Launceston

170 Invermay Road

Launceston TAS 7248

VICTORIA

Altona

471 Grieve Parade

Altona VIC 3025

Ballarat (Wendouree) 4 Daveyduke Drive Wendouree Ballarat VIC 3352

Bendigo

27 Deborah Street Bendigo VIC 3550

Campbellfield

1948 Sydney Road

Campbellfield VIC 3061

Dandenong 20 Greens Road

Dandenong VIC 3175

Geelong Unit 2, 168-170 Fyans Street South Geelong VIC 3220

Melbourne (Scoresby) 1 Caribbean Drive

Scoresby VIC 3179

Morwell

210-224 Princes Drive

Morwell VIC 3840

Portland 11 Cellana Court

Portland VIC 3305

Shepparton

10 Callister Street

Shepparton VIC 3630

WESTERN AUSTRALIA

Albany 194 Albany Highway Albany WA 6330

Broome

Unit 5&6, 97 Guy Street Broome WA 6725

Bunbury 11 Clifford Street Bunbury WA 6230

Geraldton 115 Flores Road Geraldton WA 6530

Kalgoorlie 11 Wilurarra Road

Kalgoorlie WA 6430

Karratha

Lot 2539 Seabrook Cres Karratha WA 6714

Kununurra

Lot 1132 Ivenhoe Road

Kununurra WA 6743

Kwinana 53 Office Road

Kwinana WA 6167

Malaga 819 Marshall Road

Malaga WA 6090

Newman 1607 Laver Street

Newman WA 6753

Onslow Lot 684 Shanks Road

Onslow WA 6710

Perth (Canning Vale)

35-39 Baile Road

Canning Vale WA 6155

Port Hedland

Lot 1618 Cnr Wilson & Wedge Street

Port Hedland WA 6721

BLACKWOODS ELECTRICAL SUPPLIES

Canning Vale

204-208 Bannister Road

Canning Vale WA 6155

Mandurah

48 Reserve Drive

Mandurah WA 6210
