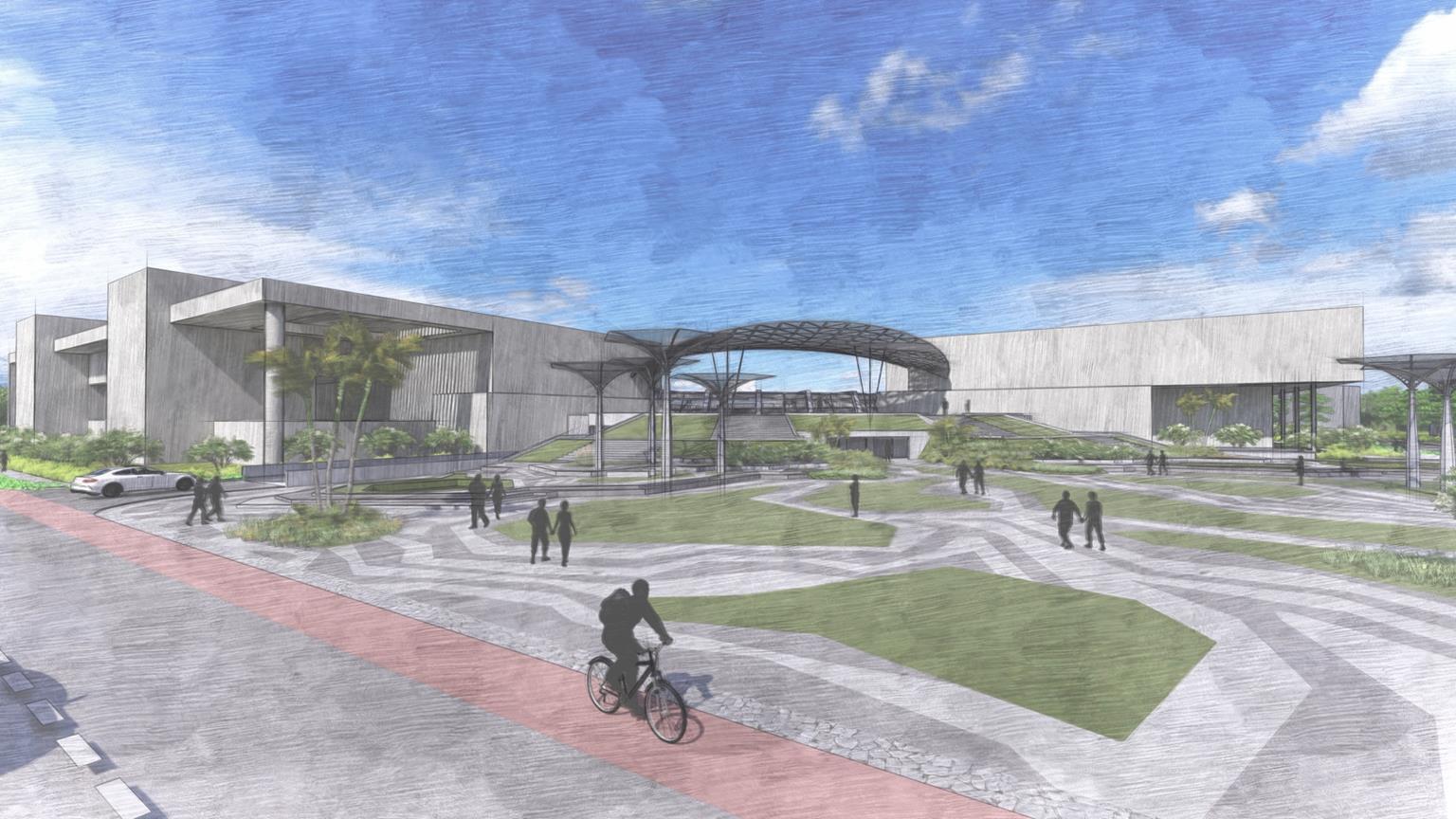

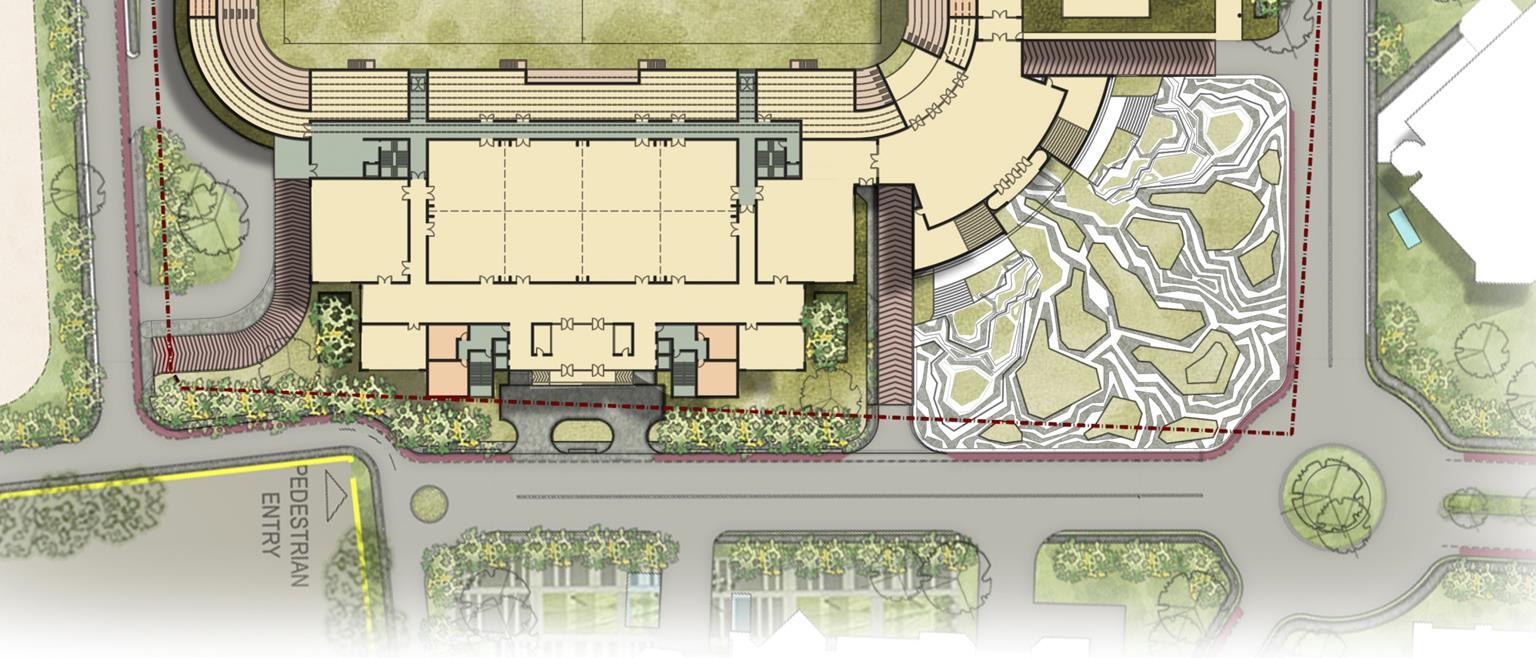

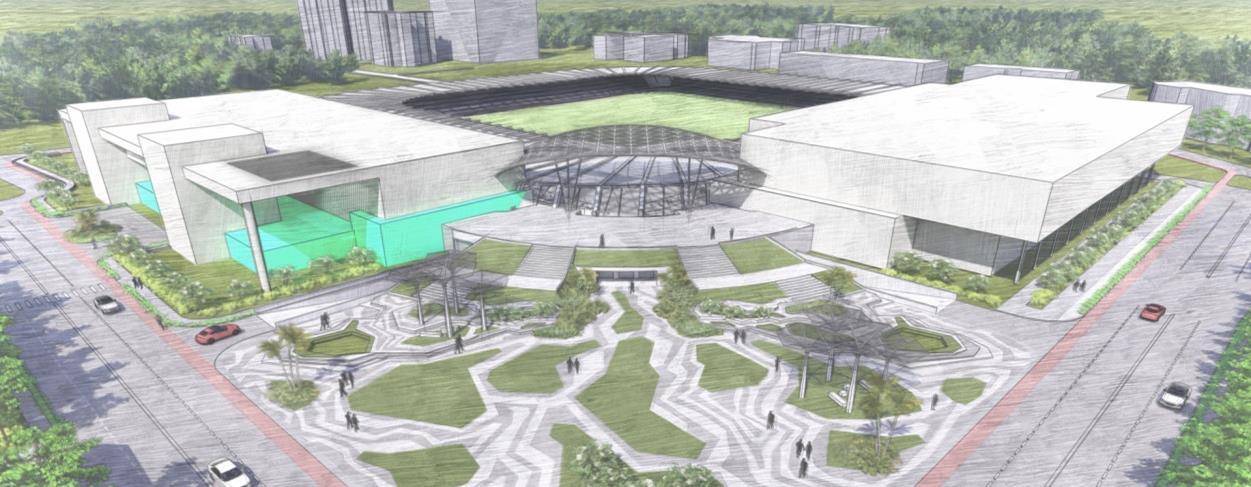

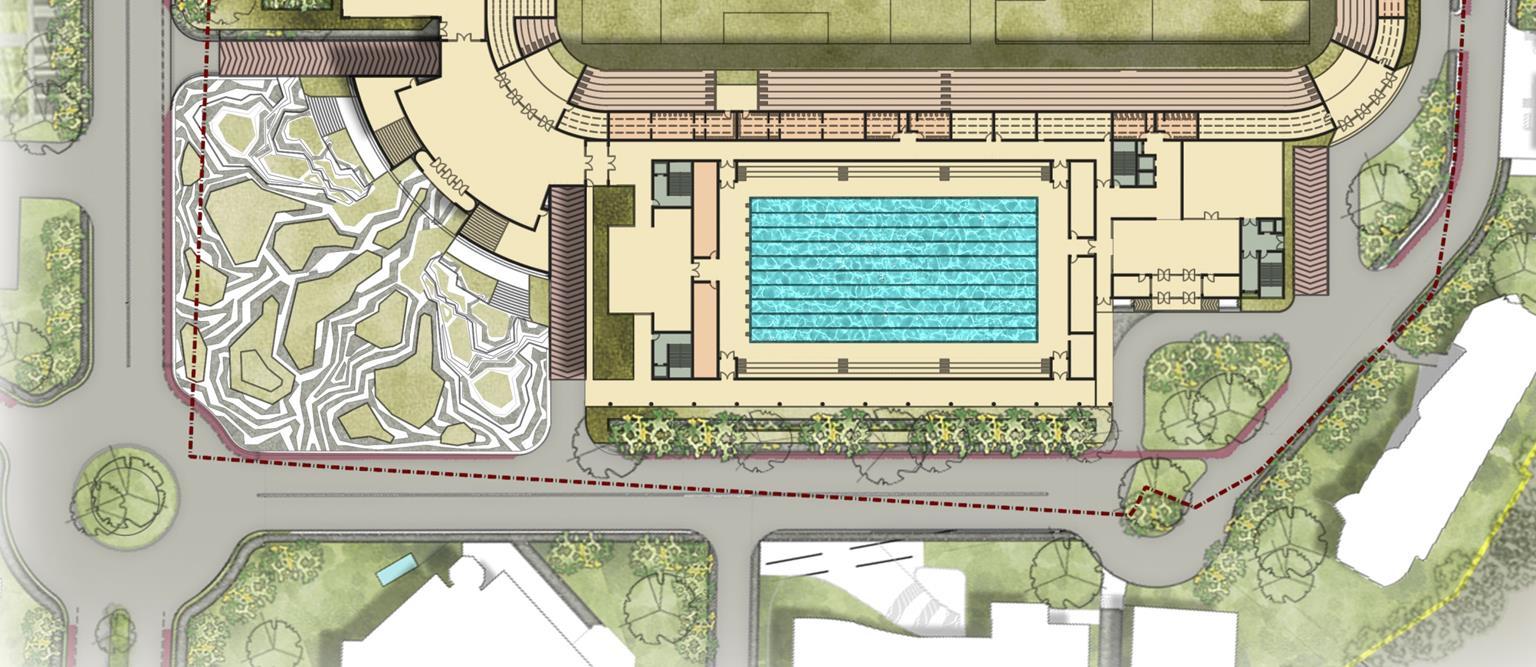

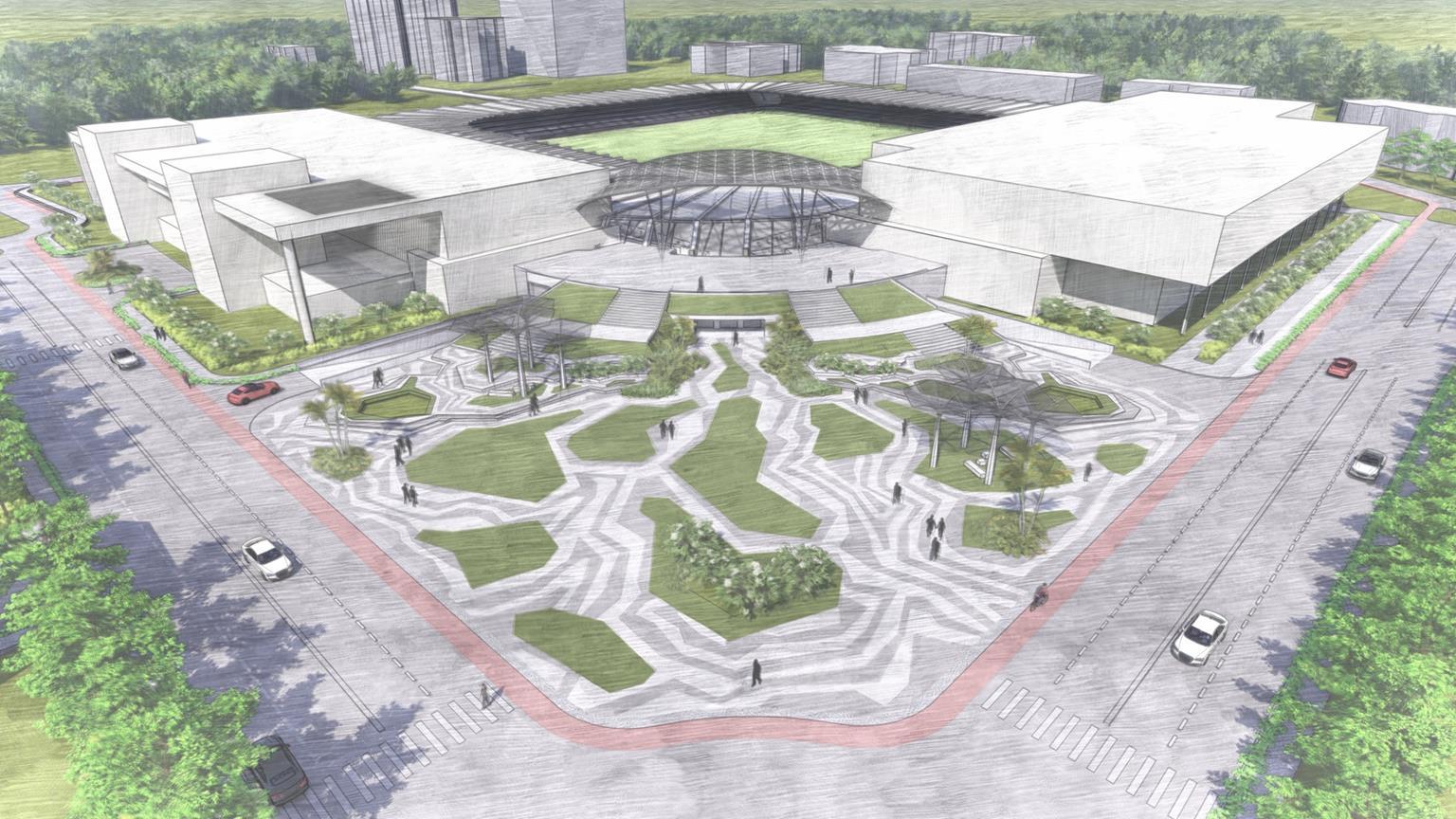

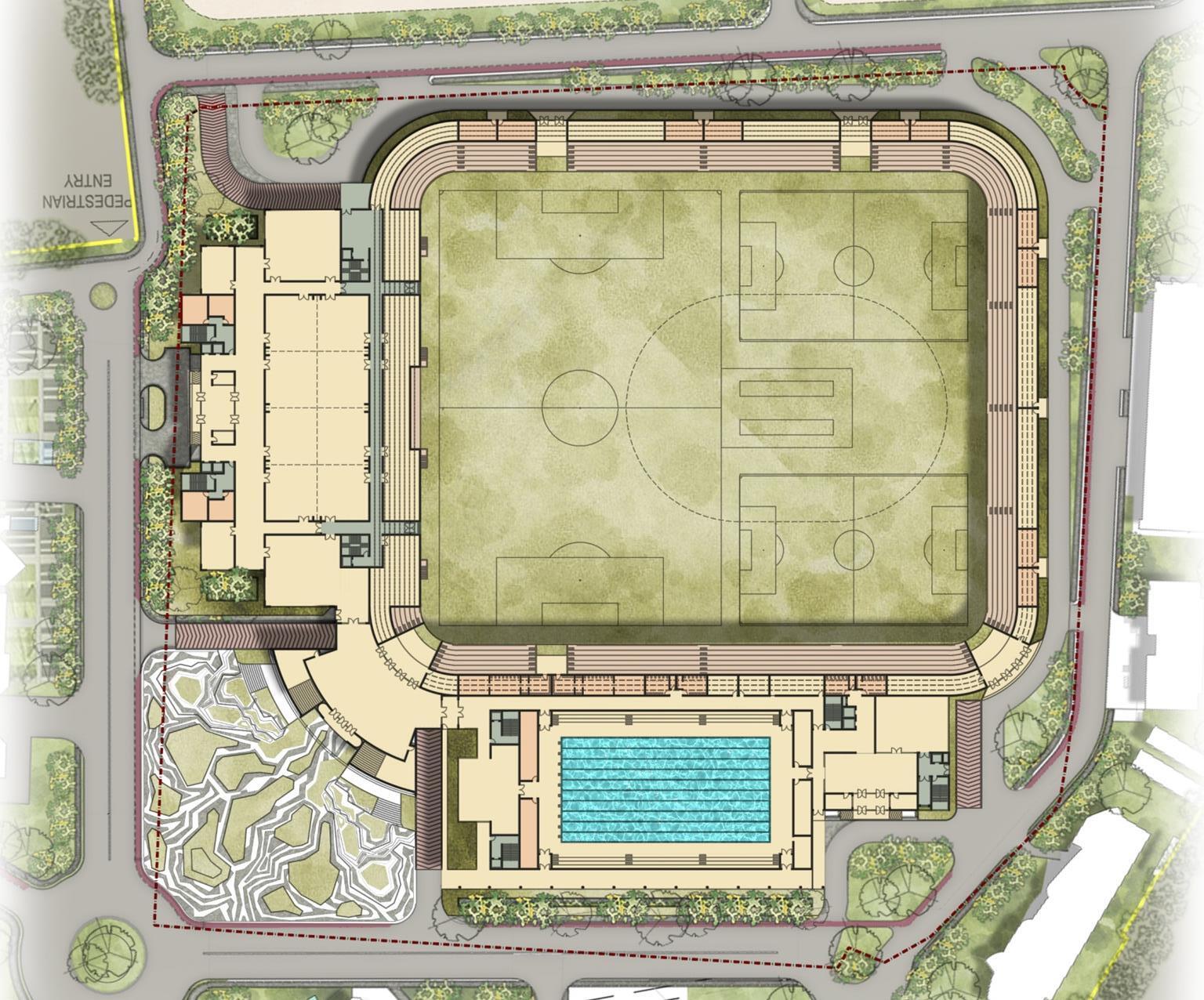

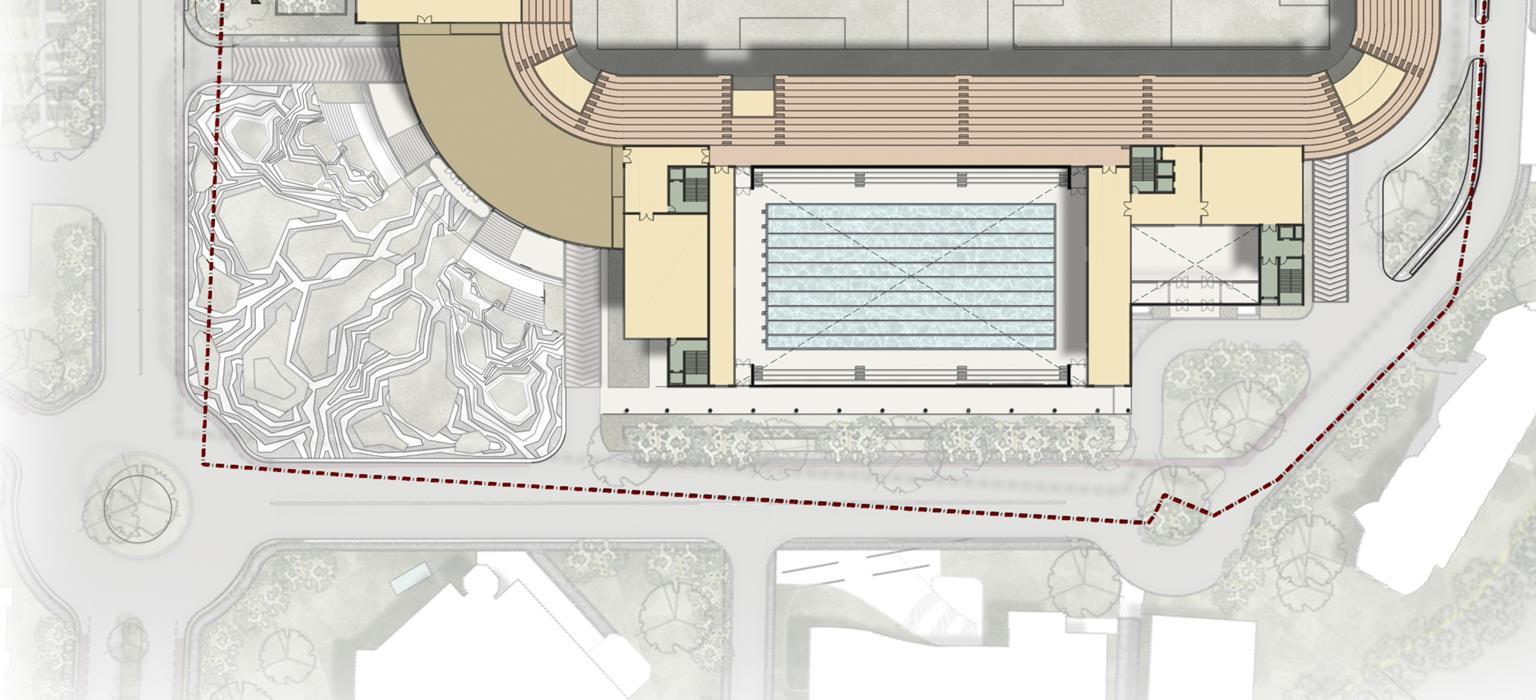

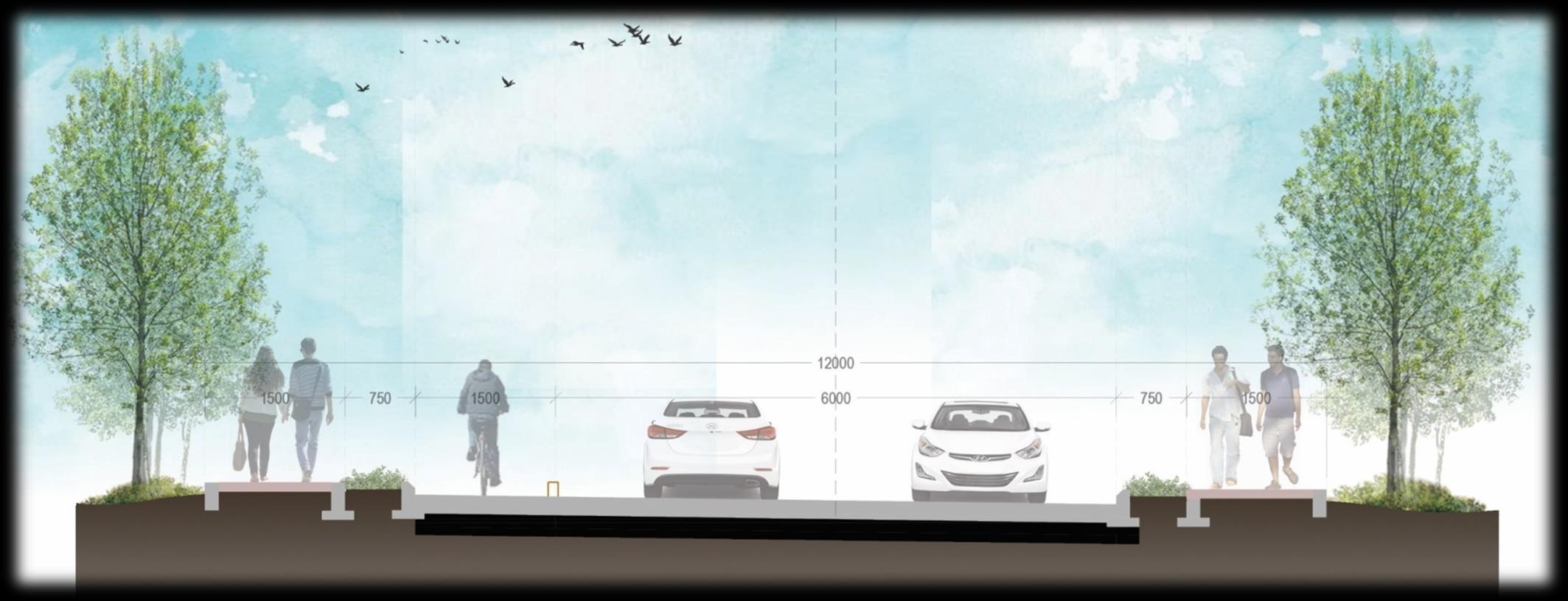

11 01 DROP-OFF FOR CONVENTION CENTRE 12 12 13 08 01 03 05 04 09 07 03a 06 04 10 02 09a 09b 08 08 02 DROP-OFF FOR SPORTS CENTRE 03 LOBBY FOR CONVENTION CENTRE 03a LOBBY FOR SPORTS CENTRE 04 CAFETERIA 05 CONVENTION CENTRE 06 SPORTS CENTRE 07 SHREE PATANGRAO KADAM CHOWK 08 SEATING 09 VEHICULAR ENTRY TO BASEMENT 09a VEHICULAR EXIT FROM BASEMENT 10 SERVICE ENTRY TO BASEMENT 11 FIFA FOOTBALL FIELD 12 7-A-SIDE FOOTBALL FIELD 13 CRICKET FIELD 09b SPORTS CENTRE VEHICULAR ENTRY TO BASEMENT 68 X 105 55 X 36 55 X 36 136.5 X 114 50 X 25 03a

SERVICE AREA CAR PARKING DRIVEWAY PARKING COUNT= 388

GROUND FLOOR – CONVENTION CENTRE AND CAFE FIRST FLOOR – LOUNGE AND BUSINESS CENTRE FIRST FLOOR – BASKETBALL COURTS, VIP LOUNGE AND INDOOR GAMES GROUND FLOOR – SWIMMING POOL AND LOCKER ROOMS

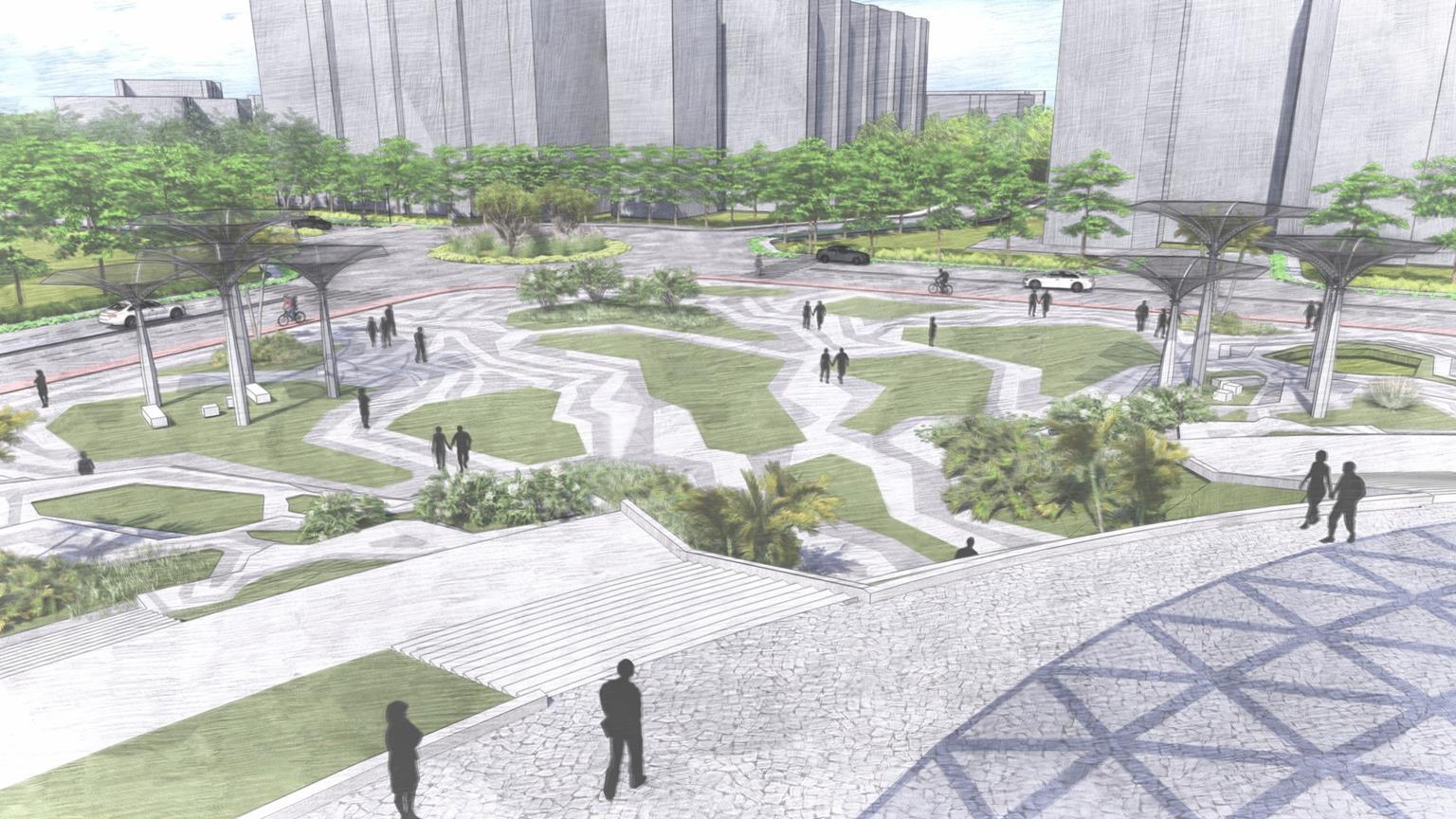

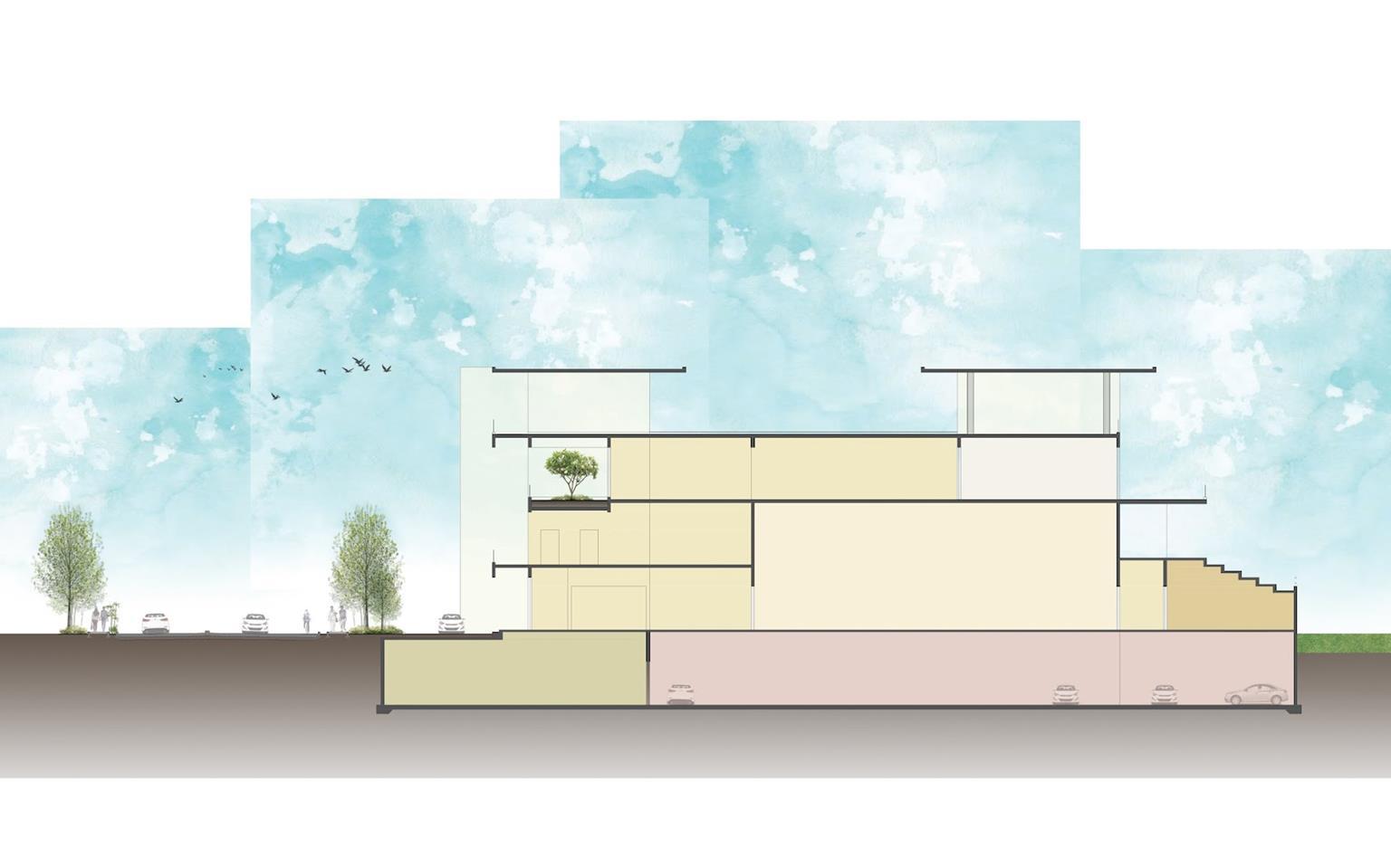

SECTION THROUGH CONVENTION CENTRE CONVENTION HALL BASEMENT SERVICES ENTRANCE LOBBY CAFETERIA TERRACE BUSINESS CENTRE VIP LOUNGE STADIUM SEATING KITCHEN FIELD

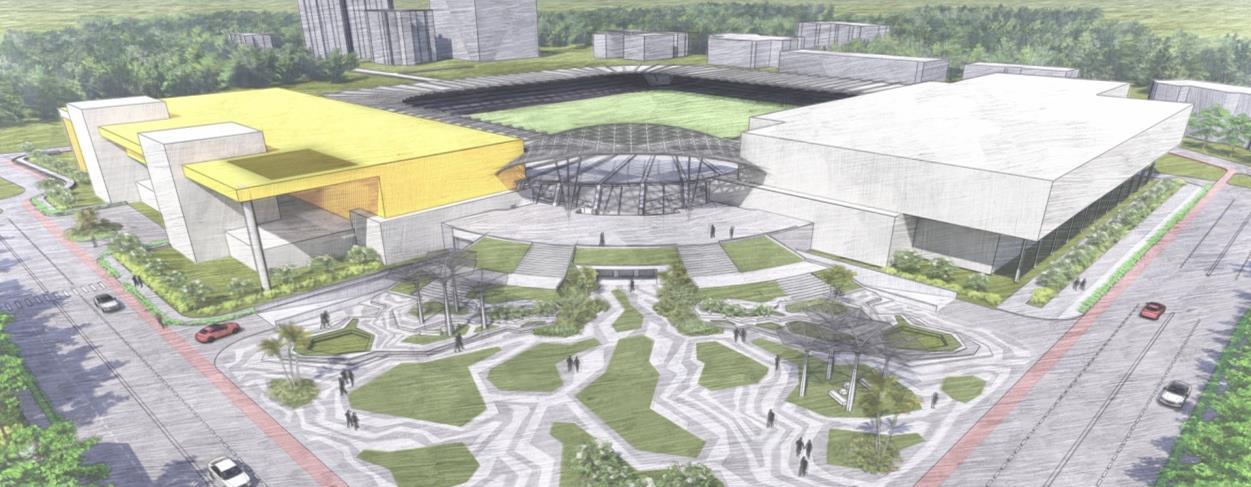

AREA STATEMENT

1. ENTRANCE

2. LOBBY & VESTIBULE

3. TOILETS

4. PRE-FUNCTION AREA (640 SQM)

5. ADMINISTRATION (185 SQM)

6. CAFETERIA (405 SQM)

7. BANQUET HALL (LARGE) (1360 SQM)

8. BANQUET HALL (SMALL) (310 SQM)

01 02 03 03 04 07 08 06 05 05

04 01 01 02 03 AREA STATEMENT 1. TOILETS 2. STUDENT CAFETERIA (415 SQM) 3. LOUNGE (95 SQM) 4. DECK (1030 SQM)

AREA STATEMENT

1. TOILETS

2. LOBBY

3. BUSINESS CENTRE (715 SQM)

4. ADMINISTRATION (185 SQM)

5. VIP LOUNGE (450 SQM)

01 01 03 03 03 04 02 05

01 08 04 02 06 07 03 05 04 06 06 08 08 06 08 AREA STATEMENT 1. ENTRANCE 2. LOBBY 3. STUDENT LOBBY 4. ADMINISTRATION (50 SQM) 5. CAFETERIA (240 SQM) 6. SERVICE & UTILITY (280 SQM) 7. POOL (234 SQM) 8. CHANGING ROOM & TOILETS (500SQM)

AREA STATEMENT

1. ADMINISTRATION (310 SQM)

2. VIEWING GALLERY (440SQM)

3. LOUNGE (235 SQM)

01 02 02 03

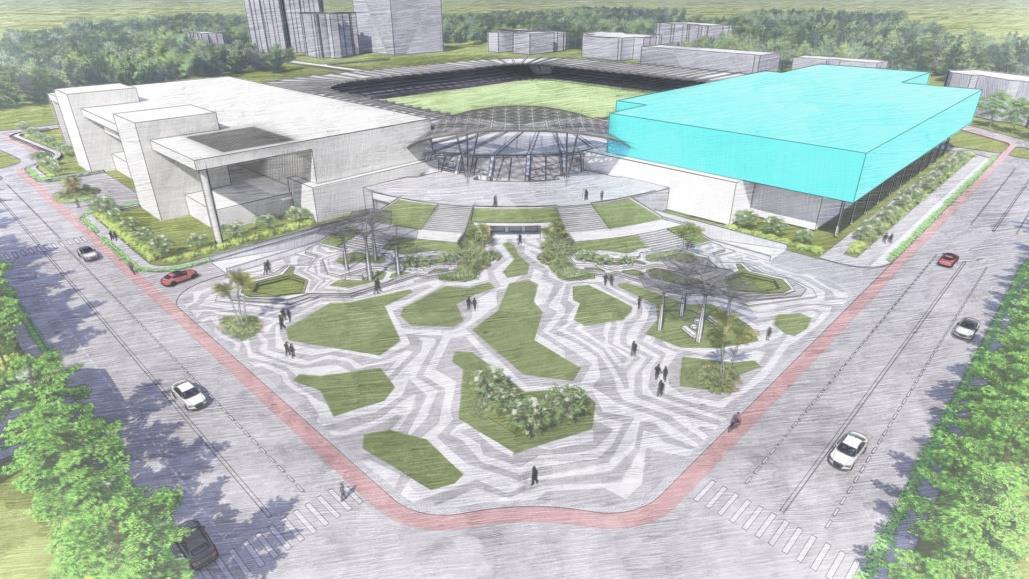

AREA STATEMENT

1. INDOOR GAMES (540 SQM)

2. CHANGING ROOM & UTILITY AREA (110 SQM)

3. TOILETS

4. LOUNGE (155 SQM)

5. GYM (435 SQM)

6. MULTICOURTS (2265 SQM)

7. SQUASH COURTS (345 SQM)

01 02 03 04 06 05 02 04 03 07

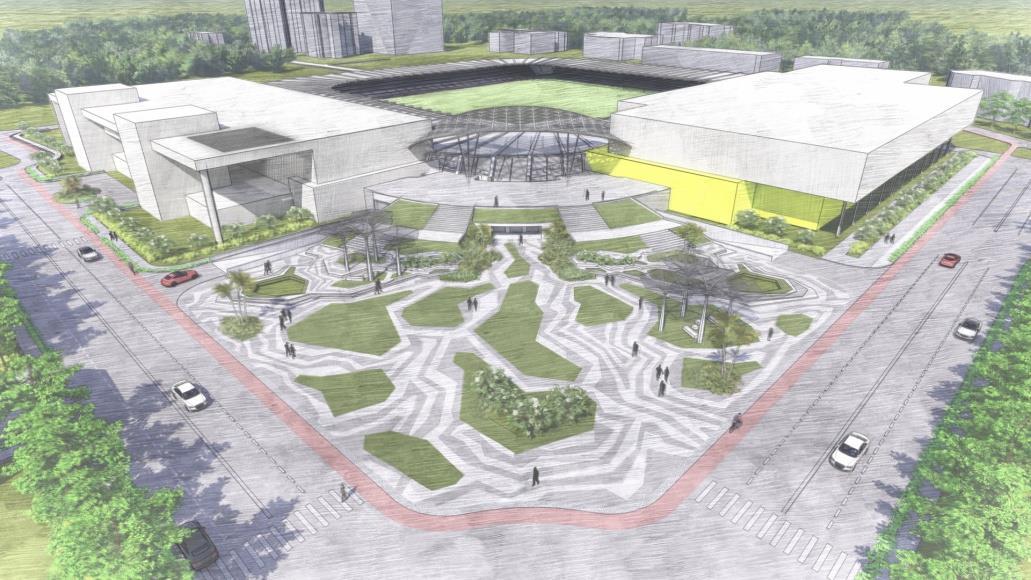

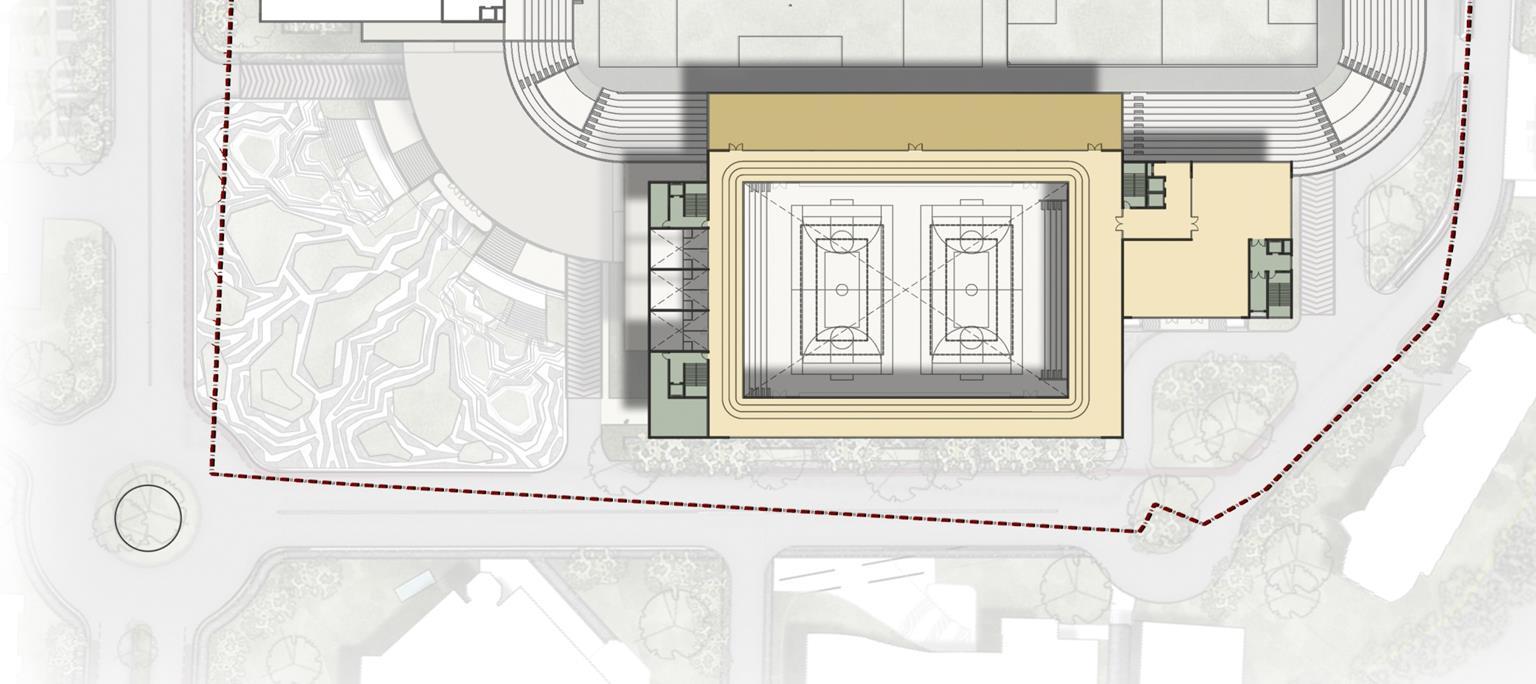

AREA STATEMENT

1. INDOOR GAMES (540 SQM)

01 02

2. ATHLETIC TRACK (1495 SQM)

STADIUM SEATING

GYM

TRACK

NETTED TENNIS COURTS

BASKETBALL AND MULTIPURPOSE COURTS

TRACK

SEATING

FIELD

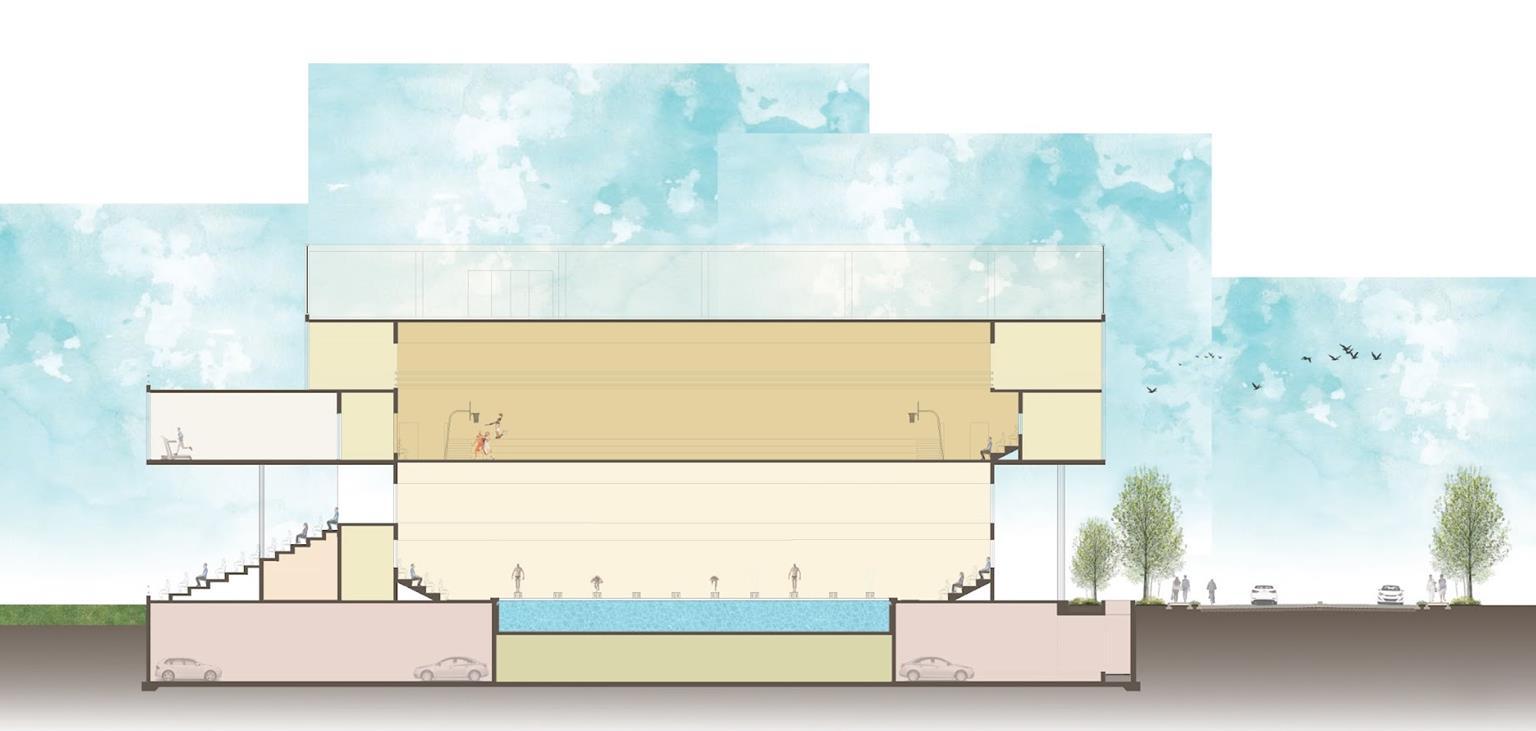

SECTION THROUGH SPORTS CENTRE

SEATING

OLYMPIC POOL

BASEMENT

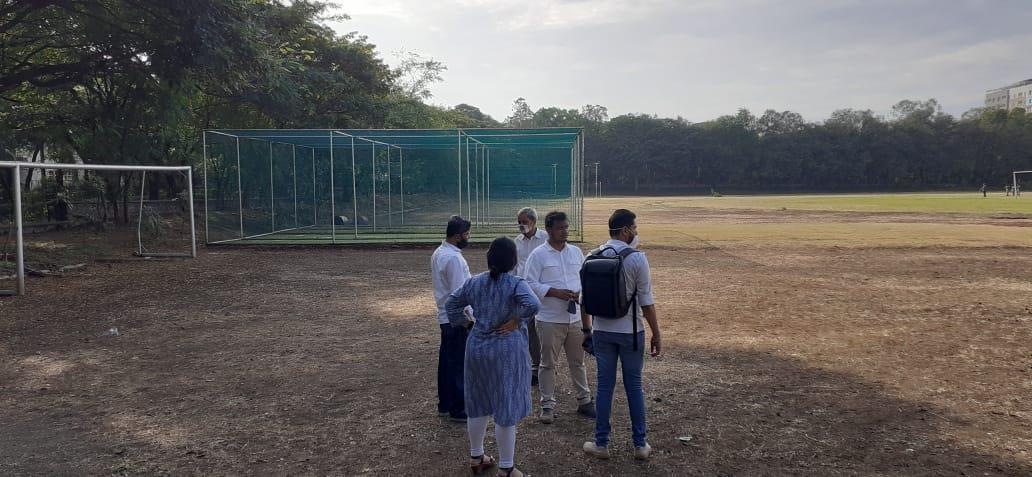

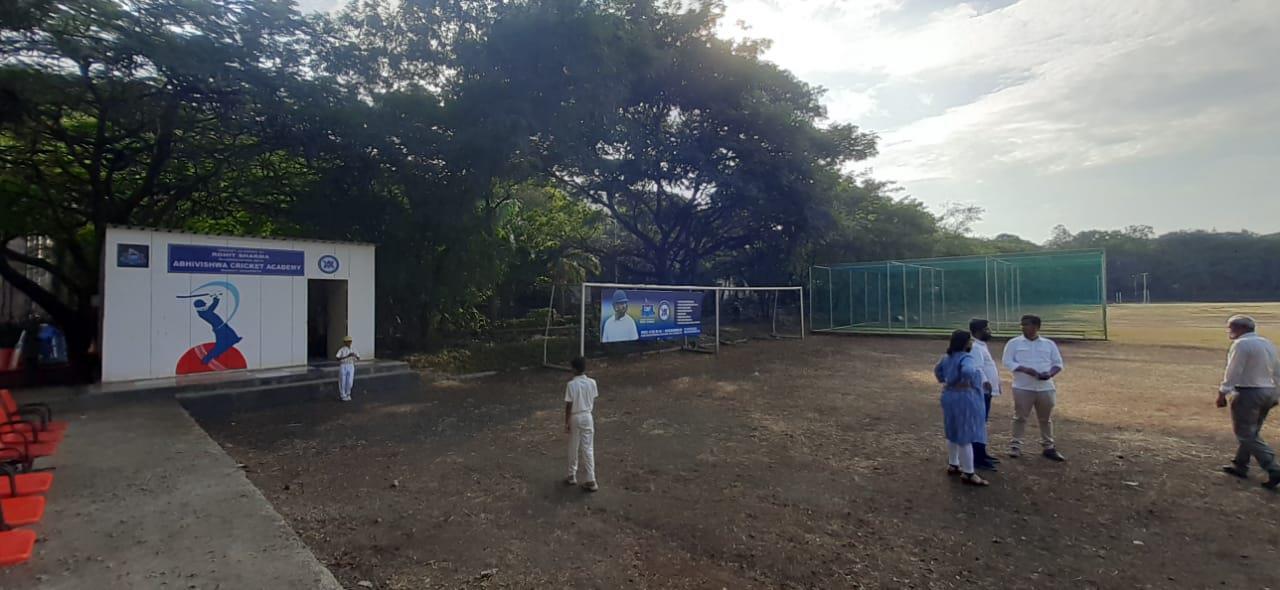

Site Visit : BVP Campus Pune

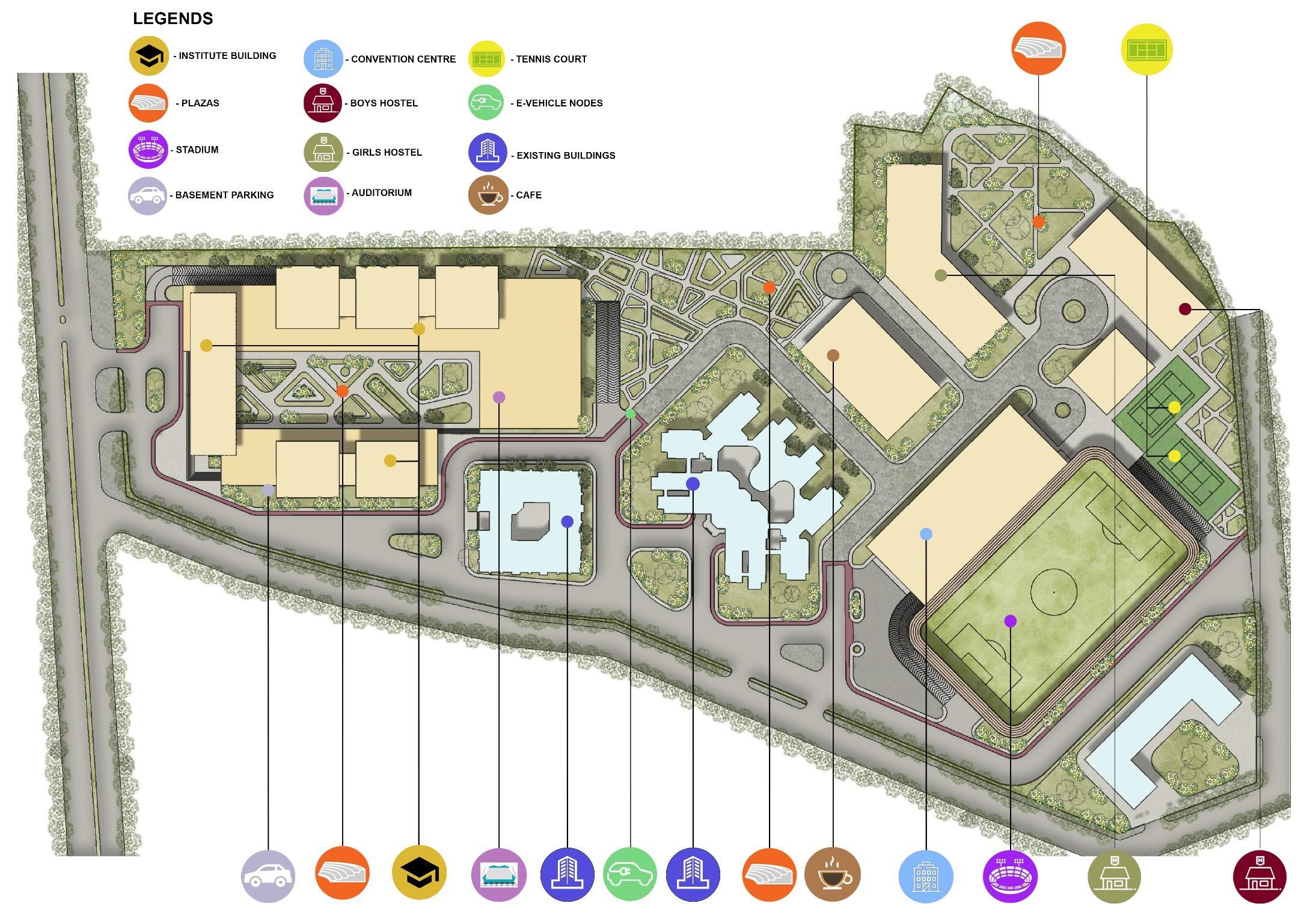

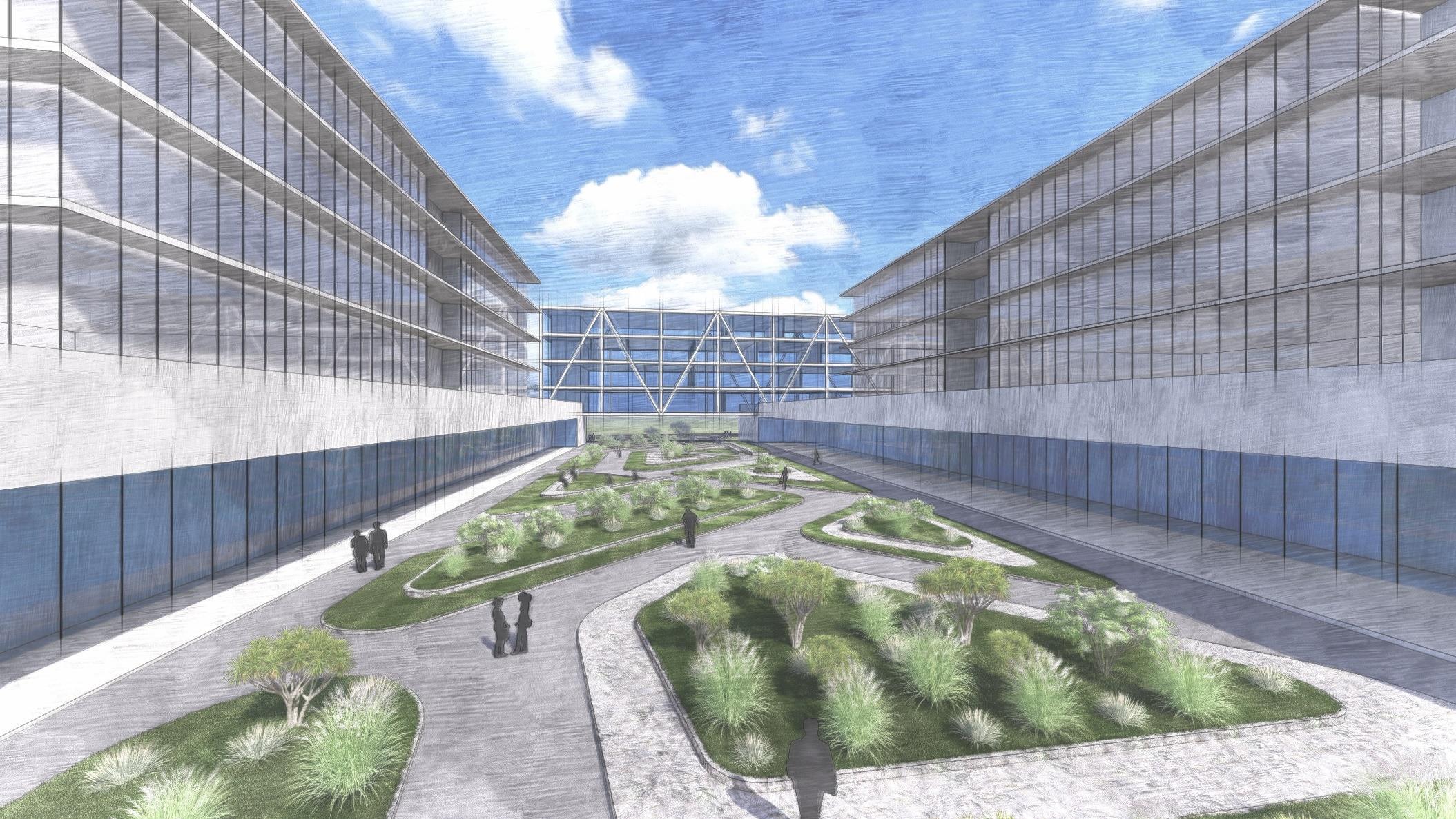

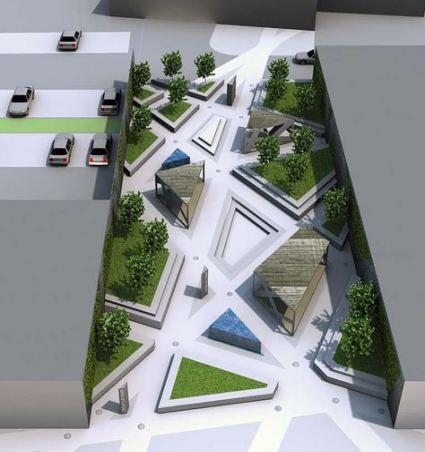

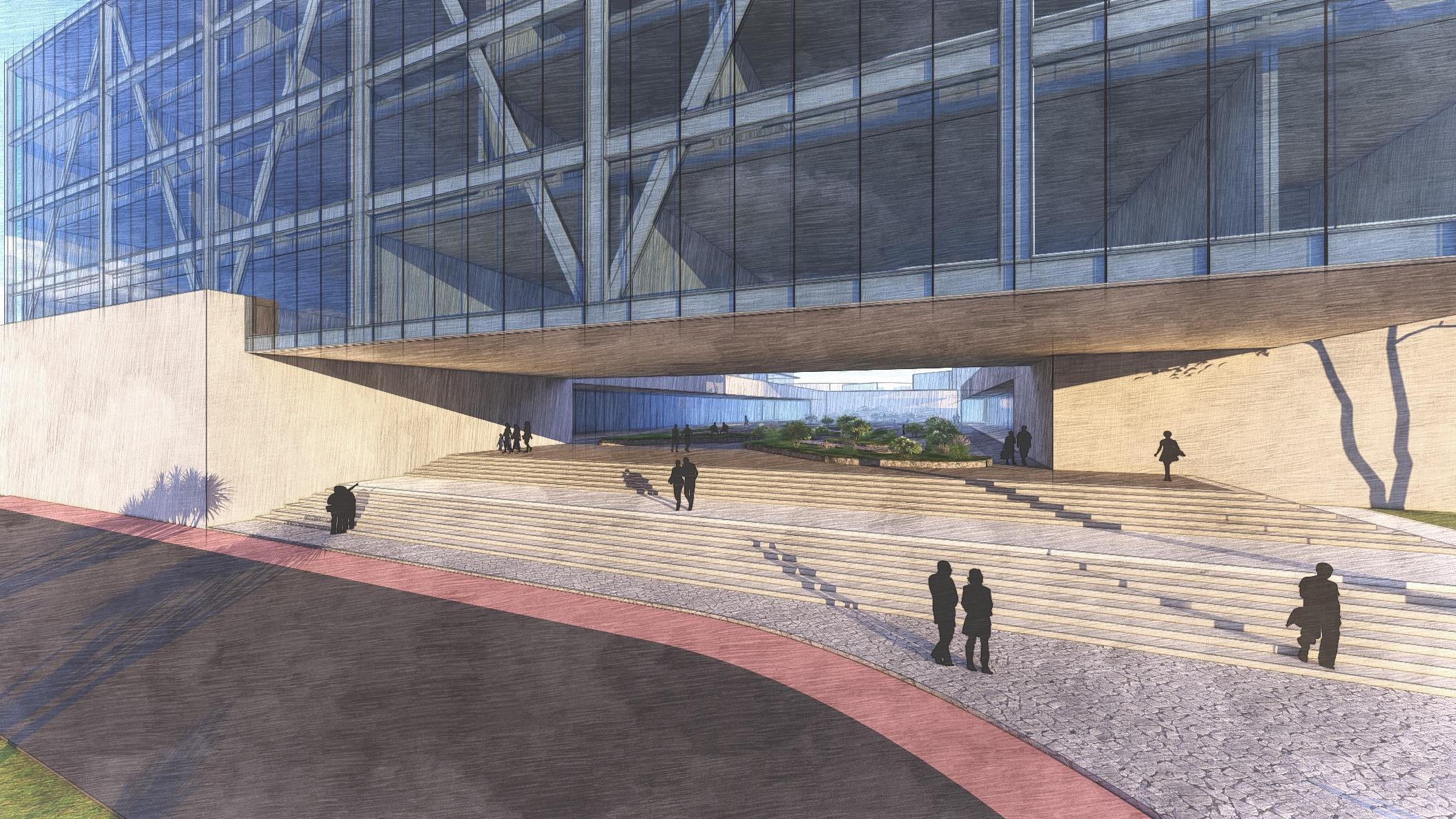

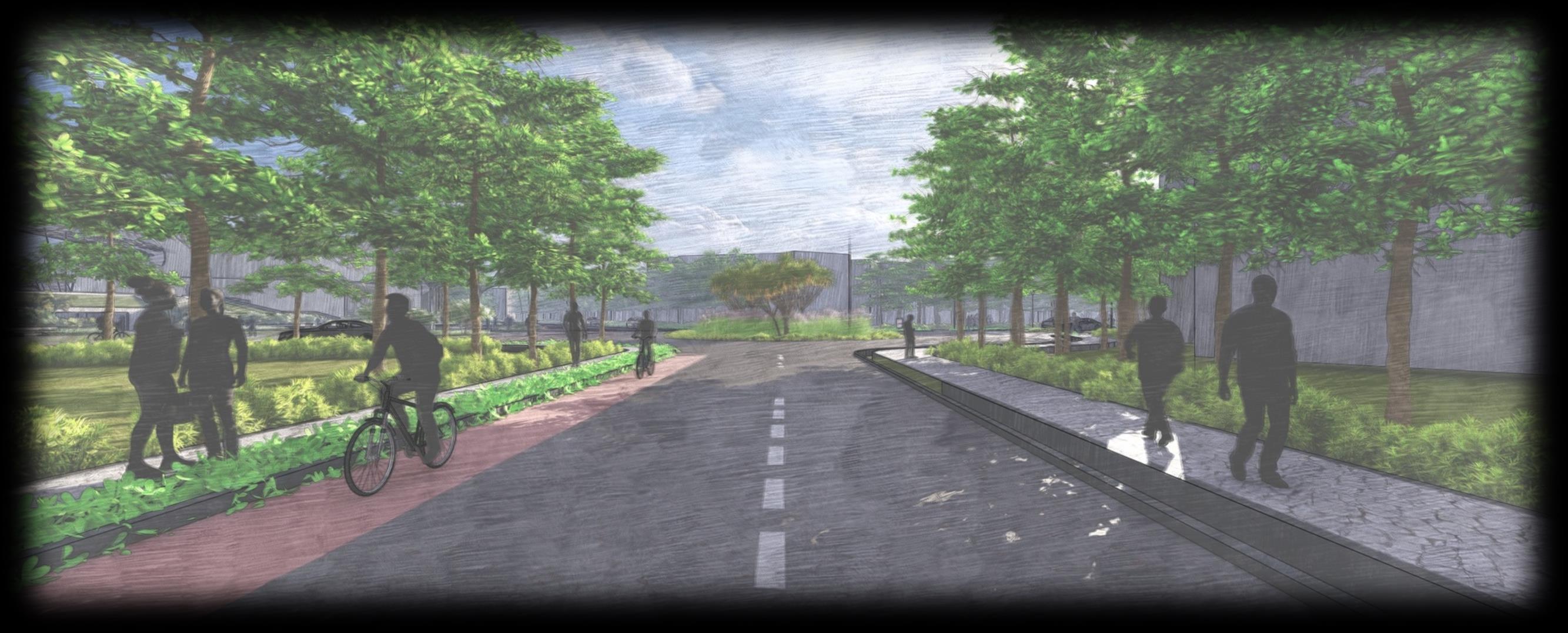

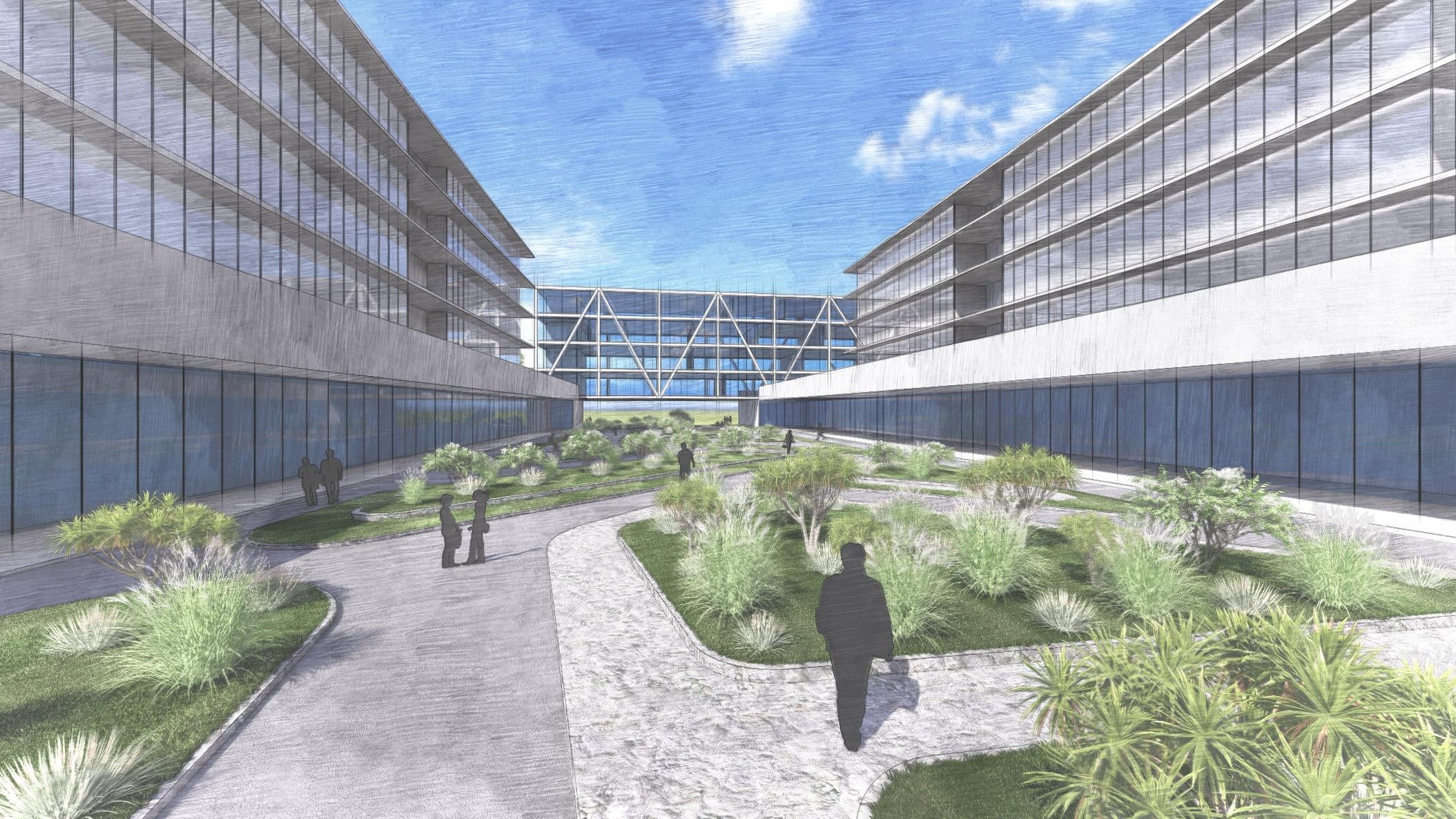

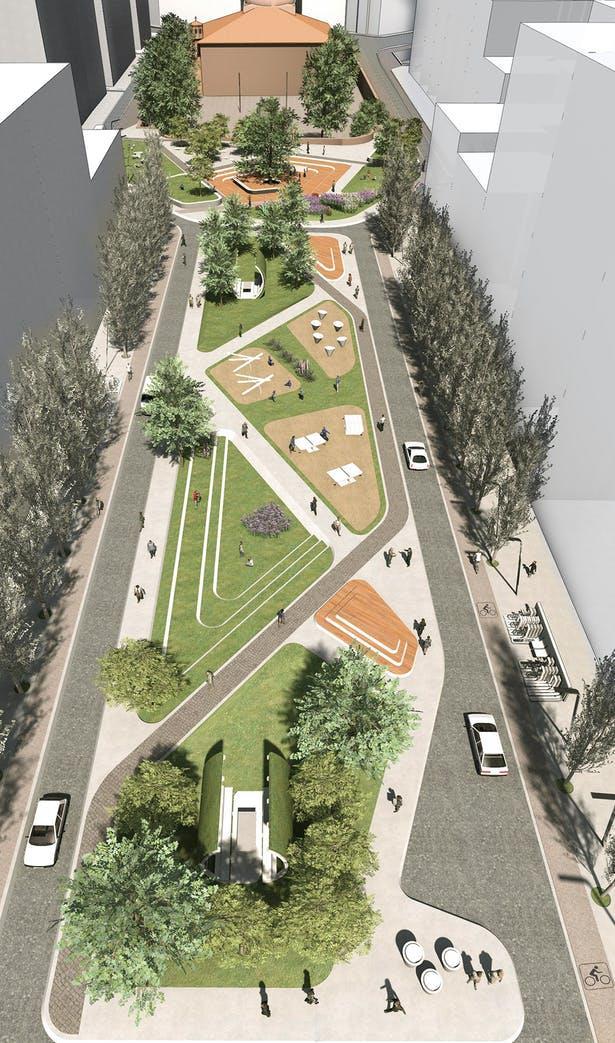

13 01 03 04 09 07 02 04 05 06 08 10 11 11 12 03 03 01 DROP-OFF FOR INSTITUTE BUILDING 02 INSTITUTE BUILDING 03 LANDSCAPED PLAZA 04 EXISTING BUILDINGS 05 CAFETERIA 06 GIRLS HOSTEL BUILDING 07 BOYS HOSTEL BUILDING 08 CONVENTION CENTER 10 MUNICIPAL SCHOOL 09 STADIUM FIELD 11 TENNIS COURT 12 STAFF QUARTERS 13 AUDITORIUM 02 02
