Portfolio for UCL Urban Design March

Fragmentation and Integration Hong Kong logistics transportation and waste recycling system design

Location:HongKong,China Individual work Autumn 2022

In recent years, the garbage problem in Hong Kong has seriously affected people's normal life, the environment of the city streets and the natural ecological environment of the coast. Hong Kong relies on overseas imports for more than 80% of its goods (food, daily necessities, etc.). Since the outbreak of COVID-19, cross-border logistics have been considerably hampered.

Under such circumstances, Hong Kong urgently needs a new transportation system for logistics and garbage collection.

Therefore, this project takes Kowloon Peninsula of Hong Kong as the site to design a two-way system of logistics transportation and garbage recycling and uses parametric design to simulate the optimal path of the passage. And in the core node position, the design of the core processor, used for goods distribution, storage, waste treatment, secondary processing and other functions.

Zero carbon waste disposal Different from direct incineration, centralized waste treatment is adopted to reduce carbon emissions.

Unit-G

Logistics and transportation center Located in the concentrated area of residents, it plays the function of goods distribution and waste recycling.

Unit-F

Processing of recyclables Unit-B

Unit-E

The recyclables collected from the surrounding channels are classified, processed and made into secondary products.

Unit-C

Reuse of waste In large commercial areas, channels collect a large amount of garbage and waste for secondary treatment, and then quickly transported back to be used again.

Coastal waste collection and disposal Unit-A Unit-D

Hong Kong Logistics Transport and Refuse Collection System

By means of passageways, garbage collection along the coast is pooled into centralized disposal points where garbage is sorted. Different from incineration and landfill, the waste will be treated in a green way

New life of the Siheyuan Typology-based urban renewal design of the northern part of the Temple of Heaven Location:Beijing City ,China Individual work Autumn 2021

As the most traditional residential form in Beijing, Siheyuan has experienced great ups and downs for hundreds of years.

The site is adjacent to the north side of the Temple of Heaven. Today, the Siheyuan is dilapidated and unrepaired, and most of the indigenous people have moved out. In the absence of management, a large number of man-made buildings have destroyed the spatial pattern and street environment of Siheyuan.Siheyuan has become endangered and has to be changed.

This project uses typology design techniques to select the components of Siheyuan, and reorganizes the architecture and space according to the different functions required by the design site, so as to revitalize the vitality of the site.

REFORM AND REBORN

Mountains and Villages Architectural design of Hefei Art Museum Location:Hefei City Anhui Province,China Individual work Autumn 2021

Art museum is the carrier of art and the place where people's spirit rests. An art museum should be regarded as the spiritual field of a district and the core node of artistic and cultural cultivation. It should carry the functions of art exhibition, art education, art life and other aspects.

In this project, the local cultural and artistic characteristics are absorbed, and the image of natural mountains and rivers is integrated into the architectural design, to outline a natural landscape painting in the city.

Moreover, the spatial pattern of traditional Anhui countryside is integrated into the design, with the open water as the foreground and the river as the traverse through the building to guide the flow of visitors.

GENERAL MAPPING OF HEFEI ART MUSEUM

Location Swan Lake,Hefei,AnHui province China The project is located in the Cultural Museum park of Shushan District, Hefei City, Anhui Province.

It is committed to building a Hefei Art Museum with the architectural characteristics of traditional

Hefei old town The Old Town Cultural Center

villages in southern Anhui, serving residents and

The capital of Anhui Province

students in surrounding areas, and meeting the

ShuShan district - South of Swan Lake Area

functions of daily art appreciation and exhibition activities

Commercial Area Ⅳ

urban expressway

Site Analysis

Distance Site-residence 7.5km

Villages in the south of Anhui

Huangshan City

Residence and school

It forms a ring line with the other two museums, and the entrance and exit on the west side of the site are mainly for the surrounding residents and students.

g

pin

AreaⅢ

a

loc

ce

tan

is ld

p ma

The architecture is divided into parts to reduce the weight of the large volume.

T h e w a t e r i s introduced to the north side of the site to form an echo within the site.

The main entrance to the park is located on the east side, and the three buildings share a central square for the flow of people.

Local

10MIN. Coverge

Integrated Cultural Centre

Distance Site-10min 3km

SITE

Distance Site-15min 7km

subway and railway

Anhui Cultural Museum Park

Extracting elements

15MIN. Coverge Distance Site-15min 7km

HeFei high-speed railway station

The form of the building draws elements from nature, referencing the continuous mountains.

Also selected from the traditional ancient village painting works of architectural modeling and color and other elements.

Distance Site-15min 7km

Residence and art museum AreaⅠ urban expressway and subway

SITE The museum project is close to Swan Lake area, which is the center of Hefei, with a large population density and beautiful environment.

Distance Site-university 4.5km

FACILITY

University Town

By investigating the land use function in the surrounding areas, we can give full play to the regional advantages, make up for the lack of functions, and connect with the surrounding cultural centers and art galleries to form a complete cultural system.

AreaⅡ

sprawing mountain range stream from mountain

TRANSITION

The transportation is convenient. Study the 10-minute and 15-minute travel circles to determine the possibility of service radius to the maximum extent.

Village location 0KM

1KM

2KM

Overlap with

activities

3KM

stream

The viewpoint

Architeture generation analysis

1st Floor Plan

Exhibition hall form

concentration

division

penetration

order

interlayer

chaos

difference

average

2nd Floor Plan

East side entrance and exit

Main entrance and exit

South elevation

Exploded Diagram

Built in the sky and water, the large area of the sloping roof simulates the image of continuous mountains and rivers, forming an artificial natural landscape painting as a whole. The glass reflects the natural scenery in the distance, and the water reflects the reflection of the gallery. Visitors stroll in the nature of heaven and earth. Express quiet, away from the noise, return to the realm of nature.

The white and black stone walls echo each other, coupled with the staggered volume, the combination of virtuality and reality, just like the black and white in traditional ink painting.

Order and Connection Path-first urban design based on wool algorithm Location:Beijing City,China Individual work Autumn 2022

Under the trend of modernism, the concept of function first and architecture first is deeply rooted in people's hearts.

However, large buildings and infrastructure have created a huge problem for pedestrians.

In this project, the steps of urban planning and design were first changed to the method of first planning the traffic path, then dividing the land and carrying out the architectural design. Based on the parametric design of wool algorithm, the optimal solution of path planning is obtained.

The path connects public space, high-rise office building, activity square and other important nodes in the new site, greatly improving the efficiency of traffic.

Master Plan

Perspective

The pedestrian passage of the block is simulated by the wool algorithm to generate the optimal solution, which plays the role of dividing and connecting the plots in the site.

The site hopes to redefine the form of urban design. Under the premise of pedestrian first and people-oriented design, the building areas with different functions are connected to each other, creating more public space and revitalizing the site.

Public event squares, open terraces and so on can communicate with each other without being too chaotic under the new order.

Scene2_Public area

Scene3_Commercial district

Otherwork_1

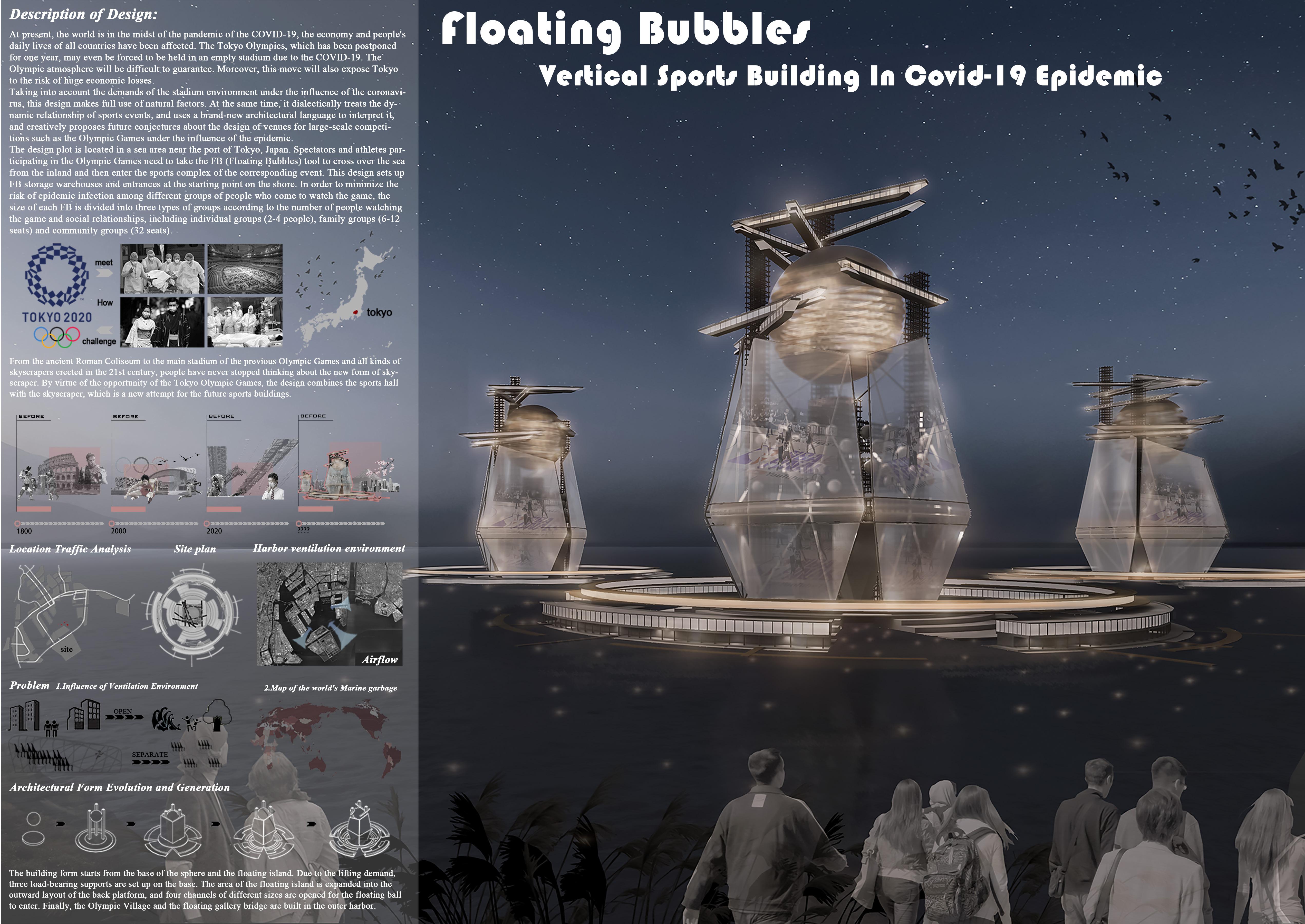

Floating Bubbles The Maritime Olympic Stadium in the context of COVID-19 Location:Tokyo, Japan Cooperative work: PengYao Tuhao Zhu Chengcheng Peng Role in team: Background Research:80% Conceptual Design:70% Technical Drawing:80% Winter 2020

Against the background of the epidemic, the spread rate of the epidemic is too fast and the infection is too strong, which has triggered our new thinking on the form of Tokyo Olympic stadium.

The venue will be located on the sea of Tokyo Bay to achieve the same effect as the stadium, while safely isolating the COVID-19 virus. We designed the spherical spectator compartment of floating bubbles. The tower of the main stadium is divided into several parts. The lowest floor is a circular public service area, which contains public activity Spaces such as catering and selling of Olympic peripheral commodities. The middle level of the tower is built with a network of rails and steel frames for transportation of FB, and the top level is designed with highend hotel accommodation. The different required functions are concentrated in one tower.

Otherwork_2

Otherwork_3
