HIGHLAND HAVEN

BRIEF Fall 2023 | 4th Year | Eddy Tavio | Bentonville, Arkansas PROGRAMS USED SketchUp, Lumion, Photoshop, Illustrator

6 | HIGHLAND HAVEN

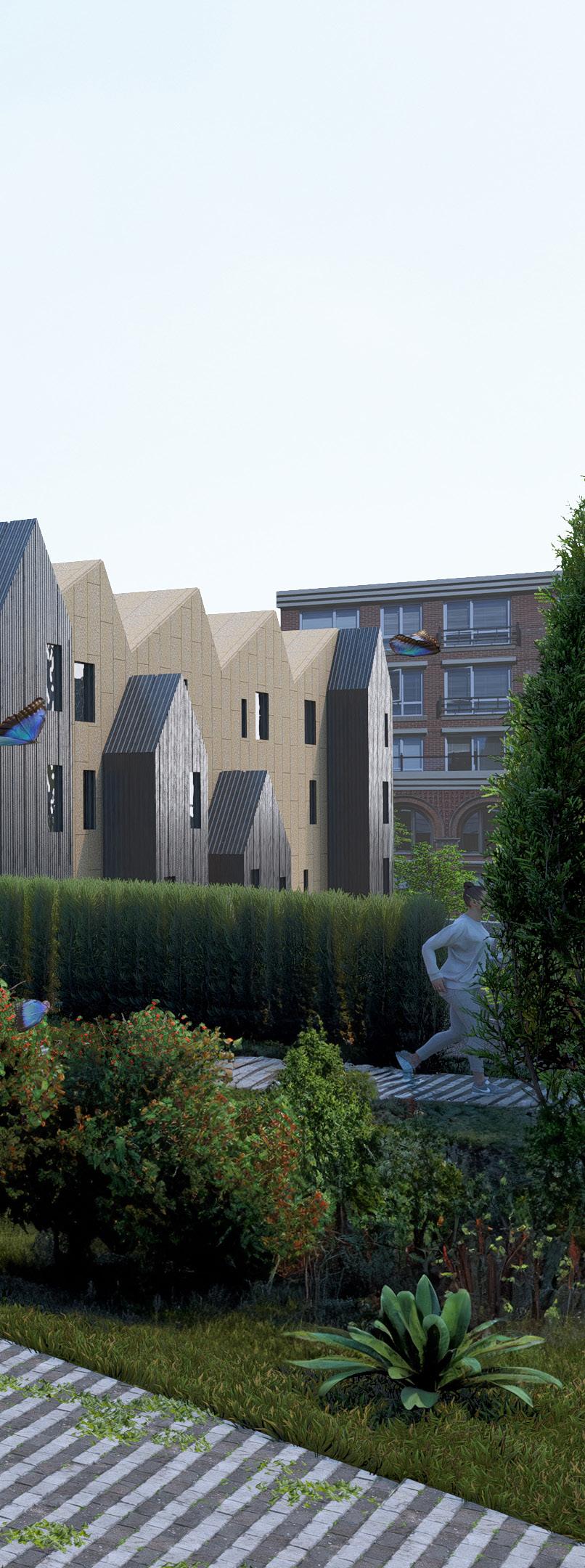

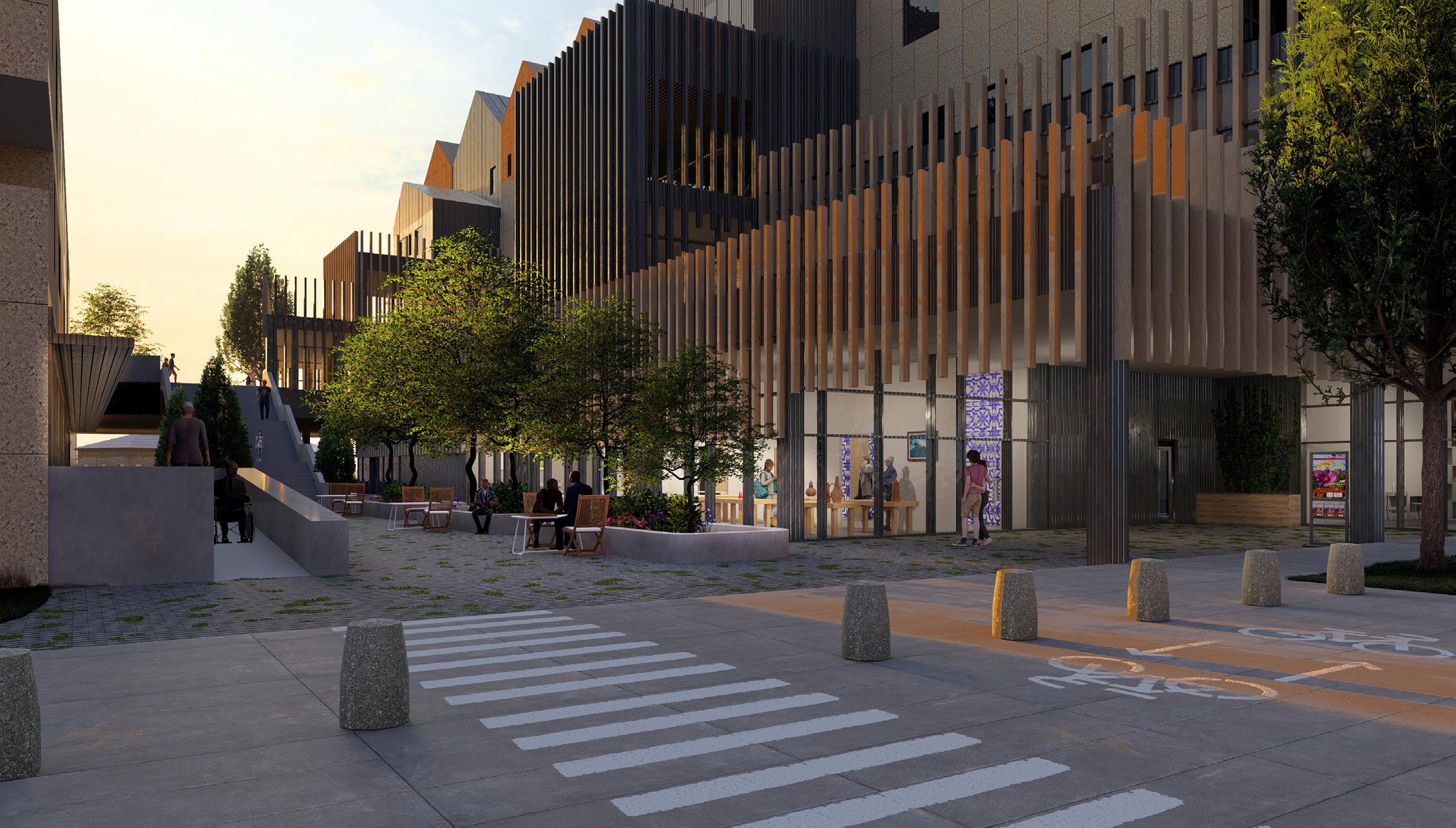

DESCRIPTION Highland Haven in Bentonville, Arkansas, reimagines middlerise housing with its innovative design. Setting a standard for sustainable living, it reshapes the local housing landscape and serves as a model for urban planning that values both the environment and quality of life, influencing the future of residential projects by reducing suburban sprawl.

This studio also focused on a range of design scales from urban planning to landscape design which promoted collaboration between other studio projects.

HIGHLAND HAVEN | 7

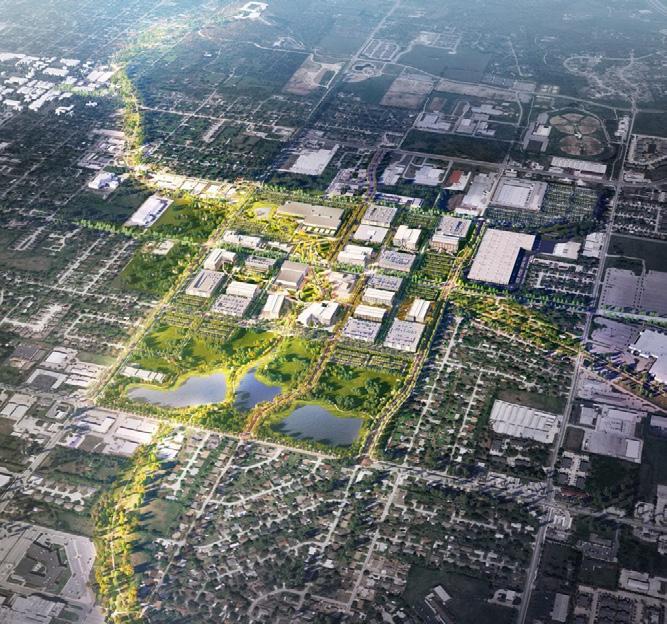

PROPOSED SITE FRAMEWORK THE site located off 8th Street near the new Walmart Headquarters, 8th Street Market, Momentary provides a unique opportunity for integration with its surroundings. The Razorback bike Trail runs through the site, connecting underground to Walmart HQ.

THE MOMENTARY

8TH STREET MARKET

FUTURE WALMART HQ

GRAPHIC BY: BRENDAN GANNON

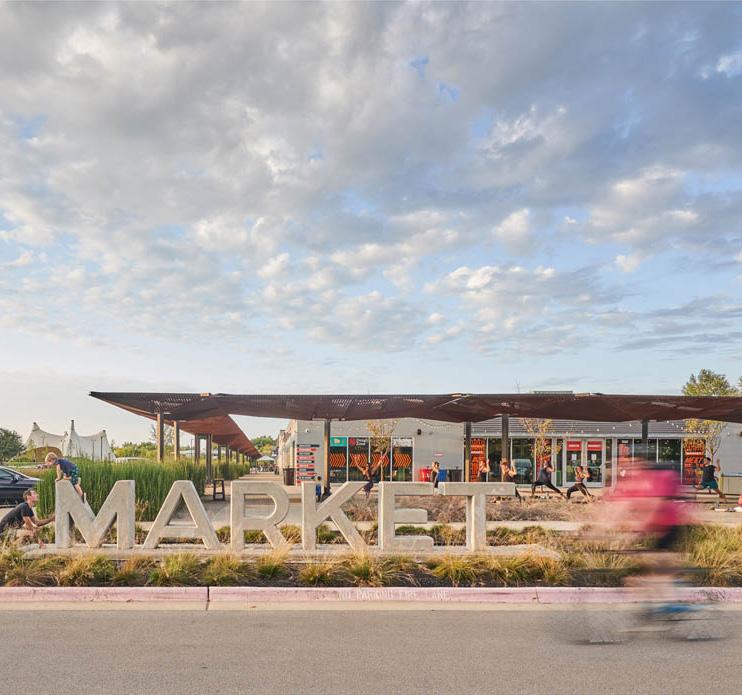

8TH STREET MARKET

THE MOMENTARY

WALMART CAMPUS

BY: HUFFT

BY: WHEELER KEARNS

BY: GENSLER

8 | HIGHLAND HAVEN

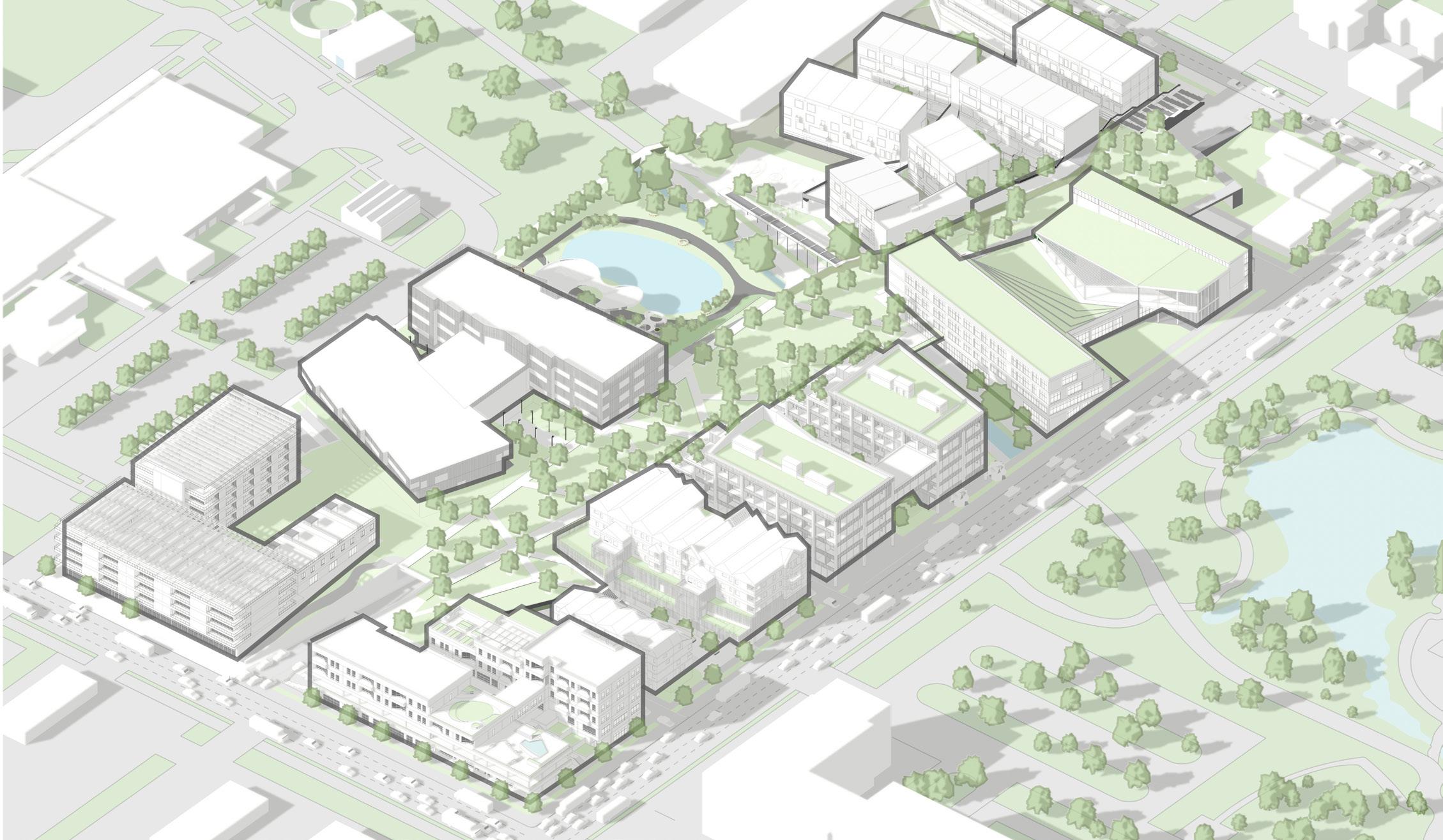

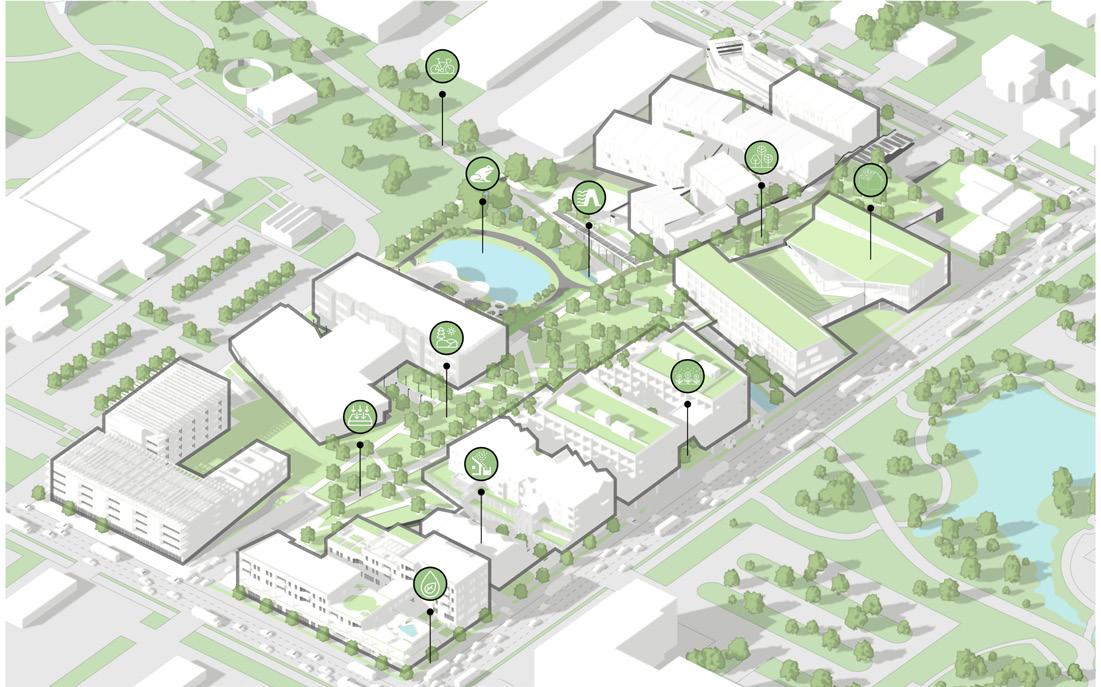

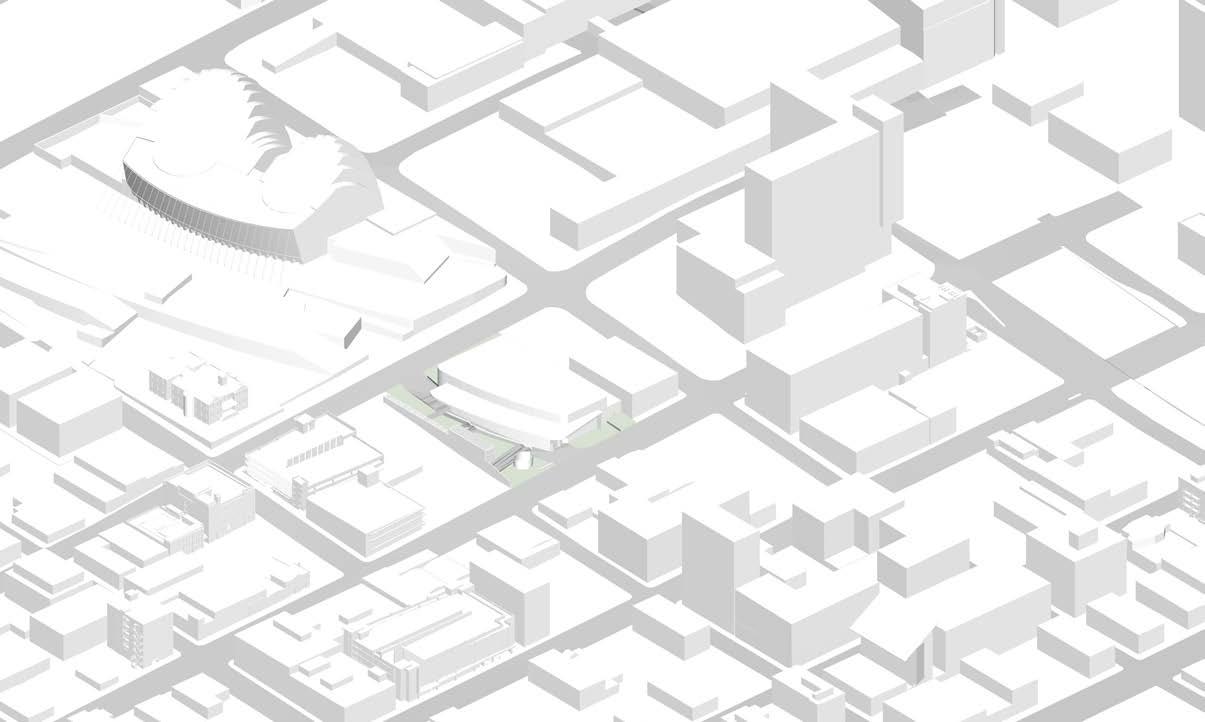

SITE DIAGRAMS The studio, comprised of teams of approximately seven members each, was tasked with creating a comprehensive framework design. The objective was to identify common themes, leverage diverse strengths, and collectively address challenges through a design charrette.

The final design includes an elevated central greenspace, which safely divides vehicular and pedestrian traffic. A park off the 8th Street Market serves as the public entrance to this elevated green space.

PROGRAM DISTRIBUTION

GRAPHIC BY: RYAN HAIGHT

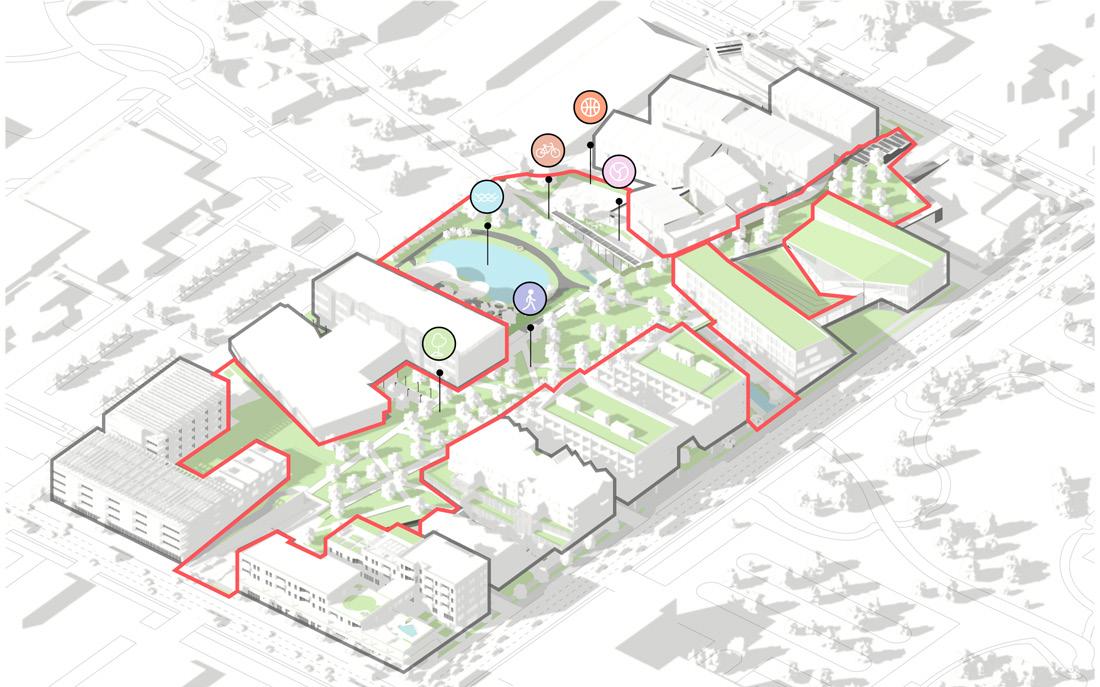

ECOLOGICAL APPROACH

GRAPHIC BY: KAITLYN DUNN

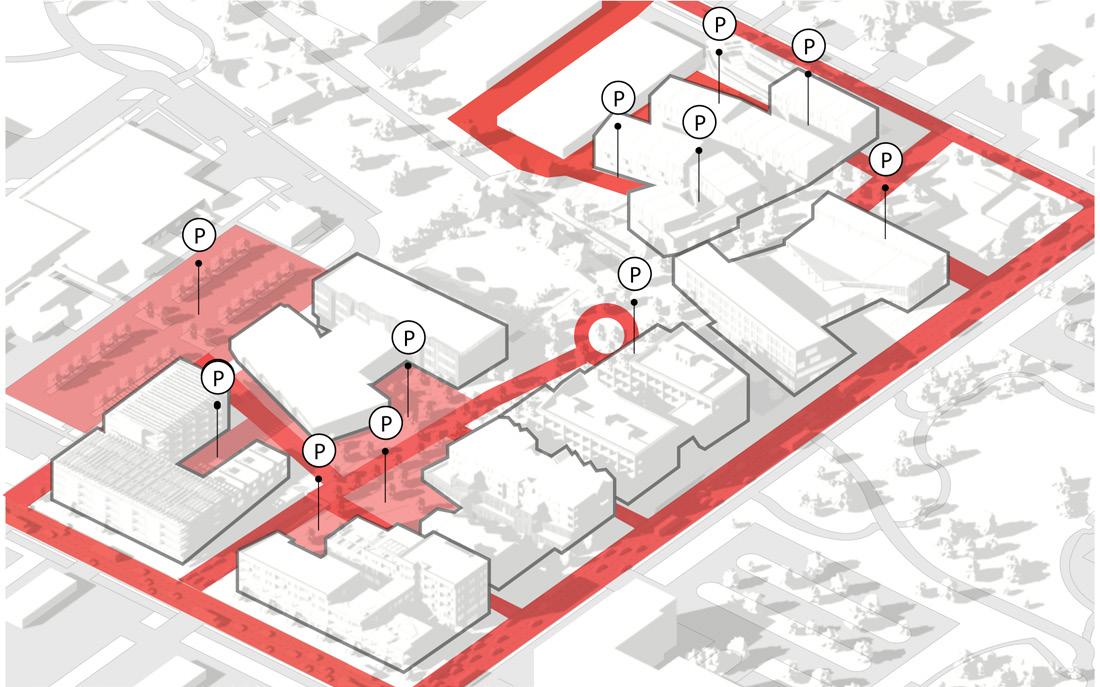

ACCESS AND SERVICE

GRAPHIC BY: LUKE DELEHAUNTY

PUBLIC SPACE

MULTI-MODAL CONNECTIVITY

GRAPHIC BY: BRITTANY PEREZ

GRAPHIC BY: ALEX MEYER

HIGHLAND HAVEN | 9

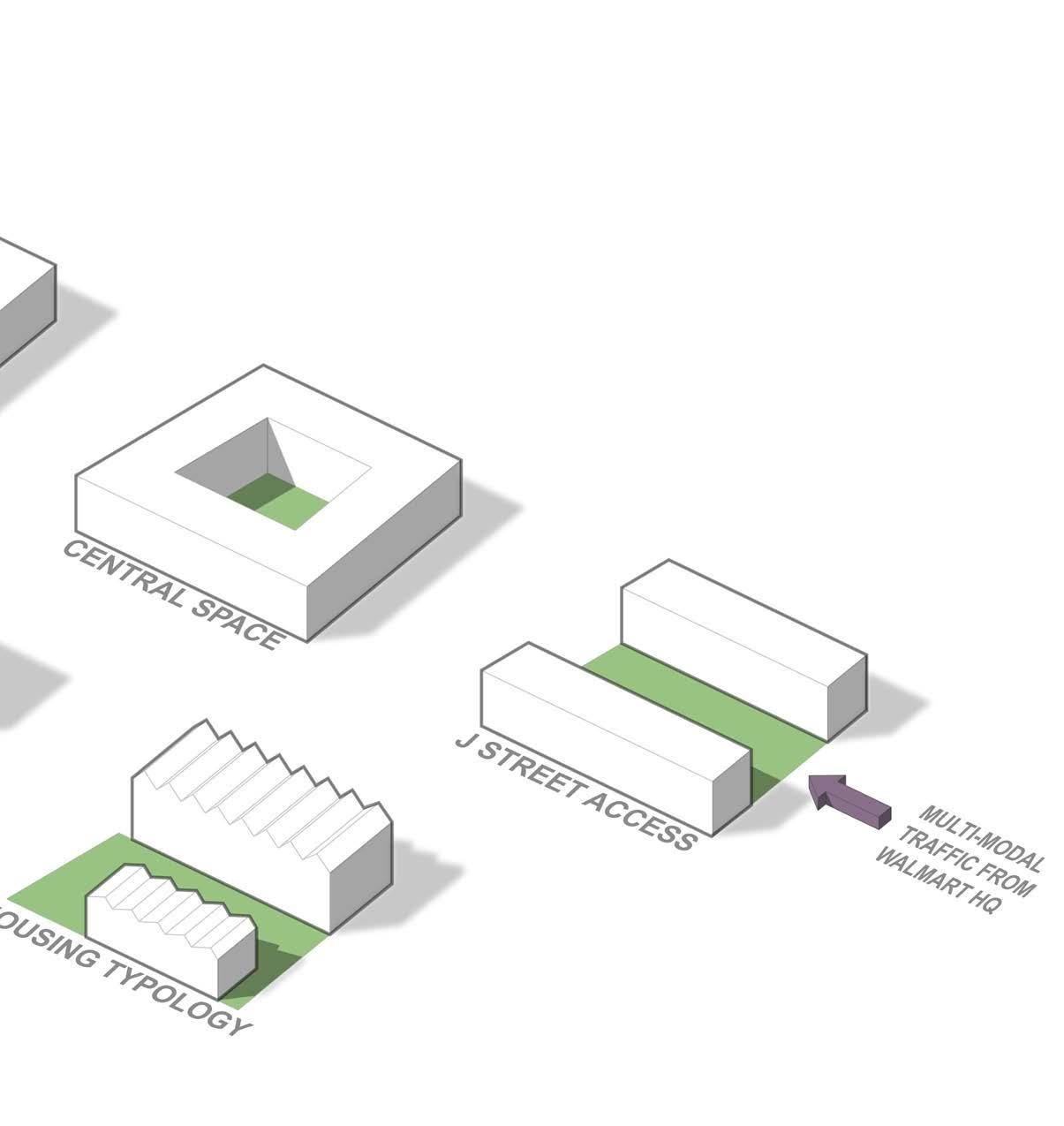

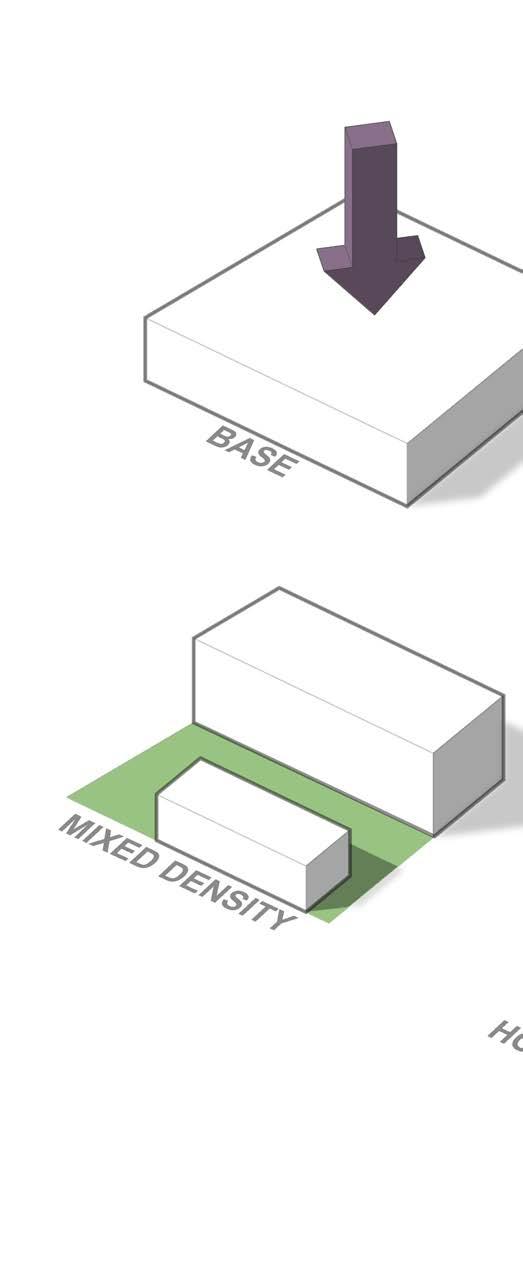

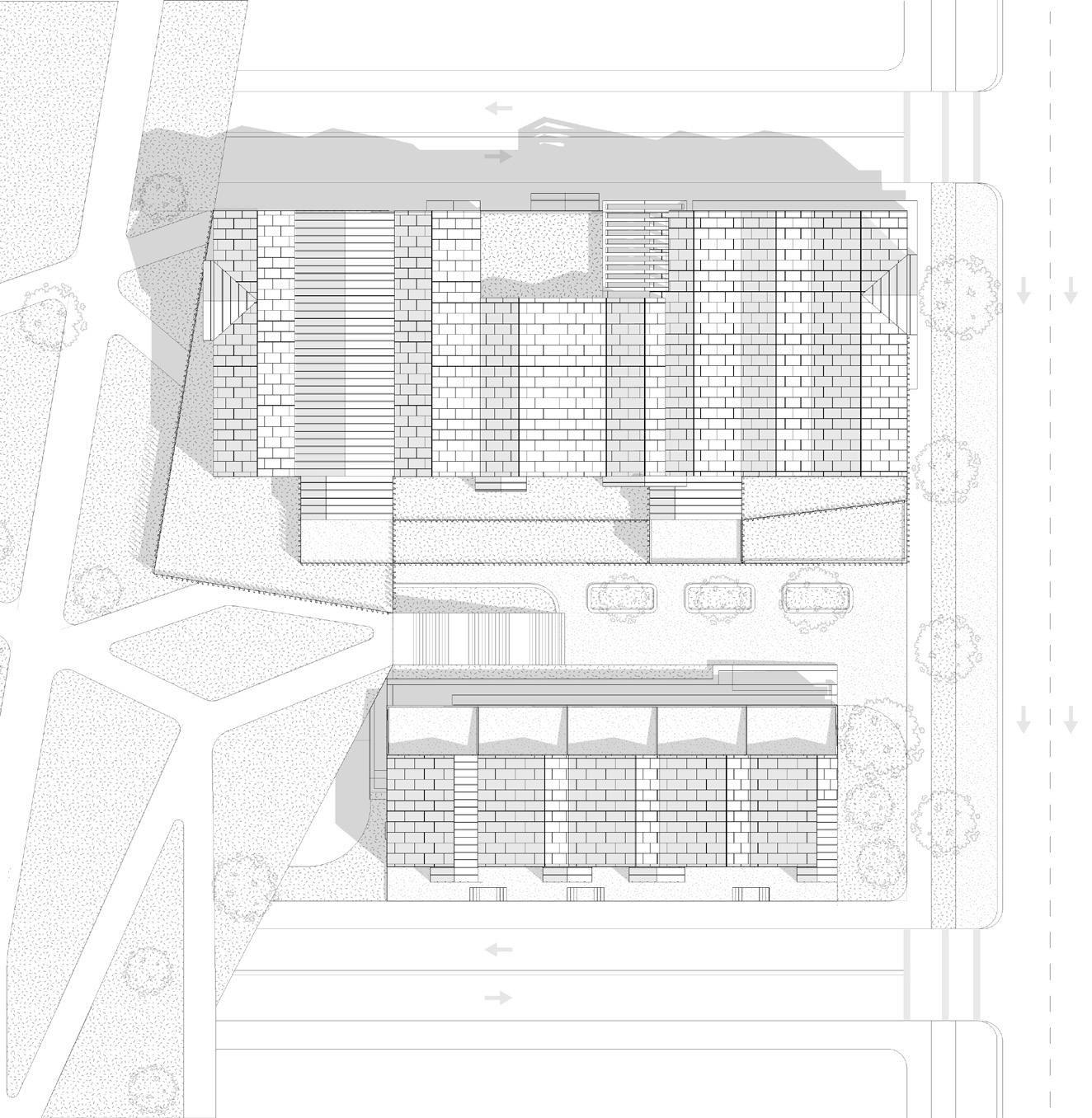

FORM DEVELOPMENT

CIRCULATION: PEDESTRIAN-FRIENDLY DESIGN BICYCLE ACCESSIBILITY EFFICIENT VEHICULAR FLOW

GATHERING AREAS: COMMUNITY SPACES OUTDOOR AMENITIES EVENTS AND PROGRAMMING

SUSTAINABILITY: ENERGY EFFICIENCY WATER CONSERVATION SUSTAINABLE MATERIALS

10 | HIGHLAND HAVEN

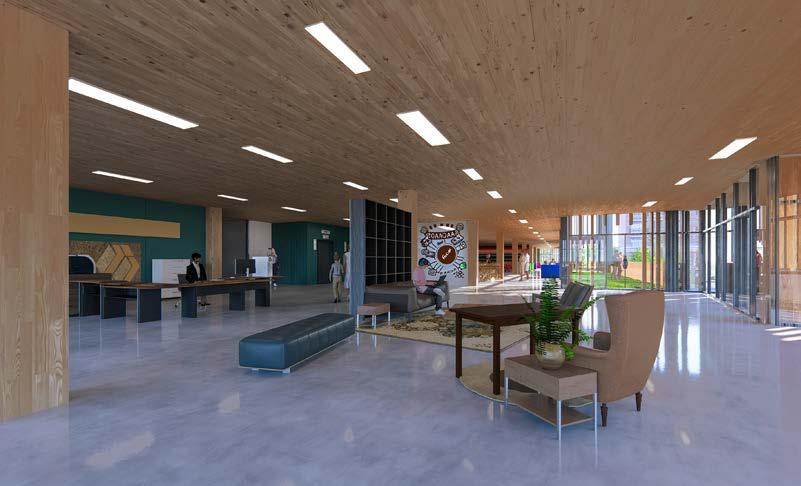

HIGHLAND HAVEN | 11

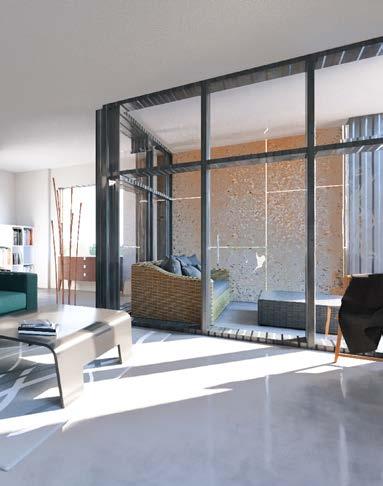

12 | HIGHLAND HAVEN

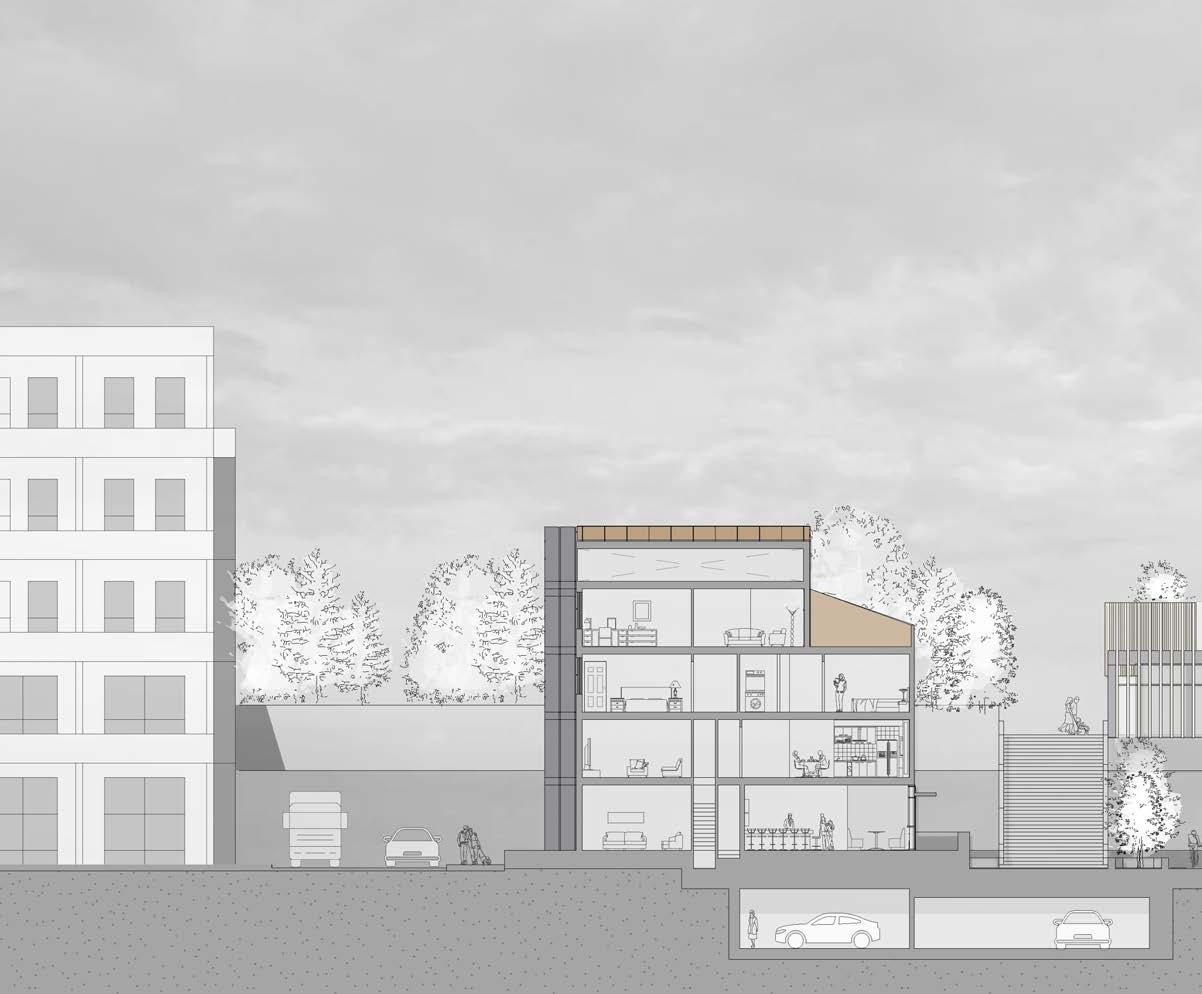

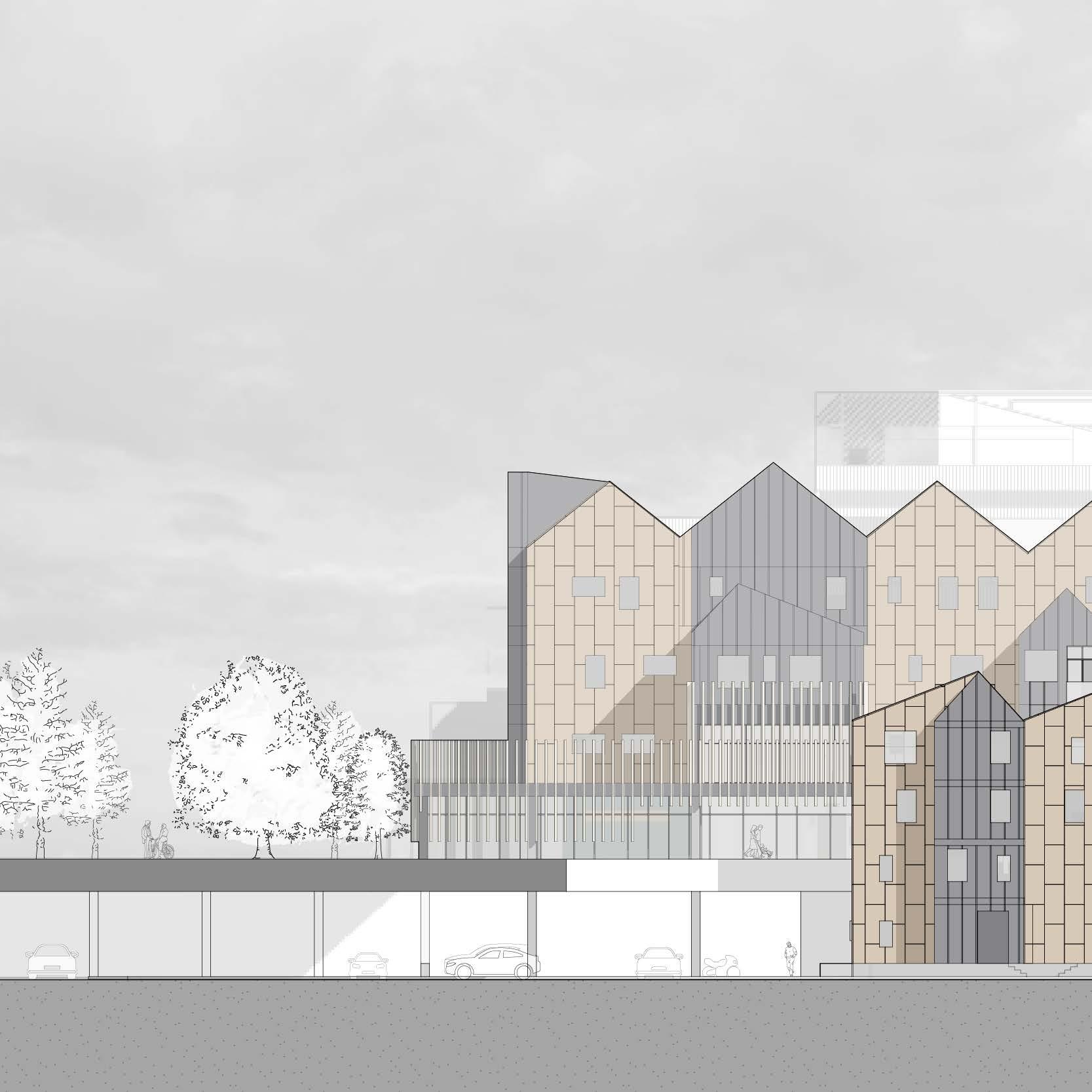

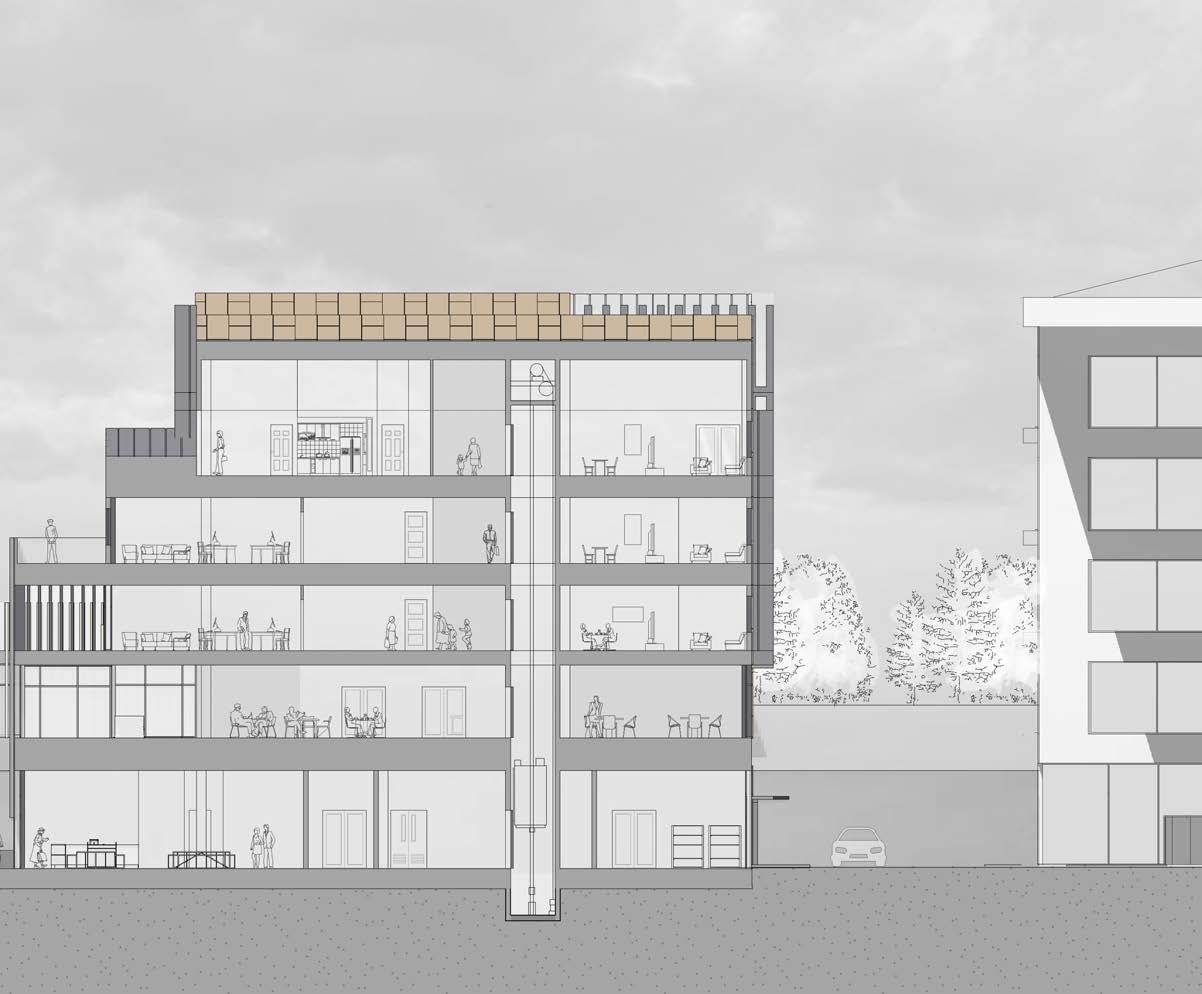

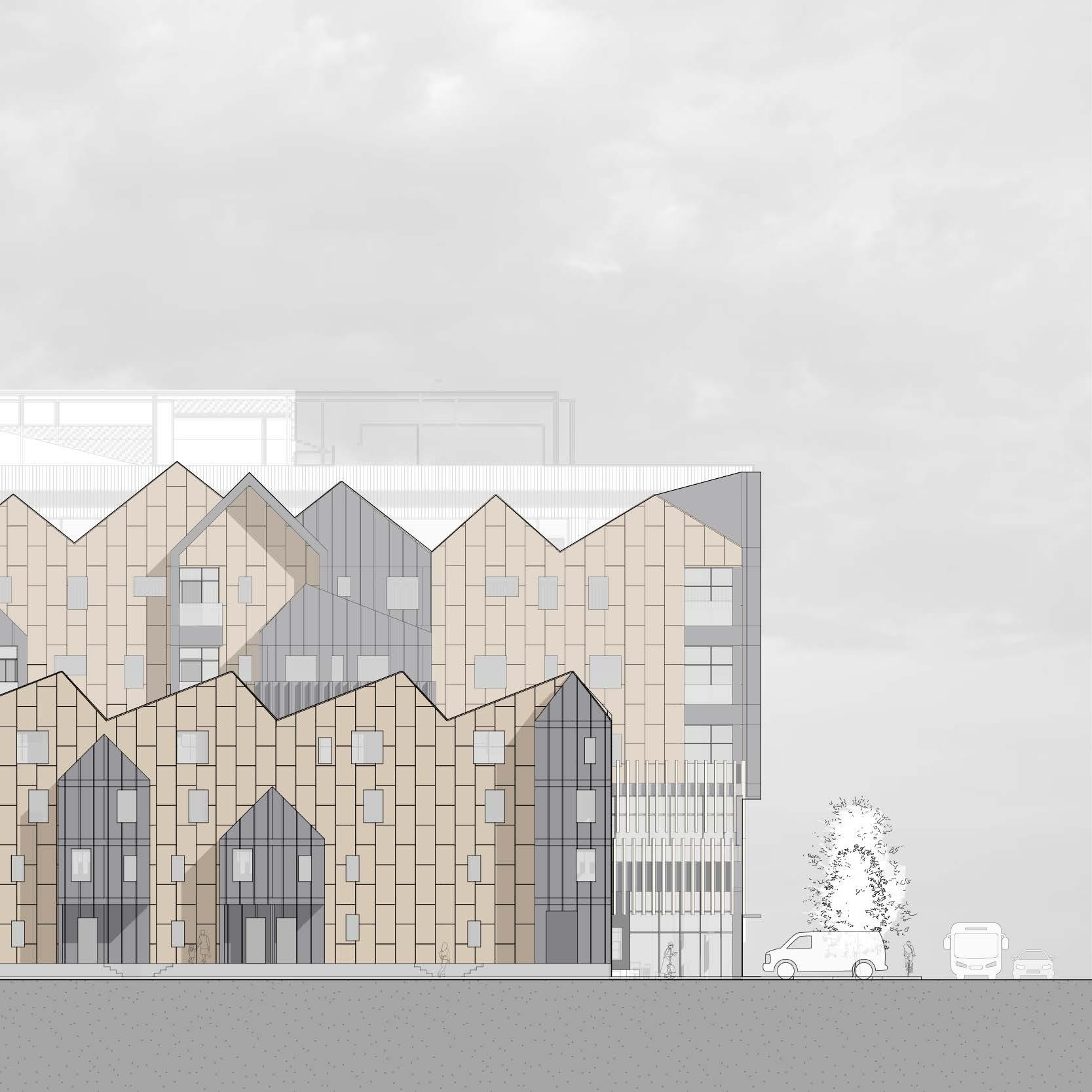

SOUTH ELEVATION

HIGHLAND HAVEN | 13

9

7

1

8 6

5

4

3

2

11

A

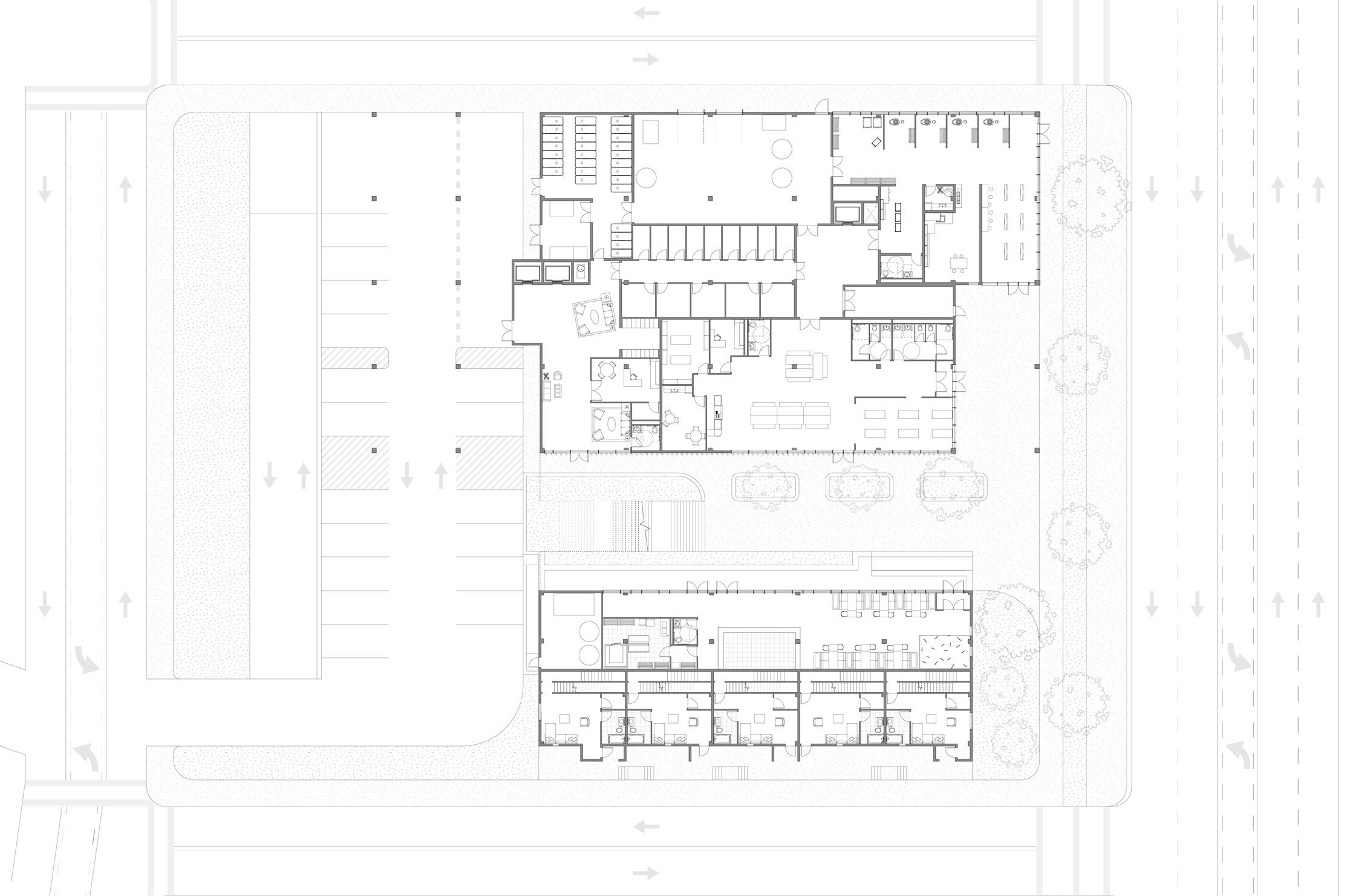

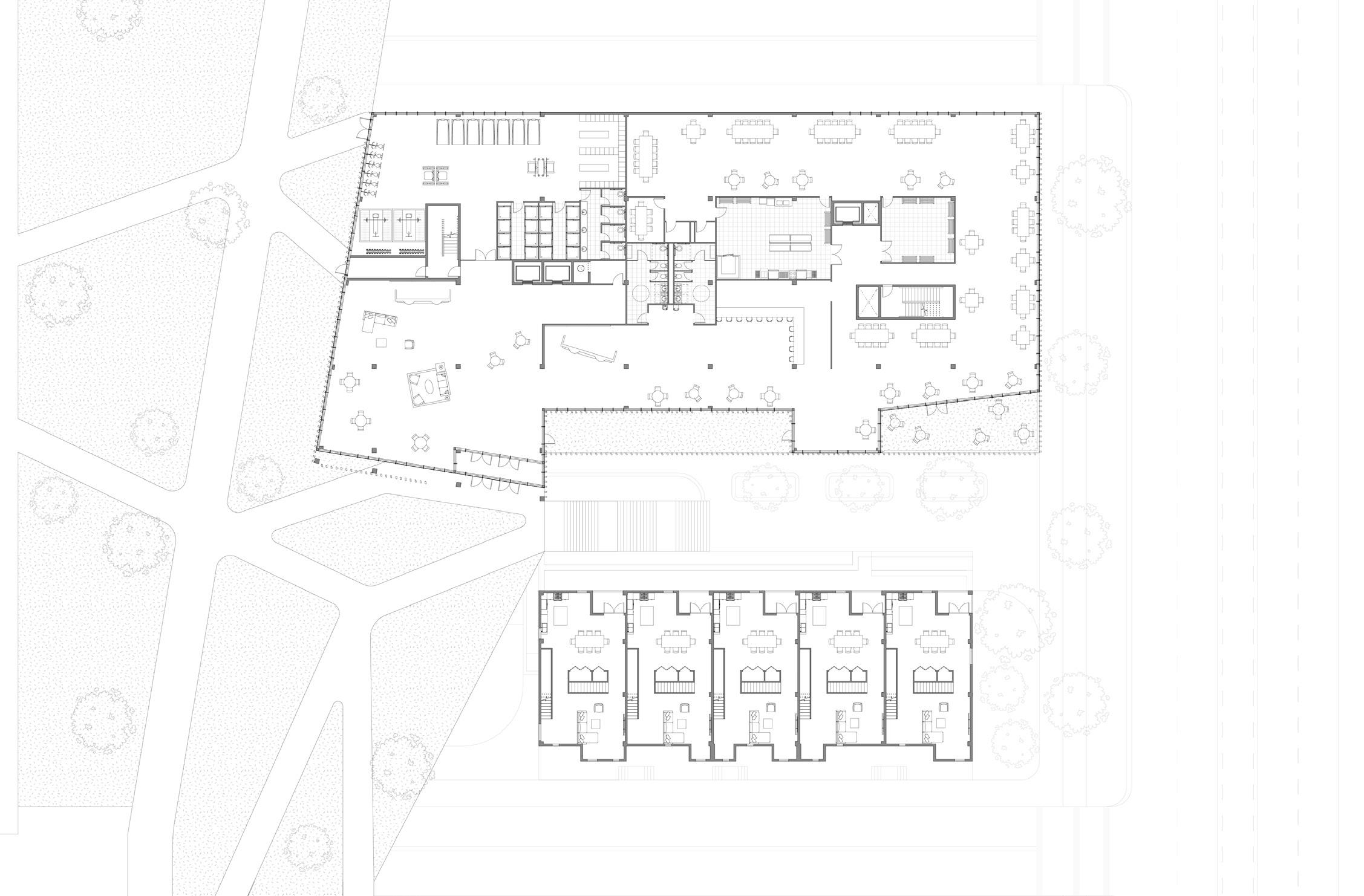

GROUND FLOOR PLAN 0

10

25

14 | HIGHLAND HAVEN

50

100

10

A

A

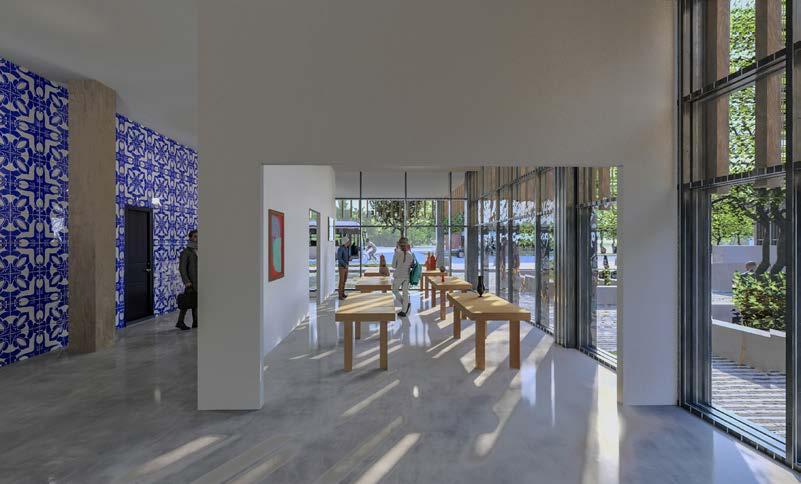

1. POTTERY STUDIO 2. POTTERY RETAIL SPACE 3. RETAIL ADMINISTRATION 4. RESIDENTIAL LEASING OFFICE

A

A

5. RESIDENTIAL LOBBY 6. RESIDENT STORAGE 7. MECHANICAL ROOM 8. TRASH COLLECTION ROOM

9. BIKE STORAGE 10. ICE CREAM PARLOR 11. TOWNHOUSE MECHANICAL ROOM A. TOWNHOUSE FOYER

18

13

17

12

14

15

16

C

C

C

C

C

B

B

B

B

B

12. RESIDENTIAL COMMON SPACE 13. RESIDENTIAL GYM 14. COFFEE BAR

SECOND FLOOR PLAN

G

F

G

F

F

F

F

F

F

15. RESTAURANT SEATING 16. OUTDOOR SEATING 17. RESTAURANT SERVICE AREA

F

H

G

19

19

E

E

D

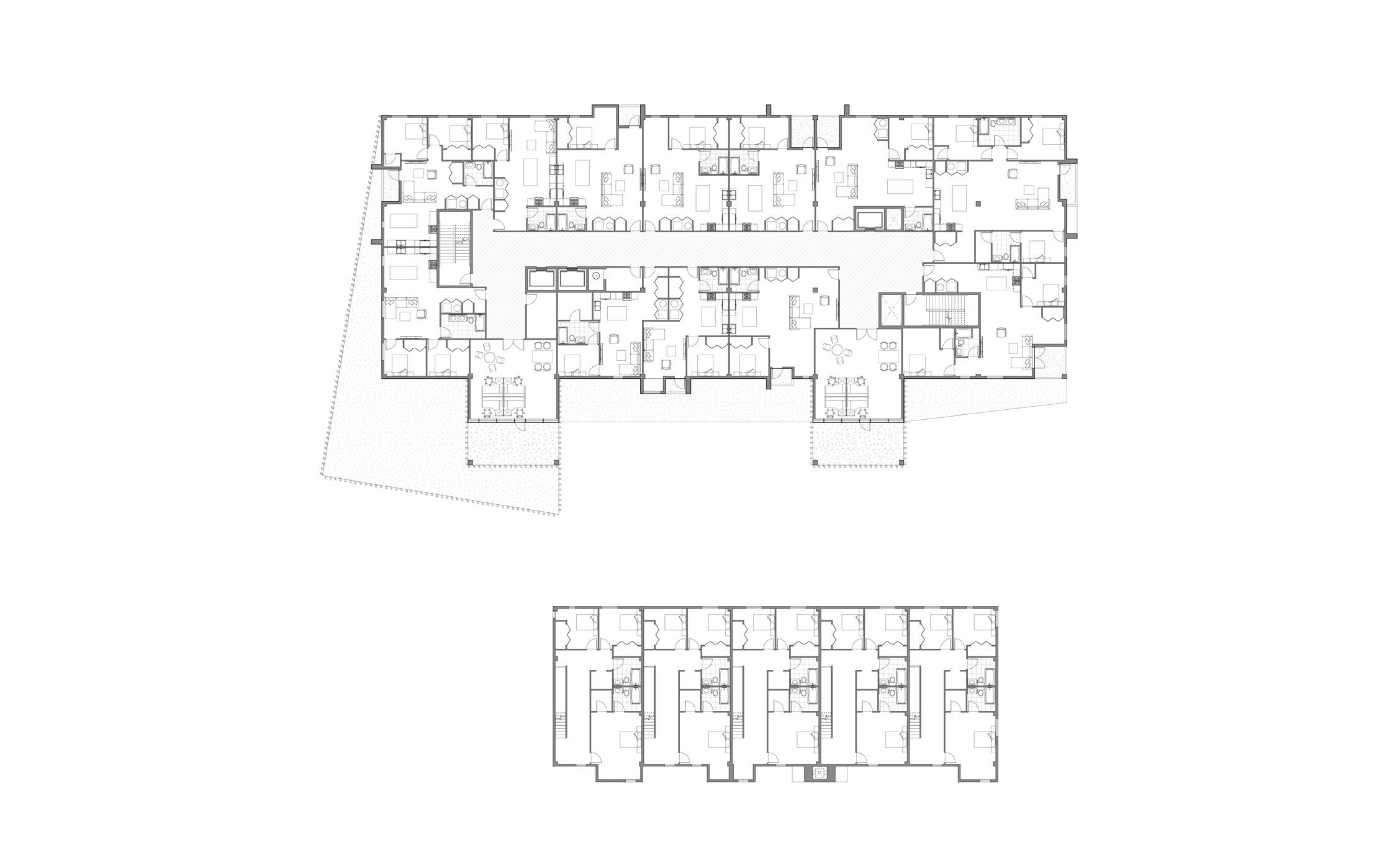

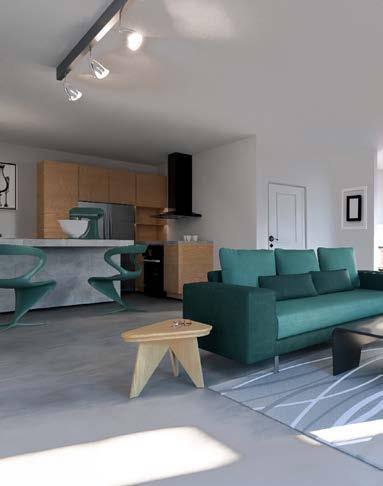

TYPICAL RESIDENTIAL FLOOR PLAN

18. EVENT SEATING B. TOWNHOUSE LIVING ROOM C. TOWNHOUSE KITCHEN

E

E

D

E

E

E

D

19. SHARE OFFICE/WORKSPACE D. TOWNHOUSE PRIMARY SUITE E. TOWNHOUSE SECONDARY BEDROOMS

E

D

E

E

D

F. ONE-BEDROOM APARTMENTS G. TWO-BEDROOM APARTMENTS H. THREE-BEDROOM APARTMENTS

HIGHLAND HAVEN | 15

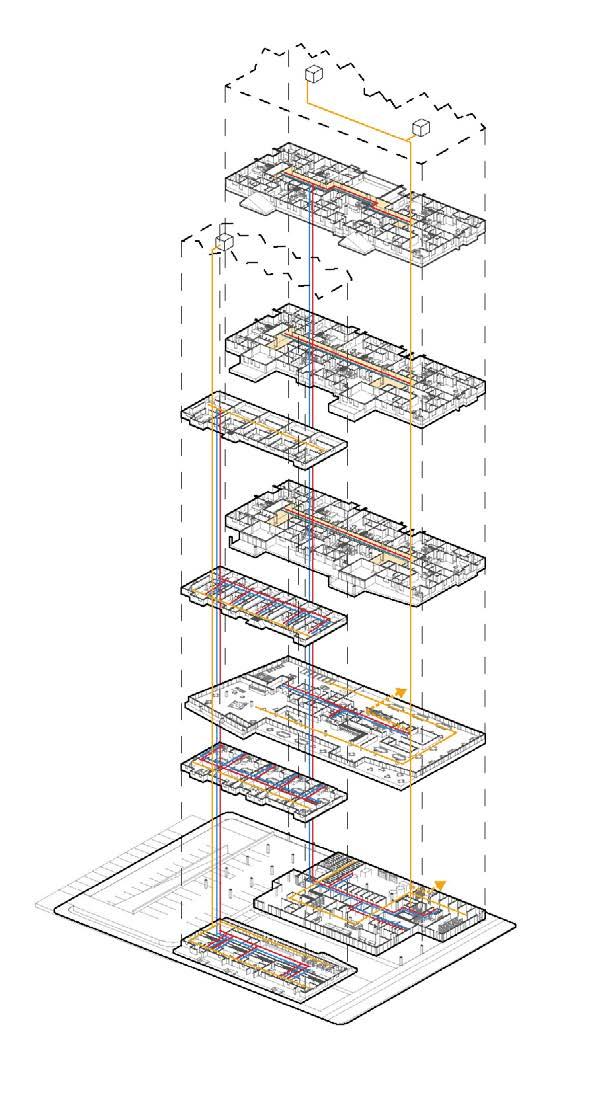

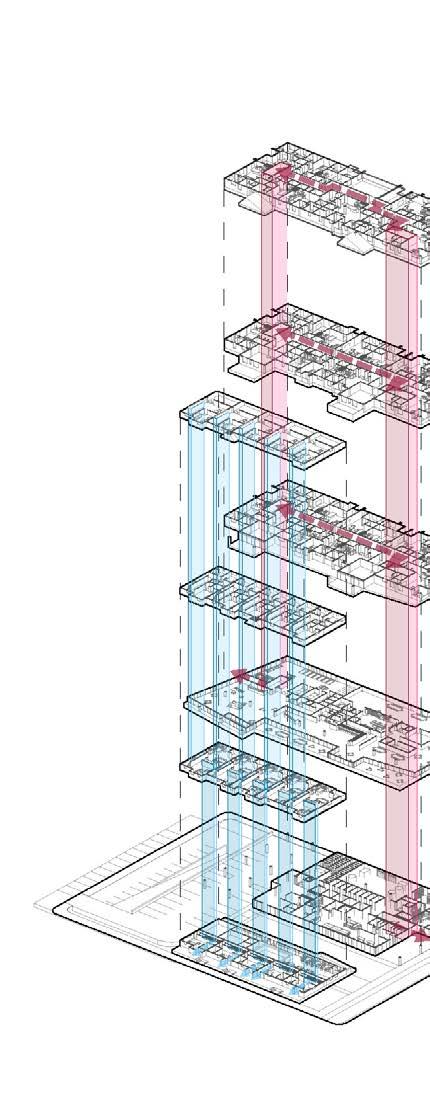

MECHANICAL DIAGRAM

EGRESS DIAGR

Screened Rooftop A/C Units

Forced Air System

Two-Pipe System

Air Supply Loop

16 | HIGHLAND HAVEN

RAM

STRUCTURE DIAGRAM

Exit Path

Shading Louvers

West Exit Stair

East Exit Stair

Cork and Metal Facade

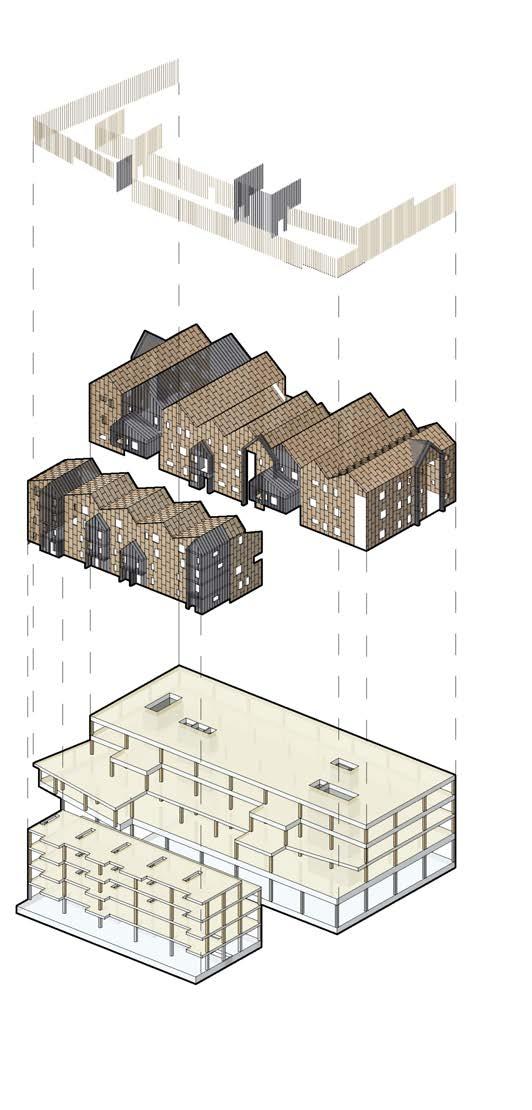

Townhouse Stairs CLT Floor Panels Reinforced Concrete Cores CLT Columns Concrete Podium Columns

HIGHLAND HAVEN | 17

18 | HIGHLAND HAVEN

HIGHLAND HAVEN | 19

02

CLINTON MARINA

BRIEF Fall 2022 | 3rd Year | Nils Gore | Lawrence, Kansas PROGRAMS USED SketchUp, Revit, Lumion, Photoshop, Illustrator

20 | CLINTON MARINA

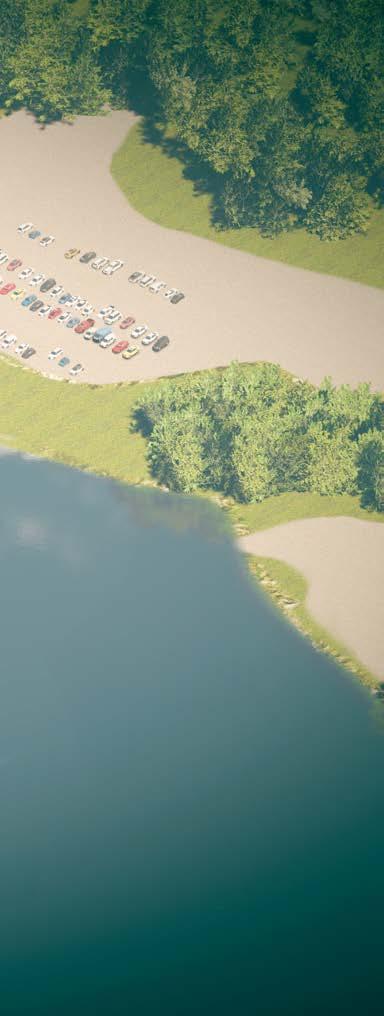

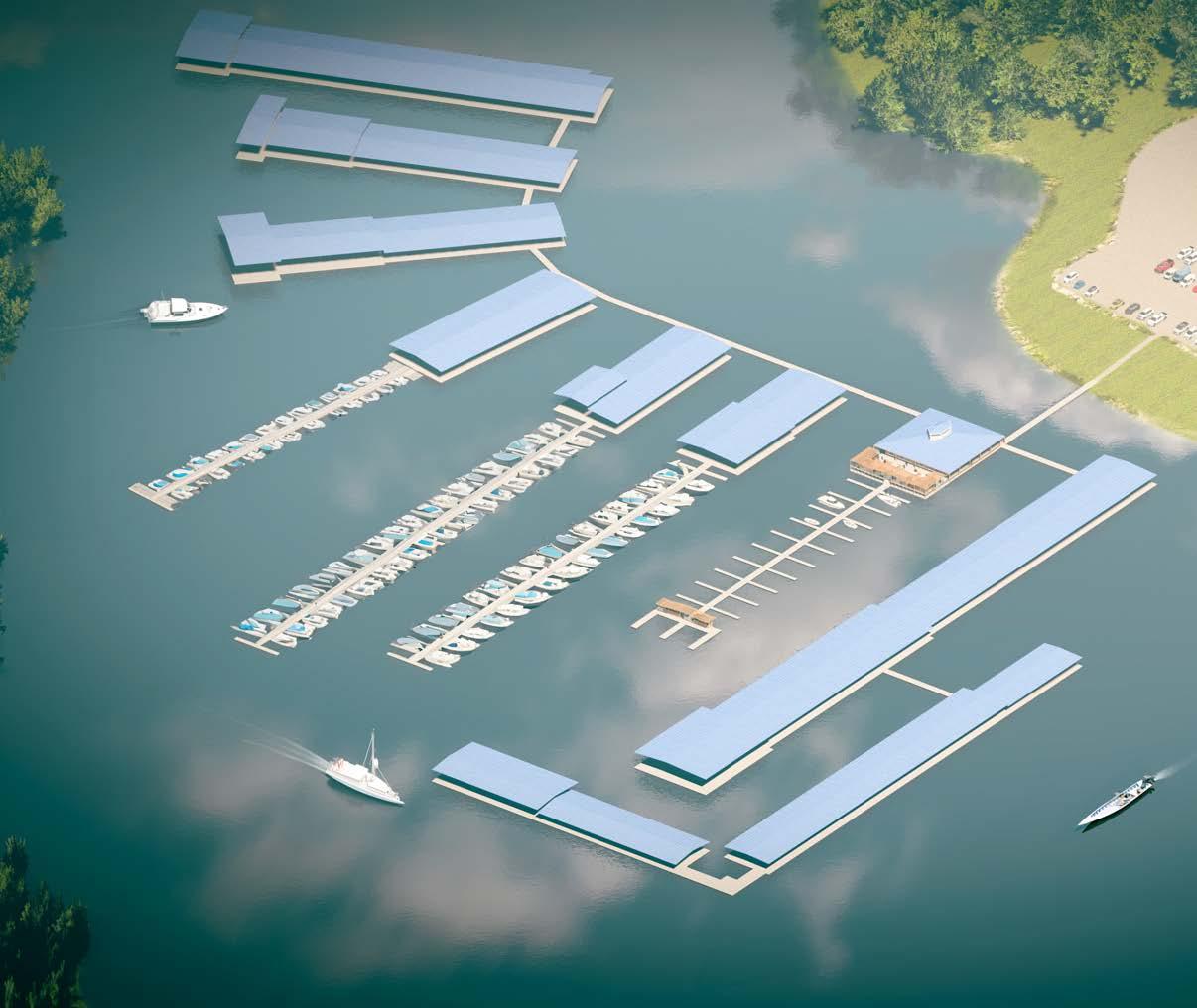

DESCRIPTION Located on Clinton Lake, the team at Clinton Marina worked with my design-build studio to harbor new life on the docks.

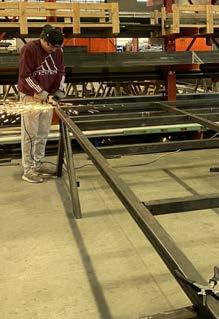

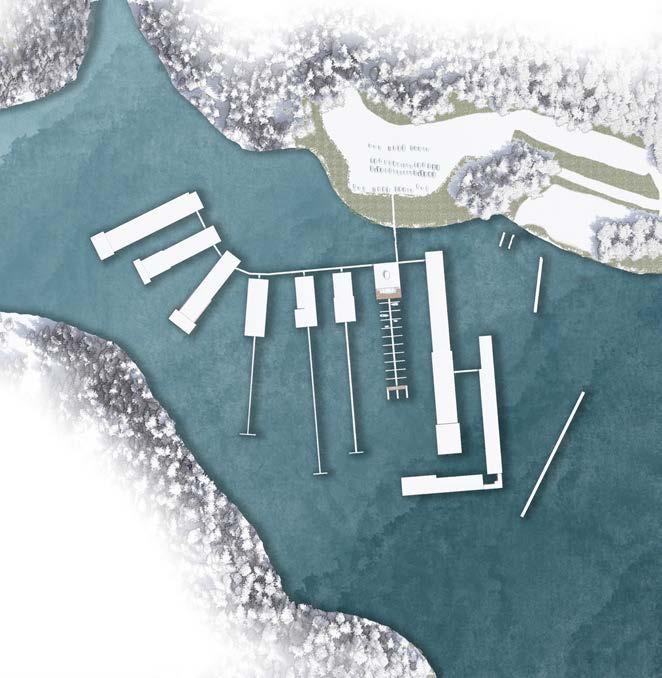

This new main dock is used for relaxing, performing, renting boats, and filling gas. The main objective of this studio was to experience each phase of a project while actively contributing to the fabrication. Design-Build provided the unique experience of establishing a relationship with a client and touring facilities That made our design real.

Ea st

80 0

Ro a

d

CLINTON MARINA | 21

CONCEPT ITERATIONS

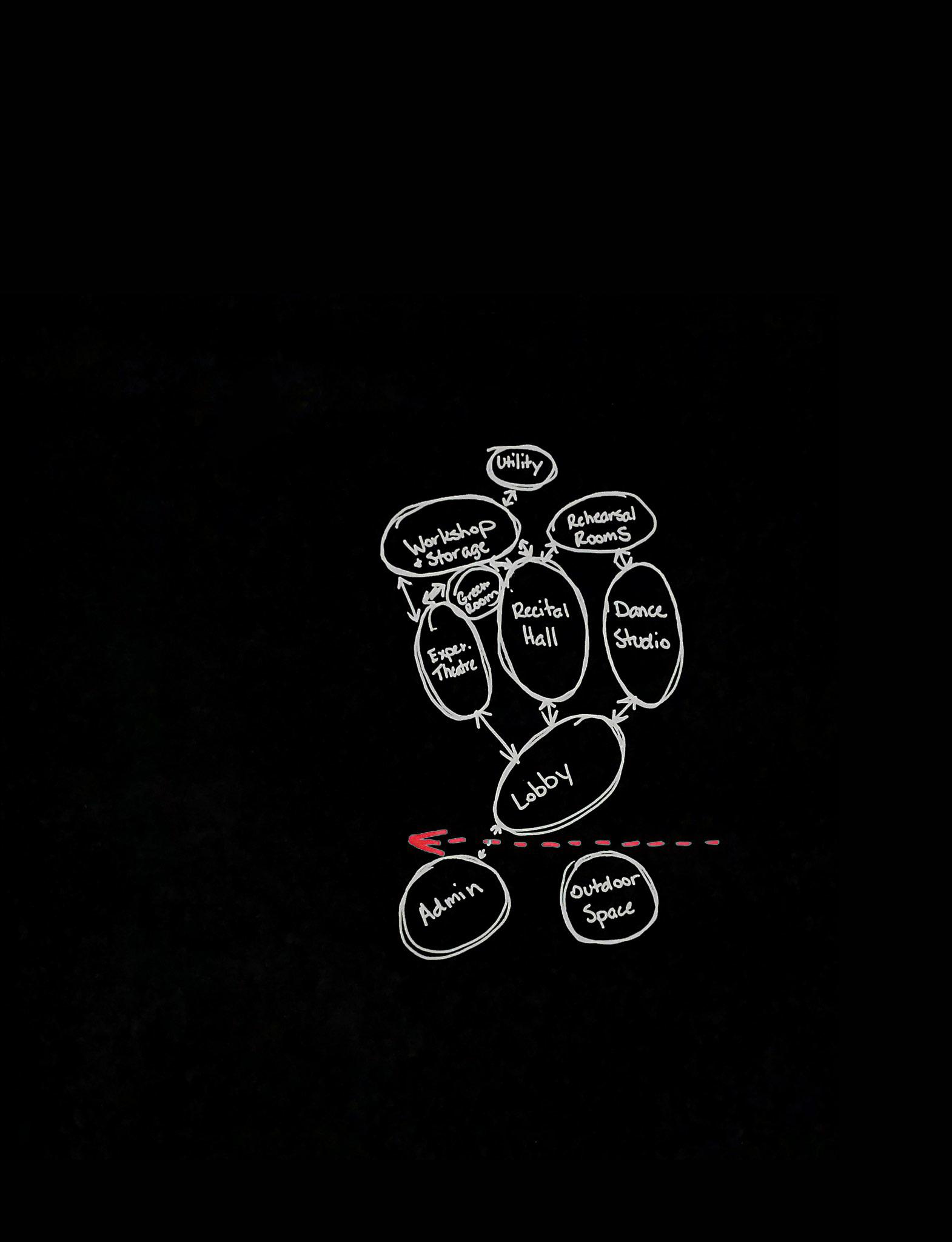

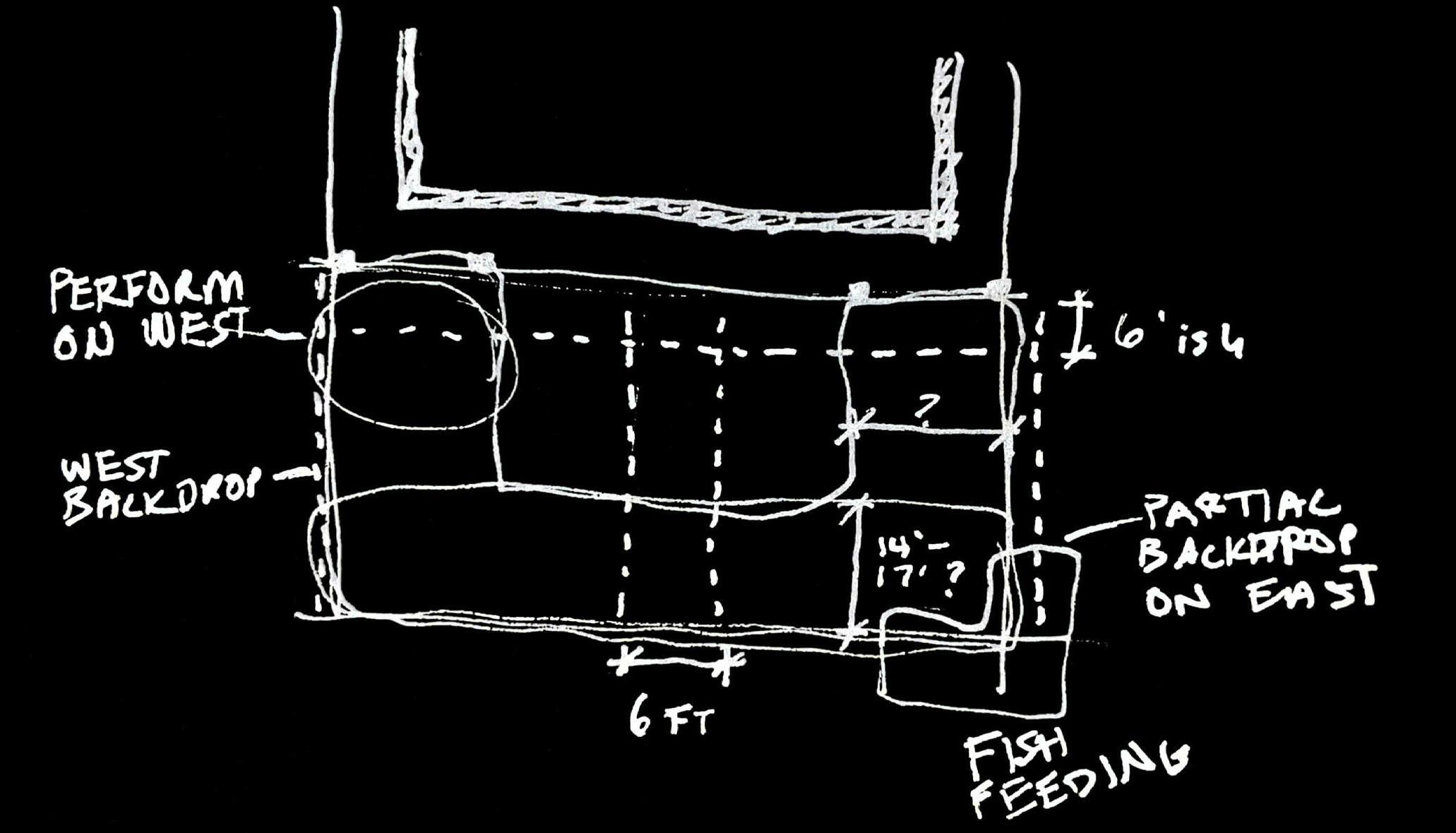

PROGRAM SKETCH

BY EMILY SCHRUMPF

Early concepts from teams were created to show our clients. This allowed us to gauge budget and aesthetics like the one pictured to the left, design by my team with Ryan Haight and Halle Emrich.

After the initial charette process with our clients, different aspects discovered from each member’s preliminary design were collected.

This sketch shows the guidelines that were established by the clients and members of the studio for the final design.

22 | CLINTON MARINA

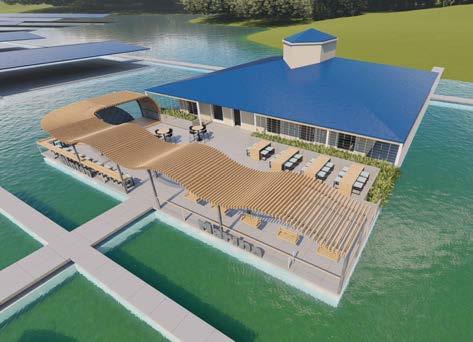

FINAL DESIGN

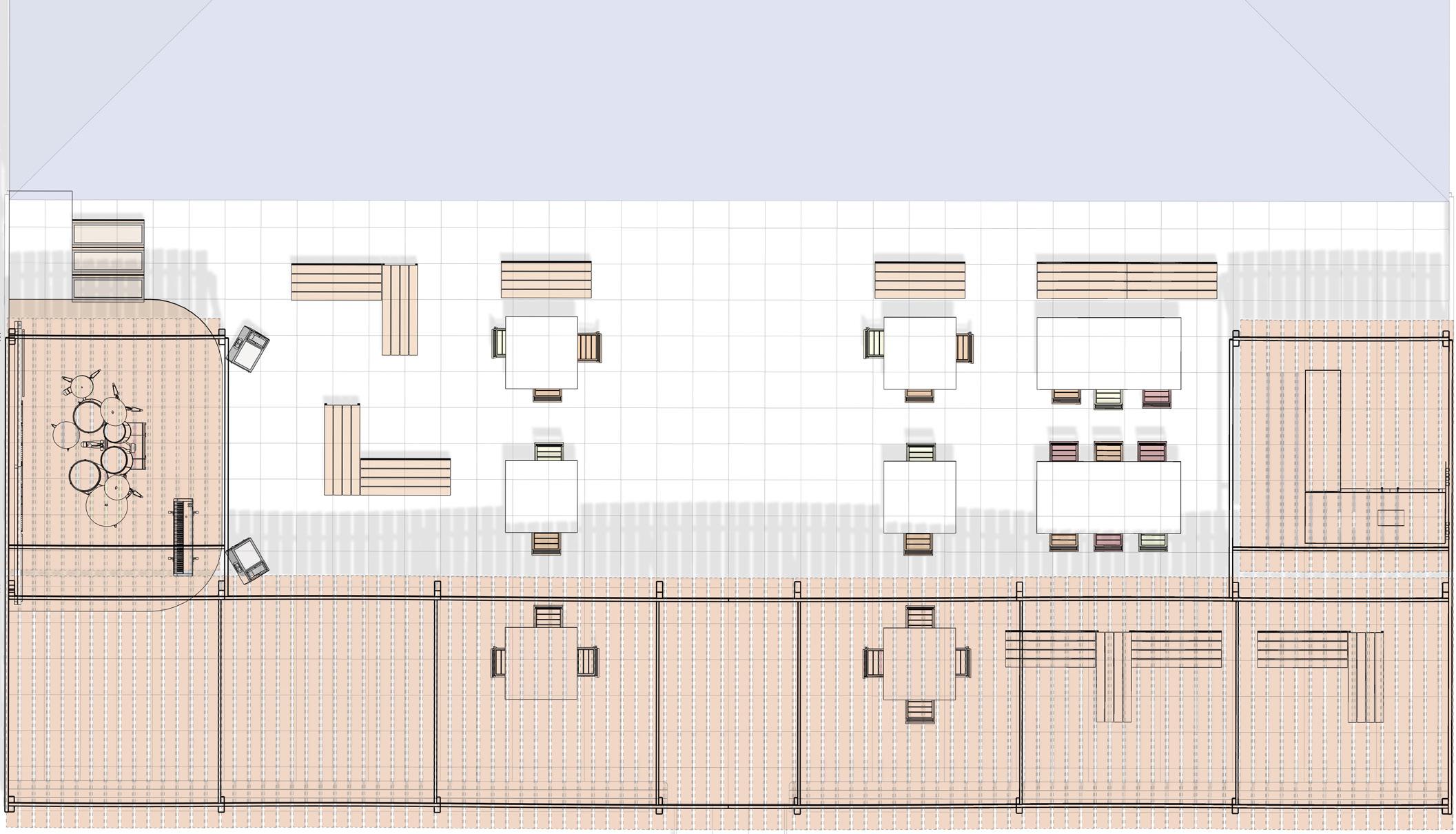

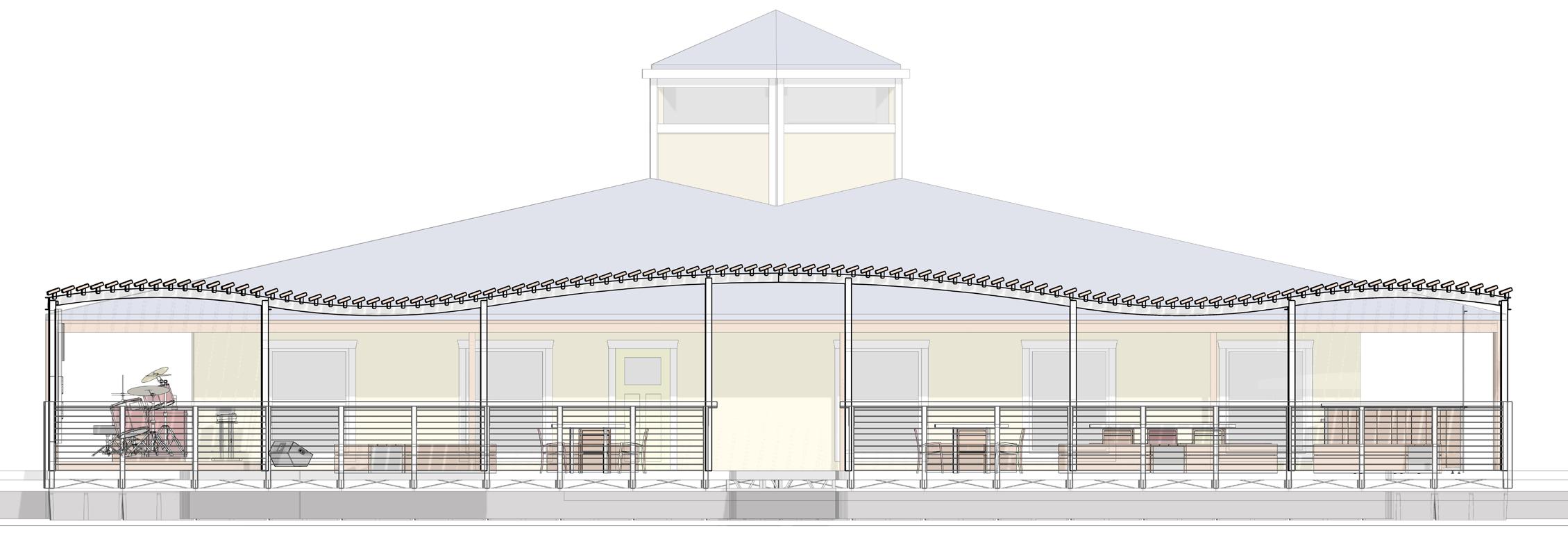

FLOOR PLAN AND SOUTH ELEVATION DONE BY HALLE EMRICH, RYAN HAIGHT

CLINTON MARINA | 23

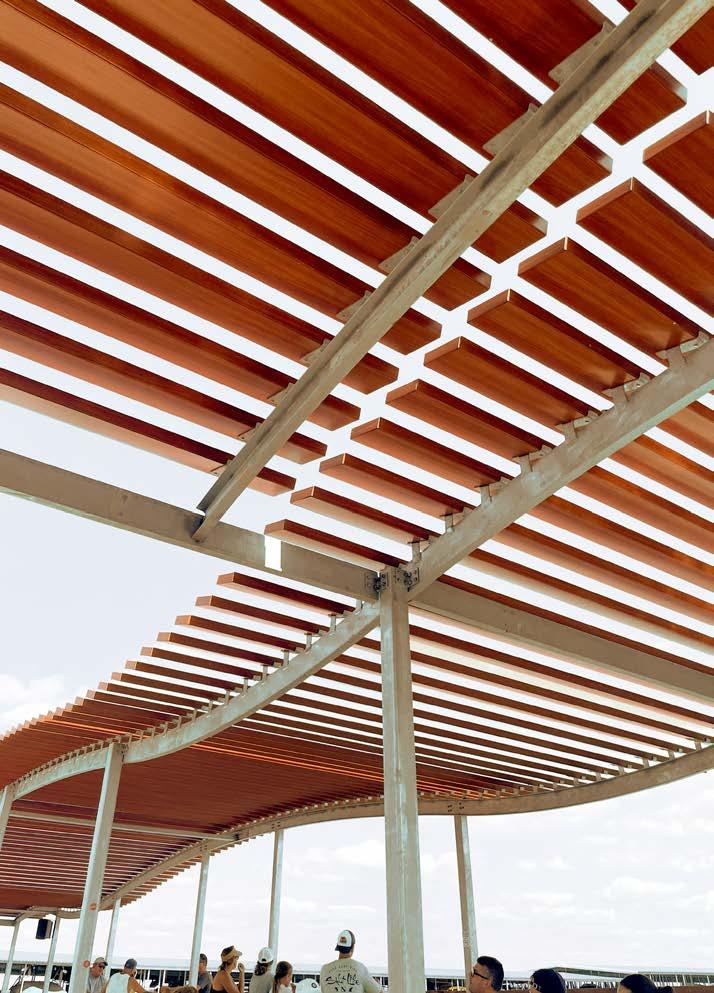

The design represents the context of Clinton Lake and State Park with a wave and its natural appearance. It is broken up as a 50/50 scheme. One half was dedicated to dining and lounging to support the existing shop and new knot bar. And the other side represented a focal point on the dock towards the performance space on the west wall. This west wall also acts as a shading device from the sun in the evening.

24 | CLINTON MARINA

CLINTON MARINA | 25

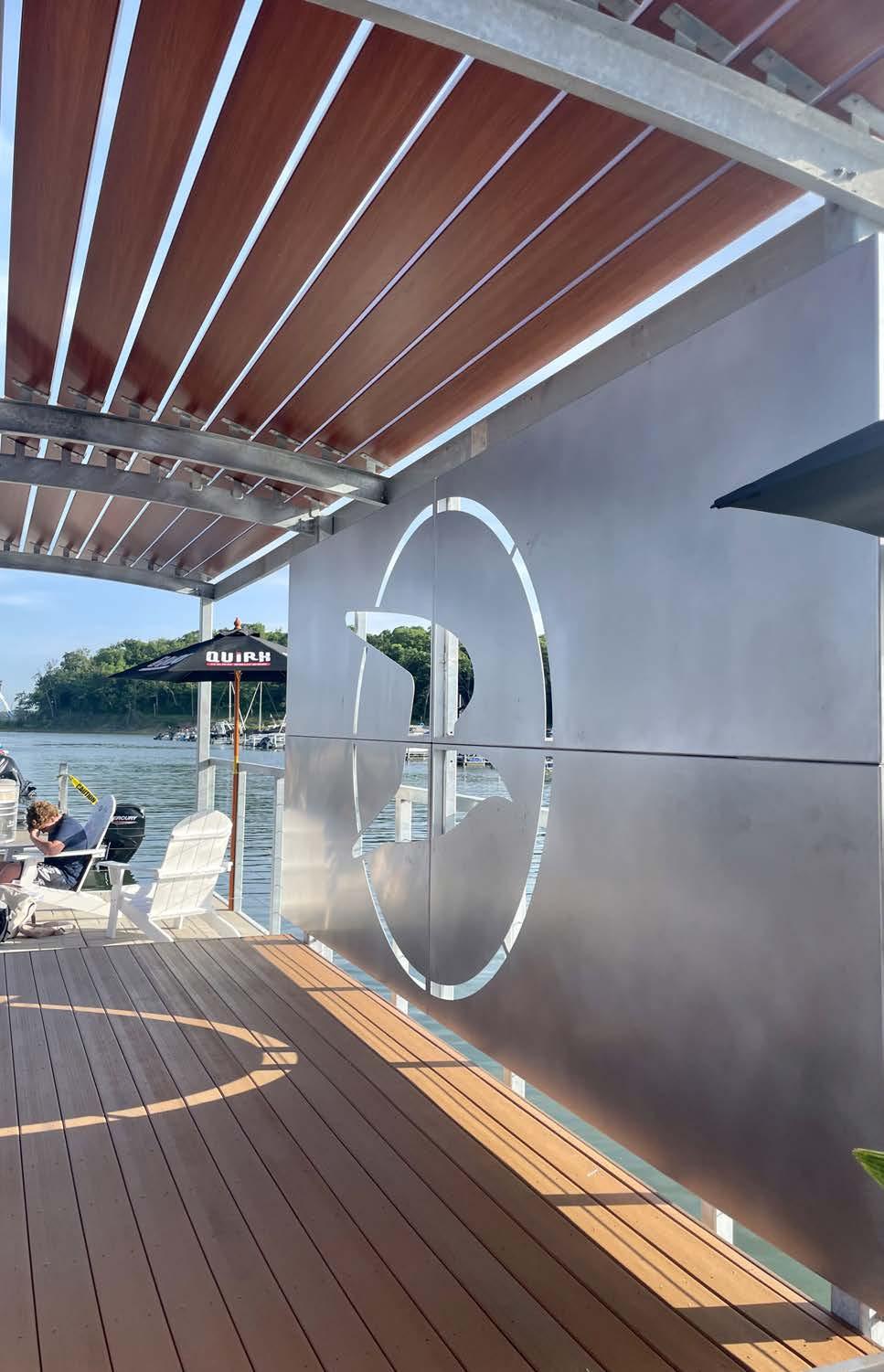

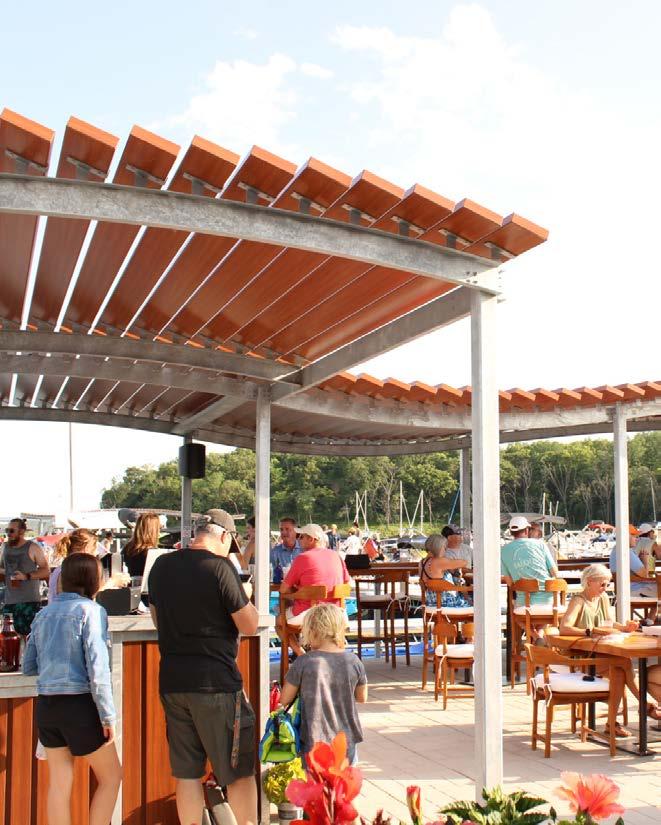

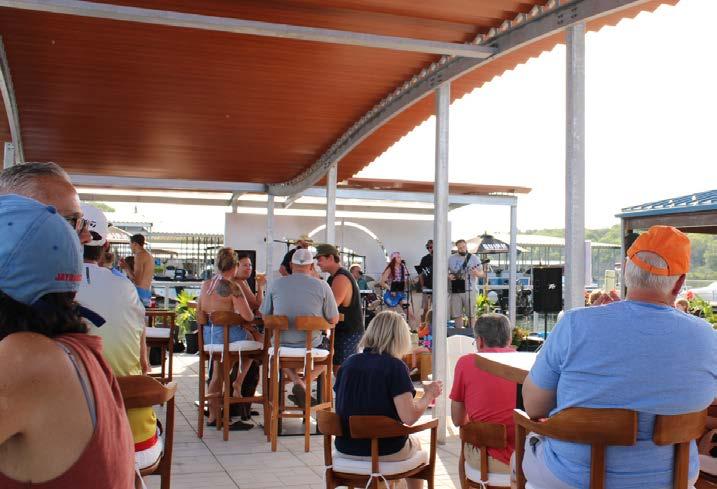

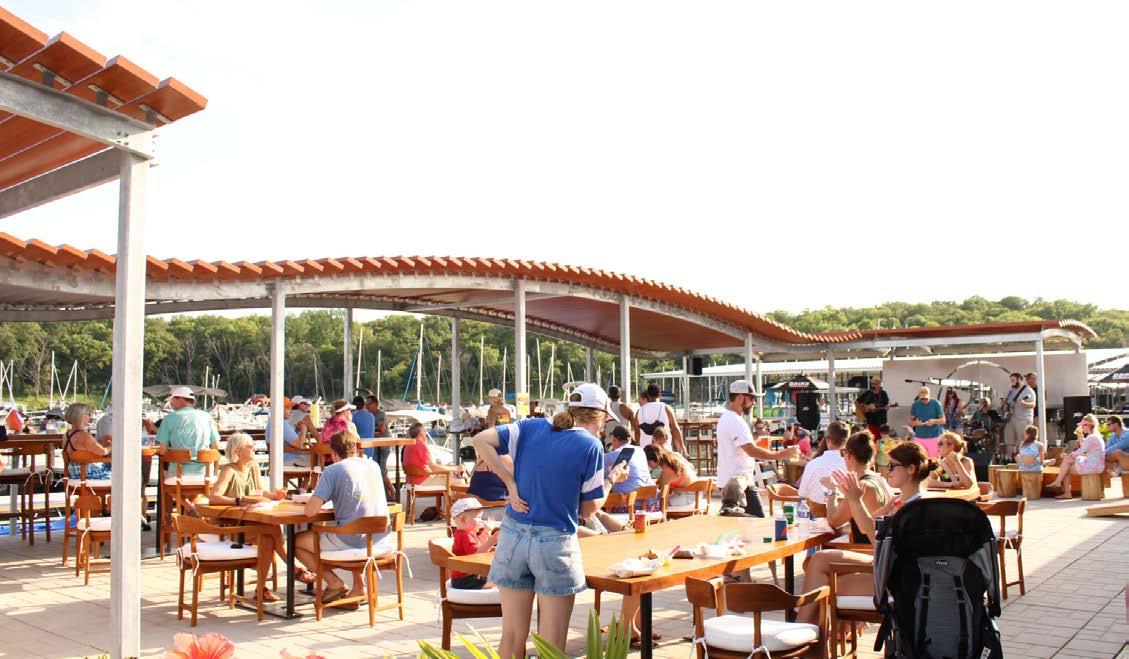

Briefly mentioned earlier, the stage was designed as a focal point for the dock. The client wanted to take advantage of this as a marketing opportunity, so the marina logo was incorporated into the backdrop. After the schematic design was done, the studio was divided to detail certain components. I was tasked with the backdrop and assembly. A frame and clip system was developed that would connect to the columns of the overhead structure. This system would support 4 panels that would be produced by Standard Sheet Metal in Kansas City. Furthermore, I oversaw the construction process of the frame to make sure there was little to no error in the clip locations because multiple parties were a part of the process.

BY KAY

26 | CLINTON MARINA

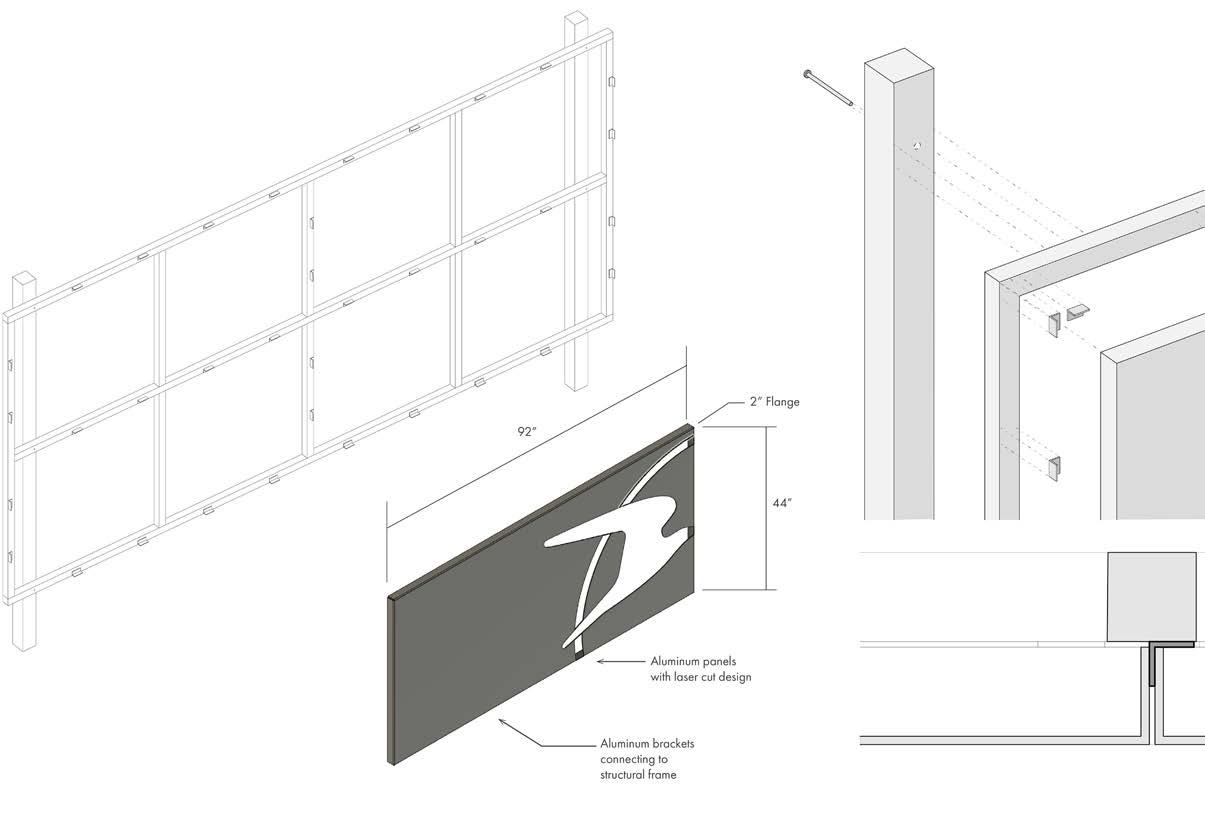

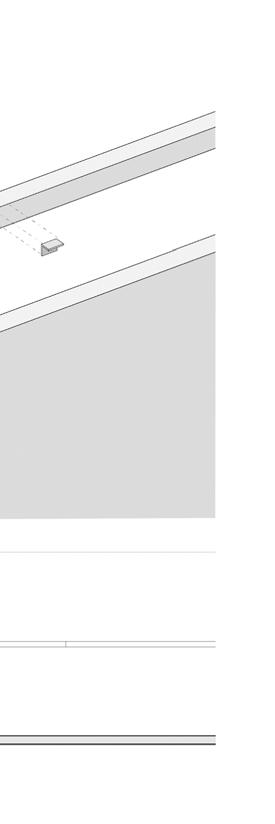

ASSEMBLY DIAGRAM

YLEE SEITZER & BRENDAN GANNON

CLINTON MARINA | 27

03

TRANSITIONAL JUSTICE CENTER BRIEF Spring 2024 | 4th Year | John Trefry | Tulsa, Oklahoma IN COLLABORATION WITH ASHLYN CALDWELL PROGRAMS USED Revit, SketchUp, Lumion, Photoshop, Illustrator

28 | TULSA TRANSITIONAL JUSTICE CENTER

DESCRIPTION The Tulsa Justice Center is a transformative initiative deeply rooted in the intertwined histories of the Tulsa Arts District and Greenwood area, known as “Black Wall Street. With its innovative design, the center fosters trust and cooperation within the community, reflecting a commitment to a more equitable Tulsa. The center sets a new typology for justice facilities nationwide by prioritizing user well-being through sustainable and biophilic designs strategies including daylighting and outdoor green spaces.

TULSA TRANSITIONAL JUSTICE CENTER | 29

FORM DEVELOPMENT

OUR DESIGN PROCESS DRAWS FROM RASHID JOHNSON’S UNITED ESCAPE COLLAGE AND BRENNA YOUNGBLOOD’S NO MORE DRAMA. ABSTRACT STUDIES BROUGHT TOGETHER

Rec

onc Gar iliatio den n s

Just Cen ice ter

JOHNSON’S RIGIDITY AND YOUNGBLOOD’S FLOWING LINES. THIS BLEND CREATED A NARRATIVE OF HARMONY AND CONTRAST, REFLECTED IN THE PROJECT’S PUBLIC OUTDOOR SPACES AND STRUCTURES.

30 | HIGHLAND TULSA TRANSITIONAL HAVEN JUSTICE CENTER

Res olu Gar tion den

Refl

ecti

on P ond

10

12

4 3 8 10

8 11

4

10

5

5

10

2

9

10

6

10

1 3

2

10 11

GROUND FLOOR PLAN GRAPHIC BY: ASHLYN CALDWELL

1. PUBLIC LOBBY 2. PUBLIC WAITING AREA 3. RECONCILIATION ROOM

4. FACILITATOR SUITE 5. JURY SUITE 6. JURY ASSEMBLY AREA

7

7. ADMINISTRATIVE SUITE 8. SERVICE & STORAGE SPACE 9. MECHANICAL ROOM

10. WATER CLOSET 11. OUTDOOR RECONCILIATION SPACE 12. RESOLUTION GARDEN

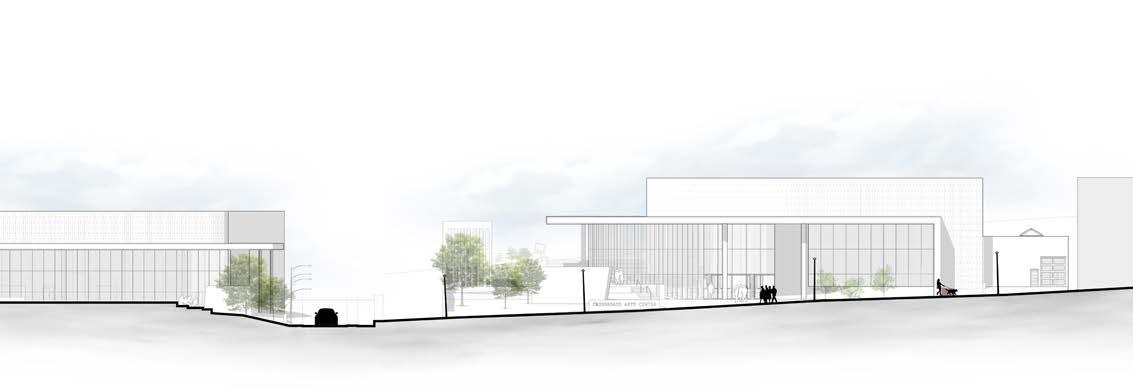

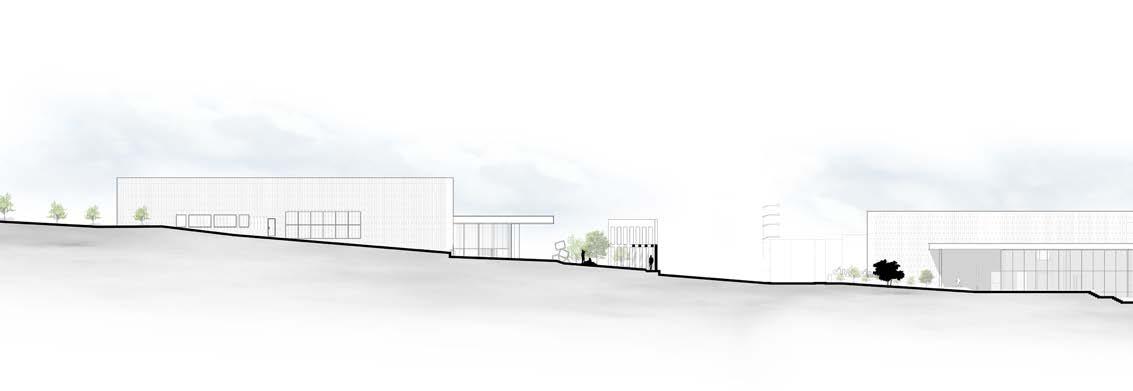

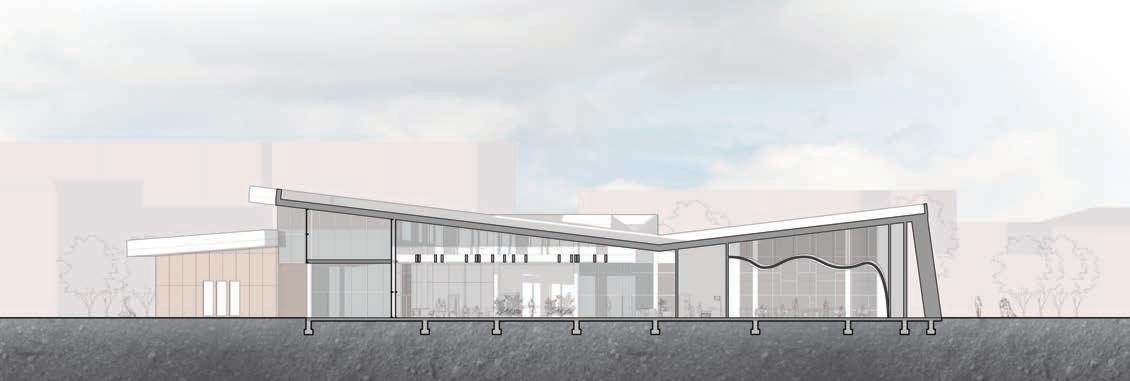

NORTHEAST-SOUTHWEST SECTION

TULSA TRANSITIONAL JUSTICE CENTER | 31

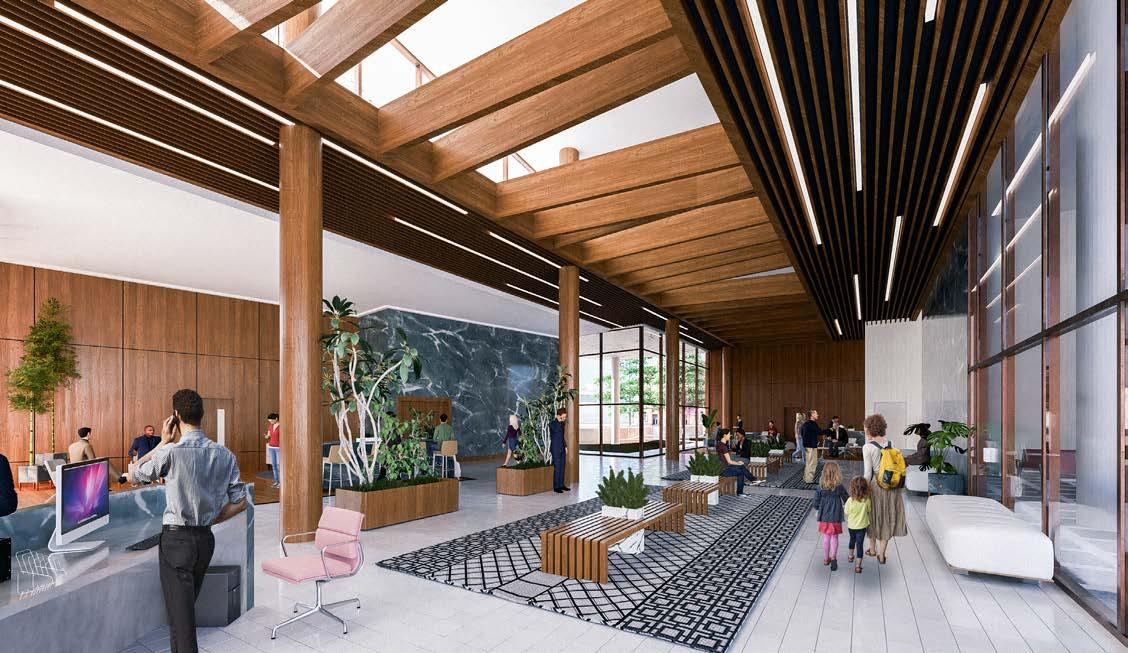

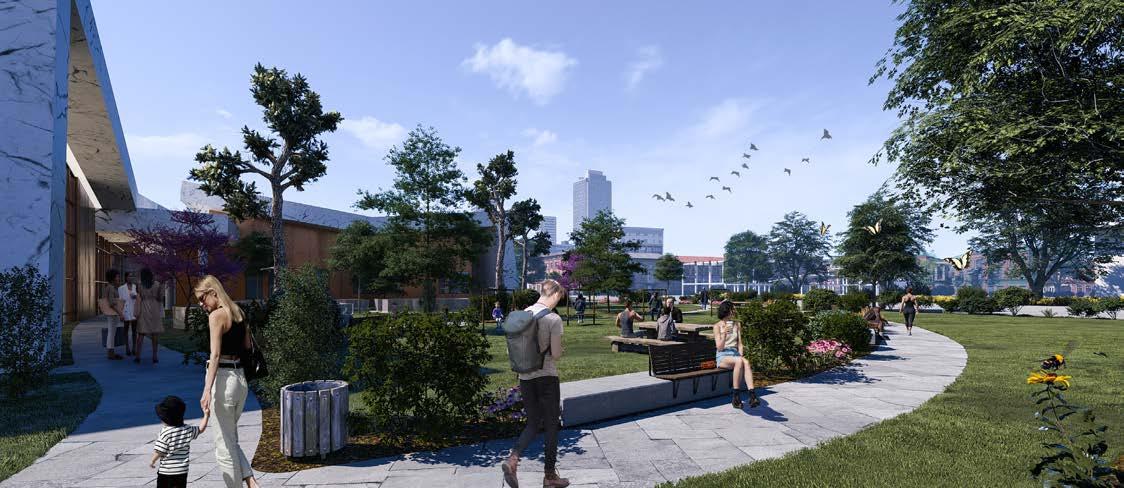

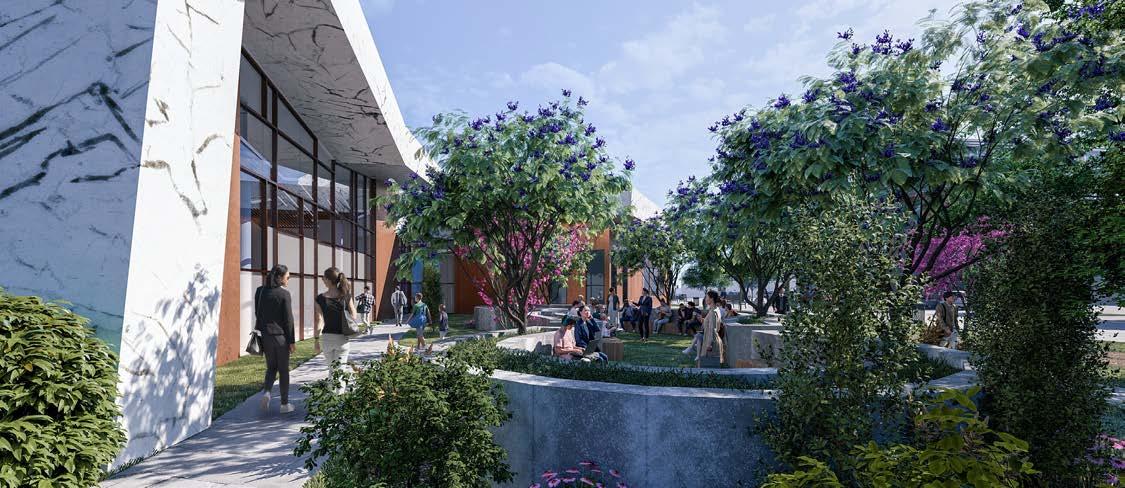

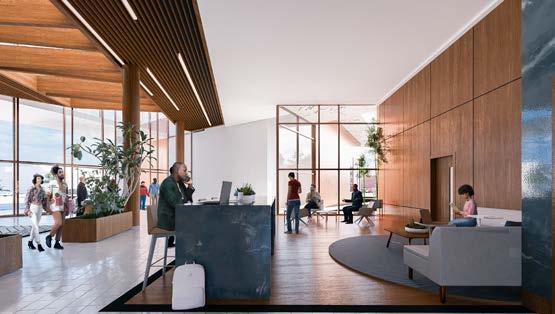

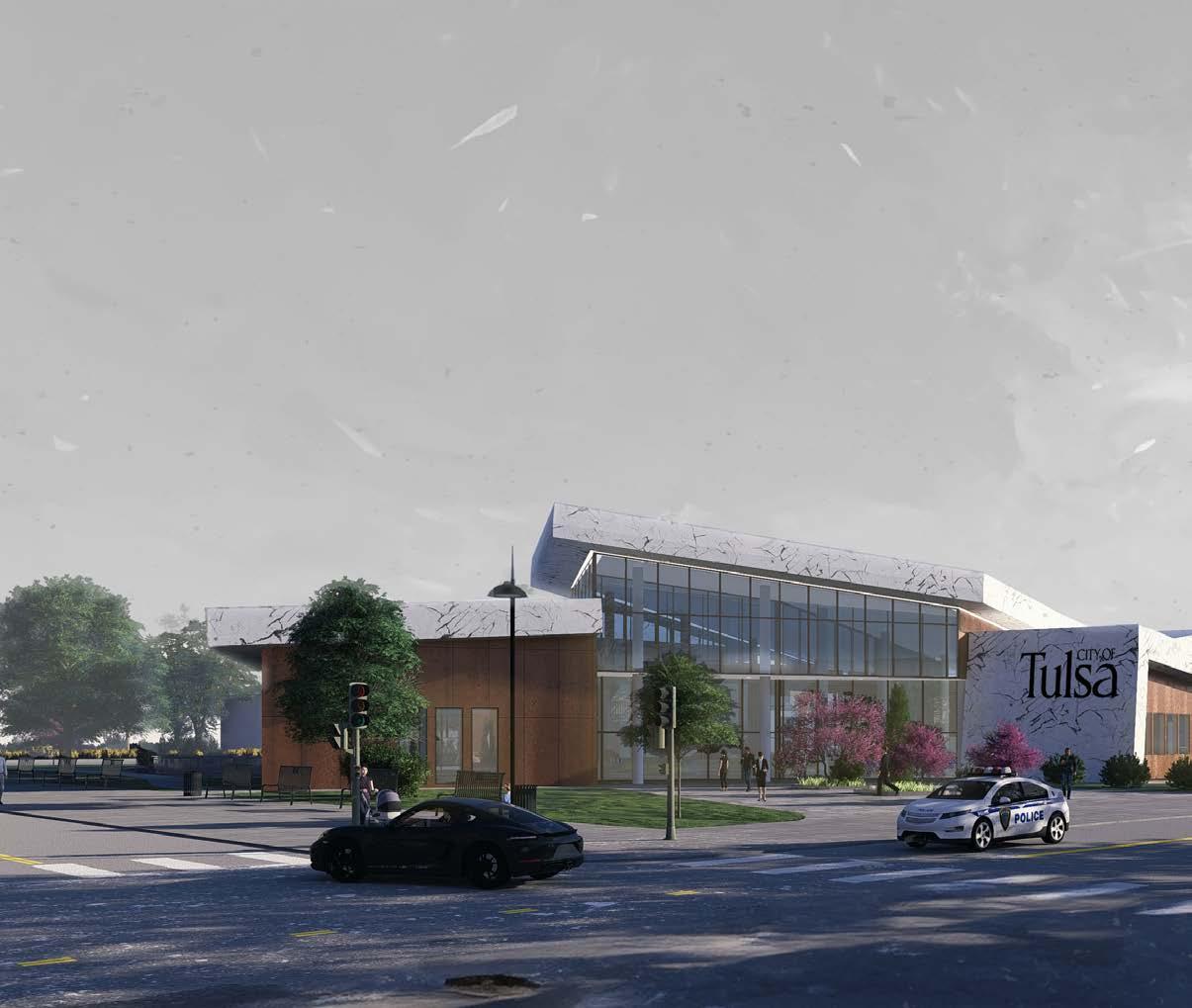

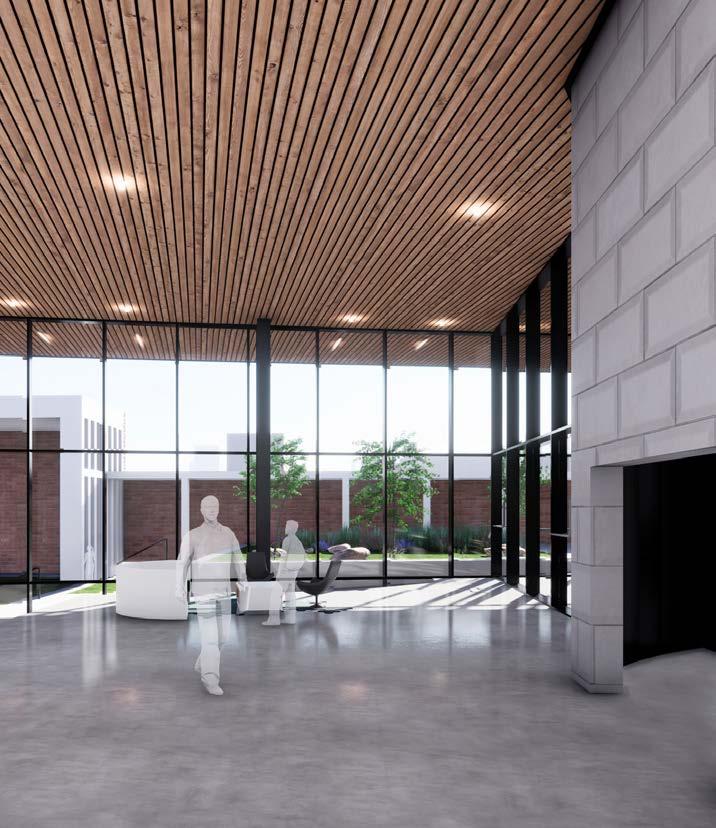

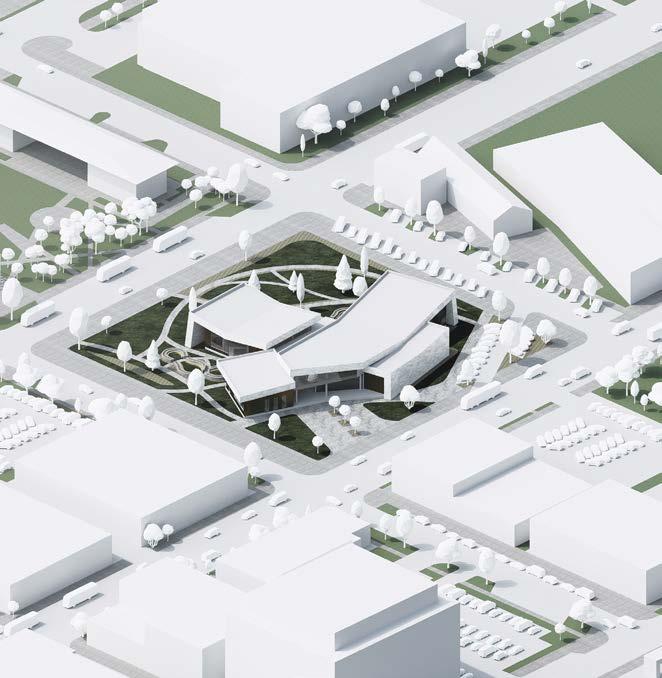

VISUALIZATION

32 | HIGHLAND HAVEN

HINU | 33

04

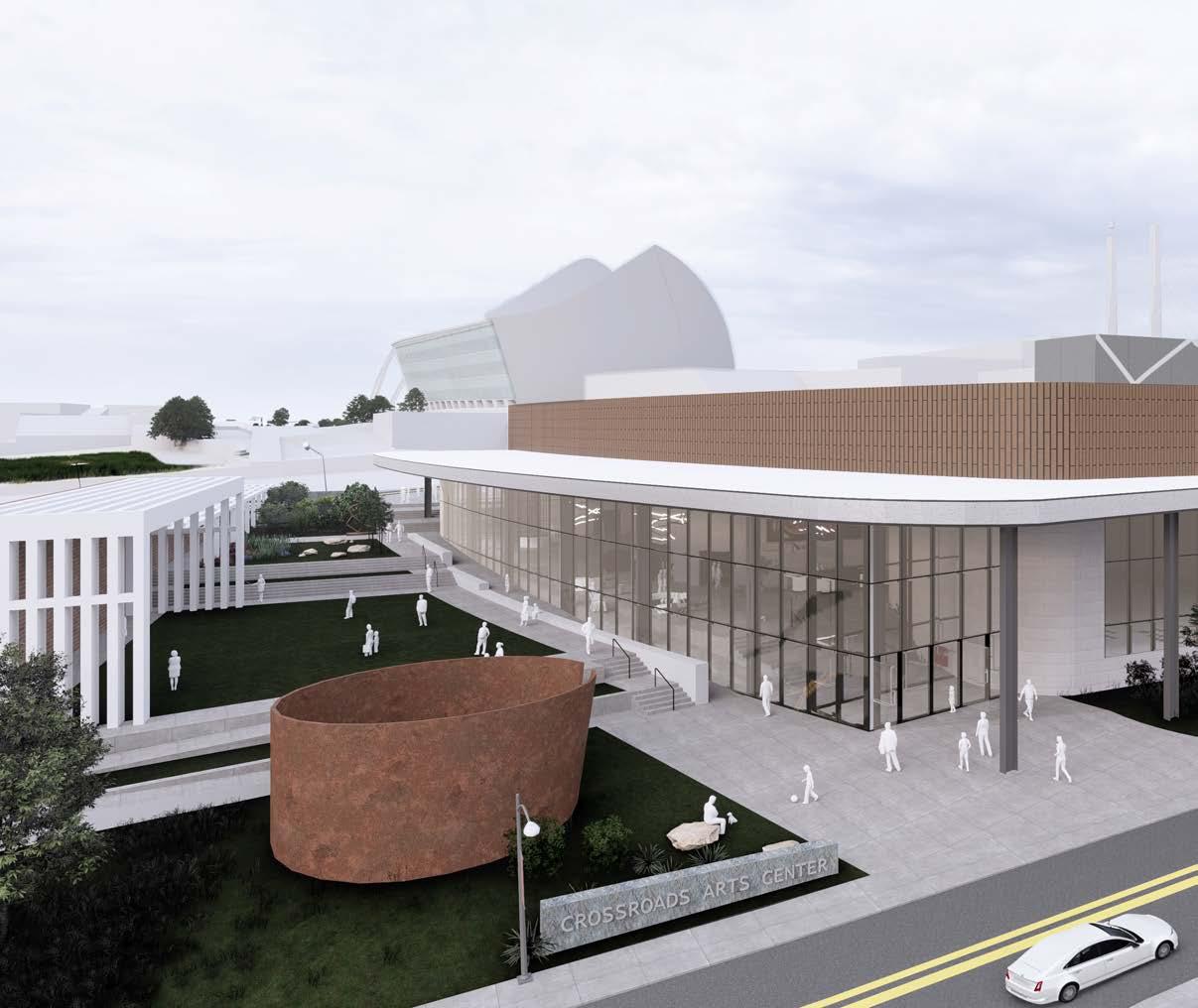

CROSSROADS ARTS CENTRE

BRIEF Spring 2023 | 3rd Year | Bryan Gross | Lawrence, Kansas PROGRAMS USED SketchUp, Lumion, Photoshop, Illustrator

34 | CRAC

DESCRIPTION The Crossroads Arts Centre binds the avant garde style of the famous Kauffman Center with the artistic culture of the Crossroads Located in Kansas City. The project showcases the large array of art forms with the main recital hall serving as the heart of the complex. The southern curtain wall opens up the space to promote public usage inside and on the plaza. The plaza serves as an additional performance venue as well as a sculpture garden.

W es

an Wy

t1 6t

h

S t te do

tre

et

Ba

lti m

en Av e r o

ue

CRAC | 35

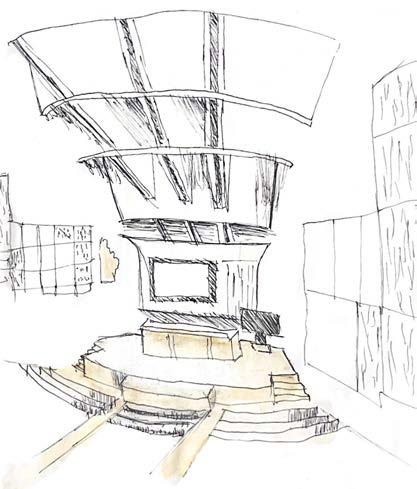

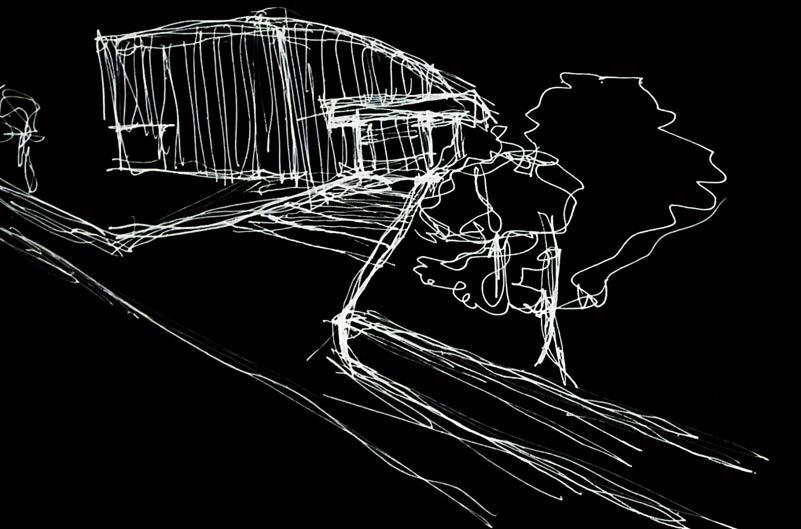

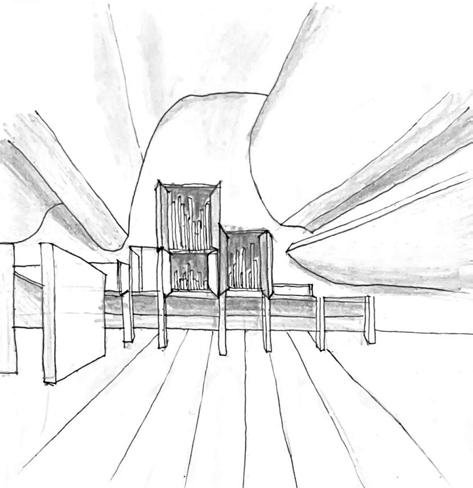

INITIAL SKETCHES

36 | CRAC

SITE PLAN

FUTURE DEVELOPMENT

EXISTING BUILDING

FUTURE DEVELOPMENT

CRAC | 37

1

2

H

20' - 0"

25' - 0"

I

18' - 0"

J

K

37' - 0"

28' - 0"

L

M

20' - 6"

N

31' - 6"

40' - 6"

A

25' - 0"

13.

11.

10.

7.

9.

6.

8.

B

30' - 6"

12.

C

14.

5.

19' - 6"

15.

D

15' - 0"

4.

24' - 0"

E

3.

F

2.

69' - 6"

1.

G

16.

GROUND FLOOR PLAN

WEST ELEVATION

38 | CRAC

1. LOBBY 2. PUBLIC RESTROOMS 3. DANCE STUDIO 4. RECITAL HALL 5. EXPERIMENTAL THEA 6. WORKSHOP 7. MALE RESTROOM 8. FEMALE RESTROOM 9. REHEARSAL ROOM 10. REHEARSAL ROOM 11. MALE DRESSING R 12. FEMALE DRESSING 13. MECHANICAL ROO 14. GENERAL STORAG 15. YOGA STUDIO 16. EXTERIOR PLAZA

SOUTH ELE

1

2

H

20' - 0"

25' - 0"

I

18' - 0"

J

K

37' - 0"

28' - 0"

L

20' - 6"

M

31' - 6"

25' - 0"

A

B

30' - 6"

4.

3.

5.

C

19' - 6"

6.

15' - 0"

D

7.

2.

1.

8.

24' - 0"

E

F

10.

69' - 6"

9.

1. RECEPTION 2. STAFF RESTROOM 3. CONFERENCE ROOM 4. ADMINISTRATIVE STORAGE 5. OFFICE 6. OFFICE 7. OFFICE 8. OFFICE 9. RECITAL HALL CONTROL ROOM 10. MECHANICAL SPACE

S G

ATRE

M 1 M2 ROOM G ROOM OM GE ROOM

EVATION

N

40' - 6"

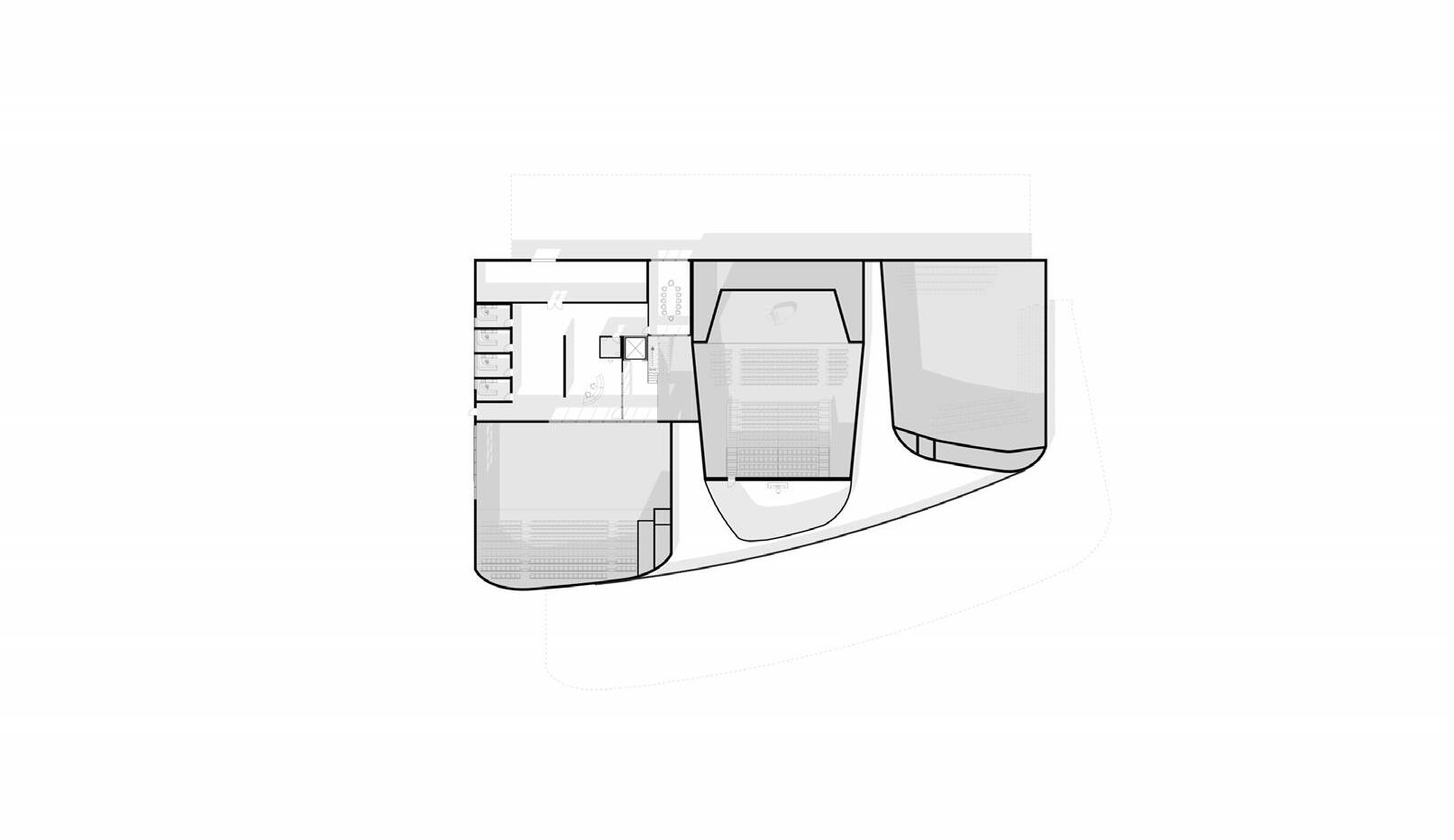

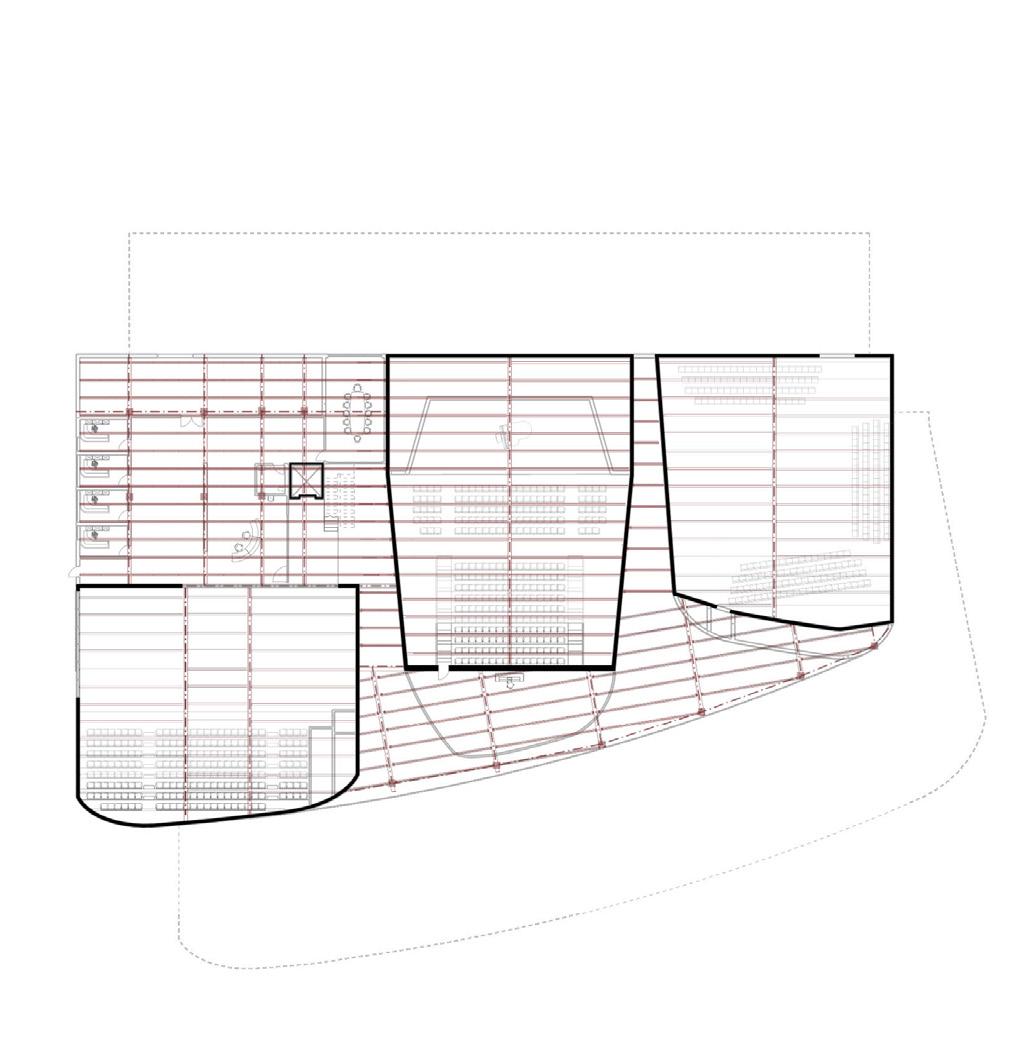

SECOND FLOOR PLAN

EAST ELEVATION

CRAC | 39

FORM PROGRESSION 1. BRIDGE THE SITE

40 | CRAC

2. EFFICIENT VENUE LAYOUT

3. ORIENTING TO C

CONTEXT

4. PUBLIC PLAZA

5. FINAL DESIGN

CRAC | 41

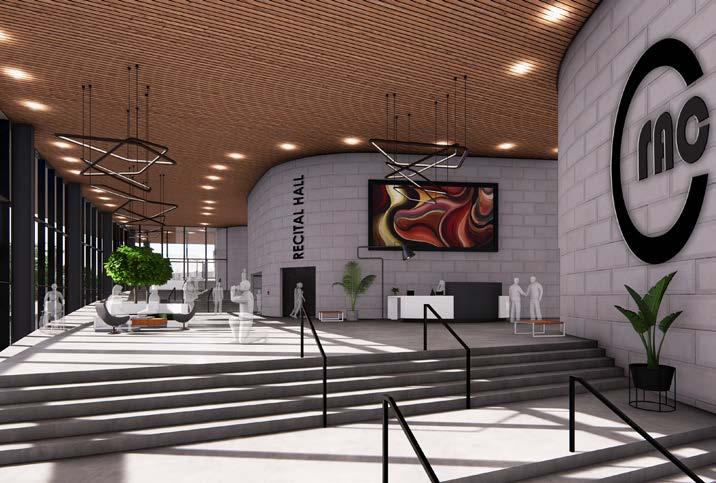

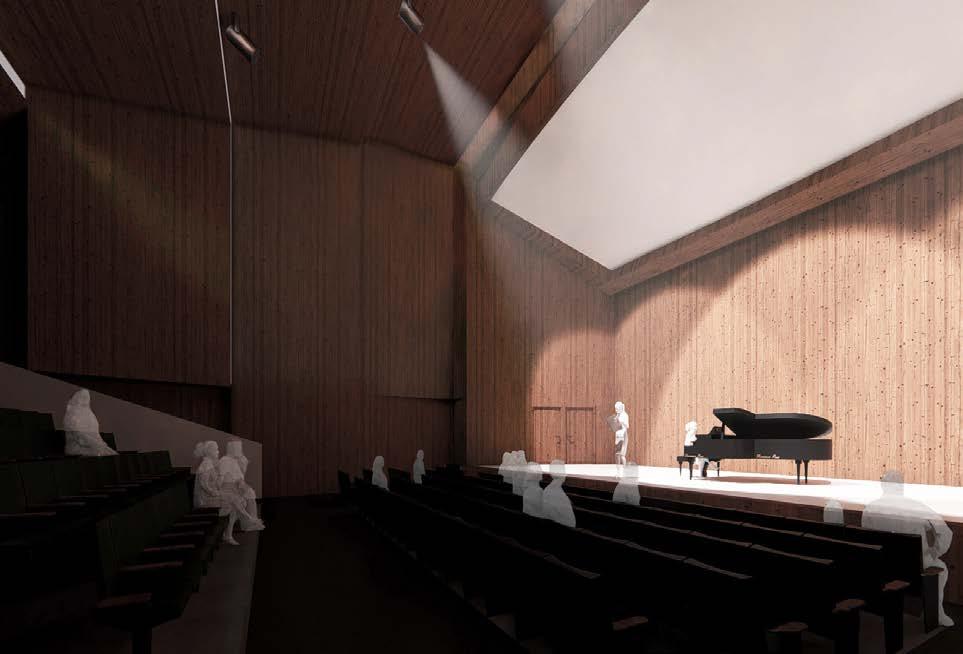

The materials expressed in this design are largely pulled from the surrounding context. A terracotta facade alludes to the nearby brickwork, the exposed structure highlights the industrial history of the area, and a wood ceiling promotes a warm and welcoming atmosphere while also performing acoustically.

Carefully chosen materials not only enhance aesthetics but also build an architectural narrative that resonates with the community’s cultural and historical identity.

42 | CRAC

CRAC | 43

SOUTH WALL SECTION SLOPE INSULATION MEMBRANE MOISTURE BARRIER 5” RIGID INSULATION METAL DECKING GYPSUM SHEATHING 6” CHANNEL ALUMINUM FLUSH PANEL DRIP FLASHING LUX 4” SMOOTH V-GROOVE SOFFIT 5” RIGID INSULATION GYPSUM SHEATHING AIR DIFFUSER FLEX DUCT HVAC 2’x4’ USG TRUE WOOD GRILLES

KAWNEER 1600UT SYSTEM 2 CURTAIN WALL

CONCRETE SLAB DRAINAGE ANCHOR PLATE WITH J HOOKS RIGID BOARD INSULATION

44 | CRAC

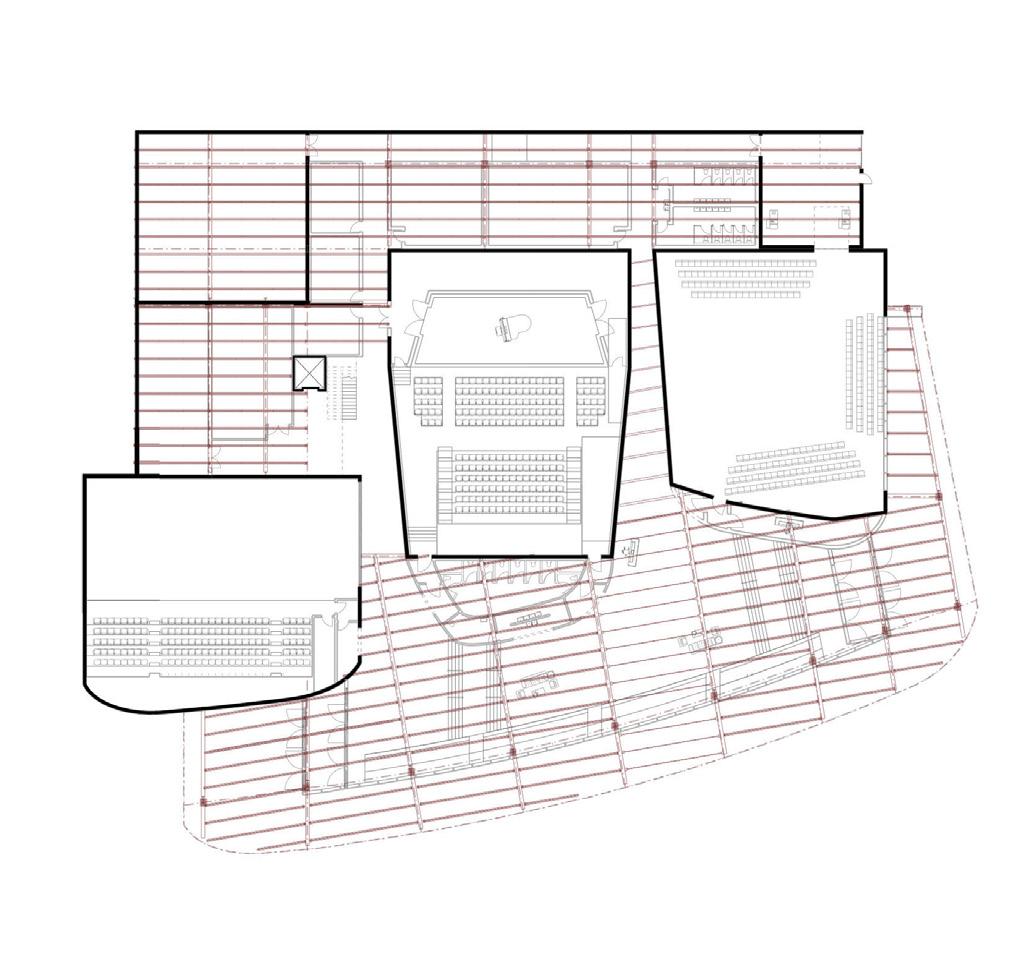

STRUCTURE DIAGRAM

SECOND FLOOR PLAN

GROUND FLOOR PLAN

CRAC | 45

04

EXPLORATION

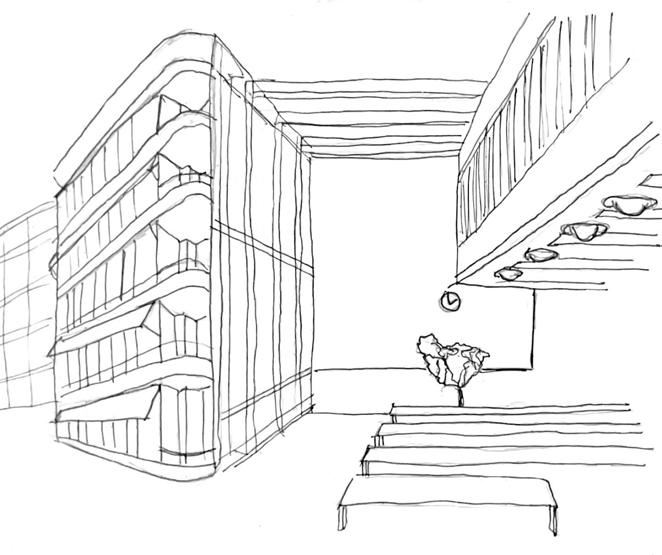

BRIEF Collection of Pictures and Sketches captured in Paimio, Helsinki, Copenhagen, Malmo, Denver, and Washington D.C.

46 | EXPLORATION

DESCRIPTION An interest of mine is traveling. I’m fascinated by different cultures and urban landscapes. There is a lot of opportunity to learn and adapt ways of thinking whether its socially or architectural. These are a collection of recent trips, and hopefully, many more adventures lie ahead of me soon.

EXPLORATION | 47

48 | EXPLORATION

EXPLORATION | 49
