a StAndard complete fencing system that was developed for any need of physical perimeter protection. pas fence provides optimal protection with an aesthetic and efficient design.
BEVA® FENCE
about
With more than 24 years of experience, BEVANANDA has led the fence market in Indonesia with innovative designs.
With the trademark BEVA® which is now known as an expert specialist in the fencing system in Indonesia with safety standards that suit your needs and guaranteed quality.
We offer a complete fence system (Knock Down) developed for all physical perimeter protection needs.
BEVA® Fence Variation
As an expert manufacturer for fence solutions, BEVA® Fences offers a wide selection of fences in the Standard Security System category to the High and Maximum Security System category, depending on customer needs and budget.
Our sales principle is not only selling products, but we offer solutions with the service "All in One".
INProject Planning
Design
Budgeting
Technical Assistant
Instalation
AUTHORIZED DISTRIBUTOR :
fencing system based on your needs !
BEST ANALYSIS AND SOLUTIONS IN FENCE DESIGNS, FUNCTION, OR CATEGORY
STANDARD SECURITY
Standard Protection (Height < 1,5m)
Usually used as a boundaries
BEVA® CHAINLINK
BEVA® SIMPLE WIRE FENCE
BEVA® MESH
Plantation, Housing, Standard Frontier, etc.
MEDIUM SECURITY
Medium Protection (Height 1,5 - 2,5 m)

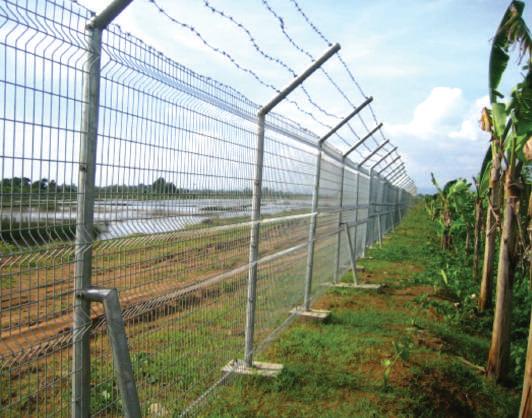

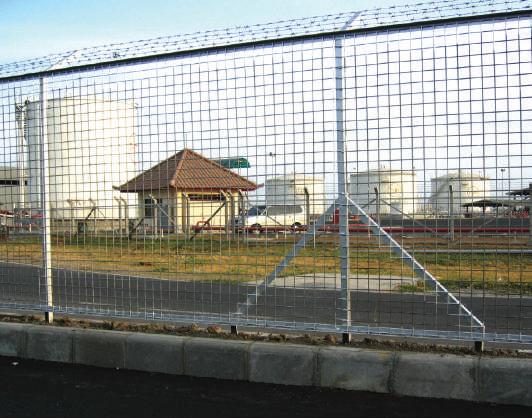

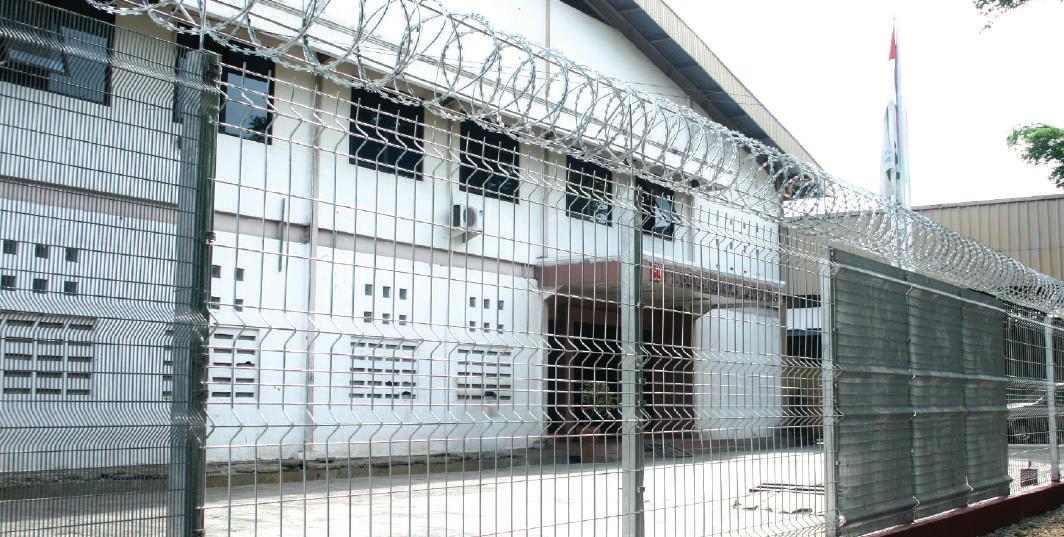

BEVA® PAS FENCING + BARB WIRE / RAZOR WIRE
BEVA® MESH + BARB WIRE
Factory, Cellular Tower, Warehousing, etc.
high security
High Security Protection (Height > 2,5m)

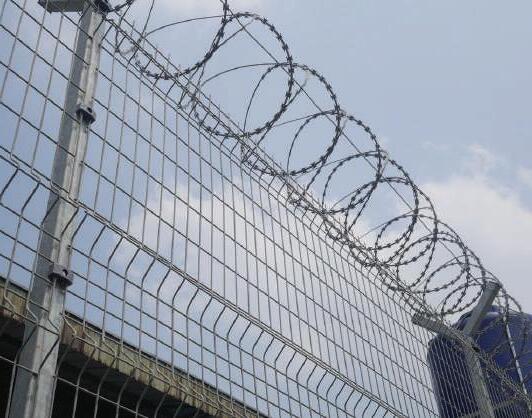

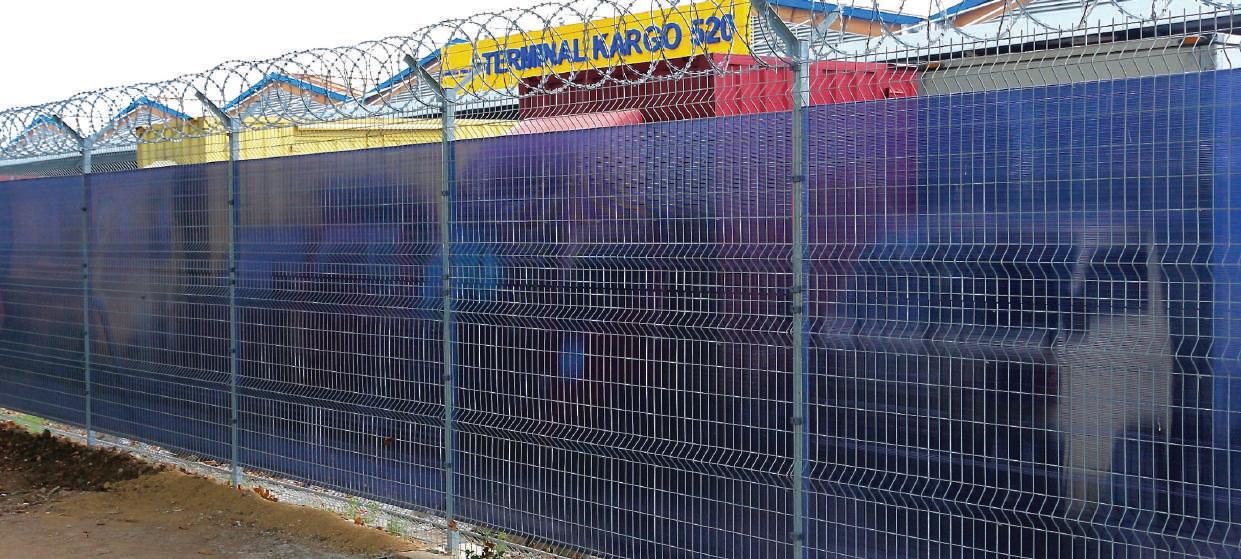

BEVA® PAS FENCING + RAZOR WIRE
BEVA® HI SECURITY FENCE + RAZOR WIRE
Embassy, Prison, Vital Object, etc.
maximal security
Maximal Security with alarm system and electrical pulse
BEVA® HI SECURITY FENCE
GALLAGHER PERIMETER SYSTEM
DOUBLE RING PERIMETER SYSTEM
State Border, Prison with maximal security system, etc

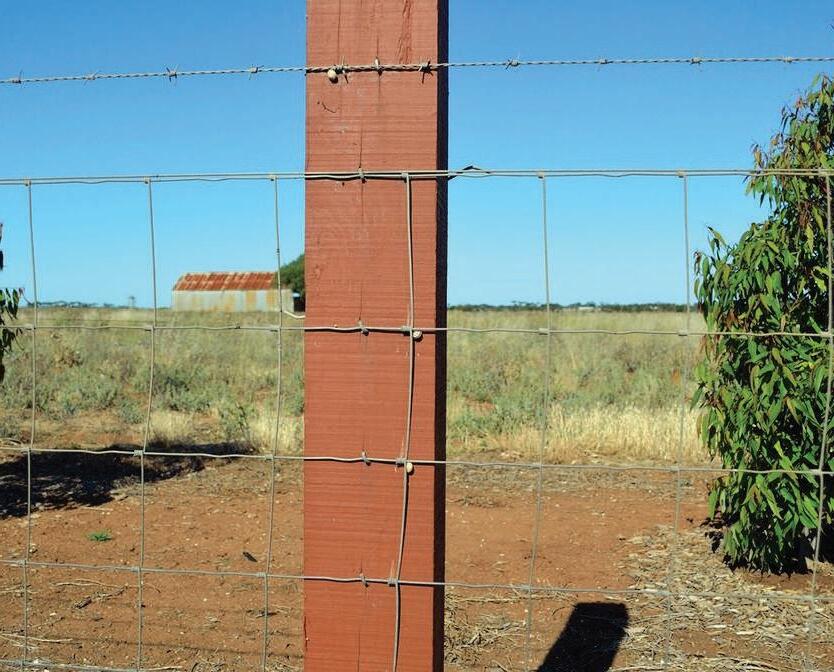

BEVA® SIMPLE WIRE FENCE
ABOUT
BEVA® SIMPLE WIRE FENCE
If you are looking for a simple fence system that is strong enough, has almost no maintenance costs and is available in sizes suitable for all applications, the BEVA® Standard Wire Fence is the right answer for you.
Low cost advantages
Easy in application
Easy to maintenance
Long durability
PRODUCT SPECIFICATION
STEEL WIRE MATERIAL
BEVA® Simple Wire Fence is available with steel wire coated with Bezinal®2000, with the type of rigid wire (High Tensile Wire) that has superior strength and reduces flexibility (Elongation).
Saltspray resistance (average) - hours till 5% DBR (Dark Brown Rust)
BEVA SIMPLE WIRE FENCE

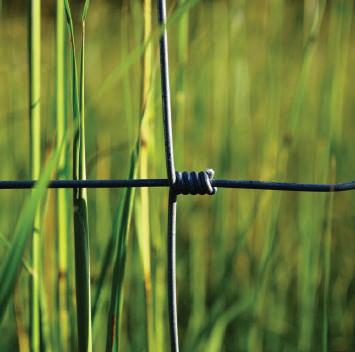

Hinge Joint fence is a fence that is commonly used. This fence is formed by an arrangement that wraps a vertical wire, and wrapped around it so that it makes extra strength at each intersection of horizontal and vertical wire encounters. This Hinge Joint Fence is suitable as an economical wire fence option.
hinge joint fence specification
Type
Hinge Joint
HJ/11/142/15 BZ
HJ/8/90/15 BZ
HJ/11/142/15 HG
HJ/8/90/15
3.25; 3.25; 4; 4.5; 5; 5.5; 6; 7; 8; 9 3.25; 4; 4.5; 5; 5.5; 6; 7 3.25; 3.25; 4; 4.5; 5; 5.5; 6; 7; 8; 9 3.25; 4; 4.5; 5; 5.5; 6; 7 3.25; 3.25; 4; 4.5; 5; 5.5; 6; 7; 8; 9 3.25; 4; 4.5; 5; 5.5; 6; 7

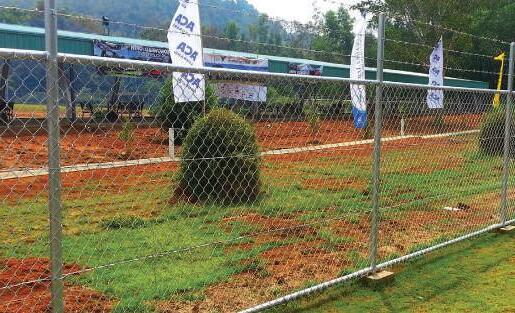

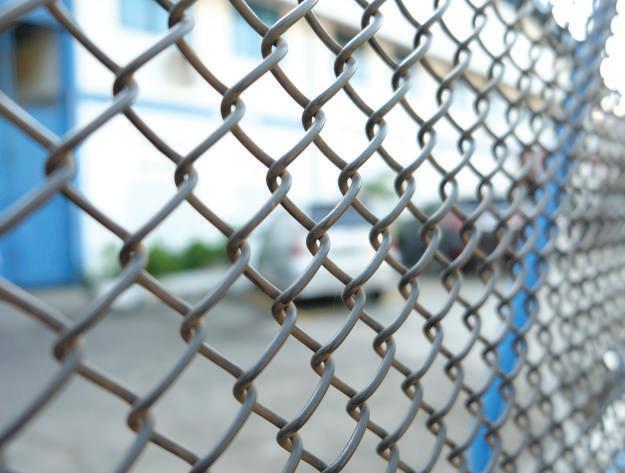

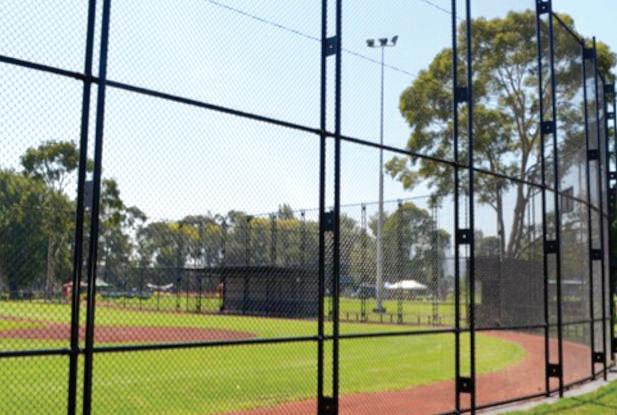

BEVA® CHAINLINK FENCE
ABOUT
Chainlink also known as harmonica wire mesh, wire fence, cyclone fence, and a diamond fence is one type of product from BEVA® FENCE made of woven wire mesh with a diamond shape.
Chainlink Fence maintains its shape and elastic which makes it easy to connect and very easy and fast installation. Available in woven wire pattern in roll form.
Advantages
Easy and fast installation
Low cost
Strong and high durability
Transparent

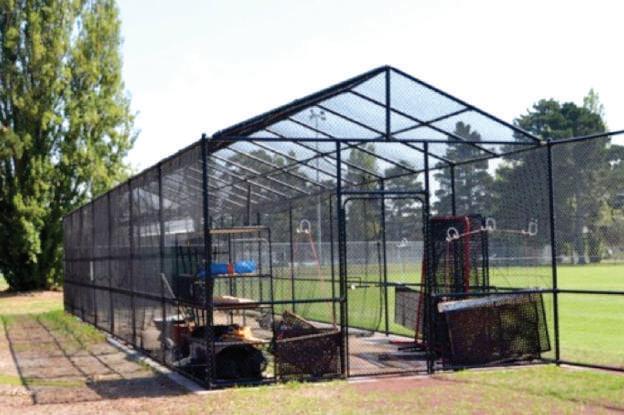

APplication
Garden and field
Playground
Sports facilities

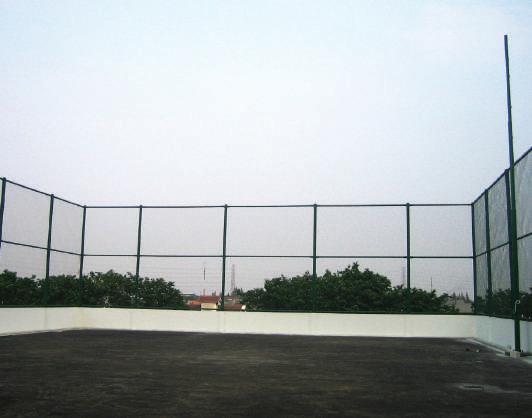

Tennis court
Factory/Workshop
Railroads fence
Airport
Office building
Highway divider
Plantation and mining boundaries
PRODUCT SPECIFICATION
WHAT MAKES BEVA CHAINLINK FENCE DIFFERENT FROM OTHER PRODUCT?
Choice of Netting Systems and Complete Packages
Beva® Chainlink offers a choice of twisted and knuckled types that can provide an additional level of fence security.
We also offer a complete package of fence systems, including the poles and accessories. You don't need to worry that you will miscalculate and design because we can provide calculation and estimation services for your total project so that you can reduce potential losses due to miscalculations.
Knock Down System
Quality is our top priority. If you have already invested in galvanized wire fences, it is useless if during installation in the field there is still a welding process that has the potential to damage the galvanized layer and cause corrosion in the future.
Therefore, we always design a fence system using the knockdown method so that during installation in the field there is only the process of mounting bold & nut without any welding process so you can avoid potential rust on your fence in the future.
Unique Specification and Meet International Standard
Bevananda has experience in producing BEVA® Chainlink for more than 24 years, and we have automatic machines that are of high quality and of international standard and it also can produce high-quality Chainlink products so if you have unique specifications in your project that require standards equivalent to international standard then Beva® Chainlink can serve you properly.
Quality Assurance and Dimension
Beva® Chainlink is produced according to the standard dimensions specified in SNI 07-6503-2001 as shown:
SIZES OF WIRE STEEL FOR WIRE CHAINLINK
PRODUCT SPECIFICATION
TabLE COMPARISON
Beva Chain Link
BS 4102 & JIS 3552 SNI : 07-6503-2001
Barbed / Twisted Edges Knuckled Edges
Other Chain Link
None
Knuckled Edges only
More than 7 % 3 % +
CHOOSE YOUR CHAINLINK FENCE
Step 1 :
Choose your wire type
Standard Galvanized Wire: Galvanized thickness 40-70 gr / m2 (min. Zinc coating: class 2)
Heavy Galvanized Wire: Galvanized thickness min. 260 gr / m2 (In accordance with BS 443: 1969)
BEZINAL® 2000: Galvanis + 10% Aluminium (6x Life time than Heavy Galvanized) Galvanized wire + PVC Coated Fusion Bonded Wire
Step 2 :
Choose your wire diameter & mesh size
Max roll length 25 meters, roll height max. 4 meters. Roll length max. 25 meters high, Roll max 4 meters (with the principle of 1 roll heavy can still be lifted human labor).
product specification
galvanized and bezinal wire
25 x 25
30 x 30
40 x 40
50 x 50
55 x 55
60 x 60
75 x 75
100 x 100 LIGHT HEAVY BEZINAL® 2000 LIGHT HEAVY BEZINAL® 2000 LIGHT HEAVY BEZINAL® 2000 LIGHT HEAVY BEZINAL® 2000 LIGHT HEAVY BEZINAL® 2000 LIGHT HEAVY BEZINAL® 2000
BEZINAL® 2000
2000
GALVANIZED WIRE COATED WITH PVC
30 x 30
40 x 40
50 x 50 55 x 55
x 60
COLOR
* For another color, please contact our representative
product specification
Fusion Bonded Wire in accordance with ASTM F668 CLASS 2B
2,10 2,30 2,50 3,00 3,15 3,65 3,70 4,50
Advantages
Superior corrosion resistancereduce the rust propagation penetrate at the crack point. Excellent cathodic protection at the end. Reducing the risk of cracking. Smooth surface.
OUR PRODUCT ACCESSORIES

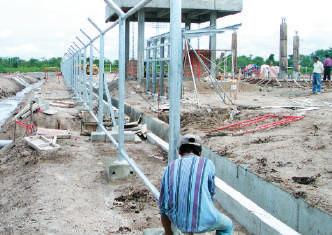

PRODUCT INSTALLATION

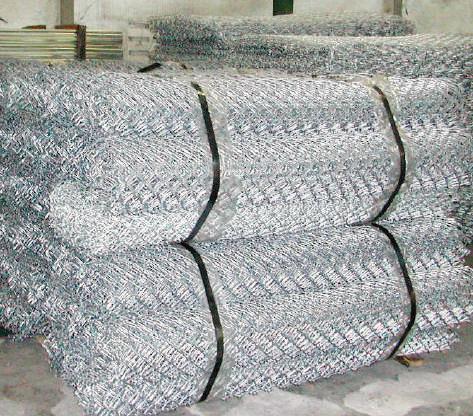

Packing
Beva® Chainlink Wire is supplied with practical and easy roll packaging for mobilization of transport to the project.
Installing and connecting Beva® Chainlink Wire is very easy and practical so it’s only attached to the poles that have been prepared and fastened with fasteners (line wire) in a very simple way.

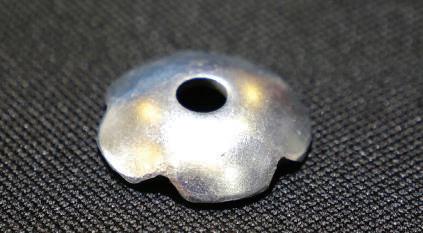

BEVA® END CAP

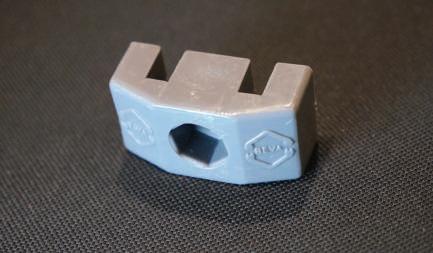

BEVA® CLAMP

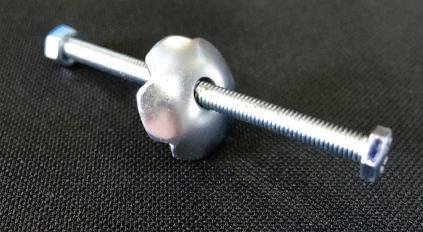

BEVA® SCREW

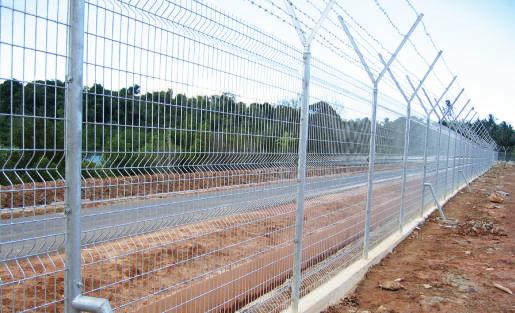

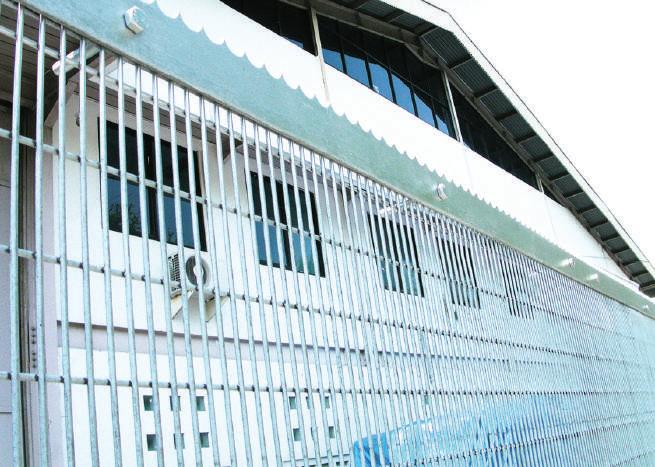

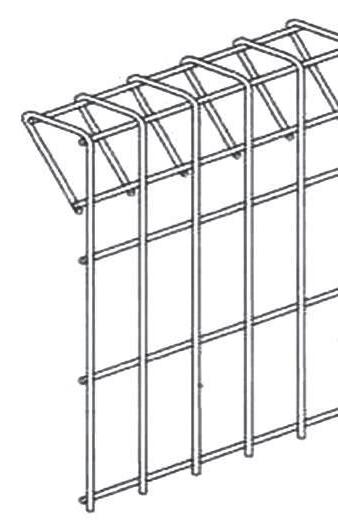

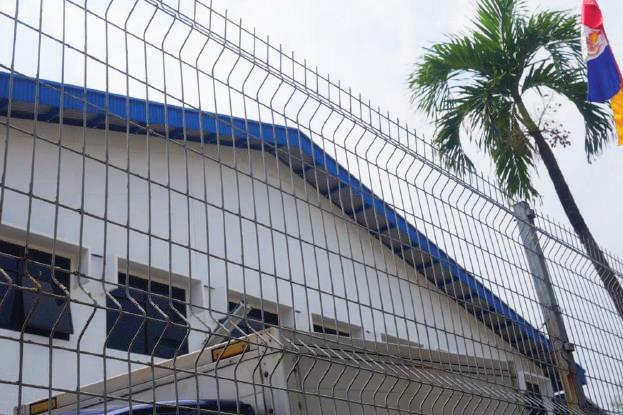

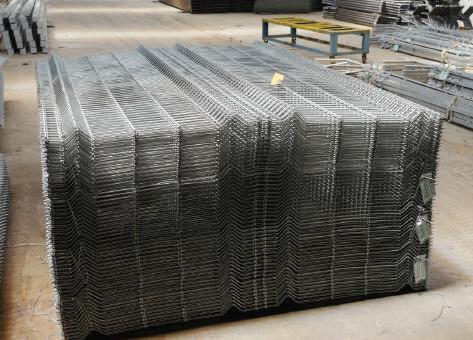

BEVA® PAS FENCING
ABOUT
Types of Standard Artistic Fences that are specifically designed to have superior strength and stiffness more than similar fences and a higher level of security. Beva® PAS Fence is a patent product of PT. Bevananda Mustika, who has been certified Patent from Intellectual Property Rights in Indonesia with IDS number 00001461.
advantages
High rigidity for more optimal protection resulting from the design and size of the mesh panel.
The sharp edges of the top and bottom panels open a higher level of security. Design with good aesthetics. A complete system with Beva Clamp produces a fence panel that is not easily removed from the front by a breakthrough.
The form of a typical fence that saves greatly in terms of transportation and maintenance. With high-quality raw materials making the fence more durable.
APPLICATION
Perimeter for Property: Housing / Factory / Office Building
Airport Perimeter
Highway perimeter and railroad perimeter, etc
Available in 3 material choices :
ULTRA GALVANIZED
(Continuous Hot Dip Galvanized)
Bezinal®2000 (Zinc + 10% Aluminium)
POWDER COATING (colours)
Beva pas fencing advantages
Beva® PAS Fence competes with similar products in Indonesia which are widely known as BRC Fences. However, Beva® PAS Fence are created with many advantages when compared to BRC Fences
Those advantages are :
1. wider, more efficient poles
2. MORE PROTECTION BEVA® PAS FENCE
Beva pas fencing advantages ®
3. MORE RIGID AND STRONGER

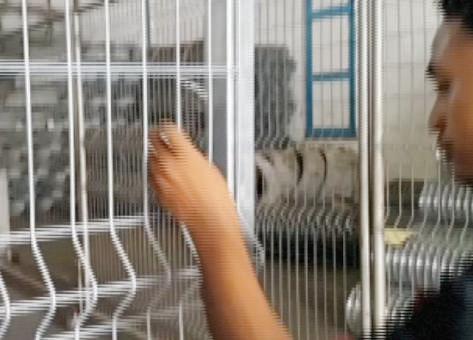

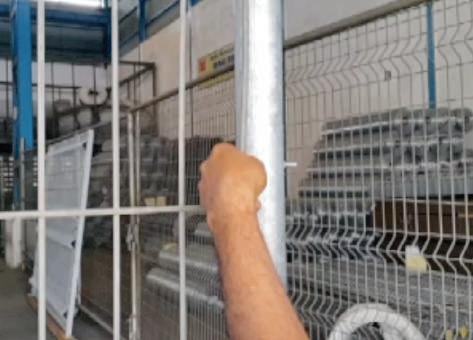

Rigidity Test BEVA® PAS 4mm vs BRC 7mm
BEVA® PAS FENCE 4mm
BRC FENCE 7mm

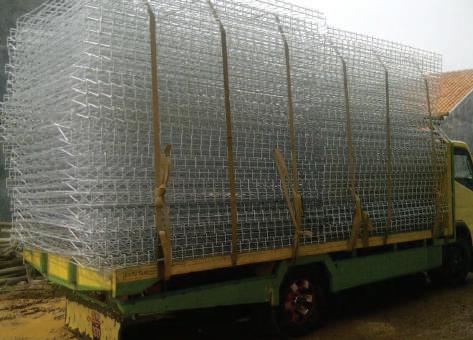

4. COST SAVING UP TO 80%
When compared with the BRC Fence, the BEVA® PAS Fence has a design that allows shipping goods more efficiently and super save up to more than 80%, because it doesn't take up much space when loaded in containers or trucks.
For the same quantity, if the BEVA® PAS fence is sufficiently loaded in 1 container, the BRC fence needs more than 6 containers, for that reason BEVA® PAS will greatly save shipping costs to your project even more so if your project's geographical location is far enough.
BEVA® PAS FENCE
BRC FENCE
Beva pas fencing advantages
5. MORE SECURE

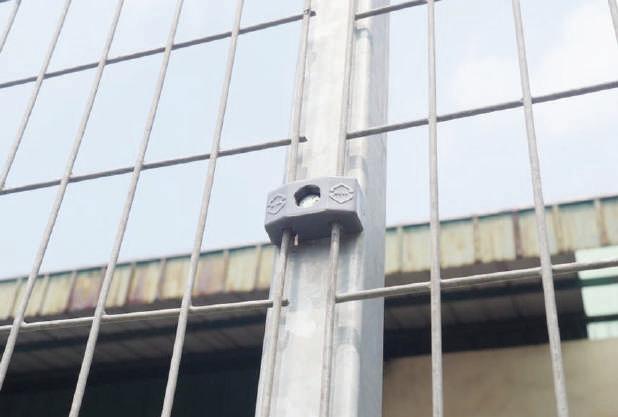

The design of Beva® Clamp and Beva® Cap is safer, which makes the fence panel more difficult to open from the front side of the fence.
BEVA® PAS FENCE

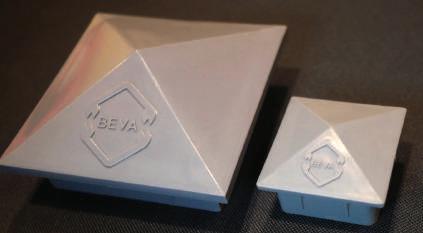

CAP SQUARE ABS
INDONESIAN PATENT
IDS000001461
BRC FENCE ROUND CAP
Beva® Clamp and BRC opening test from the front side.
BEVA® PAS FENCE
BRC FENCE
CLAMP ABS GREY
OUR PRODUCT
BEVA PAS GATE
BEVA® Single Swing Gate 100 Std
ACCESSORIES

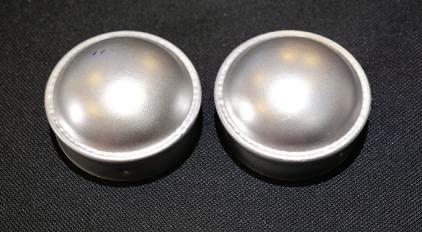

BEVA® CAP ROUND
BEVA® CAP SQUARE
BEVA® CLAMP
BEVA® PAS 100 / 4mm
beva pas fence
BEVA® PAS FENCE 200
BEVA® PAS FENCE 175
BEVA® PAS FENCE 150
BEVA® PAS FENCE 100

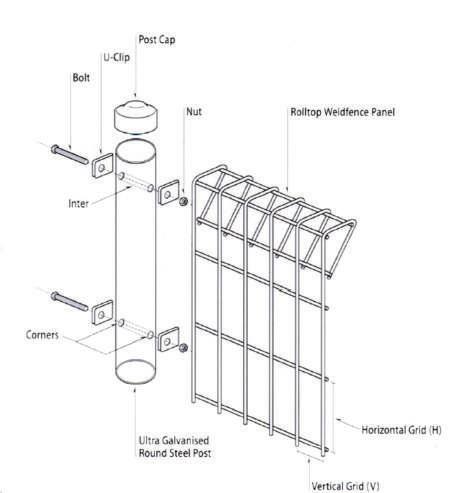

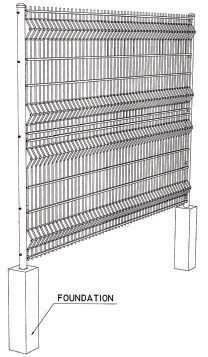

ECONOMIC POLES
(BEVA® ROUND POST)
Detail
Dia 4 mm Wire Dia 4 mm Wire Dia 4 mm Wire
mm

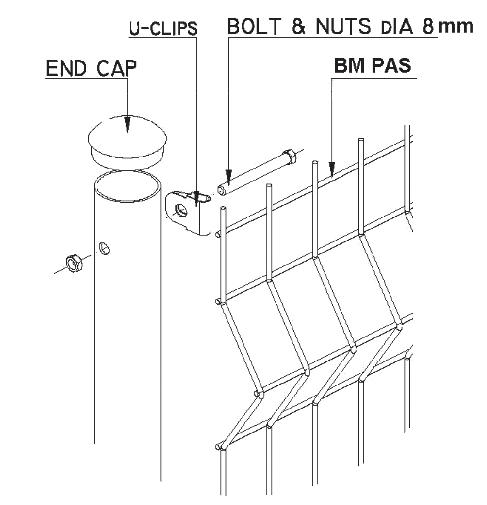

BOLT & NUTS DIA 8 mm U-CLIPS END CAP BM PAS

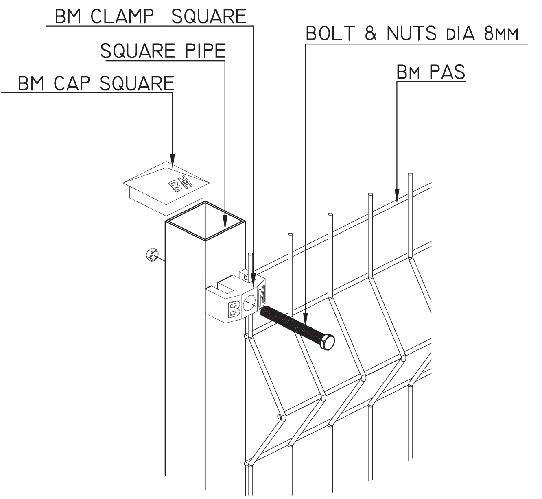

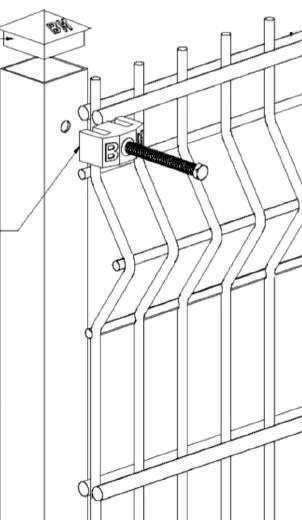

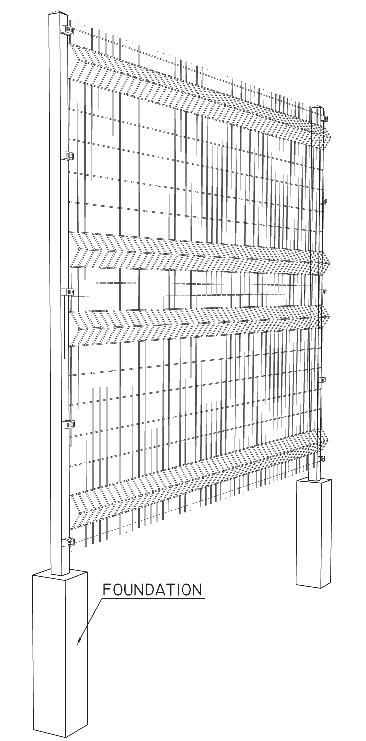

STANDARD POLES
(BEVA® SQUARE POST)
Detail

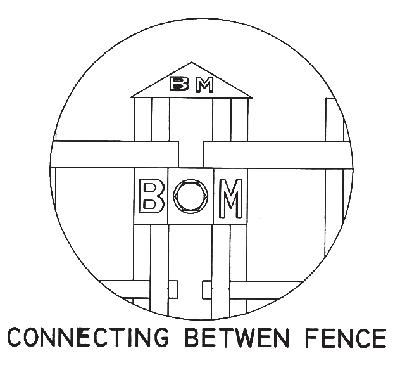

CLAMP FOR FENCE CONNECTING BETWEEN FENCE
BEVA® CLAMP SQUARE BEVA® CAP SQUARE SQUARE PIPE BEVA® PAS
BOLT & NUTS DIA 8 mm

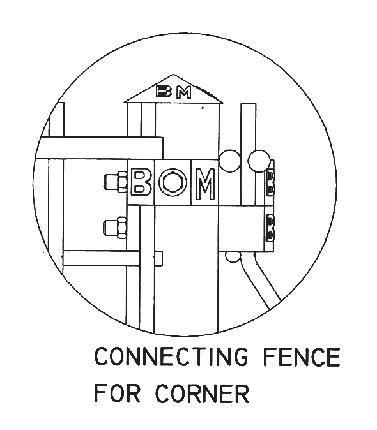

CONNECTING BETWEEN FENCE CONNECTING FENCE FOR CORNER
PRODUCT SPECIFICATION
BEVA PAS FENCE
PRODUCT SPECIFICATION

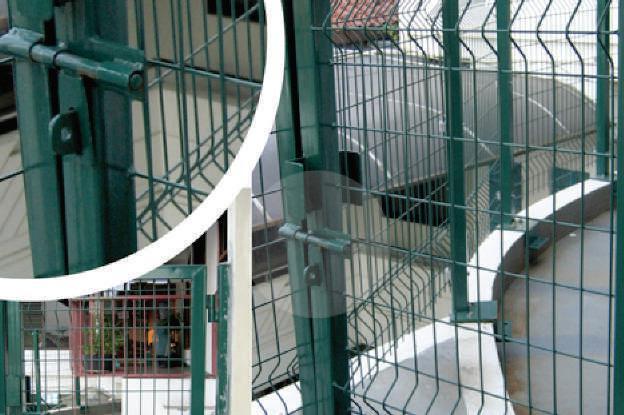

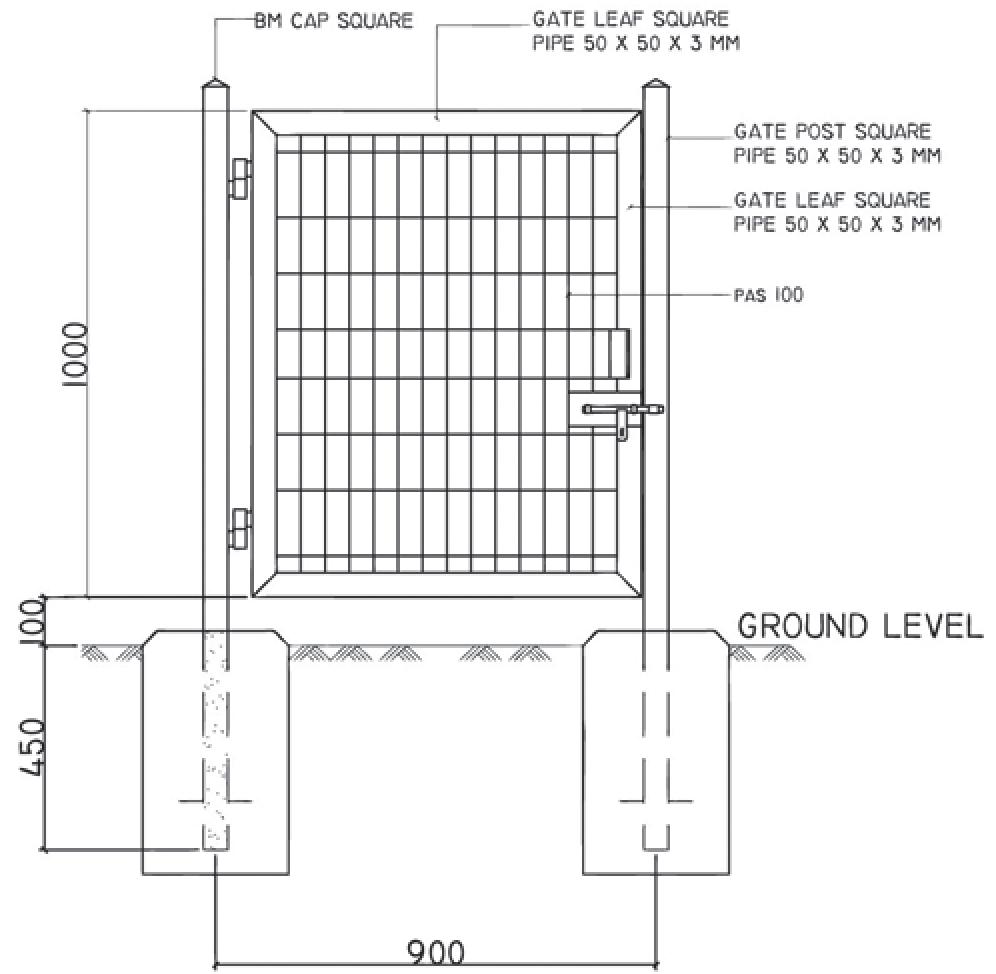

PAS FENCE STANDARD GATE
BEVA® Single Swing Gate 100
BEVA® Single Swing Gate 150
BEVA® Single Swing Gate 175
BEVA® Single Swing Gate 200
BEVA® Double Swing Gate 100
BEVA® Double Swing Gate 150
BEVA® Double Swing Gate 175
BEVA®
PAS FENCE EKONOMIC GATE
BEVA® Single Swing Gate 100
BEVA® Single Swing Gate 150
BEVA® Single Swing Gate 175
BEVA® Single Swing Gate 200
BEVA® Double Swing Gate 100
BEVA® Double Swing Gate 150
BEVA® Double Swing Gate 175 BEVA® Double Swing Gate 200
Bezinal®2000
SUPERIOR CORROSION RESISTANT COATING
Expected lifetime in different corrosion classes (according to EN ISO 9224:1992)
The relative performance of Bekaert Bezinal coatings versus zinc in these accelerated tests, combined with the specified coat weight loss per year for a zinc coating, allows to make a calculation estimation of expected lifetime in the different corrosivity classes defined in EN ISO 9223.
Expected lifetime for the different coating classes and different corrosivity categories is given in the graph below.
Extensive outdoor exposure programs on different Bekaert sites representing different environment corrosivities, are launced.
Expected lifetime (average) - years until 5% DBR (Dark Brown Rust)
The above described factors are used to define different corrosivity classes C1 to CX, these are described in the standard EN ISO 9223 and summarized in the table below.
The standard EN ISO 9224:1992 defines the zinc coating loss per year for each of the corrosivity classes; this is as well mentioned in the table below.
Loss of zinc in the first year (*) Years
Atmospheres with low level of pollution mostly rural areas.
Urban & industrial atmospheres, moderate sulfur, dioxide pollution. Coastal areas with low sanity.
Industrial areas & coastal areas with moderate sanity.
Industrial aread with high humidity & aggressive atmospheres, coastal & offshore areas with high sanity.
Extreme industrial areas, coastal & offshore areas with occasional contact with salt spray.
Heated building with clean atmospheres, eg. offices, shops, schools, hotels..
Unheated buildings where condensation may occur, eg. depots, sport halls..
Production rooms with high humidity & some air pullution, eg. food-processing plants, laundries, breweries, dairies...
Chemical plants, swimming pools, coastal ship & boatyards.
Buildings or areas with almost permanent condensation & with high pollution.
Spaces with almost permanent condensation or extensive periods of exposure to extreme humidity effects &/or with high pollution from production process.

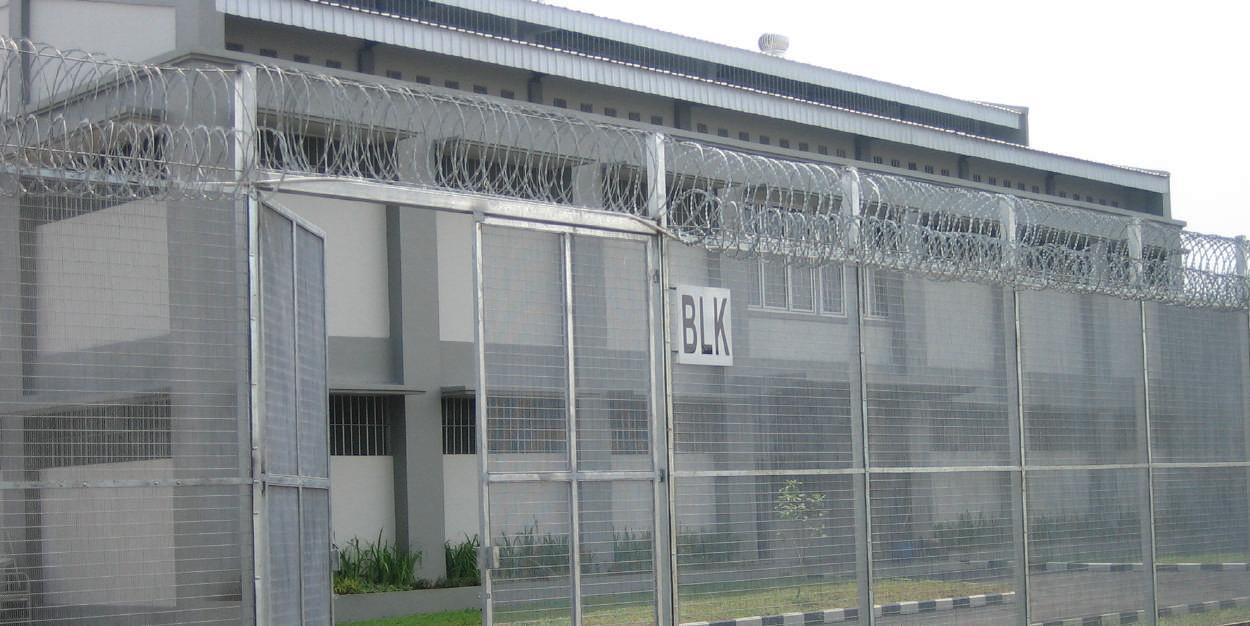

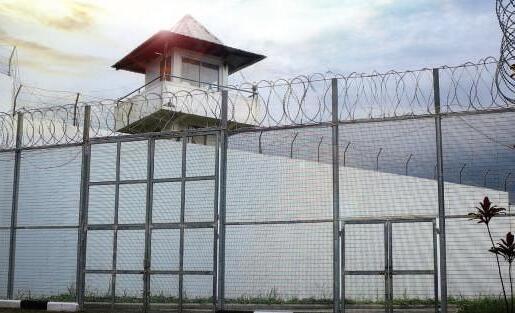

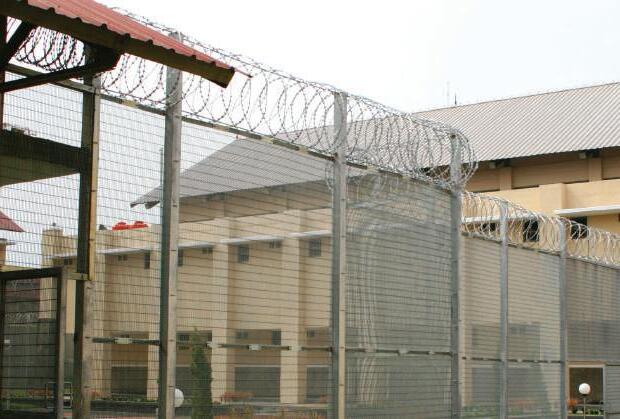

HI SECURITY FENCING
BEVA® Hi-Security Fencing System is currently the most preferred and effective means of providing the highest degree of physical perimeter protection.
Using Hi-Tech Machine with latest European Technology, BEVA® HI SECURITY FENCE consists of heavy, high security welded panels in a very small size rectangular mesh to provide maximum physical perimeter protection.
To ensure the quality assurance & warranty of our highest fencing system, Hi-Security Fencing must be supplied in Complete Set (with posts & accessories)
APLIKASI
Provide Greatest Physical Protection
Anti Climbing

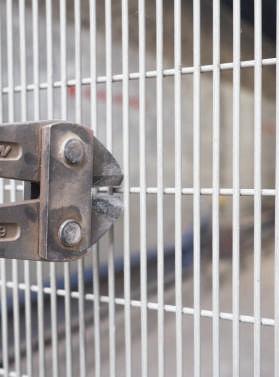

Anti Cutting
Mining Site
Prison Country Boundary
Stadium Airport Embassy

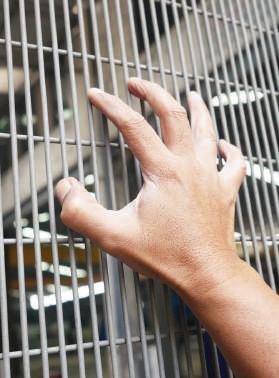

The 75 x 12.5 mm mesh aperture in single skin panels is finger proof and extremely difficult to penetrate using conventional hand tools, thus providing a high delay factor.
product specification
HSS (HI SECURITY SYSTEM)
HSS 42421
HSS 42130
HSS 44821
Wire Diameter : 4 mm
x 2100 mm
x 3000 mm
x 2100 mm
Coated with Heavy Galvanized/Bezinal®2000 (minimum thickness 260grm/m2)
Tensile Strength : 41 - 63 kgf
BEVA® HSS 42421
PRODUCT SPECIFICATION
BEVA® HSS 42130
BEVA® HSS 44821
H = 4800 mm
W = 2100 mm
DIA 4 mm WIRE Heavy Galvanized or Bezinal®2000 Detail
DIA 4 mm WIRE Heavy Galvanized or Bezinal®2000
PRODUCT SPECIFICATION
BEVA® HSS 42130
DIA 4 mm WIRE Heavy Galvanized or Bezinal®2000
BEVA® HSS 44821
ADDITIONAL ACCESSORIES BEVA® FENCE

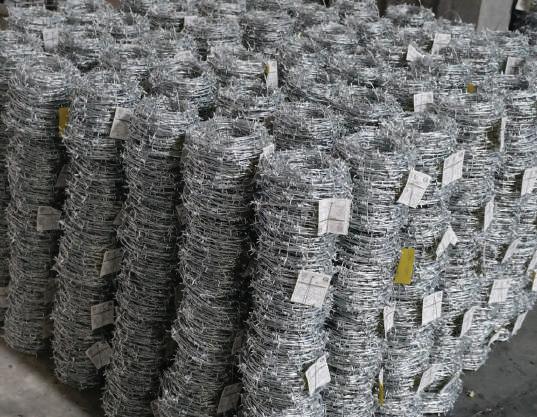

BEVA® Barbed Wire (BEVA® BARB) and BEVA® Razor Wire (BEVA® RAZOR) are used as additional accessories for applications that require a high level of security.
BEVA BARB
BEVA RAZOR
* Full details can be seen in the BEVA® BARB & BEVA® RAZOR brochure.

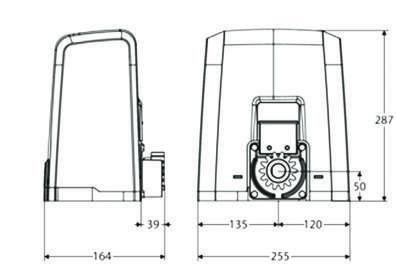

BFT AUTO GATE
BFT Auto Gate can be used to provide automation on your turnstile both for sliding doors and door leaf, with a remote control system that makes it easy for the gate to be accessed automatically, it can even be combined with a monitoring and alarm system together with Gallagher System.
* More complete details can be seen in the BFT Brochure.
PRODUCT SPECIFICATION
BEVA® HSS 42130
DIA 4 mm WIRE Heavy Galvanized or Bezinal®2000
BEVA® HSS 44821

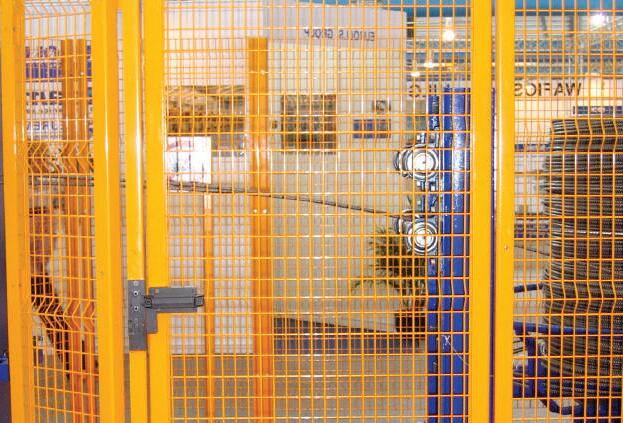

SPECIAL FENCE
Bevananda also serves special orders for certain application Fences with minimum orders according to customer requirements.
Special types of fence applications can be used for airport, F1 circuit, stadium, cellular towers, bulkhead warehouses, data center partition, etc.

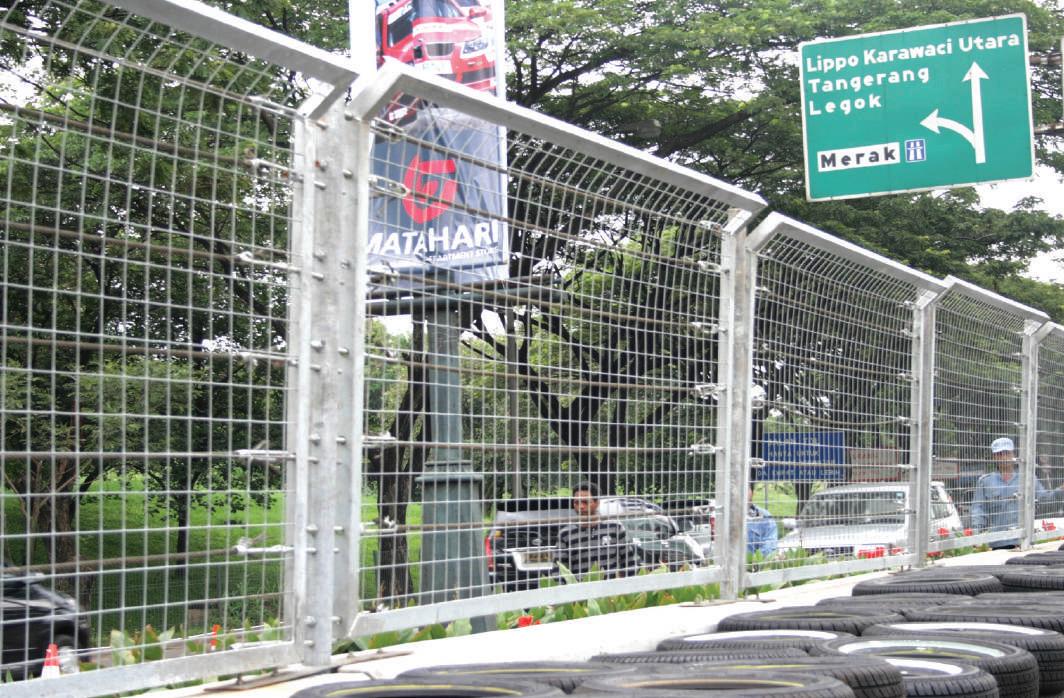

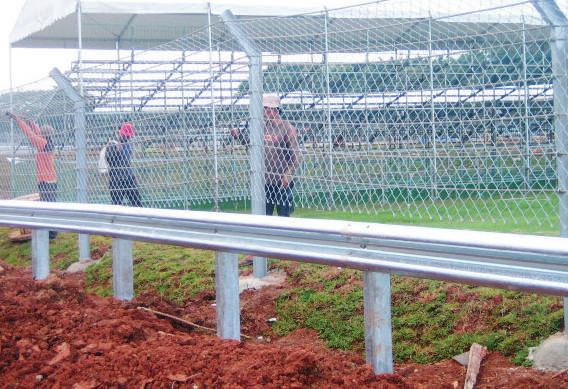

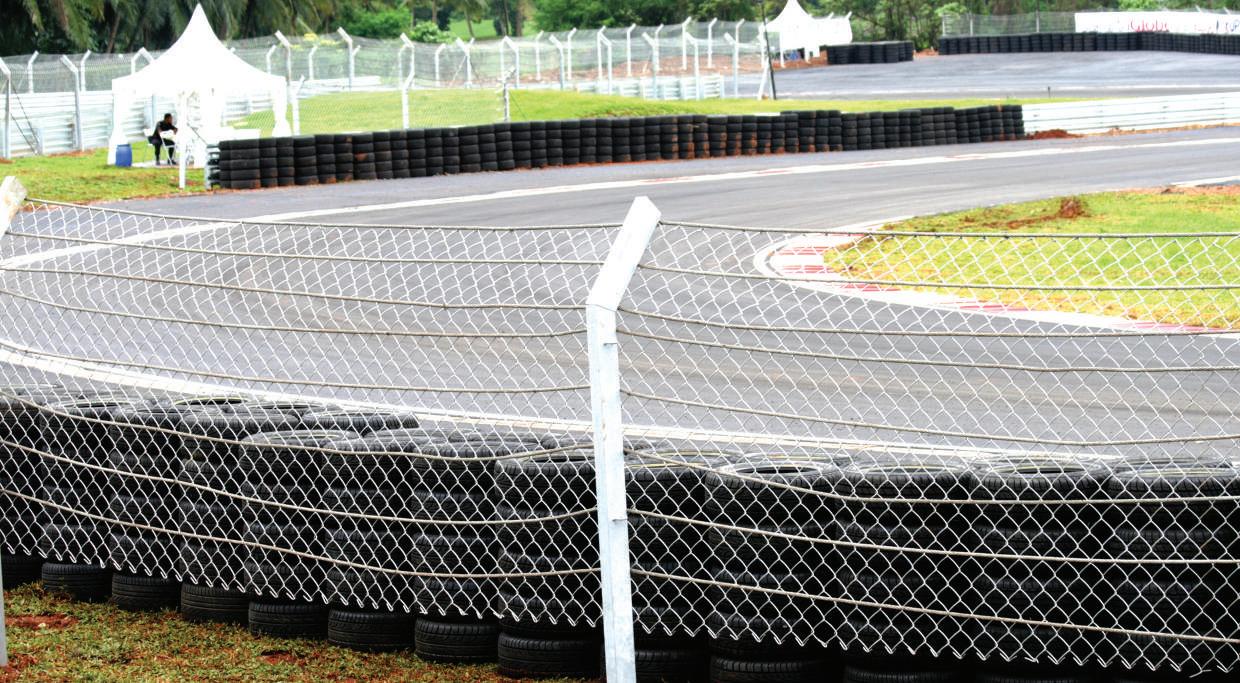

Street Circuit BEVA® Fence - Lippo Karawaci - Tangerang

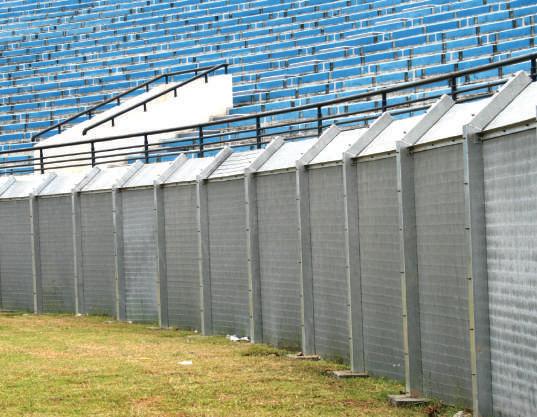

BEVA® HSS Fence Stadion Si Jalak Harupat Bandung
Special BEVA® Fence - Juanda Airport Surabaya
Special factory fence - PT. Bevananda Mustika - Lippo Cikarang

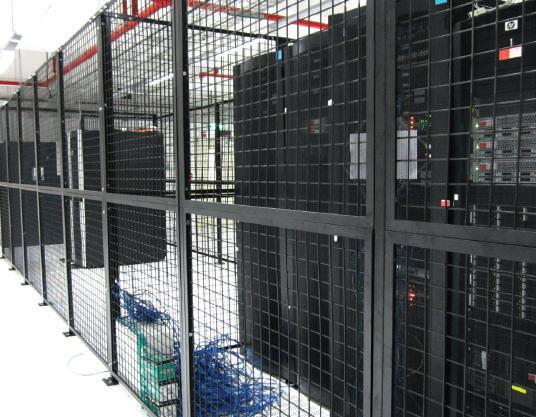

Beva® special fence - Data Center Partition Tennis Court The Summit Apartment, Kelapa Gading

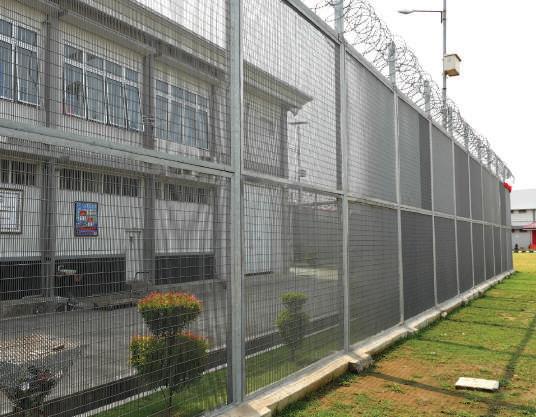

BEVA® HSS Fence - Banceuy Prison, Bandung
BEVA® PAS Fence PLTU Tanjung Kasam - Batam

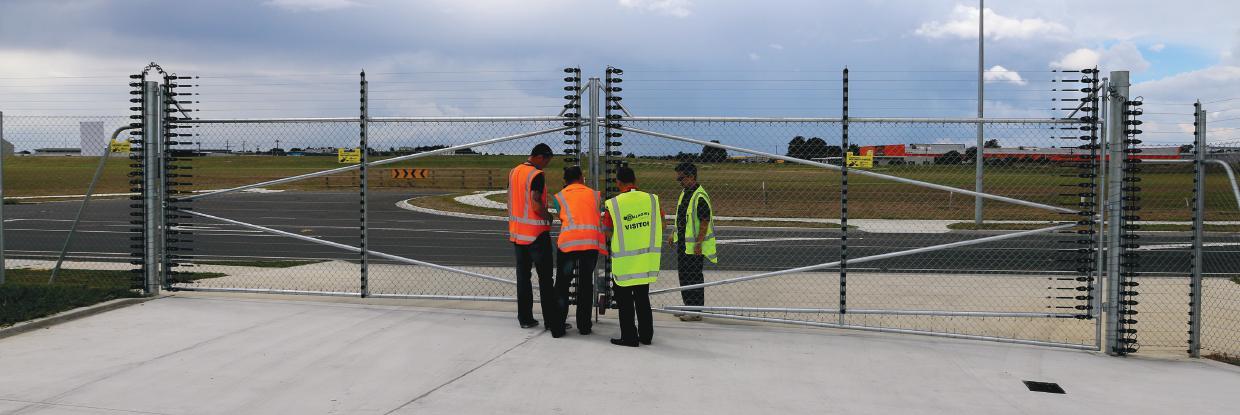

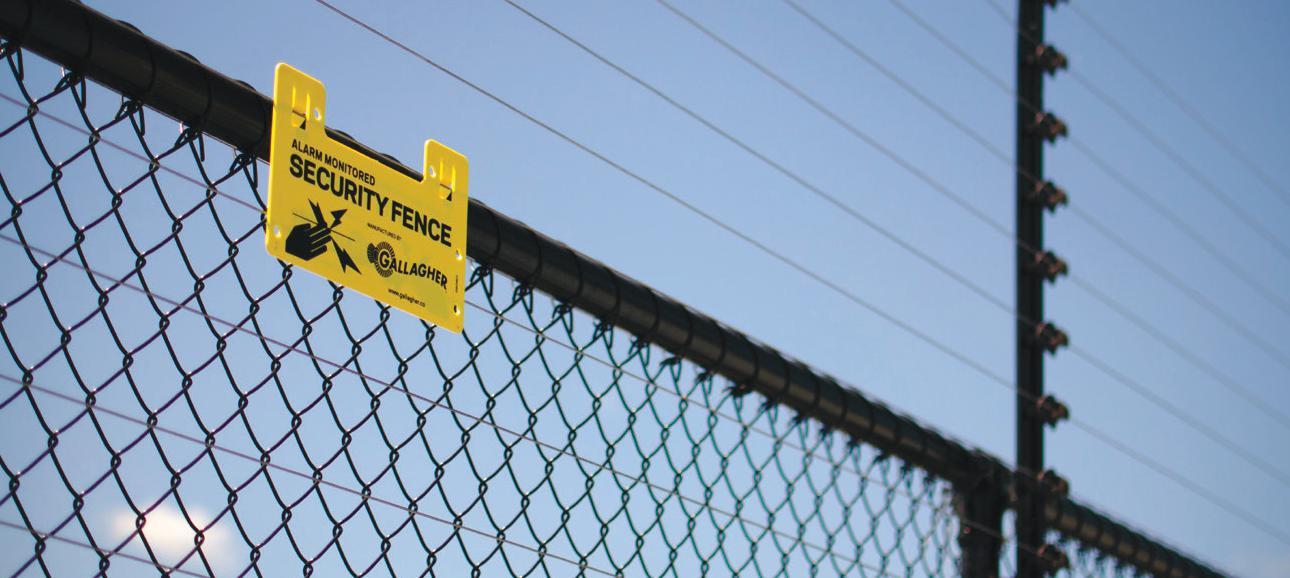

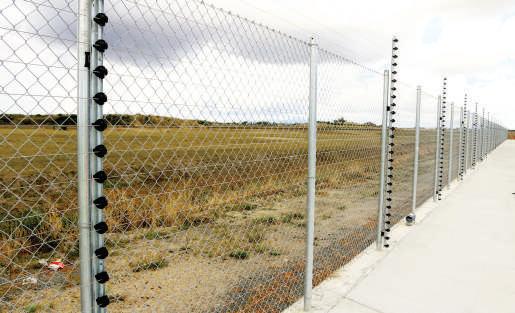

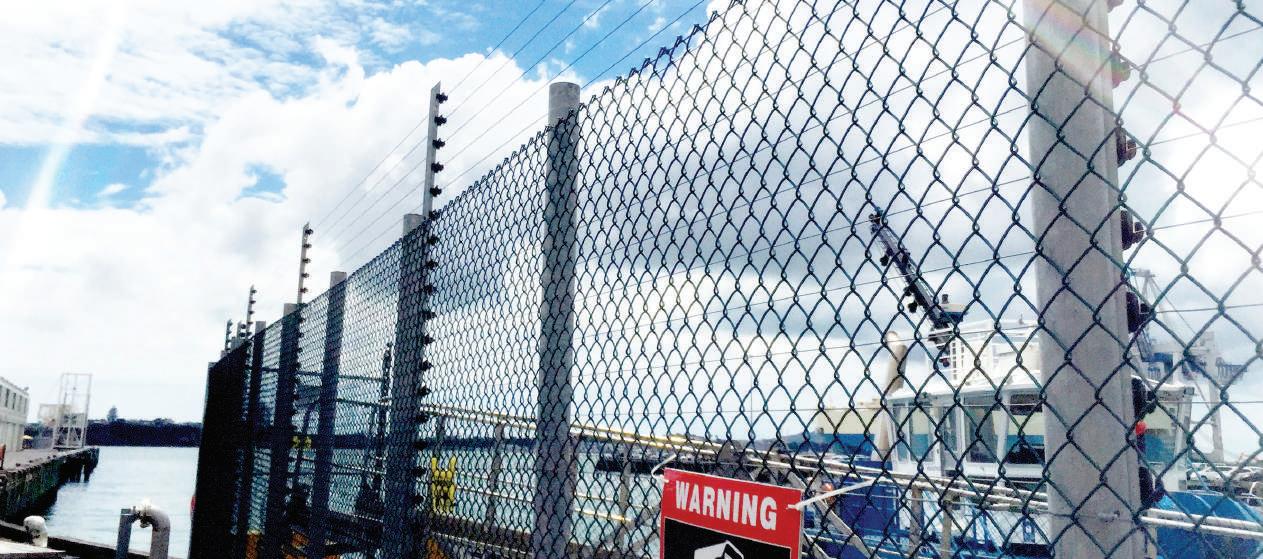

ELECTRIC SECURITY FENCE (TECHNOLOGY FENCE) II
ABOUT PERIMETER SECURITY SYSTEM
Bevananda Mustika is a certified partner with Gallagher, providing a complete solution for the Maximum Perimeter Security Solution. Gallagher offers various advances in security perimeter solutions based on two main principles: prevention and detection.
Configured and controlled using the Gallagher Command Center, effective and reliable Gallagher solutions can be managed and monitored at multiple locations from one central location.
Gallagher's cost-effective perimeter fence network system consists of a collection of high-energy and tensile cables that can be built inside a new or existing perimeter fence. The monitored cable detects unauthorized entry or exit to the specified area and triggers instant warning.
application
House Warehouse
Prison
Power Plants
Mining
Parking Area
Cluster
Military Sites
Vital Building, etc
product specification
perimeter security solutions
PREVENTION
Electrified Perimeter
Electric fences are a powerful deterrent, preventing or delaying intruders
Fully monitored fence line, attack detection and maintenance monitoring.
Reliable protection day and night.
Adjustable voltages, high for maximum deterrent and low for periods of low risk.
Configurable protection zones, adjust a site specifically to the deterrent level required.
DETECTION
Monitored Perimeter
Sensor can be used with the networked Gallagher electric security fence as an additional layer of detection, or for sites wanting to monitor activity without the deterrent pulse.
Detect intrusion without the intruder being aware.
Continuously measure and report on wire tension.
Monitor fence structure vibration or movement.
MANAGEMENT
Managed Perimeter
Gallagher’s Command Centre is a powerful operator-friendly security management system.
Full integration between perimeter, intrusion, access control, and video management systems.
Powerful reporting on detail such as fence voltage levels, operator use statistics or specific zone alarm data.
PRODUCT SPECIFICATION
TOTAL SECURITY PERIMETER SYSTEM
Gallagher utilizes the latest research, development and manufacturing to bring total security to various places. Gallagher security perimeter systems offer Network Systems and Standalone Systems.
Primary Site
Secondar y Site
Alone Site
Gallagher Command Centre with integrated Gallagher Networked Perimeter Security System
E thernet (T CP/IP)
RS485 (G B U S)
RS485 (H B U S)
RS485 (SensorBus)
RS485 (LV Sync)*
Location indicator
D ial-up C omms
* HV Sync also supported on F22 and F32, see install notes for more detail
3E0903-11/15 L eg end
