WHIMSY BF Specification

Page 1


WHIMSY

Builder: Vaudrey Miller Yachts, NZ

Naval architect: Philippe Briand

Interior Designer: Franck Darnet Design

Type: Performance Cruising Sloop

Year: 2005

Lying: Barcelone, Spain

Flag: Cayman Islands

Price: EUR 1,390,000 - VAT Paid

COMMENTS: Every detail of this yacht speaks of quality and perfection. From the Philippe Briand design of striking and sleek lines to the elegant and timeless Franck Darnet interior. Her performance and sensitivity mark her out as a racing yacht but her spacious cockpit and social living area balance her out into a true blue-water cruiser. The result is the emerging class of the performance-cruiser, with WHIMSY being the cut above the rest. WHIMSY is in exceptional condition and will turn heads, entertain guests and astound sailors wherever she goes.

Classification: EC certified. Originally MCA coded (not valid anymore)

Construction:

*Hull: Composite with carbon

*Superstructure: Composite with carbon

*Deck: Composite with carbon + 13 cm teak & 9 mm calking – New 2016

Copyright Daniel Rawlins

Colour:

*Hull: AWLGRIP Matterhorn White – New 2021

*Superstructure: DUPONT Grey Metallic – New 2021

*Deck: Teak

Cabins: Guests 3 cabins for up to 6 Crew 1 for up to 2

Length overall: 23.98 m

Length waterline: 21.93 m

Maximum beam: 5.93 m

Draft: 3.20 m

Displacement: 38.50 t

Ballast: 13.50 t

Spars: MATRIX (now called HALL SPARS, NZ) carbon mast & boom

Standing rigging: NAVTEC - New 2016 – Visual control by Rogi in 2024

Running rigging: Sheets new through 2021 – 2022 - 2023

Furlers: RECKMANN hydraulic for the genoa HARKEN manual for the staysail FACNOR FX. 9000 manual for the gennaker

Sails: ALL PURPOSE and NORTH SAILS complete set

*Upwind: 300 m²

*Downwind: 540 m²

Deck hardware: HARKEN hydraulic central HARKEN winches

CARIBONI Magic Trim by for the main sail sheet

Windlass: LEWMAR V6 - New 2016

Bow thruster : LEWMAR 300 SVT

Engine:

180 HP VOLVO PENTA D4-180 - New 2016 approx. 4,100 hrs in September 2024 4 blades VARIPROP DF Type propeller

*Performances: 8.50 knots @ cruising speed 10.00 knots @ max speed

Generator: 22.5 kW CUMMINS ONAN MDKDT - New June 2023 approx. 500 hrs in September 2024

Batteries 12 x MASTERVOLT 1,100 AMP - New in 2020 1 for engine start 1 for generator start

Fuel: 2,300 l

Water: 1,200 l

Black & Grey Water: 2 x 200 l & 3 x 250 l

Boiler: Yes

Water maker: 250 l/h SEA RECOVERY SRC AWM - approx. 3,165 hrs September 2024

Refrigerator: ANFOSS isotherm 24V 1 x 307 l & 1x 233 l

Deep freezer: DANFOSS isotherm 24 V 1 x 206 l

Air-conditioning: 2x CRUISER MTC 24

Electronic: 2020 Upgrade

*Instruments: NKE 4 x Multidisplay 2 x Multigraphic

*Sounder: NKE with 2 remote controls

*Self-steering: NKE

*Gyrocompass: NKE

*AIS: NKE

*Computer: with TIMEZERO software

*Screens: SAMSUNG

*Satcom: Satcom Fleet CONHAM

*SSB radio: Yes

*VHF radio: ICOM M 506 + 3 hand sets

*GPS: FURUNO Navnet

*Chart plotter: FURUNO

*Radar: FURUNO Navnet

*Epirb: MACMURDO - New 2014

DECK AND COCKPIT

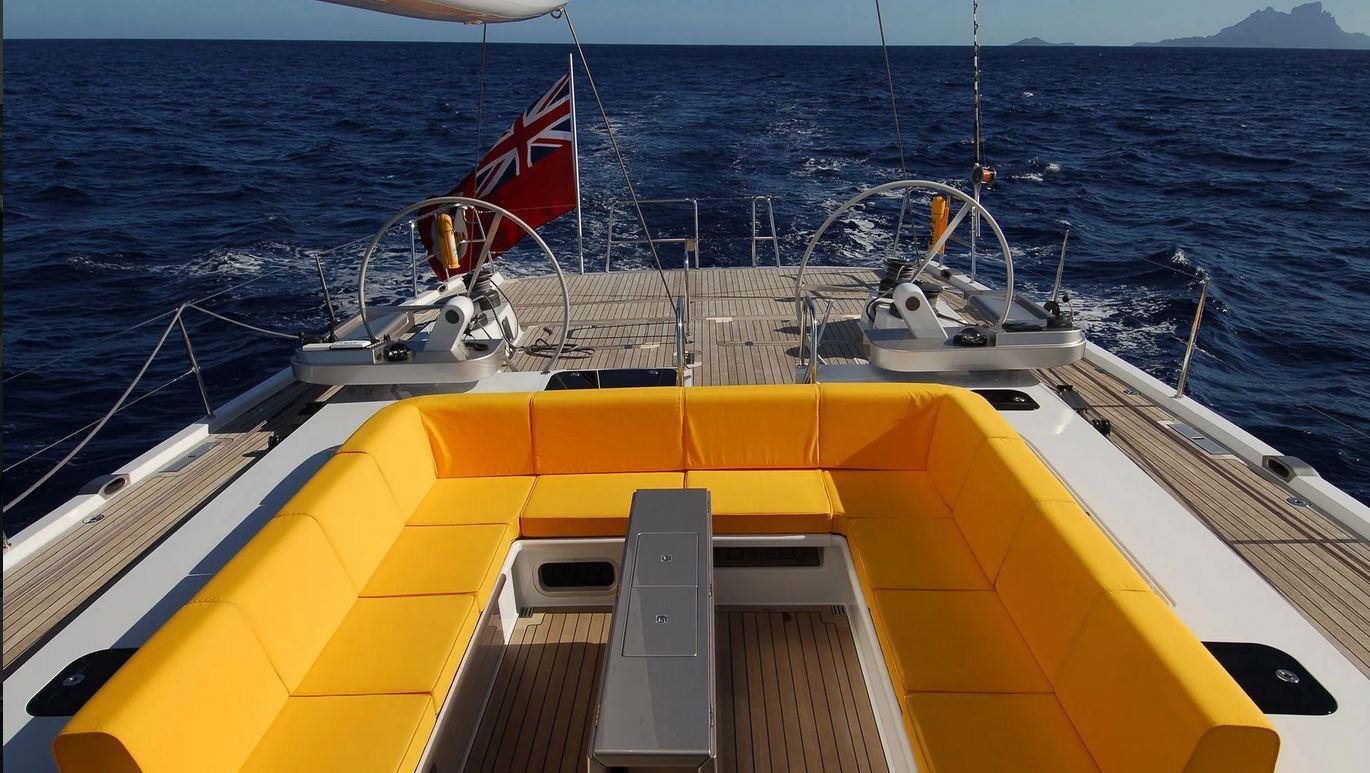

Exceptionally clean layout. A spacious and social cockpit amidship which can be completely covered with a Bimini as necessary

Separate working area with dual steering helms. Winches and sheets are behind both helms to maximise safety on board, in particular for children in the cockpit area

A large aft sunbathing area with access to a large bathing platform.

ACCOMMODATIONS

For up to 6 guests and 2 crew, spacious and comfortable.

SALOON

Exceptionally large saloon to emphasize the social layout of the yacht, slightly raised and spacious with lots of natural light

CABINS & BATHROOMS

The owner and guest accommodation consists of 3 equal cabins: two identical forward double cabins with en-suite and one twin cabin amidships with en-suite

This provides great flexibility and is in keeping with the social and free feel of the yacht

CREW AREA

The independent crew area is located aft, separated from the saloon by the galley and with direct access to the deck to give guests maximum privacy

The comfortable crew area consists of a double bed cabin and crew mess which can be converted into a cabin for a third crew member

There is also a separate bathroom

GALLEY

Intelligent, spacious design and layout in keeping with the rest of the yacht

Well-equipped and with sufficient storage facilities for periods of long-distance cruising

DOMESTIC EQUIPMENT

NESPRESSO coffee machine

MIELE washer/dryer

NEFF electric oven

SAILS AND RIGGING

Sails:

• 160 m² Trilam Dyneema/Black Technora main sail - 2 reefs – ALL PURPOSE 2017

• 135 m² Trilam Dyneema/Black Technora roller furlinh Jib – ALL PURPOSE 2017

• 75 m² Trilam Dyneema/Black Technora roller furling staysail – ALL PURPOSE 2017

• 273 m² white stormlite gennaker with Furling forestay – New 2021

• 380 m² asymmetric spinnaker A5 heavy AP Reaching Norlon 150 - NORTH 2005

• 35 m² Trysail (NORTH 2005 – never used)

• Storm Jib Dacron Orange (NORTH 2005 – little used)

Rigging:

Spars: MATRIX (now called HALL SPARS, NZ) carbon mast & boom

Standing rigging: NAVTEC - New 2016 – Visual control by Rogi in 2024

Running rigging: Sheets new through 2021 – 2022 - 2023

Furlers:

RECKMANN hydraulic for the genoa

HARKEN manual for the staysail

FACNOR FX. 9000 manual for the gennaker

ENGINE ROOM

Spacious and practical layout allowing easy access to all area machinery.

COMMUNICATION EQUIPMENT

Satcom Fleet CONHAM

Epson Jet Printer

VHF radio ICOM M 506 + 3 hand sets

SSB radio

ENTERTAINMENT

SHARP LCD TV & Video in Salon

BOSE Livestyle 38 in salon, cockpit, and steering

ELECTRICITY

Charger 2 x MASTERVOLT Charger Mass 24 V/100 Amp 1 x VICTRON

Inverter 2 x MASTERVOLT Colorado 24 V/2,500 W

Generator: 22.5 kW CUMMINS ONAN MDKDT - New June 2023 approx. 800 hrs in September 2024

Batteries 12 x gel MASTERVOLT 1,100 AMP - New in 2020 1 for engine start 1 for generator start

SAFETY AND SECURITY

BFA Marine Life raft, 12 pers. Serviced 2024

Lifejackets, bilge alarm, and fire extinguishing system (2024) One diving gear

MOORING

1 CQR 63 kg anchor with 100 m of 14mm chain

1 FORTRESS emergency anchor with 110m rope

TENDERS AND TOYS

3.40 m AB aluminium semi-rigid with YAMAHA 25 Hp outboard - New 2023

Inflatable “stand-up paddle”

Inflatable TIWAL 2 sailing dinghy – New 2020

MISCELLANEOUS EQUIPMENT

MULTIPLEX carbon gangway

Integrated bathing platform with bathing ladder and deck ladder

Hot and cold shower on the bathing platform

Salt and fresh water deck wash system

SUNBRELLA cockpit cushions new in 2020

Bimini over the cockpit table can be extended and connected to dodger and closed on all sides by crystal walls on zippers

Large boom canopy, and many other cover extensions

Fenders 8 (110 cm x 70 cm) - New 2020 1 (200 cm x 70 cm) - New 2020

1 hydraulic MASTJACK with pump

1 safe in the crew cabin

8 x Fleece jackets

GENERAL CONDITION

As new and ready to sail!

VAT STATUS

VAT Paid

Detail given in good faith with no guarantee nor warrant for accuracy or conditions. A Buyer should instruct his surveyor to investigate such details as he desires validated. This is NOT a contractual document.
