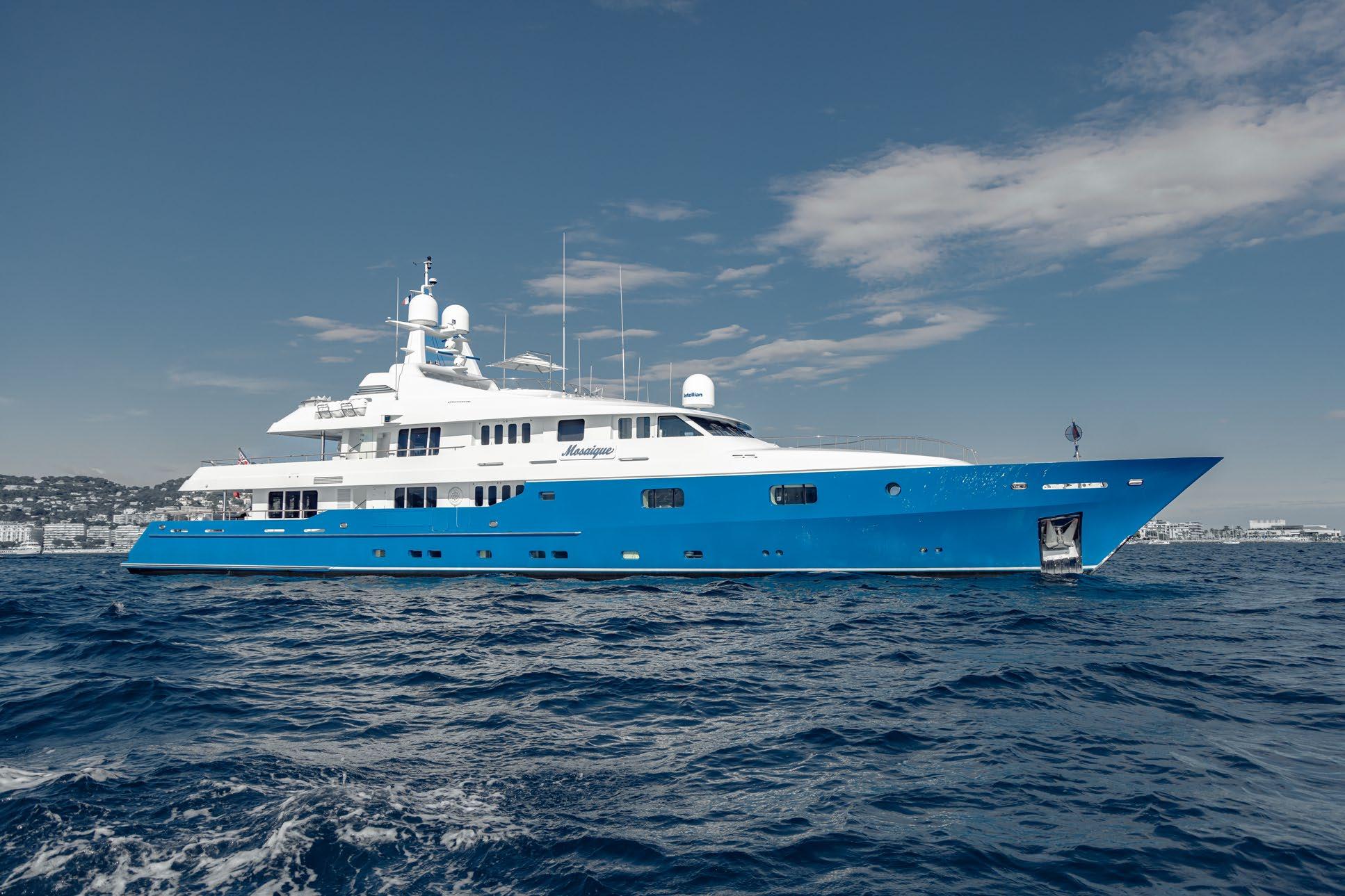

MOSAIQUE

164’ (49.90m) Proteksan-Turquoise Motoryacht, 2002/2022

Length Overall:

163.72 feet (49.90 meters)

Beam: 30.51 feet ( 9.30 meters)

Draft: 9.61 feet ( 2.93 meters)

Year Delivered: 2002 / Refit 2007, 2015, 2017, 2022

Type: Full Displacement Oceangoing Motoryacht

Flag: Cayman Islands

Tonnage: 589 gross

Builder: Proteksan-Turquoise (Turkey)

Naval Architect: Dubois (UK)

Exterior Design: Dubois (UK)

Interior Designer: Donald Starkey Designs (UK) / Kristina Ferrand (US)

Construction: Steel hull, aluminum superstructure, teak decks

Classification: ABS, MCA Compliant, ISM Compliant, Commercial

Main Engines:

Electrical:

Speed:

Tankage:

Range:

Accommodations: Location:

Original Price: Current

(2)Caterpillar 3508 DI-TA diesels @ 1,100 Hp each

(2)160 kW Caterpillar 3306B generators

Maximum: 15.0 knots

Cruising: 12.0 knots

Fuel: 22,375 US Gallons (84,700 liters)

Water: 6,119 US Gallons (23,162 liters)

4,500 nautical miles @ 14.0 knots

Sleeps up to 12 in the Owner's party in 6 staterooms, plus crew accommodations for up to 12 in 6 cabins

Western Mediterranean

USD 15.5 million

USD 11.9 million

- Information provided believed correct, but cannot be guaranteed.Not offered for sale or charter to U.S. residents while in U.S. waters unless under a boat show bond or in an FTZ.

4. COMMUNICATION, NAVIGATION & ENTERTAINMENT

4.1 Communication Systems

4.3 Entertainment Systems

5. GALLEY & LAUNDRY EQUIPMENT

5.1

1. CONSTRUCTION

Steel hull, aluminum superstructure, teak decks

2. DIMENSIONS

2.1 General

Length Overall (L.O.A.):

Beam (molded):

163.72 feet (49.90 meters)

30.51 feet ( 9.30 meters)

Draft (loaded): 9.61 feet ( 2.93 meters)

Tonnage: 589 gross

2.2 Capacities

Fuel Capacity:

22,375 US Gallons (84,700 liters)

Water Capacity: 6,119 US Gallons (23,162 liters)

Black Water: 599 US Gallons (2,266 liters)

Grey Water:

2.3 Fuel Consumption

3,817 US Gallons (14,450 liters)

• Fuel Consumption for 2 ME: 180 l/hr at cruising speed (12 knots)

• Fuel Consumption for 2 ME: 320 l/hr at top speed (15 knots)

3. MACHINERY

3.1 Main Engines

Engine Type:

Gearboxes for Main Engines:

Drive:

3.2 Generators & Electricity

Output:

Generators:

Generator Fuel Consumption:

Shore Power:

Converter:

Batteries:

3.3 Air Conditioning

Type:

3.4 Other Machinery

Watermakers:

Trim Tabs/Stabilizers:

Bow Thruster:

Steering System:

Fuel Separator & Filtration:

Sewage System:

Fresh Water System:

• (2) Caterpillar 3508 DI-TA diesels @ 1,100 Hp

Each

• Top End Overhaul on Main Engines 2022

• Reintjes WAF 541

• (2) Teignbridge 5 blade propellers

• 220V 50hz / 300V 50hz 3phase

• (2) Caterpillar 3306BT (Major overhaul 2022)

• 20 l/hr

• 120 / 380V 1&3phase 50/60hz

• Atlas 80Kw

• 24V

• Condaria WM-RE 120002

• (2) Octo Marine Deepblue T8 -8m3/day

• Quantum Zero Speed

• CRAMM V2 20H

• Ulstein JR 2.130 (Total Rebuild 6/2024)

• Alfa Laval MAB 103B

• Hamann Type 2

• C-PVC

Bilge Water Filtration: • Heli Sep HS-500 OCD Bilge Water Separator (6/2021)

4. COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

4.1 Communication Systems

SATcom:

Telephone System:

SSB:

VHF:

Cellular Phone System:

Intercom:

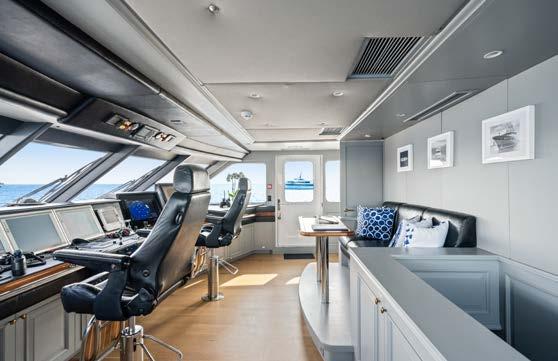

4.2 Navigation Systems

Radar:

Gyrocompass:

Magnetic Compass:

Auto Pilot:

Echo Sounder:

GPS:

Weather FAX:

Laser Plotter:

Wind/Speed Log:

Navtex:

AIS:

Chart Display:

BNWAS:

4.3 Entertainment System:

a. Video & Audio Equipment

• Starlink

• Panasonic

• MF/HF DSC Radio set

• (2) Sailor 6222 VHF DSC

• Kerio System with Sim Cards & Google Phones

• Panasonic

• (1) FURUNO FAR22x8BB with (1) Furuno 8’

Open Array Antenna, X-Band (6/2023

• (1) Furuno XN20CF/6.5 6.5' Open Array

Antenna, X- Band (6/2023)

• Anschutz STD22 (Sphere replaced 4/2024)

• Cassens & Plath Delta (4/2024)

• Anschutz Pilotstar D

• ELAC LAZ 5100

• Simrad A170 + Furuno GP170

• B & G Hydra 2000

• Transas

• Consilium SAL R1

• Sailor TT-3606E / Navtex Receiver/Printer

NX700P

• Simrad

• Transas Navi Sailor 4000 MFD

• Furuno BR500PA Pilothouse Alerter System

• AV system with HD screens throughout the yacht updated with new releases (2023)

• Full surround sound cinema with pop up screen in the main saloon

• Plasma or liquid crystal flat screen TV's throughout the yacht - makes and sizes below:

o Sky Lounge - flat screen LED Samsung 55"

o Master cabin - flat screen Pioneer TV 41"

o All other cabins - flat screen Sony TV 20"

o Sky TV (Mediterranean)

• Audio on demand system available throughout the yacht (inside & outside)

• Sound server and iPad docking stations in both saloons and all cabins

5. GALLEY & LAUNDRY EQUIPMENT

5.1 Main Galley Equipment

Cooking Equipment:

Refrigeration/Freezer:

Dishwasher:

5.2 Crew Galley/Mess Equipment

Cooking Equipment:

Refrigeration/Freezer:

Other:

5.3 Laundry Equipment

Main Laundry Equipment

6. TENDERS & TOYS

Tenders:

Dive Gear:

Other:

7. DECK EQUIPMENT

Anchor Windlass System:

Aft Warping Capstans:

Anchors:

Anchor Chain:

Boat Crane and Davits:

Passerelle:

Swimming Platform:

Other:

• (2) Convotherm combi oven

• 4 Ring MKN Induction

• (1) Microwave

• (2) Amino refrigerator

• (2 Electrolux refrigerator

• (2) freezers

• (3) ice makers

• Hobart

• Microwave

• Liebherr Refrigerator/Freezer

• Miele Dishwasher

• (2) Miele washers

• (3) Miele dryers

• BSC 66 (6.6m) tender with 200HP Yamaha

Gas outboard engine, seats 12

• 4.2m Rescue Boat tender with 2-stroke 15HP

Toast gas OB engine

• Air compressor, 3 Regulators, 3 BCD’s, 4 oxygen Tanks, 1 Nitro Tank Tanks, 15 Sets Snorkel Gear

• Ghost tracking system for tender

• (2) Muir VRC 15000 (Rebuilt (6/2024)

• (2) Muir VC 13000 (Serviced (6/2024)

• (2) 495 kg anchors

• (2) New (6/2024)

• Rescue Crane – Cramm SWL 3100kg

Lazarette Crane – Cramm SWL 500kg

• Retractable hydraulic Cramm Ocean

• 612 x 148cm with hot and cold shower

• Retractable sun awning on bridge deck

• Parasols on the sundeck

8. SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

8.1 Security Equipment

CCTV System:

Cameras:

Monitors:

• Fully Operational

• (5) CCTV Cameras

• Located in Bridge and Crew Mess

8.2 Fire Fighting Equipment

Fire Control System:

Fire Extinguishers:

• Ultra Fog

• Portable Units Serviced Annually Alarms:

8.3 Safety Equipment

Life Rafts:

Life Jackets:

EPIRBS:

Flares:

Medical Equipment:

Rescue Tender:

9. ACCOMMODATIONS

• Consilium

• (4) 25 Person SOLAS A

• SOLAS Inflatable 38 x Adult, 6 x Child

• Current as of 6/2024

• DSB 420 IRB Solas Rescue Boat

MOSAIQUE accommodates up to 12 guests in 6 staterooms, including a full beam master stateroom and a VIP stateroom on the main deck, as well as four additional staterooms on the lower deck.

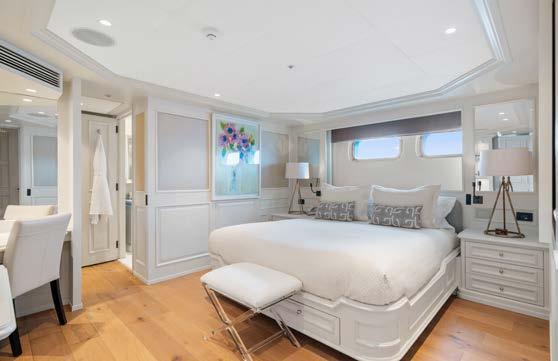

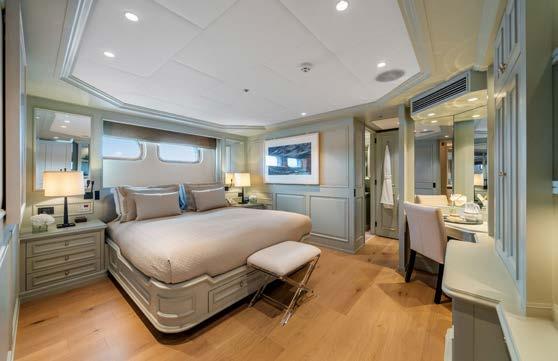

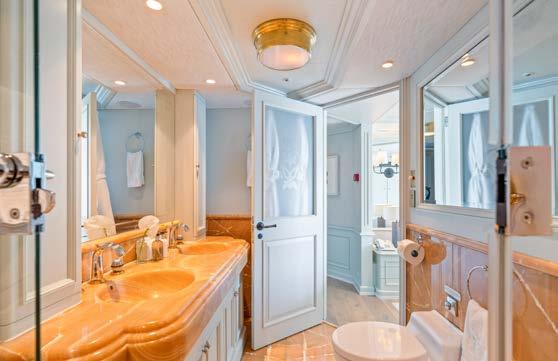

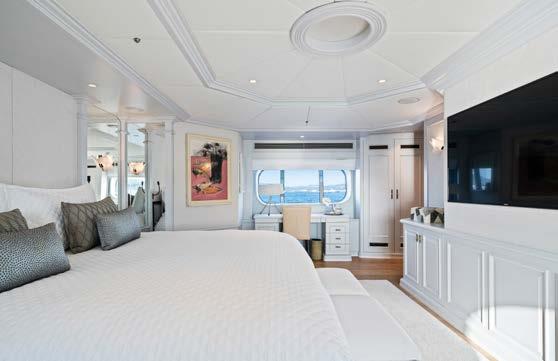

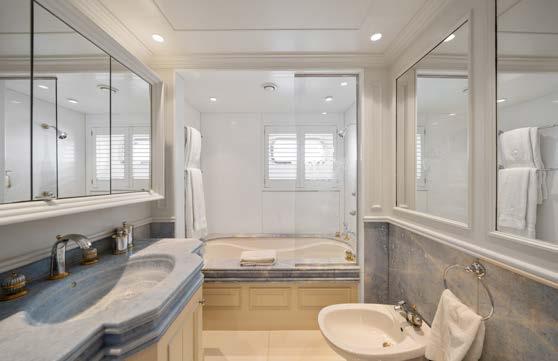

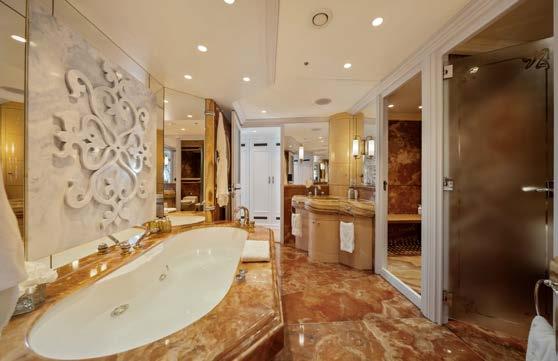

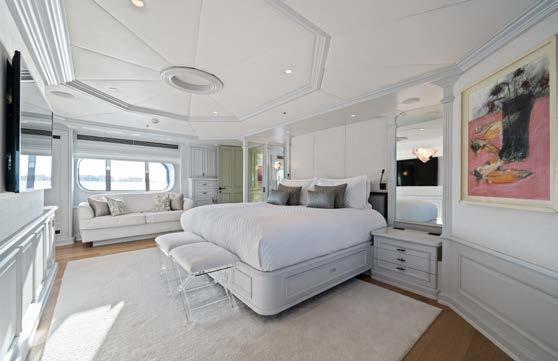

The full beam master stateroom on the main deck features a king-sized bed, a separate seating area, and a luxurious bathroom with a whirlpool tub, steam shower, and double vanity, all elegantly decorated in onyx and marble.

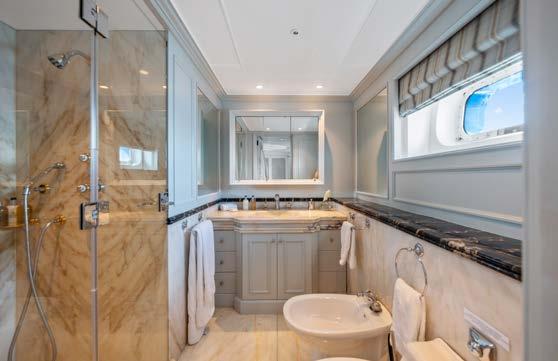

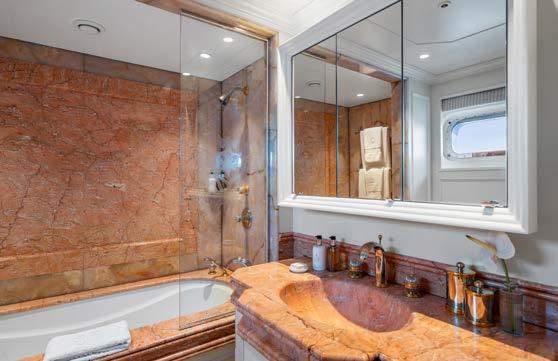

The VIP stateroom on the main deck includes a large double bed and an ensuite bathroom with a double vanity.

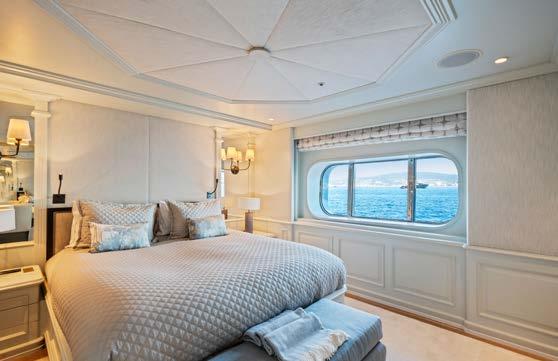

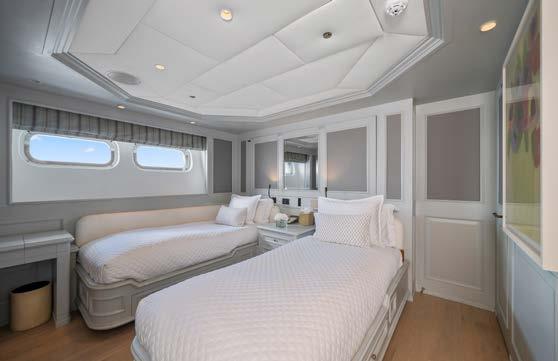

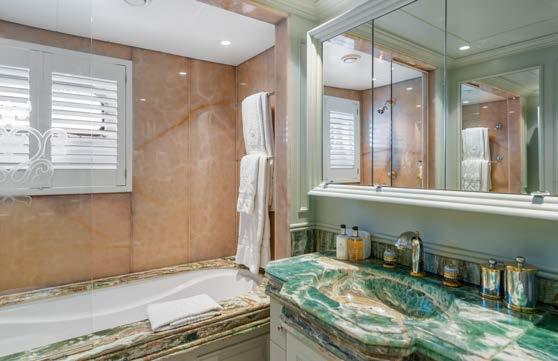

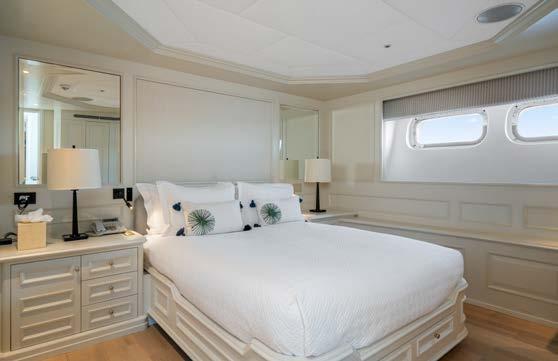

On the lower deck, there are three double staterooms, each with an ensuite bathroom, and one twin stateroom with an ensuite bathroom.

10. COMMENTS

Designed by the esteemed Dubois Naval Architects, MOSAIQUE is a sophisticated and stylish luxury yacht that manages to maintain a sense of intimacy despite her expansive decks and luxurious suites. Her thoughtful and creative design ensures that every space feels personal and inviting.

Her lovely interior is light, bright and airy and in the “Hamptons Beach House” style.

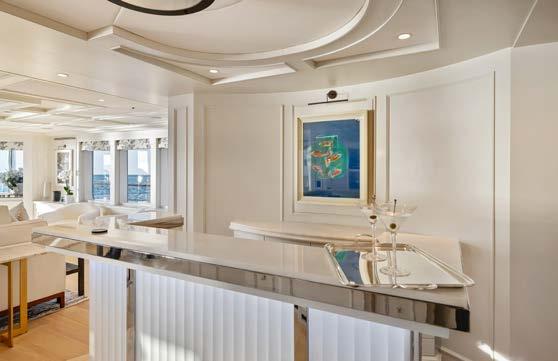

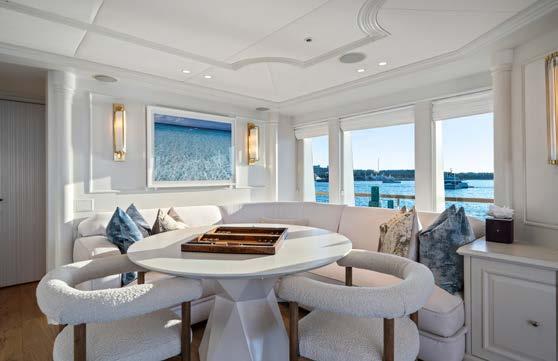

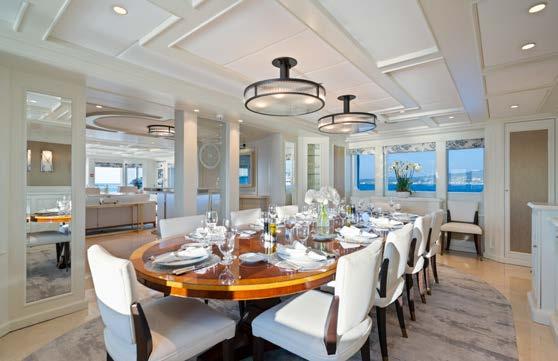

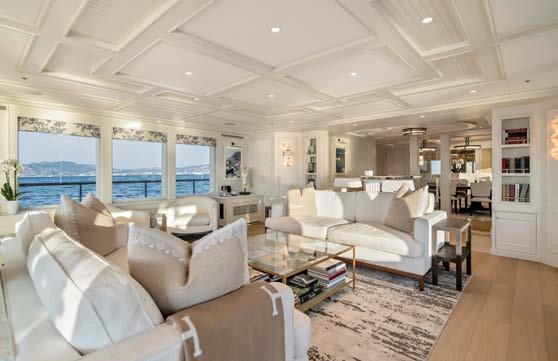

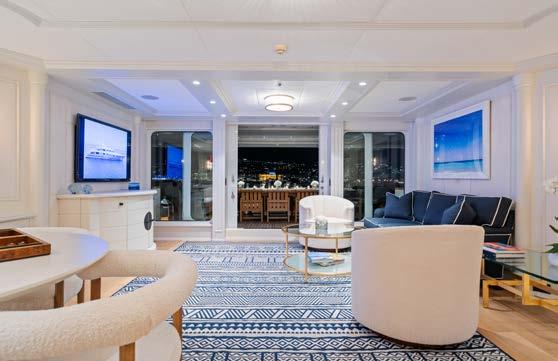

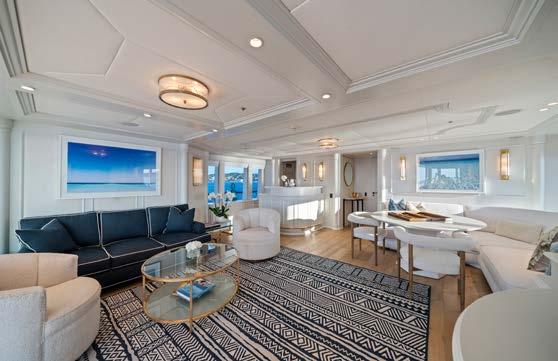

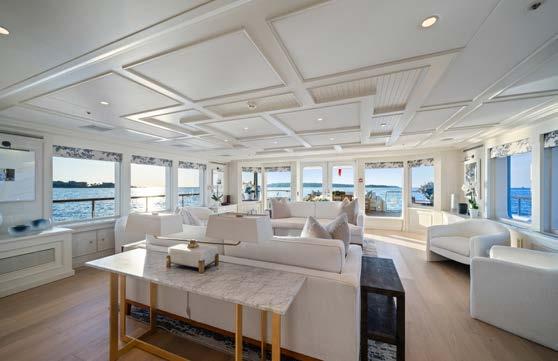

The yacht’s main deck is ideal for relaxation, featuring a spacious salon that opens onto an elegant foyer leading to a formal dining room for 12 guests. These areas are adorned with a refined palette of modern and classic tones, neutral carpets, and soft furnishings. For an alternative retreat, the upper deck saloon offers a charming, equally serene space.

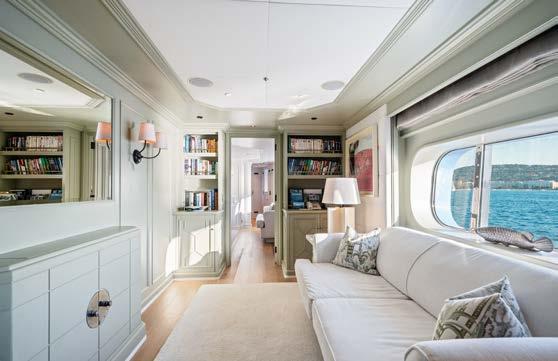

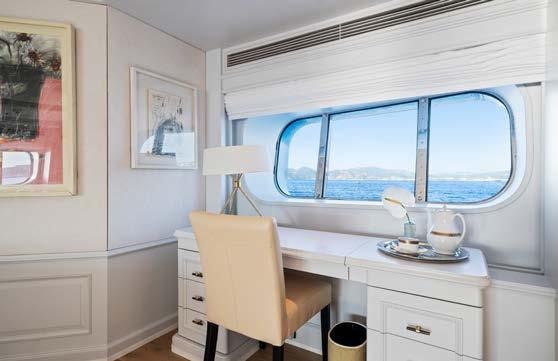

On the main deck, the magnificent full beam master stateroom sets a high standard for the five additional staterooms. The master stateroom includes a private owner’s lounge/office and an opulent bathroom finished in onyx and marble. Each stateroom is equipped with a fully integrated audio-visual system, providing guests with a wealth of entertainment options.

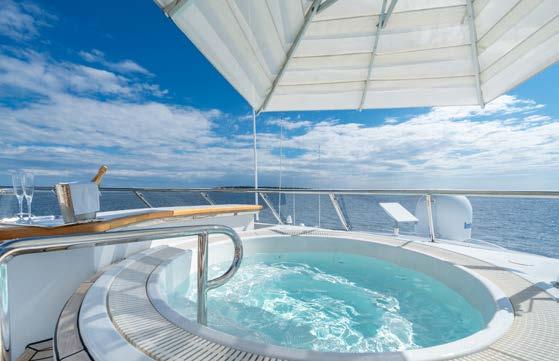

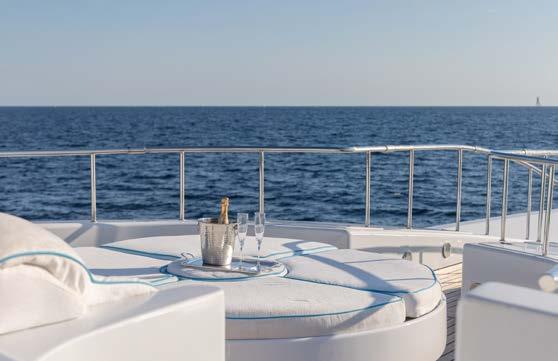

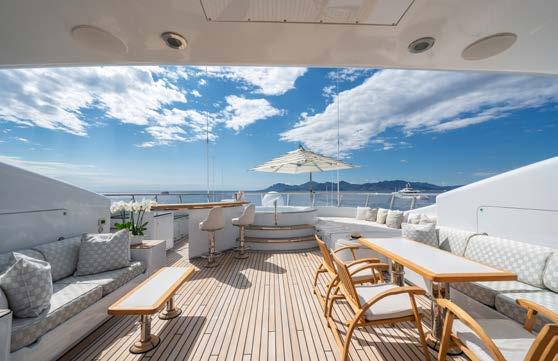

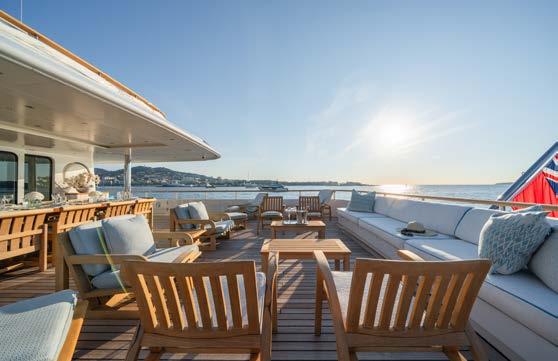

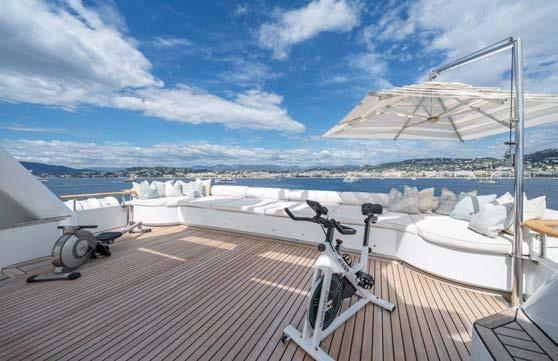

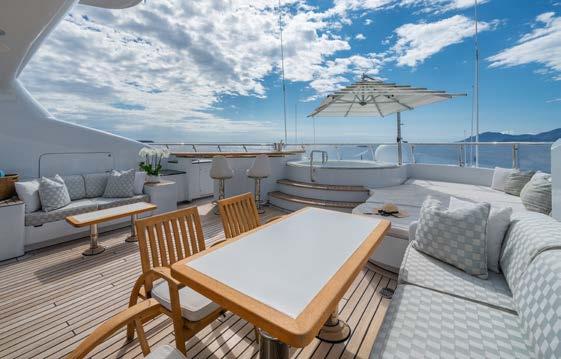

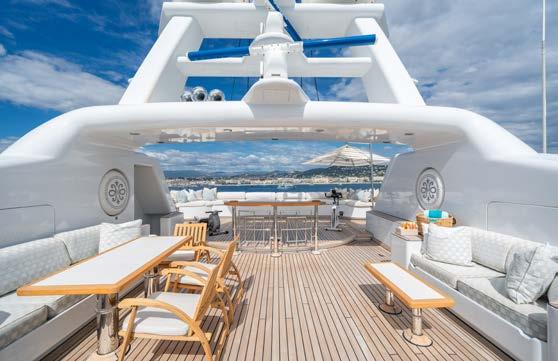

A standout feature of MOSAIQUE is her sundeck, where a whirlpool is surrounded by sun pads and loungers. This area also features a bar and two tables for informal alfresco dining, offering the perfect setting to enjoy fine cuisine and service in complete privacy. Guests can also take advantage of the gym equipment, which includes a treadmill, recumbent bike, training bench, and weights, all sheltered by a Bimini shade for added comfort.

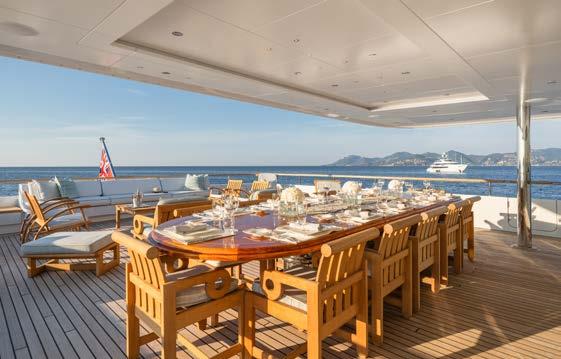

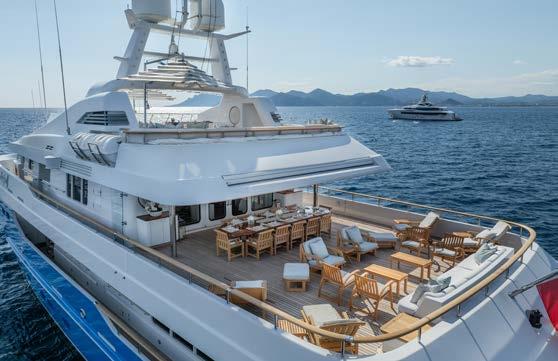

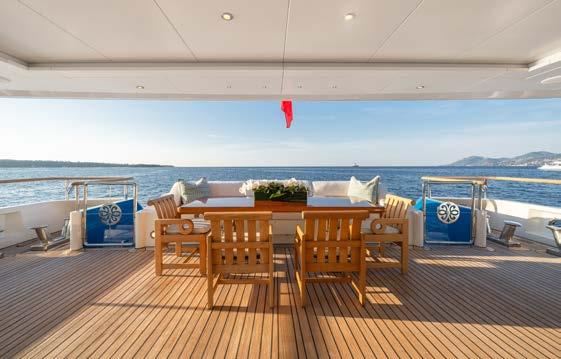

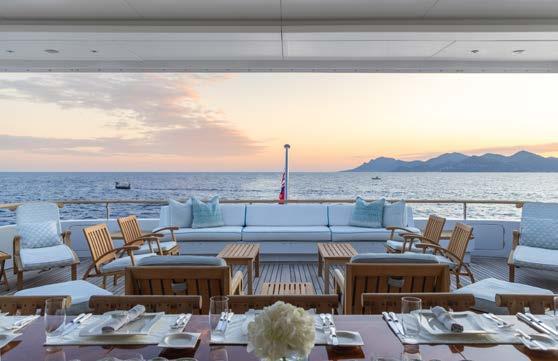

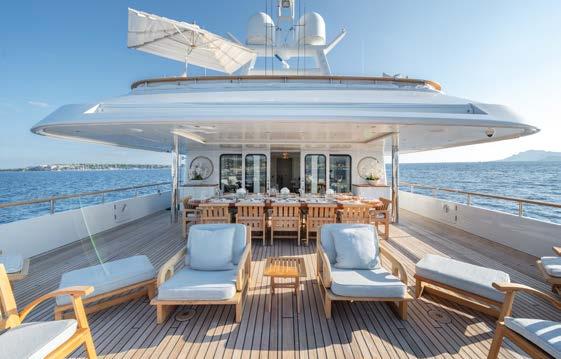

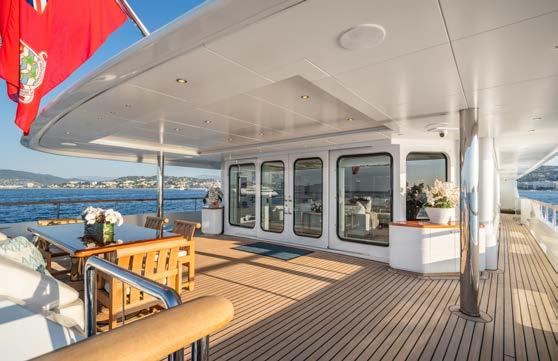

For alfresco dining, the bridge deck offers seating for up to 16 guests around a stunning oval teak table. The table’s removable leaves allow for a more intimate dining experience when desired.

MOSAIQUE is equipped with zero speed stabilizers for a smooth and comfortable experience both underway and at anchor. She has two tenders at the ready for trips ashore or water sports, as well as an impressive array of water toys

KEY FEATURES:

• Timeless design by Dubois Naval Architects

• Light, Bright, Airy interior décor refreshed in 2023 provides accommodations for 12 guests in 6 staterooms including a main deck full beam master stateroom

• Whirlpool, Sun Pads, Exercise Equipment, Dining and Cocktail Bar

• A major refit in 2022/2023 included:

o Major overhaul of the main engines and generators, covered by Caterpillar Platinum Extended Service

o 20-year Lloyd's classification survey

o Complete bottom sandblasting

• Quantum Zero Speed Stabilizers

• Transatlantic Capability

• 4,500 nm range at 14 knots

• Strong Charter Reputation

11. REFIT/ MAINTENANCE SUMMARY

2022/2023

• Hardwood Floors installed throughout the vessel

• 20 Year Lloyd’s Classification Survey Completed 2022

• Top End Overhaul on Main Engines 2022

o Covered by Caterpillar Platinum Extended Service Cover (ESC)

• Full Rebuild on Generators 2022

o Covered by Caterpillar Platinum Extended Service Cover (ESC)

• Complete Bottom Paint Job 2022 (sand blasted down to bare metal)

• Interior Refresh 202 3; soft goods, carpet, etc.

• Complete refurbish of crew quarters

• Deckhead replacement throughout the vessel

• Various mechanical improvements

2021 -2019

• (March 2021) Special Lloyds Class Surveys renewal of all certification

• "Blue Marlin" exterior paint Job 2020

• New Carpets, new interior refurbishment and upgrades

• Various mechanical improvements

2015/2014

• Total interior refurbishment with new soft furnishings
