JACK BF Specification

Page 1

JACK

Builder: McConaghy

Naval Architect: KerYachtDesign

Interior Designer: m2atelier

Model: MC75

Build Year: 2023

Length: 23.3M

Beam: 9.8M

Draft: 4.5Mwithdaggerboarddown2.7Mfullyup.(rudderdepth)

Displacement: Light(designweight)34.546kg/51T

Flag: British

Lying: Antigua

Price: 6.000.000 GBP

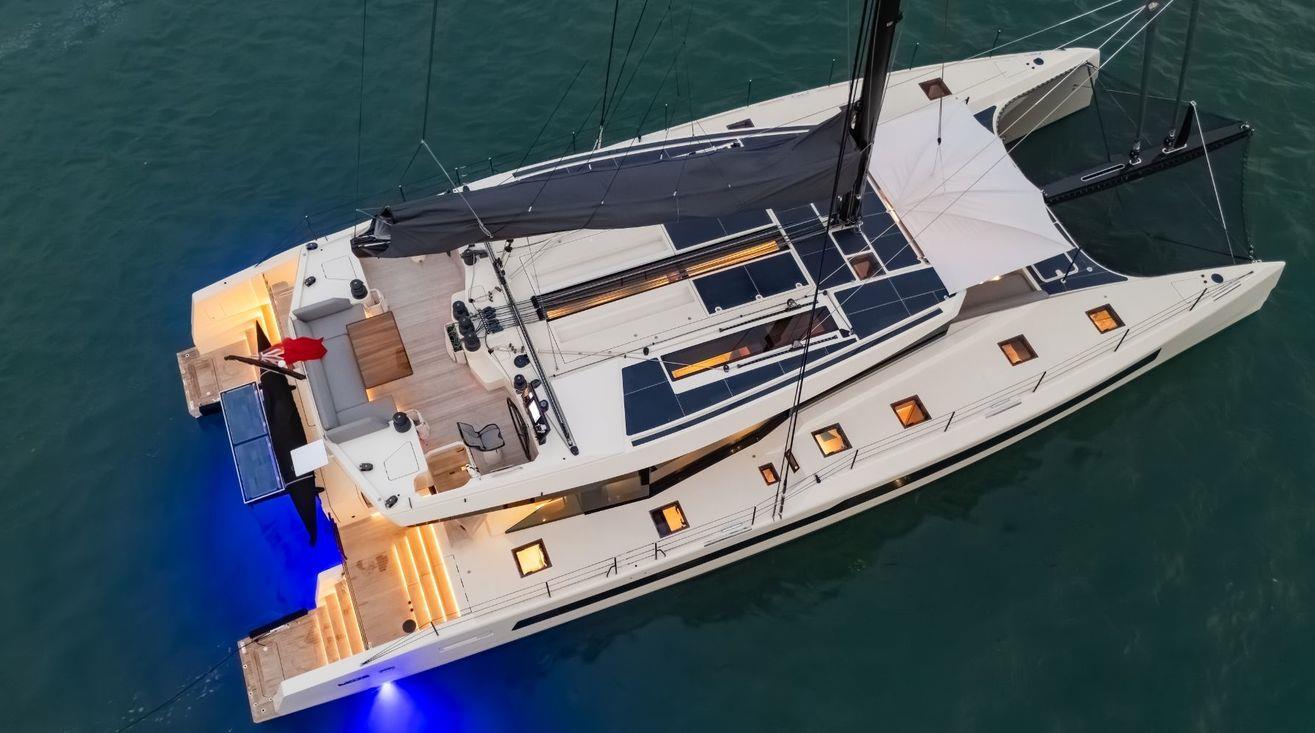

COMMENTS: The McConaghy 75 (MC75) is lightweight, eco-friendly luxury performancecruisingcatamaran.Theprogressivedesignfeaturesanappealingflybridgeextendingaft creatingasweeping,sleeklook.

Performingwithaneffortlessgraceeveninlightairs,theMC75providessmoothsailingprowesswith stabilityand enviablespeed. Weighinghalftheweightofmanyofher contemporariesshecansailin sub 10 knots but in 20kts of wind with acodezero flying the MC75 is predicted to reach 21knots of boatspeed.

TheMC75featuresalargesaloonloungewithadiningareaandwalk-aroundbar,aspaciousaftdeck with sofas and al fresco dining space, and cushioned foredeck area. The sophisticated environment offers a fantastic visual connection with the sea. Fully retractable sliding side windows and floor-toceiling glass create the perception of freedom, with an infinite amount of visual space and an enhanced, symbiotic relationship between inside and out. Within, internal volume has been maximised and every space configured with distinct purpose in a layout that dispels all preconceptionsofyachtinteriors.

Hull, Deck & Superstructure

Construction:

Hull

ā–Ŗ PaintedhullinOysterWhite(Dupont)

ā–Ŗ Hull-E-glass/epoxy/foamsandwichwithcarbonfibrestructuralelements

ā–Ŗ Coppercoatantifoul

ā–Ŗ Hydrauliccentreboards

Deck/ Anchor

ā–Ŗ Teakdeck

ā–Ŗ UltraAnchor-Lewmar80kg

ā–Ŗ 2Mooringwarpswithchainsandsprings

ā–Ŗ 6Mooringwarps

ā–Ŗ Boardingladderrebatedinaftdeckandcarbonfibrediveladder

ā–Ŗ 3xdeckshowers(onefixedrainforestShower).

ā–Ŗ 10Fendertexfenderswithblackcovers,2whiteZodiacfenders

Winches

ā–Ŗ CockpitWarpingwinches,4xHarkenCLR1200popupwinch

ā–Ŗ Winches:Seven(7)xHarken,2x80.3S,3x70.3STHP,2x60.3STHP

Stanchions

ā–Ŗ Stanchionsx22-800mmhighwith3rdlifelineinblackcarbon

Tender & Outboard

ā–Ŗ HighfieldCL4604.6maluminiumRIBwithYamaha70Hp

ā–Ŗ Hydraulicdavits

Sails & Rig

Sails - Doyle,PerformanceCruiseStratis1100inCT:

ā–Ŗ SquaretopMainsail,3reefs,carbonbattens192.01sqm-2:1MainHalyard

ā–Ŗ FurlingGenoawithluffUVverticalbattens140sqm-Jibhalyard1:1/2:1JibHalyardTail

ā–Ŗ StaysailwithUVluff71sqm2:1StaysailHalyardTail

ā–Ŗ A-Sailcableless,usesacarbonluffforfurling387sqm

ā–Ŗ StormJib35sqm-2:1StormJibHalyard

Rig

ā–Ŗ Hallsparscarbonmastandboom

ā–Ŗ SydneyRiggingDyneemacoredrunningrigging

ā–Ŗ RodRiggingwithstayquietsx4fitted.

ā–Ŗ FLIRCameraM232onspreader

ā–Ŗ B&GHalo20+Radar

ā–Ŗ IridiumC700Certusreceiver

Machinery

Engines

ā–Ŗ Yanmar150hpenginesx2withVdrivesgearbox

ā–Ŗ Twinelectronicthrottlecontrolswithmanualcontrolsinengineroom

ā–Ŗ 10knotscruisingspeedat2500rpm

Propeller

ā–Ŗ Brunton4bladefoldingpropswithshaftsharkropecutters.

Generator

ā–Ŗ Onan27kW

Bowthruster

ā–Ŗ LewmarHydraulicbowthruster300VRTTH30CC450stroke

Spares

ā–Ŗ Sparesforthewatermaker,Onangenset,Yanmarengines,Racorfuelfilter,propellorsfor bowthruster

ā–Ŗ Miscsparesfordivecompressor,winches,loos,floatswitches,lightswitches,plumbing,hinges, electrics

Electrical Systems 48V

ā–Ŗ 10x48VDCbatteryMLIUltra24/5500

ā–Ŗ 1x48VDDdistribtion

ā–Ŗ 5x48VDCcontrol

ā–Ŗ 4x48VDCcharger

ā–Ŗ 2Victroncombiinverterchargers.

Sockets

ā–Ŗ MultisocketsandUSBA&Cthroughout

Network Components

ā–Ŗ 1Czone&MasterBusnetwork

ā–Ŗ 1xsolidstatecomputerforCzone

Solid State Computer

ā–Ŗ 1xsoldstatecomputerforCzone

Integrel System

ā–Ŗ 2xenginemountedbeltdrivenIntegral9KWgenerators.

Navigation Supply

ā–Ŗ 1xcustomnavigationpanel

ā–Ŗ 1MasterVoltMacPlusDCDCconverter

ā–Ŗ 2MasterVoltAGM12/130Ahbattery

ā–Ŗ 2MasterVoltAGM12/130Ahbattery

ā–Ŗ Emergancy12Vnavigationbatteries(20hours)

Engine /Generator Battery

ā–Ŗ 2xEngineAGM12/130Ahbattery(newJune2024)

ā–Ŗ 1xgeneratorAGM12/130Ahbattery(newJune2024)

ā–Ŗ 3xMastervoltEasyCharger

ā–Ŗ Parallelswitch.

AC Control

ā–Ŗ Airconditioning(TermodynamicareversecycleHeat/Cool&fan)for6cabinsandSalooneach unit30000BTU,Saloon35000BTU.

ā–Ŗ StandaloneDometicAirConditioningforelectrical(batteriesandInverters)spacewithforced airfan.Tempalarmfitting.

ā–Ŗ 1CustomACMIMainswitchboard

ā–Ŗ 1xCzonetouch10:display

Combi Inverters

ā–Ŗ VictronmassCombiUltra48/3500-50invertercharger

ā–Ŗ Autotransformer120/240VAC-100A

Load Cell Pins

ā–Ŗ 2xCyclopsLoadCellPinsonshrouds

Navigation & Electronics Displays

ā–Ŗ 2x16ā€ZeusChartplotters/MFDsforflybridgehelmstations

ā–Ŗ 1xZeus16ā€Chartplotter/MFDforthesalonhelmstation

ā–Ŗ 2xTritonDisplaysforwind,speed,depthetcatflybridgehelms.

Autopilot

ā–Ŗ Precision-9Compass,WR10remotecontrol+remotebase,1xH5000pilotcontroller,RF300 feedbackunit

ā–Ŗ ControlsonallZeusMFDandon3B&GpilotcontrollersinsaloonandhelmsandviaB&Gapp oniphonesandoneremotependantcontroller.

Navigation

ā–Ŗ NAIS-400Ssystem+NSPL-400VHFantennaspliter.3B&GV100handsets.AISBtransponder.

ā–Ŗ One(1)B&GBroadband4Gradarscanner

ā–Ŗ ZG100GPSantenna

ā–Ŗ FLIRCamera.

ā–Ŗ 2xsteeringcompasses.

Bilge Pumps

ā–Ŗ 2Rule3700(220LPM)bilgepumps(1auto-connectedtofloatlevelswitchtostart/stop automatically,1manualstandby)and1highlevelalarmswitchhavebeeninstalledforeachof the6bilgewells.

ā–Ŗ Enginebilgeconnectedtofilter.

Plumbing

ā–Ŗ Watermaker110Lphā€“SpectraNewport700cc

ā–Ŗ SaniSplitforgreywater-Model600

ā–Ŗ Grocoelectricseacocksforblack&greywatersystem

ā–Ŗ Hotwatercirculationsystem2x75litreIsothermhotwatertanks

Entertainment

ā–Ŗ TV-49ā€SonyBraviarecessedindiningtable

ā–Ŗ FusionspeakerswaterproofIP6.5/4additionalFusionspeakers-2flybridge,2foredeck,2 salon2aftdeck.

Communications

ā–Ŗ WIFInetworkconsolidator,boosterand4GSIMantenna.

ā–Ŗ Pepwavewifimeshnetwork.

ā–Ŗ Starlink

ā–Ŗ IridiumGoExec

ā–Ŗ B&GH5000Hydraā€“CPU

ā–Ŗ H90VHFhandset&speakerx3+1mantennaVA-S

ā–Ŗ 4IcomwaterprooffloatinghandheldVHFā€™s.

Tankage

Fuel

ā–Ŗ Totalcapacity3000L

Freshwater

ā–Ŗ Totalcapacity3200L

Blackwater Holding Tanks

TotalCapacity 500L(2x250).

Solar Panels

ā–Ŗ Solarpanelsonoutsideroofofcoachroof,nonslip,davitsandforedeck.4.7KW.3200wp.

Safety

Liferaft

ā€¢ 2xVikingSolasBliferaftsinhardcasestobemountedonweatherdecksportandstarboard.

Safety Equipment to CAT 2 / ARC standard including:

ā–Ŗ 1kgdrypowderfireextinguisherx8

ā–Ŗ 5kgpowderfireextinguisherx2inSaloon

ā–Ŗ 1xfireblanket.

ā–Ŗ 2xseafireenginebayautomaticfiresuppressionsystem.

ā–Ŗ OceanSafetyOffshoreFirstAidKit(MCAcat2compliant)

ā–Ŗ SpinlockSolasDuro+withlightlifejacketsx14

ā–Ŗ Serteclighteningprotection.

ā–Ŗ FlarepacktoCat2standard.

ā–Ŗ 2xjonbuoys,1xRescuesling.

ā–Ŗ 2xhorseshoebuoys(withlight,whistle,drogues)

ā–Ŗ 2x80mthrowlines.

ā–Ŗ Jacklinesinalldeckareasandflybridge.

Toys:

ā–Ŗ Highfield4.6maluminiumRIBwithYamaha70Hp,A-frameforwaterskiing

ā–Ŗ EpicSurfskiV6kayak

ā–Ŗ Waterskis,wakeboard,donut

ā–Ŗ 2Paddleboards

ā–Ŗ Fliteboard

ā–Ŗ BeachSmartkat,aninflatablefasttwopersonsailingcat

ā–Ŗ 2Stromerelectricbikes(45kph)

ā–Ŗ 2foldingbikes

ā–Ŗ 2xSUPā€™s

Dive Gear x 6 sets

ā–Ŗ PE100Tcompressor,

ā–Ŗ 6xBeuchatMasterLiftvests,MK11/C370Regulator,RO95Octo

ā–Ŗ 6xSuuntoCobra3divecomputer

ā–Ŗ 6xScubaproSport3mmwetsuit

ā–Ŗ 6xTusaSplendivemask&snorkleset

ā–Ŗ 6xScubaproJetClubfullfootfins

ā–Ŗ 4x11.1LAluminiumcyclinder

Accommodation Summary:

ā–Ŗ Largesaloonwithdiningtabletoseat12andsofaontheotherside

ā–Ŗ Walkaroundbarwith4stoolsandopenplangalley

ā–Ŗ Navigationstation

ā–Ŗ 4xDoublecabinswithensuiteheads

ā–Ŗ 2xCrewcabinswithensuiteheads

ā–Ŗ Midshippantry

ā–Ŗ Aftdeckdiningtoseat8

ā–Ŗ ForwardBiminiandtrampoline

ā–Ŗ Flybridgeseatingareafor8

Galley & Domestic Equipment:

ā–Ŗ Microwaveā€“BoschModelTM820HUBF800W

ā–Ŗ Dishwasherā€“SiemensModelSN73HX01CZ12sets

ā–Ŗ Quookerboiler&tap

ā–Ŗ Washer/Dryerā€“SiemensModelWN44A2X0HK

ā–Ŗ Ovenā€“BoschModelHR5B60F0

ā–Ŗ Inductionhobā€“BoraSPurewithintegratedextractordownfan

ā–Ŗ Toasterā€“RussellHobbs4sliceā€“Model23520-56

ā–Ŗ CoffeeMachineā€“NespressoGranLattissima/EN650

ā–Ŗ Icemakerā€“Isotherm23L

ā–Ŗ Fridge-freezers x2ā€“Isotherm190L

ā–Ŗ Trashcompactorā€“ObleisOB100

ā–Ŗ WineFridgeā€“IsothermModelDIVINO23

ā–Ŗ Fridgeinaftcockpitā€“Isotherm23L

ā–Ŗ TVā€“SonyBravia49ā€

ā–Ŗ Wine&whiskyglassesx16,crockery&cutlerysetsof12

ā–Ŗ Sodastream

ā–Ŗ 12personricecooker

ā–Ŗ BoschBlender.

Interior, Blinds & Soft Furnishings

ā–Ŗ Blindsandscreenspack(allsidewindowsandoverheadhatches,excludingforwardfacing windowsinsaloon.Saloondoorcurtains).Includesmosquitonettingforallopeninghatches.

ā–Ŗ Eighteeninterior/exteriorscattercushions-SunbrellaRojoRed

ā–Ŗ Sunbrellaandweathermaxfoamcushions/sunbedforaftportsidecockpit.

ā–Ŗ Tablecovers-4,allusingSunbrellaSJA5453137Canvasforsaloondining,salooncoffee, flybridgetableandaftdecktable.

ā–Ŗ Diningchairsx6-4withoutarms,2witharms

ā–Ŗ Directorschairsx6

Towels & Bed Linen enough for two complete sets.

ā–Ŗ Bathtowelsx20

ā–Ŗ Handtowelsx20

ā–Ŗ Pooltowelsx20

ā–Ŗ Singlefittedsheetsx20

ā–Ŗ Singlemattressprotectorsx10

ā–Ŗ Singleduvetcoversx20

ā–Ŗ Pillowcasesx40

ā–Ŗ

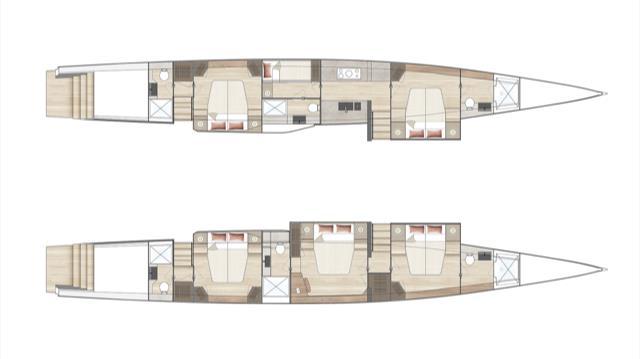

Interior Layout

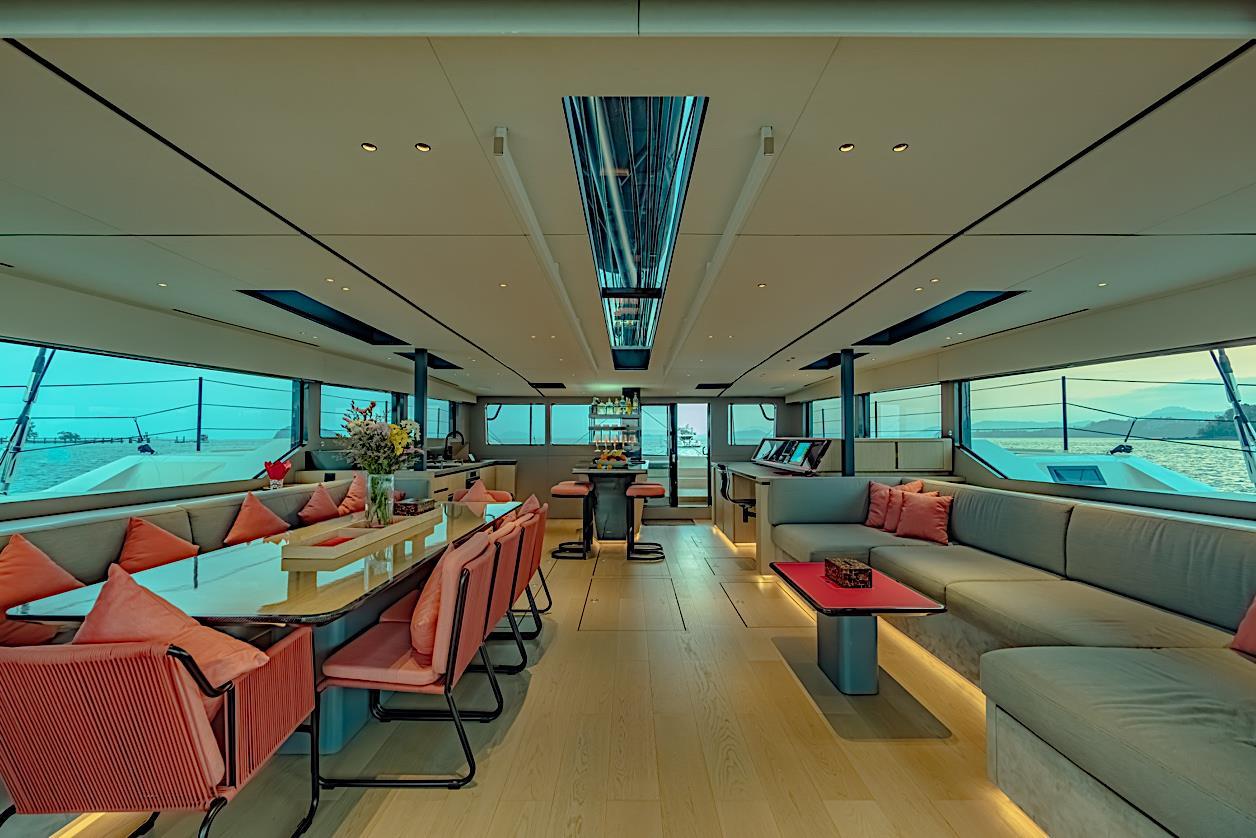

ā–Ŗ Ahugesaloonloungewithsofaonesideandadiningtablefor12,awalk-aroundbarwith4 stoolsandcustomglassandbottlecabinet

ā–Ŗ Fullyequippedopenplangalley

ā–Ŗ Midshippantryadjacenttothecrewcabins

ā–Ŗ Navigationarea

ā–Ŗ Fullyretractablewindowsandfloor-to-ceilingglass

Accommodation:

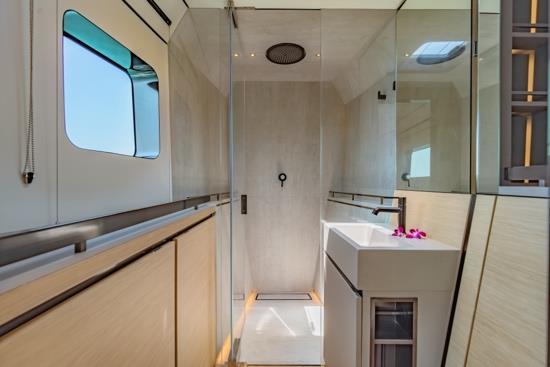

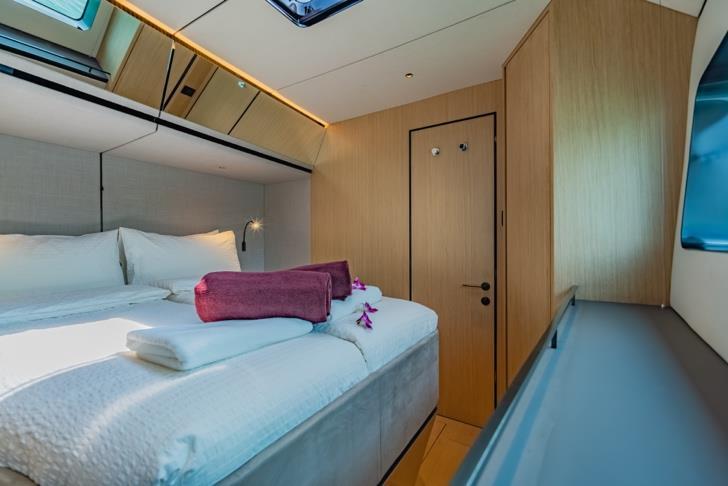

ā–Ŗ 4Doublecabinsfacingoutboardwithlargeseaviewwindowandfreshwaterensuiteheads withqualityshowerfittingsandsinkswithcabinetandmixertap

ā–Ŗ MasterCabinStbmidposition.

ā–Ŗ Allcabinshaveoverheadandfloorlevelrecessedcourtesylightsandreadinglamps

ā–Ŗ Allbedscanbesplitinto2singlesbyacentraldivider

ā–Ŗ Allcabinshaveseparateairconditioning

ā–Ŗ 2Doublecrewcabinsportsidefwdandmidwithensuiteheads

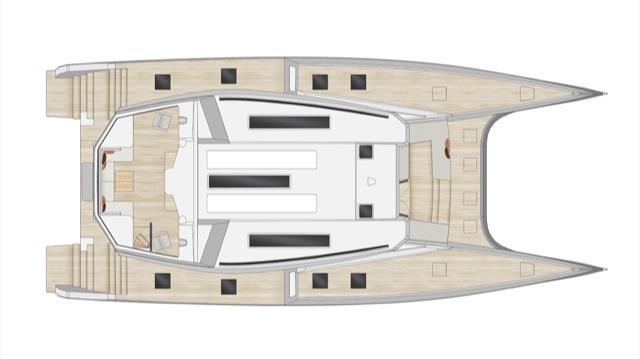

Exterior Layout

ā–Ŗ Flybridgewithseatingfor6,helmstations,sailcontrols

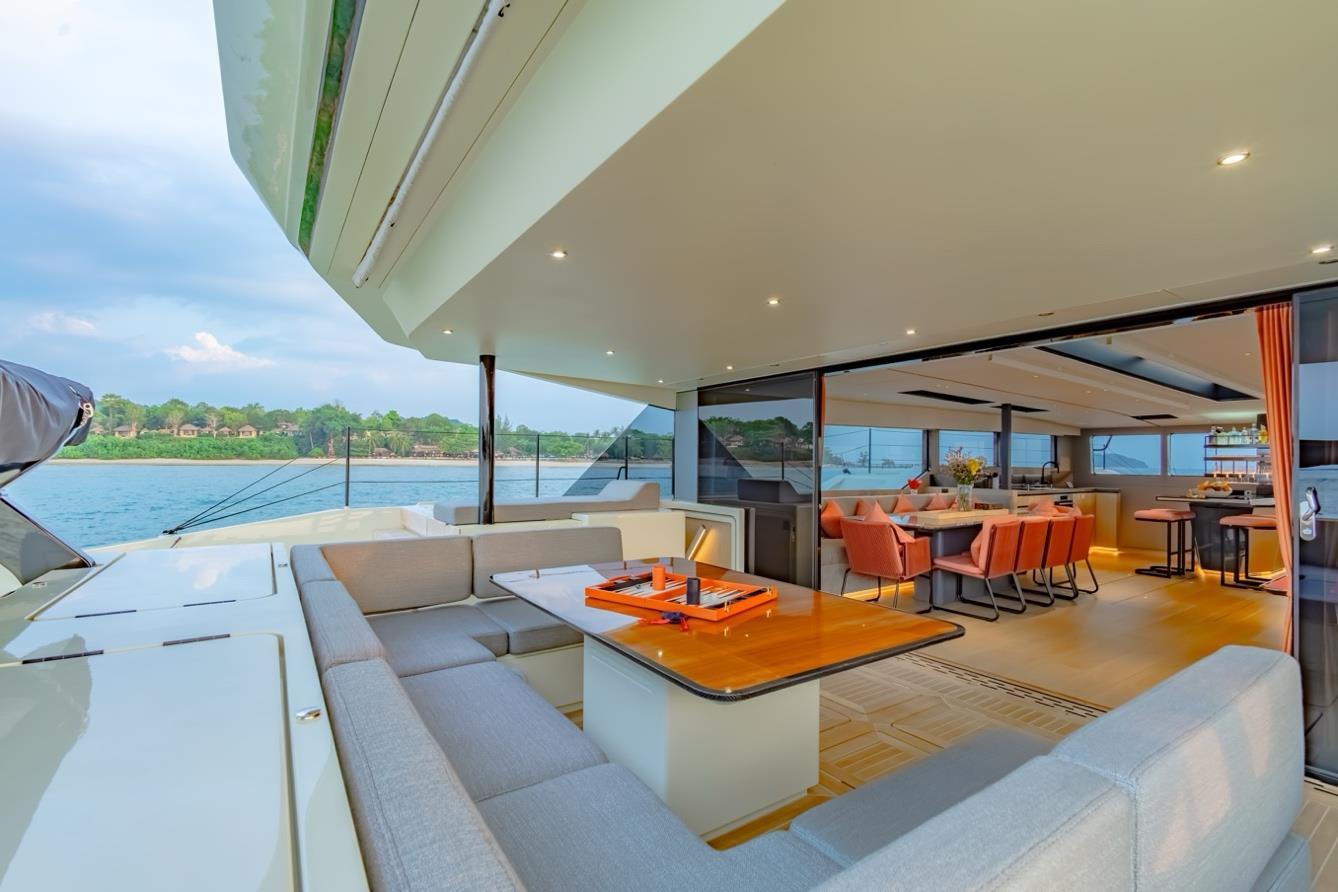

ā–Ŗ Spaciousaftdeckwithsofasandalfrescodiningspacefor8

ā–Ŗ TrampolineandforwardcockpitwithBiminiandcushionedrebatedseatingareareachedfrom thesaloonviawatertightdoubledoor.
