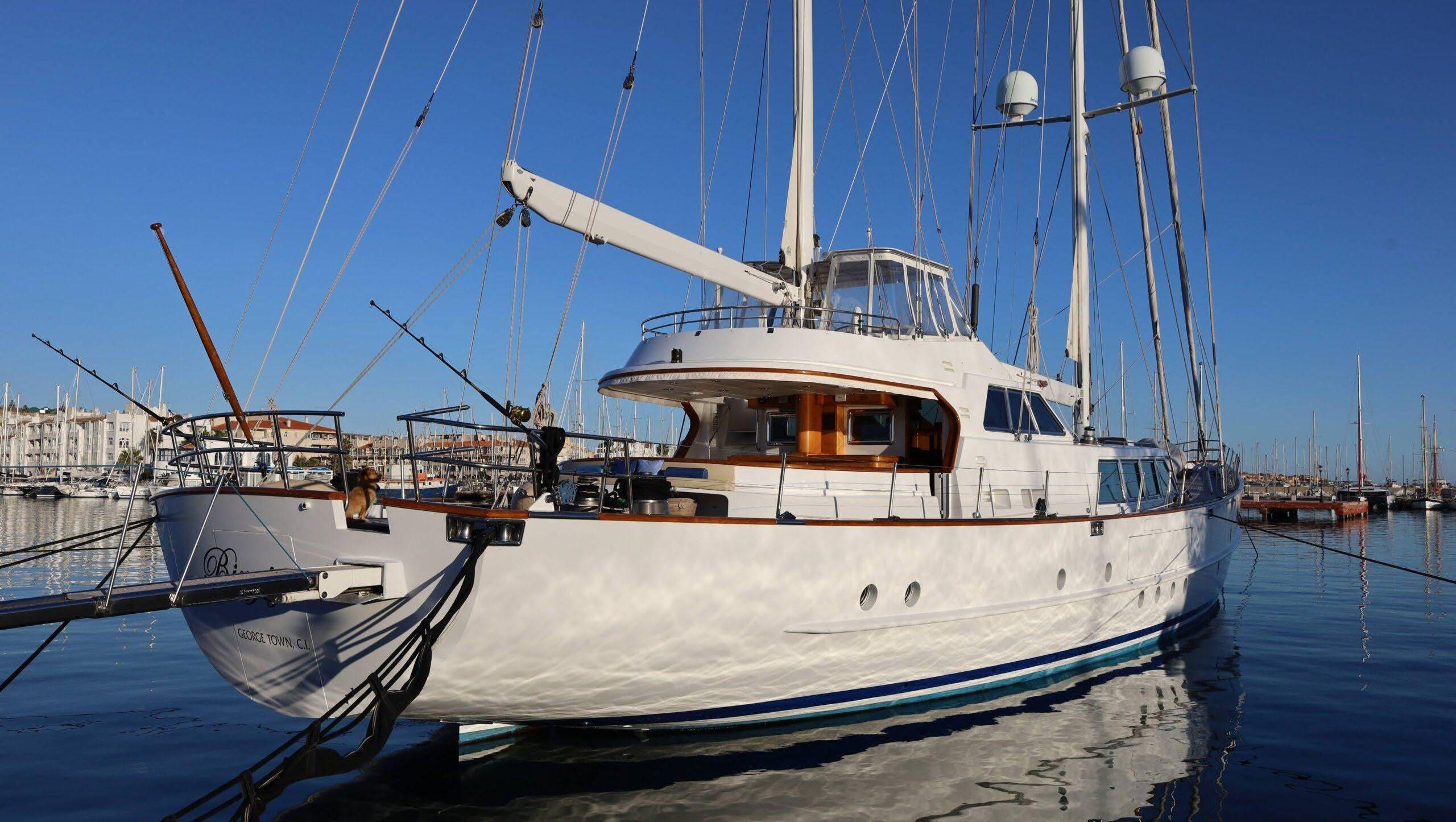

BINZIYAD ORTONA NAVI
LO .A: 38.4 M (125’9”)
BEAM: 8.4 M (27’9”)
MAX DRAFT: 6.3 M (20’6”)
HULL : ALUMINIUM
BUILT: 1991
ACCOM: GUESTS 10 IN 5
CREW 6 IN 3
EXT. DESIGN : JOHN G ALDEN
INT. DESIGN: JOHN G ALDEN
ENGINE : 1 X 510HP CATERPILLAR DIESEL ENGINE
SPEED : CRUISING 11 KN
MAX 12 KN
LYING: ALMERIMAR, SPAIN
BROKER COMMENTS
BINZIYAD is comfortable and very capable cruising yacht ideally suited to a large party with ambitious world cruising plans in mind. She is easy to sail and has crossed oceans with ease. Having won the “Best noon to noon distance” trophy in the 1997 Atlantic Challenge Cup from New York to England – she demonstrated she combines the best of the sailing yacht and motor sailor world.
Built by the shipyard originally behind Perini Navi hulls – she comes from pedigree and combines the space and comfort only much larger yachts can manage.
KEY FEATURES
• Flybridge
• Large interior volume
• 10 guests in 5 cabins vs. 7 avg. in its class

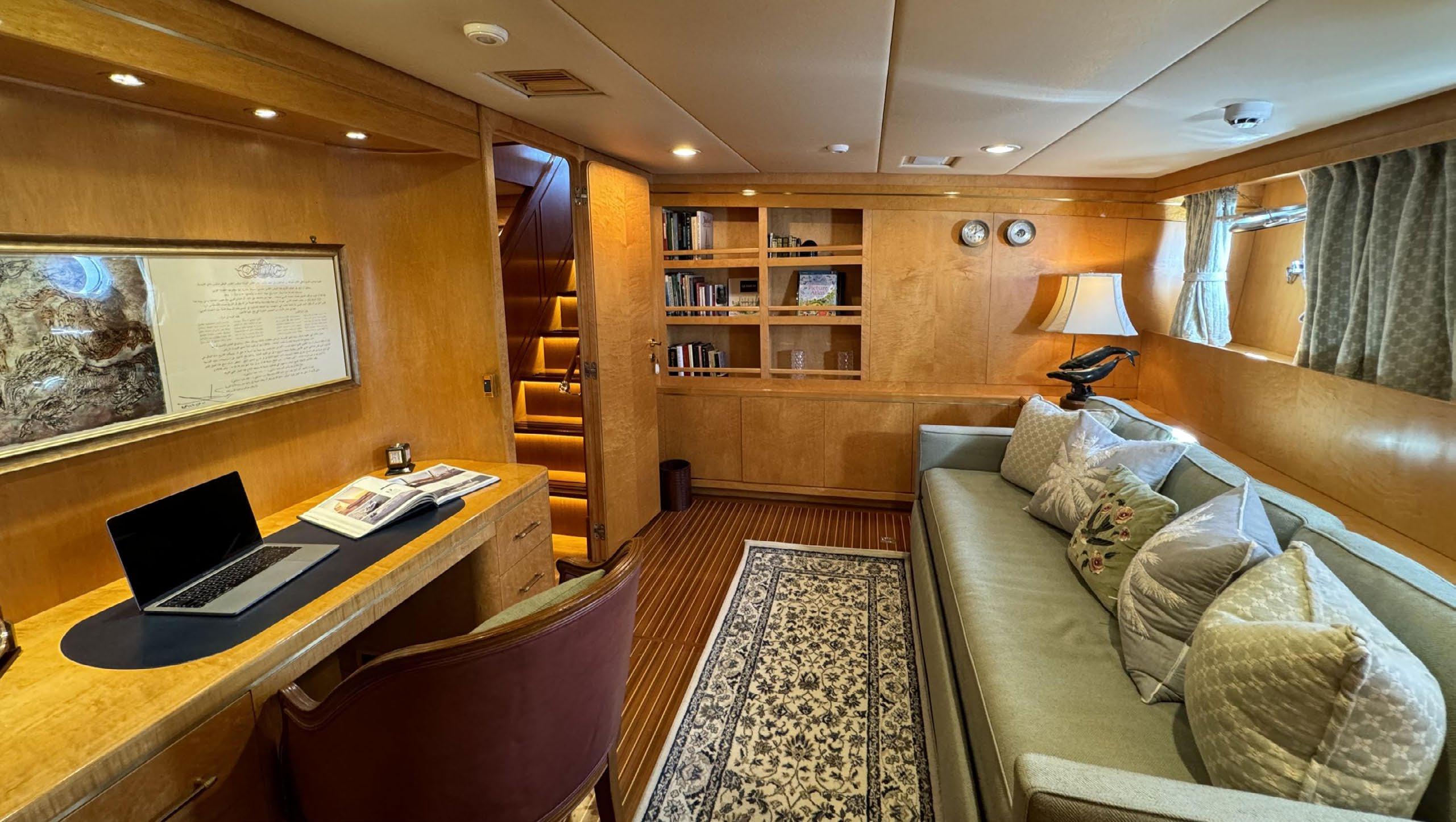

• Office / convertible cabin
• Transatlantic range
• Only second owner since new
• Centreboard with a board up draft of 2.6 M (8’6”) to 6.3 M (20’6”)
• Pedigree design and build
• Main salon opening windows
• Variable pitch propeller
• Bow & stern telescopic thrusters
SPECIFICATION
TYPE
Single Screw, Ketch Rig, Sailing Yacht
YARD NUMBER 18/88
FLAG Cayman Islands
DIMENSIONS
VOLUMES
Length O.A. 38.40 m (125’9)
Length W.L 30.48 m (100’)
Beam 8.53 m (27’9”)
Min Draft 2.59 m (8’4”)
Max Draft 6.30 m (20’6”)
GRT 212
NET TONS 63
DISPLACEMENT 191
YEAR BUILT 1991
BUILDER
HULL DESIGNER
INTERIOR DESIGNER
Ortona Navi, Italy
John G. Alden, USA
Ortona Navi, Italy
CONSTRUCTION
Hull Welded Aluminium
Superstructure Welded Aluminium
Mast & Boom Aluminium
Deck Teak

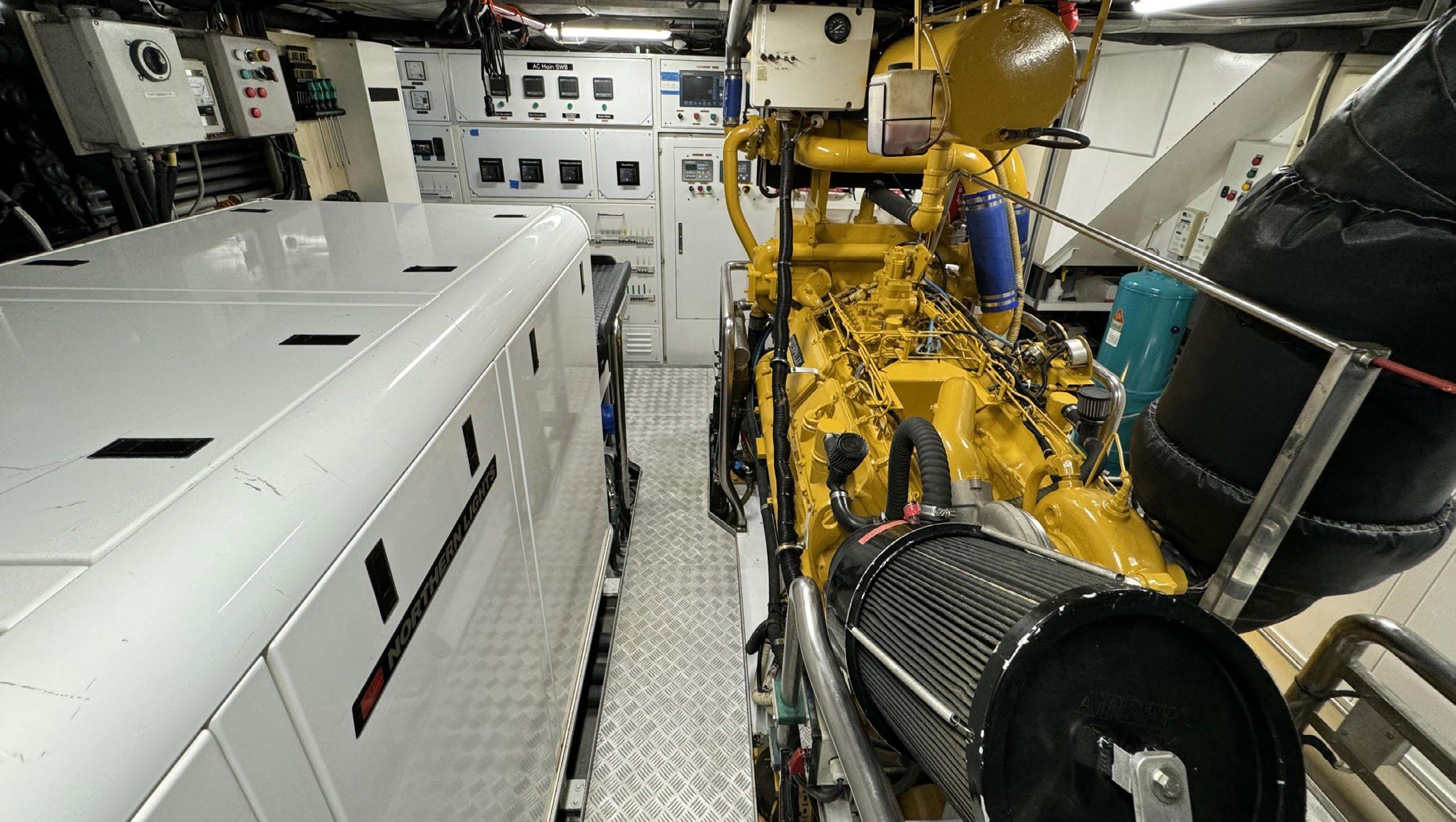

MAIN MACHINERY
MAIN ENGINES
ENGINE HOURS
GEARBOX
SHAFT & PROPELLER
SPEED
SAILS – RIGGING – SPARS

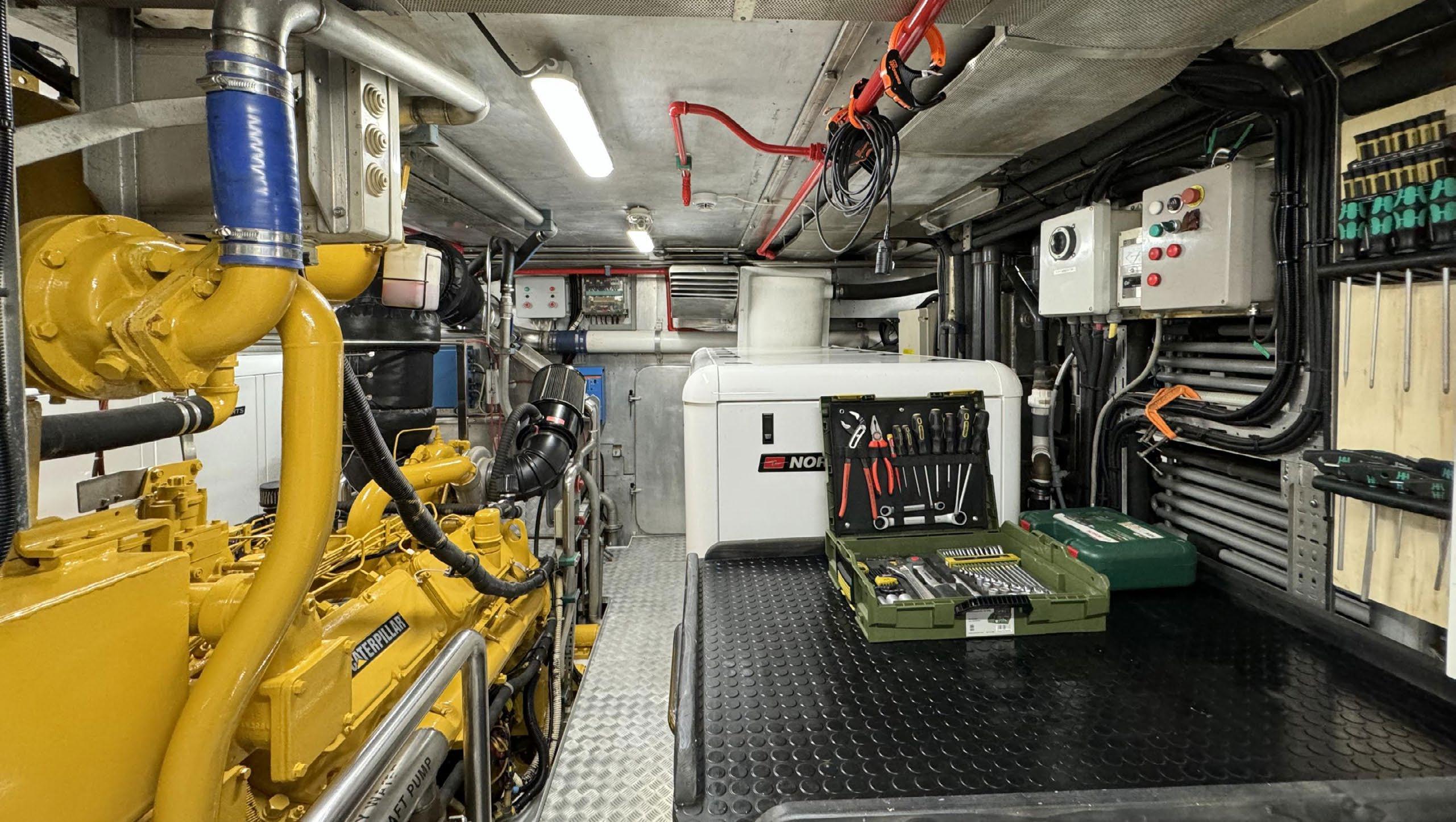

1 x Caterpillar 3410, 12V 510 hp diesel engine
December 2024
Main 7,490hrs (topend“overhaul”4,930hrs)
1 x Reintjes WVS333 2.538:1
Hundestadt 4 ¼” outer shaft
Hundested Variable Pitch Propeller type 7 FR-EL
Max 12 knots @ 1800 rpm
Cruising 11 knots
All four working sails are on roller furlers: genoa, staysail, mainsail, and mizzen.
All sheets are controlled via joysticks in the pilothouse, on the flybridge, and captive reel winches below deck.

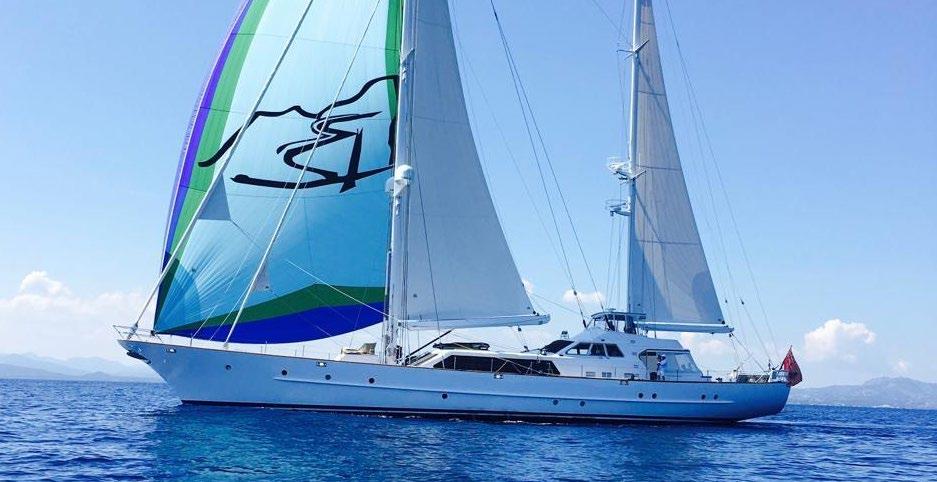

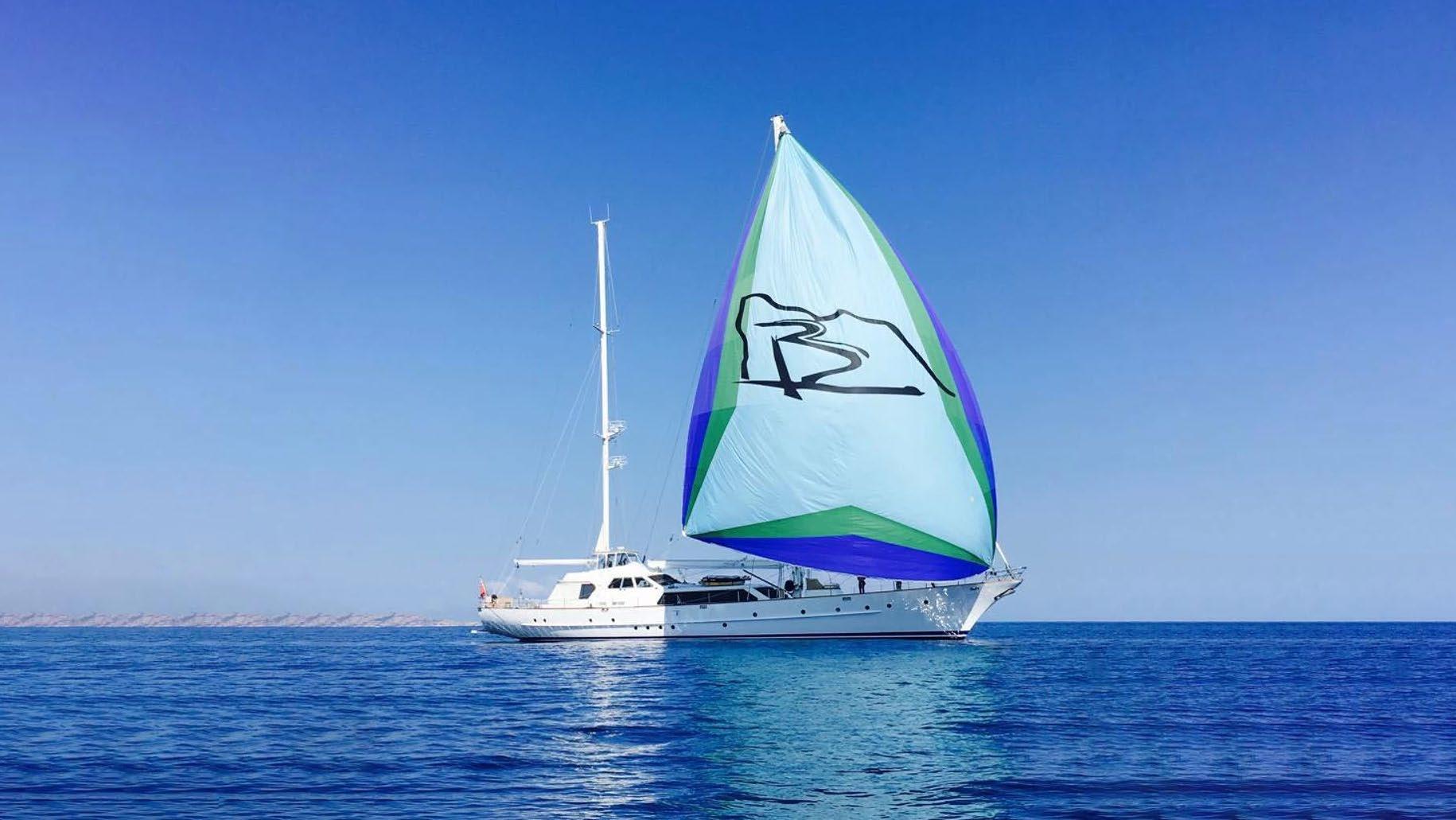

A Lewmar 700ST power winch on the foredeck hoists the MPS spinnaker in a sock, and there is a halyard for a mizzen staysail.
All tracks and cars are by Fredricksen. Winches are all self-tailing.
SAILS
MASTS
RIGGING
Main sail – Doyle
Staysail - Doyle
Genoa - Doyle
Mizzen - Doyle
1 x Rondal – Aluminium alloy; keel stepped mast
1 x Rondal – Aluminium alloy, deck stepped mizzen mast
Both are in furling
Rig removed and overhauled 2014; standing rigging was replaced and the mast and spars were repainted. Standing rigging is 1x19 stainless steel wire with swaged terminals.
AU XILIARY MACHINERY / EQUIPMENT & ELECTRICAL SYSTEM
GENERATORS
GENERATOR HOURS
SHORE POWER
ELECTRICAL SYSTEM
BATTERIES
CHARGERS / INVERTERS
THRUSTERS
COMPRESSED AIR
STEERING SYSTEM
WATER MAKERS
AIR CONDITIONING
CAPACITIES (approximate)
2 x Northern Lights, M1064T, 55 kW (68 kVA – 271 Amps) 230-230VAC, 1-phase, 50 Hz (EU), 4-cylinder diesel, in sound shield casings
PTO electro clutched on each generator
1 x Northern lights 30kW emergency generator
December 2024
Port 8,930 hrs
Starboard 9,310 hrs
Emergency 3,268 hrs
Shore-power (400-VAC) box in the lazarette fitted with a single shore power inlet of 300 Amps and 55 Kva step-down transformer.
230 - VAC (50 Hz single-phase) and 24 V-DC
Service bank AGM maintenance free
Main engine bank AGM maintenance free
Generator start bank AGM maintenance free Emergency generator bank AGM maintenance free
Mastervolt 120 Amps at 24 V-DC
1 x 40hp Hydraulic telescopic Bow thruster
1 x 40hp Hydraulic telescopic Stern thruster
230-VAC central pneumatic system for horn and service air
Wagner Steering system – Power / autopilot 230VAC pump
2 x Seafari Horizon
Aqua-Air 4 stage reverse-cycle 192,000 BTU
lt (6,340 US Gallons)
lt (1,981 Us Gallons)
lt (1,981 Us Gallons)
lt (1,981 Us Gallons)
NAVIGATION & COMMUNICATION EQUIPMENT
VHF RADIOS
COMPASSES
Icom IC-M45. Galley
10 x Icom and Standard Horizon handheld radios
Uniden US. Navigation Station Icom IC-M323G. Fly Bridge
Ritchie 4" Compass in the wheelhouse
C-Plath 4" Compass in the Fly Bridge Furuno Satellite Compass
MULTI-FUNCTION NAV DISPL B&G H3000
MONITORS
AIS
NAVIGATION COMPUTER
AUTOPILOT
Furuno 15" Color Monitor, interfaced with the MultiFunction Navigation Control Unit
Furuno FA-150 Universal Automatic Identification System Transceiver
NISE 3600 Computer
Time Zero Navigation Suite
Simrad AP26
AUDIO / VISUAL ENTERTAINMENT SYSTEMS
TELEVISIONS
STEREO
DOMESTIC EQUIPMENT

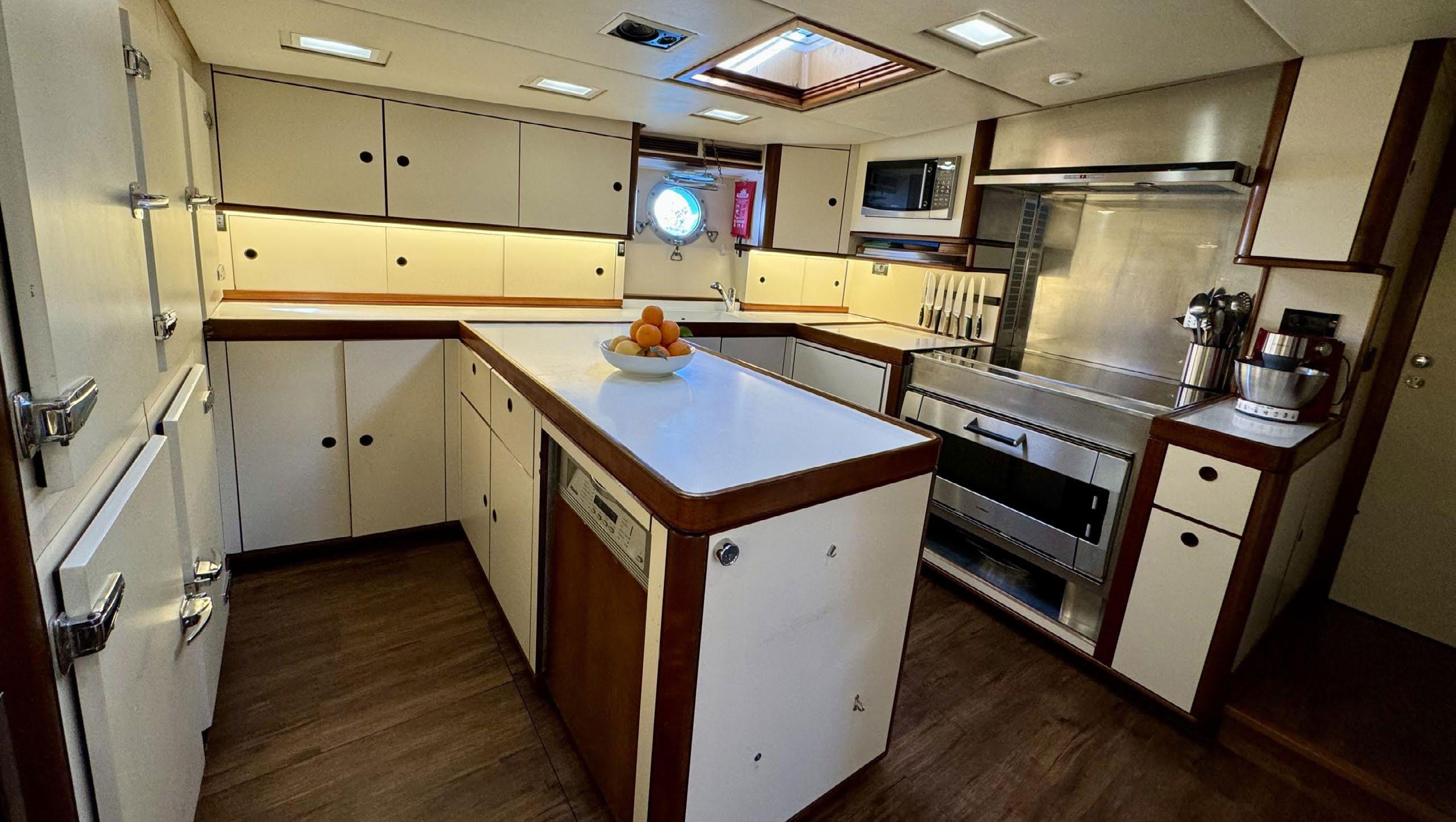

MAIN GALLEY
Samsung Television in the Salon
LG Television in the Master Television in the crew cabins and crew mess
Bose Lifestyle Home Entertainment System, with Surround Sound Speaker System
REFRIGERATION
1 x Gaggenau stainless steel oven
1 x Miele induction five (5) burner
1 x U-line ice machine
1 x Saivod Wine Chiller
1 x Multistar microwave
1 x Miele dishwasher
4 x built in fridge cabinets with standalone compressors
1 x U-Line 230 volt fridge in aft cockpit
1 x Sharp 230-volt fridge/freezer behind the wet bar
1 x built in freezer in galley
2 x freezers recessed into the bilge
LAUNDRY
Miele Edition 111 washing machine.
Samsung Eco Bubble washing machine.
Whirlpool AWZ3520 dryer
Sharp KD-FCS9113CZ-S
TENDERS & WATERSPORTS EQUIPMENT
TENDERS
OTHER
DECK EQUIPMENT
DECK WINCHES
1 x AB Mariine RIB 2015 with 50hp Yamaha outboard
1 x Junior II dive compressor fitted in lazarette
CAPTIVE WINCHES
ANCHOR WINDLASS
ANCHOR & CHAIN
PASSERELLE
SIDE BOARDING LADDER
SWIMMING PLATFORM
CRANE
1x Lewmar Electric 2-speed, self-tailing – main mast
3x Barient 37 Manual 2-speed, self-tailing - main mast
1x Barient 36 Manual 2-speed, self-tailing - main mast
1x Barient 27 Manual 2-speed, self-tailing - main mast
1x Barient 27 Manual 2-speed, self-tailing - main boom
2x Barient 28 Manual 2-speed, self-tailing - coachroof
2x Barient 36 Manual 2-speed, self-tailing - mizzen mast
1x Barient 22 Manual 2-speed, self-tailing - mizzen boom
2x Lewmar 650 Electric 2-speed, self-tailing - aft deck
2x Lewmar 1200 Electric 3-speed, self-tailing - aft deck
Main Sheets – inside forward bilge
Staysail Sheet – inside side deck lockers
Genoa Sheets – inside aft deck lockers
Ideal model H75M 230-VAC
2 x CQR 180kg (400lbs) and 17mm chain
1 x Bensenzoni
1 x Hydraulic Scala Reale fitted on starboard
1 x Hydraulic platform fitted to the transom
A whisker pole, stored vertically on the front face of the main mast acts as tender crane
SECURITY & SAFETY EQUIPEMENT
SAFETY
FIRE FIGHTING
14 x life jackets
1 x 10 person Survitec model Xtrem (Solas)
1 x 8 person Viking 8UKL (ISO)
HFC 227ea fixed fire-fighting system in engine room
Portable extinguishers 18x ABC type, 2x AFFF type, and 1x CO2 type
220-VAC pump in the forward bilge which supplies a number of hydrants on deck and in the interior of the vessel
Central Fire Alarm System in the wheelhouse
Stand-alone carbon monoxide detectors in the aft accommodations
ACCOMODATION
GUESTS
CREW

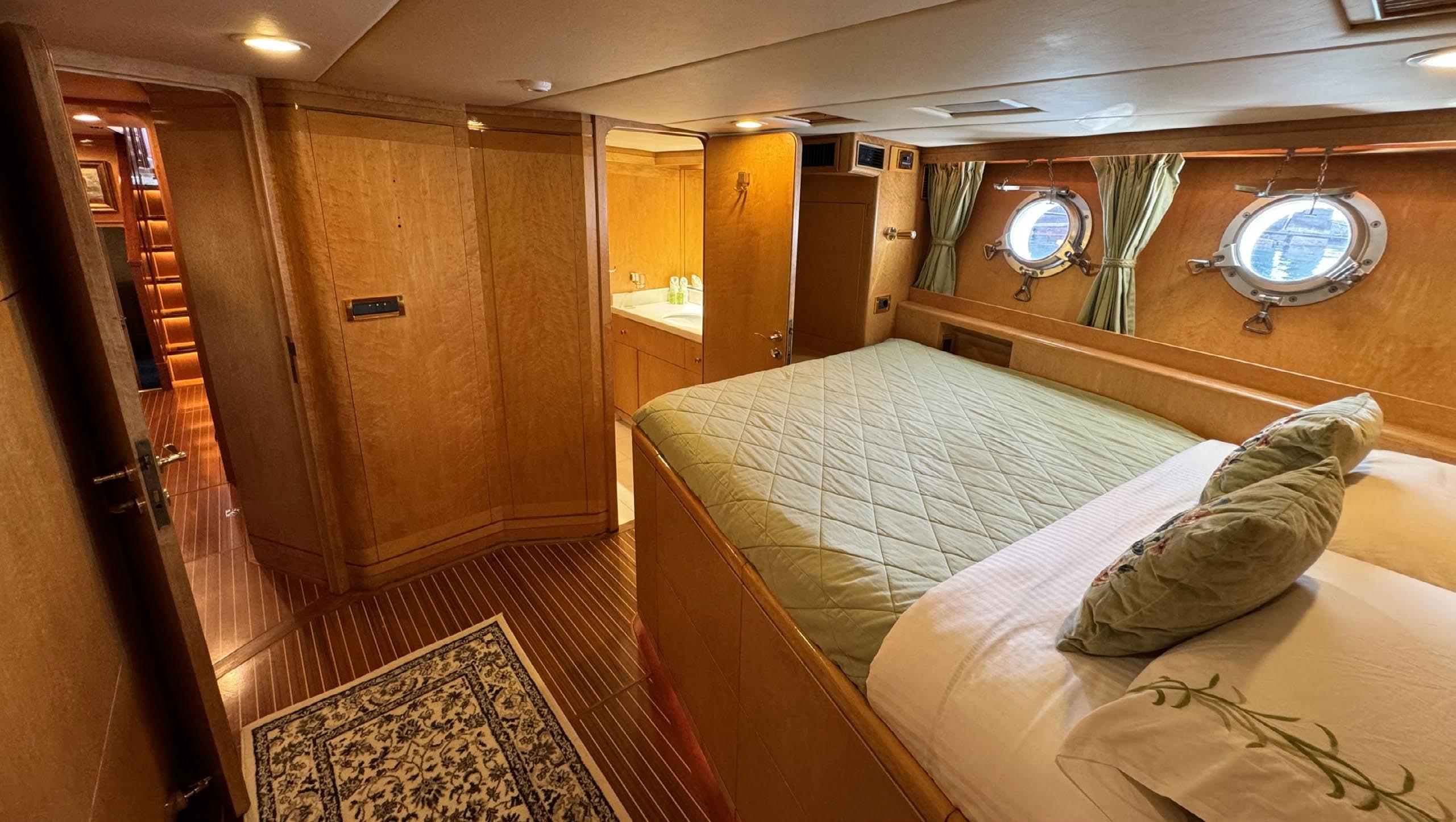

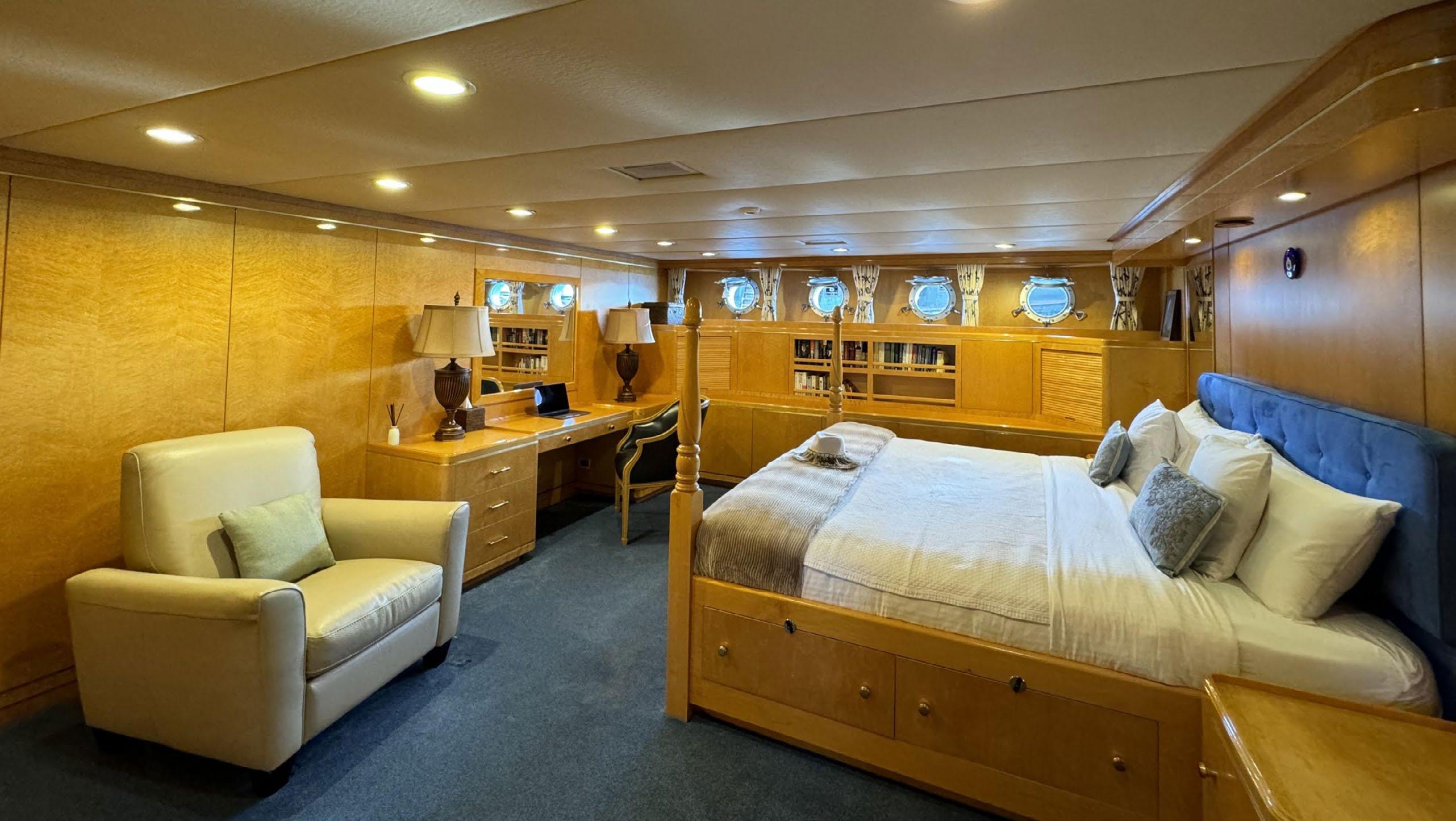

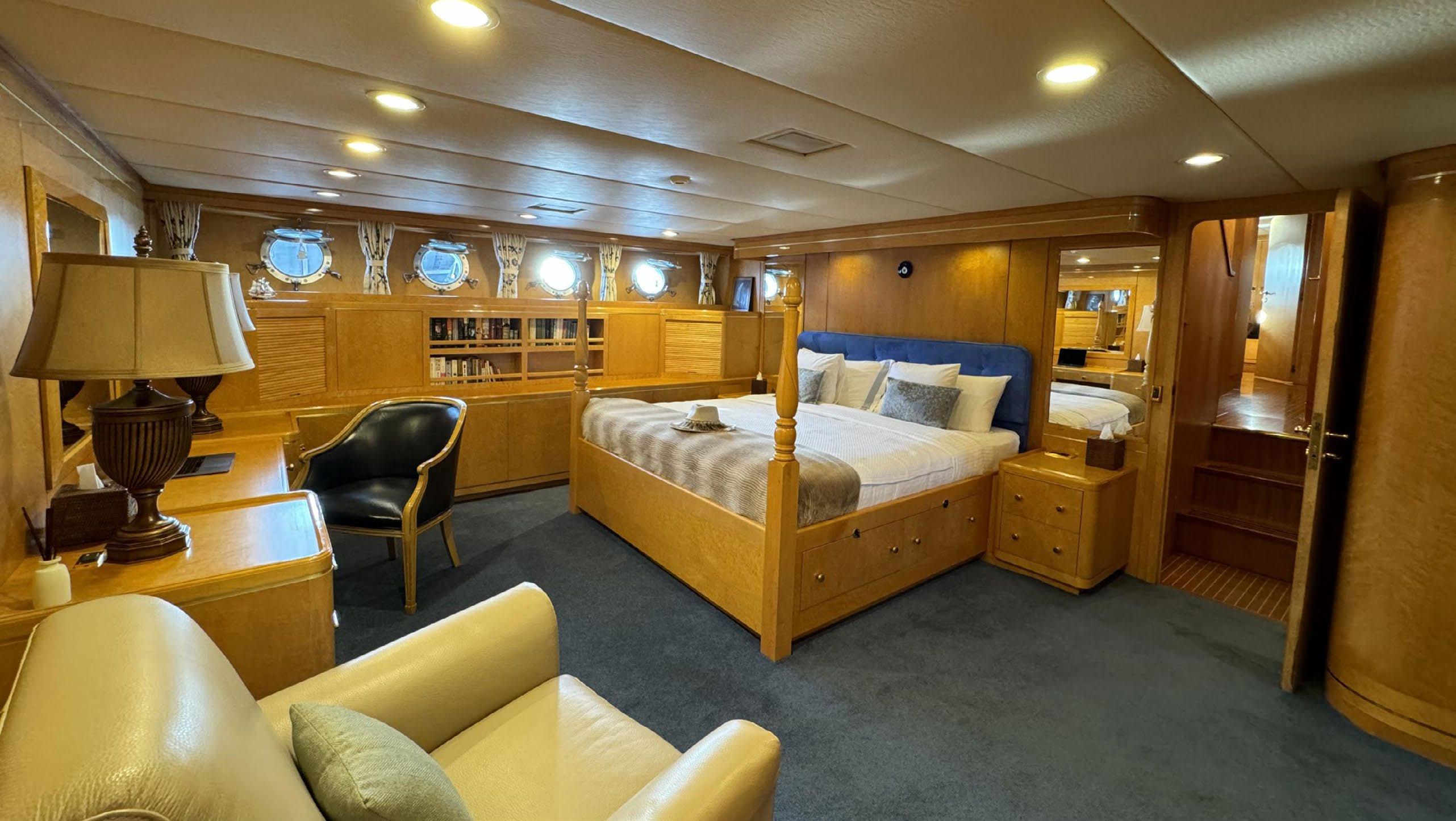

1 x Full beam, midship Master cabin with king size bed and ensuite bathroom
2 x VIP doubles with ensuite bathroom

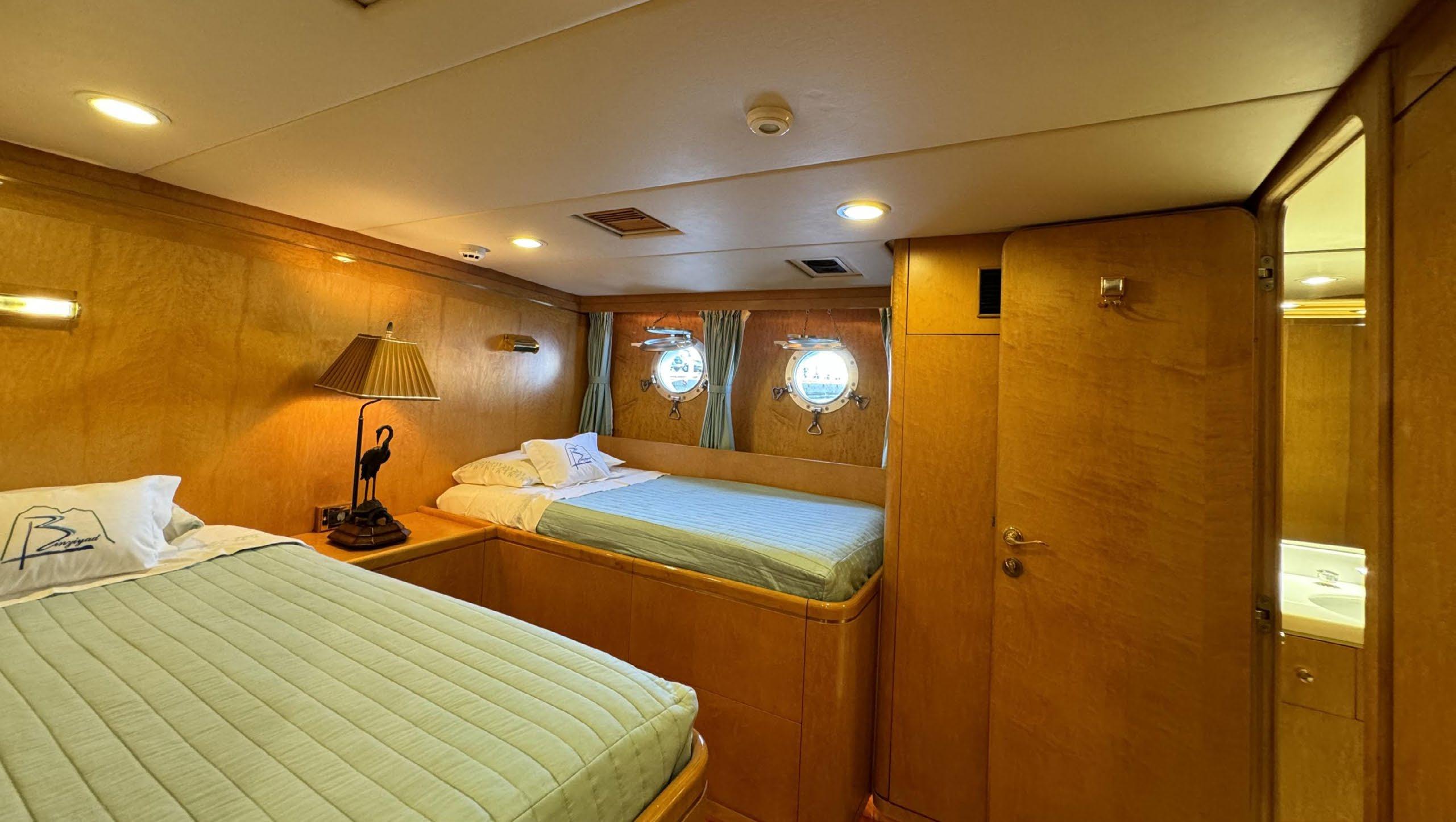

1 x twin cabin with ensuite
1 x Convertible cabin (office) sharing ensuite
1 x forward V cabin with two bunks on port side and 1 single for total 3 crew with ensuite
1 x port side cabin with two bunks with ensuite
1 x starboard Captain cabin with desk, sofa and ensuite
EXCLUSIONS
An exclusion list will be provided to all interested parties, which mainly consists of Owners personal effects.
MAINTENANCE
/
REFITS
& UPGRADES (non exhaustive)
2023
New FM200 fixed fire-fighting system
New portable fire-extinguishers
12 x Spinlock automatic deckvest HAMMAR 275N serviced Rig inspection by “No limits Rigging” report available on request.
2021 to 2022 – Thunderbolt Marine ($400,000)
1 x Zodiac 10 person hard-kanister type liferaft. 1 x Viking 8 person hard-kanister type liferaft. Major maintenance on the centerboard Hull thickness measurement with all clear
2019 – A+ Rigging Mallorca
Service on the rig and Reckmann furlers (€133,503)
2014
Rig removed and overhauled; standing rigging replaced; mast and spars were repainted.
2009 Repaint Hull & Superstructure to Matterhorn White Awlgrip
2008
New AquaAir 6 ton (2 x) & 4 ton (2x) reverse cycle compressors
New Horizon watermaker
New Headhunter fresh water flush in all guest accommodation.

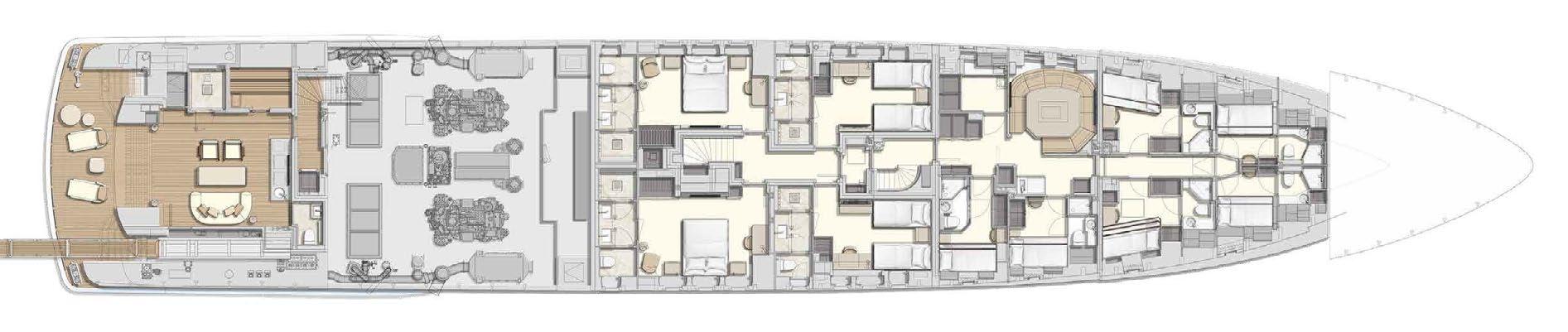

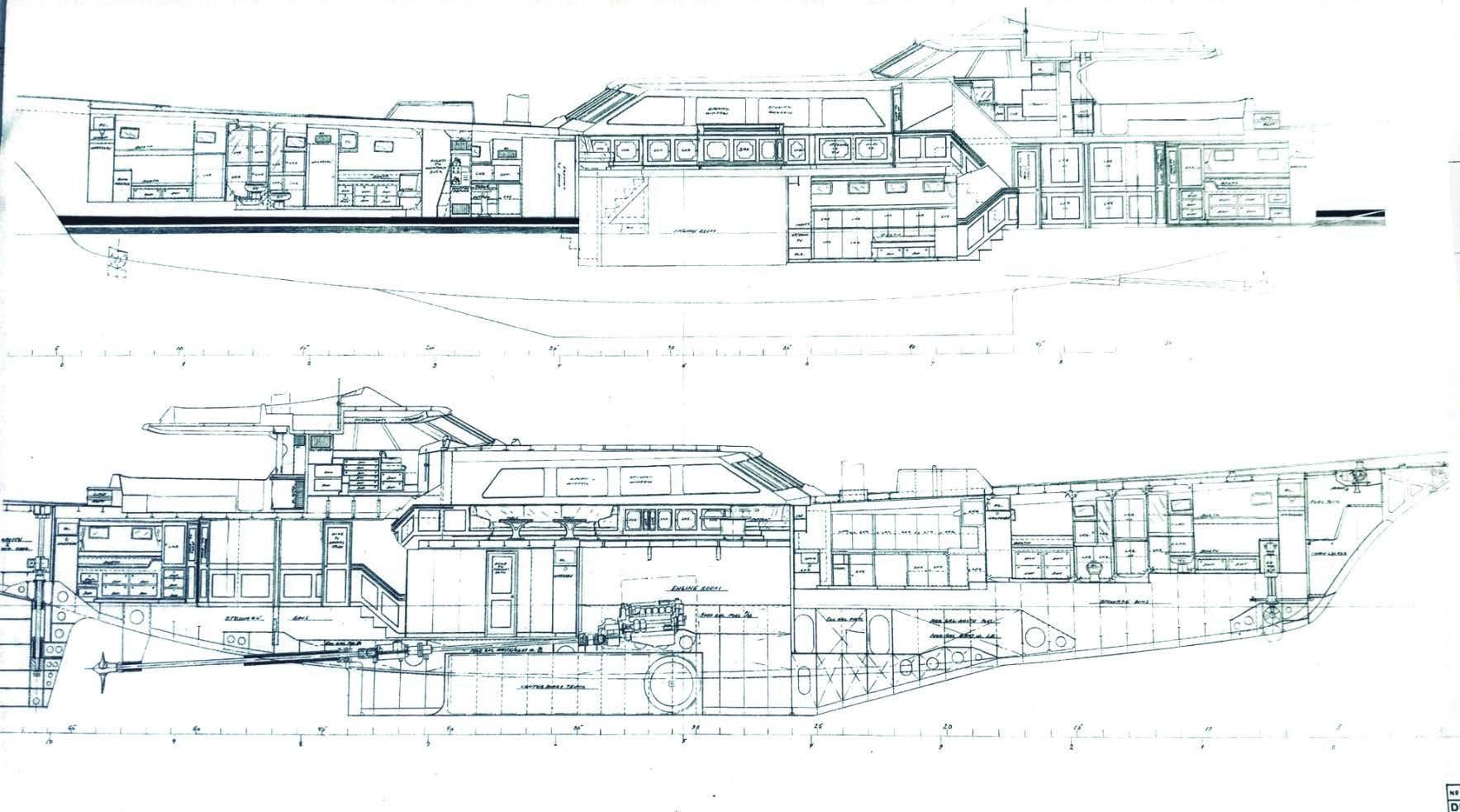

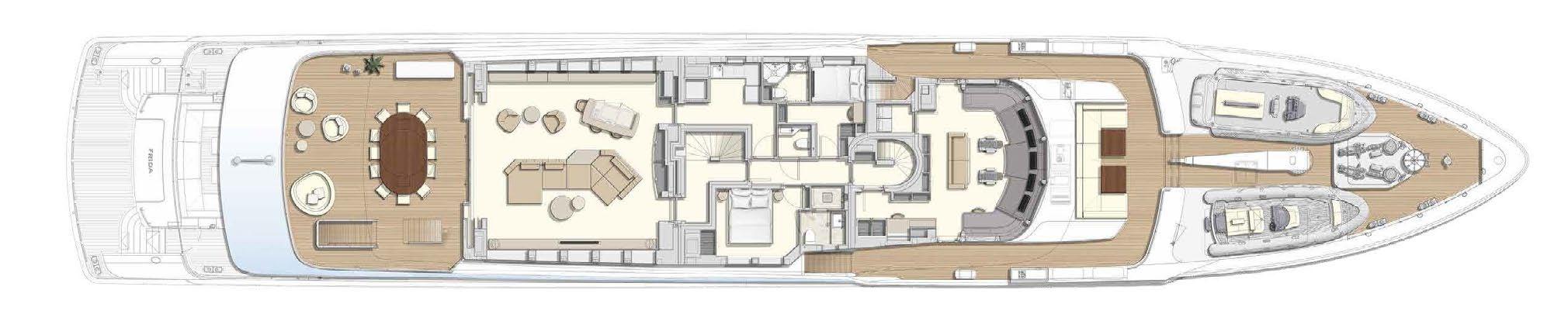

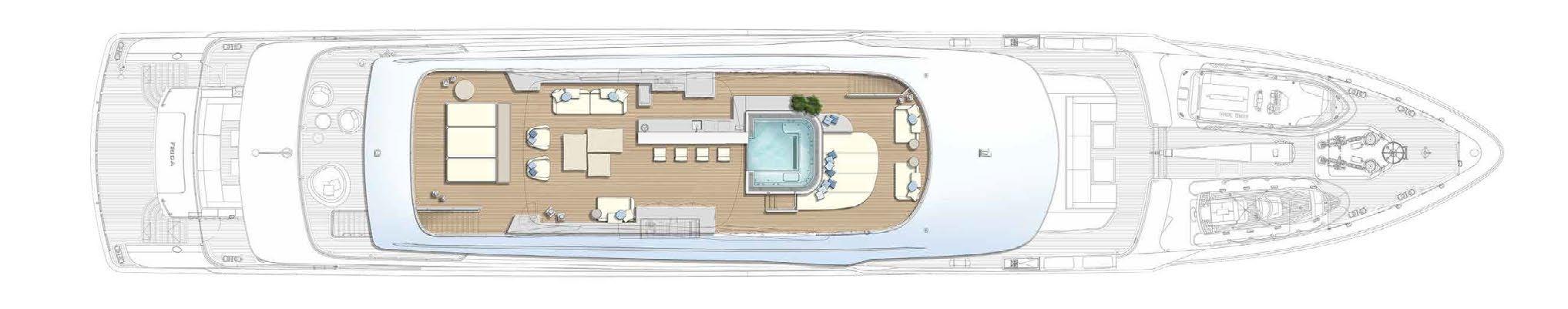

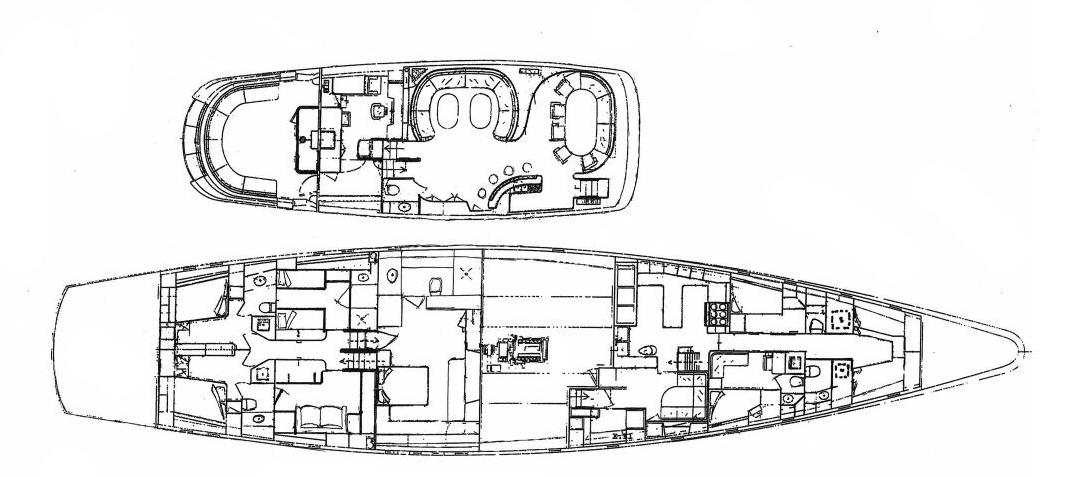

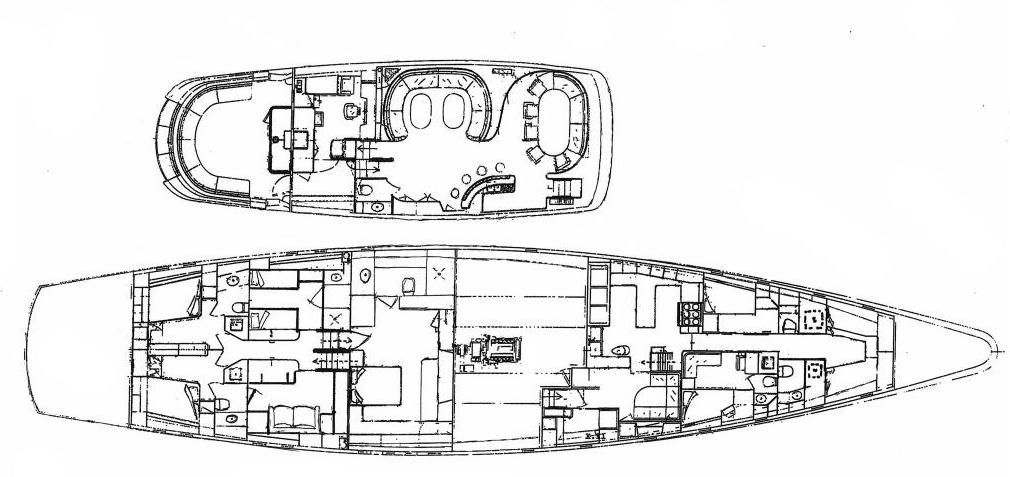

GENERAL ARRANGMENT
