Durable Taper lock Bushes for Secure Connections

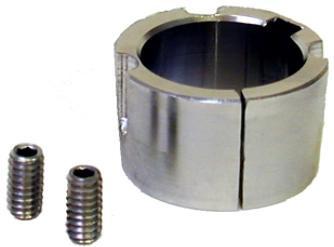

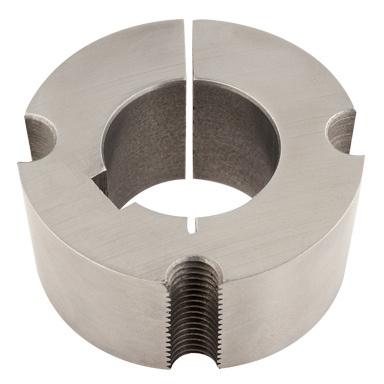

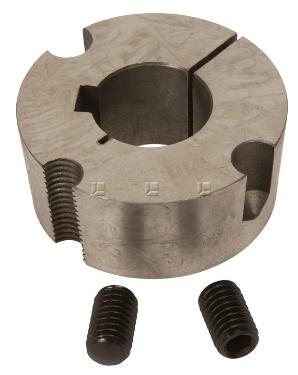

Taper Lock bushes,

DURABLE TAPERLOCK BUSHES FOR SECURE CONNECTIONS

also known as Taper bush or Taper Fit bushes, are used to secure pulleys, sprockets, and couplings to shafts in Power Transmission Drives. The Taperlock

The Taper lock bush is

bushes have been pre-

made of high-quality cast

bored and keyed to fit

iron and is expertly machined to provide a

the specified

precise fit. It may be made

diameters of the post

to order in either steel or

and keyway. The

stainless steel and features a computer-etched size

bush's exterior is

designation for quick

tapered to fit the

reference. In both imperial

component bore on

and metric systems, you may get taperlock bushes for shaft diameters from 0.375 inches to 5 inches (or 9 mm to 125 mm). The bush will come with an installation guide, a standard practice among reputable manufacturers.

the shaft.

Installation of Taperlock Bushes · First, remove oil, grease, dirt, or metal filings from the Taper Lock bush. Removing the bush from the hub and cleaning the hub's bore, shaft, and bushing's exterior before installing a new frontier. · Examine the bushing for indications of cracking or fatigue, and make sure all of its surfaces are smooth and free of nicks and burrs. First, ensure that the hub's half-drilled holes are aligned with the bushing's full-sized counterparts to install the bushing. The holes, not the threads, are what must be matched. Each opening will include threading on just one side. · Third, oil the threads and set the screw point beneath the cap screw head. Afterward, as illustrated in Figure 1, insert the screws sloppily into the threaded holes on the hub side. · When the Taper Lock bush is loose in the hub, the assembly may be slipped onto the shaft

· Third, oil the threads and set the screw point beneath the cap screw head.

Afterward, as illustrated in Figure 1, insert the screws sloppily into the threaded holes on the hub side. · When the Taper Lock bush is loose in the hub, the assembly may be slipped onto the shaft and positioned as needed. Put the right-sized key into the shaft's keyway and press it in until it clicks into place. Make sure the top of the key is not flush with the top of the bushing keyway slot. This will prevent the breaking of the bush.

WARNING: To protect the Taper Lock bushing from damage, strike the big end with a hammer and block or sleeve. Make sure the bushing is firmly in place by tapping on it gently. After that, the screws are tightened even further. Torque wrenches evenly and systematically tighten each screw to the specified level. Any freshly purchased Taperlock bushes will have an installation document detailing these steps. Figure 3 is an example chart; you can always ask for more details.
