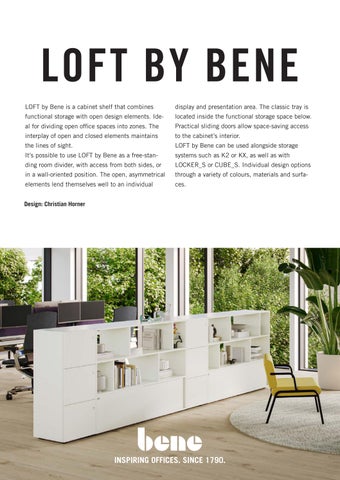

LOFT BY BENE
LOFT by Bene is a cabinet shelf that combines functional storage with open design elements. Ideal for dividing open office spaces into zones. The interplay of open and closed elements maintains the lines of sight.
It’s possible to use LOFT by Bene as a free-standing room divider, with access from both sides, or in a wall-oriented position. The open, asymmetrical elements lend themselves well to an individual
display and presentation area. The classic tray is located inside the functional storage space below. Practical sliding doors allow space-saving access to the cabinet’s interior.
LOFT by Bene can be used alongside storage systems such as K2 or KX, as well as with LOCKER_S or CUBE_S. Individual design options through a variety of colours, materials and surfaces.
PRODUCT DESCRIPTION
LOFT by Bene consists of a sliding door cabinet on the bottom and an open shelf on the top. The sliding door cabinet can be used either from one side (with two sliding doors) or as a version with access from both sides (one door slides on each side). The top shelf element is always open and is accessible from both sides. The open part can be configured with two or four compartment dividers.
Top: 19 mm chipboard.
Visible sides: 19 mm chipboard. 50 mm hole spacing for installing shelves.
Upper shelf: 19 mm chipboard.
Bottom: 19 mm chipboard.
Middle panel: 19 mm chipboard. 50 mm hole spacing for installing shelves.
Shelves: 19 mm chipboard.
Illustration: LOFT with access from both sides
Intermediate bottom: 19 mm chipboard.
Compartment divider: Available as two or four; chipboard 19 mm.
Sliding door: 16 mm chipboard.
Rear wall: 16 mm chipboard.
Adjustment leg: Plastic in colour AS asphalt. Base height 25 mm or base height 37 mm, 6 adjustment legs per cabinet, +20 mm height-adjustable.
Optionally available with base panel (plastic) or steel base, each in the colour AS asphalt.
PRODUCT DESCRIPTION
FRONT
Sliding doors
The sliding doors run in a milled running profile along the floor. The one-sided version has two sliding doors on one side, with a choice whether the left or right door slides in front. For the version with access from both sides, one sliding door can be opened on each side.
The following configurations are available for the fronts:
Lock
Lock Handle
All cabinet fronts can be configured to be lockable or not lockable. with lock (optionally with changeable cylinder) with lock (with locking group) without lock or lock hole
Keys
Cabinets with lockable front are always delivered with 2 keys: one flat key and one folding key.
Lock and handle
Handle
Optionally available with or instead of the lock. The handle is made of powder-coated diecast aluminium and is available in white or black.
LOFT one-sided:
Two sliding doors on one side, preferably with the left or right sliding door in front. Suited locks for one key.
LOFT with access from both sides: One sliding door on each side. Individual locks for different keys.
BASE
LOFT can be configured with different versions and base heights and is thus compatible with other Bene storage spaces.
Base height 25 mm
6 adjustment legs in AS asphalt, height adjustable +20 mm base profile (plastic)
Base height 37 mm
6 adjustment legs in AS asphalt, height adjustable +20 mm optional base profile (plastic)
Base height 45 mm
· steel profile in AS asphalt, height adjustable +20 mm.
LOFT KX 2
1 when 25 mm tops are used for top and bottom
2 when 19 mm tops are used for top and bottom
PRODUCT DESCRIPTION
LOAD CAPACITY OF THE SHELVES
The load capacity indicated in the table applies for all shelves.
FRAME CHARACTERISTICS
There is the possibility to configurate the frame optically different to the carcass, so it will be accentuated. Therefore exist several options:
DIMENSIONS AND INNER WIDTHS
GENERAL INFORMATION
As a rule, the dimensions are variable, but certain recommended values for widths, depths, and heights are pre-defined. Detailed information is available in the pCon products.
CABINET WITH 2 COMPARTMENT DIVIDERS
Recommended values
Widths: 1,000 | 1,200 mm
Depth: 445 mm
Height: 3 | 3.5 (1,300 mm) | 3.5 (1,430 mm) | 4 OH (file height)
Limits:
CABINET WITH 4 COMPARTMENT DIVIDERS
Recommended values
Widths: 1,600 | 1,800 mm
Depth: 445 mm
Height: 3 | 3.5 (1,300 mm) | 3.5 (1,430 mm) | 4 OH (file height)
Limits: LOFT with 45 mm K2 steel profile
LOFT with 25 mm adjustment legs, optional with base profile (plastic) LOFT with 37 mm adjustment legs, optional with base profile (plastic)
COLOURS & MATERIALS
MATERIALS AND SURFACES
The following materials and colours are available for this product:
• available, price acc. to price list
○ available, price acc. to pCon products – not available
Colour configuration for the one-sided LOFT:
Colour configuration for LOFT with access from both sides:
one-sided
carcass (frame, open shelf, compartment dividers)
front (sliding doors)
interior (shelves + middle panel in the sliding door cabinet)
rear wall
access from both sides - carcass (frame, open shelf, compartment dividers)
front (sliding door, fixed front, rear wall)
interior (shelves + middle panel in the sliding door cabinet)
Handle
Colours and colour illustration included “Colours & materials”
PRICE GROUPS
The following price groups will be shown in this price list:
M1 melamine group 1
F1 Veneer group 1
INSPIRATIONS
Inspiration #01
LOFT sliding door cabinet one-sided with 3.5 OH (1,430 mm) and width 1,800 mm. Cabinet is completely in white melamine, all fronts with a lock. Worbench Delta with width 1,600 mm (depth 1,602 mm) and a fix height of 740 mm. Tabletops in white melamine, with foldable cable tray T and 2 cable outlets per tabletop. T-Panel Curve rounded, assembled in tabletop slot and in width of the table, fabric covering in price group P2. RIYA swivel chair medium-high in a fabric of price group P2, with aluminium swivel base and 3D armrests.
Inspiration #02
Combination of LOFT sliding door cabinets with access from both sides and K2 sliding door cabinet with PP Planter Box.
Two LOFT cabinets with 3 OH each and width 1,200 mm, with K2 steel profile. K2 sliding door cabinet in height 922 mm and width 1,200 mm. All cabinets completely in white melamine, all fronts with a lock. PP Planter Box with height 220 mm and width 1,200 mm, equipped with Planter Trays.
INSPIRATIONS
Inspiration #03
Combination of LOFT sliding door cabinets with access from both sides and LOCKeR_S. Two LOFT cabinets with 3 OH each, and width 1,600 mm, fronts with locks. Two LOCKeR_S with a height of 1,130 mm and 3 fronts with a lock each. All cabinets completely in white melamine, all fronts with a lock.
Inspiration #04
Combination of LOFT sliding door cabinet one-sided and KX sliding door cabinet. LOFT cabinet one-sided with a height of 3 OH and width 1,600 mm. KX sliding door cabinet with a height of 3 OH and width 1,200 mm, equipped with a fabric rear wall in price group P2. All cabinets completely in white melamine, all fronts with a lock.
INSPIRATIONS
Inspiration #05
Combination of LOFT sliding door cabinet one-sided and LOCKeR_S. LOFT cabinet one-sided with a height of 1,501 mm and width 1,200 mm. LOCKeR_S with height 1,501 mm and width 900 mm, fronts with shock absorption, the bottom storage is configurated as a drawer. All cabinets completely in white melamine, all fronts with a lock.
Inspiration #06
LOFT sliding door cabinet one-sided with a height of 4 OH and width 1,520 mm, fronts with handle and shock absorption. Cabinet is completely configurated in veneer group 1.
COLOURS & MATERIALS
MELAMINE: Basic colours
MELAMINE: Additional basic colours
MELAMINE: Decor colours
MELAMINE: Decor colours, wooden structure
COLOURS & m AT eRIALS
VENEER: maple
VENEER: beech
VENEER: oak
VENEER: walnut
chestnut
VENEER: bamboo
