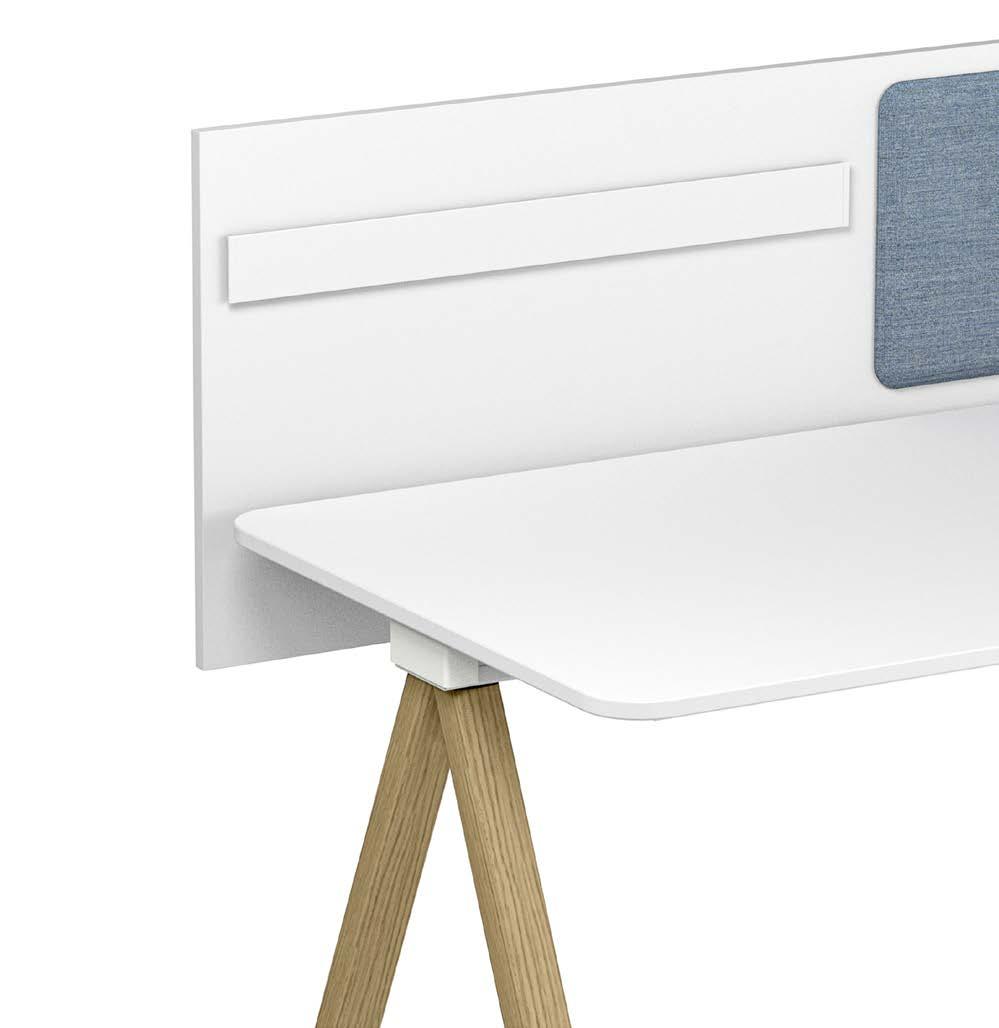

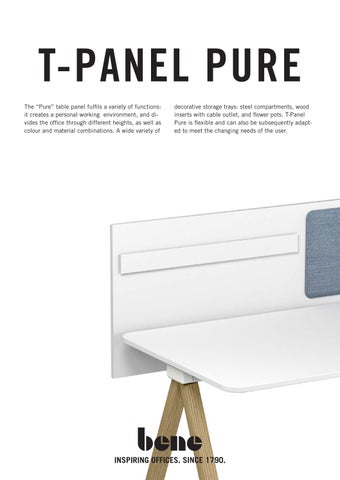

T-PANEL PURE
The “Pure” table panel fulfils a variety of functions: it creates a personal working environment, and divides the office through different heights, as well as colour and material combinations. A wide variety of
decorative storage trays: steel compartments, wood inserts with cable outlet, and flower pots. T-Panel Pure is flexible and can also be subsequently adapted to meet the changing needs of the user.
PRODUCT DESCRIPTION
1 2
T-Panel Pure: Can be used for LeVeL and LeVeL PURe family, Consult, Workstation and Workbench. The base consists of a 19 mm melamine top.
Surface: melamine or veneer
T-Panel Pure Extend: Can be used for LeVeL and LeVeL PURe family, Consult or Workstation.
The wall comprises of a 19 mm vertical surface.
Surface: available in melamine or veneer with adjustable legs
POTENTIAL CONNECTION OPTIONS / CONNECTION POSITIONS OF THE PANEL TO THE TABLE SIDES
Table top positioning behind desk top with 2 mm gap behind desk top with 20 mm gap in the gap between desk tops behind shortened desk top centrally on connecting bar
Workstation V, VL, VR, L, R, VS V, VL, VR, L, R, VS - V, VL, VR, VS
Consult (T-Panel Pure extend) V, L, R, VS V, L, R, VS
Workbench
LeVeL and LeVeL PURe family V V
T-Panel extend not in combination with Light cantilever leg.
Definition of table top sides / desk top shape alignment
The desktop shapes illustrated are shown in a left-sided version. Right-handed versions are mirror-inverted to these.
Visitor's side laterally (VS)
Visitor side (V)
User side (U) front (F) laterally (S)
Visitor side (V)
Visitor side (V)
User side (U) left side (L) right side (R)
Visitor's side left (VL)
Visitor's side laterally (VS) laterally (S) left side (L) right side (R) User side (U)
User side (U) front (F)
POTENTIAL ATTACHMENT SOLUTIONS TO ADJACENT ELEMENTS (WORKSTATION ONLY)
The following illustrations explain the connections of the individual panels to corners as well as their use with different table top shapes
The possible installation positions are also highlighted.
The panel with the relevant nominal table width, nominal table depth, side length, or specified width (with leg lengths) must be used in all cases for pricing purposes. nominal length n
Visitor's side right (VR)
OVERVIEW AND DIMENSIONS
T-PANEL PURE
Behind shortened desk top Extension position: visitor side
Lift Desk Twin, Twin Table centred on connecting bar
With 2 mm or 20 mm gap Extension position: visitor side
In
T-PANEL PURE EXTEND
With 2 mm or 20 mm gap
position: visitor side
OVERVIEW AND DIMENSIONS - LEVEL / LEVEL PURE
T-PANEL PURE
With 2 mm or 20 mm gap
Extension position: visitor side
T-PANEL PURE EXTEND
With 2 mm or 20 mm gap
OPTIONS
ATTACHMENT SCREEN GLASS
Only possible if an organisation profile is present!
Height: 203 mm, widths: from 400 – 2.000 mm possible
Surface: perspex, colour: PW white satin finish or PC smoke clear
Colour adapter: WI white
PANEL OPTIONS DESK SIDE / REAR SIDE
Panel without options
Depth 19 mm
Surfaces: melamine or veneer
Pin board
Covers are available in the fabric groups P0-P5, per Bene seating furniture collection. The pin board is divided from a panel width of 2.000 mm upwards.
Organisation profile & pin board
Covers are available in the fabric groups P0-P5, per Bene seating furniture collection. Combination only possible with the “old” Panel accessories.
partial pin board & organisation rail short
Covers are available in the fabric groups P0-P5, per Bene seating furniture collection. The position of the pin board and the organisation rail can be changed.
Pin board & organisation rail long
Covers are available in the fabric groups P0-P5, per Bene seating furniture collection. Combination only possible with the “old” Panel accessories.
Organisation profile
Colour: WI white powder-coated, SZ black powder-coated or AL anodised aluminium
Organisation rail long
Colour: WI white powder-coated, SZ black powder-coated or AL anodised aluminium
T-Panels in combination with Accessories, check the configuration of the T-Panels and the hook-in height.
COLOURS AND MATERIALS
MATERIALS AND SURFACES
The following materials and colours are available for this product.
• available, price acc. to price list - not available
Surface Panel Attachment screen glass melamine
Veneer
Fabric (P0-P4)
PW white perspex satin finish or PC smoke clear
COLOURS & MATERIALS
MELAMINE
COLOURS & MATERIALS
VENEER
1 Veneers also available in matt finish.
COLOURS & MATERIALS
Various material collections are available as cover materials: Xtreme Plus, Urban Plus, Inn, era, Step, Step melange, Soft next, Remix, mainline Flax, Focus, Panama, Fiord, Steecut, Assam, Focus melange, Artisan, The Cool, Steelcut Trio, Hallingdal, elle, Coda. more information about the specific fabric collections is available at www.bene.com.
Our outdoor fabrics can also be used on products for indoor use. However, this does not mean that the indoor products are suitable for outdoor use.
Sagging / warping Wood and wood-based materials change their dimensions under the influence of the climatic conditions: they expand. This means that, over a length of 1 m, it is relatively common for a board to sag up to as much as 5 mm. Due to the nature of the material wood, these slight deformations are within the tolerance and do not constitute grounds for complaint.
