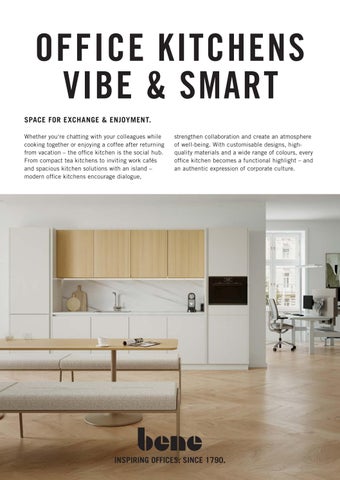

OFFICE KITCHENS VIBE & SMART
SPACE FOR EXCHANGE & ENJOYMENT.
Whether you‘re chatting with your colleagues while cooking together or enjoying a coffee after returning from vacation – the office kitchen is the social hub. From compact tea kitchens to inviting work cafés and spacious kitchen solutions with an island –modern office kitchens encourage dialogue,
strengthen collaboration and create an atmosphere of well-being. With customisable designs, highquality materials and a wide range of colours, every office kitchen becomes a functional highlight – and an authentic expression of corporate culture.
PRODUCT DESCRIPTION
each kitchen is individually planned and assembled. We offer a complete solution - from the carcass to the electrical appliances - all from a single source. Carcass parts, rear wall, worktop and handles are available in different colours and materials.
There are two versions to choose from: the VIBe kitchen with classic handles and the handleless SmART kitchen. each kitchen is equipped with high-quality AeG electrical appliances, which come with a five-year guarantee (only on the core range from the order form). Further details on the appliances can be found in the order form.
GENERAL
Carcass parts
The carcass parts are made of 19 mm melamine-coated chipboard with a 2 mm thick edge on the front of the cabinets and compartments. The rear wall consists of an 8 mm board.
Hinged doors & hinges
Hinged doors are equipped with self-closing ‘CLIP hinges’, can be adjusted in three dimensions and have an opening angle of 110°.
Niche rear wall
19 mm laminate board, 13 mm compact board or 6 mm glass
Worktop
30 mm laminate board or 13 mm compact board
STANDARD DIMENSIONS
Bottom cabinet with storage
Widths 400 - 900 mm
Depth 560 mm (carcass, without door)
Bottom cabinet for hob
Widths 400 - 900 mm
Depth 560 mm (carcass, without door)
Bottom cabinet for sink
Widths 400 - 900 mm
Depth 560 mm (carcass, without door)
Tall cabinet with storage
Widths 400 - 600 mm
Depth 560 mm (carcass, without door)
Heights 2015 | 2245 mm
Tall cabinet for oven
Width 600 mm
Depth 560 mm (carcass, without door)
Heights 2015 | 2245 mm
Tall cabinet for refrigerator
Width 600 mm
Depth 560 mm (carcass, without door)
Heights 2015 | 2245 mm
Lighting
Lighting can be integrated into the worktop. Optionally with a 3 / 5 spotlight set or with a 600 / 900 / 1.200 mm LeD strip, each in the colours black or silver.
Drawers and pull-outs
The drawers are available in heights of 91 mm and 192 mm. They have full extensions, are damped and offer a maximum load of up to 40 kg. Internal drawers can be integrated on request.
Tall cabinet for microwave or extractor hood
Width 600 mm
Depth 350 mm (carcass, without door)
Heights 650 | 780 mm
PRODUCT DESCRIPTION - OFFICE KITCHEN VIBE
The VIBe kitchen model with classic handles ensures a timeless look. There is a choice of bow or bar handles. These can be configured in different colours and positioned horizontally or vertically on the kitchen fronts.
TECHNICAL DRAWING
Dimensions in mm
HANDLES
The handles can be configured in an vertical or horizontal position.
Variants
22 - silver
· TYPe 23 - black
24 - white
Variants
31 - silver
Variants
BAR HANDLES front-dependent or 192 mm
Variants
44 - silver
Variants
Variants
- silver

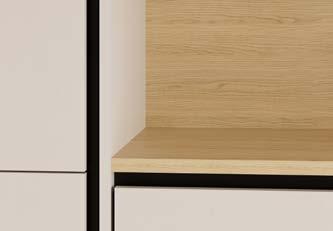

PRODUCT DESCRIPTION - OFFICE KITCHEN SMART
The SmART kitchen model with modern, concealed handle strips creates a minimalist, elegant design. The handle strips can be configured in different colours and can be fitted horizontally or vertically on the kitchen front.
TECHNICAL DRAWING
The concealed handle strips are orientated differently depending on the cabinet type: they run horizontally on bottom and top cabinets and vertically on tall cabinets. material: aluminium
COLOURS & MATERIALS
The following materials and colours are available for this product:
• available - not available
Worktop
Rear
COLOURS & MATERIALS
MELAMINE
LAMINATE
