KT SIDEBOARD
THE ART OF MULTITASKING.
The KT sideboard makes private and confidential papers and items simply disappear from view. The KT sideboard can be used for a variety of functions: It can support the table top, when fixed together
Design: Johannes Scherr
using a connector, or to discreetly feed cabling to and from the table surface. Of course, the lockable storage unit offers space for stationery and all kinds of office utensils.
PRODUCT DESCRIPTION

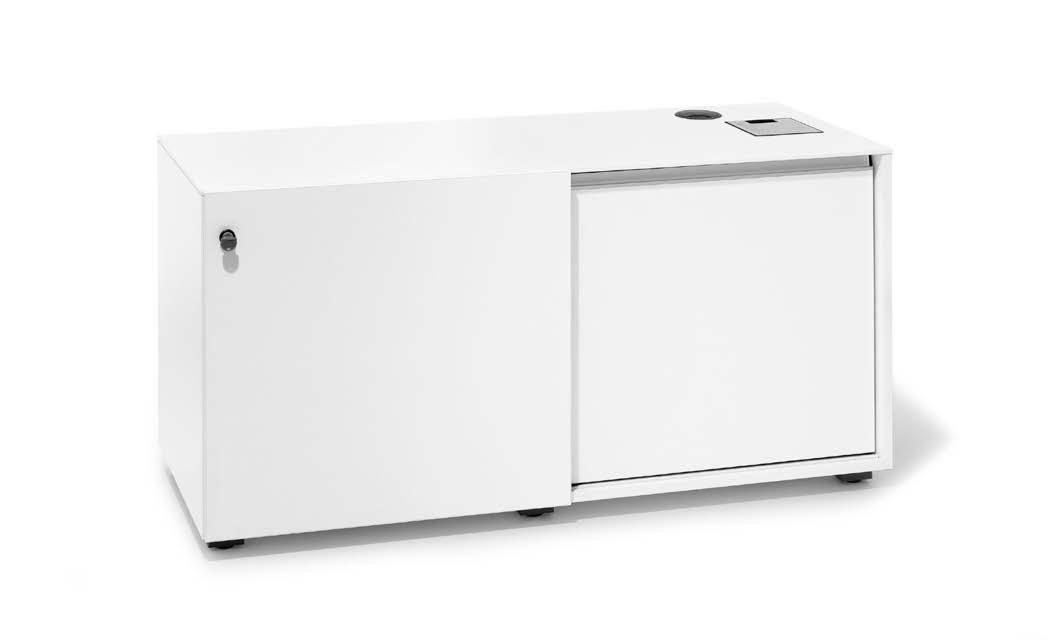

Version shown connects to the left side of a table:
Sliding door left – hinged door right.
OVERVIEW AND DIMENSIONS
GENERAL INFORMATION
Top: 8 mm chipboard.
Carcass: 19 mm chipboard.
Sliding door: 8 mm chipboard.
Hinged door: 19 mm chipboard.
CPU swivel board*
Preparation for desk connection module*
Ventilation grille*
Cable outlet *
Handle bar for hinged door: material and colour: AL aluminium, anodised , SZ black or WI white powder-coated.
Lock: The standard features a lock including changeable cylinder, 2 keys (one of which is folding). Options include with locking group, without changeable cylinder or without the lock. For details see “Options”.
* Available as an option, for details see “Options”.
As a rule, the dimensions are variable, but certain recommended values for widths, depths, and heights are pre-defined. Intermediate measurements are available for an additional surcharge. Detailed information is available in pCon.planner under Products.
Sliding door left – hinged door right
Sliding door left – right open
Depth: 445 – 600
The following dimensional restrictions apply for desk connection modules when combined with the Workstation: no restrictions the LeVeL (PURe) (LIFT) (2): width 1,400 – 1,600, fixed height 538 · the COnSULT PURe (LIFT) (2): width 1,600, fixed height 538
Hinged door left – sliding door right
Left open – sliding door right
The sideboard is fitted with two shelves as standard. When combined with a CPU swivel board or a desk connection module, a shelf is only possible on the sliding door side. In general, no built-in components are permitted on the hinged door side.
Sliding door left – hinged door right
Sliding door right – hinged door left
OPTIONS
PREPARATION FOR DESK CONNECTION MODULE
For the COnSULT PURe (LIFT) (2), the KT Sideboard is always used as a frame replacement on one end. For the Workstation and LeVeL (PURe) (LIFT) (2) tables, it can be selected as a frame replacement. Alternatively, the table can be configured with a standard leg and the KT Sideboard simply placed under the table.
with / without hinged door (with the COnSULT PURe (LIFT) (2) and LeVeL (PURe) (LIFT) (2))
Where a set up with the desk connection module is selected, it is not possible to opt for a shelf on the open side.
without hinged door (with the Workstation)
Where a set up with the desk connection module is selected, it is not possible to opt for a shelf on the open side.
For the KT Sideboard without hinged doors, a cover is installed over the console for aesthetic reasons.
OVERVIEW – KT SIDEBOARD WITH DESK CONNECTION
Image shown: Table always with KT Sideboard, sliding door left – hinged door right
WORKSTATION
Basic rectangular Basic round Square
LEVEL (LIFT) (2)
CONSULT PURE (LIFT) (2)
with hinged door (with the Workstation) Where a set up with the desk connection module is selected, it is not possible to opt for a shelf On the hinged door side. If hinged doors are selected, the console cover is not required.
Circle column, as a Lift version or with fixed height: Tabletop shapes W8, W9 and W10
T-leg, Lift, rectangular T-leg, Lift, round T-leg, Rastomat, rectangular
T-leg, fixed height, rectangular T-leg, fixed height, round Classic, Lift version or fixed height
Additional tabletop shapes available: Rectangular Re with Soft edge, rounded user side nG.
LEVEL PURE (LIFT) (2)
T-leg, Lift, rectangular T-leg, Lift, round T-leg, Rastomat, rectangular
Additional tabletop shapes available: Rectangular Re with Soft edge.
ANGULAR ROTATION
T-leg, fixed height, rectangular T-leg, fixed height, round Classic, Lift version or fixed height
The KT Sideboard can be freely adjusted between 90° – 120° (adjustment range: 30°).
Angular rotation is only possible with the LeVeL (PURe) (LIFT) (2) tables featuring a round column guide. All column variants can be selected for the Workstation, as the frame replacement (the column in the KT Sideboard) is designed with a round column for the Basic rectangular and Square column types. Only the round column (Circle) is available for the COnSULT PURe (LIFT) (2).
OPTIONS
CHANGEABLE CYLINDER
Z70 locking system – up to and including week 36 September 2025
The Z70 exchangeable cylinder covers key codes from B51004 –B52994.
Z70 changeable cylinder
Z70 folding key Cap: Colour slate
Z70 flat key
CONFIGURATION OPTIONS
- in furniture
- as a set (one changeable cylinder, one flat key and one folding key)
- service key
Z70 locking system up to and incl. calendar week 36 2025
random (no definition)
Locking group
- by key code
A: B51104
B: B51204
C: B51304
D: B51404
e: B51504
F: B51604
G: B51704
H: B51804
B51004 – B52994
Z60 locking system – from delivery week 37 September 2025 The Z60 changeable cylinder covers key codes from 26001 –26200.
The Z60 changeable cylinder fits into all existing locks.
Z60 changeable cylinder
from delivery week 37 2025 - Z60 folding key Cap: Colour black
Z60 flat key
Z60 locking system from week 37 2025
random (no definition) by key code
26001 – 26200
Re-orders are only possible as a set (always consisting of a changeable cylinder, a flat key and a folding key) –individual keys are not available!
The service key from the Z70 system is not compatible with the Z60 system. You need a separate service key for each system!
OPTIONS
ACCESSORY EXTENSION ON SHELF
Only available on sliding door side. Accessory extension is screwed onto existing shelf. material and colour: The base plate matches the colour configuration of the interior (chipboard in melamine or veneer, inserts in black plastic).
Accessory extension dimensions: Dimensions are variable.
VENTILATION GRILLE
When you select the CPU swivelling board, the ventilation grille is already included. material and colour: Anodised aluminium, black plastic. 1 2
ACCESSORY EXTENSION
Only available on sliding door side. The accessory extension is always mounted on the underside of the top panel. material and colour: Synthetic material, black. Accessory extension dimensions: W: 379.5 mm, D: 310 mm, H: 30 mm
CPU SWIVEL BOARD
Only available on sideboards with hinged door. This eliminates the shelf on this side. material and colour: Steel plate, SZ black, powder-coated. Swivel board dimensions: W: 482 mm, D: 219 mm, H: 515 mm. max. weight load: 10 kg. maximum PC dimensions: W: 200 mm, D: 465 mm, H: 475 mm.
GROMMET HOLE
Sideboard available with or without cable outlet. If a CPU swivel board has been selected, a cable outlet is permanently fixed in the bottom. Version with plastic cable outlet available in AL aluminium, SZ black, and WI white.
BUILT-IN COMPONENTS
ATTENTION: Built-in components only available in the standard sideboard widths of 1200 mm and 1600 mm. Only available on the sliding door side and open side when the depth is over 400 mm.
HANGING FILE FRAMES, HANGING FRAMES, FILE DRAWERS
Fully extendable metal frame. Ball-bearing mounted, sturdy, slides perfectly with integrated push-in mechanism. With full extension, without parallel guides. Hanging file drawer including bottom. Usable frame and drawer depth of 330 cm. Installed in the compartment. The file drawer comes with optional dividers – lengthwise or crosswise. material and colour: Steel plate, SZ black.
The following overview shows which element widths are required for each sideboard width:
Lengthwise divider for file drawer material and colour: Plastic, SZ black.
10 mm
Crosswise divider for file drawer material and colour: Steel, SZ black Width: 326 mm
77 mm Width: 221 mm
5 mm
73 mm
LATERAL FILING FRAME
Lateral filing frames are installed permanently in a compartment. Dimensions: Width 571.5 mm or 771.5 mm, depth 318 mm, height 75 mm. material and colour: Steel plate, SZ black.
DESK DRAWER UNIT
Five removable plastic boxes. Drawer height. Drawers can be pulled out and removed. For filing A4 formats. material and colour: recycled plastic, SZ black.
Width: 284 mm
Depth: 348 mm
Height: 290 mm
COLOURS AND MATERIALS
MATERIALS AND SURFACES
The following colours and materials and are available for this product.
• available, price according to price list
not available
Top
Carcass
Front
Interior
Handle bar
Options
- Accessory extension 1
- Accessory extension on the shelf 1
-CPU swivel board 1
- Hanging file frame 1
- Pull-out file frame 1
- File drawer 1
- Lengthwise divider for file drawer 1
- Crosswise divider for file drawer 1
- Desk drawer unit 1
- Cable outlet
1 only available in black
Colours and colour illustration included “Colours and materials”
COLOURS & MATERIALS
MELAMINE
COLOURS & MATERIALS
VENEER
Veneers also available in
METAL, POWDER-COATED
SOLID-COLOURED PLASTIC
BENE’S RESPONSIBILITY
Bene plays a pioneering role in the field of sustainability. This spans all company divisions – from product development, procurement, production and logistics to product recycling. From the first sketch through to series production, ecological requirements are always an important factor in our product development process. They include selecting environmentally compatible materials, such as certified timbers from sustainably managed forests, using recycled components and increasing the use of renewable raw materials. material labelling, repairability, and a long service life of the components used are also key requirements for product design, ensuring that these can be given a second product life cycle.
In order to guarantee a high recyclability standard for our products at the end of their service life, we avoid composites as much as possible and develop furniture that allows for separation by type when it is disassembled.
99.9% of all deliveries reach us from a european country. Around 94% of all our raw material supplies come from Austria and Germany. Around 93% of the raw materials comes from suppliers within 500 kilometres of our production site.
SUSTAINABLE RAW MATERIALS
At Bene, the following materials are used as a matter of course:
· chipboards low in formaldehyde, glues low in formaldehyde,
· water-based varnish systems, recyclable materials,
· materials with a high recycling share, PVC-free synthetics.
CONTRIBUTION TO BUILDING CERTIFICATIONS
Bene’s products are guaranteed free from:
· CmR substances, halogenated solvents in synthetics,
· chlorinated hydrocarbons, heavy metal pigments,
· materials with azo dyes, Coatings with biocidal effects (such as wood preservatives, pesticides).
In the context of ecological building certification, design systems such as furniture and dividing walls help to achieve a good result and a higher score.
Bene’s products help achieve the LeeD, WeLL Building Standard, DGnB, BReeAm, etc. certifications. Criteria include, for example, environmental product declarations, indoor air quality, acoustics and convertibility.
Example configuration
· W | D | H (mm): 1600 x 445 x 588 melamine white
· Sliding door left – hinged door right Total weight 64.47 kg
Materials
Key environmental figures
· 99.8% can be separated by type 98.6% recyclable
· 90.1% renewable raw materials 73.6% of production materials are recycled
On request, environmental Product Declarations (ePD, LCA) – at Bene we call them Life Cycle Data Sheets – can be provided for all standard product configurations.
A list of product-specific certificates and design awards can be found on the Bene product website: https://bene.com/en/products/storage/sideboard/kt-sideboard
environment-related information about Bene: https://bene.com/en/concepts-knowledge/sustainability-report
