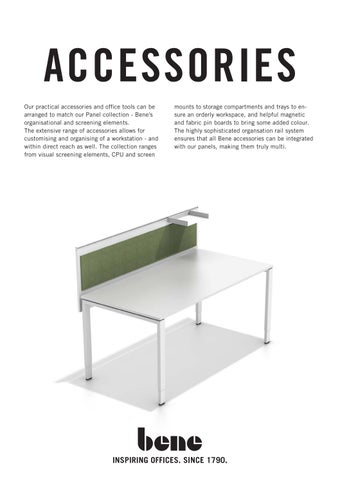

ACCESSORIES
Our practical accessories and office tools can be arranged to match our Panel collection - Bene's organisational and screening elements. The extensive range of accessories allows for customising and organising of a workstation - and within direct reach as well. The collection ranges from visual screening elements, CPU and screen
mounts to storage compartments and trays to ensure an orderly workspace, and helpful magnetic and fabric pin boards to bring some added colour. The highly sophisticated organsation rail system ensures that all Bene accessories can be integrated with our panels, making them truly multi.
PRODUCT DESCRIPTION
TABLE ADD-ON ELEMENTS

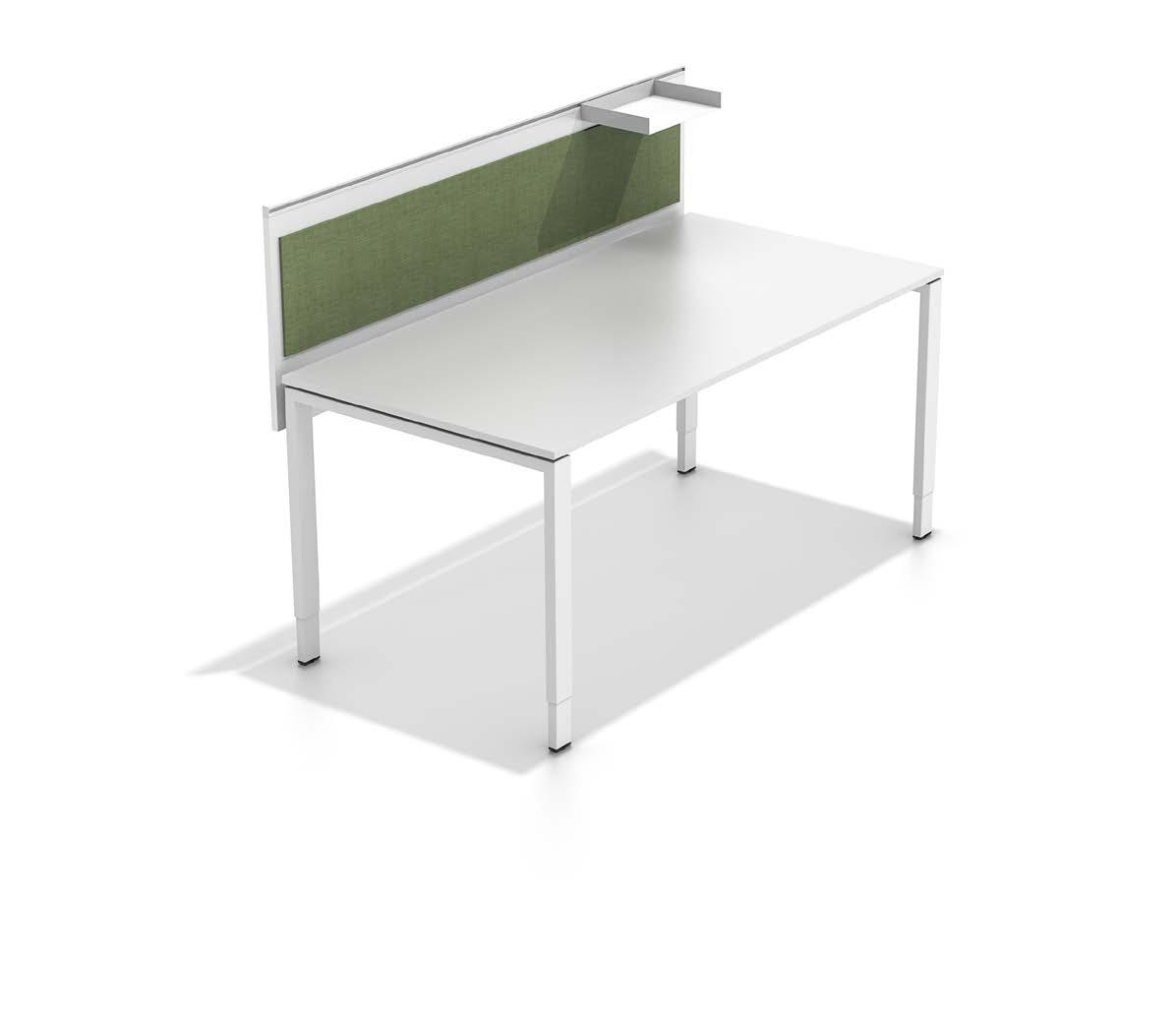

Modesty panels
For the provision of visual screening and/or upgrading of free-standing workstations. The sliding panels can be attached to desks in the Workstation and Consult ranges. modesty panels are available it the following materials:
Chipboard
material thickness 16 mm
· Assembly flush to the rear edge of the desk, to universal adapters or shortened to frames. With Filo desk systems and angled desks in the Workstation and Consult ranges, the fronts are mitre cut and joined to each other by means of connection fittings.
mesh covered
· Assembly with angled desks flush to the rear edge of the desk, in Filo desk systems shortened directly to the frame.
Steel and chipboard panels can, however, also be shortened by 193 mm with the Workstation range. exceptions are formed by combinations with lower desk container, KT sideboard and a table depth of 600 mm. Assembly in conjunction with T-Panel is only possible with a 20 mm gap.
DIMENSIONS
Modesty panels
nominal dimension: 800-2.400 mm
· Width: 800-2.400 mm
Height: 350 mm
(400 mm from lower edge of the desk)
nominal dimension: 800-2.400 mm
· Width: 650-2.250 mm
Height: 350 mm
(400 mm from lower edge of the desk)
PRODUCT DESCRIPTION
CPU holder
Flexible holder for computers below the desk surface by means of an adjustable strap.
· Assembly external or internal to the desk frame.
PC height max. 48 cm.
· Load: max. 30 kg
Screen
Lateral screening in two different versions. A rectangular shape which closes flush to the desk edge and a shape running under and in front of the table top for even better screening.
With stand feet, can be freely positioned on table top.
Additional felt glides are stuck on the stand feet in order to protect the table top.
DIMENSIONS
PRODUCT DESCRIPTION
ORGANISATION ELEMENTS
Magnetic screen and pin screen magnetic screen
Pin board
· Steel plate material strength 1 mm (without hook-in lug)
· is hung into the organisation profile (not organisation rail)
soft fibreboard covered with fabric on steel plate material thickness 10 mm (without hook-in lug)
· is hung into the organisation profile (not organisation rail)
A minimum panel height of 1.135 mm is required in order to hook the magnetic screen and pin screen in. Check the configuration of the T-Panels and the hook-in height.
Magnetic board
The magnetic board is equipped with organisational grooves which allow steel trays to be hooked into it. (plastic trays are not suitable)
Steel plate
· material thickness 3,5 mm (without hook-in lug) is hung into the organisation profile (not organisation rail)
· maximum width for hanging into the organisation groove is 314 mm.
A minimum panel height von 1.135 mm is required in order to hook the magnetic board in. Check the configuration of the T-Panels and the hook-in height.
DIMENSIONS
Magnetic screen
Pin board
Magnetic board
nominal dimension: 400-1.200 mm
Width: 390-1.190 mm
Height: 350 mm
nominal dimension: 400-1.200 mm
Width: 390-1.190 mm
Height: 350 mm
nominal dimension: 400 mm
Width: 390 mm
· Height: 350 mm
PRODUCT DESCRIPTION
Storage box
· Steel plate is hung into the organisation profile or organisation rail
A minimum panel height von 1.135 mm is required in order to hook the storage box in.
Check the configuration of the T-Panels and the hook-in height.
Drawers
The drawers are available in three versions. All three are made of steel plate and are hooked into the organisation profile or organisation rail.
A minimum panel height of 1.135mm is required in order to hook the drawers in.
Check the configuration of the T-Panels and the hook-in height. closed
DIMENSIONS
PRODUCT DESCRIPTION
Compartment
· Chipboard 19 mm is hung into the organisation profile (not organisation rail)
· T-Panel Pure with compartment can be only hung in without pin board
A minimum panel height of 1.135mm is required in order to hook the ompartment in. Check the configuration of the T-Panels and the hook-in height.
Counter top for T-Panel Extend for T-Panel multi
for T-Panel Pure
· Chipboard 19 mm, compact desk top 13 mm Assembly off-centre or centrally to the panel possible
Chipboard 19 mm, compact desk top 13 mm Assembly off-centre to the panel
The position of the counter top can be freely selected anywhere along the T-Panels. maximum load: 10 kg.
DIMENSIONS
nominal
·
·
· Chipboard 19 mm is hung directly onto T-Panel Pure nominal
·
·
·
PRODUCT DESCRIPTION
Trays and cups
Plastic trays
Pencil tray Paper tray in A4 landscape format
Paper tray in A4 portrait format
Steel tray Steel tray short
The metal insert is always included with the larger steel cup. Selection can be made between a metal or a wooden insert with the steel tray. The inclusion of a flower pot is also possible. Stahltassen werden ins Organisationsprofil oder in die Organisationsschiene eingehängt. Konfiguration des T-Panels und Abstand zur Tischplatte prüfen. Steel tray short with metal insert Steel tray short with wooden insert Steel tray short with flower pot
DIMENSIONS
INSPIRATIONS
Inspiration #01
Desk with T-Panel Pure extend with organisation rail long, steel tray and steel tray short with metal inserts.
Inspiration #02
Desk with T-Panel Pure with pin board and organisation rail long as well as drawer open short.
INSPIRATIONS
Inspiration #03
Desk with T-Panel Pure extend with organisation rail short and steel tray short with flower pot as well as partial pin board.
Inspiration #04
Desk with T-Panel Pure with organisation profile top and pin board as well as drawer open.
MELAMINE
MELAMINE GROUP 1: Basic colours
mW white mQ office white mC canvas 3 mP platinum 2,3
mB basalt
MELAMINE GROUP 2: Additional basic colours 1,2,3
mA aluminium 3 mS slate 2,3
mH stone grey Tm clay mD urban grey mGS graphite black mSW snow white
MELAMINE GROUP 2: Decor colours 1,2,3
AR maple eZ oak vicenza BH beech light nG walnut grey
MELAMINE GROUP 3: Accent colours 1,2,3
MELAMINE GROUP 3: Decor colours , wooden texture 1,2,3
mPZ pistachio mHR light rose CO coco texture mnP walnut pavia
1 not available for compact top
2 not available for duo-edge
3 not available for 3 mm edge single-coloured
COLOURS & MATERIALS
VENEER: Maple
VENEER: Chestnut
VENEER: Nut
VENEER: Beech
VENEER: Oak
VENEER: Bamboo
COLOURS & MATERIALS
NET (NET_02)
METAL SURFACE POWDER-COATED
ALUMINIUM ANODISED
GLASS Different fabric collections are available as cover: era, Urban Plus, Xtreme Plus, Step, Step melange, Remix, europost, mainline Flax, Assam, Fiord, Steelcut, Hallingdal, Steelcut Trio, Divina melange, Divina mD, Coda, elle, Opera. more information about the specific fabric collections is available at www.bene.com.
