2-Post Lifts_V2-DRAFT

2-Post Lifts Trust Built In

Adaptable Design

SYMMETRIC OR ASYMMETRIC AUTOMATIC SWING ARM

RESTRAINT SYSTEM™ Symmetric Loading

Asymmetric Loading

BI-METRIC™ Lifting

Low-Pro™ Triple-Telescoping Arms

1-800-253-2363 | WWW.BENDPAK.COM © 2026 BendPak Inc. BendPak is a registered trademark.

1

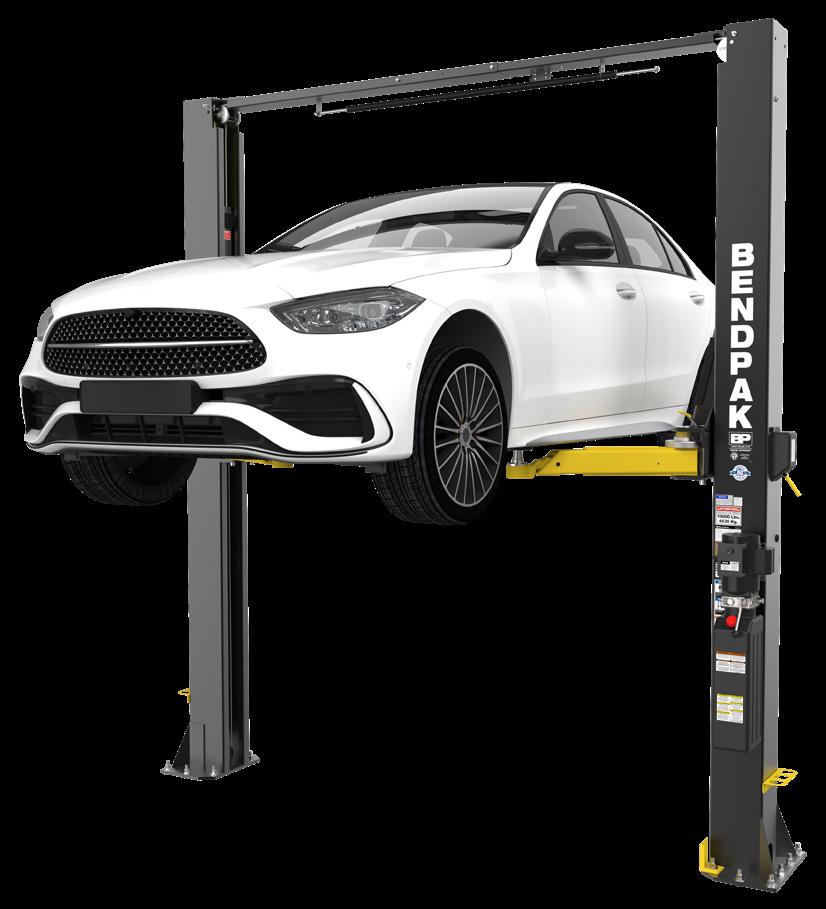

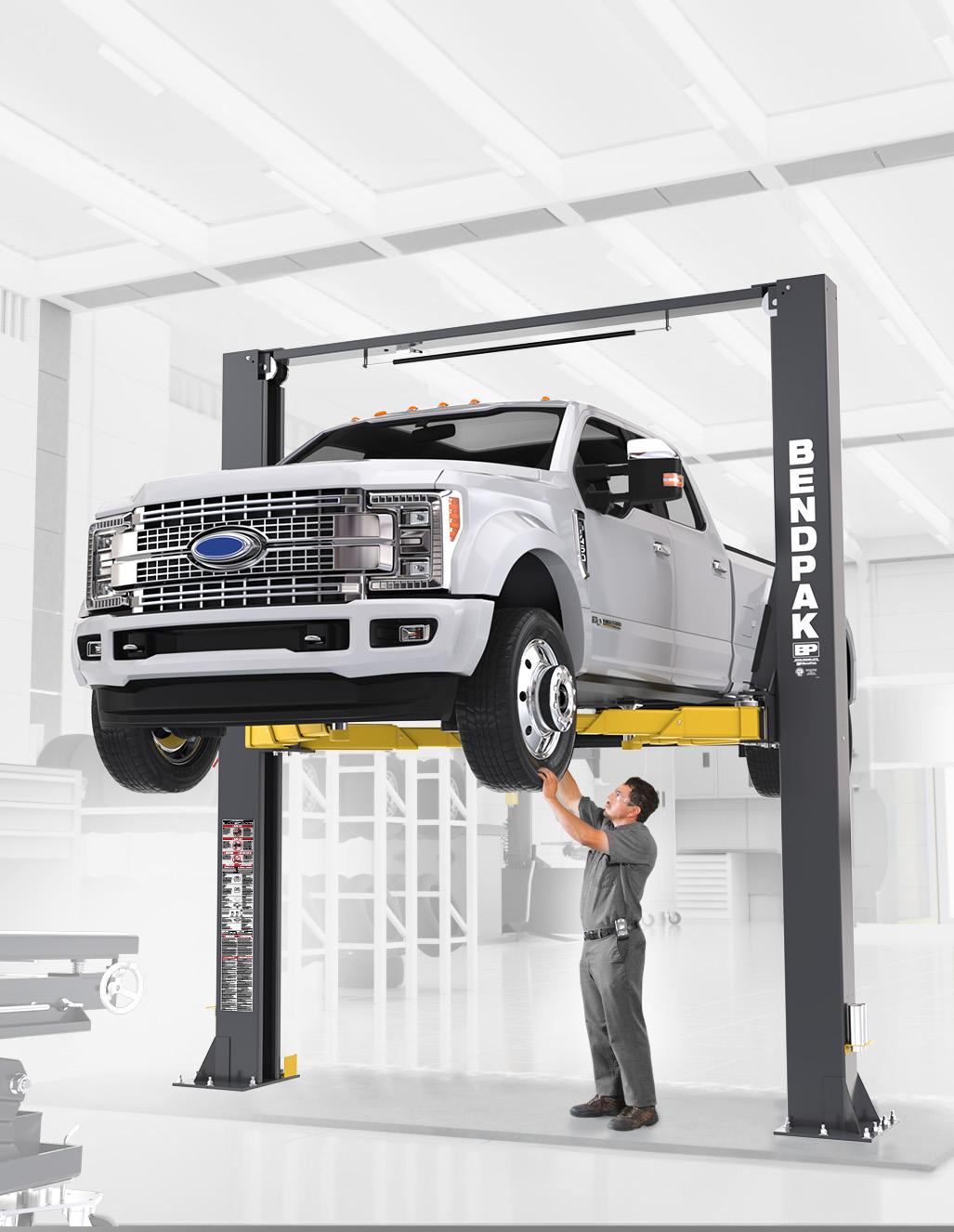

BendPak 2-Post Lifts

BendPak’s 2-post lift lineup is engineered for professional automotive repair facilities, fleet service centers, dealerships, and high-end home garages. Models are available with lifting capacities from 9,000 lbs to 20,000 lbs, featuring both clearfloor and floorplate designs, ALI certification, and configurations for passenger vehicles, trucks, SUVs, vans, and commercial vehicles.

2

1-800-253-2363 | WWW.BENDPAK.COM

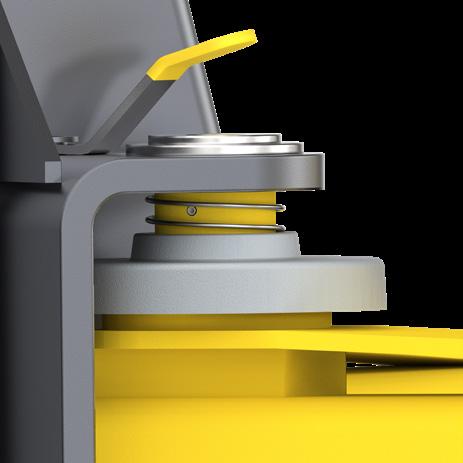

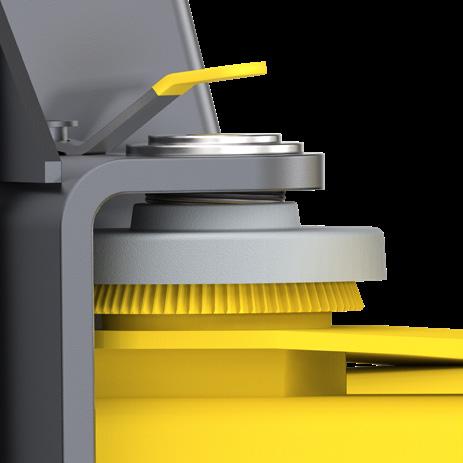

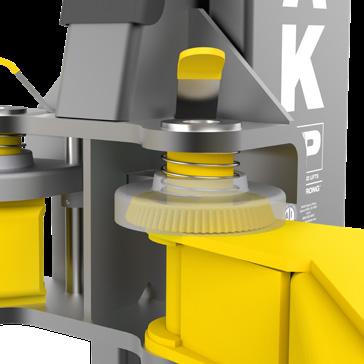

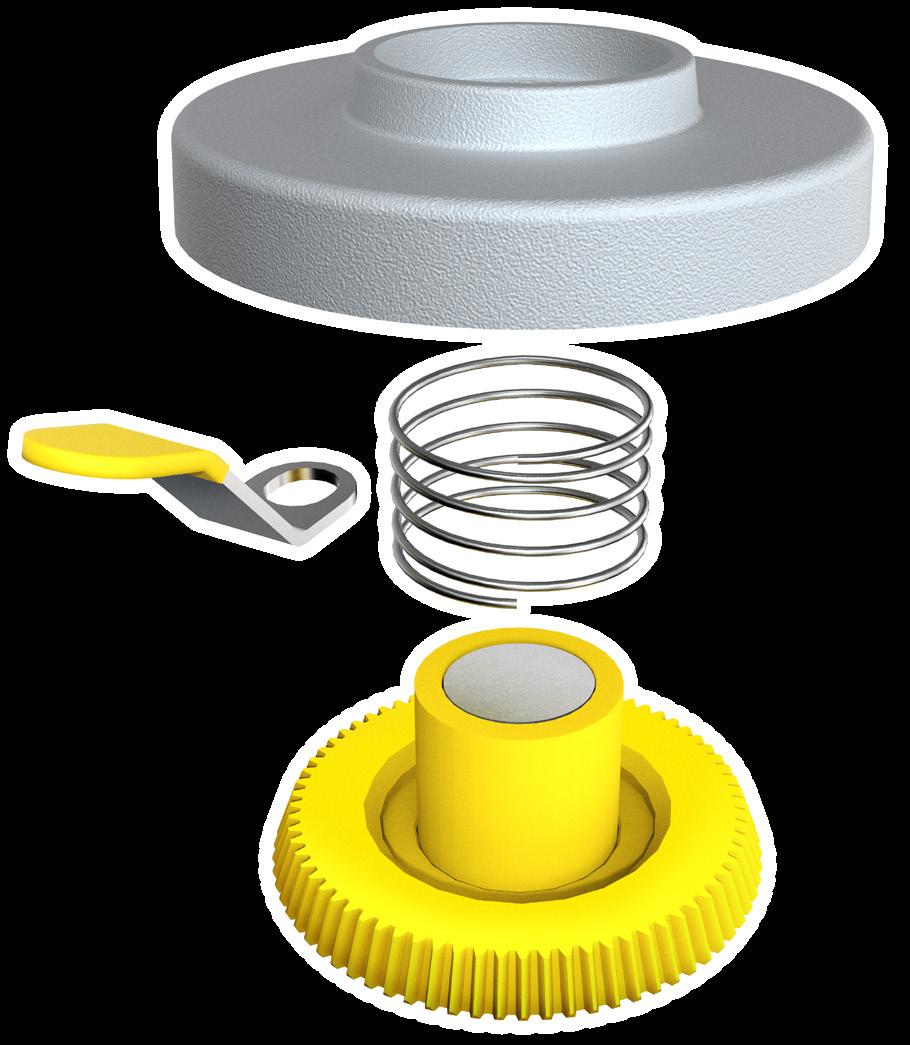

Automatic Swing Arm Restraint System™ With a full 360° of grip, the heavily forged-steel design of this patented and exclusive arm restraint system secures the lift arms firmly in place with over 3,000-pounds of load-holding force, preventing unplanned swing arm movement during lift use and vehicle service operations.

This revolutionary design is an adaptive system that requires minimal operator involvement and delivers unparalleled holding power.

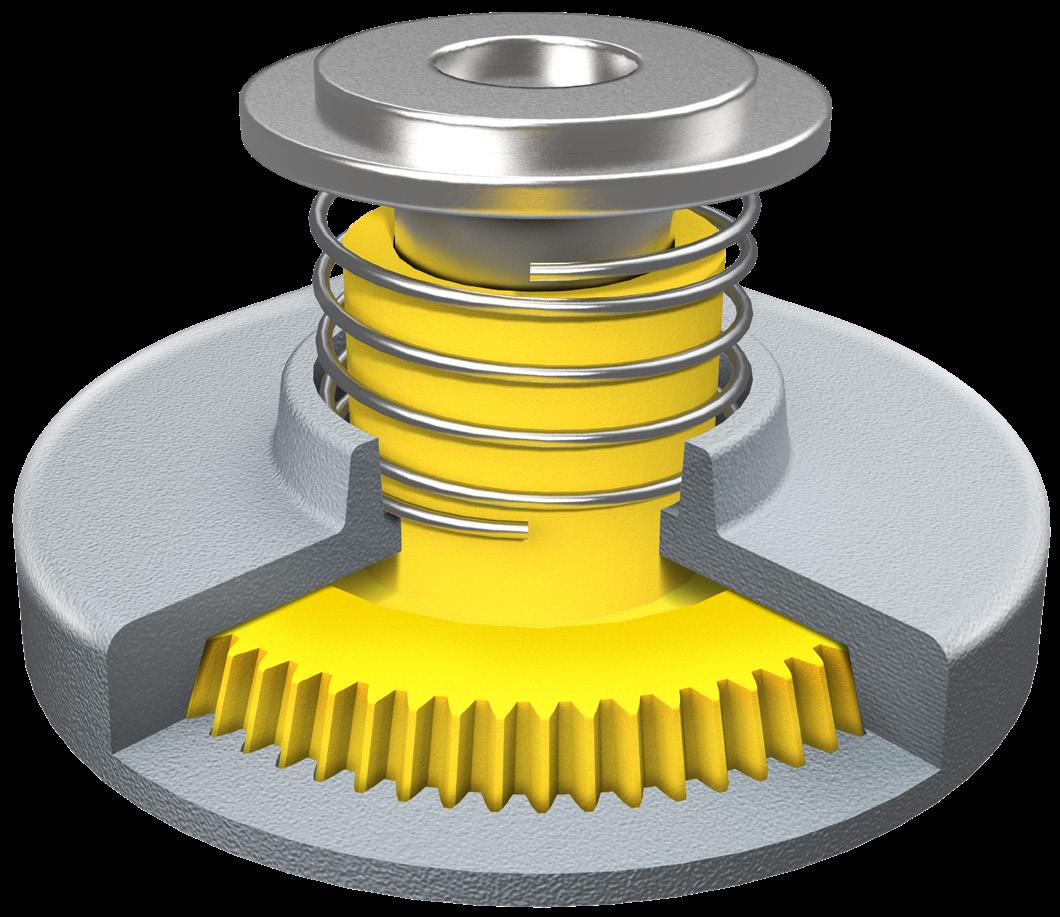

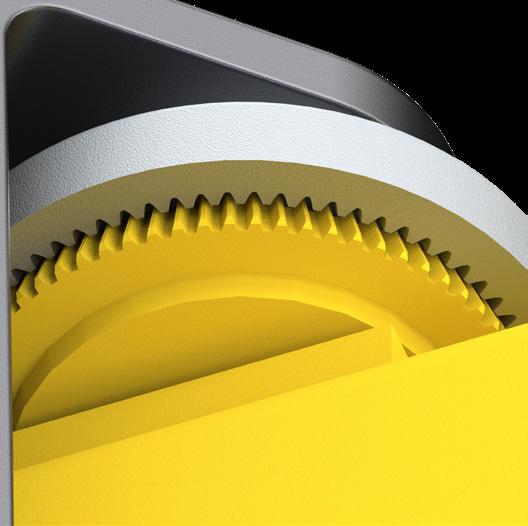

FULL CIRCLE GEAR STOP MATCHING GEAR TEETH

QUICK-RELEASE LEVER PUSHING LEVER DOWN UNLOCKS GEAR STOP

RELEASING LEVER LOCKS IT

COMPRESSION SPRING FULL CIRCLE GEAR + ARM MOUNT TUBE

UNLOCKED

LOCKED

Trust Built In

U.S. Patent No. - US 11,820,632 B2

3

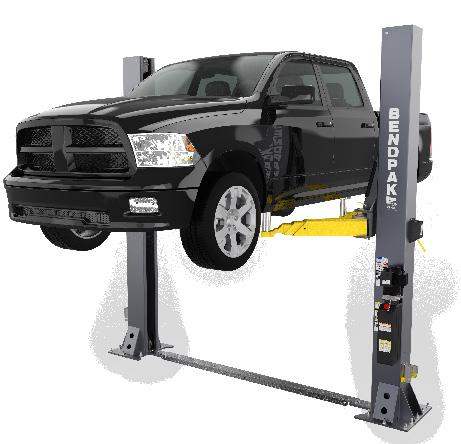

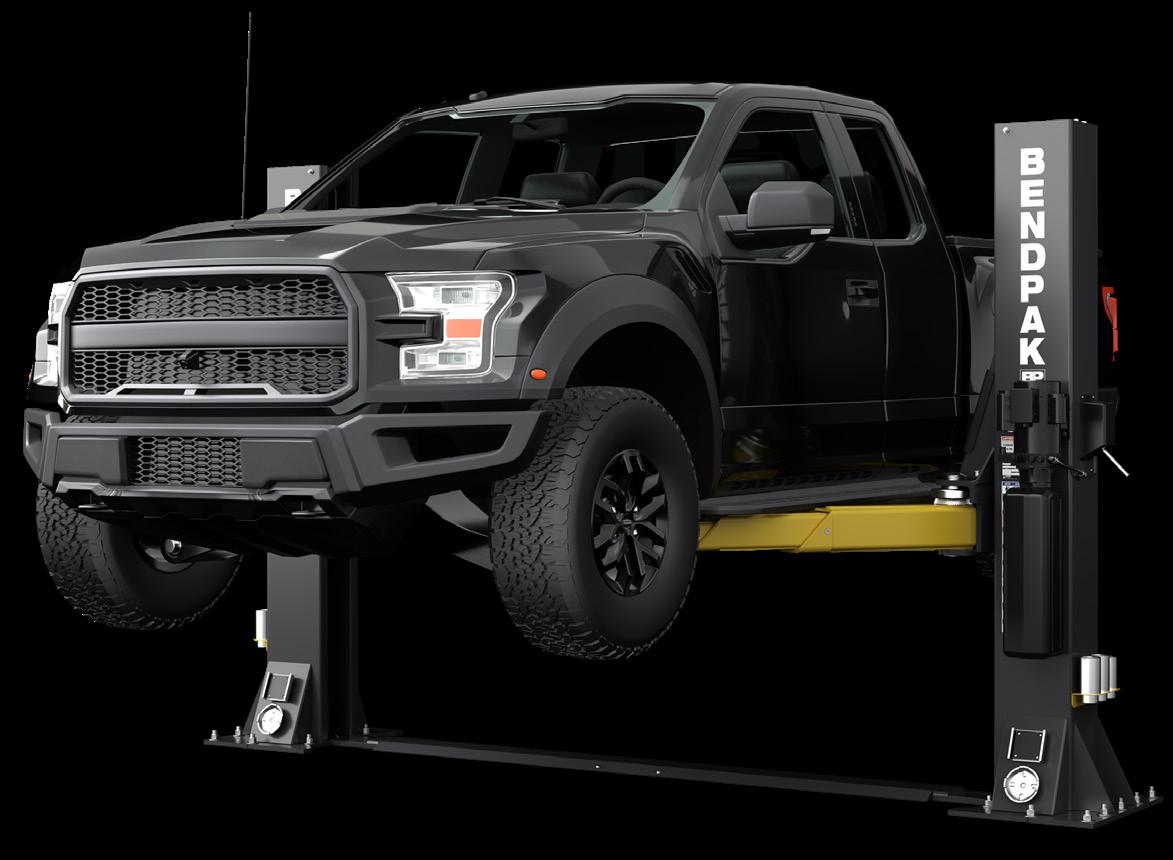

9,000 lb. & 12,000 lb. Capacity

APF Series (Floorplate) Features:

• Adaptable Symmetric/Asymmetric lifting • Adjustable-width installation • Bi-Metric™ telescoping arms • Screw pad adapters • Clearfloor overhead design • ALI Certified

• 3/4 Ton Trucks • Large SUV’s • Commercial Vehicles • Diesel Pickups

9APF

12APF

SKU 5175617

SKU 5175670

9,000 lb. Capacity Floorplate

4

Ideal for:

12,000 lb. Capacity Floorplate

Model

9APF

12APF

Lifting Capacity

9,000 lbs. (4,082 kg)

12,000 lbs. (4,082 kg)

136 or 146 in. (3,453 or 3,707 mm)

155 in. (3,937 mm)

A

Width Overall

B

Base Plate Width

25.25 in. (642 mm)

26.5 in. (674 mm)

C

Post Height

123 in. (3,128 mm)

144.75 in. (3,676 mm)

D

Drive-Thru

91 or 101 in. (2,311 or 2,565 mm)

102.25 in. (2,599 mm)

E

Inside Posts

108.25 or 118.25 in. (2,749 or 3,003 mm)

119.125 in. (3,026 mm)

F

Outside Posts

129.5 or 139.5 in. (3,289 or 3,543 mm)

142.25 in. (3,612 mm)

G

Minimum Height w/Pad

4.5 in. (114 mm)

4.5 in. (114 mm)

H

Maximum Lifting Height

73.5 in. (1,867 mm)

73.5 in. (1,865 mm)

I

Maximum Rise2

70 in. (1,775 mm)

70 in. (1,780 mm)

J

Max. Pad Height w/Adapters

2.25 in. (55 mm)

11.75 in. (300 mm)

K

Floor Plate Height

1.5 in. (36 mm)

1.5 in. (36 mm)

L

Floor Plate Width

9.5 in. (240 mm)

9.5 in. (240 mm)

1

1-800-253-2363 | WWW.BENDPAK.COM

9,000 lb. & 12,000 lb. Capacity

APF Series (Floorplate) 9APF & 12APF

D Front B L Rear A Approach

F E

C H

I J

G K

Max. Lifting Height w/Pad is the max. height while not engaged on a Safety Lock and without adjustment or adapter(s).

Maximum Rise is the maximum lifting height not engaged on the Safety Lock.

1

2

Specifications subject to change without notice.

Trust Built In

5

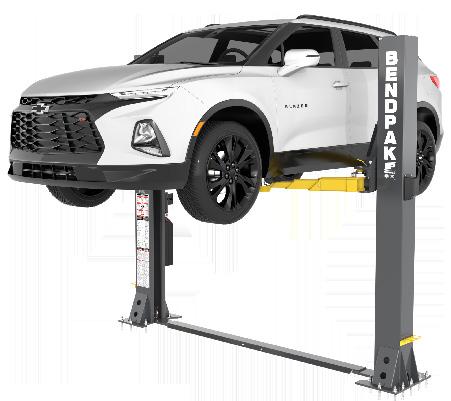

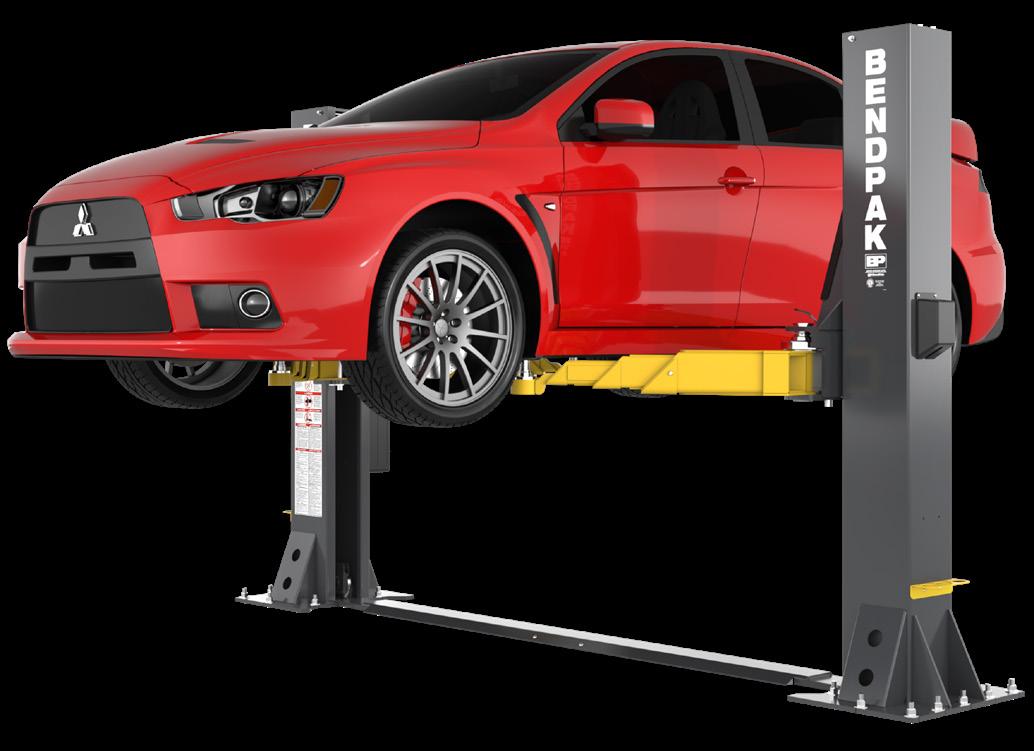

10,000 lb. & 12,000 lb. Capacity

SRT Series (Floorplate) Features:

Best for:

• Adaptable Symmetric/Asymmetric lifting • Adjustable-width installation • Bi-Metric™ telescoping arms • Screw pad adapters • Clearfloor overhead design • ALI Certified

10AP-SRT

12AP-SRT

SKU 5175610

SKU 5175605

10,000 lb. Capacity Short Rise / Floorplate

6

• Tire Shops • General Automotive Repair • Cars, SUVs, Light Trucks • Professional Repair Shops

12,000 lb. Capacity Short Rise / Floorplate

Model

10AP-SRT

12AP-SRT

Lifting Capacity

10,000 lbs. (4,082 kg)

12,000 lbs. (4,082 kg)

136 or 146 in. (3,453 or 3,707 mm)

155 in. (3,937 mm)

A

Width Overall

B

Base Plate Width

25.25 in. (642 mm)

26.5 in. (674 mm)

C

Post Height

123 in. (3,128 mm)

144.75 in. (3,676 mm)

D

Drive-Thru

91 or 101 in. (2,311 or 2,565 mm)

102.25 in. (2,599 mm)

E

Inside Posts

108.25 or 118.25 in. (2,749 or 3,003 mm)

119.125 in. (3,026 mm)

F

Outside Posts

129.5 or 139.5 in. (3,289 or 3,543 mm)

142.25 in. (3,612 mm)

G

Minimum Height w/Pad

4.5 in. (114 mm)

4.5 in. (114 mm)

H

Maximum Lifting Height

73.5 in. (1,867 mm)

73.5 in. (1,865 mm)

I

Maximum Rise2

70 in. (1,775 mm)

70 in. (1,780 mm)

J

Max. Pad Height w/Adapters

2.25 in. (55 mm)

11.75 in. (300 mm)

K

Floor Plate Height

1.5 in. (36 mm)

1.5 in. (36 mm)

L

Floor Plate Width

9.5 in. (240 mm)

9.5 in. (240 mm)

1

1-800-253-2363 | WWW.BENDPAK.COM

10,000 lb. & 12,000 lb. Capacity

SRT Series (Floorplate) 10AP-SRT & 12AP-SRT

D Front B L Rear A Approach

F E

C H

I J

G K

Max. Lifting Height w/Pad is the max. height while not engaged on a Safety Lock and without adjustment or adapter(s).

Maximum Rise is the maximum lifting height not engaged on the Safety Lock.

1

2

Specifications subject to change without notice.

Trust Built In

7

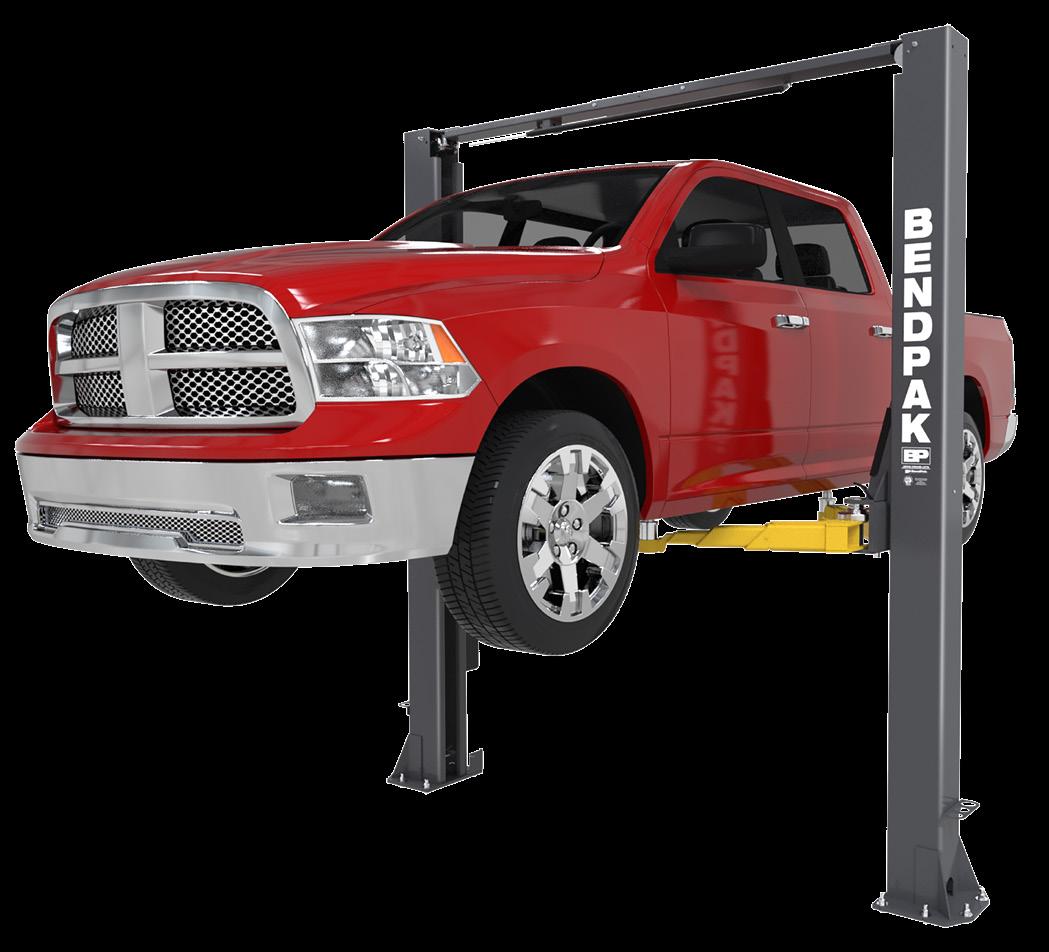

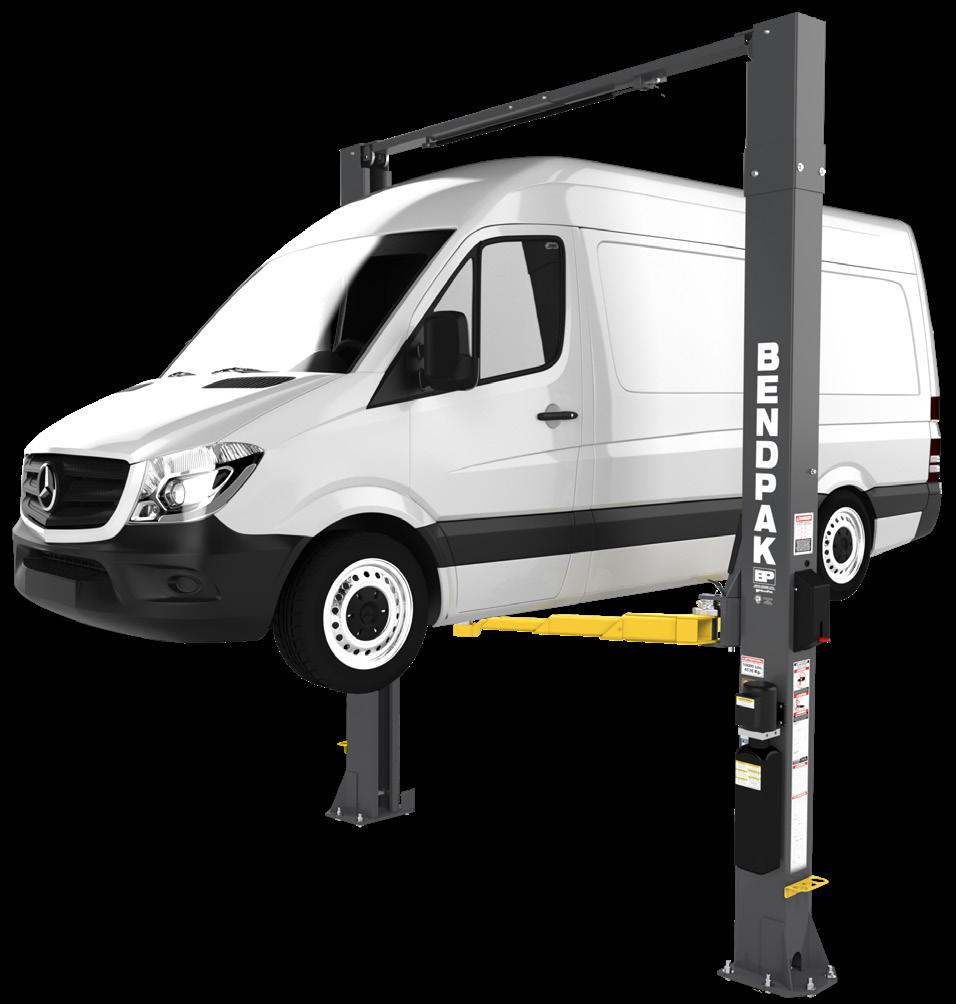

10,000 lb. Capacity

10AP Series Features:

Best for:

• Adaptable Symmetric/Asymmetric lifting • Adjustable-width installation • Bi-Metric™ telescoping arms • Screw pad adapters • Clearfloor overhead design • ALI Certified

10AP

• General Automotive Repair • Cars, SUVs, Light Trucks • Professional Repair Shops • Fleet Maintenance

10AP-168

Standard Clearfloor

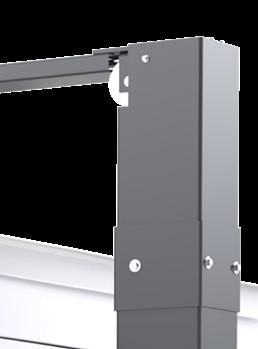

Extended Height Clearfloor

SKU 5175304

SKU 5175305

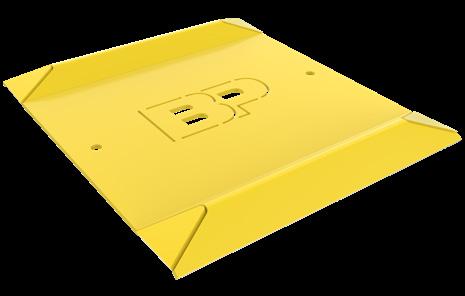

Wheel Spotting Dish Kit INCLUDED

Model

10AP

Lifting Capacity

8

A

Width Overall

B

10AP-168 10,000 lbs. (4,082 kg)

136 or 146 in. (3,453 or 3,707 mm)

155 in. (3,937 mm)

Base Plate Width

25.25 in. (642 mm)

26.5 in. (674 mm)

C

Post Height

123 in. (3,128 mm)

144.75 in. (3,676 mm)

D

Drive-Thru

91 or 101 in. (2,311 or 2,565 mm)

102.25 in. (2,599 mm)

E

Inside Posts

108.25 or 118.25 in. (2,749 or 3,003 mm)

119.125 in. (3,026 mm)

F

Outside Posts

129.5 or 139.5 in. (3,289 or 3,543 mm)

142.25 in. (3,612 mm)

G

Minimum Height w/Pad

4.5 in. (114 mm)

4.5 in. (114 mm)

H

Maximum Lifting Height

73.5 in. (1,867 mm)

73.5 in. (1,865 mm)

I

Maximum Rise2

70 in. (1,775 mm)

70 in. (1,780 mm)

J

Max. Pad Height w/Adapters

2.25 in. (55 mm)

11.75 in. (300 mm)

K

Floor Plate Height

1.5 in. (36 mm)

1.5 in. (36 mm)

L

Floor Plate Width

9.5 in. (240 mm)

9.5 in. (240 mm)

1

1-800-253-2363 | WWW.BENDPAK.COM

10,000 lb. Capacity

10AP Series Features:

Best for:

• Adaptable Symmetric/Asymmetric lifting • Adjustable-width installation • Bi-Metric™ telescoping arms • Screw pad adapters • Clearfloor overhead design • ALI Certified

• General Automotive Repair • Cars, SUVs, Light Trucks • Professional Repair Shops • Fleet Maintenance

10APX

10APX-181

SKU 5175306

SKU 5175307

High-Rise Clearfloor

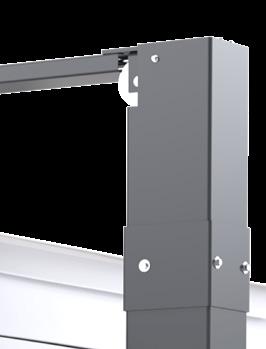

High-Rise / Extended Height

Wheel Spotting Dish Kit INCLUDED

Model

10APX

Lifting Capacity A

Width Overall

B

10APX-181 10,000 lbs. (4,082 kg)

136 or 146 in. (3,453 or 3,707 mm)

155 in. (3,937 mm)

Base Plate Width

25.25 in. (642 mm)

26.5 in. (674 mm)

C

Post Height

123 in. (3,128 mm)

144.75 in. (3,676 mm)

D

Drive-Thru

91 or 101 in. (2,311 or 2,565 mm)

102.25 in. (2,599 mm)

E

Inside Posts

108.25 or 118.25 in. (2,749 or 3,003 mm)

119.125 in. (3,026 mm)

F

Outside Posts

129.5 or 139.5 in. (3,289 or 3,543 mm)

142.25 in. (3,612 mm)

G

Minimum Height w/Pad

4.5 in. (114 mm)

4.5 in. (114 mm)

H

Maximum Lifting Height

73.5 in. (1,867 mm)

73.5 in. (1,865 mm)

I

Maximum Rise2

70 in. (1,775 mm)

70 in. (1,780 mm)

J

Max. Pad Height w/Adapters

2.25 in. (55 mm)

11.75 in. (300 mm)

K

Floor Plate Height

1.5 in. (36 mm)

1.5 in. (36 mm)

L

Floor Plate Width

9.5 in. (240 mm)

9.5 in. (240 mm)

1

Trust Built In

9

10,000 lb. Capacity

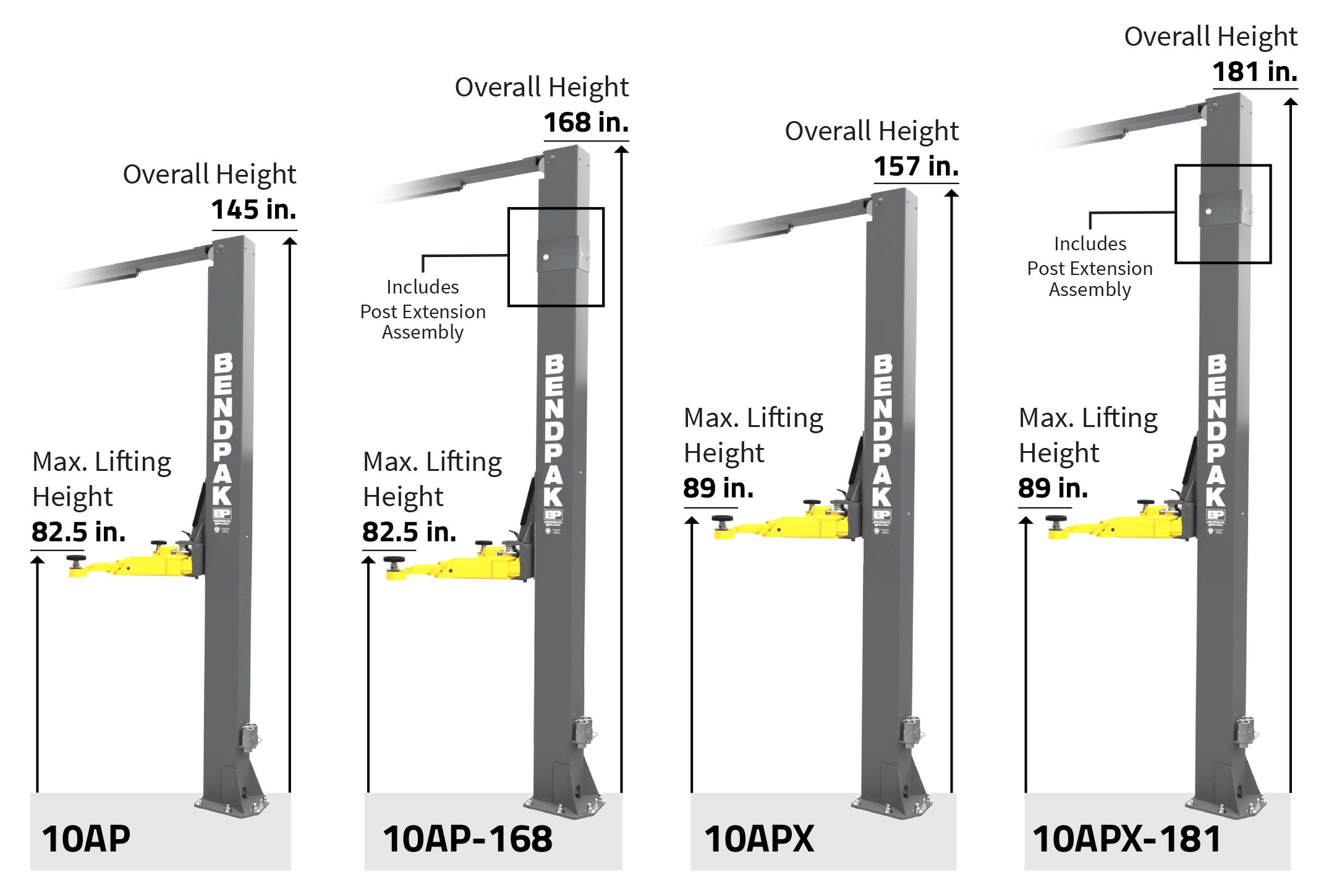

10AP Series 10AP 10AP-168 10APX 10APX-181

H

E

J

D

C

B

A

F G K

Front

Rear

L

I

Approach

10

1-800-253-2363 | WWW.BENDPAK.COM

10,000 lb. Capacity

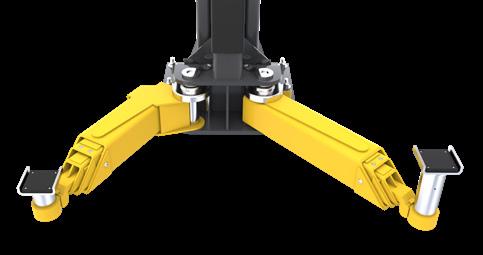

10AP Series Bi-MetricTM Swing Arms

Exclusive BI-METRIC™ adaptable swing arms feature a 2-in-1 design which gives operators the option of loading vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column). By not having to switch out arms, you’ll be able to service vehicles faster than ever before.

Asymmetric Configuration

Symmetric Configuration

Which model is right for you?

Trust Built In

11

12,000 lb. Capacity

12AP Series Features:

Ideal for:

• Adaptable Symmetric/Asymmetric lifting • Adjustable-width installation • Bi-Metric™ telescoping arms • Screw pad adapters • Clearfloor overhead design • ALI Certified

12APX

• 3/4 Ton Trucks • Large SUV’s • Commercial Vehicles • Diesel Pickups

12APX-192

12,000 lb. Capacity High-Rise Clearfloor

12,000 lb. Capacity High-Rise Extended Height

SKU 5175556

SKU 5175557

Model

12AP

Lifting Capacity

12

A

Width Overall

B

12APX 12,000 lbs. (5,443 kg)

136 or 146 in. (3,453 or 3,707 mm)

155 in. (3,937 mm)

Base Plate Width

25.25 in. (642 mm)

26.5 in. (674 mm)

C

Post Height

123 in. (3,128 mm)

144.75 in. (3,676 mm)

D

Drive-Thru

91 or 101 in. (2,311 or 2,565 mm)

102.25 in. (2,599 mm)

E

Inside Posts

108.25 or 118.25 in. (2,749 or 3,003 mm)

119.125 in. (3,026 mm)

F

Outside Posts

129.5 or 139.5 in. (3,289 or 3,543 mm)

142.25 in. (3,612 mm)

G

Minimum Height w/Pad

4.5 in. (114 mm)

4.5 in. (114 mm)

H

Maximum Lifting Height1

73.5 in. (1,867 mm)

73.5 in. (1,865 mm)

I

Maximum Rise2

70 in. (1,775 mm)

70 in. (1,780 mm)

J

Max. Pad Height w/Adapters

2.25 in. (55 mm)

11.75 in. (300 mm)

K

Floor Plate Height

1.5 in. (36 mm)

1.5 in. (36 mm)

L

Floor Plate Width

9.5 in. (240 mm)

9.5 in. (240 mm)

1-800-253-2363 | WWW.BENDPAK.COM

12,000 lb. Capacity

12AP Series 12AP 12APX-192

H

E

J

D

C

B

A

F G K

Front

Rear

L

I

Approach

Trust Built In

13

16,000 lb. Capacity

16AP Series Features:

• Adaptable Symmetric/Asymmetric lifting • Adjustable-width installation • Bi-Metric™ telescoping arms • Screw pad adapters • Clearfloor overhead design • ALI Certified

16AP

Best for:

• General Automotive Repair • Cars, SUVs, Light Trucks • Professional Repair Shops • Fleet Maintenance

16AP-192

16,000 lb. Capacity Super-Duty Clearfloor

Extended Height Super-Duty Clearfloor

SKU 5175608

SKU 5175609

Model

16AP

Lifting Capacity

14

A

Width Overall

B

16AP-192 16,000 lbs. (7,257 kg)

136 or 146 in. (3,453 or 3,707 mm)

155 in. (3,937 mm)

Base Plate Width

25.25 in. (642 mm)

26.5 in. (674 mm)

C

Post Height

123 in. (3,128 mm)

144.75 in. (3,676 mm)

D

Drive-Thru

91 or 101 in. (2,311 or 2,565 mm)

102.25 in. (2,599 mm)

E

Inside Posts

108.25 or 118.25 in. (2,749 or 3,003 mm)

119.125 in. (3,026 mm)

F

Outside Posts

129.5 or 139.5 in. (3,289 or 3,543 mm)

142.25 in. (3,612 mm)

G

Minimum Height w/Pad

4.5 in. (114 mm)

4.5 in. (114 mm)

H

Maximum Lifting Height

73.5 in. (1,867 mm)

73.5 in. (1,865 mm)

I

Maximum Rise2

70 in. (1,775 mm)

70 in. (1,780 mm)

J

Max. Pad Height w/Adapters

2.25 in. (55 mm)

11.75 in. (300 mm)

K

Floor Plate Height

1.5 in. (36 mm)

1.5 in. (36 mm)

L

Floor Plate Width

9.5 in. (240 mm)

9.5 in. (240 mm)

1

1-800-253-2363 | WWW.BENDPAK.COM

16,000 lb. Capacity

16AP Series 16AP 16AP-192

H

E

J

D

C

B

A

F G K

Front

Rear

L

I

Approach

Trust Built In

15

20,000 lb. Capacity

20AP Series Features:

• Adaptable Symmetric/Asymmetric lifting • Adjustable-width installation • Bi-Metric™ telescoping arms • Screw pad adapters • Clearfloor overhead design • ALI Certified

20AP

Ideal for:

• 3/4 Ton Trucks • Large SUV’s • Commercial Vehicles • Diesel Pickups

20AP-192

20,000 lb. Capacity Super-Duty Clearfloor

Extended Height Super-Duty Clearfloor

SKU 5175614

SKU 5175615

Model

20AP

Lifting Capacity

16

A

Width Overall

B

20AP-192 20,000 lbs. (9,072 kg)

136 or 146 in. (3,453 or 3,707 mm)

155 in. (3,937 mm)

Base Plate Width

25.25 in. (642 mm)

26.5 in. (674 mm)

C

Post Height

123 in. (3,128 mm)

144.75 in. (3,676 mm)

D

Drive-Thru

91 or 101 in. (2,311 or 2,565 mm)

102.25 in. (2,599 mm)

E

Inside Posts

108.25 or 118.25 in. (2,749 or 3,003 mm)

119.125 in. (3,026 mm)

F

Outside Posts

129.5 or 139.5 in. (3,289 or 3,543 mm)

142.25 in. (3,612 mm)

G

Minimum Height w/Pad

4.5 in. (114 mm)

4.5 in. (114 mm)

H

Maximum Lifting Height1

73.5 in. (1,867 mm)

73.5 in. (1,865 mm)

I

Maximum Rise2

70 in. (1,775 mm)

70 in. (1,780 mm)

J

Max. Pad Height w/Adapters

2.25 in. (55 mm)

11.75 in. (300 mm)

K

Floor Plate Height

1.5 in. (36 mm)

1.5 in. (36 mm)

L

Floor Plate Width

9.5 in. (240 mm)

9.5 in. (240 mm)

1-800-253-2363 | WWW.BENDPAK.COM

20,000 lb. Capacity

20AP Series 20AP 20AP-192

H

E

J

D

C

B

A

F G K

Front

Rear

L

I

Approach

Trust Built In

17

INCLUDED ACCESSORIES 9AP - 10AP Series

Adjustable Screw-In Pads

Only with 10AP Series

Adapter Holders

Wheel Spotting Dish Kit

(Set of 2) SKU 5210432

(Set of 4) SKU 5216520

SKU 52104XX

12AP - 20AP Series

2.5" Medium Adapters

5" Tall Adapters

(Set of 4) SKU 5215758

(Set of 4) SKU 5215759

Drop-In Cradle Pads (Set of 4) SKU 5215761

OPTIONAL ACCESSORIES

Quick-Fit Pinch-Weld Pucks

Quick-Fit Pinch-Weld Pads

Wide Frame Cradle Adapters

2.25" Low Adapter

Replacement Urethane Pads

Steel Lift Pads

(Set of 4) SKU 5210263

(Set of 4) SKU 5215757

(Set of 4) SKU 5210254

(Set of 4) SKU 5700227

(Set of 2) SKU 5215848

(Set of 4) SKU 5215763

Super Wide Frame Cradle Adapters (Set of 2) SKU 5210253

WSA-100 Air Electric Workstation SKU 5210438

Wide Cradle Pads

Supertall Adapters 7.5" / 190mm (Set of 2) SKU 5210495

18

Extratall Adapters 9.5" / 240mm (Set of 2) SKU 5210498

1-800-253-2363 | WWW.BENDPAK.COM

2-Post Lifts

Gallery

Trust Built In

19

Trusted by Professionals

Get in touch

sales@bendpak.com

20

1-800-253-2363 | WWW.BENDPAK.COM 1-800-253-2363 | WWW.BENDPAK.COM © 2026 BendPak Inc. All rights reserved.
