Lighting Specification for KTM Group Office by Merrie Luton
Merrie Luton Design
Project Name- KTM Group Office
Project Number- 4570-KT
Designer- Merrie Luton
Date- November 20, 2017
Page- 1 of 7
Light Specification
Tag- A
Quantity
Manufacturer- Cooper Lighting
Model Number- PD6H118, PD6CPH118
Description- Halo Commercial -Recessed 6 inch aperture downlight for one horizontal 18W double twin tube compact fluorescent lamp Fixture is suitable for commercial construction. Insulation must be kept 3" from top and sides of housing. Universal input electronic ballast with dimming and emergency options.
Finish- silver
Lamping- Compact Fluorescent
Dimensions- 6” Wide
Wattage - 18W
Special Instructions- Mounting brackets adjust 2" vertically
Merrie Luton Design
____________
Project Name- KTM Group Office
Project Number- 4570-KT
Designer- Merrie Luton
Date- November 20, 2017
Page- 2 of 7
Light Specification
Tag- B
Quantity
Manufacturer- Pegasus Lighting
Model Number- NTM-52
Description- Nora Lighting

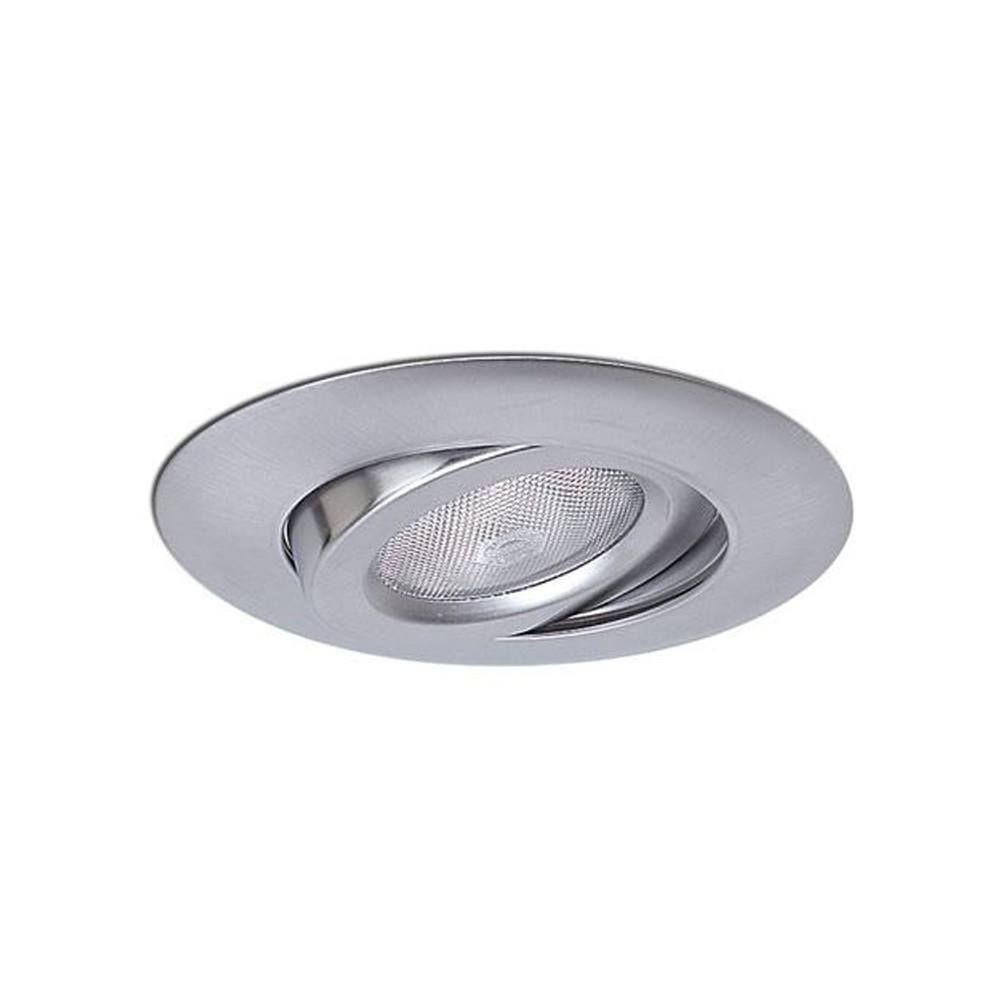

The adjustable gimbal ring on this six-inch recessed lighting trim allows you to direct the light. Accent a display, wall hanging, or sculpture; or provide task lighting for a specific area. This model, available in several finishes, is designed for sloped ceilings. It uses a 50-watt or 75-watt PAR30 halogen light bulb.
Finish- Silver
Lamping- Halogen
Dimensions- 6” Wide
Wattage - 50-75 W
Special Instructions- Adjusts up to 30 degrees tilt
Merrie Luton Design
Light Specification
Tag- C
Quantity
Manufacturer- Pegasus Lighting
Model Number- WS-13115-PN
Description- WAC Lighting
Project Name- KTM Group Office
Project Number- 4570-KT
Designer- Merrie Luton
Date- November 20, 2017
Page- 3 of 7

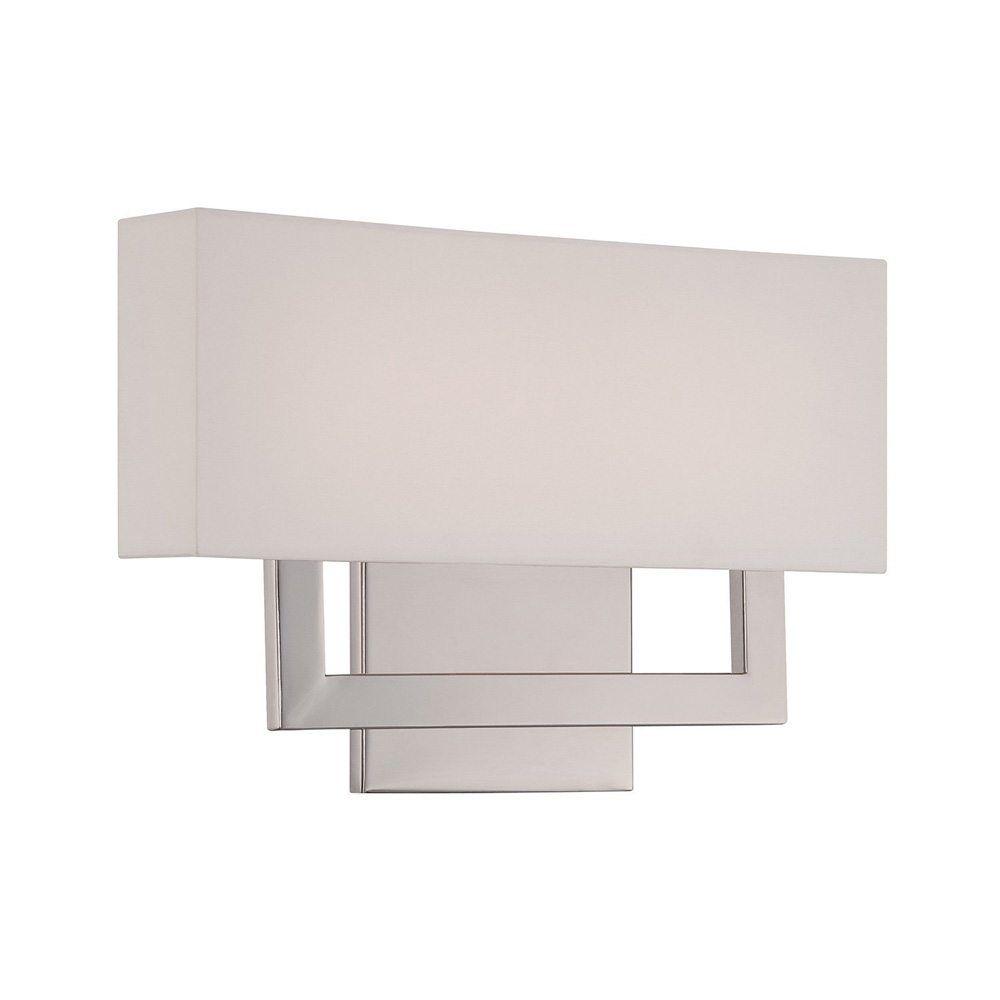

The 15-inch LED Manhattan wall sconce provides ambient lighting softened with a trimless fabric shade and is suitable for any room of your home This wall sconce is dimmable down to 10% and is constructed with a beautiful steel housing It is ETL listed for damp locations, and meets CA Title 24 standards The 15-inch LED Manhattan wall sconce provides ambient lighting softened with a trimless fabric shade and is suitable for any room of your home This wall sconce is dimmable down to 10% and is constructed with a beautiful steel housing. It is ETL listed for damp locations, and meets CA Title 24 standards.
Finish- Polished Nickel
Lamping- LED
Dimensions- 15 “ Width
Wattage - 10 5 W
Merrie Luton Design
Light Specification
Tag- D (1)
Quantity- 3
Manufacturer- Pegasus Lighting
Model Number- PD-51712-BN
Description- Rocket Lighting

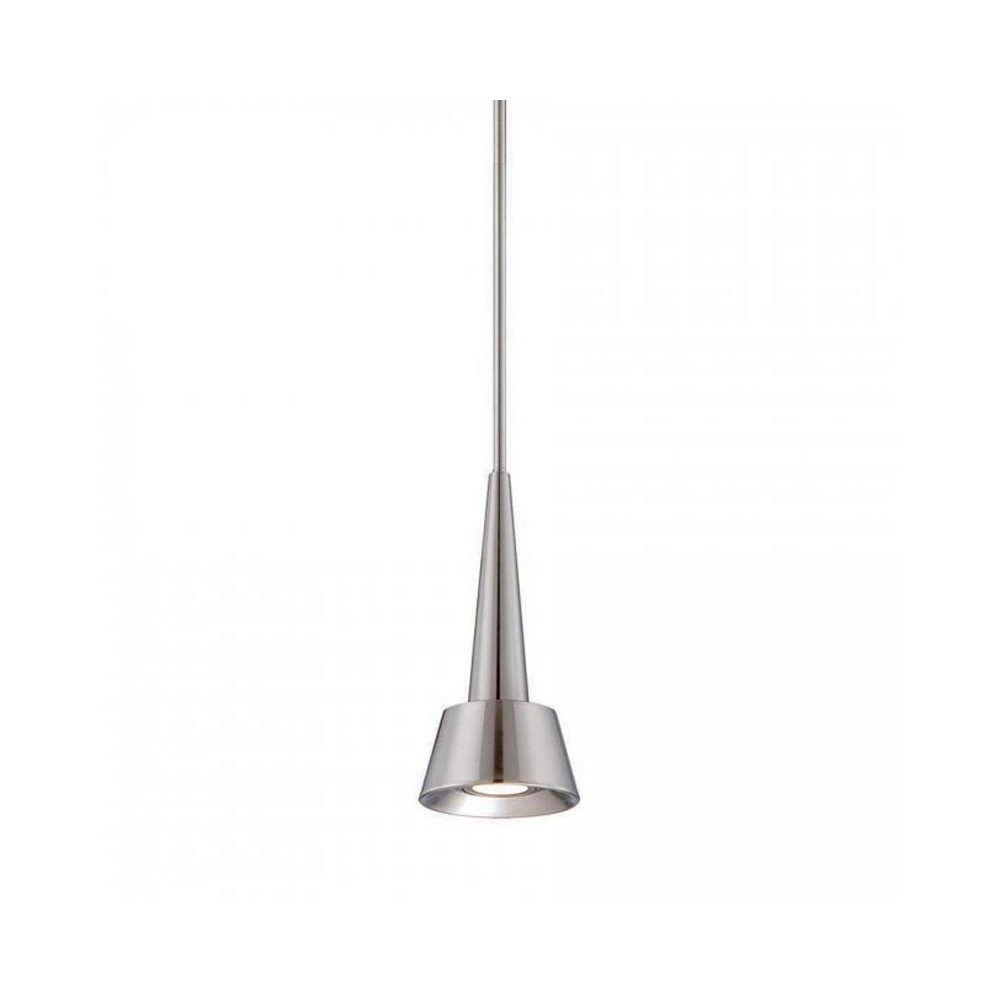

The Rocket LED pendant features a retro style spun aluminum housing with an upscale quality plated metal finish for a unique addition to your home décor. This 12-watt LED pendant has an integral swivel for installation on sloped ceilings.
Finish- Brushed Nickel
Project Name- KTM Group Office
Project Number- 4570-KT
Designer- Merrie Luton
Date- November 20, 2017
Page- 4 of 7
Lamping- LED
Dimensions- 10 ft wire
Wattage - 12 W
Special Instructions- Includes down rods and 10ft of wire for extending the length It is ETL listed for damp locations and CA Title 24 compliant
Merrie Luton Design
Light Specification
Tag- D (2)
Quantity
Manufacturer- Lumen Lamps
Model Number- Nance Drum Pendant
Description- Nance Drum Pendant

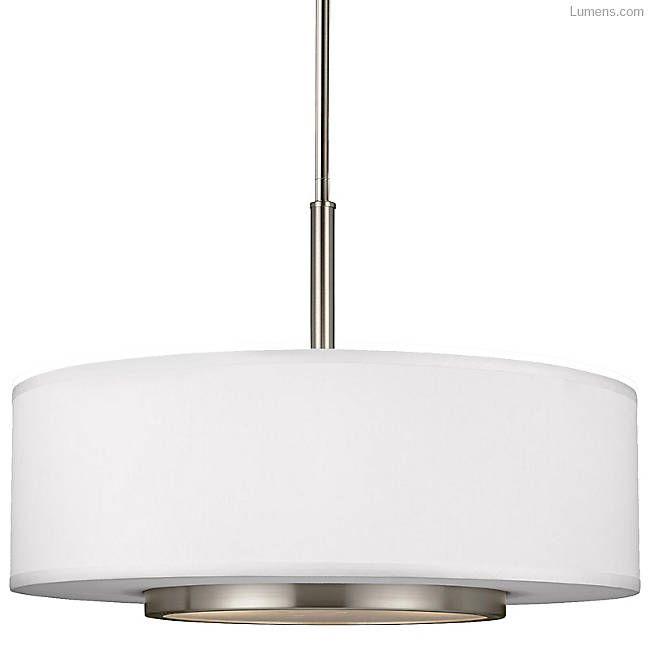

The Sea Gull Lighting Nance Drum Pendant features a Faux Silk drum shade and a Satin Etched Glass diffuser. These two work together to distribute light smoothly and evenly to your chosen space. Sloped ceiling mounting hardware included.
Finish- Brushed Nickel
Project Name- KTM Group Office
Project Number- 4570-KT
Designer- Merrie Luton
Date- November 20, 2017
Page- 5 of 7
Lamping- LED
Dimensions- 19.25” L X 13.05” W
Wattage - 22W
Special Instructions- Comes with One 6 00 in , Three 12 00 in stem/downrod
Merrie Luton Design
Light Specification
Tag- E
Quantity- 1
Manufacturer- Lumen Lamps
Model Number- P4328

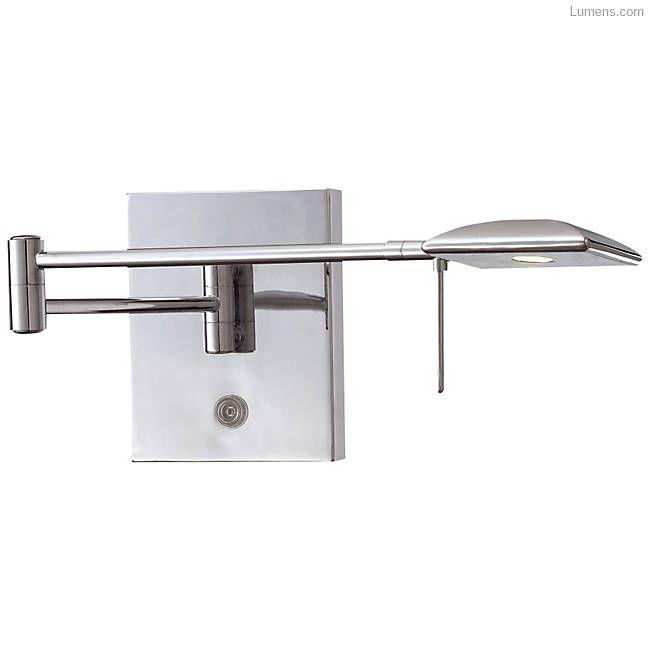

Description- The George Kovacs P4328 Swing Arm Wall Sconce is distinguished by the unique flattened pyramid shape of its head. The position of the energy efficient LED light is adjustable both at the head and via the swing arm, while its brightness is controlled with a touch dimmer on the wall plate. Available in a wide range of finishes.
Finish- Brushed Nickel
Project Name- KTM Group Office
Project Number- 4570-KT
Designer- Merrie Luton
Date- November 20, 2017
Page- 6 of 7
Lamping- LED
Dimensions- 13 75”W X 6 25”L
Wattage - 12 W
Merrie Luton Design
Light Specification
Tag- Portable
Quantity- 4
Manufacturer- Sonneman Lighting
Model Number- X Floor Lamp

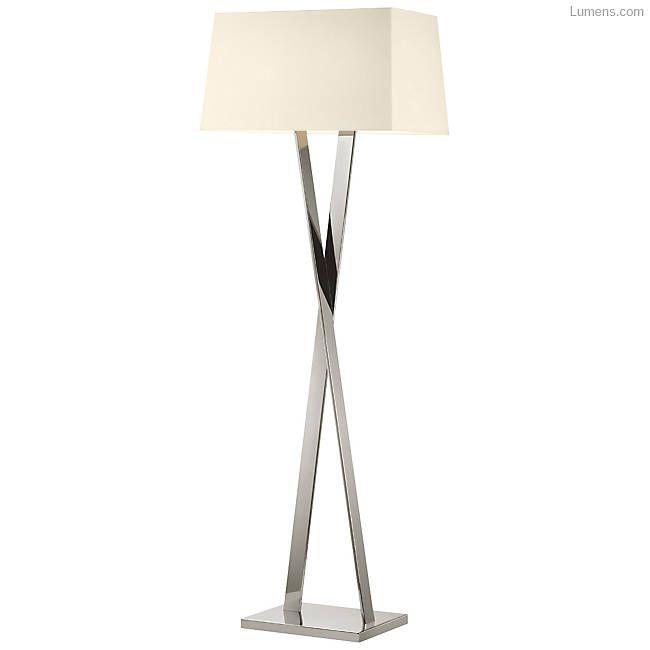

Description- Two smoothly polished metal slats crossed at the center to form its defining “X,” the SONNEMAN Lighting X Floor Lamp creates a delightful structural configuration to form a sleek and unique design The X casts ample illumination through its linen shade, utilizing two incandescent bulbs for maximum light efficiency Fixture stands with stability on an angular metal base, which compliments its rectangular shade
