D R A F T I N
Legend
a 90x45mm Top plate & ribbon b 2/90x45MGP10 Studs @450crs. c 110mm Brickwork d 110mm Plasterboard over battens @450crs. e Posi-strut floor joist @ nom. 45mcrs. f SFL g Floor finish sheet flooring h Skirting board i 10mm Plasterboard j Sisalation k Vertically 150min
Advertisement
Legend
a Reinforced concrete footing b Engaged brick piers 230x110 c 110mm Brickwork d 90x45 197 KDHW FJ’s e Sub floor vent
Legend
a 300 o x 200D Mass conc. pad. based 600mini. (no reinforcement) b 100x100 R-C. Stump c 2/90x45 F17 KDHW Bearers d Reinforcement rod e Ant cap f Concrete pad is dug with a circular drill
Legend

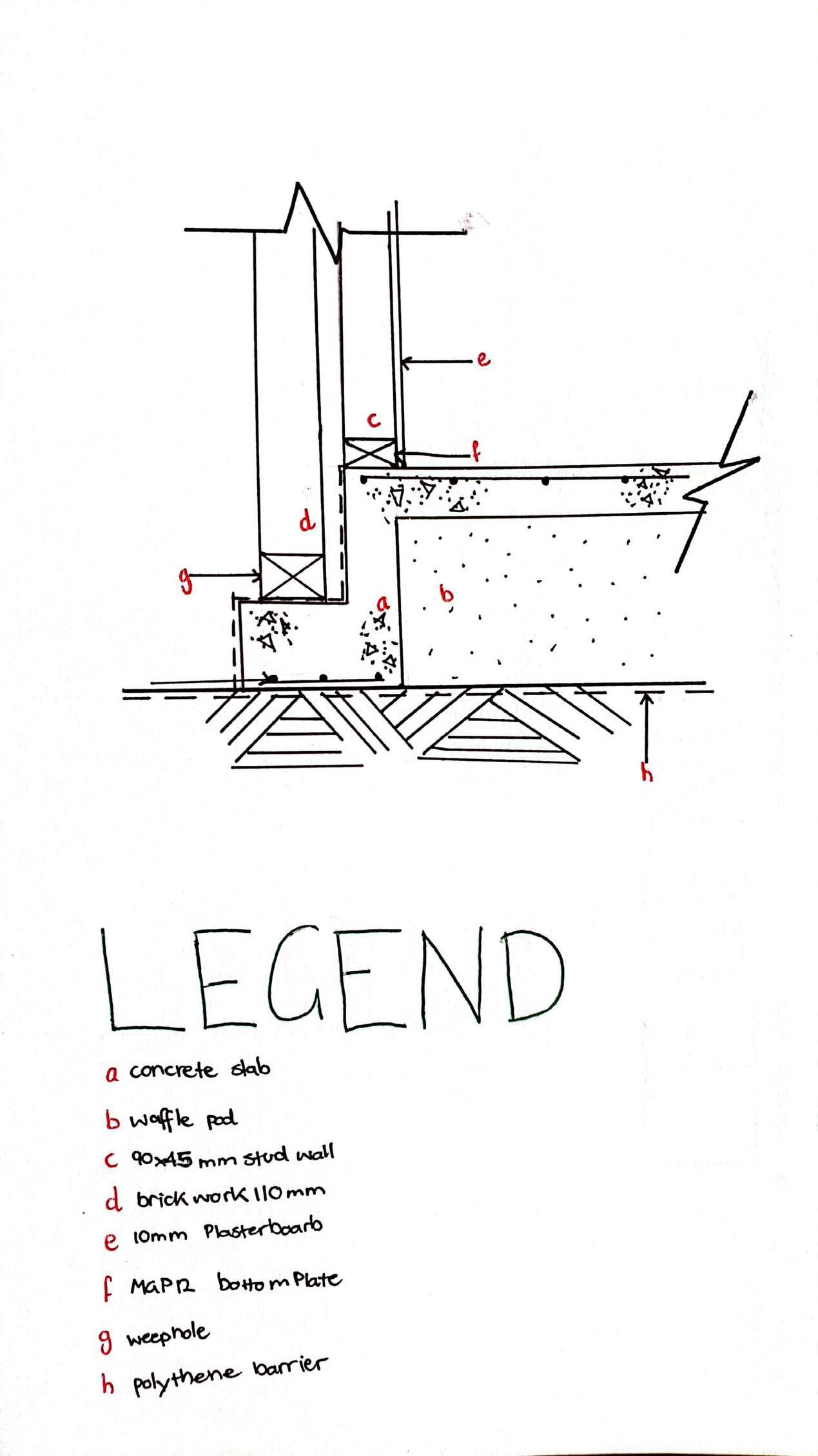

h Damp roof course i 2/90x45 F17 KDHW bearers j 90x45 Bottom plate k Skirting board f 90x35 MGP10/12 common studs g 3 Bars TM T&B/3LIITM l 10mm Plasterboard wall lining m Platform flooring 19mm partick board *NOT TO SCALE* a Concrete slab b Waffle pad c 90x45mm Stud wall d Brickwork 110mm e 110mm Plasterboard f MGP12 Bottom plate g Weephole h Polytene barrier
Legend
a 90x35mm MGP10 Stud @450crs.
b R4 Bulk insulation c 120x45 Mgp10 Alternate stud d 90x45 MGP10 Top plate e 90x45 MGP10 Bottom plate f 10mm PBD over/metal ceiling battens g 10mm Plasterboard h 10mm Plasterboard i 19mm Structural sheeting flooring j Skiting board k 10mm Plasterboard l Selected weatherboard m Siltation paper flashing n Sheet roofing o 150mm Cladding
Legend
a Gutter b Fascia c 10mm Plasterboard d 90x35 F5 roof battens @330crs. e 90x45 MGP10 Top plates
Legend
a 90x35mm F5 Soffit bearer b 90x45mm MGP10 Top plates c 10mm Plasterboard d Soffit lining e Fascia f Gutter g 90x35mm F5 Roof battens @330crs.
Legend
a Roof truss b 90x45 MGP10 Top plates c 90x35 F5 Soffit bearer d Gutter e Ponding board f Fascia g 90x35 F5 roof batter @ 330crs. h Soffit lining
