design

PHILOSOPHY

When designing a product or space, you engage in a delicate dance of controlling life and actions, and consequently, thought and mental state. Yes, design is a dangerous tool, but it's also poetic; it's a love letter the designer sends to the user. Is light male or female? I would say it's female for me. It's not easy to understand, but when you do, it opens a whole world to you.

03 I 04

design

PHILOSOPHY

When designing a product or space, you engage in a delicate dance of controlling life and actions, and consequently, thought and mental state. Yes, design is a dangerous tool, but it's also poetic; it's a love letter the designer sends to the user. Is light male or female? I would say it's female for me. It's not easy to understand, but when you do, it opens a whole world to you.

03 I 04

Selected works:

Table of Contents:

1234

Lighting for Cultural Heritage

Lighting in Exteriors

Lighting in Commercial Interiors

Lighting in Hospitality

05 I 06

Selected works:

Table of Contents:

1234

Lighting for Cultural Heritage

Lighting in Exteriors

Lighting in Commercial Interiors

Lighting in Hospitality

05 I 06

https://www.youtube.com/watch?v=YtAzXlQKgws https://litawards.com/winners/winner.php?id=3681&mode=win

1

Politecnico di Milano 2023

[Lighting for Cultural Heritage]

Palazzo Moroni Bergamo/Italy

Palazzo Moroni dates back to the 16th century and is the holder of a significant artistic and cultural heritage, preserving the baroque style that adorn almost all of its interior as well as works of art of artistic relevance. The palace recently opened its doors to the public to spread its history to visitors,

07 I 08

https://www.youtube.com/watch?v=YtAzXlQKgws https://litawards.com/winners/winner.php?id=3681&mode=win

1

Politecnico di Milano 2023

[Lighting for Cultural Heritage]

Palazzo Moroni Bergamo/Italy

Palazzo Moroni dates back to the 16th century and is the holder of a significant artistic and cultural heritage, preserving the baroque style that adorn almost all of its interior as well as works of art of artistic relevance. The palace recently opened its doors to the public to spread its history to visitors,

07 I 08

LEVELS OF LIGHT

The world of numen Concept

The world of numen* *Numen noun

Welcome to the enchanting realm of Numen, a captivating world defined by four distinct vertical tiers: Foundation, Earth Level (ground level), Sky Level, and Paradise Level. As visitors journey through these levels, they embark on an immersive adventure illuminated by light, each tier delicately weaving a narrative of emotion and wonder. From the sturdy Foundation Level to the earthly Ground Level, where the laws of physics guide light from above, to the magical sensations experienced in Paradise, beginning with the Sky as a gateway, Numen invites explorers to explore its intricacies and revelations. Begin an adventure where light and story intertwine, inviting you to discover the essence of each level and revealing the captivating design of Numen.

Latin noun. The term refers to each of the gods of classical mythology, it encompasses the sense of the holy or sacred and immanence that was in all place and objects for the Roman religion.

It relates to the Roman deities, and their desires, their will, their power.

09 I 10

LEVELS OF LIGHT

The world of numen Concept

The world of numen* *Numen noun

Welcome to the enchanting realm of Numen, a captivating world defined by four distinct vertical tiers: Foundation, Earth Level (ground level), Sky Level, and Paradise Level. As visitors journey through these levels, they embark on an immersive adventure illuminated by light, each tier delicately weaving a narrative of emotion and wonder. From the sturdy Foundation Level to the earthly Ground Level, where the laws of physics guide light from above, to the magical sensations experienced in Paradise, beginning with the Sky as a gateway, Numen invites explorers to explore its intricacies and revelations. Begin an adventure where light and story intertwine, inviting you to discover the essence of each level and revealing the captivating design of Numen.

Latin noun. The term refers to each of the gods of classical mythology, it encompasses the sense of the holy or sacred and immanence that was in all place and objects for the Roman religion.

It relates to the Roman deities, and their desires, their will, their power.

09 I 10

FOUNDATION LEVEL In crafting an ambiance of solidity and strength, the essence lies in highlighting the architectural fundamentals.

Emphasizing the structural elements such as columns and arches, one can evoke a sense of grandeur and stability.

Employing grazing light strategically accentuates the rough textures, adding depth and character to the structure.

Wall-grazing techniques, achieved through linear uplights, artfully mimic the majestic colonnades, infusing the space with a timeless elegance. For a touch of theatricality, dramatic backlighting illuminates the Neptune statue, casting an aura that reflects his formidable powers and unwavering strength. In concert, these techniques weave a narrative of structure and foundation, elevating the space into a realm where history and artistry converge.

11 I 12

FOUNDATION LEVEL In crafting an ambiance of solidity and strength, the essence lies in highlighting the architectural fundamentals.

Emphasizing the structural elements such as columns and arches, one can evoke a sense of grandeur and stability.

Employing grazing light strategically accentuates the rough textures, adding depth and character to the structure.

Wall-grazing techniques, achieved through linear uplights, artfully mimic the majestic colonnades, infusing the space with a timeless elegance. For a touch of theatricality, dramatic backlighting illuminates the Neptune statue, casting an aura that reflects his formidable powers and unwavering strength. In concert, these techniques weave a narrative of structure and foundation, elevating the space into a realm where history and artistry converge.

11 I 12

OBSERVATIONS

EARTH/GROUND LEVEL

The initial idea of the concept began with the observation of the behavior of the frescoes and their pigments in interaction with the light. For this the exercise the lights directed to the ceiling fresco were turned off, the result was a revitalization of the blue tones in the painting, compared to the desaturated tone that was achieved by illuminating it with the existing artificial lighting.

The first idea was to reinforce the shade of blue, as it simulated the entrance of the heavens into the space and then added to the idea, to be able to simulate the daylight that would naturally enter through this opening in the ceiling.

13 I 14

OBSERVATIONS

EARTH/GROUND LEVEL

The initial idea of the concept began with the observation of the behavior of the frescoes and their pigments in interaction with the light. For this the exercise the lights directed to the ceiling fresco were turned off, the result was a revitalization of the blue tones in the painting, compared to the desaturated tone that was achieved by illuminating it with the existing artificial lighting.

The first idea was to reinforce the shade of blue, as it simulated the entrance of the heavens into the space and then added to the idea, to be able to simulate the daylight that would naturally enter through this opening in the ceiling.

13 I 14

HIGHLIGHTING THE LIGHT SOURCE INSIDE THE FRESCO WITH NARROW LIGHT BEAM

SKYLIGHT SCENE

MOONLIGHT SCENE

15 I 16

HIGHLIGHTING THE LIGHT SOURCE INSIDE THE FRESCO WITH NARROW LIGHT BEAM

SKYLIGHT SCENE

MOONLIGHT SCENE

15 I 16

SKY & PARADISE LEVELS

SPECIAL EVENT NIGHT SCENARIO Wired low voltage led fireflies on the bushes and green wall for give misty and magical feeling with 2700k cct for get the natural contrast Fog machine with very soft and reduce amount of fog, just for special events, it will give the visitors the impression that they is walking among the clouds, on a higher level.

How will the gobo movement look like?

Sun path simulation mechanism with the gobo pre programmed projector.

17 I 18

SKY & PARADISE LEVELS

SPECIAL EVENT NIGHT SCENARIO Wired low voltage led fireflies on the bushes and green wall for give misty and magical feeling with 2700k cct for get the natural contrast Fog machine with very soft and reduce amount of fog, just for special events, it will give the visitors the impression that they is walking among the clouds, on a higher level.

How will the gobo movement look like?

Sun path simulation mechanism with the gobo pre programmed projector.

17 I 18

2

AWAKENING . RISING . PEACEFUL . PREVAIL

Lighting in Exteriors

BORGO OF FARFA Politecnico di Milano 2023 There is today a village that welcomes a community that lives in peace after years of being a victim of human power. It is still standing, demonstrating that even if the past, or the world is chaotic, we can still stand firm and evolve.

19 I 20

2

AWAKENING . RISING . PEACEFUL . PREVAIL

Lighting in Exteriors

BORGO OF FARFA Politecnico di Milano 2023 There is today a village that welcomes a community that lives in peace after years of being a victim of human power. It is still standing, demonstrating that even if the past, or the world is chaotic, we can still stand firm and evolve.

19 I 20

A sketch from my 2016 “Mime on Paper” Project

Emotional journey of

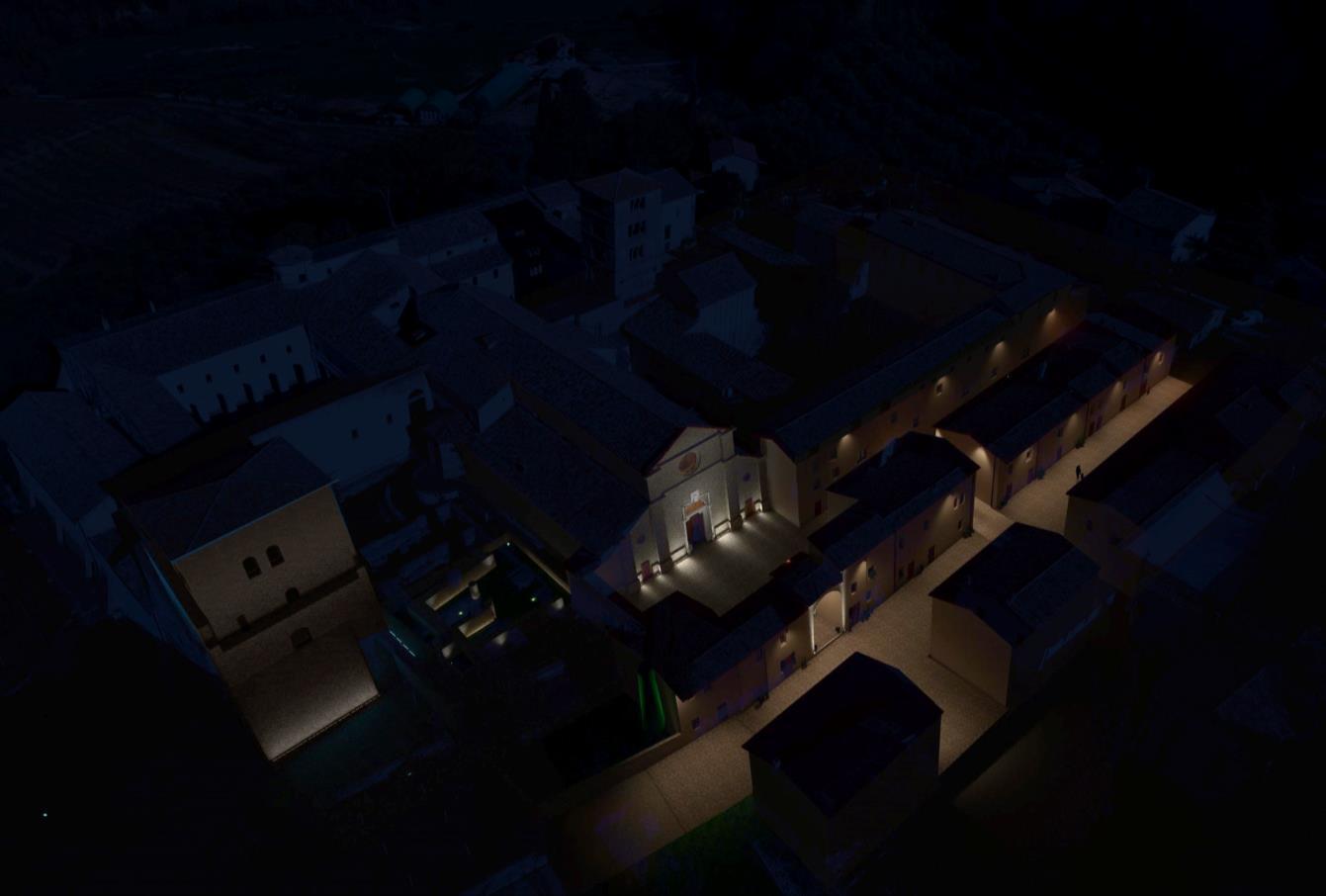

REBIRTH. The outdoor lighting design for Farfa Borgo, based on the metaphor of rebirth, can be a creative process that seeks to capture the essence of history and highlight the majesty of the complex.

The borgo can become a powerful tool to visually tell its story of rebirth and resilience. By highlighting its structure, enhancing its architecture and showcasing its splendor and strength, the lighting design can create a unique and memorable experience for visitors, inspiring them to reflect on their own potential to be reborn and overcome life's challenges.

21 I 22

A sketch from my 2016 “Mime on Paper” Project

Emotional journey of

REBIRTH. The outdoor lighting design for Farfa Borgo, based on the metaphor of rebirth, can be a creative process that seeks to capture the essence of history and highlight the majesty of the complex.

The borgo can become a powerful tool to visually tell its story of rebirth and resilience. By highlighting its structure, enhancing its architecture and showcasing its splendor and strength, the lighting design can create a unique and memorable experience for visitors, inspiring them to reflect on their own potential to be reborn and overcome life's challenges.

21 I 22

Regular scenario

Step into the immersive narrative of rebirth, where every visitor becomes the protagonist, navigating through the emotional odyssey of renewal. Crafted akin to a meticulously scripted movie, this experience envelopes you in the essence of transformation. As you journey through the highs and lows, light becomes the storyteller, illuminating the resilience woven within the fabric of this village. It's a tale of overcoming, a testament to the human spirit's enduring strength.

Event scenario, The rebirth full experience

23 I 24

Regular scenario

Step into the immersive narrative of rebirth, where every visitor becomes the protagonist, navigating through the emotional odyssey of renewal. Crafted akin to a meticulously scripted movie, this experience envelopes you in the essence of transformation. As you journey through the highs and lows, light becomes the storyteller, illuminating the resilience woven within the fabric of this village. It's a tale of overcoming, a testament to the human spirit's enduring strength.

Event scenario, The rebirth full experience

23 I 24

INCITING INCIDENT

CLIMAX

Gradient light effect on the main streets leading to the abbey gate

Lighting the church with grazing up-light to enhance the materials and the give feeling of the presence of a greater entity.

Creating the illusion of a lake in the piazza reflecting the church facade using light effects, as shown in the light box detail.

GRAND FINALE

Very cold color temperature With some warm accent light to bring depth Isolating the upper part of the tower to create the feeling of floating and rising by highlighting the upper volume.

Using vertical light effects to enhance the feeling of rising and rebirth in the finale.

Using a fog machine in the ruins area to create the feeling of a mystic rising of the village.

25 I 26

INCITING INCIDENT

CLIMAX

Gradient light effect on the main streets leading to the abbey gate

Lighting the church with grazing up-light to enhance the materials and the give feeling of the presence of a greater entity.

Creating the illusion of a lake in the piazza reflecting the church facade using light effects, as shown in the light box detail.

GRAND FINALE

Very cold color temperature With some warm accent light to bring depth Isolating the upper part of the tower to create the feeling of floating and rising by highlighting the upper volume.

Using vertical light effects to enhance the feeling of rising and rebirth in the finale.

Using a fog machine in the ruins area to create the feeling of a mystic rising of the village.

25 I 26

3

[Lighting for Commercial Interiors]

The Commercial space OF 3M Politecnico di Milano 2023

Nordic Headquarters of Stockholm, Sweden, of 3M Company (Minnesota Mining and Manufacturing), the commercial space consists of Presentation area, display area, meetings room and a lounge room.

27 I 28

3

[Lighting for Commercial Interiors]

The Commercial space OF 3M Politecnico di Milano 2023

Nordic Headquarters of Stockholm, Sweden, of 3M Company (Minnesota Mining and Manufacturing), the commercial space consists of Presentation area, display area, meetings room and a lounge room.

27 I 28

ANORTHOSITE 03 The Anorthosite pendant lighting system is designed with PET acoustic panel technology as the shade of the fixture and optic fiber of 4.5mm, to interconnect various modules together. The system inside is composed of a LED panel, a power generator, a light generator and the connections of each fiber optic to it.

Entrance corridor + virtual theater

29 I 30

ANORTHOSITE 03 The Anorthosite pendant lighting system is designed with PET acoustic panel technology as the shade of the fixture and optic fiber of 4.5mm, to interconnect various modules together. The system inside is composed of a LED panel, a power generator, a light generator and the connections of each fiber optic to it.

Entrance corridor + virtual theater

29 I 30

Eye Adaptation Visitor’s Tour Visual Experience

1

2

3

4

5

6

6

7

The visitor tour experience is built on the eye adaptation to the light. The tour starts on the really dark black walls of the entrance corridor to the presentation area.

When the visitor finishes the tour his eye will be comfortably adapted to the brightest scenario of the space.

31 I 32

Eye Adaptation Visitor’s Tour Visual Experience

1

2

3

4

5

6

6

7

The visitor tour experience is built on the eye adaptation to the light. The tour starts on the really dark black walls of the entrance corridor to the presentation area.

When the visitor finishes the tour his eye will be comfortably adapted to the brightest scenario of the space.

31 I 32

Display Area, Scene 3

Lounge Area, Scene 1

Lounge Area, Scene 2

Display Area, Scene 2

Brainstorming Area, Scene 1

Brainstorming Area, Scene 2

Display Area, Scene 1

Skylight Area, Scene 1

Skylight Area, Scene 2

33 I 34

Display Area, Scene 3

Lounge Area, Scene 1

Lounge Area, Scene 2

Display Area, Scene 2

Brainstorming Area, Scene 1

Brainstorming Area, Scene 2

Display Area, Scene 1

Skylight Area, Scene 1

Skylight Area, Scene 2

33 I 34

Virtual Presentation

Gift shop Area

35 I 36

Virtual Presentation

Gift shop Area

35 I 36

4

Politecnico di Milano 2023

[Lighting Design for Hospitality]

IL VARO Monza/ Italy

Renovation and expansion of existing building for inclusion of new production activity and residence in Monza

37 I 38

4

Politecnico di Milano 2023

[Lighting Design for Hospitality]

IL VARO Monza/ Italy

Renovation and expansion of existing building for inclusion of new production activity and residence in Monza

37 I 38

The concept is taking from the architectural idea of the building that resembles a ship of its proportions and edginess. Creating a customized luminaire for this luxurious client with its movement distribution within the open space residence giving a unique identity. The installation gives a feeling of a huge chandelier dancing through the space. The Luminaire resembles a ship sail of its structure and installation system.

39 I 40

The concept is taking from the architectural idea of the building that resembles a ship of its proportions and edginess. Creating a customized luminaire for this luxurious client with its movement distribution within the open space residence giving a unique identity. The installation gives a feeling of a huge chandelier dancing through the space. The Luminaire resembles a ship sail of its structure and installation system.

39 I 40
