Parametric Design - Bayan Ahmed Omr

Simulation & Architectural Modeling Arch : Ameera Amr l Nisreen.

Stu : Bayan Ahmed Omr.

ZUJ University

Faculty of Architecture and Design - Department of Architecture 17-3-2021 Al-Bayan Ahmed Omr

Xiangcheng District Planning Exhibition Hall

Al-Bayan Ahmed Omr

Introduction • Suzhou is a cultural city with history of more than 2500 years. It not only creates rich materthe Chinese nation, but also writes a brilliant chapter about the excellent traditional ial wealth-being for culture.

Al-Bayan Ahmed Omr

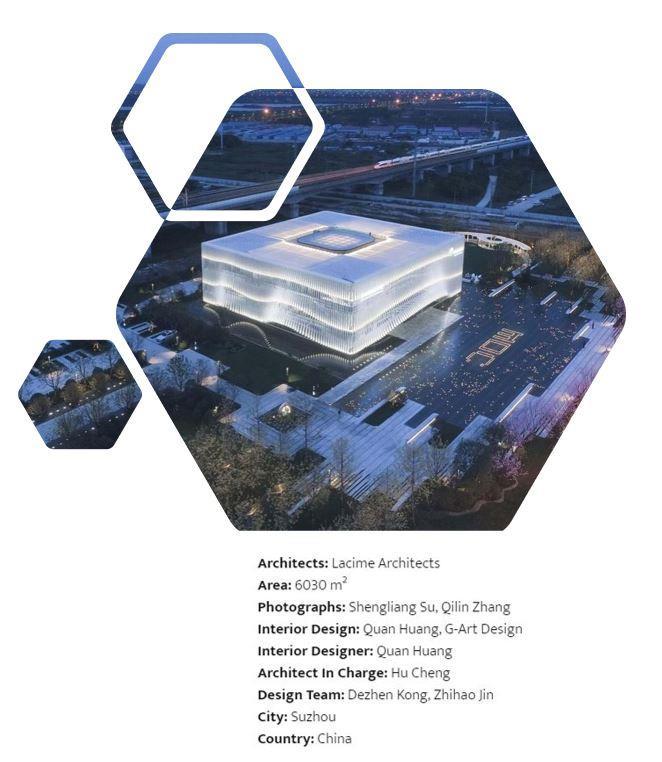

Introduction Planning Exhibition Hall is in the east of Suzhou North Railway Station, which is an open base, south to Nantiancheng Road, east to Chenggang Road and north of Beijing-Shanghai highspeed railway. It covers an area of 1.17 hectares .

Al-Bayan Ahmed Omr

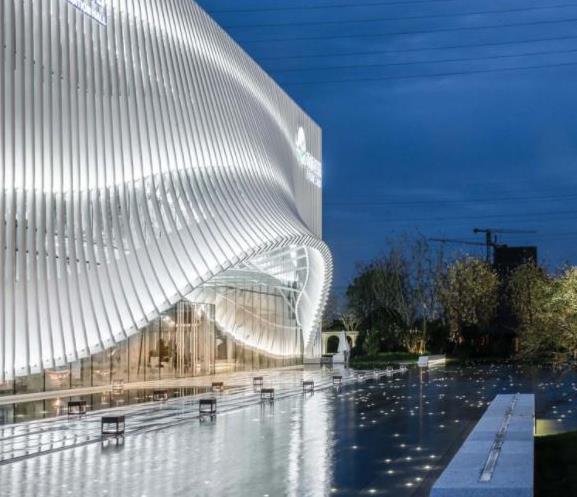

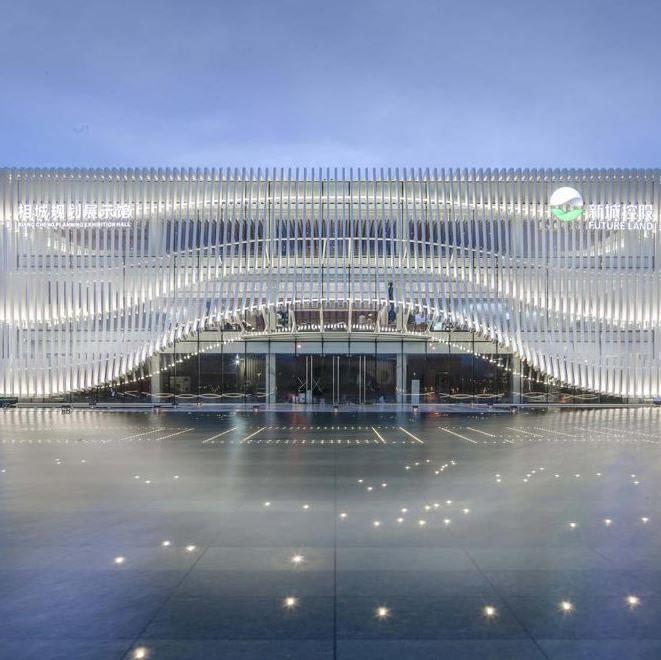

• it looks like a magic cloth wrapped over a box waiting to be risen and revealed from afar. Xiangcheng District Planning Exhibition Hall represents an elemental charisma, sitting calm and serene about a body of water. Lacime Architects have encased a cultural magnificence, capturing the supreme majestic scenery in southeast China, also featuring its architecture as “Elegance and Grace”.

Al-Bayan Ahmed Omr

• early billions of passenger's flow through Suzhou North Railway Station every year. When the high-speed train slows down before entering the station, this exhibition hall could be visible at a glance! The advantage of site location determines its uniqueness. Each visible facade of architecture is very important.

We carried out researches in two ways; one is the garden type; some enclosed elements are applied in space constraints to achieve orderly space change.

Obviously, it is difficult for garden-style to achieve the meaning carried by the building, so we adapted another way that setting a point to make it a whole without scatter, let it become a city landmark and visual focus!

Al-Bayan Ahmed Omr

The Design Concept • A simple and powerful shape for the building can reveal the profound meaning of “confidence” for the owners, the government and all those who work for the high-speed rail new town project. The exterior curtain wall furthermore composed of vertical components enriches the elegance and dynamic effect, implying “the curtain rise”.

Al-Bayan Ahmed Omr

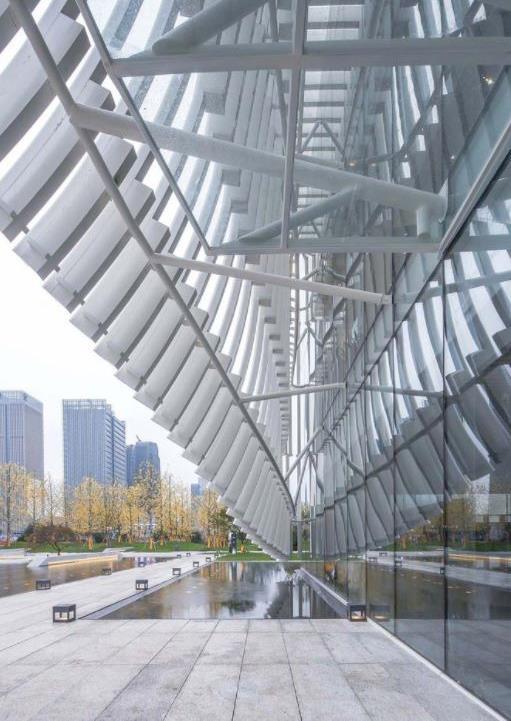

• The building’s height aligns in line with the high-speed rail. The overall measures range to be 46 meters in proportion to the column span and other factors. The exterior skin in contrast revels in aluminum square rods build of standard segments with illuminating outer appearance, size and spacing corresponding to the column net. Moreover, each rod splits into 5 equal parts with the inner side treated using dark lines, and its ends curl and twirl, making the building move in a flexible, soft, and ceremonial motion.

Al-Bayan Ahmed Omr

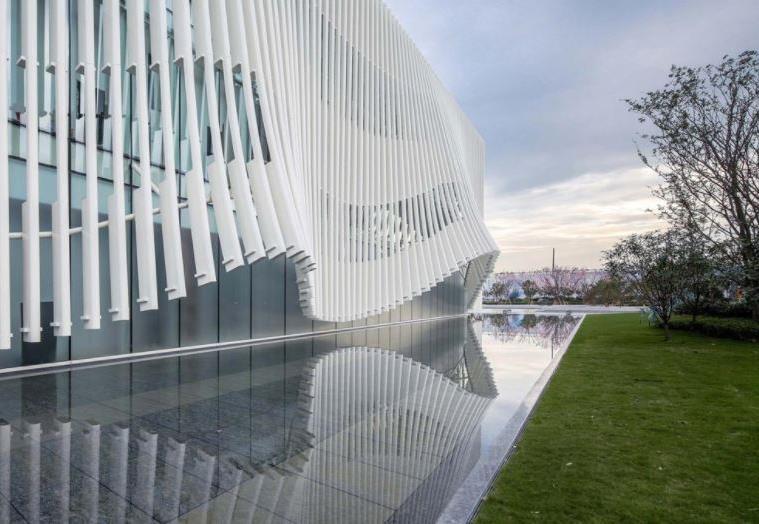

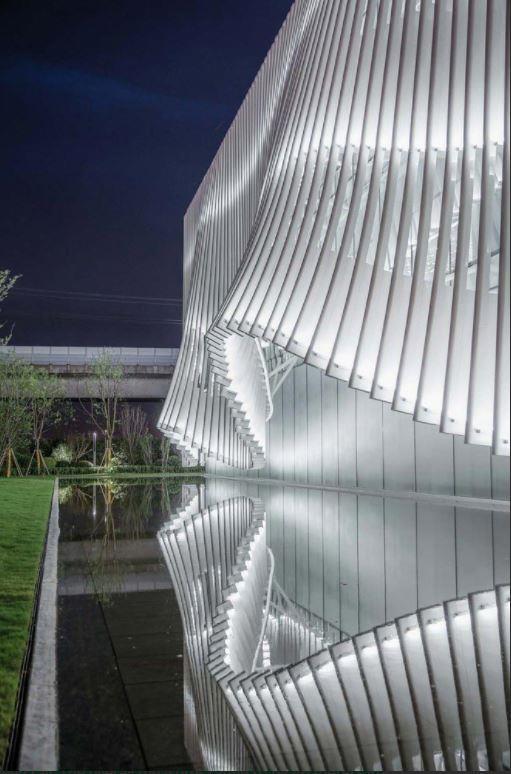

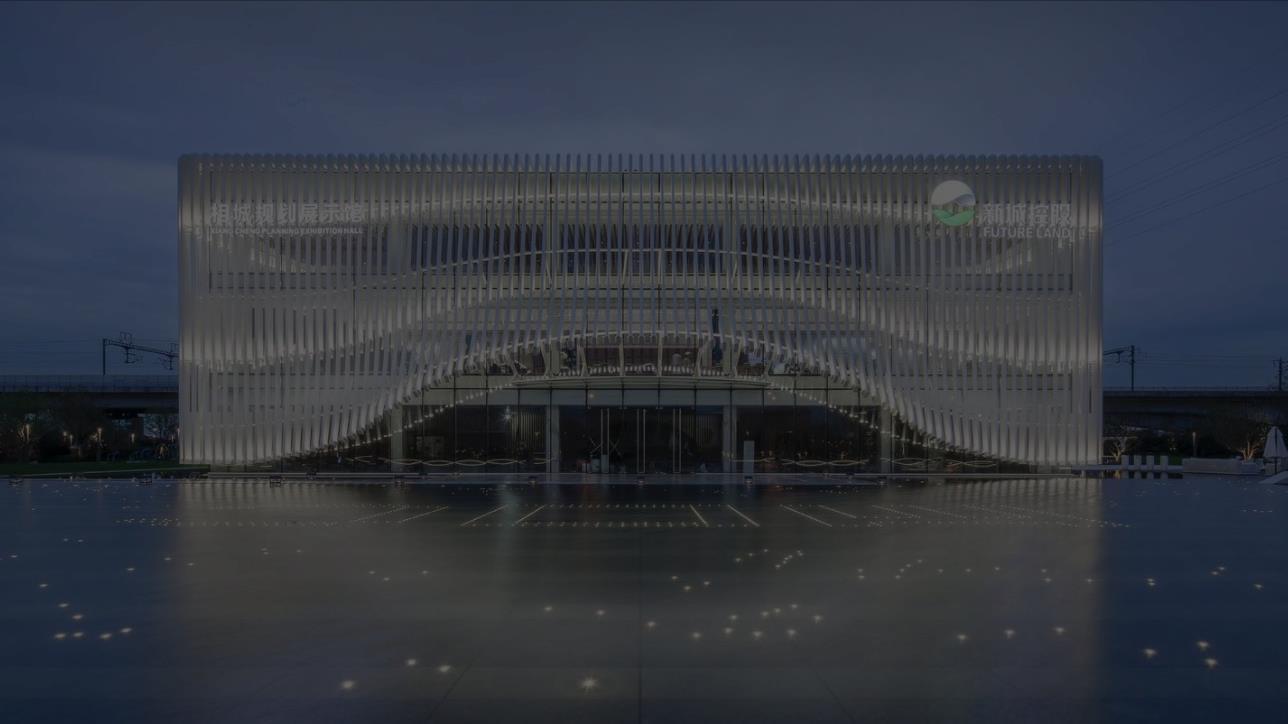

• The landscape in addition emphasizes the application of waterscape, ensuring instilling reflection along the main path leading to the building’s main entrance on the side. The sophisticated curved profile of the building inverted in the water indeed captivates and enthrals the visitors. The outer appearance concept resonates with a musical instrument called Marimba, invoking the building as solidified music.

The designers hope that this small building can play splendid music alongside the water and sky.

Al-Bayan Ahmed Omr

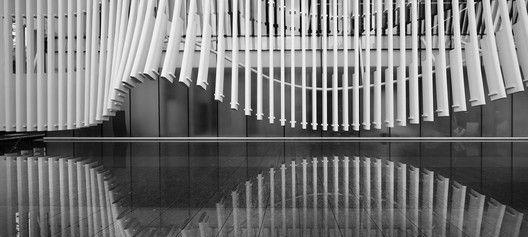

• The facade is composed out of vertical elements, repeated in a constant distance, creating a curtain on all sides of the building. Although based on a simple principle of repetition, these vertical elements are distributed along a waved surface, creating a dynamic feeling of movement.

Al-Bayan Ahmed Omr

Parametric design • It’s a process based on algorithmic thinking that enables the expression of parameters and rules that, together, define, encode and clarify the relationship between design intent and design response.

Al-Bayan Ahmed Omr

Parametric Skins

• The main task of this exercise is to decode the logic of complex facade systems, analyzing and defining the computational process behind them.

Al-Bayan Ahmed Omr

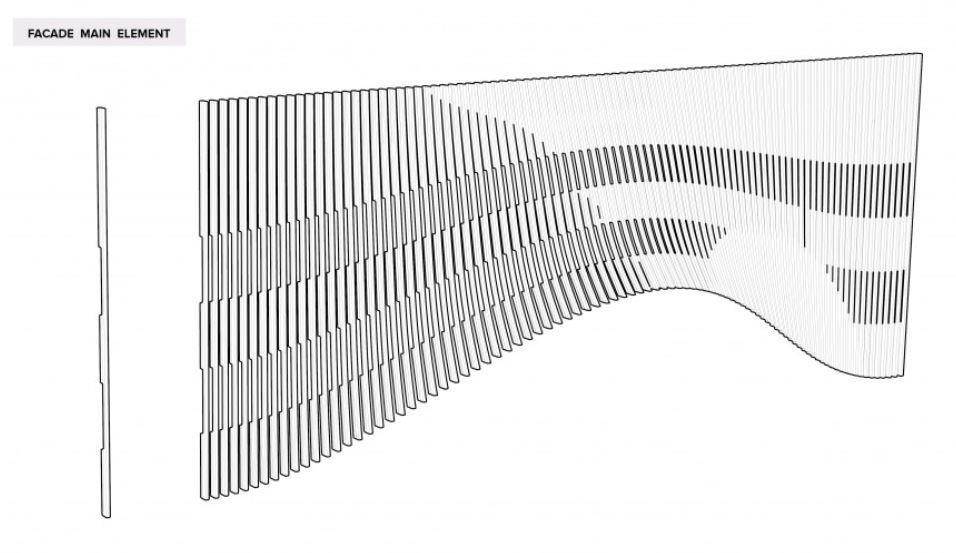

Case Study

Parametric Skins

Al-Bayan Ahmed Omr

Case Study

Parametric Skins

Al-Bayan Ahmed Omr

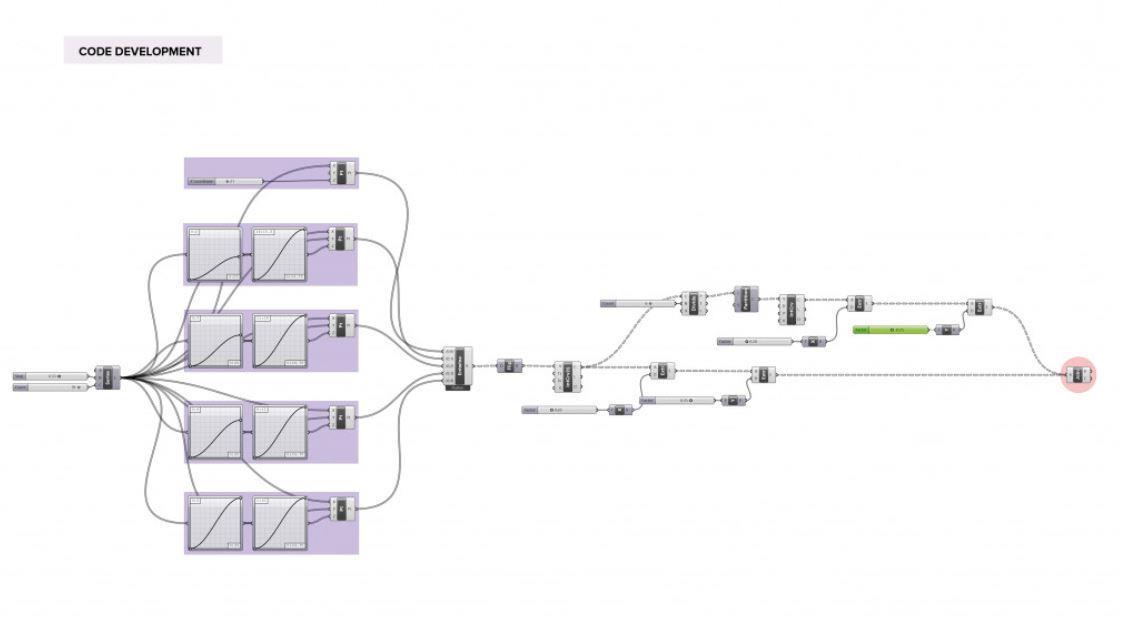

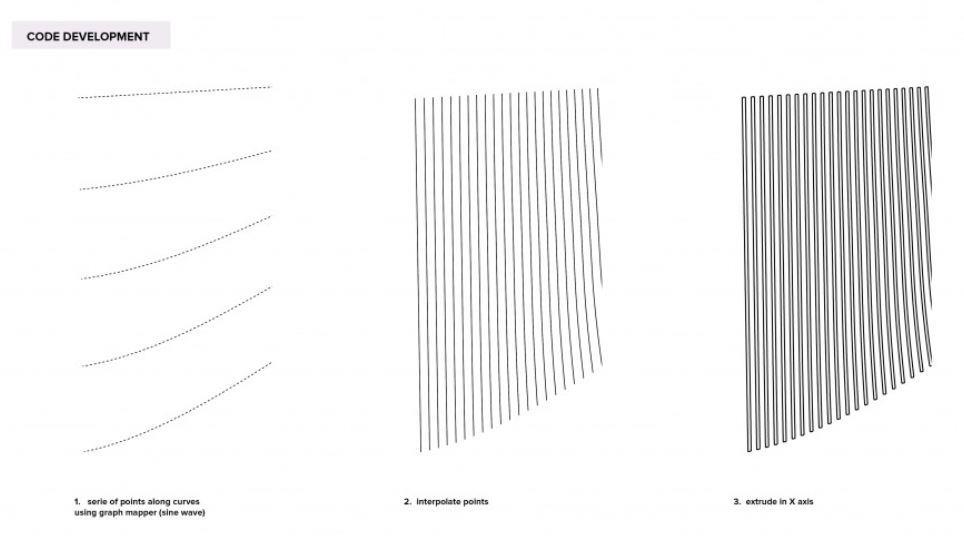

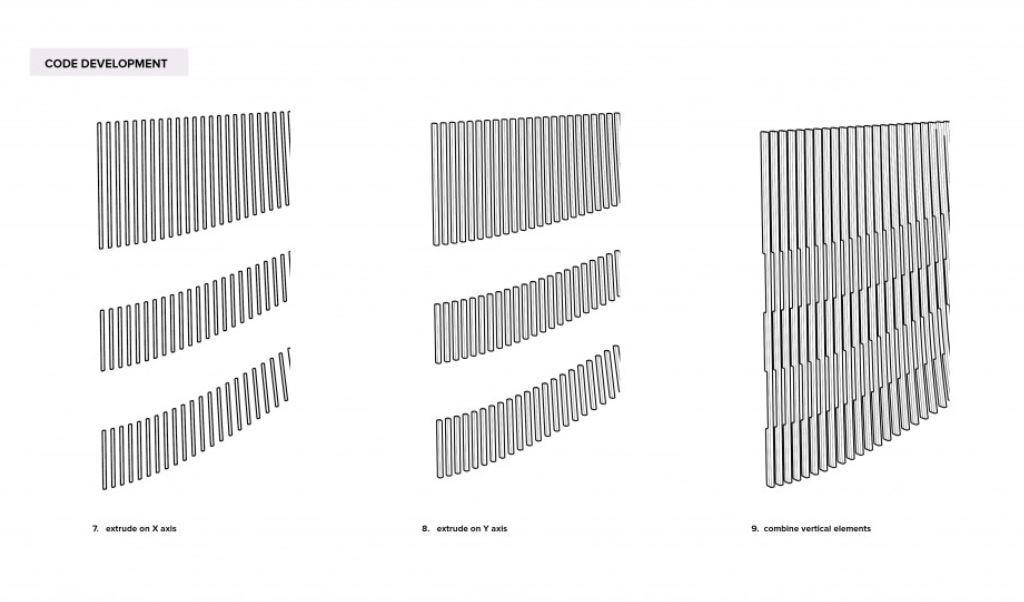

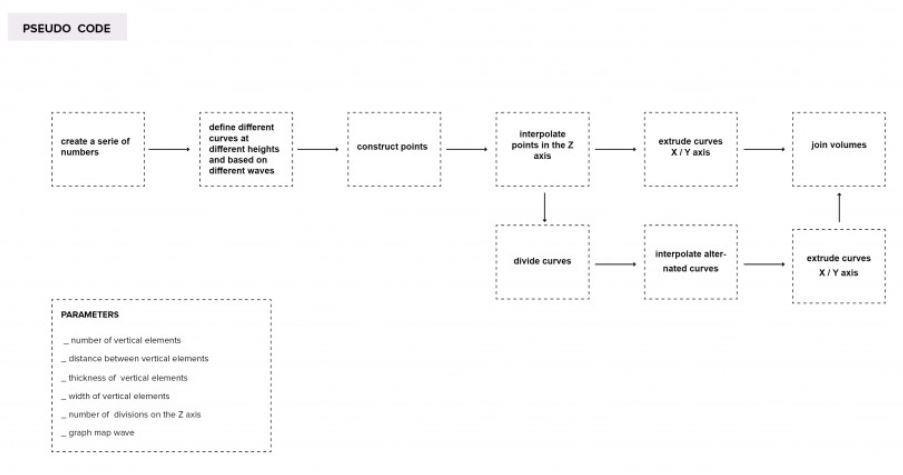

Code Development

Parametric Skins

Al-Bayan Ahmed Omr

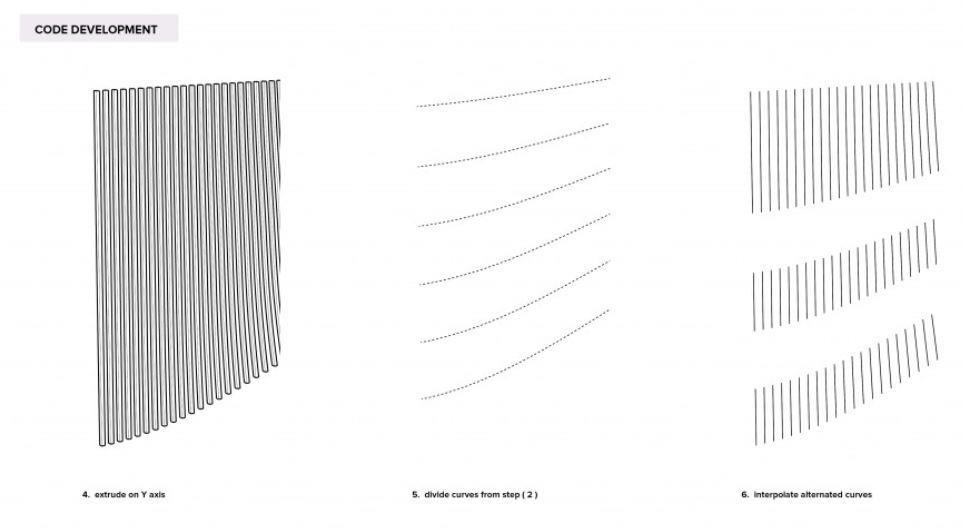

Code Development

Parametric Skins

Al-Bayan Ahmed Omr

Code Development

Parametric Skins

Al-Bayan Ahmed Omr

Code Development

Parametric Skins

Al-Bayan Ahmed Omr

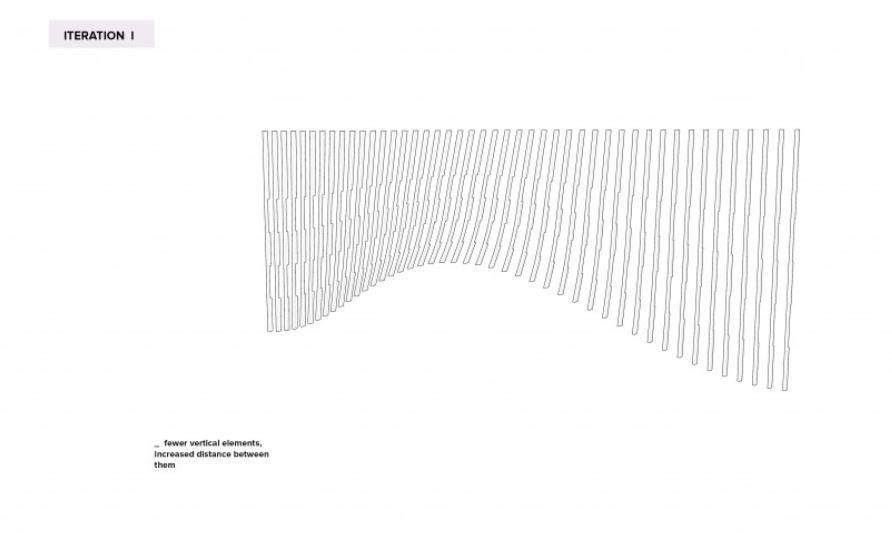

Iteration

Parametric Skins

Al-Bayan Ahmed Omr

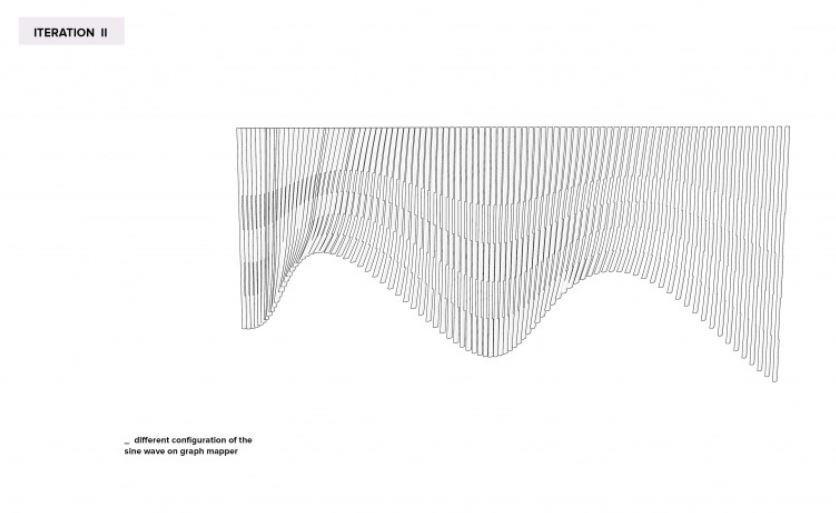

Iteration

Parametric Skins

Al-Bayan Ahmed Omr

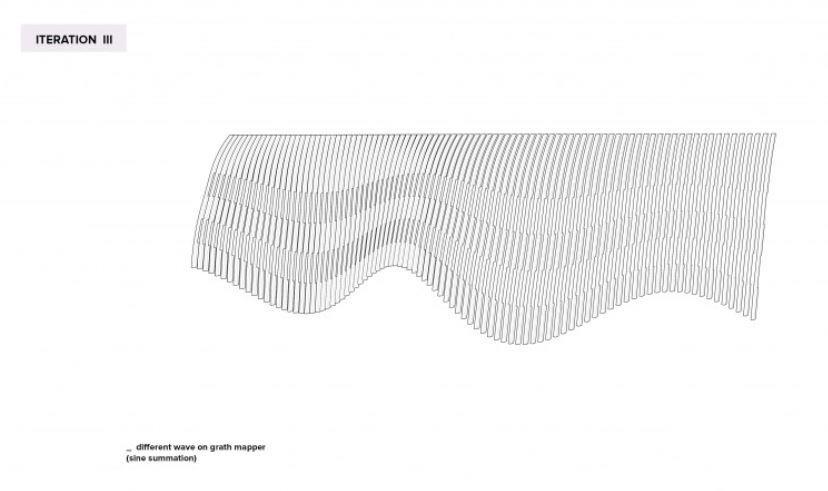

Iteration

Parametric Skins

Al-Bayan Ahmed Omr

Iteration

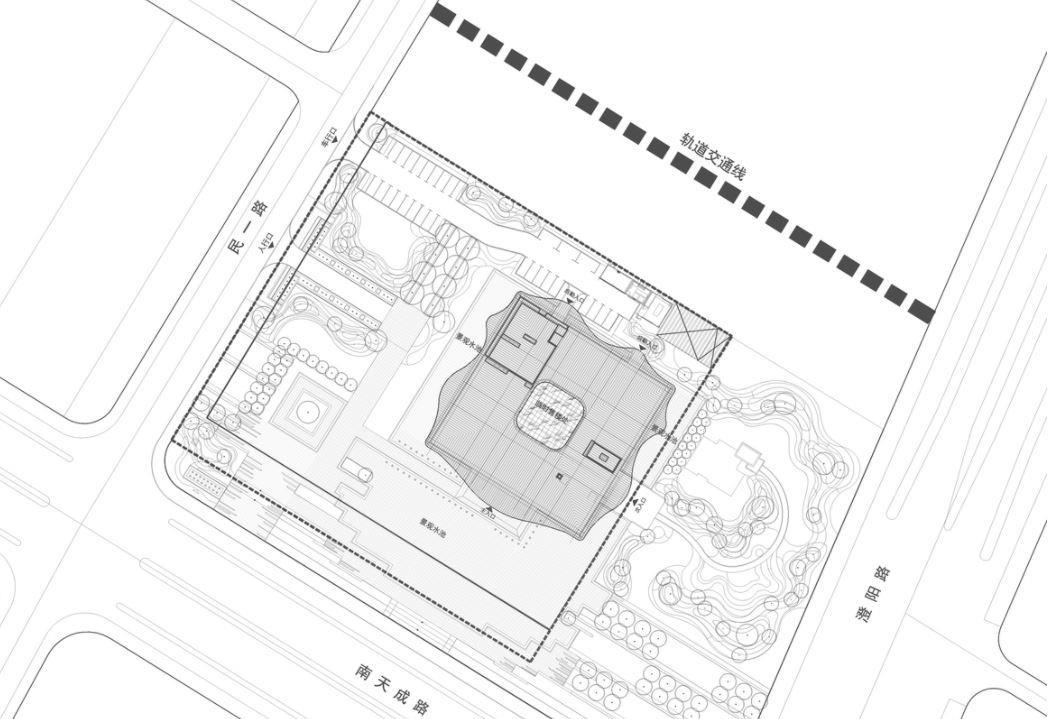

Site Plan

Al-Bayan Ahmed Omr

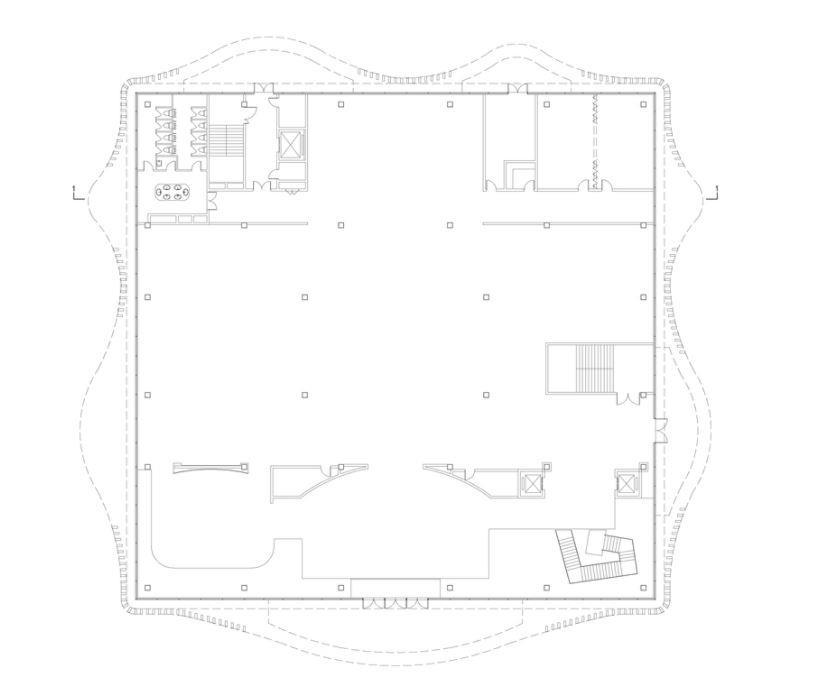

Ground Floor Plan

Al-Bayan Ahmed Omr

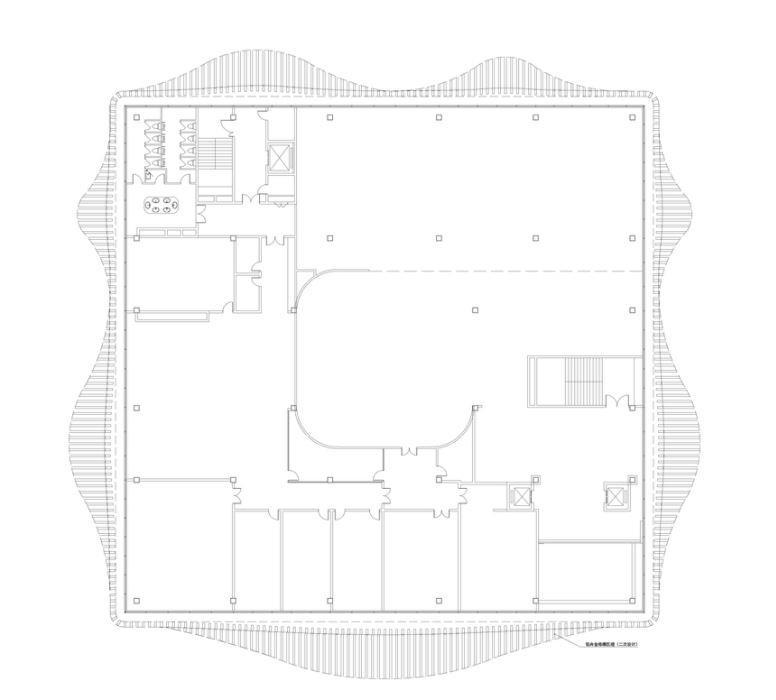

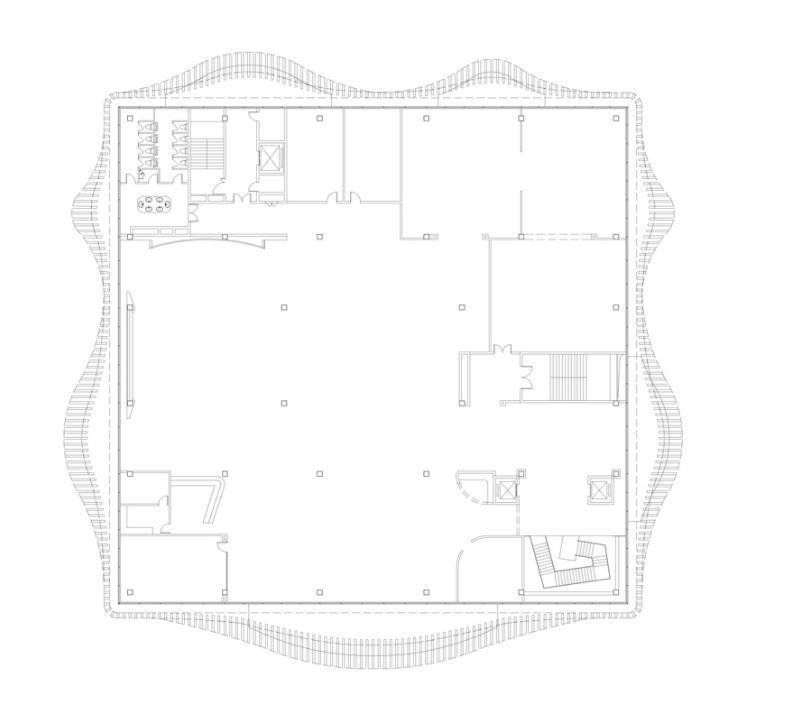

First Floor Plan

Al-Bayan Ahmed Omr

Second Floor Plan

Al-Bayan Ahmed Omr

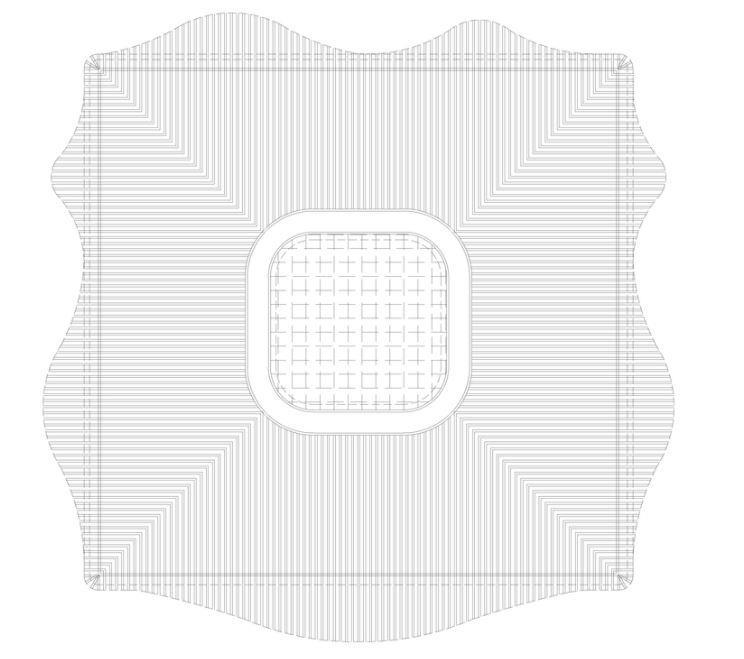

Roof Plan

Al-Bayan Ahmed Omr

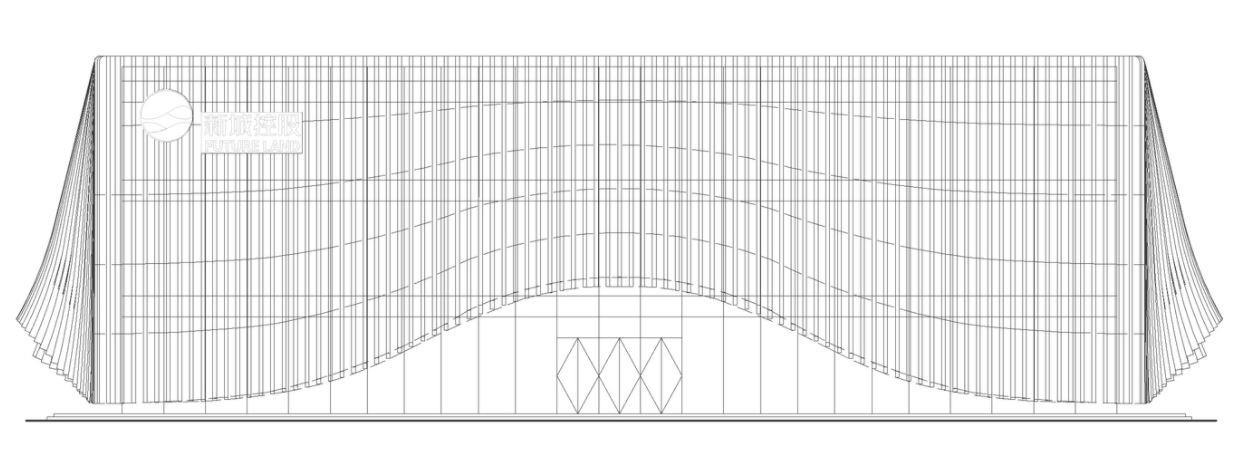

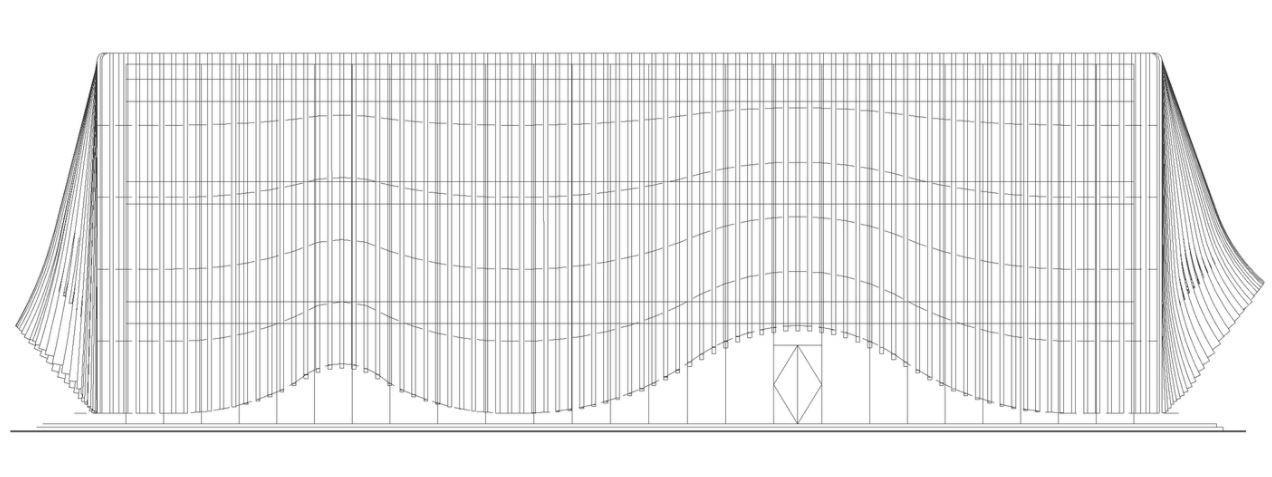

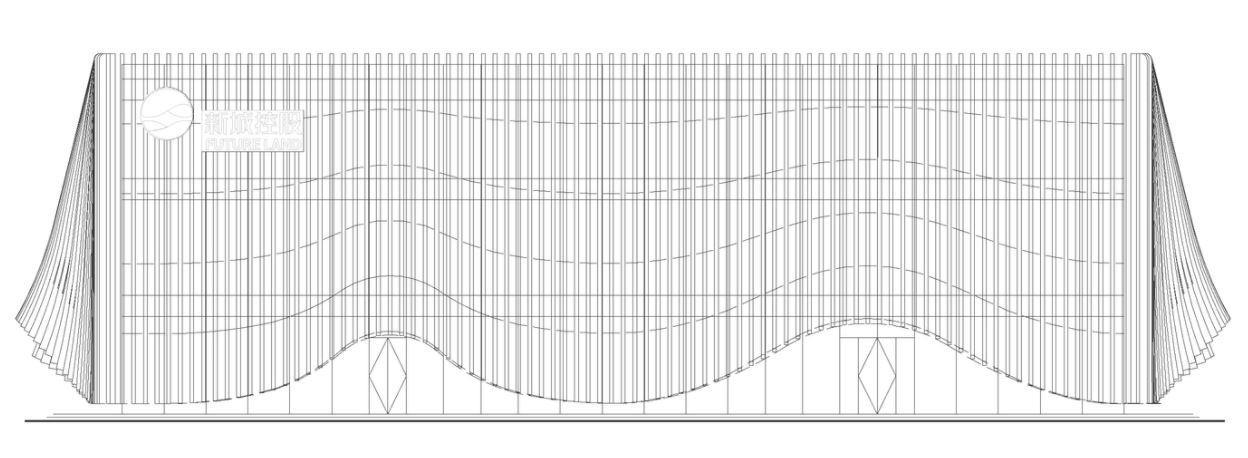

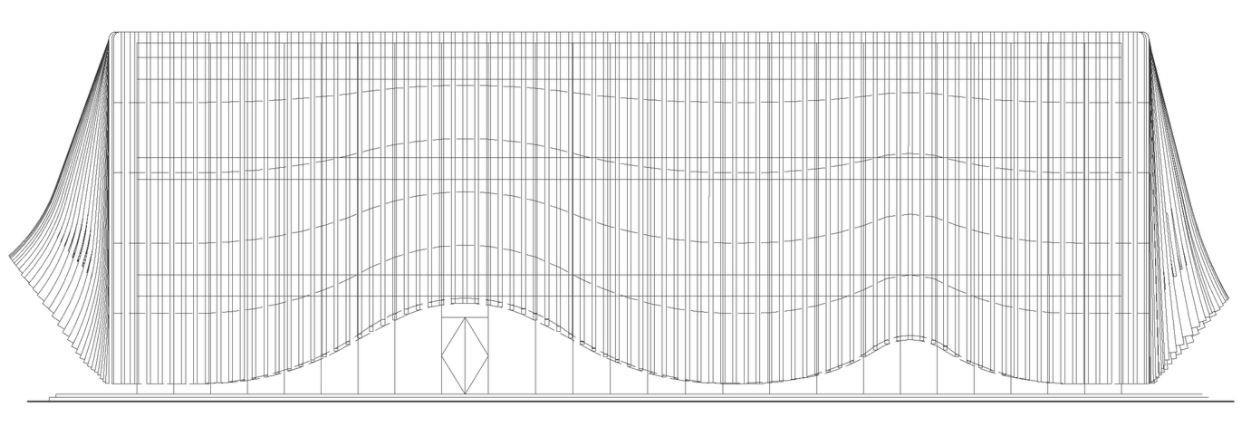

Elevations

Al-Bayan Ahmed Omr

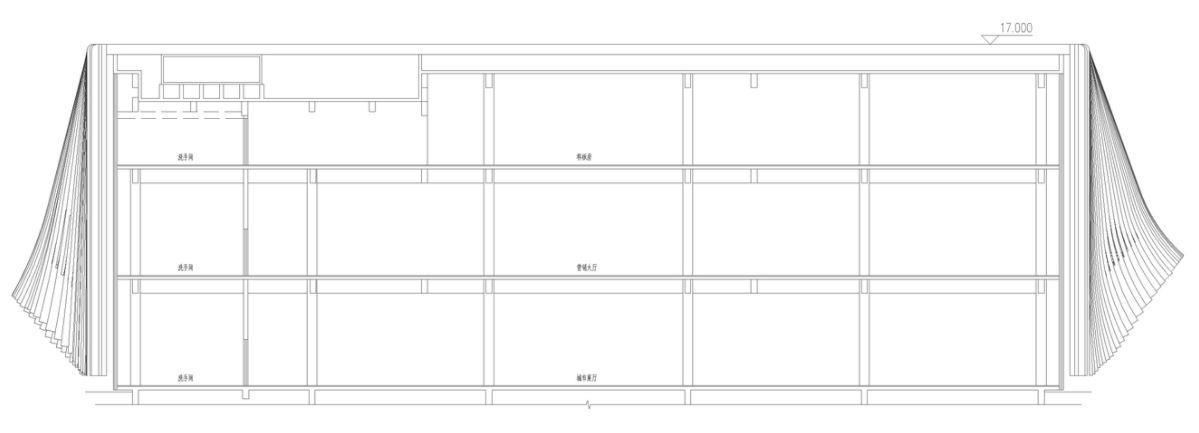

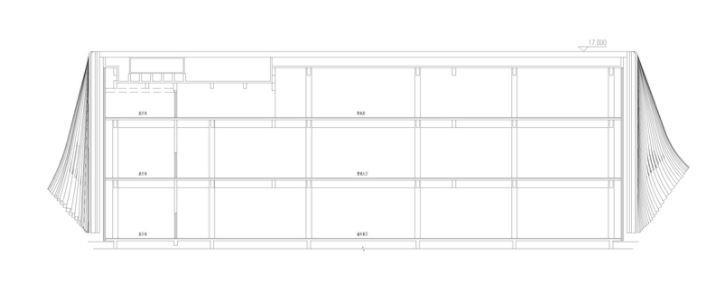

Sections

Al-Bayan Ahmed Omr

Conclusion • The concept by Lacime Architects is to design a building that becomes a new landmark and visual focus, and with this elegant exterior the new exhibition hall achieves this goal.
