The Armet Pro helmet is certified according to the updated EN397 Type II standard, offering advanced protection against both vertical and lateral impacts. It features the Mips® Brain Protection System to help reduce rotational forces during angled impacts, and the Quin Smart Sensor for real-time detection of impacts or dangerous workplace-specific incidents—such as falls, impacts, temperature changes, and more. With automatic alerts sent upon the detection of such events.
The built in Quin Tag enables quick access to workers critical medical information in the case of emergencies with the simple tap of a smartphone.
Engineered for professionals who expect more from their safety gear.
TECHNICAL SPECIFICATION
Outer shell
Inner shell
Chinstrap Material
Buckle System
Helmet Size
Comfort Padding
Weight
Ventilation System
Product Shelf Lifetime
Warranty time
ABS/PC
EPP/EPS
Nylon and Premium PU-leather
Fidlock Magnetic Buckle
53- 63cm
CoolMax Comfort Liner
480g +/- 10g
JetStream VentSystem 10 years
3 years
FEATURES
Quin Tag (Digital ICE Information)
Stores in-case-of-emergency details, instantly accessible via NFC directly on the helmet
JetStream VentSystem
Ventilation system developed with aerodynamic engineers to optimize airflow and provide maximum cooling inside the helmet
Mips Low-Friction Layer
Brain Protection System for industrial safety helmets designed to help reduce rotational motion to the head in oblique impacts.
Comfort Liner
Made from CoolMax® material to improve working comfort by absorbing heat and helping maintain a balanced temperature
A magnetic quick-release buckle combining safety, innovation, and ease of use for reliable, everyday helmet wear.
LED-Diffuser
Provides visual indication of head trauma, repeated minor impacts requiring medical attention, or helmet end-of-life. Operates in combination with the Quin Smart Sensor
Interior Liner
Triple-layer EPS and EPP construction, optimized for impact protection from both above and the sides
Quin Smart Sensor
Monitors impact, rotational energy, and temperature, with automatic alerts to emergency contacts or emergency services in case of an event
4-Point Chinstrap with Fidlock
Complies with EN397:2025 Type II standard and features a user-friendly magnetic buckle from market leader Fidlock® for enhanced safety and convenience
Moisture-wicking comfort liner that enhances breathability, keeps you dry, and delivers long-lasting comfort in demanding environments
Intelligent Safety Technology

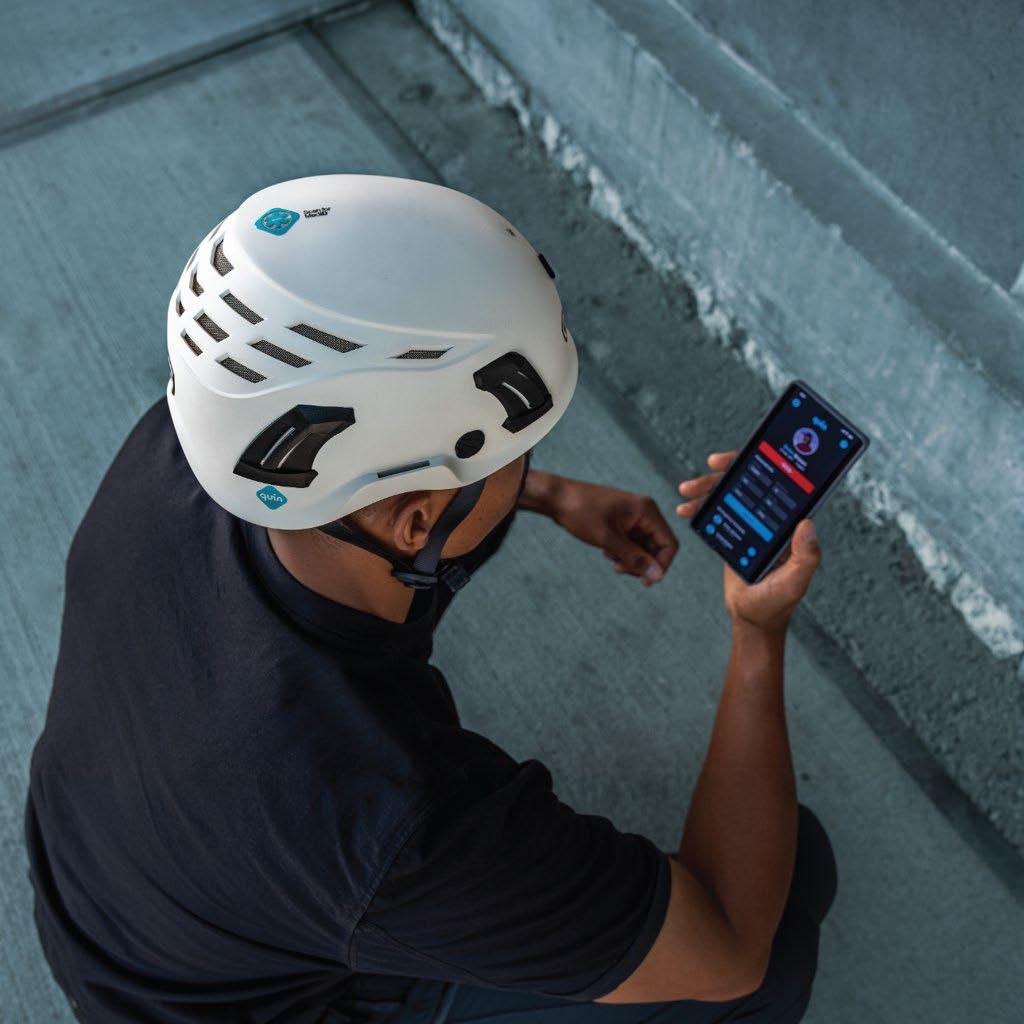

The Guardio Armet Pro Connected is equipped with the Quin Pod & Quin Tag. Together the system is designed to detect impacts, provide instant access to the user’s critical medical ID and automatically alert your responder for help.

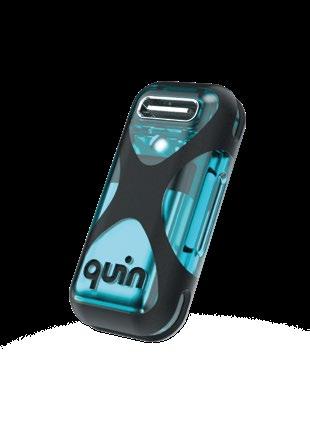

SPECIFICATIONS QUIN POD
Accelerometer Type Dual tri-axis Accelerometer
Acceleration Configuration 16g + 400g (Dual)
Impact Sensor Max Frequency 1000Hz
Maximum Crash Detection g-Force +/-400g
Gyroscope +/-2000 dps
Gyroscope Maximum Frequency 6660Hz
Temperature Sensor -40°C to 80°C
LED Type RGB
Water Resistance IP67
Bluetooth v5.1
Battery Capacity 60 mAH
Battery Charge Time 1.5 hours
Battery Type LiPo
Rechareable Yes
Charging port USB C
Firmware update Over The Air Yes
Flash Memory 16Mbit

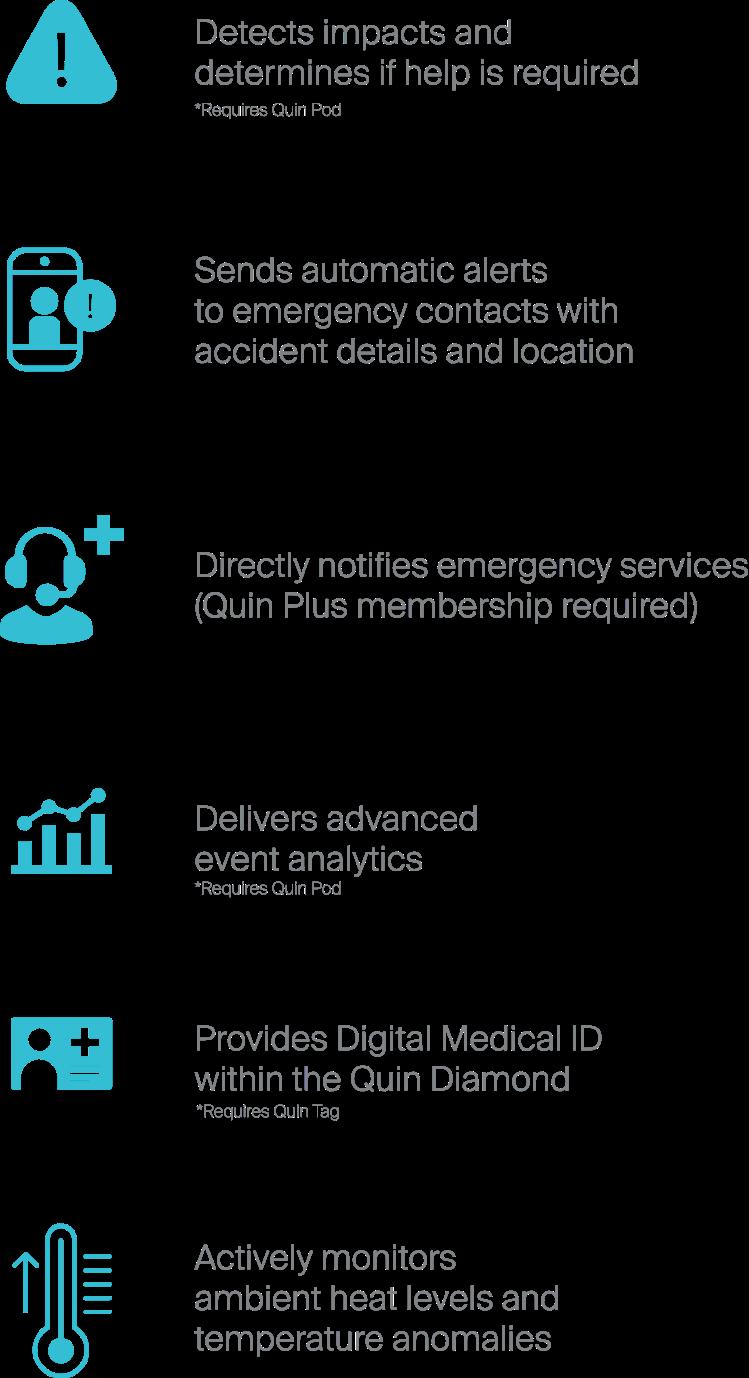

Detects impacts and determines if help is required
*Requires Quin Pod
Sends automatic alerts to emergency contacts with accident details and location
Direct notifies emergency services
(Quin Plus membership required)
Delivers advanced event analytics
*Requires Quin Pod
Provides Digital Medical ID within the Quin Diamond
Actively monitors ambient heat levels and temperature anomalies
*Requires Quin Pod
Mips® Brain Protection System for Industrial Safety Helmets
Helmet impacts can be off-centered or angled, which can cause rotational motion to the head.
Case Study:
Angled or off-centered impacts can cause the head to rotate abruptly. Research has shown this can lead to concussions and brain trauma.
Effect of the Mips technology
The Mips system is designed to help redirect the damaging rotational motion caused by certain off-centered or angled impacts away from the head.
Finite Element Simulations of the Mips® Brain Protection System for Industrial Safety Helmets Effect in a Safety Helmet from an Approval Test

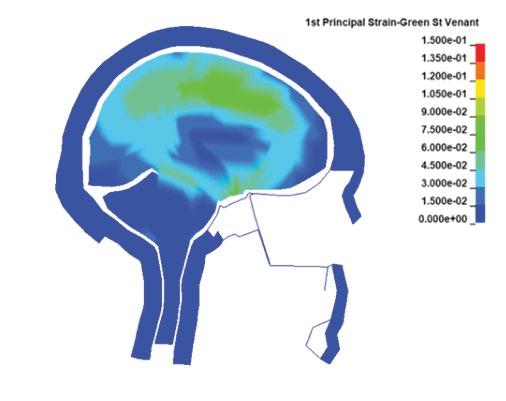

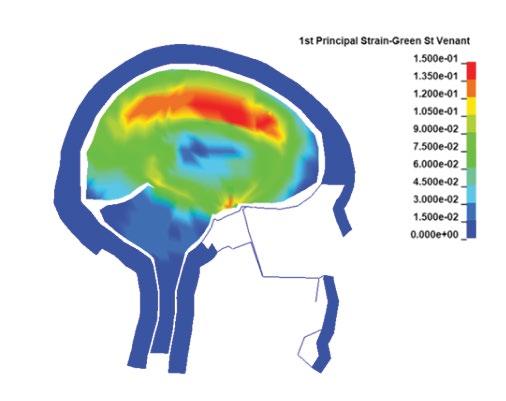

The graphic illustrates the strain in the brain during an angled impact for two different helmet configurations. The strain is computed with the KTH finite element model (Kleven 2007) using the acceleration data from a Hybrid III test dummy. The dummy head was subjected to an angled impact at 4.5 m/s, using the Mips test rig, wearing a safety helmet without Mips Safety System and a helmet with Mips Safety System respectively.
Kleven 2007, Predictors for traumatic brain injuries, evaluated through accident reconstructions. (Stapp 2007)
Helmet with the Mips technology
Helmet without the Mips technology
Armet Pro Connected
Armet Pro
Quin tag and can be upgraded with Quin Smart Pod)
Visors
Theia Visor Clear
Theia Visor FullFace
Theia Visor Photochromic
Visors accessories
Theia Visor Clips Accessories 1001677
VisorFlex Screw Clips Accessories 1001660
UV Protection & front brims
UV Protection Brim 1002173
UV Protection Neck shield 1002169
Short Front Brim 1002170
UV Protection KIT 1002174
Helmet accessories & Spare parts
CoolMax Comfort Liner 1002533
Armet Pro Fidlock Chinstrap 1002534
Armet Headlamp Side Holders 1002536
Sensors
Quin Smart Pod 1002528
Armet Reflective Tape 1001662
Armet Pro Click Chinstrap 1002535
Conical Headlamp Adapter 1001663
Standards and requirements
The Guardio Armet Pro and Pro Connected complies with the PPE Regulation 2016/425 and is CE certified. As personal protective equipment, it is subject to the conformity assessment procedure and is monitored by INSPEC International B.V. – Beechavenue 54-62 – 1119 PW – Schiphol-Rijk – Netherlands – Notified Body 2849.
