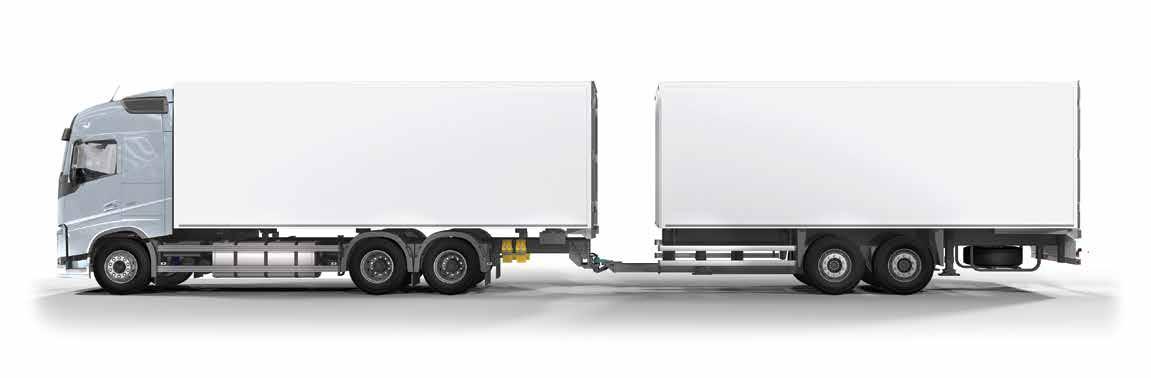

The Hot‑Spot between truck and trailer requires best product selection, system controls and ongoing maintenance regimes for safe towing.
BARTLETT DELIVERS ~
• SAFETY
Strength, security, proven performance
• COMPLIANCE
Tested to Australian Design Rule 62
• EXCEPTIONAL VALUE
Long service life, reduced operating costs
• AUSTRALIAN MADE
Designed, manufactured and supported.
For over 75 years Bartlett has earned a high‑trust reputation amongst Australian fleet. Constant innovation, superior products and back up service all combined to help you take on the towing task with the highest levels of confidence.
Make Bartlett your first choice when it comes to specifying Towbar, Trailer Coupling and Safety Chain equipment.
OUR HISTORY
A proud family business approaching eight decades experience designing and manufacturing leading edge equipment and solutions for the safe connection of trailers to trucks.
OUR FUTURE
Bartlett continues to innovate and specialise in the design and manufacture of heavy‑duty Vehicle Towing Systems. Cutting‑edge products are achieved by engaging the best people and utilising the latest design, engineering and manufacturing technologies.
Display – Royal Melbourne Show C. 1950s
3 Wheel Grain Trailer
WHY BARTLETT ®
CoR (Chain of Responsibility)
Australian Engineered
Take Control
Be the strongest link with Bartlett ADR compliant towing equipment. Management of fleet towing safety should be built around rock solid choice of equipment.
Custom Solutions for Fleets
Customised towing systems designed for a single operator or large fleets, backed up by dedicated after‑sales service to keep you on the road.
Know What You Can Tow
Bartlett towbars are supported by industry leading documentation. Critical operating limits are charted to help fleets train personnel and load planning.
Harmonise Fleets
Standarisation of fleet towing equipment helps to guarantee reliable connectivity between all trucks and trailers – no gremlins.
EQUIPMENT RATINGS CAUTION:

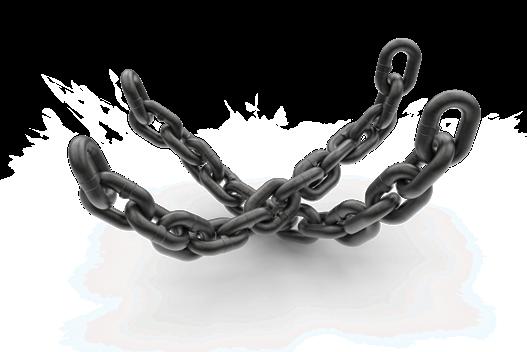

TRAILER COUPLINGS, TOWBARS, SAFETY CHAINS
■ Published Ratings are the maximum theoretical possible ratings.
■ Several Constraints Apply to Ratings
Those responsible for vehicle design and load planning must consider actual safe maximum ratings for the towing equipment and vehicle combination on any given journey. These include the following variables:
■ Coupling D Value
■ Axle loads
■ Load distribution
■ Regulatory requirements
■ Vehicle capacity limits
■ Operator driver’s license limits
■ Fleet towing policy
■ Towing component specifications
■ Bartlett Sales Advice is limited to the towing equipment being considered for a given towing application.
■ Bartlett Towbars are individually rated for the vehicle to which they are attached, and final ratings are calculated by Bartlett Equipment as a function of these variables.
■ Detailed Planning that considers your specific vehicle combination including coupling static vertical load (SVL), axle loads, payload optimisation and component limitations can be obtained via the services of a suitably qualified automotive engineer or Authorised Vehicle Examiner (AVE) who can examine and certify the installation.
■ Operators are Responsible for correct towing equipment selection and vehicle loading.
The National Heavy Vehicle Regulator NHVR publishes bulletins and guides to assist interested parties plan and apply ratings correctly. www.nhvr.gov.au
TOWBARS® FOR TRUCKS
TOWBARS FOR TRUCKS®
DESIGNED AND MANUFACTURED IN AUSTRALIA – BY BARTLETT
Your blueprint for towing safety
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
BARTLETT TOWBAR KITS
■ Professionally engineered for maximum strength and safety, minimised mass for efficiency.
■ Compliant with Australian design rules and standards.
■ Models to suit most coupling and truck types, from light up to heaviest applications.
■ Serial numbered for unmatched traceability.
■ Backed up with comprehensive support and documentation.
■ Installation and operation is straight forward and intuitive.
INCLUSIONS: Towbar Kits shown do not include accessories such as Trailer Couplings, Air Brake or Electrical Connectors, Mounting Bolts Etc. These items are shown for illustration purposes only.

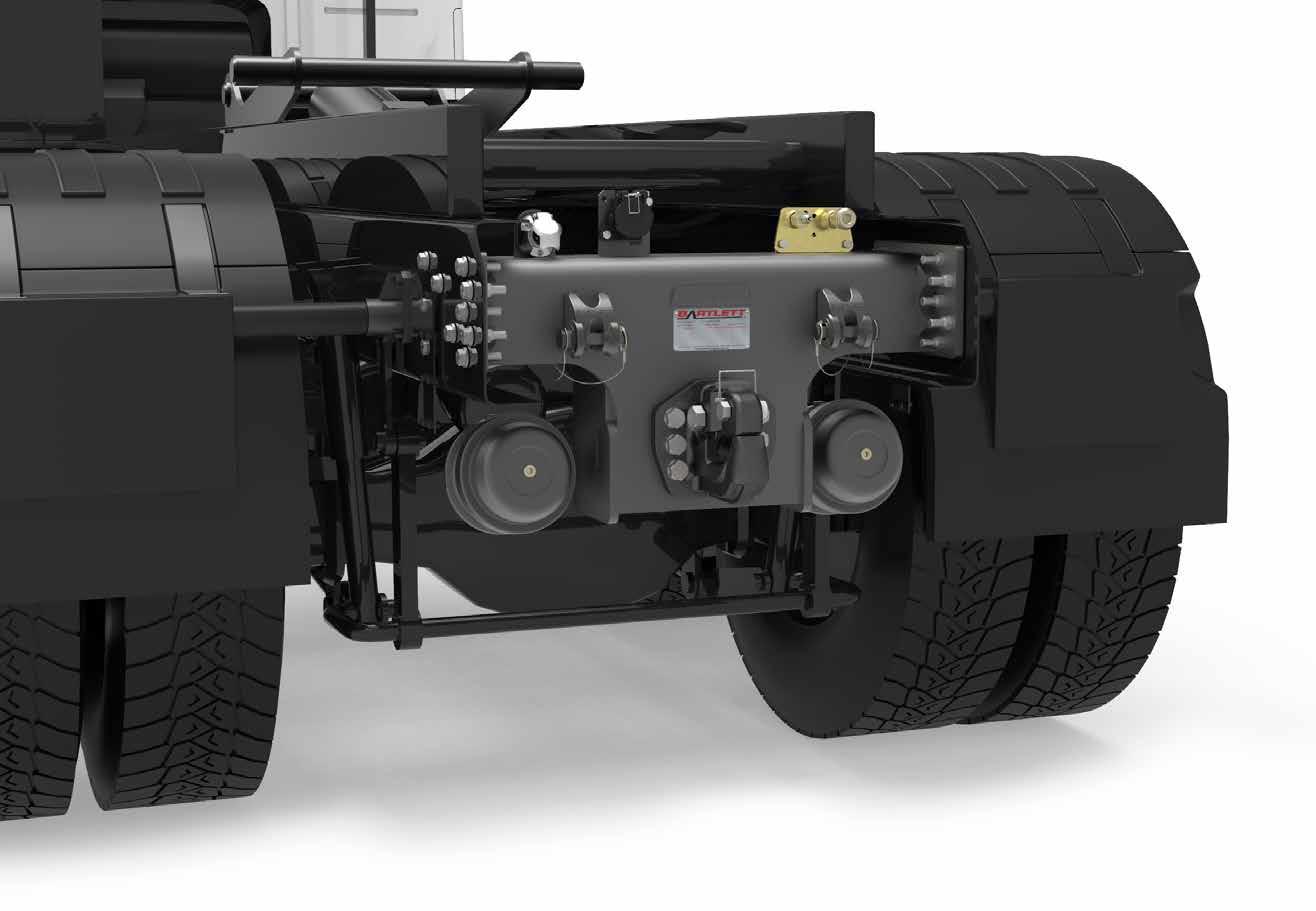

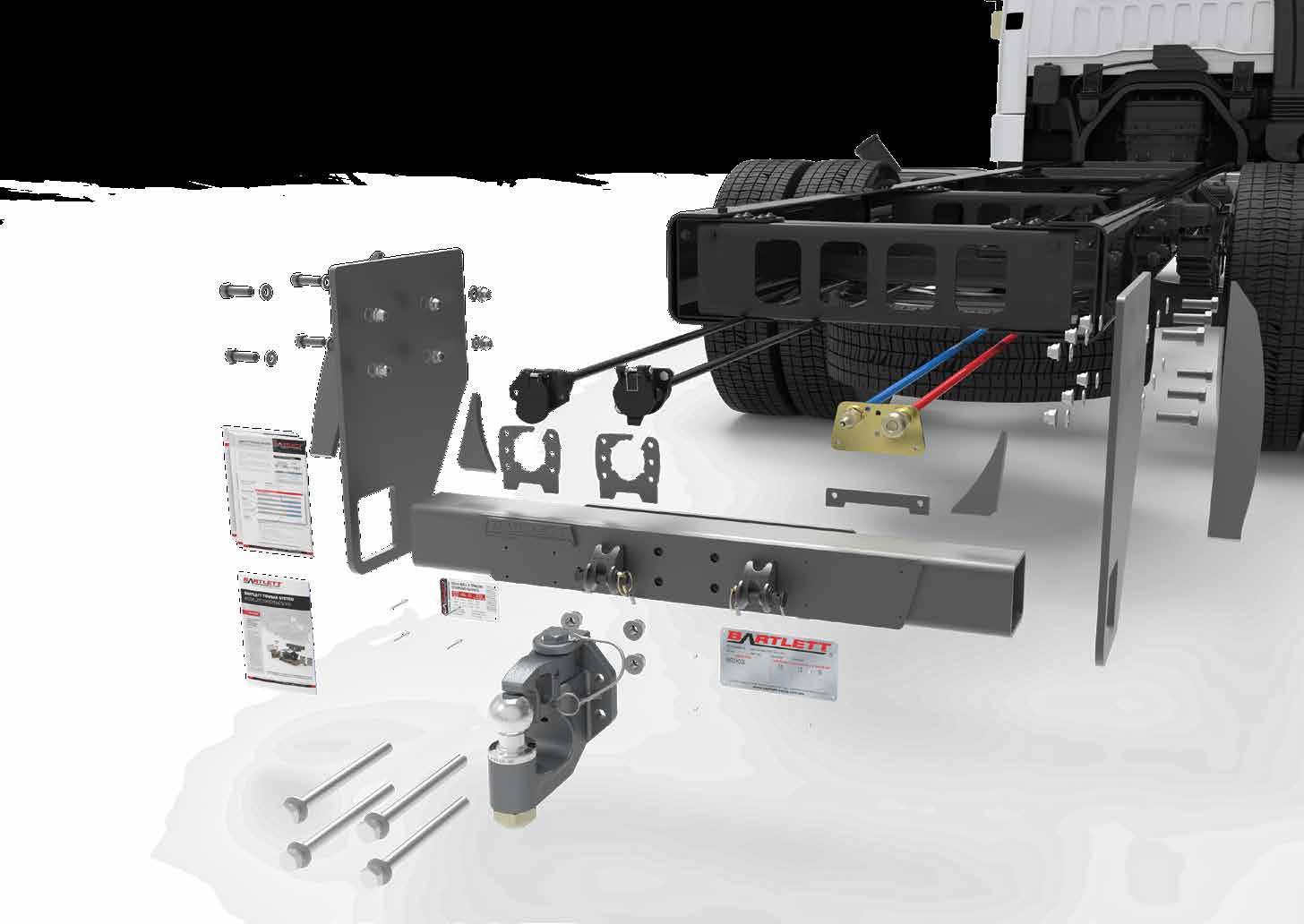

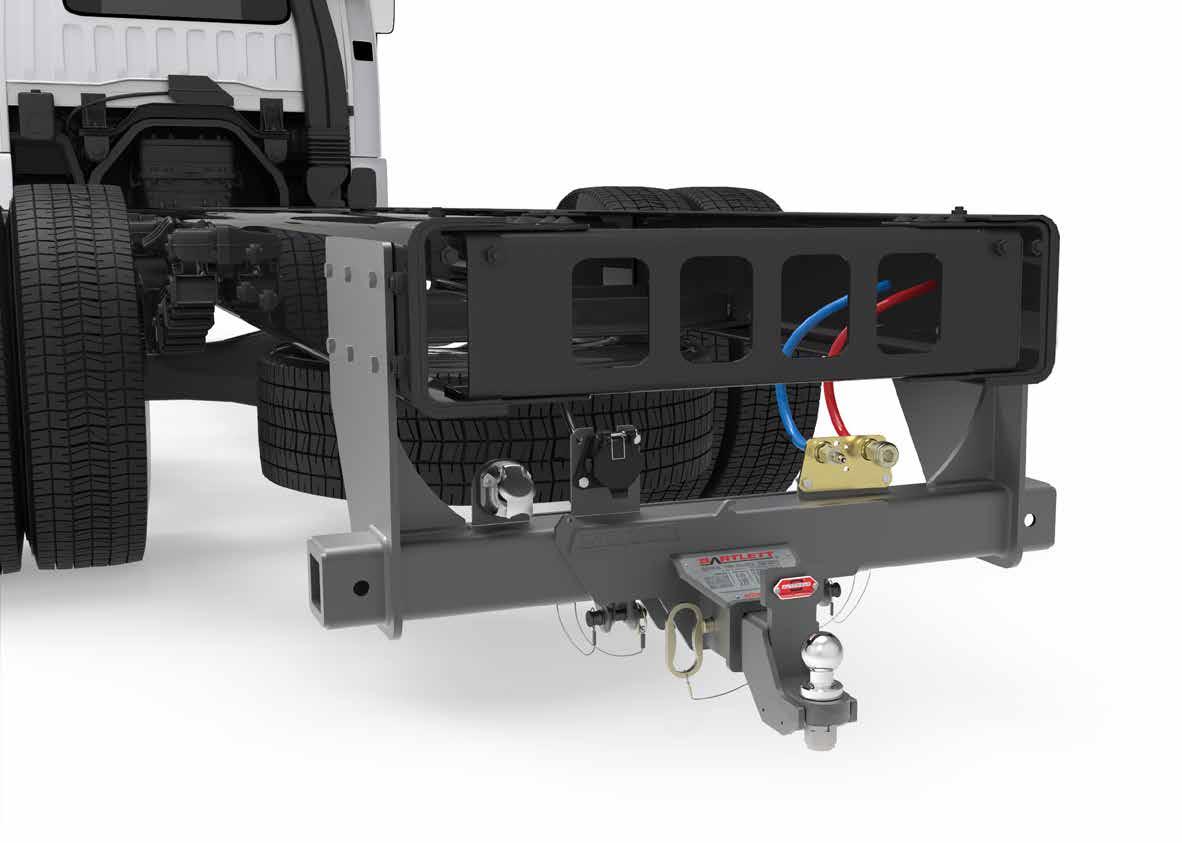

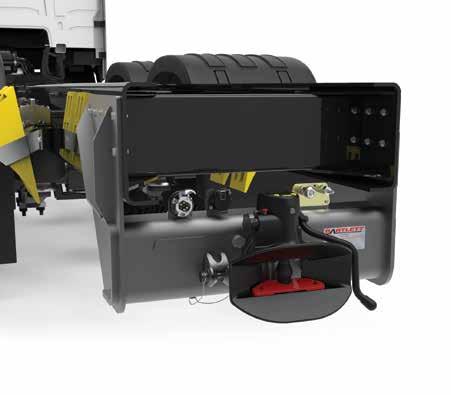

WHAT’S IN A BARTLETT TOWBAR KIT
Sideplates and lateral braces (Standard)
Bartlett Towbars are serial numbered for traceability
Air and electrical socket mounting plates
Mounting bolts for coupling and sideplates*
*Not included – optional extra

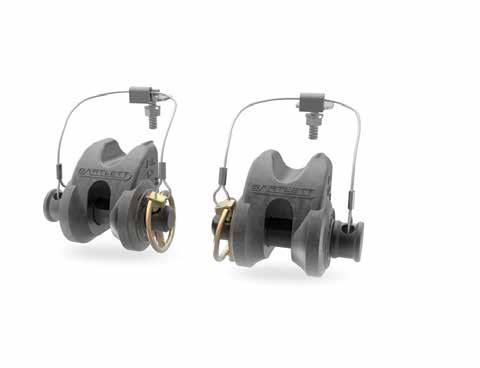

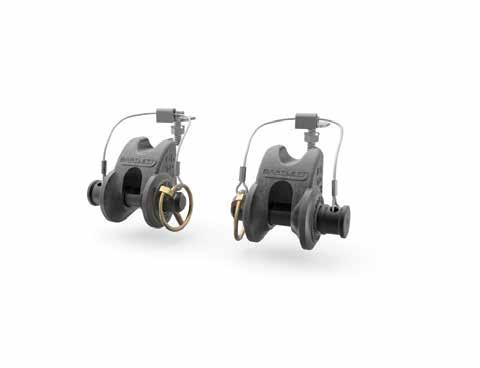

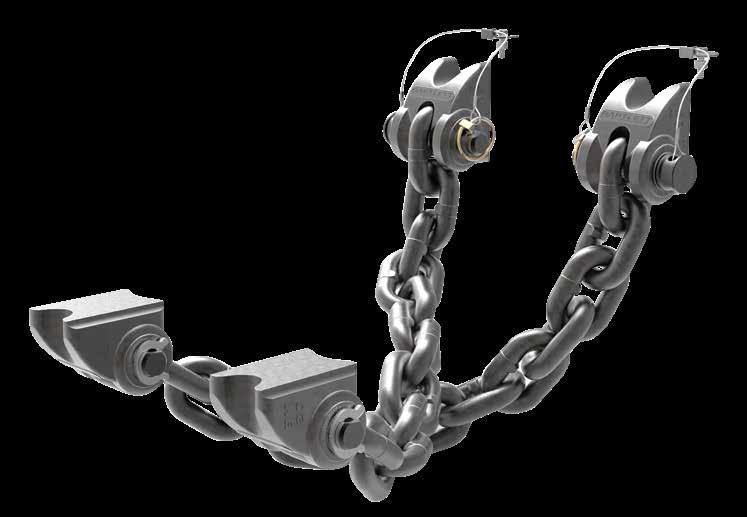

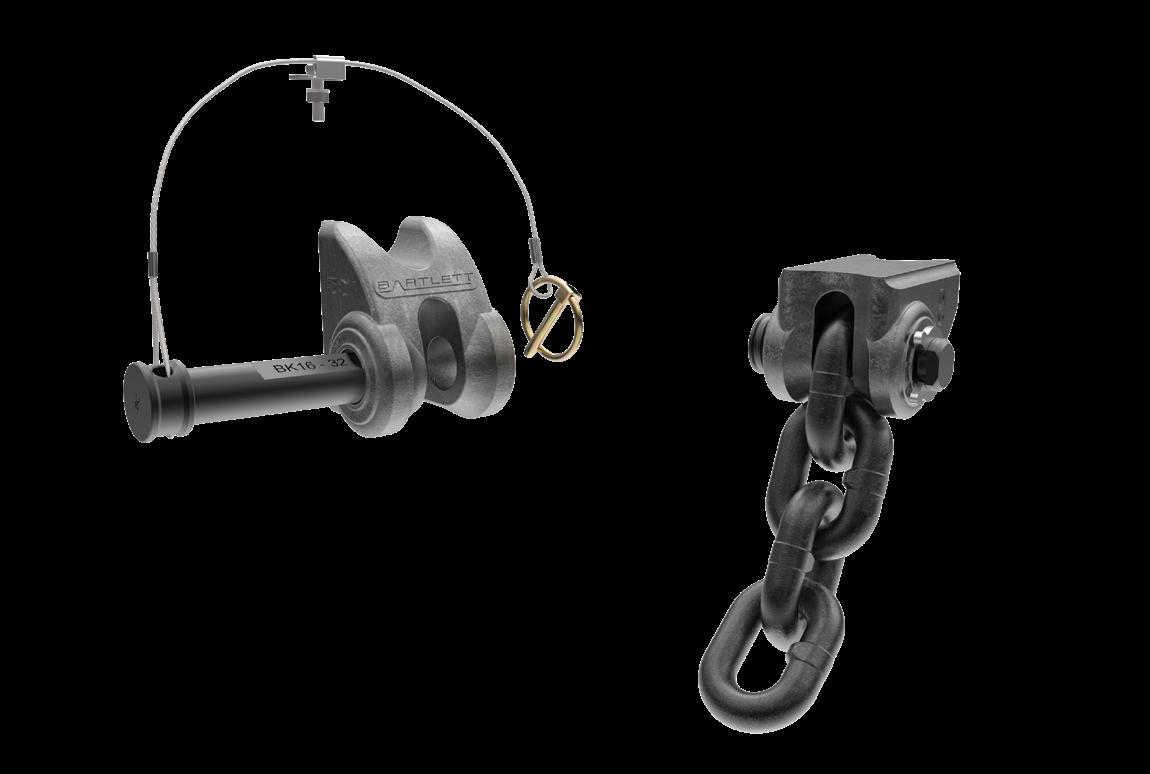

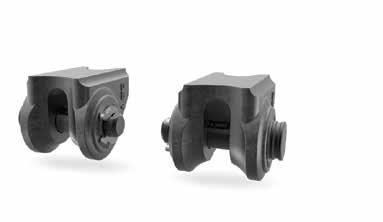

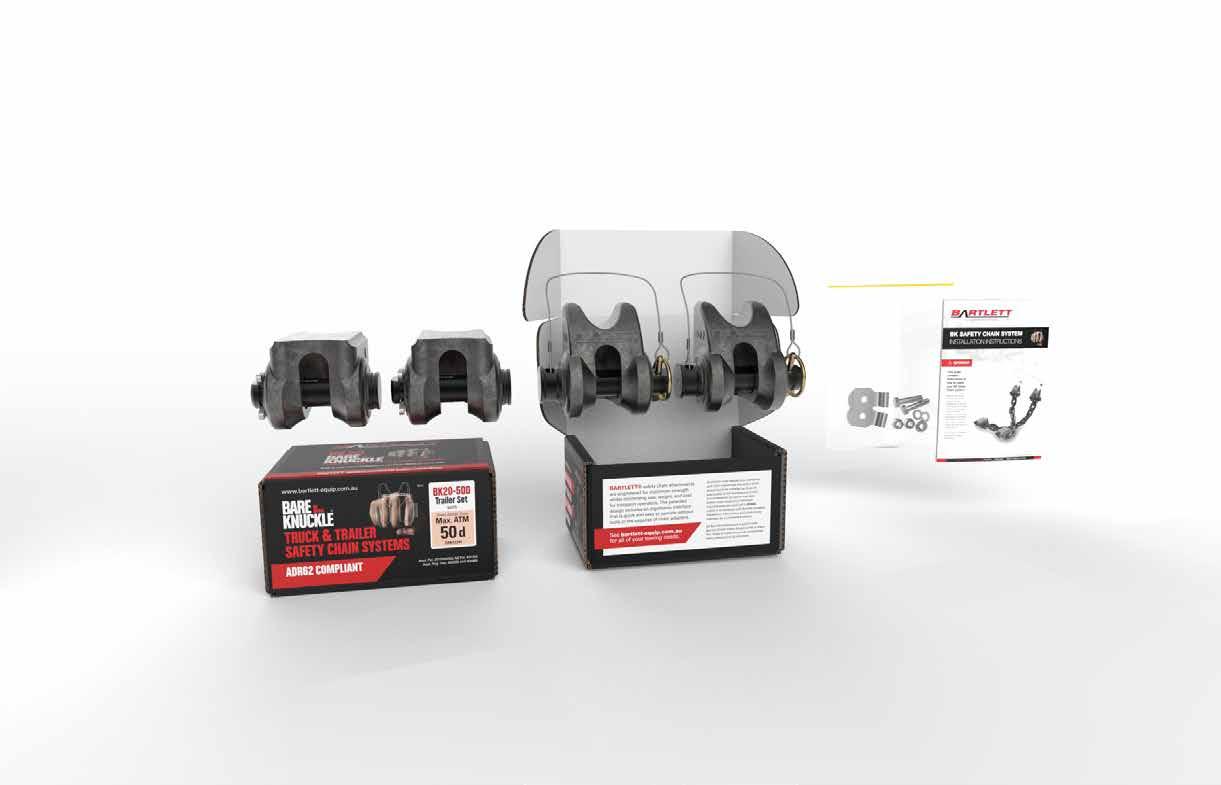

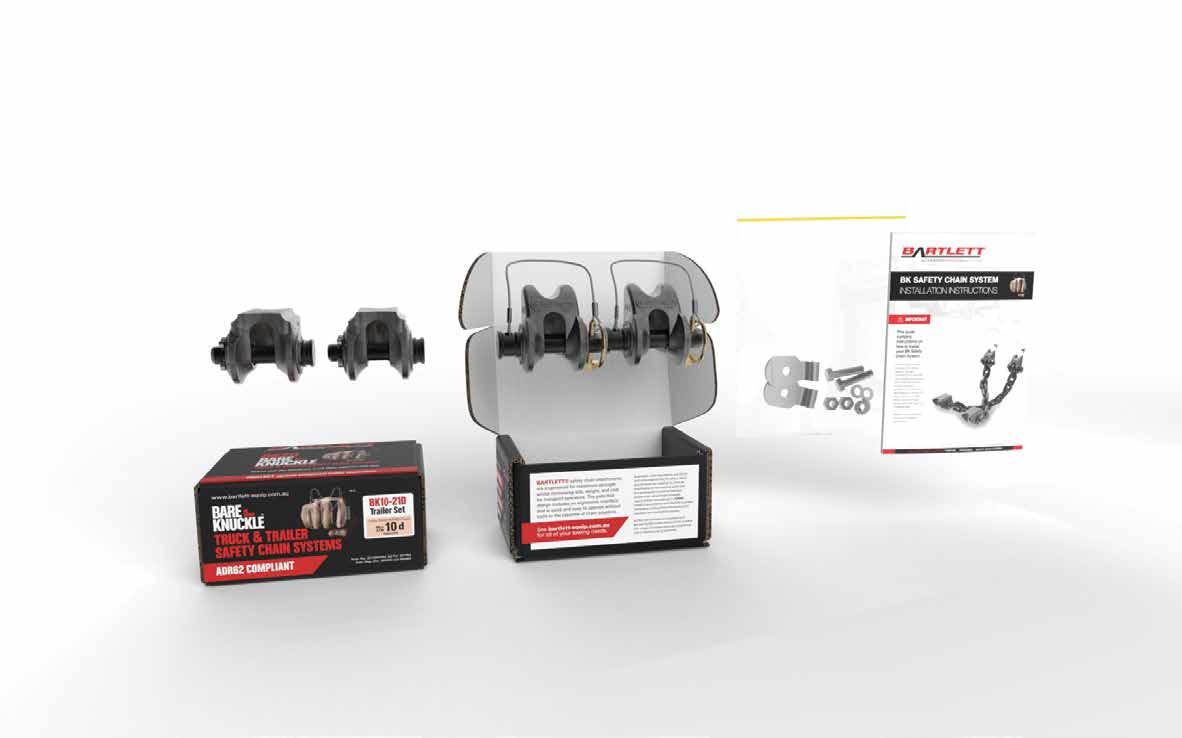

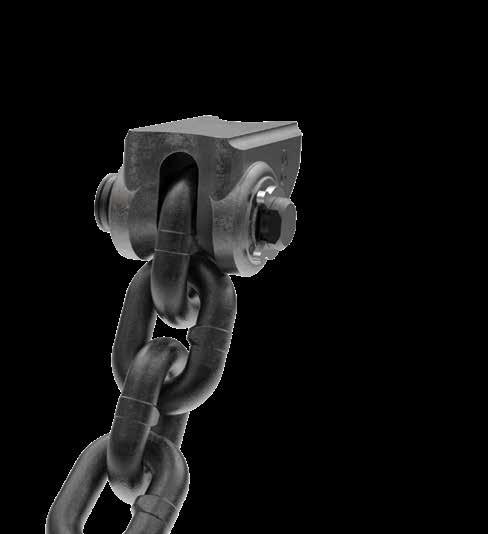

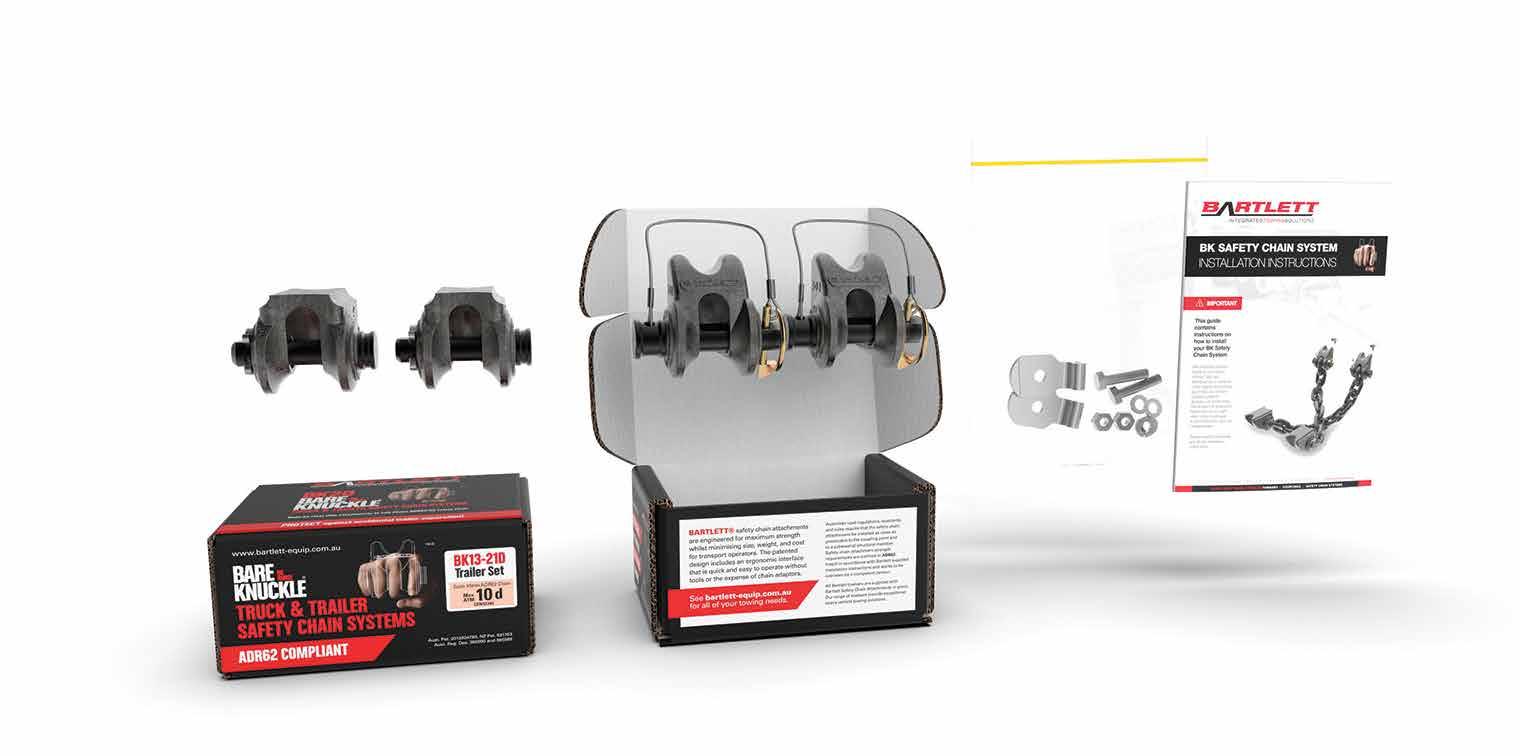

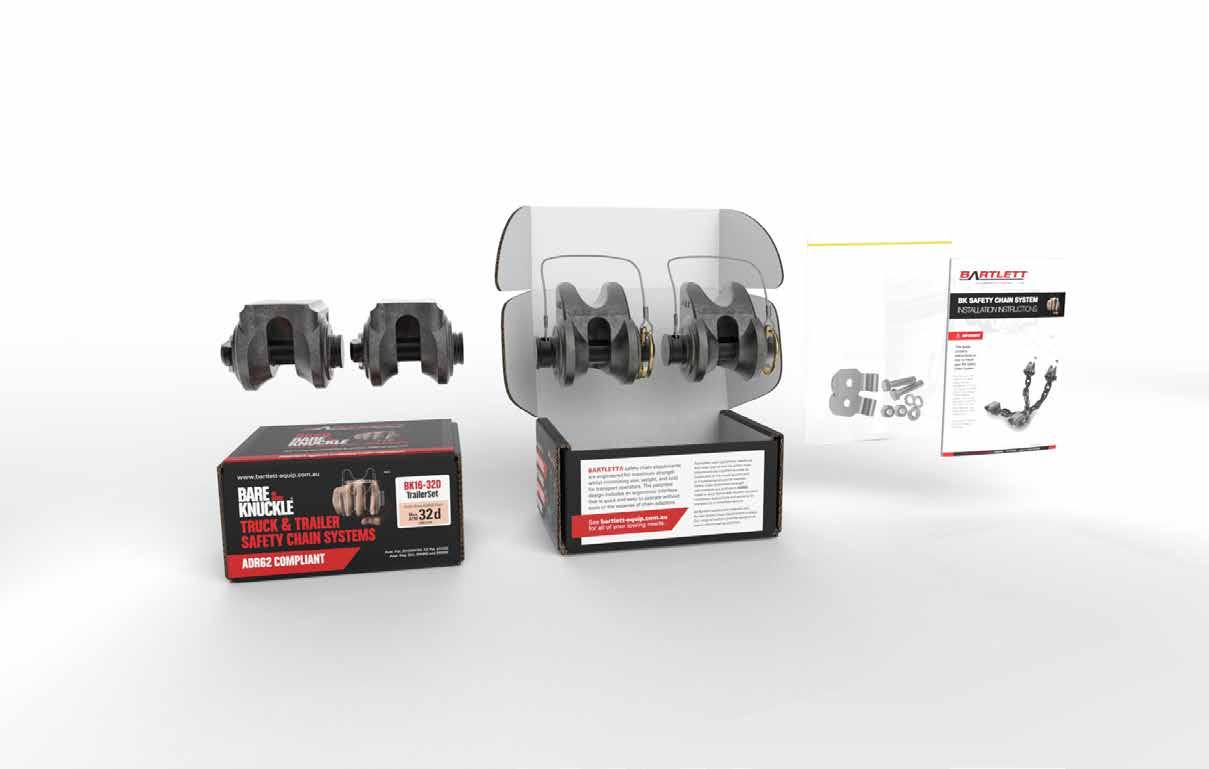

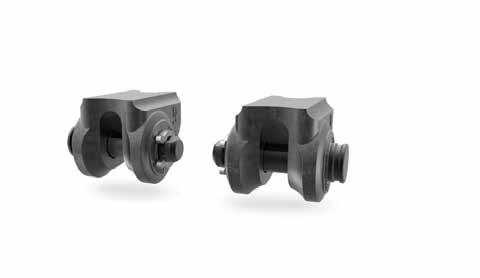

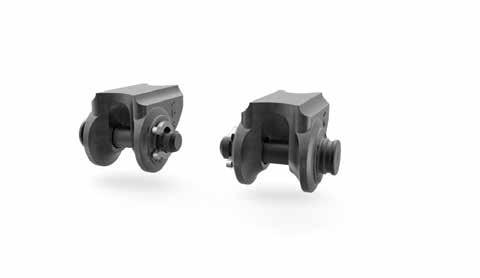

Towbar cross member assembly including Bartlett Bare Knuckle ® safety chain attachments
Installation instructions, rating plate and towbar rating report to help you know what you can tow

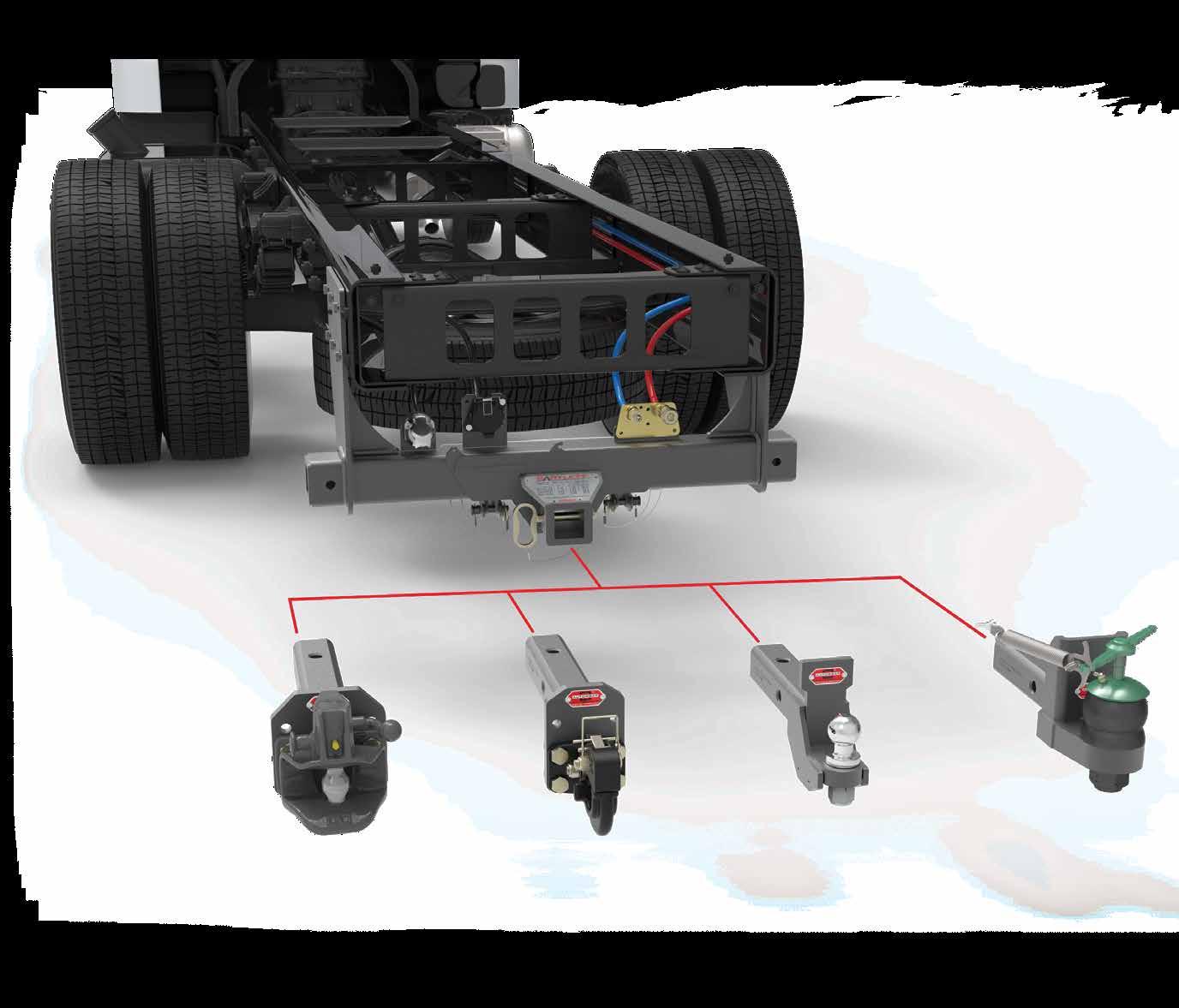

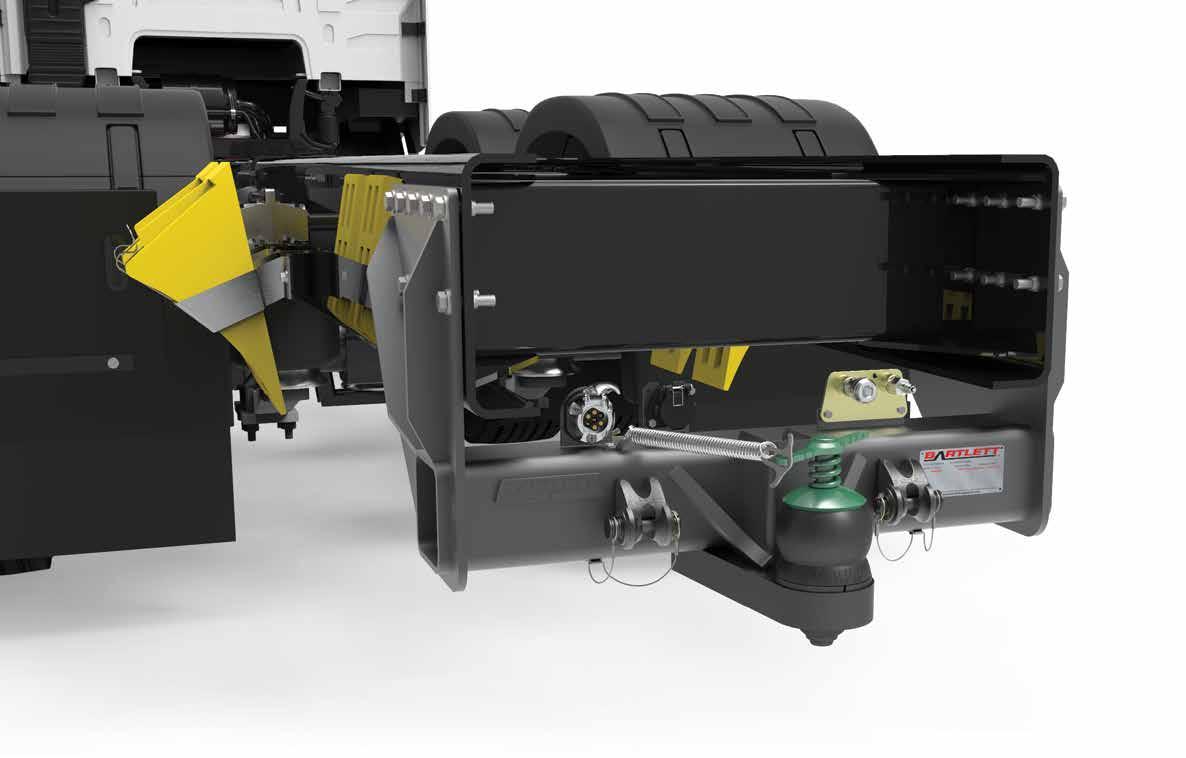

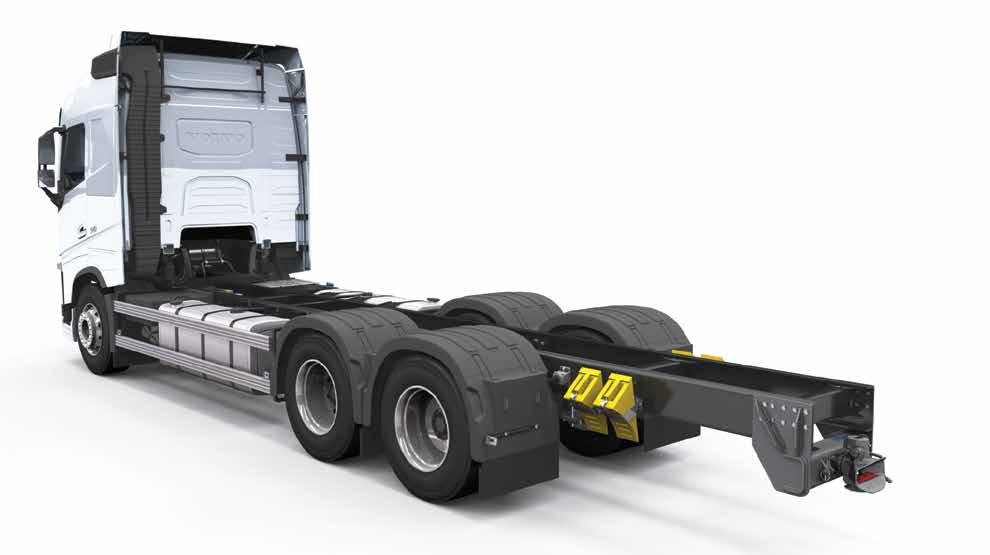

ADAPTABLE DESIGNS EXTENSIVE RANGE
Kits can be installed across a wide range of truck chassis configurations.
Bartlett also offer customised solutions (fees apply).
Data submission forms are available for clients to record and submit relevant vehicle data.

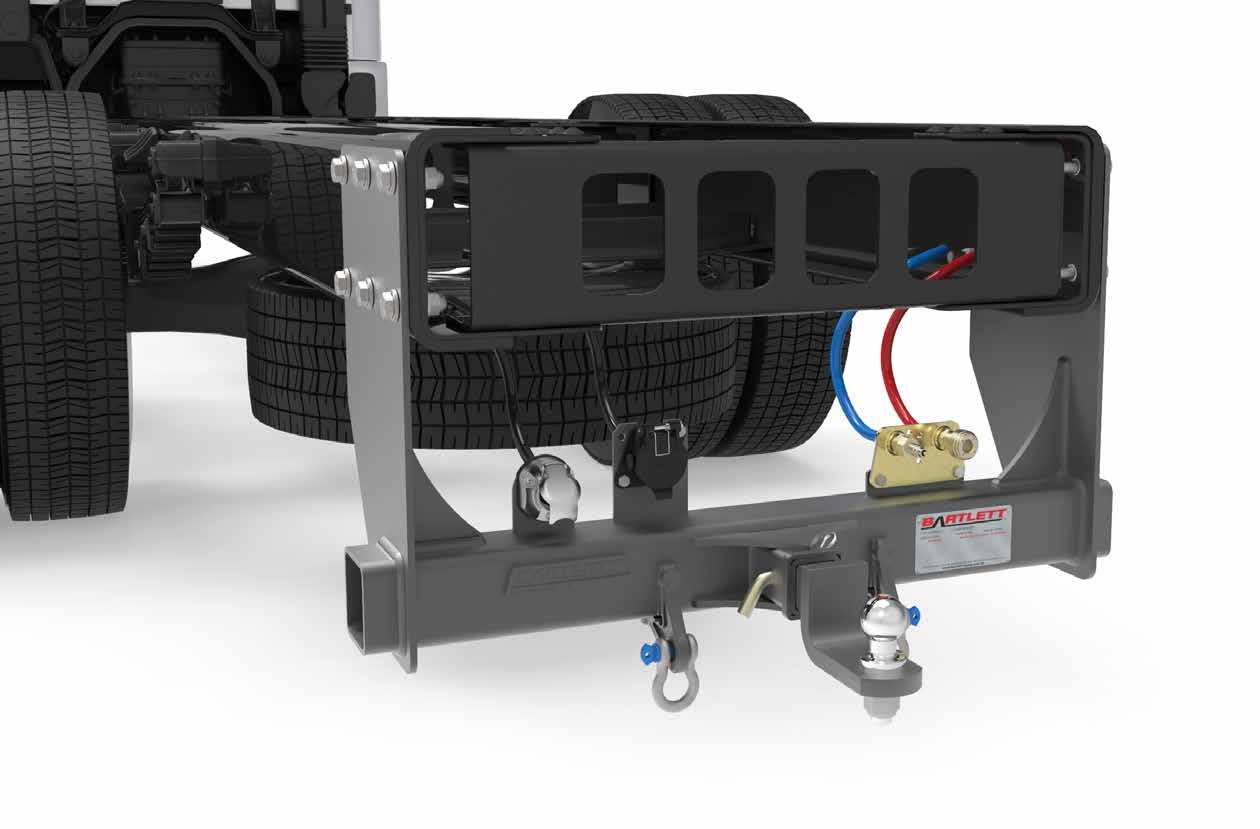

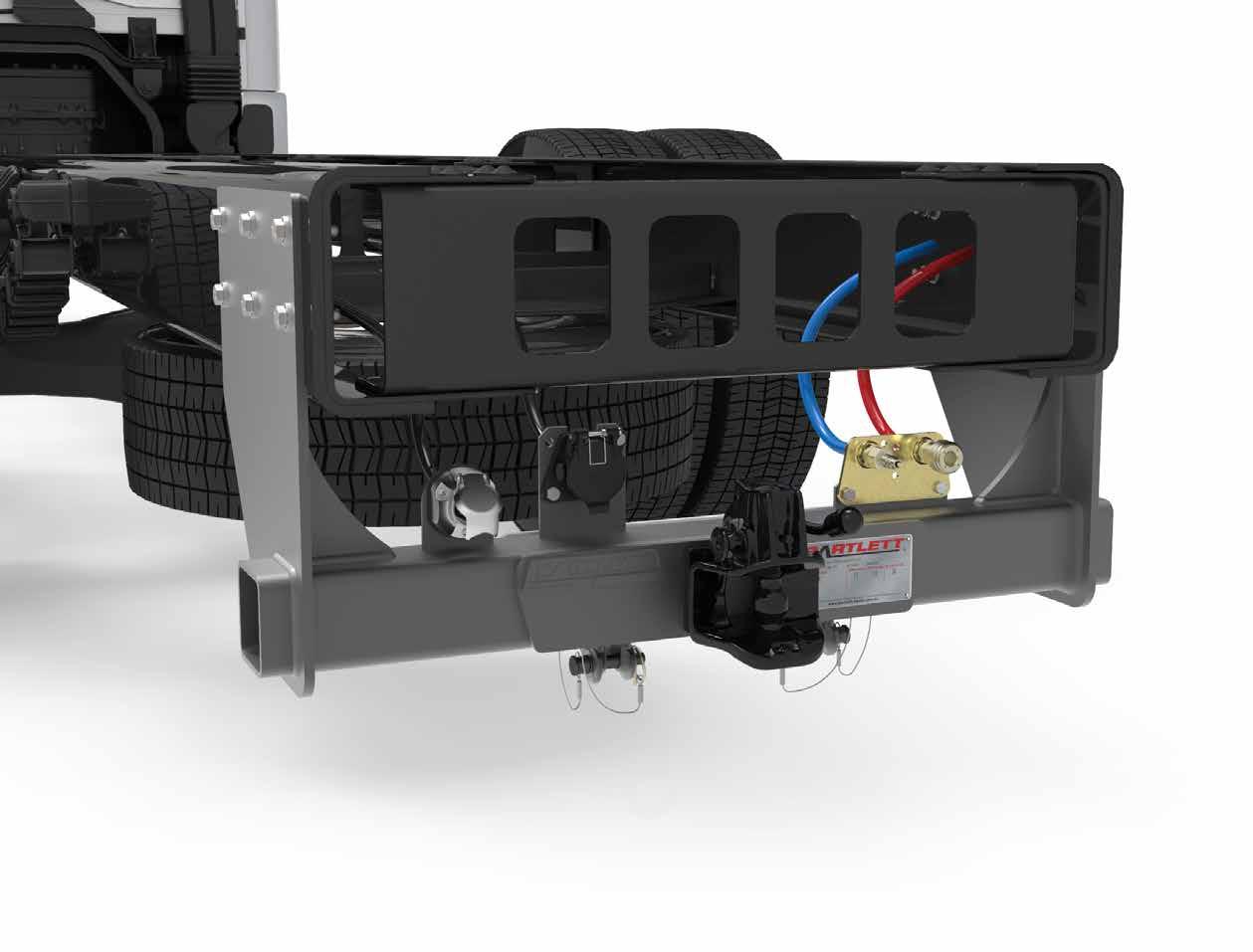

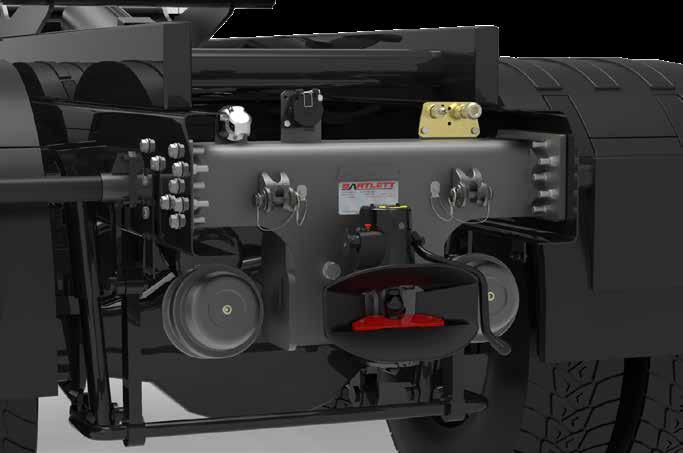

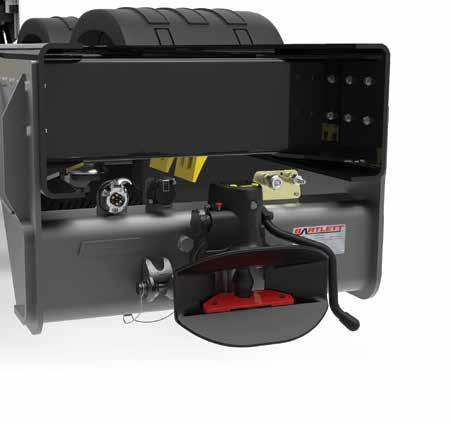

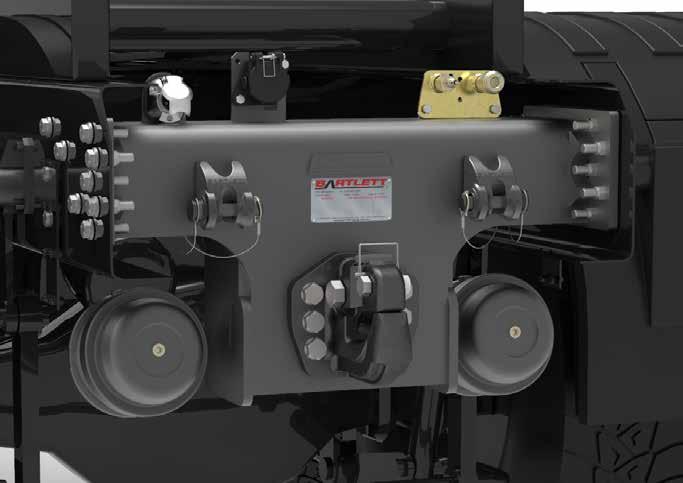

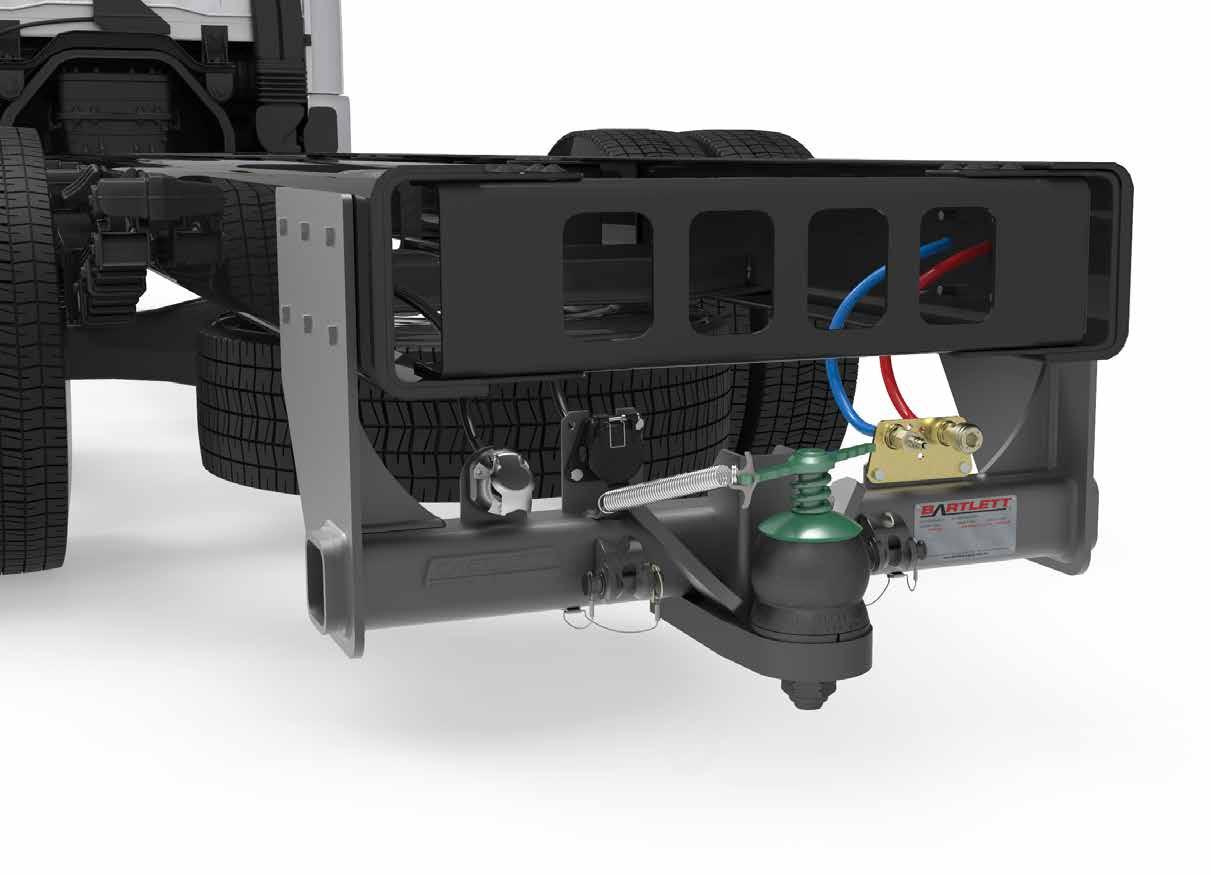

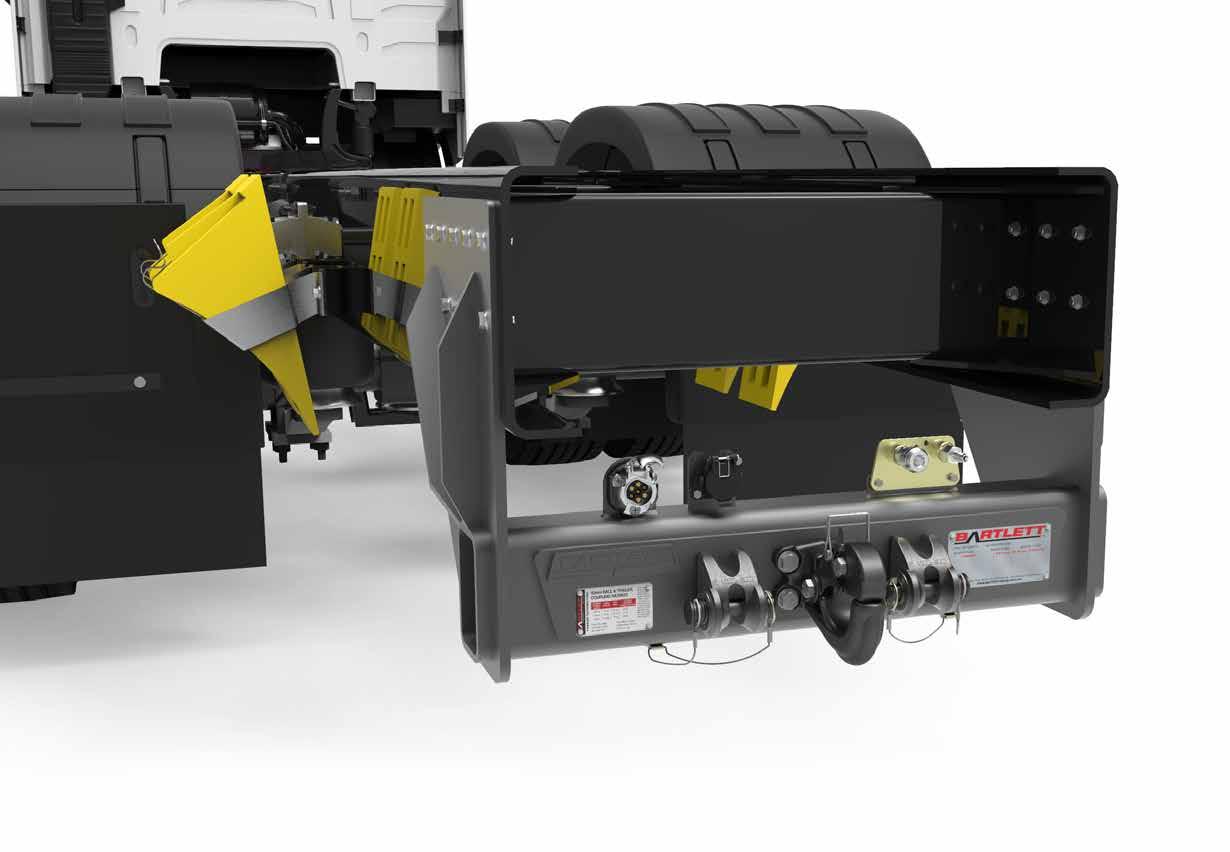

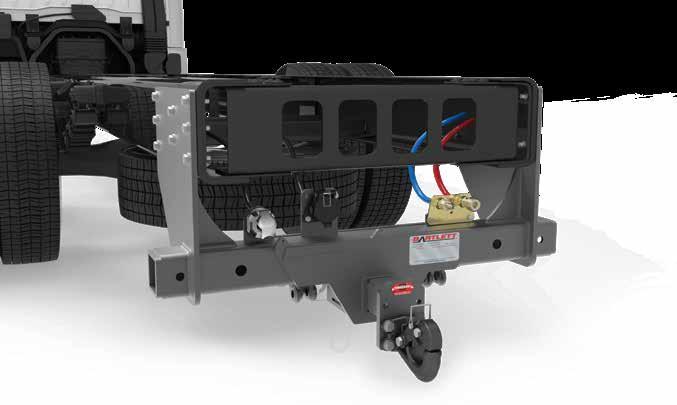

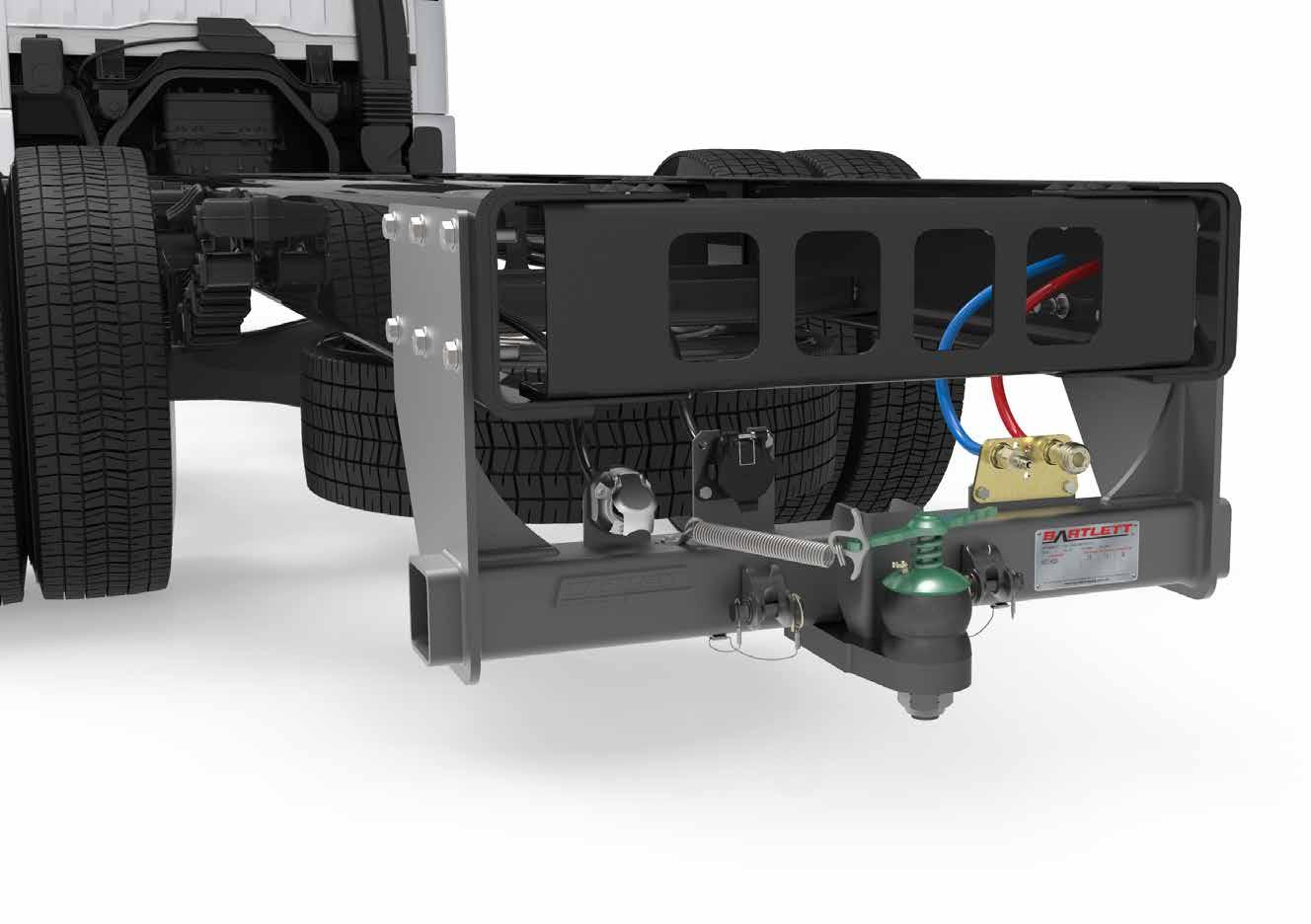

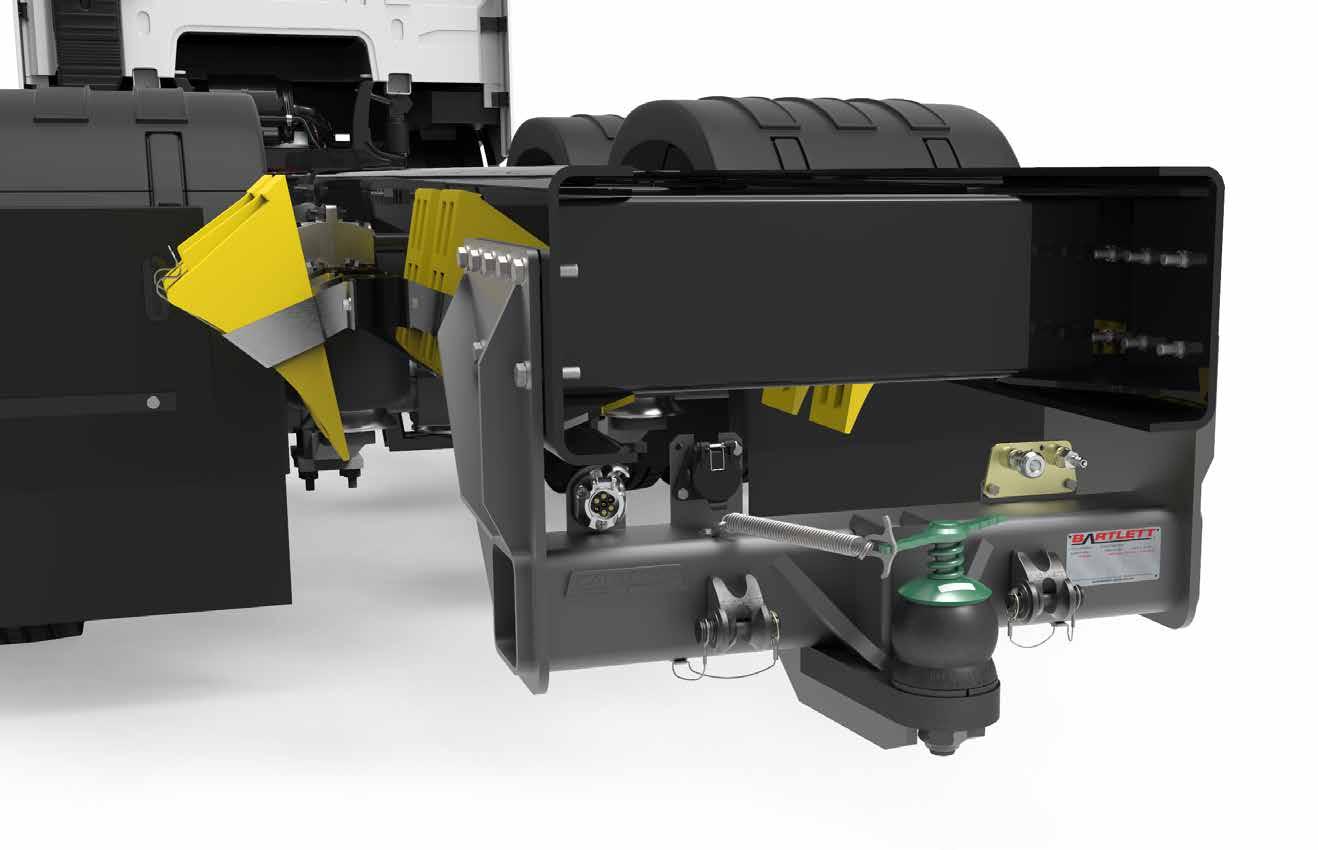

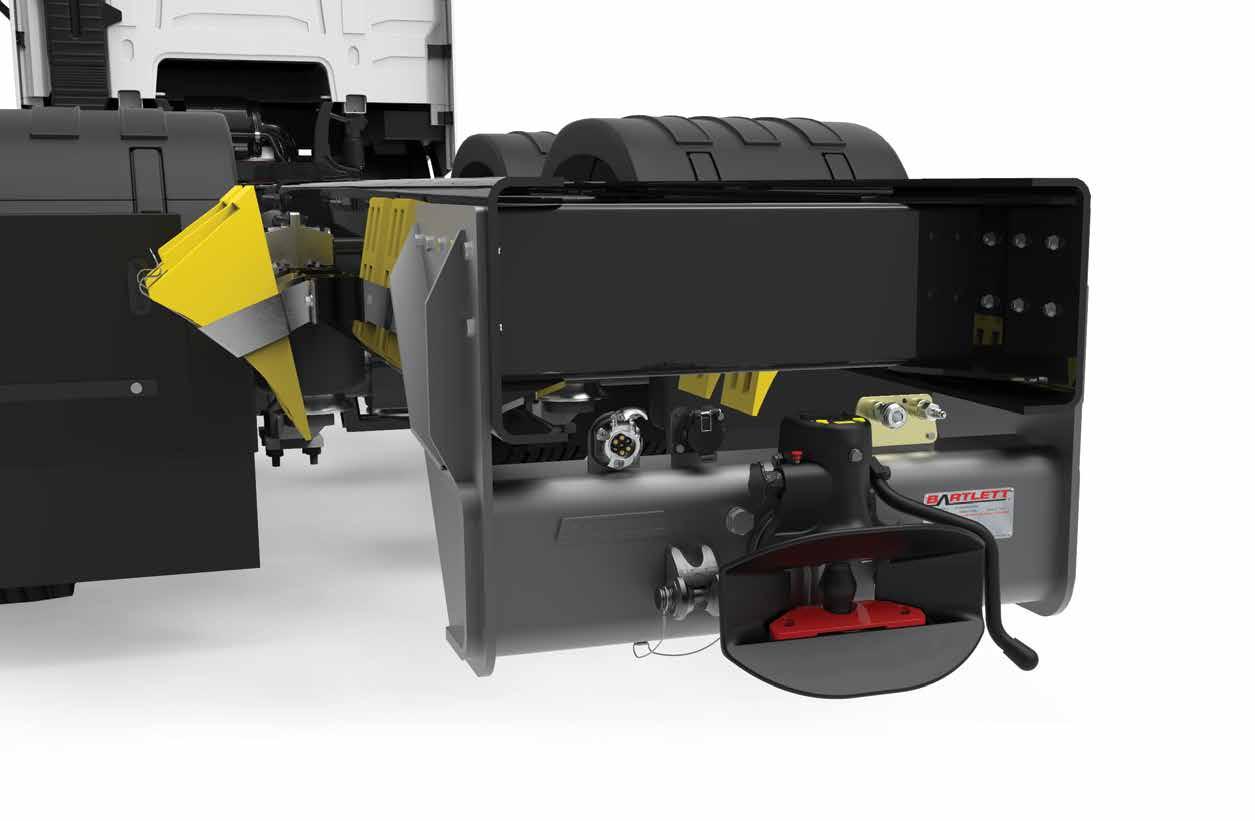

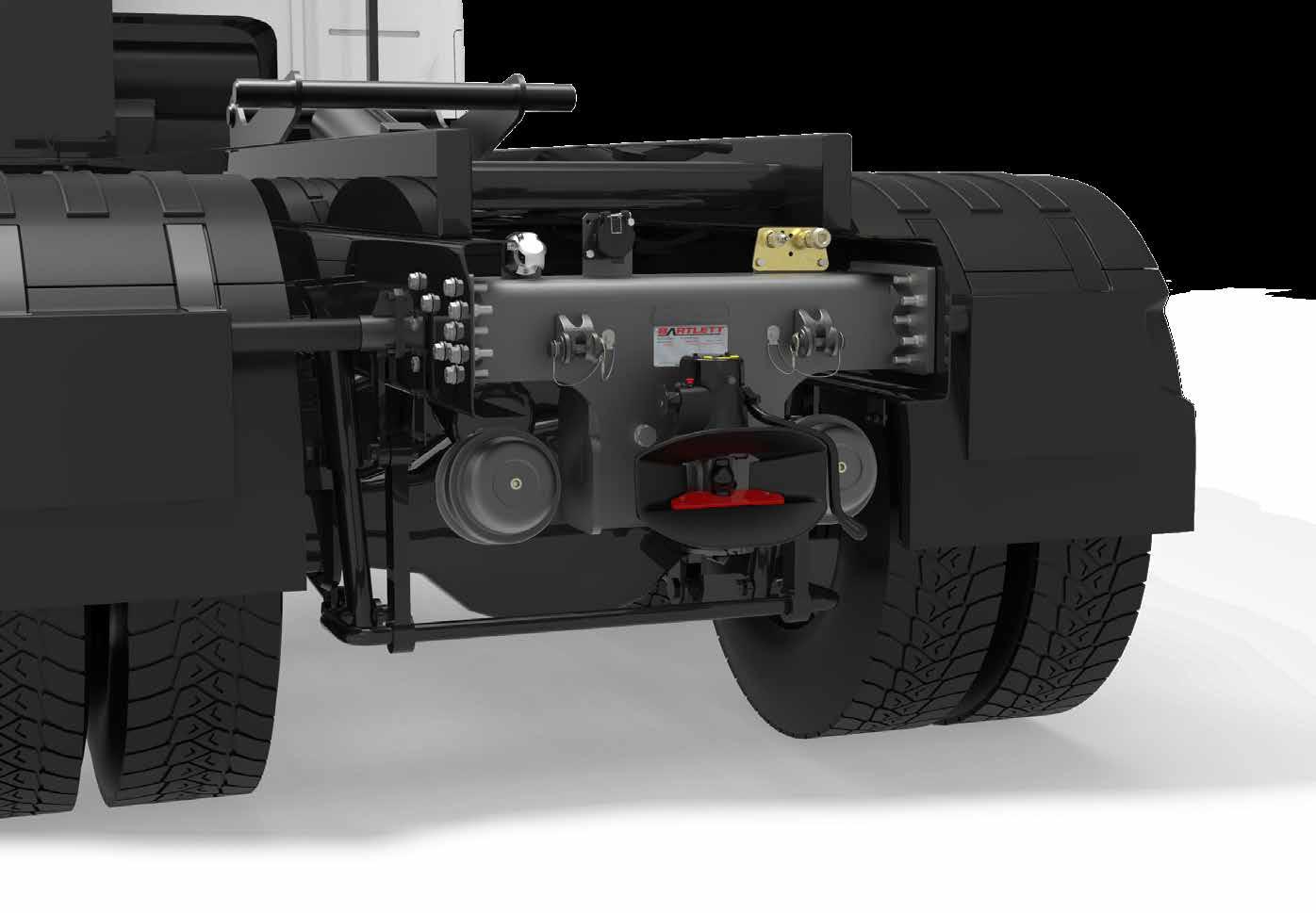

Model BT1404A kit shown

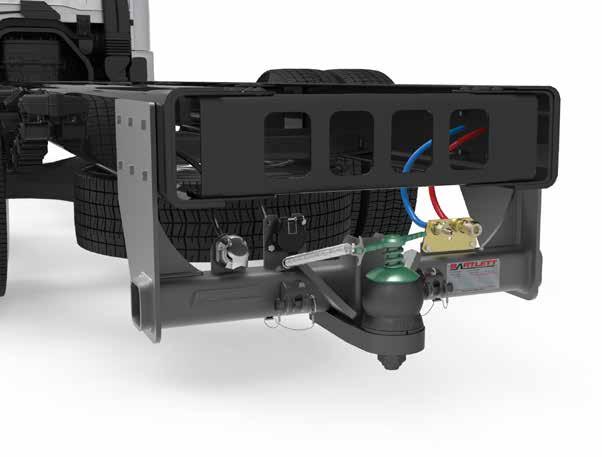

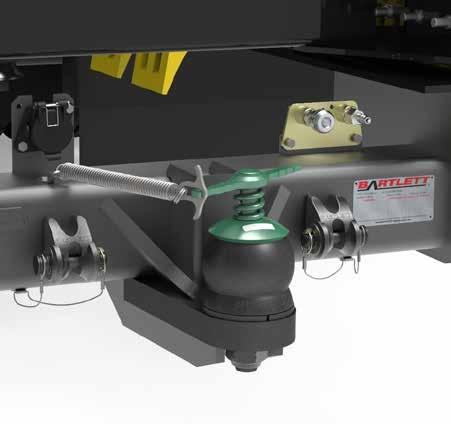

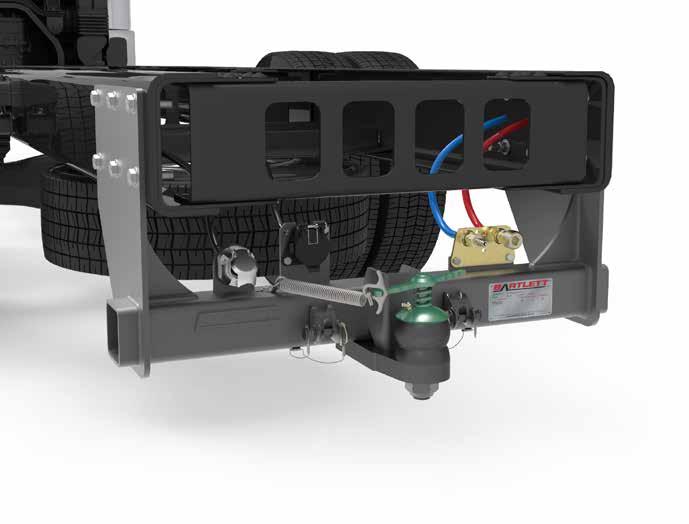

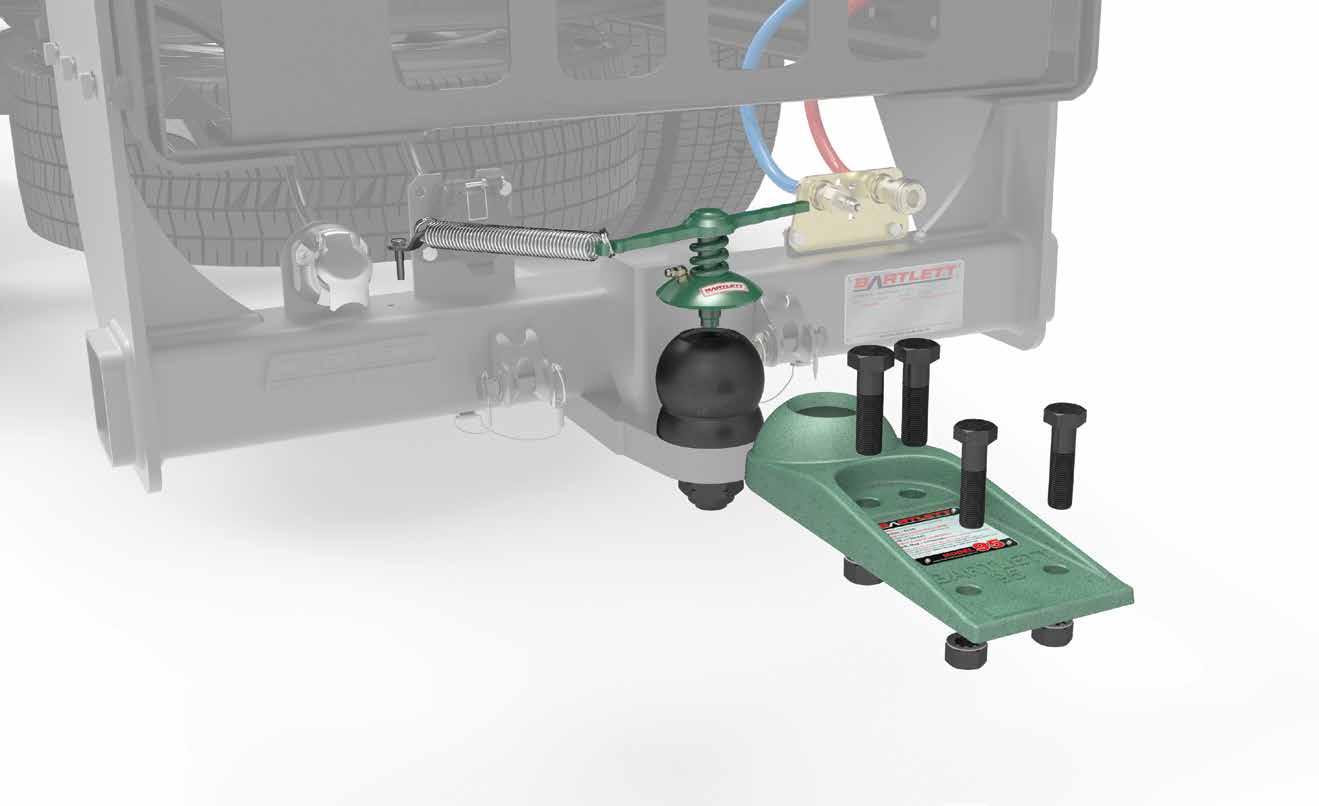

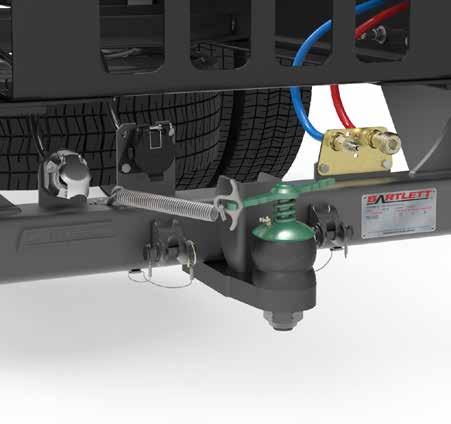

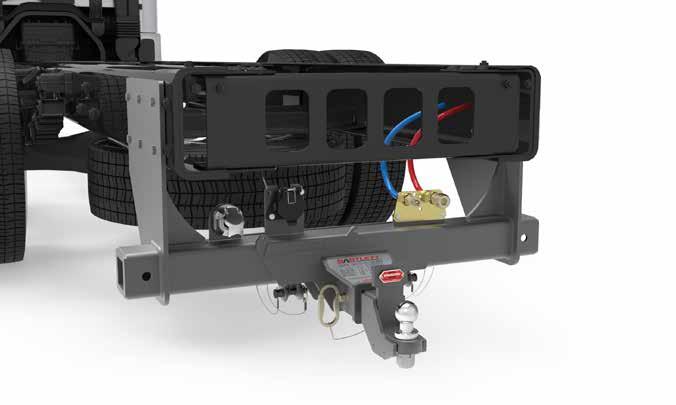

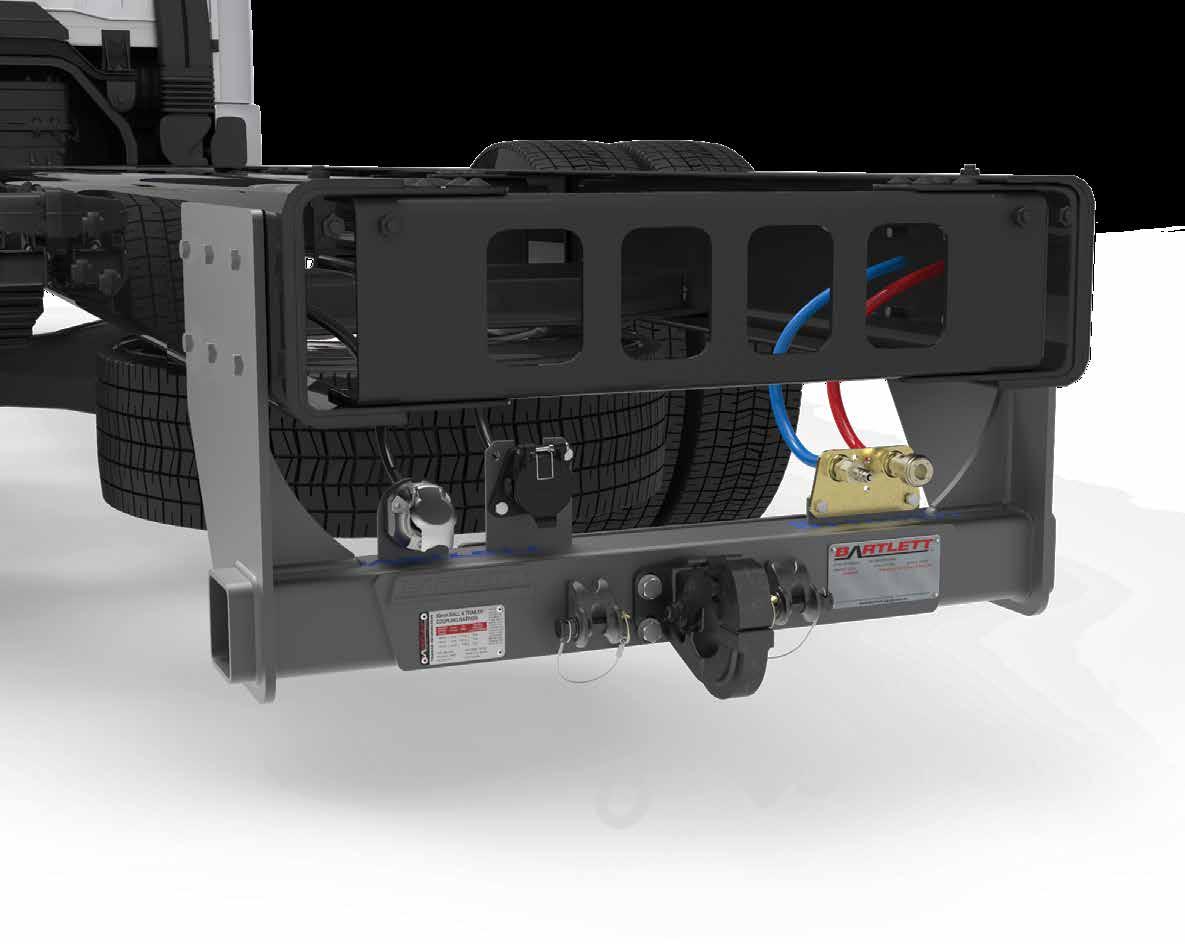

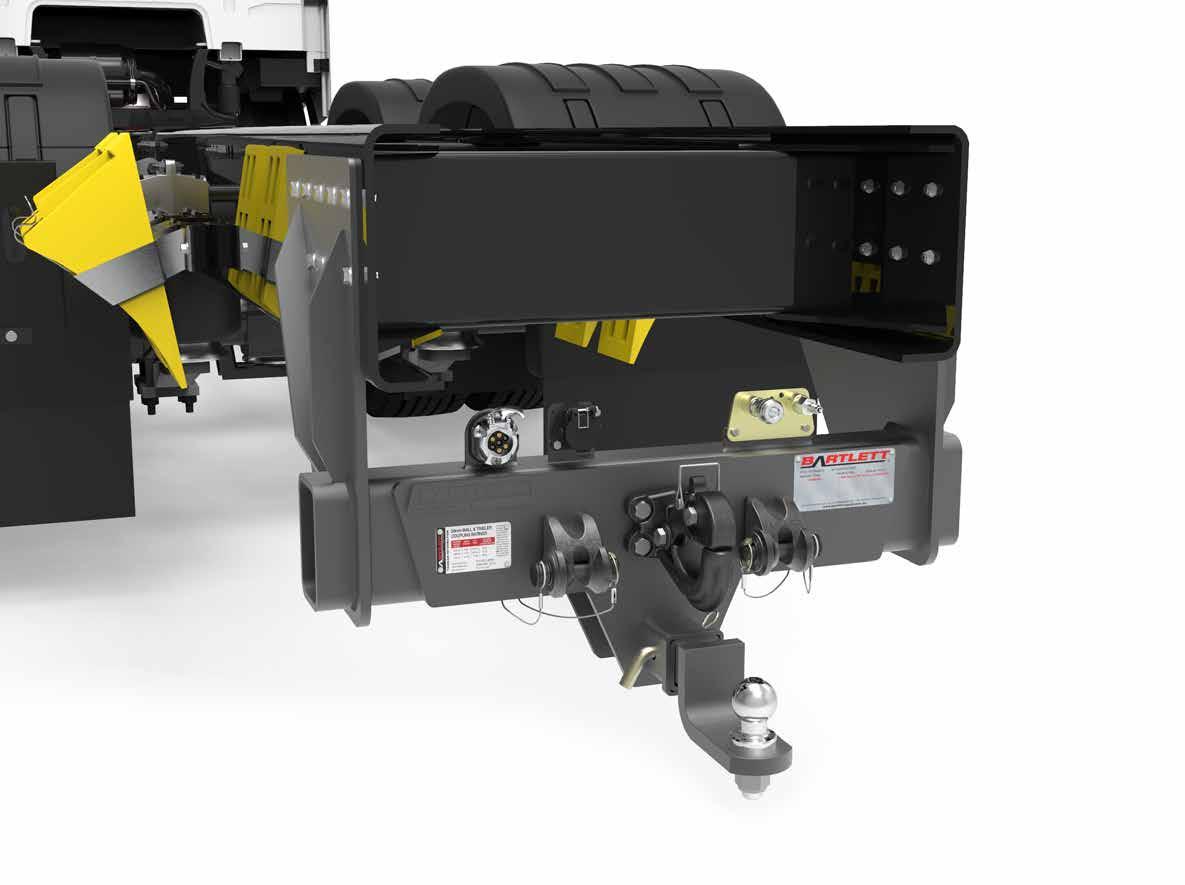

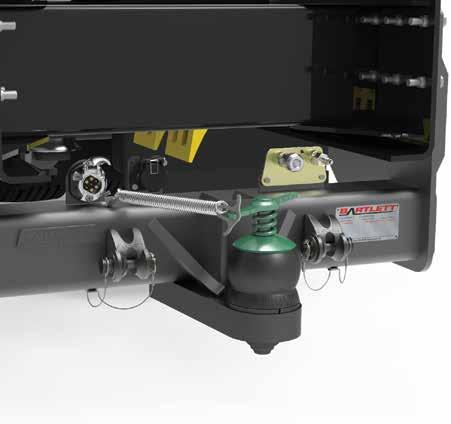

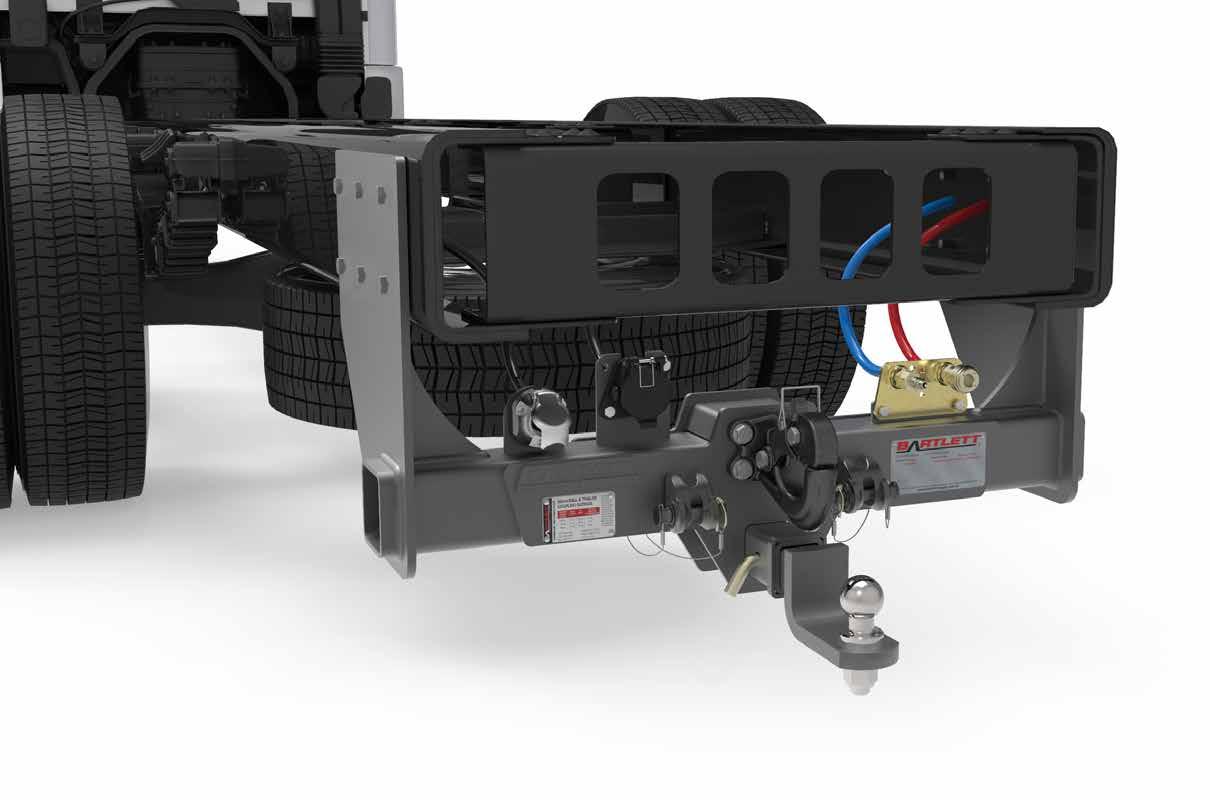

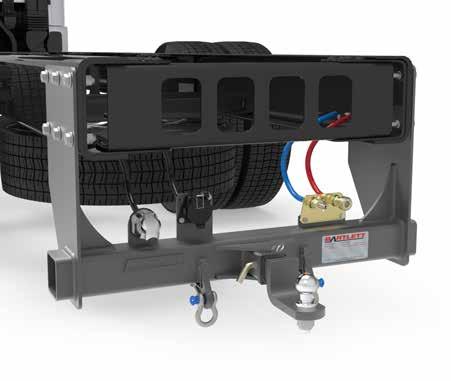

Model BT1200B and Bartlett 95mm Ball shown

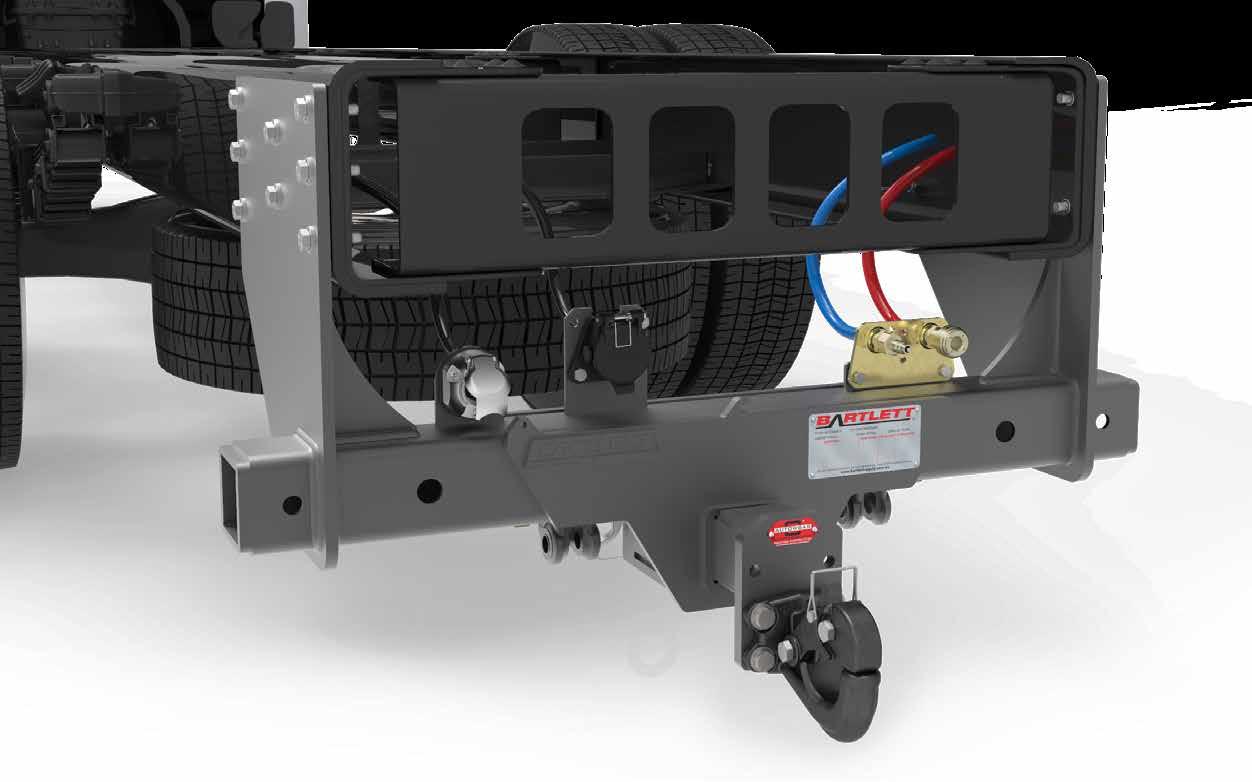

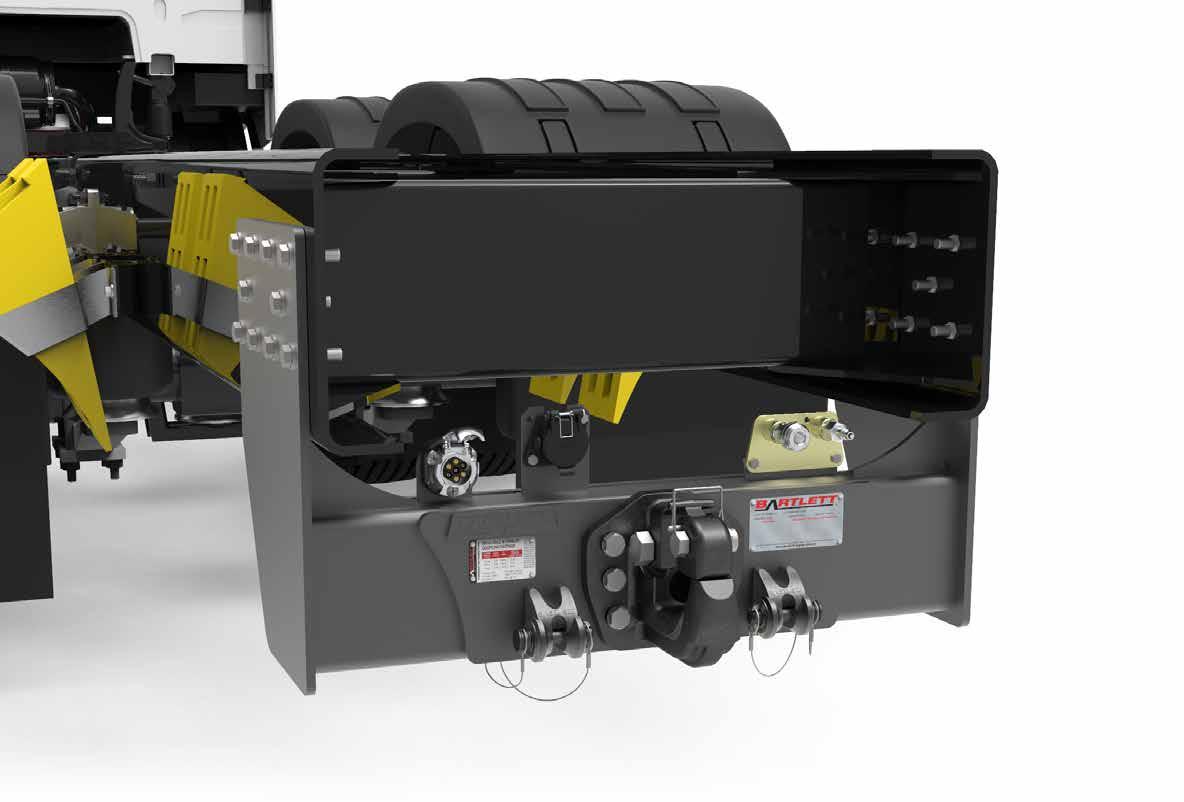

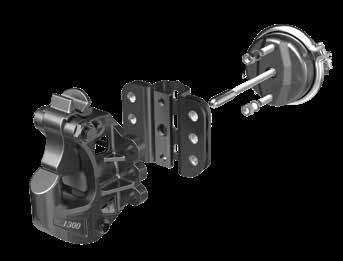

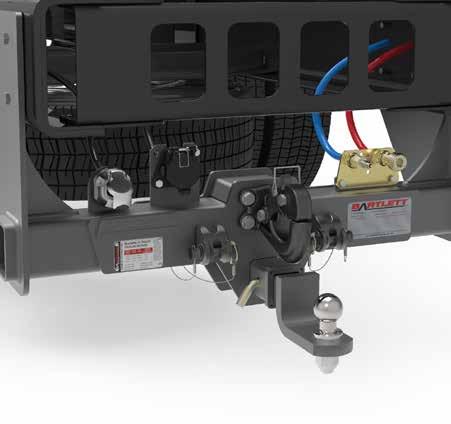

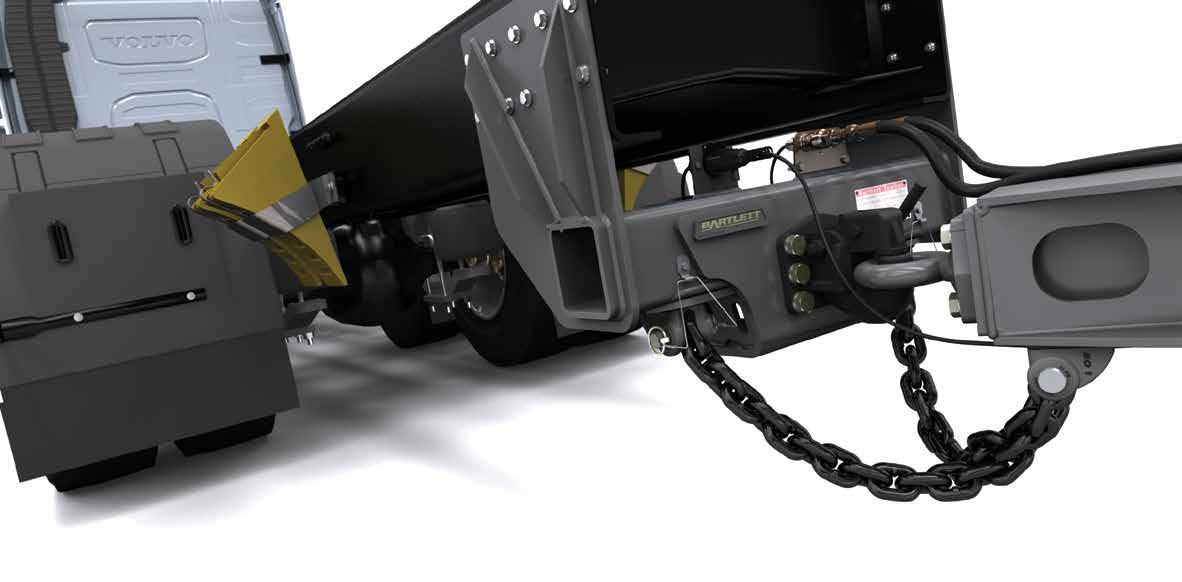

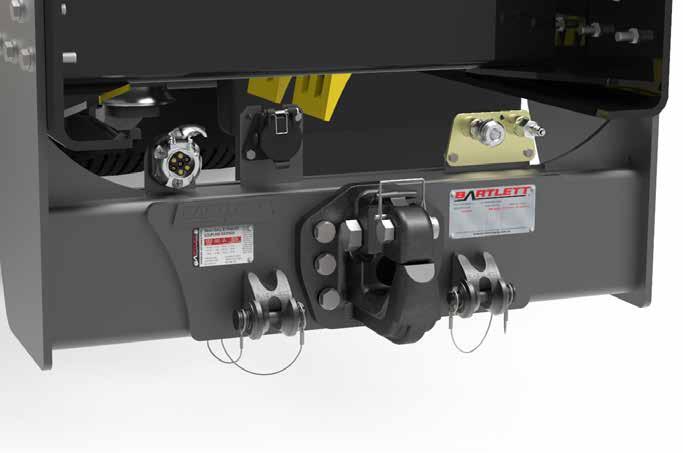

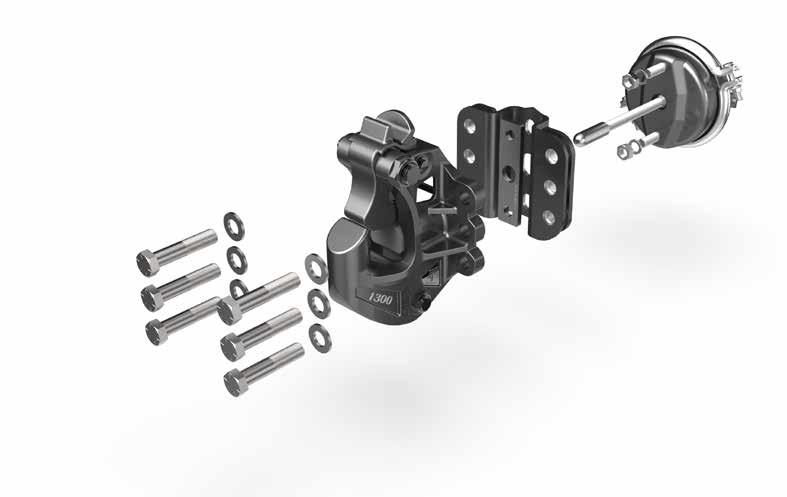

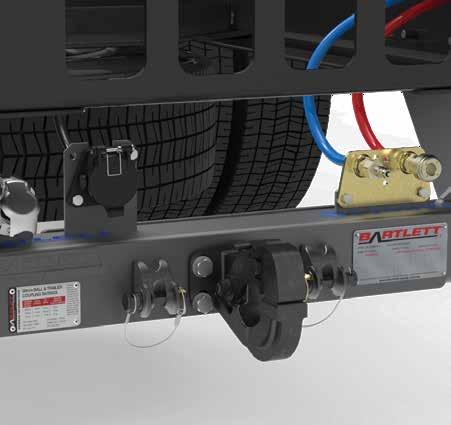

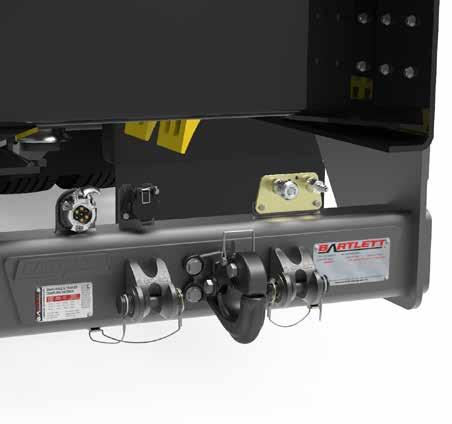

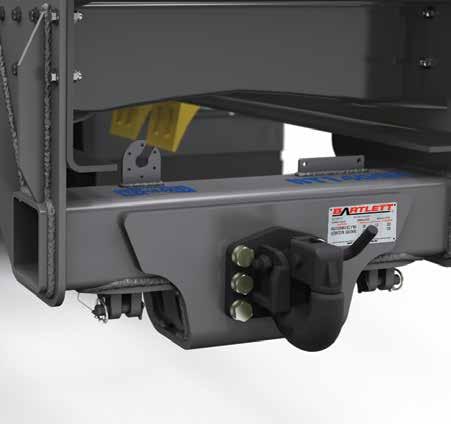

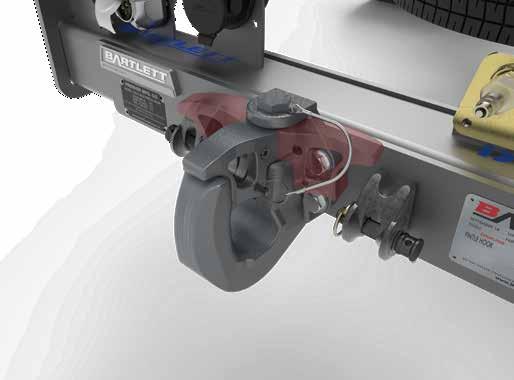

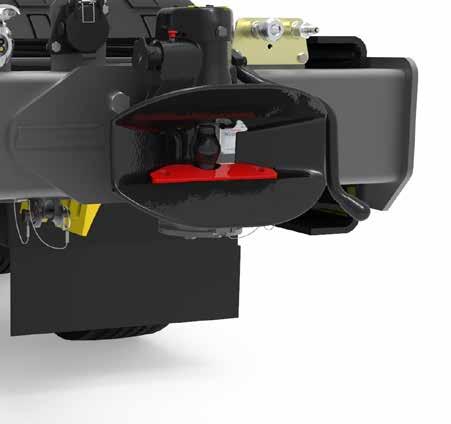

Pintle Hook
Bartlett
shown
Replace the images in the current Rating plate page with these and edit the page using the edits entered on the PDF,
TOWBAR RATINGS
INDUSTRY LEADING SAFETY AND COMPLIANCE BUNDLE

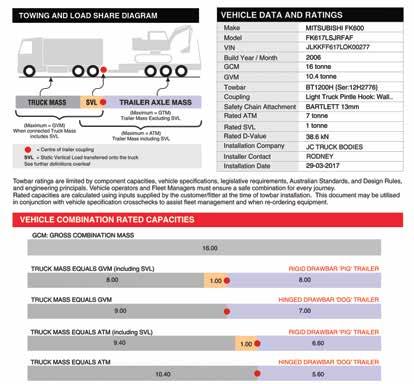

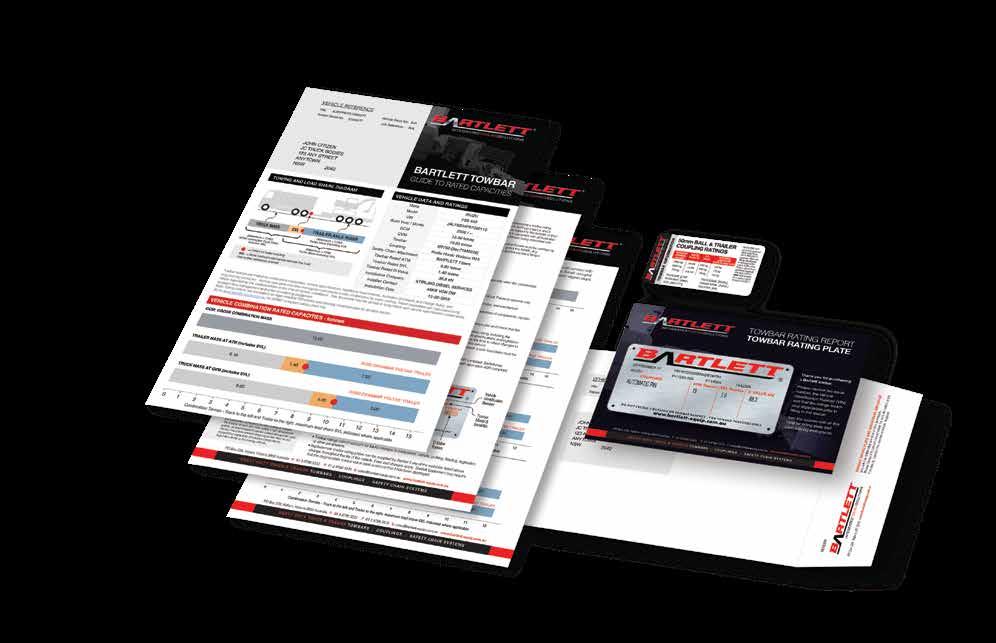

TOWBAR RATING PLATE
Following installation, complete the application form to receive the following:
■ A serial numbered rating plate calculated in accordance with ADR62.
■ A detailed report explaining the towing capacities of the vehicle.
Values such as Aggregate Trailer Mass (ATM), Gross Trailer Mass (GTM), Static Vertical Load (SVL) and others are precisely charted to help fleet
UNMATCHED CLARITY
FOR FLEET MANAGERS AND VEHICLE OPERATORS
the values in the bars could be made a bit easier to read
KNOW WHAT YOU CAN TOW
Chain of Responsibility (CoR) provisions are included into the Heavy Vehicle National Law (HVNL).
Rating plate data is proceseed to create logical visualisations of your vehicle combination, the Bartlett rating charts are proportionally laid out to represent truck, trailer and static vertical coupling load limits.
■ Load planning made easier.
■ Quick reference your vehicle’s legal towing capacities.
■ Operator training is simplified.
■ Better understanding of each vehicle’s towing potential.
TOWBAR KITS
LIGHT SERIES (<10,000KG ATM)
Suitable for:
■ Light to medium rigid trucks.
■ Fleets, municipalities and utilities.
■ Road making, earthmoving, tree maintenance, general freight and car transporting operations.
Safety, compliance and extended service life.
BT709B TOWBAR KIT
Max ATM 9,000kg D‑Value 70kN
Suits Bartlett Ball 127mm Order code: BT709B-WA4
BT1200A120 TOWBAR KIT
Max ATM 7,000kg D‑Value 60kN
BT355 TOWBAR KIT
Max ATM 3,500kg D‑Value 20.2kN
BT1200H TOWBAR KIT
Max ATM 7,000kg D‑Value 70kN
Suits pintle hooks Order code: BT1200H-WA4
Suits compact 40mm Autopin Order code: BT1200A120-WA4 See also BT1200A083-WA4

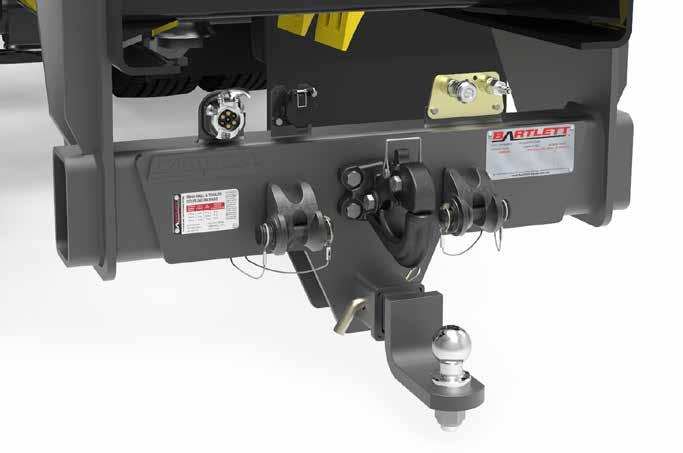

BT1250H TOWBAR KIT

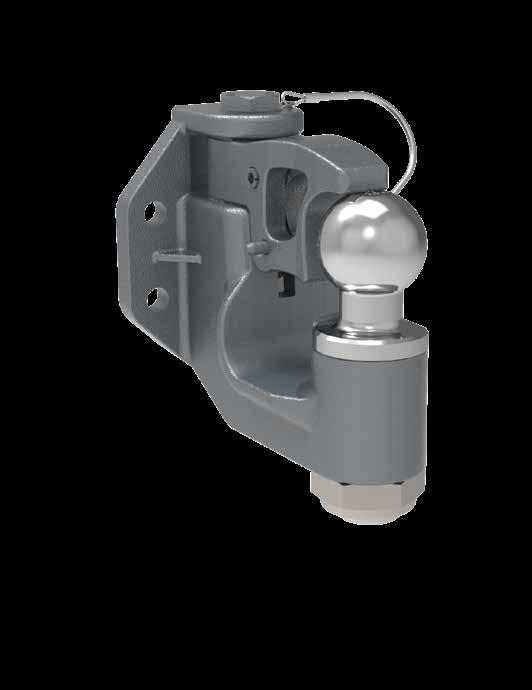

Pintle Hook: Max ATM 7,000kg D‑Value 70kN 50mm Ball: Max ATM 3,500kg D‑Value 20.2kN
Suits pintle hook/50mm ball Order code: BT1250H-WA4
Note: Towbar kits shown exclude trailer couplings, air brake and electrical couplings, coupling mounting bolts.
Suits 50mm ball Order code: BT355-WA4
See also BT350-WA4
BT1200B TOWBAR KIT
Max ATM 7,000kg D‑Value 70kN
Suits Bartlett 95mm ball Also suits some 70mm balls Order code: BT1200B-004
BT1290A TOWBAR KIT
Max ATM 9,000kg D‑Value 65kN
Automatic pin 40mm and 50mm Order code: BT1290H-WA4
TOWBAR KITS
Suitable for:
■ Medium to heavy rigid trucks.
■ Fleets, municipalities, utilities.
■ Road making, earthmoving, general freight.

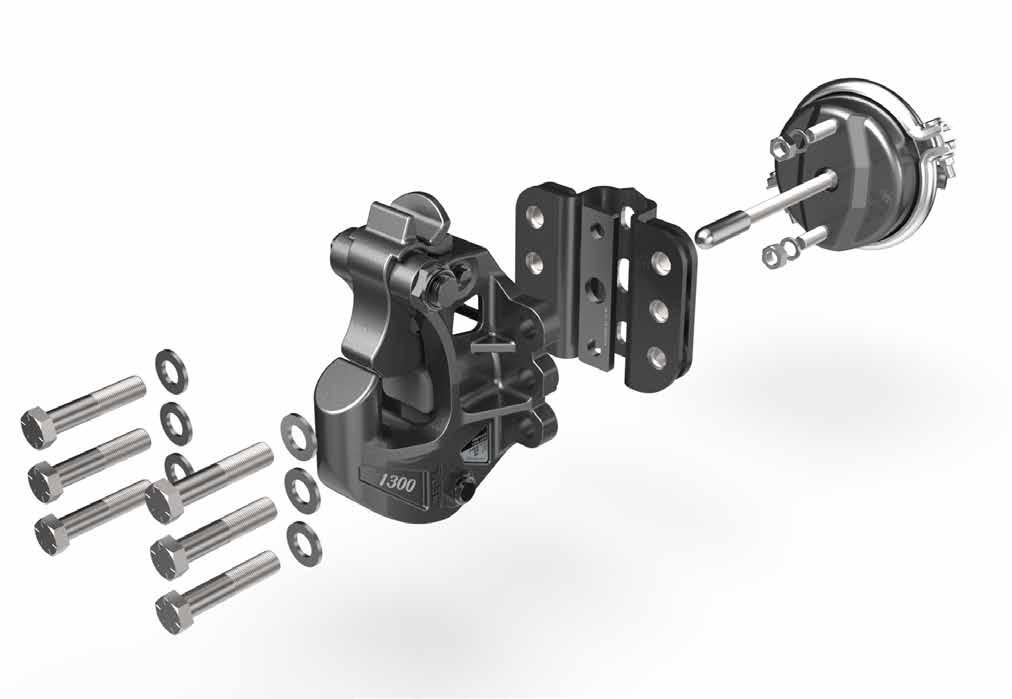

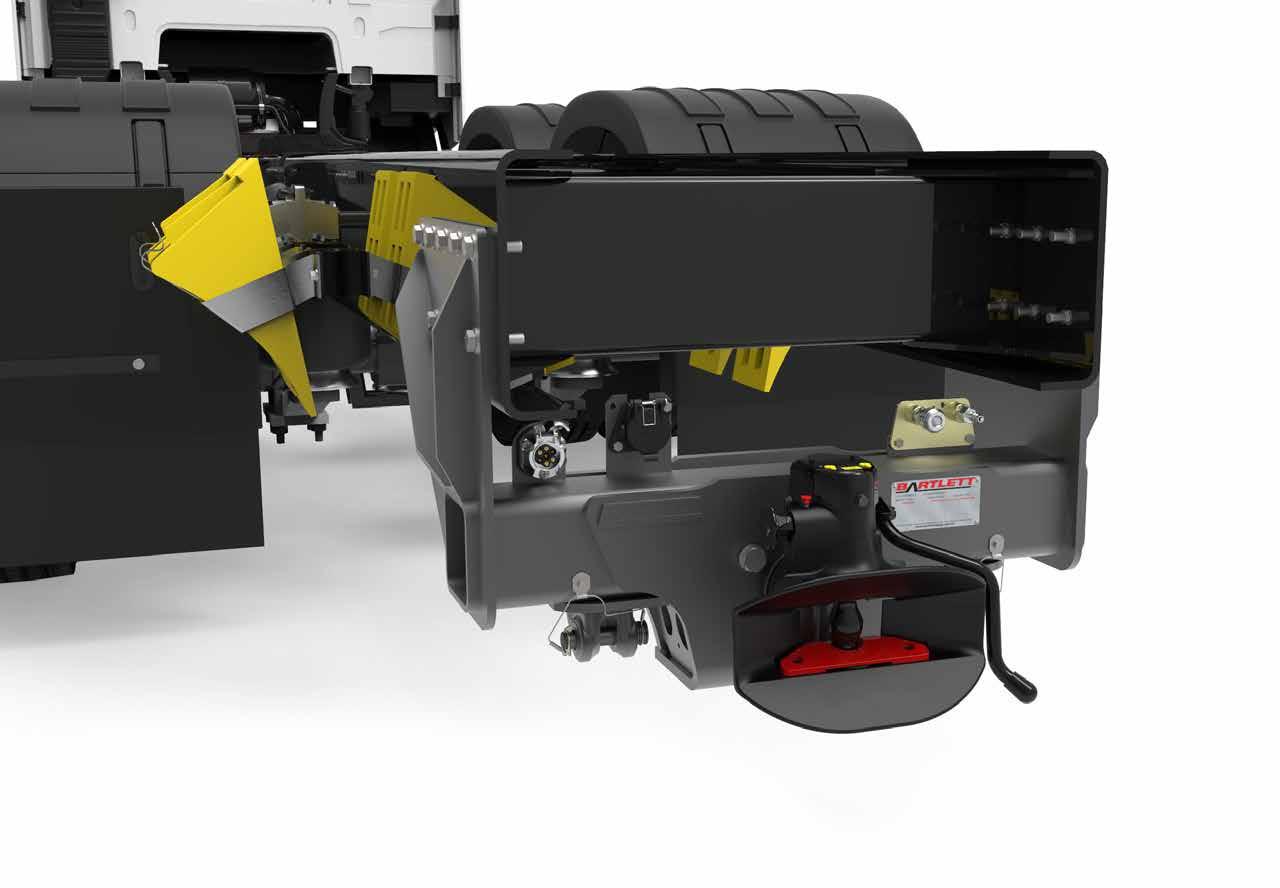

BT1300A TOWBAR KIT
Max ATM 15,000kg D‑Value 108kN
Automatic pin 40mm and 50mm Order code: BT1300A-WA4
Max ATM 45,000kg D Value 185kN Suits 50mm Automatic pin coupling
BT1700H TOWBAR KIT
Max ATM 45,000kg D Value 165kN
Suits Bartlett Ball 127mm Suits
Suits 40 & 50mm Automatic pin Order code: BT1300A-WA4
Suits Bartlett Ball 127mm
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential
BT350 TOWBAR KIT
Not included in towbar kit. Purchase items separately.
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
UCC100020 Towball 50mm
Dimensions
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Towbar Kits shown do not include accessories such as Trailer Couplings, Air Brake or Electrical Connectors, Mounting Bolts Etc. These items are shown for illustration purposes only. BT355 includes coupling mount for 50mm ball.
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
UCC100020 Towball 50mm
Dimensions
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Towbar Kits shown do not include accessories such as Trailer Couplings, Air Brake or Electrical Connectors, Mounting Bolts Etc. These items are shown for illustration purposes only.
BT355 includes coupling mount for 50mm ball.
The
ball coupling and
BT709B TOWBAR KIT
Contact
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential
BT709B TOWBAR KIT
Dimensions

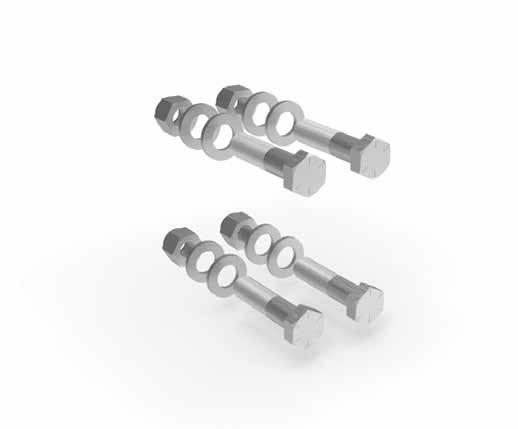

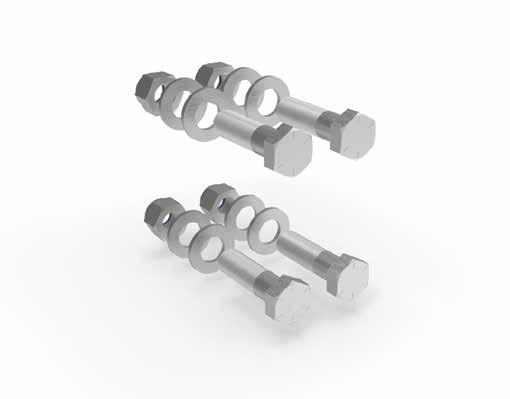

Sideplate mounting bolt kits
BBF012214-16
Bolt Kit (16), 1/2 GL30
Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BBF058214-12
Bolt Kit (12), 5/8 GL26
Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.

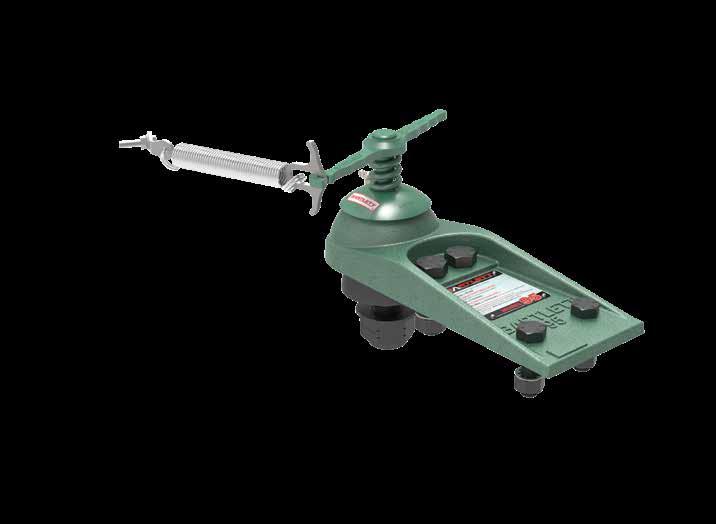

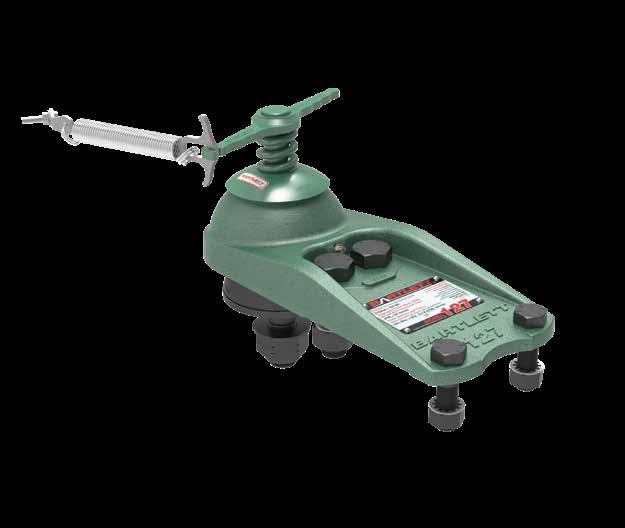

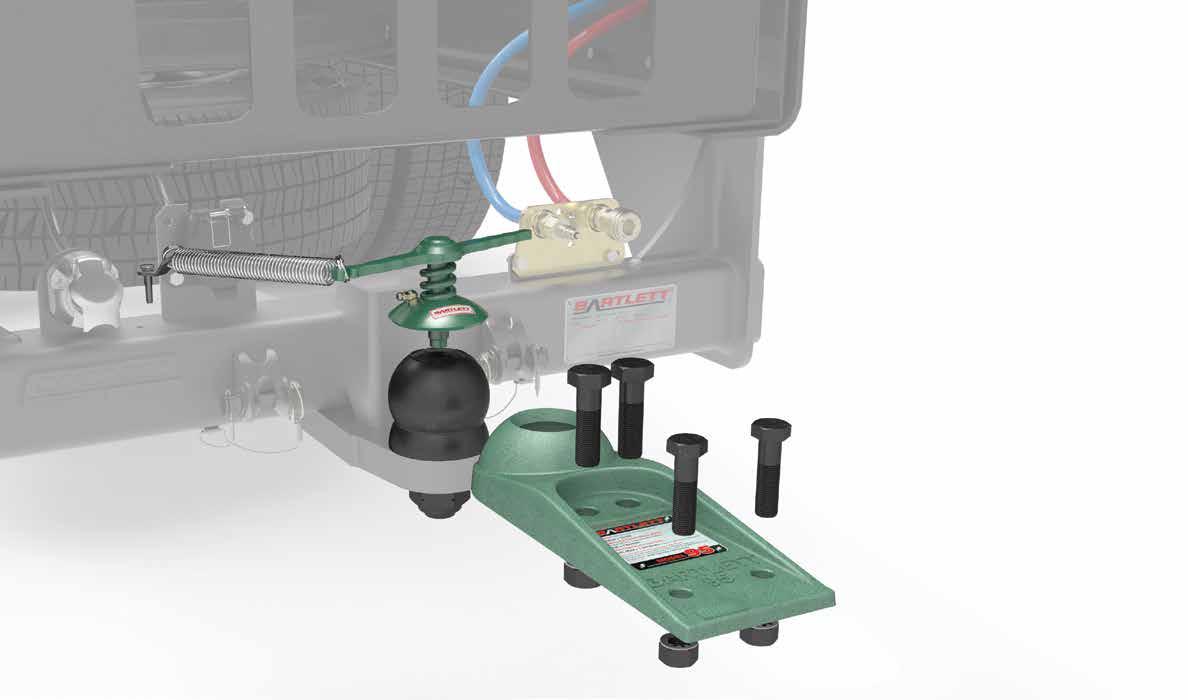

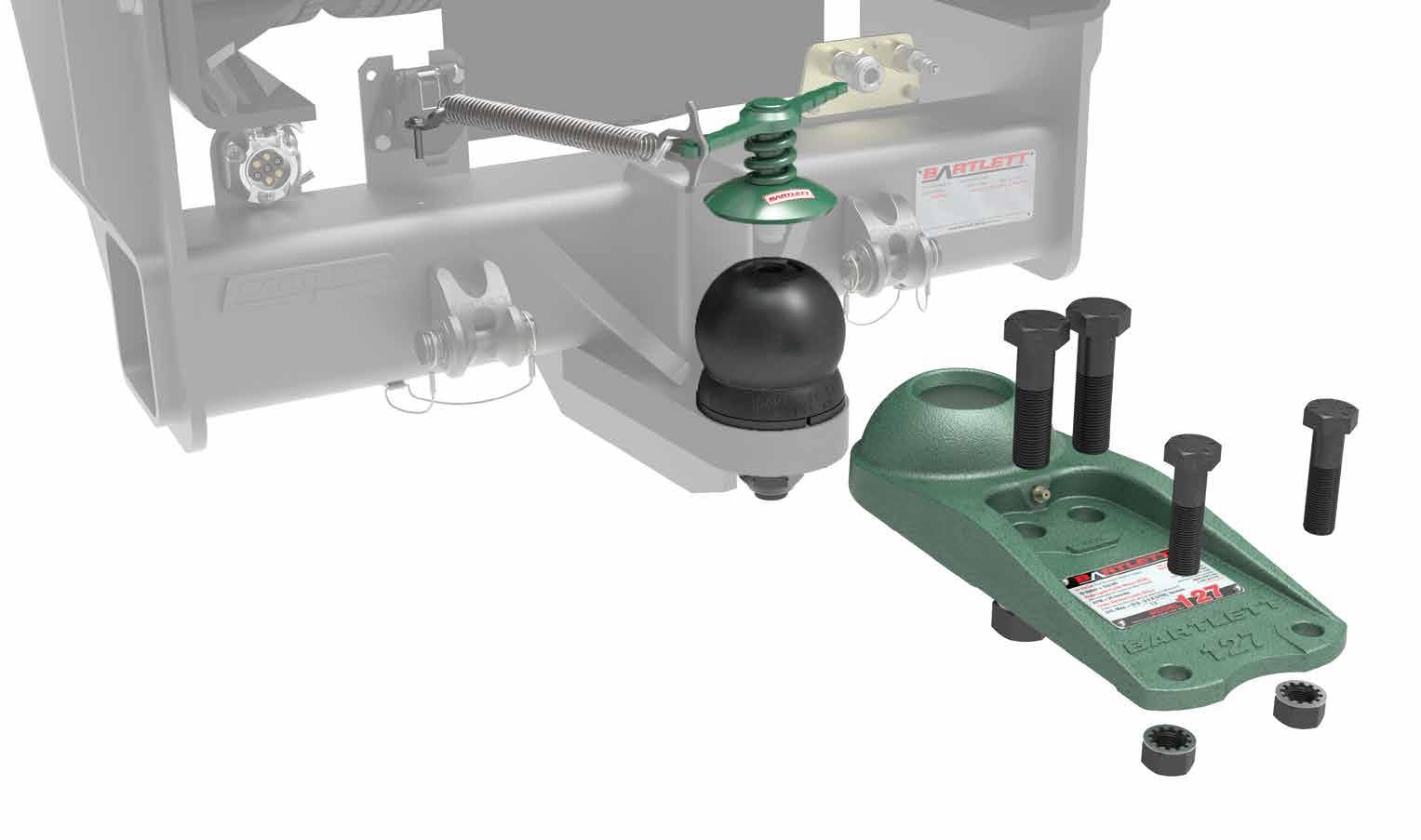

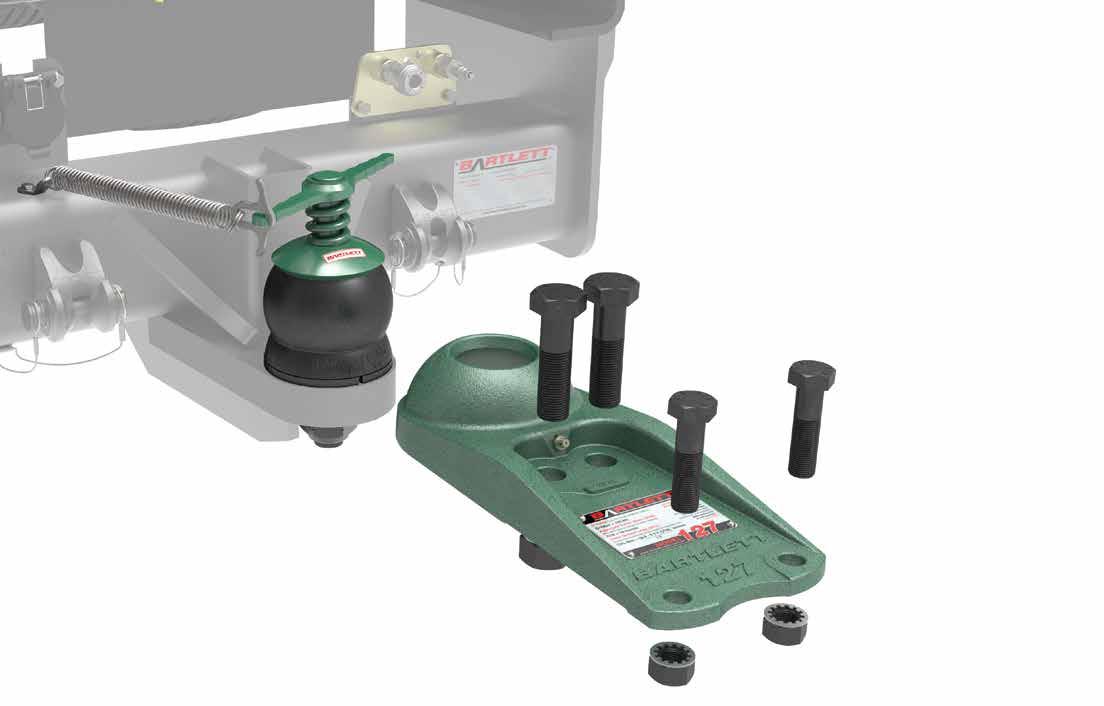

BC059DX Truck Kit 127mm Coupling
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details. DRAWINGS:
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential
Not included in towbar kit. Purchase items separately.
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BBM010F150 - 04 Bolt Kit (4), M10F GL125 Coupling
Automatic Pin Coupling
Dimensions
Coupling mounting bolt pattern
Prior to purchase carefully check that towbar hole pattern matches coupling bolt pattern.
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential
Not included in towbar kit. Purchase items separately.
BBF012200 -12
Bolt Kit (12), 1/2 GL24 Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BBM014F160 - 04
Bolt Kit (4), M14F GL132 Coupling
Compact 40mm Automatic Pin Coupling Various models available
Dimensions
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details. DRAWINGS:
■ Max. 7,000kg ATM
■ Max. SVL 1,500
■ D‑Value 70kN
■
■ Mass 55kg
■
Contact your supplier to discuss your needs.
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS
BT1200B TOWBAR KIT
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
BBF012200 -12
Bolt Kit (12), 1/2 GL24 Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
Dimensions
BC375DX Truck Kit, 95mm
Coupling
Suits common chassis widths
70mm Ball
Order code:
BC70 01 K
1.25 inch shank
Rating 6,000kg CTA 060306
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many
BT1200H TOWBAR KIT
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
BBF012200 -12
Bolt Kit (12), 1/2 GL24 Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BBF012612 - 04
Bolt Kit (4), 1/2 GL135 Pintle Hook

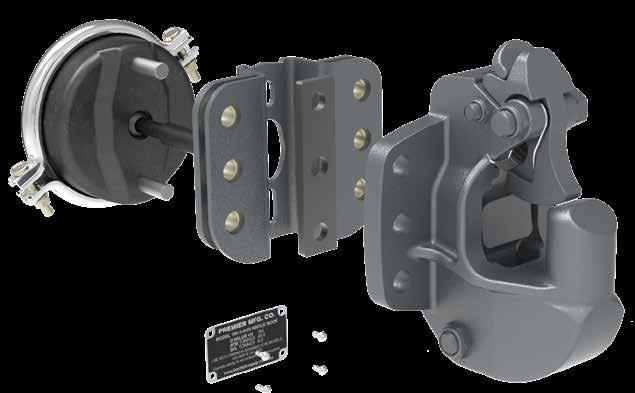

4 Bolt Pintle Hooks Premier 160HD‑AUS shown
Dimensions
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS:
BT1250H TOWBAR KIT
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details. DRAWINGS: Do Not Scale, all dimensions in
BT1250H TOWBAR KIT
Not included in towbar kit. Purchase items separately.
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Towbar Kits shown do not include accessories such as Trailer Couplings, Air Brake or Electrical Connectors, Mounting Bolts Etc. These items are shown for illustration purposes only.
The 50mm ball coupling and related component ratings of
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and
BT1290A TOWBAR KIT
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
Sideplate mounting bolt kits
BBF012214-16
Bolt Kit (16), 1/2 GL30
Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BBF058214-12
Bolt Kit (12), 5/8 GL26
Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BBM020F090-04
Bolt Kit (4), M20F GL55 Coupling
Automatic Pin Couplings Various 50mm and 40mm models available 4
Bolt pattern Prior to purchase carefully check that towbar hole
Dimensions
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS
BT1300A TOWBAR KIT
AUXILIARY PRODUCTS
Not included in towbar kit. Purchase items separately.
BBF058212 - 20
Bolt Kit (20), 5/8 GL32
Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BBM020F100-04
Bolt Kit (4), M20F GL65
Automatic Pin Couplings
Various 50mm and 40mm models available
Dimensions
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential
and
BT1300B TOWBAR KIT
SUITS BARTLETT BALL 127mm
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
Dimensions
BC059DX Truck Kit 127mm Coupling
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
Bartlett
Ball
Suits common chassis widths
Suits common chassis widths
BT1300H TOWBAR KIT
4 Bolt Pintle Hooks Premier 160HD AUS shown
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
BBF058212 - 20
Bolt Kit (20), 5/8 GL32 Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BBF012612 - 04
Bolt Kit (4), 1/2 GL135 Pintle Hook
BBF916612 - 04
Bolt Kit (4), 9/16 GL135 Pintle Hook
4 Bolt Pintle Hooks Premier 160HD AUS shown
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Towbar Kits shown do not include accessories such as Trailer Couplings, Air Brake or Electrical Connectors, Mounting Bolts Etc. These items are shown for illustration purposes only.
■
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential
the
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
BBF058212 - 20
Bolt Kit (20), 5/8 GL32 Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BBF012612 - 04
Bolt Kit (4), 1/2 GL135 Pintle Hook
BBF916612 - 04
Bolt Kit (4), 9/16 GL135 Pintle Hook
BBF034700 - 06
Bolt Kit (6), 3/4 GL120 Pintle Hook 6
Suits common chassis widths
Note: Extra set of holes for downwards adjustment of smaller hook. Note: Sideplate bolt pattern indicative only and should not be interpreted as a specification – please refer to installation instructions.
Towbar shown with sideplates rotated ninety degrees for low chassis installation. Cross‑member must be cut to length to suit the intended chassis width.
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Towbar Kits shown do not include accessories such as Trailer Couplings, Air Brake or Electrical Connectors, Mounting Bolts Etc. These items are shown for illustration purposes only.
■
■
■
■
■
■
in towbar kit. Purchase items separately.
BBF058212 - 20
Bolt Kit (20), 5/8 GL32 Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BBF012612 - 04
Bolt Kit (4), 1/2 GL135 Pintle Hook
BBF916612 - 04
Bolt Kit (4), 9/16 GL135 Pintle Hook
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Towbar Kits shown do not include accessories such as Trailer Couplings, Air Brake or Electrical Connectors, Mounting Bolts Etc. These items are shown for illustration purposes only.
The 50mm ball coupling and related component ratings of this Bartlett towbar cannot exceed the ratings of Australian Standard AS4177, D Value 20.0kN. This includes the Reese style 2 inch SHS mount receiver.
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and
BBF058212 -12
Not included in towbar kit. Purchase
Sideplate Mounting Bolt Kit
BBF058212-20
BBM020090 - 04
Bolt Kit (20), 5/8 GL32 Towbar Sideplate
Coupling Bolt Kit
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
Automatic Pin Couplings Various 50mm and 40mm models available
BBM020F100-04
Bolt Kit (4), M20F GL65 Coupling
Automatic Pin Coupling
Various 50mm and 40mm models available
Contact your supplier for further details on towbar variants such as mid‑mount, inverted model, safety chain attachment models.
Dimensions
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details. DRAWINGS: Do Not Scale, all
as Trailer Couplings,
BT1404A TOWBAR KIT
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS
at the start of each section in this catalogue for further details.
BT1404A TOWBAR KIT
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
BBF058300-20
Bolt Kit (20), 5/8 GL45 Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BBM020F100-04
Bolt Kit (4), M20F GL65 Coupling
Automatic Pin Coupling
Various 50mm and 40mm models available
Contact your supplier for further details on towbar variants such as mid mount, inverted model, safety chain attachment models.
Bolt pattern
Prior to purchase carefully check that towbar hole pattern matches coupling bolt pattern.
Dimensions
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
BT1404A TOWBAR KIT
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
BT1404A TOWBAR KIT
BBF058212 -12
Not included in towbar kit. Purchase items separately.
Sideplate Mounting Bolt Kit
BBF058212-20
Bolt Kit (20), 5/8 GL32
BBM020090 - 04
Towbar Sideplate
Coupling Bolt Kit
Automatic Pin Couplings
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
Various 50mm and 40mm models available
BBM020F100-04
Bolt Kit (4), M20F GL65 Coupling
Automatic Pin Coupling
Various 50mm and 40mm models available
Contact your supplier for further details on towbar variants such as mid mount, inverted model, safety chain attachment models.
Prior to purchase carefully check that towbar hole pattern matches coupling bolt pattern.
Dimensions
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details. DRAWINGS: Do Not Scale,
BT1400B TOWBAR KIT
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential
BT1400B TOWBAR KIT
SUITS BARTLETT BALL 127mm (STANDARD MOUNT)
A thorough dimensional analysis is recommended prior to specifying. 3 4 5 6
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
BBF058212 - 20
Bolt Kit (12), 5/8 GL32
Towbar Sideplate
Confirm Sideplate
fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
Dimensions
Note: Sideplate bolt pattern indicative only and should not be interpreted as a specification – please refer
BC059DX Truck Kit
127mm Coupling
MODEL VARIANTS –MADE TO ORDER
Mid-Mount
BT1400B BK16M WA4
Max. 32,000kg ATM
BT1400B BK20M WA4
Max. 45,000kg ATM
Inverted
BT1400B BK16U WA4
Max. 32,000kg ATM
BT1400B BK20U WA4
Max. 45,000kg ATM
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Towbar Kits shown do not include accessories such as Trailer Couplings, Air Brake or Electrical Connectors, Mounting Bolts Etc. These items are shown for illustration purposes only.
Bartlett 127 mm Ball
Suits common chassis widths
Bartlett 127 mm Ball purchased separately
Suits common chassis widths
BT1404H TOWBAR KIT
SUITS HEAVY 6 BOLT PINTLE HOOK
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
6 Bolt Pintle Hooks
Premier 100 3 AUS shown
BBF034312 - 06B
Bolt Kit (4+2), 3/4 GL55/67
Towbar Sideplate
BBF058212 - 20
Bolt Kit (20), 5/8 GL32
Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BTU - 9999 Air flipper switch kit
Dimensions
Note: Pintle hook not included, shown for
Bolt pattern
Prior to purchase carefully check that towbar hole pattern matches coupling bolt pattern.
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Towbar Kits shown do not include accessories such as Trailer Couplings, Air Brake or Electrical Connectors, Mounting Bolts Etc. These items are shown for illustration purposes only.
BT1404H TOWBAR KIT
OUNTING PLATE - AIR
OWBAR CROSSMEMBER
OUNTING PLATES - ELECTRICAL
■
PINTLE HOOK (INVERTED)
■
ATING PLATE
■

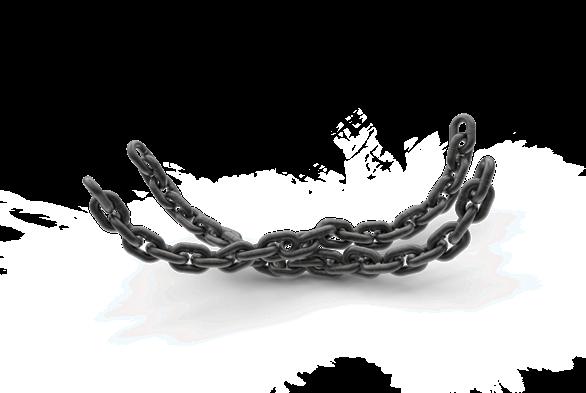

AFETY CHAIN ATTACHMENTS (BK20)
■
NSTALLATION INSTRUCTIONS DESCRIPTION 2 3 4 2
6 Bolt Pintle Hooks Premier 100 3 AUS shown
VEHICLE APPLICABILITY
Medium to Heavy Trucks MOUNT STYLE External sideplates Sideplates same specification as Standard mount variant. TIPPER SUITABILITY
Contact your supplier to discuss your needs.
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
BT1404H TOWBAR KIT
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
6 Bolt Pintle Hooks Premier 100 3 AUS shown
BBF034312 - 06B
Bolt Kit (4+2), 3/4 GL55/67
Towbar Sideplate
BBF058300 - 20
Bolt Kit (20), 5/8 GL32
Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BTU - 9999 Air flipper switch kit
Bolt pattern
Prior to purchase carefully check that towbar hole pattern matches coupling bolt pattern.
Dimensions
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Towbar Kits shown do not include accessories such as Trailer Couplings, Air Brake or Electrical Connectors, Mounting Bolts Etc. These items are shown for illustration purposes only.
■
BT1404H TOWBAR KIT
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
BT1404H TOWBAR KIT
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
6 Bolt Pintle Hooks Premier 100 3 AUS shown
BBF034312 - 06B
Bolt Kit (4+2), 3/4 GL55/67
Towbar Sideplate
BBF058300 - 20
Bolt Kit (20), 5/8 GL32
Towbar Sideplate
Confirm Sideplate
fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
Dimensions
Bolt pattern
BTU - 9999 Air flipper switch kit
Prior to purchase carefully check that towbar hole pattern matches coupling bolt pattern. Note: Sideplate bolt pattern indicative only and should not be interpreted as a specification – please refer to installation instructions.
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Towbar Kits shown do not include accessories such as Trailer Couplings, Air Brake or Electrical Connectors, Mounting Bolts Etc. These items are shown for illustration purposes only.
CONSUMER
COMPLIANCE:
BT1700A TOWBAR KIT
Not included in towbar kit. Purchase items separately.
BBF058300 - 20
Bolt Kit (20), 5/8 GL45
Towbar Sideplate
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BBM020F100-04
Bolt Kit (4), M20F GL65 Coupling
Dimensions
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details. DRAWINGS:
CONSUMER NOTICE
COMPLIANCE:
RATINGS:
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
BC059DX Truck Kit 12mm Coupling
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.

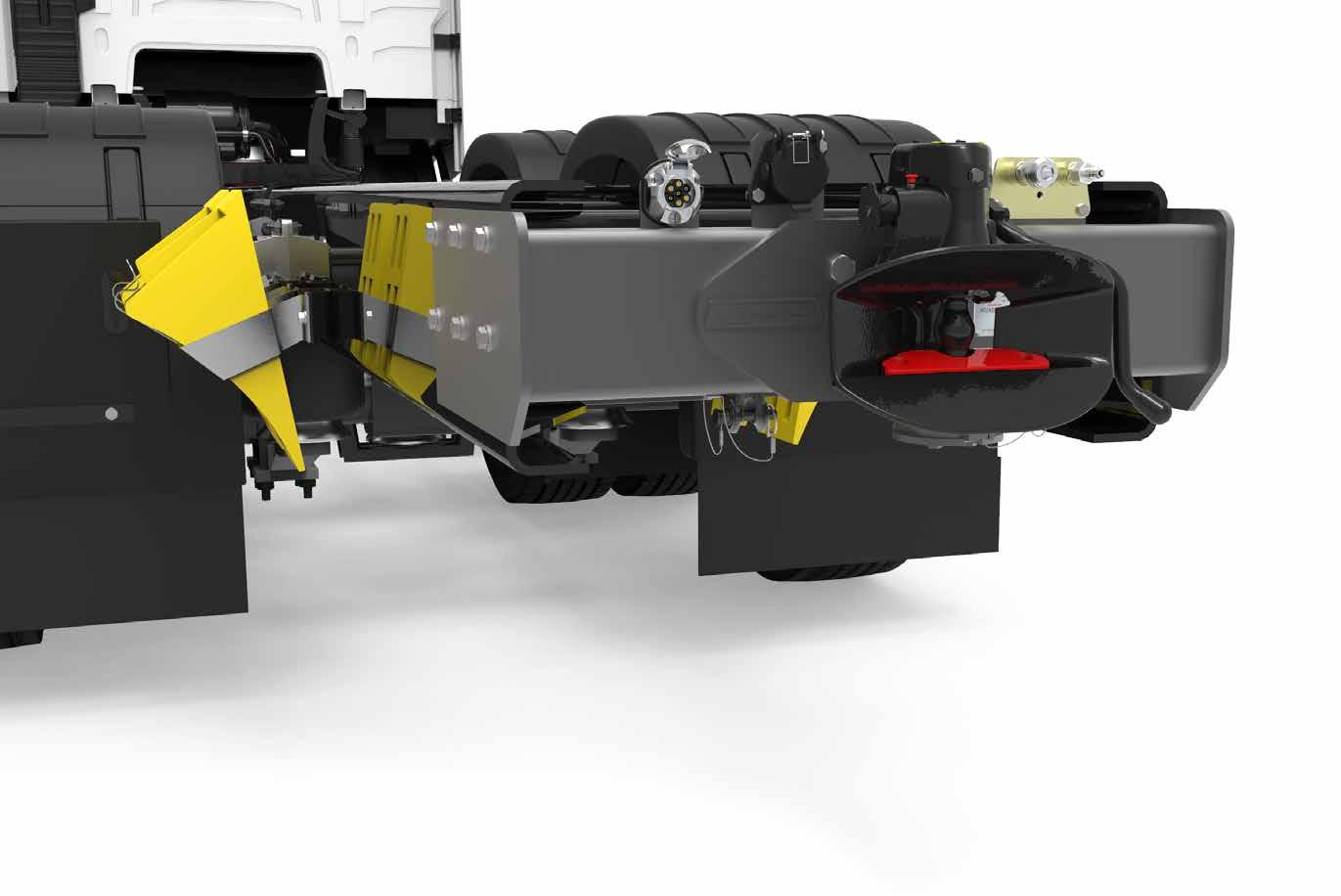

BT1700H TOWBAR KIT
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
BT1700H TOWBAR KIT

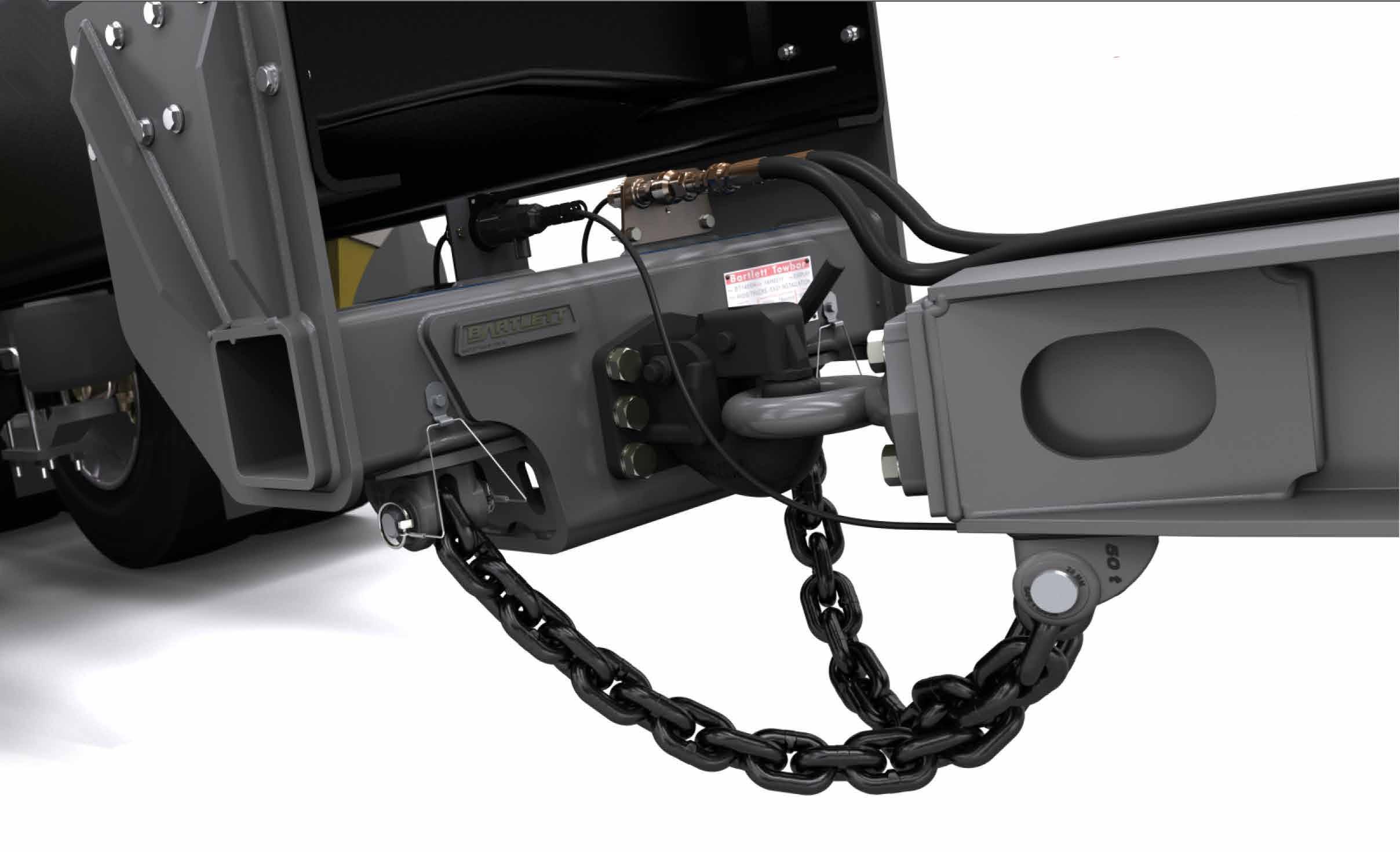

SUITS HEAVY 6 BOLT PINTLE HOOK
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
BTU - 9999 Air switch kit for Pintle Hook air snubber operation
Contact your supplier for further details on towbar variants such as mid mount, inverted model, safety chain attachment models.
Dimensions
Bolt pattern Prior to purchase carefully check that towbar hole pattern matches coupling bolt pattern.
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
Do Not Scale, all dimensions in mm and indicative only, drawing specifications are
or
EQUIPMENT RATINGS CAUTION:
TRAILER COUPLINGS, TOWBARS, SAFETY CHAINS
■ Published Ratings are the maximum theoretical possible ratings.
■ Several Constraints Apply to Ratings
Those responsible for vehicle design and load planning must consider actual safe maximum ratings for the towing equipment and vehicle combination on any given journey.
These include the following variables:
■ Coupling D Value
■ Axle loads
■ Load distribution
■ Regulatory requirements
■ Vehicle capacity limits
■ Operator driver’s license limits
■ Fleet towing policy
■ Towing component specifications
■ Bartlett Sales Advice is limited to the towing equipment being considered for a given towing application.
■ Bartlett Towbars are individually rated for the vehicle to which they are attached, and final ratings are calculated by Bartlett Equipment as a function of these variables.
■ Detailed Planning that considers your specific vehicle combination including coupling static vertical load (SVL), axle loads, payload optimisation and component limitations can be obtained via the services of a suitably qualified automotive engineer or Authorised Vehicle Examiner (AVE) who can examine and certify the installation.
■ Operators are Responsible for correct towing equipment selection and vehicle loading.
The National Heavy Vehicle Regulator NHVR publishes bulletins and guides to assist interested parties plan and apply ratings correctly. www.nhvr.gov.au

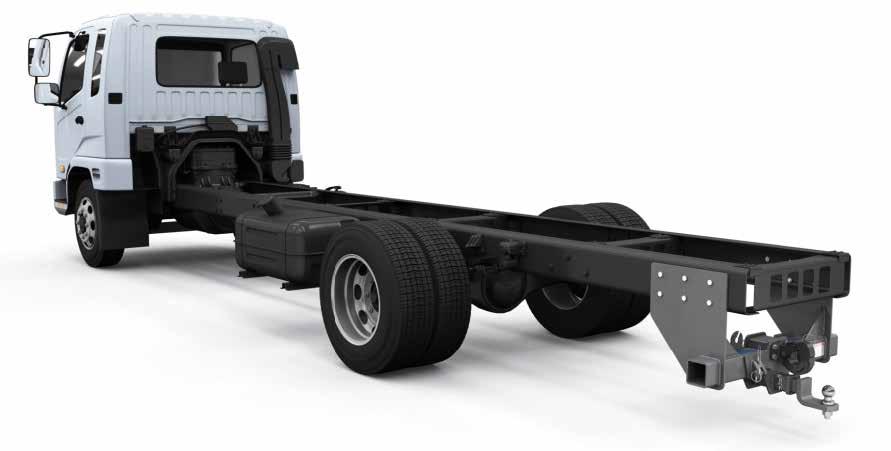

TOWBARS FOR TRUCKS® AUTOWBAR®
AUTOWBAR ®

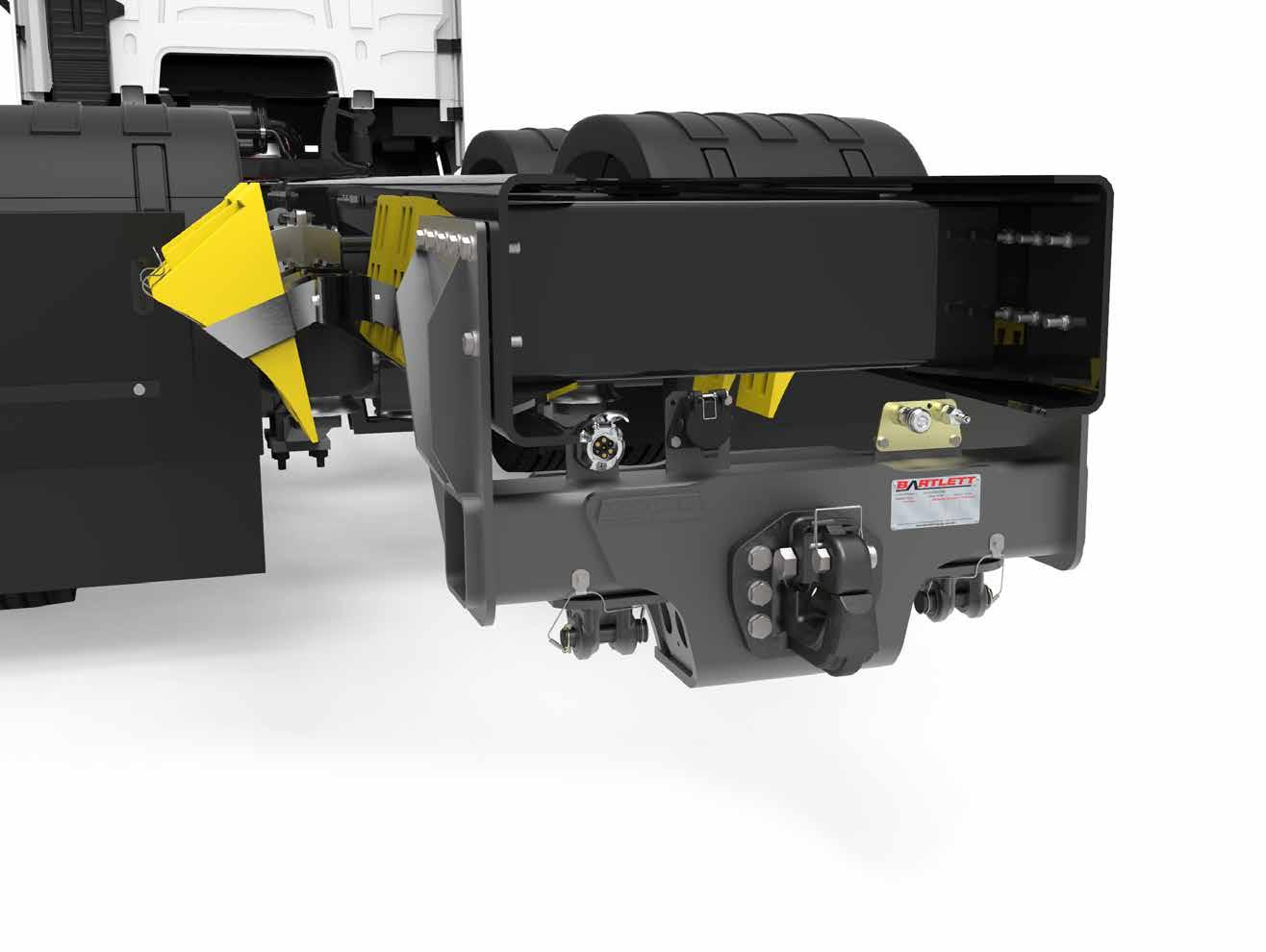

HEAVY DUTY MULTI‑COUPLING TOWBARS
AUTOWBAR ® PROVIDES
■ Maximum vehicle utilisation for light and medium trucks, exchange various trailers as required.
■ Solid coupling mounts interchange for quick switching of different trailer couplings.
■ Professionally engineered for a flexible and highly efficient transport service.
One towbar, many options
Bartlett Autowbar ® towbars feature a patented heavy duty ‘receiver’ and ‘mount’ system that enables quick switching between a range of common trailer coupling types.
■ Model range BT620 Max 6t ATM, BT750 Max 9t ATM.
■ ADR62 Compliance for safety and C.o.R.
■ Rating plates and detailed reports for clearly defined towing capacities.
■ Adaptive ‘flat‑packed’ for rapid, cost effective installation.
AUTOWBAR ®
HEAVY DUTY MULTI‑COUPLING TOWBARS
Autowbar ® towbars can expand the safe trailer towing capabilities of trucks with a range of heavy duty coupling mounts to suit various ball couplings, pintle hooks and others.
AUTOWBAR ® KIT PRESENTATION
Crossmember assembly
7 pin socket and air coupling
Fleets such as municipalities, utilities, emergency services and private operators can take advantage by connecting to any number of different trailer options.
Coupling and sideplate mounting bolts*
* Not included in kit, order separately.
Sideplates** and reinforcing gussets
** Towbar sideplates supplied without drilled bolting holes.
Rating plate

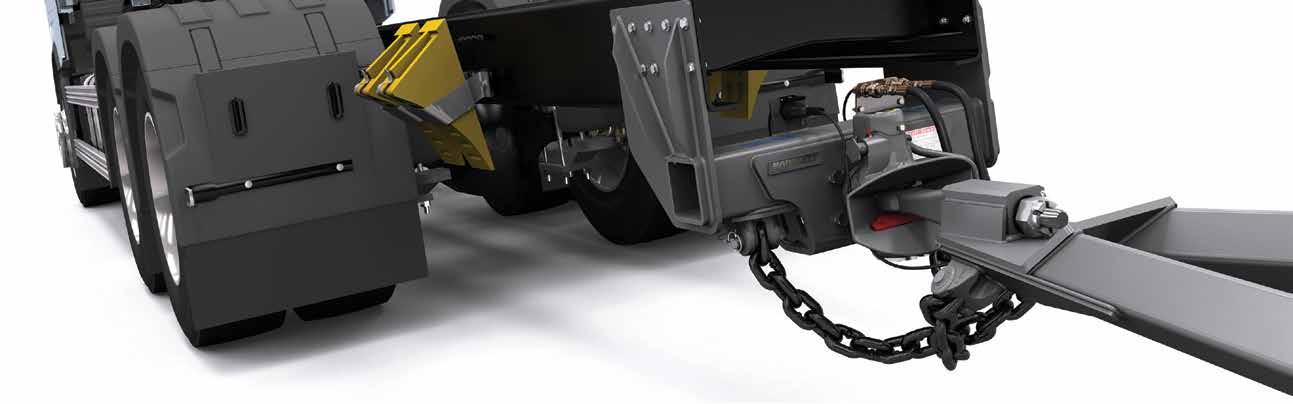

Bartlett ADR62 safety chain attachments
shown
Installation instructions and towbar rating report
Coupling mounts* and trailer couplings*
Comprehensive kits ready to install on most trucks
Note: Trailer air and/or electrical services may not be compatible. Trailer couplings must be ADR62 compliant. Some less common imported trailer coupling types and sizes will not be compatible with the Autowbar® system.

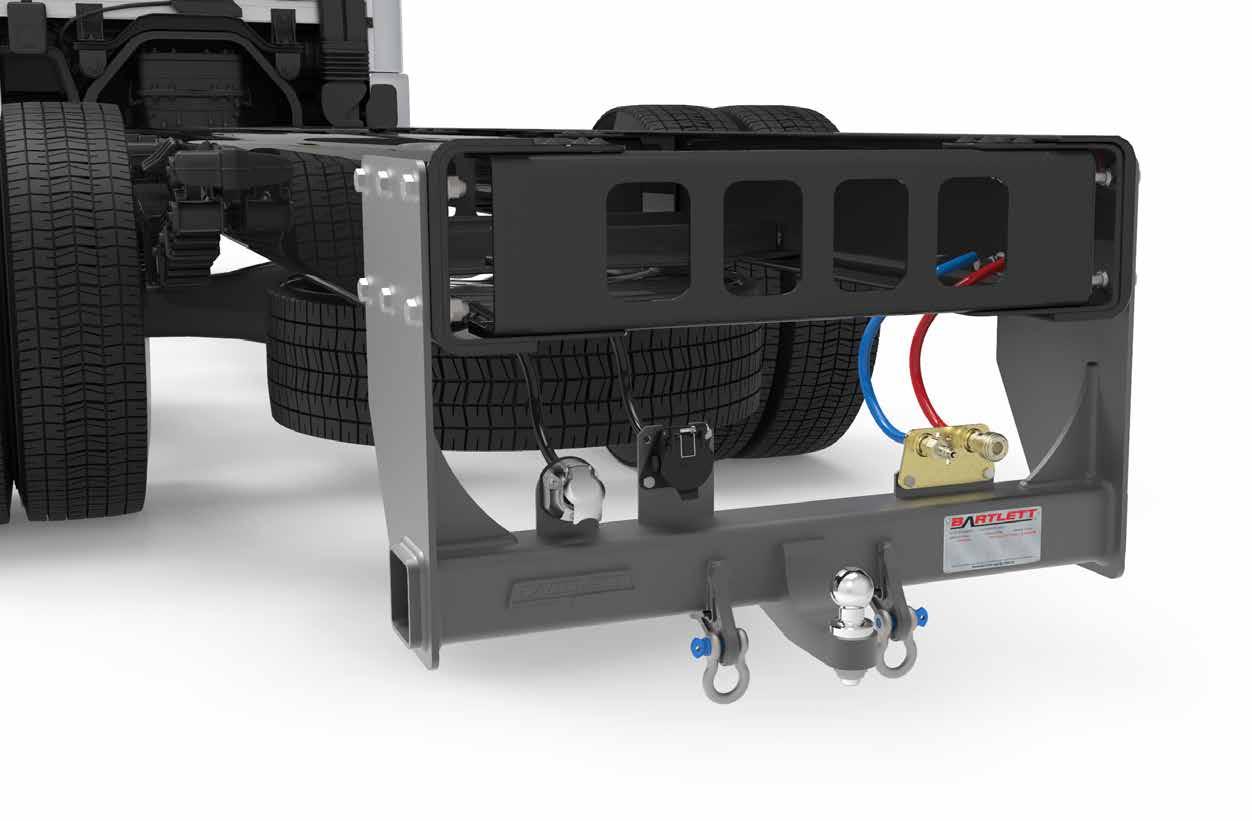

BT620 kit
BT620 AUTOWBAR® KIT
95 & 127mm balls 50mm, 70mm, 76mm towballs
Pintle hooks
Compact automatic pin
Other coupling types VEHICLE APPLICABILITY
BT620 AUTOWBAR® KIT
SUITS MULTIPLE COUPLING TYPES
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
BBF012200 -12 Sideplate Mounting Bolt Kit
Confirm Sideplate fastener Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.

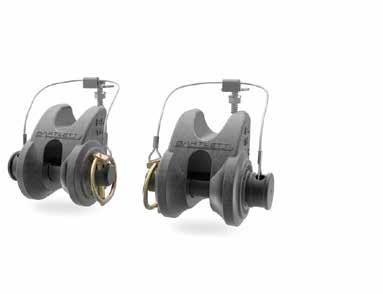

Coupling mounts
Required models must be specified (not included in kit).
ORDER CODE
BT620-50M-00
Mount and Pin Kit, for 50 mm Ball, for BT620 Towbar
SUITS 50mm Balls in accordance with AS4177
MAX. RATING
3,500kg ATM
D -VALUE 20kN CRN, CTA Enquire MASS 11.4kg
See NHVR VSG16 for 50 mm ball limitations when GVM exceeds 5,000kg.
ORDER CODE
BT620-95M-00
Mount and Pin Kit, for 95 mm Ball, for BT620
SUITS 95mm & 70mm (4,500kg ATM) Balls
RATING
Purchase
6,000kg ATM
D -VALUE 50kN
CRN, CTA Enquire
MASS 12.8kg
ORDER CODE
BT620-PHM-00
Rear
Mount & Pin Kit, for Pintle Hook, for BT620 SUITS Light pintle hooks
RATING 6,000kg
D -VALUE 50kN
CRN, CTA Enquire
MASS 12.7kg
Trailer couplings also available –see separate specification page.
Dimensions
SHS 100mm x 100mm
Bartlett ball 95mm
Purchase separately
Top of crossmember to top of towbar lug 141mm
of
Pintle hook Purchase separately
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
to
Top of crossmember to inside lower jaw
Four height combinations
Rear face of crossmember to centre of
BT620 MOUNTS
REQUIRED MOUNTS MUST BE SPECIFIED (NOT INCLUDED IN KIT)
BT620-50M-00 MOUNT AND PIN KIT, FOR 50mm BALL, FOR BT620
50mm ball*
253mm
Top of crossmember to centre of ball 116mm
Rear face of crossmember to centre of ball mounting hole
*Purchase separately
See NHVR VSG16 for 50mm ball limitations when GVM exceeds 5,000kg.
Couplings not included with mount. Must be purchased separately.
RATINGS & INFO COUPLING TYPE
■ 3,500kg ATM Max.
■ D‑Value 20kN
■ CRN, CTA Enquire
■ Mass 11.4kg
BT620-95M-00 MOUNT AND PIN KIT, FOR BARTLETT 95 mm BALL, FOR BT620
Rear face of crossmember to centre of ball mounting hole Bartlett ball 95mm* 141mm 258
Top of crossmember to centre of ball
*Purchase separately

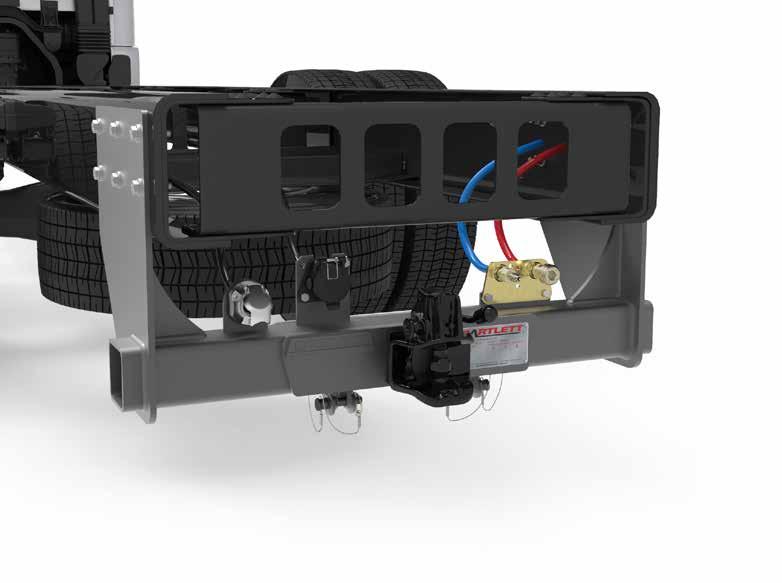

BT620-PHM-00 MOUNT & PIN KIT, FOR PINTLE HOOK, FOR BT620
Rear face of crossmember to centre of pintle lower jaw ~309mm Four height combinations Pintle hook* Top of crossmember to inside lower jaw
Range 114mm to 136mm
*Purchase separately
UCC100020
Towball Kit, 50mm (Includes Nut & Spring Washer)
*Purchase separately
Couplings not included with mount. Must be purchased separately.
RATINGS & INFO COUPLING TYPE
■ 6,000kg ATM
■ D‑Value 50kN
■ CRN, CTA Enquire
■ Mass 12.8kg
*Purchase separately
BC375DX
Bartlett Ball 95mm
70mm ball
70mm ball
1.25 inch shank
Couplings not included with mount. Must be purchased separately.
RATINGS & INFO COUPLING TYPE
■ 6,000kg ATM
■ D‑Value 50kN
■ CRN, CTA Enquire
■ Mass 12.7kg
*Purchase separately
BT620-127M-00 MOUNT AND PIN KIT, FOR 127mm BARTLETT BALL, FOR BT620
Ø 32mm hole Bartlett ball 127mm*
*Purchase separately
113mm
Rear face of crossmember to centre of ball mounting hole 276mm Top of crossmember to top to towbar lug
4 Bolt Pintle Hooks MS 51335 Bolt Pattern
BBF012214-04
Bolt Kit (4), 1/2 GL30 Pintle Hook Autowbar
Couplings not included with mount. Must be purchased separately.
RATINGS & INFO COUPLING TYPE
■ 6,000kg ATM
■ D‑Value 50kN
■ CRN, CTA Enquire
■ Mass 19.7kg
BT620-MA120-00 MOUNT & PIN KIT, FOR 120 X 55 AUTOWPIN, FOR BT620
Compact 40mm automatic pin*
Rear face of crossmember to centre of pin coupling
~2 97mm
Coupling hole pattern 120 x 55 x Ø M14
*Purchase separately
Top of crossmember to centre of pin
Range 71mm to 208mm
Four height combinations
Also available: BT620-MA083-00
Coupling hole pattern 83 x 56 x Ø M10
BC059DX
Bartlett Ball 127mm
*Purchase separately
Couplings not included with mount. Must be purchased separately.
RATINGS & INFO COUPLING TYPE
■ 6,000kg ATM
■ D‑Value 50kN
■ CRN, CTA Enquire
■ Mass 13.7kg
*Purchase separately
UCN100162 Rockinger RO243
UCN100154
V.Orlandi GA38
BBM014F055-04
Bolt Kit (4), M10F GL30 Coupling
4
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential
BT750 AUTOWBAR® KIT
SUITS MULTIPLE COUPLING TYPES
AUXILIARY PRODUCTS ALSO AVAILABLE
Not included in towbar kit. Purchase items separately.
Sideplate Mounting Bolt Kits
BBF012214-16
Bolt Kit (16), 1/2 GL30
Towbar Sideplate
BBF058214-12
Bolt Kit (12), 5/8 GL32
Towbar Sideplate
Confirm Sideplate fastener
Grip Length (GL) is long enough for your application prior to ordering. Longer sets are available.
Coupling mounts
Required models must be specified (not included in kit).
ORDER CODE
BT750-50M-00
Mount & Pin Kit, for 50mm Ball, for BT750 SUITS 50mm Balls in accordance with AS4177
MAX. RATING 3,500kg ATM
D -VALUE 25kN
CRN, CTA Enquire
MASS 16.5kg
See NHVR VSG16 for 50 mm ball limitations when GVM exceeds 5,000kg.
ORDER CODE
BT750-95M-00
Mount & Pin Kit, for 95 mm Ball, for BT750 SUITS 95mm & 70mm (4,500kg ATM) Balls
RATING 7,000kg ATM
D -VALUE 60kN CRN, CTA Enquire MASS 19.4kg
ORDER CODE
BT750 -PHM-00
Mount & Pin Kit, for Pintle Hook, for BT750 SUITS Light pintle hooks
RATING 9,000kg
D -VALUE 70kN
CRN, CTA Enquire
MASS 16.7kg
Trailer couplings also available –see separate specification page.
Dimensions
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details. DRAWINGS:
BT750 MOUNTS
REQUIRED MOUNTS MUST BE SPECIFIED (NOT INCLUDED IN KIT)
BT750-50M-00 MOUNT & PIN KIT, FOR 50mm BALL, FOR BT750
Top of crossmember to centre of 50mm ball
Ø 22.2mm hole
Rear face of crossmember to centre of ball mounting hole 50mm ball* 212mm
See NHVR VSG16 for 50mm ball limitations when GVM exceeds 5,000kg.
Couplings not included with mount. Must be purchased separately.
RATINGS & INFO COUPLING TYPE
■ 3,500kg ATM
■ D‑Value 20kN
■ CRN, CTA Enquire
■ Mass 16.5kg
BT750-95M-00 BARTLETT 95 mm BALL AND 70MM BALL MOUNT AND DRAWPIN ASSEMBLY
Bartlett ball 95mm*
Top of crossmember to centre of ball
Ø 32mm hole
Rear face of crossmember to centre of ball mounting hole 252mm 248mm
BT750-PHM-00 MOUNT AND PIN KIT, FOR PINTLE HOOK FOR BT750
Pintle hook* ~213mm
Rear face of crossmember to centre of pintle lower jaw
UCC100020
Towball Kit, 50mm (Includes Nut & Spring Washer)
*Purchase separately
Couplings not included with mount. Must be purchased separately.
RATINGS & INFO COUPLING TYPE
■ 7,000kg ATM
■ D‑Value 60kN
■ CRN, CTA Enquire
■ Mass 19.4kg
*Purchase separately
Top of crossmember to inside lower jaw
Range 121mm to 242mm
Four height combinations
BT750-127M-00 MOUNT & PIN KIT, FOR 127mm BALL, FOR BT750
Bartlett ball 127mm*
Ø 32mm hole
BC375DX
Bartlett Ball 95mm
70mm ball
70mm ball 1.25 inch shank
Couplings not included with mount. Must be purchased separately.
RATINGS & INFO COUPLING TYPE
■ 9,000kg ATM
■ D‑Value 70kN
■ CRN, CTA Enquire
■ Mass 16.7kg
*Purchase separately
Top of crossmember to top of towbar lug
197mm Rear face of crossmember to centre of ball mounting hole
BT750-MA120-00 MOUNT & PIN KIT, 120 x 55 AUTOWPIN FOR BT750
Compact 40mm automatic pin coupling*
Top of crossmember to centre
Range 77mm to 214mm
Four height combinations
4 Bolt Pintle hooks MS51335 bolt pattern
BBF012214-04
Bolt Kit (4), 1/2 GL30 Pintle Hook Autowbar
Couplings not included with mount. Must be purchased separately.
RATINGS & INFO COUPLING TYPE
■ 9,000kg ATM
■ D‑Value 70kN
■ CRN, CTA Enquire
■ Mass 24.6kg
BC059DX
Bartlett Ball 127mm
*Purchase separately
Couplings not included with mount. Must be purchased separately.
RATINGS & INFO COUPLING TYPE
UCC100046
■ 6,000kg ATM
■ D‑Value 70kN
■ CRN, CTA Enquire
■ Mass 17.9kg
Rockinger RO243
UCN100154
V.Orlandi GA38
BBM014F055-04
Bolt Kit (4), M10F GL30 Coupling
EQUIPMENT RATINGS CAUTION:
TRAILER COUPLINGS, TOWBARS, SAFETY CHAINS
■ Published Ratings are the maximum theoretical possible ratings.
■ Several Constraints Apply to Ratings
Those responsible for vehicle design and load planning must consider actual safe maximum ratings for the towing equipment and vehicle combination on any given journey.
These include the following variables:
■ Coupling D Value
■ Axle loads
■ Load distribution
■ Regulatory requirements
■ Vehicle capacity limits
■ Operator driver’s license limits
■ Fleet towing policy
■ Towing component specifications
■ Bartlett Sales Advice is limited to the towing equipment being considered for a given towing application.
■ Bartlett Towbars are individually rated for the vehicle to which they are attached, and final ratings are calculated by Bartlett Equipment as a function of these variables.
■ Detailed Planning that considers your specific vehicle combination including coupling static vertical load (SVL), axle loads, payload optimisation and component limitations can be obtained via the services of a suitably qualified automotive engineer or Authorised Vehicle Examiner (AVE) who can examine and certify the installation.
■ Operators are Responsible for correct towing equipment selection and vehicle loading.
The National Heavy Vehicle Regulator NHVR publishes bulletins and guides to assist interested parties plan and apply ratings correctly. www.nhvr.gov.au
BALL TRAILER COUPLINGS
BARTLETT® BALL
127mm AND 95mm TRAILER COUPLINGS
True coupling performance
Positive connection, proven toughness in all conditions.
The Bartlett unique precision machined ball and socket design provides a truly positive connection between trucks and trailers. Zero slack means no shunting, damaging backlash or premature wear and tear.
A positive connection provides protection for drive line, geartrain and fragile cargo whilst drivers and passengers experience uninterrupted comfort.
■
■ High strength D Value means flexibility to use on Pig, Tag, and even heavy Dog trailers up to 45 tonne.
■ Huge spherical surface contact area for longest service life.
■ Oscillation – 22.5 degrees free in all directions.
■ Total cost of ownership (TCO) is industry leading, with outstanding component life.
127mm
Heavy Duty Bartlett
95mm
BALL COUPLINGS
127mm AND 95mm TRAILER COUPLINGS
127MM TRAILER COUPLING
Order Codes & Component Type Approval (CTA) Numbers
■ BC059AX Trailer Kit CTA 016559
■ BC059DX Truck Kit CTA 016577
95MM TRAILER COUPLING
Order Codes & Component Type Approval (CTA) Numbers
■ BC375DX Truck Kit CTA 016580
■ BC375AX Trailer Kit CTA 016542
RIGID DRAWBAR
RATING (Pig or Tag Trailer)
ATM Aggregate Trailer
Mass Max. 24,000kg
SVL Static Vertical Load determined by Formula according to GTM
HINGED DRAWBAR
RATING (Dog Trailer)
D -Value 155kN
Max ATM 45,000kg
OSCILLATION
22.5 degrees in all directions
RIGID DRAWBAR
RATING (Pig or Tag Trailer)
ATM Aggregate Trailer
Mass Max. 7,000kg
SVL Static vertical load
Max 1,500kg
HINGED DRAWBAR
RATING (Dog Trailer)
D -Value 70kN
Max ATM 7,000kg
OSCILLATION
22.5 degrees in all directions
127mm BARTLETT BALL
RATINGS & INFO
Rigid drawbar (pig) trailer
■ Max. ATM 24,000kg
■ Static Vertical Load determined by Formula
SVL Max = (8.8 0.3 X GTM) t 1.3
Hinged drawbar dog trailer
■ Max. ATM 45,000kg
■ D‑Value 155kN
Order Code BC059AX Trailer Kit (Includes Hood Assembly and Bolt Kit)
■ CTA 016559
■ Mass 12kg
Order Code BC059DX Truck Kit (Includes items shown. Also available as spare parts.)
■ CTA 016577
■ Mass 13kg
ASSEMBLY ITEMS
1 BC059-1011 Bolt Kit (Hood) 127mm coupling. Mass 1.7kg
2 BC059-01 (See BC059AX Trailer Kit) Hood Assembly 127mm coupling. Mass 12.4kg
3 BTU-0595-00-K
Safety Spring Kit 127 / 95mm couplings. Mass 0.23kg
4 BC059-06-00-K
Clamping Bolt Kit, 127mm coupling. Mass 0.77kg
5 BC059-07-K
Compression Spring Kit, 127mm coupling. Mass 0.15kg
6 BC059-03-00-K
Cap Kit 127mm coupling. Mass 0.59kg
7 BC059-04-01-K
Main Bolt Std Kit, 127mm coupling. Mass 1.55kg
8 BC059-02 (See BC059DX Kit) Ball for 127mm coupling Mass 7.4kg
9 BC059-08-00-K
Locating Ring Kit, 127mm coupling. Mass 0.5kg
10 BTU-0590-KW
Nut Kit, 127 / 95 mm Main Bolt. Mass 0.47kg
BC059DX TRUCK KIT
BC059AX TRAILER KIT
127mm BARTLETT BALL
RATINGS
Use the formulae below to establish safe loads for your towing scenario
Rigid drawbar (pig) trailers
Calculate SVL for Bartlett 127 SVL contributes
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Towbar and Trailer Lugs shown for illustration purposes only.
95mm BARTLETT BALL
■ Max. ATM 7,000kg
■
1 BC375-1011 Bolt Kit (Hood) 95mm coupling. Mass 0.8kg
2 BC375-01 (See BC375AX Trailer Kit)
Hood Assembly 95mm coupling. Mass 5.75kg
3 BTU-0595-00-K Safety Spring Kit, 95 / 127mm couplings. Mass 0.23kg
4 BC375-06-00-K Clamping Bolt Kit 95mm coupling. Mass 0.48kg
5 BC375-07-K Compression Spring Kit 95mm coupling. Mass 0.08kg
6 BC375-03-00-K Cap Kit 95mm coupling. Mass 0.34kg
7 BC375-04-01-K Main Bolt Std. Kit 95mm coupling. Mass 1.1kg
8 BC375-02 (See BC375DX Truck Kit) Ball 95 mm Coupling (see BC375DX Truck Kit).
9 BTU-0590-KW Nut Kit, 127 / 95mm Main Bolt. Mass 0.47kg
95mm BARTLETT BALL
RATINGS
Use the formulae below to establish safe loads for your towing scenario
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Towbar and Trailer Lugs shown for illustration purposes only.
EQUIPMENT RATINGS CAUTION:
TRAILER COUPLINGS, TOWBARS, SAFETY CHAINS
■ Published Ratings are the maximum theoretical possible ratings.
■ Several Constraints Apply to Ratings
Those responsible for vehicle design and load planning must consider actual safe maximum ratings for the towing equipment and vehicle combination on any given journey.
These include the following variables:
■ Coupling D Value
■ Axle loads
■ Load distribution
■ Regulatory requirements
■ Vehicle capacity limits
■ Operator driver’s license limits
■ Fleet towing policy
■ Towing component specifications
■ Bartlett Sales Advice is limited to the towing equipment being considered for a given towing application.
■ Bartlett Towbars are individually rated for the vehicle to which they are attached, and final ratings are calculated by Bartlett Equipment as a function of these variables.
■ Detailed Planning that considers your specific vehicle combination including coupling static vertical load (SVL), axle loads, payload optimisation and component limitations can be obtained via the services of a suitably qualified automotive engineer or Authorised Vehicle Examiner (AVE) who can examine and certify the installation.
■ Operators are Responsible for correct towing equipment selection and vehicle loading.
The National Heavy Vehicle Regulator NHVR publishes bulletins and guides to assist interested parties plan and apply ratings correctly. www.nhvr.gov.au
PREMIER ‑AUS TRAILER COUPLINGS
PINTLE
Premier 1300A AUS K Pintle Hook Assembly and Bartlett BT1404H Towbar Kit shown

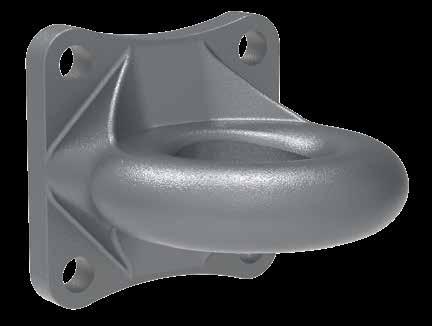

Heavy Duty Pintle Hooks and Drawbar Eyes
Hand picked by Bartlett from America’s leading trailer coupling manufacturer, Premier AUS is your complete go to range of Pintle Hook towing solutions.
Customised and tested by Bartlett, Premier AUS heavy duty pintle hooks, drawbar eyes and accessories are supremely strong, durable, functionally superior, and ready to bolt on to the most common towbar bolt hole patterns found in Australia.
The Premier AUS range is made to outlast the others and is backed by Bartlett for technical advice, spare parts, accessories and warranty.
ABOUT PREMIER ‑AUS
ABOUT PREMIER
COUPLING PEOPLE WHO UNDERSTAND THE TOWING TASK
Premier Manufacturing Co. are renowned in the Nor th and South Amer ican transpor tation industr ies for producing high strength, high qualit y, innovative designs that excel in all conditions.
Coupling people who understand the towing task
Operating for almost 100 years, they provide safe and functional towing solutions to the largest fleets r ight down to owner operators - they are true coupling people and understand the towing task intr insically
Premier Manufacturing Co. are renowned for innovating, high quality equipment that excels in all conditions.
Manufacturing trailer couplings for over 100 years, Premier provide safe, functional towing solutions to the largest fleets right down to owner operators – they are true coupling people and understand the towing task intrinsically.
Bar tlett, Australia’s longest ser ving heavy towing equipment manufacturers have used their own 75 years industr y exper ience and engineer ing skills to prepare the Premier AUS range for Australia’s demanding conditions A logical synergy.
Trusted in Australia since 1946, Bartlett have used their manufacturing experience and engineering skills to prepare the Premier AUS range for Australia’s demanding conditions.
All Premier AUS products are inspected, modified if required and packed at Bar tlett’s Hallam facilit y
Ready for Australia
Ready for Australia
The following Bartlett enhancements have been made for Australia:
A number of Bar tlett enhancements were required to prepare the Premier AUS range for Australia:
• Metric Conversion: Sales literature, instructions, ratings, rating plates, mounting hardware, wear gauges are all converted to metric values by Bartlett.
UNIQUE LATCH DESIGNS
Premier trailer coupling latch systems are designed for easy operation and incorporate polymer pivot points for lasting performance.
trailer coupling latch systems are designed for easy operation and incor porate polymer pivot points for lasting perfor mance
• Complete Towing Systems: Premier couplings paired with Bartlett towing equipment provide maximum efficiency, safety and performance.
• Metric Conversion: Re-modelling of key components, conversion of measurement values, wear gauges adjusted, translation and re-arrangement of product literature and illustrations.
• ADR 62/02 Testing: 2 million cycle fatigue test in accordance with ADR 62/02.
• Product Selection: Couplings with common bolting patterns selected for straight forward integration into fleets.

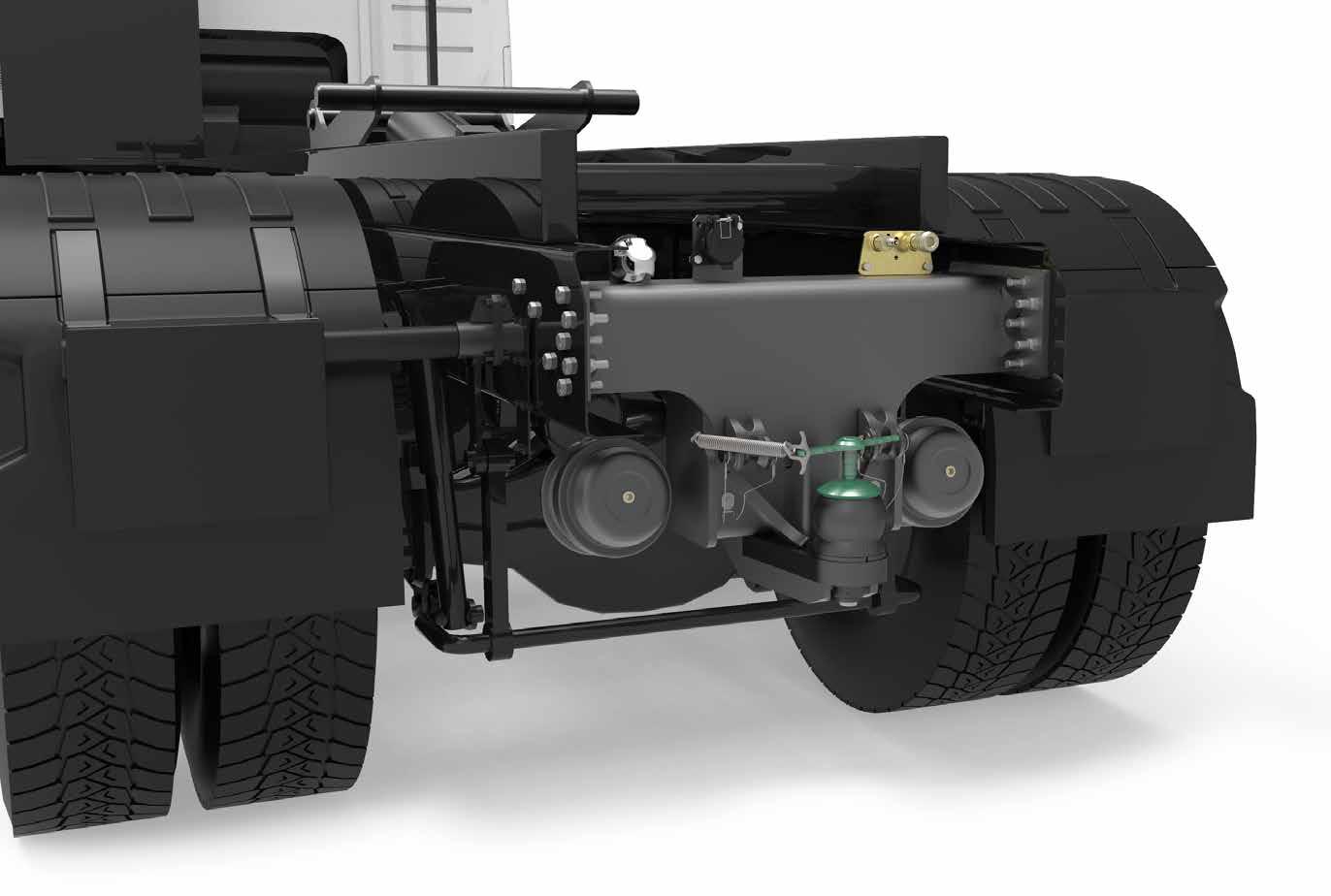

1300A-AUS SLACK REDUCING SYSTEM
The air powered Slack Reducing system provided with the 100-3A-AUS heavy dut y pintle hook is designed to remove free-play, improve driving perfor mance and reduce coupling wear
The air powered Slack Reducing system provided with the 1300A AUS heavy duty pintle hook is designed to remove free play, improve towing performance and reduce coupling wear.
• Complete System Integration: Premier couplings paired with Bar tlett towing equipment provide maximum efficiency, safet y and perfor mance
• Comprehensive Product Suppor t: Complete sets of sales literature, installation and operational instr uctions, coupling wear gauges, spar are available fr
• Comprehensive Product Support: Sales literature, installation and operational instructions, coupling wear gauges, spare parts, sales, service and warranty support are available from Bartlett.
• ADR 62/02 Testing: Dynamic fatigue testing, each product was put through a 2 million cycle test at a specified force to simulate operating life. Test results are registered with the Australian Gover nment to satisfy National Road Vehicle Standards
• Product Selection: Replacement of other brands is straight forward as bolting patter ns common to Australia have been selected.

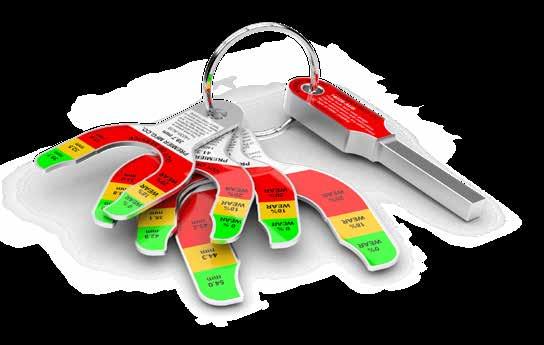

COUPLING WEAR GAUGES
Wear limits of couplings and drawbar eyes. Easy to use for fleet maintenance and safety.

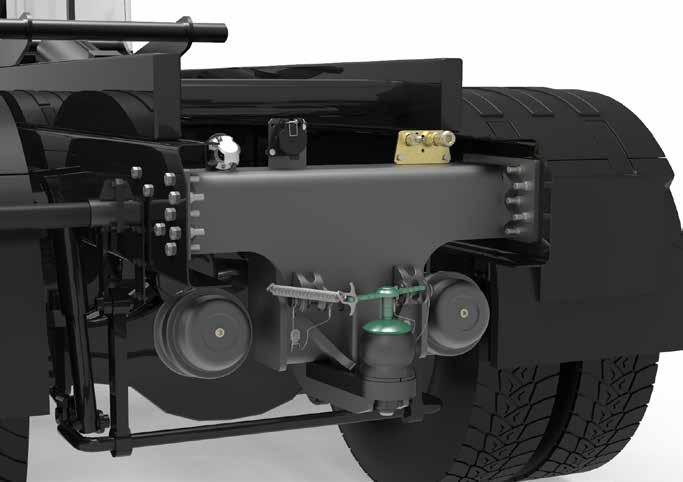

Drawbar eye slack reduced Shoe in clamped position
10 0-3A-AUS Slack Reducing System
Unique L atch Designs
Premier
Coupling
safet y personnel.
All Premier AUS products are customised for Australia and packed at Bartlett’s Hallam manufacturing facility.
& INFO
■ Max. ATM 45 Tonnes
■ Max. SVL 8 Tonnes
■ D Value 165kN ■ CTA 061095 ■ Mass 25kg
1300A AUS Pintle Hook
The Heavy Duty Premier 1300A AUS Pintle Hook Coupling has the same 6 bolt mounting pattern common to other brands, this makes upgrading to Premier a straightforward task.
Features:
■ Common six bolt hole pattern
■ Heavy duty strength for towing Rigid or Hinged drawbar trailers
■ Unsurpassed latch strength
■ May be installed and operated without service air chamber
■ Tested to ADR 62 02
■ Compatible with Bartlett BT1404H, BT1700, BT1320H* towbars
*BT1320H does not support slack reducing air chamber.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Trailer couplings shown do not include accessories such as Mounting Bolts, spare parts or wear gauges, these items are shown for illustration purposes only.

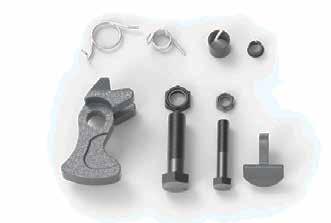

1300A‑AUS
PREMIER PINTLE HOOK KIT 6 BOLT WITH SLACK REDUCING AIR CHAMBER
TOWBAR HOLE PATTERN
Matches other common 6 bolt pintle hook bolt patterns.
CONSUMER NOTICE
I’m pretty sure that the printed instructions are sent out sized A5 The dimension text below is all converted to curves so not editable, but I think it will be too small to read if we leave it this size.
I’m pretty sure that the printed instructions are sent out sized A5 The dimension text below is all converted to curves so not editable, but I think it will be too small to read if we leave it this size.
2B should alter if required to ensure all dimension text in the document is matching size.
2B should alter if required to ensure all dimension text in the document is matching size.
WEAR
GAUGES
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Trailer couplings shown do not include accessories such as Mounting Bolts, spare parts or wear gauges, these items are shown for illustration purposes only.

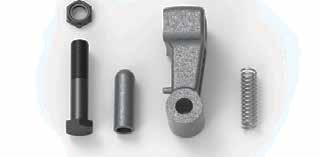

The Premier Saf Tite ® 100 3 AUS K has the same mounting pattern as other common 6 bolt pintle hooks.
Features:
■ Ideal replacement coupling for other brands with same bolt hole pattern
■ Heavy duty strength
■ Unsurpassed latch strength
■ Can be operated without slack reducing service air chamber
■ Tested to ADR 62 02
PRODUCT SUPERSEDEDBY 1300A-AUS
■ Compatible with Bartlett BT1404H, BT1700, BT1320H* towbars
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Trailer couplings shown do not include accessories such as Mounting Bolts, spare parts or wear gauges, these items are shown for illustration purposes only.
RATINGS & INFO
■ Max. ATM 15 Tonnes
■ Max. SVL 2 Tonnes
■ D Value 75kN
■ CTA 060673
■ Mass 6.5kg
CODE 1 160HD-AUS-K Pintle Hook Kit 4 Bolt
160HD AUS Pintle Hook
The Premier 160HD AUS is a compact low profile pintle hook coupling that is ideal for light to medium towing applications.
Features:
Unique side swing latch for strength, enables simple operation on vehicles with tight clearances to bodywork.
Compatible with Bartlett BT1200H, BT1300H, BT1320H, BT620 & BT750 towbars
Tested to ADR 62/02
Couple with Premier 304 AUS K, 300‑AUS K trailer drawbar eyes

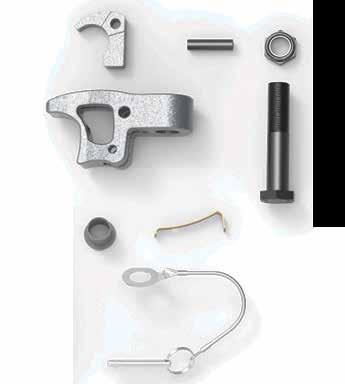

PARTS
BBF912612-04 Bolt Kit (Long)
Suits Bartlett BT1300H series towbars
BBF012612-04 Bolt Kit (Long)
Suits Bartlett BT1200 series towbars
BBF916212-04 Bolt Kit (Short)
Suits Autowbar mounts
BBF012214 Bolt Kit (Short)
Suits Bartlett Autowbar mounts
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Trailer couplings shown do not include accessories such as Mounting Bolts, spare parts or wear gauges, these items are shown for illustration purposes only.
■ Max. ATM 9 Tonnes
■ Max. SVL 1 Tonne
■ D Value 58.5kN
■ CTA 060672
50mm Ball
■ Max. ATM 3.5 Tonnes
■ Max. SVL 0.35 Tonnes
■ D Value 20kN NHVR VSG16 limits apply
■ CTA 060674
■ Mass 6.7kg
150 AUS Duplex Pintle Hook
The Premier 150 AUS is a compact combination coupling that is ideal for light to medium towing applications using drawbar eyes or 50 mm ball trailer couplings.
Features:
■ Unique side swing latch for strength enables simple operation on vehicles with tight clearances to bodywork.
BBF012612-04 Bolt Kit (Long) Suits Bartlett 1200H and BT1300H series towbars
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR 62) and other Australian Standards. Australian compliance may not be transferable to other international jurisdictions. Exporters should carefully check compliance applicability prior to specifying or exporting these products.
RATINGS: Ratings stated are maximum potential ratings and may be limited by many factors. Refer to EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
DRAWINGS: Do Not Scale, all dimensions in mm and indicative only, drawing specifications are subject to change without notice.
INCLUSIONS: Trailer couplings shown do not include accessories such as Mounting Bolts, spare parts or wear gauges, these items are shown for illustration purposes only.
300 ‑AUS DRAWBAR EYE
300 ‑AUS Drawbar Eye Bolt‑ on
AUXILIARY PRODUCTS
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62 (ADR
RATINGS CAUTION at the start of each section in this catalogue for further details.
The Premier 300 AUS drawbar eye for heavy duty towing applications.
■ Induction surface and through hardened for extended life.
■ Use for rigid or hinged drawbar trailers.
■ Common bolt pattern make it easy to replace other brands.
■ Induction surface and through hardened for extended life.
■ Use for rigid or hinged drawbar trailers.
■ Increased mass and larger diameter mounting bolts for extra strength.
COMPLIANCE:
RATINGS:

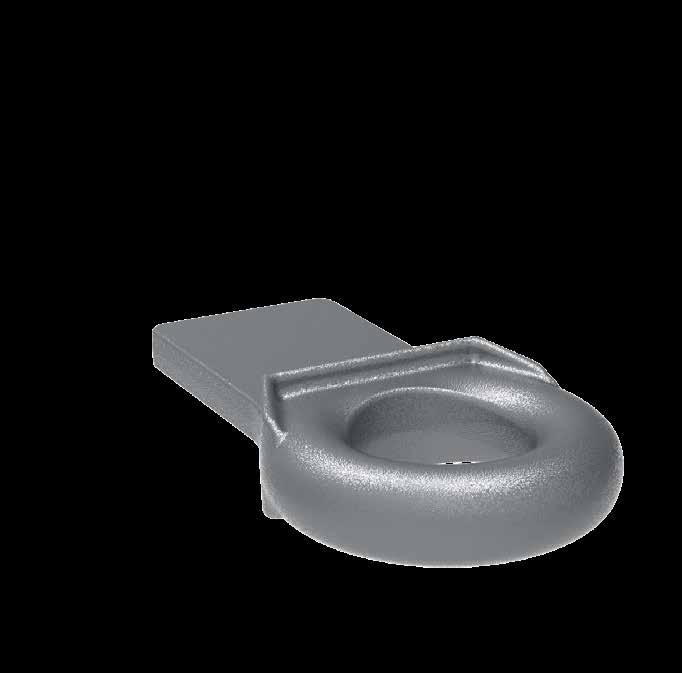

304 ‑AUS ‑K DRAWBAR EYE
AUS Drawbar Eye
CONSUMER NOTICE
COMPLIANCE: Products are designed, tested, and rated to meet Australian Design Rule 62
EQUIPMENT RATINGS CAUTION at the start of each section in this catalogue for further details.
The Premier 304 AUS K drawbar eye – weld on for light/medium towing applications.
■ Induction surface and through hardened for extended life.
■ Use for rigid or hinged drawbar trailers.
■ Weld on by suitably qualified personnel.
EQUIPMENT RATINGS CAUTION:
TRAILER COUPLINGS, TOWBARS, SAFETY CHAINS
■ Published Ratings are the maximum theoretical possible ratings.
■ Several Constraints Apply to Ratings
Those responsible for vehicle design and load planning must consider actual safe maximum ratings for the towing equipment and vehicle combination on any given journey. These include the following variables:
■ Coupling D Value
■ Axle loads
■ Load distribution
■ Regulatory requirements
■ Vehicle capacity limits
■ Operator driver’s license limits
■ Fleet towing policy
■ Towing component specifications
■ Bartlett Sales Advice is limited to the towing equipment being considered for a given towing application.
■ Bartlett Towbars are individually rated for the vehicle to which they are attached, and final ratings are calculated by Bartlett Equipment as a function of these variables.
■ Detailed Planning that considers your specific vehicle combination including coupling static vertical load (SVL), axle loads, payload optimisation and component limitations can be obtained via the services of a suitably qualified automotive engineer or Authorised Vehicle Examiner (AVE) who can examine and certify the installation.
■ Operators are Responsible for correct towing equipment selection and vehicle loading.
The National Heavy Vehicle Regulator NHVR publishes bulletins and guides to assist interested parties plan and apply ratings correctly. www.nhvr.gov.au
BARE KNUCKLE ® SAFETY CHAIN ATTACHMENTS
TRAILER AND TRUCK SAFETY CHAIN
ATTACHMENTS
Stay connected maintain control
Rated protection against accidental trailer separation
A runaway trailer of any type has the potential to cause death, severe injuries or catastrophic property damage.
Bare Knuckle ® is the tough Australian solution that offers vital protection for fleet operators.
■ Easy to maintain and manage in the smallest to the largest fleets.
■ Tested and rated to meet Australian Design Rule 62/02 test forces.
■ Straightforward installation on new vehicles and retrofit to in‑service vehicles ~ trailers and trucks.
■ Simple to use and on constant standby when towing the trailer.
■ Immediately retains the trailer in the event of accidental coupling separation providing the best opportunity to perform a controlled, emergency stop.
■ A range of sizes to cover virtually all trailers from 2,000 up to 50,000kg ATM.
Specify Bartlett Bare Knuckle ® to protect your truck and trailer fleet – Pig, Tag or Dog trailers and all trucks.
BARE KNUCKLE ®
DESIGNED FOR THE TASK
Bare Knuckle ® safety chain attachments are designed to closely match the high tensile chain specified in Australian Design Rule 62/02. Each model has been exhaustively tested in various mounting orientations* to ensure versatility, maximum strength and optimum protection.
EASY TO INSTALL AND USE
Towbar attachment pins are releasable to allow direct, easy insertion and removal of chains. Trailer attachment pins are supplied with pinch clips to permanently retain the chains with the trailer. No need for extra chain connecting links.
J groove weld preparation for optimal weld quality and strength
Heavy duty pinch clip for permanently fixing pins
Chain couples directly to the attachment – no extra chain connections required
* Refer to installation instructions ratings may be limited in some mounting orientations.
All drawings not to scale.
■ 10mm ADR62 Short link chain
■ 13mm ADR62 Short link chain
■ AS4177‑16 8mm chain
■ AS4177‑25 10mm chain
■ AS4177‑35 13mm chain
■ 2.0t, 13mm Grade S
BK10 SAFETY CHAIN SYSTEM
SPARE PARTS
BK10-110-K
Pin & Wire Kit, for Towbar BK10 Safety Chain. Mass 0.13kg
BTU-0637 BK Cable “P” Clip Assembly (pair). Mass 0.05kg
BK10-210-K Pin Kit, for Trailer BK10 Safety Chain System. Mass 0.1kg
BK10-L22-K Safety Chain Kit, 10mm, 22 Links. Mass 3kg
BK10-L28-K Safety Chain Kit, 10mm, 28 Links. Mass 3.8kg
Dimensions
BK10-L22-K
Complete Kit BK10 22 Link Chains. Mass 9.4kg
BK10-L28-K
Complete Kit BK10 28 Link Chains. Mass 11.3kg
BK13-110-K
Pin and Wire Kit, for BK13 Safety Chain System. Mass 0.18kg
BTU-0637 BK Cable “P” Clip Assembly (pair). Mass 0.05kg
BK13-210-K
Pin Kit, for Trailer BK13 Safety Chain System. Mass 0.14kg
Dimensions
BK13-L14-K
Safety Chain Kit, 13mm, 14 Links. Mass 4.15kg
BK13-L20-K
Safety Chain Kit, 13mm, 20 Links. Mass 5.9kg
COMPLETE KITS OPTIONS
BK13 -TDL14
Complete Kit BK13 14 Link Chains. Mass 12.6kg
BK13 -TDL20
Complete Kit BK13 20 Link Chains. Mass 14.4kg
SAFETY CHAINS
SPARE PARTS
BK16-110-K
Pin & Wire Kit, for Towbar BK16 System. Mass 0.3kg
BTU-0637
BK Cable “P” Clip Assembly (pair) Mass 0.05kg
BK16-210-K Pin Kit, for Trailer BK16 System. Mass 0.25kg
CHAIN SET OPTIONS
BK16-L14-K
Safety Chain Kit, 16mm, 14 Links. Mass 8kg
BK16 - L16-K
Safety Chain Kit, 16mm, 16 Links. Mass 9.1kg
Dimensions
BK16 - L14
BK16-L16
COMPLETE KITS OPTIONS
BK16 -TDL14
Complete Kit BK16 14 Link Chains. Mass 26.1kg
BK16 -TDL16
Complete Kit BK16 16 Link Chains. Mass 28.3kg
Attachment
SPARE PARTS
BK20-110-K
Pin & Wire Kit, for Towbar BK20 System. Mass 0.56kg
BTU-0637
BK Cable “P” Clip Assembly (pair) Mass 0.05kg
BK20-210-K Pin Kit, for Trailer BK20 System. Mass 0.48kg
CHAIN SET OPTIONS
BK20 - L11-K
Safety Chain Kit, 20mm, 11 Links. Mass 11.6kg
BK20 - L11
BK20 - L13-K
Safety Chain Kit, 20mm, 13 Links. Mass 13.7kg
COMPLETE KITS OPTIONS
BK20 -TDL11
Complete Kit BK20 11 Link Chains. Mass 36.9kg
BK20 -TDL13
Complete Kit BK20 13 Link Chains. Mass 39kg
Attachment
To complement an excellent range of heavy duty towing equipment, Bartlett also offers an all‑encompassing range of finely tuned services to help fleets improve operational safety and efficiency.
PEOPLE
■ Family business with over seventy years and three generations of experience connecting trailers and trucks.
■ Design team of experienced engineers, draftsmen and product designers able to design custom solutions for one off builds or entire fleets such as military, road freight companies, municipalities or utilities.
SERVICES
■ Custom fleet solutions – Combination assessment, special purpose towing system designs, auto electrical and auto pneumatic system modifications.
■ Approved engineering reports for road authority registration requirements.
■ Tradespeople with the capability to enhance the build quality of your vehicle.
■ Sales and support team process your raw data, generate the sale and supporting assets such as rating plates and vehicle towing capability reports to help you run your fleet safely and efficiently.
■ Connected well to vehicle manufacturers, and OEMs. Bartlett strive to answer the questions and bring together fleet projects.
■ Representation on industry committees and government working groups helps Bartlett understand the regulatory landscape and to connect with the right people in these organisations.
