DWD IDS 60804 E-PORTFOLIO (TAN KA WEY)

ASSIGNMENT 03 WORKING DRAWINGS + SYSTEM INTEGRATION

With reference to our designs from IADIV, we were required to produce a number of technical drawings. Our design was amended and improved along the way to fulfil the necessary building requirements.

DRAWING NO.

PHASE 1

SHEET NAME

TKW_DWD_SOA_01 SCHEDULE OF ACCOMODATION (SOA)

DRAWING LIST

REVISION TRACKING

CURRENT REVISION DATE DESCRIPTION ISSUED

01 24 Nov 2022 ISSUE FOR CONSTRUCTION NO

TKW_DWD_SOP_02 SETTING OUT PLAN 01 24 Nov 2022 ISSUE FOR CONSTRUCTION NO TKW_DWD_FLP_03 FURNITURE LAYOUT PLAN 01 24 Nov 2022 ISSUE FOR CONSTRUCTION NO TKW_DWD_RCP_04 REFLECTED CEILING PLAN

01 24 Nov 2022 ISSUE FOR CONSTRUCTION NO TKW_DWD_LLP_05 LIGHTING & LOOPING PLAN 01 24 Nov 2022 ISSUE FOR CONSTRUCTION NO TKW_DWD_FFP_06 FLOOR FINISHES PLAN 01 24 Nov 2022 ISSUE FOR CONSTRUCTION NO

PHASE 2

TKW_DWD_SC_07 SECTION A-A

01 1 Dec 2022 ISSUE FOR CONSTRUCTION NO TKW_DWD_BSP_08 FABRIC MATTERS LAYOUT PLAN

01 1 Dec 2022 ISSUE FOR CONSTRUCTION NO TKW_DWD_BSP_09 FABRIC MATTERS SECTION A-A 01 1 Dec 2022 ISSUE FOR CONSTRUCTION NO TKW_DWD_BSP_10 FABRIC MATTERS BLOW-UP DETAIL 01 1 Dec 2022 ISSUE FOR CONSTRUCTION NO TKW_DWD_BQ_11 BILL OF QUANTITIES (BQ) 01 1 Dec 2022 ISSUE FOR CONSTRUCTION NO

PHASE 3

01 1 Dec 2022 ISSUE FOR CONSTRUCTION NO TKW_DWD_FFE_13 SCHEDULE OF ELECTRICAL, LIGHTINGS AND EQUIPMENT (FF&E) 01 1 Dec 2022 ISSUE FOR CONSTRUCTION NO

TKW_DWD_SOF_12 SCHEDULE OF FINISHES (SOF)

SCHEDULE OFACCOMODATION

2ND FLOOR

AREA NO. OF PERSON NO. OF ROOMS AREAFOR 1 ROOM (sqm) TOTALAREA(sqm)

FABRIC SHADOWPLAY 5 1 41.5 41.5

DONATION CHUTES 4 1 32.6 32.6

FABRIC MATTERS' OBJECT 4 1 29.7 29.7

FABRIC DISASSEMBLY 3 1 10.1 10.1

SEWING STATION 4 1 29.6 29.6

LOUNGEAREA 5 1 35.9 35.9

LOUNGE PLATFORM 3 1 24.7 24.7

THREADING PLATFORM 1 1 5.9 5.9

JUICE BAR LOUNGE 8 1 26.4 26.4

THREADING DISPLAY 1 1 5.9 5.9

TOILET 1 4 3.7 14.8

STORAGE 1 5 1.8 9

EXIT 1 2 4.8 9.6

LIFTLOBBY 3 1 19.5 19.5

CODE DESCRIPTION BRICKWALLWITHCEMENTFINISH

BUILT-INFURNITURELEGEND

CODE DESCRIPTION

BF1 BF2 BF3 BF4

BF5 BF6 BF7

LF3 LF3 LF2 LF2 F3 F3 F3 BF5 BF6 BF6 BF6 BF7 BF7 BF7 BF8 BF9 BF10

CP1 CP1 CP1 LIFTLOBBY FABRICSHADOWPLAY

CURVYSHAPERECYCLEDPLASTICSEATING WITHPINKPLASTICDYE

PLASTICROUNDHANGINGSEATING

CURVYSHAPEOAKWOODHIGHTABLEWITH PINKPAINTFINISH

2000MMØHANGINGTEMPEREDGLASS PRIVATEWORKINGPOD

CURVYSHAPEPINKMARBLETABLEWITH RESINFINISH

6000MM(W)X1000MM(L)OAKWOODMEETING TABLE

2900MMØOAKWOODWITHTEMPEREDGLASS ROTATINGCO-WORKINGPODS

CEILINGFIXTURESLEGEND

DONATIONCHUTES 'FABRICMATTERS'OBJECT FABRICDISASSEMBLY SEWINGSTATION

LOUNGEPLATFORM LOUNGEAREA

WALLFINISHESLEGEND CF2 WF1 WF1 BF1BF1 BF1BF1BF3BF3BF3 BF3 BF2

CODE DESCRIPTION

JUICEBARLOUNGE

BF4

WF2 WF2 WF2 LF2 LF1LF3LF1LF3 LF3LF3 LF4 F3 F3 F1 F1 F1 F1

6300MM(W)X7000MM(L)STEEL CEILINGTRUSS

12000MM(W)X7800MM(L)STEEL CEILINGTRUSS

LOOSEFURNITURELEGEND

RECYCLEDWOODENCHAIRWITHPINKVELVET FABRICUPHOLSTERY CURVYSHAPERECYCLEDOAKWOODTABLE WITHPINKPAINTFINISH RECYCLEDSTEELSTOOLWITHPINKVELVET FABRICUPHOLSTERY STEELHIGHSTOOLWITHREDVELVET FABRICUPHOLSTERY

BF8 BF9 BF10 BF10 BF10 BF10 LIFTLOBBY LIFTLOBBY STAIRLOUNGEAREA PRODUCTIONLINEROOM CO-WORKINGSPACE CO-WORKINGSPACE RECYCLEDFABRICHAMMOCKS CO-WORKINGSTATION NOTE: THISDRAWINGISCOPYRIGHTDRAWING.THEAUTHORIZED USERISTOCHECKALLDIMENSIONSONTHESITE.ONLY FIGUREDDIMENSIONTOBEWORKEDON.DISCREPANCIES MUSTBEREPORTEDIMMEDIATELYTOPARTNERSHIPBEFORE PROCESSING. ©COPYRIGHT NO.DESCRIPTION DATE 0 CLIENT: ARCHITECT: INTERIORDESIGNCONSULTANT:QUANTITYSURVEYOR: PROJECTNAME: DRAWINGTITLE: CHECKEDBY: DRAWNBY: DATE:24NOVEMBER2022SCALE:1:150 DRAWINGNO. REVNO. TKW_DWD_SC_07 CONSTRUCTIONDRAWING OFFABRICMATTERSINPAM CENTRE,BANGSAR, MALAYSIA SECTIONA-A TANKAWEY 23-A,JLNKIARA,MONTKIARA, 52890KL G-02-12,JALANMAAROF, BANGSAR,52349KL 123,JALANBATAI,DAMANSARA HEIGHTS,46589KL 120,JALANPJS7/10,BANDAR SUNWAY,44657SELANGOR 01 MSSINAI BLISSDESIGNS ONSTUDIO NOONARCHITECTS GAINTERIORSSDN.BHD.

SCHEDULE OF FINISHES

CODE IMAGE AREA(SQM) LOCATION DESCRIPTION SUPPLIER

FLOOR FINISHES

F1

1.80 1.80 1.60 1.60 2.51 19.49 41.48 32.59 10.11 26.93 24.72 5.93 1.80 4.80

- STORAGE - EXIT - LIFTLOBBY - FABRIC SHADOWPLAYROOM - DONATION CHUTES - SEWING STATION - FABRIC DISASSEMBLY - LOUNGE PLATFORM -THREADING DISPLAY

250MMTHK EXPOSED CONCRETE FLOOR

Aathaworld SDN. BHD. Level 18.02, KPMGTower, 8, FirstAve, Bandar Utama, 47800 Petaling Jaya, Selangor

F2 7.10 3.70 1.80 -TOILET 500MM (W) X 500MM (L) PORCELAIN BATHROOMTILES

FLOOR DEPOT MALAYSIA 92, Jalan Puteri 5/5, Bandar Puteri, 47100 Puchong, Selangor

TERRAZZO MALAYSIA

F3 29.71 35.88 26.41

- 'FABRIC MATTERS' OBJECT - LOUNGEAREA - JUICE BAR LOUNGE 600MM (W) X 600MM (L) RECYCLED PINKTERRAZZO FLOORTILES

2nd Floor, PT7869, Jln. Pekan Subang, U 9, 40150 ShahAlam, Selangor CODE IMAGE AREA(SQM) LOCATION DESCRIPTION SUPPLIER

WALLFINISHES

WF1

1.80 1.80 1.60 1.60 2.51 19.49 41.48 32.59 10.11 26.93 24.72 5.93 1.80 4.80

- STORAGE - EXIT - LIFTLOBBY - FABRIC SHADOWPLAYROOM - DONATION CHUTES - SEWING STATION - FABRIC DISASSEMBLY - LOUNGE PLATFORM -THREADING DISPLAY

BRICK WALLWITH CEMENTFINISH

Aathaworld SDN. BHD.

Level 18.02, KPMGTower, 8, FirstAve, Bandar Utama, 47800 Petaling Jaya, Selangor

Vasari Malaysia

WF2 32.59 35.88 26.41

- DONATION CHUTES - LOUNGEAREA - JUICE BAR LOUNGE

A-07, EmeraldAvenue Dataran Emerald, Jalan PS11, Prima Selayang, 68100 Batu Caves, Selangor CODE

CP1

PLASTER WALLWITH JOTUN PINK EMULSION PAINTFINISH

Jotun Paints Malaysia SDN. BHD. Lot 7, Persiaran Perusahaan, Seksyen 23, 43700 ShahAlam, Selangor

SCHEDULE OF FINISHES

CODE IMAGE SPECIFICATION LOCATION PRICE UNIT (RM) QTY. SUPPLIER FABRIC SHADOWPLAYROOM

L4

IKEA3000K WARM LIGHTSPOTLIGHTS

SECOND FLOOR 99.00 2

IKEADamansara 2, Jalan PJU 7/2, Mutiara Damansara, 47800 Petaling Jaya, Selangor

L7

PANASONIC 2-GANG ONE-WAYSWITCH, WKTC0009-2WH SECOND FLOOR 20 1

Panasonic Malaysia Lot 10, Jalan 13/2, Seksyen 13, 46200 Petaling Jaya, Selangor

L8

SCHNEIDER VIVACE 13ASWITCH SOCKET SECOND FLOOR 6.50 3

Schneider Vivace shorturl.at/pCJP7

DONATION CHUTES, 'FABRIC MATTERS' OBJECT, FABRIC DISASSEMBLY, SEWING STATION

L1

LEDUS LED SURFACE DOWNLIGHT(ROUND) 3000K WARM WHITE SECOND FLOOR 8.59 6

LEDUS shorturl.at/oqQY6

L5

SEVILLE 6000K DAYLIGHTWHITE LED STRIPLIGHT SECOND FLOOR 9.99 4

SEVILLE shorturl.at/csTV1

L8

SCHNEIDER VIVACE 13ASWITCH SOCKET SECOND FLOOR 6.50 9

Schneider Vivace shorturl.at/pCJP7

L9

1000MM (W) X 1000MM (L) DAIKIN R32 CEILING CASSETTEAIR-CON SECOND FLOOR 3209.00 2

Daikin Malaysia SDN. BHD. D.E, Lot 60334, PERSIARAN BUKIT RAHMAN PUTRA, 3,TAMAN PERINDUSTRIAN, BUKITRAHMAN PUTRA, 47000 SUNGAI BULOH, SELANGOR

L1

LEDUS LED SURFACE DOWNLIGHT(ROUND) 3000K WARM WHITE SECOND FLOOR 8.59 9

LEDUS shorturl.at/oqQY6

L6

VAKKER BRASSARCHITECTURAL6000K DAYLIGHTSPHERE PENDANTLIGHT

SECOND FLOOR 500.00 26

Vakker Light shorturl.at/alyJ2

LOUNGEAREA, LOUNGE PLATFORM, THREADING DISPLAY, JUICE BAR LOUNGE

L7

PANASONIC 2-GANG ONE-WAYSWITCH, WKTC0009-2WH SECOND FLOOR 20 9

Panasonic Malaysia

Lot 10, Jalan 13/2, Seksyen 13, 46200 Petaling Jaya, Selangor

L8

SCHNEIDER VIVACE 13ASWITCH SOCKET SECOND FLOOR 6.50 6

Schneider Vivace shorturl.at/pCJP7

Daikin Malaysia SDN. BHD.

L9

1000MM (W) X 1000MM (L) DAIKIN R32 CEILING CASSETTEAIR-CON SECOND FLOOR 3209.00 6

D.E, Lot 60334, PERSIARAN BUKIT RAHMAN PUTRA, 3,TAMAN PERINDUSTRIAN, BUKITRAHMAN PUTRA, 47000 SUNGAI BULOH, SELANGOR

Panasonic Malaysia

L10

PANASONIC 2-GANGTWO-WAYSWITCH, WKTC0011-2WH SECOND FLOOR 20.00 4

LIFT LOBBY, STORAGE, TOILET, EXIT

L1

LEDUS LED SURFACE DOWNLIGHT(ROUND) 3000K WARM WHITE SECOND FLOOR 8.59 9

Lot 10, Jalan 13/2, Seksyen 13, 46200 Petaling Jaya, Selangor

LEDUS shorturl.at/oqQY6

L2

LEDUS LED SURFACE DOWNLIGHT(ROUND) 4000K WARM WHITE SECOND FLOOR 8.59 4

LEDUS shorturl.at/oqQY6

L3

LEDUS LED SURFACE DOWNLIGHT(ROUND) 6000K WARM WHITE SECOND FLOOR 8.59 10

LEDUS shorturl.at/oqQY6

L7

PANASONIC 2-GANG ONE-WAYSWITCH, WKTC0009-2WH SECOND FLOOR 20 11

Panasonic Malaysia

Lot 10, Jalan 13/2, Seksyen 13, 46200 Petaling Jaya, Selangor

L9

1000MM (W) X 1000MM (L) DAIKIN R32 CEILING CASSETTEAIR-CON SECOND FLOOR 3209.00 2

Daikin Malaysia SDN. BHD. D.E, Lot 60334, PERSIARAN BUKIT RAHMAN PUTRA, 3,TAMAN PERINDUSTRIAN, BUKITRAHMAN PUTRA, 47000 SUNGAI BULOH, SELANGOR

Panasonic Malaysia

L10

PANASONIC 2-GANGTWO-WAYSWITCH, WKTC0011-2WH SECOND FLOOR 20.00 3

Lot 10, Jalan 13/2, Seksyen 13, 46200 Petaling Jaya, Selangor

ASSIGNMENT 03 REFLECTION

Through this assignment, I managed to learn more about the different technical aspects of technical drawings. For me, the most challenging part is the section of the building because of how detailed and intricate the lines are.

Overall, I very much enjoyed this assignment as it gave me the opportunity to learn new things that will definitely help me in the future.

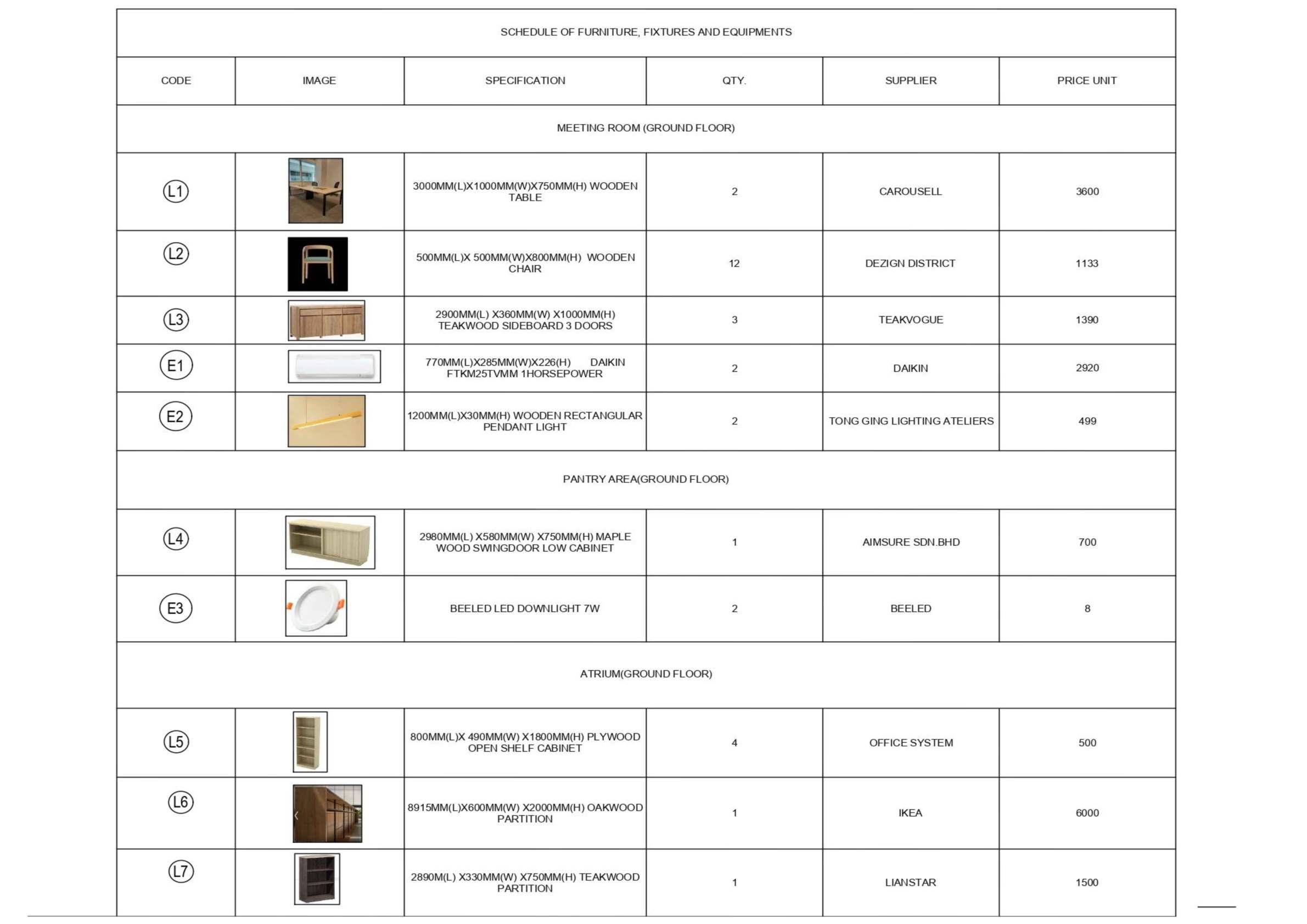

CODE NO. 2

3000MM(L) 1000MM(W) 750MM(H) WOODEN TABLE W STEEL LEG

500MM(L) 500MM(W) x 800MM(H) WOODEN ARMCHAIR 12

2900MM(L) x 360MM(W) x1000MM(H) TEAK WOOD SIDEBOARD 3 DOORS 3 2980MM(L) 580MM(W) x 750MM(H) MAPLE SWINGDOOR LOW CABINET 1

800MM(L) 490MM(W) x 1800MM(H) PLYWOOD OPEN SHELF CABINET 4 8915 MM(L) x600 MM(W) x 2000 MM(H) OAK WOOD PARTITION 30

330MM(L) 2890MM(W) x 750MM(H) TEAK WOOD PARTITION 1 500MM D/A X 560 MM (H) PARTICLE BOARD WITH 2 2120 MM(L) 910 MM(W) 780MM(H) 3 SEATER SOFA 2 1560MM(L) x910MM(W) x 780MM(H) 2 SEATER SOFA 1

3240MM(L) X 690MM(W) X800MM(H) SOLID WOOD SOFA 1 730MM(L) X 650MM(W) X 750MM(H) ARM CHAIR 4 700MM D/A X 2OMMTHK STEEL ROUND TABLE WITH 670MM(W)X 730MM(H) ALUMUNIUM LEG 1 2400MM(L) X 500MM(W) X 1000MM(H) WOODEN LONG TABLE 1 1844MM(L) X356 MM(W) X 2000MM (H) IRON SHELFING 6 1840MM (L) X 400MM (W) X1050MM(H) MELAMINE FACED CHIPBOARD RECEPTION 6

NOTE:

All intellectual property rights of whatever nature, ideas, design arrangement and plans indicatedorrepresentedonthisdrawingareownedbyandarethepropertyof GWDesign and must be return upon request. No disclosure of this drawing may be made to any person,firmorcompanywithouttheexpressedpermissioninwritingtoGWDesign.

Donotscalethisdrawingsforconstructionpurposes.Anydiscrepanciesfound,theyareto beclarifywithGWDesign.

DESCRIPTION DATE

Tel:012-2334455

Email:LNP.designgue@gmail.com

8815MM

VOID

1055MM (L) X 500MM (W) X 50MM THK METAL PLATFORM

1055MM (L) X 20MM ø IRON ROD

25MM FLAT HEAD SCREW

8815MM (L) X 600MM (W) X 50MM THK OAK WOOD PANEL

LNPDESIGN SDN.BHD. 12,JalanTAYLORS,MutiaraDamansara,46150 Selangor Tel:012-2334455

Email:LNP.designgue@gmail.com

Email:RUN.design@gmail.com

8JalanBUMI,1234 Selangor Tel:011-3344085

Email:TFP.BUMI@gmail.com

SCHEDULE OF FINISHES

ASSIGNMENT 01 DRAWING CONVENTION: WORK SPACE

Assignment 1 required us to choose a space where we most commonly use as our work space, with windows and doors. The space I chose was my bedroom. We had to gather the dimensions of our chosen space and begin the technical drawings.

FLOORPLAN

VERONACORPORATIONIAOARCHITECTS SAVVYINTERIORSSDN.BHD. WFH_DWD_YY_BL_PL_04 WFH_DWD_HY_DD_PL_02

APEXDESIGNS G-02-12,JALANMAAROF, BANGSAR,52349KL 123,JALANBATAI,DAMANSARA HEIGHTS,46589KL 120,JALANPJS7/10,BANDAR SUNWAY,44657SELANGOR BEDROOM 20,300m² D1

WINDOW

EXTERIOR

APEXDESIGNS

VERONACORPORATION

IAOARCHITECTS SAVVYINTERIORSSDN.BHD.

TANKAWEY 23-A,JLNKIARA,MONTKIARA, 52890KL

G-02-12,JALANMAAROF, BANGSAR,52349KL 123,JALANBATAI,DAMANSARA HEIGHTS,46589KL 120,JALANPJS7/10,BANDAR SUNWAY,44657SELANGOR

BUILT-INCABINET

100MM(H)X2230(L)OAKWOODTOPPANEL

1955MM(H)X1070MM(L) MELAMINEDOORPANEL WITHOAKWOOD LAMINATION

90MM(W)X2230MM(L) ROLLERDOORTRACK

300MM(W)X1070MM(L) GLASSPANEL

60MM(H)X1070MM(L) TIMBERCABINETSKIRTING WITHWHITEPAINFINISH

VERONACORPORATION

23-A,JLNKIARA,MONTKIARA, 52890KL

IAOARCHITECTS SAVVYINTERIORSSDN.BHD.APEXDESIGNS

G-02-12,JALANMAAROF, BANGSAR,52349KL 123,JALANBATAI,DAMANSARA HEIGHTS,46589KL 120,JALANPJS7/10,BANDAR SUNWAY,44657SELANGOR

100MM(H)X665(W)OAK WOODTOPPANEL

Ø8MMSTAINLESSSTEELSCREW 30MM(H)X615MM(W)TIMBERTOP SHELFWITHWHITEPAINTFINISH

1955MM(H)X30MM(W)OAKWOODSLIDING DOORWITH30MMALUMINUMFRAME

195MM(H)X615(W)TIMBER DRAWERWITHWHITEPAINTFINISH

120MM(H)X635MM(W)TIMBER PLATFORMWITHWHITEPAINTFINISH

FLOORLEVEL

APEXDESIGNS

VERONACORPORATION

23-A,JLNKIARA,MONTKIARA, 52890KL

IAOARCHITECTS SAVVYINTERIORSSDN.BHD.

G-02-12,JALANMAAROF, BANGSAR,52349KL 123,JALANBATAI,DAMANSARA HEIGHTS,46589KL 120,JALANPJS710,BANDAR SUNWAY,44657SELANGOR

SCHEDULES

SCHEDULEOFFINISHES

AREA FLOOR WALL CEILING WINDOW

BEDROOM

CODE:W1 NAME:CONCRETEFLOOR SIZE:90MM(W)X1000(L)

FINISHES:WOODVINYLFINISH BRAND:FLOORDEPOTSDN BHD

CODE:C1

NAME:CONCRETEWALL SIZE:200MM(THK) FINISHES:WHITEPAINT FINISH BRAND:NIPPONPAINTSDN BHD

CODE:P1

NAME:PLASTERCEILING SIZE:200MM(THK) FINISHES:WHITEPAINTFINISH BRAND:NIPPONPAINTSDN BHD

CODE:AF/G NAME:TRIPLECASEMENT WINDOW SIZE:2300MM(W)X2700MM (L)

FINISHES:MATTEBLACK METALPAINTFINISH BRAND:NIPPONPAINTSDN BHD

NOTE:

CLIENT: ARCHITECT: INTERIORDESIGNCONSULTANT:QUANTITYSURVEYOR: PROJECTNAME:

AS-BUILTINTERIORWORK OFBEDROOM

VERONACORPORATIONIAOARCHITECTS SAVVYINTERIORSSDN.BHD.

23-A,JLNKIARA,MONTKIARA, 52890KL

APEXDESIGNS

G-02-12,JALANMAAROF, BANGSAR,52349KL 123,JALANBATAI,DAMANSARA HEIGHTS,46589KL 120,JALANPJS7/10,BANDAR SUNWAY,44657SELANGOR
