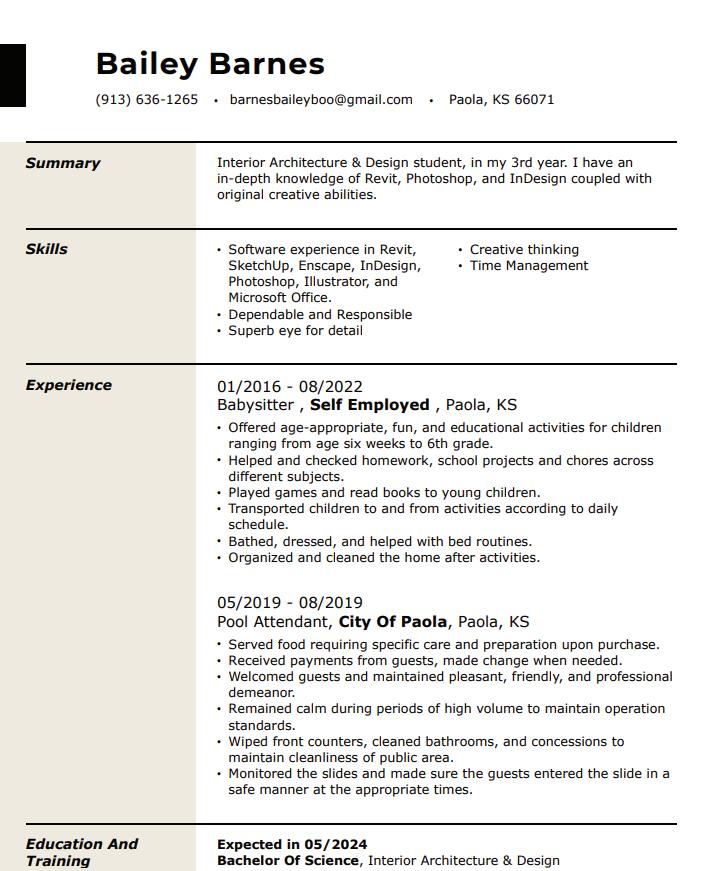

Resume

Table Of Contents 1-4

5-6

7-12

Enlighten Space

Micro Fashion

Vistoso Cafe

Sophomore yr. 1st Semester

Sophomore yr. 2nd Semester

Sophomore yr. 2nd Semester

13-16

17-18

Two Light Project Sophomore yr. 1st Semester

19-20

Hand Crafted Models

Hand Drawings

Enlighten Space

Location

Anywhere in Nature

Overview In this project we had to create a pavilion that plays with the natural lighting to design the space.

With that we got to decide what religion we wanted of our choice.

I chose the religion Animism because it really caught my attention and I have never heard of it before.

ANIMISM Originated from Latin word Anima, meaning “soul.”

All objects, places, and creatures possess a distinct spiritual essence.

The soul is the principle of life and health, while energizing them from within.

Can value all things - animals, plants, rocks, rivers, weather systems, and trees.

May worship Animism anywhere you can find nature elements.

Bodies of Water

In a Forest

Walking on Rocks

Plants

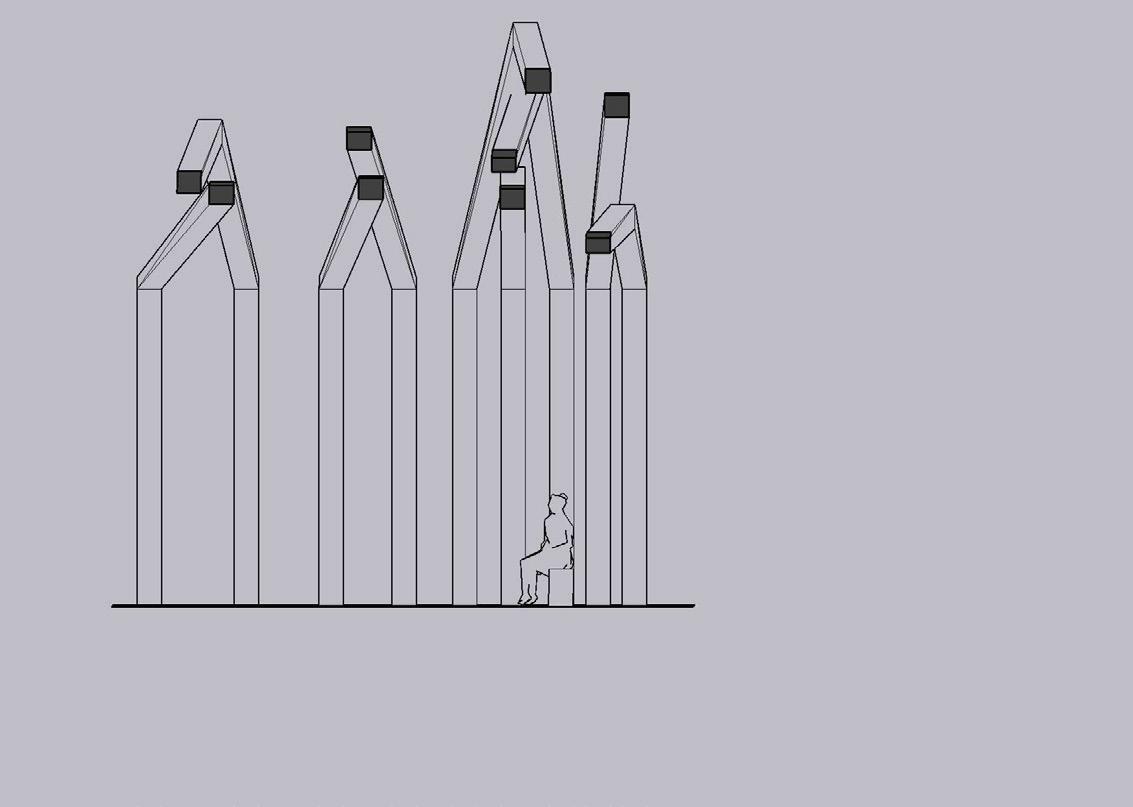

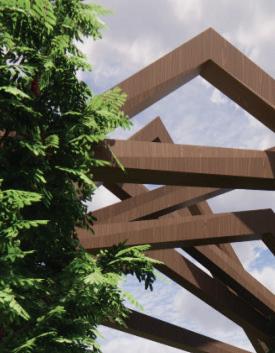

Concept Statement While you walk through the pavilion you look up and see the arches crossing over from one another. The crossing over emphasizes that all the elements in nature is not perfect and overlap each other. This helps the structure blend in with nature. The repetition with the slats on the side start to close in towards the back showing you are getting deeper within natures soul.

1

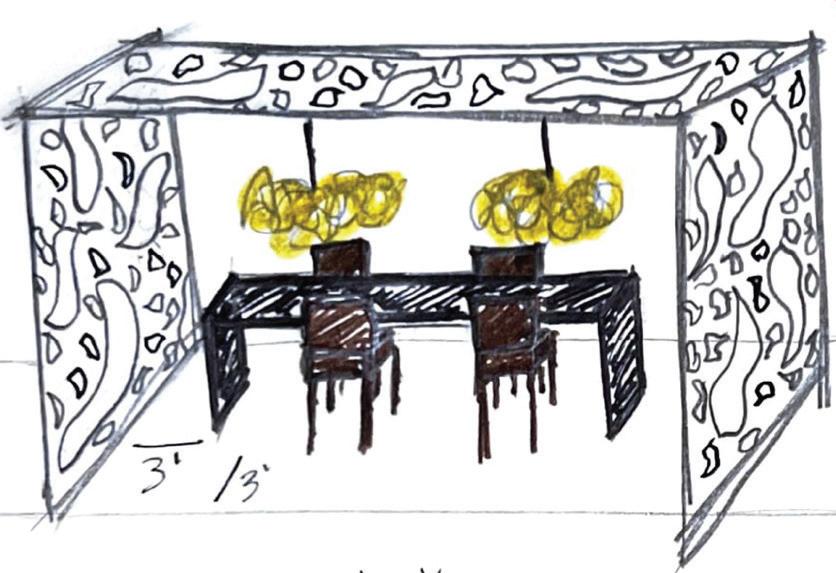

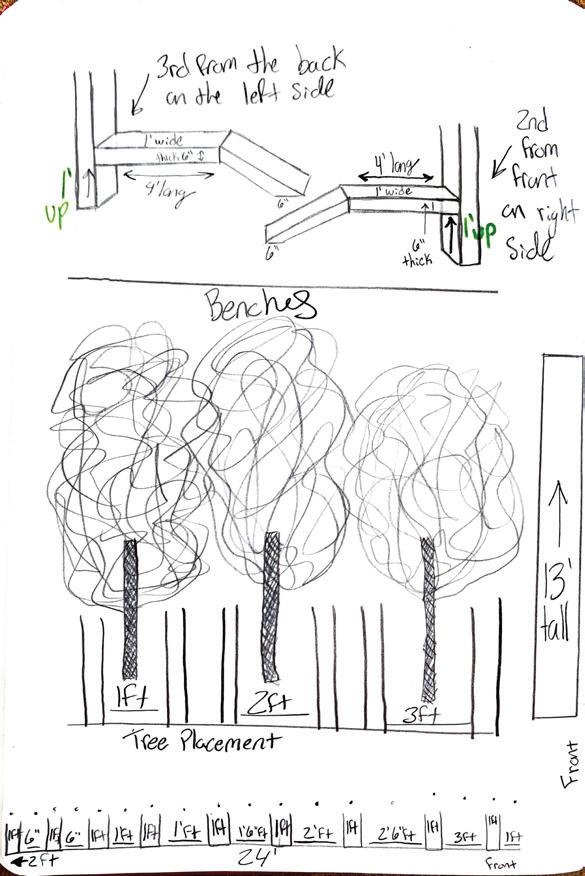

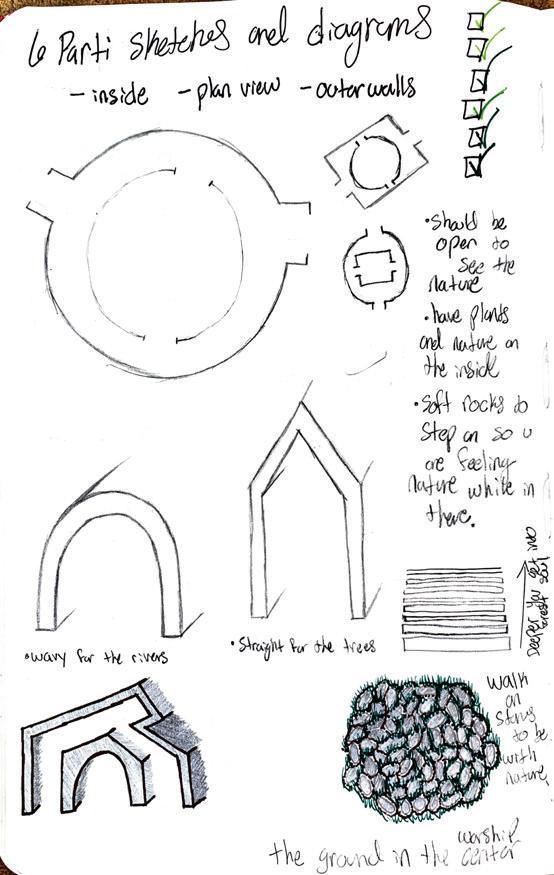

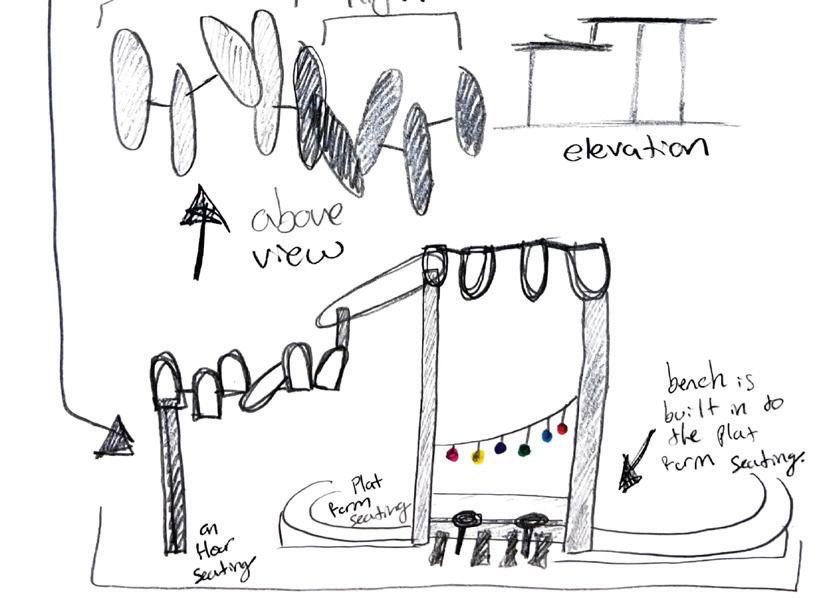

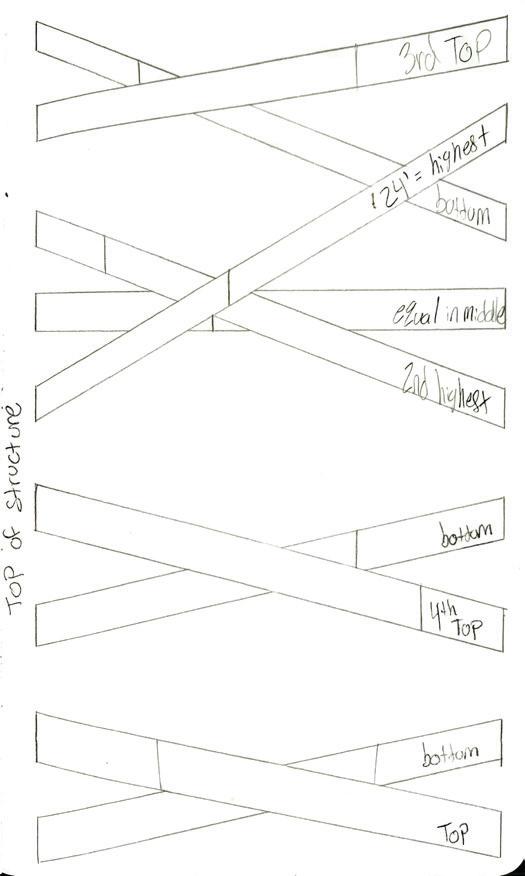

2 Brainstorming Sketches

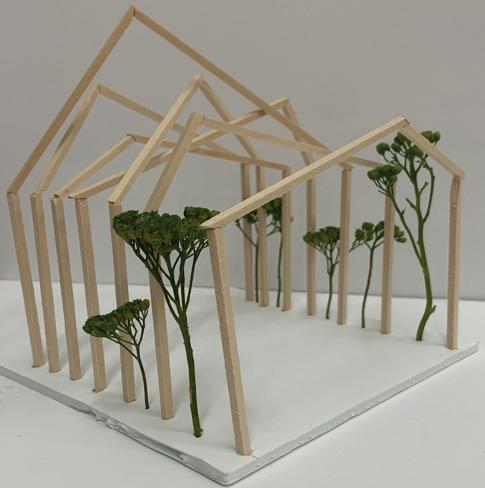

Parti Models

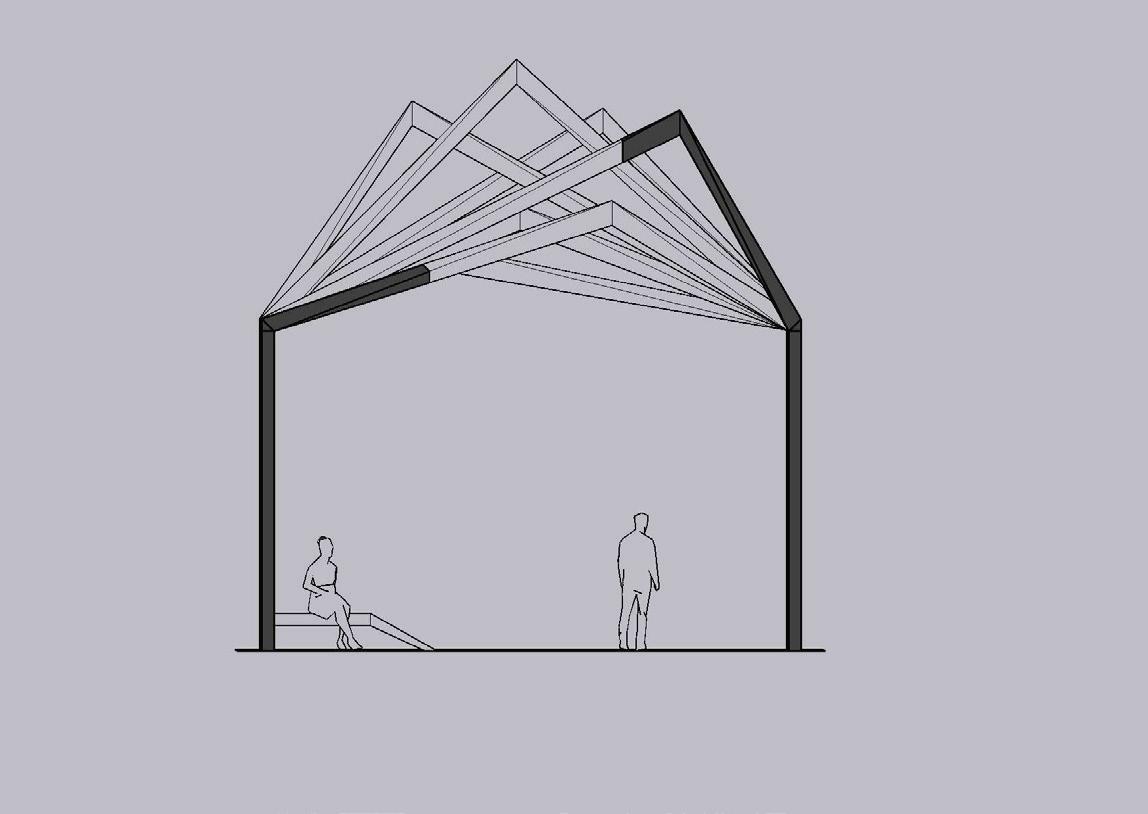

Section A

Section A

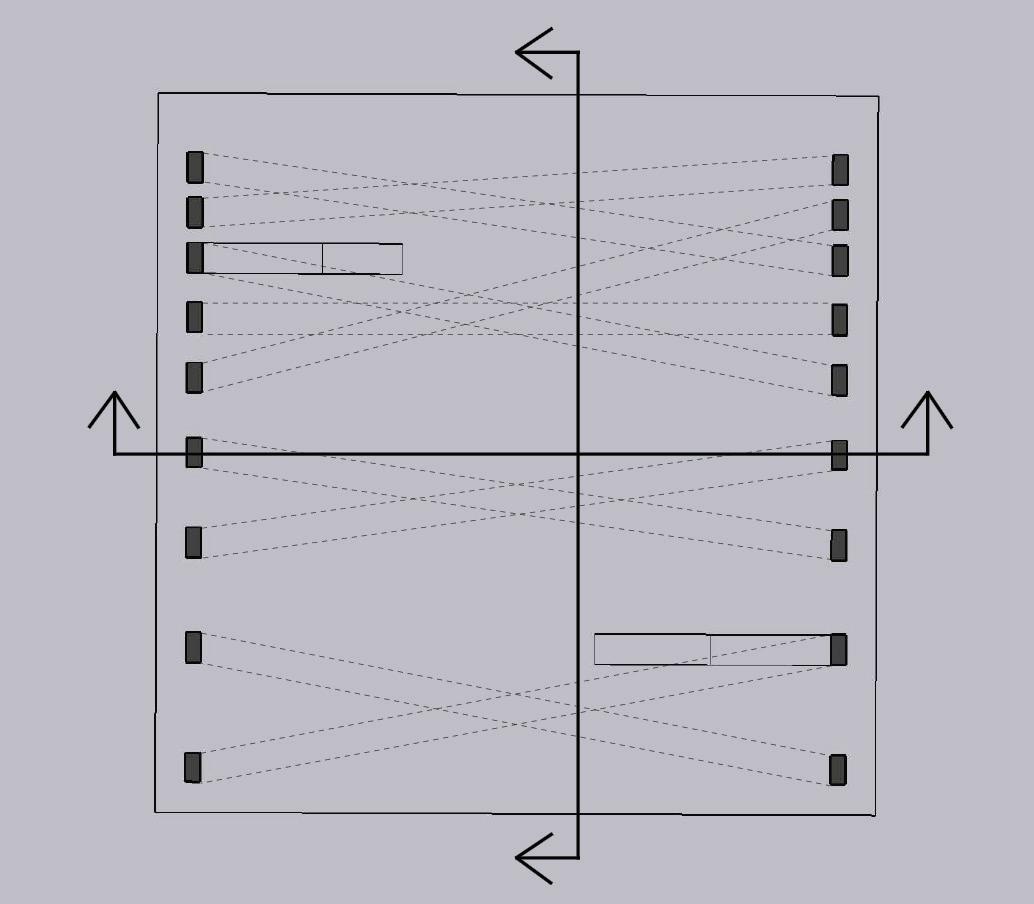

Section B Floor Plan

Section B

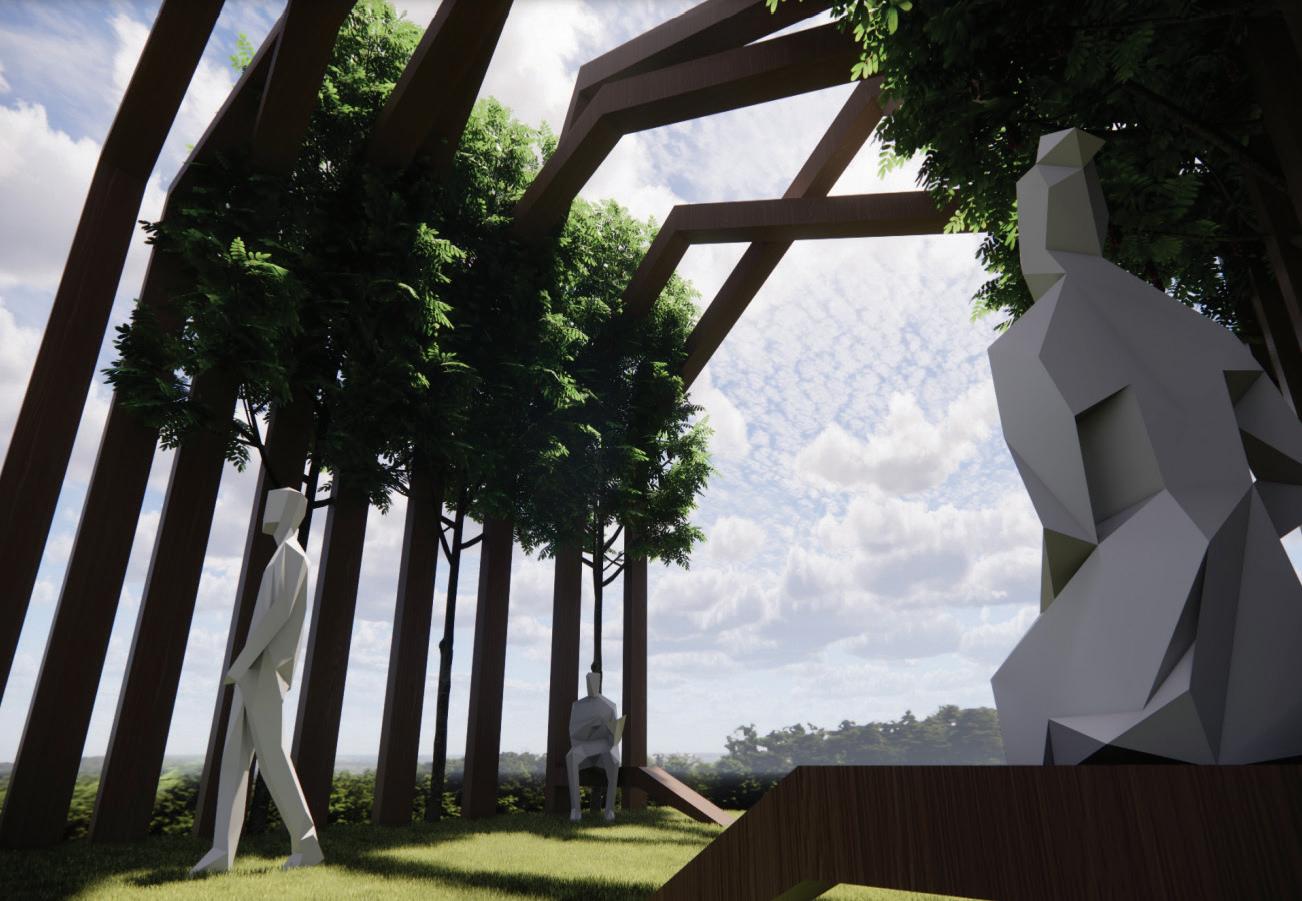

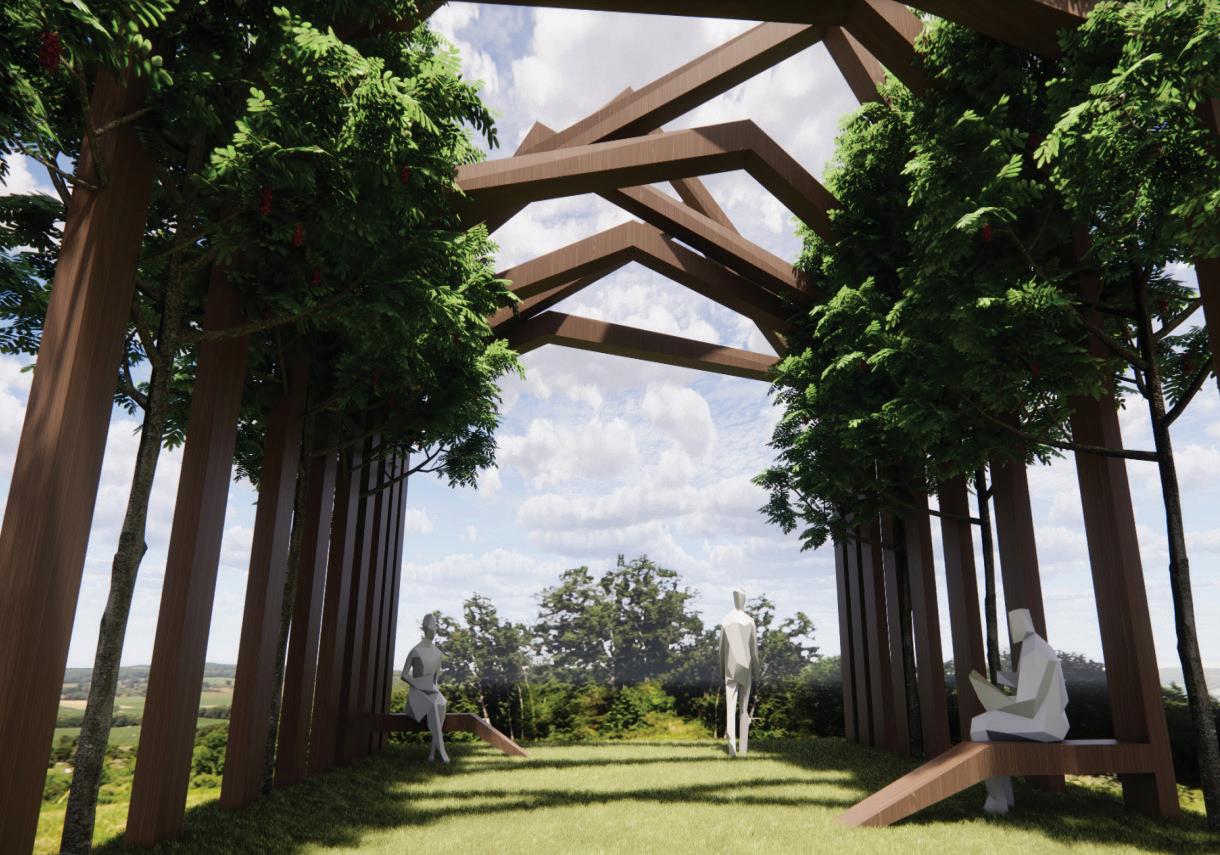

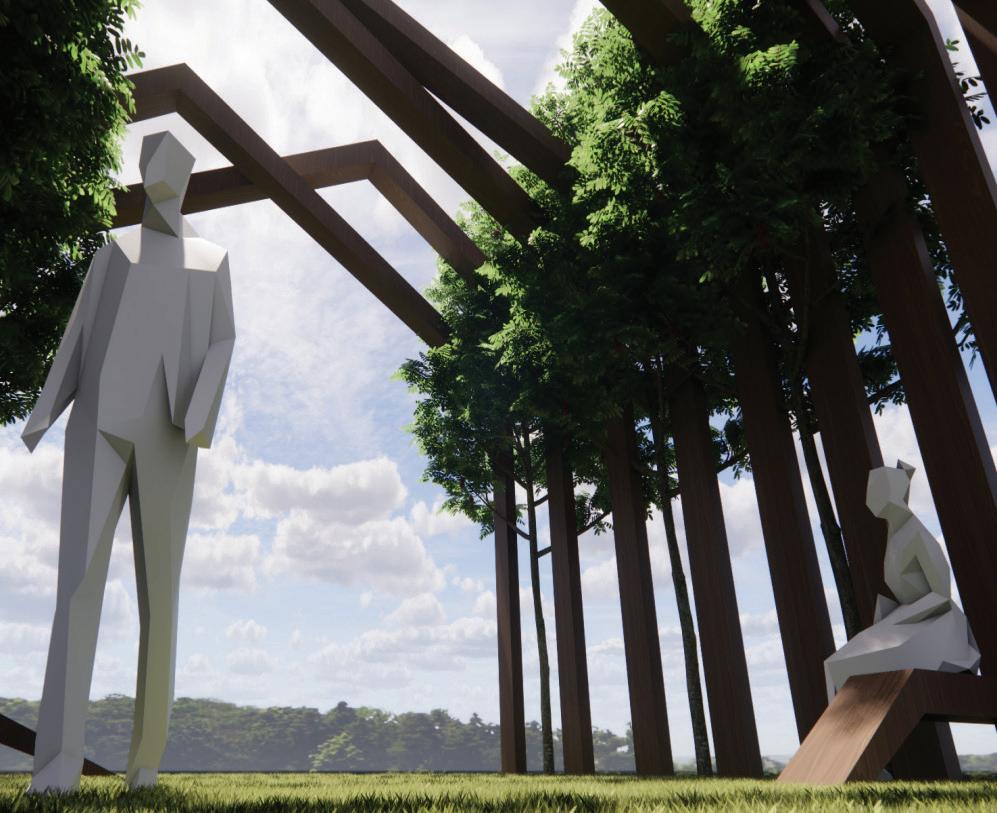

Walking (render)

Walking In (render)

3

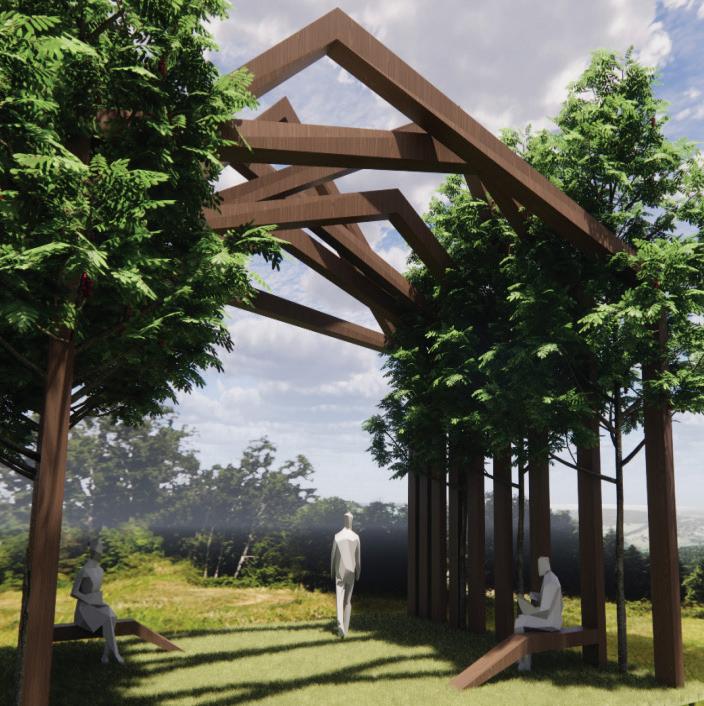

Entrance (render)

4

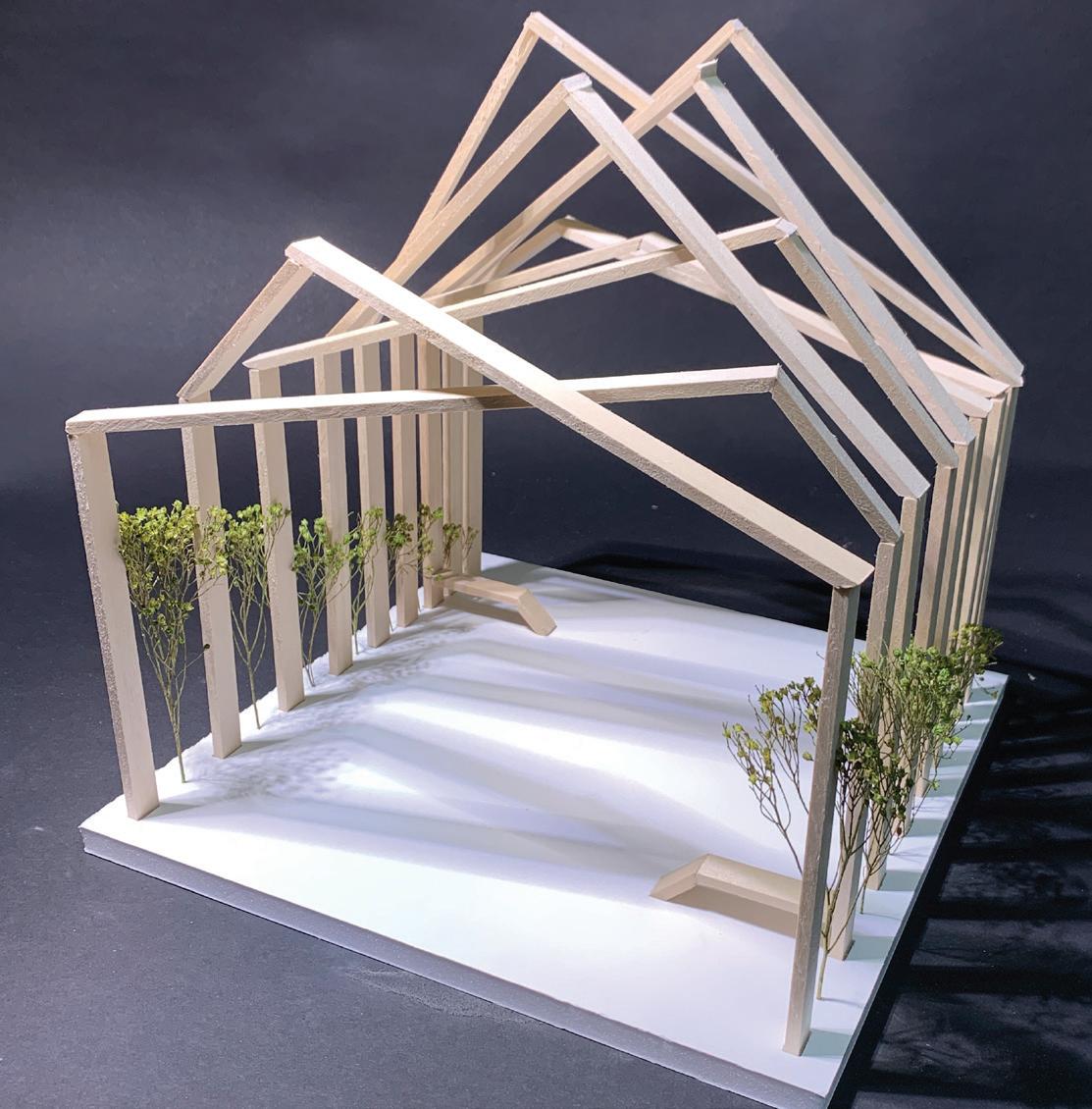

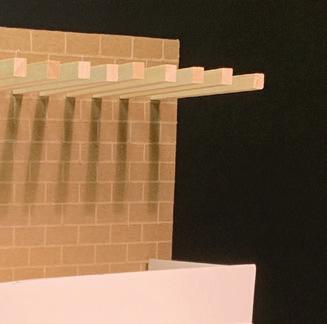

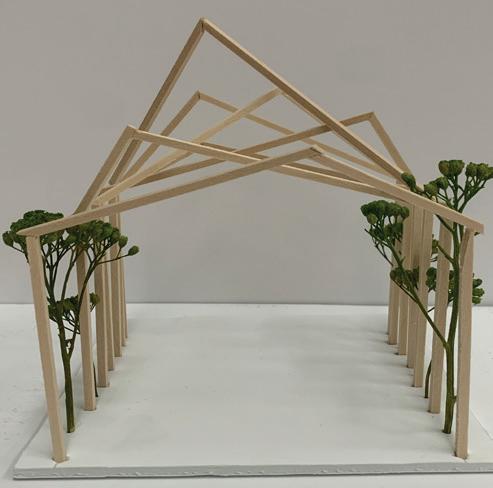

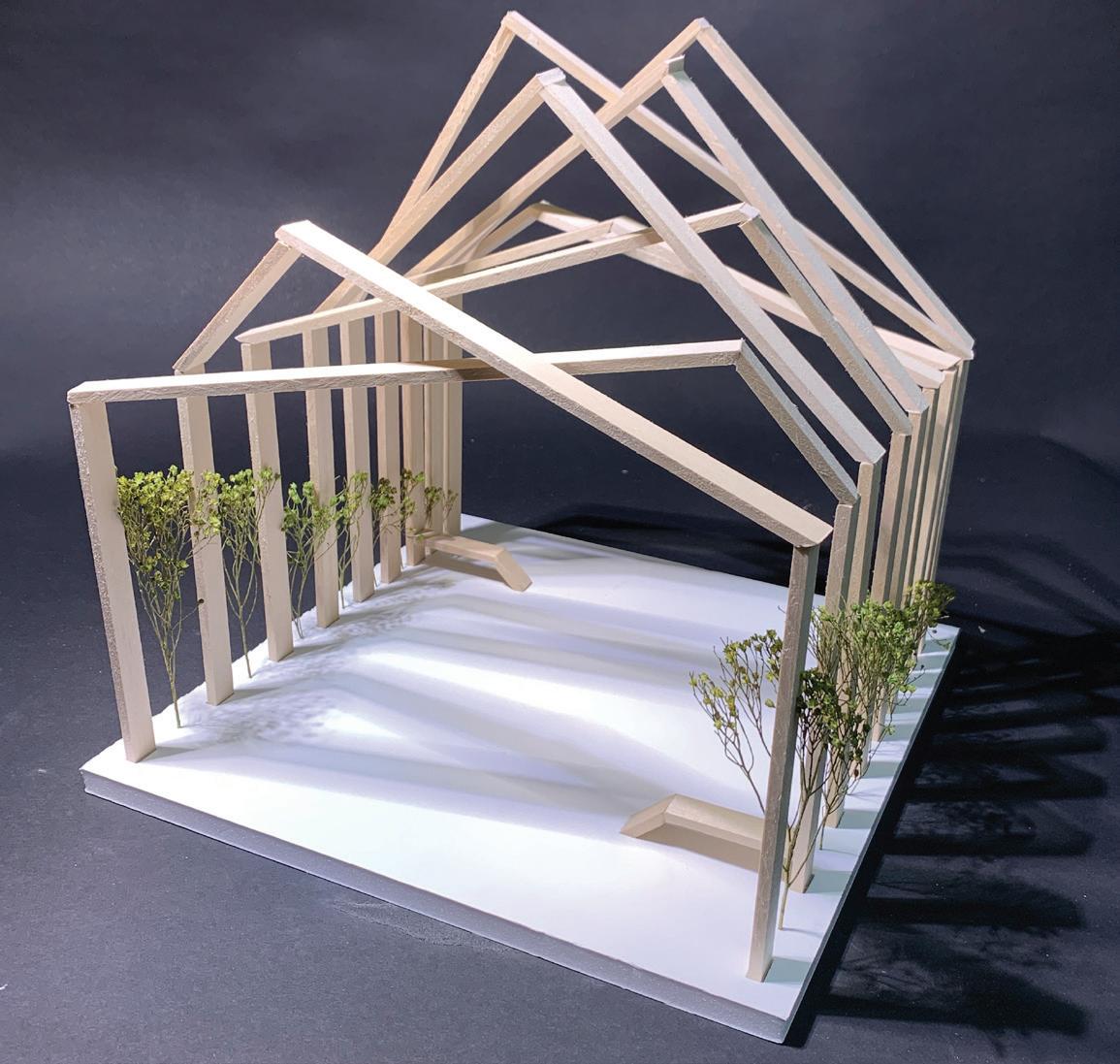

Side View (model)

Front View (model)

Nature Worship Spiritual Soul

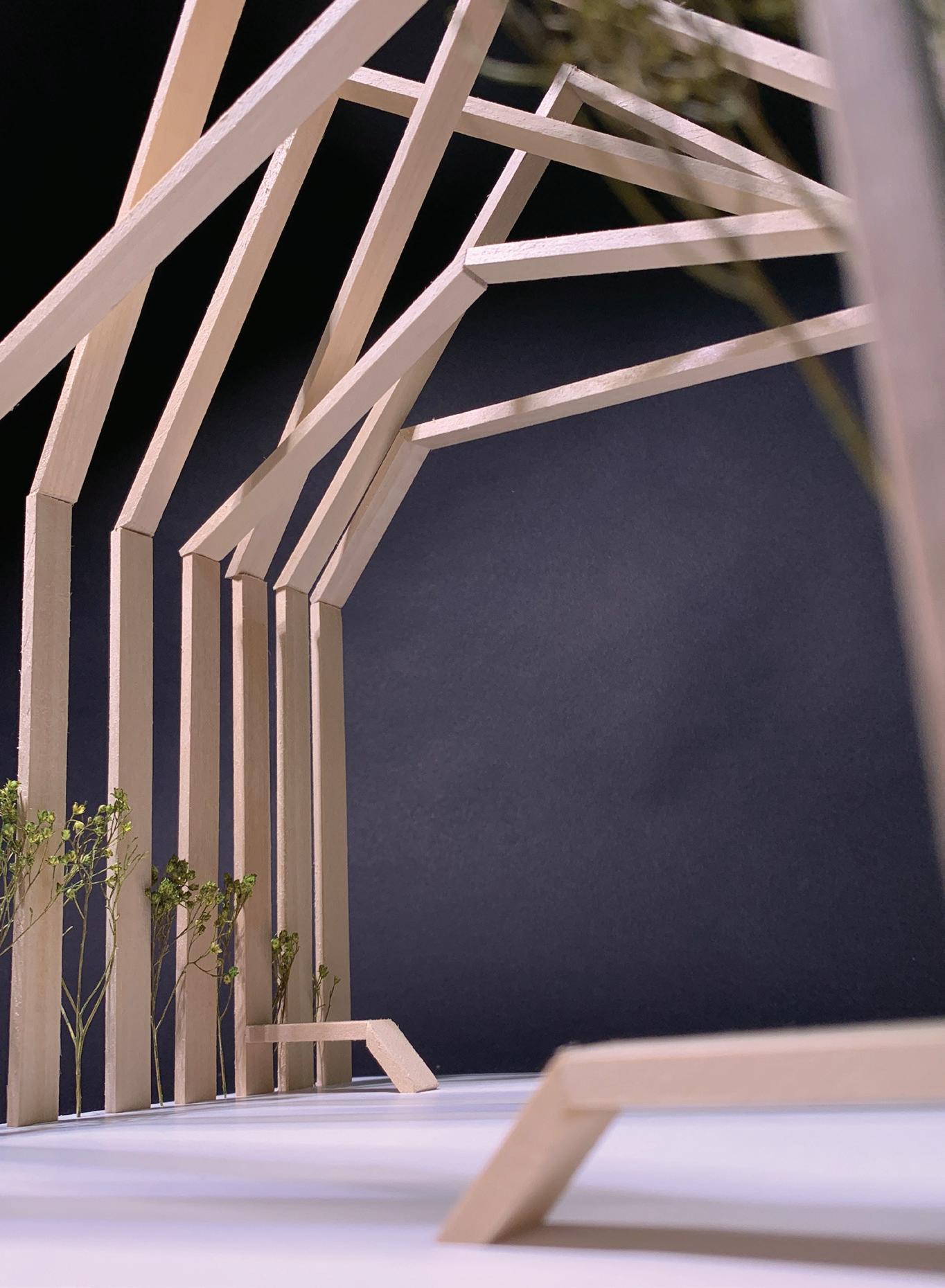

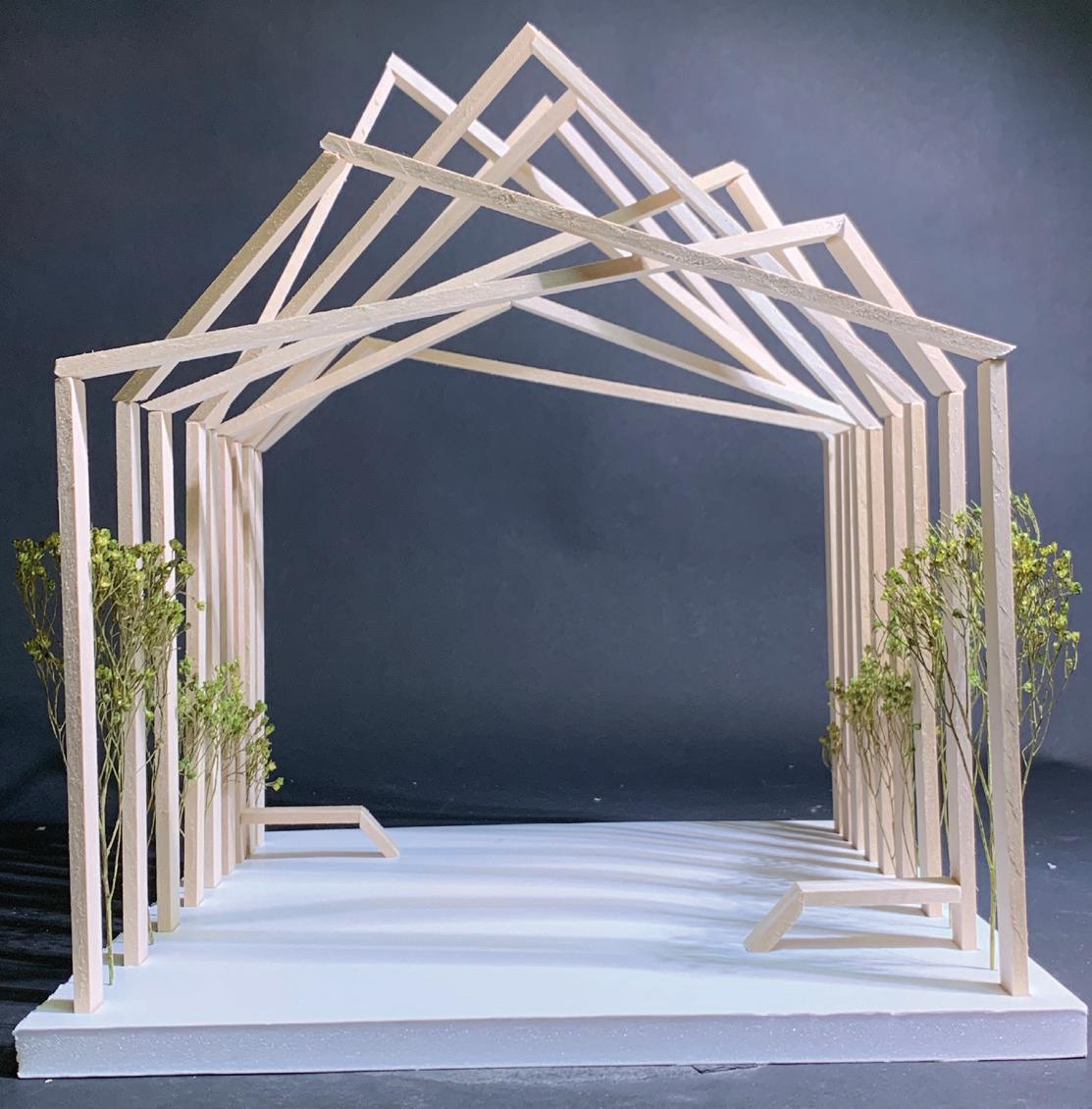

Walking In (model)

Micro Fashion

Location

Multiple opportunities like the mall or airport.

Overview The goal of this project was to choose a fashion designer

of my choice and make a small store for them.

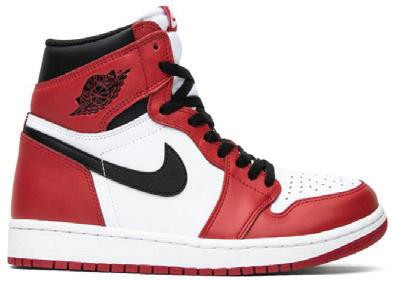

I selected Tinker Hatfield who designs sneakers for NIKE, exclusively Air Jordan shoes.

In this project we were to go in-depth with storage and how to use space wisely.

Concept

Culture

Customers should experience the sneaker culture inspired by Michael Jordan when they walk in.

Color Palette:

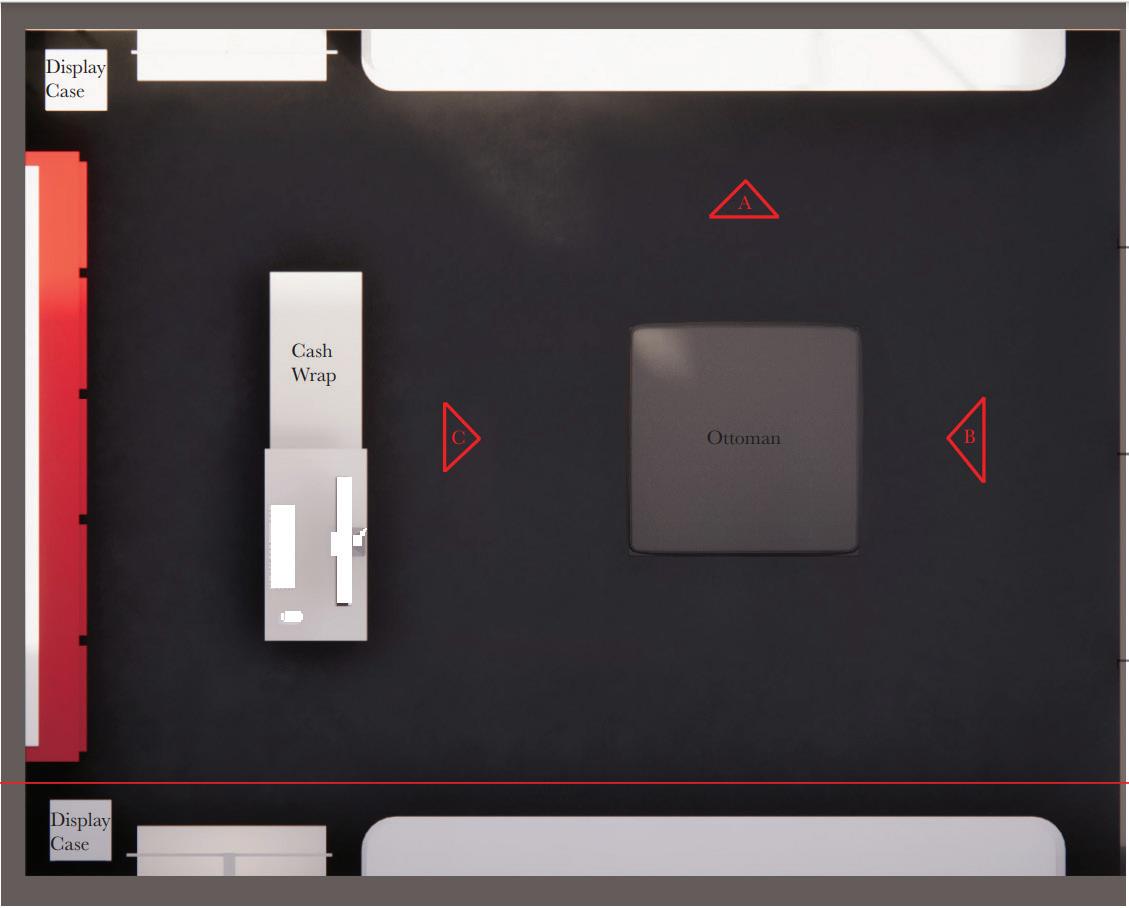

Red, Black, and White Floor Plan

5

6

Ceiling Plan

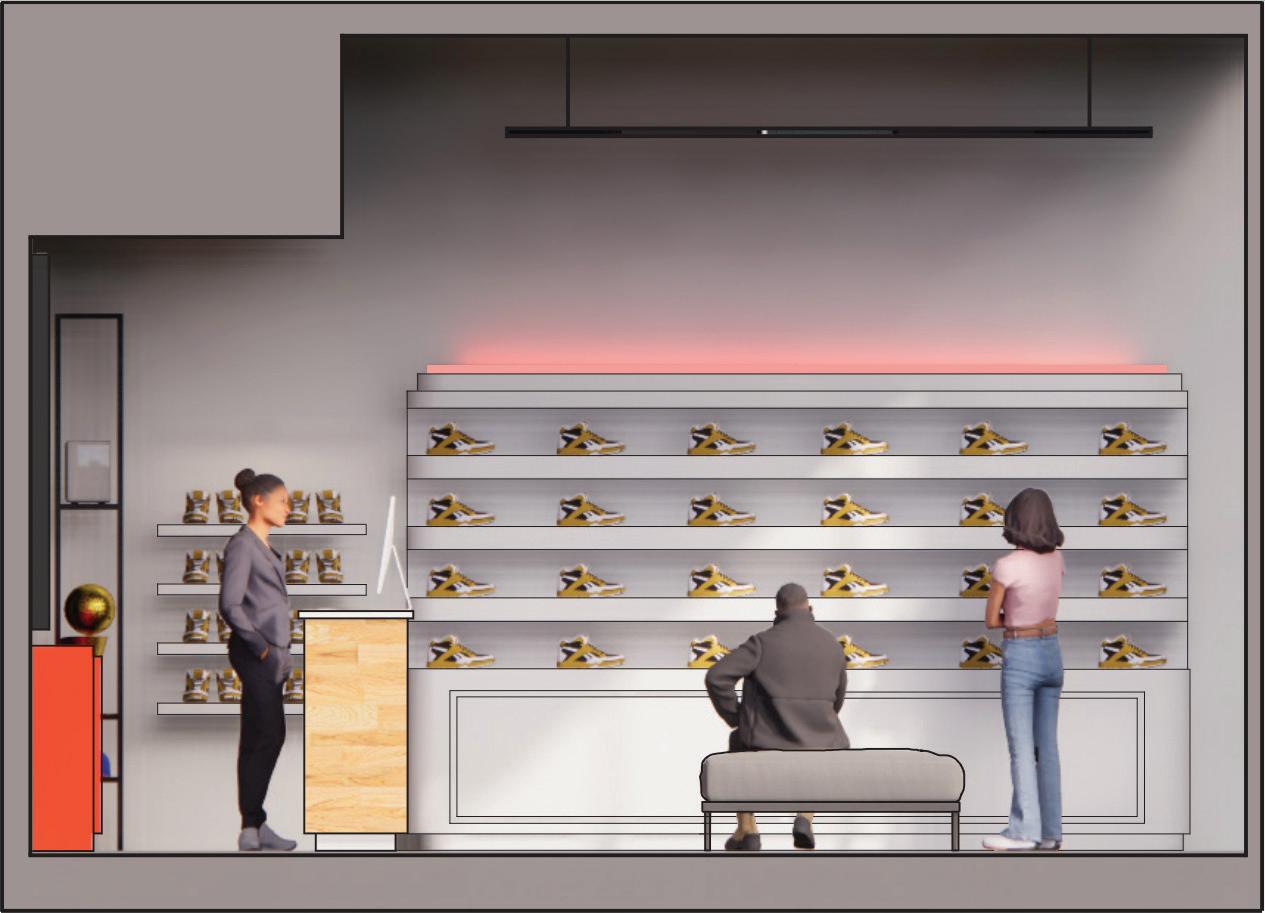

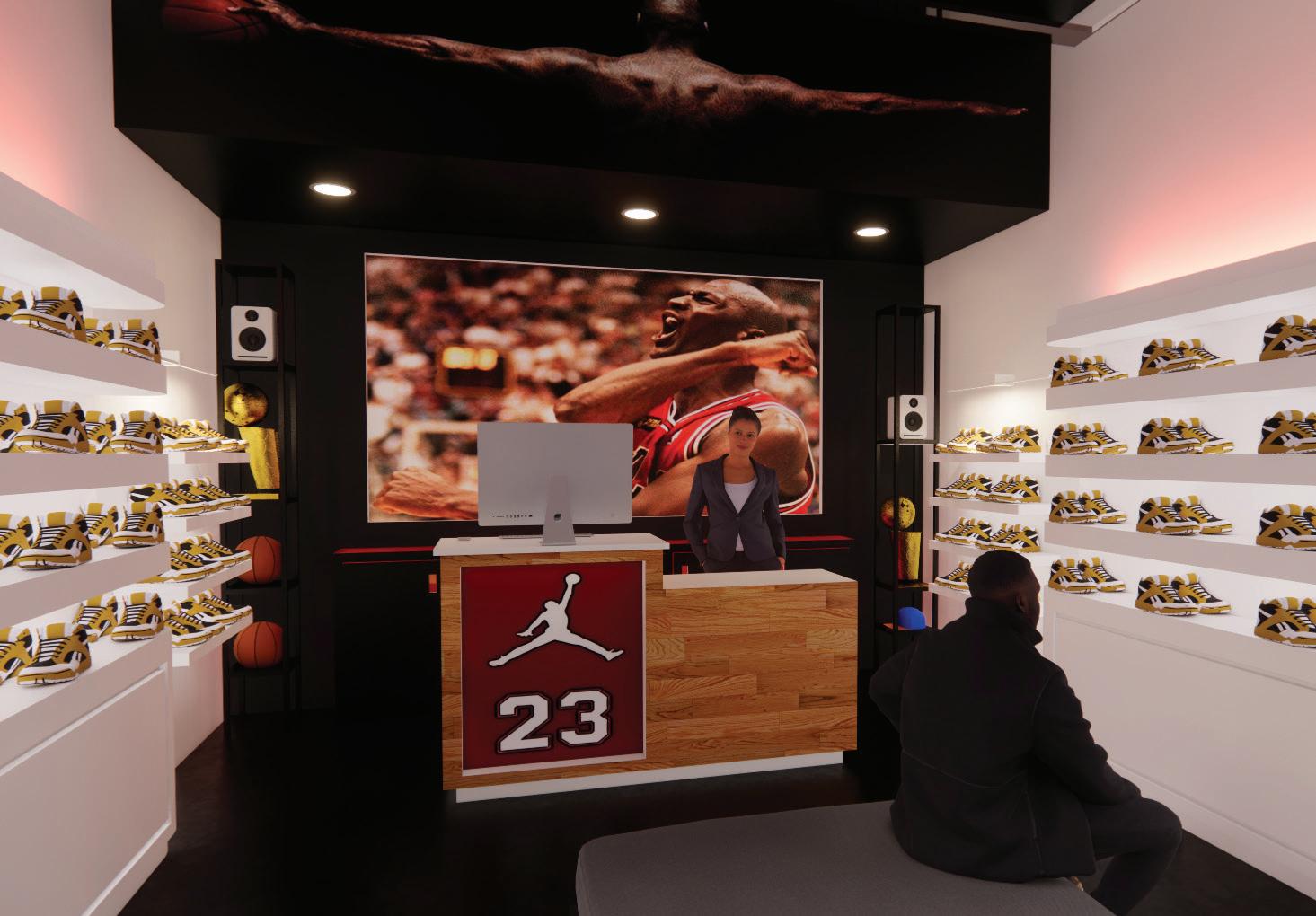

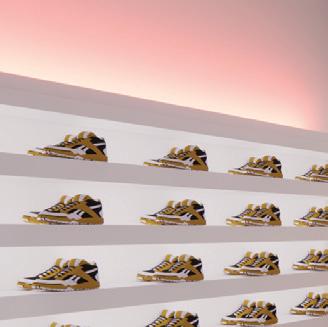

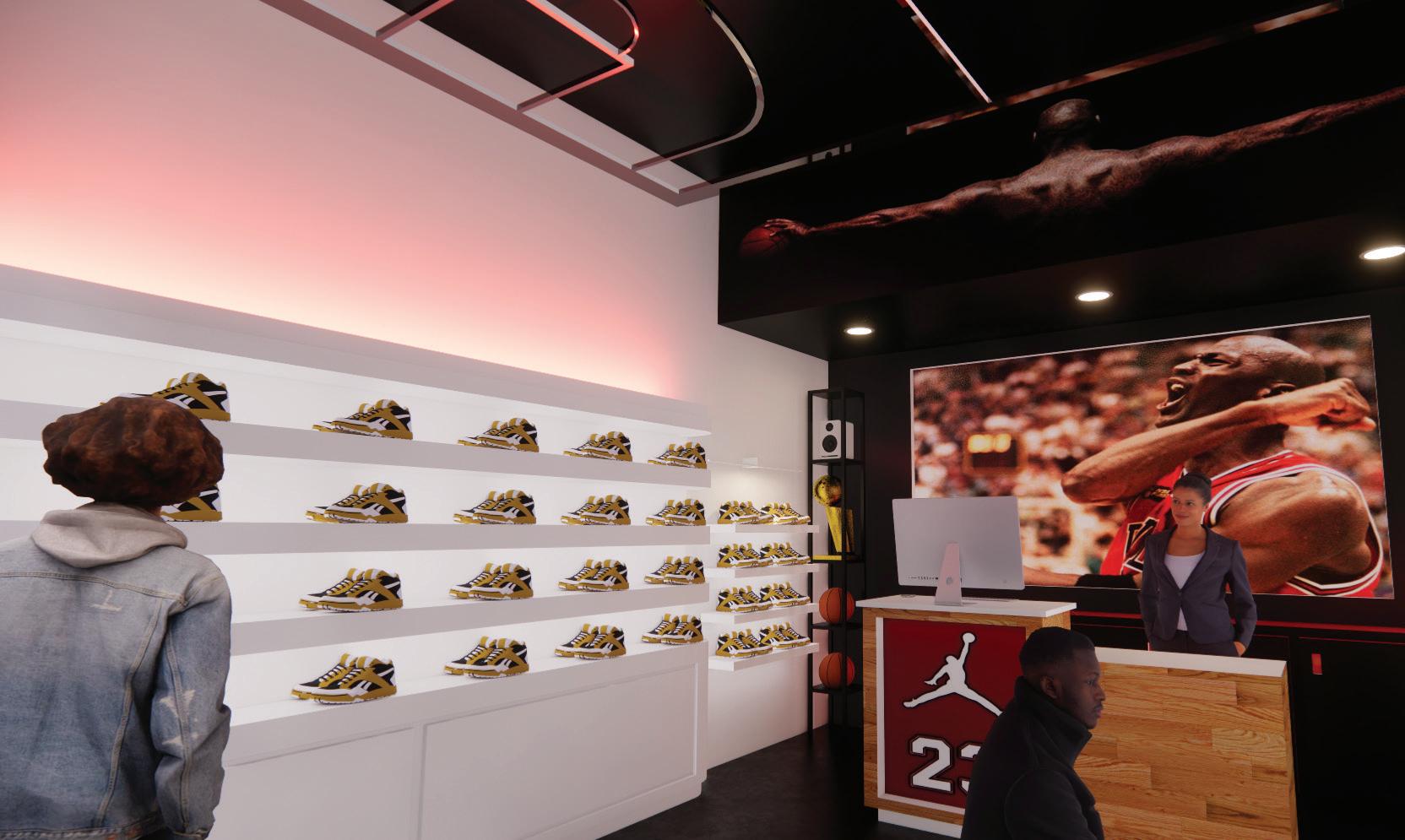

Basketball Court Ceiling Element (Custom Made) Section of Right Wall

Wood Cash Wrap

Stained Black Concrete Flooring

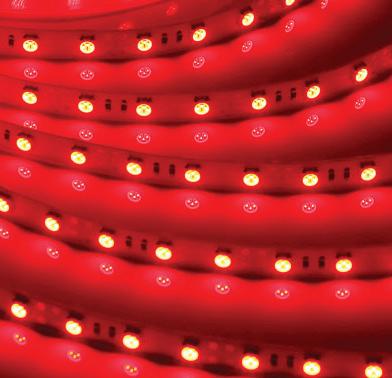

Red LED Lighting

clean

simple

Moody

Vistoso Cafe

Location

Union Station Kansas City

Overview In this project we were to choose a culture and research their

patterns. With that you had to design a cafe that went along with the pattern you have chosen.

I picked the Mexican culture and did my research on the Otomi pattern. I found the Otomi pattern very appealing because it represents all the nature that is in the Mexican culture. I felt I could really work with that and all the organic pieces.

Concept

Modern Organic The Mexican Culture has strict lines within their patterns representing aspects from their nature. I want to reshape them into a more organic feel with the touch of modern to soften the look. While still incorporating their bright colors throughout the space, I want it to be comfortable for the users and not an overwhelming experience.

7

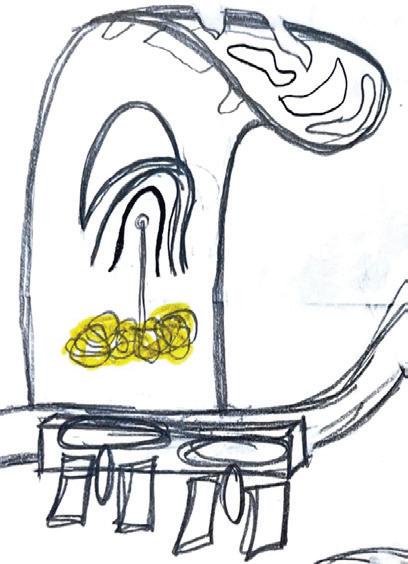

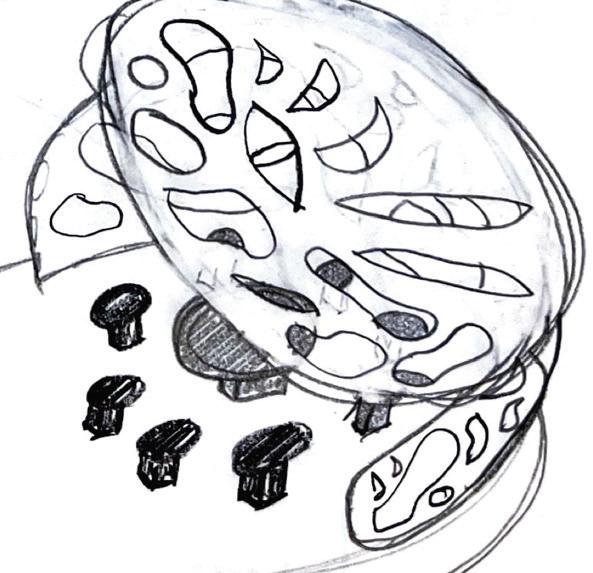

8 Brainstorming Sketches

Parti Models

Multi-Use Seating * Quiet Alcoves * Booth Seating * High Top Tables

Cafe

Large Seating

-

-

-

Lounge Seating

Large Seating Casual Seating

Floor Plan

Owner

No.

Description

Date

Unnamed Project number

Project Number

:57:29 AM

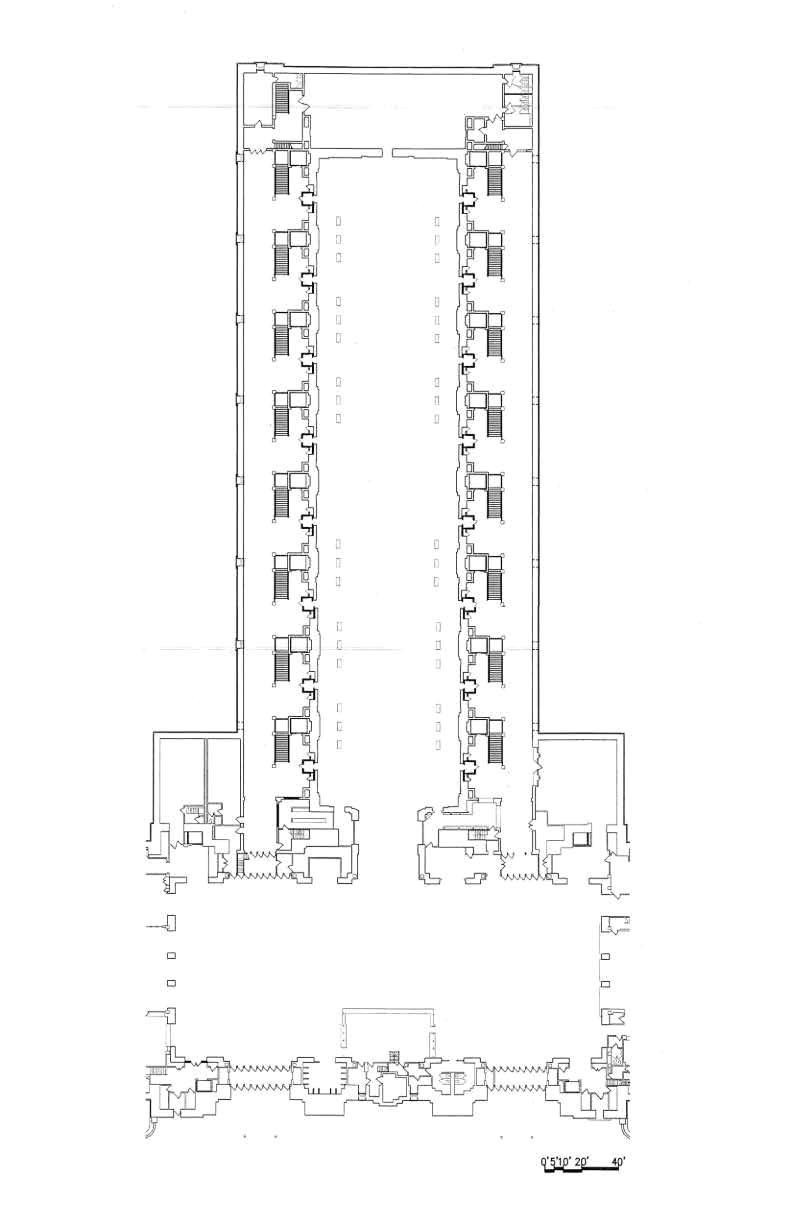

Union Station Key Plan

Cafe

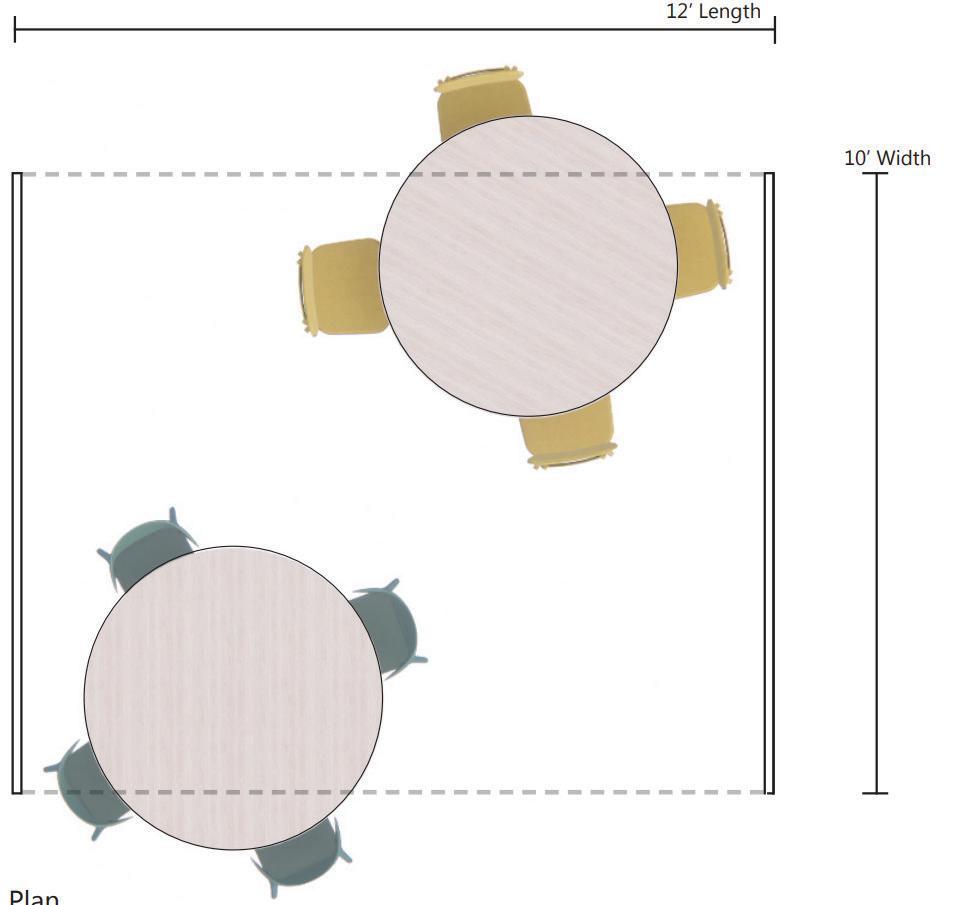

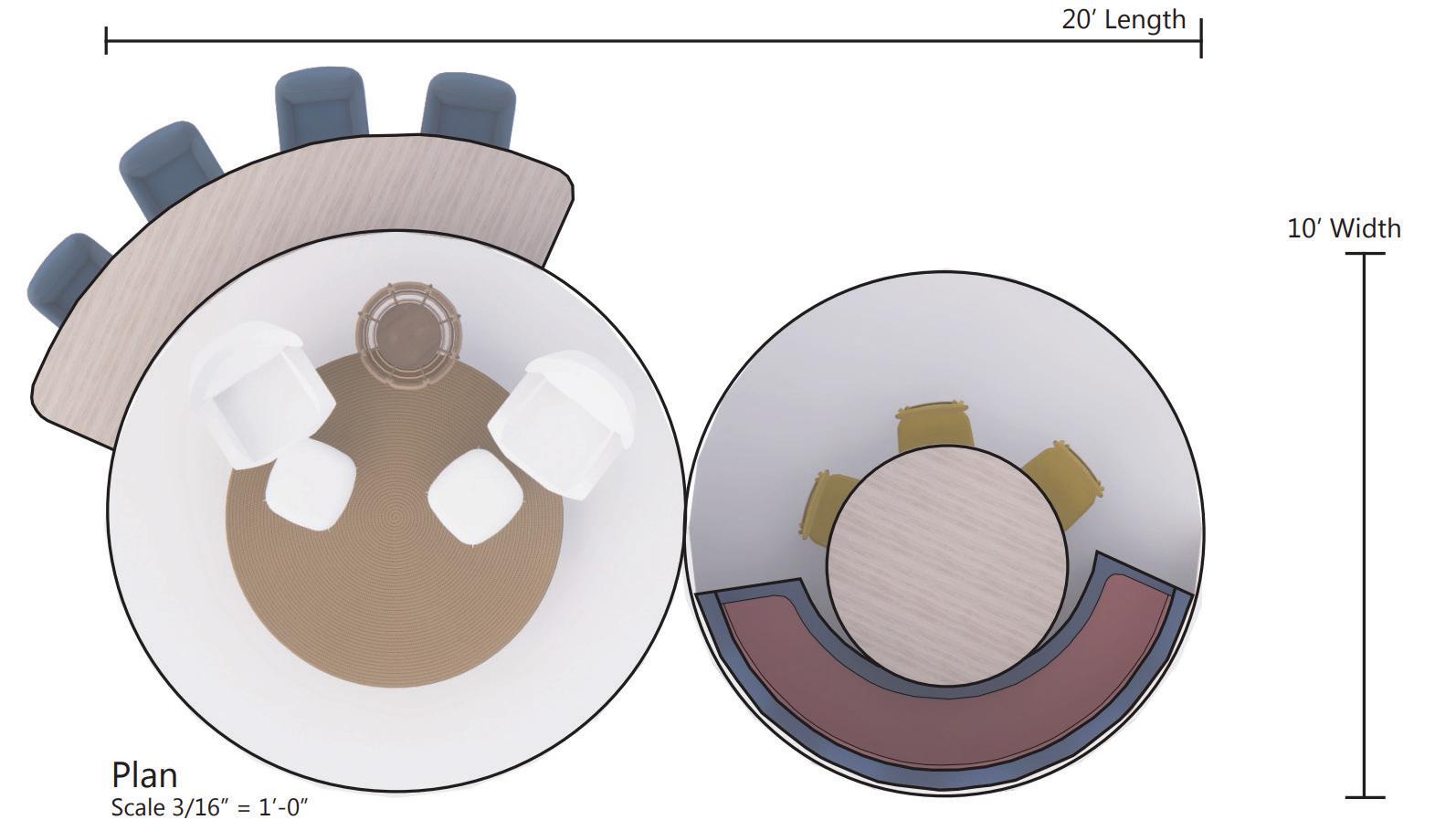

Plan

Side Elevation

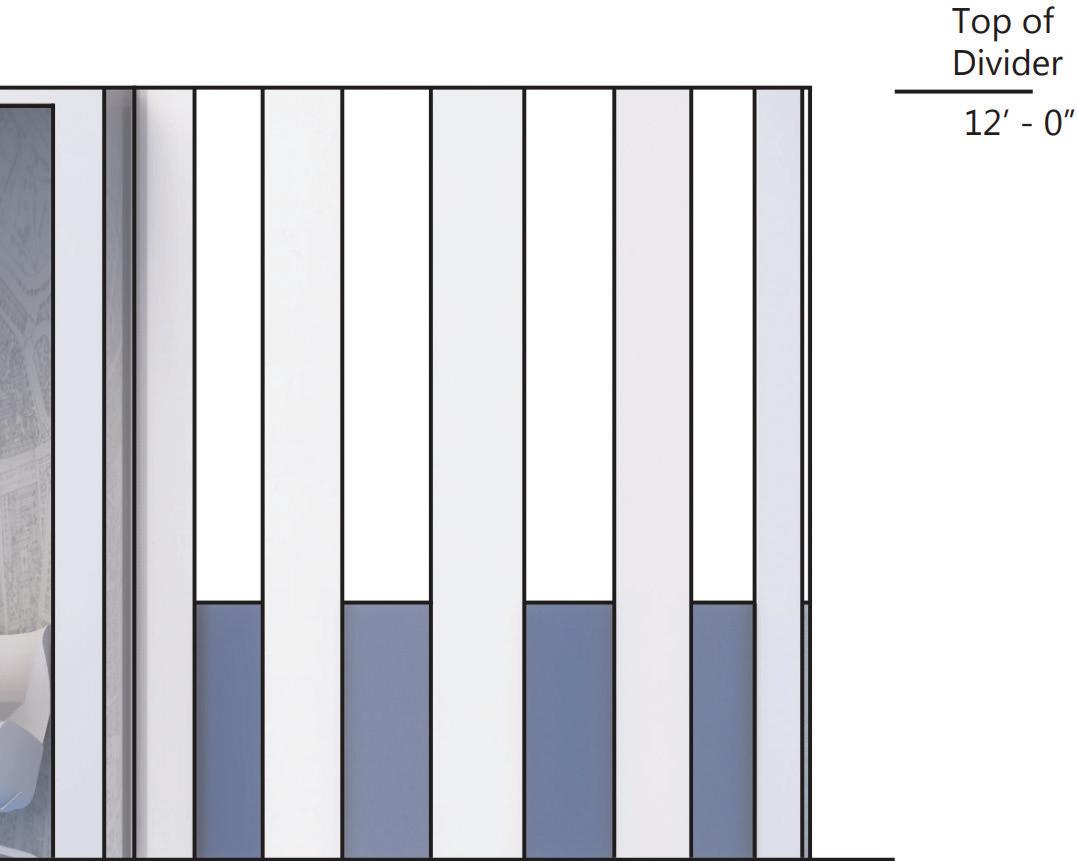

Multi-Use Divider

Back Elevation Plan

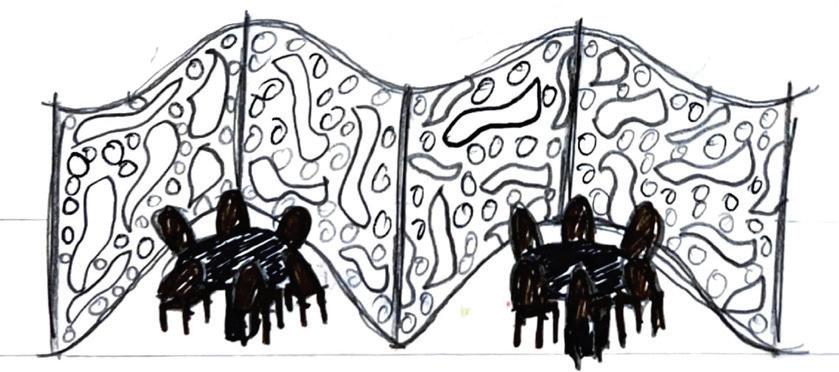

Casual Divider

Plan

9

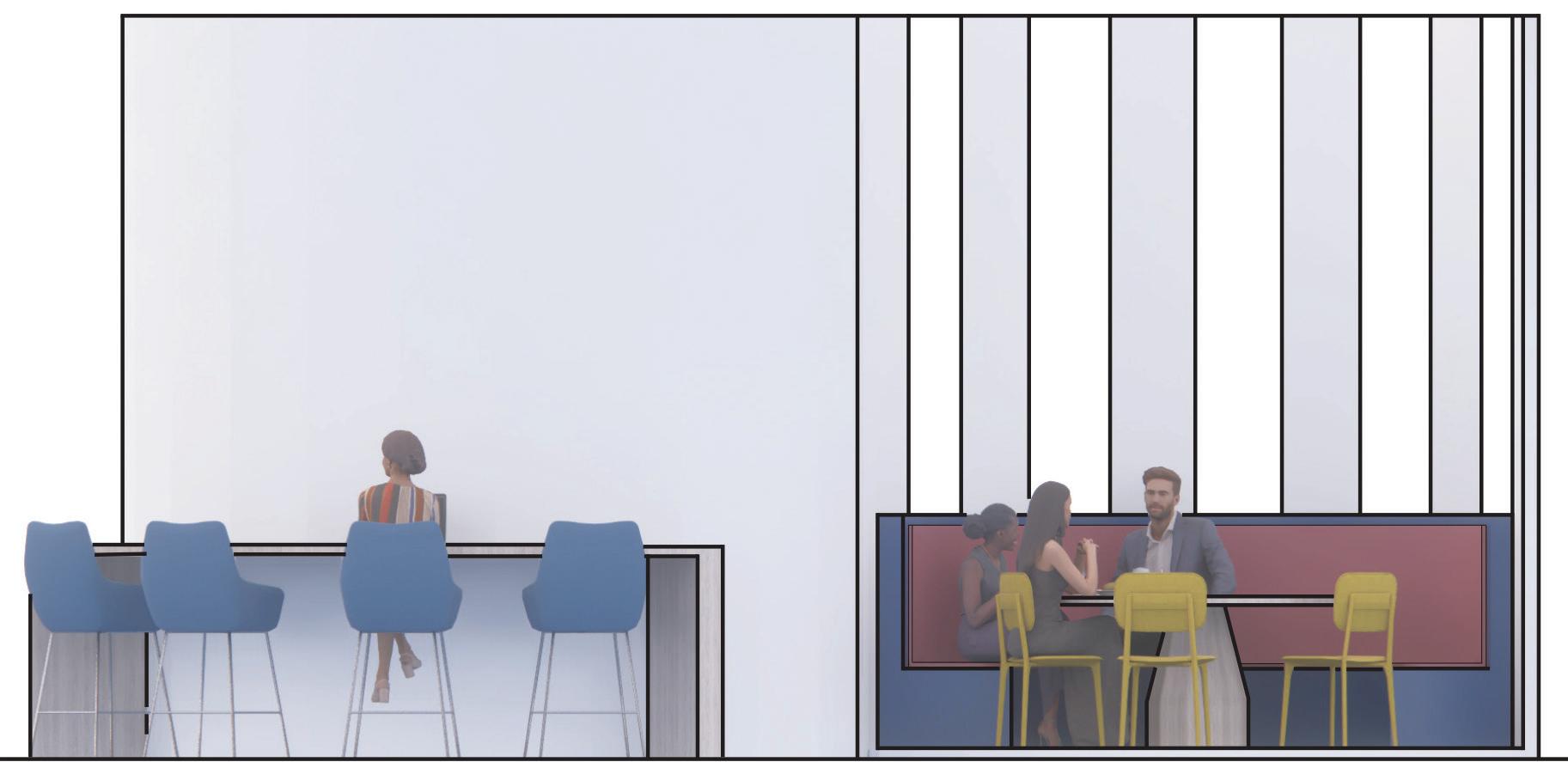

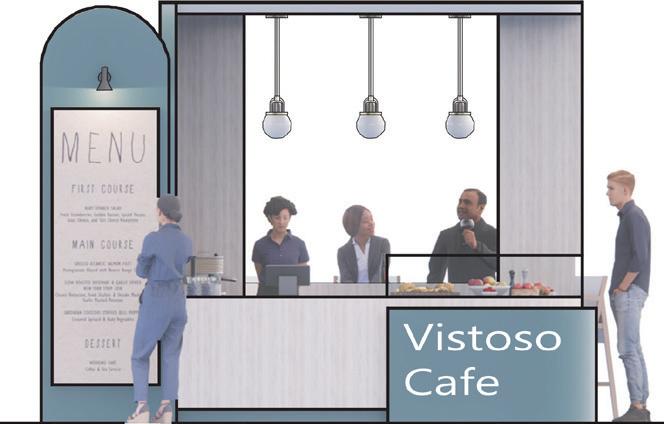

Front Elevation

10 Front Elevation

Back Elevation

Front Elevation

Organic

Fun

C o lo r f u l

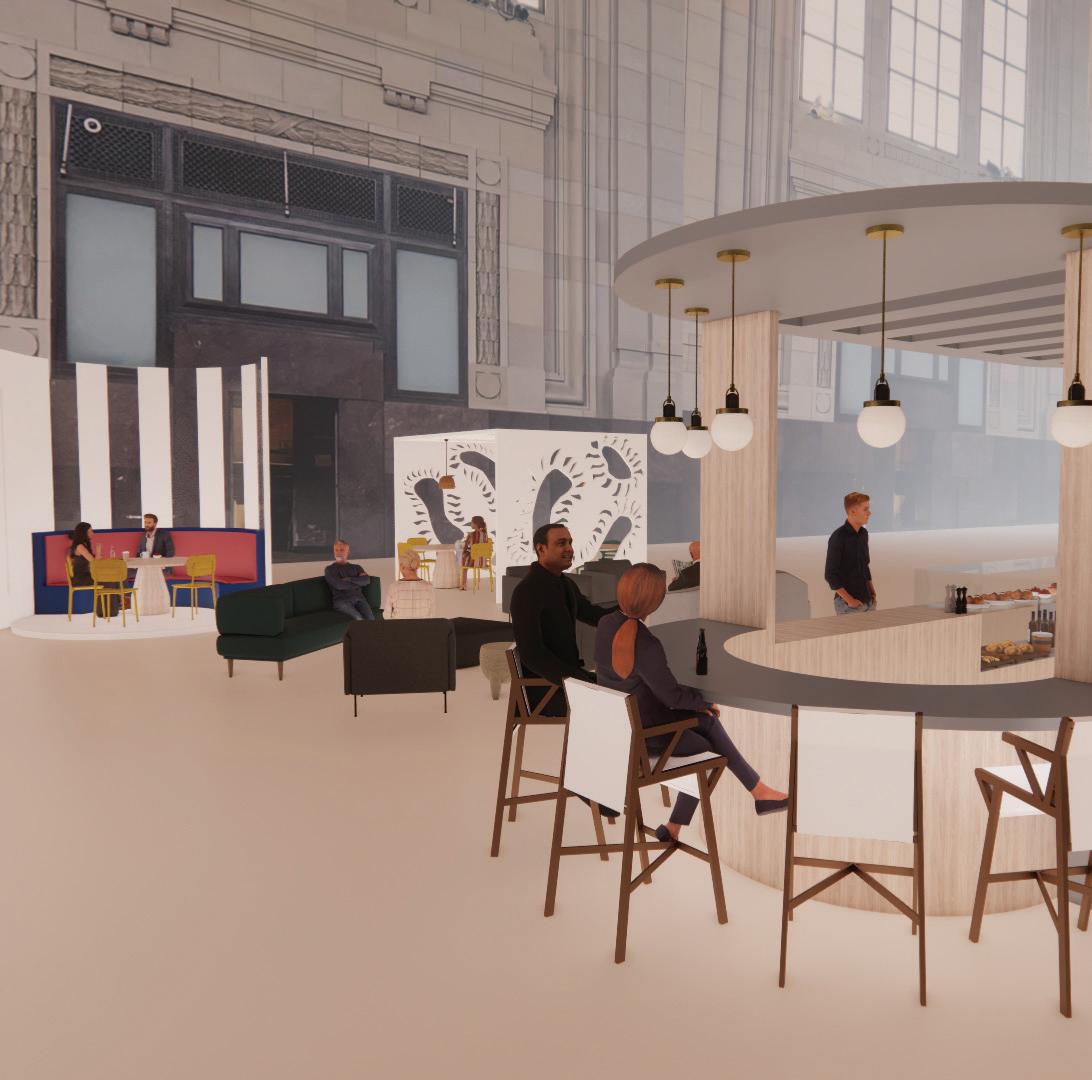

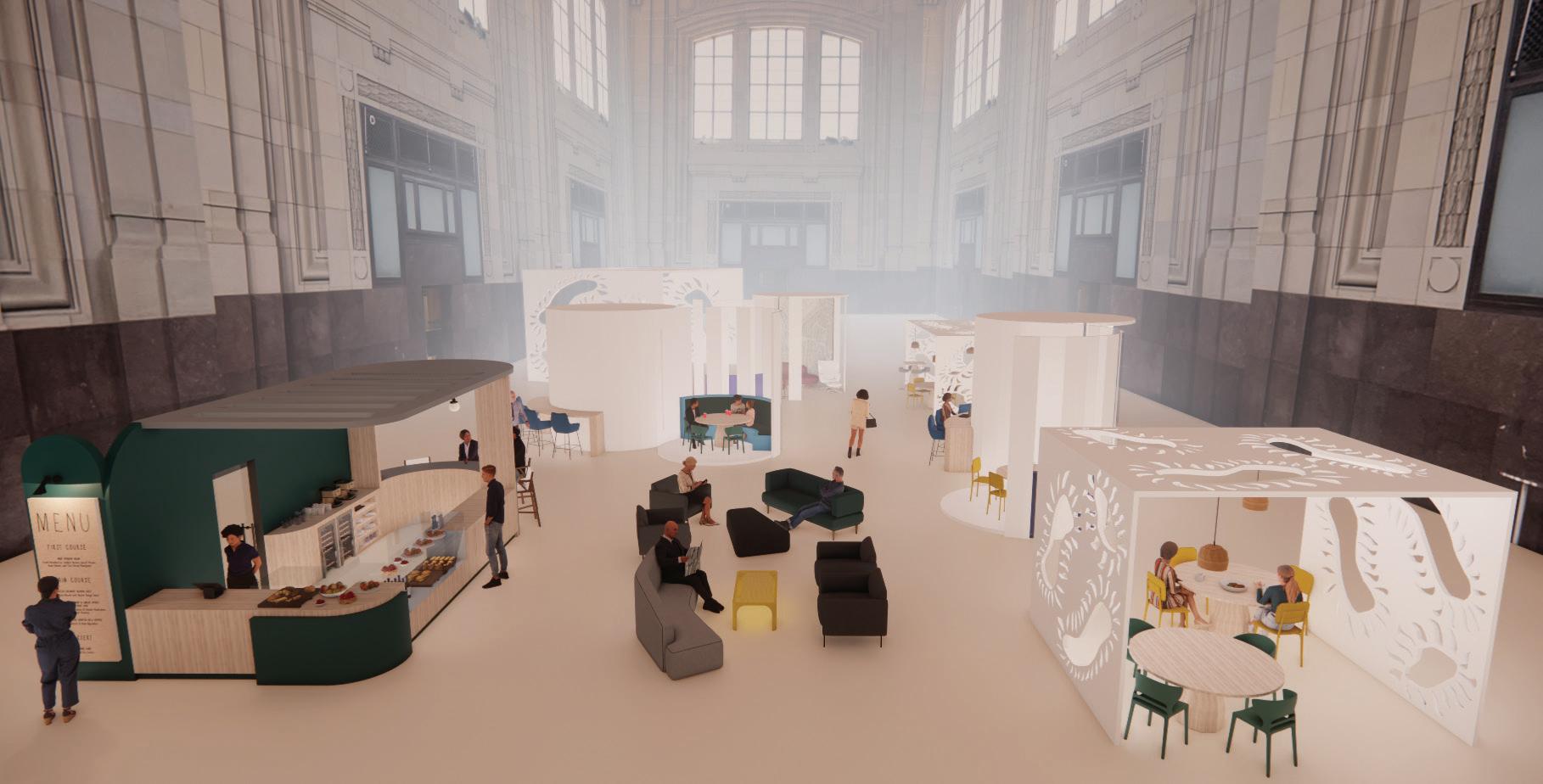

Birds Eye View

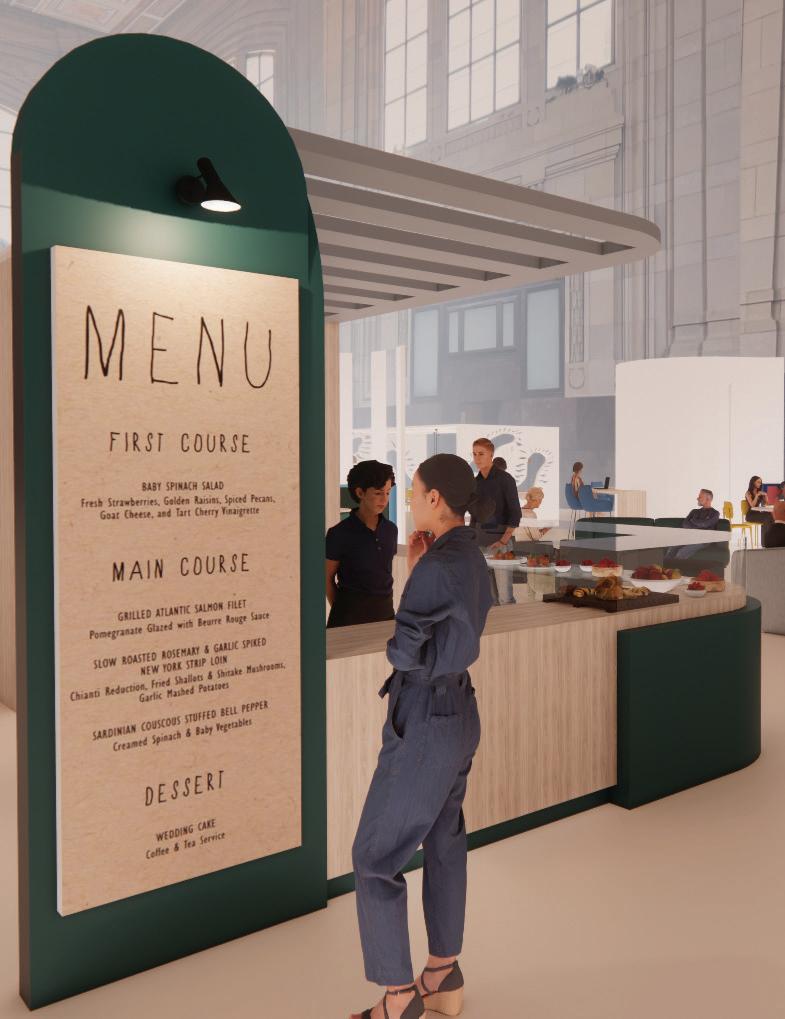

Cafe Menu

11

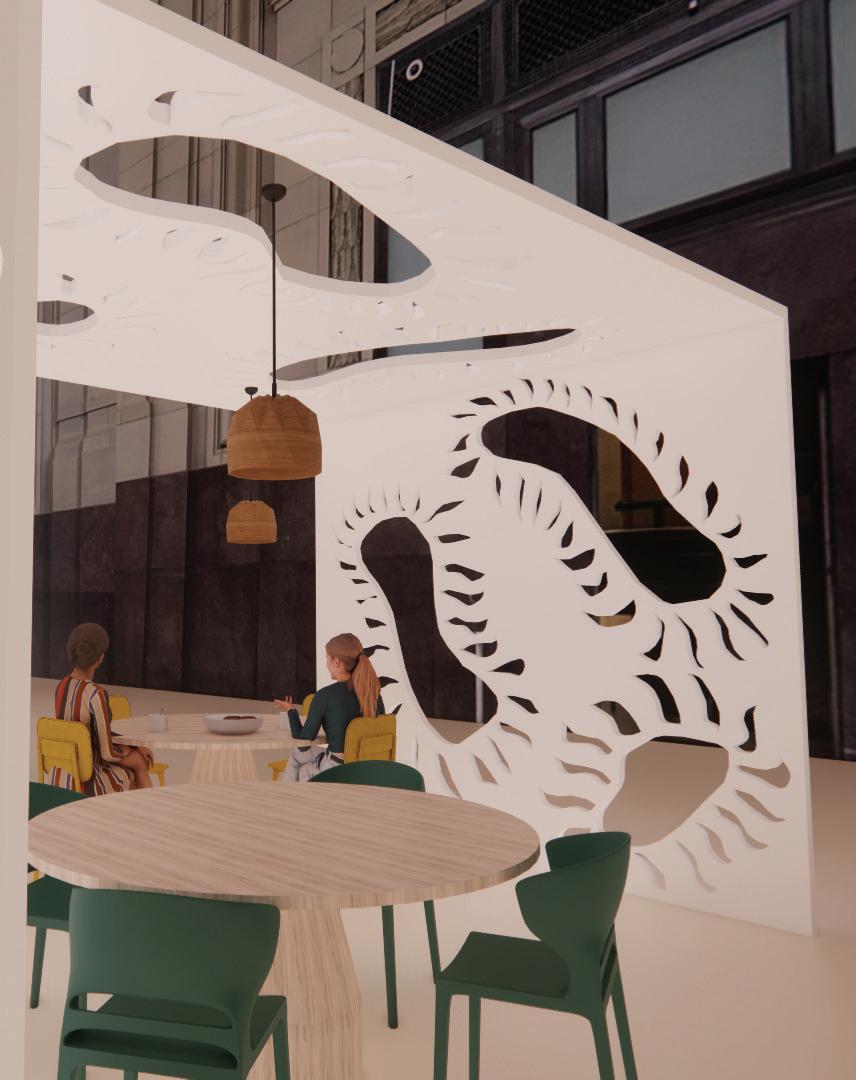

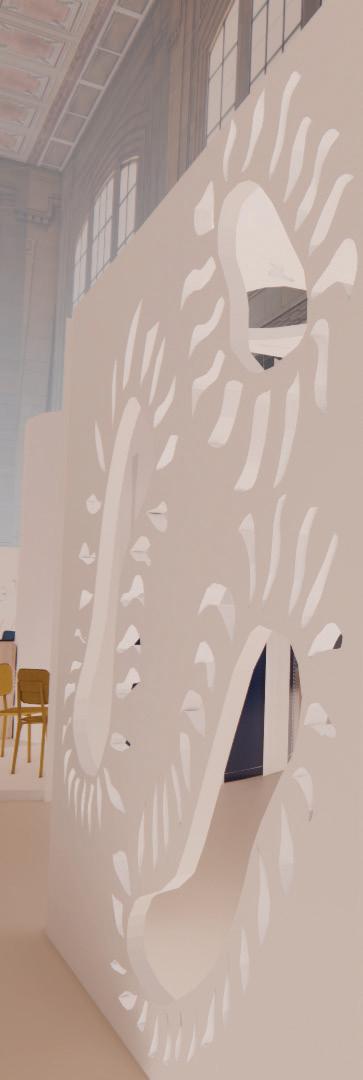

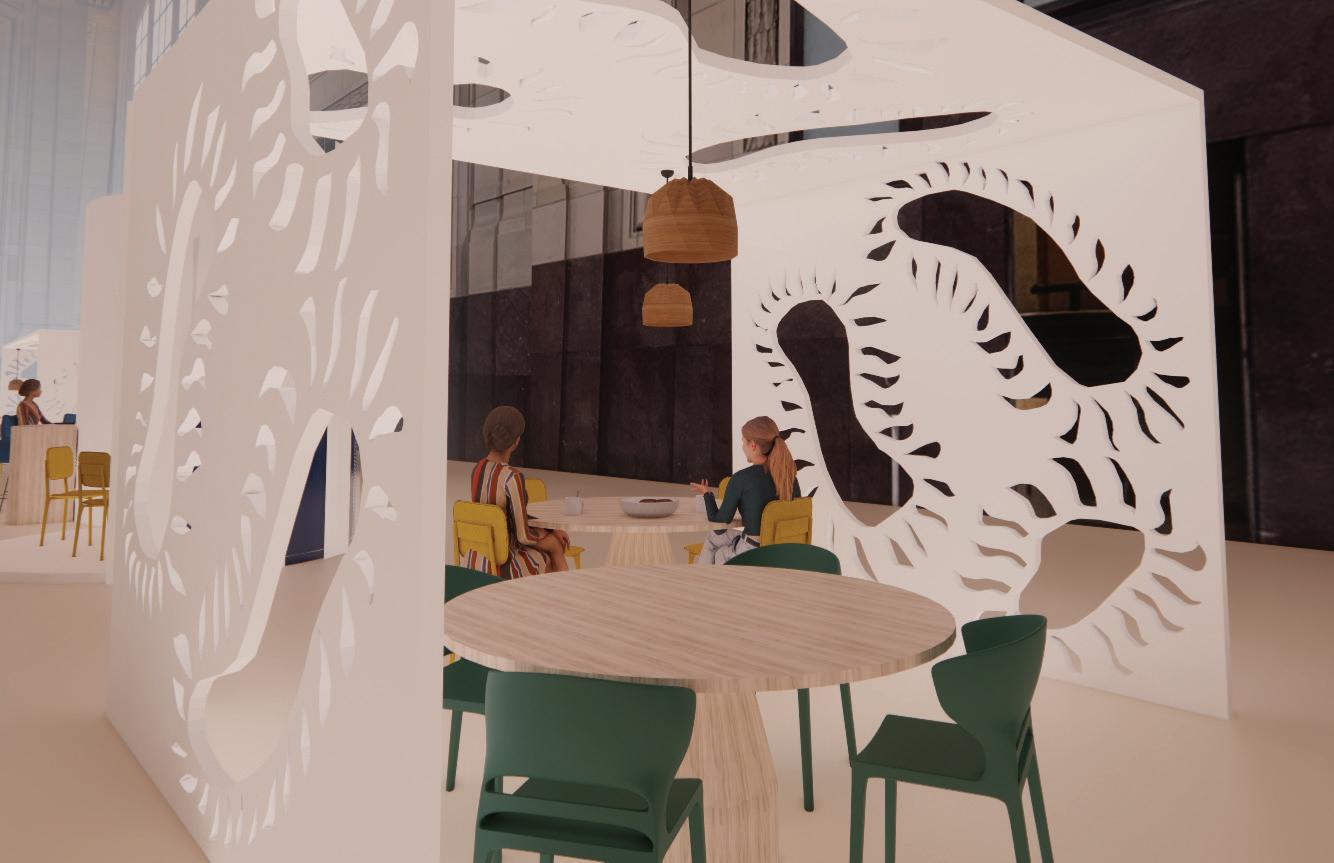

Casual Divider

Cafe

12

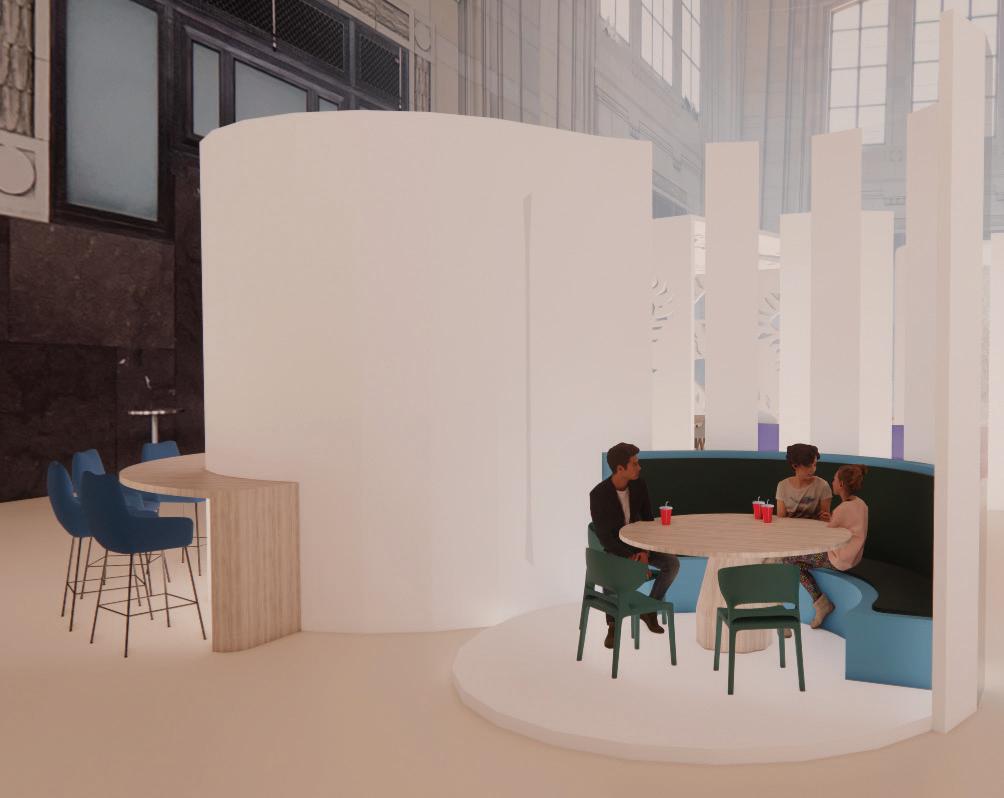

Multi-Use Divider

Bar connected to the Cafe

Inside the Multi-Use Divider

Two Light Project

Location

Two Light Building in Kansas City Missouri

Overview For this project we were given the Two Light Building in downtown Kansas City.

We were to make an office space that people can come together and work alone or with others.

For this space I chose to use the two rivers that are flowing together into the city and play off of that for my layout and configuration of the space.

With that behind said I named my office space “Current” because I want all the people, furniture, and layout to flow together just like the two rivers in the city.

Concept

Continuity A free flowing layout inspired by the unbroken flow of the Kansas and Missouri River. To create an interconnected and merging path of both collaborative and more individual work areas. With pops of water features throughout.

13

14

Low

N-

No/None

ns id

High

L-

M - Medium YI-

Yes

Important but

not required

SQ

H-

er at io ns

Criteria Matrix Key

.F o N ota ec es ge sa ry Ad ja Pu ce bl nc ic ie Li A s gh cc es tin s g Re qu Pr i re iv m ac en y ts N ee ds Pl um Sp bi ng ec ia lE qu Sp ip ec m ia en lC t o

Process

H

L

L

M

N N

N

M

M

350

Small Offices

1000

M

M

M

N

N

“Phone” Booths

128

M

L

H

N

Y

Conference Rooms

600

L

L

H

N

N

Multipurpose Space

N

Lounge Seating Hot Desks & Permanent

200

N

400

H

L

L

N

Reception Area

150

H

H

L

N

N

Coffee Bar

500

H

L

L

Y

Y

Kitchenette/Break Space

250

M

L

M

Y

Y

Recreation Area

250

H

M

L

N

N

Printing Station

50

H

L

L

N

Y

Washrooms & Janitors Closet

200

M

L

H

Y

N

Lactation Room

80

L

L

H

Required

Mech/Elect Room

25

L

L

L

Preferred

Circulation

825

H

L

L

TBD

1000

Spatial Connections

Not Preferred

Adjacency Matrix

Y

Y

N

N

N

Sound absorbing walls

At the entrance

By the washrooms

N Have water features

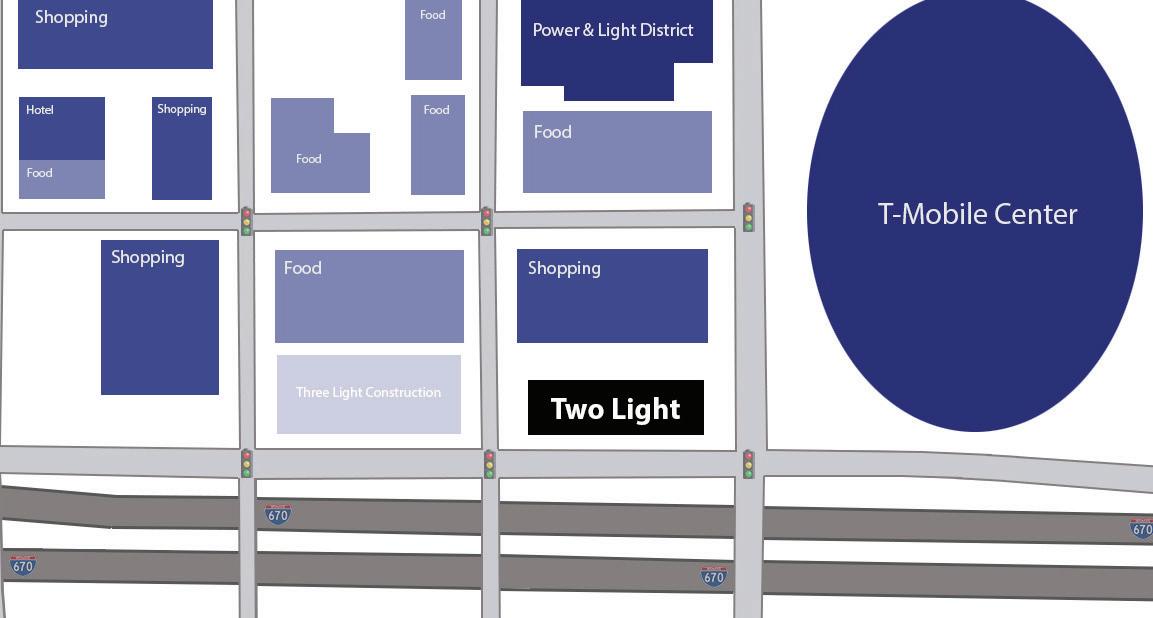

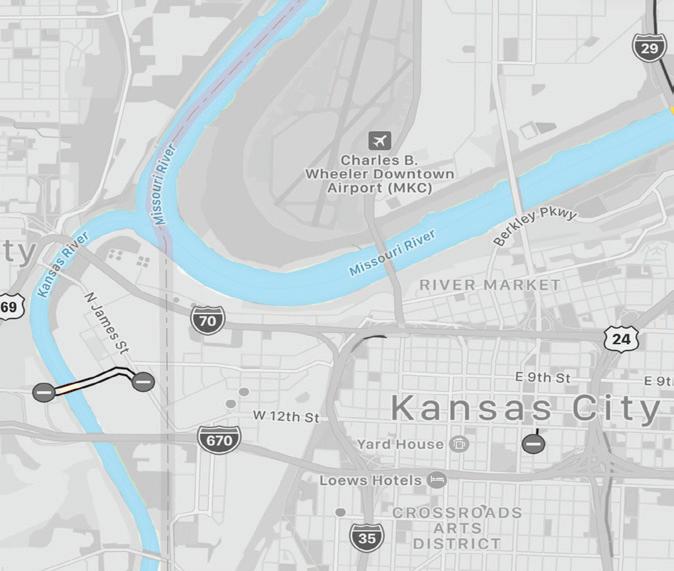

Site Analysis

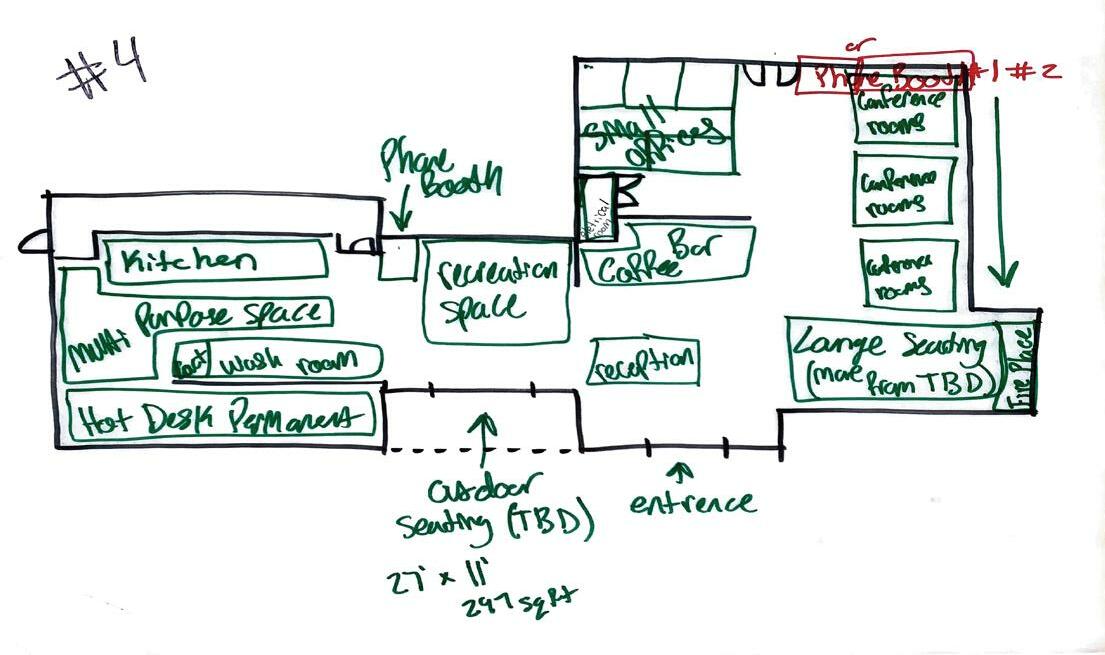

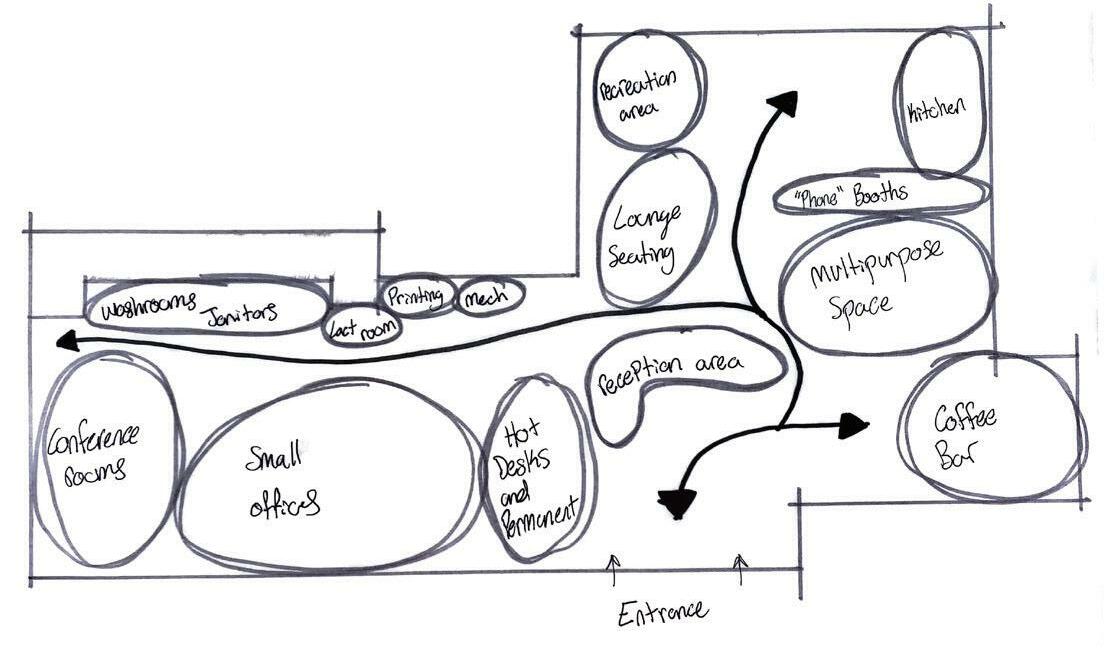

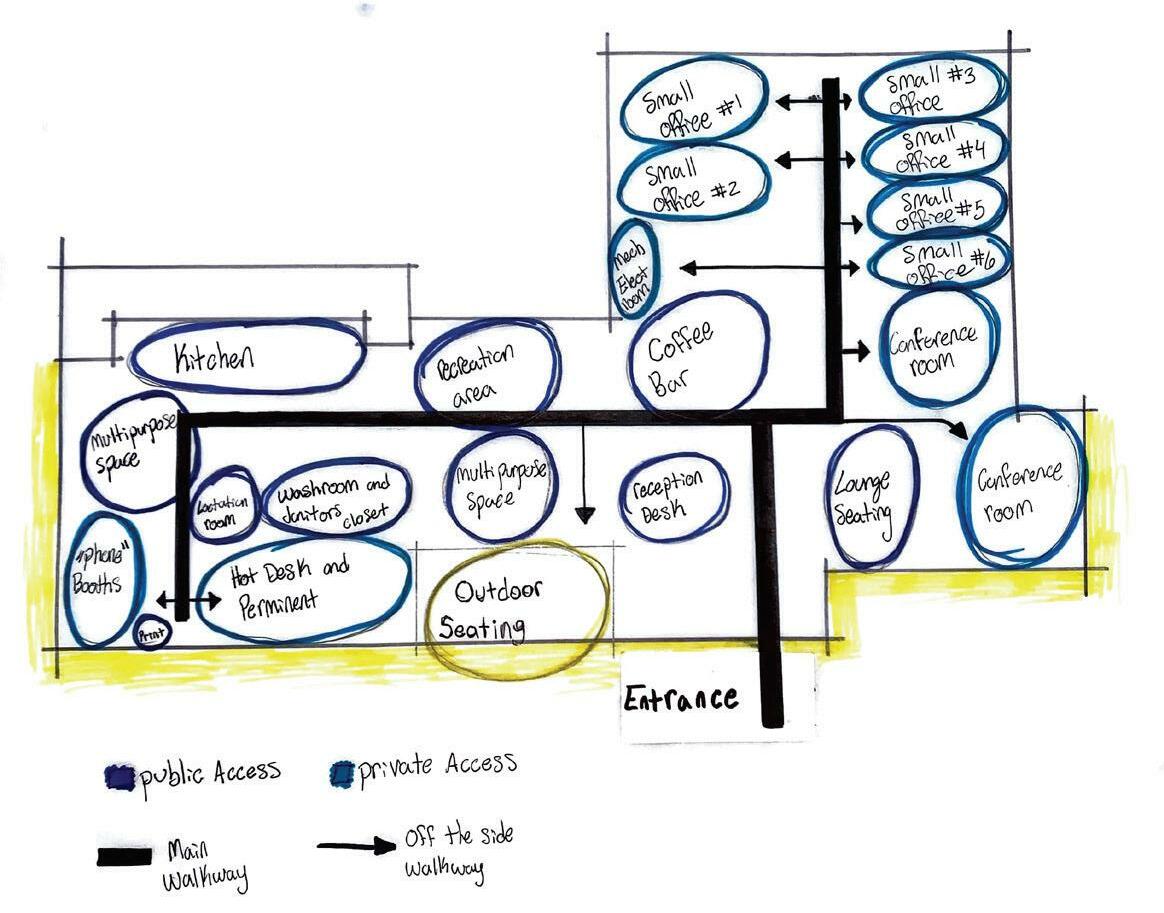

Brainstorm Bubble Diagram

Brainstorm Blocking Diagram

Final Bubble Diagram

Final Blocking Diagram

Level 2 14' - 0"

Level 1 0' - 0"

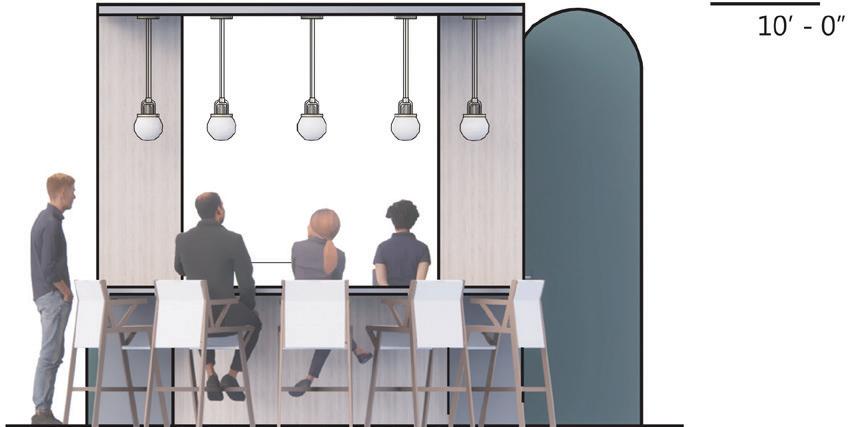

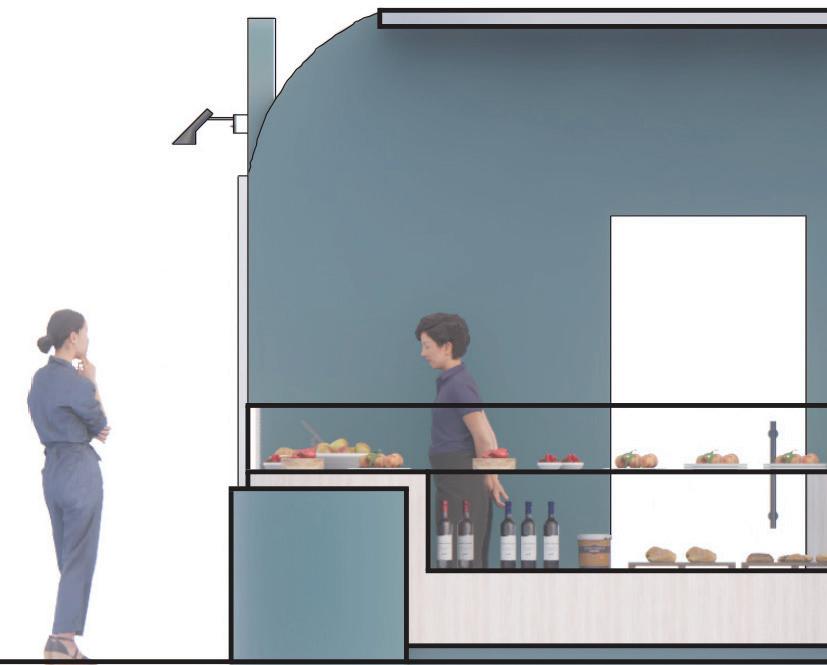

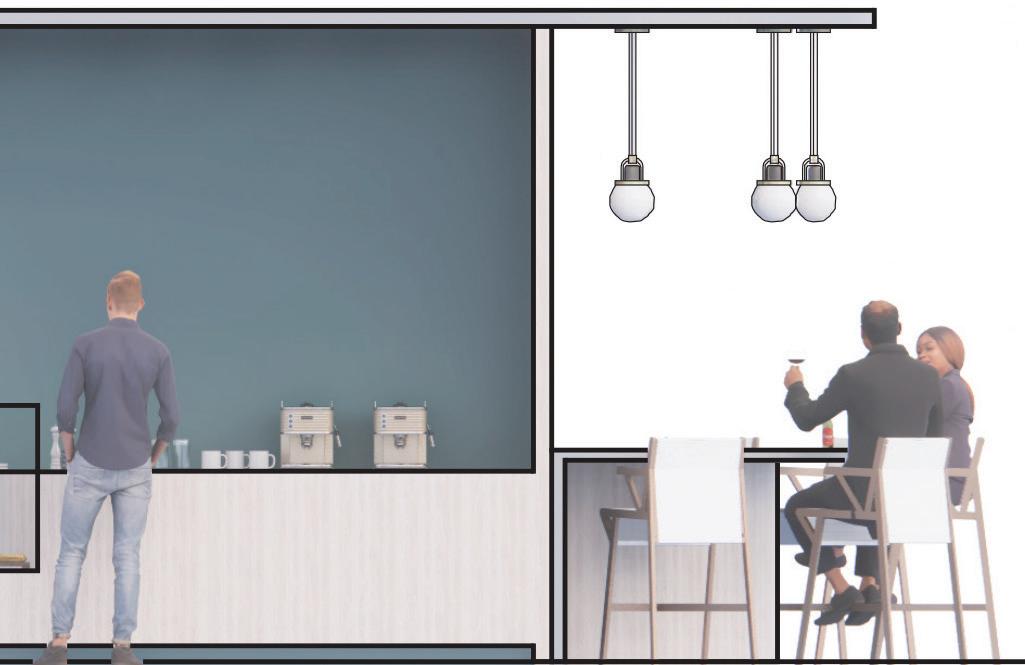

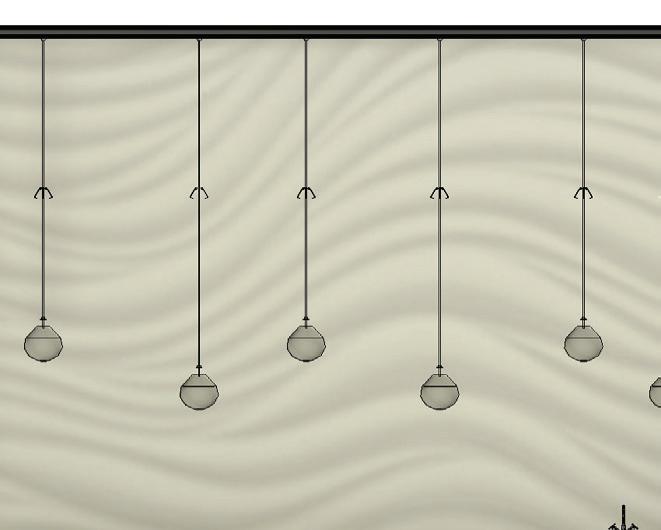

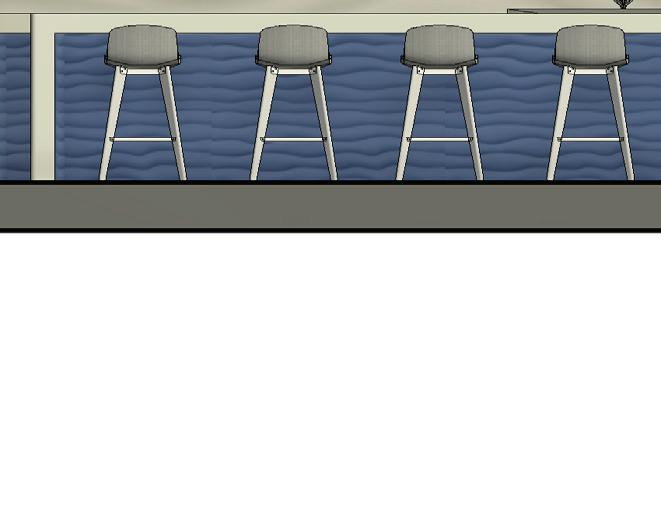

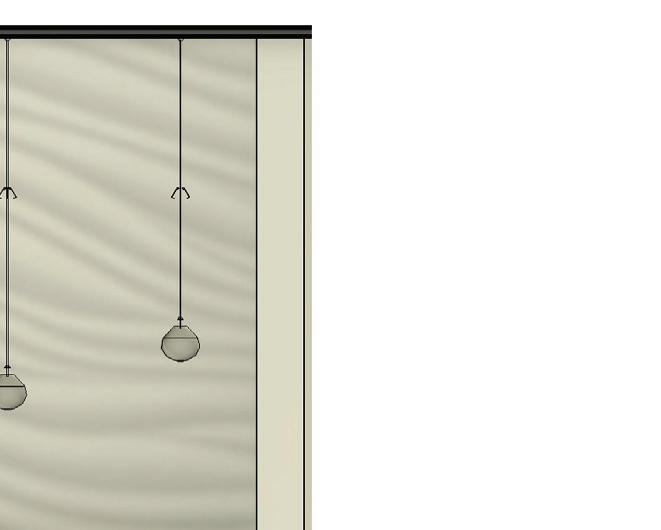

Coffee Bar Elevation

Organic Owner Project Name

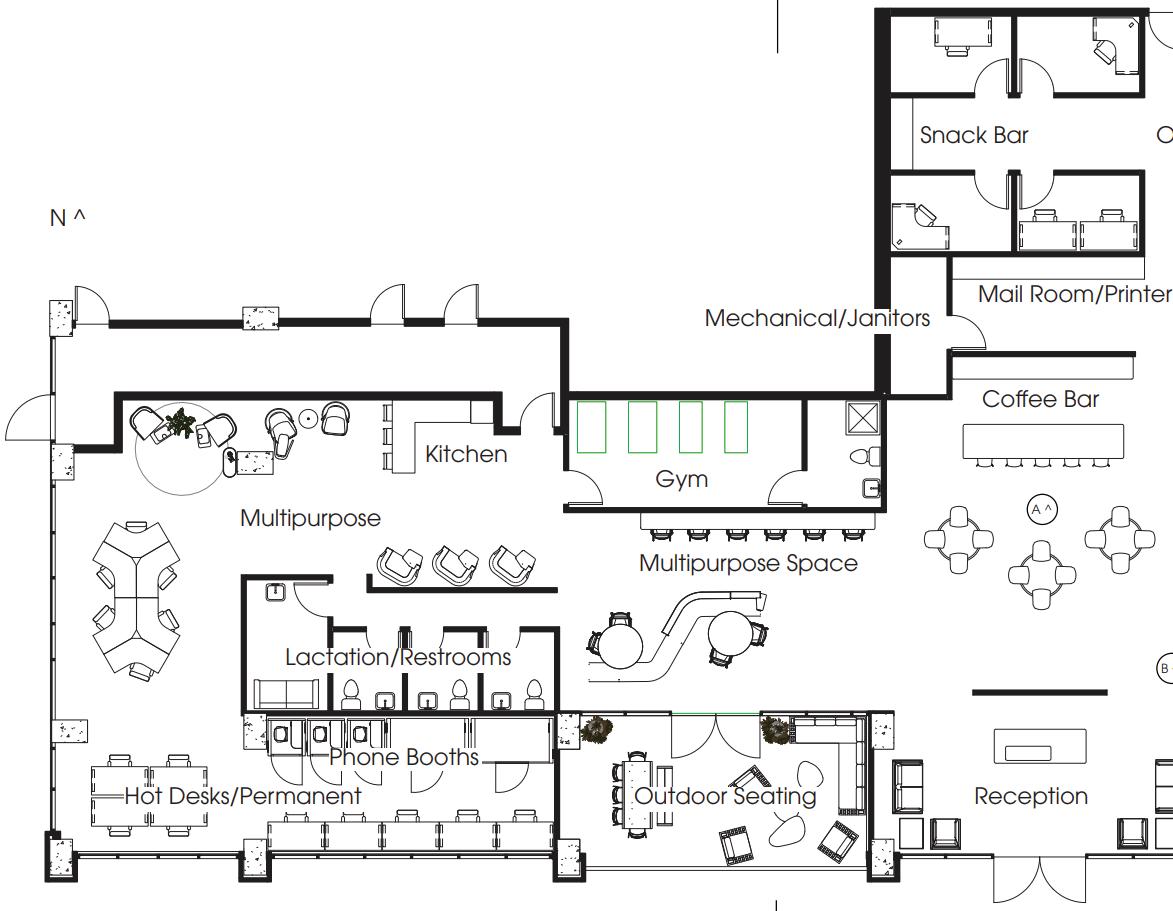

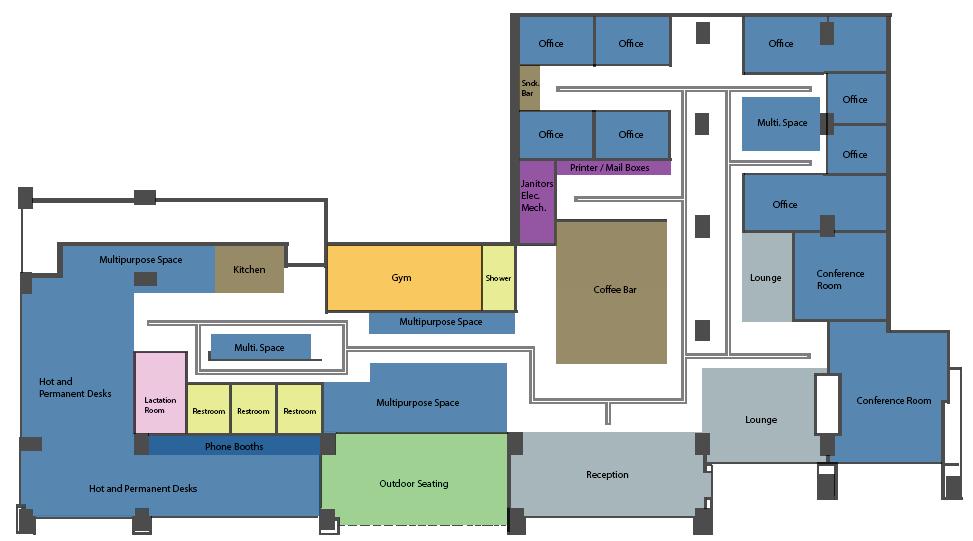

Floor Plan

15

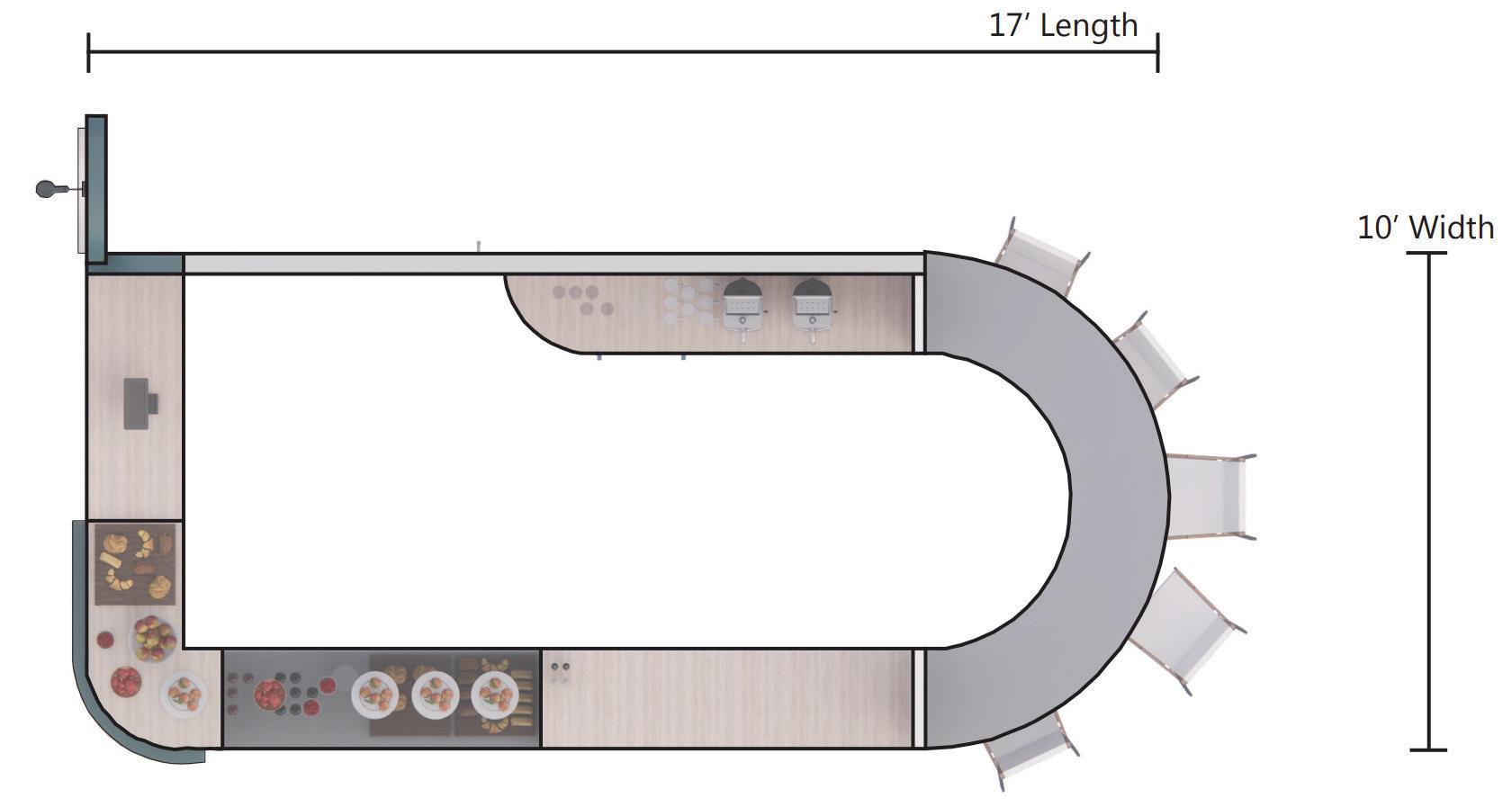

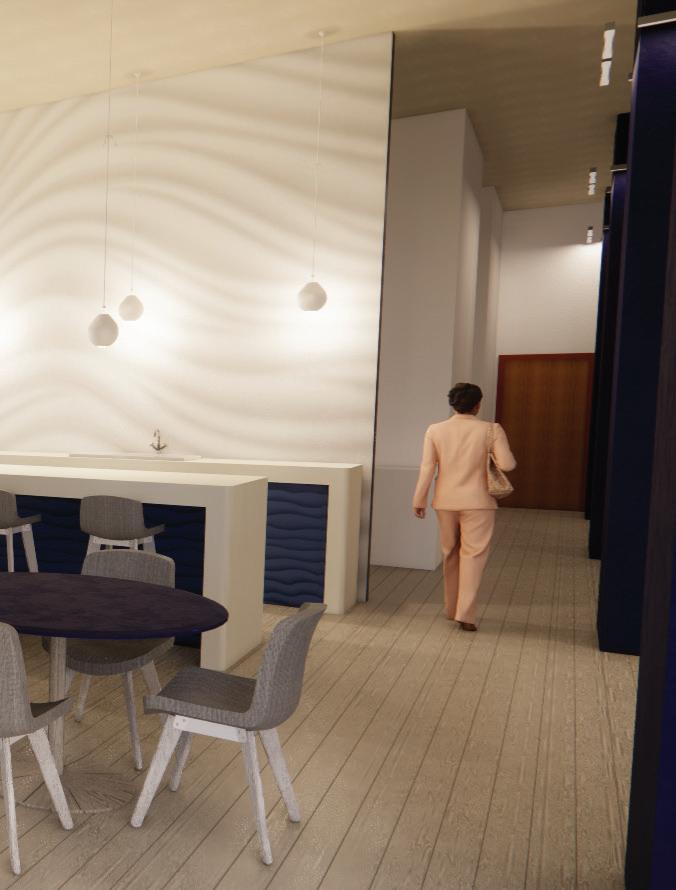

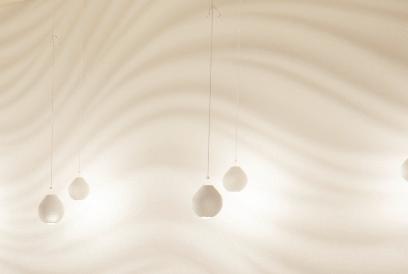

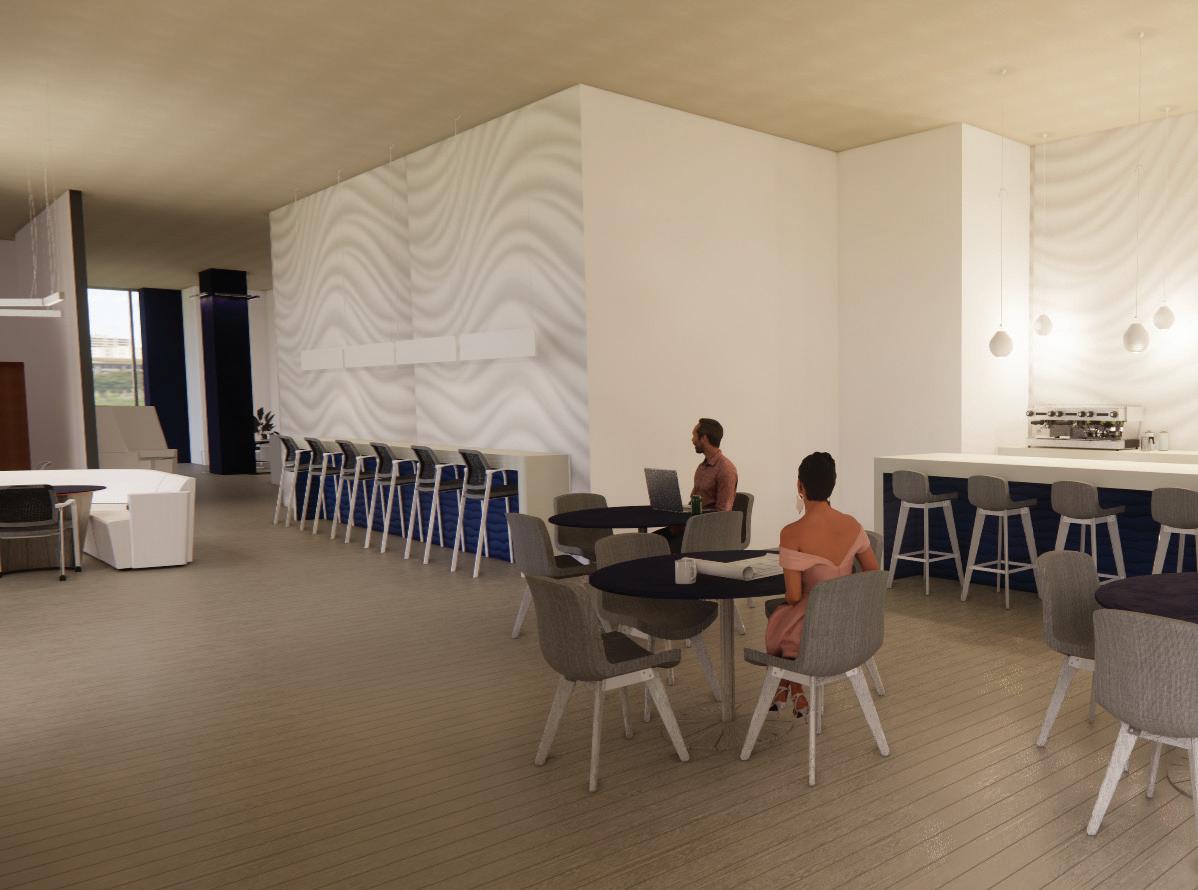

Coffee Bar Render

Fun

Colorful No.

Description

Date

Unnamed Project number Date Drawn by Checked by

Project Number Issue Date Author Checker

elev

Scale 1/4

16

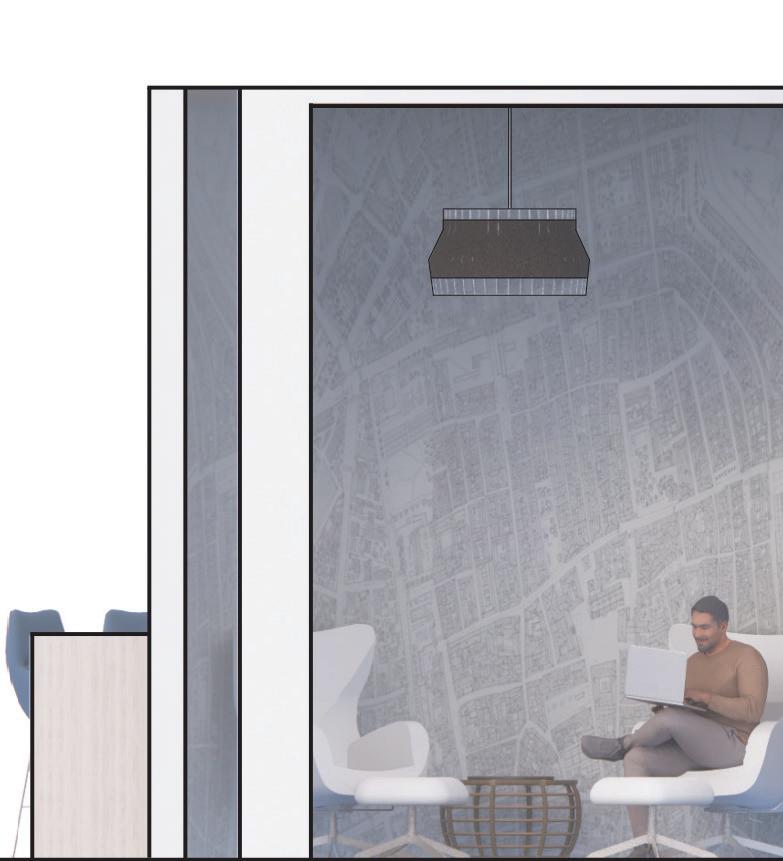

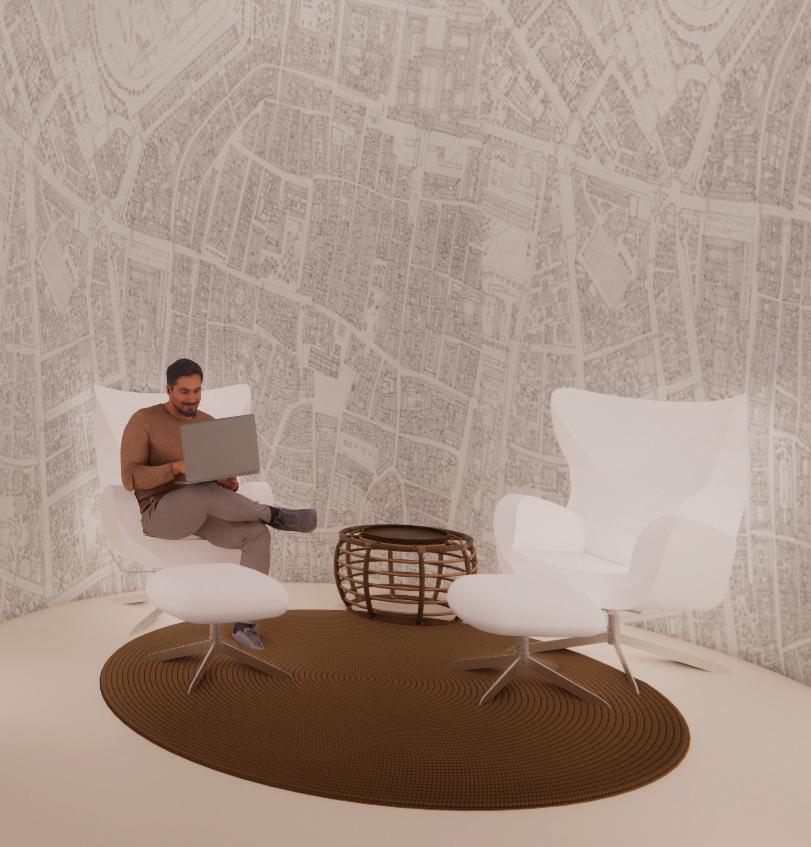

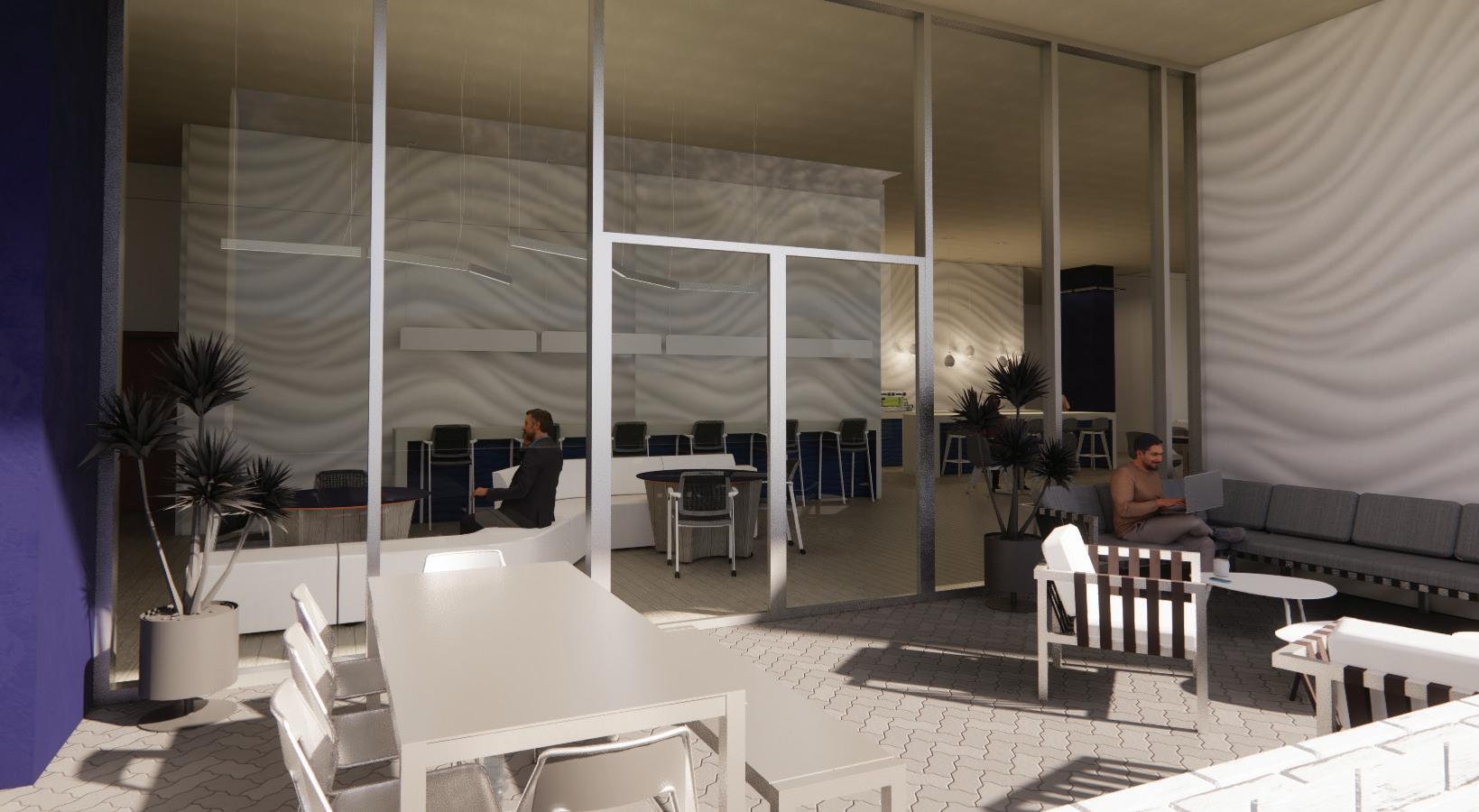

Outdoor Seating Space Render

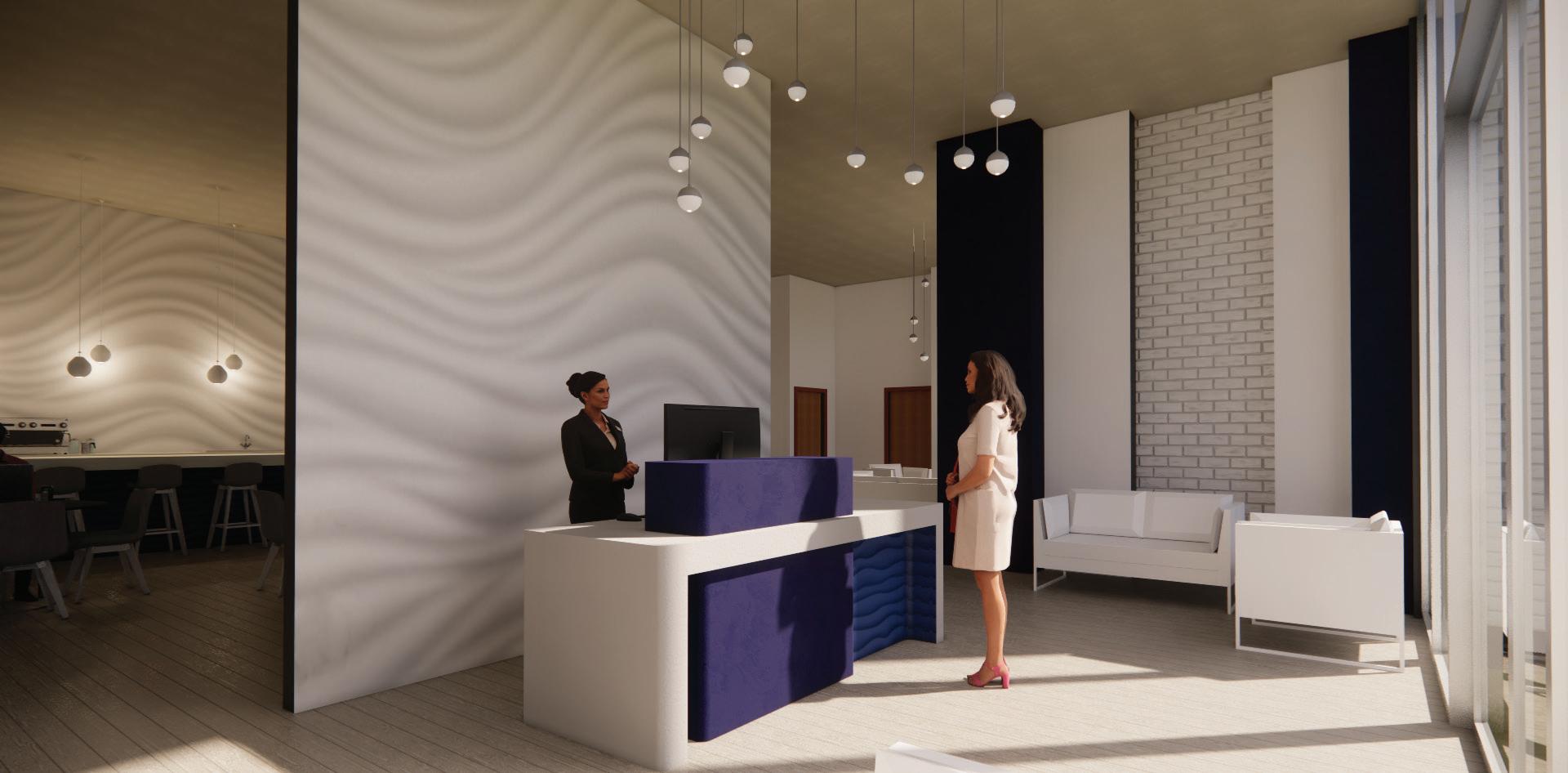

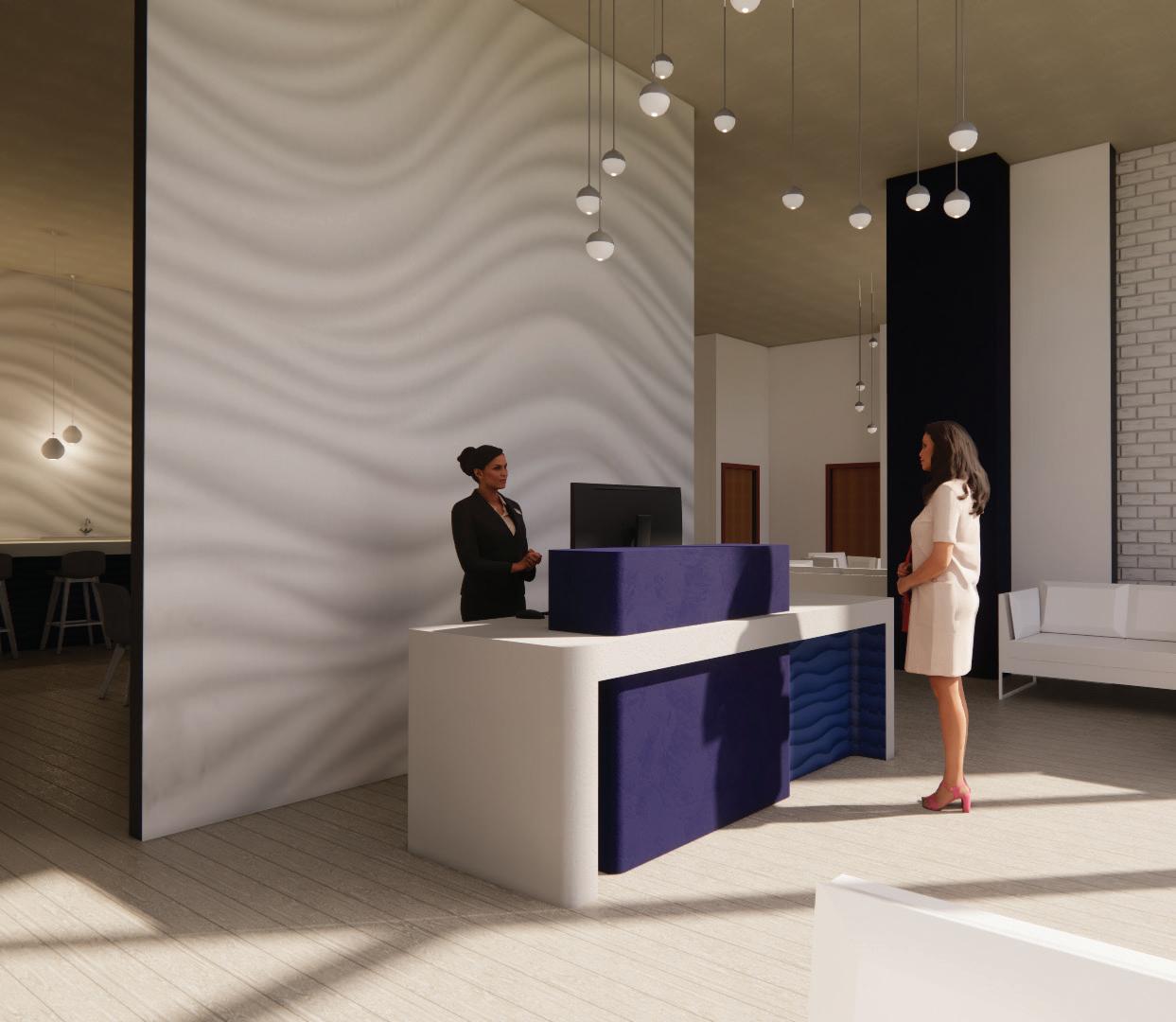

Reception Desk Render

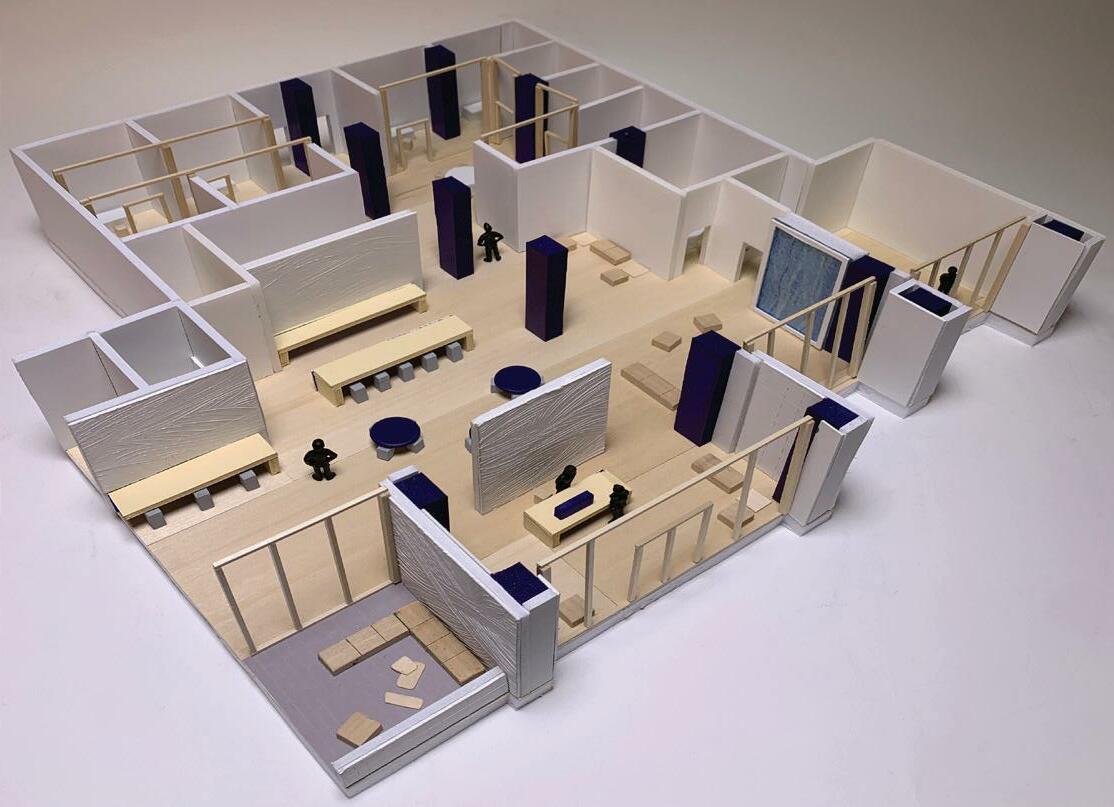

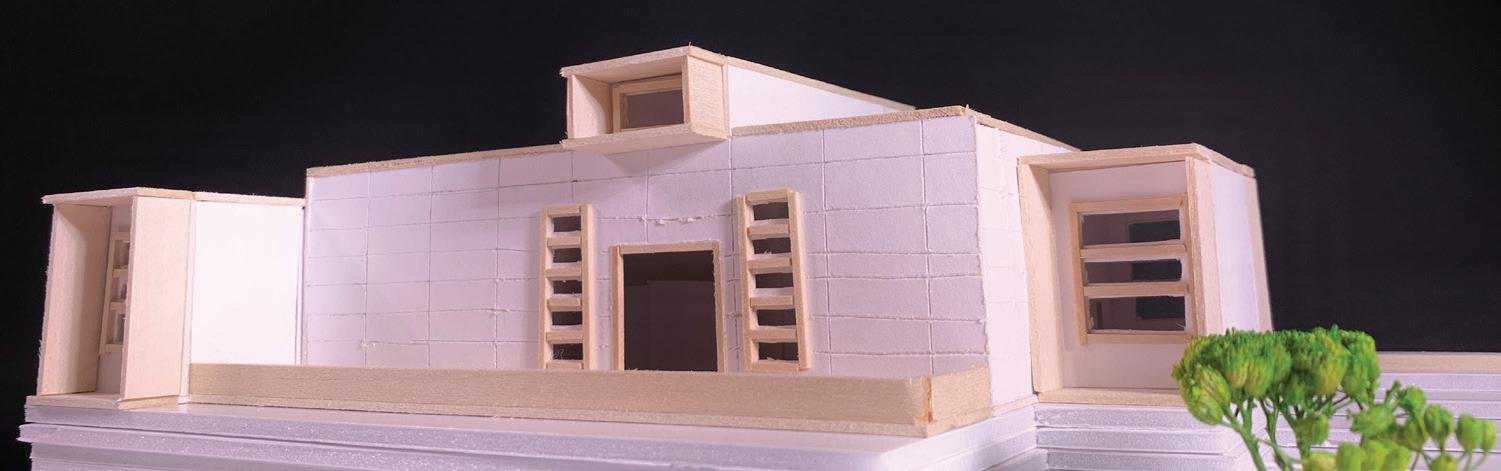

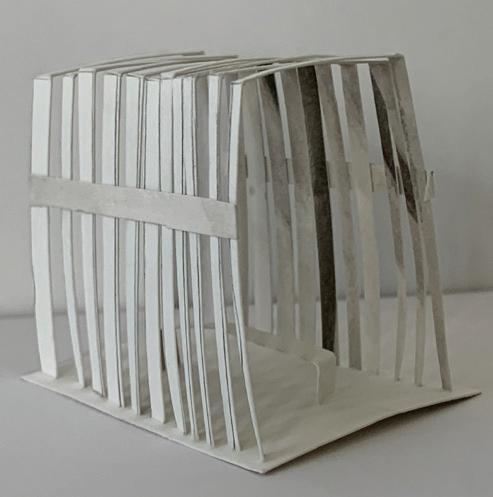

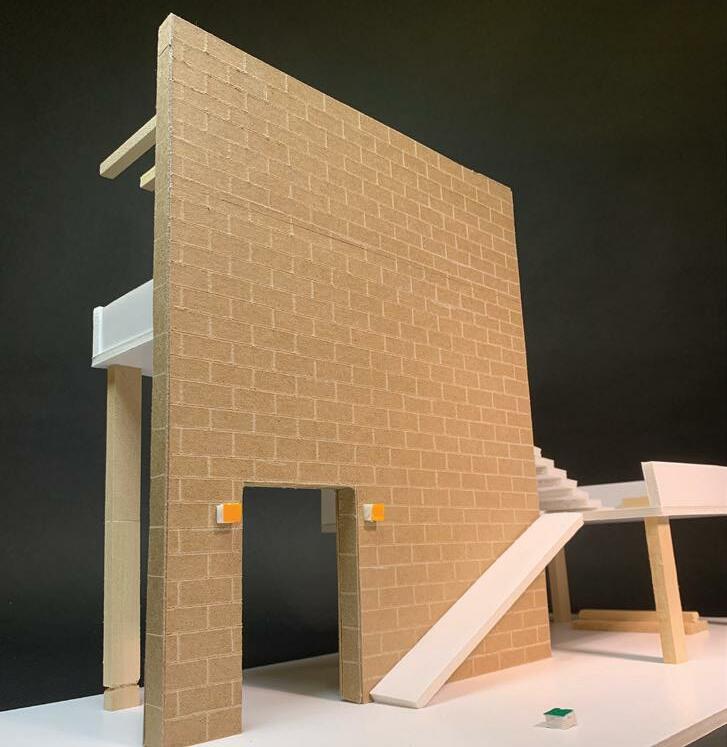

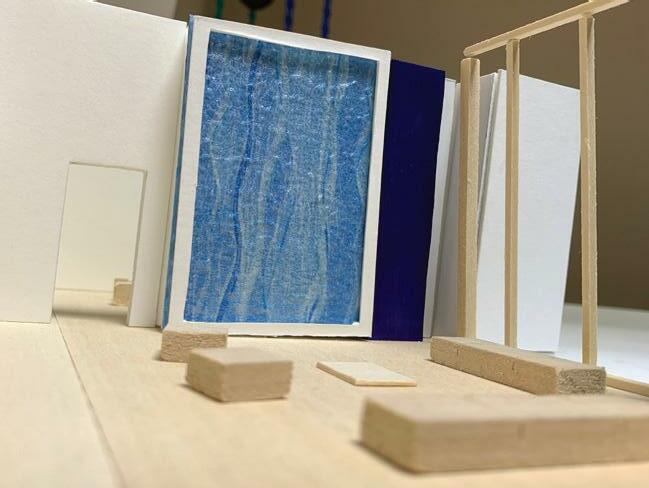

Hand Crafted Models

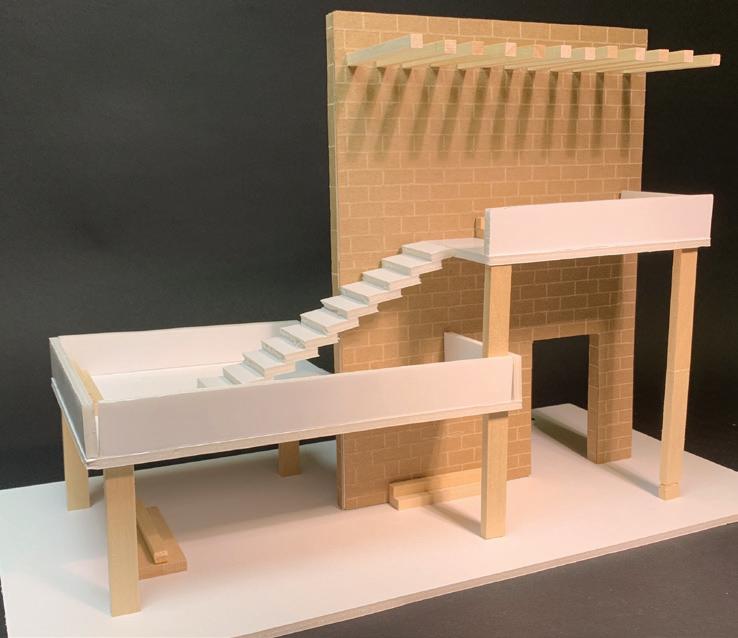

Enclosure Project

Spatial Journey Project

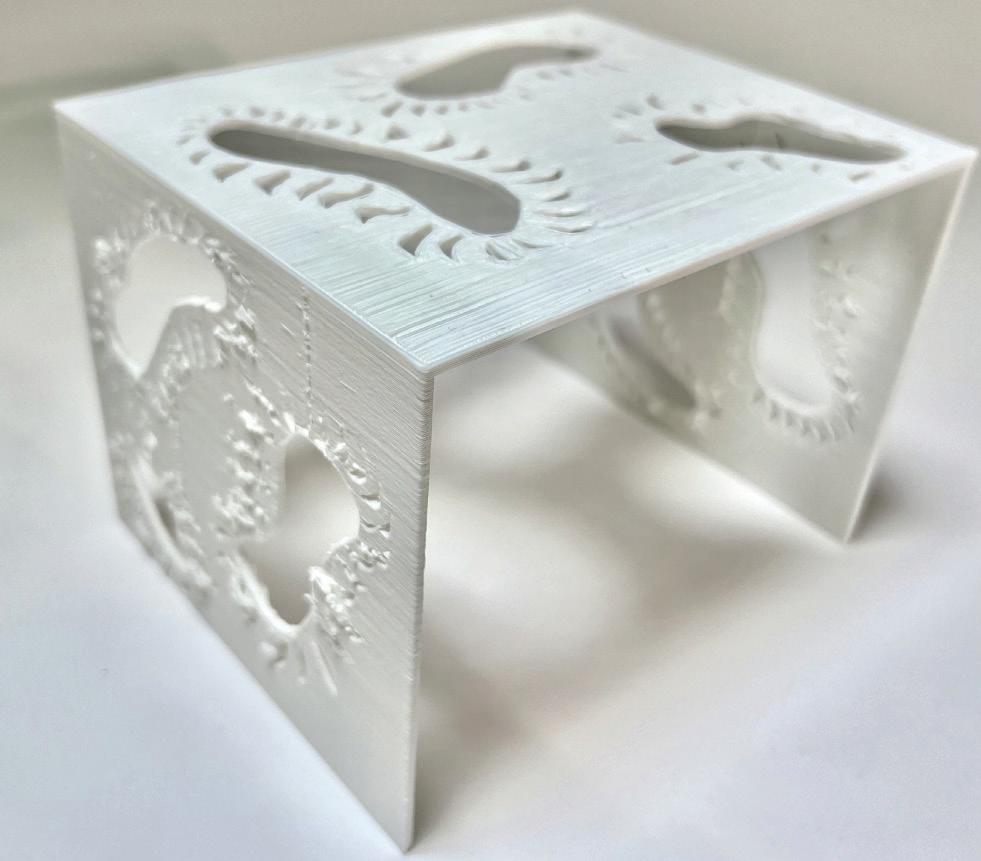

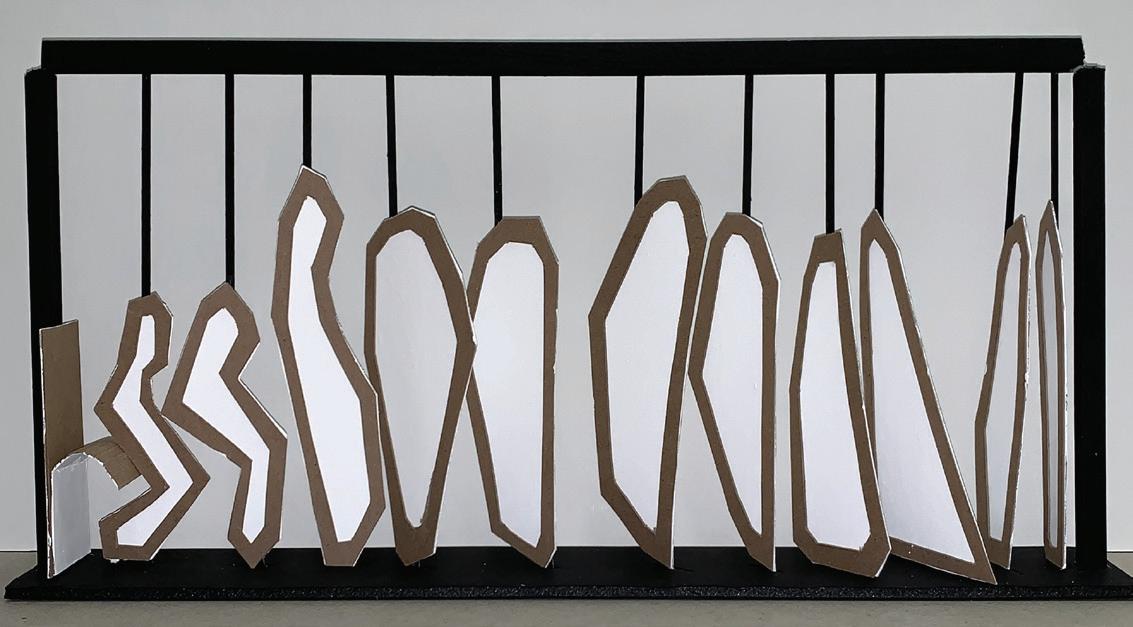

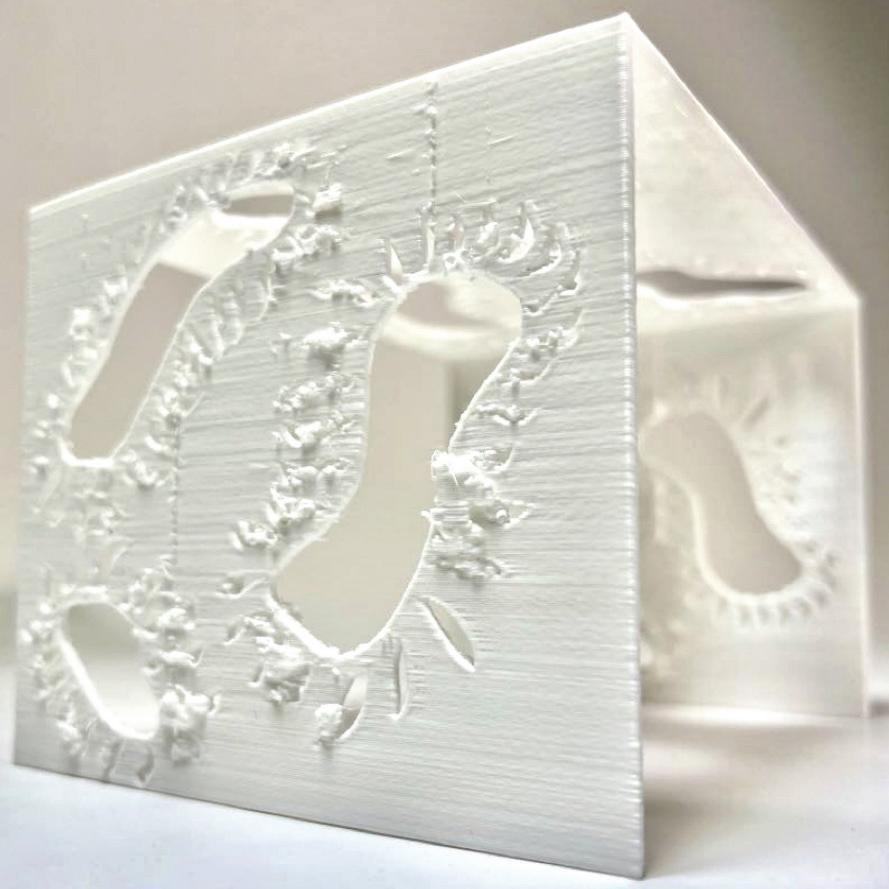

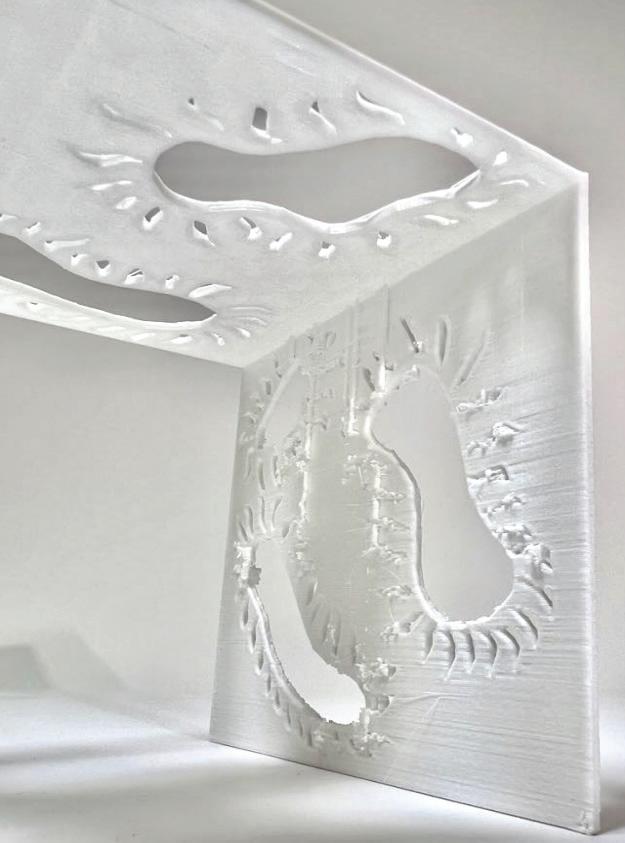

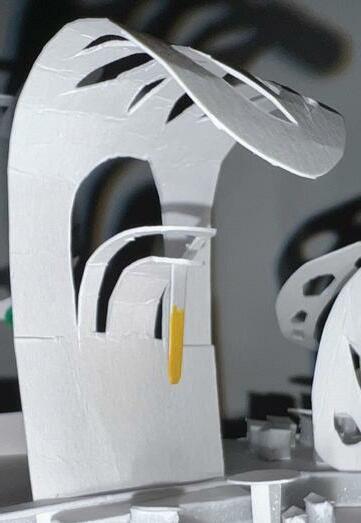

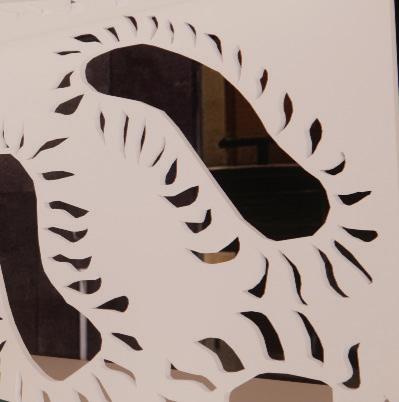

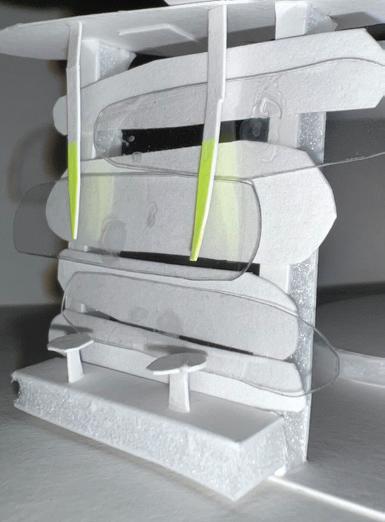

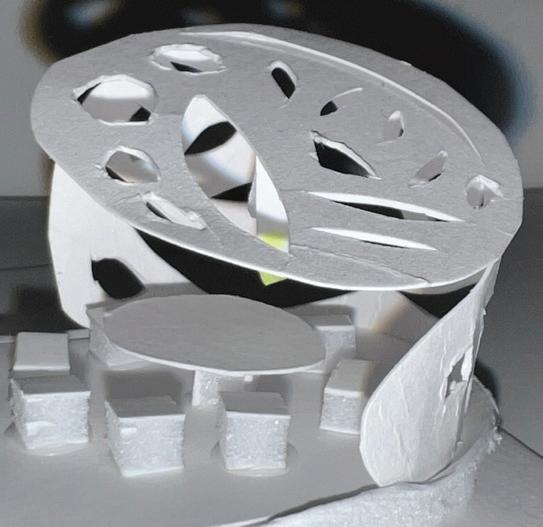

Vistoso Cafe Project Casual Divider Model 3D Printed (first time working with a 3D printer)

17

18

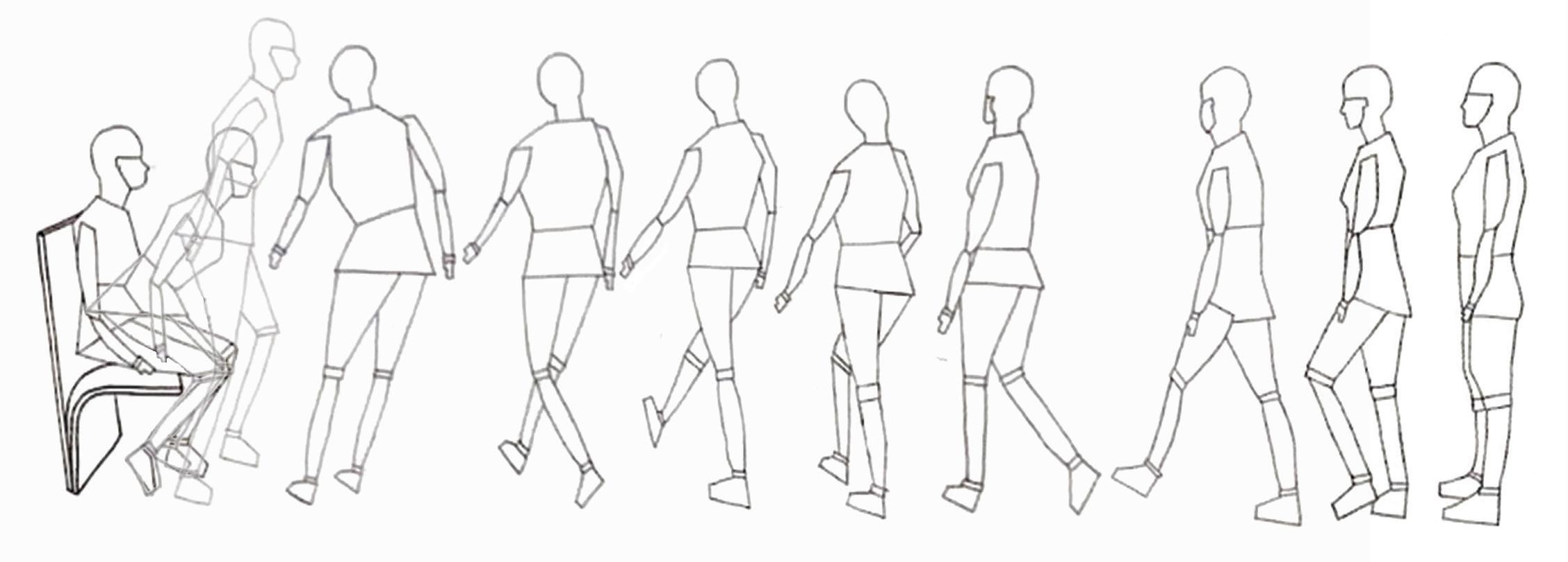

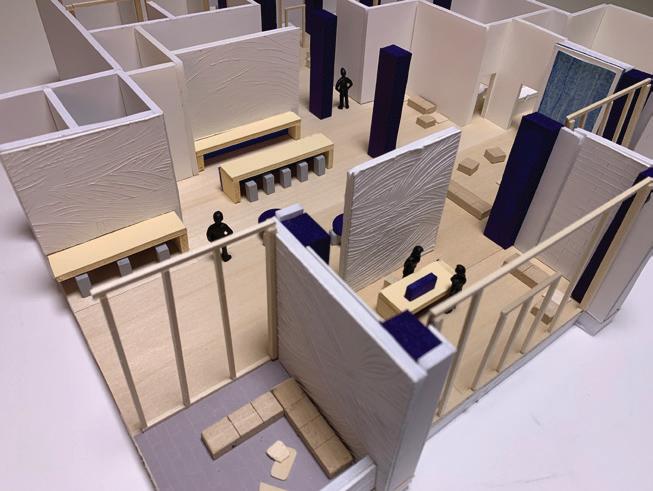

Motion Project

Enlighten Space Project

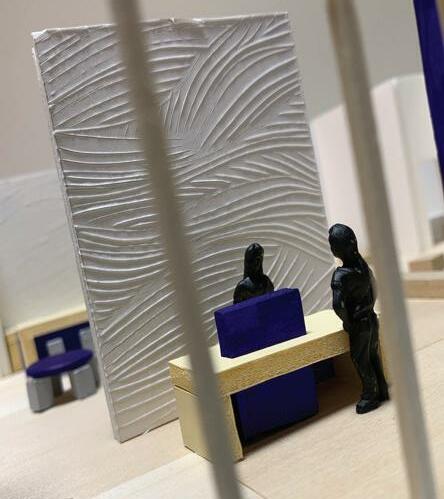

Two Light Project

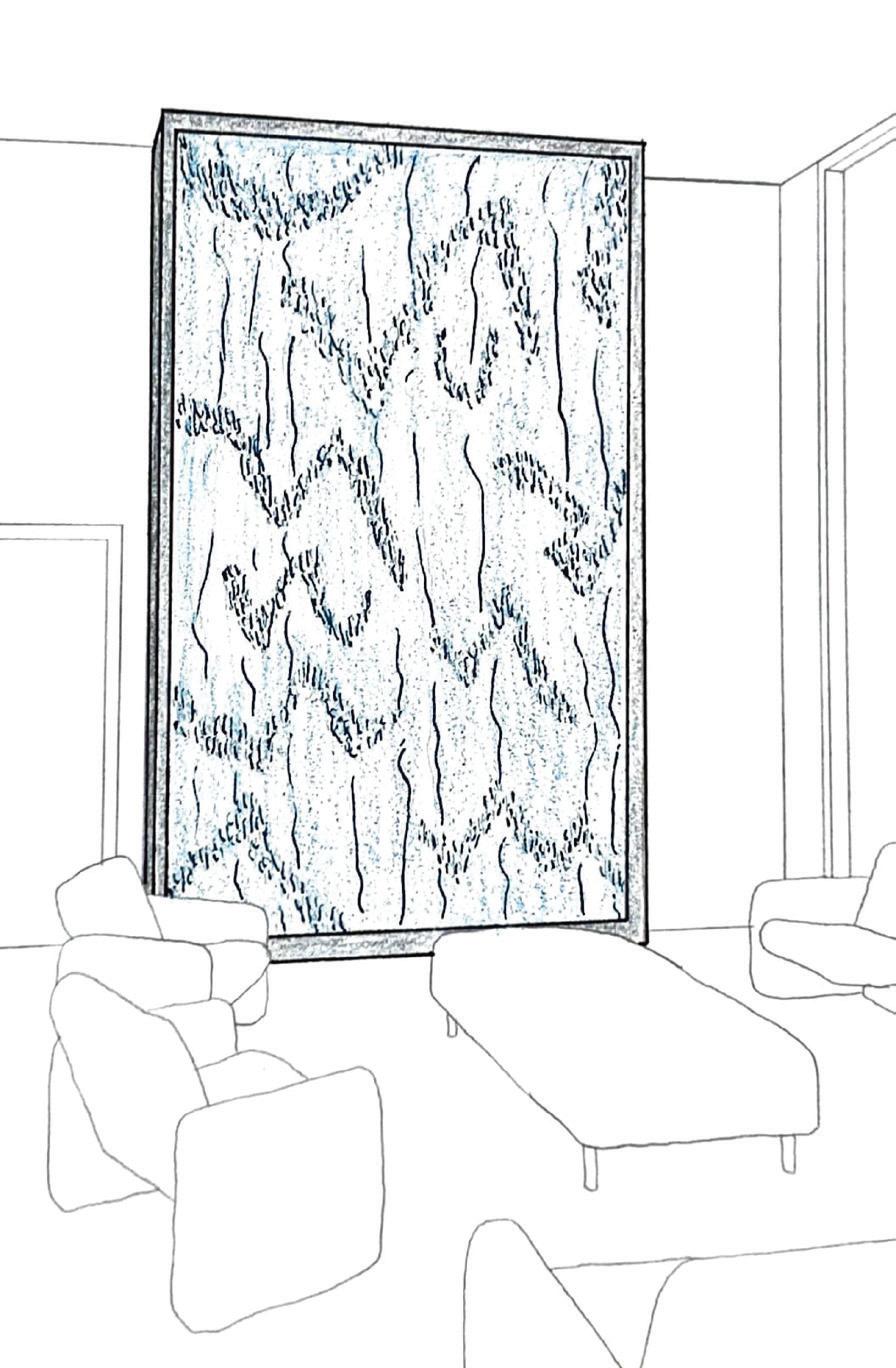

Hand Drawings

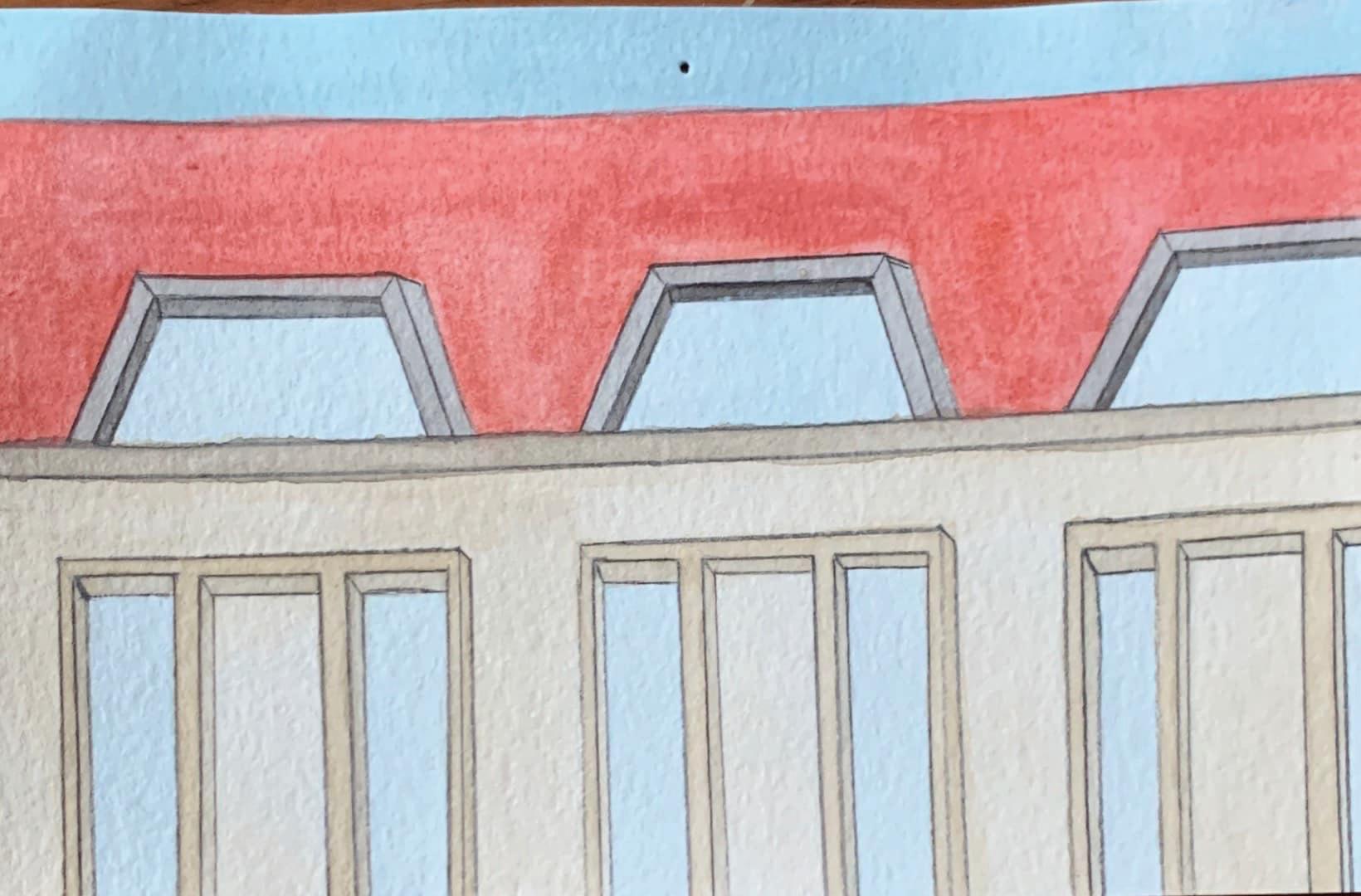

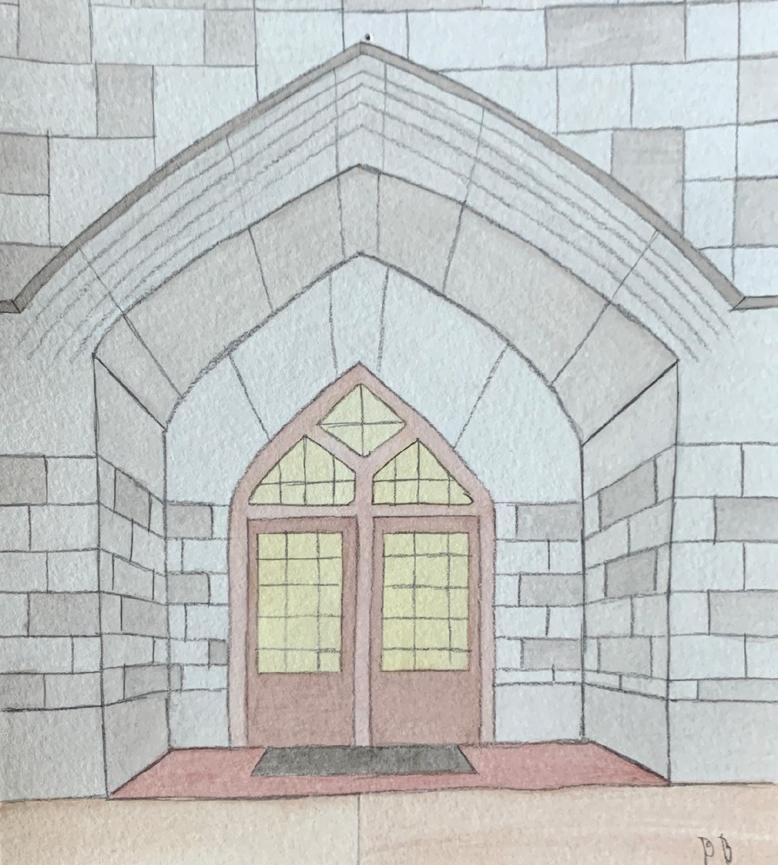

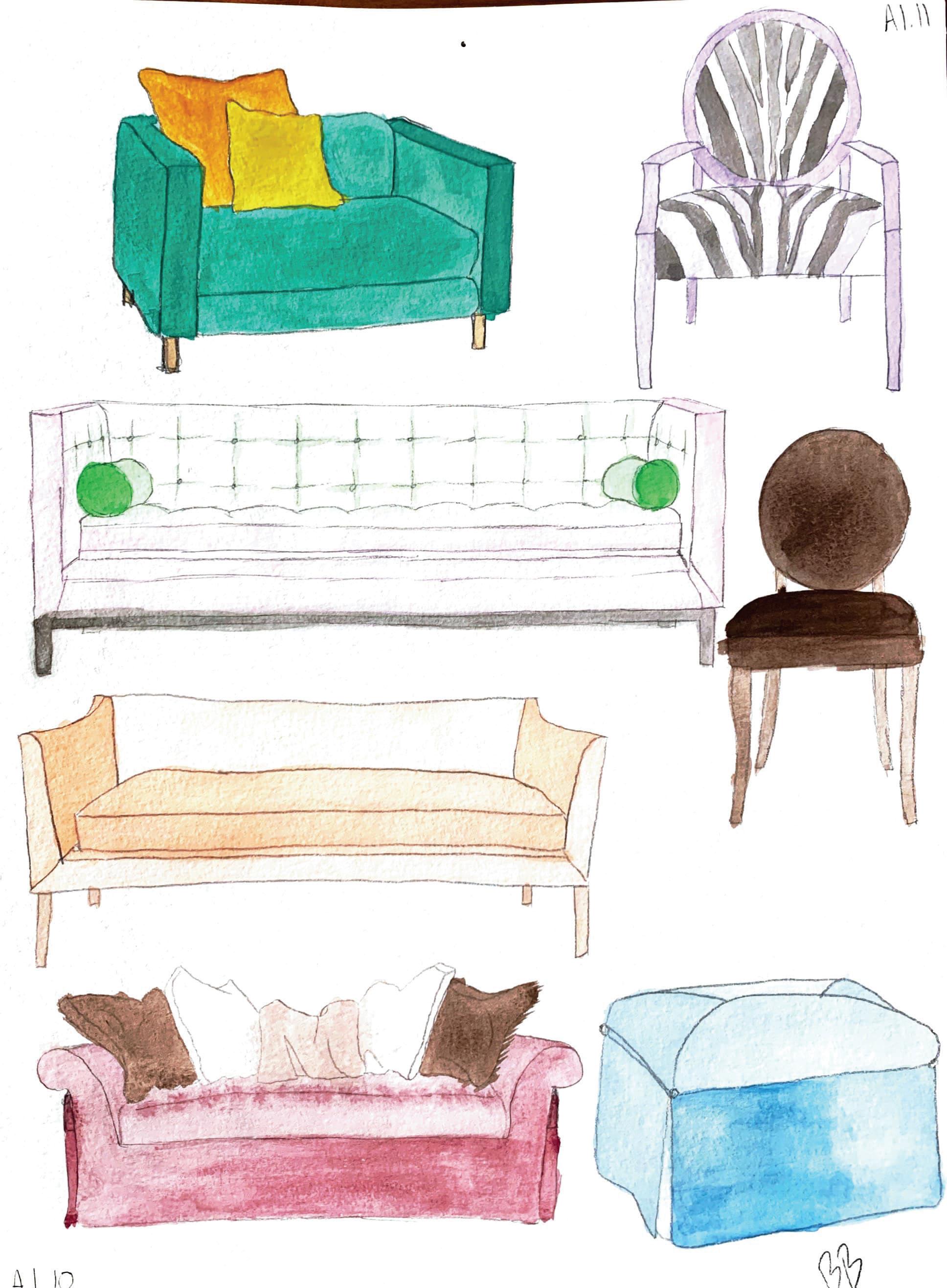

Watercolors

19

20

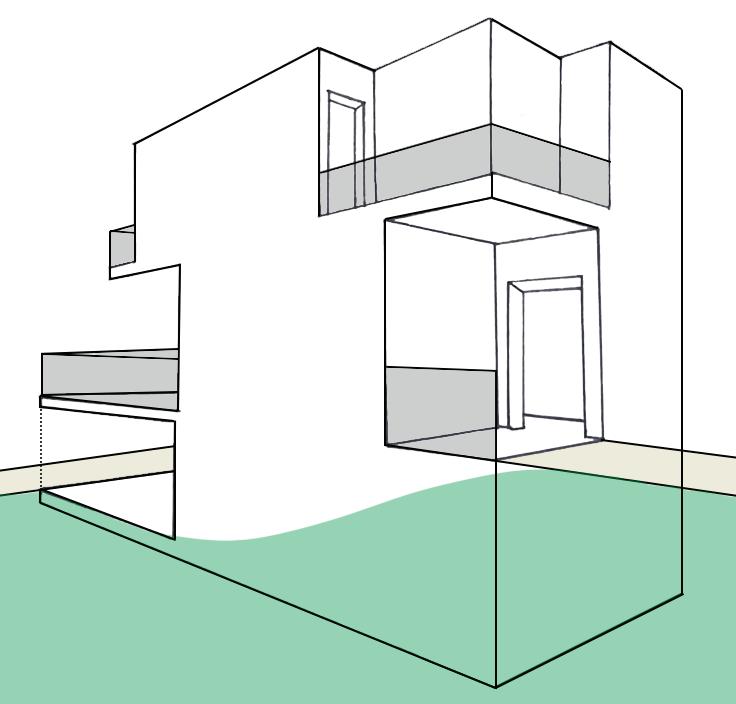

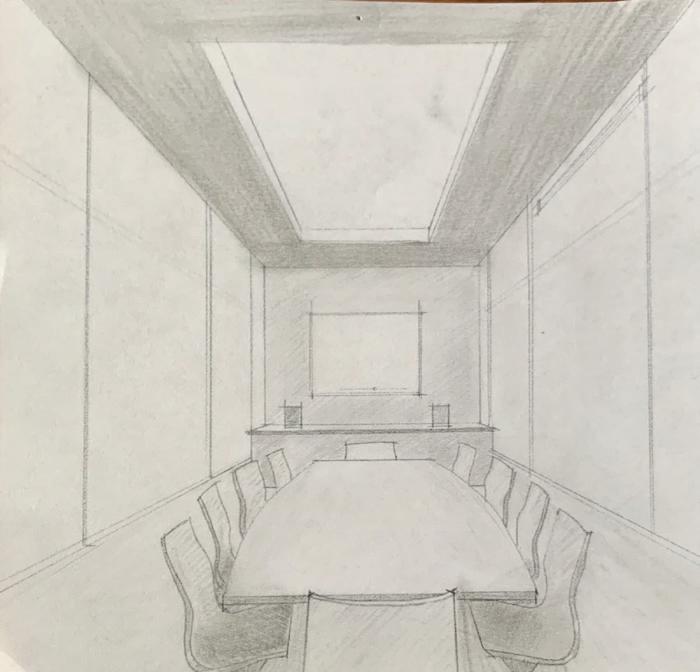

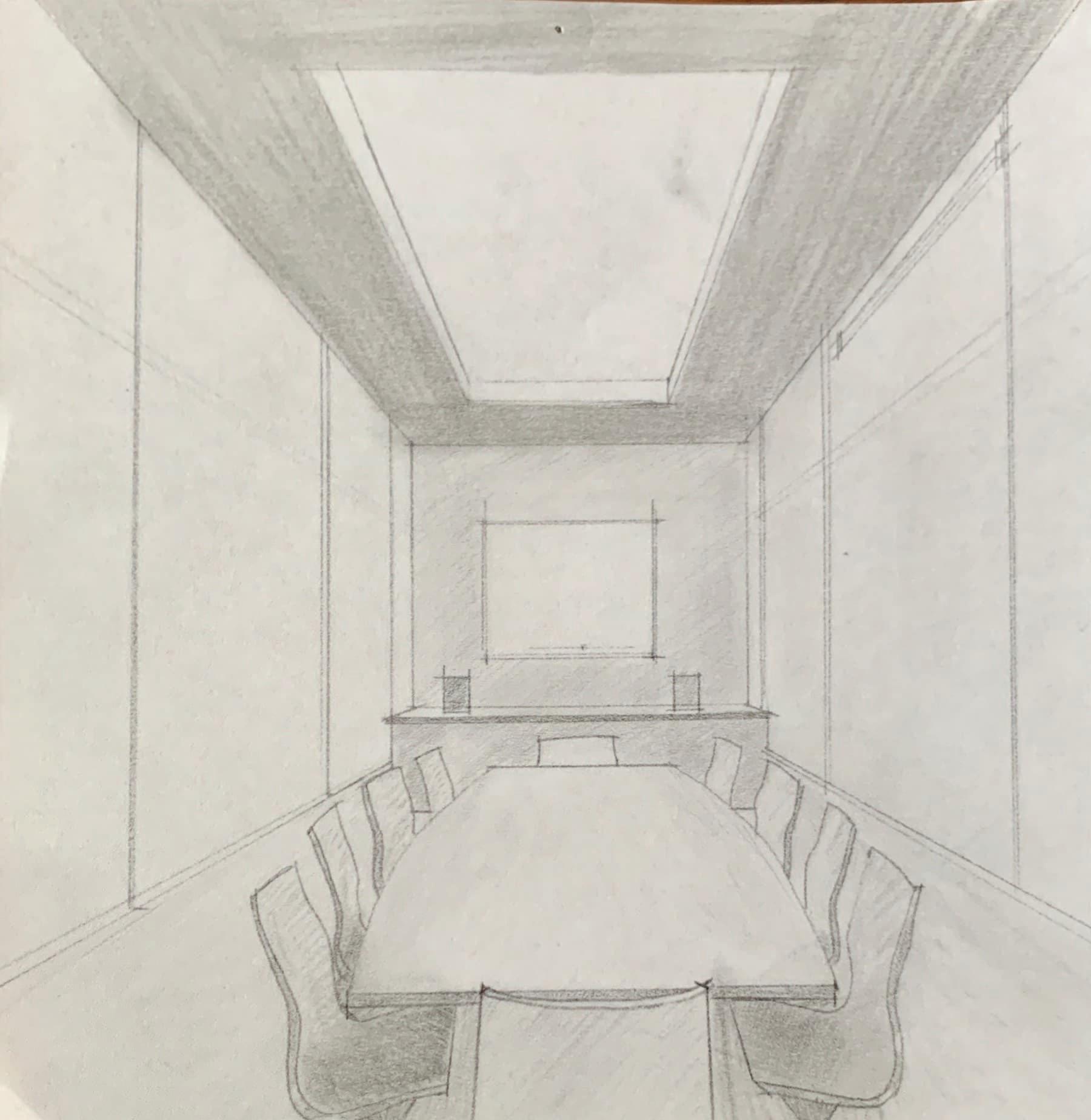

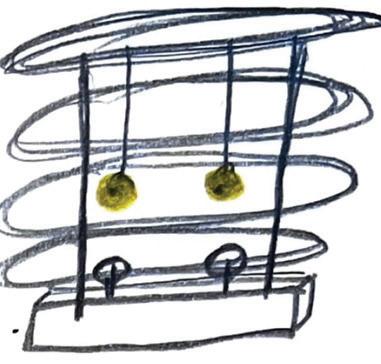

Sketching
