Splendor Specifications

Page 1


BABY LOCK

8 - Thread Serger

The Splendor is the perfect next step for sewists ready to go beyond basic serging. With easy air threading and versatile stitch options, it helps you finish garments, quilts, home decor, and more with the professional finish that all of your projects deserve.

8 - Thread Serger

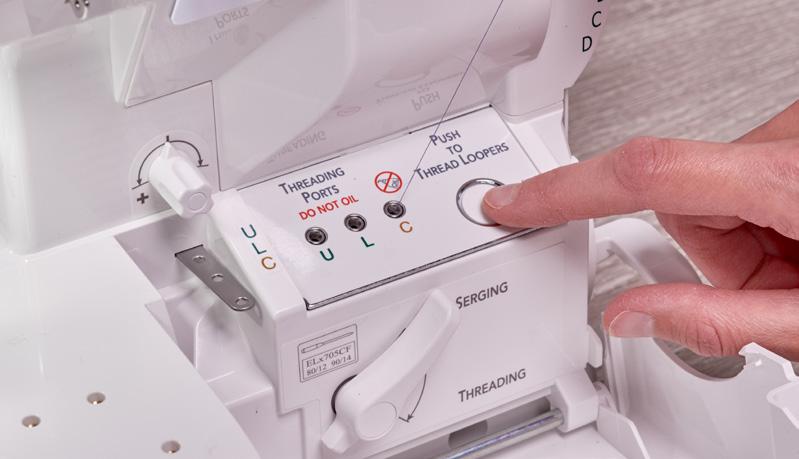

ExtraordinAir® Threading

With just a gust of air, ExtraordinAir instantly takes thread through all loopers. Threading has never been this fast, easy or extraordinary!

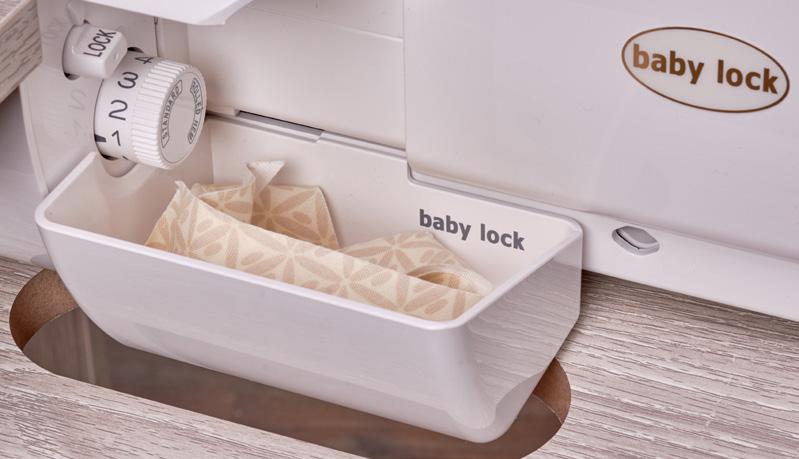

Deluxe Trim Bin

The included Deluxe Trim Bin slips easily into place for those times you are trimming fabric in overlock stitches. With its low-profile design, it affords easy access to all your adjustment dials.

Spacious Workspace2” to the Right of the Needle

With a spacious workspace, you can easily serge a large project or add decorative stitches to fabric creating a custom look that lets your creativity shine.

Automatic Thread Delivery™ System

With the ATD system on the Splendor, the exact amount of thread is delivered for all of your Overlock stitches regardless of the fabric thickness or the type of thread that you are using. Perfect results happen every time!

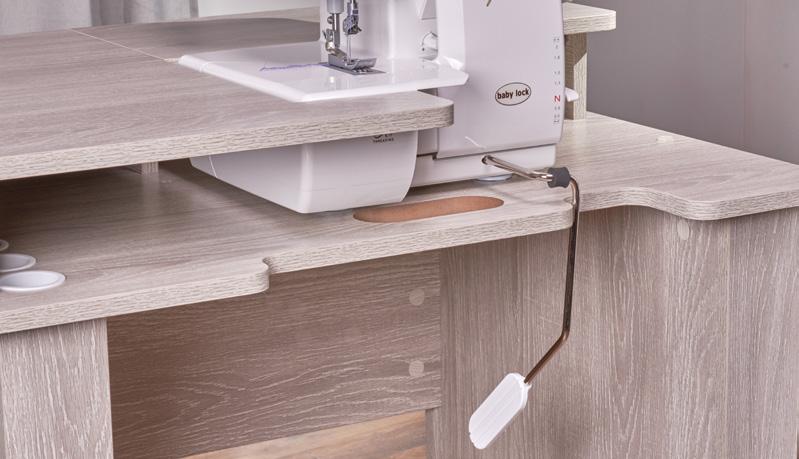

Knee Lifter

Raise the presser foot by simply moving the attachable lever with your knee. This leaves both of your hands free for stitching.

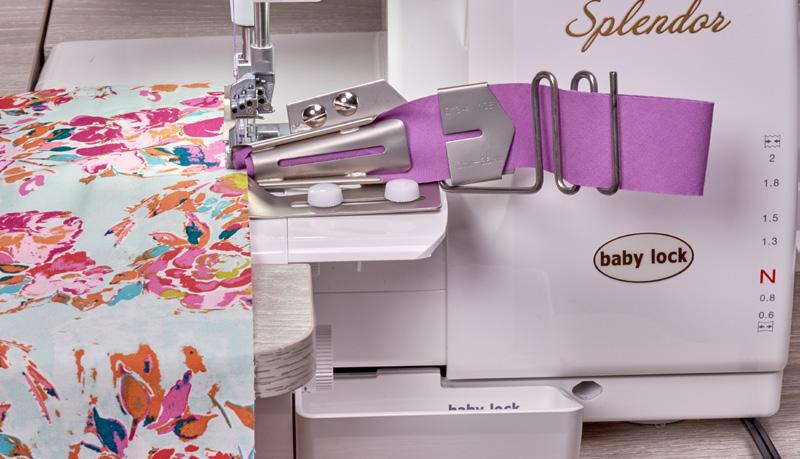

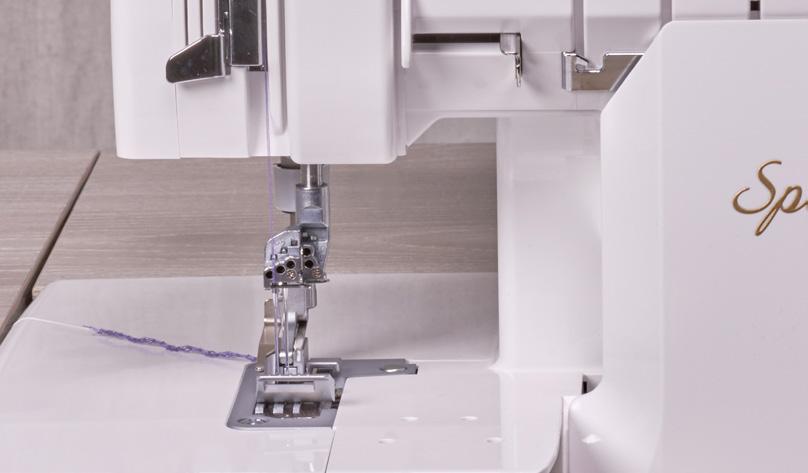

Chain/Cover Flat Sewing Table

With two sets of positioning screws on the included table, you’ll have the perfect position for all your favorite attachments! Take advantage of being able to use the popular Knit/Woven Bias Binders and the Fabric and Hemming Guide, expanding your finishing opportunities for projects.

Advanced Serging Features

• Presser foot height adjustable up to 6mm

• Cover stitch narrow (left and right), wide and triple

• Chain stitch left, center, and right

• Overlock stitches for seaming, fabric edge finishing, and decorative applications

• Flatlock stitch for seaming and decorative accents

• Heavy duty cutting system handles thick fabrics with ease

• Automatic rolled hem stitch functions create a professional finish

• Adjustable stitch width dial: width range 1.5

- 7.5mm, up to 16mm wide on “expressive” stitches

• Adjustable stitch length dial: length range 0.75 - 4mm

• Dial adjustable built-in rolled hem

• Side thread cutter

• Up to 1,500 stitches per minute

• Presser foot pressure adjustment dial

Included Accessories

• Quick Reference Threading Guide

• Foot Control

• Indication sticker

• Needle threader

• Knee lifter

• Lint brush/needle insert tool

• Two needle clamp screws

• Package of assorted sized needles

• Screwdriver

• Tweezers

• Upper cutting blade for replacement

• Looper threading tool

• Machine soft cover

• Eight thread nets

• Eight spool caps

• Eight sponge disks

• Allen wrench

• Eight cone holders

• Deluxe Trim Bin

• Chain/Cover Flat Sewing Table

Optional Accessories

• Belt Loop Binder 1-1/2" (BLE8-S11)

• Belt Loop Binder 3/4" (BLE8-S12)

• Compensating Foot (BLES8-COMF)

• Cording Foot 5mm (BLE8-CF)

• Double Fold Bias Binder 28mm (BLE8-S3)

• Double Fold Bias Binder 36mm (BLE8-S2)

• Fabric Guide (BLES8-FG)

• Fabric and Hemming Guide (BLC4-FHG)

• Lace Applicator Foot (BLE8-LF)

• Open Toe Foot (BLE8-OT)

• Pintuck Foot with Guides (BLE8-PTF)

• Plain Hemmer 1/2" (BLE8-S6)

• Ruffling Foot (BLE8-RF)

• Single Downturn Feller 5/8" (BLE8-S8)

• Single Fold Bias Binder 28mm (BLE8-S4)

• Teflon Flat Sole Foot (BLE8-TF)

• Double Fold Bias Binder Knit Woven 10mm (BLCS-DFBB10)

• Single Fold Bias Binder Knit Woven 15mm (BLES8-SFB15)

• Swing Guide (BLES8-SG)

Warranty

• 25 year limited

• 10 year parts

• 5 year electrical

• 1 year labor
