Reflection Specifications

BABY LOCK

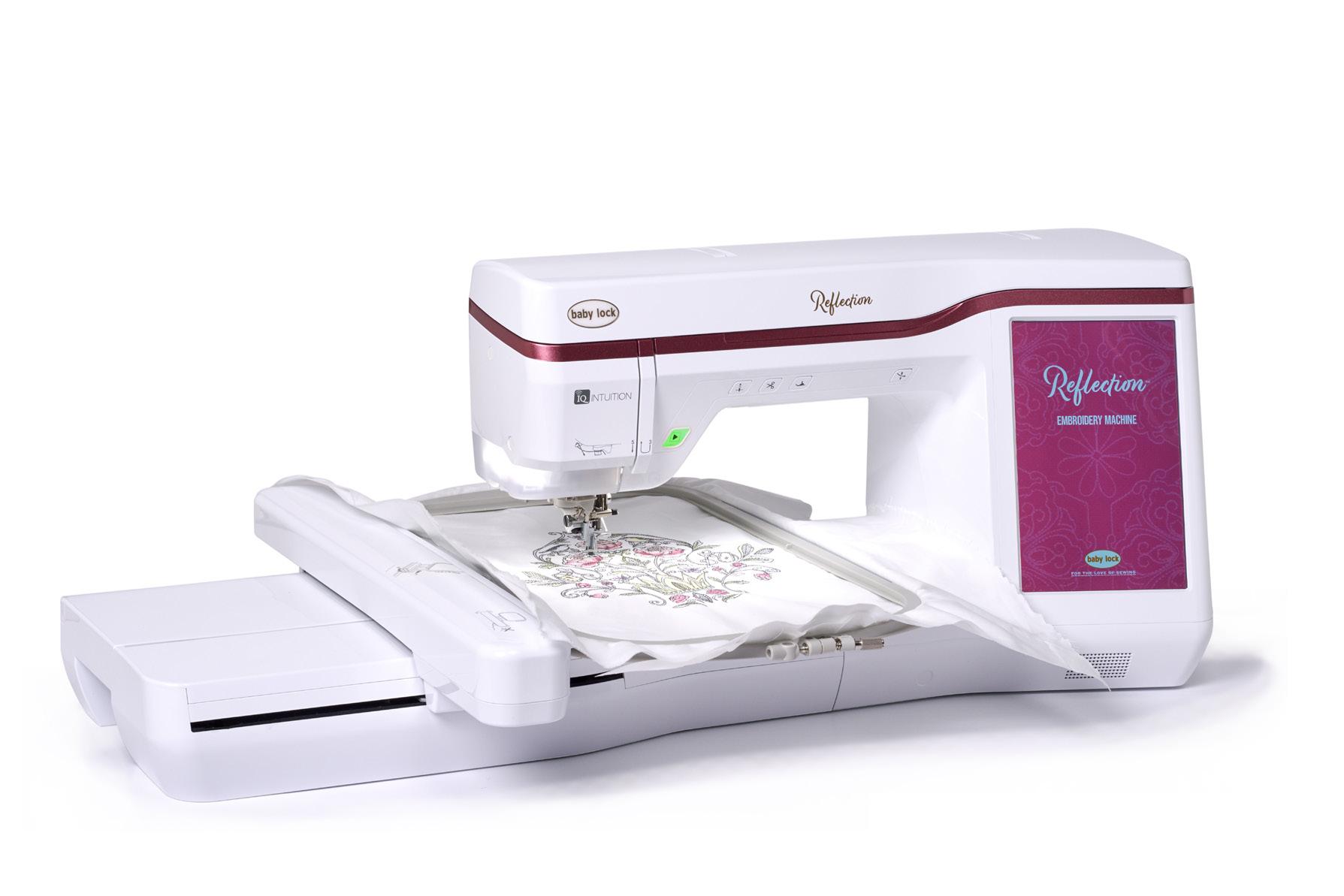

Embroidery Machine The Reflection is built for embroidery lovers who want more space, more control, and more time to enjoy the process. With easy design placement and remote progress monitoring, it helps you stitch bigger projects—without the guesswork.

NeverMiss™ Automatic Needle Threader

9-1/2" x 14" Embroidery Field

2-Point Positioning

IQ Intuition Monitoring® App

10.1" LCD Touchscreen

BabyLock.com

Embroidery Machine

9-1/2" x 14” Embroidery Field

Needle Beam

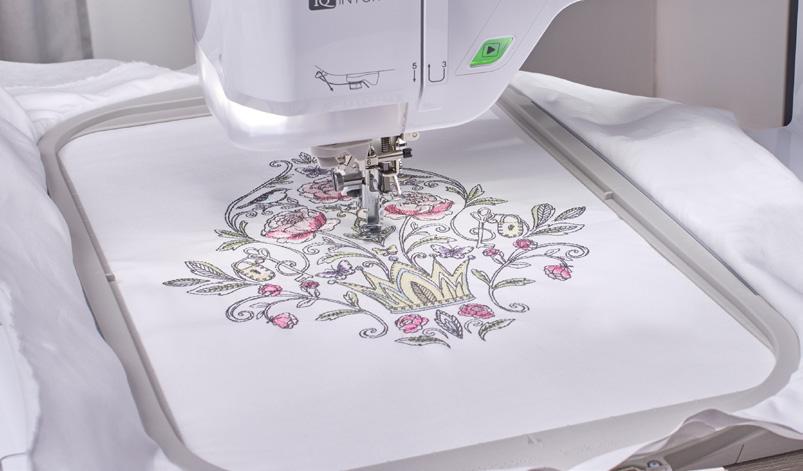

Embroider larger designs without having to re-hoop your fabric with the 9.5" x 14" (240mm x 360mm) hoop.

Know exactly where your needle will drop every time with a brilliant LED pointer on the included embroidery foot.

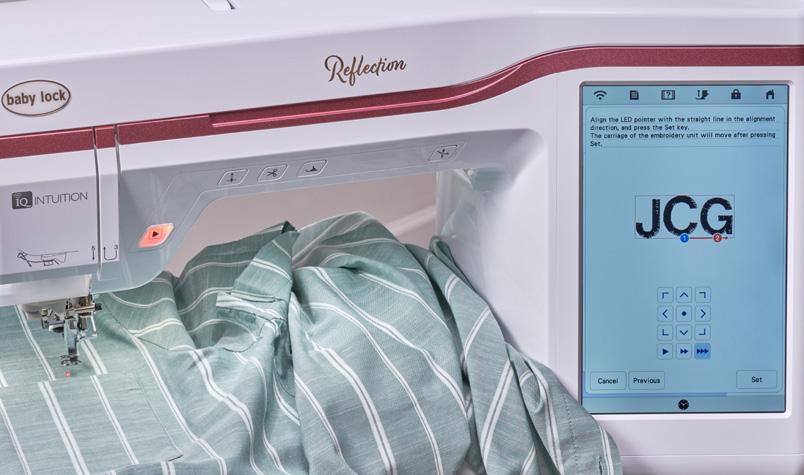

2-Point Positioning Use the 2-point positioning function, with LED pointer, to preview the position of your embroidery design. Then, adjust the position and angle for precise alignment.

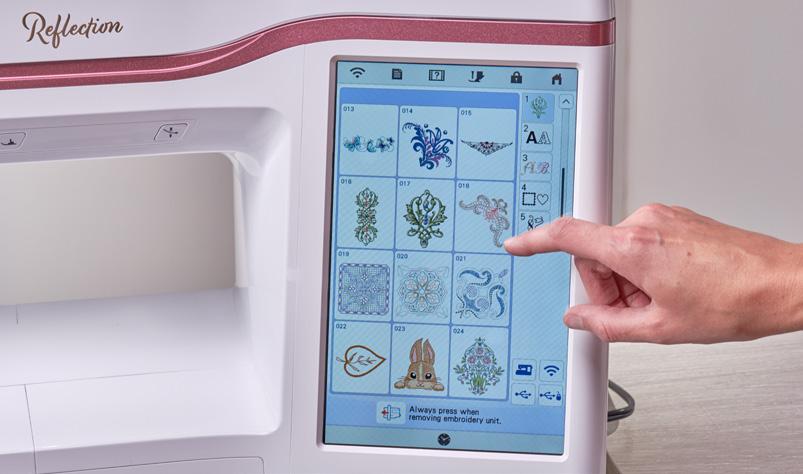

10.1” LCD Touchscreen The large, color LCD vividly displays embroidery designs and makes it easy to change your machine settings.

IQ Intuition Monitoring® App

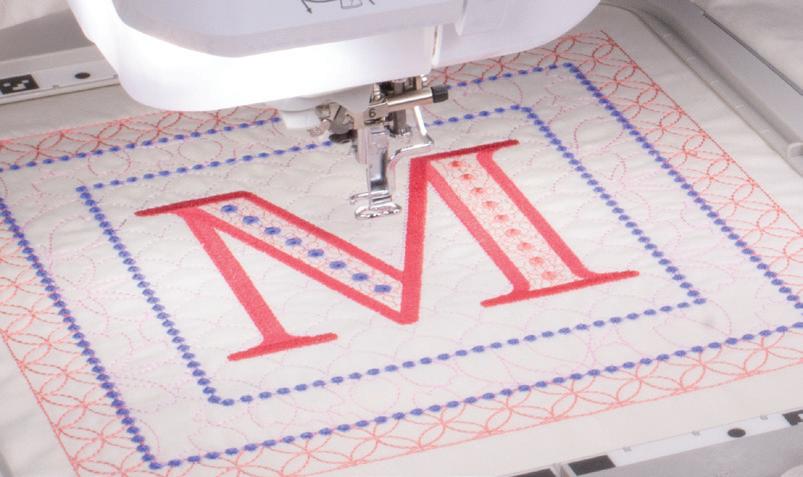

Quilting Around an Embroidery Pattern

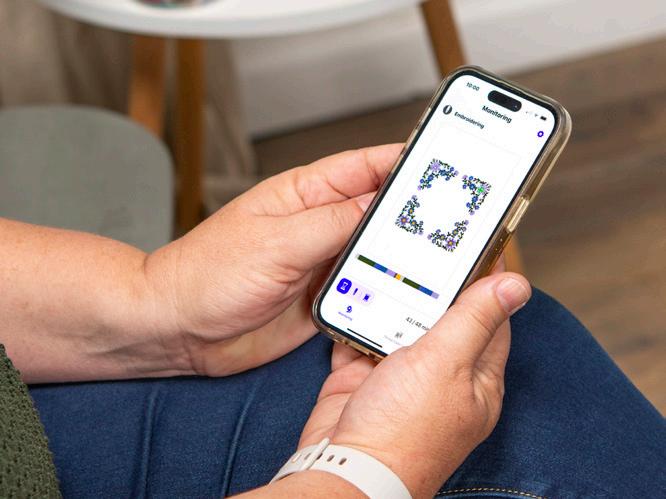

Keep track of your project’s progress with this convenient feature that alerts your phone when the bobbin needs to be changed, if a thread breaks, if a thread needs to be changed, and when stitching is done.

Add stippling, echo quilting, or any of the 30 Decorative Fill patterns from IQ Designer around a selected design. Line spacing, distance, and frame size are easily adjustable.

Convenience Features • LCD Color Touchscreen with touch pen • Needle Beam • 11-1/4" workspace to the right of the needle • Auto presser foot lift • Enhanced Stadium Lighting • 2 USB drives: 1 (Type A) and 1 (Type B) • NeverMiss™ Automatic Advanced Needle Threading System • Automatic thread cutter with on/off capability • Quick-Set, top-loading bobbin with sensor • Quick-Set independent bobbin winding system with variable speed • Automatic sensors • Embroidery speed up to 1,050 spm • 24 embroidery designs • 26 fonts plus 6 large decorative alphabets • 140 frame combinations • Matrix copy • Color visualizer • Embroidery progress bar • Stitch Simulator Preview Included Accessories • Embroidery foot with LED pointer • Touch pen (stylus) • Embroidery hoops and grids o 9.5" x 14" (240mm x 360mm) o 5" x 7" (130mm x 180mm) • Plus more Optional Accessories • Palette 11 (ECS11) • Magnifying Lens (BLMA-ML) • Magnetic Frames • 12" x 7" (300mm x 180mm) (EMF300) • 7" x 5" (180mmx130mm) (EMF180) • Additional Embroidery Hoops • 12" x 8" (300mm x 200mm) (EF92) • 9.5" x 9.5" (240mmx240mm) (EF97) • 8" x 8" (200mm x 200mm) (EF91) • 6" x 6" (150mm x 150mm) (BLMA-150) • 4" x 4" (100mm x 100mm) (EF74) Warranty • 25-year limited • 10-year parts • 5-year circuit boards • 5-year electrical • 1-year labor

Service

T he Ba by Lo ck Edu cation We provide you with a Ex pe rie nc e comprehensive library of education and training so you’ll always have something to learn.

We provide the highest quality products and services, and can meet your needs better than anyone else.

For a complete list of specifications and accessories visit BabyLock.com

Su pport You can rely on Baby Lock for the support you need to get the most out of your machine.

LBSP-BLRT
