Baby Lock Meridian 2 Spec Sheet

BABY LOCK

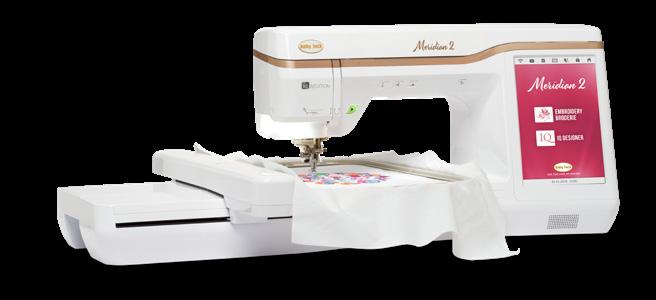

Meridian 2 Embroidery Machine

Unleash your inner artist! The Baby Lock Meridian 2 embroidery machine will inspire you to unlock your artistry and creative possibilities. It features a myriad of stitch options to customize your design and IQ Technology® that allows you to wirelessly transfer images to your machine from your smart device using the IQ Intuition Positioning® App for perfect design placement in the hoop or design creation in IQ Designer.

IQ Intuition Positioning® and Monitoring Apps

9-1/2" x 14" Embroidery Field

IQ Designer

534 Built-in Embroidery Designs

NeverMiss™ Automatic Needle Threader

BabyLock.com

Meridian 2

Embroidery Machine Convenience Features • 111/4" workspace to the right of the needle • Quick-Set top-loading bobbin with sensor • Quick-Set independent bobbin winding system with variable speed

• Automatic thread cutter with on/off capability

• Auto presser foot lift • NeverMiss™ Automatic Advanced Needle Threading System

IQ Intuition Positioning®

This innovative app allows you to take a photo of your fabric in a special hoop and wirelessly transfer it to your machine. The image will display onscreen in lifelike color and high resolution, allowing you to position your design exactly where you want it, how you want it, every time.

2-Point Positioning

Included Accessories

IQ Designer

Create your own designs with ease! You can draw on the screen, scan your favorite artwork, upload an existing file using a USB drive, or wirelessly send artwork to your machine. Your art will instantly convert for embroidery!

Needle Bea m

Use the 2-point positioning function, with needle beam, to preview the position of your embroidery design, then adjust the position and angle for precise alignment.

Know exactly where your needle will drop every time with a brilliant LED pointer on the included embroidery foot.

IQ Intuition Monitoring® App

Quilting Around an Embroidery Pattern

Keep track of your project’s progress with this convenient feature that alerts your phone for a bobbin change, a thread break, a thread color change, and when stitching is finished.

Add stippling, echo quilting, or any of the 30 Decorative Fill patterns from IQ Designer around a selected design. Line spacing, distance, and frame size are easily adjustable.

• Touch pen (stylus) • Embroidery foot with LED pointer • Embroidery Couching Foot and Guide • Soft canvas cover • Alternate bobbin case and bobbin center pin for use with prewound bobbins • Embroidery bobbin thread • Bobbins (10) • Embroidery positioning stickers (4 sheets of 64) • Lens callibration sheet for use with the IQ Intuition Positioning® App • Needle set • Spool caps (5) • Spool felt and spool nets (2) • Embroidery needle plate cover • IQ Intuition® embroidery hoops and grids included: • 91/2" x 14" (240mm x 360mm) • 5" x 7" (130mm x 180mm)

Optional Accessories

• IQ Intuition® embroidery hoops: • 91/2" x 91/2" (240mm x 240mm) (EF97S) • 4" x 4" (100mm x 100mm) (EF74S) • 7" x 12" Magnetic Frame (EMF300) • Standard embroidery hoops, (Note: Standard hoops are not recognized by the positioning app.)

• 8" x 12" (200mm x 300mm) (EF92) • 6" x 6" (150mm x 150mm) (BLMA-150) • Continuous border 4" x 12" (100mm X 300mm) (BLMACBH) • 23/8" x 3/4" (60mm x 20mm) (EF73) • Palette 11 (ECS11) • Thread stand (holds 10 spools) (BLMA-TS)

Warranty

• 25-year limited • 10-year parts • 5-year computer circuit • 5-year electrical • 1-year labor

Service

T he Ba by Lo ck Edu cation We provide you with a Ex pe rie nc e comprehensive library of education and training so you’ll always have something to learn.

We provide the highest quality products and services, and can meet your needs better than anyone else.

For a complete list of specifications and accessories visit BabyLock.com

Su pport You can rely on Baby Lock for the support you need to get the most out of your machine.

LBSP-BLMA2 (4/24)
