Baby Lock Venture Spec Sheet

BABY LOCK

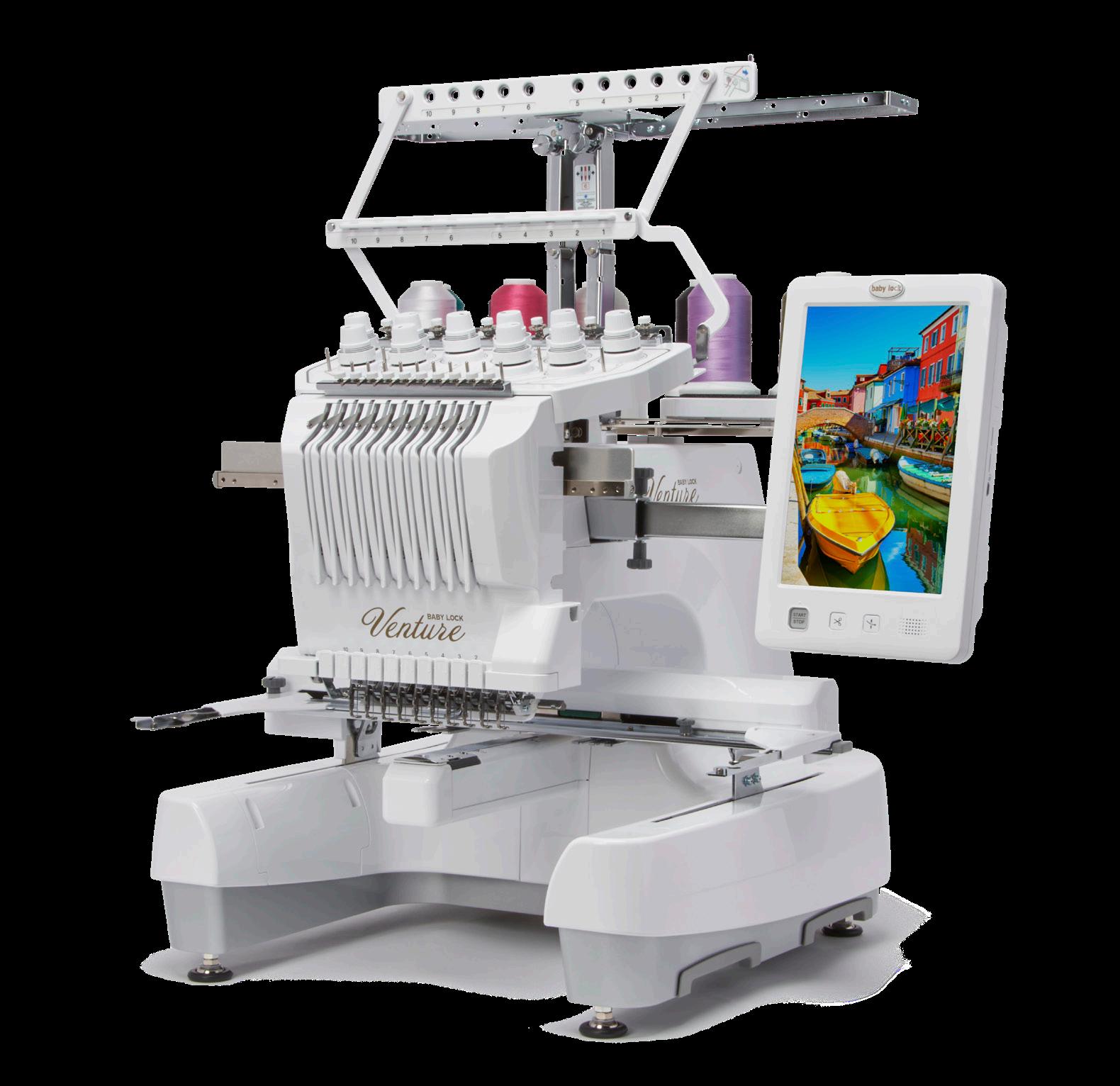

Embroidery Machine The Baby Lock Venture 10-needle machine allows you to take on even more designs and projects. The Venture’s free-arm design makes it easy to add embroidery to difficult-to-hoop projects, such as tote bags, t-shirts, etc. You can accomplish a multitude of projects with any design from the simplest to the most sophisticated.

10 Needle Machine

7-7/8" x 14" Embroidery Field

IQ Intuition Monitoring®

Perfect Positioning

IQ Designer

BabyLock.com

Venture

Technology Features

• Color LCD Touch Screen IPS (TFT) • Software/Connectivity - 3 USB drives ° 2 (Type A) ° 1 (Type B) • Linking capabilities allow up to 10 machines to connect to Palette 11 or later software through a wireless connection • Reads multiple formats (PES, DST, PHC, PHX)

Embroidery Machine

Included Accessories

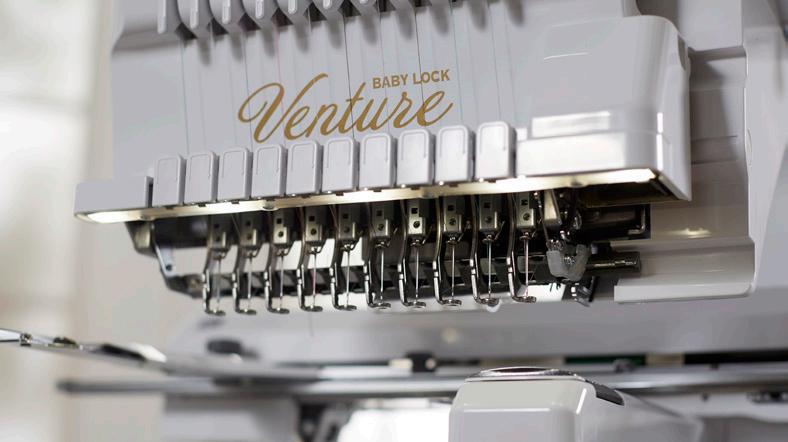

Ten Needles

With 10 needles available, enjoy continuous embroidery. No need to stop and change your thread for each color change. Simply set and walk-away.

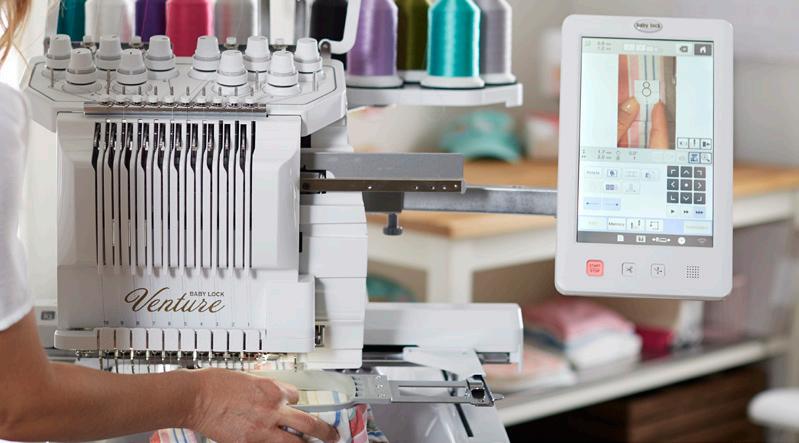

Perfect Positioning

The NeedleCam™ Digital Camera lets you see from the needle’s point of view, so you know exactly where the needle will drop.

• Touch pen (stylus) • Accessory Case • USB cable • Embroidery Positioning Stickers • Embroidery frame holder “A” • Embroidery frame holder “B” • Scanning frame and magnets • 4 Embroidery hoops with grids ° 7-7/8” x 14” (200mm x 360mm) ° 5-1/8” x 7-1/8” (130mm x 180mm) ° 4” x 4” (100mm x 100mm) ° 1-1/2” x 2-3/8” (40mm x 60mm) • And more...

Optional Accessories

• Baby Lock Palette 11 (ECS11) • Deluxe Embroidery Stand (ALSTAND) • Embroidery Extension Table (ENTABLE) • Narrow Support Table (ESTABLE) • Additional Hoops: • 14” x 14” Embroidery Hoop (ENJF) • Cap Frame Set (EPCF4) • Cap Frame Only (EPCF4H) • Magnetic Frame (ENMF360) • 7 7/8” x 11 ¾” Flat Frame (BMP-FF) • 3” x 8” Sleeve Hoop (ENSF) • 8”x 8” Quilting Hoop (ENF200) • And more...

Convenience Features

IQ Designer

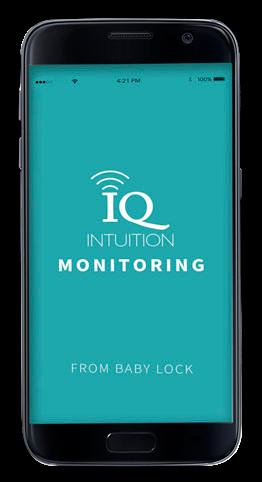

IQ Intuition Monitoring®

Create your own designs with ease. Draw directly on Keep track of your project’s progress with this the screen, scan in your favorite line art or upload an convenient feature that alerts your phone when the existing file. Your art will be automatically converted bobbin needs to be changed, if a thread breaks, if a into an embroidery design! thread needs to be changed and when stitching is done.

• 5 LED lights • Built-in memory (10MB) • Bobbin system: front loading, vertical rotary hook • Push button, automatic needle threaders • Upper thread breakage sensors • Manual tension controls • Automatic thread trimmer • Start/Stop button with lock feature • On-screen speed control • Uses pre-wound bobbins • Choose units of measure (inches or mm.)

• Auto save feature

Customizing Features

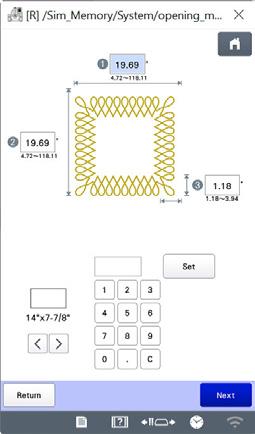

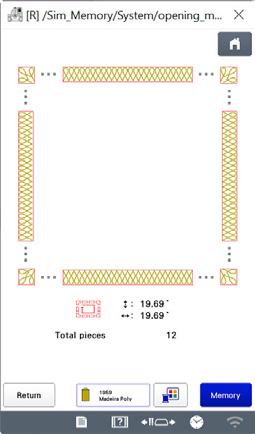

Auto-split of Large Quilting Border Patterns

Create beautiful quilt borders and sashing with unmatched precision. Put in your dimensions and the Venture measures for you.

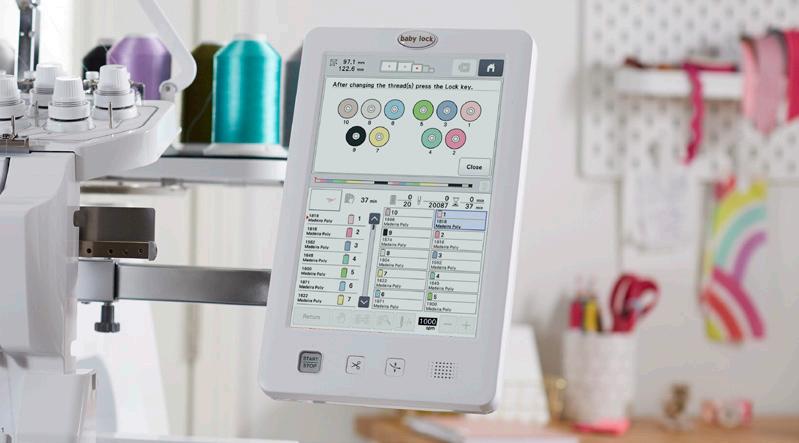

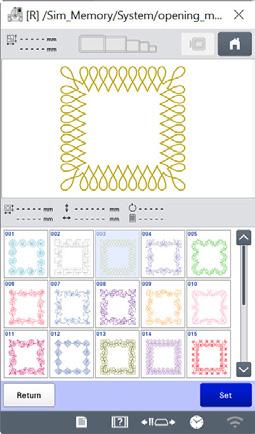

New Thread Spool Diagra m on Screen

The thread spool indicator diagram shows which spools need to be changed or threaded for a design.

They also alert you to which spools need attention if an error such as a thread breakage occurs.

Service

T he Ba by Lo ck Edu cation We provide you with a Ex pe rie nc e comprehensive library of education and training so you’ll always have something to learn.

We provide the highest quality products and services, and can meet your needs better than anyone else.

• Built-in embroidery designs • 51 Fonts (36 regular, 1excl, 14 fancy) • Combine embroidery designs on screen • Character/text array function • Character spacing • Left, center, or right text justification • Multi-line text • Character insert and group edit capabilities • 0.1°, 1°, 10°, and 90° Pattern rotation • Enhanced design enlargement (up to 200%) and reduction (down to 60%) capabilities • Intuitive forward and reverse placement by touchable progress bar and direct number input • Design duplication • Automatic appliqué • Automatic basting • Automatic stippling and echo quilting around embroidery designs • Mirror imaging • Enhanced color sorting • Thread color display in 13 options • Hoop sensor • Stitch simulator Warranty: 25-year limited, 2-year parts, 5-year computer circuit, 5-year electrical, 1-year labor

Su pport

You can rely on Baby Lock for the support you need to get the most out of your machine.

For a complete list of specifications and accessories visit BabyLock.com

LBSP-BMVT10 7/2023
