Baby Lock Regent Spec Sheet

BABY LOCK

Longarm Quilting Machine Quilt your way, every day! The speedy, versatile Regent makes it easy to quilt. Regent also includes a height-adjustable table with the new Stitch Harmony™ Stitch Regulation built right in! Use Stitch Harmony for consistently-sized stitches or stitch in the manual mode. It’s the ideal long arm quilting machine for any sewing room.

Stitch Harmony™ Regulation

Creative Workspace

Stitches Per Minute

“M” Class Bobbin

LCD Touch Screen

BabyLock.com

Regent

Technical Features

Longarm Quilting Machine

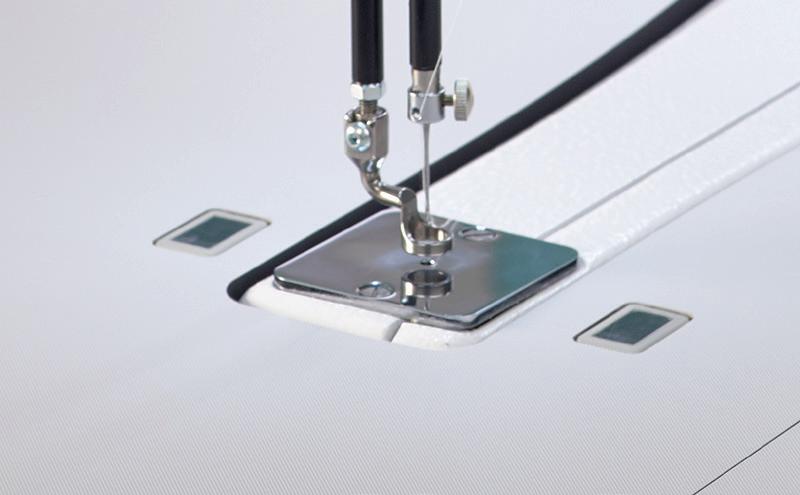

Sensors send a message to the computer to regulate speed of stitches.

Sensors detect fabric motion speed.

Stitch Harmony Stitch Regulation

Enjoy free-motion quilting at a comfortable pace with the Stitch Harmony Stitch Regulation. Built into the Regent’s table insert, the automated regulator helps you achieve evenly spaced, consistent stitches every time. This easy-to-use stitch regulation is helpful for quilters of all skill levels.

8.25” 18”

• Throat space is 18” wide x 8.25” high • Stitch HarmonyTM built-in stitch regulation • Lighting: LED adjustable lighting for the needle and quilting area • 1/4” Interchangeable Hopping foot • Maximum sewing speed of 2,200 spm • Stitch length from 4 to 22 stitches per inch • Customizable speed control • The needle will take a half stitch or full stitch when the needle up/down button is pressed • Quick-Set Tension makes adjusting upper thread tension easier as the digital read-out appears on LCD screen • Basting option allows you to baste layers every .5, .75, 1, 1.5, or 2 seconds • Responsive foot pedal with half-stitch control • User-friendly, adjustable color LCD touch screen shows: o LED lighting options o Stitch counters o Diagnostics o Calculator o Low bobbin warning oS titch regulator settings when using Stitch Harmony Stitch Regulator • Programmable Needle Positioning: Needle Up/ Down • High speed rotary hook • Large capacity “M” class bobbin • Low Bobbin Estimator warns you when you are running low on bobbin thread o Store three bobbin thread capacity settings based on your preferred thread • External electric bobbin winder with variable speeds • Smooth table surface assures even flow of quilt

Additional Information

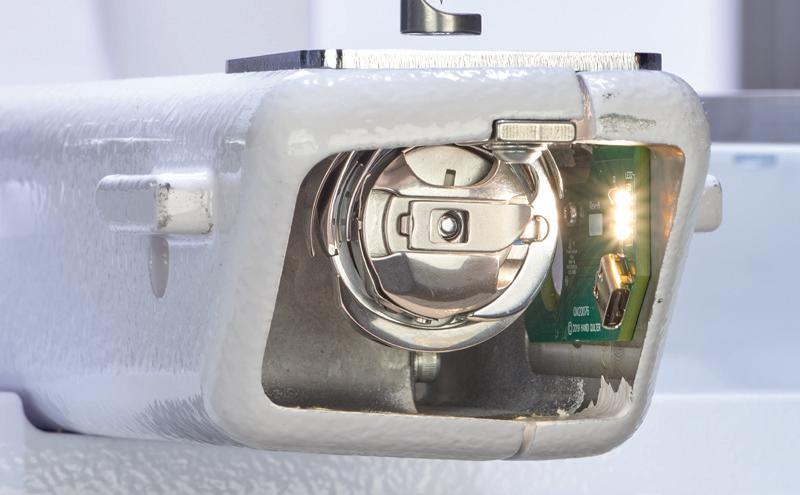

M-Class Bobbin

You’ll need fewer bobbin changes with the highspeed rotary hook and large-capacity M-class bobbin.

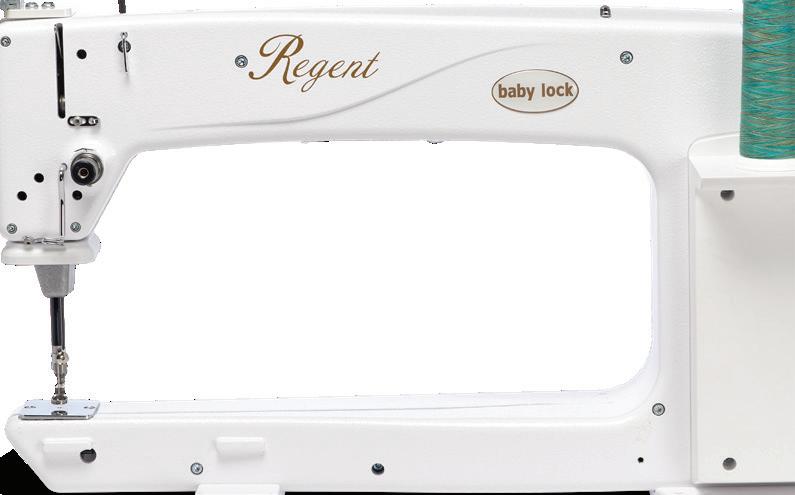

18” Creative Workspace

With 18” to the right of the needle and an 8.25” high throat space, the Regent gives ample room to finish quilts of all sizes.

• 4 Languages (English, Spanish, French, German) • Solid cast aluminum construction • Internal Brushless DC motor • Machine weight - 53 lbs.

• Table weight - 59 lbs.

• Warranty: 10-year limited manufacturer’s warranty, 5-year parts, 5-year computer, 5-year electrical, 90 day labor • Ask your Baby Lock Retailer about machine maintenance programs

Included Accessories

• Quilting Table (36” x 31-3/4”) with adjustable height settings from 26.6” x 39.6” • Electronic bobbin winder with variable speeds • Thread mast • Interchangeable Open Toe Hopping Foot

Optional Accessories

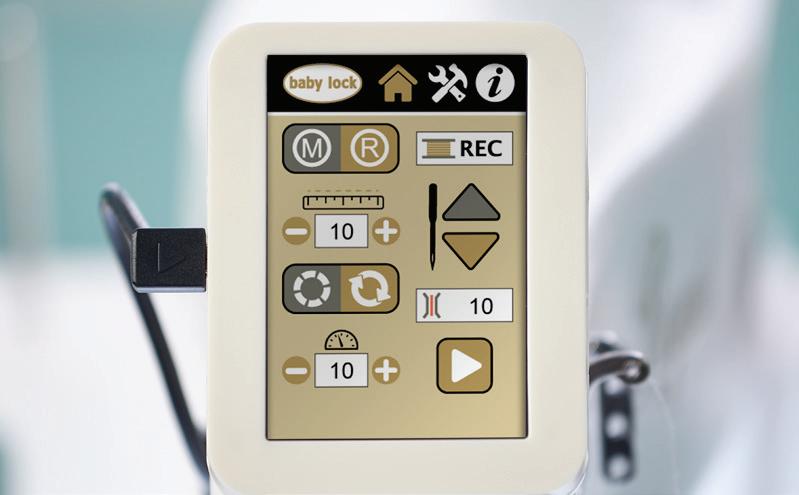

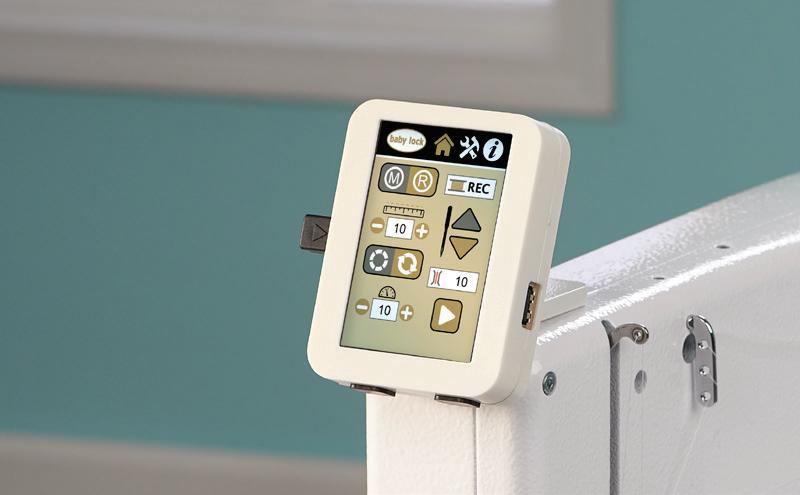

User-Friendly Interface

Access your hardware and software options, lighting options, stitch counters and more through the intuitive LCD touch screen.

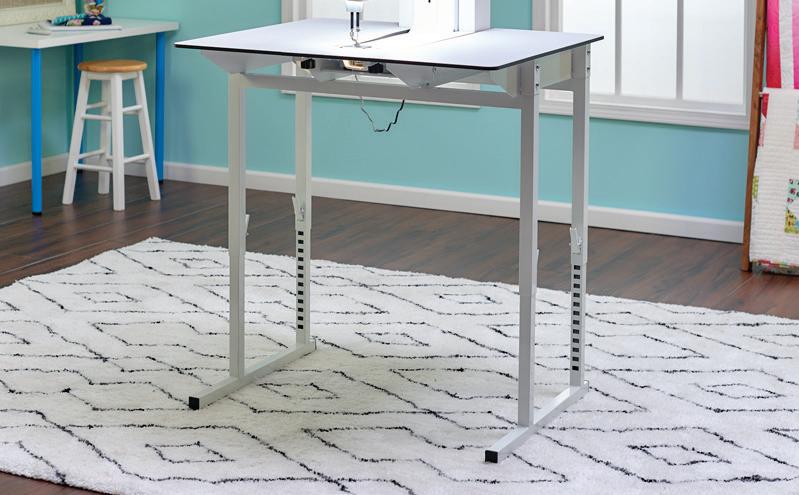

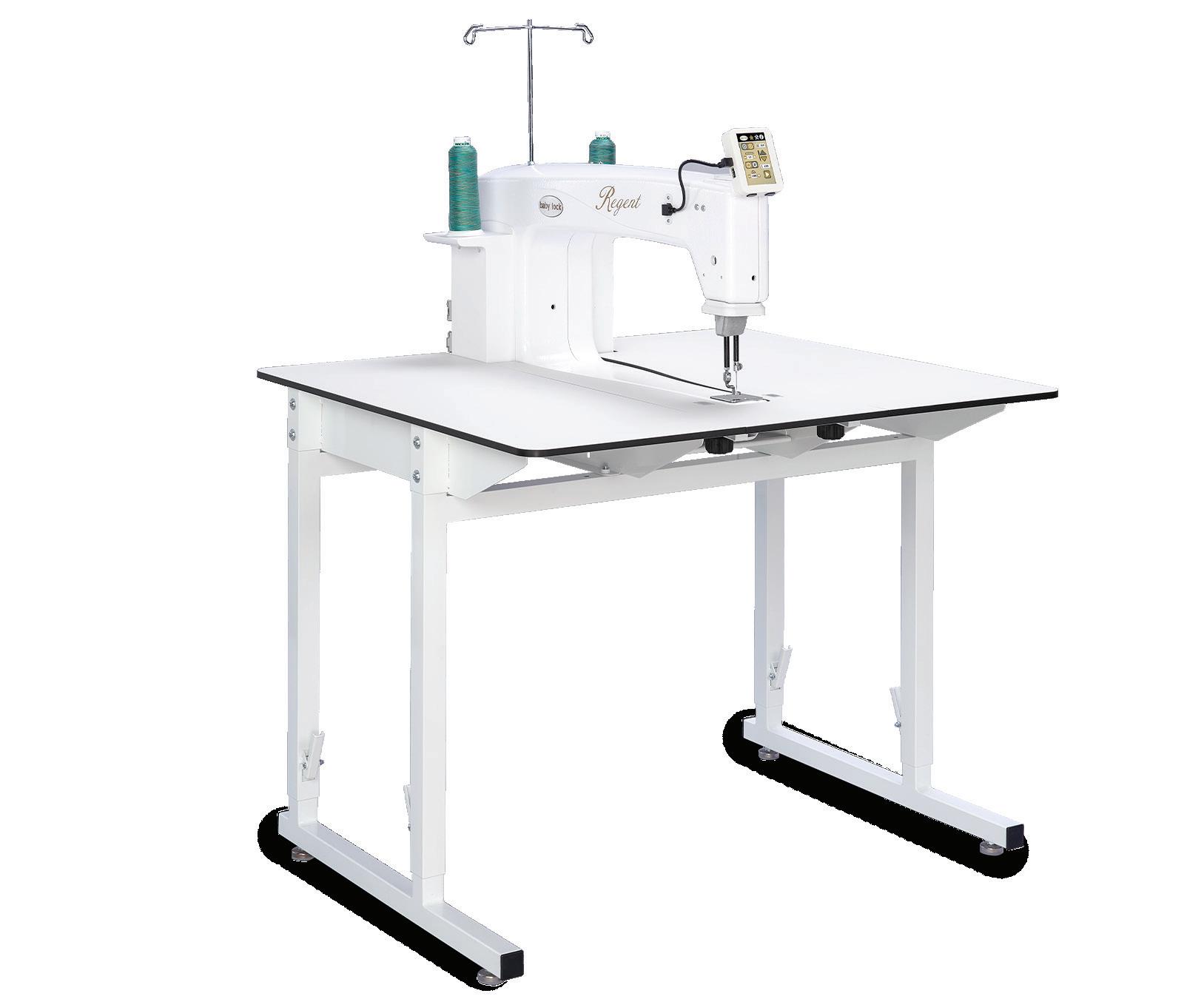

Smooth, Adjustable Table

The Regent comes with its own quilting table with Stitch Harmony Stitch Regulation built right in.

Service

T he Ba by Lo ck Edu cation We provide you with a Ex pe rie nc e comprehensive library of education and training so you’ll always have something to learn.

We provide the highest quality products and services, and can meet your needs better than anyone else.

Su pport You can rely on Baby Lock for the support you need to get the most out of your machine.

• Love of Sewing Membership (# LOSML2) • Horizontal Spool Pin – (# BLJ18-HS) • Regent 18” Quilting Table Extension (# BLTRT18-E) • Casters set of 4 (# BLTRT18-CASTER) • Needle Beam (# BLQ-NB) • Ruler and Echo Foot Set (# BLQ-REFS) • Ruler Kits (# BLRK-HSLA, BLRK2-HSLA, BLRK3HSLA) • Rope Template (# BLRT-HSLA) • Glide Foot (# BLQ-GF2) • Creative Couching Set (# BLQ-CCF)

For complete list of specifications and accessories visit the Our Products section at BabyLock.com

LBSP-BLRT18
